Exploratory Analysis of Commercial Olive-Based Dietary Supplements Using Untargeted and Targeted Metabolomics

Garcia-Aloy, Mar; Groff, Nelli; Masuero, Domenico; Nisi, Mauro; Franco, Antonio; Battelini, Furio; Vrhovsek, Urska; Mattivi, Fulvio

doi:10.3390/metabo10120516

Open AccessArticle

Exploratory Analysis of Commercial Olive-Based Dietary Supplements Using Untargeted and Targeted Metabolomics

¹

Metabolomics Unit, Research and Innovation Centre Fondazione Edmund Mach, Food Quality and Nutrition Department, 38098 San Michele all’Adige, Italy

²

Agraria Riva del Garda S.C.A., 38066 Riva del Garda, Italy

³

Ethifenol S.R.L., 24128 Bergamo, Italy

⁴

Department of Cellular, Computational and Integrative Biology—CIBIO, University of Trento, 38123 Povo, Italy

^*

Author to whom correspondence should be addressed.

Metabolites 2020, 10(12), 516; https://doi.org/10.3390/metabo10120516

Submission received: 21 November 2020 / Revised: 16 December 2020 / Accepted: 17 December 2020 / Published: 19 December 2020

(This article belongs to the Special Issue Plant and Derived Natural Product Metabolomics)

Download

Browse Figures

Versions Notes

Abstract

:

The market of olive-based dietary supplements (OBDS) is composed of a broad range of natural extracts claiming different health effects and often sold without a clear statement on their chemical composition. The aim of this survey was to characterize the chemical profiles of 14 commercially available OBDS. As many as 378 compounds were tentatively annotated in the analyzed samples. Although for most of metabolites the annotation at level I was prevented due to the lack of the analytical standard, the spectra obtained from high-resolution tandem mass spectrometry (MS/MS) measurements were very informative, allowing annotation of dozens of metabolites at level II or III. A targeted method allowed the quantification of 26 selected compounds. A large qualitative and quantitative variability was observed. The products obtained from buds by glyceric maceration were those with the lowest concentrations of all the quantified elements. The dose of 5 mg of hydroxytyrosol, corresponding to the European Food Safety Authority (EFSA) health claim, was only reached by four products, all of them originating from the olive fruit or the leaves. If we also take into consideration oleuropein, two additional products provide this daily amount. This work demonstrates the high complexity and diversity in the composition of OBDS.

Keywords:

olive-based products; dietary supplements; foodomics; chemical composition; metabolomics; mass spectrometry

1. Introduction

The current market for dietary supplements makes a wide range of products available to consumers. The market value of such products in the European Union (EU) reached 7.2 billion euros in 2015, with Italy being the leading country with 1.4 billion euros, projected to increase to 1.6 billion euros in 2020. Italy was followed by Germany (967 m€), Russia (888 m€), the UK (737 m€), and France (684 m€) [1]. Their consumption is probably enhanced by the fact that the sale of these products is usually accompanied by messages that highlight their composition (i.e., nutrition claims) and/or their beneficial effects on human health (i.e., health claims), and does not require an explicit prescription and/or supervision from a health professional. In Europe, food supplements are regulated according to national laws in harmony with EU Directive 2002/46/EC, whereas their labeling, in terms of nutrition and health claims, is governed by Regulation (EC) No 1924/2006. Only authorized claims are allowed, following the evaluation of the relevant scientific evidence by the European Food Safety Authority (EFSA). These claims represent an important opportunity in the marketing strategy of products containing doses of active ingredients of proven efficacy for the target population. One of these claims refers to the beneficial effects of olive oil, specifically stating that “olive oil polyphenols contribute to the protection of blood lipids from oxidative stress” [2]. This claim is allowed for olive oils that contain at least 5 mg of hydroxytyrosol and its derivatives (e.g., oleuropein complex and tyrosol) per 20 g of olive oil. However, although such a condition refers to olive oil as a food constituent, the EFSA later confirmed that the use of hydroxytyrosol extract as functional ingredient has not been associated with adverse effects and is safe for human health [3].

In line with this, there is a considerable variety of diverse commercial olive-based dietary supplements (OBDS) already available in the market. They differ in terms of administration (i.e., capsules, pills, liquid or solid extracts, etc.) and parts of the plant used (i.e., fruit, leaves, buds, etc.), claiming different health effects and often sold without a clear statement on their chemical composition. It is difficult for consumers to find their way around this jungle. The facility with which consumers can acquire these products makes a comprehensive knowledge of their composition necessary.

In the last few years, olive oil by-products such as leaves, pomace, olive mill wastewaters or stones have attracted increasing attention as an alternative source of olive phenolic compounds, which have an already recognized potential health value [4]. A motivation for the valorization of these waste products is to promote and implement the circular economy principle in the industry and move towards a sustainable agriculture. One of the exploitation field of these by-products could be the production of functional foods, food supplements or nutraceuticals. A functional food has been defined as “a food, which beneficially affects one or more target functions in the body, beyond adequate nutritional effects, in a way that is relevant to either an improved state of health and well-being and/or reduction of risk of disease.” [5]. On the other hand, food supplements have been defined as “concentrated sources of nutrients or other substances with a nutritional or physiological effect that are marketed in “dose” form (e.g., pills, tablets, capsules, liquids in measured doses) that are intended to correct nutritional deficiencies, maintain an adequate intake of certain nutrients, or to support specific physiological functions” [6]; whereas nutraceuticals are mostly referred to as pharma-foods and considered to be in the grey area after diet, but before drugs, with a specific health added value for the prevention or treatment of pathological conditions [7]. In parallel, the National Institutes of Health (NIH) of the United States of America (USA) define “dietary supplements” as those products intended to supplement the diet that are not medicines and that are not intended to treat, diagnose, mitigate, prevent, or cure diseases [8]. However, this area is not completely regulated in either Europe or the USA, and there is an open discussion on the need of improving the regulatory framework [7].

In the case of the OBDS currently present in the market, even if their origin is always the olive tree, their composition could differ accordingly to the part of the plant used. Therefore, the aim of this study was to identify and quantify the main compounds present in a range of different OBDS. Untargeted metabolomics was employed to profile the composition of OBDS in order to capture their chemical complexity. Targeted quantitative analysis was conducted for a series of identified components for which commercial standards were available. We analyzed 14 OBDS bought through the internet and in different local shops. This work provides valuable information to the community about the composition and diversity of these products.

2. Results

2.1. Untargeted Metabolomics: Identified Compounds

After processing the files, 487 features were detected in negative and 527 in positive mode, which were annotated to a total of 378 unique compounds. Out of the 378 constituents, 202 were annotated at different levels of confidence (Table 1): 15 were identified at level I, 66 at level II, and 121 at level III. Of these, 21 were unknown compounds assigned to a generic class based on their fragmentation patterns (all of them assigned to level III). The remaining 176 compounds present in the samples were not assigned (Table S1, level IV or V, depending on whether the molecular formula could be found or not) [9]. Most of the annotated compounds were polyphenols or secoiridoid-derived constituents, although some polar metabolites, such as organic acids, sugars, sugar alcohols and sugar acids, were also observed. Table S2 lists the main fragment ions generated by the tandem mass spectrometry (MS/MS) experiments in both ionization modes for all detected compounds. In the table we report the fragments with a relative intensity >10% together with the corresponding diagnostic ions (when available).

Organic acids constituted 6 out of 180 identified compounds (C001–C006). These included the quinic, malic, citric, isocitric and succinic acids. All of them were identified from the comparison of their retention times (RTs) and fragmentation patterns with their respective analytical standards. Additionally, gluconic acid (level II) was annotated based on the match of its MS² pattern with the one reported in the mzCloud database.

Six sugars were also annotated (C007–C012). They were a 6-carbon sugar alcohol, one sugar acid, and one each of a mono-, di-, tri- and tetra-saccharide. With the exception of both sugar acids, all their RT and MS² spectra were compared with the analytical standards of the corresponding different isomers. For each compound, both the RT and MS² spectra of each isomer were mostly identical. For that reason, the specific isomer for each of the compounds could not be specified. Therefore, in order to establish their exact identity, it would be necessary to use another analytical technique capable of separating the different isomers.

As already mentioned, and as expected, the vast majority of compounds were in the polyphenols and secoiridoids categories. They will be discussed together due to their high interrelationship, often as constituents of larger compounds comprising subunits of both types of molecules. As expected, among them there was hydroxytyrosol (C050), which was also confirmed by comparison with the chemical standard. Additionally, 3,4-dihydroxyphenylglycol (the hydroxylated derivative of hydroxytyrosol, C049) and tyrosol glucoside (C065, also known as salidroside) were also identified by comparison with their chemical standards. Two hydroxytyrosol glucosides were also identified (C051-C052). Both compounds presented the same fragmentation profile as hydroxytyrosol. That is, the ions at m/z −153.0557, −135.0452 and −123.0452 in negative mode, and the fragments at m/z +155.0703 and +137.0597 in the positive mode. A similar MS² profile showed hydroxytyrosol rutinose (C053), the spectrum of which in negative mode showed the part of the hydroxytyrosol characteristic ions corresponding to the loss of the rhamnose moiety at m/z −315.1085. In the positive mode, the diagnostic fragments were +301.1283 (loss of hexose), +265.1070 (loss of hexose and two water groups) and +309.1180 (loss of a dehydrated hydroxytyrosol moiety). Compounds C054–C057 could be dimers of hydroxytyrosol. All isomers presented diagnostic fragments in their MS² spectra, but they were not always the same. Among them, there were the aforementioned characteristic ions of hydroxytyrosol, together with the fragments obtained by the loss of one or two CH₂O moieties (i.e., the ions at m/z −275.0925 and −245.0819, respectively) or by the loss of a water unit at m/z −287.0925. The small differences in the fragmentation pattern are probably related to how the two hydroxytyrosol molecules were joined.

A total of 15 compounds (C017–C031) were tentatively identified as apigenin-, luteolin- and quercetin-derived flavonoids. MS² experiments revealed that, in most cases, the ion corresponding to the aglycone was the main fragment. Flavonoid rutinosides also showed the ion fragment derived from the loss of the rhamnose moiety in the positive mode. The level II of identification was assigned when the pseudo-MS³ of the corresponding aglycone was available and it matched with the data from mzCloud, whereas others were assigned as level III since there was not enough information to confirm the fragmentation pattern of the aglycones. It is biologically plausible that they are these aglycones (and not any other potential isomer) since they have already been detected in olive matrices [10].

Another major class of polyphenols was that of cinnamic acid derivatives (C032–C048). The main fragment in negative ion mode for both caffeic acid hexoside (C032) and rutinoside (C033) was the ion corresponding to deprotonated caffeic acid (−179.0350), which differs from the precursor ion matched with the loss of a hexose and a rutinose moiety, respectively. On the other hand, the MS² spectra of caffeic acid ethyl ester (C034), as well as those for both caffeoyl-threnoic acid isomers (C035–C036) were composed by the characteristic fragment ions of caffeic acid in negative mode (i.e., m/z at −179.0350, −161.0244, −135.0452). Two features eluting at 336 s from negative ion mode dataset clustered together, one of them corresponding to the dehydrated form of caffeic acid (−161.0244). Indeed, the MS² spectrum in negative mode of the ion with the highest m/z value (−477.1402), which matched the C₂₃H₂₆O₁₁ molecular formula, was composed by the ion derived from the loss of the caffeoyl moiety of the compound (−315.1085), as well as by the aforementioned characteristic ion of caffeic acid dehydrated (−161.0244). The MS² spectrum in positive also included the latter ion (+163.03899), as well as the ion formed by the loss of a water together caffeic (+299.1126) and hydroxytyrosol (+325.09184) moieties, respectively, a part of the ions generated by the loss of one (+443.1334) and two (+461.1443) water moieties. Therefore, considering this information, this compound was tentatively annotated as calceolarioside B (C037), a caffeoyl phenylethanoid glycoside which consists of a molecule of caffeic acid linked to a molecule of hydroxytyrosol and another of glucose. On the other hand, the feature at m/z −359.0773 corresponded to the C₁₈H₁₆O₈ molecular formula. This formula could match either rosmarinic acid (C038) (ester of caffeic acid and 3,4-dihydroxyphenyllactic acid) or caffeic-dihydrocaffeic acid. The MetFrag fragmentator only retrieved a potential match of all 4 observed ions in MS² for rosmarinic acid (for caffeic-dihydrocaffeic acid –197.0456 did not match). Additionally, the observed MS² spectrum also matched that reported for rosmarinic acid in the MassBank database (spectrum PR040215). The MS² spectrum of coumaroylquinic acid (C039) agreed with that reported in the MassBank database (PR309014), while the spectra of (neo)chlorogenic acids (C041–C042) coincided with the information contained in mzCloud. The compounds C43 and C44 exhibited the same deprotonated ion at m/z 623.1977, relative to the formula C₂₉H₃₆O₁₅. Both peaks displayed the fragments at m/z −461.1663 and −315.1083, corresponding to the neutral loss of a caffeic acid and a further loss of a rhamnose. The first eluting peak was identified as verbascoside using an authentic standard, and the second as isoverbascoside, known to elute afterward under reverse-phase (RP) chromatographic conditions [11]. The MS² of the molecular ion of hydroxy-verbascoside (C045) (−639.1931) yielded to the main daughter ion at m/z −621.1825, corresponding to the water loss, and three minor fragments at m/z −529.1563, corresponding to the loss of a catechol unit, m/z −487.1457 corresponding to the loss of a dehydrated hydroxytyrosol unit, and m/z −459.1508 associated with the loss of a dehydrated caffeoyl moiety [12]. On the other hand, for both methyl-hydroxy-verbascoside isomers (C046–C047), the ion at m/z −621.1825 could be formed by the loss of a methyl unit, and that at m/z −459.1508 by the further loss of the caffeoyl group [10]. The same diagnostic ions are observed for the MS² of dimethyl-hydroxy-verbascoside (C048).

Five features with the same accurate mass at m/z 539.1770 in negative mode but eluting at different RTs were also detected in the study samples (C068–C072). This value corresponds to the molecular formula C₂₅H₃₂O₁₃, which matches oleuropein (a glycoside of hydroxytyrosol and elenolic acid), one of the main compounds in olives and their derived products. With the exception of the first peak, all of them showed the same fragment ions at m/z −377.1242, −345.0980, −307.0823, −275.0561 and −275.0925. The ion at m/z −377.1243 corresponds to the aglycone, while the other ones are formed by the consecutive losses of other parts of the molecule after the cleavage of the glucosidic bond, matching what is reported in the bibliography for oleuropein and oleuropein aglycone [13]. Oleuropein identity was confirmed by the comparison of its RT and fragmentation pattern with the corresponding analytical standard. Although the first peak presented the same ion at m/z −539.1770, any characteristic fragment for oleuropein was observed. In contrast, its MS² spectrum included the m/z value corresponding to elenolic acid glucoside (−403.1246), as well as some of the characteristic fragment ions corresponding to the loss of the hexose moiety (−223.0612) and a further loss of a CO₂ group (−179.07414) [10]. Since the oleuropein molecule is composed of an hydroxytyrosol, elenolic acid and glucose, we hypothesize that the observed difference in the MS² spectrum could be related with a particular structure of this isomeric form, which led to the fragmentation of the part of the molecule corresponding to the elenolic acid moiety. Three isomers of oleuropein glucoside (C073–C075, i.e., diglycosides of hydroxytyrosol and elenolic acid) were also detected as some of the main compounds in the study samples. Again, the MS² spectrum of the first isomeric form was the only one that did not show the characteristic fragmentation profile of oleuropein, but among their fragments there were the ions −539.1770 and −315.1085, corresponding to the oleuropein and hydroxytyrosol glucoside moieties, respectively. Finally, four isomers of oleuropein aglycone (C076–C079) were also annotated, all of them eluting after all oleuropein isomers. In this case, all MS² spectra contained the characteristic fragments of oleuropein, and the main ion of the first two isomers gave a base peak at m/z 241.0718, which corresponds to the elenolic acid moiety [13]. Hydroxyoleuropein (C080) also showed the same fragmentation pattern as oleuropein (i.e., loss of hexose −393.1191, hexose and C₄H₆O moiety −323.0772, and additional loss of methyl group −291.0510), the loss of the water moiety (−537.1614) being the main fragment ion. The two late eluting isomeric forms of methyl-oleuropein-aglycones (C081–C083) showed similar MS² profiles, characterized by the loss of the methyl and hydroxytyrosol moiety that led to the fragments at m/z −359.1136 and −255.0874, respectively, whereas the loss of both moieties occurred at m/z −223.0612. The ion at m/z −211.0976 corresponded to the loss of hydroxytyrosol and CO₂ moiety. Finally, hydroxy-methyl-oleuropein (C084) also showed the fragment corresponding to the loss of hexose (−407.1348), in addition to that corresponding to the loss of the methyl group (−537.1614) and the one of dehydrated form of elenolic acid part (−233.0612). Another important group of annotated compounds with several isomeric and derived forms was that corresponding to decarboxy-methyl oleuropein aglycone (DOA). Eight isomeric forms and four derived compounds (some of them also with more than one isomer) of this constituent were observed (C086–C108). In general, their fragmentation patterns were characterized by the inclusion of some of the diagnostic ions of hydroxytyrosol (in negative: −153.0557, −123.0452 and −135.0452; in positive: +155.0703 and +137.0597) and/or decarboxymethyl elenolic acid dialdehyde (DEDA), in negative: −183.0663, −165.0557 and −139.0765; in positive: +185.0808 and +167.0703). Some of them also showed the ion led by the loss of hydroxytyrosol moiety, which were the ions at m/z −199.0612 of hydroxy-DOA, −201.0768 of hydrated-DOA −197.0819 for methyl-DOA and −229.1081 for acetal of DOA.

Two isomeric forms of ligstroside (C109–C110) and also ligstroside aglycone (C112) were also annotated. Ligstrosides are the tyrosol-derived compounds equivalent to oleuropein (instead of hydroxytyrosol moiety). All of them presented the characteristic fragments for ligstroside reported in the literature [13,14] (i.e., ions at m/z −361.1293, −291.0874 and −259.0976).

Two features presented the deprotonated pseudo-molecular ion at m/z 389.1089, which corresponded to the molecular formula C₁₆H₂₂O₁₁ (C115–C116). Both compounds presented the fragment ions characteristic for oleoside and its isomeric form secologanoside at m/z −345.1191, −227.0561, −209.0455 and −183.0663. The first peak was annotated as oleoside since it has been reported that it elutes firstly in RP chromatographic conditions [10], whereas the second one was annotated as secologanoside due to the absence of the fragment −227.0561 and also since the fragment with the highest intensity was that at m/z −345.1191 [10]. Regarding caffeoyl- and coumaroyl-oleoside (C118, C120), the MS² spectra of both of them included the ion led by the loss of the caffeoyl- and coumaroyl-moiety, respectively at m/z −389.1089, which corresponds to the deprotonated ion of oleoside. Additional loss of CO₂ led to the fragments at m/z −345.1191. In both cases the base peak was that corresponding to the loss of CO₂ moiety at m/z −507.1508 and −491.1559, respectively. For caffeoyl-oleoside glucose (C119), its base peak was that corresponding to the loss of the hexose moiety at m/z −551.1406, including also the aforementioned characteristic ions at −345.1191 and −507.1508.

The compounds C123–C127 showed a deprotonated ion at m/z −241.0718 and/or a protonated one at m/z +243.0863 compatible with the molecular formula C₁₁H₁₄O₆. These compounds were identified as the different isomeric forms of elenolic acid based on the fragmentation mechanism in negative mode proposed by Kanakis and coworkers [13], which was characterized by the ion at m/z −209.0457 led by the loss of a CH₃OH moiety, which further originated the fragments at m/z −165.0561, −139.0404 and −121.0300 after the consecutive losses of CO₂, C₂H₂ and H₂O. Two other characteristic ions were the ones at m/z −127.0405 and −95.0509. Both isomeric forms of elenolic acid glucoside (C128–C129) were annotated based on what is reported by Klen et al. [10]. The fragment at m/z −371.0984 corresponds to a neutral loss of the methyl group, while the fragment at m/z −223.0612 to the elimination of the hexose and a water moiety, giving rise to the m/z −179.0714 by the additional loss of CO₂. Both hydroxy-elenolic acids (C132–C133) followed the same initial fragmentation mechanism of elenolic acid proposed by Kanakis et al. [13], i.e., the loss of the methyl group led the fragment at m/z −225.0406, which further lost a CO₂ moiety giving the ion at −181.05083. An additional loss of another CO₂ moiety originated the fragment at −137.0611, whereas the loss of just only one CO₂ was the responsible for the ion at m/z −213.0767. The six isomeric forms of decarboxy-hydroxy-elenolic acid (C134–C139) presented the characteristic fragment ion proposed by Lozano-Sanchez and coworkers [15] at m/z −169.0870 generated by the neutral loss of a CO₂ moiety, although in only two cases this was the highest fragment and in another two it was a very low-intensity ion. In these later cases, the highest fragment was the one at m/z −151.0763, corresponding to the additional loss of a water moiety. Another characteristic fragment of all of these isomers was that at m/z −139.0765, produced by the loss of a CO₂ and CH₂O moiety.

All four isomers of DEDA (C159–C162) presented the same fragmentation pattern. In negative mode, up to 2 losses of CO₂ moiety (−139.0765 and −95.0866), and in positive up to 2 water losses (+167.0703 and +149.0597) and a further CO₂ loss (+121.0648). The same scheme was observed for hydroxy-DEDA (C163). Also the three isomers of the hydrated product of DEDA (C164–C167) showed the same fragments: loss of CO₂ (−157.0870), loss of H₂O (−183.0663) and loss of CO₂ and H₂O (−139.0765). In addition, five peaks (C171–C175) were identified as isomers of DEDA alditol. In negative ion mode they showed the loss of the alditol moiety and the subsequent characteristic loss of CO₂, giving the ions at m/z −183.0663 and −139.0765, respectively. The ion yield from the loss of the alditol moiety was also observed in positive ion mode (+185.0808), together with the fragments corresponding to the subsequent loss of two moieties of H₂O and one of CO (ion at m/z +121.0648).

The MS² spectrum of loganin (C176) in positive mode showed the ion yield from the loss of hexose in (+229.1071). This one, as well as that of all four annotated aglycones (C178–C181), was also characterized by the loss of methyl moiety (+197.0808) and further loss of CO (+169.0859) or COCH₂ (+155.0703), loss of water (+211.0965) and further loss of methyl (+179.0703), CO (+151.0754) and another water (+133.0648).

Finally, the structural elements of some unknown compounds were tentatively deduced based on tandem mass spectra. For example, the compounds categorized as hydroxytyrosol derivatives (C182–C189) showed a neutral loss equivalent to an hydroxytyrosol moiety (136.0524) or the characteristic fragment of hydroxytyrosol (−135.0452, +137.0597). On the other hand, all constituents named as DEDA derivatives (C190–C197) showed a fragment corresponding to (de)protonated DEDA (−183.0663, +185.0808) and the ion derived from the loss of a CO₂ (−139.0765) or water (−165.0557, +167.0703) moiety. Lastly, elenolic derivatives (C198–C202) were annotated as such since they presented at least one of the characteristic fragments of elenolic acid in negative ionization mode (i.e., m/z at −209.0457, −165.0561, −121.0300, −95.0509).

Table 1. Annotated compounds in study samples.

C	Compound	Formula	RT	Ions	LI [Ref]
C001	Gluconic acid	C₆H₁₂O₇	54	195.051 [M-H]⁻	II (mzCloud)
C002	Quinic acid	C₇H₁₂O₆	54	191.0562 [M-H]⁻; 192.0595 ¹³C[M-H]⁻; 279.0487 [add-1]⁻; 289.0331 [add-2]⁻; 371.12 [add-3]⁻; 373.1354 [add-4]⁻; 374.1389 ¹³C[add-4]⁻; 383.1196 [add-5]⁻; 384.123 ¹³C[add-5]⁻; 533.1725 [add-6]⁻	I (std)
C003	Malic acid	C₄H₆O₅	56	133.0145 [M-H]⁻; 115.004 [M-H-H₂O]⁻	I (std)
C004	Isocitric acid	C₆H₈O₇	57	191.0199 [M-H]⁻; 192.023 ¹³C[M-H]⁻; 173.0095 [M-H-H₂O]⁻; 129.0197 [M-H-H₂O-CO₂]⁻; 111.0091 [M-H-CH₄O₄]⁻; 87.0091 [M-H-C₃H₄O₄]⁻; 85.0298 [M-H-C₂H₂O₅]⁻; 210.0609 [M+NH₄]⁺; 230.9903 [M+K]⁺	I (std)
C005	Citric acid	C₆H₈O₇	71	191.0197 [M-H]⁻; 192.0229 ¹³C[M-H]⁻; 111.0091 [M-H-CH₄O₄]⁻; 87.0091 [M-H-C₃H₄O₄]⁻; 210.0609 [M+NH₄]⁺	I (std)
C006	Succinic acid	C₄H₆O₄	77	117.0196 [M-H]⁻	I (std)
C007	Sugar alcohol	C₆H₁₄O₆	54	181.0718 [M-H]⁻; 217.0486 [M+Cl]⁻; 219.0457 (2)¹³C[M+Cl]⁻; 227.0773 [M-H+HCOOH]⁻; 183.0864 [M+H]⁺; 184.0898 ¹³C[M+H]⁺; 200.1129 [M+NH₄]⁺; 205.0683 [M+Na]⁺; 221.0423 [M+K]⁺; 222.0457 ¹³C[M+K]⁺; 281.0635 [M+H+CH₃COOK]⁺; 165.0758 [M+H-H₂O]⁺; 147.0652 [M+H-2(H₂O)]⁺; 222.0609 [+]; 223.0404 [+]; 249.0373 [+]; 383.0954 [+]	I (std)
C008	Pentose acid	C₅H₁₀O₆	53	165.0407 [M-H]⁻; 135.0302 [M-H-CH₂O]⁻	III
C009	Hexose	C₆H₁₂O₆	53	179.0563 [M-H]⁻; 180.0596 ¹³C[M-H]⁻; 215.033 [M+Cl]⁻; 225.0617 [M-H+HCOOH]⁻; 226.0651 ¹³C[M-H+HCOOH]⁻; 161.0458 [M-H-H₂O]⁻; 143.0353 [M-H-2(H₂O)]⁻; 113.0248 [M-H-2(H₂O)-CH₂O]⁻; 101.0247 [M-H-2(H₂O)-COCH₂]⁻; 198.0973 [M+NH₄]⁺; 203.0527 [M+Na]⁺; 219.0267 [M+K]⁺; 145.0495 [M+H-2(H₂O)]⁺; 127.0389 [M+H-3(H₂O)]⁺; 85.0282 [M+H-2(H₂O)-C₂H₄O₂]⁺; 180.0867 [+]	I (std)
C010	Di-hexose	C₁₂H₂₂O₁₁	54	341.109 [M-H]⁻; 377.0857 [M+Cl]⁻; 387.1145 [M-H+HCOOH]⁻; 360.1503 [M+NH₄]⁺; 365.1057 [M+Na]⁺; 381.0796 [M+K]⁺; 325.1131 [M+H-H₂O]⁺; 326.1166 ¹³C[M+H-H₂O]⁺	I (std)
C011	Tri-hexose	C₁₈H₃₂O₁₆	53	549.1673 [M-H+HCOOH]⁻; 522.2027 [M+NH₄]⁺; 527.1577 [M+Na]⁺; 543.1321 [M+K]⁺	I (std)
C012	Tetra-hexose	C₂₄H₄₂O₂₁	51	711.2202 [M-H+HCOOH]⁻	I (std)
C013	Glycerol	C₃H₈O₃	62	93.0544 [M+H]⁺; 93.0545 [M+H]⁺	II (Metlin)
C014	Trihydroxy-octadecadienoic acid	C₁₈H₃₂O₅	469	327.2176 [M-H]⁻; 346.259 [M+NH₄]⁺	II (mzCloud)
C015	Trihydroxyoctadecenoic acid (I)	C₁₈H₃₄O₅	465	329.2334 [M-H]⁻; 331.2481 [M+H]⁺	II (mzCloud)
C016	Trihydroxyoctadecenoic acid (II)	C₁₈H₃₄O₅	492	329.2334 [M-H]⁻	II (mzCloud)
C017	Apigenin glucoside (I)	C₂₁H₂₀O₁₀	329	431.0984 [M-H]⁻; 433.1128 [M+H]⁺	III
C018	Apigenin glucoside (II)	C₂₁H₂₀O₁₀	363	431.0986 [M-H]⁻; 433.1128 [M+H]⁺; 434.1162 ¹³C[M+H]⁺	III
C019	Apigenin rutinoside (I)	C₂₇H₃₀O₁₄	319	577.156 [M-H]⁻; 578.1594 ¹³C[M-H]⁻; 623.1616 [M-H+HCOOH]⁻; 579.1706 [M+H]⁺; 580.1741 ¹³C[M+H]⁺; 581.1764 (2)¹³C[M+H]⁺	III
C020	Apigenin rutinoside (II)	C₂₇H₃₀O₁₄	350	623.1618 [M-H+HCOOH]⁻; 579.1706 [M+H]⁺; 580.1738 ¹³C[M+H]⁺	III
C021	Apigenin rhamnosyl acetyl-glucoside (I)	C₂₉H₃₂O₁₅	336	621.1811 [M+H]⁺	III
C022	Apigenin rhamnosyl acetyl-glucoside (II)	C₂₉H₃₂O₁₅	340	621.1811 [M+H]⁺	III
C023	Apigenin rhamnosyl acetyl-glucoside (III)	C₂₉H₃₂O₁₅	367	619.1664 [M-H]⁻; 620.1698 ¹³C[M-H]⁻; 665.1722 [M-H+HCOOH]⁻; 666.1753 ¹³C[M-H+HCOOH]⁻; 621.1812 [M+H]⁺; 622.1844 ¹³C[M+H]⁺; 623.187 (2)¹³C[M+H]⁺	III
C024	Apiin	C₂₆H₂₈O₁₄	299	563.1403 [M-H]⁻	III
C025	Methoxy-apigenin glucoside	C₂₂H₂₂O₁₁	370	463.1234 [M+H]⁺	III
C026	Luteolin	C₁₅H₁₀O₆	429	285.0402 [M-H]⁻	II (mzCloud)
C027	Luteolin glucoside (I)	C₂₁H₂₀O₁₁	336	447.0933 [M-H]⁻; 448.0967 ¹³C[M-H]⁻; 493.0988 [M-H+HCOOH]⁻; 449.1078 [M+H]⁺; 450.111 ¹³C[M+H]⁺; 287.055 [M+H-hexose]⁺	II (mzCloud)
C028	Luteolin glucoside (II)	C₂₁H₂₀O₁₁	362	447.0933 [M-H]⁻; 449.1077 [M+H]⁺; 450.111 ¹³C[M+H]⁺	III
C029	Luteolin rutinoside	C₂₇H₃₀O₁₅	327	593.1505 [M-H]⁻; 595.1655 [M+H]⁺	III
C030	Quercetin glucoside	C₂₁H₂₀O₁₂	333	463.088 [M-H]⁻; 465.1026 [M+H]⁺	II (mzCloud)
C031	Quercetin rutinoside	C₂₇H₃₀O₁₆	324	609.1461 [M-H]⁻; 610.1493 ¹³C[M-H]⁻; 611.1606 [M+H]⁺	III
C032	Caffeic acid hexoside	C₁₅H₁₈O₉	251	341.0878 [M-H]⁻	II (MassBank)
C033	Caffeic acid rutinoside	C₂₁H₂₈O₁₃	236	487.1457 [M-H]⁻; 533.151 [M-H+HCOOH]⁻; 506.1867 [M+NH₄]⁺	III
C034	Caffeic acid ethyl ester	C₁₁H₁₂O₄	445	207.0662 [M-H]⁻	III
C035	Caffeoyl-threonic acid (I)	C₁₃H₁₄O₈	238	297.0613 [M-H]⁻	II [16,17,18]
C036	Caffeoyl-threonic acid (II)	C₁₃H₁₄O₈	276	297.0615 [M-H]⁻; 179.035 [caffeic-H]⁻; 135.0453 [caffeic-H-CO₂]⁻	II [16,17,18]
C037	Calceolarioside B	C₂₃H₂₆O₁₁	336	477.1402 [M-H]⁻; 161.0245 [caffeic-H-H₂O]⁻	II [19]
C038	Rosmarinic acid	C₁₈H₁₆O₈	371	359.0773 [M-H]⁻	II (MassBank)
C039	Coumaroylquinic acid	C₁₆H₁₈O₈	292	337.0929 [M-H]⁻; 339.1077 [M+H]⁺	II (MassBank)
C040	Cinnamic acid hexoside	C₁₅H₁₈O₇	350	309.0977 [M-H]⁻	III
C041	Neochlorogenic acid	C₁₆H₁₈O₉	208	353.0876 [M-H]⁻; 355.1026 [M+H]⁺	II (mzCloud)
C042	Chlorogenic acid	C₁₆H₁₈O₉	259	353.0878 [M-H]⁻; 354.091 ¹³C[M-H]⁻; 707.1827 [2M-H]⁻; 708.186 ¹³C[2M-H]⁻; 191.0561 [quinic-H]⁻; 355.1025 [M+H]⁺; 356.106 ¹³C[M+H]⁺; 372.1292 [M+NH₄]⁺; 163.039 [caffeic+H-H₂O]⁺	II (mzCloud)
C043	Verbascoside	C₂₉H₃₆O₁₅	331	623.1978 [M-H]⁻; 624.2012 ¹³C[M-H]⁻; 625.2035 (2)¹³C[M-H]⁻; 659.1745 [M+Cl]⁻; 642.2388 [M+NH₄]⁺; 643.2425 ¹³C[M+NH₄]⁺; 479.1546 [M+H-rhamnose]⁺; 480.158 ¹³C[M+H-rhamnose]⁺; 471.1497 [M+H-hydroxytyrosol-H₂O]⁺; 163.039 [caffeic+H-H₂O]⁺; 325.0919 [caffeic acid glucoside+H-H₂O]⁺; 326.0954 ¹³C[caffeic acid glucoside+H-H₂O]⁺	I (std)
C044	Isoverbascoside	C₂₉H₃₆O₁₅	345	623.1979 [M-H]⁻; 624.2013 ¹³C[M-H]⁻; 479.1548 [M+H-rhamnose]⁺; 325.092 [caffeic acid glucoside +H-H₂O]⁺	II [10]
C045	Hydroxy-verbascoside	C₂₉H₃₆O₁₆	297	639.1929 [M-H]⁻; 640.1961 ¹³C[M-H]⁻; 641.1985 (2)¹³C[M-H]⁻; 658.2339 [M+NH4]⁺; 325.092 [caffeic acid glucoside+H-H₂O]⁺	II [12]
C046	Methyl-hydroxy-verbascoside (I)	C₃₀H₃₈O₁₆	325	653.2084 [M-H]⁻	II [10]
C047	Methyl-hydroxy-verbascoside (II)	C₃₀H₃₈O₁₆	354	653.2088 [M-H]⁻; 607.2031 [M-H-H₂O-CO]⁻	III [10]
C048	Dimethyl-hydroxy-verbascoside	C₃₁H₄₀O₁₆	346	667.2243 [M-H]⁻; 668.2276 ¹³C[M-H]⁻; 686.2658 [M+NH₄]⁺	III [10]
C049	3,4-Dihydroxyphenylglycol	C₈H₁₀O₄	74	169.0507 [M-H]⁻; 151.0402 [M-H-H₂O]⁻	I (std)
C050	Hydroxytyrosol	C₈H₁₀O₃	170	153.0558 [M-H]⁻; 154.0592 ¹³C[M-H]⁻; 307.1187 [2M-H]⁻; 308.1221 ¹³C[2M-H]⁻; 189.0325 [M+Cl]⁻; 199.0613 [M-H+HCOOH]⁻; 123.0455 [M-H-CH₂O]⁻; 124.0489 ¹³C[M-H-CH₂O]⁻	I (std)
C051	Hydroxytyrosol glucoside (I)	C₁₄H₂₀O₈	80	361.114 [M-H+HCOOH]⁻; 317.1234 [M+H]⁺; 155.0703 [M+H-hexose]⁺; 137.0597 [M+H-hexose-H₂O]⁺	II [20,21]
C052	Hydroxytyrosol glucoside (II)	C₁₄H₂₀O₈	160	315.1084 [M-H]⁻; 316.1116 ¹³C[M-H]⁻; 316.1118 ¹³C[M-H]⁻; 631.2245 [2M-H]⁻; 631.2241 [2M-H]⁻; 351.0853 [M+Cl]⁻; 361.114 [M-H+HCOOH]⁻; 334.1498 [M+NH₄]⁺; 335.1533 ¹³C[M+NH₄]⁺	II [20,21]
C053	Hydroxytyrosol rutinoside	C₂₀H₃₀O₁₂	216	461.1662 [M-H]⁻; 462.1697 ¹³C[M-H]⁻; 497.1432 [M+Cl]⁻; 507.1717 [M-H+HCOOH]⁻; 480.2075 [M+NH₄]⁺	III
C054	Dimer of hydroxytyrosol (I)	C₁₆H₁₈O₆	154	305.103 [M-H]⁻; 351.1084 [M-H+HCOOH]⁻; 324.1445 [M+NH₄]⁺	III
C055	Dimer of hydroxytyrosol (II)	C₁₆H₁₈O₆	187	305.1028 [M-H]⁻	III
C056	Dimer of hydroxytyrosol (III)	C₁₆H₁₈O₆	248	305.103 [M-H]⁻; 324.1443 [M+NH₄]⁺	III
C057	Dimer of hydroxytyrosol (IV)	C₁₆H₁₈O₆	310	305.103 [M-H]⁻; 324.1443 [M+NH₄]⁺	III
C058	Hydroxytyrosol-oxidised	C₈H₈O₃	169	153.0546 [M+H]⁺; 123.044 [M+H-CH₂O]⁺	III
C059	Lactone (ester with hydroxytyrosol) (I)	C₁₇H₂₂O₆	383	321.1343 [M-H]⁻; 367.1397 [M-H+HCOOH]⁻; 340.1757 [M+NH₄]⁺	II [13]
C060	Lactone (ester with hydroxytyrosol) (II)	C₁₇H₂₂O₆	392	321.1342 [M-H]⁻; 323.149 [M+H]⁺; 340.1756 [M+NH₄]⁺	II [13]
C061	Lactone (ester with hydroxytyrosol) (III)	C₁₇H₂₂O₆	411	345.1335 [M+Na]⁺; 346.137 ¹³C[M+Na]⁺; 121.0647 [TYR+H-H₂O]⁺; 165.0546 [coumaric+H]⁺	II [13]
C062	Lactone (ester with hydroxytyrosol) (IV)	C₁₇H₂₂O₆	448	321.1344 [M-H]⁻; 185.082 [M-H-hydroxytyrosol]⁻; 323.149 [M+H]⁺; 324.1524 ¹³C[M+H]⁺; 340.1756 [M+NH₄]⁺	II [13]
C063	Lactone glucoside (ester with hydroxytyrosol) (I)	C₂₃H₃₂O₁₁	250	485.2016 [M+H]⁺	III
C064	Lactone glucoside (ester with hydroxytyrosol) (II)	C₂₃H₃₂O₁₁	354	483.1871 [M-H]⁻; 502.2281 [M+NH₄]⁺	III
C065	Tyrosol glucoside	C₁₄H₂₀O₇	225	299.1138 [M-H]⁻; 335.0905 [M+Cl]⁻; 345.119 [M-H+HCOOH]⁻; 346.1224 ¹³C[M-H+HCOOH]⁻; 301.1285 [M+H]⁺; 618.2756 [2M+NH₄]⁺; 318.1549 [M+NH₄]⁺; 319.1584 ¹³C[M+NH₄]⁺	I (std)
C066	Homogentisic acid	C₈H₈O₄	139	167.0351 [M-H]⁻	II (mzCloud)
C067	Homovanillyl alcohol	C₉H₁₂O₃	280	169.0859 [M+H]⁺; 170.0893 ¹³C[M+H]⁺; 186.1125 [M+NH₄]⁺; 214.1438 [M+C₂H₈N]⁺	III
C068	Oleuropein isomer (I)	C₂₅H₃₂O₁₃	372	539.177 [M-H]⁻; 540.1803 ¹³C[M-H]⁻; 558.2181 [M+NH₄]⁺; 361.1285 [M+H-hexose-H₂O]⁺; 137.0596 [OHTYR+H-H₂O]⁺	III
C069	Oleuropein	C₂₅H₃₂O₁₃	381	539.1769 [M-H]⁻; 540.18 ¹³C[M-H]⁻; 575.1533 [M+Cl]⁻; 721.2502 [4M+3H]³⁺; 722.2537 ¹³C[4M+3H]³⁺; 558.2182 [M+NH₄]⁺; 559.2215 ¹³C[M+NH₄]⁺; 586.25 [M+C₂H₈N]⁺; 379.139 [M+H-hexose]⁺; 380.1424 ¹³C[M+H-hexose]⁺; 361.1283 [M+H-hexose-H₂O]⁺; 362.1319 ¹³C[M+H-hexose-H₂O]⁺; 363.1343 (2)¹³C[M+H-hexose-H₂O]⁺; 347.1131 [M+H-hexose-CH₃OH]⁺; 329.1025 [M+H-hexose-H₂O-CH₃OH]⁺; 523.1811 [M+H-H₂O]⁺; 137.0596 [OHTYR+H-H₂O]⁺; 138.063 ¹³C[OHTYR+H-H₂O]⁺; 165.0546 [coumaric+H]⁺	I (std)
C070	Oleuropein isomer (II)	C₂₅H₃₂O₁₃	387	539.1771 [M-H]⁻	II [10,13]
C071	Oleuropein isomer (III)	C₂₅H₃₂O₁₃	392	539.177 [M-H]⁻; 540.18 ¹³C[M-H]⁻; 575.1534 [M+Cl]⁻; 541.1915 [M+H]⁺; 542.1948 ¹³C[M+H]⁺; 543.1976 (2)¹³C[M+H]⁺; 558.2181 [M+NH₄]⁺; 559.2212 ¹³C[M+NH₄]⁺; 379.1388 [M+H-hexose]⁺; 380.1424 ¹³C[M+H-hexose]⁺; 361.1283 [M+H-hexose-H₂O]⁺; 362.1318 ¹³C[M+H-hexose-H₂O]⁺; 137.0596 [OHTYR+H-H₂O]⁺; 165.0546 [coumaric+H]⁺	II [10,13]
C072	Oleuropein isomer (IV)	C₂₅H₃₂O₁₃	404	539.1771 [M-H]⁻; 558.2181 [M+NH₄]⁺; 379.1389 [M+H-hexose]⁺	II [10,13]
C073	Oleuropein glucoside (I)	C₃₁H₄₂O₁₈	324	701.2294 [M-H]⁻	III
C074	Oleuropein glucoside (II)	C₃₁H₄₂O₁₈	349	701.2295 [M-H]⁻; 702.2329 ¹³C[M-H]⁻; 747.2352 [M-H+HCOOH]⁻; 720.2706 [M+NH₄]⁺; 721.2743 ¹³C[M+NH₄]⁺; 541.1914 [M+H-hexose]⁺; 379.1389 [M+H-2(hexose)]⁺; 361.1258 [M+H-2(hexose)-H₂O]⁺	II [10,13]
C075	Oleuropein glucoside (III)	C₃₁H₄₂O₁₈	374	701.2294 [M-H]⁻	II [10,13]
C076	Oleuropein aglycone (I)	C₁₉H₂₂O₈	436	377.1243 [M-H]⁻; 378.1276 ¹³C[M-H]⁻; 413.1011 [M+Cl]⁻; 396.1655 [M+NH₄]⁺; 361.1283 [M+H-H₂O]⁺; 362.1317 ¹³C[M+H-H₂O]⁺	II [10,13]
C077	Oleuropein aglycone (II)	C₁₉H₂₂O₈	451	377.1243 [M-H]⁻	II [10,13]
C078	Oleuropein aglycone (III)	C₁₉H₂₂O₈	493	377.1243 [M-H]⁻; 378.1276 ¹³C[M-H]⁻; 755.256 [2M-H]⁻; 756.2594 ¹³C[2M-H]⁻; 413.1009 [M+Cl]⁻; 423.1299 [M-H+HCOOH]⁻; 307.0824 [M-H-C₄H₆O]⁻; 275.0926 [frag]⁻; 379.1388 [M+H]⁺; 380.1424 ¹³C[M+H]⁺; 396.1654 [M+NH₄]⁺; 397.1689 ¹³C[M+NH₄]⁺; 401.1207 [M+Na]⁺	II [10,13]
C079	Oleuropein aglycone (IV)	C₁₉H₂₂O₈	504	377.1243 [M-H]⁻; 379.1388 [M+H]⁺	II [10,13]
C080	Hydroxy-oleuropein	C₂₅H₃₂O₁₄	326	555.1718 [M-H]⁻; 556.175 ¹³C[M-H]⁻; 591.1483 [M+Cl]⁻; 574.213 [M+NH₄]⁺; 377.1233 [M+H-hexose-H₂O]⁺	III
C081	Methyl-oleuropein aglycone (I)	C₂₀H₂₄O₈	329	151.0766 [frag]⁻	III
C082	Methyl-oleuropein aglycone (II)	C₂₀H₂₄O₈	522	391.14 [M-H]⁻	III
C083	Methyl-oleuropein aglycone (III)	C₂₀H₂₄O₈	546	391.14 [M-H]⁻	III
C084	Hydroxy-methyl-oleuropein	C₂₆H₃₄O₁₄	376	569.1875 [M-H]⁻; 570.191 ¹³C[M-H]⁻; 571.193 (2)¹³C[M-H]⁻; 605.1642 [M+Cl]⁻; 588.2286 [M+NH₄]⁺; 589.2322 ¹³C[M+NH₄]⁺; 377.1233 [M+H-hexose-CH₃OH]⁺	III
C085	Demethyloleuropein	C₂₄H₃₀O₁₃	320	525.1613 [M-H]⁻	III
C086	Decarboxy-methyl oleuropein aglycone (DOA) (I)	C₁₇H₂₀O₆	357	321.1334 [M+H]⁺	III
C087	DOA (II)	C₁₇H₂₀O₆	362	321.1335 [M+H]⁺	III
C088	DOA (III)	C₁₇H₂₀O₆	368	321.1335 [M+H]⁺	III
C089	DOA (IV)	C₁₇H₂₀O₆	407	319.1187 [M-H]⁻; 320.122 ¹³C[M-H]⁻; 321.1336 [M+H]⁺; 338.1601 [M+NH₄]⁺; 303.1229 [M+H-H₂O]⁺	III
C090	DOA (V)	C₁₇H₂₀O₆	422	319.1187 [M-H]⁻; 321.1334 [M+H]⁺; 322.1367 ¹³C[M+H]⁺; 338.1599 [M+NH₄]⁺; 366.1911 [M+C₂H₈N]⁺	III
C091	DOA (VI)	C₁₇H₂₀O₆	442	319.1186 [M-H]⁻; 320.1219 ¹³C[M-H]⁻; 639.2447 [2M-H]⁻; 640.2479 ¹³C[2M-H]⁻; 355.0954 [M+Cl]⁻; 365.1242 [M-H+HCOOH]⁻; 183.0663 [DEDA-H]⁻; 321.1334 [M+H]⁺; 322.1369 ¹³C[M+H]⁺; 663.2416 [2M+Na]⁺; 338.16 [M+NH₄]⁺; 339.1634 ¹³C[M+NH₄]⁺; 343.1153 [M+Na]⁺; 138.063 ¹³C[OHTYR+H-H₂O]⁺	III
C092	DOA linked to hydroxytyrosol (I)	C₂₅H₂₈O₈	453	457.1855 [M+H]⁺	III
C093	DOA linked to hydroxytyrosol (II)	C₂₅H₂₈O₈	460	455.1713 [M-H]⁻; 457.1856 [M+H]⁺	III
C094	DOA linked to hydroxytyrosol (III)	C₂₅H₂₈O₈	470	455.1712 [M-H]⁻; 303.123 [DOA+H-H2O]⁺	III
C095	Hydroxy-DOA	C₁₇H₂₀O₇	387	335.1137 [M-H]⁻; 336.1169 ¹³C[M-H]⁻; 671.2348 [2M-H]⁻; 672.2381 ¹³C[2M-H]⁻; 673.2426 (2)¹³C[2M-H]⁻; 199.0613 [M-H-OHTYR]⁻; 337.1284 [M+H]⁺; 338.132 ¹³C[M+H]⁺; 354.1549 [M+NH₄]⁺; 355.1584 ¹³C[M+NH₄]⁺; 359.1104 [M+Na]⁺; 319.1181 [M+H-H₂O]⁺	III
C096	Hydrated-DOA (I)	C₁₇H₂₂O₇	347	337.1292 [M-H]⁻; 338.1324 ¹³C[M-H]⁻; 675.2658 [2M-H]⁻; 373.1059 [M+Cl]⁻; 201.0768 [M-H-OHTYR]⁻; 339.1439 [M+H]⁺; 340.1473 ¹³C[M+H]⁺; 356.1703 [M+NH₄]⁺; 357.1738 ¹³C[M+NH₄]⁺; 384.2016 [M+C₂H₈N]⁺	III
C097	Hydrated-DOA (II)	C₁₇H₂₂O₇	362	337.1292 [M-H]⁻; 338.1325 ¹³C[M-H]⁻; 675.266 [2M-H]⁻; 201.0769 [M-H-OHTYR]⁻; 339.144 [M+H]⁺; 356.1706 [M+NH₄]⁺	III
C098	Hydrated-DOA (III)	C₁₇H₂₂O₇	386	337.129 [M-H]⁻; 319.1187 [M-H-H₂O]⁻; 356.1705 [M+NH₄]⁺	III
C099	Hydrated-DOA linked to hydroxytyrosol (I)	C₂₅H₃₀O₉	423	473.1816 [M-H]⁻	III
C100	Hydrated-DOA linked to hydroxytyrosol (II)	C₂₅H₃₀O₉	453	473.1816 [M-H]⁻; 474.1848 ¹³C[M-H]⁻; 492.2226 [M+NH₄]⁺	III
C101	Hydrated-DOA linked to hydroxytyrosol (III)	C₂₅H₃₀O₉	484	473.1817 [M-H]⁻; 519.1873 [M-H+HCOOH]⁻; 475.1962 [M+H]⁺; 492.2226 [M+NH₄]⁺; 493.2259 ¹³C[M+NH₄]⁺	III
C102	Hydrated-DOA linked to hydroxytyrosol glucoside	C₃₁H₄₀O₁₄	386	635.2347 [M-H]⁻; 654.276 [M+NH₄]⁺	III
C103	Methyl-DOA	C₁₈H₂₂O₆	471	333.1345 [M-H]⁻; 335.1491 [M+H]⁺; 336.1526 ¹³C[M+H]⁺; 352.1756 [M+NH₄]⁺	III
C104	Acetal of DOA (I)	C₁₉H₂₆O₇	462	365.1607 [M-H]⁻	III
C105	Acetal of DOA (II)	C₁₉H₂₆O₇	470	365.1607 [M-H]⁻; 366.1641 ¹³C[M-H]⁻; 731.3288 [2M-H]⁻; 401.1375 [M+Cl]⁻; 411.1663 [M-H+HCOOH]⁻; 229.1083 [M-H-OHTYR]⁻; 384.2019 [M+NH₄]⁺; 389.1573 [M+Na]⁺	III
C106	Acetal of DOA (III)	C₁₉H₂₆O₇	487	365.1609 [M-H]⁻	III
C107	Acetal of DOA (IV)	C₁₉H₂₆O₇	506	365.1607 [M-H]⁻	III
C108	Acetal of DOA linked to hydroxytyrosol	C₂₇H₃₄O₉	516	501.2129 [M-H]⁻; 502.2162 ¹³C[M-H]⁻; 520.2539 [M+NH₄]⁺	III
C109	Ligstroside (I)	C₂₅H₃₂O₁₂	411	523.182 [M-H]⁻; 524.1854 ¹³C[M-H]⁻; 525.1878 (2)¹³C[M-H]⁻; 559.1591 [M+Cl]⁻; 569.1875 [M-H+HCOOH]⁻; 361.1294 [M-H-hexose]⁻; 542.2232 [M+NH₄]⁺; 543.2266 ¹³C[M+NH₄]⁺; 363.1442 [M+H-hexose]⁺	II [13,14]
C110	Ligstroside (II)	C₂₅H₃₂O₁₂	422	569.1873 [M-H+HCOOH]⁻; 542.2231 [M+NH₄]⁺; 543.2265 ¹³C[M+NH₄]⁺	II [13,14]
C111	Ligstroside glucoside	C₃₁H₄₂O₁₇	344	685.2344 [M-H]⁻; 731.2403 [M-H+HCOOH]⁻; 732.2436 ¹³C[M-H+HCOOH]⁻; 704.2757 [M+NH₄]⁺; 507.1861 [M+H-hexose-H₂O]⁺	III
C112	Ligstroside aglycone	C₁₉H₂₂O₇	535	363.144 [M+H]⁺; 380.1706 [M+NH₄]⁺; 385.1259 [M+Na]⁺	II [14]
C113	Decarboxymethyl ligstroside aglycone	C₁₇H₂₀O₅	382	349.1293 [M-H+HCOOH]⁻; 305.1386 [M+H]⁺; 306.142 ¹³C[M+H]⁺	III
C114	Hydroxy-decarboxymethyl-ligstroside aglycone	C₁₇H₂₀O₆	431	319.1187 [M-H]⁻; 320.122 ¹³C[M-H]⁻; 321.1336 [M+H]⁺; 338.1601 [M+NH₄]⁺	III
C115	Oleoside	C₁₆H₂₂O₁₁	172	389.1088 [M-H]⁻; 390.1122 ¹³C[M-H]⁻; 779.2248 [2M-H]⁻; 435.1144 [M-H+HCOOH]⁻; 391.1237 [M+H]⁺; 392.1273 ¹³C[M+H]⁺; 408.1502 [M+NH₄]⁺	II [10]
C116	Secologanoside	C₁₆H₂₂O₁₁	253	389.1089 [M-H]⁻; 390.1121 ¹³C[M-H]⁻; 779.2249 [2M-H]⁻; 780.2281 ¹³C[2M-H]⁻; 391.1237 [M+H]⁺; 798.266 [2M+NH₄]⁺; 408.1501 [M+NH₄]⁺; 229.0707 [M+H-hexose]⁺; 211.0602 [M+H-hexose-H₂O]⁺	II [10]
C117	Oleoside aglycone	C₁₀H₁₂O₆	192	227.0562 [M-H]⁻; 229.0708 [M+H]⁺	III
C118	Caffeoyl-oleoside	C₂₅H₂₈O₁₄	354	551.1405 [M-H]⁻; 552.1436 ¹³C[M-H]⁻; 553.1551 [M+H]⁺; 554.1585 ¹³C[M+H]⁺	III
C119	Caffeoyl-oleoside glucoside	C₃₁H₃₈O₁₉	328	713.1932 [M-H]⁻	III
C120	Coumaroyl-oleoside	C₂₅H₂₈O₁₃	379	535.1459 [M-H]⁻; 536.149 ¹³C[M-H]⁻; 537.1602 [M+H]⁺; 538.1635 ¹³C[M+H]⁺	III
C121	Dimethyl-hydroxy-octenoyloxy-secologanoside (I)	C₂₆H₃₈O₁₃	400	559.2379 [M+H]⁺	II [13]
C122	Dimethyl-hydroxy-octenoyloxy-secologanoside (II)	C₂₆H₃₈O₁₃	421	557.2239 [M-H]⁻; 558.2272 ¹³C[M-H]⁻; 559.2383 [M+H]⁺; 560.2418 ¹³C[M+H]⁺	II [13]
C123	Elenolic acid (I)	C₁₁H₁₄O₆	264	243.0865 [M+H]⁺	III
C124	Elenolic acid (II)	C₁₁H₁₄O₆	270	241.0718 [M-H]⁻; 243.0864 [M+H]⁺; 225.0759 [M+H-H₂O]⁺	II [13]
C125	Elenolic acid (III)	C₁₁H₁₄O₆	297	241.0718 [M-H]⁻; 243.0864 [M+H]⁺; 288.1444 [M+C₂H₈N]⁺	II [13]
C126	Elenolic acid (IV)	C₁₁H₁₄O₆	318	241.0718 [M-H]⁻	II [13]
C127	Elenolic acid (V)	C₁₁H₁₄O₆	371	241.0718 [M-H]⁻; 242.0751 ¹³C[M-H]⁻; 483.151 [2M-H]⁻; 484.1541 ¹³C[2M-H]⁻; 195.0663 [M-H-H₂O-CO]⁻; 243.0864 [M+H]⁺; 244.0898 ¹³C[M+H]⁺; 260.1131 [M+NH₄]⁺; 225.0758 [M+H-H₂O]⁺; 211.0602 [M+H-CH₃OH]⁺	II [13]
C128	Elenolic acid glucoside (I)	C₁₇H₂₄O₁₁	280	403.1247 [M-H]⁻; 404.128 ¹³C[M-H]⁻; 449.1301 [M-H+HCOOH]⁻; 422.1658 [M+NH₄]⁺; 423.1693 ¹³C[M+NH₄]⁺; 243.0865 [M+H-hexose]⁺; 225.0758 [M+H-hexose-H₂O]⁺; 151.039 [M+H-hexose-H₂O-C₂H₄O₂-CH₂]⁺; 165.0546 [M+H-hexose-H₂O-C₂H₄O₂]⁺	II [10]
C129	Elenolic acid glucoside (II)	C₁₇H₂₄O₁₁	300	403.1246 [M-H]⁻; 404.1278 ¹³C[M-H]⁻; 449.1299 [M-H+HCOOH]⁻; 405.1393 [M+H]⁺; 422.1658 [M+NH₄]⁺; 225.0759 [M+H-hexose-H₂O]⁺	II [10]
C130	Elenolic acid diglucoside	C₂₃H₃₄O₁₆	257	611.1827 [M-H+HCOOH]⁻; 584.2185 [M+NH₄]⁺	III
C131	Desoxy-elenolic acid	C₁₁H₁₄O₅	307	225.077 [M-H]⁻; 451.1612 [2M-H]⁻; 271.0824 [M-H+HCOOH]⁻	III
C132	Hydroxy-elenolic acid (I)	C₁₁H₁₄O₇	347	257.0666 [M-H]⁻; 259.0814 [M+H]⁺	III
C133	Hydroxy-elenolic acid (II)	C₁₁H₁₄O₇	361	257.0666 [M-H]⁻	III
C134	Decarboxy-hydroxy-elenolic acid (I)	C₁₀H₁₄O₅	145	213.0768 [M-H]⁻	II [15]
C135	Decarboxy-hydroxy-elenolic acid (II)	C₁₀H₁₄O₅	197	213.0768 [M-H]⁻	II [15]
C136	Decarboxy-hydroxy-elenolic acid (III)	C₁₀H₁₄O₅	228	213.0768 [M-H]⁻	II [15]
C137	Decarboxy-hydroxy-elenolic acid (IV)	C₁₀H₁₄O₅	234	213.0768 [M-H]⁻	II [15]
C138	Decarboxy-hydroxy-elenolic acid (V)	C₁₀H₁₄O₅	239	213.0769 [M-H]⁻; 427.1611 [2M-H]⁻; 151.0766 [M-H-H₂O-CO₂]⁻; 215.0915 [M+H]⁺; 232.1181 [M+NH₄]⁺; 155.0703 [M+H-C₂H₄O₂]⁺	II [15]
C139	Decarboxy-hydroxy-elenolic acid (VI)	C₁₀H₁₄O₅	253	213.0769 [M-H]⁻; 215.0916 [M+H]⁺	II [15]
C140	Decarboxy-hydroxy-elenolic acid linked to hydroxytyrosol (I)	C₁₈H₂₂O₇	230	349.1292 [M-H]⁻; 368.1706 [M+NH₄]⁺	III
C141	Decarboxy-hydroxy-elenolic acid linked to hydroxytyrosol (II)	C₁₈H₂₂O₇	330	368.1705 [M+NH₄]⁺	III
C142	Decarboxy-hydroxy-elenolic acid linked to hydroxytyrosol (III)	C₁₈H₂₂O₇	370	349.1293 [M-H]⁻; 395.1347 [M-H+HCOOH]⁻; 213.0769 [decarboxy-hydroxy-elenolic-H]⁻; 351.1439 [M+H]⁺; 368.1704 [M+NH₄]⁺	III
C143	Decarboxy-hydroxy-elenolic acid linked to hydroxytyrosol (IV)	C₁₈H₂₂O₇	390	349.1293 [M-H]⁻; 350.1325 ¹³C[M-H]⁻; 699.2659 [2M-H]⁻; 385.106 [M+Cl]⁻; 213.0769 [decarboxy-hydroxy-elenolic-H]⁻; 151.0766 [frag]⁻; 351.1439 [M+H]⁺; 352.1474 ¹³C[M+H]⁺; 373.1258 [M+Na]⁺; 333.1336 [M+H-H₂O]⁺	III
C144	Decarboxy-hydroxy-elenolic acid linked to hydroxytyrosol (V)	C₁₈H₂₂O₇	398	349.1293 [M-H]⁻; 351.1439 [M+H]⁺	III
C145	Methyl-elenolic acid (I)	C₁₂H₁₆O₆	428	257.1021 [M+H]⁺	III
C146	Methyl-elenolic acid (II)	C₁₂H₁₆O₆	459	257.1021 [M+H]⁺; 225.0758 [M+H-CH₃OH]⁺	III
C147	Aldehydic form of decarboxymethyl elenolic acid (I)	C₁₀H₁₆O₅	243	217.1071 [M+H]⁺; 234.1337 [M+NH₄]⁺; 262.1651 [M+C₂H₈N]⁺; 199.0966 [M+H-H₂O]⁺	III
C148	Aldehydic form of decarboxymethyl elenolic acid (II)	C₁₀H₁₆O₅	255	217.1071 [M+H]⁺; 218.1105 ¹³C[M+H]⁺; 234.1337 [M+NH₄]⁺; 262.1651 [M+C₂H₈N]⁺; 187.0965 [M+H-CH₂O]⁺	III
C149	Aldehydic form of decarboxymethyl elenolic acid (III)	C₁₀H₁₆O₅	289	215.0925 [M-H]⁻	III
C150	Aldehydic form of decarboxymethyl elenolic acid glucoside	C₁₆H₂₆O₁₀	286	377.1453 [M-H]⁻; 396.1865 [M+NH₄]⁺; 199.0965 [M+H-hexose-H₂O]⁺	III
C151	Elenolic acid dialdehyde epimer linked to hydroxytyrosol glucoside	C₂₅H₃₄O₁₃	371	541.1926 [M-H]⁻; 560.2338 [M+NH₄]⁺; 363.1441 [M+H-hexose-H₂O]⁺	III
C152	Elenolic acid dialdehyde epimer linked to hydroxytyrosol (I)	C₁₉H₂₄O₈	415	379.1399 [M-H]⁻	III
C153	Elenolic acid dialdehyde epimer linked to hydroxytyrosol (II)	C₁₉H₂₄O₈	448	379.1399 [M-H]⁻; 381.1544 [M+H]⁺	III
C154	Hydrated product of methyl-decarboxy-hydroxy-elenolic acid (I)	C₁₁H₁₈O₆	240	245.1032 [M-H]⁻	III
C155	Hydrated product of methyl-decarboxy-hydroxy-elenolic acid (II)	C₁₁H₁₈O₆	316	245.103 [M-H]⁻	III
C156	Hydrated product of methyl-decarboxy-hydroxy-elenolic acid (III)	C₁₁H₁₈O₆	340	245.1031 [M-H]⁻	III
C157	Cannizzaro-like product of elenolic acid dialdehyde (I)	C₁₁H₁₆O₇	54	278.1238 [M+NH₄]⁺	III
C158	Cannizzaro-like product of elenolic acid dialdehyde (II)	C₁₁H₁₆O₇	199	259.0822 [M-H]⁻; 215.0561 [M-H-C₂H₄O]⁻	III
C159	DEDA (I)	C₉H₁₂O₄	154	202.1074 [M+NH₄]⁺	II [15,22]
C160	DEDA (II)	C₉H₁₂O₄	221	202.1074 [M+NH₄]⁺	II [15,22]
C161	DEDA (III)	C₉H₁₂O₄	260	183.0663 [M-H]⁻; 367.1399 [2M-H]⁻; 185.0808 [M+H]⁺; 186.0842 ¹³C[M+H]⁺; 202.1075 [M+NH₄]⁺; 230.1388 [M+C₂H₈N]⁺	II [15,22]
C162	DEDA (IV)	C₉H₁₂O₄	292	183.0663 [M-H]⁻; 184.0695 ¹³C[M-H]⁻; 367.1399 [2M-H]⁻; 368.1431 ¹³C[2M-H]⁻; 229.0718 [M-H+HCOOH]⁻; 185.0808 [M+H]⁺; 186.0842 ¹³C[M+H]⁺; 369.1548 [2M+H]⁺; 202.1075 [M+NH₄]⁺; 207.0629 [M+Na]⁺; 388.1283 [4M+H+K]²⁺; 139.0767 [M-H-CO₂]⁻; 167.0703 [M+H-H₂O]⁺; 121.0647 [M+H-H₂O-HCOOH]⁺; 122.0681 ¹³C[M+H-H₂O-HCOOH]⁺	II [15,22]
C163	Hydroxy-DEDA	C₉H₁₂O₅	222	199.0611 [M-H]⁻; 200.0644 ¹³C[M-H]⁻; 201.0758 [M+H]⁺; 218.1024 [M+NH₄]⁺; 183.0652 [M+H-H₂O]⁺	II [13]
C164	DEDA hydrated (I)	C₉H₁₄O₅	115	201.0768 [M-H]⁻; 203.0915 [M+H]⁺; 220.1181 [M+NH₄]⁺	II [15]
C165	DEDA hydrated (II)	C₉H₁₄O₅	124	201.0768 [M-H]⁻	III
C166	DEDA hydrated (III)	C₉H₁₄O₅	135	201.0768 [M-H]⁻; 403.161 [2M-H]⁻; 203.0914 [M+H]⁺; 220.1181 [M+NH₄]⁺	II [15]
C167	DEDA hydrated (IV)	C₉H₁₄O₅	167	201.0769 [M-H]⁻; 202.0802 ¹³C[M-H]⁻; 203.0915 [M+H]⁺	II [15]
C168	DEDA ester (I)	C₁₀H₁₄O₄	262	197.082 [M-H]⁻; 395.1713 [2M-H]⁻; 151.0403 [M-H-C₂H₆O]⁻	III
C169	DEDA ester (II)	C₁₀H₁₄O₄	327	197.0819 [M-H]⁻; 199.0965 [M+H]⁺	III
C170	DEDA ester (III)	C₁₀H₁₄O₄	343	199.0965 [M+H]⁺	III
C171	DEDA alditol (I)	C₁₅H₂₄O₉	194	347.1348 [M-H]⁻; 366.1761 [M+NH₄]⁺	III
C172	DEDA alditol (II)	C₁₅H₂₄O₉	205	347.1348 [M-H]⁻; 349.1496 [M+H]⁺; 366.1762 [M+NH₄]⁺	III
C173	DEDA alditol (III)	C₁₅H₂₄O₉	222	348.1383 ¹³C[M-H]⁻; 695.277 [2M-H]⁻; 349.1496 [M+H]⁺; 366.1761 [M+NH₄]⁺; 367.1797 ¹³C[M+NH₄]⁺	III
C174	DEDA alditol (IV)	C₁₅H₂₄O₉	228	347.1346 [M-H]⁻; 348.1381 ¹³C[M-H]⁻; 695.2768 [2M-H]⁻; 696.2802 ¹³C[2M-H]⁻; 547.2035 [add]⁻; 349.1495 [M+H]⁺; 350.1529 ¹³C[M+H]⁺; 366.176 [M+NH₄]⁺; 367.1795 ¹³C[M+NH₄]⁺; 331.139 [M+H-H₂O]⁺	III
C175	DEDA alditol (V)	C₁₅H₂₄O₉	246	393.1403 [M-H+HCOOH]⁻; 366.1761 [M+NH₄]⁺	III
C176	Loganin	C₁₇H₂₆O₁₀	282	435.1508 [M-H+HCOOH]⁻; 436.1544 ¹³C[M-H+HCOOH]⁻; 391.16 [M+H]⁺; 408.1866 [M+NH₄]⁺; 229.1071 [M+H-hexose]⁺; 211.0966 [M+H-hexose-H₂O]⁺	II [23]
C177	Loganin aglycone (I)	C₁₁H₁₆O₅	301	229.1071 [M+H]⁺; 230.1105 ¹³C[M+H]⁺; 246.1337 [M+NH₄]⁺; 274.1651 [M+C₂H₈N]⁺; 211.0966 [M+H-H₂O]⁺; 197.0809 [M+H-CH₃OH]⁺	II [23]
C178	Loganin aglycone (II)	C₁₁H₁₆O₅	327	229.1071 [M+H]⁺; 274.1651 [M+C₂H₈N]⁺; 211.0965 [M+H-H₂O]⁺; 197.0808 [M+H-CH₃OH]⁺; 179.0703 [M+H-H₂O-CH₃OH]⁺	II [23]
C179	Loganin aglycone (III)	C₁₁H₁₆O₅	335	229.1071 [M+H]⁺; 199.0965 [M+H-CH₂O]⁺	II [23]
C180	Loganin aglycone (IV)	C₁₁H₁₆O₅	380	229.1072 [M+H]⁺; 211.0966 [M+H-H₂O]⁺	III
C181	Hydrated product of loganin	C₁₇H₂₈O₁₁	210	407.1558 [M-H]⁻; 408.1592 ¹³C[M-H]⁻; 357.1193 [frag]⁻; 426.197 [M+NH₄]⁺; 229.1072 [M+H-hexose-H₂O]⁺	III
C182	Hydroxytyrosol derivative 01	C₈H₁₀O₃	118	155.0702 [M+H]⁺	III
C183	Hydroxytyrosol derivative 02	C₁₉H₂₈O₁₂	211	447.1508 [M-H]⁻; 466.1918 [M+NH₄]⁺	III
C184	Hydroxytyrosol derivative 03 (I)	C₁₇H₂₄O₆	361	323.15 [M-H]⁻	III
C185	Hydroxytyrosol derivative 03 (II)	C₁₇H₂₄O₆	375	323.15 [M-H]⁻; 325.1647 [M+H]⁺	III
C186	Hydroxytyrosol derivative 04	C₂₂H₂₄O₁₁	370	463.1246 [M-H]⁻	III
C187	Hydroxytyrosol derivative 05	C₁₅H₂₀O₅	373	279.1237 [M-H]⁻; 280.127 ¹³C[M-H]⁻; 559.2549 [2M-H]⁻; 315.1007 [M+Cl]⁻; 325.1292 [M-H+HCOOH]⁻; 143.0715 [M-H-OHTYR]⁻	III
C188	Hydroxytyrosol derivative 06	C₂₅H₂₆O₈	450	453.1556 [M-H]⁻	III
C189	Hydroxytyrosol derivative 07	C₂₁H₃₀O₇	540	393.1919 [M-H]⁻; 394.1953 ¹³C[M-H]⁻; 257.1395 [M-H-OHTYR]⁻	III
C190	DEDA derivative 01	C₂₃H₃₂O₁₁	225	483.1873 [M-H]⁻; 484.1907 ¹³C[M-H]⁻	III
C191	DEDA derivative 02	C₁₆H₂₂O₉	256	357.1192 [M-H]⁻; 358.1225 ¹³C[M-H]⁻; 359.134 [M+H]⁺; 376.1604 [M+NH₄]⁺	III
C192	DEDA derivative 03 (I)	C₂₃H₃₂O₁₂	224	499.1822 [M-H]⁻	III
C193	DEDA derivative 03 (II)	C₂₃H₃₂O₁₂	299	518.223 [M+NH₄]⁺	III
C194	DEDA derivative 04 (I)	C₁₈H₂₄O₈	400	367.1397 [M-H]⁻	III
C195	DEDA derivative 04 (II)	C₁₈H₂₄O₈	414	367.1396 [M-H]⁻	III
C196	DEDA derivative 05	C₁₈H₂₄O₇	426	351.1448 [M-H]⁻	III
C197	DEDA derivative 05 linked to hydroxytyrosol	C₂₆H₃₂O₉	488	487.1974 [M-H]⁻	III
C198	Elenolic acid derivative 01	C₆H₁₀O₂	75	159.0665 [M-H+HCOOH]⁻; 132.1018 [M+NH₄]⁺	III
C199	Elenolic acid derivative 02 (I)	C₁₁H₁₂O₇	57	274.0925 [M+NH₄]⁺	III
C200	Elenolic acid derivative 02 (II)	C₁₁H₁₂O₇	144	255.0509 [M-H]⁻	III
C201	Elenolic acid derivative 03	C₂₆H₃₆O₁₃	407	555.2084 [M-H]⁻	III
C202	Elenolic acid derivative 04	C₂₃H₂₆O₁₂	410	493.1352 [M-H]⁻; 495.1497 [M+H]⁺	III

Abbreviations: C, compound number; DEDA, decarboxymethyl elenolic acid dialdehyde; LI, level of identification (according to [9,24]); ref, reference; RT, retention time (in seconds).

2.2. Targeted Metabolomics

A targeted method was developed for the quantitative determination of a range of identified compounds occurring in the analyzed products. The separation method was developed based on a previously published method [25]. The gradient was optimized to allow the separation of isomeric compounds, although in some cases this could not be achieved. This methodology included both a diode array detector (DAD) and a single quadrupole mass spectrometer (MS). When possible, quantification was performed using the corresponding pure standard. When this was not feasible, the chemical standard most similar to the compound of interest was used (as indicated in the methodology section). Tyrosol was also added in the quantification method, although it was not identified through the untargeted analysis, because we expected to find this compound in these samples but it is already known that it is usually not well resolved with the generic methods used in untargeted LC-MS methods. Table 2 shows the methodological data concerning the quantification, both indicating the detector used (DAD or MS), the ranges covered (LDR, linear dynamic range), the values of the curves (slope, offset and coefficient of determination), and the values of the method validation. The calibration curves for each standard were linear over a broad concentration range and with a coefficient of determination (R²) >0.972. The widest range of linearity was for verbascoside. The precision of the instrument was assessed by analysing the sample “G” multiple times, both intra-day and inter-day. We selected this sample class because it was the one in which most of the compounds were quantified in the highest values. Samples were prepared and analyzed by the same operator and results were evaluated using the relative standard deviation (% RSD) of the peak areas. Intra-day and inter-day precision were assessed by injecting the same sample either on the same day or on 5 consecutive days, respectively. Repeatability was evaluated by the same operator preparing different samples (n = 7) and injecting them on the same day. As expected, intra-day variability was lower than inter-day variability for most of the compounds. All values were <15%, with the exception of the inter-day variability for citric acid and 3,4-dihydroxyphenylglycol.

A total of 26 compounds were included in the targeted analyses. The quantitative data of analyzed samples are provided in Table 3. The ranges of concentrations varied widely between samples and among the different compounds. Total quantified content ranged from 0.25 to 172.81 mg/g, being ≤1 mg/g for buds-based supplements and for product “O”, between 2 and 4 mg/g for liquid extract products and higher values for dry extracts. Quinic acid, sorbitol and tyrosol were the only compounds with quantifiable levels within buds-based products. Among the liquid or dry extract supplements, the only compounds that were observed in quantifiable levels were hydroxytyrosol and verbascoside.

2.3. Data Visualization and Analysis

Unsupervised principal component analysis (PCA) was applied based on the quantified compounds to obtain an overview of the potential similarities and differences among study samples (Figure 1).

The first two components of the PCA model accounted for 71% of variance. First of all, it can be observed that, for most of products, the three replicates of each product are close to each other, indicating a correct preparation, sample analysis and data processing procedure. However, this was not the case for product “N”, for which one sample was quite far from the other two. Further inspection of the data and the chromatograms revealed that the injection of this sample probably failed, somehow. The samples were coloured according to the total amount of quantified compounds, with a scale from black to yellow through red, indicating the total amount of quantified compounds in descending order. The graph on the first two main components shows how the PC1 separates the samples mainly according to their concentration. This coincided with the fact that on the loadings plot, practically all the compounds were located on the same side of the graph, where the samples with a greater number of quantified compounds were located. In parallel, the scores plot also shows the existence of some groups of samples. It can be observed that the samples are mainly clustered according to the type of extraction, which coincides with their concentration, with the exception of sample “O”. That is, on the right side of the plot there are the products obtained by glyceric maceration of buds (K-D-F), together with the product “O”, which is a dry extract from leaves and fruit. They were the samples with the lowest amounts of quantified compounds. Products J-M-L were also clustered together in the same region of the scores plot. All of them were liquid extracts from leaves with intermediate values of quantified compounds. The rest of the samples were products obtained by dry extraction divided in further “subgroups” along the scores plot of the first two components. For on the right side there were the products “C” and “E” which were dry extracts from olive leaves (with or without fruit), but also including other plant extracts (see Table 4 for further details). On the left side of the plot there was a cluster made of products “G”, “A” and “I”, that were those with the highest concentrations of quantified compounds. Finally, there were 2 other products that were not clustered together with any other one. They were products “H” and “N”. Some particularities of these products were that product “H” was the one with the highest amounts of hydroxytyrosol (Table 3), over 4 times more than the next products with the highest amounts of hydroxytyrosol (products “A” and “I”). As regards the product “N”, it contained generally very low quantities of quantified compounds, with the sole exception of hydroxytyrosol.

The PCA performed with the quantified compounds confirmed a sample arrangement very similar to that shown by the untargeted analysis (Figure S1), indicating that the compounds selected for quantification were representative of the general metabolic profile of the products under analysis.

Since another factor that seems to contribute to the distribution of samples within the score plot is the part of the olive plant used, we wondered if there could be any compound peculiar to this attribute. In order to have the most homogeneous groups possible, the selected samples were K-D-F for buds (all glyceric macerates), J-M-L for leaves (all liquid extracts) and N-H-A-G for fruit (all dry extracts). A total of 357 features resulted as statistically significant, most of them being characteristic of fruit-based products (Figure 2 and Figure S2). Indeed, there were only two compounds peculiar to the buds-based products. They were glycerol and unknown 039. We suspect that the glycerol comes from the extraction process and not from the matrix. On the other hand, we could not find any specific compound for leave-based products. Among their characteristic compounds, there were high levels of luetolin for products “M” and “L”, but not for the “J” product; or gluconic and pentose acids, but some fruit-based products also presented considerable amounts of them. As already mentioned, most of the compounds that presented statistically significant differences according to the part of the plant used were characteristic of fruit-based products. Many of these compounds were of the family of phenyl alcohols and secoiridoids, such as hydroxytyrosol, decarboxymethyl oleuropein aglycone or decarboxymethyl elenolic acid dialdehyde. Figure S3 shows the box-plots of the examples just mentioned. However, in the light of these results it is not possible to know to what extent the observed differences are related to the part of the plant used or to the extraction method. It is also important to keep in mind that the small sample size available (3–4 products/group) and the high heterogeneity observed even within a group could be making it difficult to find highly specific markers for a particular class of products.

Even so, we wanted to go one step further to try to extract as much information as possible from the acquired data. First, we asked ourselves to what extent the amount of compounds present in the products could be somehow associated with the part of the plant used. To do this, we first made a pie chart to visualize the proportion of compounds detected in each product based on the total sum of intensities. Since the use of one type of data or another is associated with a number of advantages and limitations, we wanted to use all available data. That is to say, the data from the targeted analysis (which presents quantitative data, but not all the compounds present), the untargeted data (which encompasses a greater number of the compounds present in the products, but with semi-quantitative data) and using only the data from the ions that had been identified in the untargeted experiment. As can be seen in Figure S4, all the data matrices used presented a similar output, which basically showed once again how the fruit-based products were those with a higher amount of compounds present, while the buds-based products showed much lower values and the products based on a mixture of fruit and leaves were in an intermediate situation between the fruit-only and leaf-only products.

Finally, we wondered if the proportion of phenolic and non-phenolic compounds might also be varying according to the type of plant part used. So, we made pie charts again, but this time one graph per product showing the proportion of phenolic or non-phenolic compounds (Figure S5). Again, a difference could be clearly seen according to the part of the plant used. While buds-based products presented a higher proportion of non-phenolic compounds, the fruit-based products were those with higher proportions of (poly)phenolic compounds, with the leaf-based products presenting an intermediate situation, and the fruit- and leaf-based products an intermediate situation between the fruit only products and the leaf only products. Again, this observation was very similar between the targeted and untargeted data.

Lastly, the wide heterogeneity of the products included in this study in terms of pharmaceutical form, recommended dose, etc., must also be taken into account (Table 4). It is precisely for this reason that we also intended to examine and interpret the results obtained transforming the quantified quantities per gram of product by considering the recommended daily intake by the respective producers (indicated in Table 4). These results showed how for some products, in which the amount of some compounds was of little relevance (when compared to that present in other products), the situation changed radically (Table S3) when the variable “amount of supplement taken daily” was considered. Hydroxytyrosol is an illustrative example of this phenomenon. As already commented and deciphered by the results from targeted analysis, considering initially only the compositional profile of the different products, the supplement “H” had the highest values, over 4 times more than the next one in terms of mg of hydroxytyrosol per gram of product. However, it is with supplements “J” and “N” that the highest levels of intake are reached (around 10 mg/day). More specifically, the values changed most markedly with integrator “J”, for which the intake dose is much higher (70 mL, which in terms of weight in g corresponds to 72.80 g) than for the other products, for which the recommended intake dose is always below 3 g. Only 4 products (“J”, “N”, “I” and “A”) reached the EFSA recommended daily dosage of hydroxytyrosol (5 mg/day) by themselves, with values ranging between 6 and 11 mg/day, considering recommended doses and quantified values. There are two other products (“C” and “E”) which, while providing less than 5 mg/day of hydroxytyrosol as such, do exceed this value in the form of oleuropein, which is also taken into account when evaluating the amount of hydroxytyrosol provided since it is hydrolyzed to hydroxytyrosol.

3. Discussion

A comprehensive high-performance liquid chromatography–high resolution mass spectrometry (HPLC-HR-MS) fingerprinting of different commercially available OBDS showed that they are characterized as being highly complex mixtures. The most abundant signals were subjected to annotation processes. They corresponded to a large number of phenolic compounds typical of the olive tree. The characteristic metabolites of this plant include compounds such as tyrosol and hydroxytyrosol, both in their free form and esterified to form secoiridoid structures (such as ligstroside, oleuropein and analogues), as well as their catabolites produced by oxidation, hydrolysis and/or hydration reactions, as well as loss of carboxylic and carboxymethyl groups [15]. The dominant proportion of compounds identified in this work belongs to the subclass of secoiridoids. The high resolving power of the mass analyzer allowed the identification and classification of most of these compounds based on the observation of specific and characteristic fragments and/or neutral losses. Other compounds, not specific markers of the olive tree were also identified. These were mainly sugars and organic acids. The analysis of the distribution of compounds in the different products grouped by the part of the plant used showed that most of the discriminant compounds were found at higher concentrations in fruit-based products. The ratio of phenolic vs non-phenolic compounds differed according to the part of the plant used, with buds-based products being those with the highest proportion of non-phenolic compounds, and the fruit-based products the ones whose composition consisted mostly of (poly)phenolic compounds. The quantification of compounds for which standards were available confirmed the huge variations among different products, providing a range of their concentration within each group of products (buds, leaf and fruit).

Quantifiable levels of hydroxytyrosol were only observed in non-buds-based supplements. The quantified range was between 0.05 and 88 mg/g. The recommended daily intake dose varies significantly and largely modulates the amount provided daily. Regarding the toxicity of hydroxytyrosol, few studies have been conducted on this topic [26]. A reference value can only be found in a 2006 revision [27], illustrating the results of studies conducted on the toxicity of olive extract. It is reported here as the daily intake of hydroxytyrosol and its precursors is considered safe up to levels greater than 1200 mg/day (1.2 g). The intake of supplement “J”, which provides the highest amount of hydroxytyrosol when considering the recommended dose of consumption, leads to a dietary intake 100 times lower than the proposed safety limit. Additionally, this compound can be considered safe, considering that no study has ever highlighted allergies, or interactions with the diet, due to the intake of this compound [3,26].

This work demonstrates the high complexity and heterogeneity in the composition of the OBDS that are available in the market and easily accessible to consumers and also that high-resolution mass spectrometry with accurate mass measurements provides valuable information for compound identification supplying precious data about structural information. It also highlights the need to better classify the various OBDS into homogenous subgroups, providing compositional data that can assist in building models of classification. These results show that we are faced with a myriad of products, often indiscriminately classified as functional foods, nutraceuticals or food supplements, and marketed claiming the most diverse biological activities, confusing the consumer. The evidence reported in this work suggests that it is of the utmost importance to define a proper and unequivocal classification of olive-based dietary supplements, separating those obtained from different tissues.

4. Materials and Methods

4.1. Solvents and Standards

HPLC-grade methanol, acetonitrile and formic acid were purchased from Sigma-Aldrich (St. Louis, MO, US). A Milli-Q system from Millipore (Bedford, MA, USA) was used for purifying demineralized water. The PVDF (polyvinylidene fluoride) syringe filters were also supplied by Millipore. The standards used were as follows: citric acid, isocitric acid, mannose, dulcitol, oleuropein, raffinose, stachyose, salidroside, sorbitol, tyrosol and 3,4-dihydroxyphenylglycol purchased from Sigma-Aldrich (St. Louis, MO, US); malic acid, fructose, glucose and sucrose purchased from Carlo Erba (Milan, Italy); succinic acid, galactinol, galactose and lactose purchased from Honeywell Fluka (Milan, Italy); quinic acid purchased from Roth (Karlsruhe, Germany); and hydroxytyrosol and verbascoside purchased from Extrasynthese (Genay Cedex, Lyon, France).

4.2. Study Samples

The samples subjected to analysis were OBDS acquired in various pharmacies and herbalists in Italy, or bought through the internet. The shared aspect among all of them was the use of the olive tree plant as key raw material, regardless of the part used. The specific characteristics of these samples have been collected in Table 4, in which the commercial name of the products has been coded with a randomly attributed alphabetical letter.

4.3. Sample Preparation

The preparation phase involved different procedures, depending on the physical state of the samples, whether liquid or solid. Each sample was prepared and analyzed in triplicate.

For liquid samples, 500 mg were weighted and brought to 5 mL with a solution of MeOH/H₂O MilliQ 20:80 (v/v). To ensure complete solubilization, the flasks were transferred to an ultrasonic bath for 10 min. Later, the solution was filtered with 0.22 μm filters into HPLC vials. An additional, more diluted solution of each sample was prepared at a concentration of 2 g/L.

For solid samples, 500 mg were also weighted. In this case, 2 mL of MeOH/H₂O MilliQ 20:80 (v/v) were added and shaken for 5 min. Later, the flasks were transferred to an ultrasonic bath for 10 min. At this point, they were processed by centrifugation at 4000 g for 5 min at 5 °C. The aqueous fraction was then taken away from the solid component and transferred to a 5 mL flask. The precipitate, and the possible oily fraction, were taken with 2 mL of MeOH/H₂O MilliQ 20:80 (v/v), and then the extraction procedure was repeated in the same way as described above, for a second time. The extract was brought to volume with MeOH/H₂O MilliQ 20:80 (v/v). After manual stirring, the solution was then transferred into HPLC vials, after a double filtration with 0.45 μm and 0.22 μm filters. Also in this case, a more diluted sample (2 g/L) was prepared.

All samples were mixed using a vortex before being subjected to instrumental analysis.

4.4. Untargeted Metabolomics

4.4.1. Chromatographic and Mass Spectrometry Conditions

All samples (2 g/L) were analyzed using a Dionex UltiMate 3000 HPLC system coupled with a hybrid linear ion trap Fourier transform (LTQ FT) Orbitrap mass spectrometer (Thermo Fisher, Bremen, Germany).

The chromatographic system was equipped with an autosampler and quaternary gradient HPLC pump. The column used was a Kinetex C18 (150 mm × 2.1 mm I.D., particle size 2.6 μm, Phenomenex Torrance, CA, USA), equipped with the corresponding Phenomex C18 4 × 2.00 mm pre-column, maintained at 40 °C. The mobile phase used was Milli-Q water with 0.1% formic acid (solvent A) and acetonitrile with 0.1% formic acid (solvent B). The following gradient was adopted: 0–1 min 5% B; 1–7 min linear gradient 5–45% B; 7–8.5 min linear gradient 45–80% B; 8.5–10.5 min maintaining 80% B; 10.5–11% min linear gradient from 80% B to 5% B; 11–12 min maintaining 5% B. The flow rate was 350 μL/min, and the injection volume 10 μL.

The Orbitrab LTQ was equipped with an electrospray ionization (ESI) source, and operated in both positive and negative ionization modes, as well as using both the full scan (FS) and the data dependent acquisition (DDA) modes (a total of four injections per sample were done). The operating conditions of the mass spectrometer in negative (and positive) mode were: source voltage 3.5 kV (5.0 kV), heated capillary temperature 320 °C and capillary voltage −30 V (30 V). In the LTQ component of the instrument, nitrogen was used as both heated gas (70 U) and auxiliary gas (30 U), and helium as damping gas. Mass calibration was carried out just before starting the analysis using the manufacturer’s calibration solution, and ensuring a mass accuracy of <5 ppm in external calibration mode. In the FS method the mass range was from 80 to 800 Da at a mass resolution of 30,000 FWHM (m/z 400), in centroid mode. In the DDA method, during the chromatographic run both the FS and the MS/MS spectra of the three ions with the highest intensities of each FS were acquired. The resolution power for the MS/MS scans was 7500. The ions produced were generated in the LTQ trap at 35 eV collision energy using an isolation width of 1 Da.

At the beginning of the analytical sequence, 10 quality controls (QC) were injected in order to stabilize the system. The QC was a mixture obtained by taking a 30 μL aliquot from each sample tested. During the sequence a solvent (MeOH/H₂O MilliQ 20:80 (v/v)) followed by two QCs were added every 10 samples, to verify the stability and performance of the analytical system in terms of retention time, mass accuracy, signal strength, and possible analytical variations.

4.4.2. Data Processing

Raw files were converted into mzXML format using the MSconvert module of ProteoWizard software. Subsequently, files from FS experiments were processed using the version 3.11.6 of XCMS package [28] in the R platform and employing the parameters specified in Table S4. Data were processed separately for negative and positive modes.

4.4.3. Compound Identification

Detected features were grouped (separately for each ionization mode) when they presented a close RT and a high sample and peak shape correlations. Later, the relationships between the different m/z values grouped together were calculated in order to establish whether any given value could be the (de)protonated ion or one of its isotopes, adducts or fragments. Information provided by adduct formation in the complementary ionization mode was also used to decipher which m/z value could be associated with the (de)protonated ion. Once the m/z value of the (de)protonated ion was known, this value, together with its isotopic pattern and MS² spectra, was used to associate it with a molecular formula composed using the software Sirius [29]. The MS² spectrum used was the one resulting from merging three MS² spectra (when available) using the “mergeMS2spectra” function of “CluMSID” R package [30], selecting those fragments with a relative intensity >1%. Retrieved formulas were searched in the relevant bibliography, as well as in public databases (such as FooDB, Phytohub, or PhenolExplorer) to see if they matched any potential compound. In the affirmative case, the theoretical MS/MS fragmentation pattern was searched in the scientific bibliography and in public mass spectral databases (i.e., mzCloud, Metlin, and MassBank) in order to compare it with the experimental one. When this comparison matched and the corresponding analytical standard was available commercially (i.e., standards mentioned in the Section 4.1), it was purchased in order to analyze it under the same experimental conditions and verify if the RT and experimental fragmentation pattern were the same or not. In the affirmative case, and following the recommendations of the Metabolomics Society [24], they were assigned to level 1, while those compounds for which the analytical standard was not available but the theoretical MS/MS fragmentation pattern matched with that obtained experimentally in the study samples were assigned to level 2. Level 3 included those compounds for which the MS/MS comparison was done using in silico tools, such as MetFrag, or when the class of compounds could only be described on the bases of the observed fragmentation pattern, either by the observation of a specific ion or some particular neutral loss in the MS/MS spectra.

4.5. Targeted Metabolomics

Compounds identified in the untargeted approach for which the corresponding standard was available were included in the targeted analysis (Table S5). Quantification was undertaken without considering the chiral configuration since the column used was not specific for this characteristic. Additional compounds that were included in the method, but for which the analytical standard was not available, were expressed as oleuropein, with the exception of hydroxytyrosol glucoside which was expressed as hydroxytyrosol, hydroxyverbascoside that was expressed as verbascoside, and trihydroxyoctadecanoic acid that was expressed as isocitric acid.

4.5.1. Chromatographic and Mass Spectrometry Conditions

The targeted metabolomic analysis was conducted using the Waters 2695 HPLC system (Milliford, CT, USA) equipped with the Waters 2996 DAD ultraviolet–visible (UV-Vis) detector (Milliford, CT, USA) and single quadrupole mass spectrometer with ESI Acquity qDa ionization system (Waters, Milliford, CT, USA). The method used, with the necessary adaptations for the current work, was taken from the study by M. Ricciutelli et al. (2017) [25], in which a new method for the quantification of phenolic compounds contained in extra virgin olive oil (EVOO) was developed and validated.

The chromatographic analysis was conducted using the Synergi Polar-RP (reverse phase) column, 250 × 4.6 mm 4 μm (Phenomenex, Cheshire, UK) equipped with the respective pre-column (4 × 2.00 mm). The separation was conducted in 80 min, keeping the column thermostated at 35 °C. The mobile phase consisted of 1% formic acid in water MilliQ (solvent A) and methanol/isopropanol 90:10 v/v with 0.1% formic acid (solvent B). The flow used was 1 mL/min and the injection volume 10 μL. The gradient used was modified from what was reported in the reference study. In particular there are variations in the first part, where an isocratic phase of solvent A, from 0 min to 40 min minute, was introduced. This variation aimed, as far as possible, at obtaining a better separation of polar compounds. The gradient used was the following: 0–40 min linear gradient 0–45% B; 40–60 min linear gradient 45–60% B; 60–70 min linear gradient 60–95% B; 70–73 min maintaining 95% B; 73–7.1 min linear gradient from 95% B to 0% B; 73.1–80 min maintaining 0% B.

The UV-VIS spectrum was recorded from 200 nm to 600 nm, with detection at 280 nm and 330 nm. The mass spectrometer was used with a spray voltage set to 0.8 kV in negative and positive mode. The probe temperature was set to 600 °C, and the cone voltage was set to 15V. The spectra were then collected in a mass range m/z 100–1250 Da.

4.5.2. Method Development and Validation

The LDR, i.e., the range of concentrations in which the response was linear, was defined in solvent because the matrices of the present study were extremely heterogeneous. We then evaluated the limit of quantification (LOQ), which represents the lowest quantifiable metabolite concentration. For the method development a total of 12 points of the calibration curve ranging from 0.02 ppm to 100 ppm were analyzed, with the exception of hydroxytyrosol, tyrosol and verbascoside for which the calibration curve was extended by an additional 5 points to 1500 ppm. For each calibration curve, the RDL and LOQ was evaluated. Subsequently, the curve was rebuilt and the correlation coefficient calculated. The type of dilution (i.e., 100 g/L or 2 g/L) was used according to the observed concentration of each compound in each sample and the LDR, preferably selecting that of 100 g/L.

The proposed method was validated in terms of intra-day repeatability, inter-day variability, and operator reproducibility. To conduct these analyses, the sample coded with the letter G was chosen, since it was the one that had the highest number of compounds identified (see Section 2). To assess intra-day repeatability, the same solution of sample G was analyzed 7 times consecutively, whereas the inter-day variability was evaluated by the injection of the same sample G during 5 consecutive days. Finally, to assess reproducibility, a parameter that evaluates the variability induced by the operator, 7 different solutions of sample G were set up and injected on the same day. The three parameters were expressed in terms of percentage of relative standard deviation (RSD%).

4.6. Data Analysis and Visualization

Principal component analysis (PCA) was used to gain an overview of the obtained data, which had previously been log-transformed and Pareto-scaled. Missing values were replaced by a random very low value. R software was used to perform and visualize these analyses.

For the differential abundance analysis according to the part of the plant used, a Kruskal–Wallis test was performed and the obtained p-values were corrected using the Benjamini–Hochberg (BH) method. Adjusted p-values < 0.05 were considered statistically significant. In order to gain a visual overview of the results, the relative abundance of the discriminant features was represented through a heat map employing the “heatmap.2” function of the “gplots” R package. For comparative analysis across different ion peak areas, data was log-transformed and Pareto-scaled. In this plot, samples were placed in columns ordered by class, and features in rows ordered according to the behavior of distribution. Color represents relative intensity, using orange to represent high abundance and blue for low abundance.

Supplementary Materials

The following are available online at https://www.mdpi.com/2218-1989/10/12/516/s1, Table S1: Unknown compounds detected in study samples, Table S2: MS/MS fragments of detected compounds by LTQ-Orbitrap, Figure S1: Scores plots of the samples in the space described by the first two principal components based on data obtained in untargeted analysis, Figure S2: Heat map of discriminant features according to the part of the plant used, Figure S3: Boxplots of selected compounds characteristic of products made from a particular part of the olive plant, Figure S4: Pie charts of the total amount of compounds by product, Figure S5: Pie charts of the proportion of phenolic and non-phenolic compounds present in each product, Table S3: Estimated daily intake (mg/day) of the quantified compounds according to the recommended dose, Table S4: Parameters used for data processing with XCMS, Table S5: Analytical standards used for the targeted analyses.

Author Contributions

Conceptualization and study design, M.G.-A. and F.M.; sample preparation, data acquisition, and targeted method development and validation, M.G.-A., N.G. and D.M.; data processing and analysis, interpretation of results, compound identification, and original draft preparation, M.G.-A. and N.G.; supervision and manuscript revision, U.V. and F.M.; resources, project administration and funding acquisition, M.N., A.F., F.B. and F.M. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Operational Plan of the Autonomous Province of Trento, grant number “POFESR 2014/20”.

Acknowledgments

The authors gratefully acknowledge Johannes Rainer for his valuable assistance to XCMS processing pipeline and Mario dell’Agli for his critical review of the manuscript.

Conflicts of Interest

The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

Euromonitor International Value of the Dietary Supplements Market in Europe in 2015 and 2020, by Country (in Million Euros). Available online: https://www.statista.com/statistics/589452/value-dietary-supplements-markets-europe-by-country/ (accessed on 2 July 2020).
EFSA Panel on Dietetic Products, Nutrition and Allergies (NDA). Scientific Opinion on the substantiation of health claims related to polyphenols in olive and protection of LDL particles from oxidative damage (ID 1333, 1638, 1639, 1696, 2865), maintenance of normal blood HDL cholesterol concentrations (ID 1639), mainte. EFSA J. 2011, 9, 2033. [Google Scholar]
Turck, D.; Bresson, J.; Burlingame, B.; Dean, T.; Fairweather-Tait, S.; Heinonen, M.; Hirsch-Ernst, K.I.; Mangelsdorf, I.; McArdle, H.J.; Naska, A.; et al. Safety of hydroxytyrosol as a novel food pursuant to Regulation (EC) No 258/97. EFSA J. 2017, 15, 4728. [Google Scholar] [CrossRef]
Martín-Peláez, S.; Covas, M.I.; Fitó, M.; Kušar, A.; Pravst, I. Health effects of olive oil polyphenols: Recent advances and possibilities for the use of health claims. Mol. Nutr. Food Res. 2013, 57, 760–771. [Google Scholar] [CrossRef] [PubMed]
del Castillo, M.D.; DeHond, A.I.; Martirosyan, D.M. Are functional foods essential for sustainable health? Ann. Nutr. Food Sci. 2018, 2, 1–4. [Google Scholar]
Scientific Topic: Food Supplements|European Food Safety Authority. Available online: https://www.efsa.europa.eu/en/topics/topic/food-supplements (accessed on 30 October 2020).
Santini, A.; Cammarata, S.M.; Capone, G.; Ianaro, A.; Tenore, G.C.; Pani, L.; Novellino, E. Nutraceuticals: Opening the debate for a regulatory framework. Br. J. Clin. Pharmacol. 2018, 84, 659–672. [Google Scholar] [CrossRef] [Green Version]
Background Information: Dietary Supplements—Consumer—Consumer. Available online: https://ods.od.nih.gov/factsheets/DietarySupplements-Consumer/ (accessed on 10 December 2020).
Schymanski, E.L.; Jeon, J.; Gulde, R.; Fenner, K.; Ruff, M.; Singer, H.P.; Hollender, J. Identifying Small Molecules via High Resolution Mass Spectrometry: Communicating Confidence. Environ. Sci. Technol. 2014, 48, 2097–2098. [Google Scholar] [CrossRef]
Jerman Klen, T.; Golc Wondra, A.; Vrhovšek, U.; Mozetič Vodopivec, B. Phenolic Profiling of Olives and Olive Oil Process-Derived Matrices Using UPLC-DAD-ESI-QTOF-HRMS Analysis. J. Agric. Food Chem. 2015, 63, 3859–3872. [Google Scholar] [CrossRef]
Piątczak, E.; Królicka, A.; Wielanek, M.; Wysokińska, H. Hairy root cultures of Rehmannia glutinosa and production of iridoid and phenylethanoid glycosides. Acta Physiol. Plant. 2012, 34, 2215–2224. [Google Scholar] [CrossRef]
Cardinali, A.; Pati, S.; Minervini, F.; D’Antuono, I.; Linsalata, V.; Lattanzio, V. Verbascoside, isoverbascoside, and their derivatives recovered from olive mill wastewater as possible food antioxidants. J. Agric. Food Chem. 2012, 60, 1822–1829. [Google Scholar] [CrossRef]
Kanakis, P.; Termentzi, A.; Michel, T.; Gikas, E.; Halabalaki, M.; Skaltsounis, A.L. From olive drupes to olive OilAn HPLC-orbitrap-based qualitative and quantitative exploration of olive key metabolites. Planta Med. 2013, 79, 1576–1587. [Google Scholar] [CrossRef] [Green Version]
Fu, S.; Segura-Carreteru, A.; Arráez-Román, D.; Menéndez, J.A.; De La Torre, A.; Fernández-Gutiérrez, A. Tentative characterization of novel phenolic compounds in extra virgin olive oils by rapid-resolution liquid chromatography coupled with mass spectrometry. J. Agric. Food Chem. 2009, 57, 11140–11147. [Google Scholar] [CrossRef] [PubMed]
Lozano-Sánchez, J.; Giambanelli, E.; Quirantes-Piné, R.; Cerretani, L.; Bendini, A.; Segura-Carretero, A.; Fernández-Gutiérrez, A. Wastes Generated during the Storage of Extra Virgin Olive Oil as a Natural Source of Phenolic Compounds. J. Agric. Food Chem. 2011, 59, 11491–11500. [Google Scholar] [CrossRef] [PubMed]
Wang, T.-M.; Fu, Y.; Yu, W.-J.; Chen, C.; Di, X.; Zhang, H.; Zhai, Y.-J.; Chu, Z.-Y.; Kang, T.-G.; Chen, H.-B. Identification of Polar Constituents in the Decoction of Juglans mandshurica and in the Medicated Egg Prepared with the Decoction by HPLC-Q-TOF MS2. Molecules 2017, 22, 1452. [Google Scholar] [CrossRef] [Green Version]
Krzyzanowska-Kowalczyk, J.; Pecio, Ł.; Mołdoch, J.; Ludwiczuk, A.; Kowalczyk, M. Novel phenolic constituents of pulmonaria officinalis l. Lc-ms/ms comparison of spring and autumn metabolite profiles. Molecules 2018, 23, 2277. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Abu-Reidah, I.M.; Arráez-Román, D.; Al-Nuri, M.; Warad, I.; Segura-Carretero, A. Untargeted metabolite profiling and phytochemical analysis of Micromeria fruticosa L. (Lamiaceae) leaves. Food Chem. 2019, 279, 128–143. [Google Scholar] [CrossRef] [PubMed]
Li, Y.; Liu, Y.; Liu, R.; Liu, S.; Zhang, X.; Wang, Z.; Zhang, J.; Lu, J. HPLC-LTQ-orbitrap MSn profiling method to comprehensively characterize multiple chemical constituents in xiao-er-qing-jie granules. Anal. Methods 2015, 7, 7511–7526. [Google Scholar] [CrossRef]
Obied, H.K.; Bedgood, D.R.; Prenzler, P.D.; Robards, K. Bioscreening of Australian olive mill waste extracts: Biophenol content, antioxidant, antimicrobial and molluscicidal activities. Food Chem. Toxicol. 2007, 45, 1238–1248. [Google Scholar] [CrossRef]
Ammar, S.; del Contreras, M.M.; Gargouri, B.; Segura-Carretero, A.; Bouaziz, M. RP-HPLC-DAD-ESI-QTOF-MS based metabolic profiling of the potential Olea europaea by-product “wood” and its comparison with leaf counterpart. Phytochem. Anal. 2017, 28, 217–229. [Google Scholar] [CrossRef]
Bajoub, A.; Pacchiarotta, T.; Hurtado-Fernández, E.; Olmo-García, L.; García-Villalba, R.; Fernández-Gutiérrez, A.; Mayboroda, O.A.; Carrasco-Pancorbo, A. Comparing two metabolic profiling approaches (liquid chromatography and gas chromatography coupled to mass spectrometry) for extra-virgin olive oil phenolic compounds analysis: A botanical classification perspective. J. Chromatogr. A 2016, 1428, 267–279. [Google Scholar] [CrossRef]
Kucharska, A.Z.; Fecka, I. Identification of iridoids in edible honeysuckle berries (Lonicera caerulea L. var. kamtschatica Sevast.) by UPLC-ESI-qTOF-MS/MS. Molecules 2016, 21, 1157. [Google Scholar] [CrossRef] [Green Version]
Sumner, L.W.; Amberg, A.; Barrett, D.; Beale, M.H.; Beger, R.; Daykin, C.A.; Fan, T.W.-M.; Fiehn, O.; Goodacre, R.; Griffin, J.L.; et al. Proposed minimum reporting standards for chemical analysis Chemical Analysis Working Group (CAWG) Metabolomics Standards Initiative (MSI). Metabolomics 2007, 3, 211–221. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Ricciutelli, M.; Marconi, S.; Boarelli, M.C.; Caprioli, G.; Sagratini, G.; Ballini, R.; Fiorini, D. Olive oil polyphenols: A quantitative method by high-performance liquid-chromatography-diode-array detection for their determination and the assessment of the related health claim. J. Chromatogr. A 2017, 1481, 53–63. [Google Scholar] [CrossRef] [PubMed]
de las Hazas, M.C.L.; Rubio, L.; Macia, A.; Motilva, M.J. Hydroxytyrosol: Emerging Trends in Potential Therapeutic Applications. Curr. Pharm. Des. 2018, 24, 2157–2179. [Google Scholar] [CrossRef] [PubMed]
Soni, M.G.; Burdock, G.A.; Christian, M.S.; Bitler, C.M.; Crea, R. Safety assessment of aqueous olive pulp extract as an antioxidant or antimicrobial agent in foods. Food Chem. Toxicol. 2006, 44, 903–915. [Google Scholar] [CrossRef]
Rainer, J. Metabolomics data pre-processing using xcms (Version 1.0.0). Zenodo 2020. [Google Scholar] [CrossRef]
Dührkop, K.; Fleischauer, M.; Ludwig, M.; Aksenov, A.A.; Melnik, A.V.; Meusel, M.; Dorrestein, P.C.; Rousu, J.; Böcker, S. SIRIUS 4: A rapid tool for turning tandem mass spectra into metabolite structure information. Nat. Methods 2019, 16, 299–302. [Google Scholar] [CrossRef] [Green Version]
Depke, T.; Franke, R.; Brönstrup, M. CluMSID: An R package for similarity-based clustering of tandem mass spectra to aid feature annotation in metabolomics. Bioinformatics 2019, 35, 3196–3198. [Google Scholar] [CrossRef]

Figure 1. Principal component analysis (PCA) score (a) and loading (b) plot from targeted data. Samples in the score plot (a) are colored according to the total amount of quantified compounds, with a scale from black to yellow through red, in descending order.

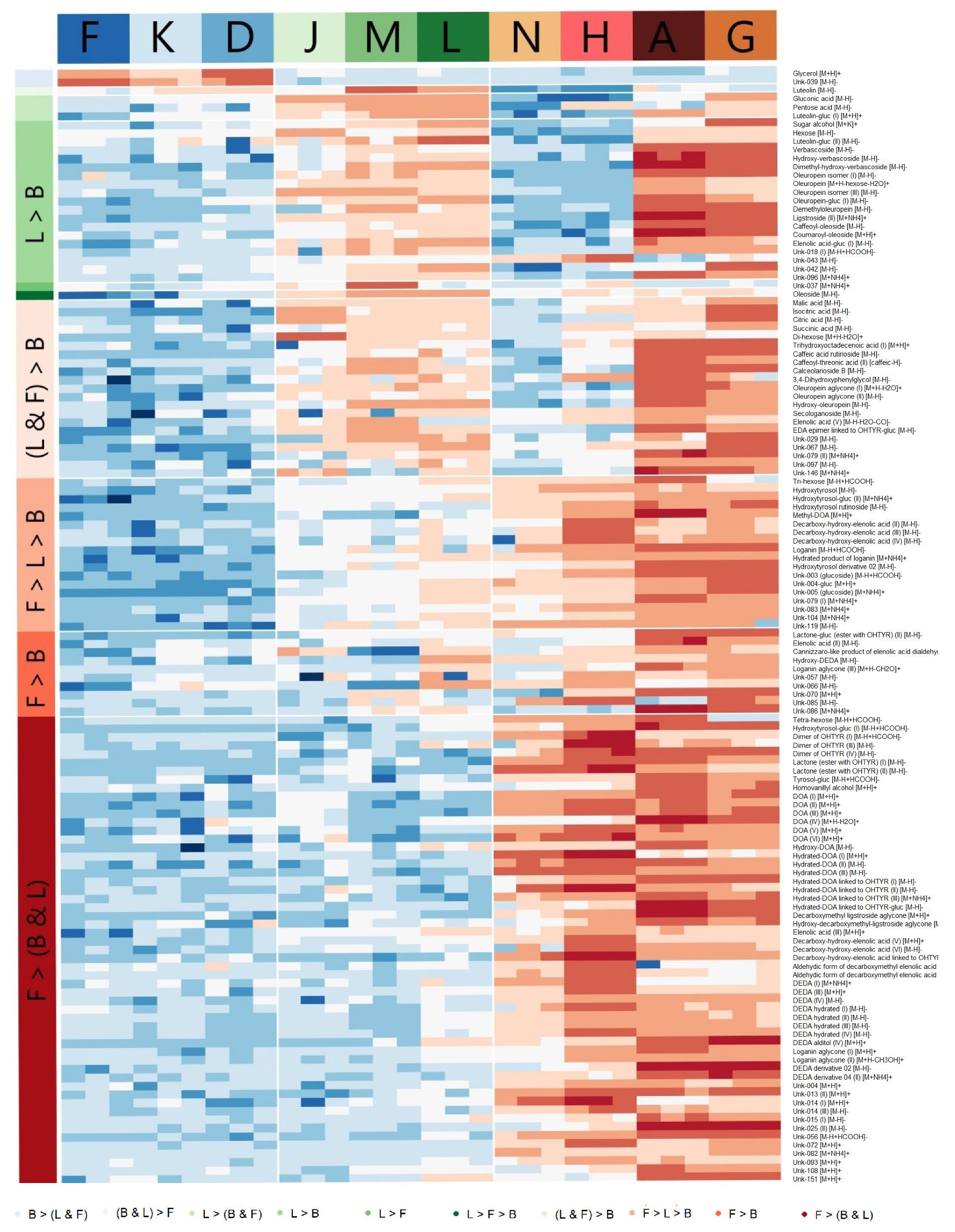

Figure 2. The heat map of discriminant features according to the part of the plant used was selected employing the most intensive feature of each compound. Blue and orange cells correspond to low- and high-metabolite levels, respectively. Columns are samples (codified as indicated in Table 4), and rows are compounds colored by behavior distribution among products’ classes. Product classes refer to buds-based products (B), leave-based products (L) and fruit-based products (F). The symbology of rows’ groups (e.g., “F > L > B”) indicates the behavior of the compound distribution among the products’ classes according to the Kruskal–Wallis test.

Table 2. Parameters of the calibration curves used for quantification and results of method validation.

Compound	Detector	LDR (mg/L)	Curve			Intra-Day (% RSD)	Inter-Day (% RSD)	Repeatability (% RSD)
Compound	Detector	LDR (mg/L)	Intercept	Slope	R²	Intra-Day (% RSD)	Inter-Day (% RSD)	Repeatability (% RSD)
Quinic acid	MS	10–100	2,284,463	146,048	0.989	6.78	10.87	5.38
Malic acid	MS	10–100	1,649,636	32,379	0.992	7.51	14.90	6.68
Isocitric acid	MS	0.2–50	226,679	204,797	0.993	7.74	12.54	9.38
Citric acid	MS	5–100	1,484,339	213,678	0.995	7.00	16.25	5.90
Succinic acid	MS	5–100	769,682	66,403	0.991	3.55	14.35	3.09
Sorbitol	MS	2–100	968,312	88,135	0.972	4.59	13.94	2.07
3,4-Dihydroxy-phenylglycol	MS	0.2–50	262,381	91,393	0.986	8.99	18.55	2.92
Hydroxytyrosol	MS	2–100	2,082,530	253,685	0.988	10.41	5.41	8.30
Oleuropein	MS	0.5–50	1,004,848	695,049	0.991	4.00	5.25	4.04
Tyrosol	DAD	2–1505	−16,214	5499	1.000	1.52	3.65	8.19
Tyrosol glucoside	DAD	5–100	−111	2334	1.000	2.26	2.85	9.81
Verbascoside	DAD	0.5–1536	−23,591	14,737	1.000	0.77	1.81	9.48

LDR, linear dynamic range; RSD, relative standard deviation.

Table 3. Range of concentrations (mg/g) of the quantified compounds in study samples.

Compound	K	D	F	J	M	L	C	O	E	I	N	H	A	G
Quinic acid	0.19–0.21	0.57–0.81	0.11–0.34	0.35–0.57	1.11–1.51	0.73–0.77	11.52–15.3	<LOQ	0.64–0.67	0.45–0.7	<LOQ	<LOQ	0.4–0.65	74.84–79.94
Malic acid	<LOQ	LOQ–0.14	<LOQ	0.18–0.22	0.75–0.82	0.48–0.54	2.86–3.49	<LOQ	0.95–1.3	0.39–0.41	<LOQ	<LOQ	0.21–0.39	19.7–22.88
Citric acid	<LOQ	ND–<LOQ	<LOQ	0.85–0.89	0.27–0.27	0.3–0.34	1.08–1.2	<LOQ	0.58–0.7	0.57–0.59	<LOQ	LOQ–0.06	0.4–0.45	19.19–21.08
Isocitric acid	ND	ND–<LOQ	ND–<LOQ	0–0.01	0.06–0.06	0–0	0.12–0.2	<LOQ	0.01–0.02	0.06–0.07	<LOQ	<LOQ	0.02–0.04	0.3–0.32
Succinic acid	<LOQ	<LOQ	<LOQ	<LOQ	0.07–0.09	<LOQ	0.21–0.28	<LOQ	<LOQ	0.55–0.62	<LOQ	<LOQ	<LOQ	0.5–0.54
Sorbitol	0.14–0.14	0.13–0.24	0.1–0.22	0.08–0.1	0.11–0.13	0.49–0.49	0.87–0.93	0.08–0.09	0.06–0.07	0.7–0.77	<LOQ	<LOQ	0.08–0.1	2–2.02
Trihydroxyoctadecenoic acid (I)	ND	ND–<LOQ	ND–<LOQ	ND	ND	ND	ND	ND	ND–<LOQ	ND	ND	ND	ND–0.03	0.04–0.05
Trihydroxyoctadecenoic acid (II)	ND–<LOQ	ND–<LOQ	ND–<LOQ	<LOQ	<LOQ	0.01–0.01	ND–<LOQ	ND–<LOQ	<LOQ	0–0.01	ND	ND	0.01–0.02	0–0.01
Trihydroxyoctadecenoic acid (III)	ND–<LOQ	ND–<LOQ	<LOQ	<LOQ	0.01–0.02	0.03–0.03	ND–0.02	0.01–0.02	0.05–0.05	0.18–0.22	ND	ND	0.01–0.01	0.03–0.05
Verbascoside	ND	ND–0.03	ND–0.02	0.02–0.04	0.14–0.16	0.09–0.1	2.8–3.05	ND–0.02	0.78–0.81	0.75–3.7	ND–0.02	ND–0.03	47.43–51.19	16.96–18.26
Hydroxy-verbascoside (I)	ND	ND	ND	ND	ND–0.02	ND	0.06–0.07	ND	0.15–0.16	0.07–0.18	ND	ND–0.04	2.99–3.1	0.75–0.88
Hydroxy-verbascoside (II)	ND	ND	ND	ND	ND–0.03	ND	0.38–0.43	ND	0.06–0.06	0.05–0.12	ND	ND	3.09–3.17	0.75–0.83
3,4-Dihydroxy-phenylglycol	<LOQ	<LOQ	<LOQ	0.07–0.08	0.01–0.02	0.11–0.11	0.01–0.02	<LOQ	ND–<LOQ	0.11–0.13	<LOQ	0.12–0.14	0.3–0.38	0.1–0.1
Hydroxytyrosol	<LOQ	<LOQ	<LOQ	0.14–0.16	0.2–0.27	0.05–0.06	0.13–0.17	0.09–0.13	LOQ–0.06	17.15–21.46	5.99–8.82	74.83–88.2	14.94–20.06	9.14–10.14
Hydroxytyrosol glucoside (I)	ND–<LOQ	<LOQ	<LOQ	LOQ–0.02	<LOQ	<LOQ	0.5–0.64	<LOQ	0.12–0.17	0.58–0.66	LOQ–0.47	0.17–0.2	1.71–3.03	0.55–0.75
Hydroxytyrosol glucoside (II)	<LOQ	<LOQ	<LOQ	LOQ–0.02	0.07–0.1	0.2–0.21	2.2–2.39	<LOQ	0.18–0.26	0.78–0.92	LOQ–0.17	0.08–0.12	1.38–2.05	0.56–0.69
Tyrosol	0.04–0.04	0.04–0.05	0.04–0.04	ND	0.03–0.05	0.05–0.06	ND–0.21	0.07–0.08	ND–0.07	2.28–2.66	ND	2.17–2.38	4.93–5.8	3.2–3.25
Tyrosol glucoside	ND	ND–<LOQ	ND–<LOQ	ND	0.33–0.37	ND	1.76–2.35	ND	0.57–0.77	0.4–0.56	ND	ND	10.73–11.98	4.64–6.4
Oleuropein	<LOQ	LOQ–0.01	<LOQ	0.13–0.14	0.42–0.61	0.37–0.39	16.49–19.22	<LOQ	15.64–17.4	71.76–79.09	<LOQ	LOQ–0.08	3.9–4.86	0.17–0.22
Oleuropein isomer (I)	<LOQ	ND–<LOQ	<LOQ	ND–<LOQ	ND–<LOQ	ND	0.01–0.05	ND–<LOQ	ND–0.08	0.21–0.28	<LOQ	ND–<LOQ	0.01–0.01	LOQ–0.01
Oleuropein isomer (II)	<LOQ	<LOQ	<LOQ	LOQ–0.01	<LOQ	<LOQ	0.72–0.79	ND–<LOQ	0.21–0.26	2.93–3.77	<LOQ	<LOQ	0.11–0.13	0.06–0.07
Elenolic acid	<LOQ	<LOQ	ND	0.01–0.01	<LOQ	0.03–0.04	<LOQ	<LOQ	<LOQ	0.1–0.11	ND–<LOQ	ND	1.21–1.37	0.41–0.45
DEDA	<LOQ	<LOQ	LOQ–0.51	<LOQ	<LOQ	<LOQ	<LOQ	LOQ–0.01	<LOQ	0.24–0.26	LOQ–0.17	2.78–3.16	0.73–0.83	1.84–2.13
Hydroxy-DEDA	<LOQ	<LOQ	<LOQ	<LOQ	<LOQ	0.19–0.21	<LOQ	<LOQ	<LOQ	<LOQ	LOQ–0.04	0.09–0.09	0.14–0.16	1.59–1.76
DEDA hydrated (I)	<LOQ	<LOQ	<LOQ	<LOQ	<LOQ	<LOQ	<LOQ	<LOQ	<LOQ	0.11–0.12	LOQ–0.12	0.94–1.33	0.09–0.1	0.06–0.09
DEDA hydrated (II)	ND–<LOQ	ND–<LOQ	ND–<LOQ	<LOQ	<LOQ	<LOQ	<LOQ	<LOQ	<LOQ	<LOQ	<LOQ	0.11–0.13	<LOQ	<LOQ

Abbreviations: DEDA, Decarboxymethyl elenolic acid dialdehyde; LOQ, limit of quantification; ND, not detected.

Table 4. Summary of the characteristics of the supplements included in the present study.

Product	Part Used	Pharmaceutical Form	Recommended Daily Intake Dose by the Supplier	Presence of Other Plant Extracts	Boasted Activity	Origin	Physical State	Extraction Product
K	buds	Drops	100 drops (5.28 g)	-	Hypotensive, cholesterol-lowering	Italy	liquid	glyceric macerate
D	buds	Drops	80 drops (2.13 g)	-	Protective vascular functionality (vasodilator, hypotensive); promotes correct lipid and carbohydrate metabolism	Italy	liquid	glyceric macerate
F	buds	Drops	75 drops (2.70 g)	-	Protective vascular functionality (vasodilator, hypotensive); promotes correct lipid and carbohydrate metabolism	Italy	liquid	glyceric macerate
J	leaves	Liquid	70 mL (72.8 g)	Calendula	Antioxidant, promotes correct lipid and carbohydrate metabolism, maintain normal blood pressure	Italy	liquid	liquid extract
M	leaves	Drops	75 drops (1.98 g)	Passiflora, hawthorn, pilosella, fumaria	Hypotensive	Italy	liquid	liquid extract
L	leaves	Drops	75 drops (1.98 g)	-	Promotes correct lipid and carbohydrate metabolism	Italy	liquid	liquid extract
C	leaves	Capsules	4 cps (2 g)	Hawthorn, goji	Maintain normal blood pressure	Italy	powder	dry extract
O	leaves and fruit	Raw material	400 mg (0.4 g)	-	Protective vascular functionality, anti-diabetic action	Spain	powder	dry extract
E	leaves and fruit	Capsules	2 cps (1.2 g)	Hawthorn, salvia	Maintain normal blood pressure	Italy	powder	dry extract
I	leaves and fruit	Raw material	400 mg (0.4 g)	-	Hypotensive, antioxidant, anti-inflammatory, cholesterol-lowering, anti-diabetic action	Spain	powder	dry extract
N	fruit	Capsules	2 cps (1.28 g)	-	Antioxidant, anti-aggregant, anti-inflammatory	Italy	powder	dry extract
H	fruit	Raw material	25 mg (0.025 g)	-	Antioxidant (cholesterol LDL)	Spain	powder	dry extract
A	fruit	Raw material	400 mg (0.4 g)	-	Antioxidant, protective vascular functionality	France	powder	dry extract
G	fruit	Raw material	400 mg (0.4 g)	-	Antioxidant, protective ultraviolet (UV) rays	France	powder	dry extract

Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

© 2020 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).

Share and Cite

MDPI and ACS Style

Garcia-Aloy, M.; Groff, N.; Masuero, D.; Nisi, M.; Franco, A.; Battelini, F.; Vrhovsek, U.; Mattivi, F. Exploratory Analysis of Commercial Olive-Based Dietary Supplements Using Untargeted and Targeted Metabolomics. Metabolites 2020, 10, 516. https://doi.org/10.3390/metabo10120516

AMA Style

Garcia-Aloy M, Groff N, Masuero D, Nisi M, Franco A, Battelini F, Vrhovsek U, Mattivi F. Exploratory Analysis of Commercial Olive-Based Dietary Supplements Using Untargeted and Targeted Metabolomics. Metabolites. 2020; 10(12):516. https://doi.org/10.3390/metabo10120516

Chicago/Turabian Style

Garcia-Aloy, Mar, Nelli Groff, Domenico Masuero, Mauro Nisi, Antonio Franco, Furio Battelini, Urska Vrhovsek, and Fulvio Mattivi. 2020. "Exploratory Analysis of Commercial Olive-Based Dietary Supplements Using Untargeted and Targeted Metabolomics" Metabolites 10, no. 12: 516. https://doi.org/10.3390/metabo10120516

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Menu

Exploratory Analysis of Commercial Olive-Based Dietary Supplements Using Untargeted and Targeted Metabolomics

Abstract

1. Introduction

2. Results

2.1. Untargeted Metabolomics: Identified Compounds

2.2. Targeted Metabolomics

2.3. Data Visualization and Analysis

3. Discussion

4. Materials and Methods

4.1. Solvents and Standards

4.2. Study Samples

4.3. Sample Preparation

4.4. Untargeted Metabolomics

4.4.1. Chromatographic and Mass Spectrometry Conditions

4.4.2. Data Processing

4.4.3. Compound Identification

4.5. Targeted Metabolomics

4.5.1. Chromatographic and Mass Spectrometry Conditions

4.5.2. Method Development and Validation

4.6. Data Analysis and Visualization

Supplementary Materials

Author Contributions

Funding

Acknowledgments

Conflicts of Interest

References

Share and Cite

Article Metrics

Article Access Statistics

Further Information

Guidelines

MDPI Initiatives

Follow MDPI
