Compact Stars in the vBag Model and Its f-Mode Oscillations

Abstract

Electromagnetic (EM) observations and gravitational wave (GW) measurements enable us to determine the mass and radius of neutron stars (NSs) and their tidal deformability, respectively. These parameters offer valuable insights into the properties of dense matter in NSs. In this study, the vector-interaction-enhanced bag model (vBag model) is employed to investigate strange and hybrid stars’ properties. The parameters of the vBag model are constrained using multi-messenger observations, revealing that strange stars are incompatible with current observations. In contrast, hybrid stars can exhibit a substantial mixed phase region and a thin hadronic shell. Furthermore, we present the frequencies and damping time of fundamental mode (f-mode) oscillations of hybrid stars and test their universal relations with compactness and tidal deformability. The findings indicate that the presence of mixed phase components leads to larger frequencies and shorter damping time of the f-mode oscillation of hybrid stars, and the softer equation of state (EoS) affects this behavior more significantly. The universal relations of hybrid stars in the vBag model can be described by fourth-order/seventh-order polynomials, which do not break the previous results.

1. Introduction

The study of the structure of compact stars depends on the understanding of the EoS of the dense matter in them. It was conjectured a long time ago that quark matter appears inside compact stars, as strange stars or hybrid stars [1,2,3]. Recently, the Advanced LIGO and Advanced Virgo collaborations observed the binary neutron star (BNS) merger event GW170817 [4], which focused on the constraints on the compact stars’ EoSs [5,6,7,8,9]. It appears possible, but not conclusive, that one or both component stars in the merger could be stars with quark matter [10,11,12]. Some examples of massive pulsars are observed ($M>2{\mathrm{M}}_{\odot }$) [13,14,15,16], combined with mass and radius measurements taken by the NICER (Neutron star Interior Composition Explorer) experiment [17,18,19,20], have provided, until recently, the most important benchmarks for the EoS. However, it has been pointed out that most of the current EoSs describing quark matter are too soft to support strange stars with large masses and are thus unable to explain the existence of massive pulsars [21,22].

The MIT bag model is a phenomenological approach to describe a confined system of relativistic quarks and gluon fields [23]. Calculations using soft EoSs of quark matter, such as the MIT bag model, provide values of maximum masses for strange stars lower than $1.6{\mathrm{M}}_{\odot }$. In this scenario, strange stars seem to be incompatible with the observed massive pulsars mentioned above. However, many studies found that effects from strong interactions, such as one-gluon exchange or color superconductivity, can stiffen the quark matter EoS [24,25]. Calculations of strange stars using the modified MIT bag model (such as thermodynamic bag model (tdBag model) [26], non-ideal bag model [27], and vector MIT bag model [28,29]) or the Nambu–Jona–Lasinio (NJL) model [30,31] are capable of reproducing a maximum star mass of around $2{\mathrm{M}}_{\odot }$, which is compatible with the observational data [32,33].

Among these modified MIT bag models, a recent specific model inspired by non-perturbative features of quantum chromodynamics (QCD), namely, the vector-interaction-enhanced bag model (vBag model) [28], indicates that massive compact stars with mass $\ge 2{\mathrm{M}}_{\odot }$ would be interpreted as possible candidates for strange stars. The vBag model was first introduced by Klähn and Fischer [28] and provides a stiff EoS, which is a hybrid approach to consolidate a number of seeming discrepancies between the NJL and tdBag model and is compatible with some of those observational data. However, the reasonable parameter range of this model is not clearly known. Motivated by these investigations, the first aim of this work is to fully and systematically exploit the constraints on the vBag model caused by the stable existence of strange quark matter and the multi-messenger observations.

Mapping out the radial or nonradial oscillation mode, including the fundamental (f) mode, pressure (p) mode, and gravity (g) mode, can provide a way to probe the internal structure and composition of compact stars [34,35,36,37,38,39]. These modes are also known as quasi-normal modes in relativistic fluid stars, and the oscillations of the stars are dissipated by gravitational radiation [40,41,42]. Among these modes, the f-mode is important for compact stars since its frequency, ∼1–3 kHz, makes it relatively easier to be observed than other modes. On the other hand, f-mode oscillations can be excited in a wide range of astrophysical environments that are an effective source of gravitational radiation [40,42]: core-collapse supernova explosions, starquakes associated with a pulsar glitch, a binary compact star merger remnant [41]. Therefore, this makes the f-mode more likely to be detected by third-generation gravitational wave detectors, such as the Einstein Telescope (ET) [43] and the Cosmic Explorer (CE) [44] and future observation runs by LIGO, Virgo, and KAGRA [45].

Although the macrostructure of compact stars is sensitive to EoSs, insensitive relations connect various quantities of compact stars [40,46,47,48,49,50]. These relations are considered universal since they are highly insensitive to EoSs. In astrophysics and fundamental physics, universal relations for compact stars are essential. These relationships allow us to extract the macrostructure of compact stars with greater accuracy and assist in studying the inverse problem of identifying the EoS by giving EoS-insensitive linkages between distinct quantities. The second aim of the work is to test the universal relations between the frequency and damping time of the quadrupolar f-mode and the compactness and tidal deformability of hybrid stars using EoS parameter constraints from multi-messenger observations.

Previous works have constrained the bag constant of the MIT bag model and suggested possible values for hybrid stars by combining data from 20 compact star candidates [51]. Anisotropic compact star models also have been compared with the results of six compact star candidates [52]. The EoS models can be further constrained by the new observational data, especially the measurement of neutron star radii by the NICER mission. In this work, the vBag model is used to describe quark matter, and the mixed phase is constructed with the Gibbs construction. We constrain the parameter space of the vBag model within the strange stars and hybrid stars using current multi-messenger observations. Based on the parameter space constraints, we present the properties of f-mode oscillations of the hybrid star and improve the universal relations between f-mode frequency and the macrostructure of hybrid stars. The paper is organized as follows. Section 2 introduces the EoS and the macrostructure of the strange stars and hybrid stars used in this study. The results of multi-messenger constraints on the EoS parameters of quark matter are given in Section 3. In Section 4, we study the properties of f-mode and the universal relations of hybrid stars in the vBag model. Section 5 summarizes the main points of this work.

2. EoS and Macrostructure of Compact Stars

In this work, the relativistic Dirac–Brueckner–Hartree–Fock approach (DBHF) is used to describe the hadronic matter [53], which can account for the properties of many-body nuclear matter and is compatible with astronomical observations. For quark matter, it is described by the vBag model. The mixed phase is constructed using Gibbs construction [54]. For the crust, we use the simple BBP and BPS models to describe the inner and outer structures [55,56], which are widely used models that consider the interaction of the electron gas with the nuclei, as well as the effect of the dripped neutrons, and can describe the properties of matter in the low-density region of a neutron star. Due to uncertainties with different crust models, one may obtain slightly different mass-radius relations.

2.1. Hadronic Phase

When modeling the behavior of cold hadronic matter for astrophysical applications, an excellent approximation for the specific energy of neutron-rich matter has been revealed by many studies [38,53]:

$$E\left(n,x\right)=E\left(n,x=\frac{1}{2}\right)+S\left(n\right){\left(1-2x\right)}^2,$$

(1)

where x is the proton fraction, $E\left(n,x=\frac{1}{2}\right)$ is the energy per particle of symmetric nuclear matter, and $S\left(n\right)$ is the nuclear symmetry energy. Then, by applying simple thermodynamic relations to an ensemble describing matter that adheres to the conditions of $\beta$-equilibrium and charge neutrality, we obtain the nuclear pressure and energy density.

The model we adopt is a general method used to describe the energy of nucleons in the hadronic phase, where the energy per particle of symmetric nuclear matter and the nuclear symmetry energy is obtained using the DBHF model [57,58]. This model’s calculations meet the empirical saturation point of nuclear matter with a binding energy of $-16\mathrm{MeV}$ at the saturation density [57]. Furthermore, at the saturation density, the DBHF model provides a symmetry energy of $35\mathrm{MeV}$, which is in good agreement with the empirical models and data from isospin diffusion in heavy-ion collisions. The derivative of the symmetry energy with respect to number density is $69.4\mathrm{MeV}$, which is also called symmetry pressure and indicates that nuclear matter is relatively soft at saturation density [59]. In addition, the DBHF model produces a neutron star with a maximum mass of $2.3{\mathrm{M}}_{\odot }$. Thus, in an analysis of the DBHF model and its performance under a neutron star and heavy-ion collision constraints, this particular EoS performs extremely well (see Fuchs [57], Klähn et al. [59] for further references).

2.2. Quark Phase

We use the vBag model to describe the quark matter. The pressure and energy density of a single flavor can be expressed as [28]:

$$\begin{array}{cc}\hfill P_f\left({\mu }_f\right)& =P_{\mathrm{FG},f}\left({\mu }_f^{*}\right)+\frac{K_{\mathrm{v}}}{2}{n}_{\mathrm{FG},f}^2\left({\mu }_f^{*}\right)-B_{\chi ,f},\hfill \end{array}$$

(2)

$$\begin{array}{cc}\hfill {ϵ}_f\left({\mu }_f\right)& ={ϵ}_{\mathrm{FG},f}\left({\mu }_f^{*}\right)+\frac{K_{\mathrm{v}}}{2}{n}_{\mathrm{FG},f}^2\left({\mu }_f^{*}\right)+B_{\chi ,f},\hfill \end{array}$$

(3)

where $P_{\mathrm{FG},f}\left({\mu }_f^{*}\right)$ and ${ϵ}_{\mathrm{FG},f}\left({\mu }_f^{*}\right)$ are the pressure and energy given by a Fermi gas expression of the individual flavor quark. The second term, which contains $K_{\mathrm{v}}$, is from the vector interaction. The effective flavor chemical potential ${\mu }_f^{*}$ is determined self-consistently at a given bare flavor chemical potential

$${\mu }_f={\mu }_f^{*}+K_{\mathrm{v}}{n}_{\mathrm{FG},f}\left({\mu }_f^{*}\right).$$

(4)

The number density is

$$n_f\left({\mu }_f\right)=n_{\mathrm{FG},f}\left({\mu }_f^{*}\right),$$

(5)

and $B_{\chi ,f}$ is the bag constant of a single flavor. The introduction of flavor-dependent chiral bag constants is motivated by their fits to the pressure of the chirally restored phase, and a deconfinement bag constant $B_{\mathrm{dc}}$ is introduced to lower the energy/particle and thereby favor stable strange matter. Thus, the EoS of the vBag model can be written as [28]

$$P_{\mathrm{q}}=\frac{1}{3}\left({ϵ}_{\mathrm{q}}-4\sum _f{B}_{\chi ,f}\right)+\frac{4}{3}{B}_{\mathrm{dc}}+\frac{K_{\mathrm{v}}}{3}\sum _f{n}_f^2\left({\mu }_f\right),$$

(6)

where the free parameters are vector interaction coupling constant $K_{\mathrm{v}}$ and effective bag constant $B_{\mathrm{eff}}={\sum }_f{B}_{\chi ,f}-B_{\mathrm{dc}}$.

2.3. Mixed Phase: Gibbs Construction

The dense matter in the compact star satisfies $\beta$-equilibrium, which relates to the chemical potentials in nuclear and quark matter at low temperatures. Together with the charge neutrality conditions in each phase, it is evident that one chemical potential is sufficient to characterize the individual thermodynamic state of nuclear and quark matter if no phase transition is assumed. If both phases are independent, the phase with the higher pressure minimizes the thermodynamical potential and is therefore energetically favorable. Consequently, a phase transition will occur if nuclear and quark matter have equal pressure at the equal baryochemical potential [60],

$$P^{\mathrm{H}}\left({\mu }_{\mathrm{B}}\right)=P^{\mathrm{Q}}\left({\mu }_{\mathrm{B}}\right),$$

(7)

where $P^{\mathrm{H}}$ and $P^{\mathrm{Q}}$ are the pressures of the hadronic and quark phases, respectively. ${\mu }_{\mathrm{B}}$ is the baryon chemical potential. The baryon number and the total electric charge are conserved in the quark deconfinement phase transition. The phase transition between hadronic and quark phases occurs over a range of pressures and chemical potentials, where both phases coexist in a mixed phase region. Thus, the mixed phase is given by the condition [60], and the global charge neutrality condition satisfied by the Gibbs construction can be expressed as

$$(1-\eta )Q^{\mathrm{H}}+\eta Q^{\mathrm{Q}}=0,$$

(8)

where $\eta =V^{\mathrm{Q}}/(V^{\mathrm{Q}}+V^{\mathrm{H}})$ is the volume fraction occupied by quark matter, and $\eta$ ranges from 0 to 1. Thus, the total energy density of the mixed phase is

$$ϵ=(1-\eta ){ϵ}^{\mathrm{H}}+\eta {ϵ}^{\mathrm{Q}}.$$

(9)

2.4. Macroscopic Structure of Compact Stars

In order to obtain the mass (M) and radius (R) of non-rotating compact stars, we solve the Tolman–Oppenheimer–Volkoff (TOV) equations [60,61,62]:

$$\begin{array}{cc}\hfill \frac{dP}{dr}& =\frac{(P+ϵ)(m+4\pi r^{3}P)}{r(r-m)},\hfill \\ \hfill \frac{dm}{dr}& =4\pi r^2ϵ.\hfill \end{array}$$

(10)

Tidal deformability is also one of the macroscopic properties of a compact star, which reflects the ability of a neutron star to deform under a tidal field. It is also the most important one carrying information about the EoS of compact stars. The dimensionless tidal deformability is defined as

$$\Lambda =\frac{2}{3}{k}_2{C}^{-5},$$

(11)

where $C=M/R$ is the compactness of the star. By solving the differential equation of Love number $k_2$ together with the TOV equations and the EoS, the dimensionless tidal deformability can be obtained [63,64,65].

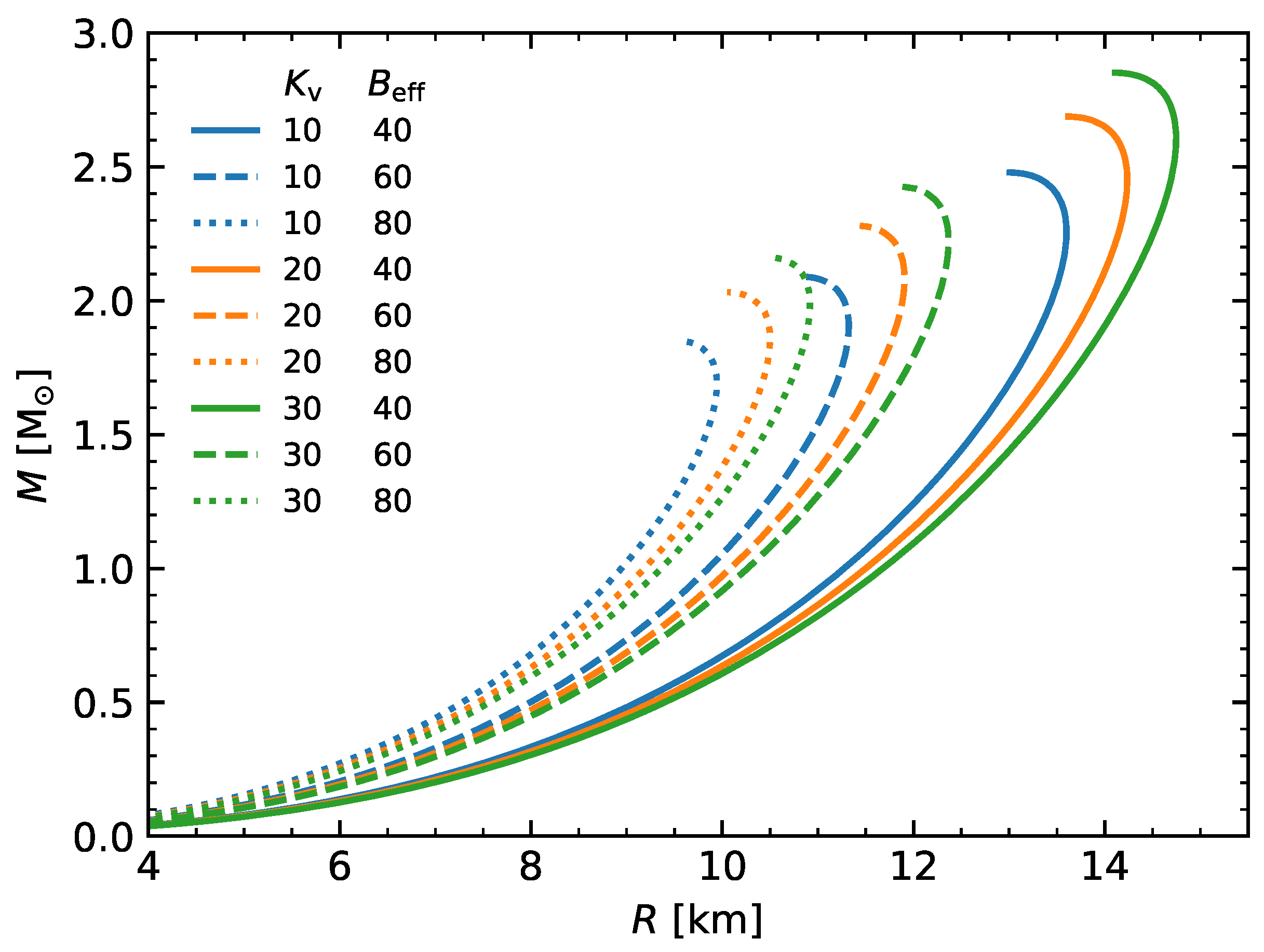

The parameters $K_{\mathrm{v}}$ and $B_{\mathrm{eff}}$ play an important role in the properties of compact stars described in our work. We give out the mass–radius relations of strange stars and hybrid stars with different $K_{\mathrm{v}}$ and $B_{\mathrm{eff}}$ in Figure 1 and Figure 2. $K_{\mathrm{v}}$ and $B_{\mathrm{eff}}$ decide the stiffness of the EoSs of quark matter, which affects the maximum mass and radius of both strange stars and hybrid stars. For strange stars, the maximum mass and radius increase with the increase in $K_{\mathrm{v}}$ and decrease in $B_{\mathrm{eff}}$ because the larger the value of $K_{\mathrm{v}}$ is and the smaller the value of $B_{\mathrm{eff}}$ is, the stiffer the EoS of the quark matter is. For hybrid stars, the maximum mass is more sensitive to the value of $K_{\mathrm{v}}$ among two parameters: it increases with the increase in $K_{\mathrm{v}}$. By choosing appropriate values of $K_{\mathrm{v}}$, the maximum mass of the hybrid star can exceed 2 ${\mathrm{M}}_{\odot }$. Both $K_{\mathrm{v}}$ and $B_{\mathrm{eff}}$ affect the radii of hybrid stars obviously. The radius increases with the increase in $K_{\mathrm{v}}$ and $B_{\mathrm{eff}}$. The critical masses for the appearance of quarks depend on $K_{\mathrm{v}}$ and $B_{\mathrm{eff}}$ too. The mixed phase appears earlier for smaller values of $K_{\mathrm{v}}$ or $B_{\mathrm{eff}}$, and the critical mass is more sensitive to $B_{\mathrm{eff}}$. With fixed $K_{\mathrm{v}}$, the smaller $B_{\mathrm{eff}}$ is, the earlier the mixed phase appears, the smaller the critical mass is. For some parameter combinations, the mixed phase appears at a density even lower than nuclear saturation density, which indicates a large quark fraction might exist even in the low-mass stars. Moreover, the early phase transition leads to the increased compactness of stars and thus to smaller radii. For hybrid star models, the critical masses range from around $0.2{\mathrm{M}}_{\odot }$ to near the maximum mass of DBHF EoS ($2.3{\mathrm{M}}_{\odot }$), i.e. it is possible to obtain low mass and more compact hybrid stars for the Gibbs construction.

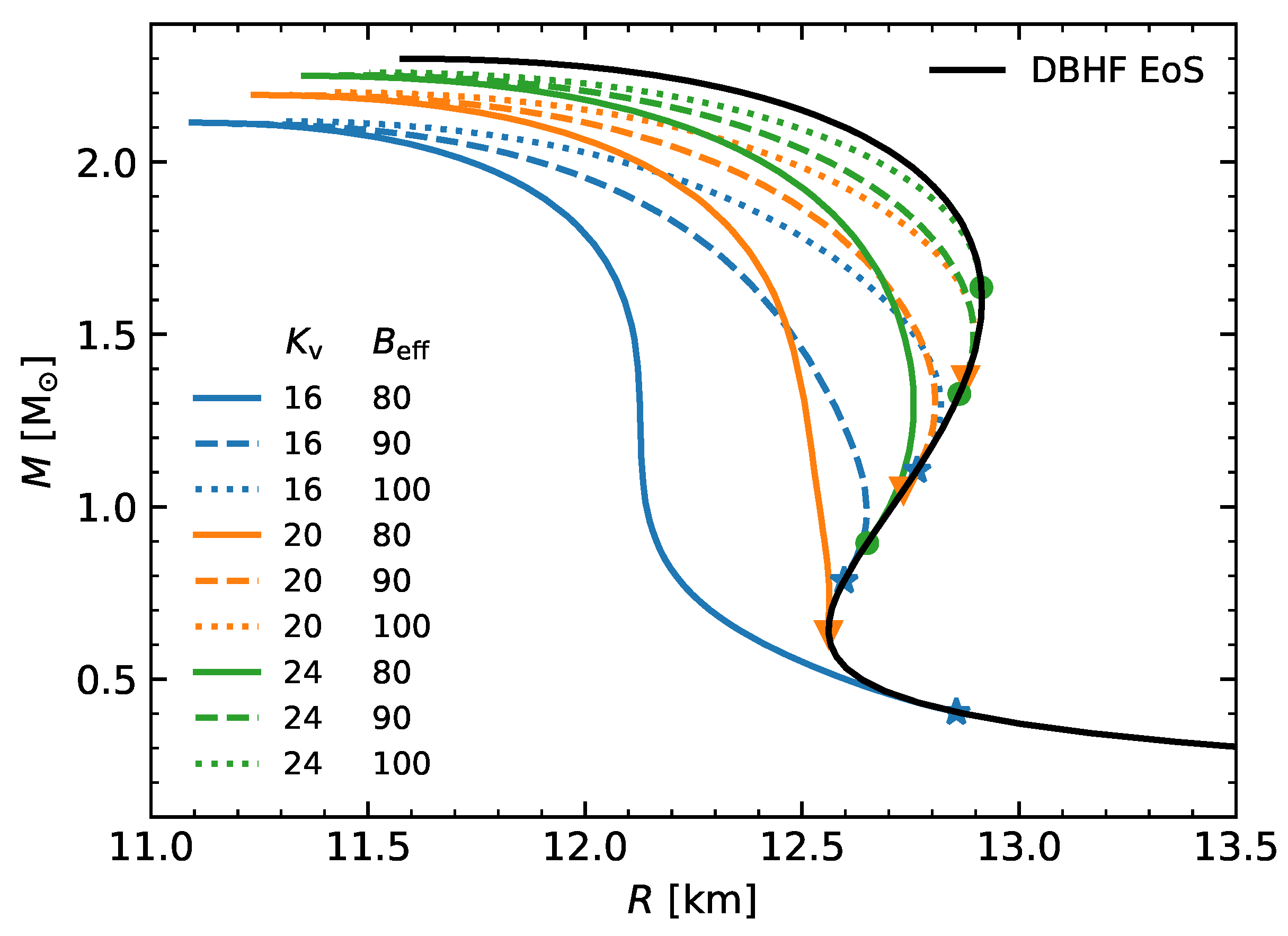

Under the Gibbs construction, the densities of mixed phase vary from ∼1 to 10 nuclear saturation density, making it impossible for the central density of a stable hybrid star to reach the pure quark phase. In addition, no pure quark phase exists in the core of hybrid stars in the vBag model. Therefore, our results indicate that earlier phase transitions and a wide range of mixed phase densities make it only possible for quarks to be present in the mixed phase with the Gibbs construction of hybrid stars.

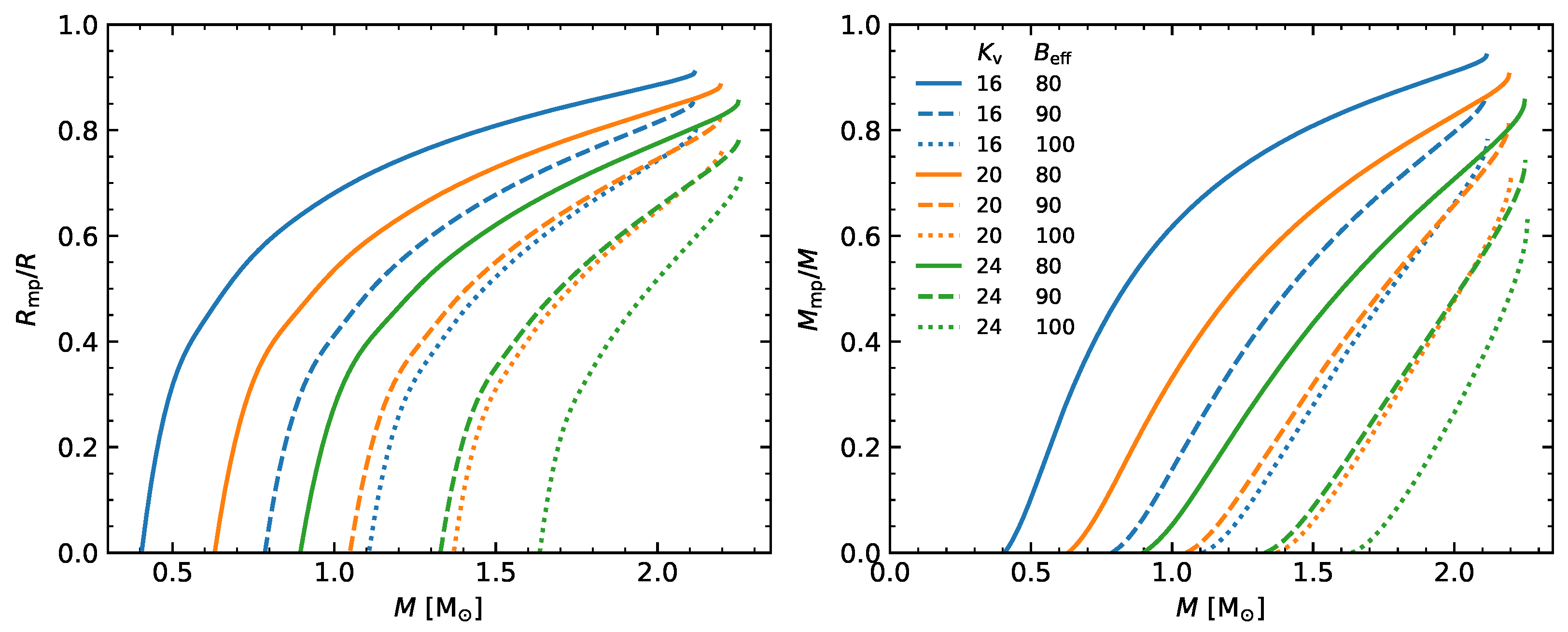

In Figure 3, we give the ratio of $R_{\mathrm{mp}}/R$ and $M_{\mathrm{mp}}/M$ ($R_{\mathrm{mp}}$ is the radius from the center of the star to the surface of the mixed phase, $M_{\mathrm{mp}}$ is the mass enclosed within $R_{\mathrm{mp}}$, R and M are the full radii and mass of the star). We find that the ratio of the radius and mass of the mixed phase increases with the total mass of the hybrid star. For massive stars, the mixed phase occupies a large fraction of the star, and the mixed phase mainly contributes to the mass of the hybrid star. The ratio of the radius and mass of mixed phase can even exceed 0.8 for some parameters, since these EoS are softer.

3. Constraints on the EoS of Quark Matter in the vBag Model

The electromagnetic (EM) observations for the mass and radius of NSs require that the EoSs must be stiff enough to support the 2 ${\mathrm{M}}_{\odot }$ star, and the GW measurements for tidal deformability require that the EoSs are not too stiff. Therefore, combining the results of EM and GW results in a good constraint for the EoSs of dense matter. In this work, we use the following multi-messenger (EM and GW) astrophysical observations:

• Massive pulsars. PSR J1614−2230 with $M=1.{908}_{-0.016}^{+0.016}{\mathrm{M}}_{\odot }$ [13,66], PSR J0348+0432 with $M=2.01\pm 0.04{\mathrm{M}}_{\odot }$ [14], and PSR J0740+6620 with $M=2.08\pm 0.07{\mathrm{M}}_{\odot }$ [16]. PSR J1810+1744 and PSR J0952−0607, with $M=2.13\pm 0.04{\mathrm{M}}_{\odot }$ and $M=2.35\pm 0.17{\mathrm{M}}_{\odot }$, respectively [67,68]. According to the above massive pulsars observations, the maximum mass of the star must be higher than $2{\mathrm{M}}_{\odot }$.
• The radii of neutron stars’ constraints from NICER mission. PSR J0030+0451 with $M=1.{34}_{-0.16}^{+0.15}{\mathrm{M}}_{\odot }$, $R=12.{71}_{-1.19}^{+1.14}\mathrm{km}$ [17] and $M=1.{44}_{-0.14}^{+0.15}{\mathrm{M}}_{\odot }$, $R=13.{02}_{-1.06}^{+1.24}\mathrm{km}$ [19]. PSR J0740+6620 with $M=2.{072}_{-0.066}^{+0.067}{\mathrm{M}}_{\odot }$, $R=12.{39}_{-0.98}^{+1.30}\mathrm{km}$ [18] and $M=2.08\pm 0.07{\mathrm{M}}_{\odot }$, $R=13.7_{-1.5}^{+2.6}\mathrm{km}$ [20].
• Current bounds for the effective tidal deformability as reported by the LIGO–Virgo collaboration have been placed at $\overline{\Lambda }={300}_{-230}^{+420}$ at a 90% confidence for low-spin priors [45]. Furthermore, the dimensionless tidal deformability of a star at the Chandrasekhar mass has been reported at ${\Lambda }_{1.4}={190}_{-120}^{+390}$ under the same conditions [4,69].

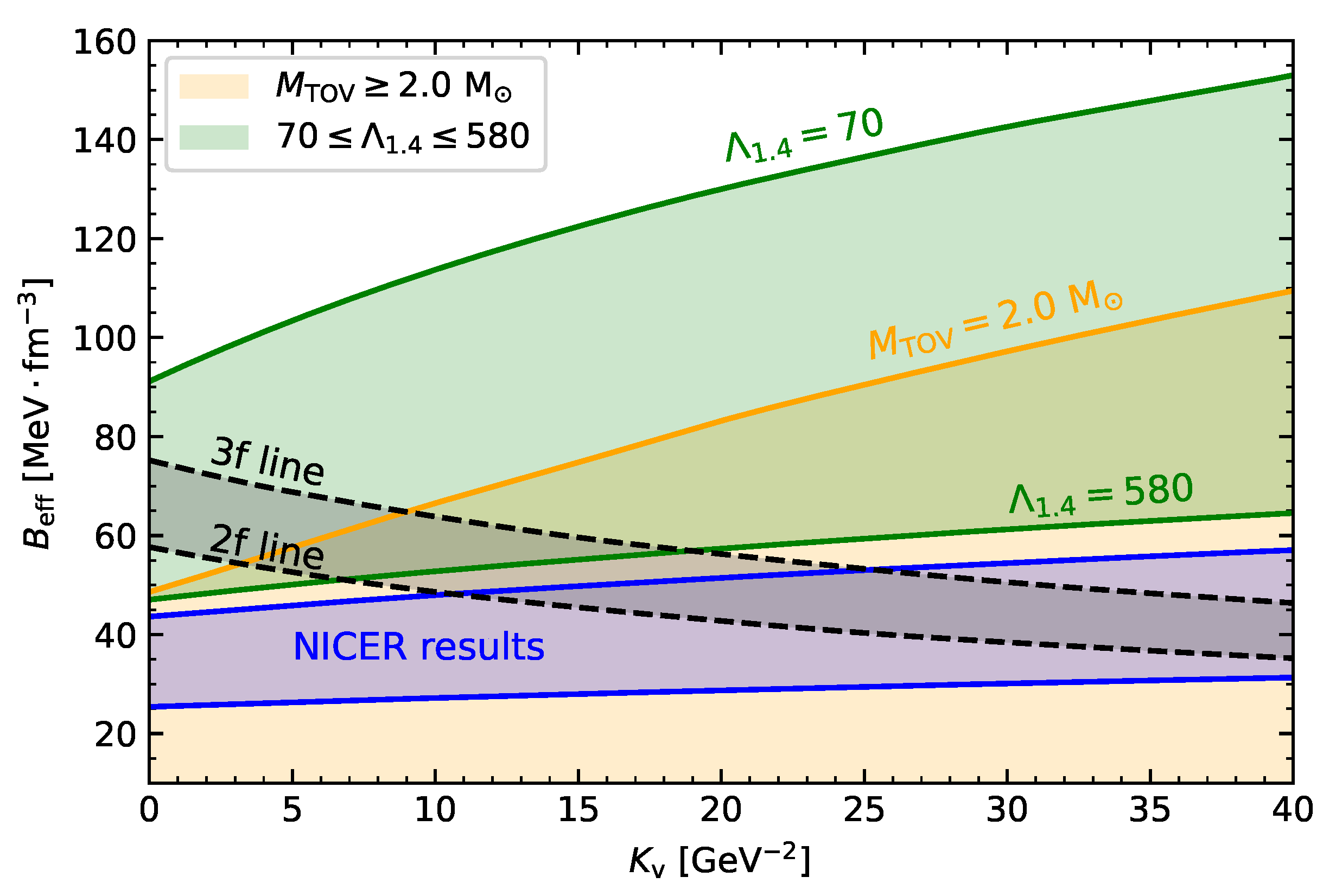

By adopting the above observational results, we give out the parameter space of the vBag model ($K_{\mathrm{v}}$, $B_{\mathrm{eff}}$) within strange stars, and the results are shown in Figure 4. The stability window bounded by the “two-flavor line” (the energy per particle $E/A=934\mathrm{MeV}$) and “three-flavor line” ($E/A=930.4\mathrm{MeV}$) are also given out. The “2-flavor line” ensures the normal atomic nuclei will not decay into nonstrange quark matter (above the line), while the “3-flavor line” ensures strange quark matter will be more stable than normal nuclear matter (below the line) [70,71]. When all observational and stability limitations are addressed, no parameter space of the quark matter in the vBag model can simultaneously fulfill multi-messenger observations. This indicates that strange stars in the vBag model that correspond to present constraints may not exist.

The parameter space constraints of the vBag model within hybrid stars are shown in Figure 5. In the vBag model, the positive value of the bag constant $B_{\mathrm{eff}}$ results only from the restoration of chiral symmetry, while confinement/deconfinement, although introduced merely phenomenologically, reduces this value. The most naive perception of confinement is the binding of quarks in the chirally broken phase [28]. Therefore, the lower limit of $B_{\mathrm{eff}}$ $\ge 70\mathrm{MeV}{\mathrm{fm}}^{-3}$ of the vBag model in the mixed phase with DBHF EoS is needed. The gray contour between the green and blue lines is the parameter space of the quark matter EoS in the hybrid star that satisfies the observational constraints. It is worth to mention that Figure 5 only shows the limit of the tidal deformability ${\Lambda }_{1.4}=580$ from GW170817. With the current constraints, ${\Lambda }_{1.4}$ of the hybrid star with the softest EoS is ∼300. To achieve the best display effect, this figure does not show the lower limit ${\Lambda }_{1.4}=70$. Due to the phase transition inside the compact star, the emergence of new particle degrees of freedom will soften the EoS, thereby making the star become denser, and finally satisfying the constraints of tidal deformability from GW170817. This reveals that the quark matter in the vBag model would exist in the core of the compact star.

4. The f-Mode Oscillations and Related Universal Relations of Hybrid Stars in the vBag Model

Since the parameter space of the vBag model satisfying the current observations in strange stars may not exist, we only investigate the quadruple fundamental mode ($𝓁=2$f-mode) oscillations of hybrid stars, which are constructed as the previous section. The method of solving the oscillation of hybrid stars is introduced in Lindblom and Detweiler [72], Detweiler and Lindblom [73]. A fully general relativistic approach is adopted in our work, which takes into account both fluid and spacetime perturbations and is more suitable for extreme general relativistic effects on compact stars.

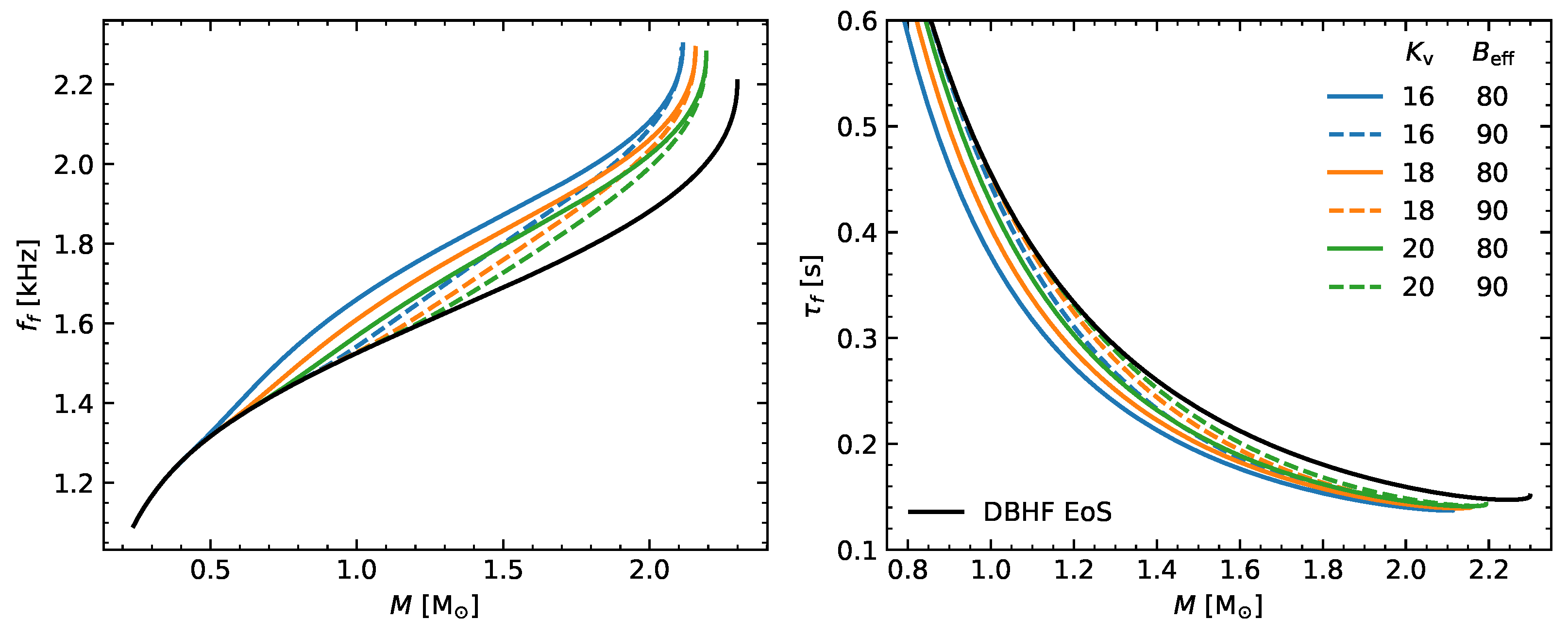

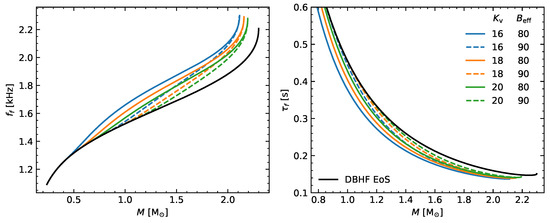

In Figure 6, the f-mode frequency $f_f$ and damping time ${\tau }_f$ are shown as a function of the stellar mass for different EoS parameters of quark matter. We also give the corresponding results of a neutron star in a DBHF EoS for comparison. The frequency of the neutron star in the DBHF EoS is ∼1.53–2.21 kHz, and the damping time is ∼0.147–0.455 for $M\ge 1.0$${\mathrm{M}}_{\odot }$. From this figure, one can see that these properties vary with $K_{\mathrm{v}}$ and $B_{\mathrm{eff}}$. The appearance of quark matter inside the hybrid star will increase the frequency $f_f$ and decrease the damping time ${\tau }_f$ of the f-mode, respectively. Moreover, the increase in $K_{\mathrm{v}}$ leads to an increase in the f-mode frequency and a decrease in the damping time. With the same $K_{\mathrm{v}}$, $B_{\mathrm{eff}}$ affects the magnitude of the frequency and the damping time significantly, indicating the f-mode oscillation is very sensitive to the mass and radius of the star. We also find that the frequencies increase gradually with the mass of hybrid stars, but this behavior becomes steeper when the mass is close to $M_{\max }$, and the damping time decreases rapidly with the mass of hybrid stars until it is close to $M_{\max }$.

It is necessary to test our results with the well-established universal relations mentioned in the previous works [40,46,47]. Obviously, they enable us to constrain the predicted features of f-mode oscillations using the existing data of the pulsar observations and terrestrial laboratory constraints on the EoS parameters. In general, a complex eigen-frequency $\omega ={\omega }_r-i{\omega }_i$ is used to characterize the quasi-normal modes [41,74,75,76], where ${\omega }_r$ is the frequency of f-mode $2\pi f_f$ and ${\omega }_i$ is the damping rate $1/{\tau }_f$. The universal relations between a star mass scaled by frequency $M\omega$ and macrostructure quantities, such as compactness [48] and tidal deformability [49,50,77,78], are almost independent of the EoSs, and the power law expansion can be used to describe the complex frequency of f-mode [50,79].

For the results between mass scaled frequency $M\omega$ and compactness C, we use the following expression for fitting:

$$\begin{array}{cc}\hfill M{\omega }_r& =\sum _{j=0}^4{a}_j{C}^j,\hfill \end{array}$$

(12)

$$\begin{array}{cc}\hfill M{\omega }_i& =\sum _{j=0}^7{a}_j{C}^j.\hfill \end{array}$$

(13)

For the results between mass scaled frequency $M\omega$ and dimensionless tidal deformability $\Lambda$, we use the following expression for fitting:

$$M\omega =\sum _{j=0}^4{a}_j{(ln\Lambda )}^j.$$

(14)

The coefficients $a_j$ of Equations (12)–(14) are complex numbers corresponding to ${\omega }_r$ and ${\omega }_i$. Compactness and complex frequency are presented in geometrized units with $c=G=1$. We check that adding an additional term of the power law does not offer much improvement in the accuracy for our fits, but by altering coefficients, we are able to improve the fit for high compactness. Thus, we use fourth-order (seventh-order) polynomials to fit the relations between the the real part (imaginary part) of the eigen-frequency of f-mode and compactness and fourth-order polynomials to fit the relations between the complex frequency and dimensionless tidal deformability, respectively. The coefficients $a_j$ and the $R^2$ statistic for the best fit are shown in

Table 1. Coefficients and the $R^2$ statistic for the best fit of Equations (12)–(14).

	${\mathit{a}}_0$	${\mathit{a}}_1$	${\mathit{a}}_2$	${\mathit{a}}_3$	${\mathit{a}}_4$	${\mathit{a}}_5$	${\mathit{a}}_6$	${\mathit{a}}_7$	${\mathit{R}}^2$
$M{\omega }_r-C$	8.162 × 10${}^{-4}$	2.760 × 10${}^{-1}$	1.116	2.318 × 10${}^{-1}$	−3.641	...	...	...	0.9994
$M{\omega }_i-C$	−2.514 × 10${}^{-8}$	−9.301 × 10${}^{-7}$	3.172 × 10${}^{-4}$	−9.566 × 10${}^{-4}$	8.581 × 10${}^{-2}$	−4.117 × 10${}^{-1}$	6.562 × 10${}^{-1}$	−4.655 × 10${}^{-1}$	0.9997
$M{\omega }_r-\Lambda$	1.827 × 10${}^{-1}$	−7.219 × 10${}^{-3}$	−4.172 × 10${}^{-3}$	5.311 × 10${}^{-4}$	−1.957 × 10${}^{-5}$	...	...	...	0.999995
$M{\omega }_i-\Lambda$	1.963 × 10${}^{-5}$	5.749 × 10${}^{-5}$	−1.850 × 10${}^{-5}$	1.972 × 10${}^{-6}$	−7.147 × 10${}^{-8}$	...	...	...	0.999976

. These universal relations have higher accuracy (with a standard statistical correlation coefficient large than 0.9994) in a wide range of compactness ($0.019<C<0.296$).

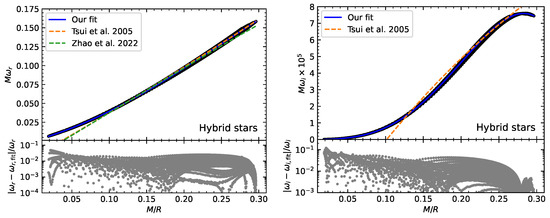

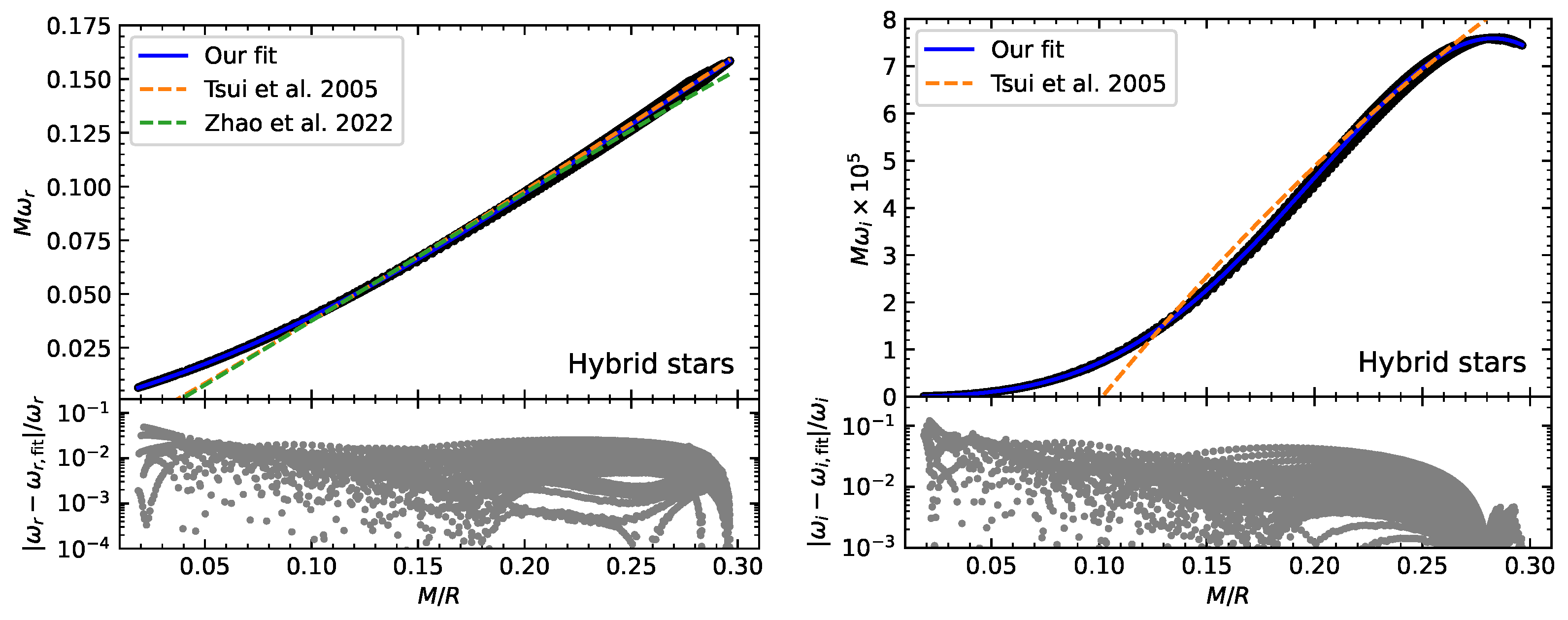

The fitting curves of the scaled complex frequency of f-mode versus compactness are shown in the top panels of Figure 7. For comparison, we also plot some previous fitting results in Tsui and Leung [48], Zhao and Lattimer [50]. In this figure, we consider different masses with the constraints of EoS parameters when the mixed phase appears in the hybrid stars. The bottom panels in Figure 7 show the relative errors of our fit to the computed results of all EoS parameters of hybrid star in our work. Moderate relative errors (12%) are limited to small compactness $C<0.03$ with the existence of a mixed phase, and the maximum relative error in the remaining compactness regions is less than 7%, especially in $C>0.25$. Fits for the real part of $\omega$ where the relative errors are smaller than 4.8% are somewhat more accurate than those for the imaginary part. It is suggested that this universal relation is still suitable for the hybrid star in the vBag model. The results of low-mass hybrid stars are included in our fits, and our results characterize the behavior of a wide range of compactness well.

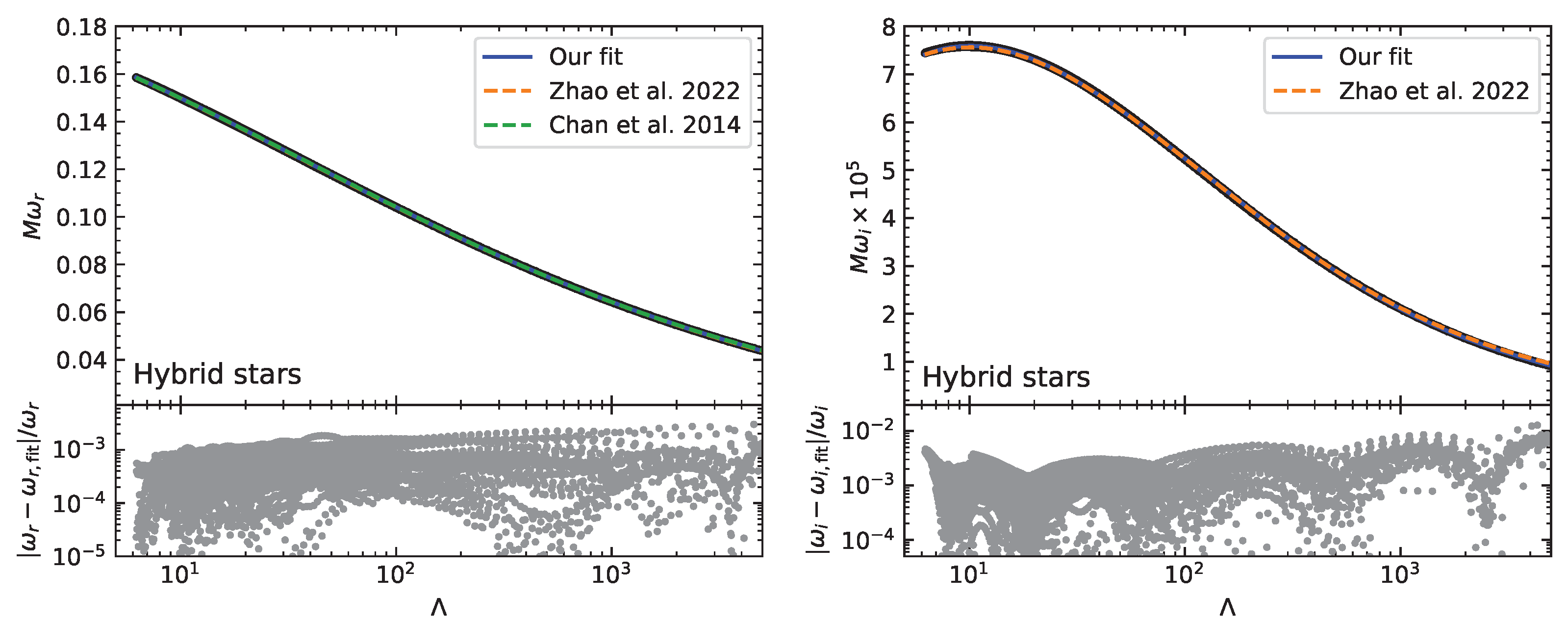

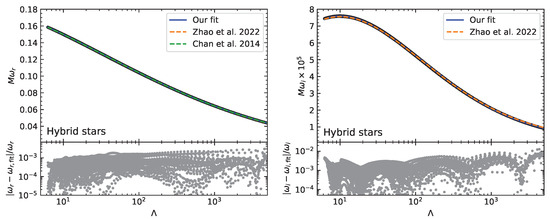

The fitting results of the complex frequency of f-mode versus dimensionless tidal deformability $\Lambda$ are shown in Figure 8. For comparison, we also plot some previous fitting results in Chan et al. [49], Zhao and Lattimer [50]. The relative errors of the real part of the scaled frequency versus $\Lambda$ are much smaller than 0.3% (<0.3%), and the relative errors of the scaled damping rate versus $\Lambda$ are smaller than 1.3% (<1.3%). All results for the real and imaginary parts’ scaled frequencies of hybrid stars are almost on a curve, with no significant dispersion. Moreover, the fitted curves also almost overlap with the results of previous works.

5. Conclusions

The tidal deformability, masses, and radii of pulsars provide a powerful way to constrain the EoSs of dense matter at high densities. Combining these observational results, we constrain the parameters of the vBag model within the framework of strange stars and hybrid stars (under Gibbs construction). Based on the limitations of the EoS of quark matter, we study the correlations among the f-mode frequency and, its damping time and the compactness and tidal deformability of hybrid stars.

We find that the lower values of $K_{\mathrm{v}}$ and $B_{\mathrm{eff}}$ result in a decrease in the phase transition density from hadronic phase to mixed phase. In addition, the phase transitions occur inside hybrid stars at very low density (around nuclear saturation density), which allows mixed phases to appear in the low-mass stars (around 0.2 solar mass). For massive stars, the mixed phase may occupy a large region in which its radius and mass ratio surpasses 0.8. Furthermore, the vBag model cannot simultaneously satisfy the current multi-messenger observation constraints within the framework of strange stars.

Our results for the $𝓁=2$ f-mode oscillation frequency and damping time reveal that the appearance of the mixed phase inside the hybrid star causes a rise in the oscillation frequency and a decrease in the damping time, respectively. The softer EoS makes this variation more apparent due to the more significant reduction in radius. The test of two common universal relations of hybrid stars reveals a high correlation between f-mode complex frequency and compactness/dimensionless tidal deformability, which is well-fitted by a power law expansion. The hybrid stars in the vBag model do not contradict this universality, but our results expand the fitting compactness range. Thus, gravitational waves excited by f-mode oscillations of compact stars may provide valuable and complementary information on the features of compact stars and the underlying nature of quark matter.
