Bioassay-Guided Fractionation of Pittosporum angustifolium and Terminalia ferdinandiana with Liquid Chromatography Mass Spectroscopy and Gas Chromatography Mass Spectroscopy Exploratory Study

by
Janice Mani
1,2,*,
Joel Johnson
1,2,†,
Holly Hosking
1,
Luke Schmidt
3,
Ryan Batley
1,
Ryan du Preez
1,
Daniel Broszczak
3,
Kerry Walsh
1,2,
Paul Neilsen
1 and
Mani Naiker
1,2,4
1
College of Science and Sustainability, CQUniversity, North Rockhampton, QLD 4701, Australia
2
Institute for Future Farming Systems, CQUniversity, Bundaberg, QLD 4670, Australia
3
School of Biomedical Sciences, Queensland University of Technology, Brisbane, QLD 4000, Australia
4
Jawun Research Centre, Cairns, QLD 4870, Australia
*
Author to whom correspondence should be addressed.
†
Present address: Centre for Nutrition and Food Sciences, Queensland Alliance for Agriculture and Food Innovation (QAAFI), The University of Queensland, Brisbane, QLD 4072, Australia.
Plants 2024, 13(6), 807; https://doi.org/10.3390/plants13060807
Submission received: 13 January 2024 / Revised: 28 February 2024 / Accepted: 6 March 2024 / Published: 12 March 2024
(This article belongs to the Special Issue Antioxidant and Anti-inflammatory Activities of Plant Extracts and Phytochemicals)
Browse Figures
Review Reports Versions Notes

Abstract

:
Bioprospecting native Australian plants offers the potential discovery of latent and novel bioactive compounds. The promising cytotoxic and antibacterial activity of methanolic extracts of Pittosporum angustifolium and Terminalia ferdinandiana led to further fractionation and isolation using our laboratory’s bioassay-guided fractionation protocol. Hence, the aim of this study was to further evaluate the bioactivity of the fractions and subfractions and characterize bioactive compounds using liquid chromatography mass spectroscopy (LC-MS/MS) and gas chromatography MS (GC-MS). Compounds tentatively identified in P. angustifolium Fraction 1 using LC-ESI-QTOF-MS/MS were chlorogenic acid and/or neochlorogenic acid, bergapten, berberine, 8′-epitanegool and rosmarinic acid. GC-MS analysis data showed the presence of around 100 compounds, mainly comprising carboxylic acids, sugars, sugar alcohols, amino acids and monoalkylglycerols. Furthermore, the fractions obtained from T. ferdinandiana flesh extracts showed no cytotoxicity, except against HT29 cell lines, and only Fraction 2 exhibited some antibacterial activity. The reduced bioactivity observed in the T. ferdinandiana fractions could be attributed to the potential loss of synergy as compounds become separated within the fractions. As a result, the further fractionation and separation of compounds in these samples was not pursued. However, additional dose-dependent studies are warranted to validate the bioactivity of T. ferdinandiana flesh fractions, particularly since this is an understudied species. Moreover, LC-MS/GC-MS studies confirm the presence of bioactive compounds in P. angustifolium Fraction 1/subfractions, which helps to explain the significant acute anticancer activity of this plant. The screening process designed in this study has the potential to pave the way for developing scientifically validated phytochemical/bioactivity information on ethnomedicinal plants, thereby facilitating further bioprospecting efforts and supporting the discovery of novel drugs in modern medicine.

1. Introduction

Bioprospecting involves a multidisciplinary approach that entails the systematic discovery, isolation and identification of new bioactive molecules from natural biological reserves, such as plants. Whilst medicinal plants have been used to treat various health conditions for centuries, conventional bioprospecting methods are often time-consuming and expensive [1]. Moreover, the complexity of plant matrices and the occurrence of numerous phytochemicals can make the separation and analysis process quite challenging.
The process of separating phytochemicals involves isolating the constituents in the plant extracts or effective parts and purifying them into monomer compounds using physical and chemical methods [2]. Conventional isolation methods include solvent extraction, precipitation, crystallization, fractional distillation, salting out and dialysis. More modern techniques include column chromatography, high-performance liquid chromatography, ultrafiltration and high-performance liquid droplet counter current chromatography. There are several chromatographic techniques available for the identification and quantification of phenolic compounds in plants, including thin-layer chromatography (TLC), gas chromatography (GC), high-performance liquid chromatography alone or coupled with mass spectrometry (MS), capillary electrophoresis (CE) and micellar electro-kinetic chromatography (MEKC) [3].
Phenolic compounds are a highly complex class of naturally occurring molecules that possess a range of therapeutic properties. As a result, significant interest has been devoted to their analysis in medicinal plants and food samples. High-performance liquid chromatography (HPLC) is the most commonly utilized separation technique for this purpose [4,5,6,7].
High-performance liquid chromatography equipped with a fraction collector was the analytical tool of choice for the separation and isolation of fractions/subfractions of extracts in this study due to its characteristic features of high efficiency, speed, and automation. The separation of compounds is based on the principles of the adsorptive capacity of the column stationary phase to different compounds, the molecular size of the compounds, the difference in dissociation degrees of the chemical constituents and the difference in partition coefficients between the stationary and mobile phase [2].
The medicinal properties of Australian native plants due to their strong expression of special metabolites such as phenolics, alkaloids, sterols, essential oils and liginans [8] are indictive of the potential discovery of novel prophylatic and/or therapeutic phytochemicals. Pittosporum angustrifolium Lodd, commonly known as Gumbi gumbi, is an Australian native shrub or tree species from the Pittoporaceae family [9]. It is as a popular traditional medicine which was first discovered and used by Indigenous Australians for treating pathogenic diseases [9] and has been shown to have anticancer properties; hence, it is sometimes referred to as “Queensland’s anticancer tree” [10]. Terninalia ferdinandiana Exell, commonly known as Kakadu plum, is a moderately sized, semi-deciduous native Australian tree that bears fruit upon reaching maturity [11]. This fruit has been reported to contain the highest amount of ascorbic acid, with levels as high as 6% of recorded wet weight, which is estimated to be 900 times higher than that of blueberry (g g−1) [12,13].
Based on the findings from our previous study [14], the objective of this study was to further fractionate Fraction 1 of P. angustifolium methanolic crude extracts into subfractions, utilizing phase 3 of the proposed bioassay-guided fractionation protocol design (Figure 1), and to perform LC-MS and GC-MS analysis for compound characterization. This is among the first/few studies investigating the bioactivity of fractions from P. angustifolium. Additionally, since T. ferdinandiana flesh lyphophized extracts have also shown some therapeutic potential, fractionation and bioassay testing on these fractions were also included.

2. Results and Discussion

2.1. Pittosporum angustifolium Fractions and Subfractions

2.1.1. LC-MS Analysis of P. angustifolium Fraction 1

While the subfractions of P. angustifolium Fraction 1 did not demonstrate significant cytotoxic properties or contain compounds of interest, Fraction 1 was found to be effective in reducing cell viability in the tested cancer cell lines and had a higher selective index, suggesting its effectiveness in killing cancer cells while minimizing harm to normal cells compared to the other fractions [14]. Moreover, given the possibility of a synergistic effect at play in dictating the cytotoxic behavior of P. angustifolium Fraction 1, characterizing the potential phenolic metabolites in the fraction was considered a valuable pursuit.
Using LC-ESI-QTOF-MS/MS, the untargeted screening and characterization of phenolic compounds in Fraction 1 was performed. The obtained MS/MS spectra were compared with NIST and PubMed database libraries, as well as the published literature, to putatively confirm the presence of phenolic metabolites (Table 1). Among ten prominent peaks, only peaks 1, 4 and 7–9 were tentatively identified (Figure 2) in Fraction 1.
Compound 1 (m/z 355.10) mass spectrum data, as presented in Table 1, were identified as either chlorogenic acid or its isomer, neochlorogenic acid, both of which belong to the caffeoylquinic acid class of molecules. These compounds are known for their strong antioxidant, anticancer, anti-inflammatory, and antifungal properties [16]. Previous studies have also identified chlorogenic acid in P. angustifolium leaves [17,18,19]. Additionally, our previous work has suggested the presence of chlorogenic acid in crude MeOH extracts of P. angustifolium leaves [14,20].
Compound 4 (m/z 336.20) mass spectrum data, as presented in Table 1, were tentatively identified as berberine (2,3-methylenedioxy-9,10-dimethoxyprotoberberine chloride), a benzyl tetra isoquinoline alkaloid. Berberine been previously extracted from roots of various plants such as Berberis vulgaris, B. aristotle, B. aquifolium, Hydrastus canadensis, Pellodendron chenins and Coptidis rhizomes [21]. Numerous authors have reported the broad-spectrum therapeutic potential of berberine due to its action against diabetes, hypertension, depression, obesity, inflammation and cancer [21,22,23,24]. However, this is the first study to tentatively propose the occurrence of berberine in P. angustifolium. Therefore, further investigation to confirm this finding is warranted.
Compound 7 (m/z 217.10) mass spectrum data, as presented in Table 1, were identified as bergapten (5-methoxypsoralen), which belongs to the class furocoumarin. This furanocoumarin derivate is commonly found in bergamot essential oil, other citrus essential oils and grapefruit juice, as well as in a wide variety of medicinal plants from the Rutaceae and Umbelliferae families such as figs, parsley, celery and anise [25]. Pharmacological studies have shown that bergapten has various properties, including neuroprotection, organ protection, anticancer, anti-inflammatory, antimicrobial and antidiabetic effects [25,26]. However, this is the first study to report its potential occurrence in P. angustifolium, and further investigations are required to confirm this claim.
Compound 8 (m/z 361.20) mass spectrum data, as presented in Table 1, were tentatively identified as rosmarinic acid, which belongs to the hydroxycinnamic acid class of phenolic acids and is commonly found in fruits, herbs and medicinal plants (Ali et al., 2022 [27]). It is produced by Boraginaeceae and the Nepetoideae subfamily of the Lamiaceae plant species. Initially, it was extracted as a pure compound from rosemary (Rosmarinus officinalis) [28]. This compound has shown potent biological activities in combating human diseases such as cancer, diabetes, neurodegenerative disorders, cardiovascular disease and inflammatory disorders [29]. While this is the first study to tentatively report its occurrence in P. angustifolium, further investigation is needed to confirm this finding.
Compound 9 (m/z 403.2) mass spectrum data, as presented in Table 1, were tentatively identified as 8′-epitanegool, classified as phenylpropanoids. A previous study demonstrated promising in silico antiviral results similar to the main alkaloids [30]. This compound has been previously identified in Tinospora sinensis, a type of Chinese folk medicine [16], and the literature on its therapeutic potential is limited or non-existent. Additionally, this is the first study to tentatively identify this compound in P. angustifolium.
If the identities of these compounds are confirmed in Fraction 1 of P. angustifolium, then it will not only strongly support its antioxidant and anticancer properties, as determined in this study, but also the anecdotal claims of Indigenous Australians [18]. Furthermore, detailed studies to confirm the identity of these compounds and/or to discover other bioactive compounds in P. angustifolium crude, fractions and subfractions were conducted using GC-MS.

2.1.2. GC-MS Analysis of Pittosporum angustifolium Fraction 1 and Subfractions

Targeted GC-MS/MS analysis in MRM acquisition mode identified a total of 103 compounds, belonging to various classes of primary and secondary plant metabolites. The main primary metabolites identified are classified as carbohydrates, amino acids, proteins, lipids, purines and pyrimidines of nucleic acids. In addition, the secondary metabolites identified were classified into the following three main groups: (a) nitrogen-containing compounds such as alkaloids, glucosinolates and cyanogenic glycosides; (b) phenolic compounds such as phenylpropanoids and flavonoids; and (c) terpenes [31]. However, only twenty predominantly found compounds in Fraction 1 and Fraction 1 subfractions are reported in Figure 3 and Table 2, which mainly belong to the class of carbohydrates and amino acids.
Inositol (Figure 4), the third most abundant compound identified in Fraction 1, was of interest due to its previously reported anti-atherogenic, anti-oxidative, anti-inflammatory and anticancer properties [32]. Clinical trials using inositol in pharmacological doses have shown promising results in the management of gynecological diseases, respiratory stress syndrome, Alzheimer’s disease, metabolic syndrome and cancer [33]. Inositol occurs naturally in all eukaryotes and is involved in several biological processes [32]. In mammals, inositol is produced in the liver and kidney, and myo-inositol (inositol isomer) and its derivatives in particular are involved in biological functions which include the modulation of glucose metabolism, calcium release in cell signaling, chromatin and CSK remodeling, gene transcription, proliferation, apoptosis and proper structural development [33]. In plants, inositol is well known for acting a stress ameliorator and controls multiple aspects of plant signaling and physiology [34]. On this premise, the cytotoxic effects of Fraction 1 may likely be due to the predominant occurrence of inositol. However, to our knowledge, this study is the first to report the occurrence of inositol in P. angustifolium, and thus, further investigations are required to confirm this finding.

2.1.3. Cytotoxic Activity and HPLC Profiling

The subfractionated products obtained from P. angustifolium Fraction 1 (GGLX F1 S1-3) were subjected to an anticancer bioassay, and the results are presented in Figure 5. There was no significant difference (p > 0.05) in the percentage cell viability between of the treated cells and negative control for all the tested cell lines, except for the HT29 cells (p < 0.05), where all three subfractions demonstrated some cytotoxic activity. The low bioactivity observed in the subfractions may be attributed to the low doses of compounds present in these subfractions, as indicated by low peak signals in the HPLC chromatograms shown in Figure 6. Additionally, the cytotoxic effect observed in the methanolic extracts of P. angustifolium and its fractions may be due to the synergistic action of different compounds. On the other hand, the subfractions could contain fewer isolated compounds, which may explain the low or no cytotoxicity observed.
Although numerous studies have identified triterpenoid saponins, terpenoids, phenols, and coumarin compounds isolated from P. angustifolium as having potential anticancer properties [10,17,18,35,36], only a few have been shown to be effective in vitro. Backer et al. (2016) screened ten acylated saponins for their ability to inhibit human DNA-topoisomerase I, an enzyme responsible for resolving torsional stress associated with DNA replication, transcription, and chromatin condensation [37]. Inhibitors of DNA-topoisomerase I can inhibit the proliferation of cancer cells, and such agents are commonly used in chemotherapy for their antiproliferative effects. However, their effects on the metastasis of cancer cells remain unclear [38].
In previous work, Backer et al. (2015) isolated two new taraxastane-type triterpene saponins, which were evaluated against four cell lines [9]. However, no cytotoxic activity was observed up to a concentration of 130 µM. In a similar subfractionation study of Syzygium polyanthum (Wight.), the crude methanol extract showed higher bioactivity in terms of hypoglycemic effect compared to the fraction, subfraction, and squalene (the major chemical compound and a triterpene isolated from S. polyanthum leaf extract) [39]. Therefore, the cytotoxic properties of P. angustifolium could possibly be due to a synergistic effect, similar to that seen in other studies.
In addition, authentic standards of selected polyphenols (4-hydroxybenzoic acid, caffeic acid, catechin, catechol, chlorogenic acid, gallic acid, isovanillic acid, neochlorogenic acid, protocatechuic acid, syringic acid, tyrosol and vanillic acid) were subjected to the same HPLC gradient elution as the subfractions, and the combined chromatograms with retention times are shown in Figure 7. When compared to the retention times of the predominant peaks in the chromatograms of the subfractions (Figure 6), only one peak at a retention time of 4.412 min in Subfraction 1 could tentatively be identified as gallic acid based on it having a similar UV spectrum to the standard. However, there were some discrepancies between the retention time of the standard gallic acid (4.009 min) and the subfraction (4.412 min). In Subfraction 2, none of the retention time peaks or UV spectra matched any of the authentic standards. On the other hand, the retention time of a predominant peak at 7.768 min in Subfraction 3 was tentatively identified as 4-hydroxybenzoic acid, as a similar retention time (7.775 min) and UV spectrum was evident (Figure 7).
As the subfractions of P. angustifolium did not show any significant cytotoxic activity, further separation and isolation was deemed impractical and hence was not pursued.

2.2. Terminalia ferdinandiana Fractions

2.2.1. Cytotoxic Activity

The lyophilized methanolic flesh extract of T. ferdinandiana was fractionated into four fractions, as listed in Table 3. The cytotoxicity of these fractions was evaluated against HeLa, HT29 and PH5CH8 cell lines using the concentrations given in Table 3. The results of this experiment are presented in Figure 8.
None of the fractions showed significant (p > 0.05) cytotoxic activity against HeLa and PH5CH8 cell lines, except for slight cytotoxicity observed against the HT29 cell line. This cytotoxicity was significantly different from the negative control (p < 0.05). To minimize the matrix effect, lower doses of the fractions were used in the bioassay. However, in future studies, higher doses could be utilized to investigate potential higher toxicity.
While the previous literature [40,41,42] has shown cytotoxic properties of T. ferdinandiana, there are limited studies on their fractions [43]. As such, this study is crucial in paving the way for future fractionation studies of this species.

2.2.2. Antibacterial Activity

Considering the promising antibacterial activity demonstrated by the crude flesh extract of T. ferdinandiana [14], the fractions were also evaluated against four bacterial strains. The results are presented in Table 4.
The antibacterial activity exhibited by the fractions was relatively mild, and in some cases (Fraction 3), no activity was observed. Fraction 2 demonstrated the highest activity and was the only fraction that inhibited the growth of all tested bacterial strains compared to the other fractions, possibly because it was the most concentrated fraction. Overall, even though the flesh extracts of T. ferdinandiana fruit have previously demonstrated antibacterial activity in several studies [11,44,45], including our previous studies [14], the low activity of the fractions suggests that the bioactive compounds in the lyophilized extract may work synergistically to produce its antibacterial property.
Despite the small amount of existing literature on the therapeutic potential of T. ferdinandiana, this study provides the first report on the bioactivity of its fractions. However, further rigorous testing is necessary to validate the data obtained, especially in terms of dose-dependent anticancer and antibacterial effects. Therefore, more elaborate investigation into this understudied native fruit is warranted.

3. Materials and Methods

3.1. Reagents

Hydrochloric acid and sodium carbonate were purchased from Chem-Supply (Gillman, Australia). All other reagents, including the HPLC-grade methanol, were purchased from Sigma-Aldrich (Melbourne, Australia). Some reagents used in the cytotoxicity analysis, which included the CellTiter 96® AQueous Assay (composed of solutions of tetrazolium compound [3-(4,5-dimethylthiazol-2-yl)−5-(3-carboxymethoxyphenyl)−2-(4-sulfophenyl)−2H-tetrazolium, inner salt; MTS(a)]) and an electron-coupling reagent (phenazine methosulfate; PMS), commonly known as MTS reagent, and fetal bovine serum (FBS) were obtained from Promega (Madison, WI, USA) and Scientifix (Clayton, Australia), respectively. Dulbecco’s Modified Eagle’s Medium—high glucose (DMEM) and Dulbecco’s Phosphate Buffered Saline (DPBS) solution were kept in the dark at 4 °C, while the other reagents used in the bioassays were frozen until they were required for use. All dilutions and assay preparations used Milli-Q water. All reagents used were of analytical-grade or higher purity.

3.2. Sample Extraction

Approximately 2.5 g of powdered plant material (leaves of P. angustifolium and fruit of T. ferdianadiana) was extracted in 75 mL of 90% methanol as previously detailed [14]. The supernatant obtained was filtered using 0.45 µm Advantec filter paper and evaporated under reduced pressure at 27 °C to a semi-solid consistency using a rotary evaporator. The semi-solid product was redissolved in approximately 25 mL of Milli-Q water and freeze-dried under vacuum (Flexi-Dry Freeze-dryer, −47 °C, 277 mTorr) for 72 h to obtain a fine lyophilized product, which was stored at 4 °C in the dark until required.

3.3. HPLC Fractionation and Subfractionation of P. angustifolium Extract

The HPLC conditions mentioned in our previous publication [14] were followed with slight modifications. Briefly, a reversed-phase C18 column (Agilent Eclipse XDB-C18; 150 × 4.6 mm; 5 µm pore size) and guard cartridge (Gemini C18 4 × 2 mm) with an injection volume of 30 µL and a run time of 50 min with post run time of 5 min was used for column flushing. The time slicing feature of the Agilent fraction collector was used to collect only Fraction 1 (0 to 12 min) from 20 mg mL−1 of P. angustifolium lyophilized product. The volume collected after multiple runs was then rotary evaporated to a semi-solid consistency and reconstituted in 30 mL of Milli-Q water. This was then placed at −80 °C overnight and then freeze-dried for 72 h. A crystalline product with a mass of 87.9 mg was obtained. The HPLC chromatogram of P. angustifolium Fraction 1 is depicted in Figure 9.
The crystalline product obtained from Fraction 1 was redissolved in Milli-Q water at a concentration of 43.95 mg·mL−1 and subjected to HPLC fractionation using gradient elution, as described in Figure 9B, and an injection volume of 30 µL. Retention time zones showing predominant peaks were selected for time slicing, and fractions were collected from 0–3 min (Subfraction 1), 3–6 min (Subfraction 2) and 6–11 min (Subfraction 3), as depicted in Figure 9C.

3.4. HPLC Fractionation of T. ferdinandiana Fruit Flesh Extract

The same HPLC conditions as described above (Section 3.3) and in our previous publication [14] were followed with slight modifications to the gradient elution and injection volume. The gradient elution described in Figure 9B was used, and a sample injection volume of 30 µL was applied. A total run time of 50 min was allowed to ensure that all eluents were captured in the chromatogram, and a post run time of 10 min was allowed for column flushing.
Retention times showing predominant peaks were selected for time slicing and the collection of fractions from 0–6 min (Fraction 1), 6–16 min (Fraction 2), 16–30 min (Fraction 3) and 30–40 min (Fraction 4), as depicted in Figure 10.

3.5. Cytotoxicity Assay

The cytotoxicity of the subfractions of P. angustifolium Fraction 1 and fractions of T. ferdinandiana were assessed against HeLa (human cervical carcinoma), HT29 (human colorectal carcinoma), HuH7 (human liver carcinoma) and PH5CH8 (human epithelial non-neoplastic hepatocyte cell), obtained from the University of Adelaide, using the MTS assay previously described [14]. However, it was observed that the proliferation and general health of the HuH7 cells were compromised, and they were nonviable for use in the cell culture assay of T. ferdinandiana fractions in the later trials.

3.6. Antimicrobial Activity

The antimicrobial activity of T. ferdinandiana Fractions (1–4) were tested against the four bacterial strains (Gram positive—Staphylococcus aureus and Gram negative—Escherichia coli, Salmonella typhi and Pseudomonas aeruginosa) following the disk diffusion method [46] with slight modifications, as described previously [14].

3.7. LC-MS/MS Analysis of P. angustifolium Fraction

The methanolic extract of P. angustifolium was analyzed for targeted phenolic compounds using liquid chromatography tandem mass spectroscopy (LC-MS/MS). The analysis was performed using a Nexera X2 chromatography system, which was coupled with a Shimadzu LCMS-8040 system comprising a CBM-20A communications bus module, a DGU-20A5R degassing unit, LC-30AD pumps, an SIL-30AC autosampler and a CTO-20AC column oven. The analytical method used a Raptor biphenyl column (100 mm × 2.1 mm, 2.7 µm), 5 µL injection volume, 40 °C column temperature and a flow rate of 0.6 mL min−1. The mobile phase comprised water (phase A) and methanol (phase B), each containing 5 mM ammonium formate and 0.1% formic acid. The eluent was directed to the electrospray ionization (ESI) module.
A Shimadzu LCMS-8040 model triple-quadrupole mass spectrometer, equipped with an electrospray ionization (ESI) source, was used to perform targeted tandem mass spectrometry on the eluting compounds. Both positive and negative ionization modes were used depending on the ionization characteristics of each analyte. The ESI conditions used were an interface temperature of 350 °C, a DL (dissolution line) temperature of 250 °C and 400 °C in the ESI source. Nitrogen was used as the nebulizing gas and drying gas at flow rates of 3 L min−1 and 15 L min−1, respectively, and the interface voltage used was 4.50 kV. The LC-MS/MS data were collected and analyzed in LabSolutions software version 5.99 SP2 (Shimadzu, Kyoto, Japan). The PubChem database and offline version (accessed 21 March 2023) of the National Institute of Standards and Technology (NIST) Library was used to match the MS/MS spectra of phenolic compounds in the P. angustifolium extract.

3.8. GC-MS/MS Analysis of P. angustifolium Fraction 1 and Subfractions

All four samples were dissolved in 1 mL of chilled MS-grade water and mixed via vortex and kept on ice throughout processing where possible. Twelve aliquots were created for each sample. Three aliquots each of 1 μL, 10 μL, 100 μL and 200 μL were generated by transferring the sample into glass vial inserts. The aliquots were then frozen prior to lyophilization at 1 mbar (room temperature) for 3.5 h until dry. The sample aliquots were then sealed in auto-sampler vials and stored at −20 °C until analysis.
Samples were analyzed on a Shimadzu TQ8050 NX system following automated trimethylsilyl (TMS) derivatization using an AOC 6000 plus auto-sampler. The derivatization was accomplished by adding 25 μL of 30 mg mL−1 methoxyamine hydrochloride in pyridine to 10 μL of dried metabolite extract. The samples were then incubated at 37 °C for 2 h with continuous agitation. Following this, 25 μL of N,O-Bis(trimethylsilyl)trifluoroacetamide (BSTFA) was added, with further incubation at 37 °C for 1 hr with continuous agitation. The derivatized sample was then incubated at room temperature for 1 hr prior to injection. One microliter of the derivatized samples was injected onto the GC-MS/MS by the auto-sampler at a split ratio of 5:1 and a constant flow of 1.10 mL min−1, and the oven temperature was maintained at 100 °C. The samples were analyzed in Multiple Reaction Monitoring (MRM) mode using the Shimadzu Smart Metabolite Database containing 521 MRM metabolite targets. Prior to each sample being analyzed, four hexane blanks were analyzed to ensure there was no carry over between samples.
Data produced from the analysis of samples were extracted using LabSolutions Insight software 4.25.39636.3. Metabolites that were within ± 0.1 min of the predicted retention time and within ±25% of the relative ion ratio had their area under the curve reported for further statistical analysis. Where metabolites did not need these criteria, the area under the curve was not reported.

3.9. Statistical Analysis

All data were presented as means ± SEM for triplicate samples. Statistical analyses were performed using RStudio version 2022.12.0-353 software, with a one-way analysis of variance to determine the significance between the control and treated groups. A value of p < 0.05 was considered statistically significant.

4. Conclusions

Whilst P. angustifolium crude leaf extracts and fractions demonstrated strong cytotoxic activities, no significant activity was evident in the subfractions, thereby suggesting that the bioactivity may be attributed to the synergistic effect of the phenolic compounds present. Further testing of subfraction combinations may confirm the possibilities of compound synergy. Moreover, LC-MS/GC-MS studies confirm the presence of bioactive compounds in P. angustifolium Fraction 1/subfractions, which helps to explain the significant acute anticancer activity of this plant. Compounds tentatively identified in P. angustifolium Fraction 1 using LC-ESI-QTOF-MS/MS were chlorogenic acid and/or neochlorogenic acid, bergapten, berberine, 8′-epitanegool and rosmarinic acid. GC-MS analysis indicated the predominant occurrence of compound inositol in P. angustifolium Fraction 1, which may be responsible for its anticancer properties. This is the first study to report the occurrence of the above-mentioned compounds in P. angustifolium, and further investigations are required to confirm these findings. Furthermore, the fractions of T. ferdinandiana flesh extracts showed no cytotoxicity, except against HT29 cell lines, and only Fraction 2 showed some antibacterial activity against the bacterial strains tested. The reduced bioactivity in the T. ferdinandiana fractions may again also be due to loss of synergy as compounds become separated in the fractions. Further dose-dependent studies to validate the bioactivity of T. ferdinandiana flesh fractions is warranted for this understudied species. Overall, this study successfully applied the third phase of our developed bioassay-guided fractionation protocol (Figure 1). However, further studies and retests are warranted to confirm and check for the reproducibility of the results obtained.

Author Contributions

Conceptualization, J.M. and M.N.; methodology, J.M.; software, J.M.; validation, J.M.; formal analysis, J.M.; investigation, J.M., J.J., L.S., H.H., R.B. and R.d.P.; resources, J.M. and M.N.; data curation, J.M.; writing—original draft preparation, J.M.; writing—review and editing, all authors; visualization, J.M.; supervision, M.N., D.B., P.N. and K.W.; project administration, M.N.; funding acquisition, J.M. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Research Training Program scholarship from the Australian Government awarded by CQUniversity to one of the authors (J.M.).

Data Availability Statement

Data are contained within the article.

Acknowledgments

We wish to sincerely thank Saba Sinai, School of Health, Medical and Applied Sciences, CQUniversity, Australia; Vinuthaa Murthy, College of Engineering, IT and Environment, Charles Darwin University, Australia; and Chris Shepard for the collection and provision of the plant material.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Abdallah, M.S.; Mustafa, M.; Nallappan, M.A.; Choi, S.; Paik, J.H.; Rusea, G. Determination of Phenolics and Flavonoids of Some Useful Medicinal Plants and Bioassay-Guided Fractionation Substances of Sclerocarya birrea (A. Rich) Hochst Stem (Bark) Extract and Their Efficacy against Salmonella typhi. Front. Chem. 2021, 9, 670530. [Google Scholar] [CrossRef]
  2. Feng, W.; Li, M.; Hao, Z.; Zhang, J. Analytical Methods of Isolation and Identification. In Phytochemicals in Human Health; IntechOpen: London, UK, 2019; Volume 13. [Google Scholar] [CrossRef]
  3. Nour, V.; Trandafir, I.; Cosmulescu, S. HPLC determination of phenolic acids, flavonoids and juglone in walnut leaves. J. Chromatogr. Sci. 2013, 51, 883–890. [Google Scholar] [CrossRef]
  4. Zanatta, A.C.; Vilegas, W.; Edrada-Ebel, R. UHPLC-(ESI)-HRMS and NMR-Based Metabolomics Approach to Access the Seasonality of Byrsonima intermedia and Serjania marginata from Brazilian Cerrado Flora Diversity. Front. Chem. 2021, 9, 710025. [Google Scholar] [CrossRef]
  5. Naiker, M.; Anderson, S.; Johnson, J.B.; Mani, J.S.; Wakeling, L.; Bowry, V. Loss of trans-resveratrol during storage and ageing of red wines. Aust. J. Grape Wine Res. 2020, 26, 385–387. [Google Scholar] [CrossRef]
  6. Sochor, J.; Zitka, O.; Skutkova, H.; Pavlik, D.; Babula, P.; Krska, B.; Horna, A.; Adam, V.; Provazník, I.; Kizek, R. Content of phenolic compounds and antioxidant capacity in fruits of apricot genotypes. Molecules 2010, 15, 6285–6305. [Google Scholar] [CrossRef]
  7. Mekky, R.H.; Abdel-Sattar, E.; Segura-Carretero, A.; Del Mar Contreras, M. Phenolic compounds from sesame cake and antioxidant activity: A new insight for agri-food residues’ significance for sustainable development. Foods 2019, 8, 432. [Google Scholar] [CrossRef]
  8. Richmond, R.; Bowyer, M.; Vuong, Q. Australian native fruits: Potential uses as functional food ingredients. J. Funct. Foods 2019, 62, 103547. [Google Scholar] [CrossRef]
  9. Bäcker, C.; Jenett-Siems, K.; Siems, K.; Niedermeyer, T.H.; Wurster, M.; Bodtke, A.; Lindequist, U. Taraxastane-type triterpene saponins isolated from Pittosporum angustifolium Lodd. Z. Naturforsch. Sect. B J. Chem. Sci. 2015, 70, 403–408. [Google Scholar] [CrossRef]
  10. Blonk, B.; Cock, I.E. Interactive antimicrobial and toxicity profiles of Pittosporum angustifolium Lodd. extracts with conventional antimicrobials. J. Integr. Med. 2019, 17, 261–272. [Google Scholar] [CrossRef] [PubMed]
  11. Gorman, J.T.; Wurm, P.A.S.; Vemuri, S.; Brady, C.; Sultanbawa, Y. Kakadu Plum (Terminalia ferdinandiana) as a Sustainable Indigenous Agribusiness. Econ. Bot. 2019, 74, 74–91. [Google Scholar] [CrossRef]
  12. Sirdaarta, J.; Matthews, B.; White, A.; Cock, I.E. GC-MS and LC-MS analysis of Kakadu plum fruit extracts displaying inhibitory activity against microbial triggers of multiple sclerosis. Pharmacogn. Commun. 2015, 5, 100–115. [Google Scholar] [CrossRef]
  13. Cock, I.E. The medicinal properties and phytochemistry of plants of the genus Terminalia (Combretaceae). Inflammopharmacology 2015, 23, 203–229. [Google Scholar] [CrossRef]
  14. Mani, J.; Johnson, J.; Hosking, H.; Hoyos, B.E.; Walsh, K.B.; Neilsen, P.; Naiker, M. Bioassay Guided Fractionation Protocol for Determining Novel Active Compounds in Selected Australian Flora. Plants 2022, 11, 2886. [Google Scholar] [CrossRef]
  15. Li, M.; Si, D.; Fu, Z.; Sang, M.; Zhang, Z.; Liu, E.; Yang, W.; Gao, X.; Han, L. Enhanced identification of the in vivo metabolites of Ecliptae Herba in rat plasma by integrating untargeted data-dependent MS2 and predictive multiple reaction monitoring-information dependent acquisition-enhanced product ion scan. J. Chromatogr. B 2019, 1109, 99–111. [Google Scholar] [CrossRef] [PubMed]
  16. Jiao, Q.S.; Xu, L.L.; Zhang, J.Y.; Wang, Z.J.; Jiang, Y.Y.; Liu, B. Rapid Characterization and Identification of Non-Diterpenoid Constituents in Tinospora sinensis by HPLC-LTQ-Orbitrap MSn. Molecules 2018, 23, 274. [Google Scholar] [CrossRef]
  17. Beh, C.C.; Teoh, W.H. Recent Advances in the Extraction of Pittosporum angustifolium Lodd. Used in Traditional Aboriginal Medicine: A Mini Review. Nutraceuticals 2022, 2, 49–59. [Google Scholar] [CrossRef]
  18. Phan, A.D.T.; Chaliha, M.; Hong, H.T.; Tinggi, U.; Netzel, M.E.; Sultanbawa, Y. Nutritional value and antimicrobial activity of Pittosporum angustifolium (gumby gumby), an Australian indigenous plant. Foods 2020, 9, 887. [Google Scholar] [CrossRef] [PubMed]
  19. Bäcker, C.; Jenett-Siems, K.; Bodtke, A.; Lindequist, U. Polyphenolic compounds from the leaves of Pittosporum angustifolium. Biochem. Syst. Ecol. 2014, 55, 101–103. [Google Scholar] [CrossRef]
  20. Mani, J.; Johnson, J.; Hosking, H.; Walsh, K.; Neilsen, P.; Naiker, M. In vitro Cytotoxic Properties of Crude Polar Extracts of Plants Sourced from Australia. Clin. Complement. Med. Pharmacol. 2022, 2, 100022. [Google Scholar] [CrossRef]
  21. Rauf, A.; Abu-Izneid, T.; Khalil, A.A.; Imran, M.; Shah, Z.A.; Bin Emran, T.; Mitra, S.; Khan, Z.; Alhumaydhi, F.A.; Aljohani, A.S.M.; et al. Berberine as a potential anticancer agent: A comprehensive review. Molecules 2021, 26, 7368. [Google Scholar] [CrossRef]
  22. Samadi, P.; Sarvarian, P.; Gholipour, E.; Asenjan, K.S.; Aghebati-Maleki, L.; Motavalli, R.; Hojjat-Farsangi, M.; Yousefi, M. Berberine: A novel therapeutic strategy for cancer. IUBMB Life 2020, 72, 2065–2079. [Google Scholar] [CrossRef] [PubMed]
  23. Jang, M.H.; Piao, X.L.; Kim, J.M.; Kwon, S.W.; Park, J.H. Inhibition of cholinesterase and amyloid-β aggregation by resveratrol oligomers from Vitis amurensis. Phytother. Res. 2008, 22, 544–549. [Google Scholar] [CrossRef] [PubMed]
  24. Kulkarni, S.K.; Dhir, A. Berberine: A Plant Alkaloid with Therapeutic Potential for Central Nervous System Disorders. Phytother. Res. 2010, 24, 317–324. [Google Scholar] [CrossRef]
  25. Quetglas-Llabrés, M.M.; Quispe, C.; Herrera-Bravo, J.; Catarino, M.D.; Pereira, O.R.; Cardoso, S.M.; Dua, K.; Chellappan, D.K.; Pabreja, K.; Satija, S.; et al. Pharmacological Properties of Bergapten: Mechanistic and Therapeutic Aspects. Oxid. Med. Cell. Longev. 2022, 2022, 8615242. [Google Scholar] [CrossRef]
  26. Liang, Y.; Xie, L.; Liu, K.; Cao, Y.; Dai, X.; Wang, X.; Lu, J.; Zhang, X.; Li, X. Bergapten: A review of its pharmacology, pharmacokinetics, and toxicity. Phytother. Res. 2021, 35, 6131–6147. [Google Scholar] [CrossRef]
  27. Ali, A.; Cottrell, J.J.; Dunshea, F.R. LC-MS/MS Characterization of Phenolic Metabolites and Their Antioxidant Activities from Australian Native Plants. Metabolites 2022, 12, 1016. [Google Scholar] [CrossRef]
  28. Nunes, S.; Madureira, R.; Campos, D.; Sarmento, B.; Gomes, A.M.; Pintado, M.; Reis, F. Therapeutic and nutraceutical potential of rosmarinic acid—Cytoprotective properties and pharmacokinetic profile. Crit. Rev. Food Sci. Nutr. 2017, 57, 1799–1806. [Google Scholar] [CrossRef] [PubMed]
  29. Noor, S.; Mohammad, T.; Rub, M.A.; Raza, A.; Azum, N.; Yadav, D.K.; Hassan, I.; Asiri, A.M. Biomedical features and therapeutic potential of rosmarinic acid. Arch. Pharmacal Res. 2022, 45, 205–228. [Google Scholar] [CrossRef]
  30. Omar, R.; El-salam, M.A.; Elsbaey, M.; Hassan, M. Fourteen immunomodulatory alkaloids and two prenylated phenylpropanoids with dual therapeutic approach for COVID-19: Molecular docking and dynamics studies. J. Biomol. Struct. Dyn. 2023, 42, 2298–2315. [Google Scholar] [CrossRef]
  31. Rabizadeh, F.; Mirian, M.S.; Doosti, R.; Kiani-Anbouhi, R.; Eftekhari, E. Phytochemical Classification of Medicinal Plants Used in the Treatment of Kidney Disease Based on Traditional Persian Medicine. Evid.-Based Complement. Altern. Med. 2022, 2022, 8022599. [Google Scholar] [CrossRef]
  32. Siracusa, L.; Napoli, E. Novel Chemical and Biological Insights of Inositol Derivatives in Mediterranean Plants. Molecules 2022, 27, 1525. [Google Scholar] [CrossRef]
  33. Bizzarri, M.; Fuso, A.; Dinicola, S.; Cucina, A.; Bevilacqua, A. Pharmacodynamics and pharmacokinetics of inositol(s) in health and disease. Expert Opin. Drug Metab. Toxicol. 2016, 12, 1181–1196. [Google Scholar] [CrossRef]
  34. Amaral, D.C.; Brown, P.H. Foliar Application of an Inositol-Based Plant Biostimulant Boosts Zinc Accumulation in Wheat Grains: A μ-X-Ray Fluorescence Case Study. Front. Plant Sci. 2022, 13, 837695. [Google Scholar] [CrossRef] [PubMed]
  35. Bäcker, C.; Jenett-Siems, K.; Siems, K.; Wurster, M.; Bodtke, A.; Lindequist, U. Cytotoxic saponins from the seeds of Pittosporum angustifolium. Z. Naturforschung C 2014, 69, 191–198. [Google Scholar] [CrossRef]
  36. Winnett, V.; Sirdaarta, J.; White, A.; Clarke, F.M.; Cock, I.E. Inhibition of Klebsiella pneumoniae growth by selected Australian plants: Natural approaches for the prevention and management of ankylosing spondylitis. Inflammopharmacology 2017, 25, 223–235. [Google Scholar] [CrossRef] [PubMed]
  37. Bäcker, C.; Drwal, M.N.; Preissner, R.; Lindequist, U. Inhibition of DNA–Topoisomerase I by Acylated Triterpene Saponins from Pittosporum angustifolium Lodd. Nat. Prod. Bioprospect. 2016, 6, 141–147. [Google Scholar] [CrossRef] [PubMed]
  38. Liu, J.; Qu, L.; Meng, L.; Shou, C. Topoisomerase inhibitors promote cancer cell motility via ROS-mediated activation of JAK2-STAT1-CXCL1 pathway. J. Exp. Clin. Cancer Res. 2019, 38, 370. [Google Scholar] [CrossRef] [PubMed]
  39. Widyawati, T.; Yusoff, N.A.; Bello, I.; Asmawi, M.Z.; Ahmad, M. Bioactivity-Guided Fractionation and Identification of Antidiabetic Compound of Syzygium polyanthum (Wight.)’s Leaf Extract in Streptozotocin-Induced Diabetic Rat Model. Molecules 2022, 27, 6814. [Google Scholar] [CrossRef] [PubMed]
  40. Tan, A.C.; Konczak, I.; Ramzan, I.; Sze, D.M.Y. Native Australian fruit polyphenols inhibit cell viability and induce apoptosis in human cancer cell lines. Nutr. Cancer 2011, 63, 444–455. [Google Scholar] [CrossRef] [PubMed]
  41. Deo, P.; Hewawasam, E.; Karakoulakis, A.; Claudie, D.J.; Nelson, R.; Simpson, B.S.; Smith, N.M.; Semple, S.J. In vitro inhibitory activities of selected Australian medicinal plant extracts against protein glycation, angiotensin converting enzyme (ACE) and digestive enzymes linked to type II diabetes. BMC Complement. Altern. Med. 2016, 16, 435. [Google Scholar] [CrossRef]
  42. Akter, S.; Netzel, M.E.; Fletcher, M.T.; Tinggi, U.; Sultanbawa, Y. Chemical and nutritional composition of Terminalia ferdinandiana (kakadu plum) kernels: A novel nutrition source. Foods 2018, 7, 60. [Google Scholar] [CrossRef]
  43. Tan, A.C.; Konczak, I.; Ramzan, I.; Zabaras, D.; Sze, D.M.Y. Potential antioxidant, antiinflammatory, and proapoptotic anticancer activities of Kakadu plum and Illawarra plum polyphenolic fractions. Nutr. Cancer 2011, 63, 1074–1084. [Google Scholar] [CrossRef] [PubMed]
  44. Akter, S.; Sultanbawa, Y.; Cozzolino, D. High throughput screening to determine the antibacterial activity of Terminalia ferdinandiana (Kakadu plum): A proof of concept. J. Microbiol. Methods 2021, 182, 106169. [Google Scholar] [CrossRef] [PubMed]
  45. Noé, W.; Murhekar, S.; White, A.; Davis, C.; Cock, I.E. Inhibition of the growth of human dermatophytic pathogens by selected australian and asian plants traditionally used to treat fungal infections. J. Mycol. Médicale 2019, 29, 331–344. [Google Scholar] [CrossRef] [PubMed]
  46. Mostafa, A.A.; Al-Askar, A.A.; Almaary, K.S.; Dawoud, T.M.; Sholkamy, E.N.; Bakri, M.M. Antimicrobial activity of some plant extracts against bacterial strains causing food poisoning diseases. Saudi J. Biol. Sci. 2018, 25, 361–366. [Google Scholar] [CrossRef]
Plants 13 00807 g001

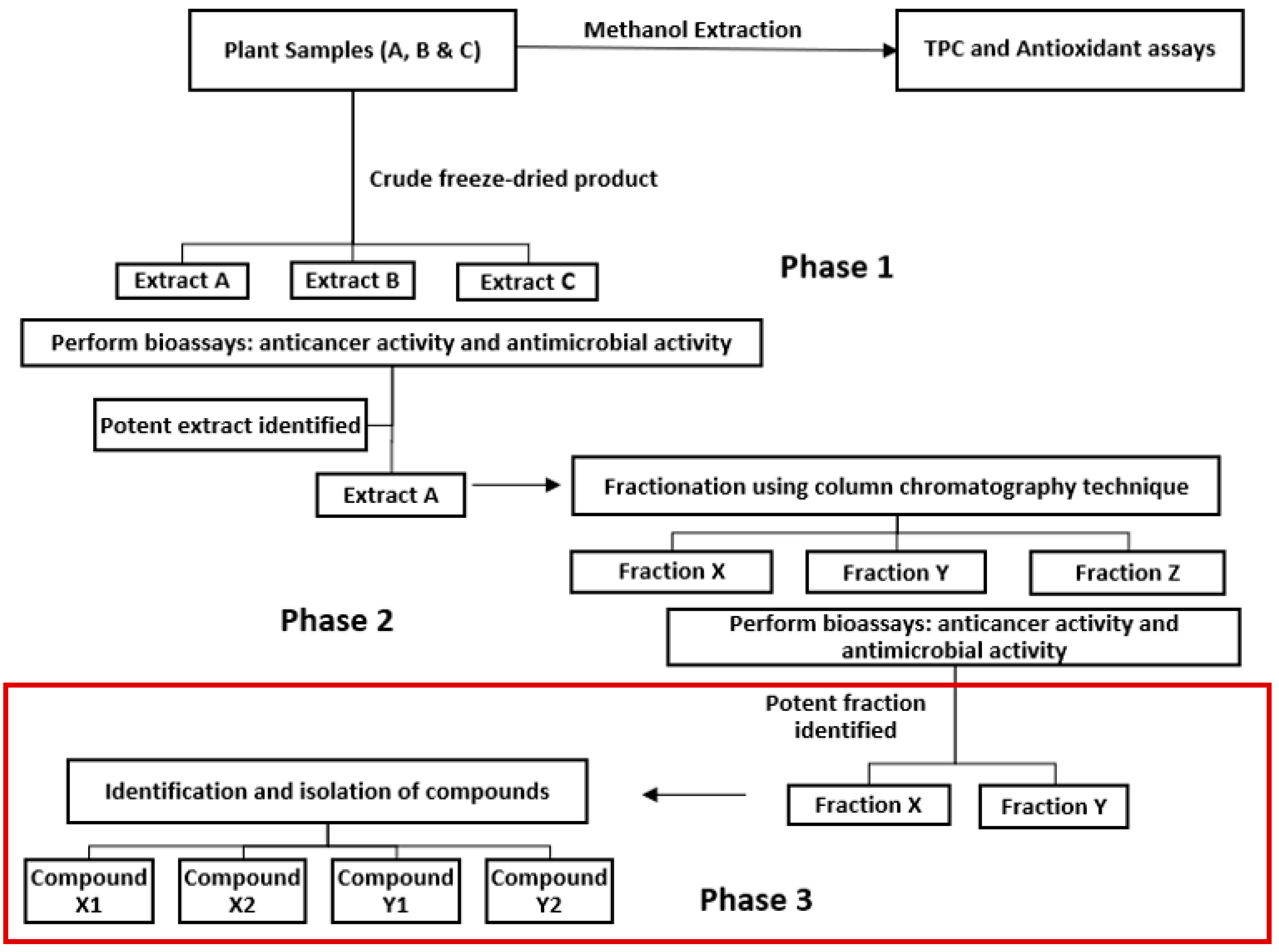

Figure 1. Bioassay-guided fractionation protocol design [14].
Figure 1. Bioassay-guided fractionation protocol design [14].
Plants 13 00807 g001
Plants 13 00807 g002

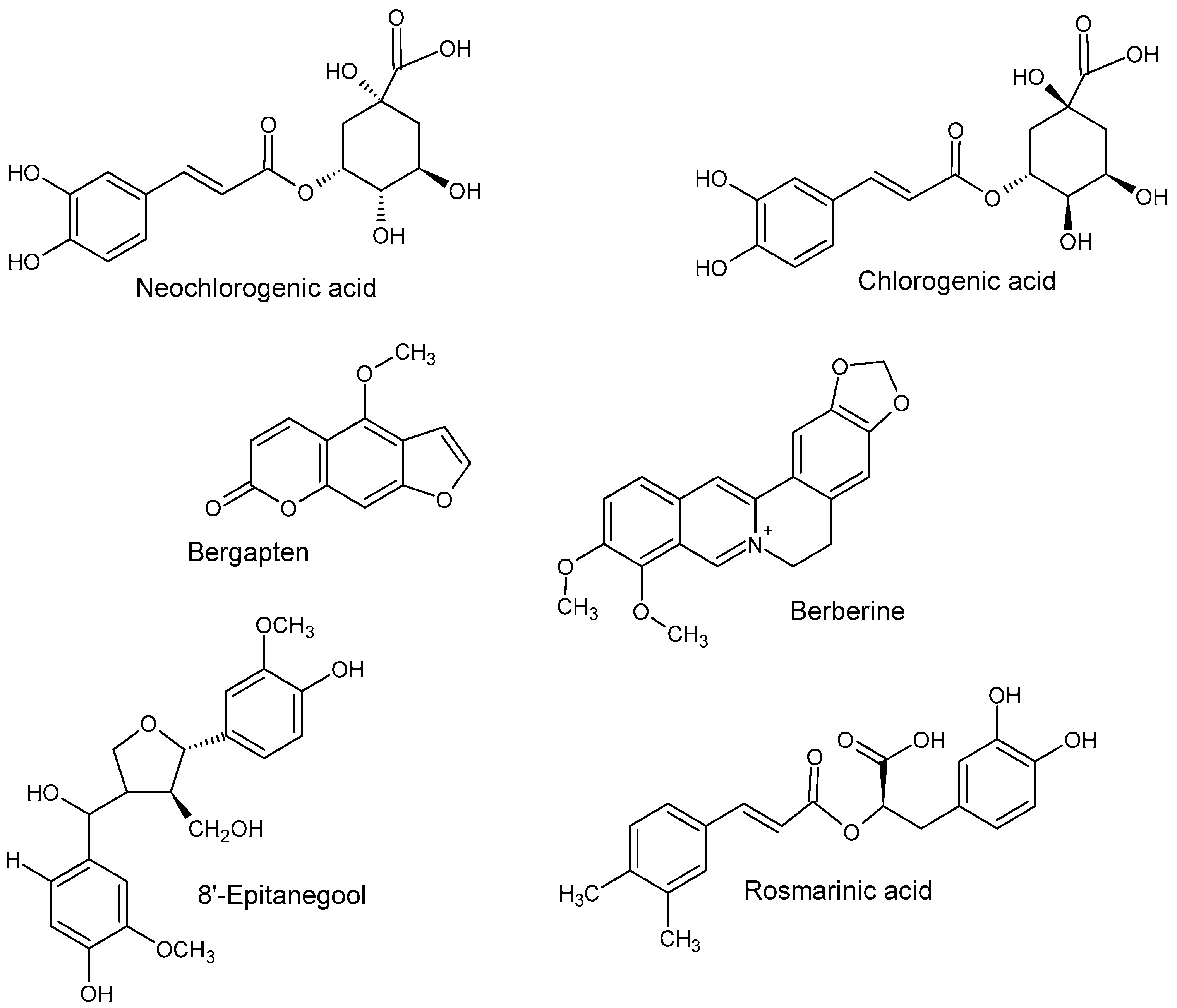

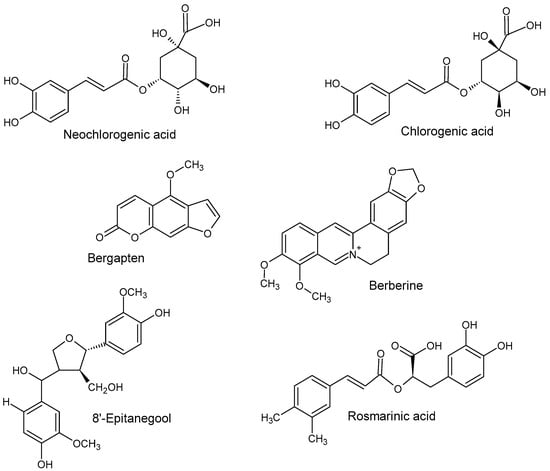

Figure 2. Proposed phenolic metabolites in Pittosporum angustifolium Fraction 1.
Figure 2. Proposed phenolic metabolites in Pittosporum angustifolium Fraction 1.
Plants 13 00807 g002
Plants 13 00807 g003

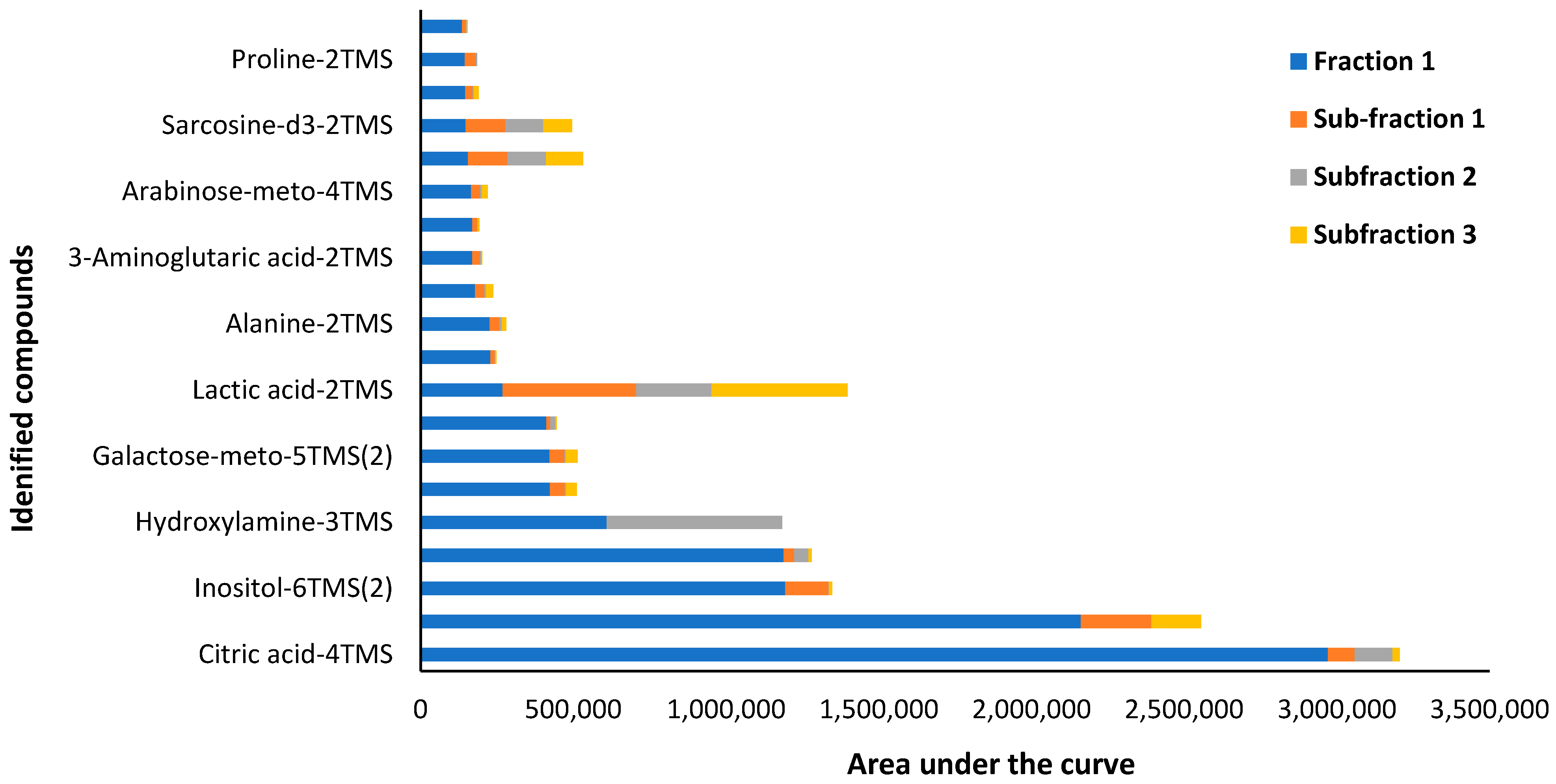

Figure 3. Targeted GC-MS/MS compounds identified in Pittosporum angustifolium Fraction 1 and Fraction 1 Subfractions 1, 2 and 3.
Figure 3. Targeted GC-MS/MS compounds identified in Pittosporum angustifolium Fraction 1 and Fraction 1 Subfractions 1, 2 and 3.
Plants 13 00807 g003
Plants 13 00807 g004

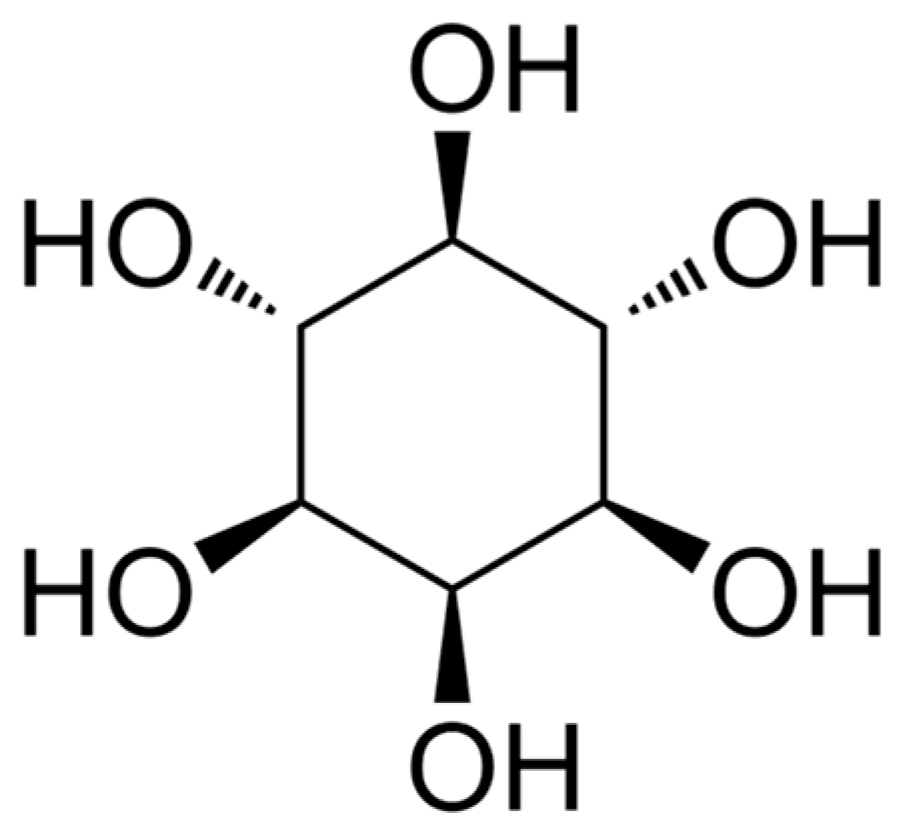

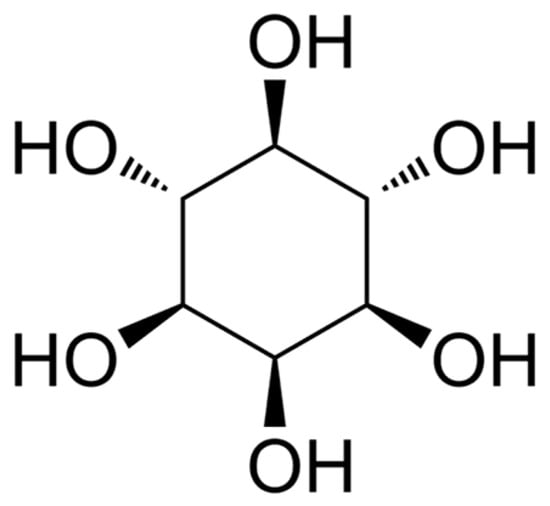

Figure 4. Chemical structure of inositol.
Figure 4. Chemical structure of inositol.
Plants 13 00807 g004
Plants 13 00807 g005

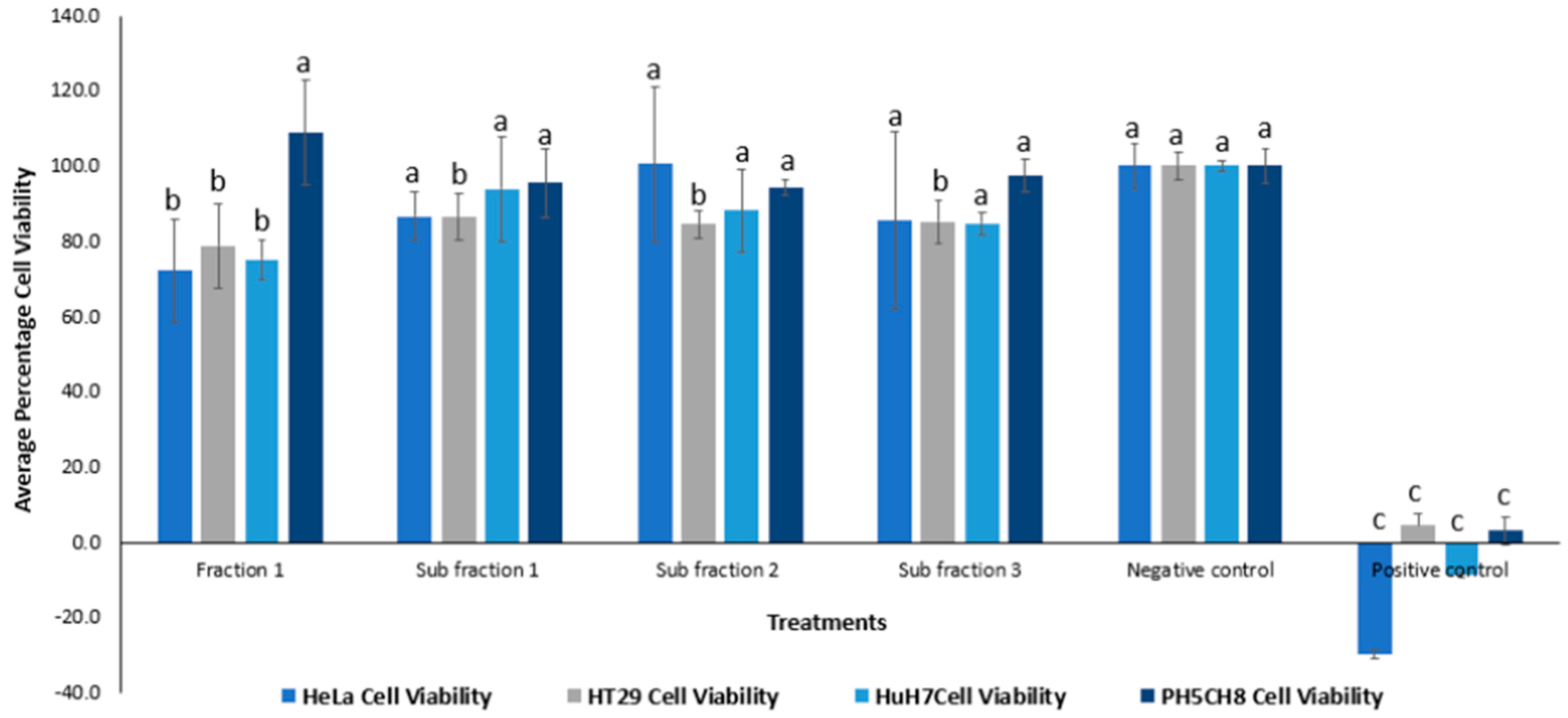

Figure 5. Percentage cell viability of cell lines treated with Pittosporum angustifolium Fraction 1 of concentration 5340 µg mL−1 and Fraction 1 Subfractions 1, 2 and 3 with concentrations of 16.55, 12.15 and 16.15 µg mL−1, respectively. One-way ANOVA test indicated no significant difference (p-value > 0.05) in cytotoxicity between the different subfractions for the same cell line, denoted by the same letters on the respective bars, except in the case of HT29 cells. Negative control: cells without treatment, positive control: cell treated with 50 ug mL−1 cisplatin (chemotherapy drug).
Figure 5. Percentage cell viability of cell lines treated with Pittosporum angustifolium Fraction 1 of concentration 5340 µg mL−1 and Fraction 1 Subfractions 1, 2 and 3 with concentrations of 16.55, 12.15 and 16.15 µg mL−1, respectively. One-way ANOVA test indicated no significant difference (p-value > 0.05) in cytotoxicity between the different subfractions for the same cell line, denoted by the same letters on the respective bars, except in the case of HT29 cells. Negative control: cells without treatment, positive control: cell treated with 50 ug mL−1 cisplatin (chemotherapy drug).
Plants 13 00807 g005
Plants 13 00807 g006

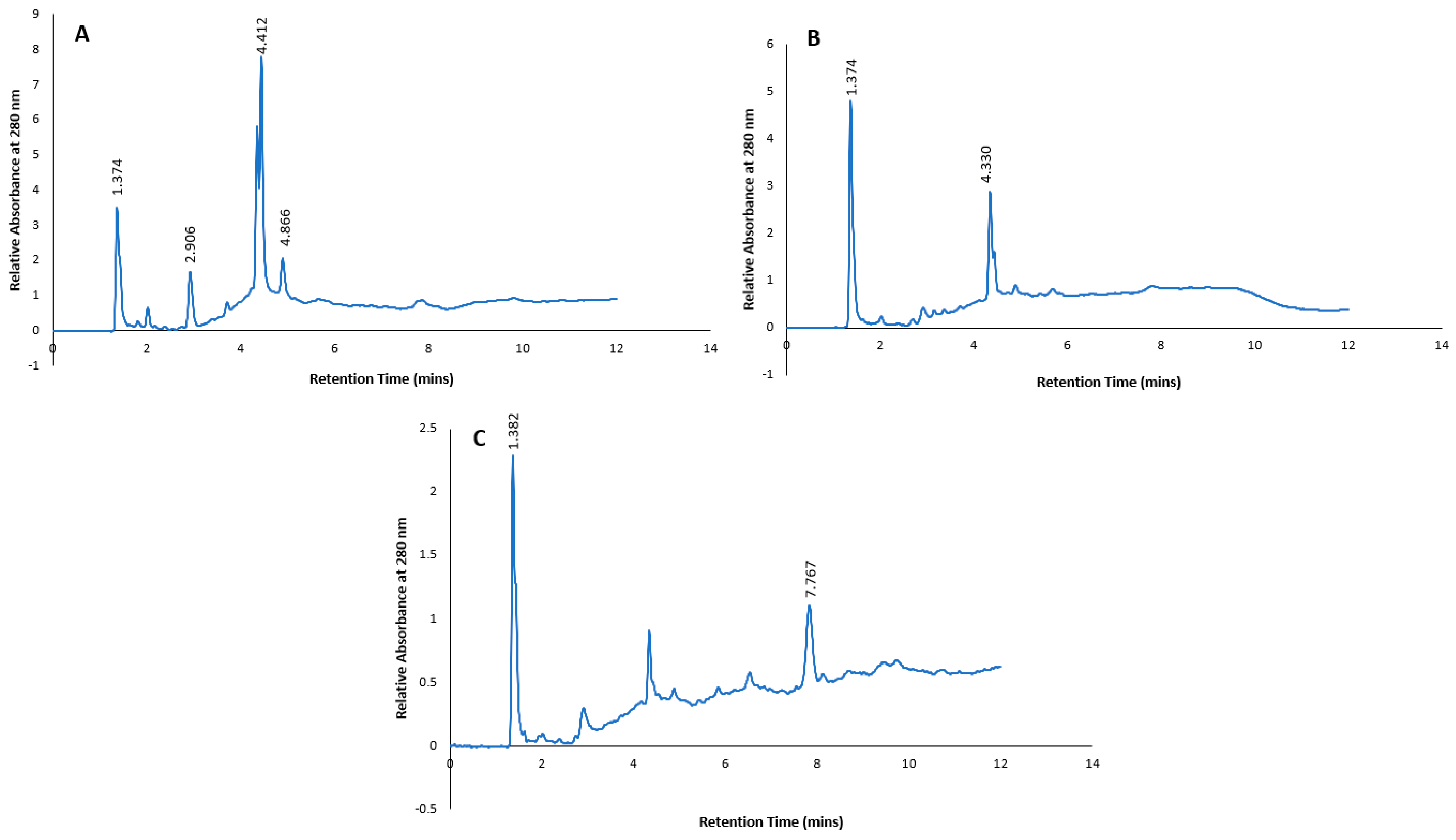

Figure 6. HPLC profiles of Pittosporum angustifolium Subfraction 1 (A), Subfraction 2 (B) and Subfraction 3 (C).
Figure 6. HPLC profiles of Pittosporum angustifolium Subfraction 1 (A), Subfraction 2 (B) and Subfraction 3 (C).
Plants 13 00807 g006
Plants 13 00807 g007

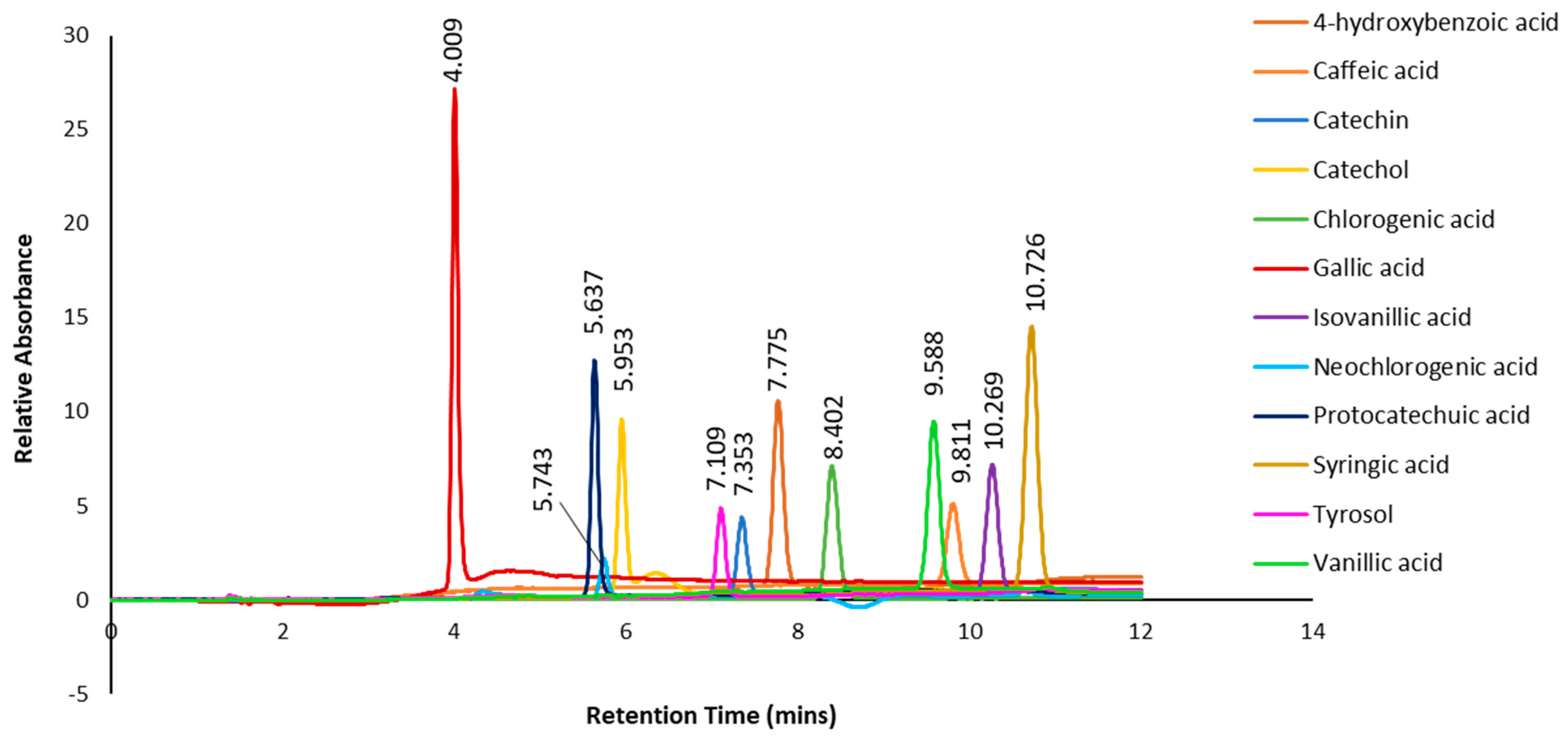

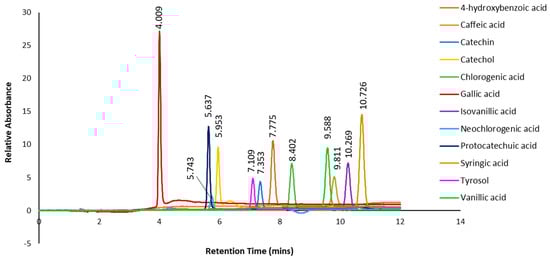

Figure 7. Chromatogram and retention times of selected phenolic standards.
Figure 7. Chromatogram and retention times of selected phenolic standards.
Plants 13 00807 g007
Plants 13 00807 g008

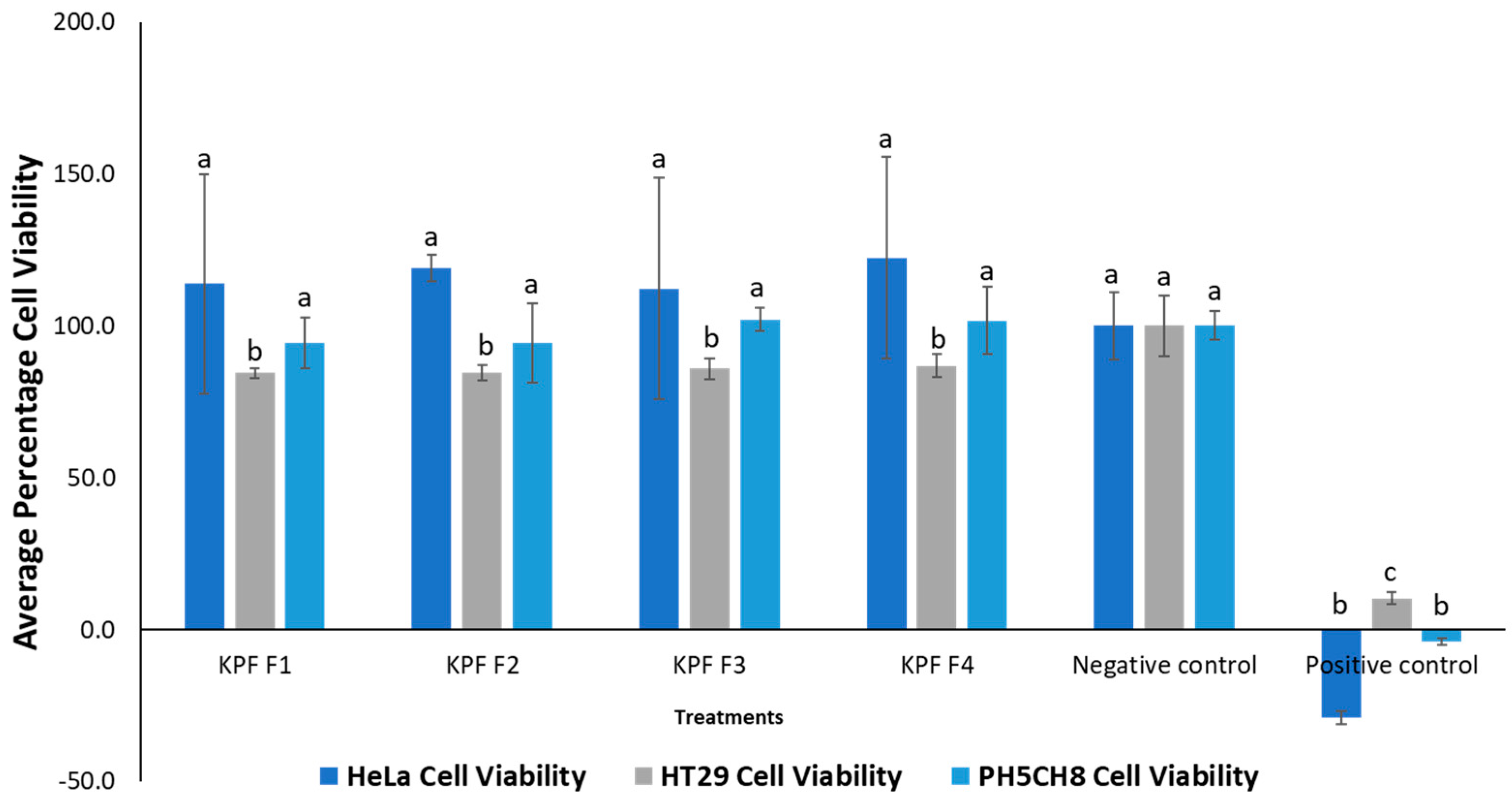

Figure 8. Percentage cell viability of cell lines treated with Terminalia ferdinandiana fractions. One-way ANOVA test indicated no significant difference (p > 0.05) in cytotoxicity between the different subfractions for the same cell line, denoted by the same letters on the respective bars, except in the case of HT29 cells. Negative control: cells without treatment, positive control: cell treated with 50 ug mL−1 cisplatin (chemotherapy drug).
Figure 8. Percentage cell viability of cell lines treated with Terminalia ferdinandiana fractions. One-way ANOVA test indicated no significant difference (p > 0.05) in cytotoxicity between the different subfractions for the same cell line, denoted by the same letters on the respective bars, except in the case of HT29 cells. Negative control: cells without treatment, positive control: cell treated with 50 ug mL−1 cisplatin (chemotherapy drug).
Plants 13 00807 g008
Plants 13 00807 g009

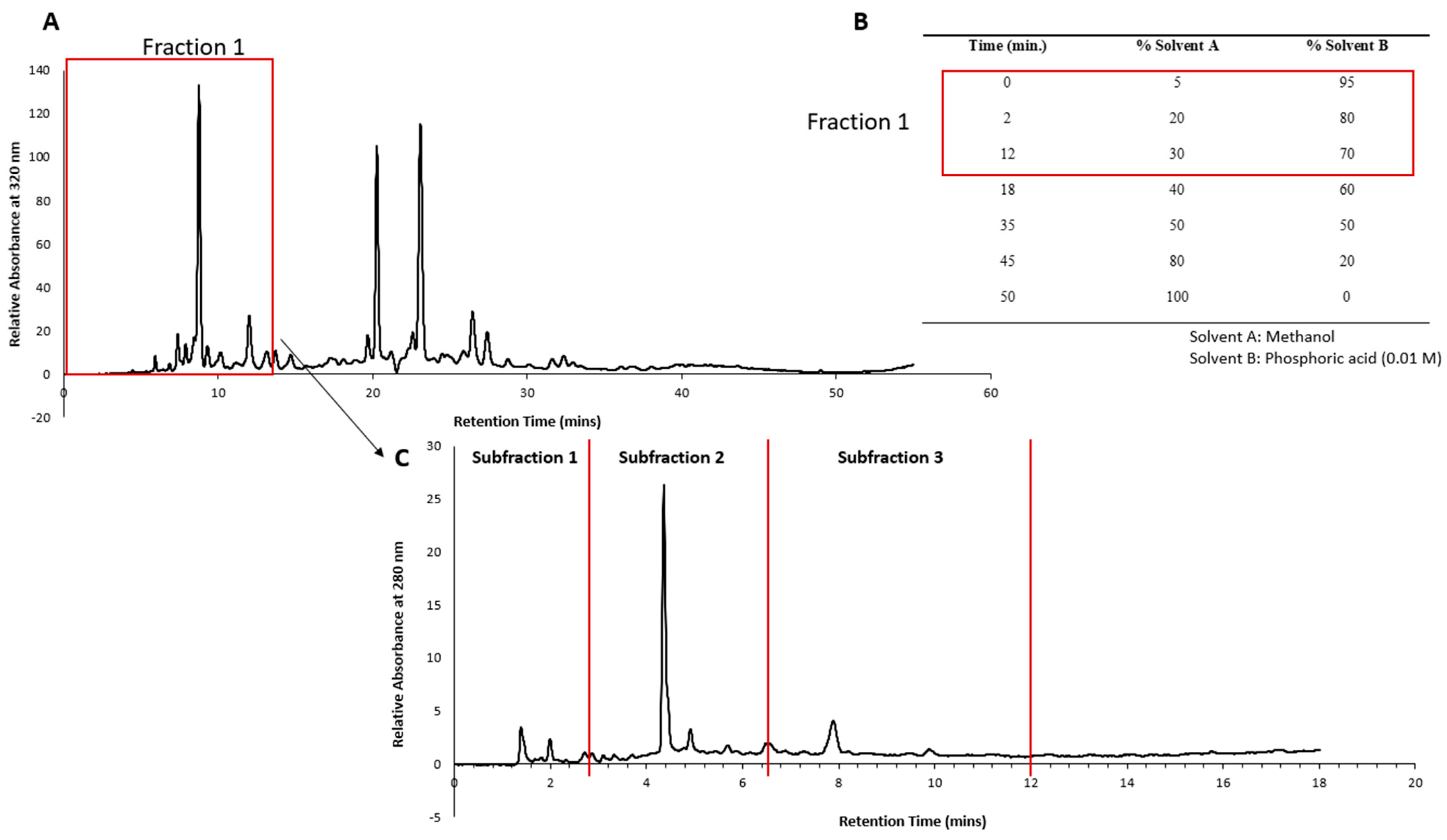

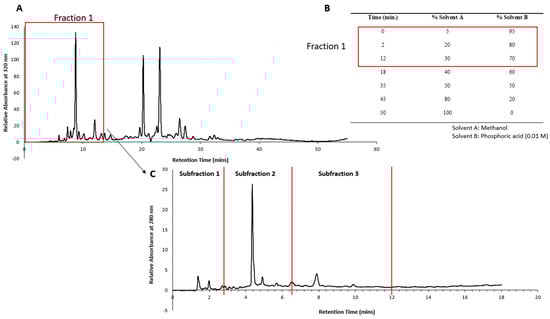

Figure 9. (A) Chromatogram of Pittosporum angustifolium extract showing retention times at which Fraction 1 was collected. (B) Elution gradient of P. angustifolium extract fractionation. (C) HPLC chromatogram of P. angustifolium Fraction 1 and the retention times (0–3 min (Subfraction 1), 3–6 min (Subfraction 2) and 6–11 min (Subfraction 3)) at which the three subfractions were collected.
Figure 9. (A) Chromatogram of Pittosporum angustifolium extract showing retention times at which Fraction 1 was collected. (B) Elution gradient of P. angustifolium extract fractionation. (C) HPLC chromatogram of P. angustifolium Fraction 1 and the retention times (0–3 min (Subfraction 1), 3–6 min (Subfraction 2) and 6–11 min (Subfraction 3)) at which the three subfractions were collected.
Plants 13 00807 g009
Plants 13 00807 g010

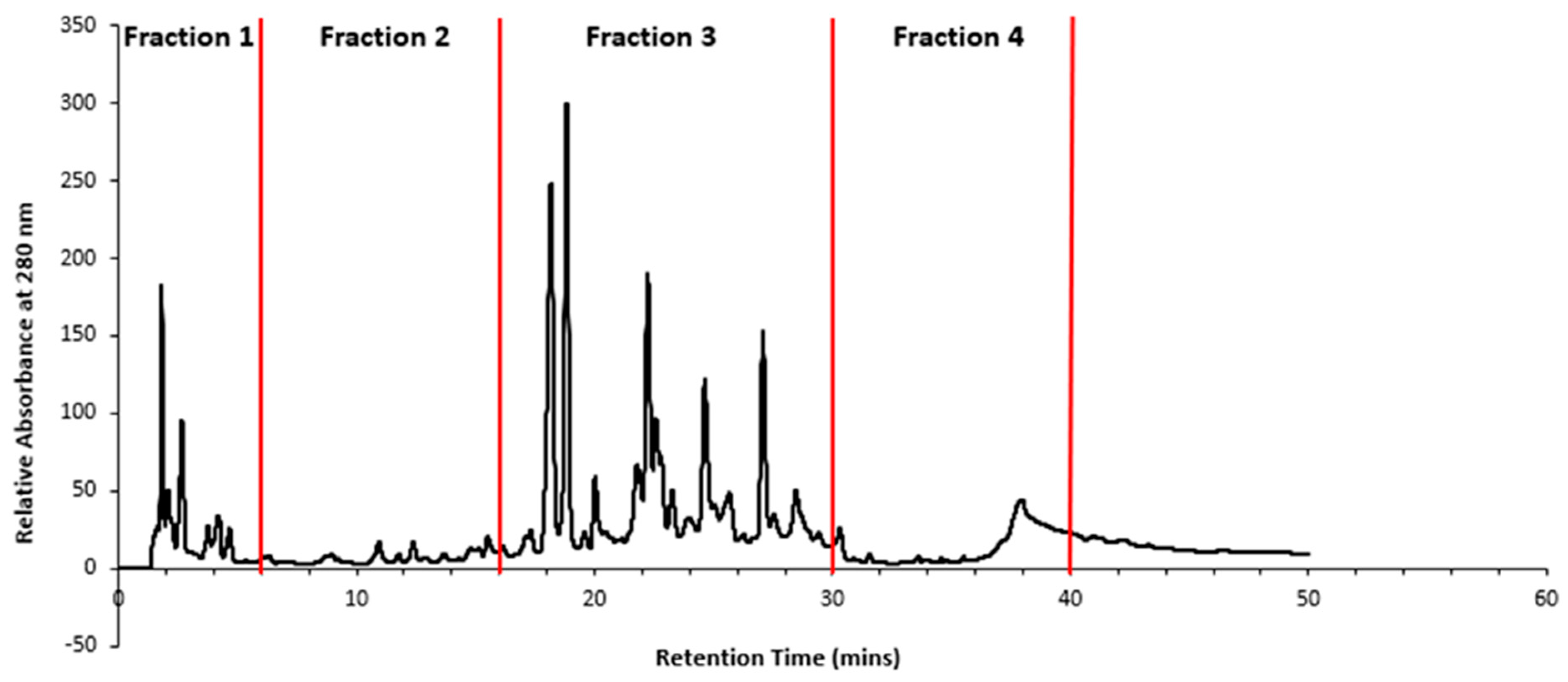

Figure 10. HPLC chromatogram of T. ferdinandiana extract and the retention times (0–6 min (Fraction 1), 6–16 min (Fraction 2), 16–30 min (Fraction 3) and 30–40 min (Fraction 4)) at which the four fractions were collected.
Figure 10. HPLC chromatogram of T. ferdinandiana extract and the retention times (0–6 min (Fraction 1), 6–16 min (Fraction 2), 16–30 min (Fraction 3) and 30–40 min (Fraction 4)) at which the four fractions were collected.
Plants 13 00807 g010
Table 1. Tentative LC-MS characterization of compounds in Pittosporum angustifolium Fraction 1.
Table 1. Tentative LC-MS characterization of compounds in Pittosporum angustifolium Fraction 1.
Peak No.Proposed Compound Molecular Formula RT (min)Mode of Ionisation Molecular Weight (g/mol)Observed Precursor Mass (m/z)Theoretical Mass (m/z)Product Ions (m/z)Literature
1Chlorogenic acid C16H18O99.13positive 354.31355.10355.00 *65.0, 188.0, 219.0, 275.8
1Neochlorogenic acidC16H18O99.13positive 354.31354.31355.0065.0, 188.0, 219.0, 275.8Li et al., 2016 [15]
2Unidentified Unidentified 23.29negative Unidentified 229.10Unidentified 157.1, 102.2
3UnidentifiedUnidentified 29.15positive Unidentified 313.10Unidentified 223.1, 158.2, 102.2
4BerberineC20H18NO4+30.65positive 336.4336.20336.12 **287.2Jiao et al., 2018 [16]
5Unidentified Unidentified 33.09positiveUnidentified 378.2Unidentified 102.1, 249.2
6Unidentified Unidentified 34.11positiveUnidentified 326.9Unidentified 102.3, 185.1, 228.3
7BergaptenC12H8O436.48positive 216.042217.10217.05 *129.0, 202.0
8Rosmarinic acidC18H16O844.44positive 360.3361.20361.09 **181.05, 139.04
98′-epitanegoolC20H24O7Na45.07positive 399.39399.2399.14287.3, 304.2Jiao et al., 2018 [16]
10Unidentified Unidentified 46.07positiveUnidentified403.2Unidentified102.2, 329.2, 361
* NIST Library. ** PubChem.
Table 2. Target GC-MS/MS peak area and classification of compounds identified in Pittosporum angustifolium Fraction 1 and Fraction 1 Subfractions 1, 2 and 3.
Table 2. Target GC-MS/MS peak area and classification of compounds identified in Pittosporum angustifolium Fraction 1 and Fraction 1 Subfractions 1, 2 and 3.
TargetFraction 1 Subfraction 1Subfraction 2Subfraction 3Compound Class
1Citric acid-4TMS2,971,61087,281124,06023,465Carboxylic acids
2Glucose-meto-5TMS(1)2,162,365230,0450163,277Carbohydrate
3Inositol-6TMS(2)1,194,216141,218112310,389Carbocyclic sugar
42-Aminopimelic acid-3TMS1,188,39335,26346,72210,226Amino acid
5Hydroxylamine-3TMS609,0440574,3340Hydroxylamine
6Glucose-meto-5TMS(2)423,25749,736345634,808Carbohydrate
7Galactose-meto-5TMS(2)422,41149,066358738,804Carbohydrate
81,5-13C2-Citric acid412,32713,14416,4853281Carboxylic acids
9Lactic acid-2TMS268,289437,458247,071444,661Carboxylic acids
101,6-Anhydroglucose-3TMS228,50214,47010804143Carbohydrate
11Alanine-2TMS225,86632,076860614,237Amino acid
12Xylose-meto-4TMS(1)178,49731,305477522,749Carbohydrates
133-Aminoglutaric acid-2TMS169,21726,04641772165Amino acid
144-Aminobutyric acid-3TMS169,04817,51006009Amino acid
15Arabinose-meto-4TMS165,44530,249466619,117Carbohydrates
16Palmitic acid-TMS154,588129,131126,973120,981Saturated fatty acid
17Sarcosine-d3-2TMS147,242130,615123,52094,609Amino acid
18Lyxose-meto-4TMS(2)146,57123,892375416,430Carbohydrates
19Proline-2TMS144,35937,17130220Amino acid
20Malic acid-3TMS135,93212,65223183148Carboxylic acids
Table 3. Terminalia ferdinandiana flesh (KPF) lyophilized fractions.
Table 3. Terminalia ferdinandiana flesh (KPF) lyophilized fractions.
FractionsCrystal Product Obtained (mg)Concentrations of Fractions Tested (mg/mL)
KPF138.100.095
KPF 2169.000.423
KPF 377.400.194
KPF 417.600.044
Table 4. Average zone of inhibition (n = 3) of Terminalia ferdinandiana flesh fractions.
Table 4. Average zone of inhibition (n = 3) of Terminalia ferdinandiana flesh fractions.
Kakadu Plum FractionsConcentrations
(µg/mL)		Bacterial Strain Zone of Inhibition (mm)
Gram Positive Gram Negative
S. aureusE. coliP. aeruginosaS. typhimurium
158.14.00 ± 0.710.000.000.00
2169.04.30 ± 0.353.20 ± 0.102.10 ± 0.202.30 ± 0.40
377.90.000.000.000.00
417.64.20 ± 0.250.000.000.00
Positive control (gentamicin) 10 13.67 ± 0.5816.33 ± 0.5813.00 ± 0.1012.67 ± 0.58
All values are given as means ± 2 SD (n = 3).
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Mani, J.; Johnson, J.; Hosking, H.; Schmidt, L.; Batley, R.; du Preez, R.; Broszczak, D.; Walsh, K.; Neilsen, P.; Naiker, M. Bioassay-Guided Fractionation of Pittosporum angustifolium and Terminalia ferdinandiana with Liquid Chromatography Mass Spectroscopy and Gas Chromatography Mass Spectroscopy Exploratory Study. Plants 2024, 13, 807. https://doi.org/10.3390/plants13060807

AMA Style

Mani J, Johnson J, Hosking H, Schmidt L, Batley R, du Preez R, Broszczak D, Walsh K, Neilsen P, Naiker M. Bioassay-Guided Fractionation of Pittosporum angustifolium and Terminalia ferdinandiana with Liquid Chromatography Mass Spectroscopy and Gas Chromatography Mass Spectroscopy Exploratory Study. Plants. 2024; 13(6):807. https://doi.org/10.3390/plants13060807

Chicago/Turabian Style

Mani, Janice, Joel Johnson, Holly Hosking, Luke Schmidt, Ryan Batley, Ryan du Preez, Daniel Broszczak, Kerry Walsh, Paul Neilsen, and Mani Naiker. 2024. "Bioassay-Guided Fractionation of Pittosporum angustifolium and Terminalia ferdinandiana with Liquid Chromatography Mass Spectroscopy and Gas Chromatography Mass Spectroscopy Exploratory Study" Plants 13, no. 6: 807. https://doi.org/10.3390/plants13060807

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
