On the Calculation of the Moore–Penrose and Drazin Inverses: Application to Fractional Calculus

Abstract

This paper presents a third order iterative method for obtaining the Moore–Penrose and Drazin inverses with a computational cost of $\mathcal{O}\left(n^3\right)$, where $n\in \mathbb{N}$. The performance of the new approach is compared with other methods discussed in the literature. The results show that the algorithm is remarkably efficient and accurate. Furthermore, sufficient criteria in the fractional sense are presented, both for smooth and non-smooth solutions. The fractional elliptic Poisson and fractional sub-diffusion equations in the Caputo sense are considered as prototype examples. The results can be extended to other scientific areas involving numerical linear algebra.

1. Introduction

Computing the inverse matrix, particularly for a high dimension, has been a time consuming task. Therefore, numerical methods are important for the calculation of the inverse of a matrix, and numerical iterative algorithms have a special role among the available techniques.

The Moore–Penrose inverse of a matrix $A\in {\mathbb{C}}^{m\times n}$, denoted by $A^{†}\in {\mathbb{C}}^{n\times m}$, is the unique matrix X that obeys the four conditions [1]

$$AXA=A,XAX=X,{\left(AX\right)}^{*}=AX,{\left(XA\right)}^{*}=XA,$$

(1)

where $A^{*}$ is the conjugate transpose of A. If $rank\left(A\right)=min\{m,n\}$, then

$$A^{†}=\left\{\begin{array}{cc}{\left(A^{*}A\right)}^{-1}{A}^{*},\hfill & m>n,\hfill \\ A^{-1},\hfill & m=n,\hfill \\ A^{*}{\left(A{A}^{*}\right)}^{-1},\hfill & m<n.\hfill \end{array}\right.$$

(2)

We find in the published literature a number of different iterative methods for computing the Moore–Penrose inverse. The most common approach for the approximate inverse, $A^{-1}$, is the Newton’s iterative method ($NM$):

$$V_{r+1}=V_r(2I-A{V}_r),r=0,1,2,\cdots ,$$

(3)

where I is the identity matrix. For more details, interested readers can see [2,3].

Li et al. [4] investigated the following third-order method, known as Chebyshev’s iterative method:

$$\left\{\begin{array}{c}{W}_r=A{V}_r,\hfill \\ V_{r+1}=V_r\left(3I-W_r(3I-W_r)\right).\hfill \end{array}\right.$$

(4)

In addition, Toutounian and Soleymani [5] proposed another iterative method to find $A^{-1}$ of the fourth order given by

$$\left\{\begin{array}{c}{W}_r=A{V}_r,\hfill \\ V_{r+1}=0.5V_r(9I-W_r\left(16I-W_r(14I-W_r(6I-W_r)))\right)),\hfill \end{array}\right.$$

(5)

Pan et al. [6] investigated the following eighteenth-order scheme:

$$\left\{\begin{array}{c}{W}_r=A{V}_r,Z_r=I-W_r,P_r=Z_r^2,U_r=P_r^2,\hfill \\ M_r=(I+c_1{P}_r+U_r)(I+c_2{P}_r+U_r),\hfill \\ T_r=M_r+c_3{P}_r,S_r=M_r+d_1{P}_r+d_2{U}_r,\hfill \\ V_{r+1}=V_r\left((I+Z_r)(T_r{S}_r+\mu P_r+\psi U_r)\right),\hfill \end{array}\right.$$

(6)

where

$$\left\{\begin{array}{c}{c}_1={\displaystyle \frac{1}{4}}\left(\sqrt{27-2\sqrt{93}-1}\right),c_2={\displaystyle \frac{1}{2}}(1-\sqrt{27-\sqrt{93}}),\hfill \\ c_3={\displaystyle \frac{1}{496}}(5\sqrt{93}-93),d_1={\displaystyle \frac{1}{496}}(-93-5\sqrt{93}),\hfill \\ d_2=-{\displaystyle \frac{93}{4}},\mu ={\displaystyle \frac{3}{8}},\psi ={\displaystyle \frac{321}{1984}}.\hfill \end{array}\right.$$

(7)

Esmaieli et al. [7] proposed the second-order method

$$\left\{\begin{array}{c}{W}_r=A{V}_r,\hfill \\ V_{r+1}=V_r\left(5.5I-W_r(8I-3.5W_r)\right),\hfill \end{array}\right.$$

(8)

which is superior in terms of computational efficiency.

To initialize these algorithms, an initial matrix $V_0$ was introduced by Pan et al. [8]

$$V_0=\alpha A^{*},\mathrm{where}\alpha ={\displaystyle \frac{1}{{\parallel A\parallel }_1{\parallel A\parallel }_{\infty }}}.$$

(9)

In 1958, a different kind of generalized inverse was introduced by Drazin [9]. This definition does not have flexibility in the rings and semi-groups of associations but commutes with the element. The importance of this type of inverse and its calculation was later discussed by Wilkinson [10], and several researchers proposed direct or iterative methods for calculating the solution of this problem [11,12,13,14]. In this paper, a characterization of the Drazin inverse in the scope of fractional calculus is investigated.

The paper is organized as follows. Section 2 introduces the essential concepts, fundamental definitions, and properties of fractional calculus. Section 3 and Section 4 analyse the performance of a novel iterative method for obtaining the Moore–Penrose and Drazin inverses. Section 5 introduces the error measurement. Section 6 compares the numerical results of the proposed approach with other available schemes, especially for high dimensional values. Section 7 highlights several applications of the new method and provides a numerical assessment of their effectiveness in a fractional sense. Finally, Section 8 presents the main conclusions.

Table 1. List of abbreviations and acronyms used in the paper.

The Abbreviations	Description
$NM$	Newton’s method (3)
$CH$	Chebyshev method (4)
$TS$	Method (5)
$E1$	Method (6)
$E2$	Method (8)
$E3$	Method (22)
$CO$	Convergence order of method
$MM$	Number of operations for $Q_{n\times n}.R_{n\times n}$
$PM$	Number of operations for $Q_{n\times n}+R_{n\times n}$
$SM$	Number of operations for $\beta Q_{n\times n}$
$IM$	Number of operations for $\gamma I_{n\times n}+Q_{n\times n}$
$CPU$	CPU time spent
$PDE$	Partial differential equation
$FDE$	Fractional differential equation

lists the abbreviations and acronyms used in the follow-up.

2. Fractional Calculus

In recent decades, fractional calculus and fractional differential equations (FDE) have had a significant impact in science, with particular emphases in system dynamical modelling [15,16,17,18,19,20,21,22,23,24]. This mathematical tool generalises the standard calculus, and several definitions of fractional derivatives and integrals have been proposed.

Let $\xi \left(x\right)$ be defined as a function on the interval $[a,b]$. The Riemann–Liouville integral is defined by

$$I^{\gamma }=\frac{1}{\mathsf{\Gamma }\left(\gamma \right)}{\int }_a^{x}f\left(t\right){(x-t)}^{\gamma -1}dt,$$

(10)

where $\mathsf{\Gamma }$ is the gamma function, and a is an arbitrary but fixed base point. The $\gamma$th order $(m-1<\gamma <m)$ left and right sided Riemann–Liouville fractional derivatives of $\xi \left(x\right)$ are defined as

$${}_a^R{D}_x^{\gamma }\xi \left(x\right)=\frac{1}{\mathsf{\Gamma }(m-\gamma )}\frac{d^m}{d{x}^m}{\int }_a^x\frac{\xi \left(\tau \right)}{{(x-\tau )}^{\gamma -m+1}}d\tau ,$$

(11)

$${}_x^R{D}_b^{\gamma }\xi \left(x\right)=\frac{{(-1)}^m}{\mathsf{\Gamma }(n-\gamma )}\frac{d^m}{d{x}^m}{\int }_x^b\frac{\xi \left(\tau \right)}{{(x-\tau )}^{\gamma -m+1}}d\tau .$$

(12)

The Riemann–Liouville fractional derivative and integral played an important role in the development of theoretical problems of fractional calculus. However, since the solution of FDE requires initial conditions with fractional derivatives, they pose difficulties in their application. In 1967, the Caputo fractional derivative was formulated [17]:

$$\frac{{\partial }^{\gamma }\xi (x,t)}{\partial t^{\gamma }}=\frac{1}{\mathsf{\Gamma }(m-\gamma )}{\int }_0^t\frac{1}{{(t-\tau )}^{\gamma -m+1}}\frac{{\partial }^m\xi (x,\tau )}{\partial {\tau }^m}d\tau ,\gamma \in (m-1,m),m\in \mathbb{N}.$$

(13)

This definition simplifies the initial condition problem. The relationship between the Riemann–Liouville and Caputo fractional derivatives is as follows:

$${}_a^{RL}{D}_x^{\gamma }\xi \left(x\right){=}_a^C{D}_x^{\gamma }\xi \left(x\right)+\sum _{k=0}^{m-1}\frac{f^{\left(k\right)\left(a\right){(t-a)}^{k-\gamma }}}{\mathsf{\Gamma }(k+1-\gamma )},m-1\le \gamma <m.$$

(14)

Nonetheless, during the discretization of the FDE, we obtain a matrix, and therefore, a problem of linear algebra has a relationship with the solution of FDE.

3. New Iterative Method

Iterative methods for solving nonlinear equations are pervasive in applied mathematics, and many researchers have studied a variety of algorithms [25,26,27,28], keeping in mind that the efficiency of the method is of key importance. The existence of a function derivative in the algorithm often poses constraints and increases the computational cost. Therefore, the use of function high derivatives is usually avoided. We suppose that the function $F\left(\chi \right)$ has a simple root at a and that ${\chi }_0$ is an initial guess sufficiently close to a. To solve the equation $F\left(\chi \right)=0$, we consider the iterative algorithm

$$\begin{array}{ccc}\hfill {\chi }_{r+1}={\chi }_r& -& {\displaystyle \frac{F\left({\chi }_r\right)}{F^{\prime }\left({\chi }_r\right)}}\left(1+{\displaystyle \frac{F^{″}\left({\chi }_r\right)F\left({\chi }_r\right)}{2F^{\prime }{\left({\chi }_r\right)}^2}}\right)-{\displaystyle \frac{F{\left({\chi }_r\right)}^3}{4F^{\prime }{\left({\chi }_r\right)}^4}}({\displaystyle \frac{F^{″}{\left({\chi }_r\right)}^2}{2F^{\prime }\left({\chi }_r\right)}}\hfill \\ & +& {\displaystyle \frac{F^{″″}\left({\chi }_r\right)F\left({\chi }_r\right)}{F^{\prime }\left({\chi }_r\right)}}-{\displaystyle \frac{F^{‴}\left({\chi }_r\right)}{6}}),r=0,1,\cdots .\hfill \end{array}$$

(15)

In the following, the convergence analysis of this method is investigated.

Theorem 1.

Suppose that $F:D\subseteq \mathbb{R}\to \mathbb{R}$ is sufficiently differentiable in a neighbourhood of $a\in D$ and that a is a simple zero of $F\left(\chi \right)=0$. The iterative method (15) converges to a with convergence order three. The error equation is given by

$${ϵ}_{r+1}=\frac{3}{4}\left(2J_2^2-J_3\right){\left({ϵ}_r\right)}^3+\mathcal{O}\left({ϵ}_r^4\right),$$

(16)

where $J_i={\displaystyle \frac{1}{i!}}{\displaystyle \frac{F^{\left(i\right)}\left(a\right)}{F^{\prime }\left(a\right)}}$ for $i\ge 2$.

Proof.

Based on the Taylor expansion for F about a, we can write

$$\begin{array}{cc}F\left({\chi }_r\right)\hfill & =F^{\prime }\left(a\right)[{ϵ}_r+J_2{ϵ}_r^2+J_3{ϵ}_r^3+J_4{ϵ}_r^4+J_5{ϵ}_r^5+J_6{ϵ}_r^6+\mathcal{O}\left({ϵ}_r^7\right)],\hfill \\ F^{\prime }\left({\chi }_r\right)\hfill & =F^{\prime }\left(a\right)[1+2J_2{ϵ}_r+3J_3{ϵ}_r^2+4J_4{ϵ}_r^3+5J_5{ϵ}_r^4+6J_6{ϵ}_r^5+\mathcal{O}\left({ϵ}_r^6\right)],\hfill \\ \hfill & ⋮\hfill \\ F^{\prime \prime \prime \prime }\left({\chi }_r\right)\hfill & =F^{\prime }\left(a\right)[24J_4+120J_5{ϵ}_r+360J_6{ϵ}_r^2+\mathcal{O}\left({ϵ}_r^3\right)].\hfill \end{array}$$

(17)

From the above relations, we have

$$\begin{array}{cc}\hfill {\displaystyle \frac{F\left({\chi }_r\right)}{F^{\prime }\left({\chi }_r\right)}}& ={ϵ}_r-J_2{ϵ}_r^2+2(J_2^2-J_3){ϵ}_r^3+\mathcal{O}\left({ϵ}_r^4\right),\hfill \\ \hfill {\displaystyle \frac{F^{″}\left({\chi }_r\right)F\left({\chi }_r\right)}{2F{\left({\chi }_r\right)}^2}}& =J_2{ϵ}_r+(-3J_2^2+3J_3){ϵ}_r^2+\mathcal{O}\left({ϵ}_r^3\right)],\hfill \end{array}$$

(18)

$$\begin{array}{cc}\hfill {\displaystyle \frac{F{\left({\chi }_r\right)}^3}{4F^{\prime }{\left({\chi }_r\right)}^4}}& ={\displaystyle \frac{1}{4F^{\prime }\left(a\right)}}[{ϵ}_r^3-5J_2{ϵ}_r^4+\mathcal{O}\left({ϵ}_r^5\right)],\hfill \\ \hfill {\displaystyle \frac{F^{″}{\left({\chi }_r\right)}^2}{2F^{\prime }\left({\chi }_r\right)}}& =F^{\prime }\left(a\right)[2J_2^2-4(J_2^3-3J_2{J}_3){ϵ}_r+\mathcal{O}\left({ϵ}_r^2\right)],\hfill \\ \hfill {\displaystyle \frac{F^{\prime \prime \prime \prime }\left({\chi }_r\right)F\left({\chi }_r\right)}{F^{\prime }\left({\chi }_r\right)}}& =24F^{\prime }\left(a\right)[J_4{ϵ}_r-(J_2{J}_4-5J_5){ϵ}_r^2+\mathcal{O}\left({ϵ}_r^3\right)].\hfill \end{array}$$

(19)

Then, according to (15), we can write

$${ϵ}_{r+1}=\frac{3}{4}\left(2J_2^2-J_3\right){ϵ}_r^3+\mathcal{O}\left({ϵ}_r^4\right).$$

(20)

Let $F\left(V\right)=V^{-1}-A$. Then, the following iterative method is obtained from (15):

$$V_{r+1}={\displaystyle \frac{1}{4}}{V}_r\left(37I-111A{V}_r+151{\left(A{V}_r\right)}^2-97{\left(A{V}_r\right)}^3+24{\left(A{V}_r\right)}^4\right),$$

(21)

or

$$\left\{\begin{array}{c}{\vartheta }_r=A{V}_r,\hfill \\ {\xi }_r={\vartheta }_r^2,\hfill \\ V_{r+1}={\displaystyle \frac{1}{4}}{V}_r\left(37I-111{\vartheta }_r+{\xi }_r\left(151I-97{\vartheta }_r+24{\xi }_r\right)\right).\hfill \end{array}\right.$$

(22)

Note: It is pointed out that in the body of this paper, methods (6), (8) and (22) are represented by the acronyms $E1$, $E2$, and $E3$, respectively.    □

Theorem 2.

Suppose that $A\in {\mathbb{C}}^{n\times n}$ is a nonsingular matrix and that the initial approximation $V_0$ satisfies

$$\parallel I-A{V}_0\parallel <1.$$

(23)

Then, the iterative method (22) converges to $A^{-1}$ with third order.

Proof.

The proof is similar to that of Theorem 2.1 in [29].   □

Now, consider $t_r=\parallel A{ϵ}_r\parallel$ and $s_r=\parallel E_r\parallel$. In the following, we show the convergence properties of the iterative method, namely the behaviour of the sequences $t_r$ and $s_r$.

Corollary 1.

Assume that the conditions of (9) hold. If ${lim}_{r\to \infty }{t}_r=0$ and ${lim}_{r\to \infty }{s}_r=0$, then, for the iterative method (22), it yields

$$\underset{r\to \infty }{lim}{\displaystyle \frac{t_{r+1}}{t_r^3}}=\underset{r\to \infty }{lim}{\displaystyle \frac{s_{r+1}}{s_r^3}}={\displaystyle \frac{3}{4}}.$$

(24)

Proof.

From Theorem 2, we have

$$A{ϵ}_{r+1}={\displaystyle \frac{3}{4}}{\left(A{ϵ}_r\right)}^3-{\displaystyle \frac{23}{4}}{\left(A{ϵ}_r\right)}^4+6{\left(A{ϵ}_r\right)}^5.$$

(25)

Consequently,

$$t_{r+1}=\parallel A{ϵ}_{r+1}\parallel \ge {\displaystyle \frac{3}{4}}\parallel A{ϵ}_r{\parallel }^3-{\displaystyle \frac{23}{4}}\parallel A{ϵ}_r{\parallel }^4+6{\parallel A{ϵ}_r\parallel }^5=t_r^3\left({\displaystyle \frac{3}{4}}-{\displaystyle \frac{23}{4}}{t}_r+6t_r^2\right),$$

(26)

or

$$t_{r+1}=\parallel A{ϵ}_{r+1}\parallel \le {\displaystyle \frac{3}{4}}\parallel A{ϵ}_r{\parallel }^3+{\displaystyle \frac{23}{4}}\parallel A{ϵ}_r{\parallel }^4+6{\parallel A{ϵ}_r\parallel }^5=t_r^3\left({\displaystyle \frac{3}{4}}+{\displaystyle \frac{23}{4}}{t}_r+6t_r^2\right),$$

(27)

which implies that

$${\displaystyle \frac{3}{4}}-{\displaystyle \frac{23}{4}}{t}_r+6t_r^2\le {\displaystyle \frac{t_{r+1}}{t_r^3}}\le {\displaystyle \frac{3}{4}}+{\displaystyle \frac{23}{4}}{t}_r+6t_r^2,\mathrm{or}\underset{r\to \infty }{lim}{\displaystyle \frac{t_{r+1}}{t_r^3}}={\displaystyle \frac{3}{4}}.$$

(28)

Again, by an argument similar to Theorem 2, we have

$${\displaystyle \frac{3}{4}}-{\displaystyle \frac{23}{4}}{s}_r+6s_r^2\le {\displaystyle \frac{s_{r+1}}{s_r^3}}\le {\displaystyle \frac{3}{4}}+{\displaystyle \frac{23}{4}}{s}_r+6s_r^2,\mathrm{or}\underset{r\to \infty }{lim}{\displaystyle \frac{s_{r+1}}{s_r^3}}={\displaystyle \frac{3}{4}}.$$

(29)

   □

Theorem 3.

Suppose that A is a nonsingular matrix. If $A{V}_0=V_{0}A$, then for the sequence (22), we have

$$A{V}_i=V_{i}A,i=1,2,\cdots .$$

(30)

Proof.

The proof is similar to the proofs presented in [30].    □

Lemma 1.

For the sequence ${\left\{V_k\right\}}_{k=0}^{k=\infty }$, generated by the iterative method (22), it holds that

$${\left(V_{k}A\right)}^{*}=V_{k}A,{\left(A{V}_k\right)}^{*}=A{V}_k,V_{k}A{A}^{†}=V_k,A^{†}A{V}_k=V_k.$$

(31)

Proof.

The proof is similar to Lemma 2.1 in [31].    □

Theorem 4.

According to the same assumptions as in Theorem 2, the iterative method (22) is asymptotically stable.

Proof.

This theorem is similar to those adopted for a general family of methods in [32]. Thus, the proof is omitted.    □

Lemma 2.

[33]For$M\in {\mathbb{C}}^{n\times n}$and any given$\xi >0$, there is at least one matrix norm$\parallel ·\parallel$such that

$$\rho \left(M\right)\le \parallel M\parallel \le \rho \left(M\right)+\xi ,$$

(32)

where $\rho \left(M\right)=max|{\lambda }_i|$ and ${\lambda }_i$ are eigenvalues of matrix M.

Lemma 3

([34]). For $P,S\in {\mathbb{C}}^{n\times n}$, such that $P=P^2$ and $PS=SP$, it holds that

$$\rho \left(PS\right)\le \rho \left(S\right).$$

(33)

Theorem 5.

Let $A\in {\mathbb{C}}_r^{m\times n}$ and let us consider that ${\sigma }_1>{\sigma }_2>\cdots >{\sigma }_r>0$ are the singular values of A. Then, (22) converges to the Moore–Penrose inverse $A^{†}$ in the third order, provided that $V_0=\frac{A^{*}}{C}$, where $C>{\sigma }_1^2$ is a constant.

Proof.

According to Lemma 1, we have

$$\parallel V_{r+1}-A^{†}\parallel =\parallel V_{r+1}A{A}^{†}-A^{†}A{A}^{†}\parallel \le \parallel V_{r+1}A-A^{†}A\parallel \parallel A^{†}\parallel ,$$

(34)

and if $E_r=V_r-A^{†}$, then $A^{†}A{E}_{r}A=E_{r}A$. From the conditions of the Moore–Penrose inverse, $E_r$, and from (22), we have

$${(I-A^{†}A)}^t=I-A^{†}A,t=2,3,(I-A^{†}A)E_{r}A=0,E_{r}A(I-A^{†}A)=0,$$

(35)

and

$$\begin{array}{cc}{E}_{r+1}A\hfill & =\left[{\displaystyle \frac{1}{4}}{V}_r\left(37I-111A{V}_r+151{\left(A{V}_r\right)}^2-97{\left(A{V}_r\right)}^3+24{\left(A{V}_r\right)}^4\right)-A^{†}\right]A\hfill \\ & =-{(I-V_{r}A)}^3\left({\displaystyle \frac{3}{4}}I-{\displaystyle \frac{23}{4}}(I-V_{r}A)+6{(I-V_{r}A)}^2\right)+I-A^{†}A\hfill \\ & =-{(I-A^{†}A-E_{r}A)}^3\left({\displaystyle \frac{3}{4}}I-{\displaystyle \frac{23}{4}}(I-A^{†}A-E_{r}A)+6{(I-A^{†}A-E_{r}A)}^2\right)\hfill \\ & +I-A^{†}A\hfill \\ & =-\left((I-A^{†}A)-3(I-A^{†}A)E_{r}A+3(I-A^{†}A)\left(E_{r}A\right)-{\left(E_{r}A\right)}^3\right)\hfill \\ & \times ({\displaystyle \frac{3}{4}}I-{\displaystyle \frac{23}{4}}(I-A^{†}A)+{\displaystyle \frac{23}{4}}\left(E_{r}A\right)+6(I-A^{†}A)\hfill \\ & -12(I-A^{†}A)\left(E_{r}A\right)+6{\left(E_{r}A\right)}^2)+I-A^{†}A.\hfill \end{array}$$

(36)

So, it is proved that

$$E_{r+1}A=\left({\displaystyle \frac{3}{4}}I+{\displaystyle \frac{23}{4}}\left(E_{r}A\right)+6{\left(E_{r}A\right)}^2\right){\left(E_{r}A\right)}^3.$$

(37)

Now, consider $P=A^{†}A$ and $S=V_{0}A-I$, so that $P^2=P$ and

$$\begin{array}{cc}PS\hfill & =A^{†}A(V_{0}A-I)=A^{†}A{V}_{0}A-A^{†}A={\left(A^{†}A\right)}^{*}{V}_{0}A-A^{†}A\hfill \\ & =V_{0}A-A^{†}A=V_{0}A{A}^{†}A-A^{†}A=(V_{0}A-I)A^{†}A=SP.\hfill \end{array}$$

(38)

Therefore, according to Lemma 3

$$\rho \left((V_0-A^{†})A\right)=\rho \left((\frac{A^{*}}{C}-A^{†})A\right)\le \rho \left(\frac{A^{*}}{C}A-I\right)=\underset{1\le i\le r}{max}|1-{\lambda }_i\left(\frac{A^{*}}{C}A\right)|.$$

(39)

Since $C>{\sigma }_1^2$, we have

$$\underset{1\le i\le r}{max}|1-{\lambda }_i\left(\frac{A^{*}}{C}A\right)|<1,$$

(40)

and from Lemma 2,

$$\parallel \left(V_0-A^{†}\right)A\parallel \le \rho \left(\left(V_0-A^{†}\right)A\right)+\xi <1.$$

(41)

Consequently, according to (34) and (37), we obtain ${lim}_{k\to \infty }\parallel V_k-A^{†}\parallel =0$ with the third order.    □

Theorem 6.

The sequence $V_r$ produced by (22) and with (9) satisfies

$$\mathcal{R}\left(V_r\right)=\mathcal{R}\left(A^{*}\right),\mathcal{N}\left(V_r\right)=\mathcal{N}\left(A^{*}\right),$$

(42)

for $r\ge 0$, where $\mathcal{R}(·)$ and $\mathcal{N}(·)$ denote the range and the null space of the matrix, respectively.

Proof.

Since $V_0=\alpha A^{*}$, the theorem obviously holds for $r=0$. Suppose that $y\in \mathcal{N}\left(V_r\right)$ is an arbitrary vector. According to the method (22), we have

$$V_{r+1}y={\displaystyle \frac{1}{4}}\left(37V_{r}y-111V_{r}A{V}_{r}y+151V_r{\left(A{V}_r\right)}^{2}y-97{\left(V_{r}A{V}_r\right)}^{3}y+24V_r{\left(A{V}_r\right)}^{4}y\right)=0.$$

(43)

As we know $y\in \mathcal{N}\left(V_{r+1}\right)$, we can conclude that $\mathcal{N}\left(V_r\right)\subseteq \mathcal{N}\left(V_{r+1}\right)$. Similarly we have $\mathcal{R}\left(V_r\right)\supseteq \mathcal{R}\left(V_{r+1}\right)$. Therefore, by mathematical induction we can write

$$\mathcal{N}\left(V_r\right)\supseteq \mathcal{N}\left(V_0\right)=\mathcal{N}\left({\mathcal{A}}^{*}\right),\mathcal{R}\left(V_r\right)\subseteq \mathcal{R}\left(V_0\right)=\mathcal{R}\left(A^{*}\right).$$

(44)

To prove the equality, let

$$\mathcal{N}=\bigcup _{r\in {\mathbb{N}}_0}\mathcal{N}\left(V_r\right).$$

(45)

Suppose that $y\in \mathcal{N}$. Then, $y\in \mathcal{N}\left(V_{r_0}\right)$ for $r_0\in {\mathbb{N}}_0$. Since $y\in \mathcal{N}\left(V_r\right)$ for every $r\ge r_0$, then $V_{r}y=0$, and according to Theorem 2,

$$Vy=\underset{r\to +\infty }{lim}{V}_{r}y=0.$$

(46)

Finally, $y\in \mathcal{N}\left(V\right)=\mathcal{N}\left(A^{*}\right)$ and $\mathcal{N}\subseteq \mathcal{N}\left(A^{*}\right)$. On the other hand, it comes to be that

$$\mathcal{N}\left(A^{*}\right)\subseteq \mathcal{N}\left(V_r\right)\subseteq \mathcal{N}\subseteq \mathcal{N}\left(A^{*}\right),$$

(47)

and so $\mathcal{N}\left(V_r\right)=\mathcal{N}\left(A^{*}\right)$.

Now, according to the relation

$$dim\mathcal{R}\left(V_r\right)=m-dim\mathcal{N}\left(V_r\right)=m-dim\mathcal{N}\left(A^{*}\right)=dim\mathcal{R}\left(A^{*}\right),$$

(48)

and $\mathcal{R}\left(V_r\right)\subseteq \mathcal{R}\left(A^{*}\right)$, we conclude that $\mathcal{R}\left(V_r\right)=\mathcal{R}\left(A^{*}\right)$.    □

Theorem 7.

Let ${\left\{V_k\right\}}_{k=0}^{\infty }$ generated by method (22), for all ${\widehat{V}}_k$, such that

$${\widehat{V}}_k=V_k+{\Delta }_k,$$

(49)

where ${\Delta }_k$ is a numerical perturbation of the k-th exact iterate $V_k$ having a sufficiently small norm, we can ignore quadratic and higher order terms in $\mathcal{O}\left({\Delta }_k^2\right)$, and one has

$$\parallel {\Delta }_k\parallel <\parallel {\Delta }_k\parallel \parallel A\parallel \parallel V_k\parallel +\mathcal{O}(\parallel {\Delta }_k\parallel ).$$

(50)

Proof.

Let ${\widehat{E}}_k=I-A{\widehat{V}}_k$. Then,

$$\parallel {\widehat{E}}_k^j\parallel =\parallel {(E_k-A{\Delta }_k)}^j\parallel \le \parallel E_k-A{\Delta }_k{\parallel }^j\le (\parallel E_k\parallel +\parallel A{\Delta }_k{\parallel )}^j=C_0^j,j=1,2,3,$$

(51)

where $C_0=\parallel E_k\parallel +\parallel A{\Delta }_k\parallel =\parallel E_k\parallel +\mathcal{O}(\parallel {\Delta }_k\parallel )$. Furthermore,

$$\begin{array}{cc}\parallel {\widehat{E}}_k^j-E_k^j\parallel \hfill & =\parallel {(E_k-A{\Delta }_k)}^j-E_k^j\parallel \le (\parallel E_k\parallel +\parallel A{\Delta }_k{\parallel )}^j-{\parallel E_k\parallel }^j\hfill \\ & =\parallel A{\Delta }_k\parallel \left(\sum _{i=0}^{j-1}\left(\begin{array}{c}j\\ j-1-i\end{array}\right)\parallel A{\Delta }_k{\parallel }^i{\parallel E_k\parallel }^{j-1-i}\right),\hfill \end{array}$$

(52)

meaning

$$\parallel {\widehat{E}}_k^j-E_k^j\parallel \le T_j\parallel A{\Delta }_k\parallel ,$$

(53)

where

$$T_j=\sum _{i=0}^{j-1}\left(\begin{array}{c}j\\ j-1-i\end{array}\right)\parallel A{\Delta }_k{\parallel }^i\parallel E_k{\parallel }^{j-1-i}=j\parallel E_k{\parallel }^{j-1}+\mathcal{O}(\parallel {\Delta }_k\parallel ),$$

(54)

and we have

$$\begin{array}{cc}{\Delta }_{k+1}\hfill & ={\widehat{V}}_{k+1}-V_{k+1}\hfill \\ & ={\displaystyle \frac{1}{4}}{\widehat{V}}_k\left(37I-111A{\widehat{V}}_k+151{(A{\widehat{V}}_k)}^2-97{(A{\widehat{V}}_k)}^3+24{(A{\widehat{V}}_k)}^4\right)\hfill \\ & -{\displaystyle \frac{1}{4}}{V}_k\left(37I-111A{V}_k+151{\left(A{V}_k\right)}^2-97{\left(A{V}_k\right)}^3+24{\left(A{V}_k\right)}^4\right)\hfill \\ & ={\displaystyle \frac{1}{4}}{\widehat{V}}_k\left(4I+4{\widehat{E}}_k+4{\widehat{E}}_k^2+{\widehat{E}}_k^3+24{\widehat{E}}_k^4\right)\hfill \\ & -{\displaystyle \frac{1}{4}}{V}_k\left(4I+4E_k+4E_k^2+E_k^3+24E_k^4\right)\hfill \\ & ={\Delta }_k(I+{\widehat{E}}_k+{\widehat{E}}_k^2+{\displaystyle \frac{1}{4}}{\widehat{E}}_k^3+6{\widehat{E}}_k^4)\hfill \\ & +V_k\left(I+({\widehat{E}}_k-E_k)+({\widehat{E}}_k^2-E_k^2)+{\displaystyle \frac{1}{4}}({\widehat{E}}_k^3-E_k^3)+6({\widehat{E}}_k^6-E_k^6)\right).\hfill \end{array}$$

(55)

Therefore,

$$\begin{array}{cc}\parallel {\Delta }_{k+1}\parallel \hfill & \le \parallel {\Delta }_k\parallel (1+\parallel {\widehat{E}}_k\parallel +\parallel {\widehat{E}}_k^2\parallel +{\displaystyle \frac{1}{4}}\parallel {\widehat{E}}_k^3\parallel +6\parallel {\widehat{E}}_k^4\parallel )\hfill \\ & +\parallel V_k\parallel \left(1+\parallel {\widehat{E}}_k-E_k\parallel +\parallel {\widehat{E}}_k^2-E_k^2\parallel +{\displaystyle \frac{1}{4}}\parallel {\widehat{E}}_k^3-E_k^3\parallel +6\parallel {\widehat{E}}_k^4-E_k^4\parallel \right)\hfill \\ & =\parallel {\Delta }_k\parallel (1+C_0+C_0^2+{\displaystyle \frac{1}{4}}{C}_0^3+6C_0^6)\hfill \\ & +\parallel A{\Delta }_k\parallel \parallel V_k\parallel \left(1+T_1+T_2+T_3+6T_4\right)\hfill \\ & <\parallel {\Delta }_k\parallel \parallel A\parallel \parallel V_k\parallel +\mathcal{O}(\parallel {\Delta }_k\parallel ).\hfill \end{array}$$

(56)

This expression yields the claimed estimates (50) for the numerical perturbation at iteration loop $k+1$.    □

Proof.

The proof is straightforward.    □

Corollary 2.

The computational cost of the iterative method (22) is $\mathcal{O}\left(n^3\right)$.

Proof.

To calculate the computational cost of the suggested method, the following facts hold. Suppose that $Q_{n\times n}$ and $R_{n\times n}$ are given matrices. Then, we verify that $n^3$ operations are needed to compute $Q_{n\times n}.R_{n\times n}$, $n^2$ operations are needed for $Q_{n\times n}+R_{n\times n}$ and $\beta Q_{n\times n}$, and n operations for $\gamma I_{n\times n}+Q_{n\times n}$. Consequently, the sum of all required operations in (22) is $4n^3+6n^2+2n$, and we have $\mathcal{O}\left(n^3\right)$.    □

Table 2. Computational cost for every iteration of the methods.

Method	CO	MM	PM	SM	IM	CC
$NM$	2	2	0	0	1	$2n^3+2n$
$CH$	3	3	0	0	2	$3n^3+2n$
$TS$	4	5	0	1	4	$5n^3+n^2+4n$
$E1$	18	7	7	7	4	$7n^3+14n^2+4n$
$E2$	2	3	0	1	2	$3n^3+n^2+2n$
$E3$	3	4	2	4	2	$4n^3+6n^2+2n$

lists the convergence order (CO), the number of operations for $Q_{n\times n}{R}_{n\times n}$ (MM), $Q_{n\times n}+R_{n\times n}$ (PM), $\beta Q_{n\times n}$ (SM), $\gamma I_{n\times n}+Q_{n\times n}$ (IM), and the computational cost (CC) in every iteration of the methods $E1$ and $E3$.

4. Application in Finding the Drazin Inverse

Drazin inverses were first introduced and used by Drazin himself in the study of abstract ring theory in finite dimensional algebra. Later, the definition of Drazin inverses was generalized to bounded linear operators in Banach spaces and was used to study linear abstract differential equations in Banach spaces [9,35]. Some of the most important applications of the Drazin inverse are Markov chains, control theory, singular differential and difference equations, and iterative methods in numerical linear algebra [36,37,38].

Definition 1.

The smallest non-negative integer $k=ind(·)$ that holds

$$rank\left(A^{k+1}\right)=rank\left(A^k\right),$$

(57)

is called the index of matrix A.

Definition 2.

Suppose that $A\in {\mathbb{C}}^{n\times n}$. Then, the Drazin inverse of A, denoted by $A^D$, is the matrix V, which holds in the following equations:

$$A^{k}VA=A^k,VAV=V,AV=VA,$$

(58)

where $k=ind\left(A\right)$.

Li and Wei [39] proved that NM can be used to find the Drazin inverse of square matrices, and they proposed the initial matrix

$$V_0=W_0=\beta A^l,l\ge ind\left(A\right)=k,$$

(59)

where $\beta$ must satisfy the condition $\parallel I-A{V}_0\parallel <1$.

We now consider the iterative method (22) for finding the Drazin inverse, with the initial matrix

$$V_0=W_0=\frac{2}{tr\left(A^{k+1}\right)}{A}^k,$$

(60)

where $tr(·)$ stands for the trace of the matrix.

Proposition 1

([40]). Let $P_{L,M}$ be the projector on a space L along a space M. Then,

(i) $P_{L,M}Q=Q\iff \mathcal{R}\left(Q\right)\subseteq L$,

(ii) $Q{P}_{L,M}Q=Q\iff \mathcal{N}\left(Q\right)\supseteq M$.

Theorem 8.

Suppose that A is a singular square matrix. Additionally, let the initial matrix be chosen by (60). Then, for $W_r$ generated by the iterative method (22), the following asymptotic error estimate holds to find the Drazin inverse

$$\parallel A^D-W_r\parallel \le \mathcal{O}(\parallel A^D\parallel \parallel F_0{\parallel }^{3^r}),$$

(61)

where $F_0=I-A{W}_0$.

Proof.

Let $F_0=I-A{W}_0$. Then, $F_r=I-A{W}_r$. Thus, we have

$$\begin{array}{cc}{F}_{r+1}\hfill & =I-A{W}_{r+1}={(I-A{W}_r)}^3\left({\displaystyle \frac{3}{4}}I-{\displaystyle \frac{23}{4}}(I-A{W}_r)+6{(I-A{W}_r)}^2\right)\hfill \\ & ={\displaystyle \frac{3}{4}}{F}_r^3-{\displaystyle \frac{23}{4}}{F}_r^4+6F_r^5.\hfill \end{array}$$

(62)

Using an arbitrary matrix norm of (62) results in

$$\parallel F_{r+1}\parallel \le {\displaystyle \frac{3}{4}}\parallel F_r{\parallel }^3+{\displaystyle \frac{23}{4}}\parallel F_r{\parallel }^4+6{\parallel F_r\parallel }^5.$$

(63)

Here, since $\parallel F_0\parallel <1$, from relation (63), we have

$$\parallel F_1\parallel \le {\displaystyle \frac{3}{4}}\parallel F_0{\parallel }^3+{\displaystyle \frac{23}{4}}\parallel F_0{\parallel }^4+6\parallel F_0{\parallel }^5\le \mathcal{O}(\parallel F_0{\parallel }^3).$$

(64)

By continuing this process, we arrive at

$$\parallel F_{r+1}\parallel \le {\displaystyle \frac{3}{4}}\parallel F_r{\parallel }^3+{\displaystyle \frac{23}{4}}\parallel F_r{\parallel }^4+6\parallel F_r{\parallel }^5\le \mathcal{O}(\parallel F_r{\parallel }^3).$$

(65)

Thus, $\parallel F_{r+1}\parallel \le \mathcal{O}(\parallel F_r)\parallel$ for every $r\ge 0$. Therefore, we obtain

$$\parallel F_r{\parallel }^3\le \mathcal{O}(\parallel F_0{\parallel }^{3^r}),r\ge 0.$$

(66)

According to relation (59), we have $\mathcal{R}\left(W_0\right)\subseteq \mathcal{R}\left(A^k\right)$. In addition, the use of this result together with (21) implies that $\mathcal{R}\left(W_r\right)\subseteq \mathcal{R}\left(W_{r-1}\right)$, and we can write

$$\mathcal{R}\left(W_r\right)\subseteq \mathcal{R}\left(A^k\right),r\ge 0.$$

(67)

On the other hand, we have

$$W_{r+1}={\displaystyle \frac{1}{4}}{W}_r\left(37I-111A{W}_r+151{\left(A{W}_r\right)}^2-97{\left(A{W}_r\right)}^3+24{\left(A{W}_r\right)}^4\right).$$

(68)

It is straightforward to verify that

$$\mathcal{N}\left(W_r\right)\supseteq \mathcal{N}\left(A^k\right),r\ge 0.$$

(69)

According to Ben-Israel et al. [41], one can readily show that

$$A{A}^D=A^{D}A=P_{\mathcal{R}(A^k),\mathcal{N}(A^k)},$$

(70)

and from Proposition 1 and expressions (67) and (69), we have

$$W_{r}A{A}^D=W_r=A^{D}A{W}_r,r\ge 0.$$

(71)

Therefore, if the error matrix is ${\delta }_r=A^D-W_r$, then it follows that

$${\delta }_r=A^D-W_r=A^D-A^{D}A{W}_r=A^D(I-A{W}_r)=A^D{F}_r,$$

(72)

and from (72) and (66), we have

$$\parallel {\delta }_r\parallel =\parallel A^D\parallel \parallel F_r\parallel \le \mathcal{O}(\parallel A^D\parallel \parallel F_0^{3^r}\parallel ),$$

(73)

which completes the proof.    □

Corollary 3.

Assume that the condition of Theorem 8 and the following stabilization condition

$$\parallel F_0\parallel \le \parallel I-A{W}_0\parallel <1$$

(74)

are satisfied. Then, expression (22) converges to $A^D$.

Theorem 9.

(Stability) Suppose the same assumptions as in Theorem 8 hold. Then, the iterative method (22) has asymptotic stability for finding the Drazin inverse.

Proof.

The proof of asymptotic stability of the iterative method (22) is similar to that in [32]. Thus, the proof is omitted.    □

5. Error Measurement

If the quantity $\overline{V}$ is viewed as an approximation to V, then the absolute ($e_A$) and relative ($e_R$) errors in the approximation are defined as

$$e_A=|V-\overline{V}|,$$

(75)

and

$$e_R={\displaystyle \frac{|V-\overline{V}|}{\left|V\right|}},$$

(76)

respectively. However, the absolute error is not useful for large sets, and the relative error can sometimes be misleading when $\left|V\right|$ is small. To avoid the need to choose between the absolute and relative errors, the following mixed error measure is often used in practice:

$$e={\displaystyle \frac{|V-\overline{V}|}{1+\left|V\right|}}.$$

(77)

The value of e in (77) is similar to the absolute error $e_A$ when $\left|V\right|\ll 1$ and to the relative error $e_R$ when $\left|V\right|\gg 1$ [42].

6. Numerical Results

In this section, we compare the results of the proposed approach with other schemes available in the literature. Since the comparison of the method $E2$ reported in [7] shows that it has better performance than others, we only compare our proposed method $E3$ with $E2$, $NM$, $CH$, $TS$, and $E1$. According to (77), the stop criterion is

$$\frac{\parallel V_{r+1}-V_r{\parallel }_{\infty }}{1+\parallel V_r{\parallel }_{\infty }}<{10}^{-10}.$$

(78)

We denote by CPU the required calculation time using Mathematica and by MM the number of matrix-matrix products. Furthermore for computing the inverse of a matrix and based on Method (22), the producers is presented in Algorithm 1.

Algorithm 1 Method (22) for computing the inverse of a matrix

Step 1: Input matrix $A\in {\mathbb{C}}^{n\times n}$. Step 2: Take the initial matrix $V_0={\displaystyle \frac{1}{{\parallel A\parallel }_1{\parallel A\parallel }_{\infty }}}{A}^{*}$ and the tolerance $\epsilon \ge 0$. Set $r:=0$. Step 3: Let $$\begin{array}{c}{\vartheta }_r=A{V}_r,\hfill \\ {\xi }_r={\vartheta }_r^2,\hfill \\ V_{r+1}={\displaystyle \frac{1}{4}}{V}_r(37I-111{\vartheta }_r+{\xi }_r\left(151I-97{\vartheta }_r+24{\xi }_r\right)).\hfill \end{array}$$ (79) Step 4: Stop if ${\displaystyle \frac{\parallel V_{r+1}-V_r{\parallel }_{\infty }}{1+\parallel V_r{\parallel }_{\infty }}}\le \epsilon$. Otherwise, $r:=r+1$, and go to Step 3.

Example 1.

Consider a real-valued tri-diagonal matrix with dimension $1000\times 1000$, where the diagonals are as follows:

$$(1,360)=-2.35,(1,1)=-2.35,(700,1)=1.85.$$

(80)

Example 2.

Consider the complex-valued tri-diagonal matrix with dimension $1000\times 1000$, where the diagonals are as follows:

$$(1,280)=0.9-0.45i,(1,1)=-1.25+0.14i,(850,1)=-2.25+0.6i.$$

(81)

Example 3.

Consider the complex-valued tri-diagonal matrix with dimension $2000\times 2000$, where the diagonals are as follows:

$$(1,420)=-6.5+0.25i,(1,1)=-1.5+2.25i,(1650,1)=2.5-2i.$$

(82)

The results of Examples 1–3 are presented in

Table 3. Results of Example (1).

Method	$\mathit{NM}$	$\mathit{CH}$	$\mathbf{TS}$	$\mathit{E}1$	$\mathit{E}2$	$\mathit{E}3$
$MM$	32	33	40	35	33	28
$CPU$	0.1089	0.1102	0.1590	0.1423	0.1124	0.0936

,

Table 4. Results of Example (2).

Method	$\mathit{NM}$	$\mathit{CH}$	$\mathit{TS}$	$\mathit{E}1$	$\mathit{E}2$	$\mathit{E}3$
$MM$	24	24	30	28	27	20
$CPU$	0.6092	0.6105	0.6701	0.6421	0.6122	0.5436

and

Table 5. Results of Example (3).

Method	$\mathit{NM}$	$\mathit{CH}$	$\mathit{TS}$	$\mathit{E}1$	$\mathit{E}2$	$\mathit{E}3$
$MM$	36	33	40	35	30	28
$CPU$	0.9082	1.1301	1.1625	1.1421	1.0122	0.8336

and Figure 1, Figure 2 and Figure 3.

Example 4.

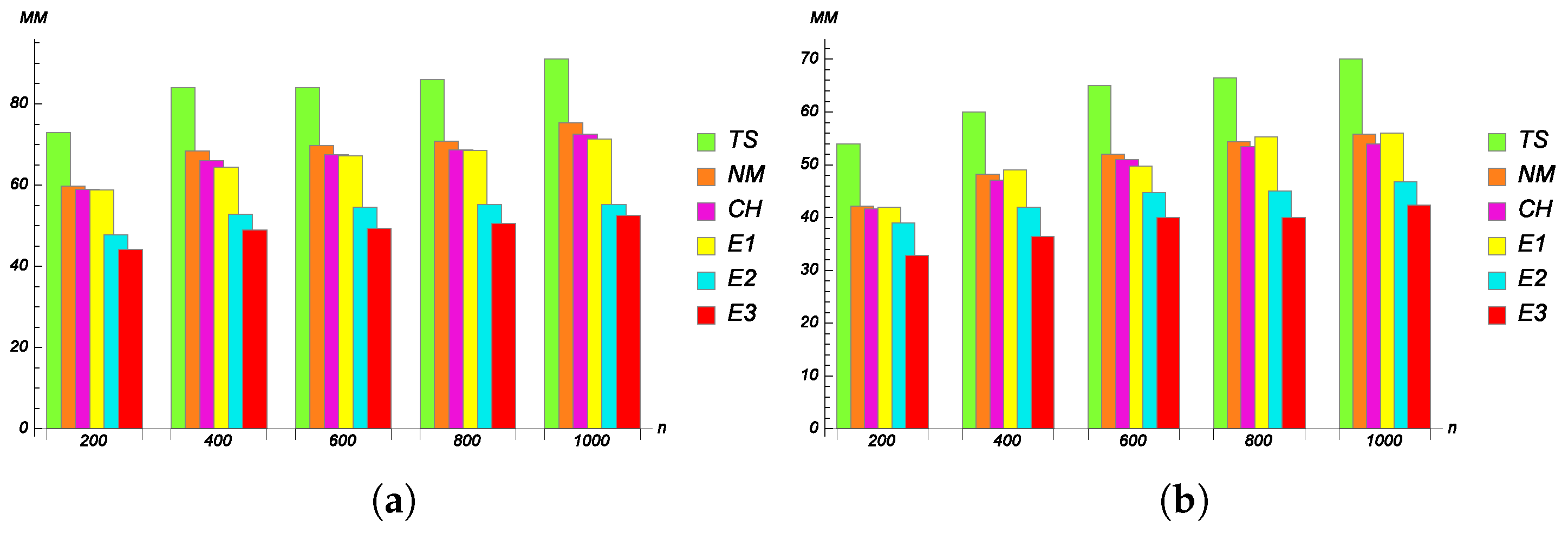

To evaluate the efficiency of the proposed method, we consider several real and complex random matrices with different dimensions. For each of sizes $n\times n$ and $n\times (n+20)$, $n=\left\{200,400,600,800,1000\right\}$, we perform 5 random tests and compare average values of matrix multiplications. The results are presented in Figure 4 and Figure 5.

Example 5

([43]). Consider tri-diagonal matrices, where the diagonals are as follows:

$$(1,2)=1,(1,1)=0,(2,1)=-1.$$

(83)

The dimension of the matrices is an odd number, and the matrices are singular with $ind\left(A\right)=1$. The results for computing the Drazin inverse matrices for $n=109,299,499$ are presented in

Table 6. Results of Example (5).

n	Method	$\mathit{NM}$	$\mathit{CH}$	$\mathit{TS}$	$\mathit{E}1$	$\mathit{E}2$	$\mathit{E}3$
	$MM$	42	39	50	42	39	32
109	$CPU$	1.2149	1.8952	1.3025	1.2235	1.1988	1.0102
	$MM$	50	48	60	49	42	40
299	$CPU$	3.1258	3.1181	4.102	3.1021	2.7022	2.5789
	$MM$	54	54	65	56	42	40
499	$CPU$	6.9082	7.012	8.1541	7.1421	5.81228	5.3552

and Figure 6.

7. Application

The proposed method can be used to compute the approximate inverse (i.e., the iterative algorithm (22)) when dealing with large sparse matrices arising from the discretization of linear partial differential equations (PDE) or FDE. Therefore, we consider the following PDE and FDE discussed previously in [44,45], using the iterative method (22). The computational performance of the suggested iterative method confirms the applicability and validity of the proposed strategy.

Example 6

([46]). Consider the fractional elliptic Poisson equation

$$\begin{array}{c}{\displaystyle \frac{{\partial }^{\gamma }\xi (x,y)}{\partial x^{\gamma }}}+{\displaystyle \frac{{\partial }^{\gamma }\xi (x,y)}{\partial y^{\gamma }}}=g(x,y),\hfill \\ \xi (0,y)={\varphi }_1\left(y\right),\xi (1,y)={\varphi }_2\left(y\right),\hfill \\ \xi (x,0)={\psi }_1\left(x\right),\xi (x,1)={\psi }_2\left(x\right),\hfill \end{array}$$

(84)

where $0\le x,y\le 1$, and two cases:

(a) $g(x,y)=\mathsf{\Gamma }(\gamma +1)(x^{\gamma }+y^{\gamma })$, for $0<\gamma \le 2$ and

$${\varphi }_1\left(y\right)={\psi }_1\left(x\right)=0,{\varphi }_2\left(y\right)=y^{\gamma },{\psi }_2\left(x\right)=x^{\gamma },$$

(85)

(b) $g(x,y)=sin\left(\pi x\right)cos\left(\pi y\right)$, for $\gamma =2$, and

$${\varphi }_1\left(y\right)={\varphi }_2\left(y\right)={\psi }_1\left(x\right)={\psi }_2\left(x\right)=0,$$

(86)

where the fractional derivative $\frac{{\partial }^{\gamma }\xi (x,y)}{\partial y^{\gamma }}$ of order γ is formulated in the Caputo sense. For solving Equation (84), we use the centre finite difference for ${\displaystyle \frac{{\partial }^{\gamma }\xi (x,y)}{\partial x^{\gamma }}}$ and ${\displaystyle \frac{{\partial }^{\gamma }\xi (x,y)}{\partial y^{\gamma }}}$. Therefore, for case (a) we have

$${\displaystyle \frac{{\partial }^{\gamma }\xi (x,y)}{\partial x^{\gamma }}}{|}_{(x_i,y_j)}\approx \frac{\gamma !({\xi }_{i+1,j}-{\xi }_{i-1,j})}{2h^{\gamma }},{\displaystyle \frac{{\partial }^{\gamma }\xi (x,y)}{\partial y^{\gamma }}}{|}_{(x_i,y_j)}\approx \frac{\gamma !({\xi }_{i,j+1}-{\xi }_{i,j-1})}{2k^{\gamma }}.$$

(87)

For case (b), we have

$${\displaystyle \frac{{\partial }^2\xi (x,y)}{\partial x^2}}{|}_{(x_i,y_j)}\approx \frac{{\xi }_{i-1,j}-2{\xi }_{i,j}+{\xi }_{i+1,j}}{h^2},{\displaystyle \frac{{\partial }^2\xi (x,y)}{\partial y^2}}{|}_{(x_i,y_j)}\approx \frac{{\xi }_{i,j-1}-2{\xi }_{i,j}+{\xi }_{i,j+1}}{k^2}.$$

(88)

Furthermore, the values $h=\frac{1}{p}$ and $k=\frac{1}{q}$ are adopted for the step size along the space x and y coordinates, respectively.

The results of Example 6 are presented in

Table 7. Results of Example (6) case (a).

$\mathit{\gamma },\mathit{p}$	Method	$\mathit{NM}$	$\mathit{CH}$	$\mathit{TS}$	$\mathit{E}1$	$\mathit{E}2$	$\mathit{E}3$
1.2, 12	$MM$	30	33	40	35	30	28
	$CPU$	9.0082	10.1201	11.2511	10.1421	9.9122	7.1336
1.8, 17	$MM$	34	36	45	35	36	28
	$CPU$	11.0082	13.2589	19.9812	12.1421	11.0422	9.8336

and

Table 8. Results of Example (6) case (b).

Method	$\mathit{NM}$	$\mathit{CH}$	$\mathit{TS}$	$\mathit{E}1$	$\mathit{E}2$	$\mathit{E}3$
$MM$	42	42	55	42	39	32
$CPU$	19.9082	20.1589	31.2589	22.1421	16.0122	14.8336

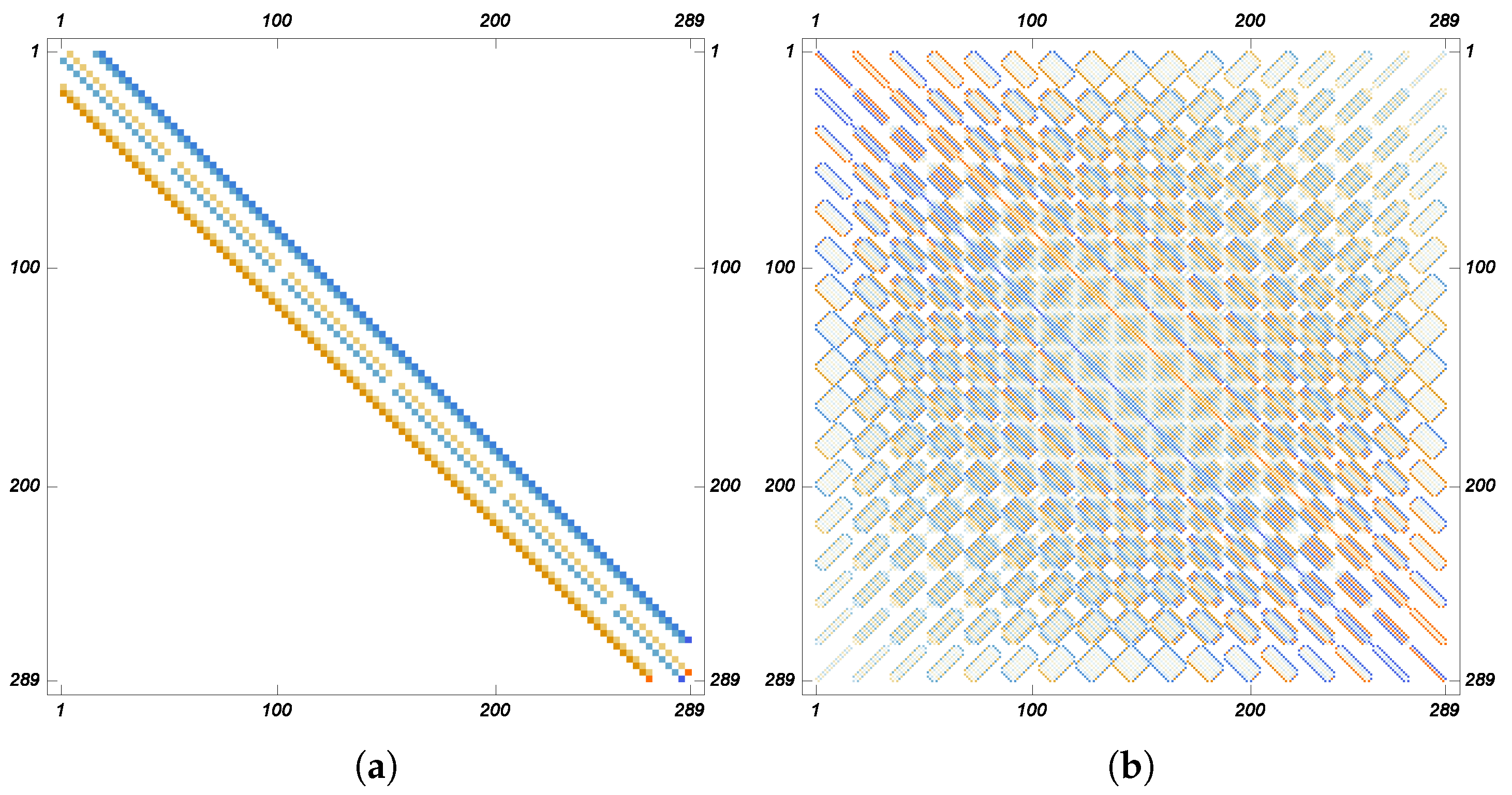

and Figure 7 and Figure 8.

Example 7

([47]). Consider the fractional sub-diffusion equation

$$\begin{array}{c}{\displaystyle \frac{{\partial }^{\gamma }\xi (x,t)}{\partial t^{\gamma }}}+{\displaystyle \frac{{\partial }^2\xi (x,t)}{\partial x^2}}=f(x,t),\hfill \\ \xi (0,t)=\xi (1,t)=0,0<t\le 1,0<\gamma \le 1,\hfill \\ \xi (x,0)=0,0<x<1,\hfill \end{array}$$

(89)

where the fractional derivative $\frac{{\partial }^{\gamma }\xi (x,t)}{\partial t^{\gamma }}$ of order γ is formulated in the Caputo sense. According to [47], we use the finite difference for approximating the derivatives ${\displaystyle \frac{{\partial }^{\gamma }\xi (x,t)}{\partial t^{\gamma }}}$ and ${\displaystyle \frac{{\partial }^2\xi (x,t)}{\partial x^2}}$, so that

$${\displaystyle \frac{{\partial }^{\gamma }\xi (x,t)}{\partial t^{\gamma }}}{|}_{(x_i,t_j)}\approx \frac{\gamma !({\xi }_{i,j+1}-{\xi }_{i,j})}{k^{\gamma }},$$

(90)

and

$${\displaystyle \frac{\gamma !({\xi }_i^{j+1}-{\xi }_i^j)}{k^{\gamma }}}=\theta \frac{{\xi }_{i+1}^{j+1}-2{\xi }_i^{j+1}+{\xi }_{i-1}^{j+1}}{h^2}+(1-\theta )\frac{{\xi }_{i+1}^j-2{\xi }_i^j+{\xi }_{i-1}^j}{h^2}+\theta f_i^{j+1}+(1-\theta )f_i^j,$$

(91)

where ${\xi }_i^j=\xi (x_i,t_j)$ and $f_i^j=f(x_i,t_j)$. $k=\frac{1}{p}$ and $h=\frac{1}{q}$ are the step sizes along time t and space x, respectively. In this example, we examine two cases:

(a) $f(x,t)={\displaystyle \frac{2}{\mathsf{\Gamma }(3-\gamma )}}{t}^{2-\gamma }sin\left(2\pi x\right)+4{\pi }^2{t}^{2}sin\left(2\pi x\right)$,

(b) $f(x,t)={\displaystyle \frac{3}{4}}\mathsf{\Gamma }\left(\frac{1}{2}\right)t{x}^4(x-1)-4x^2{(5x-3)}^{\frac{3}{2}}$ with non-smooth solution at $t=0$ for $\gamma =0.5$.

The results of Example 7 are presented in

Table 9. Results of Example (7) (a) for $\gamma =\theta =0.2$.

Method	$\mathit{NM}$	$\mathit{CH}$	$\mathit{TS}$	$\mathit{E}1$	$\mathit{E}2$	$\mathit{E}3$
$MM$	50	51	65	49	45	40
$CPU$	16.9082	17.1562	28.1256	16.1421	14.2122	13.0336

and

Table 10. Results of Example (7) case (b) for $\gamma =0.5$ and $\theta =0.3$.

Method	$\mathit{NM}$	$\mathit{CH}$	$\mathit{TS}$	$\mathit{E}1$	$\mathit{E}2$	$\mathit{E}3$
$MM$	100	75	95	91	75	68
$CPU$	21.9182	17.1158	20.1589	19.1821	17.2122	16.0036

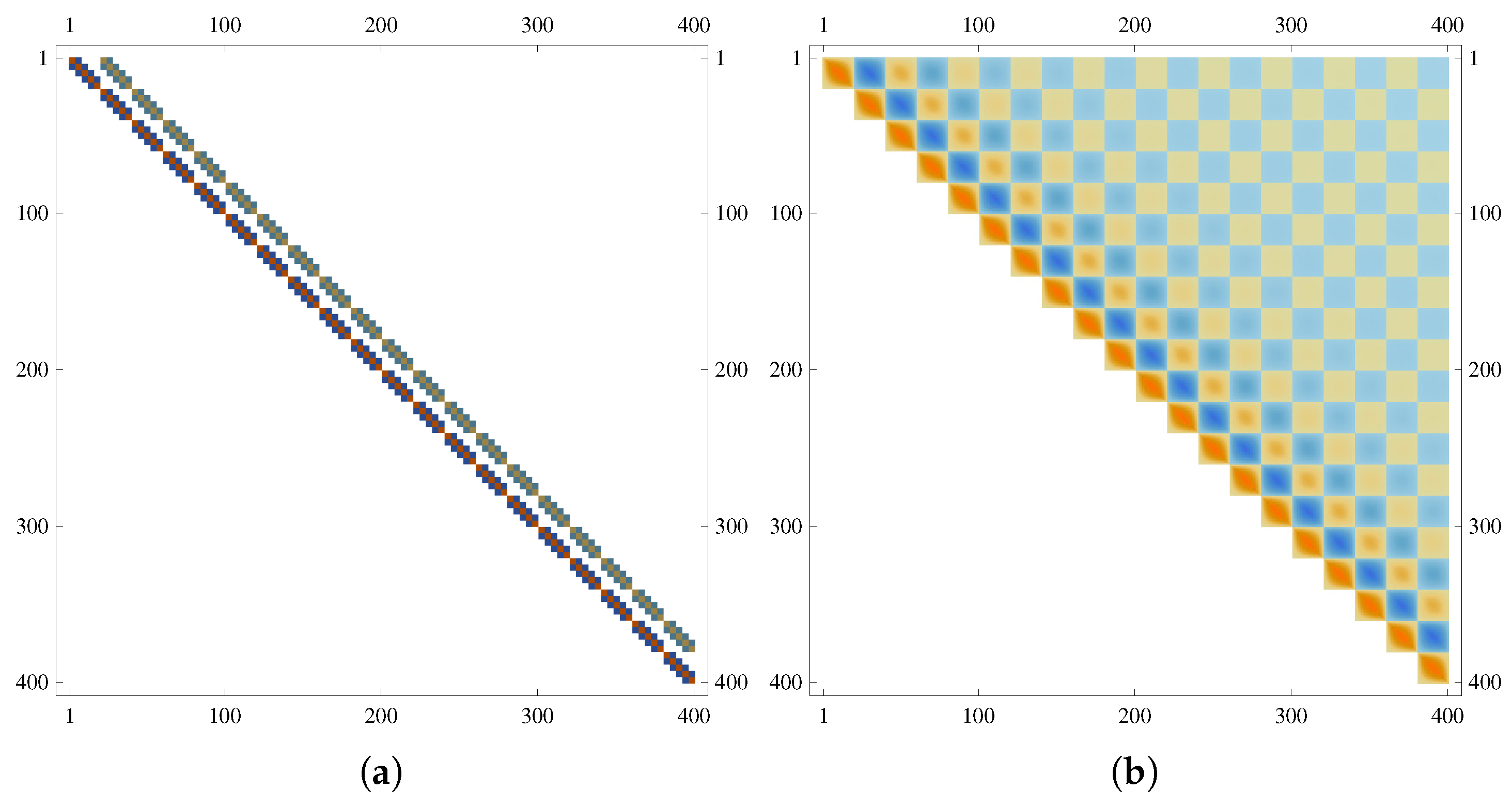

and Figure 9 and Figure 10.

As we know, the fractional-order derivatives in the partial differential equations are non-local. This means that the discretized matrix of approximating the spatial fractional-order derivatives should be dense and often Toeplitz-like [48,49,50,51]. In Examples 6 and 7, we adopted a very simple numerical approximation to the fractional operators, and the discretized matrices are sparse. In the follow-up, we give an example using a more elaborated approximation that leads to the dense matrix. The obtained results imply an elegant superiority of our proposed iterative scheme.

Example 8.

Consider the Riesz fractional diffusion equation [50]

$$\begin{array}{cc}{\displaystyle \frac{\partial \xi (x,t)}{\partial t}}={\kappa }_{\gamma }{\displaystyle \frac{{\partial }^{\gamma }\xi (x,t)}{{\partial \left|x\right|}^{\gamma }}}+f(x,t),\hfill & (x,t)\in (0,1)\times (0,1],{\kappa }_{\gamma }>0\hfill \\ \xi (x,0)=15(1+{\displaystyle \frac{\gamma }{4}})x^3{(1-x)}^3,\hfill & x\in [0,1],\hfill \\ \xi (0,t)=\xi (1,t)=0,\hfill & t\in [0,1].\hfill \end{array}$$

(92)

The Riesz fractional derivative ${\displaystyle \frac{{\partial }^{\gamma }\xi (x,t)}{{\partial \left|x\right|}^{\gamma }}}$ is defined by [52]

$$\begin{array}{cc}{\displaystyle \frac{{\partial }^{\gamma }\xi (x,t)}{{\partial \left|x\right|}^{\gamma }}}\hfill & =-{\displaystyle \frac{1}{2cos({\displaystyle \frac{\pi \gamma }{2}})}}.{\displaystyle \frac{1}{\mathsf{\Gamma }(2-\gamma )}}.{\displaystyle \frac{{\partial }^2}{\partial x^2}}{\int }_a^b{\displaystyle \frac{\xi (\zeta ,t)}{{|x-\zeta |}^{\gamma -1}}}d\zeta \hfill \\ \hfill & =-{\displaystyle \frac{1}{2cos({\displaystyle \frac{\pi \gamma }{2}})}}\left({}_a{D}_x^{\gamma }\xi (x,t){+}_x{D}_b^{\gamma }\xi (x,t)\right),\gamma \in (1,2),\hfill \end{array}$$

(93)

in which ${}_a{D}_x^{\gamma }$ and ${}_x{D}_b^{\gamma }$ are (11) and (12) for $m=2$.

According to [50], the first-order time derivative at the point $t=t_j$ is approximated by the second-order backward difference formula:

$${\displaystyle \frac{\partial \xi (x,t)}{\partial t}}{|}_{(x_i,t_j)}=\left\{\begin{array}{cc}{\displaystyle \frac{{\xi }_i^{j+1}-{\xi }_i^j}{k}},\hfill & j=1,\hfill \\ {\displaystyle \frac{{\xi }_i^j-4{\xi }_i^{j-1}+3{\xi }_i^{j-2}}{2k}},\hfill & j\ge 2,\hfill \end{array}\right.$$

(94)

and also for any function $\xi \left(x\right)\in L^1\left(\mathbb{R}\right)$, we have

$${\Delta }_h^{\gamma }\xi \left(x\right)=-{\displaystyle \frac{1}{h^{\gamma }}}\sum _{l=-\left[\frac{b-x}{h}\right]}^{\frac{(x-a)}{h}}{\omega }_l^{\left(\gamma \right)}\xi (x-lh),x\in \mathbb{R},$$

(95)

where the γ-dependent weight coefficient is defined as

$${\omega }_l^{\gamma }=\frac{{(-1)}^l\mathsf{\Gamma }(1+\gamma )}{\mathsf{\Gamma }(1+\frac{\gamma }{2}-l)\mathsf{\Gamma }(1+\frac{\gamma }{2}+l)},l\in \mathbb{Z}.$$

(96)

Then, for a fixed h, the fractional centred difference operator in (95) holds:

$${\displaystyle \frac{{\partial }^{\gamma }\xi \left(x\right)}{{\partial \left|x\right|}^{\gamma }}}={\Delta }_h^{\gamma }\xi \left(x\right)+\mathcal{O}\left(h^2\right),$$

(97)

where ${\kappa }_{\gamma }{\Delta }_h^{\gamma }{\xi }_i^j$ can be written into the matrix-vector product form $\mathcal{A}{\xi }^j$ as

$$\mathcal{A}=-{\kappa }_{\gamma }{T}_x=-\frac{{\kappa }_{\gamma }}{h^{\gamma }}\left(\begin{array}{cccccc}{\omega }_0^{\left(\gamma \right)}& {\omega }_{-1}^{\left(\gamma \right)}& {\omega }_{-2}^{\left(\gamma \right)}& \cdots & {\omega }_{3-N}^{\left(\gamma \right)}& {\omega }_{2-N}^{\left(\gamma \right)}\\ {\omega }_1^{\left(\gamma \right)}& {\omega }_0^{\left(\gamma \right)}& {\omega }_{-1}^{\left(\gamma \right)}& \cdots & {\omega }_{4-N}^{\left(\gamma \right)}& {\omega }_{3-N}^{\left(\gamma \right)}\\ {\omega }_2^{\left(\gamma \right)}& {\omega }_1^{\left(\gamma \right)}& {\omega }_0^{\left(\gamma \right)}& \cdots & {\omega }_{5-N}^{\left(\gamma \right)}& {\omega }_{4-N}^{\left(\gamma \right)}\\ ⋮& ⋮& ⋮& \ddots & ⋮& ⋮\\ {\omega }_{N-3}^{\left(\gamma \right)}& {\omega }_{N-4}^{\left(\gamma \right)}& {\omega }_{N-5}^{\left(\gamma \right)}& \cdots & {\omega }_0^{\left(\gamma \right)}& {\omega }_{-1}^{\left(\gamma \right)}\\ {\omega }_{N-2}^{\left(\gamma \right)}& {\omega }_{N-3}^{\left(\gamma \right)}& {\omega }_{N-4}^{\left(\gamma \right)}& \cdots & {\omega }_1^{\left(\gamma \right)}& {\omega }_0^{\left(\gamma \right)}\end{array}\right).$$

(98)

In [53], it was proven that $T_x$ is a symmetric positive definite Toeplitz matrix. The matrix-vector for solving the model problem (92) can be formulated as follows:

$$\begin{array}{c}{\displaystyle \frac{{\xi }^1-{\xi }^0}{k}}-\mathcal{A}{\xi }^1=f^1,\hfill \\ {\displaystyle \frac{3{\xi }^j-4{\xi }^{j-1}+{\xi }^{j-2}}{2k}}-\mathcal{A}{u}^j=f^j,1\le j\le N_t.\hfill \end{array}$$

(99)

The results of Example 8 are presented in

Table 11. Results of Example (8).

$\mathit{\gamma },\mathit{p},\mathit{q}$	Method	$\mathit{NM}$	$\mathit{CH}$	$\mathit{TS}$	$\mathit{E}1$	$\mathit{E}2$	$\mathit{E}3$
1.3, 10,10	$MM$	30	30	40	35	30	28
	$CPU$	0.0030	0.0031	0.0043	0.0037	0.0032	0.0027
1.5, 20, 20	$MM$	34	33	45	35	30	28
	$CPU$	0.0047	0.0045	0.0063	0.0049	0.0042	0.0036
1.8, 40, 40	$MM$	38	39	40	42	33	32
	$CPU$	0.0214	0.0221	0.0235	0.0251	0.0201	0.0185

and Figure 11.

Finally, as seen from Table 3, Table 4, Table 5, Table 6, Table 7, Table 8, Table 9, Table 10 and Table 11 and Figure 4 and Figure 5, we can find that the proposed method is faster than other numerical methods in terms of the number of matrix-matrix products and the elapsed CPU time.

8. Concluding Remarks

The inverse matrix calculation poses computational challenges in the solution of many problems due to its high computational cost. Therefore, avoiding a direct calculation and using efficient iterative methods are key aspects in mathematical modelling. In this paper, we presented a novel iterative method for solving nonlinear equations. The algorithm has good performance in terms of computational efficiency in the calculation of the Moore–Penrose and Drazin inverses. The key performance aspects of the method can be outlined as:

• Exhibits adequate results for specific real and complex matrices;
• Provides optimal results for real and complex square and rectangular random matrices of different dimensions;
• Shows a good feasibility for different dimensions when computing the Drazin inverse;
• The solution of the fractional elliptic Poisson equation shows superior results to other schemes;
• Yields good results for the solution of the fractional sub-diffusion equation for smooth and non-smooth solutions.

In synthesis, the results show that the theoretical findings are in accordance with numerical experiments, and we verified that the proposed algorithm is superior to others available in the literature. Finally, we point out that this new strategy has its own limitations and should be generalized and verified for more complicated linear and nonlinear problems. In other words, the present paper is only an introduction to the topic, and there remains much work to do.
