Performance and Sensitivity Properties of Solid Heterogeneous Rocket Propellant Based on a Binary System of Oxidizers (PSAN and AP)

Abstract

Solid heterogeneous rocket propellants (SHRP) containing ammonium perchlorate (AP) emit a lot of hydrogen chloride (HCl) during combustion, which poses various environmental issues and makes the detection of the rockets easier. Part of the AP can be replaced by ammonium nitrate (V) (AN), which does not lead to the production of HCl. AN is a commonly used environmentally friendly oxidizer, but it is not usually applied in SHRP due to its disadvantages. One of these disadvantages is a phase transition near room temperature, which causes the density change of AN. Three types of phase stabilized ammonium nitrate (V) (PSAN) with inorganic potassium salts were obtained in order to shift this transition into higher temperatures (above the temperature range of the storage and the usage of SHRP). The SHRP with the PSAN were obtained, and the measurements of the heat of combustion, density, hardness, the sensitivity to mechanical stimuli and the thermomechanical properties were performed. The obtained propellants were characterized by similar operational parameters or were slightly lower than those without the PSAN. This means that AP can be partially replaced without significantly compromising the handling, safety or functionality of the propellants, while increasing the environmental performance of the solution.

1. Introduction

Ammonium nitrate (V) (AN) is widely used in both civil (e.g., mineral fertilizers) and military (e.g., solid rocket propellants) industries. The wide application of AN is due to its low price, high availability, safe usage, low sensitivity to mechanical stimuli or the absence of toxic combustion products. On the other hand, AN also has a number of disadvantages limiting its use, including its high hygroscopicity, low combustion velocity and the presence of a few phase transitions [1,2,3,4,5]. In order to limit the disadvantages (i.e., hygroscopicity, presence of phase transitions, low combustion velocity) of ammonium nitrate (V) in solid heterogenous rocket propellants (SHRP), the following methods can be used [3,4,5,6]:

• The phase stabilization of ammonium nitrate (V);
• The modification of the AN surface to reduce the hygroscopicity;
• The addition of catalysts to increase the burning rate.

Ammonium nitrate has a minimum of five polymorphic transitions under atmospheric pressure below its melting temperature:

• Phase V, tetragonal, below −16 °C;
• Phase IV, orthorhombic, (−16)–32 °C;
• Phase III, orthorhombic, 32–84 °C;
• Phase II, tetragonal, 84–125 °C;
• Phase I, cubic, 125–170 °C [3,5].

Under microscopic observation, there are differences between the shapes of these phases: phase I—a shape “like plastic” without grain boundaries; phase II—large crystals; phase IV—highly heterogeneous with grain boundaries [7]. The most problematic phase transformation is the transition IV–III which occurs at 32 °C. The variation of ambient temperature and the repeated phase transitions causes the microcrystals separate to a fine powder. This transition is accompanied by a volume change of about 3.8%. The shift of volume and the structure of the crystals causes problems with the storage and the usage of AN-based materials. These changes lead to the deterioration of the mechanical properties and an increase of the porosity (surface). The structure of the solid rocket propellant based on AN is damaged when the material is subjected to temperature changes in the range of the phase transitions of AN between II and V [8]. Solid propellants containing such oxidants can crack during storage (due to the change in the AN volume caused by this transition), which may lead to a rough rocket motor operation, uncontrolled pressure build-up and even the explosion of the rocket combustion chamber [2,9]. There are various methods of AN phase stabilization that aim to extend the temperature range in which the transition from phase IV to III does not occur. Examples of the substances that cause the phase stabilization of AN are: inorganic and organic potassium salts [10,11], copper, zinc and nickel complexes [12,13], some organic compounds (e.g., melamine cyanurate, isatin, guanine) [14,15,16], etc. The phase stabilization of AN is carried out as a result of the co-crystallization of AN with an additive in an aqueous medium [12,17,18] or the addition of an additive in the melting process [8,9,10,11].

For example, the addition of manganese(IV) oxide, iron(III) oxide or their mixture to a propellant containing AN causes an increase in the burning rate up to 40% (at 7 MPa) in comparison to a propellant without these additives [6,17,19]. The introduction of metal nanoparticles increases the burning rate from 5% to 67% depending on the type of metal that is used [18]. With the appropriate modification of the composition of the solid heterogeneous rocket propellants, we have the ability to limit the unfavorable parameters and improve the ballistic properties.

Solid rocket propellants based on ammonium perchlorate are widely used. Such propellants emit significant amounts of hydrogen chloride during combustion. Hydrogen chloride has a negative impact on the environment, adversely affects the personnel operating the station and makes it easier to detect the rocket flight (a white smudge appears behind the nozzle). It is also worth noting that perchlorate ions are detected in soils and water [5] in various places around the world [5,20]. High concentrations of perchlorate ions negatively affect some body functions (e.g., the thyroid). Due to these negative effects, more work has been concerned with the possibility of replacing AP with other eco-friendly oxidants. AN seems to be a very good candidate due to its availability and the lack of negative environmental impacts.

The aim of this work was to obtain solid heterogeneous rocket propellants containing mixtures of oxidizers–ammonium perchlorate and phase stabilized ammonium nitrate (V) in order to reduce the amount of hydrogen chloride in the combustion products. The obtained samples were examined in terms of their sensitivity to mechanical stimuli, and their mechanical, physicochemical and thermal properties. The phase stabilization of the ammonium nitrate (V) was made before the formation of the propellants. Three potassium salts were used for this process: potassium nitrate (V) (PN), potassium carbonate (PC) and potassium perchlorate (PP). These salts were added in the amount of 5%. There are many studies concerning AN-based propellants, but there are few about AP-PSAN propellants. The novelty of this work is a result of the preparation of solid propellants containing: HTPB, AP-PSAN, Al and other additives for different AP/PSAN ratios than in the literature, as well as the characterization of the properties of these propellants in comparison to the AP-based propellant.

2. Materials and Methods

The following substances with a grade purity min. 95% were used to carry out the co-crystallization of the ammonium nitrate (V) with potassium salts: ammonium nitrate (V)—Chempur; potassium nitrate (V)—P.P.H. “Stanlab”; potassium carbonate—Chempur; potassium perchlorate—Chempur; ethyl acetate and distilled water.

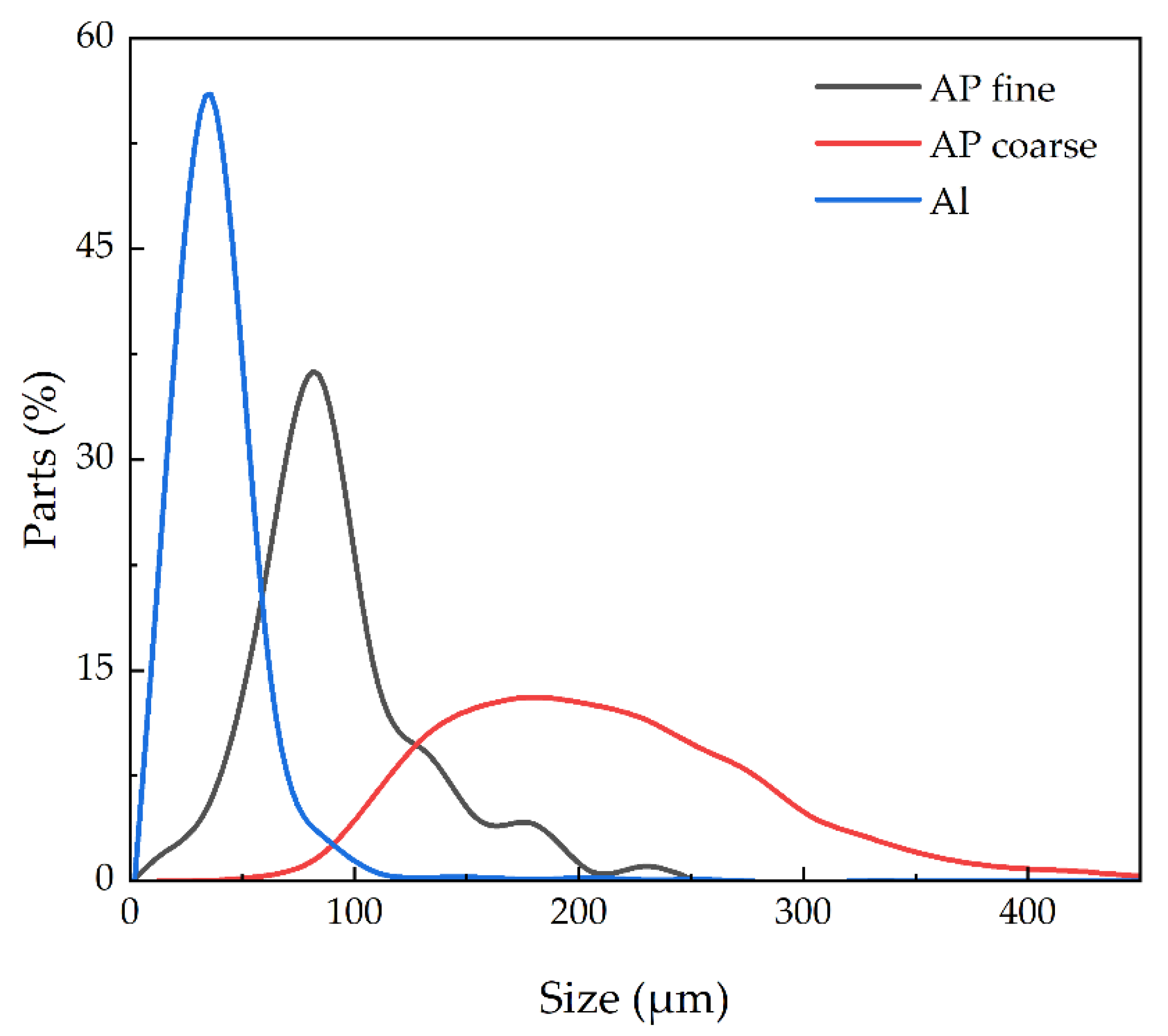

The subsequent materials were used to obtain solid heterogenous rocket propellants: phase stabilized ammonium nitrate (V); hydroxyl-terminated polybutadiene (HTPB)—Island Pyrochemical Industries; dimeryl diisocyanate (DDI)—Island Pyrochemical Industries; dioctyl adipate (DOA)—Boryszew-Erg; lecithin (Lec)—Sigma-Aldrich; two fractions of ammonium perchlorate (AP): fine (AP_f, 80 µm) and coarse (AP_c, 250 and 400 µm)—Island Pyrochemical Industries; aluminum (Al, fraction of 32 µm)—Benda-Lutz. The size distribution of AP fine, AP coarse and Al is presented in Figure 1.

There are many descriptions of AN phase stabilization methods in the literature [3,5,12,13,17,20]. The process of co-crystallization of ammonium nitrate (V) with salts and the optimal composition of the mixture of AN with potassium inorganic salt were based on the known examples [12,13,20].

In order to optimize the process, the following parameters were changed: the type of solvents (water, methanol, ethanol, acetone, ethyl acetate), the temperature, the dropping time and the speed of the agitator. The optimal conditions were selected after carrying out 15 processes. The description below complies with the optimal conditions of the co-crystallization process.

Ammonium nitrate (V) and selected potassium salt were placed in a three-necked flask (250 mL). Water (20 mL, ambient temperature) was added to 80 g of the binary mixture. The addition of water caused the mixture to partially dissolve, and then it was heated to 50–60 °C. The contents in the flask were mixed using a 4-blade stirrer. The speed of the agitator was gradually increased to 300 rpm and then held at this speed. It was mixed for an additional 10 min until the solids were completely dissolved. After this time, the temperature was slowly reduced to 10–15 °C. Simultaneously, ethyl acetate (40 mL) was added dropwise. The dropping time was 5–10 min. The precipitate was filtered under reduced pressure. Phase stabilized ammonium nitrate (V) (PSAN) was dried for 24 h at a temperature of 70 °C. Three samples were obtained: AN + 5% potassium nitrate (V), AN + 5% potassium perchlorate and AN + 5% potassium carbonate. The process yield was min. 70%.

The process of formation of solid heterogenous rocket propellants was carried out in a laboratory planetary mixer NETZSCH PM with a capacity of 700 mL. The liquid components were added first: HTPB, DOA and lecithin. Next, aluminum powder and three fractions of oxidants (a fine fraction of AP, PSAN and a coarse fraction of AP) were added. Each oxidant was dried for at least 24 h in a dryer at 60 °C before the casting process to prevent the reaction of the curing agent with water. DDI (curing agent) was added at the end. Ingredients were mixed under atmospheric pressure and then under reduced pressure (10 mbar). The mixed propellant slurry was poured into a rectangular mold under reduced pressure. The composition of the reference propellant (SP0) was: 10.5% HTPB, 1.4% DOA, 0.1% Lec, 12.0% Al, 26.1% AP_f, 47.9% AP_c and 2.0% DDI. The composition of the propellants containing PSAN was: 10.5% HTPB, 1.4% DOA, 0.1% Lec, 12.0% Al, 10.0% AP_f, 42.9% AP_c, 21.1% PSAN and 2.0% DDI. Propellants with the PSAN addition were named as: SP-PN, SP-PP and SP-PC, which contained AN + 5%PN, AN + 5%PP and AN + 5%PC, respectively.

The particle size measurements of the phase stabilized ammonium nitrate (V) were performed using a Mastersizer 3000 from Malvern Instruments. The measurement was based on the laser diffraction method. The tests were carried out in chloroform with ultrasounds in order to break up any agglomerates. The samples were dried in an air-flow dryer at the temperature of 60 °C for minimum 2 h and then stored in a desiccator before the measurement.

The density of the samples was measured with an AccuPyc 1340 helium pycnometer at the temperature of 28 ± 1 °C.

Measurements of the heat of combustion were made with an IKA C2000 basic calorimeter. The mass of the propellant sample was 4.36 g and the mass of the standard propellant of the known combustion heat (4914 J/g) was 1.44 g. The pressure in the calorimetric vessel was reduced to 3–4 mbar. The standard propellant was used to ignite the propellant samples. Two measurements were performed for each sample and the average value was calculated.

The impact and friction sensitivity were determined with the BAM fall hammer and Peters apparatus, respectively. In both studies, sensitivity to an external stimulus is the lowest value of energy of impact or force of friction at which at least one positive result was obtained from six performed tests.

The hardness measurements were performed by a Shore durometer A-scale. Ten measurements were carried out for each sample. The average value for each propellant was calculated. Measurements were performed at the temperature of 25 ± 1 °C.

The study of thermochemical properties was performed by simultaneous differential thermal analysis and thermogravimetric analysis (DTA-TG) by the Labsys™ Evo (Setaram). The mass of the PSAN was 16 ± 1 mg and the mass of the propellants was 1.9 ± 0.2 mg. The samples were placed in open aluminum pans with a capacity of 30 µL. Measurements were made with a temperature increase rate of 5 °C/min in the temperature range from 30 to 500 °C in an argon flow. The measurements were performed at least three times for each sample. The following parameters were determined on the basis of the DTA-TG curves: onset temperature (T_onset), maximum temperature (T_max) and mass loss (Δm).

The analysis of the thermomechanical properties was carried out by dynamic mechanical analysis (DMA) by a DMA 242 Artemis apparatus (NETZSCH). A dual cantilever holder was used for the tests. The measurement was under nitrogen flow (50 mL/min) in the temperature range from −120 to 60 °C (the temperature increase rate was 2 °C/min). The rectangular propellant sample with the dimensions 50.0 × 10.0 × 2.0 mm was subjected to vibrations with the frequencies of 0.5, 1.0, 2.0 and 5.0 Hz and a deformation amplitude of 20 µm during each measurement.

3. Results and Discussion

3.1. Influence of Potassium Salts on the Properties of Mixtures with Ammonium Nitrate (V)

Three processes of the phase stabilization of ammonium nitrate (V) with three different potassium salts were carried out. The obtained mixtures were tested with the DTA-TG analysis, density measurements and particle size measurements. Figure 2 shows the DTA-TG curves for pure ammonium nitrate (V). In the temperature range from 30 to 130 °C, endothermic transitions related to the change of the AN crystallographic form are observed. These are the phase transitions, respectively: IV(β)→III(γ) with onset temperature T_onset = 39.0 °C and maximum temperature T_max = 43.9 °C; III(γ)→II(δ) with T_onset = 88.4 °C and T_max = 97.6 °C; II(δ)→I(ε) with T_onset = 126.4 °C and T_max = 130.1 °C. Next is the endothermic transition melting, which begins at T_onset = 168.7 °C (T_max = 172.0 °C). The complex endothermic transition that begins at the temperature above 200 °C with a mass loss associated with the decomposition of the AN. The total mass loss of the sample was Δm = 88.2%.

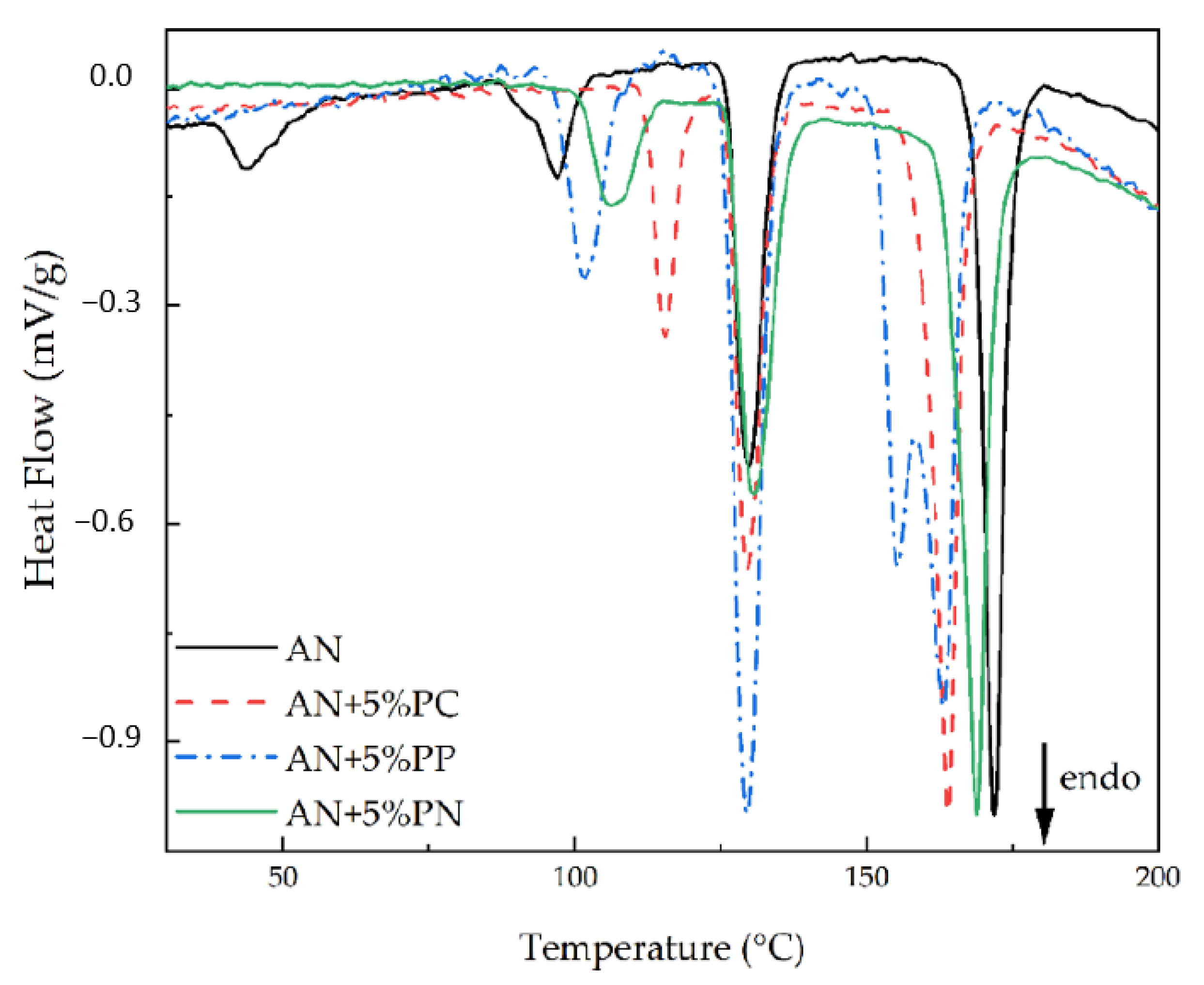

Figure 3 presents the DTA curves of the pure AN and the AN modified with the potassium salts, while

Table 1. Results from DTA-TG curves for AN and PSAN with various potassium salts.

Parameter		AN	AN + 5%PN	AN + 5%PP	AN + 5%PC
Δm1 (%)		88.2	86.6	88.9	85.2
IV(β)→III(γ)	Tonset2 (°C)	39.0	-	-	-
	Tmax3 (°C)	43.9	-	-	-
III(γ)→II(δ)	Tonset (°C)	88.4	101.0	95.6	112.4
	Tmax (°C)	97.6	105.8	101.7	115.6
II(δ)→I(ε)	Tonset (°C)	126.4	126.5	126.0	126.9
	Tmax (°C)	130.1	131.1	130.1	130.4
Melting	Tonset (°C)	168.7	163.1	151.6	159.1
	Tmax (°C)	172.0	169.1	163.2	164.4

¹ Mass loss; ² onset temperature; ³ maximum temperature.

summarizes the results of the DTA measurements. The applied potassium salts eliminated the IV→III phase transition and did not affect the II→I phase transition. Moreover, the potassium salts caused a shift of the III→II phase transition towards higher temperatures. The melting process of all the PSAN mixtures shifted towards lower temperatures in comparison with the pure AN. Similar observations of the influence of the inorganic and the organic potassium salts on the phase transitions of AN can be found in the literature [5,11,21]. One of the reasons explaining the phase stabilization of AN at low temperatures is the partial replacement of ammonium cations with potassium cations as a result of the co-crystallization of AN with potassium salts.

The results of the density and particle size measurements of the PSAN with various potassium salts were gathered in

Table 2. Density and particle size of AN and PSAN with various potassium salts.

Parameter	AN + 5%PN	AN + 5%PP	AN + 5%PC
ρ1 (g/cm3)	1.714 ± 0.001	1.710 ± 0.005	1.677 ± 0.002
Dv(10) 2 (μm)	55 ± 3	46 ± 3	63 ± 3
Dv(50) 2 (μm)	132 ± 5	155 ± 3	152 ± 4
Dv(90) 2 (μm)	253 ± 6	583 ± 4	432 ± 3

¹ Density; ² particle size for which x% of particles is below this value.

. Mixtures of AN + 5%PP and AN + 5%PN are characterized by a similar density to pure AN (1.725 g/cm³ at 25 °C [5]). Only the AN + 5%PC mixture has a lower density. The modification of AN with potassium nitrate (V) resulted in particles with the smallest dimensions and the smallest deviation between the dimensions. The greatest difference between the dimensions was obtained for AN + 5%PP.

3.2. Properties of Solid Heterogeneous Rocket Propellants with Phase Stabilized Ammonium Nitrate (V)

The effect of the PSAN on the properties of the SHRP was determined with the ICT-Thermodynamic Code (version 1.00) program. The ICT-code uses mass action and mass balance expressions to calculate chemical equilibria. Thermodynamic equilibria can be estimated for constant pressure or volume conditions. The following settings were set: exclude gasses with mole numbers smaller than 10⁻⁵; start temperature for iterations—3000 K; step temperature iteration—20 K; freeze-out temperature—1500 K. The following parameters were compared: oxygen balance, density, heat of combustion, specific impulse and the mole fraction of hydrogen chloride (HCl) in gaseous products.

Table 3. Calculated parameters of SHRP with AP, AN and PSAN by ICT-code.

Parameter	SP0	SP0 + 20%AN	SP-PP	SP-PC	SP-PN
ρ1 (g/cm3)	1.728	1.689	1.692	1.692	1.690
OB2 (%)	−28.44	−31.25	−31.13	−31.61	−31.20
Q3 (J/g)	6050	5675	5679	5609	5665
xHCl4 (%)	16.33	11.22	11.06	10.30	10.79
Isp5 (s)	262.0	257.4	257.0	255.7	256.7

¹ Density; ² oxygen balance; ³ heat of combustion; ⁴ mole fraction of HCl; ⁵ specific impulse.

presents the obtained values. The heat of combustion was determined at a pressure of 0.1 MPa (the values include condensed water). The specific impulse and the composition of the combustion products were calculated for 7 MPa, and the expansion of the gaseous products for 0.1 MPa.

The addition of AN instead of AP to the propellants reduces all parameters, i.e., the density, the oxygen balance, the heat of combustion, the mole fraction of HCl and the specific impulse. The propellants with AN + 5%PP and AN + 5%PN have similar parameters. The addition of potassium carbonate causes a 37% reduction in the hydrogen chloride content in the combustion products in comparison with the SP0 composition. Simultaneously, it causes the greatest reduction in the combustion heat and specific impulse in the relation to the other propellants containing potassium salts.

The propellants were obtained by a casting method in keeping the same parameters of the technology process. The determined results of the properties are caused by the different properties of the samples, and not a different process of manufacturing.

Table 4. Physicochemical properties and sensitivity to mechanical stimuli of obtained propellants.

Parameter	SP0	SP-PP	SP-PC	SP-PN
ρ1 (g/cm3)	1.708 ± 0.001	1.702 ± 0.002	1.699 ± 0.002	1.694 ± 0.001
Q2 (J/g)	6123 ± 40	5802 ± 29	5800 ± 34	5867 ± 42
IS3 (J)	25	25	35	30
FS4 (N)	120	160	120	120
H5 (°Sh)	40 ± 2	47 ± 3	42 ± 5	35 ± 2

¹ Density; ² heat of combustion; ³ impact sensitivity; ⁴ friction sensitivity; ⁵ hardness Shore, scale A.

presents the properties of the obtained propellants. All of the materials have a similar density, and their heat of combustion is lower than the parameter of the reference sample (SP0). There was no significant effect from the type of used potassium salt on the combustion heat, while the obtained experimental results were about 200 J/g higher than the calculated values (Table 3). The propellants with the PSAN have a similar sensitivity to the mechanical stimuli as to SP0. The highest hardness was obtained for SP-PP (47 °Sh), and the lowest for SP-PN (35 °Sh).

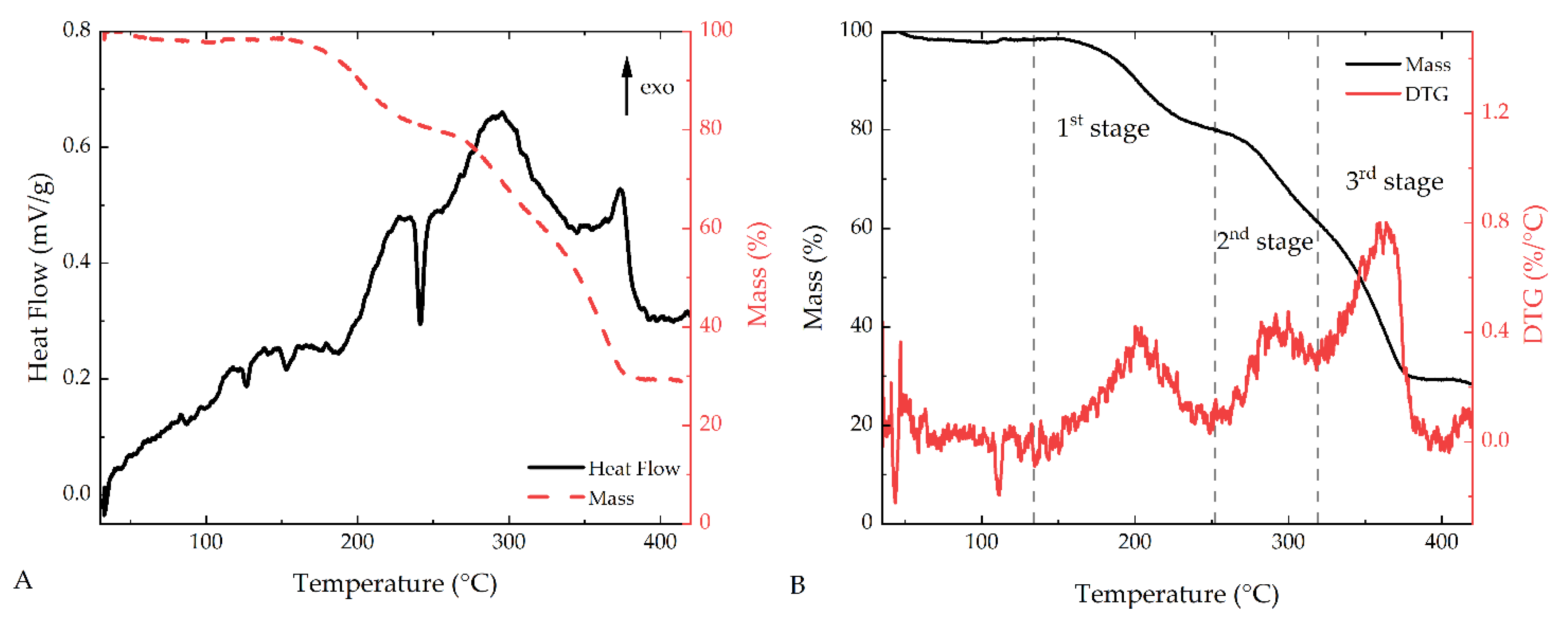

The thermal properties of the propellants were determined using the DTA-TG method. Figure 4 shows the curves for the SP-PN sample. The DTA curve shows a slight endothermic effect in the temperature range from 100 to 170 °C, which is related to the phase changes of the PSAN. There is no phase transition below 80 °C. A broad, complex exothermic transition begins above 200 °C with the mass loss of the sample. It is a complex decomposition process that consists of a series of overlapping endo- and exothermic processes. A clear endothermic peak at the temperature of 241 °C is associated with a change of the AP crystal form [22]. The mass loss can be divided into three stages: the first, above 135 °C, is related to the beginning of the propellant decomposition, and the second and third, in the range from 250 to 400 °C, are related to the further stages of the sample decomposition. Similar DTA-TG and TG-DTG curves were obtained for the other propellants.

Table 5. Thermal properties of propellants.

Parameter	SP0	SP-PP	SP-PC	SP-PN
Δm11 (%)	-	25 ± 2	23 ± 3	19 ± 2
Δm22 (%)	-	16 ± 2	24 ± 4	19 ± 1
Δm33 (%)	77 ± 6	32 ± 5	35 ± 3	32 ± 1
Δm4 (%)	77 ± 6	73 ± 5	82 ± 4	70 ± 2
Tonset5 (°C)	298 ± 3	191 ± 2	196 ± 2	197 ± 1
Tmax6 (°C)	320 ± 5	295 ± 1	295 ± 2	290 ± 3

¹ Mass loss of first stage; ² mass loss of second stage; ³ mass loss of third stage; ⁴ total mass loss; ⁵ onset temperature of main decomposition process; ⁶ maximum temperature of main decomposition process.

presents the mass loss of the three stages and the onset and the maximum temperature of the decomposition peak. The presented values were averaged from the three comparable DTA-TG measurements.

The total mass loss of the propellants SP-PP and SP-PN is slightly lower than the reference propellant SP0. The highest mass loss was determined for the propellant containing the PSAN modified by potassium carbonate. The maximum temperature of the decomposition process of the PSAN propellants is shifted towards the lower temperature by approx. 25 °C, and the onset temperature by approx. 100 °C in reference to the SP0 propellant. This means that the propellants containing two types of oxidants (AP and PSAN) are characterized by higher thermal sensitivity than the propellants containing only one oxidant—AP. The SP-PP, SP-PC and SP-PN propellants are characterized by similar parameters determined with the DTA-TG analysis. It can be concluded that the type of the used potassium salts does not significantly affect the thermal properties of the decomposition process of the tested PSAN propellants. It should be noted that the beginning of the exothermic decomposition of all the PSAN-containing propellants begins at about 200 °C. These temperatures are above the temperatures used during the production process, which means that these propellants are safe for users. To assess the safety of the handling of these propellants, additional experiments should be performed in the future, such as the explosive response, the sensitivity to electrostatic discharge, artificial aging or compatibility.

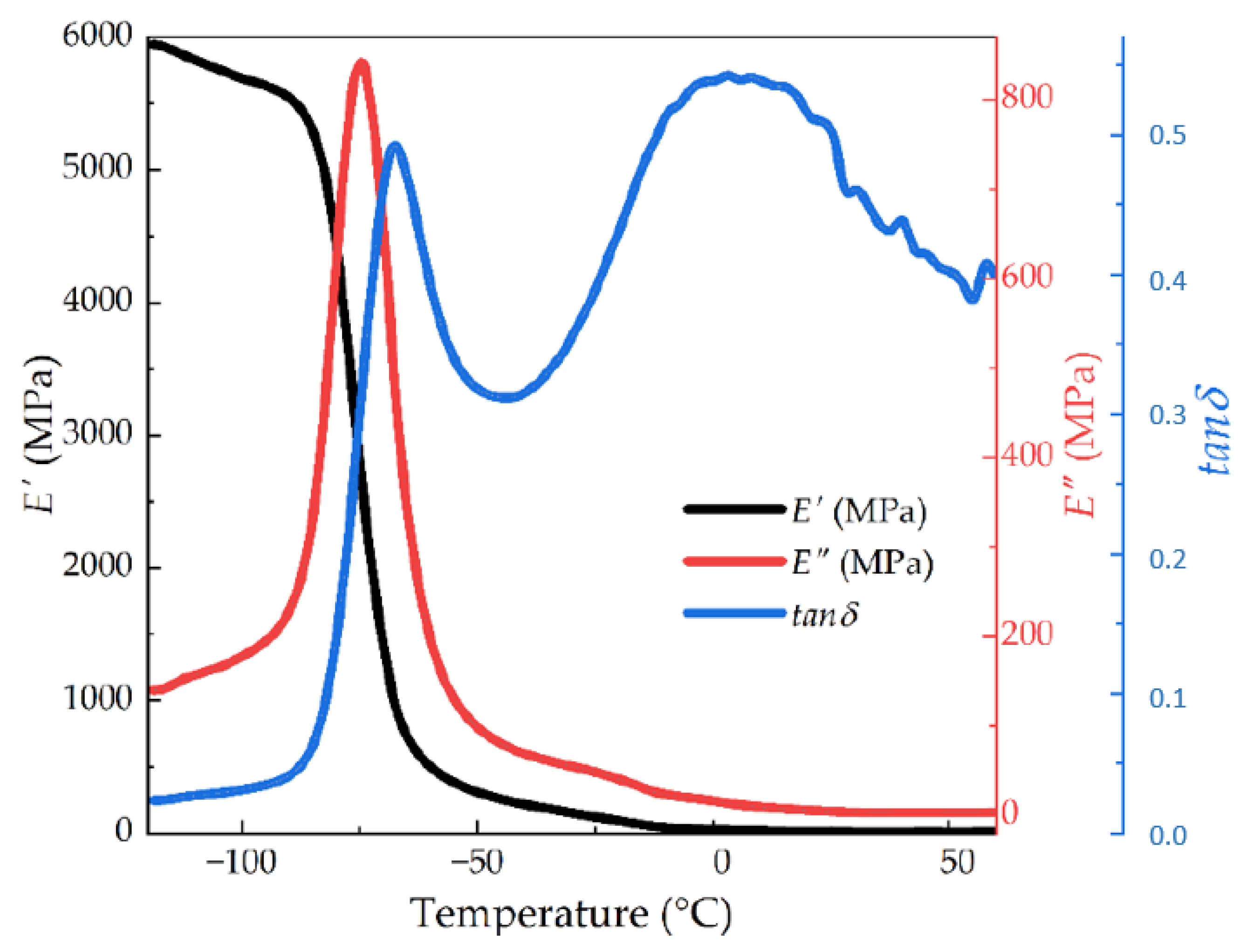

The thermomechanical properties of the obtained propellants were characterized with the DMA method. The sample was placed in a dual cantilever holder and fixed at its ends, while the center part was moved. As a result of these vibrations, there are three areas of deformation in the sample: expansion, compression and shear. The obtained DMA curves consisted of three parameters: the storage modulus (E′), the loss modulus (E″) and the loss factor (tanδ). The DMA curves recorded for the SP-PP sample for the frequency of 1 Hz were presented in Figure 5. Similar DMA curves were obtained for the other propellants.

The obtained dependences of the E′, E″ and tanδ parameters on the temperature are typical for SHRP containing polybutadiene [23,24,25]. The storage modulus decreases with an increasing temperature, from 5908 MPa (−115 °C) to 9 MPa (25 °C). From these curves, the glass transition temperature was determined as the onset point (−82.8 °C). The curve E″ = f(T) shows a single peak at −74.6 °C (E″ = 842 MPa). Two peaks at −67.5 °C (tanδ = 0.492) and 3.1 °C (tanδ = 0.543) are observed on the loss factor curve. These two peaks are related to the presence of soft and hard segments in the polyurethane and the propellant. The movements of the HTPB polymer chain with unlimited mobility (first peak) are responsible for the soft segments. The urethane groups (-N=C=O) in the cross-linked HTPB are responsible for the hard segments. There are also soft segments with limited mobility due to the presence of solids and the interactions between the solids and the binder. Two effects overlap, and we observe them as the second peak [26,27,28,29].

Table 6. Glass transition temperatures of the propellants based on loss modulus and loss factor (f = 1 Hz).

Parameter	SP0	SP-PP	SP-PC	SP-PN
Tg(E″) 1 (°C)	−71.9	−74.6	−74.5	−77.0
Tg1(tanδ) 2 (°C)	−64.4	−67.5	−65.6	−67.5
Tg2(tanδ) 3 (°C)	−8.2	3.1	6.4	8.1

Glass transition temperature determined from: ¹ loss modulus curves; ² first peak of loss factor curves; ³ second peak of loss factor curves.

summarizes the glass transition temperatures of the obtained propellants, which were determined from the DMA curves.

The glass temperature determined on the loss modulus and the loss factor curves are different—the temperature from the E″ = f(T) curve is lower. The calculations based on T_g(E″) are better because this temperature is connected with a loss of stiffness [30,31]. This approach is also recommended for solid rocket propellants in the STANAG 4540 standard [32]. The glass temperature of the propellants containing PSAN was lower by a minimum of 2.6 °C in regard to the SP0 propellant. The type of the used potassium salt in the PSAN did not significantly affect the glass temperature of the tested samples. The glass temperature of the hard segments for the PSAN propellants is higher by a minimum of 11 °C relative to the SP0 propellant. The type of the potassium salt influences the position of the second peak on the curve of the loss factor. The SP-PN sample was characterized by the highest glass temperature of the hard segments.

Figure 6 shows the dependencies of the particular DMA parameters for the different frequencies. All the curves shift towards higher temperatures with increasing frequency. The values of E′ and tanδ of the soft segments increase with the increase in the frequency, while the values of E″ and tanδ of the hard segments decrease. The increasing frequency causes the polymer chains to have less time to adjust the mechanical energy as the sample temperature increases; therefore, the glass temperature shifts towards higher temperatures [33]. The determined values of the DMA parameters for the different frequencies are summarized in Supplementary Materials, Table S1, Table S2, Table S3, Table S4.

The apparent activation energy was calculated based on the glass temperatures of the soft and hard segments from the tanδ = f(T) curves according to the equation:

$$f=f_0\cdot \exp \left(\frac{-{}_{a}E_a}{R\cdot T}\right)$$

(1)

where: f—frequency; f₀—pre-exponential factor; _aE_a—apparent activation energy; R—general gas constant; T—temperature.

The apparent activation energy is connected with the energy of the intermolecular interactions during the phase transitions of the tested samples [33]. The calculated values of the apparent activation energies of the soft and hard segments are summarized in

Table 7. Apparent activation energies and pre-exponential factors of soft and hard segments of obtained propellants.

Parameter	SP0	SP-PP	SP-PC	SP-PN
aEa,soft1 (kJ/mol)	149.6	156.9	144.4	157.5
lnfsoft2	86.1	91.7	83.7	92.2
aEa,hard3 (kJ/mol)	71.5	65.3	61.5	73.7
lnfhard4	32.5	28.4	26.2	31.9

Apparent activation energy ¹ of soft and ³ hard segments. Natural logarithm of pre-exponential factor ² of soft and ⁴ hard segments.

. The lowest values of _aE_a for the soft and hard segments were obtained for the SP-PC sample. The highest values of _aE_a for the soft segments were obtained for the SP-PP and SP-PN propellants. All of the calculated apparent activation energies of the hard segments obtained for the PSAN propellants differ from each other. This means that the PSAN changes the binder–solid phase interaction.

4. Conclusions

In this work, the experimental and calculated performance of solid heterogeneous propellants containing a binary system of oxidizers (AP and PSAN) was presented. Phase stabilized ammonium nitrate (V) was obtained as a result of the co-crystallization with inorganic potassium salts: nitrate (V), carbonate and perchlorate, and the obtained PSAN had no phase transitions in the temperature range from 30 to 85 °C. The reduction in the volume of hydrogen chloride in the combustion products by 32–37% was observed in the obtained propellants. Some of the parameters of these materials are similar to the AP-based propellants. Other parameters, like the heat of combustion or the specific impulse, are lower in comparison to the reference propellant. For this reason, the new compositions can be used for, e.g., gas generators or training loads. The obtained propellants can be also modified by additional components in order to improve the selected parameters and to extend their possible applications.
