Hetero- and Homoleptic Magnesium Triazenides

Abstract

Using monoanionic triazenide ligands derived from biphenyl and m-terphenyl substituted triazenes Dmp(Tph)N₃H (1a), (Me₄Ter)₂N₃H (1b) or Dmp(Mph)N₃H (1c) (Dmp = 2,6-Mes₂C₆H₃ with Mes = 2,4,6-Me₃C₆H₂; Me₄Ter = 2,6-(3,5-Me₂C₆H₃)₂C₆H₃; Mph = 2-MesC₆H₄; Tph = 2-TripC₆H₄ with Trip = 2,4,6-i-Pr₃C₆H₂), several magnesium triazenides were synthesized. Heteroleptic complexes [Mg(N₃Ar₂)I(OEt₂)] (Ar₂ = Dmp/Tph (2a), (Me₄Ter)₂ (2b) were obtained from metalation of the corresponding triazenes with di-n-butylmagnesium followed by reaction with iodine in diethyl ether as the solvent in high yields. Replacing diethyl ether by n-heptane afforded trinuclear compounds [Mg₃(N₃Ar₂)₂I₄] (3a, 3b) in low yields in which a central MgI₂ fragment is coordinated by two iodomagnesium triazenide moieties. Two unsolvated homoleptic magnesium compounds [Mg(N₃Ar₂)₂] (4b, 4c) were obtained from di-n-butylmagnesium and triazenes 1b or 1c in a 1:2 ratio. Depending on the nature of the substituents, the magnesium center either shows the expected tetrahedral or a rather unusual square planar coordination.

1. Introduction

The quest for suitable ligand systems that are able to stabilize unsolvated monomeric metal complexes is one of the most intensely-studied fields of coordination and organometallic chemistry [1]. Exploration of this area is motivated by potential applications of these reactive complexes in catalysis and organic synthesis. Well-known examples of monoanionic chelating N-donor ligands that have been used extensively include the β-diketiminate [2] and amidinate [3] ligand systems. Much less attention has been given to the closely-related triazenides [4]. During the last decade, we reported the preparation of derivatives of diaryl-substituted, sterically-crowded triazenido ligands that are bulky enough to prevent undesirable ligand redistribution reactions [5,6,7,8,9,10,11,12]. These ligands allowed structurally characterizing the first examples of aryl compounds of the heavier alkaline earth metals Ca, Sr and Ba [5] and unsolvated pentafluorophenyl organyls of the divalent lanthanides Yb and Eu [6]. The different degree of metal···π-arene interactions to pending aromatic substituents accounts for the unusual “inverse” aggregation behavior of alkali metal triazenides in their solid-state structures [7]. A series of homologous potassium and thallium triazenides crystallizes in isomorphous cells and represents the first examples of isostructural molecular species reported for these elements [8]. Recently, using the same type of ligands, a spectacular series of pnicogen(I) triazenides for the elements P, As and Sb was published by Schulz et al. [13].

In this paper, we describe the synthesis and characterization of several heteroleptic and homoleptic magnesium triazenides. The latter are the first examples of unsolvated magnesium triazenides, whereas the former are potential precursors for magnesium(I) triazenides. A small number of magnesium triazenides, mainly using less bulky substituents, has been reported before [11,14,15,16]. With relatively small p-tolyl and slightly bigger mesityl substituents, two additional THF molecules are required to provide electronic and steric saturation of the Lewis acetic metal centers in the six-coordinate magnesium complexes [Mg(N₃Ar₂)₂(thf)₂] (Ar = p-Tol [14], Mes [15]) published by the groups of Walsh and Westerhausen, respectively. The use of 2,6-di-iso-propylphenyl (Dip) substituted triazenide by Gibson et al. afforded the five-coordinate magnesium etherate [Mg(N₃Dip₂)₂(OEt₂)] [16], which was prepared as the aforementioned compounds by metalation of the corresponding triazene with di-n-butylmagnesium. For the Dip derivative, attempts to synthesize a monosubstituted triazenide were not successful. Even in the presence of an excess of di-n-butylmagnesium, the bis-triazenido complex was obtained as a result of ligand redistribution reactions. However, using the dimesityl substituted triazene and the chelating donor 1,2-bis(dimethylamino)ethane (TMEDA), Westerhausen et al. succeeded at isolating a heteroleptic complex of the composition [Mes₂N₃MgnBu(tmeda)] [15]. Another heteroleptic magnesium triazenide [Dmp(Tph)N₃MgI(thf)] was obtained in our group by an alternative synthetic approach via redox transmetallation between the iodomercury triazenide [Dmp(Tph)N₃HgI] and magnesium metal [11].

2. Results and Discussion

2.1. Syntheses and Spectroscopic Characterization

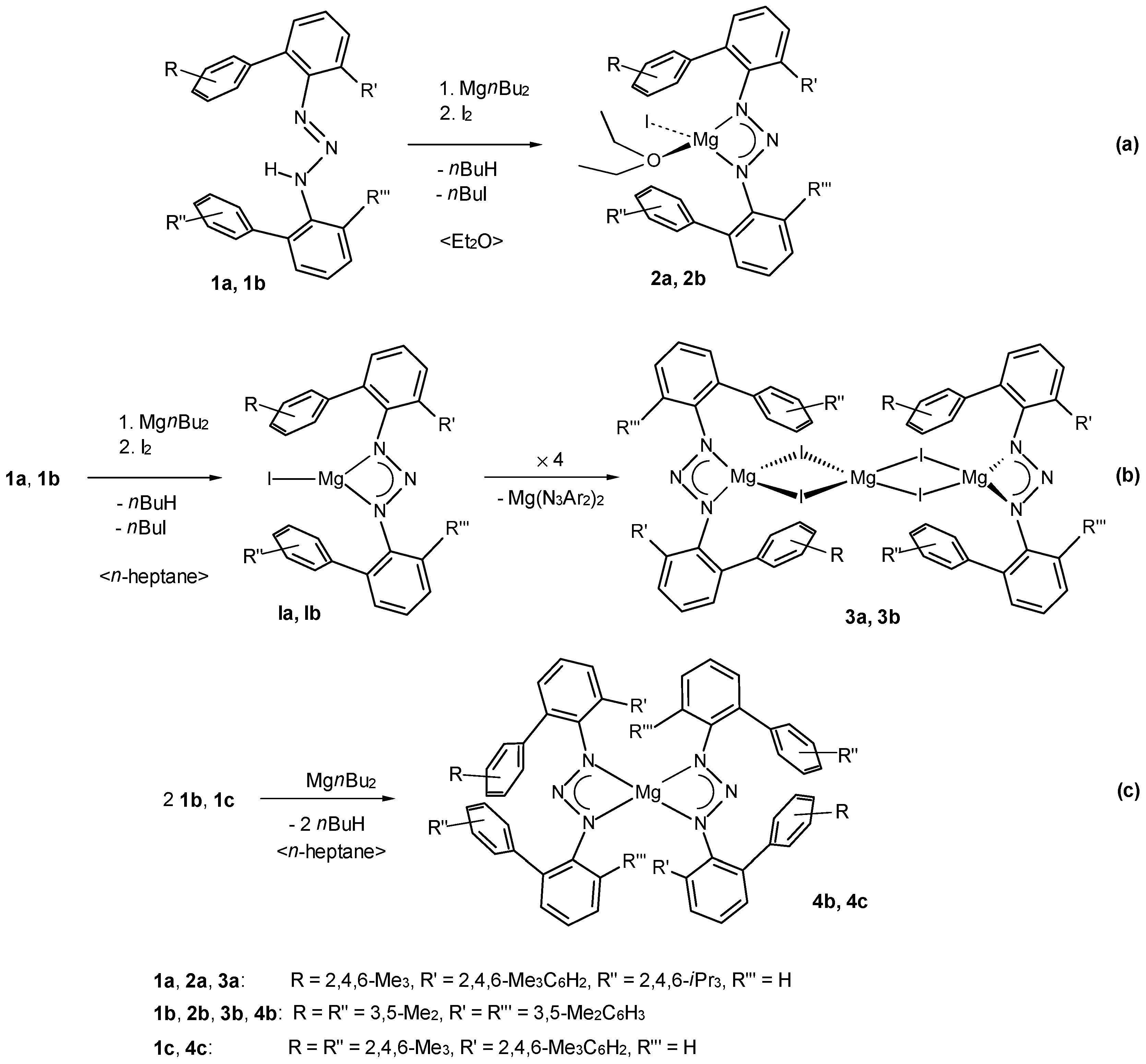

The heteroleptic iodomagnesium triazenides 2a and 2b are accessible in diethyl ether as the solvent via metalation of the diaryltriazenes Dmp(Tph)N₃H (1a) or (Me₄Ter)₂N₃H (1b) (Dmp = 2,6-Mes₂C₆H₃ with Mes = 2,4,6-Me₃C₆H₂; Me₄Ter = 2,6-(3,5-Me₂C₆H₃)₂C₆H₃; Tph = 2-TripC₆H₄ with Trip = 2,4,6-i-Pr₃C₆H₂) with one equivalent of di-n-butylmagnesium, followed by addition of iodine (Scheme 1a). After crystallization, the complexes [Mg(N₃Ar₂)I(OEt₂)] (Ar₂ = Dmp/Tph (2a), (Me₄Ter)₂ (2b)) are isolated in good yields. Repeating the same reactions in the non-coordinating solvent n-heptane afforded trinuclear donor-free complexes [Mg₃(N₃Ar₂)₂I₄] (Ar₂ = Dmp/Tph (3a), (Me₄Ter)₂ (3b)) as the least soluble compounds in low isolated yields. Heteroleptic complexes [Mg(N₃Ar₂)I] (Ia, Ib) (Scheme 1b) are possible intermediates that might rearrange via Schlenk-type equilibria and ligand redistribution reactions to 3a and 3b. Analysis of the better soluble fractions in the mother liquor by NMR experiments showed the presence of other moieties, most probably a mixture of homo- and hetero-leptic compounds. However, it was not possible to separate these main products by crystallization. A more rational synthetic approach to homoleptic magnesium triazenides consists of the reaction of di-n-butylmagnesium with the corresponding triazene in a 1:2 ratio to give [Mg{N₃(Me₄Ter)₂}₂] (4b) or [Mg{N₃(Dmp)Mph}₂] (4c) in good to excellent yields (Scheme 1c). The corresponding homoleptic magnesium triazenide derived from triazene 1a could not be obtained by this route. This is in accordance with earlier observations that homoleptic alkaline earth metal triazenides with the [N₃(Dmp)Tph] ligand are accessible for the heavier elements strontium and barium only, due to steric crowding [10].

The pale yellow (3a, 3b, 4b) or deep yellow (2a, 2b, 4c) complexes are moisture-sensitive and, with the exception of 3b, possess good or moderate solubility in aromatic or aliphatic hydrocarbons. They show considerable thermal stability, but decompose, presumably with N₂ evolution, at higher temperature. The most thermally-stable compound is the homoleptic complex 4c, which decomposes above 300 °C. The IR spectra show strong ν_as N₃ absorptions in the range of 1255–1282 cm⁻¹, which is indicative of the triazenido groups acting as chelating ligands. In the ¹H NMR spectra of 2b and 3a, the expected sets of signals are observed at ambient temperature. However, more complex temperature-dependent spectra are found for 2a, 4b and 4c. For heteroleptic complex 2a at 273 K, five and three well-separated resonances are observed for the methyl groups of the 2,4,6-tri-iso-propylphenyl and 2,4,6-trimethylphenyl substituents, respectively. Warming of the NMR sample results in broadening, coalescence and finally resharpening to three and two resonances at 373 K. This behavior can be explained by hindered rotation around the N–C(aryl) bonds (cf. Figures S1 and S2 in the Supplementary Materials). For the homoleptic complexes 4b and 4c, the high-temperature ¹H NMR data indicate free (for 4c at 373 K) or almost free (for 4b at 338 K) rotation around the N–C(aryl) bonds since some broadening of the resonances is still observed (cf. Figures S3b and S4 in the Supplementary Materials). For 4b, an interesting feature in the ¹H NMR spectrum at ambient temperature is a low-field shifted resonance at 7.64 ppm that moves to higher field at elevated temperatures. It has been noted before [7] that the presence of low-field shifted signals in biphenyl-substituted triazenes indicates short intermolecular C–H···N contacts at the NNN backbone of the ligands and therefore is a very sensitive probe for conformational preferences in solution. In the case of 4b, a C–H···N interaction of 2.48 Å between the central nitrogen atom N2 and a hydrogen atom of the ortho-C₆H₃Me₂ ring in the solid-state structure correlates with the observed low-field resonance in solution.

2.2. Structural Studies

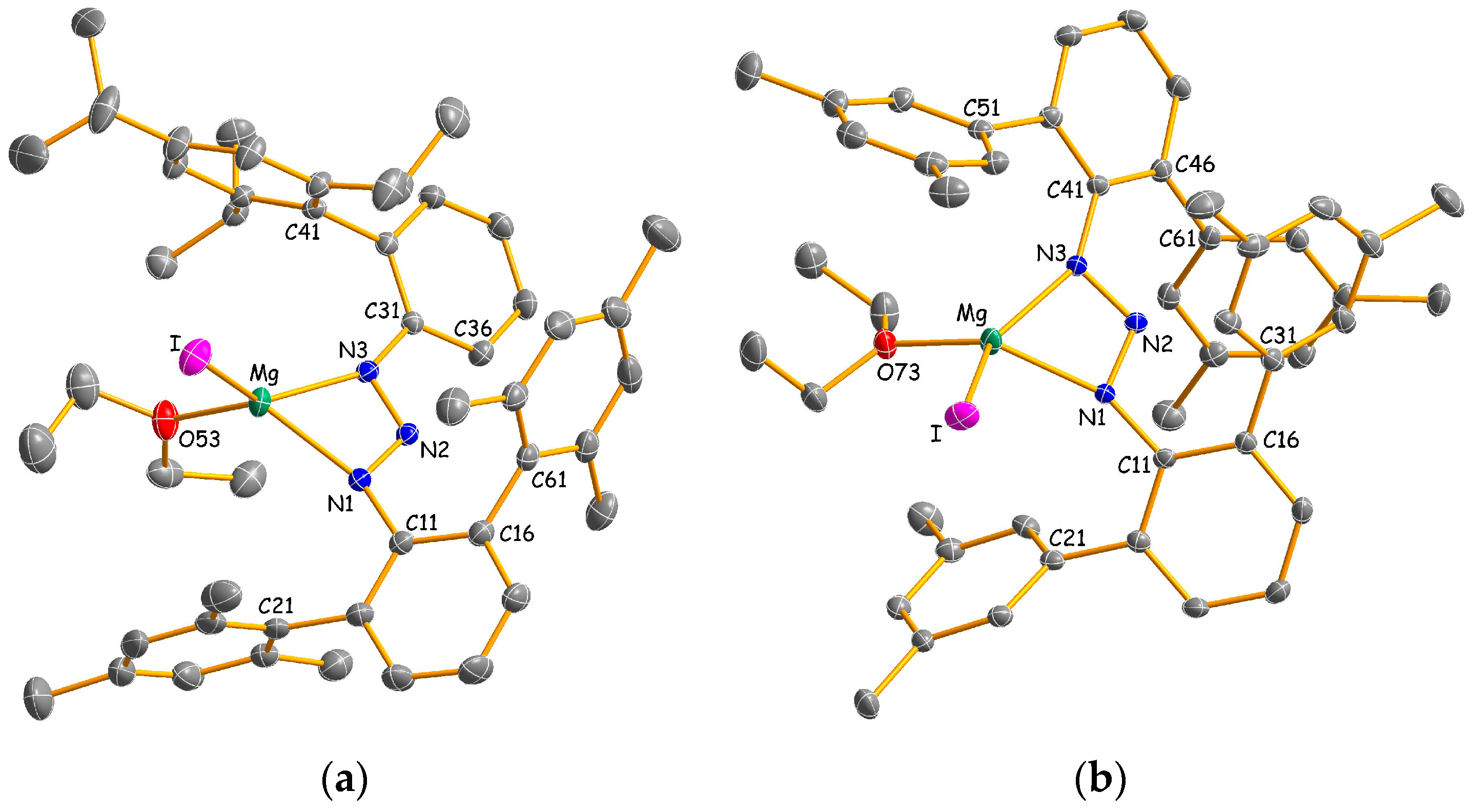

All compounds were examined by X-ray crystallography, and their molecular structures and selected bond parameters are shown in Figure 1, Figure 2 and Figure 3. In the heteroleptic iodomagnesium triazenides 2a and 2b, the magnesium atoms possess a very distorted tetrahedral coordination by two nitrogen atoms N1 and N3 of a η²-bonded triazenide ligand, an iodine atom I and the oxygen atom O53 (2a) or O73 (2b) of a diethyl ether molecule (Figure 1). The degree of distortion is reflected by interligand angles in the wide range 61.45(6)°–132.64(5)° (2a) and 61.04(7)°–143.56(7)° (2b), respectively. In an alternative and possibly more appropriate description that assigns only one coordination site, represented by the central nitrogen atom N2, to the small-bite triazenido ligand, the metal atoms show trigonal planar coordination with corresponding angles of 105.39(5)°–128.51(4)° (2a) and 108.36(6)°–125.04(5)° (2b), respectively. The relatively small variation of the N1–N2 and N2–N3 distances (2a: 1.317(2)/1.307(2) Å; 2b: 1.312(2)/1.312(3) Å) is consistent with delocalized bonding. Nonetheless, coordination of the triazenide ligand is slightly asymmetric for 2a with Mg–N bond lengths of 2.1151(16) Å and 2.0880(16) Å. A more symmetric coordination with Mg–N distances of 2.101(2) Å and 2.0958(19) Å is observed for the magnesium atom in 2b. Interestingly, the Mg–N bond length correlates with the conformation of the triazenide ligand. Thus, a coplanar arrangement of the substituted arene rings with respect to the central triazaallyl fragment as reflected by a CCNN torsion angle close to 0° increases the basicity of the bonded nitrogen atom. Therefore, for 2a, the shortest Mg–N distance to the biphenyl substituted nitrogen atom N3 of 2.0880(16) Å corresponds to the smallest torsion angle N2–N3–C31–C36 of 18.0(3)°.

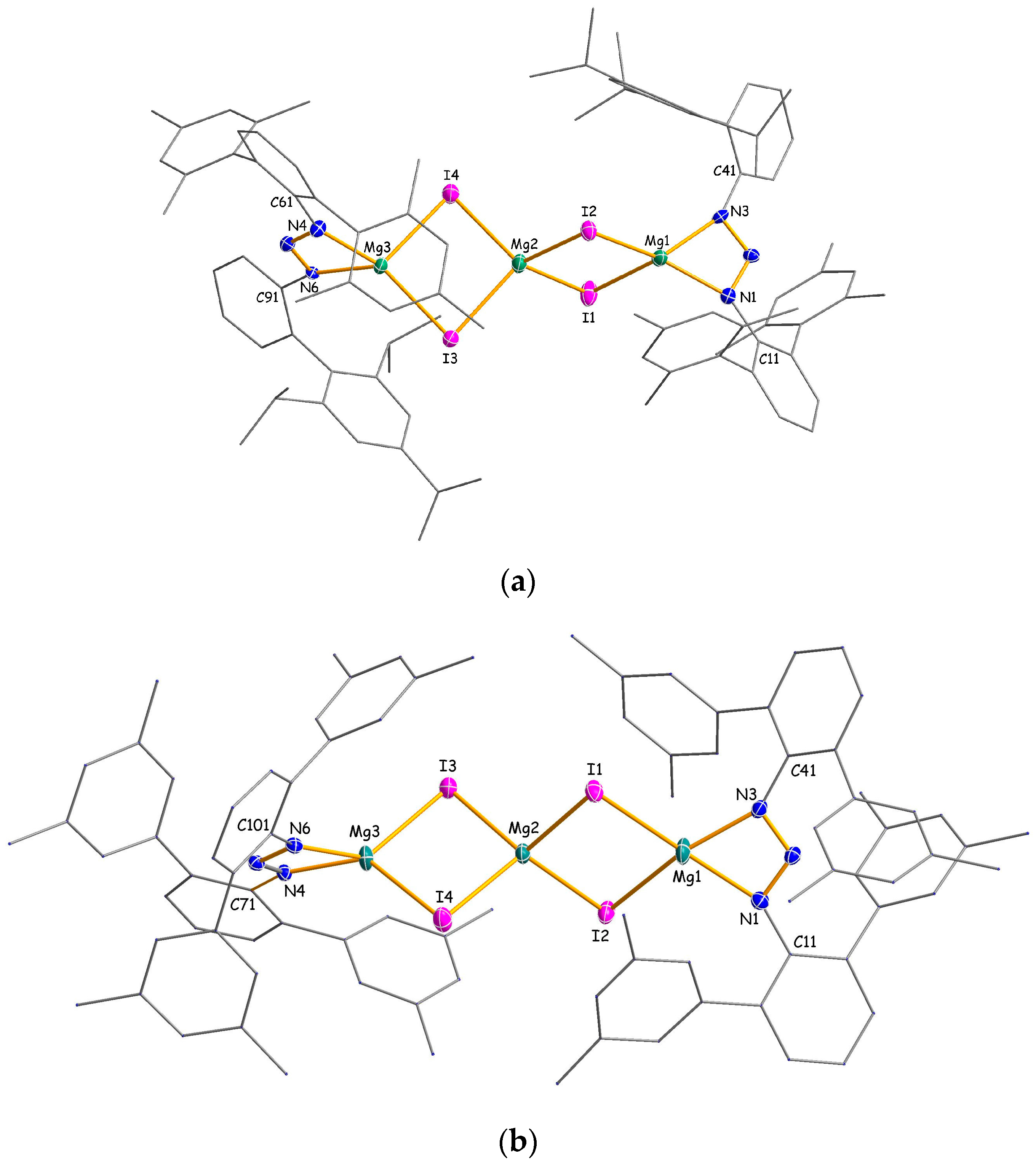

In the rather unusual trinuclear MgI₂ addition compounds 3a and 3b, a central four-coordinate magnesium atom Mg2 is bridged by four iodine atoms to two terminal magnesium centers Mg1 and Mg3 (Figure 2). Each of the latter is additionally coordinated via two nitrogen atoms by a chelating triazenido ligand. The three metal atoms form a nearly perfect linear arrangement with an angle of 178.5° for 3a and 179.1° for 3b. Notably, there appear to be no previous reports on molecular compounds that contain such a trinuclear Mg₃I₄²⁺ or even an MgI₄²⁻ fragment [17]. However, the terminal [(Ar₂N₃)MgI₂]²⁻ fragments may be compared with related dimeric complexes of the general composition [(L)Mg-μ-I₂Mg(L)] where L represents bulky amido, diketiminato, diiminophosphinato or guanidinato ligands [18,19,20,21,22]. In 3a and 3b, the coordination spheres of the central magnesium atoms feature distorted tetrahedral geometries with I–Mg2–I angles in the range 96.24(6)°–120.55(8)° (3a) and 98.09(4)°–116.70(5)° (3b), respectively. As expected, the average Mg2–I distance of 2.741(2) Å (3a) and 2.7209(13) Å (3b) is shorter than the corresponding value of 2.9183(5) Å in the solid state structure of MgI₂ [23] that adopts the CdI₂ type of structure with hexa-coordinate magnesium atoms. For the gas phase structure of molecular di-coordinate magnesium diiodide, the Mg–I distance was determined by electron diffraction to 2.52 ± 0.03 Å [24]. Moreover, if only one coordination site is assigned to the small-bite angle triazenido ligands, a distorted trigonal planar coordination results for the terminal magnesium atoms as can be judged by the sum of the angles around Mg1 and Mg3 in the range of 358.2°–360.0°. Alternatively, if the triazenido ligands are viewed as bidentate, the resulting four-coordination of Mg1 and Mg3 is somehow intermediate between tetrahedral and square planar geometry. A more precise description of these distortions uses the τ₄ parameter [25]:

$${\tau }_4=\frac{360°-\left(\alpha +\beta \right)}{141°}$$

(1)

It is defined as the sum of angles α and β, the two largest angles in the four-coordinate species, subtracted from 360° and all divided by 141°. The values of τ₄ will range from zero for a perfect square planar to 1.00 for a perfect tetrahedral geometry. Intermediate structures fall within the range of 0–1.00. By using Equation (1), τ₄ parameters of 0.62/0.87/0.64 (0.40/0.91/0.62) are calculated for Mg1/Mg2/Mg3 in complex 3a (3b), respectively. Therefore, a transition from tetrahedral to square planar coordination is evident for Mg1 in 3b. This is also reflected by the interplanar angle of 38.2° between the Mg1/I1/I2 and Mg1/N1/N3 planes.

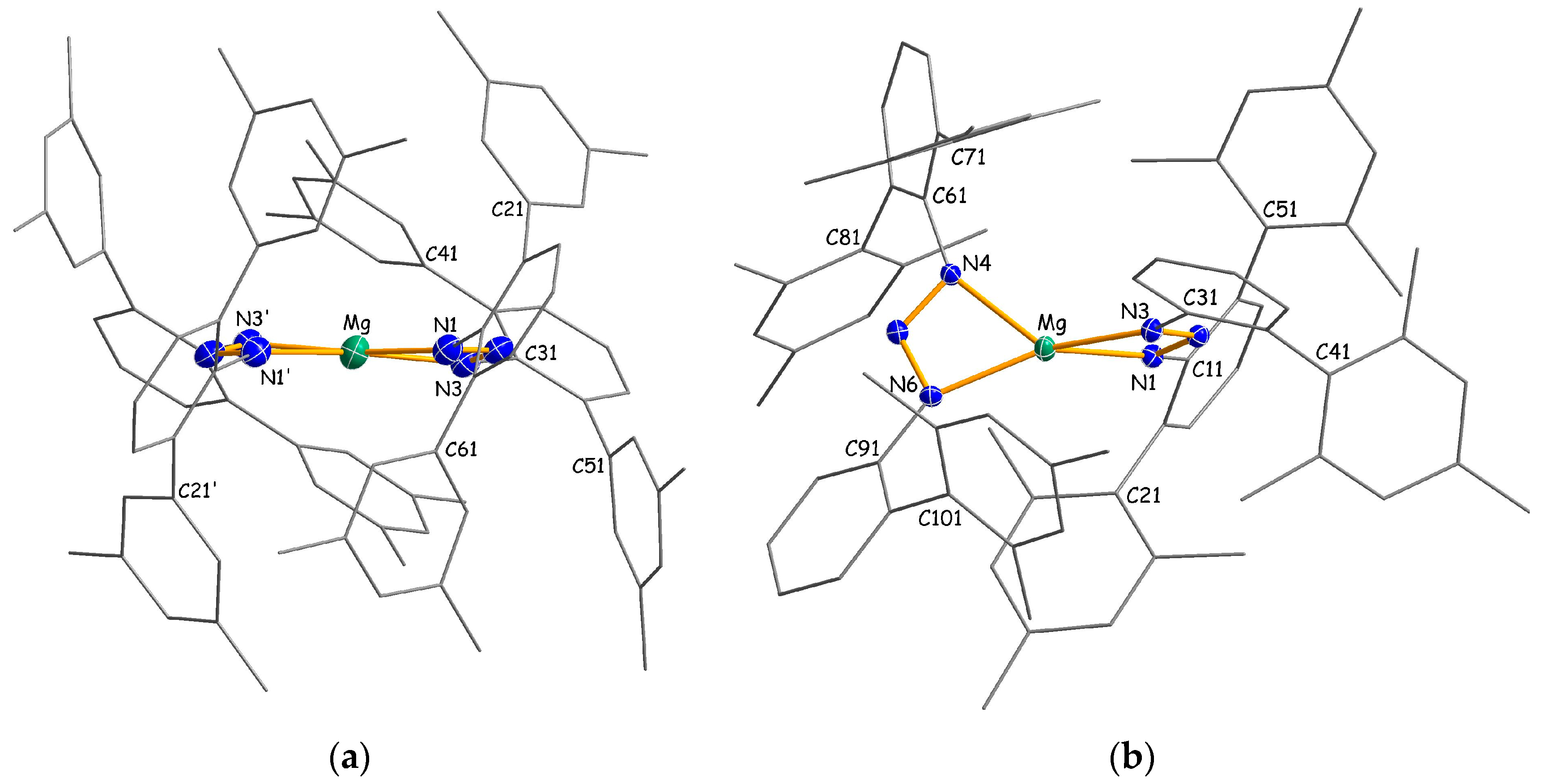

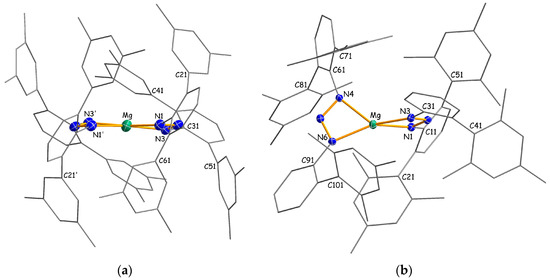

Homoleptic packing complexes 4b·(C₇H₁₆) and 4c·(C₇H₈)_0.5 crystallize as monomers with four-coordinate metal atoms in which the triazenide ligands are coordinated in a chelating η²-fashion (Figure 3). There are no significant interactions between the complexes and the co-crystallized n-heptane or toluene solvent molecules. In C₂-symmetric 4b, the two-fold axis runs almost parallel to the NNN plane through the magnesium atom, whereas C₁-symmetric 4c has no additional crystallographically-imposed symmetry. Interestingly, the magnesium atom in 4c shows a distorted tetrahedral coordination with an average Mg–N distance of 2.086(2) Å, whereas a distorted square planar coordination around the magnesium center with a significant longer average Mg–N distance of 2.128(2) Å is observed for 4b. The different coordination is reflected by the interplanar angle γ, which is defined as the angle between the two MgNN planes (e.g., for 4c, angle between the plane normals through the atoms Mg/N1/N3 and Mg/N4/N6), of 83.6° (4c) and 9.6° (4b), or alternatively, by the τ₄ parameter of 0.51 (4c) and 0.20 (4b). These values may be compared with the corresponding parameters in previously-published homoleptic magnesium amidinates [16,26,27,28,29,30], guanidinates [20] and β-diketiminates [31,32,33], as summarized in

Table 1. Interplanar angles and τ₄ parameters [25] in four-coordinate magnesium triazenides, amidinates, guanidinates and β-diketiminates.

Compound 1	γ (°)	τ4	Ref.
Triazenides
[Mg{N3(Me4Ter)2}2] 4b	9.6	0.20
[Mg{N3((Dmp)Mph)2}2] 4c	83.6	0.51
Amidinates
[Mg{DipN{C(pTol)}NDip}2]	13.3	0.10	[26]
[Mg{DipN{C(Me)}NDip}2] 2	54.1/54.9	0.40/0.41	[16]
[Mg{DipN{C(cHex)}NDip}2]	61.3	0.45	[27]
[Mg{DipN{C(3,5-Me2C6H3)}NDip}2]	76.4	0.56	[27]
[Mg{MesN{C(tBu)}NMes}2]	80.3	0.57	[28]
[Mg{tBuN{C(Ph)}NtBu}2]	89.5	0.58	[29]
[Mg{iPrN{C(Dmp)}NiPr}2]	88.1	0.60	[30]
Guanidinates
[Mg{MesN{C(NcHex)}NMes}2]	8.6	0.06	[20]
β-Diketiminates
[Mg(HC{C(Me)N(NiPr2)}2)2]	89.5	0.83	[31]
[Mg(HC{C(Me)N(iPr)}2)2]	88.9	0.88	[32]
[Mg(HC{C(Me)N(tBu)}2)2]	88.4	0.92	[32]
[Mg(HC{C(Ph)N(SiMe3)}2)2]	89.0	0.92	[33]

¹ cHex = cyclohexyl; Dip = 2,6-iPr₂C₆H₃; Dmp = 2,6-Mes₂C₆H₃; Mes = 2,4,6-Me₃C₆H₂; Me₄Ter = 2,6-(3,5-Me₂C₆H₃)₂C₆H₃; Mph = 2-MesC₆H₄; pTol = p-tolyl. ² Two independent molecules.

. For the six known magnesium amidinates, considered to possess tetrahedral metal coordination, γ angles and τ₄ parameters are observed in the range of 54.1°–89.5° and 0.40°–0.60°, respectively. The relatively small values for τ₄, compared to the ideal value of 1.00, can be rationalized by the small bite angles of the amidinate and triazenide ligands that enforce “flattened tetrahedral” geometries. In contrast, higher values in the range of 0.83–0.92 are found for β-diketiminates that have larger bite angles with more separated N donor atoms.

Magnesium complexes with square planar coordinated metal atoms are quite uncommon and usually restricted to ligands with rigid geometry, such as porphyrins [34,35,36,37,38]. Rare examples of planar magnesium compounds with non-rigid ligands are Lappert’s 1-azallyl complex [Mg(Me₃SiNC(tBu)C(H)SiMe₃)₂] [33], Junk’s amidinate [Mg{DipN{C(pTol)}NDip}₂] [26] and Kays’ guanidinate [Mg{MesN{C(NcHex)}NMes}₂] [20]. It has been argued that interligand repulsion between peripheric substituents is responsible for the square planar coordination in these compounds. Moreover, it is known that attractive dispersion forces may contribute to unusual coordination geometries [39,40,41]. Therefore, it is reasonable to assume that a combination of repulsive and attractive interligand interactions accounts for the different metal coordination in 4b and 4c. Notably, the propensity of the [(Me₄Ter)₂N₃]⁻ ligand to support square planar coordination is not limited to magnesium. A similar complex with a square planar coordinated Yb(II) center was characterized in our group [42].

In order to shed some light on the relative energetic levels of tetrahedral or square planar coordinated magnesium triazenides, DFT calculations were performed for suitable model compounds. Unfortunately, we did not succeed to locate stationary points for both geometries with the same ligand systems. Therefore, simple phenyl substituted model complexes 5_T and 5_SP were calculated using the B3LYP functional and 6-311+G* basis sets. The experimentally-determined geometries of 4b and 4c were taken as the starting point, after replacing the bulky biphenyl and terphenyl substituents by phenyl groups. A minimum on the potential energy surface with S₄ symmetry corresponds to the tetrahedral isomer 5_T (γ = 90°, τ₄ = 0.60). Since it was at first not possible to locate a stationary point for a square planar isomer, the conformation of the starting geometry was partly frozen by fixing NNMgN and NNCC torsion angles to the experimentally-determined values. The resulting energy-minimized C₁-symmetric isomer 5_SP (γ = 9.7°, τ₄ = 0.07) is energetically disfavored over 5_T by +60.7 KJ·mol⁻¹.

Table 2. Important structural parameters (av. values (Å, °)) in magnesium triazenides.

Compound 1	Cn	Mg–N	N–Mg–N	Mg–N–C	Ref.
[Mg{N3(Dmp)Tph}I(OEt2)] 2a	4	2.102	61.5	151.4
[Mg{N3(Me4Ter)2}I(OEt2)] 2b	4	2.098	61.0	147.3
[Mg3I4{N3(Dmp)Tph)}2] 3a	4	2.074	62.4	152.0
[Mg3I4{N3(Me4Ter)2}2] 3b	4	2.070	61.8	148.9
[Mg{N3(Me4Ter)2}2] 4b	4	2.128	61.0	151.3
[Mg{N3(Dmp)Mph)}2] 4c	4	2.086	61.6	145.5
[Mg{N3(Dmp)Tph}I(thf)]	4	2.093	61.9	147.0	[11]
[Mg{N3(Dip)2}2(OEt2)]	5	2.137	60.2	150.6	[16]
[Mg(nBu){N3(Mes)2}(tmeda)]	5	2.202	58.2	150.3	[15]
[Mg{N3(pTol)2}2(thf)2]	6	2.183	58.8	149.6	[14]
[Mg{N3(Mes)2}2(thf)2]	6	2.181	59.1	150.2	[15]

¹ Dip = 2,6-iPr₂C₆H₃; Dmp = 2,6-Mes₂C₆H₃; Mes = 2,4,6-Me₃C₆H₂; Me₄Ter = 2,6-(3,5-Me₂C₆H₃)₂C₆H₃; Mph = 2-MesC₆H₄; pTol = p-tolyl; Tph = 2-TripC₆H₄ with Trip = 2,4,6-i-Pr₃C₆H₂.

summarizes some pertinent bond parameters in structurally-characterized magnesium triazenides. Overall, the expected correlation between coordination number and Mg–N bond length is observed. However, two exceptions are noteworthy. Firstly, in distorted square planar coordinated 4b, the Mg–N distance of 2.128 Å is significantly longer than the corresponding values in distorted tetrahedral coordinated metal complexes that fall within the range of 2.070–2.102 Å. Secondly, in Westerhausen’s heteroleptic five-coordinate magnesium complex [Mg(nBu){N₃(Mes)₂}(tmeda)] [15], the Mg–N bond length is longer than the average values in Gibson’s five-coordinate magnesium compound [Mg{N₃(Dip)₂}₂(OEt₂)] [16] and in the six-coordinate metal bis(THF) adducts [Mg{N₃(Ar)₂}₂(thf)₂] (Ar = pTol [14], Mes [15]). The elongated bond may be attributed to the competition of the moderate nucleophilic triazenide ligand with the powerful carbanionic ligand. In addition, there appears to be some correlation between the N–Mg–N angle and the coordination number. Slightly more acute angles are observed for higher coordinated magnesium atoms. In contrast, there seems to be no clear correlation between steric crowding inside the complexes and the size of the average N–Mg–N or Mg–N–C angle.

Finally, it may be noted that complexes 2a–4c show no significant secondary interactions to the carbon atoms of pending aryl substituents as previously observed in triazenides of the heavier alkaline earth metals [5,10].

3. Materials and Methods

3.1. General Procedures

All manipulations were performed by using standard Schlenk techniques under an inert atmosphere of purified argon. Solvents were dried and purified using an MBraun 800 solvent purification system. The triazenes Dmp(Tph)N₃H [5], (Me₄Ter)₂N₃H [8] or Dmp(Mph)N₃H [5] were synthesized as previously described. NMR spectra were recorded on Bruker AM200, AM400 or Biospin DRX 400 instruments (Karlsruhe, Germany) and referenced to solvent resonances. IR spectra have been obtained in the range of 4000–200 cm⁻¹ with a Varian 3100 FT-IR spectrometer (Palo Alto, CA, USA). Melting points were determined under Ar atmosphere in sealed glass tubes.

3.2. Syntheses

3.2.1. Experimental Procedure for [Mg{N₃(Dmp)Tph}I(OEt₂)] (2a)

To a stirred solution of triazene 1a (1.27 g, 2.0 mmol) in 60 mL of diethyl ether, a 1.0 M solution of di-n-butylmagnesium in n-heptane (2.0 mL, 2.0 mmol) was added, and stirring was continued for 30 min. To the resulting bright yellow solution, iodine (0.51 g, 2.0 mmol) was added. The solution was stirred for another 3 h until the typical iodine color disappeared. The volume of the obtained yellow solution was reduced to incipient crystallization under reduced pressure. Storage at room temperature overnight afforded 2a as yellow needles. Yield: 1.6 g (1.86 mmol, 93%); m.p.: 175 °C (dec.); ¹H NMR (200.1 MHz, [D₈]toluene, 373 K): δ 0.69 (t, ³J_HH = 7.1 Hz, 6H, (CH₃CH₂)₂O), 0.95 (d, ³J_HH = 6.6 Hz, 6H, CH(CH₃)₂), 1.07 (d, ³J_HH = 6.8 Hz, 6H, CH(CH₃)₂), 1.27 (d, ³J_HH = 7,1 Hz, 6H, CH(CH₃)₂), 2.05 (s, 12H, o-CH₃), 2.15 (s, 6H, p-CH₃), 2.50 (sep, ³J_HH = 6.8 Hz, 2H, o-CH(CH₃)₂), 2.83 (sep, 1H, p-CH(CH₃)₂), 3.14 (q, 4H, ³J_HH = 7.1 Hz, (CH₃CH₂)₂O), 6.3–7.0 (m, 13H, various Aryl-H). ¹³C NMR (62.9 MHz, [D₆]benzene): δ 13.7 ((CH₃CH₂)₂O), 21.3 (o-CH₃), 21.9 (br, p-CH₃), 24.3, 24.5, 25.4 (o+p-CH(CH₃)₂), 30.7 (br, o-CH(CH₃)₂), 34.9 (p-CH(CH₃)₂), 66.5 ((CH₃CH₂)₂O), 120.9 (m-Mes), 123.9, 124.8, 127.6, 130.7, 132.1 (aromatic CH), 131.7, 133.4, 134.7, 136.1, 139.5, 143.7, 147.1 (aromatic C). IR (Nujol, cm⁻¹) $\tilde{\nu }$ = 1664w, 1609m, 1595sh, 1583w, 1564m, 1509w, 1415s, 1362m, 1261vs, 1184m, 1106m, 1093m, 1080w, 1056w, 1032s, 1016m, 977w, 938m, 901m, 884w, 872m, 853s, 834m, 803m, 787s, 762s, 750s, 724m, 690m, 653s, 602w, 589m, 576w, 562w, 538m, 520m, 491m, 475m, 440m, 382s, 290m. Anal. Calcd. for C₄₉H₆₂N₃MgIO: C, 68.41; H, 7.26; N, 4.88. Found: C, 67.73; H, 6.99; N, 4.92.

3.2.2. Experimental Procedure for [Mg{N₃(Me₄Ter)₂}I(OEt₂)] (2b)

The synthesis was accomplished in a manner similar to the preparation of 2a using triazene 1b (0.61 g, 1.0 mmol), a 1.0 M solution of di-n-butylmagnesium in n-heptane (1.0 mL, 1.0 mmol) and iodine (0.25 g, 1.0 mmol). Storage of the obtained solution at room temperature overnight afforded 2b as yellow blocks. Yield: 0.74 g (0.88 mmol, 88%); m.p.: 170 °C (dec.); ¹H NMR (400.1 MHz, [D₆]benzene): δ 0.51 (br s, 6H, (CH₃CH₂)₂O), 2.27 (s, 24H, m-CH₃), 2.95 (q, ³J_HH = 6.7 Hz, 4H, (CH₃CH₂)₂O), 6.70 (s, 4H, p-C₆H₃Me₂), 6.86 (t, ³J_HH = 7.6 Hz, 2H, p-C₆H₃), 6.98 (s, 8H, o-C₆H₃Me₂), 7.10 (d, ³J_HH = 7.6 Hz, 4H, o-C₆H₃). ¹³C NMR (100.6 MHz, [D₆]benzene): δ 14.0 ((CH₃CH₂)₂O), 21.8 (m-CH₃), 66.0 ((CH₃CH₂)₂O), 123.4 (p-C₆H₃), 128.0 (o-C₆H₃Me₂), 128.5 (p-C₆H₃Me₂), 130.5 (m-C₆H₃), 136.0 (o-C₆H₃), 137.4 (m-C₆H₃Me₂), 142.3 (i-C₆H₃Me₂), 143.1 (i-C₆H₃) ppm. IR (Nujol, cm⁻¹) $\tilde{\nu }$ = 1684w, 1602s, 1558m, 1541m, 1490s, 1398m, 1280m, 1176m, 1036m, 849s, 795m, 761m, 704s, 681s, 668s. Anal. Calcd. for C₄₈H₅₂IMgN₃O: C, 68.78; H, 6.25; N, 5.01. Found: C, 68.24; H, 6.02; N, 5.12.

3.2.3. Experimental Procedure for [Mg₃{N₃(Dmp)Tph}₂I₄] (3a)

To a stirred solution of triazene 1a (1.27 g, 2 mmol) in 60 mL of n-heptane, a 1.0 M solution of di-n-butylmagnesium in n-heptane (2 mL, 2 mmol) was added. After 30 min, the reaction mixture was treated with iodine (0.51 g, 2 mmol), and stirring was continued overnight. The volume of the resulting solution was reduced to incipient crystallization under reduced pressure, and the obtained precipitate was redissolved by slight warming. Storage at ambient temperature overnight afforded 3a as a pale yellow crystalline material. Yield: <10%, m.p.: 200 °C (dec.); ¹H NMR (400.1 MHz, [D₆]benzene): δ 1.03 (d, ³J_HH = 6.7 Hz, 12H, o-CH(CH₃)₂), 1.11 (d, ³J_HH = 6.7 Hz, 12H, o-CH(CH₃)₂), 1.21 (d, ³J_HH = 7.0 Hz, 12H, p-CH(CH₃)₂), 2.17 (s, 12H, p-CH₃), 2.36 (s, 24H, o-CH₃), 2.65 (sept, ³J_HH = 6.7 Hz, 4H, o-CH(CH₃)₂), 2.76 (sept, ³J_HH = 7.0 Hz, 2H, p-CH(CH₃)₂), 6.51 (d, ³J_HH = 8.2 Hz, 2H, 6-C₆H₄), 6.78–7.11 (m, 24H, various aryl-H). ¹³C NMR (100.6 MHz, [D₆]benzene): δ 21.2 (p-CH₃), 22.6 (o-CH₃), 23.9, 24.2, 25.6 (o+p-CH(CH₃)₂), 30.7 (o-CH(CH₃)₂), 34.4 (p-CH(CH₃)₂), 120.8 (m-Trip), 128.5 (m-Mes), 130.5 (m-C₆H₃), 123.2, 123.5, 125.6, 127.6, 132.6 (aromatic CH), 121.5, 131.5, 135.7, 136.2, 136.8, 137.1, 139.5, 145.5, 147.2, 147.7, 149.3 (aromatic C). Anal. Calcd. for C₉₀H₁₀₄I₄Mg₃N₆: C, 58.42; H, 5.67; N, 4.54. Found: C, 58.28; H, 5.69; N, 4.50.

3.2.4. Experimental Procedure for [Mg₃{N₃(Me₄Ter)₂}₂I₄] (3b)

The synthesis was accomplished in a manner similar to the preparation of 3a using triazene 1b (0.61 g, 1.0 mmol), 1 mmol of di-n-butylmagnesium and iodine (0.25 g, 1.0 mmol). The packing complex 3b·(C₇H₁₆)_1.5 was crystallized from n-heptane at ambient temperature. Yield: <10%, m.p.: 200 °C (dec.); IR (Nujol, cm⁻¹) $\tilde{\nu }$ = 1746w, 1601s, 1557sh, 1403m, 1284sh, 1255s, 1215m, 1200m, 1171w, 1127w, 1037m, 1008w, 893m, 851s, 795m, 763m, 757sh, 706s, 683m, 669w, 602w, 529w, 472w, 417m. No satisfactory CHN analysis could be obtained due to the co-crystallized solvent.

3.2.5. Experimental Procedure for [Mg{N₃(Me₄Ter)₂}₂] (4b)

To triazene 1b (0.61 g, 1 mmol) in 50 mL of n-heptane a 1.0 M solution of di-n-butylmagnesium in n-heptane (0.5 mL, 0.5 mmol) was added, and the mixture was stirred overnight. The obtained precipitate was dissolved by slight warming, and the resulting solution slowly cooled to ambient temperature to give pale yellow crystals of the packing complex 4b·(C₇H₁₆). The material used for characterization was dried under reduced pressure to remove co-crystallized solvent. Yield: 0.46 g (0.37 mmol, 74%); m.p.: >300 °C; ¹H NMR (400, 1 MHz, [D₆]benzene, 333 K): δ 1.96 (s, 48H, CH₃), 6.10 (s, vbr, 16H, o-C₆H₃Me₂), 6.68 (s, 8H, p-C₆H₃Me₂), 6.96 (t, ³J_HH = 7.6 Hz, 4H, p-C₆H₃N), 7.10 (d, ³J_HH = 7.1 Hz, 8H, m-C₆H₃N). ¹³C NMR (100,6 MHz, [D₆]benzene): δ 22.3 (vbr, CH₃), 123.9 (p-C₆H₃N), 129.1 (p-C₆H₃Me₂), 131.1 (m-C₆H₃N), 132.5 (o-C₆H₃Me₂), 136.4 (o-C₆H₃N), 138.2 (m-C₆H₃Me₂), 142.2 (i-C₆H₃Me₂), 144.7 (i-C₆H₃N). IR (Nujol, cm⁻¹) $\tilde{\nu }$ = 1748w, 1600s, 1400m, 1321s, 1282s, 1171w, 1125m, 1076w, 1038m, 905w, 850s, 816m, 797s, 764s, 705s, 672m, 652m, 605w, 520w, 507w, 483w, 444m. Anal. Calcd. for C₈₈H₈₄MgN₆: C, 84.56; H, 6.77; N, 6.72. Found: C, 84.03; H, 6.49; N, 6.82.

3.2.6. Experimental Procedure for [Mg{N₃(Dmp)Mph}₂] (4c)

The synthesis was accomplished in a manner similar to the preparation of 4b using triazene 1c (1.1 g, 2.0 mmol) and 1 mmol of di-n-butylmagnesium. The yellow packing complex 4c·(C₇H₈)_0.5 was crystallized from a mixture of n-heptane and toluene at −17 °C. Yield: 1.04 g (0.89 mmol, 89%); m.p.: 220 °C (dec.); ¹H NMR (400.1 MHz, [D₈]toluene, 373 K): δ 1.59 (s, 12H, p-CH₃), 1.74 (s, 24H, o-CH₃), 2.01 (s, 6H, p-CH₃), 2.06 (s, 12 H, o-CH₃), 5.58 (d, ³J_HH = 7.8 Hz, 2H, 6-C₆H₄), 6.51 (s, 4H, m-Mes), 6.55 (s, 8H, m-Mes), 6.53–7.00 (m, 12H, var. aryl-H). ¹³C NMR (62.9 MHz, [D₆]benzene): δ 19.9 (p-CH₃, Mph), 21.0 (p-CH₃, Dmp), 21.1 (o-CH₃, Mph), 21.3 (CH₃, toluene), 21.4 (o-CH₃, Dmp), 123.9 (6-C₆H₄), 124.7 (4-C₆H₄), 126.0 (5’-C₆H₃), 126.0 (p-CH, toluene), 127.6 (m-Mes, Mph), 128.2 (m-Mes, Dmp), 128.3 (3-C₆H₄), 128.7 (m-CH, toluene), 128.8 (5-C₆H₄), 129.4 (4’/6’-C₆H₃), 129.7 (o-CH, toluene), 130.1 (br), 133.1, 134.8, 135.6, 135.9, 137.5, 138.7 (aromatic C), 151.8, 153.6 (1-C₆H₄, 2’-C₆H₃). IR (Nujol, cm⁻¹) $\tilde{\nu }$ = 1734m, 1717m, 1700m, 1695m, 1684m, 1675w, 1670w, 1653m, 1635m, 1616m, 1609m, 1576m, 1570m, 1559m, 1539m, 1521w, 1506m, 1419sh, 1308s, 1272s, 1032m, 851s, 804m, 777m, 755s, 730s, 694w, 668m, 646m, 595m, 578m, 565m, 547w, 521m, 464m, 431m, 411m. Anal. Calcd. for C₇₈H₇₆N₆Mg···0.5 C₇H₈: C, 83.53; H, 7.22; N, 7.17. Found: C, 83.14; H, 7.43; N, 7.16.

3.3. X-Ray Crystallography

X-ray-quality crystals were obtained as described in the syntheses section. Crystals were removed from Schlenk tubes and immediately covered with a layer of viscous hydrocarbon oil (Paratone N, Exxon). A suitable crystal was selected, attached to a nylon loop, and instantly placed in a low temperature N₂-stream. All data were collected at 173 K with MoKα radiation using either a Siemens P4 (2b, 4c·(C₇H₈)_0.5) or a Bruker Smart Apex II (2a, 3a, 3b·(C₇H₁₆)_1.5, 4b·(C₇H₁₆)) diffractometer. Calculations were performed with the SHELXTL PC 5.03a and SHELXL-97 program system [43]. The structures were solved by direct methods and refined on F_o² by full-matrix least-squares refinement. Crystal and refinement data are given below. For the iodo complexes, absorption corrections were applied by using semiempirical ψ-scans or the multi-scan method. For 3b·(C₇H₁₆)_1.5, co-crystallized solvent molecules were located in accessible cavities of the structure. Since they were severely disordered, their contribution was eliminated from the reflection data, using the BYPASS method [44] as implemented in the SQUEEZE routine of the PLATON98 [45] package. Values in brackets refer to the refinement that includes the contributions from the solvent. Crystallographic data (excluding structure factors) for the structures reported in this paper have been deposited with the Cambridge Crystallographic Data Centre. CCDC-1541009 {2a}, -1541010 {2b}, -1541011 {3a}, -1541012 {3b·(C₇H₁₆)_1.5}, -1541013 {4b·(C₇H₁₆)} and -1541014 {4c·(C₇H₈)_0.5} contain the supplementary crystallo­graphic data for this paper. These data can be obtained free of charge via http://www.ccdc.cam.ac.uk/conts/retrieving.html (or from the CCDC, 12 Union Road, Cambridge CB2 1EZ, UK; Fax: +44-1223-3360-33; E-mail: deposit@ccdc.cam.ac.uk).

Crystallographic data for 2a: C₄₉H₆₂IMgN₃O, M = 860.2, yellow rod 0.65 × 0.35 × 0.35 mm³, monoclinic, space group P2₁/n, a = 8.9827(2), b = 23.6098(6), c = 22.1855(5) Å, β = 90.8180(10)°, V = 4704.62(19) ų, Z = 4, D_calc = 1.215 g cm⁻³, μ = 0.730 mm⁻¹, 67161 collected (3.6° ≤ 2Θ ≤ 58.6°) and 12780 unique reflections (R_int = 0.053), 521 parameters, 1 restraint, R₁ = 0.036 for 7680 reflections with I > 2σ(I), wR₂ = 0.094 (all data), Goodness of fit (GOF) = 0.934. The methyl carbon atoms of one disordered i-propyl group were refined with split positions and side occupation factors of 0.67 (C443) and 0.33 (C444), respectively. The corresponding C441–C443 and C441–C444 distances were refined with restraints.

Crystallographic data for 2b: C₄₈H₅₂IMgN₃O, M = 838.1, yellow prism 0.50 × 0.35 × 0.25 mm³, monoclinic, space group P2₁/c, a = 19.848(4), b = 9.373(2), c = 23.033(4) Å, β = 90.386(14)°, V = 4284.9(14) ų, Z = 4, D_calc = 1.299 g cm⁻³, μ = 0.800 mm⁻¹, 10104 collected (4.7° ≤ 2Θ ≤ 55.0°) and 9823 unique reflections (R_int = 0.046), 501 parameters, 0 restraints, R₁ = 0.036 for 6945 reflections with I > 2σ(I), wR₂ = 0.090 (all data), GOF = 0.886.

Crystallographic data for 3a: C₉₀H₁₀₄I₄Mg₃N₆, M = 1850.3, pale yellow prism 0.30 × 0.20 × 0.15 mm³, orthorhombic, space group Pbca, a = 20.4142(4), b = 22.2202(4), c = 39.3523(7) Å, V = 17,850.5(6) ų, Z = 8, D_calc = 1.377 g cm⁻³, μ = 1.462 mm⁻¹, 188607 collected (3.4° ≤ 2Θ ≤ 54.8°) and 21302 unique reflections (R_int = 0.254), 952 parameters, 0 restraints, R₁ = 0.041 for 6128 reflections with I > 2σ(I), wR₂ = 0.067 (all data), GOF = 0.653.

Crystallographic data for 3b·(C₇H₁₆)_1.5: C₈₈H₈₄I₄Mg₃N₆ [C_98.5H₁₀₈I₄Mg₃N₆], M = 1806.1 [1956.4], pale yellow prism 0.40 × 0.35 × 0.20 mm³, triclinic, space group P$\overline{1}$, a = 16.9933(5), b = 17.5771(5), c = 17.8005(5) Å, a = 93.427(2)°, β = 99.534(2)°, γ = 109.991(2)°, V = 4888.5(2) ų, Z = 2, D_calc = 1.227 [1.329] g cm⁻³, μ = 1.334 [1.339] mm⁻¹, 206993 collected (2.4° ≤ 2Θ ≤ 59.1°) and 27255 unique reflections (R_int = 0.064), 926 parameters, 0 restraints, R₁ = 0.067 for 21930 reflections with I > 2σ(I), wR₂ = 0.134 (all data), GOF = 1.921. The contribution of one and a half co-crystallized n-heptane molecules was eliminated from the reflection data (see above).

Crystallographic data for 4b·(C₇H₁₆): C₉₅H₁₀₀MgN₆, M = 1350.1, pale yellow prism 0.35 × 0.25 × 0.20 mm³, monoclinic, space group P2/n, a = 15.0589(12), b = 13.0937(10), c = 20.3232(16) Å, β = 99.013(3)°, V = 3957.8(5) ų, Z = 2, D_calc = 1.133 g cm⁻³, μ = 0.073 mm⁻¹, 67630 collected (3.1° ≤ 2Θ ≤ 55.0°) and 9087 unique reflections (R_int = 0.248), 464 parameters, 8 restraints, R₁ = 0.067 for 3669 reflections with I > 2σ(I), wR₂ = 0.188 (all data), GOF = 0.887. The co-crystallized n-heptane molecule is disordered over a center of inversion and was refined with a side occupation factor of 0.5 and isotropic displacement parameters. The 1,2-C–C and 1,3-C–C distances were restrained.

Crystallographic data for 4c·(C₇H₈)_0.5: C_81.5H₈₄MgN₆, M = 1171.9, yellow prism 0.50 × 0.40 × 0.30 mm³, monoclinic, space group P2₁/n, a = 13.302(2), b = 21.531(3), c = 24.332(4) Å, β = 101.877(12)°, V = 6819.8(17) ų, Z = 4, D_calc = 1.141 g cm⁻³, μ = 0.075 mm⁻¹, 12550 collected (4.1° ≤ 2 Θ ≤ 50.0°) and 11996 unique reflections (R_int = 0.074), 837 parameters, 3 restraints, R₁ = 0.044 for 5484 reflections with I > 2σ(I), wR₂ = 0.098 (all data), GOF = 0.727. The arene ring of the co-crystallized toluene molecule, which is disordered over a center of inversion, was constrained to a regular hexagon. Additional restraints were applied regarding distances and angles to the toluene methyl carbon atom.

3.4. Computational Details

The Gaussian 09 package [46] was used for all energy and frequency calculations. The energies of the model compounds 5_T and 5_SP were minimized using density functional theory (DFT) with the functional B3LYP [47,48], starting from the crystallographically-determined or from other derived geometries and assuming S₄ symmetry for 5_T. The sum of the electronic energy and the zero-point energy was used to calculate the energy difference between both model complexes.

4. Conclusions

In summary, we have used sterically crowded diaryltriazenido ligands for the stabilization of several heteroleptic and homoleptic magnesium triazenides. The obtained iodo magnesium-triazenides are kinetically stable against ligand redistribution reactions and represent potential precursors for magnesium(I) triazenides. The synthesized homoleptic compounds are the first examples of unsolvated magnesium triazenides. Remarkably, the magnesium cations in these compounds feature different coordination geometries. Depending on the nature of the substituents, either the expected tetrahedral or a rather unusual square planar coordination is observed.
