Modification of Cooperativity and Critical Temperatures on a Hofmann-Like Template Structure by Modular Substituent

Abstract

In a series of Hofmann-like spin crossover complexes, two new compounds, {Fe(3-F-4-Methyl-py)₂[Au(CN)₂]₂} (1) and {Fe(3-Methyl-py)₂[Au(CN)₂]₂} (2) (py = pyridine) are described. The series maintains a uniform 2-dimentional (2-D) layer structure of {Fe[Au(CN)₂]₂}. The layers are combined with another layer by strong aurophilic interactions, which results in a bilayer structure. Both coordination compounds 1 and 2 at 293 K crystallize in the centrosymmetric space groups P2₁/c. The asymmetric unit contains two pyridine derivative ligands, one type of Fe²⁺, and two types of crystallographically distinct [Au(CN)₂]⁻ units. Compound 1 undergoes a complete two-step spin transition. On the other hand, 2 maintains the characteristic of the high-spin state. The present compounds and other closely related bilayer compounds are compared and discussed in terms of the cooperativity and critical temperature. The bilayer structure is able to be further linked by substituent-substituent contact resulting in 3-dimentional (3-D) network cooperativity.

1. Introduction

An essential part for designing spin crossover (SCO) materials is to control and optimize the crystal structure [1]. Especially, construction of the strong cooperative intermolecular interactions in the whole of a structure leads to steep transition behavior with a wide hysteresis loop, which is important for the practical materials [2]. The cooperativity is now being investigated by a variety of coordination polymers. Coordination polymers are one of the interesting materials for constructing supramolecular networks. However, systematic designing of the networks is hard because of the structural diversity of coordination polymers.

Since we reported the first Hofmann like SCO coordination polymer {Fe(py)₂[Ni(CN)₄]}_n (py = pyridine) [3], many derived types of {Fe^II(L)_1~2[M^II(CN)₄]}_n [4,5,6,7,8,9] and {Fe^II(L)_1~2[M^I(CN)₂]₂}_n [10,11,12,13,14,15,16,17,18,19,20,21] (M^I = Cu, Ag, or Au, M^II = Ni, Pd, or Pt, L = pyridine derivatives) have been developed. These compounds show a template 2-dimentional (2-D) sheet structure because of their strongly determinate self-assembly process in which they link octahedral metal centers through the N atoms of the bidentate [Au(CN)₂]⁻ unit. Therefore, this structural system can be modified only at the axial ligands, L, for designing the cooperative networks. Here we report and discuss new Hofmann-like 2-D compounds of the general formula {Fe(X-py)₂[Au(CN)₂]₂} (X = 3-F-4-Methyl (1) or 3-Methyl (2) as shown in Scheme 1).

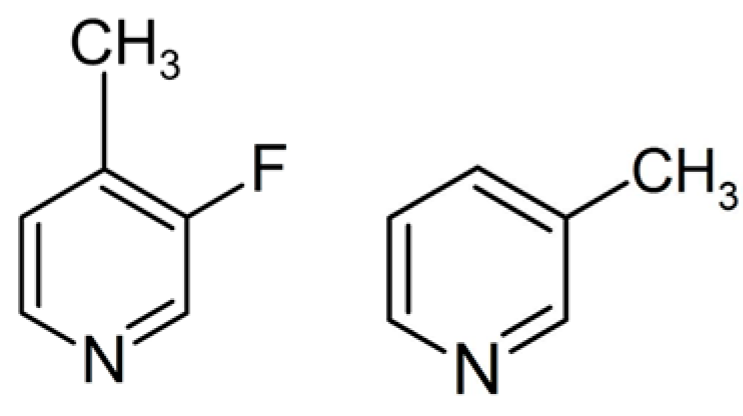

2. Results

2.1. X-ray Structural Analysis

2.1.1. Structure of Compound 1 (T = 293 K)

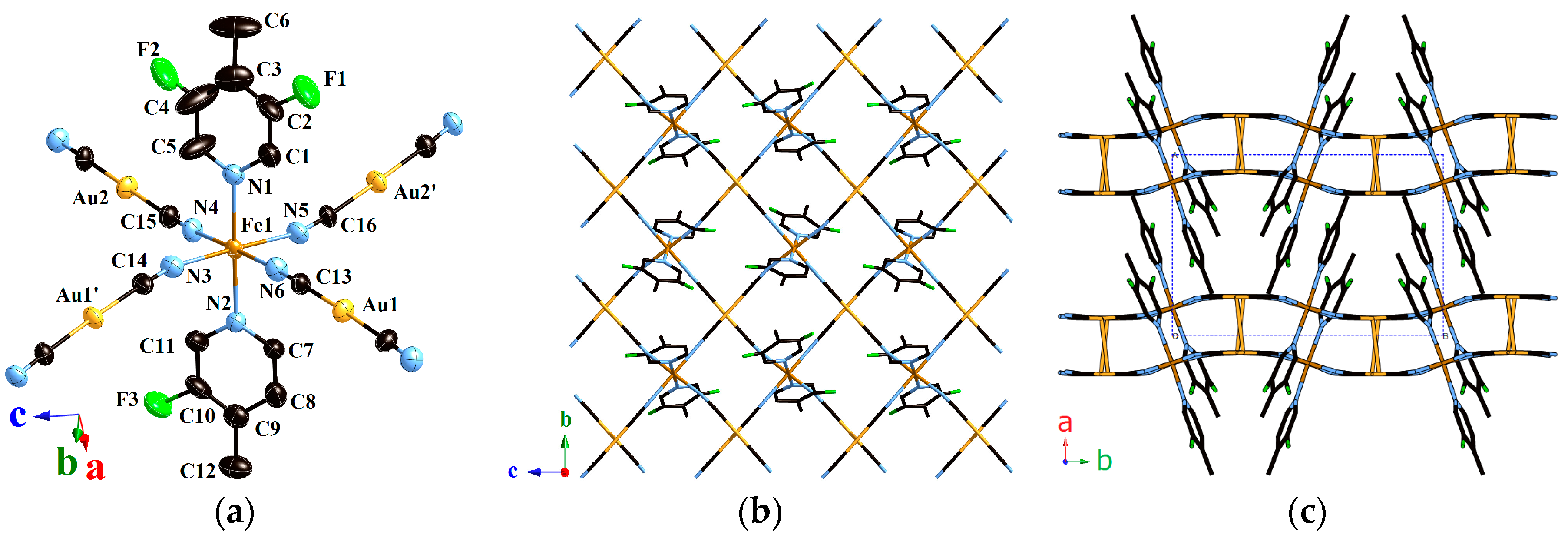

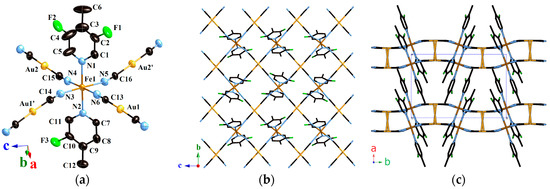

Compound 1 at 293 K crystallizes in the monoclinic centrosymmetric space group P2₁/c. The asymmetric unit of the complex consists of the hetero-metal Fe^IIAu^I unit (Figure 1a). The Fe^II ion is octahedrally coordinated by six N atoms. The Fe–N_py bond lengths (Fe(1)–N(1) = 2.219(6) Å, Fe(1)–N(2) = 2.220(6) Å) are longer than the Fe–N_CN bond lengths (Fe(1)–N(3) = 2.142(7) Å, Fe(1)–N(4) = 2.153(6) Å, Fe(1)–N(5) = 2.160(7) Å, Fe(1)–N(6) = 2.148(6) Å). The average lengths of Fe–N_py = 2.220 Å and Fe–N_CN = 2.151 Å (total average length of Fe–N = 2.185 Å are estimated). All Au^I atoms have linear coordination geometries with the CN substituents binding to the Fe^II ions. While the F(1) in the 3-F-4-Me-py ligand is disordered, the F(2) F(3) in the other 3-F-4-Me-py ligand are not disordered. Thus, the two 3-F-4-Me-py ligands in [Fe^II(3-F-4-Me-py)₂][Au^I(CN)₂] are not equivalent and coexist in transoid and cisoid conformations for Fe(1). The bidentate [Au^I(CN)₂] linear units give rise to an infinite corrugated 2-D mesh-layer formed by the assembly of –Au–N–C–Fe–C–N–Au– infinite chains (Figure 1b). In addition, the layers interact by pairs to define bilayers which stem from strong aurophilic interactions (Figure 1c). The average Au···Au distance in the bilayers is 3.142 Å, less than the sum of the van der Waals radii of Au (3.60 Å). The nearest aromatic rings form almost face-to-face superposition (dihedral angles = 8.55°). It constructs weak π-stacking interactions. The closet C_py···C_py distances between py rings [C(2)···C(8) = 3.548(13) Å] are smaller than the sum of the van der Waals radius (ca. 3.70 Å).

2.1.2. Structure of Compound 1 (T = 180 K)

The crystal structure of this state is similar to that for 293 and 90 K. However, as compared to the fully high spin (HS) state, the single crystals lose their qualities due to the narrow temperature region of the half transition phase. As a result, the crystal data at 180 K is not good enough (R = 0.1058 [I > 2sigma (I)]) for determining the correct structure (see Table S1). So, here we discuss in detail the structure at 293 K (fully high spin (HS) state) and 90 K (fully low spin (LS) state).

2.1.3. Structure of Compound 1 (T = 90 K)

The crystal structure of 1 at 90 K is almost identical to that observed at 293 K. The Fe–N_py bond lengths (Fe(1)–N(1) = 2.013(4) Å, Fe(1)–N(2) = 2.002(4) Å) are longer than the Fe–N_CN bond lengths [Fe(1)–N(3) = 1.942(4) Å, Fe(1)–N(4) = 1.944(4) Å, Fe(1)–N(5) = 1.934(4) Å, Fe(1)–N(6) = 1.936(4) Å]. Total average length is estimated as Fe–N = 1.962 Å. The change of the average length upon spin transition is 0.223 Å, which is almost identical with the expected values for the Fe^II 100% LS state. The rings form more parallel superposition than that of the HS state (dihedral angles = 2.57°).

2.1.4. Structure of Compound 2 (T = 293 K)

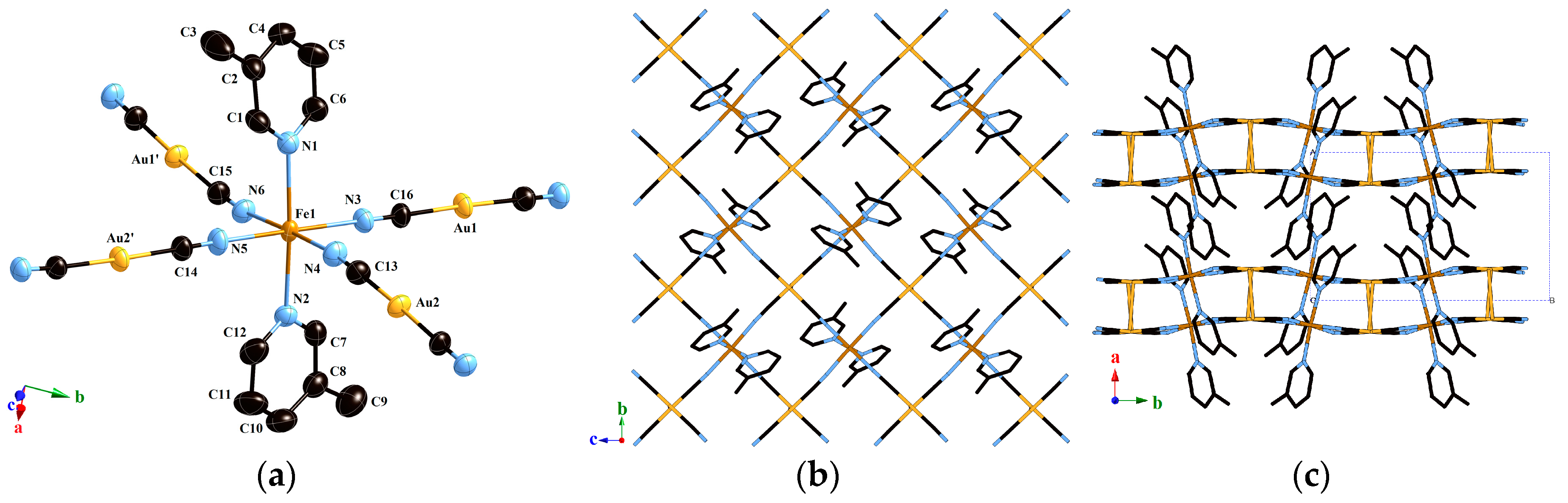

The crystal structure of 2 at 293 K is almost similar to that of 1 at 293 K which also crystallizes in the monoclinic centrosymmetric space group P2₁/c. The 2-D bilayer structure is also almost same shape (Au···Au distance is 3.174 Å) (Figure 2). However, local differences are observed. The rings array is slightly more unparallel than that of 1 (dihedral angles = 11.97°). However, weak π-stacking interactions are also observed (C(1)···C(10) = 3.542(10) Å). There is a trans orientation of 3-Me substituents with respect to the N(1)–Fe–N(2) axis. The Fe–N_py bond lengths (Fe(1)–N(1) = 2.247(4) Å, Fe(1)–N(2) = 2.244(4) Å) are longer than the Fe–N_CN bond lengths [Fe(1)–N(3) = 2.164(4) Å, Fe(1)–N(4) = 2.162(4) Å, Fe(1)–N(5) = 2.159(4) Å, Fe(1)–N(6) = 2.158(4) Å]. The average lengths of Fe–N_py = 2.246 Å and Fe–N_CN = 2.162 Å (total average length of Fe–N = 2.204 Å are also estimated).

2.2. Magnetic Properties

2.2.1. Thermal Dependence Magnetic Behavior of Compound 1

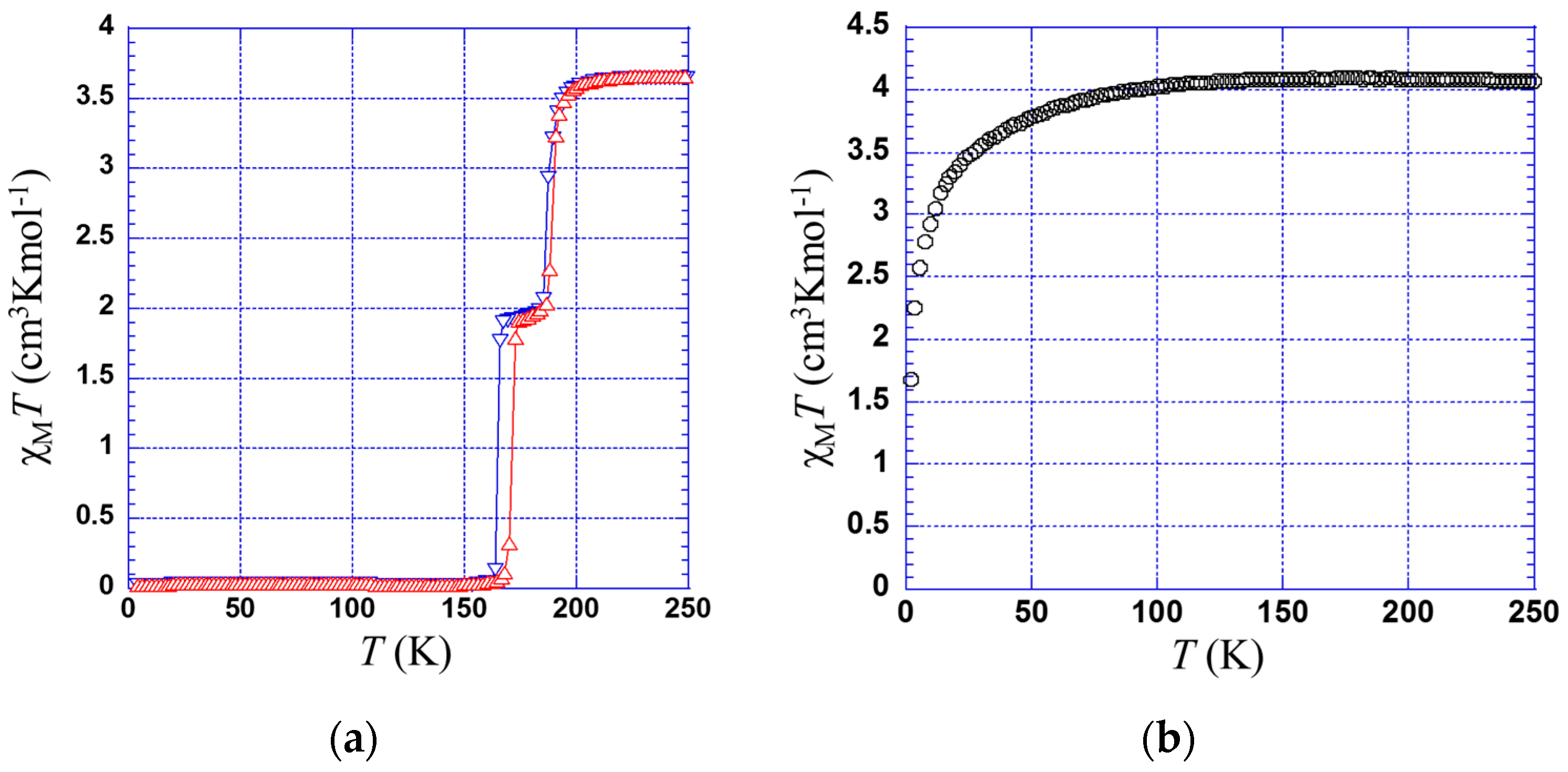

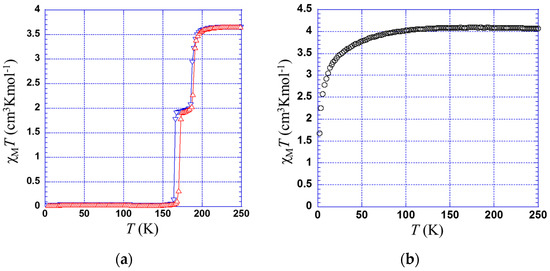

Figure 3a shows the thermal dependence of χ_MT for 1 with χ_M being the molar magnetic susceptibility and T the temperature. At room temperature, χ_MT is 3.65 cm³·K·mol⁻¹. This value is slightly higher than usual for paramagnetic Fe^II compounds, possibly due to oxidation of the complex. Upon cooling, χ_MT remains almost constant down to 195 K; below this temperature, χ_MT undergoes a sharp decrease. The complex displays two-step spin transition with a characteristic plateau centered at around 50% conversion, and the warming mode reveals the occurrence of a hysteresis loop (second step). The SCO for this complex causes a reversible change of color from blue (HS) to purple (LS). The critical temperature (T_c) in the first step (T_c¹) is 188.5 K and the cooling (T_c^{2 down}) and warming (T_c^{2 up}) modes in the second step are 164.5 and 171.5 K, respectively, giving an approximately 7.0 K width hysteresis loop.

2.2.2. Thermal Dependence Magnetic Behavior of Compound 2

χ_MT versus T plots for 2 are shown in Figure 3b. At room temperature, the magnetic behavior of the complex 2 is characteristic of Fe(II) compounds in the HS state, χ_MT = 4.05 cm³·K·mol⁻¹. The value is slightly higher than that of a pure spin only system, whereas the value is similar to the values of other Hofmann-like SCO Fe^II compounds. The χ_MT value is nearly constant in the range of 80–300 K. However, it decreases steeply as the temperature is lowered to less than 30 K. The decrease in the value of χ_MT at lower temperatures is due to a typical behavior of zero-field splitting (ZFS) effects of the metallic Fe^II centers in the residual HS (S = 2) species [22].

3. Discussion

The bilayer structures of 1 and 2 are almost identical with the former reported compounds of {Fe^II(L)₂[Au^I(CN)₂]₂} (L = pyridine derivatives). In the previous papers, the synthesis and characterization of the closely related bilayer structures of {Fe(X-py)₂[Au(CN)₂]₂} (X = 3-F (3) [12,13,15], 4-Methyl (4) [17], 3-Br (5) [12], and 3-Br-4-Methyl (6) [16]) have been reported. These analogous compounds are also discussed in this paper.

Cell volumes, SCO behavior type, and T_c for 1–6 are summarized in

Table 1. Spin crossover (SCO) behavior types, cell volumes, and critical temperatures of {Fe^II(X-py)₂[Au^I(CN)₂]₂} at 293 K or room temperature.

Substituents	Cell Volume (Å3)	SCO Behavior Type	Critical Temperature Tc (K)	Ref.
3-Methyl (2)	1976.30 Å3	None	None	−
4-Methyl (HS) (4)	2112.5 Å3	Steep (3-step)	210 K (first step)	[17]
3-Fuluoro (HS) (3)	1915.7 Å3	Steep (2-step)	147.9 K (first step)	[12,13,15]
3-Fuluoro-4-Methyl (HS) (1)	2155.2 Å3	Steep (2-step)	188.5 K (first step)	−
3-Bromo (5)	1990.9 Å3	None	None	[12]
3-Bromo-4-Methyl (HS) (6)	2204.5 Å3	Steep (1-step, 50% transition)	109.1 K	[16]

. It is noted that the cell volume clearly shows an expansion with the increase of the substituent bulk. The compounds from smallest to largest are as follows: 3-F-py (1915.7 ų) < 3-Methyl-py (1976.3 ų) < 3-Br-py (1990.9 ų) < 4-Methyl-py (2112.5 ų) < 3-F-4-Methyl-py (2155.2 ų) < 3-Br-4-Methyl-py (2209.7 ų). In spite of the lattice expansion, these compounds completely maintain a bilayer structure.

In terms of the magnetic properties of 1 and 2, 1 displays a steep two-step spin conversion with a hysteresis loop (second step), while 2 is fully HS in the whole range of temperatures. This result suggests that the T_c of 2 might be so low that no spin transition is observed in an ambient pressure. There is also no spin conversion observed for X = 3-Br. In this series, T_c increases in the following way: 3-Me-py, 3-Br-py (no transition) << 3-Br-4-Me-py (109.1 K) < 3-F-py (first step 147.9 K) < 3-F-4-Me-py (first step 188.5 K) < 4-Me-py (first step 210 K). The order of T_c must result from the difference in the ligand field strength Δ_o. It seems that the 4-Me substituent is the most effective for decreasing Δ_o (see Scheme S1). This trend of T_c is in the same order for [Fe(L)₂Ag(CN)₂] (L = 3-F-py, 3-Br-py, 3-Me-py, and 4-Me-py) and is as follows: 3-Me-py [18], 3-Br-py (no transition) [11] << 3-F-py (first step 146.3 K) [11] < 4-Mepy (first step 189 K) [18]. These orders of T_c are opposite to the expected electronic effect according to the Hammet constants [23].

In a previous related study, Real and co-workers discussed the effect of substituted pyridines for the analogous series of [Fe(X-py)₂Ag(CN)₂] (X = halogen atoms) [11]. The research says that T_c may be dominantly influenced by crystal packing factor and polymeric structure. We interpret the former research as meaning that the Fe–N bond length is strongly influenced by the interlayer spaces. The steric effect from substituent bulk makes the space tight. In fact, 4-position is vertical to the layer. Thus, a 4-Methyl substituent gives rise to higher chemical pressure in the Fe–N bond. Consequently, the trend of T_c can be explained by the substituent bulk. Electronic effects righteously coexist and compete with steric effects.

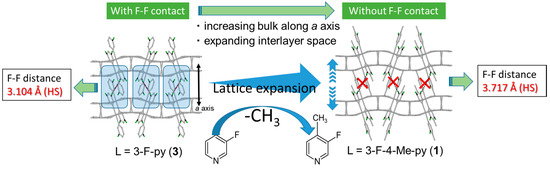

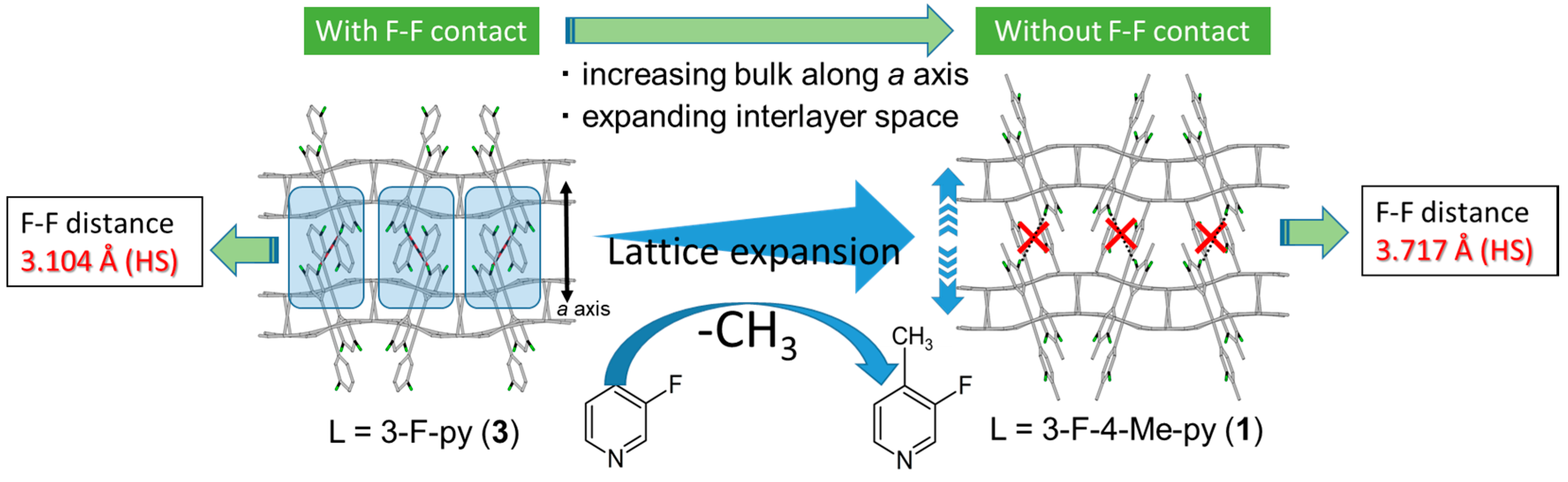

Both 1 and 3 have significantly similar transition behavior. However, each behavior has a different hysteresis width. In compound 3, intermolecular distance between F···F is significantly shorter as compared to that of 1 (Scheme 2). The crystal structure of 3 shows the lowest cell volume which makes the interlayer spaces narrow. It results in shorter F···F contact (closest distance of F···F (HS) = 3.104 Å) between bilayers. Specifically, the half spin transition state (HS–LS) has extremely short F···F contact (2.955 Å). Therefore, this complex must have higher cooperative networks which stabilize the HS–LS state. On the other hand, the F···F contact of 1 is much longer than that of 3 (closest distance of F···F (HS) = 3.717 Å). This longer distance of 1 is due to the 4-Me substituent which serves as bulk for the expansion along the a axis between the layers. Thus it generates weakened cooperativity. In fact, the thermal trapping of the HS–LS state for 3 is observed (see Figure S1), while this process cannot be seen for 1 at the same cooling/warming rate. This result is also strongly supported by the difference in the cooperativity of 1 and 3. SCO behavior types, hysteresis width, closest approach F···F distance, and presence or absence of thermal trapping for 1 and 3 are summarized in

Table 2. Comparative hysteresis width, closest approach F···F distances, and presence or absence of thermal trapping for compounds 1 and 3. SI = supplemental information.

Fe(X-py)2[Au(CN)2]2	Hysteresis Width (K)	Closest Approach F···F Distances [Å]	Thermal Trapping After Cooling at 2 K/min
X = 3-F (3)	ca. 40 K	F(1)···F(1): 3.104 Å (HS) F(1)···F(1): 2.955 Å (HS–LS) F(3)···F(3): 3.264 Å (LS)	Observed (see SI)
X = 3-F-4-Me (1)	ca. 7 K	F(3)···F(3): 3.717 Å (HS) F(2)···F(3): 3.305 Å (LS)	None

.

4. Materials and Methods

4.1. Materials

All the chemicals were purchased from commercial sources and used without any further purification.

4.2. Preparation of Compounds 1 and 2

To 10 mL of water, FeSO₄·(NH₄)₂SO₄·6H₂O (0.10 mmol, 39.2 mg) and K[Au(CN)₂] (0.1 mmol, 28.8 mg) were dissolved. The vapor diffusion method using 3-F-4-Me-py or 3-Me-py as a source of ligand molecules provided colorless single crystals suitable for X-ray diffraction of 1–2 over a period of two days. Elem. Anal. Calcd. for C₁₆H₁₂N₆F₂Au₂Fe (1): C, 25.76; H, 1.56; N, 10.83. Found: C, 25.98; H, 1.58; N, 10.90. Calcd. for C₁₆H₁₄N₆Au₂Fe (2): C, 25.97; H, 1.91; N, 11.36. Found: C, 25.78; H, 1.92; N, 11.35.

4.3. Magnetic Measurements

Measurements of the temperature dependence of the magnetic susceptibility of the complexes 1 and 2 of the powdered samples in the temperature range of 2–300 K with a cooling and heating rate of 2 K·min⁻¹ in a 1 kOe field were measured on a MPMS-XL Quantum Design SQUID magnetometer in the Cryogenic Research Center, the University of Tokyo. The diamagnetism of the samples and sample holders were taken into account.

4.4. X-ray Crystallography

Data collection was performed on a BRUKER APEX SMART CCD area-detector diffractometer at 293, 180 K, and 90 K for 1 and 2 with monochromated Mo–Kα radiation (λ = 0.71073 Å) (Bruker, Billerica, MA, USA). A selected single crystal was carefully mounted on a thin glass capillaly and immediately placed under a liquid N₂ cooled N₂ stream in each case. Crystal structures of the complexes 1 and 2 were determined using a BRUKER APEX SMART CCD area-detector diffractometer with monochrometed Mo Kα radiation (λ = 0.71073 Å). The diffraction data were treated using SMART and SAINT, and absorption correction was performed using SADABS [24]. The structures were solved by using direct methods with SHELXTL [25]. All non-hydrogen atoms were refined anisotropically, and the hydrogen atoms were generated geometrically. Pertinent crystallographic parameters and selected metric parameters for 1 and 2 are displayed in Tables S1 and S2. Crystallographic data have been deposited with Cambridge Crystallographic Data Centre: Deposition numbers CCDC-1559723 for compound 1 (293 K), CCDC-1559724 for 1 (90 K), and CCDC-1559832 for 2 (293 K). These data can be obtained free of charge via http://www.ccdc.cam.ac.uk/conts/retrieving.html.

5. Conclusions

In this paper, the 2-D bilayer structures of Hofmann-like coordination polymers {Fe^II(X-py)₂[Au^I(CN)₂]₂} were synthesized. It is noted that the substituents of pyridine derivatives have two steric effects in the whole of the crystal structure. One is the blocking interlayer spaces resulting in modification of the cooperativity. The other is the chemical pressure to the Fe^II centers resulting in modification of the critical temperature. The two effects are opposite forces to each other, like action-reaction forces with a wall.

In general, the 3-D coordination bonding types, such as [Fe^II(pyrazine)[M^II(CN)₄]} (M = Ni, Pd, and Pt) display stable discontinuous spin transitions with strong cooperativity. On the other hand, most of the 2-D coordination types had weaker cooperativity than that of the 3-D type.

However, the present 2-D system shows a strong cooperativity that is as strong as the 3-D type due to the substituent-substituent interaction.

The 2-D coordination structure can be used in designs due to the unique properties, such as gate-opening behavior [26]. Therefore, the 2-D structure would create novel and unique SCO material with strong cooperativity for practical applications.
