The 3D Printing of Nanocomposites for Wearable Biosensors: Recent Advances, Challenges, and Prospects
Abstract

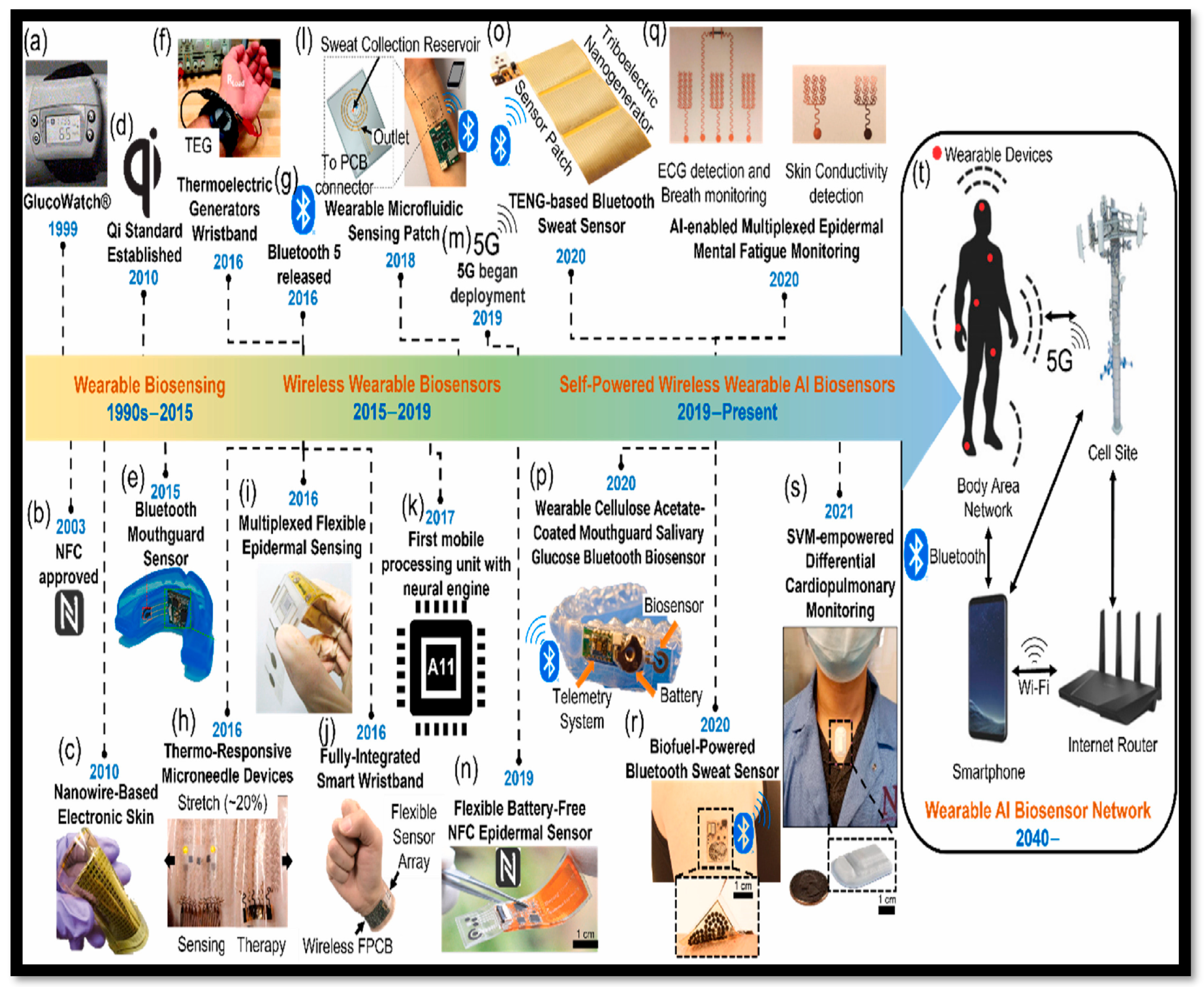

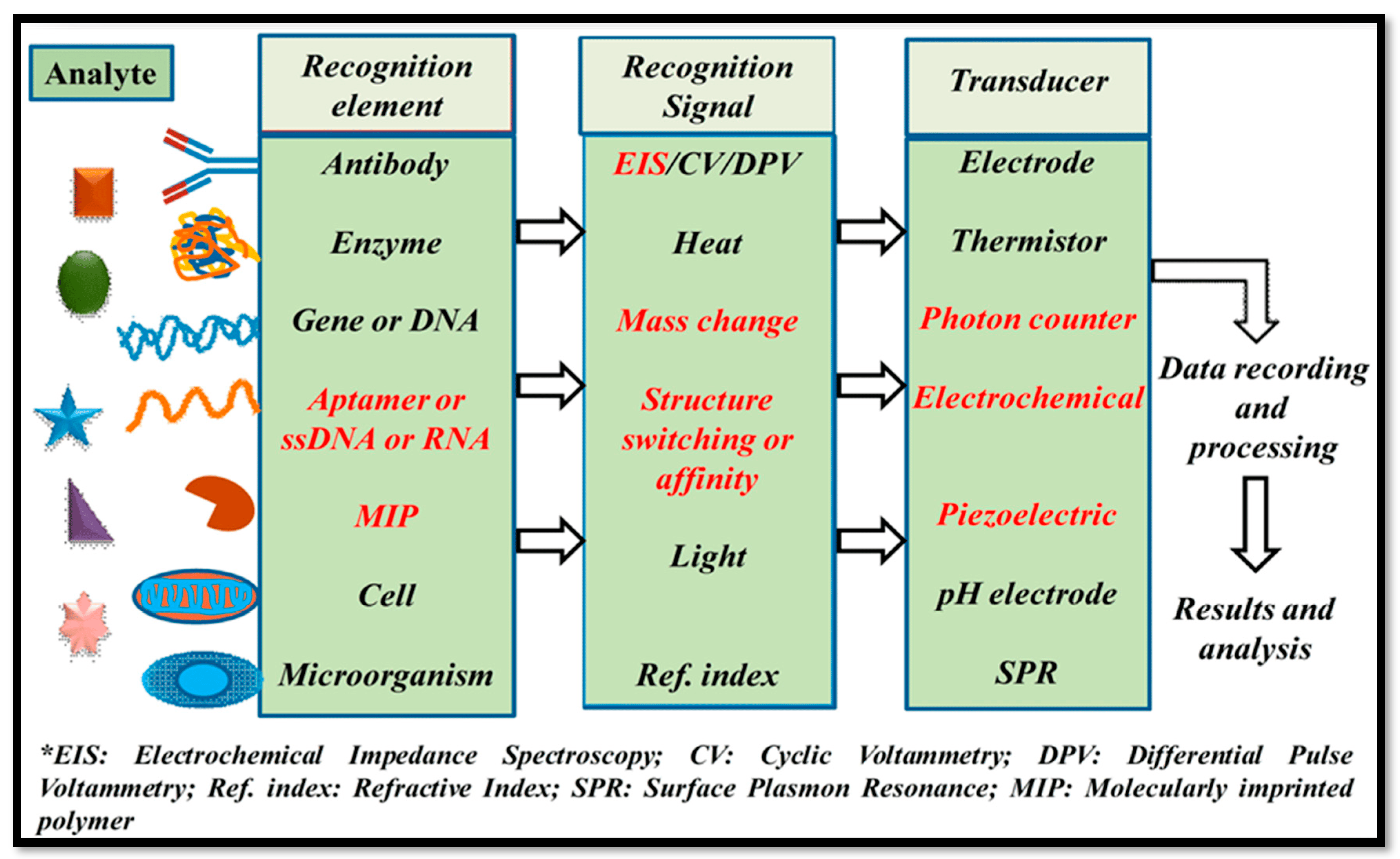

:1. Introduction
2. Nanocomposites
2.1. Polymer Matrix Nanocomposites (PMNCs)
2.2. Ceramic Matrix Nanocomposites (MMNCs)
2.3. Metal Matrix Nanocomposites (MMNCs)
3. Additive Manufacturing (3D Printing) Processes
4. Recent Progress in Additive Manufacturing (3D Printing) of Wearable Biosensors

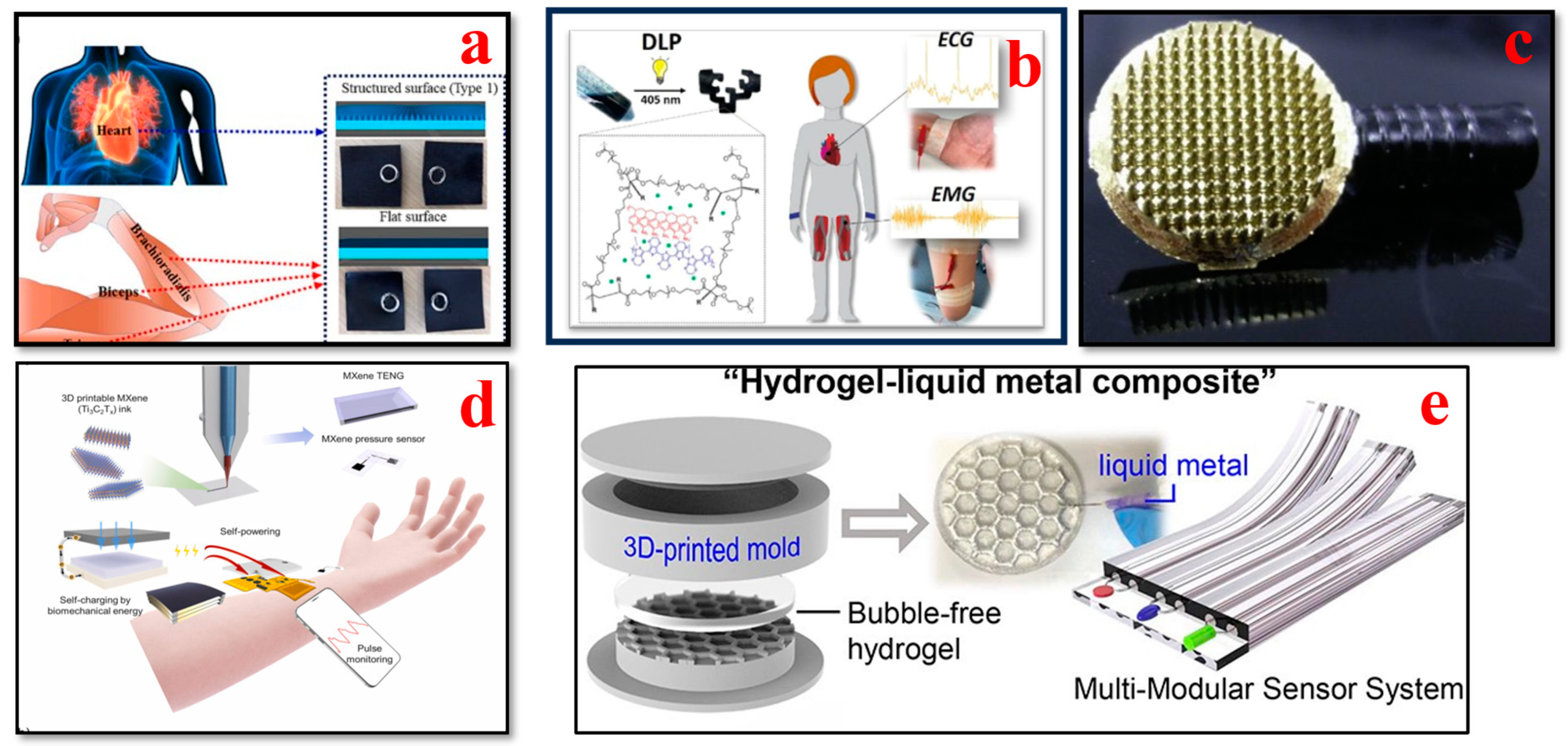

4.1. Electrocardiogram (ECG) Biosensors
4.2. Electroencephalogram (EEG) Biosensors

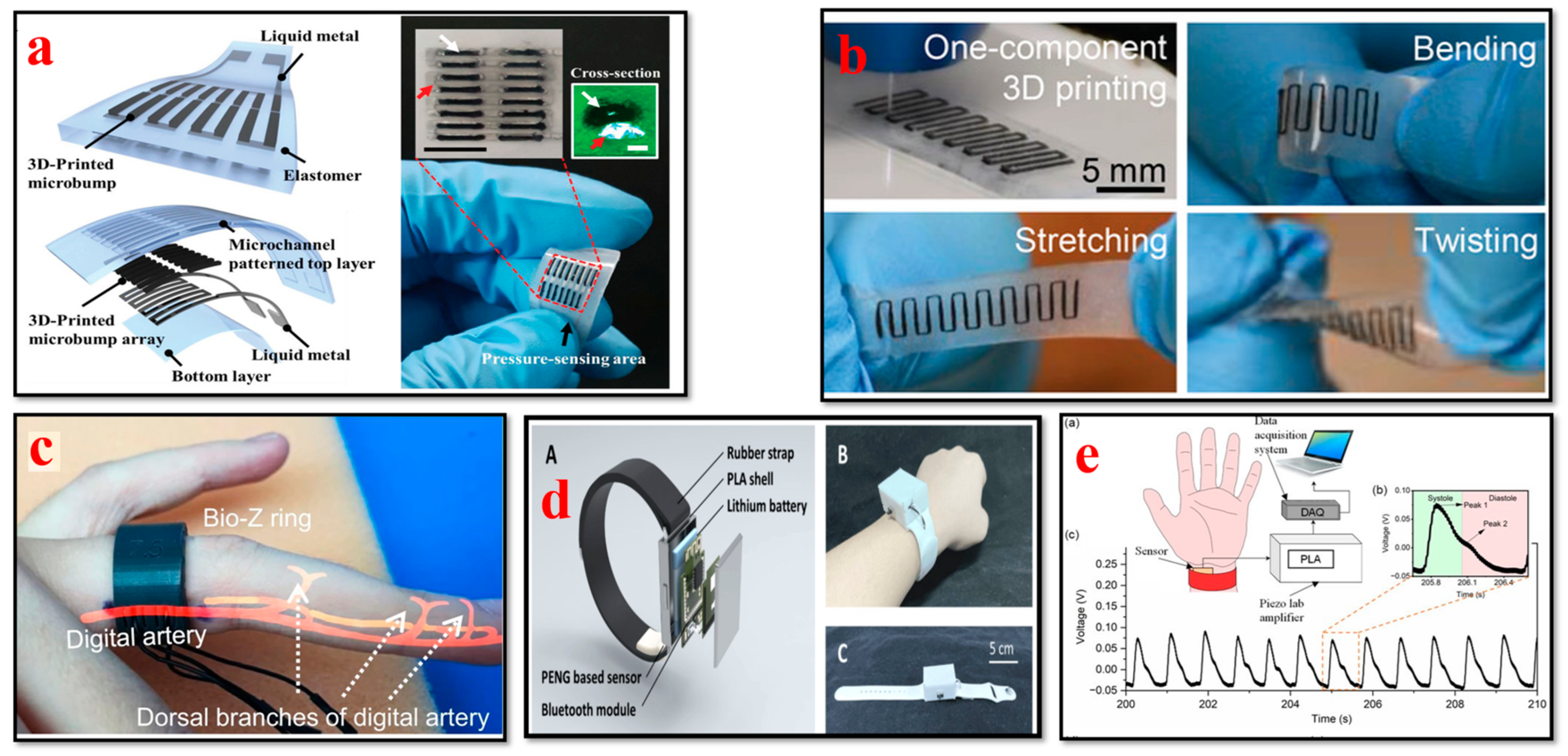

4.3. Blood Pressure Biosensors

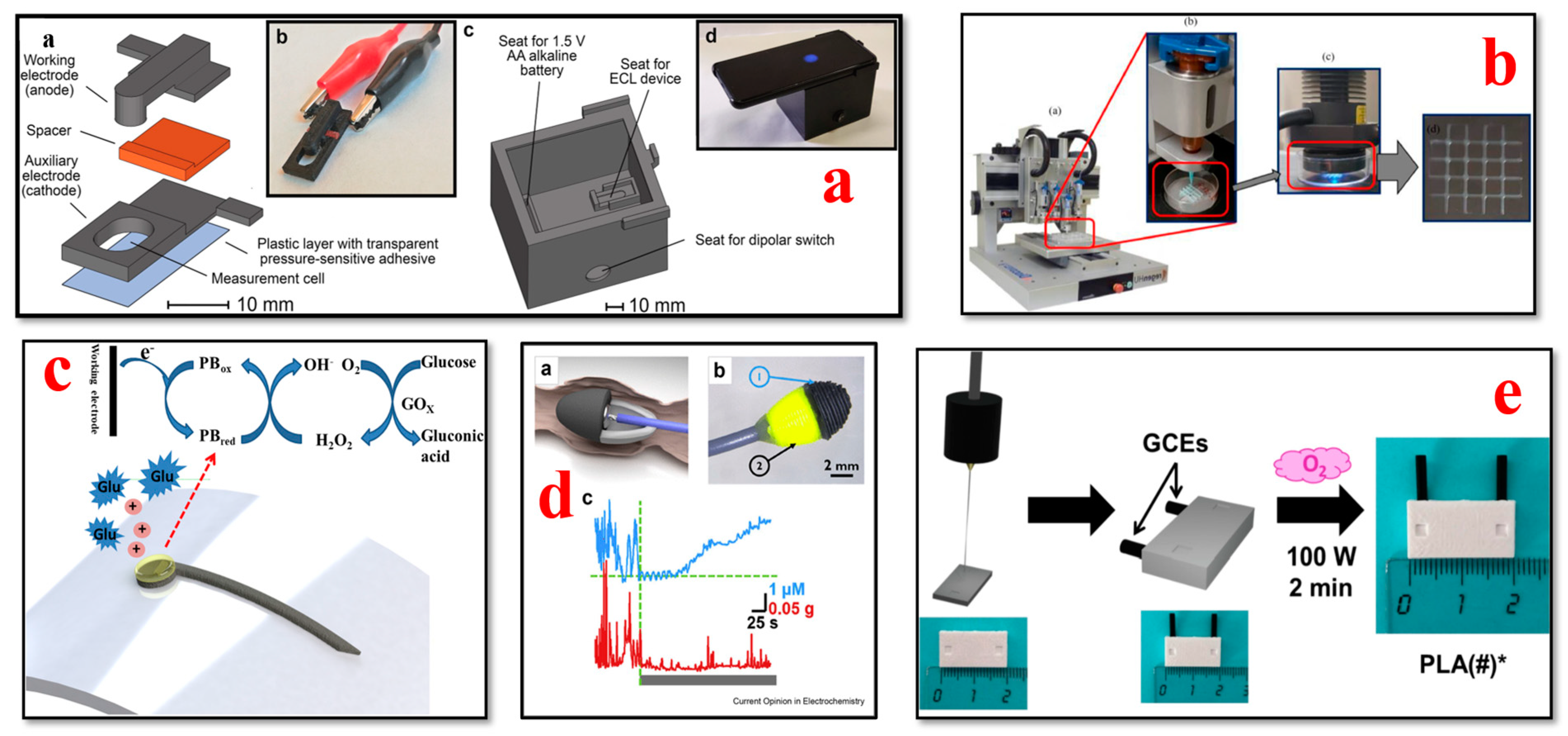

4.4. Glucose Biosensors

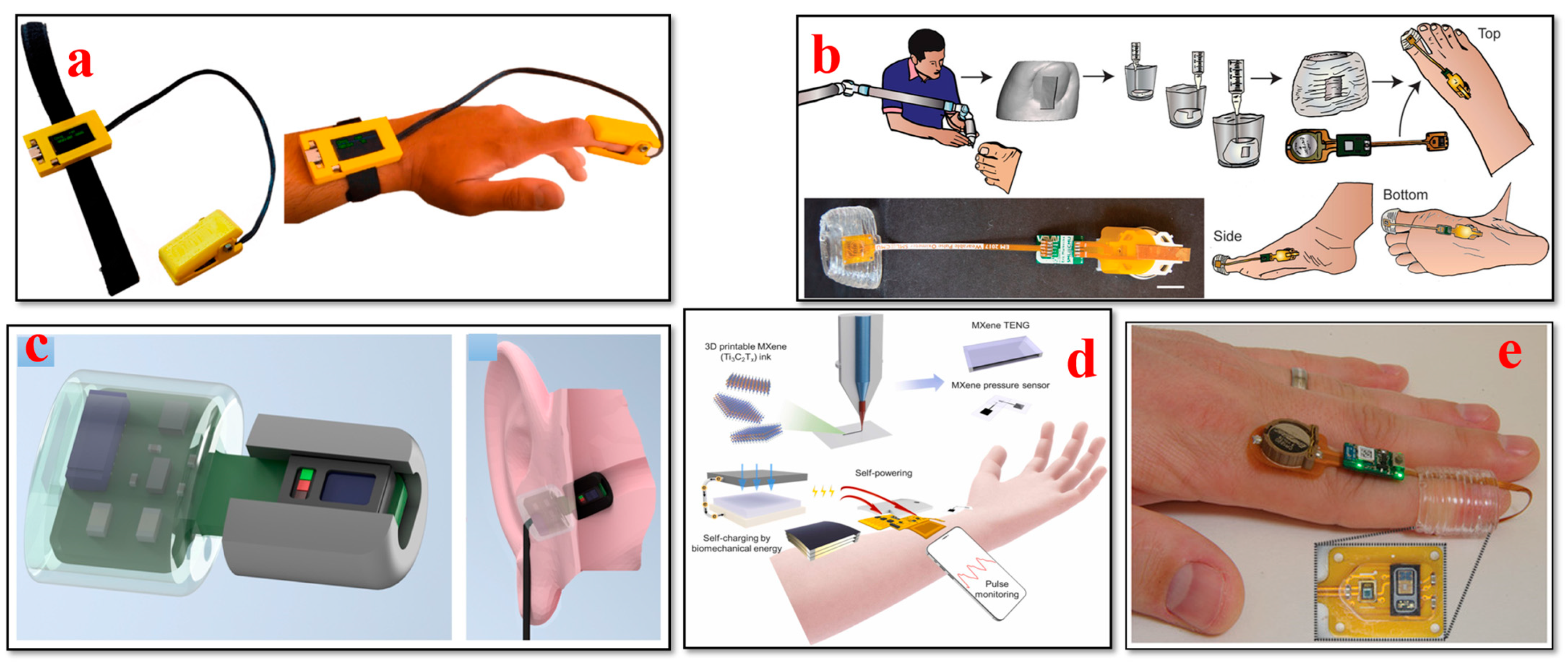

4.5. Oxygen Saturation (SpO2) Biosensors

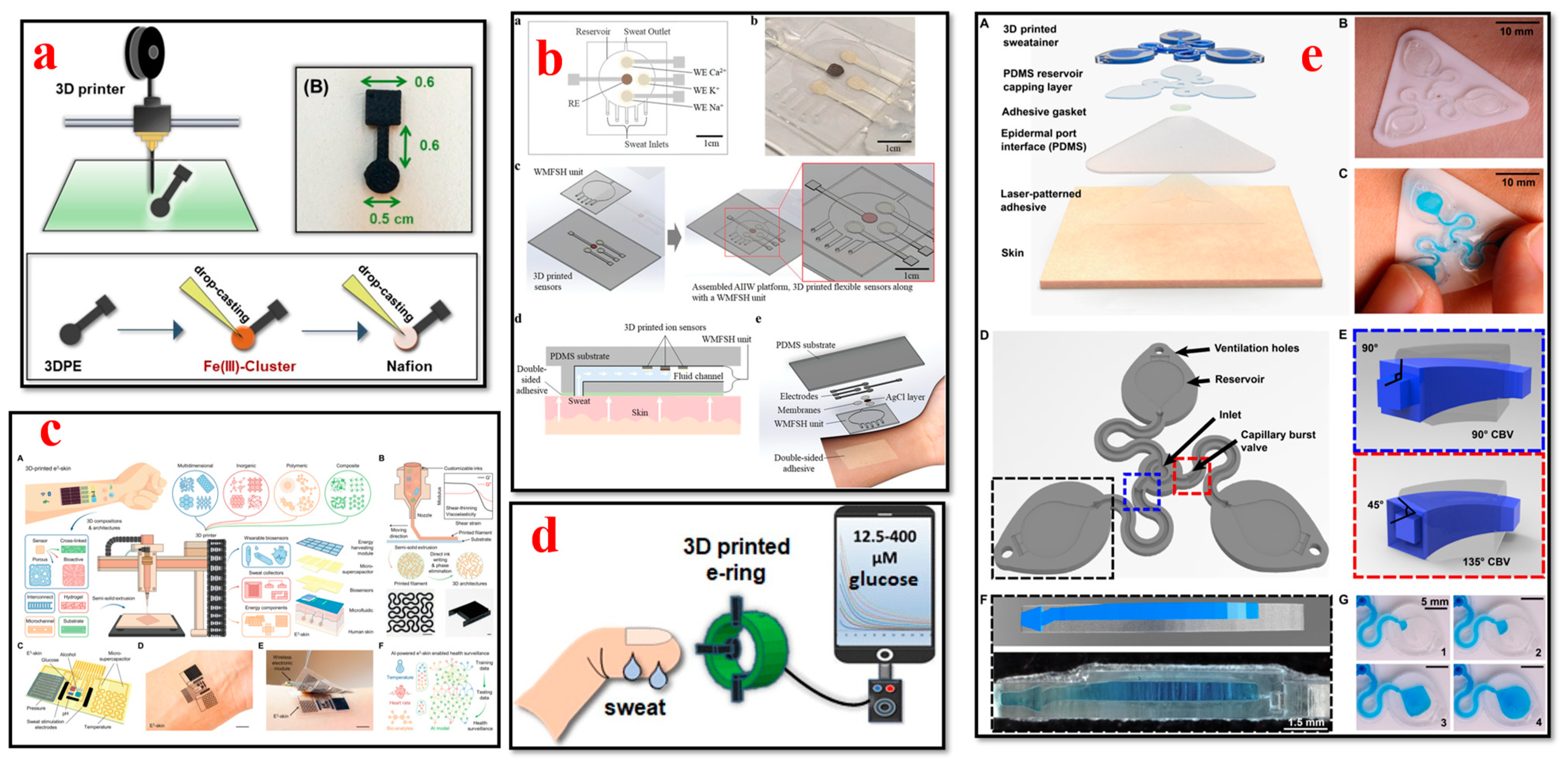

4.6. Sweat Biosensors

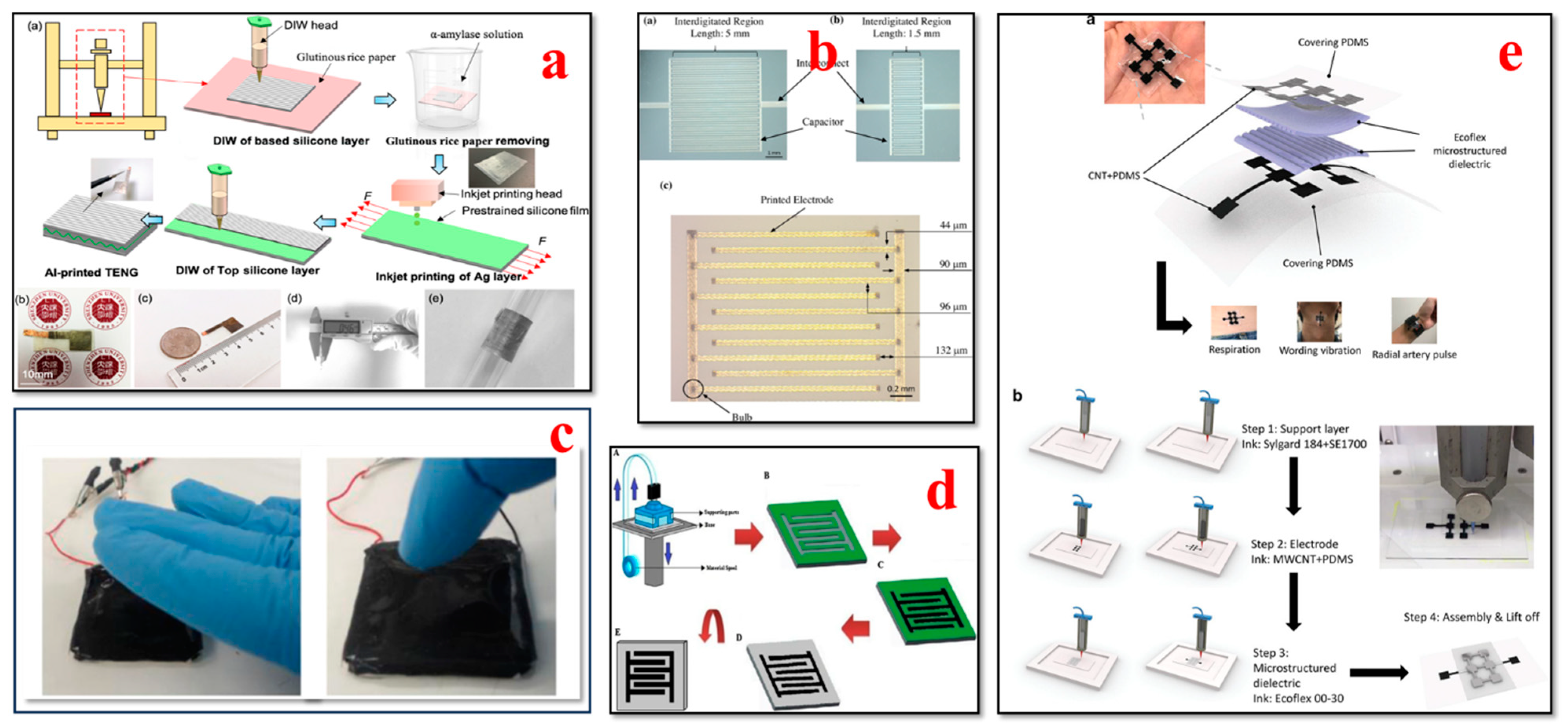

4.7. Tactile Biosensors

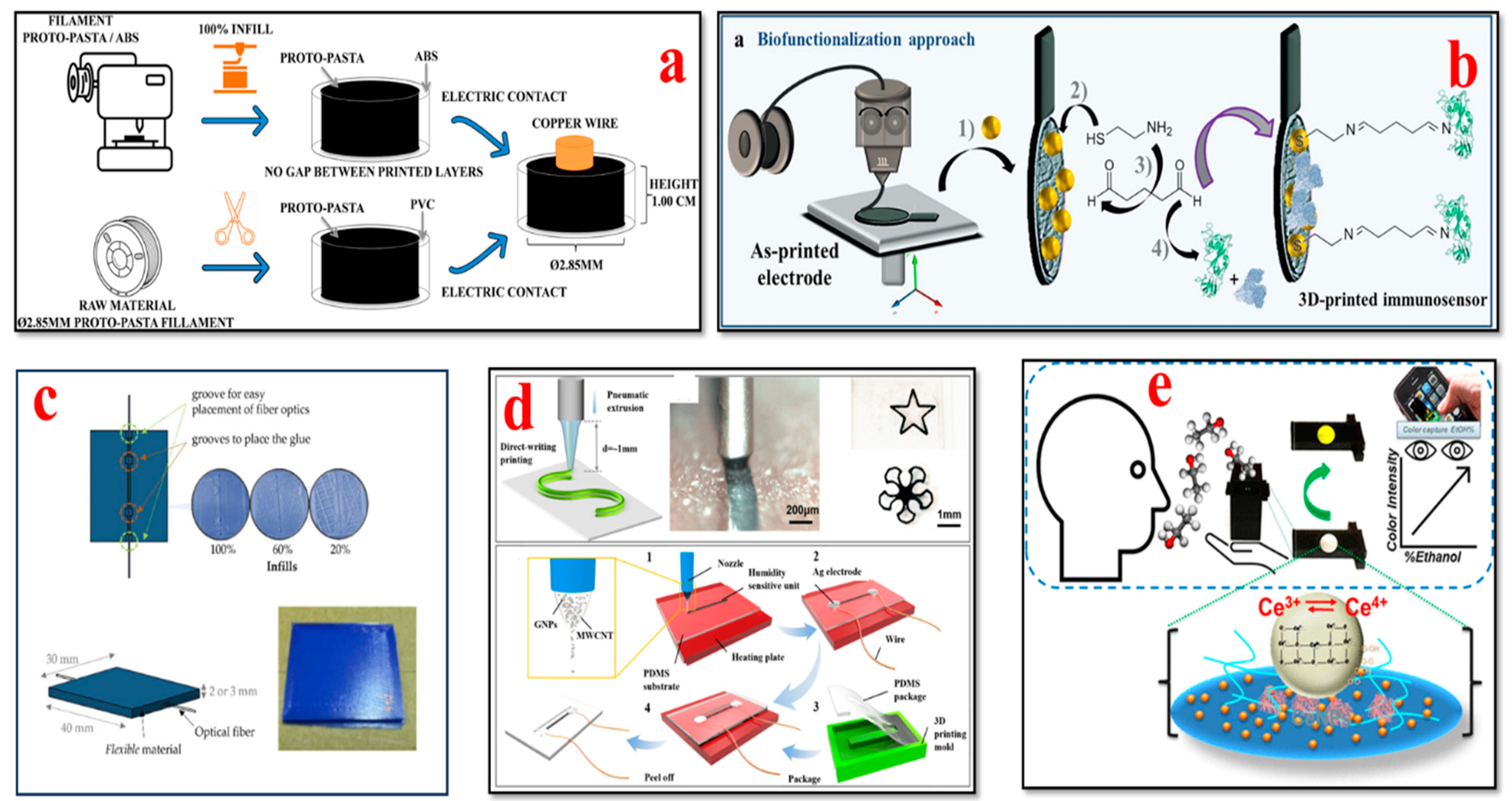

4.8. Respiratory Biosensors
4.9. A Comparison of 3D-Printed Wearable Biosensors with Traditional Wearable Biosensors

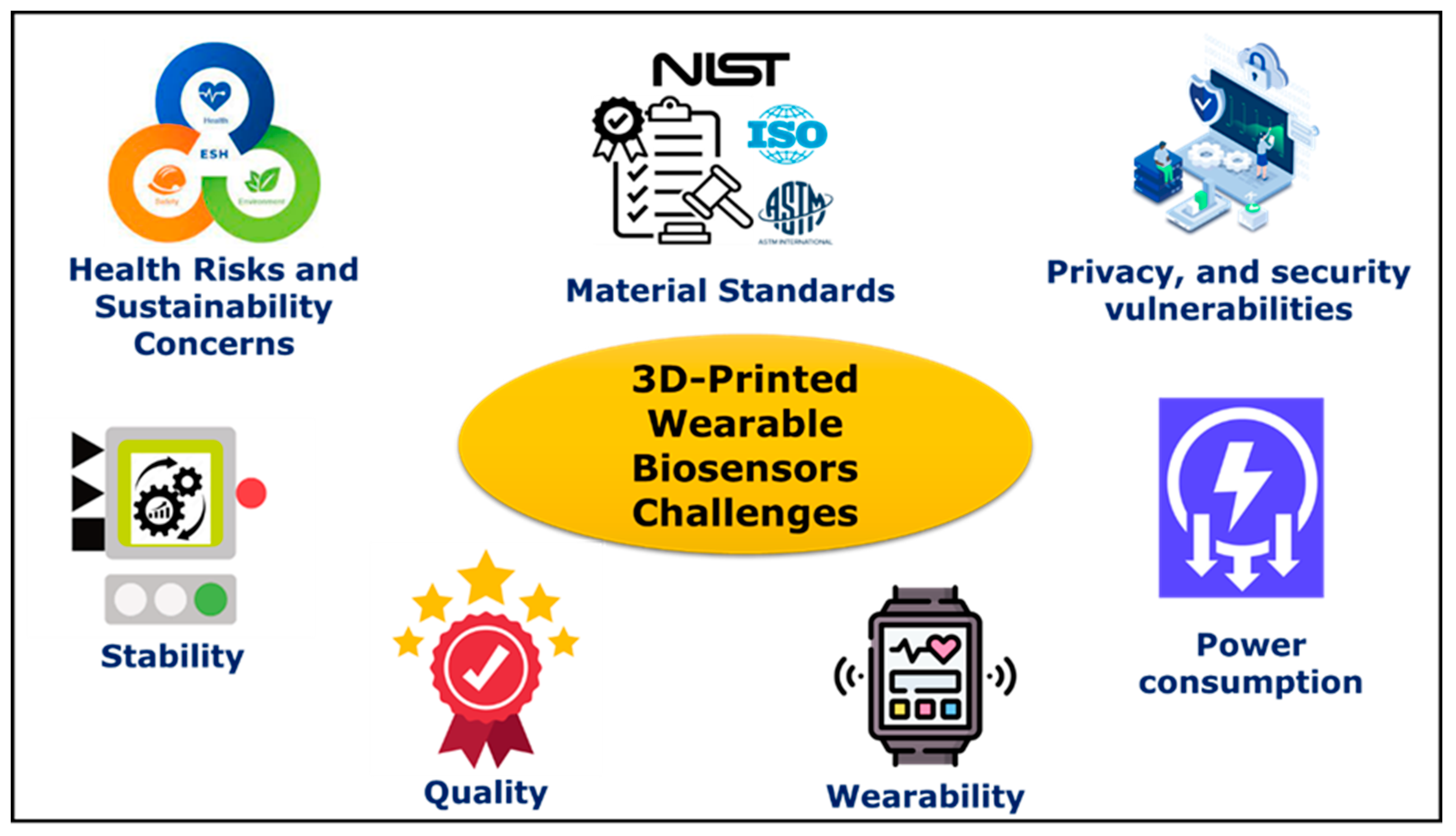

5. Challenges

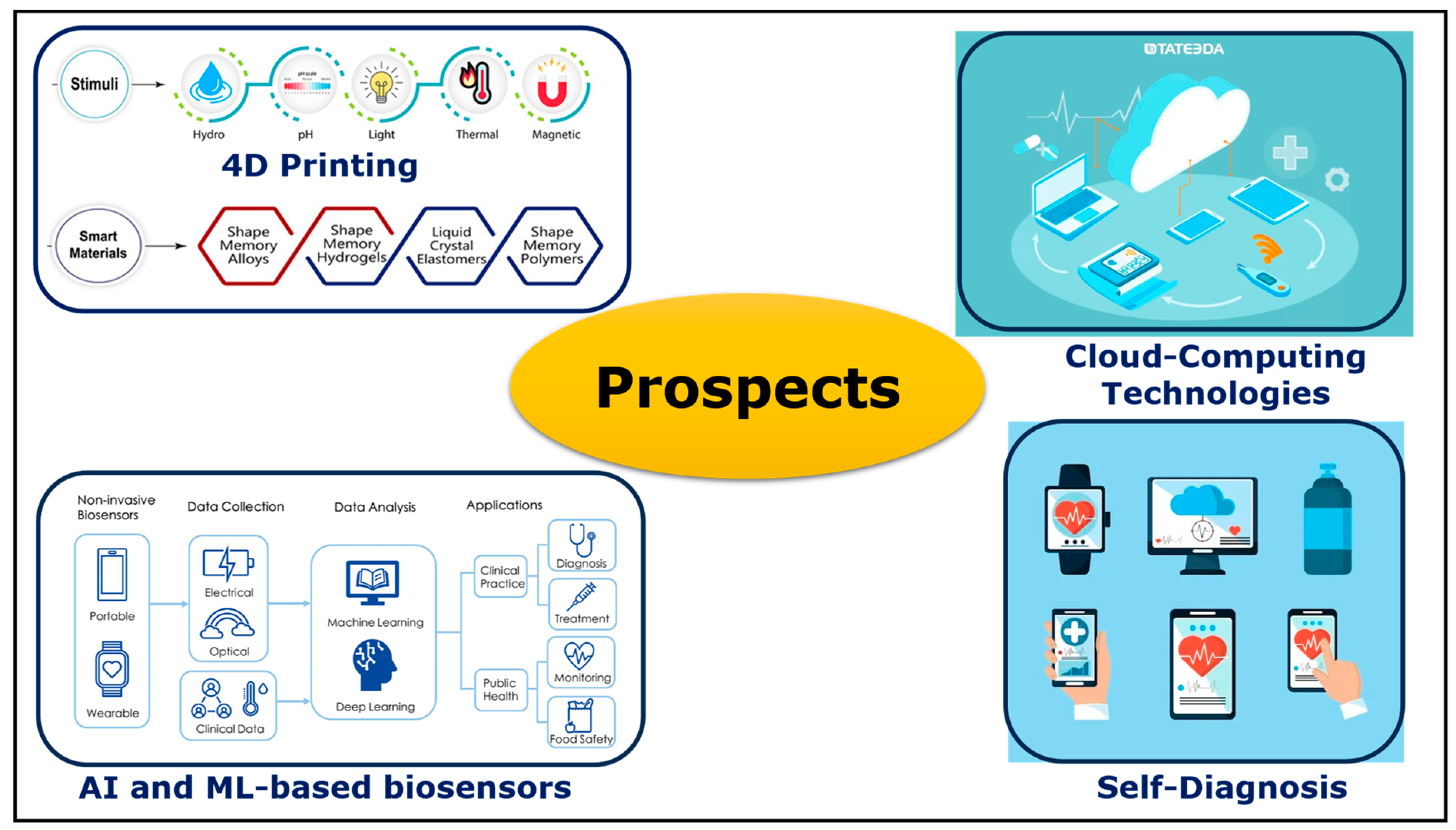

6. Prospects
7. Conclusions
Author Contributions
Funding
Conflicts of Interest
References
