Article

UCST-Type Thermoresponsive Sol–Gel Transition Triblock Copolymer Containing Zwitterionic Polymer Blocks

by
Akifumi Kawamura
1,2,*,
Ryogo Takahashi
1 and
Takashi Miyata
1,2,*
1
Department of Chemistry and Materials Engineering, Kansai University, Suita 564-8680, Osaka, Japan
2
Organization for Research and Development of Innovative Science and Technology, Kansai University, Suita 564-8680, Osaka, Japan
*
Authors to whom correspondence should be addressed.
Gels 2024, 10(5), 288; https://doi.org/10.3390/gels10050288
Submission received: 29 March 2024 / Revised: 19 April 2024 / Accepted: 21 April 2024 / Published: 24 April 2024
(This article belongs to the Special Issue Recent Advances in Thermoreversible Gelation)
Browse Figures
Versions Notes

Abstract

:
Thermoresponsive sol–gel transition polymers are of significant interest because of their fascinating biomedical applications, including as drug reservoirs for drug delivery systems and scaffolds for tissue engineering. Although extensive research has been conducted on lower critical solution temperature (LCST)-type sol–gel transition polymers, there have been few reports on upper critical solution temperature (UCST)-type sol–gel transition polymers. In this study, we designed an ABA-type triblock copolymer composed of a poly(ethylene glycol) (PEG) block and zwitterionic polymer blocks that exhibit UCST-type thermoresponsive phase transitions. A sulfobetaine (SB) monomer with both ammonium and sulfonate (–SO3) groups in its side chain or a sulfabetaine (SaB) monomer with both ammonium and sulfate (–OSO3) groups in its side chain was polymerized from both ends of the PEG block via reversible addition–fragmentation chain-transfer (RAFT) polymerization to obtain PSB-PEG-PSB and PSaB-PEG-PSaB triblock copolymers, respectively. Although an aqueous solution containing the PSB-PEG-PSB triblock copolymer showed an increase in viscosity upon cooling, it did not undergo a sol-to-gel transition. In contrast, a sol-to-gel transition was observed when a phosphate-buffered saline containing PSaB-PEG-PSaB was cooled from 80 °C to 25 °C. The PSaB blocks with –OSO3 groups exhibited a stronger dipole–dipole interaction than conventional SB with –SO3 groups, leading to intermolecular association and the formation of a gel network composed of PSaB assemblies bridged with PEG. The fascinating UCST-type thermoresponsive sol–gel transition properties of the PSaB-PEG-PSaB triblock copolymer suggest that it can provide a useful platform for designing smart biomaterials, such as drug delivery reservoirs and cell culture scaffolds.

Graphical Abstract

1. Introduction

Stimuli-responsive hydrogels that undergo reversible sol–gel transitions in response to external chemical and/or physical stimuli are of significant interest because of their potential applications as smart soft materials, such as sensors, actuators, drug reservoirs, bioreactors, and cell culture scaffolds for regenerative medicine [1,2,3]. Stimuli-responsive sol–gel transition polymers have been designed by introducing stimuli-responsive moieties that form chemical and physical cross-links in response to external stimuli such as temperature, pH, light, and target molecules. For example, we reported photo-responsive gelation of four-armed poly(ethylene glycol) (tetra-PEG) with photo-dimerizable cinnamoyl and maleimide groups at its ends [4]. The aqueous solution containing photo-responsive tetra-PEG exhibited a sol-to-gel transition upon photo-irradiation owing to the photo-dimerization of cinnamoyl and maleimide groups at the end of tetra-PEG, resulting in the formation of a three-dimensionally cross-linked network. The target biomolecule-responsive reversible sol–gel transition can be accomplished using bioconjugated tetra-PEG [5]. Biotin-conjugated tetra-PEG underwent a phase transition from a sol state to a gel state in response to the target avidin, which forms a biomolecular complex with biotin. The addition of free biotin to the resulting hydrogel induced its dissociation to a sol state owing to a complex exchange mechanism. Among various stimuli-responsive sol–gel transition polymers, thermoresponsive sol–gel transition polymers have been the most extensively studied [6,7,8]. Kim et al. reported pioneering work on thermoresponsive sol–gel transition polymers for medical applications [6,9]. They designed diblock and triblock copolymers composed of hydrophobic and biodegradable poly(L-lactide) (PLLA) and hydrophilic PEG blocks. An aqueous solution of the block copolymer with a high polymer concentration underwent a gel-to-sol transition as the temperature increased. The thermoresponsive sol–gel transition polymers were injected into the body in a sol state and transformed into a gel state to serve as drug reservoirs. Since the publication of the first paper on thermoresponsive injectable hydrogels as drug reservoirs, various types of thermoresponsive sol–gel transition polymers that exhibit a sol-to-gel transition upon heating have been designed [2,10,11]. However, few studies have focused on upper critical solution temperature (UCST)-type thermoresponsive sol–gel transition polymers that undergo a drastic change from a sol state to a gel state upon cooling. Lodge et al. reported a UCST-type sol–gel transition of P(N-isopropylacrylamide)-b-PEG-b-P(N-isopropylacrylamide) (PNIPAAm-PEG-PNIPAAm) in an ionic liquid [12]. PNIPAAm is the most studied thermoresponsive polymer, and it undergoes an LCST-type phase transition in aqueous media [13]. PNIPAAm also exhibits a UCST-type phase transition in certain ionic liquids. A 1-ethyl-3-methylimidazolium bis(trifluoromethylsulfonyl)imide ([EMIM][TFSI]) solution containing 10 wt% PNIPAAm-b-PEG-b-PNIPAAm triblock copolymer was a viscous liquid at room temperature. Upon cooling below 17 °C, the PNIPAAm blocks became insoluble, forming intra- and intermolecular assemblies in [EMIM] [TFSI]. As a result, PNIPAAm-b-PEG-b-PNIPAAm forms a gel network composed of PNIPAAm assemblies bridged with a PEG chain. Although natural polymers, such as agar, collagen, and gelatin, exhibit reversible UCST-type sol–gel transitions in aqueous media, few studies on synthetic polymers that exhibit UCST-type sol–gel transitions in aqueous media have been reported.
UCST-type phase transitions in aqueous media can be accomplished by introducing functional groups that exhibit strong intermolecular enthalpic interactions such as hydrogen bonding and dipole–dipole interactions [14,15]. For example, polymers exhibiting intermolecular hydrogen bonding, such as poly(acrylamide-co-acrylonitrile) (P(AAm-co-AN))-based copolymers [14,16,17], poly(N-acryloyl glycineamide) [18,19] and ureido-derivatized polymers [20,21,22], exhibit UCST-type thermoresponsive phase transitions. Some zwitterionic polymers also exhibit UCST-type phase transitions in aqueous media via intermolecular dipole–dipole interactions [23,24,25,26,27]. Zwitterionic polymers contain the same number of anionic and cationic groups within their repeating units. Zwitterionic polymers exhibit various fascinating properties such as high water solubility, low protein adsorption, and high lubrication. Therefore, zwitterionic polymers have been extensively studied for the development of biomaterials [28,29,30,31]. In addition, the high water solubility of zwitterionic polymers provides fascinating functional materials. For example, we designed a novel water-soluble emulsifier composed of highly water-soluble poly(2-methacryloyloxyethyl phosphorylcholine) (PMPC) and hydrophilic/lipophilic poly[oligo(ethylene glycol)methacrylate], which is different from conventional amphiphilic emulsifiers composed of hydrophilic and hydrophobic groups [32]. By utilizing a W/O emulsion stabilized with a double water-soluble emulsifier as a template for the polymerization reaction, stimuli-responsive soft materials, such as reductively responsive gel capsules and LCST-type thermoresponsive core–shell hydrogel particles, have been designed [32,33]. Zwitterionic polymers with sulfonate groups, such as sulfobetaine polymers with ammonium sulfonate groups [24,25] and sulfothetin polymers with sulfonium sulfonate groups [26], exhibit UCST-type thermoresponsive phase transitions. The UCST-type phase transition of these zwitterionic polymers is not affected by pH changes. Because methacrylates containing zwitterionic side chains allow for controlled radical polymerization, including atom transfer radical polymerization (ATRP) and reversible addition–fragmentation chain-transfer (RAFT) polymerization, zwitterionic polymers exhibiting a UCST-type thermoresponsive phase transition are useful platforms for designing UCST-type sol–gel transition polymers. However, UCST-type sol–gel transition has not yet been accomplished using ABA-type triblock copolymers with zwitterionic polymer blocks. In this study, we report the thermoresponsive sol–gel transition behavior of ABA-type triblock copolymers composed of UCST-type thermoresponsive zwitterionic polymer blocks and a PEG block (Figure 1). We investigated the effect of the structure of the ABA-type triblock copolymer, including the zwitterionic structure and chain length ratio between the zwitterionic polymer blocks and a PEG block, on the thermoresponsive sol–gel transition. To the best of our knowledge, this is the first report of an ABA-type triblock copolymer containing zwitterionic polymer blocks that exhibits UCST-type thermoresponsive sol–gel transitions under physiological ionic strength. Fundamental research on UCST-type thermoresponsive sol–gel transition polymers will contribute significantly to the development of smart biomaterials such as drug reservoirs and cell culture scaffolds.

2. Results and Discussion

2.1. Synthesis of Triblock Copolymer Containing Zwitterionic Polymer Blocks

The ABA-type triblock copolymer composed of stimuli-responsive A blocks and water-soluble B block is the most promising candidate for designing stimuli-responsive sol–gel transition polymers. Although ABA-type triblock copolymers exhibiting LCST-type sol–gel transitions have been reported, there are few reports on UCST-type sol–gel transition polymers consisting of ABA-type triblock copolymers. The only example of an ABA-type sol–gel transition polymer with UCST-type thermoresponsive P(AAm-co-AN) blocks was reported by Fu and Zhao [34]. In this study, an ABA-type block copolymer composed of UCST-type thermoresponsive zwitterionic polymer blocks and a nonionic water-soluble PEG block was synthesized. Two types of zwitterionic polymers, ammonium sulfonate polymer (sulfobetaine polymer) and ammonium sulfate polymer (sulfabetaine polymer), were investigated for UCST-type sol–gel transition. The UCST of sulfobetaine and sulfabetaine polymers can be modulated by their chemical structures, such as the polymer backbone (methacrylate or methacrylamide), the spacer length between ammonium and sulfonate or sulfate, and the chain length of alkyl groups in the ammonium group [24,25,27]. In addition, the salt concentration affects the UCST of these polymers. The UCST of sulfobetaine polymers decreases drastically with increasing salt concentration, and this behavior disappears at physiological salt concentrations (i.e., 160 mM). Salts screen the intra- and intermolecular dipole–dipole interactions between the zwitterionic groups, resulting in the dissolution of sulfobetaine polymers at low temperatures [25,35]. On the other hand, sulfabetaine polymers exhibit UCST-type thermoresponsive behavior, even under physiological salt concentrations, owing to their strong intra- and intermolecular dipole–dipole interactions derived from the ammonium sulfate structure [36,37]. In this study, poly(4-((3-methacrylamidopropyl)dimethylammonio)butane-1-sulfonate) (PSB) and poly(3-((2-(methacryloyloxy)ethyl)dimethylammonio)ethylene-1-sulfate) (PSaB) were applied as UCST-type thermoresponsive blocks of an ABA-type triblock copolymer. PSB has a higher UCST than the standard sulfobetaine methacrylate polymer, poly[3-{(2-methacryloyloxyethyl) dimethylammonio}propane-1-sulfonate], and exhibits UCST-type thermoresponsive phase transition behavior in an aqueous solution containing <0.1 M of salt [24]. SB or SaB was polymerized from both ends of the PEG chain via RAFT polymerization using a PEG macroRAFT agent, as illustrated in Scheme 1. Figure 2 shows the 1H NMR spectra of PSB-PEG-PSB and PSaB-PEG-PSaB triblock copolymers. In the 1H NMR spectra of PSB-PEG-PSB and PSaB-PEG-PSaB, a peak assigned to the methylene protons of PEG was observed at 3.6–3.8 ppm (pink region). The broad peaks assigned to the methyl and methylene protons of SB (green region in Figure 2a,b) and SaB side chains (blue region in Figure 2c,d) were also observed. These results indicate that SB and SaB were successfully polymerized from the ends of the PEG macroRAFT agent. The synthesis of triblock copolymers was also confirmed by size exclusion chromatography (Figure S1). The degree of polymerization (Dp) of PSB and PSaB was determined by integrating the methyl resonance of SB or SaB at approximately 3.3 ppm against the methylene proton of PEG at 3.6–3.8 ppm. The molecular weights and Dp of the triblock copolymers synthesized in this study are summarized in Table 1.

2.2. Thermoresponsive Behavior of Aqueous Triblock Copolymer Solutions under Dilute Conditions

The thermoresponsive behaviors of PSB-PEG-PSBs and PSaB-PEG-PSaBs were evaluated using the turbidity method. After dissolution at 80 °C, PSB-PEG-PSBs and PSaB-PEG-PSaBs were incubated at room temperature before turbidity measurements. PSB-PEG-PSBs dissolved completely in phosphate-buffered saline (PBS(−); I = 160 mM) at room temperature and exhibited no phase transition between 25 °C and 80 °C. The aqueous solution of PSB-PEG-PSB exhibited thermoresponsive phase transition. In contrast, PSaB-PEG-PSaBs exhibited a thermoresponsive phase transition in PBS(−) with high ionic strength. Figure 3a,b show the changes in the transmittance of the aqueous solutions containing PSB-PEG-PSBs as a function of temperature. PSB140-PEG91-PSB140 (the subscript number refers to the polymerization degree) formed insoluble aggregates in water at 25 °C because of the low water solubility of the long PSB blocks resulting from intermolecular complex formation by dipole–dipole interactions (Figure S2a). Upon heating, the transmittance increased drastically above 30 °C and reached approximately 90% at 70 °C. This result indicates that PSB140-PEG91-PSB96 exhibited UCST-type thermoresponsive behavior. Interestingly, PSB96-PEG250-PSB96, which has a longer hydrophilic PEG block and shorter PSB block than PSB140-PEG91-PSB140, exhibited both LCST- and UCST-like thermoresponsive phase transition behavior (Figure 3b). The transmittance of the aqueous PSB96-PEG250-PSB96 solution decreased significantly with an increasing temperature. Above 35 °C, the transmittance increased drastically and reached approximately 100% at 55 °C. PSaB-PEG-PSaBs in PBS(−) exhibited the same thermoresponsive phase transition behavior as that of the PSB-PEG-PSB system. The triblock copolymer with short PEG and long PSaB chains, PSaB148-PEG91-PSaB148, formed insoluble aggregates in PBS(−) at 25 °C. The transmittance of PBS(−) containing PSaB148-PEG91-PSaB148 gradually increased with an increasing temperature (Figure 3c). In contrast, PSaB97-PEG250-PSaB97, which has longer PEG blocks and shorter PSaB blocks than PSaB148-PEG250-PSaB148, formed submicron-scale self-assemblies at 25 °C (Figure S3). PSaB97-PEG250-PSaB97 exhibited both LCST- and UCST-like thermoresponsive behavior (Figure 3d). These results indicate that the chain length of PEG and the zwitterionic polymer affect the thermoresponsive phase transition behavior. PSB140-PEG91-PSB140 and PSaB148-PEG91-PSaB148, which had a short PEG block and long zwitterionic polymer blocks, exhibited only UCST-type thermoresponsive phase transition behavior. PSB140-PEG91-PSB140 and PSaB148-PEG91-PSaB148 precipitated at 25 °C because of the formation of insoluble aggregates by intermolecular dipole–dipole interactions of PSB or PSaB blocks. The increase in temperature induced the dissociation of intermolecular complexes of PSB140-PEG91-PSB140 or PSaB148-PEG91-PSaB148 owing to the shielding of the dipole–dipole interactions. Consequently, PSB140-PEG91-PSB140 and PSaB148-PEG91-PSaB148 became soluble at high temperatures. The aqueous PSB96-PEG250-PSB96 solution and PBS(−) containing PSaB97-PEG250-PSaB97 were turbid in appearance without obvious precipitation at 25 °C. DLS measurements revealed that PSB96-PEG250-PSB96 and PSaB97-PEG250-PSaB97 formed colloidally stable submicron-scale self-assemblies (Figure S2). The longer PEG chains of PSB96-PEG250-PSB96 and PSaB97-PEG250-PSaB97 were located on the surface of the water-insoluble core of PSB or PSaB self-assemblies to prevent aggregation and precipitation. Upon heating, the transmittance of the PSB96-PEG250-PSB96 and PSaB97-PEG250-PSaB97 solutions decreased significantly and then increased, showing both LCST- and UCST-like thermoresponsive behavior. The cloud and clearing points of triblock copolymer solutions are summarized in Table 2. The cloud point (CPLCST) was defined as the 50% transmittance of the triblock polymer solution in the LCST-type phase transition process. The clearing point (CPUCST) was defined as the 50% transmittance of the triblock copolymer solution in the UCST-type phase transition process. Few studies have reported that copolymers composed of nonionic and zwitterionic polymers exhibit unusual simultaneous LCST- and UCST-like phase transition behaviors. Laschewsky et al. reported that the block copolymer composed of linear PEG and PSB exhibited both LCST- and UCST-like phase transitions [38]. Morimoto and Yamamoto also reported that the random copolymer composed of poly(ethylene glycol)methacrylate and sulfabetaine methacrylate exhibited both LCST- and UCST-like phase transitions [39]. Although an obvious mechanism has not been established, both the LCST- and UCST-like thermoresponsive phase transitions seem to be induced by a combination of dipole–dipole, ion–dipole, and hydrophobic interactions. PSB and PSaB exhibited intra- and intermolecular dipole–dipole interactions. PSB-PEG and PSaB-PEG interactions arose from ion–dipole and hydrophobic interactions. The ammonium cation of PSB or PSaB interacted with the ether oxygen of PEG via ion–dipole interactions; the carbon chains in PSB or PSaB interacted with the ethylene moiety of PEG via hydrophobic interactions; and the PEG-PSB and PEG-PSaB interactions were sufficiently effective when the sizes of the blocks were similar. In this study, PSB96-PEG250-PSB96 and PSaB97-PEG250-PSaB97 exhibited both LCST- and UCST-like thermoresponsive phase transitions. The total Dp of PSB and PSaB blocks were nearly comparable to that of PEG (i.e., total Dp of PSB: 192; total Dp of PSaB: 194; Dp of PEG: 250). In contrast, PSB140-PEG91-PSB140 and PSaB148-PEG91-PSaB148, which have an approximately three-times greater total Dp of the zwitterionic polymer than that of PEG, exhibited only UCST-type thermoresponsive phase transition behavior. From these results, both the LCST- and UCST-like thermoresponsive phase transitions of PSB96-PEG250-PSB96 and PSaB97-PEG250-PSaB97 can be explained through the tentative model schematically illustrated in Figure 4. At room temperature, colloidally stable submicron-scale self-assemblies with PEG chains on their surfaces were formed by PSB-PSB or PSaB-PSaB intermolecular dipole–dipole interactions. An increase in temperature induced the shielding of dipole–dipole interactions. The partly dissociated PSB and PSaB chains interacted with the PEG chain via ion–dipole and hydrophobic interactions to form microscale globules. Further heating induced the shielding of the ion–dipole, dipole–dipole, and hydrophobic interactions, resulting in the dissociation of microscale globules. As a result, PSB96-PEG250-PSB96 and PSaB97-PEG250-PSaB97 showed both LCST- and UCST-like thermoresponsive phase transition behavior.

2.3. Thermoresponsive Behavior of Triblock Copolymers under Concentrated Conditions

The sol–gel transition of a stimuli-responsive ABA-type triblock copolymer depends on the polymer concentration. An increase in the triblock copolymer concentration induced network formation by bridging the polymer self-assemblies. In this study, the thermoresponsive sol–gel transition of a triblock copolymer was investigated at high concentrations. Figure 5 shows the photographs of PSB-PEG-PSBs in water and PSaB-PEG-PSaBs in PBS(−) after dissolution at 80 °C, followed by cooling to 25 °C. The PSB140-PEG91-PSB140 and PSaB148-PEG91-PSaB148 systems were watery turbid liquids with obvious precipitation of the triblock copolymers (Figure 5a,b). These results indicate that PSB140-PEG91-PSB140 and PSaB148-PEG91-PSaB148 did not exhibit thermoresponsive sol–gel transitions. Because the PSB and PSaB blocks of these triblock copolymers were much longer than the PEG block, the triblock copolymer was water-insoluble below the phase transition temperature of the PSB and PSaB blocks. This is the reason why the sol–gel transition was not observed.
In contrast, aqueous PSB96-PEG250-PSB96 solution was a viscous liquid without any precipitates at 25 °C (Figure 5c). The viscosity of the PSB96-PEG250-PSB96 solution increased with an increasing triblock copolymer concentration (Figure S4). Under dilute conditions, PSB96-PEG250-PSB96 formed self-assemblies with a diameter of approximately 100 nm (Figure S2b). An increase in the concentration of PSB96-PEG250-PSB96 induced bridge formation between the PSB96-PEG250-PSB96 self-assemblies, resulting in an increase in the apparent molecular weight. As a result, the viscosity of the PSB96-PEG250-PSB96 solution increased with an increasing concentration. However, a three-dimensional cross-linked network was not formed in the PSB96-PEG250-PSB96 solution. In contrast, when PSaB97-PEG250-PSaB97 was dissolved in PBS(−) at 80 °C and cooled to 25 °C, the solution exhibited a solid-like behavior (Figure 5d). Rheological measurements of the PBS(−) of PSaB97-PEG250-PSaB97 were performed at 25 °C, which is lower than its UCST (Figure 6). The storage modulus (G’) of the PBS(−) of PSaB97-PEG250-PSaB97 was larger than the loss modulus (G”) and was nearly independent of the angular frequency between 0.1 to 200 rad/s. The larger G’ value than G” value means that the PBS(−) of PSaB97-PEG250-PSaB97 undergoes gelation and behaves like a solid at 25 °C. In addition, when the resulting PSaB97-PEG250-PSaB97 gel was heated to 70 °C, a gel-to-sol transition was observed (Figure 7). An increase in temperature induced a dissociation of the PSaB97-PEG250-PSaB97 self-assemblies acting as physical crosslinks by the shielding of dipole–dipole interactions between PSaB blocks. As a result, the PSaB97-PEG250-PSaB97 gel underwent a phase transition to a sol state. Even though the chain length of PSB in PSB96-PEG250-PSB96 was almost the same as that of PSaB in PSaB97-PEG250-PSaB97, PSB96-PEG250-PSB96 did not exhibit a sol–gel transition but only increased in viscosity. PSaB with an ammonium sulfate side chain exhibited stronger intermolecular dipole–dipole interactions than PSB with an ammonium sulfonate side chain. These results imply that the strength of the dipole–dipole interaction is a key factor in designing UCST-type thermoresponsive sol–gel transition polymers with zwitterionic polymer blocks.
We conclude from these results that PSaB97-PEG250-PSaB97 is a reversible UCST-type thermoresponsive sol–gel phase transition polymer. The thermoresponsive sol–gel transition of PSaB97-PEG250-PSaB97 can be explained using the tentative model schematically illustrated in Figure 8. PSaB97-PEG250-PSaB97 was dissolved in PBS(−) above the phase transition temperature of the PSaB block. Upon cooling, the PSaB blocks of PSaB97-PEG250-PSaB97 were assembled by a strong dipole–dipole interaction to form water-insoluble PSaB self-assemblies bridged with hydrophilic PEG chains. Consequently, the PBS(−) solution containing PSaB97-PEG250-PSaB97 underwent a sol-to-gel transition. Heating of the resulting PSaB97-PEG250-PSaB97 gel induced the dissociation of PSaB97-PEG250-PSaB97 self-assemblies, acting as physical cross-links owing to the shielding of dipole–dipole interactions between the PSaB blocks. As a result, the PSaB97-PEG250-PSaB97 gel exhibited gel-to-sol transition. UCST-type thermoresponsive sol–gel transition polymers have potential applications as smart biomaterials such as cell culture scaffolds and drug reservoirs. Detailed studies on thermoresponsive sol–gel transition behavior are in progress, focusing on various aspects, including sol–gel phase diagrams, rheological studies, and the effects of the molecular weight and composition of the triblock copolymer on the sol–gel transition.

3. Conclusions

ABA-type triblock copolymers with UCST-type thermoresponsive zwitterionic polymer blocks were synthesized via RAFT polymerization using a PEG macroRAFT agent. Under dilute conditions, PSB148-PEG91-PSB148 and PSaB148-PEG91-PSB148, which had long zwitterionic polymer blocks and a short PEG block, exhibited UCST-type thermoresponsive behavior. On the other hand, PSB96-PEG250-PSB96 and PSaB97-PEG250-PSaB97 showed both LCST- and UCST-like phase transition behaviors because of the cooperative effect of the dipole–dipole interactions of PSB-PSB or PSaB-PSaB and the ion–dipole and hydrophobic interactions of PSB-PEG or PSaB-PEG. Under concentrated conditions, PSB148-PEG91-PSB148 and PSaB148-PEG91-PSB148 precipitated from the solution upon cooling and did not undergo a sol-to-gel transition. Because the PSB and PSaB blocks of these triblock copolymers were much longer than the PEG block, the triblock copolymer formed water-insoluble assemblies below UCST of the PSB and PSaB blocks. When the PSB96-PEG250-PSB96 solution was cooled from 80 to 25 °C, an increase in its viscosity was observed. In contrast, PSaB97-PEG250-PSaB97 underwent a drastic change from the sol state to the gel state upon cooling. These results imply that the strength of the dipole–dipole interaction is a key factor for UCST-type thermoresponsive sol–gel transition using zwitterionic polymers. Detailed studies on the sol–gel transition of PSaB-PEG-PSaB triblock copolymers are under investigation, with a focus on aspects such as polymer composition, phase diagrams, and rheological measurements. Although further research to determine the key factor for sol–gel transition of the PSaB-PEG-PSaB is necessary, it is likely to become an important material for constructing injectable drug reservoirs and cell culture scaffolds.

4. Materials and Methods

4.1. Chemicals

Poly(ethylene glycol)s (PEG; Mn: 3900 and 11200) were kindly provided by NOF Corporation (Tokyo, Japan). 4-Cyano-4-(thiobenzoylthio)pentanoic acid (CTPA) and 4-cyano-4-[(dodecylsulfanylthiocarbonyl)sulfanyl]pentanoic acid (CDTPA) were purchased from Millipore Sigma (St. Louis, MO, USA). Dicyclohexylcarbodiimide (DCC), N,N-dimethylaminopyridine (DMAP), 2,2,2-trifluoroethanol (TFE), 1,4-butanesultone, 1,3,2-dioxathiane-2,2-dioxide, and N,N-dimethylaminopropyl methacrylate were purchased from Tokyo Chemical Industry Co., Ltd. (Tokyo, Japan). 4,4’-Azobis (4-cyanovaleric acid) (ACVA) and N,N-dimethylaminoethyl methacrylate were purchased from FUJIFILM Wako Pure Chemical Corporation (Osaka, Japan). Phosphate-buffered saline (PBS(−)) was prepared by dissolving NaCl (4.0 g), KCl, (0.10 g), Na2HPO4·12H2O (1.5 g), and KH2PO4 (0.10 g) into 500 mL of ultrapure water (Milli-Q, 18.2 MΩ·cm). All aqueous solutions were prepared using ultrapure water (Milli-Q, 18.2 MΩ·cm). Other solvents were obtained from commercial sources and used without purification.

4.2. Synthesis of PEG macroRAFT Agents

PEG, RAFT agent (CTPA or CDTPA), DCC, and DMAP were dissolved in dichloromethane (DCM), followed by stirring for 24 h. After the removal of the produced solid by filtration, the product was precipitated in diethyl ether. The isolated product was dried under vacuum to obtain PEG macroRAFT agents. The synthetic conditions are summarized in Table 3.

4.3. Synthesis of 4-((3-methacrylamidopropyl)dimethylammonio) butane-1-sulfonate (SB)

SB was synthesized by a previously reported method [24]. An amount of 4.0 mL of acetonitrile solution containing 1,4-butanesultone (5.44 g, 0.04 mol) was added dropwise to 4.0 mL of acetonitrile solution containing N,N-dimethylaminopropyl methacrylamide (3.40 g, 0.02 mol) for 30 min and then the mixture was stirred at room temperature for 48 h. The produced white solid was collected by filtration and washed with acetonitrile (20 mL). The product was then dried under vacuum to obtain SB as a white solid (4.59 g, 75% yield).

4.4. Synthesis of 3-{[2-(methacryloyloxy)ethyl]dimethylammonio}ethylene-1-sulfate (SaB)

SaB was synthesized by a previously reported method [38]. An amount of 32 mL of acetonitrile solution containing 1,3,2-dioxathiane-2,2-dioxide (6.20 g, 0.050 mol) was added dropwise to 32 mL acetonitrile solution containing N,N-dimethylaminoethyl methacrylate (8.95 g, 0.055 mol) for 30 min and then the mixture was stirred at room temperature for 48 h. The produced white solid was collected by filtration and washed with acetonitrile (20 mL). The product was then dried under vacuum to obtain SaB as a white solid (12.3 g, 87% yield).

4.5. Synthesis of Triblock Copolymers

Zwitterionic monomer (SB or SaB), PEG macroRAFT agents, and ACVA (0.27 mg, 1.0 μmol) were dissolved in TFE. The solution was deoxygenated by three freeze–pump–thaw cycles, followed by stirring at 90 °C under an Ar atmosphere. The PSB-PEG-PSBs were purified as follows: the polymer product was precipitated using methanol. The isolated product was then dried under vacuum to obtain the PSB-PEG-PSB triblock copolymer. PSaB-PEG-PSaBs were purified as follows: the reaction solution was poured into a seamless cellulose tubing (molecular cut-off: 12–14 kDa) and dialyzed against 1.0 M sodium chloride solution and ultrapure water. The solvent was removed by freeze-drying to obtain PSaB-PEG-PSaB triblock copolymer. The synthesis conditions are summarized in Table 4.

4.6. Phase Transition Temperature Measurements

A UV-Vis spectrophotometer (UV-1900i, Shimadzu Co., Kyoto, Japan) was used to evaluate the thermoresponsive phase transition of PSB-PEG-PSBs and PSaB-PEG-PSaBs by measuring their transmittance at 800 nm while heating the solutions at a constant rate of 0.2 °C·min−1. The cloud point (CPLCST) and clearing point (CPUCST) were defined as the 50% transmittance of the triblock polymer solution.

4.7. Rheological Measurement of the PSaB-PEG-PSaB Gel

PSaB97-PEG250-PSaB97 (100 mg) was added to 0.565 mL of ultrapure water or phosphate-buffered saline (PBS(−)) and was dissolved at 80 °C. The PSaB-PEG-PSaB solution was incubated at room temperature to obtain a PSaB-PEG-PSaB hydrogel. Rheological measurements of the PSaB97-PEG250-PSaB97 hydrogel were performed under a constant strain of 0.1% and angular frequency range of 0.1 to 500 rad/s at 25 °C using a Modular Compact rheometer MCR102 (Anton Paar GmbH, Graz, Austria).

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/gels10050288/s1, Figure S1: Molecular weight distribution of triblock copolymers; Figure S2: Size distributions of PSB140-PEG91-PSB140 and PSB96-PEG250-PSB96 at 25 °C; Figure S3: Size distribution of PSaB97-PEG250-PSB97 at 25 °C; Figure S4: Photographs of PSB96-PEG250-PSB96 in water after heating at 80 °C, followed by cooling to 25 °C.

Author Contributions

Conceptualization, A.K.; methodology, R.T., A.K. and T.M.; investigation, R.T., A.K. and T.M.; writing—original draft preparation, A.K.; writing—review and editing, T.M.; supervision, A.K. and T.M.; project administration, A.K. and T.M.; funding acquisition, A.K. All authors have read and agreed to the published version of the manuscript.

Funding

This research was partly funded by JSPS KAKENHI (grant numbers JP21K05202 and JP22H04564) from the Japan Society for the Promotion of Science; the Private University Research Branding Project: Matching Fund Subsidy from the Ministry of Education, Culture, Sports, Science, and Technology (MEXT), Japan (2016–2020); and the Kansai University Fund for Supporting Young Scholars, 2021–2022.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All data and materials are available on request from the corresponding author. The data are not publicly available due to ongoing research using a part of the data.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Yu, L.; Ding, J. Injectable hydrogels as unique biomedical materials. Chem. Soc. Rev. 2008, 37, 1473–1481. [Google Scholar] [CrossRef]
  2. Moon, H.J.; Ko, D.Y.; Park, M.H.; Joo, M.K.; Jeong, B. Temperature-responsive compounds as in situ gelling biomedical materials. Chem. Soc. Rev. 2012, 41, 4860–4883. [Google Scholar] [CrossRef]
  3. Nele, V.; Wojciechowski, J.P.; Armstrong, J.P.K.; Stevens, M.M. Tailoring Gelation Mechanisms for Advanced Hydrogel Applications. Adv. Funct. Mater. 2020, 30, 2002759. [Google Scholar] [CrossRef]
  4. Okihara, M.; Okuma, K.; Kawamura, A.; Miyata, T. Photoresponsive Gelation of Four-Armed Poly(ethylene glycol) with Photodimerizable Groups. Gels 2022, 8, 183. [Google Scholar] [CrossRef]
  5. Norioka, C.; Okita, K.; Mukada, M.; Kawamura, A.; Miyata, T. Biomolecularly stimuli-responsive tetra-poly(ethylene glycol) that undergoes sol–gel transition in response to a target biomolecule. Polym. Chem. 2017, 8, 6378–6385. [Google Scholar] [CrossRef]
  6. Jeong, B.; Bae, Y.H.; Lee, D.S.; Kim, S.W. Biodegradable block copolymers as injectable drug-delivery systems. Nature 1997, 388, 860–862. [Google Scholar] [CrossRef]
  7. Jeong, B.; Kim, S.W.; Bae, Y.H. Thermosensitive sol–gel reversible hydrogels. Adv. Drug Deliv. Rev. 2002, 54, 37–51. [Google Scholar] [CrossRef]
  8. Zhang, K.; Xue, K.; Loh, X.J. Thermo-Responsive Hydrogels: From Recent Progress to Biomedical Applications. Gels 2021, 7, 77. [Google Scholar] [CrossRef] [PubMed]
  9. Jeong, B.; Bae, Y.H.; Kim, S.W. Thermoreversible Gelation of PEG−PLGA−PEG Triblock Copolymer Aqueous Solutions. Macromolecules 1999, 32, 7064–7069. [Google Scholar] [CrossRef]
  10. Nagahama, K.; Takahashi, A.; Ohya, Y. Biodegradable polymers exhibiting temperature-responsive sol–gel transition as injectable biomedical materials. React. Funct. Polym. 2013, 73, 979–985. [Google Scholar] [CrossRef]
  11. Alexander, A.; Ajazuddin; Khan, J.; Saraf, S.; Saraf, S. Polyethylene glycol (PEG)-Poly(N-isopropylacrylamide) (PNIPAAm) based thermosensitive injectable hydrogels for biomedical applications. Eur. J. Pharm. Biopharm. 2014, 88, 575–585. [Google Scholar] [CrossRef]
  12. He, Y.; Lodge, T.P. A thermoreversible ion gel by triblock copolymer self-assembly in an ionic liquid. Chem. Commun. 2007, 26, 2732–2734. [Google Scholar] [CrossRef]
  13. Halperin, A.; Kroger, M.; Winnik, F.M. Poly(N-isopropylacrylamide) Phase Diagrams: Fifty Years of Research. Angew. Chem. Int. Ed. 2015, 54, 15342–15367. [Google Scholar] [CrossRef] [PubMed]
  14. Seuring, J.; Agarwal, S. Polymers with upper critical solution temperature in aqueous solution. Macromol. Rapid Commun. 2012, 33, 1898–1920. [Google Scholar] [CrossRef] [PubMed]
  15. Tymetska, S.; Shymborska, Y.; Stetsyshyn, Y.; Budkowski, A.; Bernasik, A.; Awsiuk, K.; Donchak, V.; Raczkowska, J. Thermoresponsive Smart Copolymer Coatings Based on P(NIPAM-co-HEMA) and P(OEGMA-co-HEMA) Brushes for Regenerative Medicine. ACS Biomater. Sci. Eng. 2023, 9, 6256–6272. [Google Scholar] [CrossRef] [PubMed]
  16. Pineda-Contreras, B.A.; Schmalz, H.; Agarwal, S. pH dependent thermoresponsive behavior of acrylamide–acrylonitrile UCST-type copolymers in aqueous media. Polym. Chem. 2016, 7, 1979–1986. [Google Scholar] [CrossRef]
  17. Asadujjaman, A.; Kent, B.; Bertin, A. Phase transition and aggregation behaviour of an UCST-type copolymer poly(acrylamide-co-acrylonitrile) in water: Effect of acrylonitrile content, concentration in solution, copolymer chain length and presence of electrolyte. Soft Matter 2017, 13, 658–669. [Google Scholar] [CrossRef] [PubMed]
  18. Käfer, F.; Lerch, A.; Agarwal, S. Tunable, concentration-independent, sharp, hysteresis-free UCST phase transition from poly(N-acryloyl glycinamide-acrylonitrile) system. J. Polym. Sci. Part A Polym. Chem. 2016, 55, 274–279. [Google Scholar] [CrossRef]
  19. Tian, Y.; Lai, J.; Li, C.; Sun, J.; Liu, K.; Zhao, C.; Zhang, M. Poly(N-acryloyl glycinamide-co-N-acryloxysuccinimide) Nanoparticles: Tunable Thermo-Responsiveness and Improved Bio-Interfacial Adhesion for Cell Function Regulation. ACS Appl. Mater. Interfaces 2023, 15, 7867–7877. [Google Scholar] [CrossRef]
  20. Shimada, N.; Ino, H.; Maie, K.; Nakayama, M.; Kano, A.; Maruyama, A. Ureido-derivatized polymers based on both poly(allylurea) and poly(L-citrulline) exhibit UCST-type phase transition behavior under physiologically relevant conditions. Biomacromolecules 2011, 12, 3418–3422. [Google Scholar] [CrossRef]
  21. Shimada, N.; Sasaki, T.; Kawano, T.; Maruyama, A. Rational Design of UCST-type Ureido Copolymers Based on a Hydrophobic Parameter. Biomacromolecules 2018, 19, 4133–4138. [Google Scholar] [CrossRef] [PubMed]
  22. Tanaka, Y.; Niu, C.H.; Sasaki, T.; Nomura, S.; Maruyama, A.; Shimada, N. Smart Protein Refolding System Based on UCST-Type Ureido Polymers. Biomacromolecules 2022, 23, 3860–3865. [Google Scholar] [CrossRef] [PubMed]
  23. Schulz, D.N.; Peiffer, D.G.; Agarwal, P.K.; Larabee, J.; Kaladas, J.J.; Soni, L.; Handwerker, B.; Garner, R.T. Phase behaviour and solution properties of sulphobetaine polymers. Polymer 1986, 27, 1734–1742. [Google Scholar] [CrossRef]
  24. Hildebrand, V.; Laschewsky, A.; Wischerhoff, E. Modulating the solubility of zwitterionic poly((3-methacrylamidopropyl)ammonioalkane sulfonate)s in water and aqueous salt solutions via the spacer group separating the cationic and the anionic moieties. Polym. Chem. 2016, 7, 731–740. [Google Scholar] [CrossRef]
  25. Hildebrand, V.; Laschewsky, A.; Päch, M.; Müller-Buschbaum, P.; Papadakis, C.M. Effect of the zwitterion structure on the thermo-responsive behaviour of poly(sulfobetaine methacrylates). Polym. Chem. 2017, 8, 310–322. [Google Scholar] [CrossRef]
  26. Santa Chalarca, C.F.; Emrick, T. Reactive polymer zwitterions: Sulfonium sulfonates. J. Polym. Sci. Part A Polym. Chem. 2017, 55, 83–92. [Google Scholar] [CrossRef]
  27. Wang, N.; Seymour, B.T.; Lewoczko, E.M.; Kent, E.W.; Chen, M.-L.; Wang, J.-H.; Zhao, B. Zwitterionic poly(sulfobetaine methacrylate)s in water: From upper critical solution temperature (UCST) to lower critical solution temperature (LCST) with increasing length of one alkyl substituent on the nitrogen atom. Polym. Chem. 2018, 9, 5257–5261. [Google Scholar] [CrossRef]
  28. Ishihara, K.; Fukazawa, K. 2-Methacryloyloxyethyl PhosphorylCholine (MPC) Polymers. In Phosphorus-Based Polymers: From Synthesis to Applications; Monge, S., David, G., Eds.; RSC Polymer Chemistry Series; The Royal Society of Chemistry: London, UK, 2014; pp. 68–96. [Google Scholar]
  29. Ishihara, K. Revolutionary advances in 2-methacryloyloxyethyl phosphorylcholine polymers as biomaterials. J. Biomed. Mater. Res. A 2019, 107, 933–943. [Google Scholar] [CrossRef] [PubMed]
  30. Ishihara, K.; Fukazawa, K. Cell-membrane-inspired polymers for constructing biointerfaces with efficient molecular recognition. J. Mater. Chem. B 2022, 10, 3397–3419. [Google Scholar] [CrossRef]
  31. Miyata, T.; Namera, T.; Liu, Y.; Kawamura, A.; Yamaoka, T. Photoresponsive behaviour of zwitterionic polymer particles with photodimerizable groups on their surfaces. J. Mater. Chem. B 2022, 10, 2637–2648. [Google Scholar] [CrossRef]
  32. Nakaura, H.; Kawamura, A.; Miyata, T. Reductively Responsive Gel Capsules Prepared Using a Water-Soluble Zwitterionic Block Copolymer Emulsifier. Langmuir 2019, 35, 1413–1420. [Google Scholar] [CrossRef] [PubMed]
  33. Sasaoka, M.; Kawamura, A.; Miyata, T. Core–shell microgels having zwitterionic hydrogel core and temperature-responsive shell prepared via inverse miniemulsion RAFT polymerization. Polym. Chem. 2022, 13, 3489–3497. [Google Scholar] [CrossRef]
  34. Fu, W.; Zhao, B. Thermoreversible physically crosslinked hydrogels from UCST-type thermosensitive ABA linear triblock copolymers. Polym. Chem. 2016, 7, 6980–6991. [Google Scholar] [CrossRef]
  35. Niskanen, J.; Tenhu, H. How to manipulate the upper critical solution temperature (UCST)? Polym. Chem. 2017, 8, 220–232. [Google Scholar] [CrossRef]
  36. Vasantha, V.A.; Jana, S.; Parthiban, A.; Vancso, J.G. Halophilic polysulfabetaines—Synthesis and study of gelation and thermoresponsive behavior. RSC Adv. 2014, 4, 22596–22600. [Google Scholar] [CrossRef]
  37. Vasantha, V.A.; Junhui, C.; Ying, T.B.; Parthiban, A. Salt-Responsive Polysulfabetaines from Acrylate and Acrylamide Precursors: Robust Stabilization of Metal Nanoparticles in Hyposalinity and Hypersalinity. Langmuir 2015, 31, 11124–11134. [Google Scholar] [CrossRef] [PubMed]
  38. Nizardo, N.M.; Schanzenbach, D.; Schonemann, E.; Laschewsky, A. Exploring Poly(ethylene glycol)-Polyzwitterion Diblock Copolymers as Biocompatible Smart Macrosurfactants Featuring UCST-Phase Behavior in Normal Saline Solution. Polymers 2018, 10, 325. [Google Scholar] [CrossRef]
  39. Morimoto, N.; Yamamoto, M. Design of an LCST-UCST-Like Thermoresponsive Zwitterionic Copolymer. Langmuir 2021, 37, 3261–3269. [Google Scholar] [CrossRef]
Gels 10 00288 g001

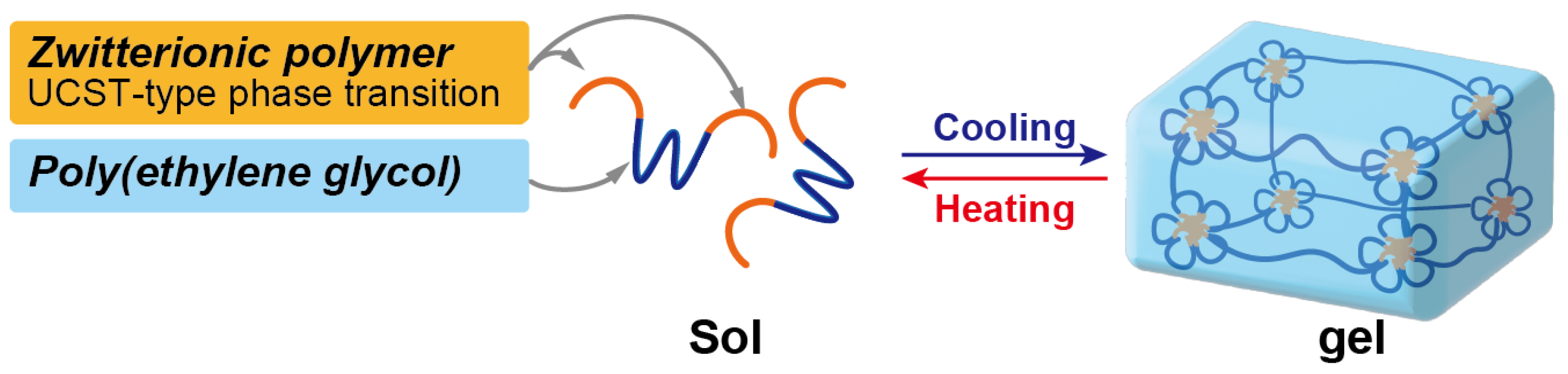

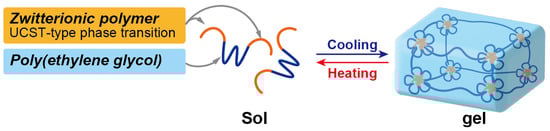

Figure 1. Schematic illustration of the thermoresponsive sol–gel transition of an ABA-type triblock copolymer containing zwitterionic polymer blocks that exhibit a UCST-type phase transition.
Figure 1. Schematic illustration of the thermoresponsive sol–gel transition of an ABA-type triblock copolymer containing zwitterionic polymer blocks that exhibit a UCST-type phase transition.
Gels 10 00288 g001
Gels 10 00288 sch001

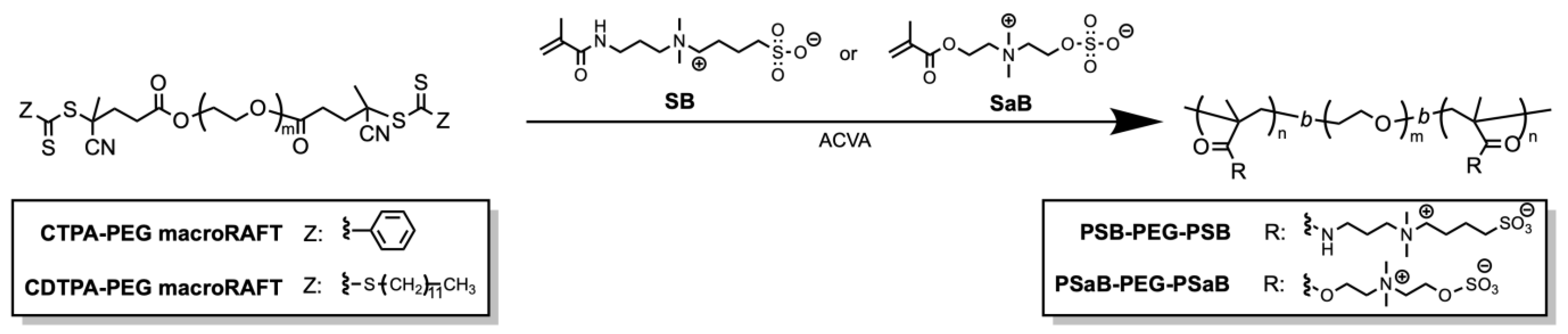

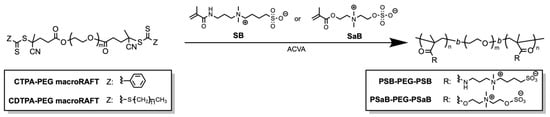

Scheme 1. Synthesis of PSB-PEG-PSB and PSaB-PEG-PSaB triblock copolymers.
Scheme 1. Synthesis of PSB-PEG-PSB and PSaB-PEG-PSaB triblock copolymers.
Gels 10 00288 sch001
Gels 10 00288 g002

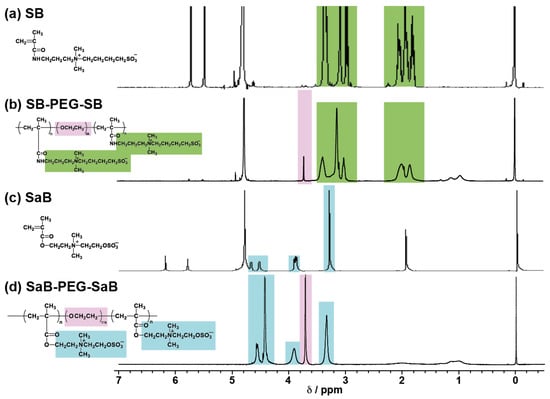

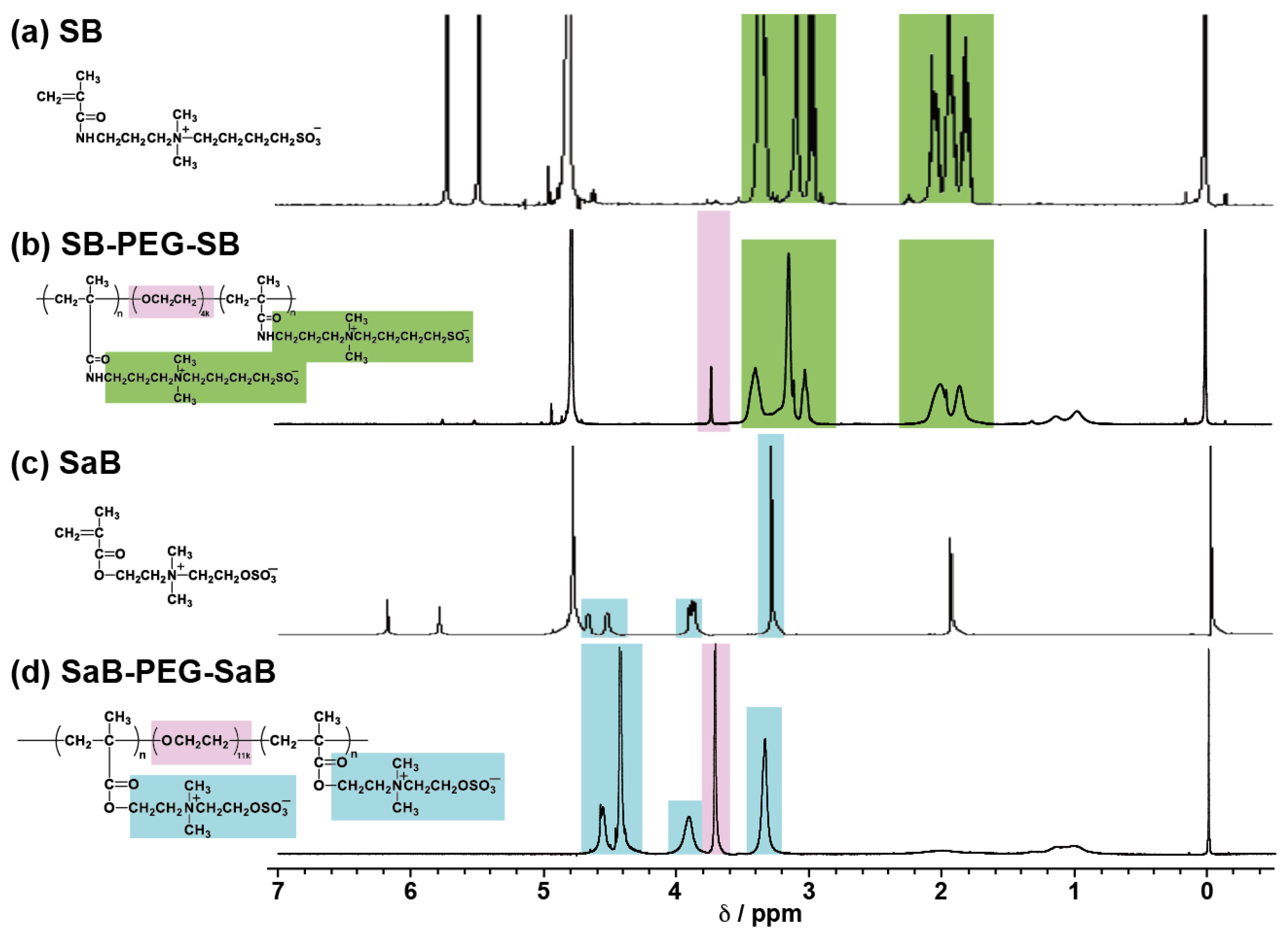

Figure 2. 1H NMR spectra of (a) SB, (b) PSB140-PEG91-PSB140, (c) SaB, and (d) PSaB97-PEG250-PSaB97 (400 MHz, D2O containing 0.5 M NaNO3).
Figure 2. 1H NMR spectra of (a) SB, (b) PSB140-PEG91-PSB140, (c) SaB, and (d) PSaB97-PEG250-PSaB97 (400 MHz, D2O containing 0.5 M NaNO3).
Gels 10 00288 g002
Gels 10 00288 g003

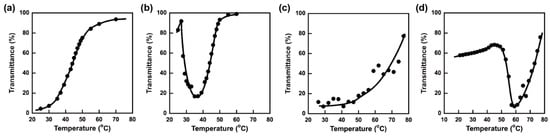

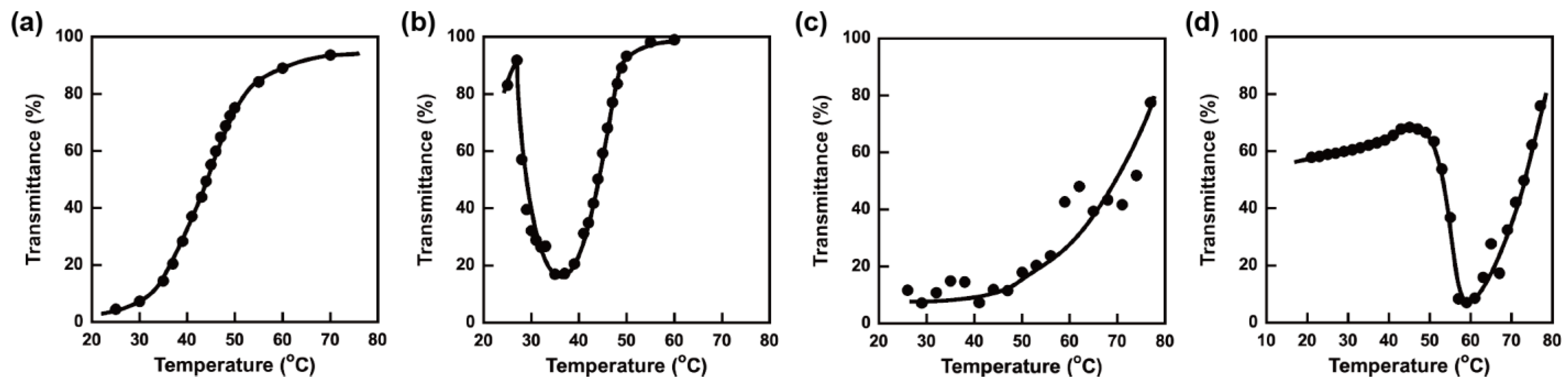

Figure 3. Changes in transmittance (800 nm) of aqueous PSB-PEG-PSB solutions ((a) PSB140-PEG91-PSB140; (b) PSB96-PEG250-PSB96) and PBS(−) containing PSaB-PEG-PSaB; ((c) PSaB148-PEG91-PSB148; (d) PSaB97-PEG250-PSaB97) as a function of temperature. The concentration of the triblock copolymer was 5 mg·mL−1. The solution was heated at a rate of 0.2 °C·min−1.
Figure 3. Changes in transmittance (800 nm) of aqueous PSB-PEG-PSB solutions ((a) PSB140-PEG91-PSB140; (b) PSB96-PEG250-PSB96) and PBS(−) containing PSaB-PEG-PSaB; ((c) PSaB148-PEG91-PSB148; (d) PSaB97-PEG250-PSaB97) as a function of temperature. The concentration of the triblock copolymer was 5 mg·mL−1. The solution was heated at a rate of 0.2 °C·min−1.
Gels 10 00288 g003
Gels 10 00288 g004

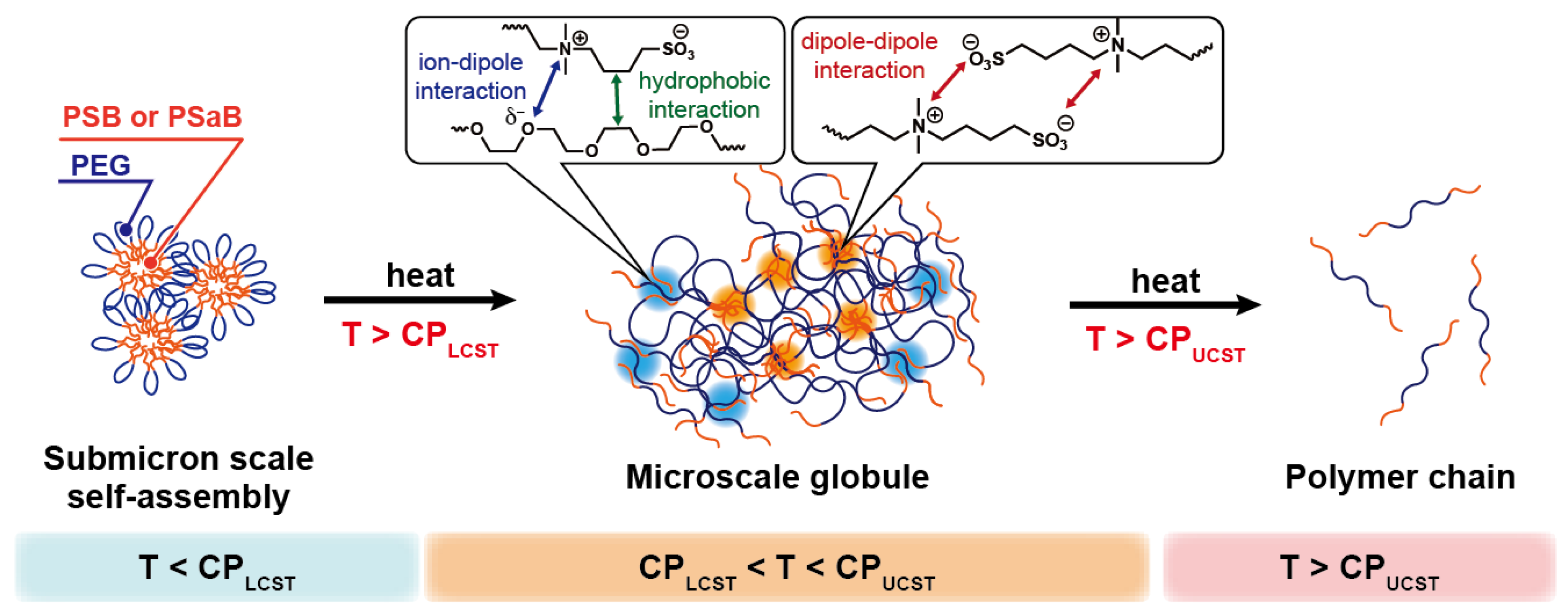

Figure 4. Schematic illustration of both the LCST- and UCST-like thermoresponsive phase transition behavior of PSB96-PEG250-PSB96 and PSaB97-PEG250-PSaB97 under dilute conditions.
Figure 4. Schematic illustration of both the LCST- and UCST-like thermoresponsive phase transition behavior of PSB96-PEG250-PSB96 and PSaB97-PEG250-PSaB97 under dilute conditions.
Gels 10 00288 g004
Gels 10 00288 g005

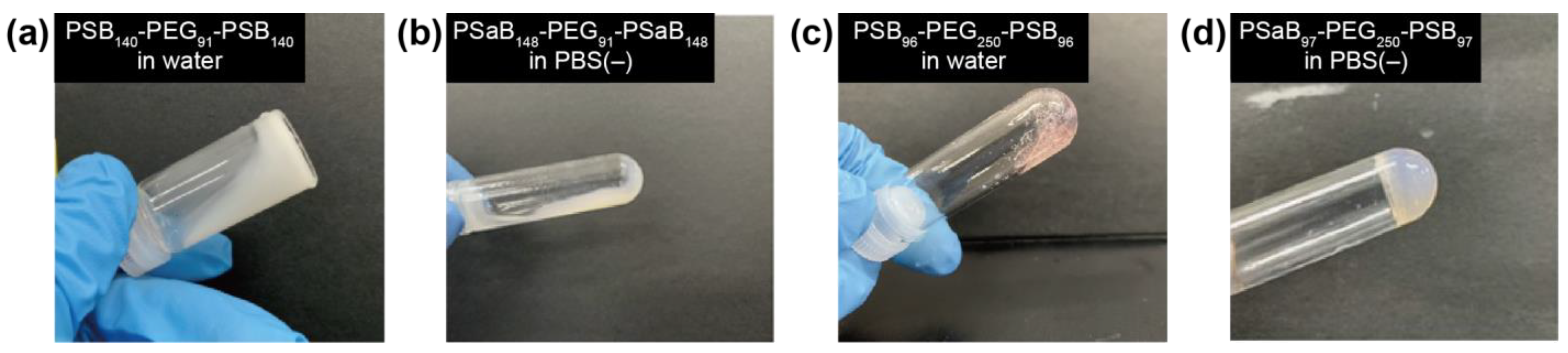

Figure 5. Photographs of (a) PSB148-PEG91-PSB148 in water (35 wt%), (b) PSaB148-PEG91-PSB148 in PBS(−) (15 wt%), (c) PSB96-PEG250-PSB96 (30 wt%) in water, and (d) PSaB97-PEG250-PSaB97 in PBS(−) (15 wt%) at 25 °C. The samples were prepared by dissolving the triblock copolymers at 80 °C, followed by cooling to room temperature.
Figure 5. Photographs of (a) PSB148-PEG91-PSB148 in water (35 wt%), (b) PSaB148-PEG91-PSB148 in PBS(−) (15 wt%), (c) PSB96-PEG250-PSB96 (30 wt%) in water, and (d) PSaB97-PEG250-PSaB97 in PBS(−) (15 wt%) at 25 °C. The samples were prepared by dissolving the triblock copolymers at 80 °C, followed by cooling to room temperature.
Gels 10 00288 g005
Gels 10 00288 g006

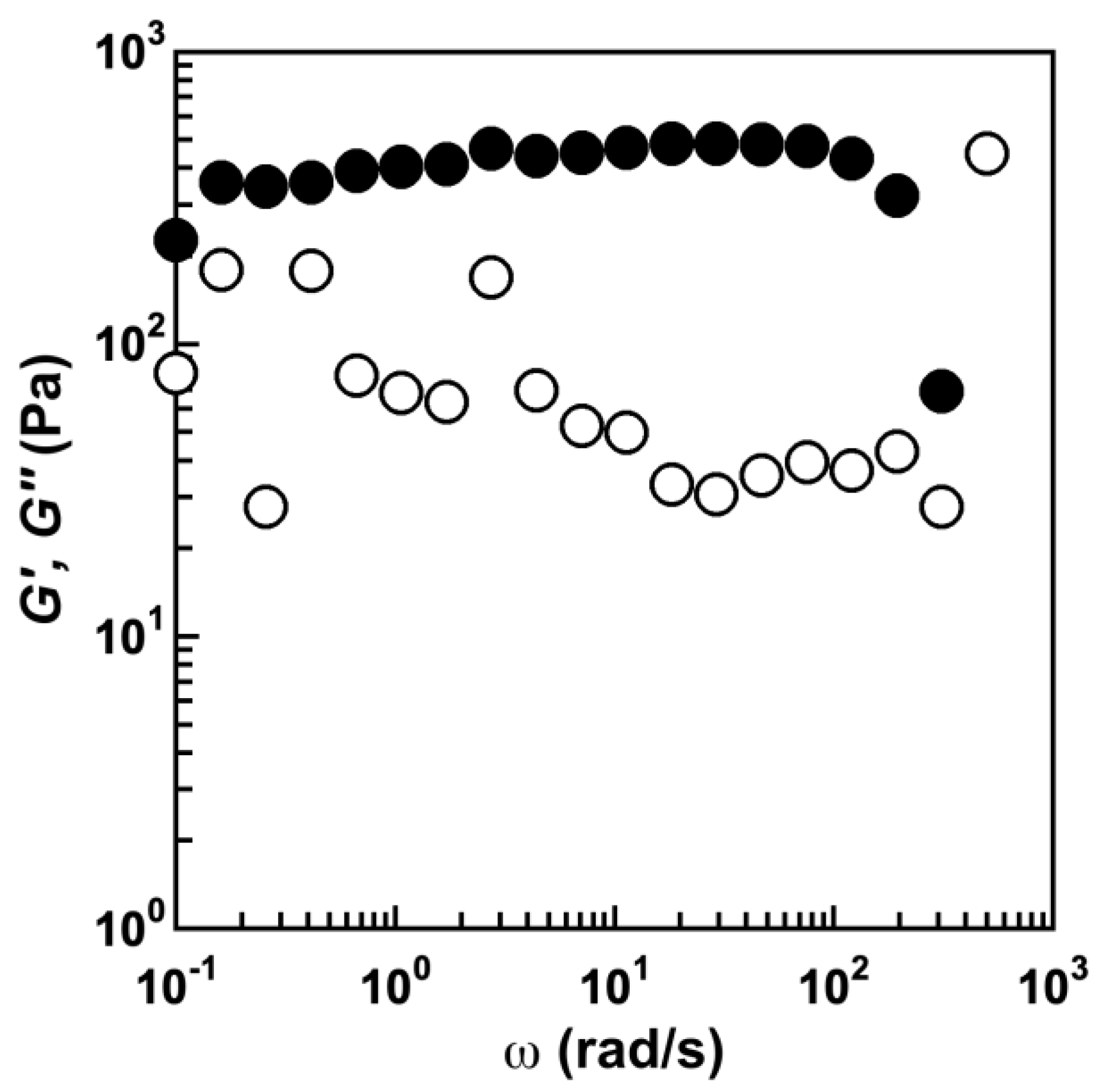

Figure 6. Changes in elastic (G’: ●) and loss moduli (G”: ○) of PSaB97-PEG250-PSB97 in PBS(−) as a function of angular frequency (ω).
Figure 6. Changes in elastic (G’: ●) and loss moduli (G”: ○) of PSaB97-PEG250-PSB97 in PBS(−) as a function of angular frequency (ω).
Gels 10 00288 g006
Gels 10 00288 g007
Figure 7. Photographs of the reversible sol–gel transition of PSaB97-PEG250-PSB97 in PBS(−). The PSaB97-PEG250-PSaB97 concentration in PBS(−) was 15 wt%.
Figure 7. Photographs of the reversible sol–gel transition of PSaB97-PEG250-PSB97 in PBS(−). The PSaB97-PEG250-PSaB97 concentration in PBS(−) was 15 wt%.
Gels 10 00288 g007
Gels 10 00288 g008

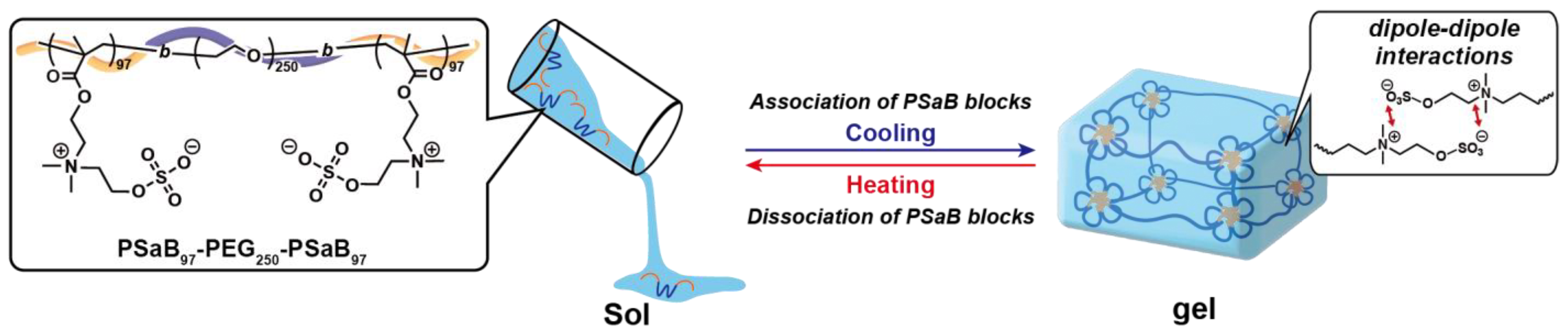

Figure 8. Schematic illustration of the UCST-type thermoresponsive sol–gel transition of the PBS(−) solution containing PSaB97-PEG250-PSaB97.
Figure 8. Schematic illustration of the UCST-type thermoresponsive sol–gel transition of the PBS(−) solution containing PSaB97-PEG250-PSaB97.
Gels 10 00288 g008
Table 1. Molecular weight and polymerization degree of triblock copolymers.
Table 1. Molecular weight and polymerization degree of triblock copolymers.
PEG BlockZwitterionic Polymer BlockTriblock Copolymer
Mn (×103) a)Dp a)Mn (×103) b)Dp b)Mn (×103) b)
PSB140-PEG91-PSB1403.99142.914089.8
PSB96-PEG250-PSB9611.225029.49669.8
PSaB148-PEG91-PSaB1483.99145.414894.7
PSaB97-PEG250-PSaB9711.225029.79770.4
a) Calculated from GPC curves using near-monodisperse poly(ethylene glycol) calibration standards. b) Calculated from 1H NMR.
Table 2. CPLCST and CPUCST of triblock copolymers in water and PBS(−).
Table 2. CPLCST and CPUCST of triblock copolymers in water and PBS(−).
In WaterIn PBS(−)
CPLCST (°C)CPUCST (°C)CPLCST (°C)CPUCST (°C)
PSB140-PEG91-PSB140–43.2 n.d. a)n.d. a)
PSB96-PEG250-PSB9629.444.0n.d. a)n.d. a)
PSaB148-PEG91-PSaB148n.d. b)n.d. b)–73.8
PSaB97-PEG250-PSaB97n.d. a)n.d. a)53.473.1
a) Completely dissolved between 25 and 80 °C; b) insoluble aggregation was formed between 25 and 80 °C.
Table 3. Synthetic conditions of PEG macroRAFT agents.
Table 3. Synthetic conditions of PEG macroRAFT agents.
Dp of
PEG		PEGRAFT AgentDCCDMAPDCMTemp.
CTPACDTPA
CDTPA-PEG macroRAFT913.00 g
(0.77 mmol)		 0.49 g
(1.2 mmol)		0.32 g
(1.5 mmol)		0.04 g
(0.32 mmol)		25 mLr.t.
CTPA-PEG macroRAFT2502.50 g
(0.22 mmol)		0.28 g
(1.0 mmol)		 0.21 g
(1.0 mmol)		0.02 g
(0.16 mmol)		13 mL40 °C
Table 4. Synthetic conditions of triblock copolymers.
Table 4. Synthetic conditions of triblock copolymers.
Zwitterionic MonomermacroRAFT AgentACVATFETime
SBSaB
PSB140-PEG91-PSB1402.16 g
(7.0 mmol)		–0.12 g
(25 μmol)		(CDTPA-PEG91 macroRAFT)2.0 mg
(7.1 μmol)		3.6 mL8 h
PSB96-PEG250-PSB960.58 g
(1.9 mmol)		–0.050 g
(4.1 μmol)		(CTPA-PEG250 macroRAFT)0.46 mg
(1.6 μmol)		1.5 mL8 h
PSaB148-PEG91-PSaB148–1.28 g
(4.6 mmol)		0.30 g
(64 μmol)		(CDTPA-PEG91 macroRAFT)5.2 mg
(18 μmol)		2.2 mL6 h
PSaB97-PEG250-PSaB97–1.07 g
(3.8 mmol)		0.20 g
(16 μmol)		(CTPA-PEG250 macroRAFT)2.1 mg
(7.5 μmol)		3.0 mL6 h
