High-Titer Bioethanol Production from Steam-Exploded Corn Stover Using an Engineering Saccharomyces cerevisiae Strain with High Inhibitor Tolerance

by
Yilu Wu
1,
Changsheng Su
1,
Gege Zhang
2,
Zicheng Liao
3,
Jieyi Wen
1,
Yankun Wang
1,
Yongjie Jiang
1,
Changwei Zhang
1,* and
Di Cai
1,*
1
National Energy R&D Center for Biorefinery, Beijing University of Chemical Technology, Beijing 100029, China
2
School of International Education, Beijing University of Chemical Technology, Beijing 100029, China
3
College of Life Science and Technology, Beijing University of Chemical Technology, Beijing 100029, China
*
Authors to whom correspondence should be addressed.
Fermentation 2023, 9(10), 906; https://doi.org/10.3390/fermentation9100906
Submission received: 14 September 2023 / Revised: 7 October 2023 / Accepted: 11 October 2023 / Published: 13 October 2023
(This article belongs to the Special Issue Anaerobic Digestion: Waste to Energy)
Browse Figures
Review Reports Versions Notes

Abstract

:
Bioethanol is an important biofuel which can be produced from the abundant low-value lignocelluloses. However, the highly toxic inhibitory compounds formed in the hydrolysate and the ineffective utilization of xylose as a co-substrate are the primarily bottlenecks that hinder the commercialization of lignocellulosic bioethanol. In this study, aiming to properly solve the above obstacles, an engineered Saccharomyces cerevisiae strain was constructed by introducing the xylose reductase (XR)–xylitol dehydrogenase (XDH) pathway, overexpressing the non-oxidized pentose phosphate pathway, and deleting aldose reductase GRE3 and alkaline phosphatase PHO13 using a GTR-CRISPR system, followed by adaptive laboratory evolution (ALE). After screening, the isolated S. cerevisiae YL13-2 mutant was capable of robust xylose-utilizing, and exhibited high tolerance to the inhibitors in undetoxified steam-exploded corn stover hydrolysate (SECSH). An ethanol concentration of 22.96 g/L with a yield of 0.454 g/g can be obtained at the end of batch fermentation when using SECSH as substrate without nutrient supplementation. Moreover, aiming to simplify the downstream process and reduce the energy required in bioethanol production, fermentation using fed-batch hydrolyzed SECSH containing higher titer sugars with a YL13-2 strain was also investigated. As expect, a higher concentration of ethanol (51.12 g/L) was received, with an average productivity and yield of 0.71 g/L h and 0.436 g/g, respectively. The findings of this research provide an effective method for the production of bioethanol from lignocellulose, and could be used in large-scale applications in future works.

1. Introduction

Second-generation (2G) bioethanol that is produced from lignocellulosic biomass materials has long been considered a primary renewable biofuel in responding to the severe environmental consequences caused by unsustainable fossil-based fuels [1,2,3]. However, at the current stage, the commercialization of 2G bioethanol is still challenging due to a series of technical barriers, including difficulties in monomeric sugar generation, the toxic effect of inhibitory compounds on the metabolism of microorganisms, and difficulties in pentose biotransformation [4,5,6].
For the generation of fermentable monomeric sugars from lignocelluloses, it is crucial to explore a pretreatment strategy to effectively wane the recalcitrant of the complex lignocellulosic matrix so as to increase the accessibility of the cellulase to the cellulose fractions [7,8,9]. In recent decades, various pretreatment protocols, such as chemical, biological, physical protocols and their combinations, have been suggested for pretreating the lignocellulose matrix [10,11]. Among these, steam explosion (SE) is a relatively mature technique that is commonly used in 2 G bioethanol production, in which lignocelluloses are rapidly depressurized from high-pressure conditions into atmosphere pressure; thereby, the cellulosic fibers are expanded and the recalcitrant structure is depolymerized [12]. Compared with other pretreatment strategies, the SE process has obvious advantages in terms of energy saving, low waste water discharge, and proven effectiveness in demonstration plant [13,14]. Nonetheless, accompanied by depolymerization, by-products including organic acids, furans derivates and phenolic compounds are also released from lignocellulose matrices, leading to severe inhibition of sugar production and the following fermentation processes [15]. Generally, the inhibitory mechanisms of the toxic compounds in lignocellulose hydrolysate are ascribed to the intracellular production of reactive oxygen species (ROS), whereas the accumulation of intracellular ROS results in damage to DNA, proteins and organelles, leading to enzyme inactivation as well as decreasing protein translation and inducing apoptosis [16,17].
To this end, various detoxification strategies have been used in attempts to decrease the concentration of inhibitory compounds in SE hydrolysate, so as to decrease the toxic effect and improve the fermentation performance [18,19]. However, this complex detoxification process could negatively affect the overall monomeric sugars produced by lignocelluloses, and basically causes higher processing costs [20]. Another strategy to decrease the toxic effect of the inhibitors in lignocellulosic hydrolysate is to improve the robustness and the tolerance of the microorganism to the inhibitors in lignocellulosic hydrolysate via genetic engineering or an adaptive laboratory evolutionary (ALE) strategy [21,22,23]. For instance, to improve the inhibitor’s tolerance of S. cerevisiae, a commonly used strain for bioethanol production in industry, the stress of lignocellulosic hydrolysate in an evolution process could receive phenotypically stable strains that are resistant to the synergistic toxicity of multiple inhibitors [24,25].
The ineffective utilization of pentose fractions (e.g., xylose and arabinose) in = lignocellulose hydrolysate is another technical obstacle in 2 G bioethanol production, because there are no natural pathways for pentose catabolism in wild S. cerevisiae [26,27]. Although other strains such as the S. stipitis and P. tannophilus have been also proposed to produce 2 G bioethanol in existing reports, the low ethanol yield and low resistance to inhibitors of these strains are still less comparable to those of S. cerevisiae [28,29]. Generally, current advances in the development of xylose-assimilating S. cerevisiae include three heterologous pathways: the xylose isomerase (XI) pathway, from bacteria; the xylose reductase (XR)–xylitol dehydrogenase (XDH) pathway, of fungal origin; and the oxidative and non-phosphorylative bacterial Weimberg pathway [24,30,31]. Among them, the introduction of the XI and XR-XDH pathways into wild S. cerevisiae is the primary strategy for accomplishing xylose-assimilating behaviors [27,32,33]. For instance, Chen et al. used systematic strategies including big data mining, rational modification, ancestral sequence reconstruction, and ALE to mine and optimize highly active xylose isomerase, and high-titer ethanol production can be achieved with lignocellulosic hydrolysate using the constructed S. cerevisiae CRD5HS [34,35]. In another research, Costa et al. constructed industrially engineered strains via heterologous introduction of xylose reductase gene XYL1 (mutated for higher specificity for NADH) and xylitol dehydrogenase gene XYL2, and overexpression of xylulokinase gene XKS1 and transketolase gene TAL1, followed by knockout of the aldose reductase gene GRE3. Ethanol yields of 0.40–0.46 g/g were obtained using xylose-enriched lignocellulosic hydrolysate [36]. Li et al. integrated two novel heterologous genes of the xylose-specific, glucose-insensitive transporter gene MGT05196N360F and a xylose isomerase gene Ru-xylA; constructed with endogenous modifications and ALE, the engineered strain LF1 exhibited excellent xylose fermentation performance and enhanced inhibitor resistance [24]. Nonetheless, works focusing on hyper bio-ethanol production directly from SE hydrolysate with high xylose utilization rates are still lacking.
In this study, aiming to produce high-titer 2 G bioethanol from undetoxified SE hydrolysate, a xylose-assimilating S. cerevisiae with tolerance of inhibitory compounds was constructed via metabolic engineering and ALE. Batch fermentation was conducted to verify the fermentation performance of the engineered strain. Aiming to produce higher-concentration bioethanol and therefore decrease the energy requirements of downstream processes, fed-batch SE hydrolysate containing a high concentration of monomeric sugars and inhibitors was also trialed as the substrate, directly. The evolved strain exhibited good fermentation performance, which provides a solid basis for future applications in biorefinery plants.

2. Materials and Methods

2.1. Chemicals and Raw Materials

The steam-exploded (SE) pulp was obtained from SDIC BIOTECH Co., Ltd. (Hailun, China). Generally, the CS was milled into 3–15 cm particles, followed by mixing with 1–3 wt% of sulfuric acid and exploding continuously at 170–190 °C. The SECS mainly consisted of 37.90 ± 1.12 wt% of cellulose, 12.31 ± 0.25 wt% of hemicellulose, 27.67 ± 2.03 wt% of lignin, and 22.12 ± 0.87 wt% of moisture. Cellulase (145 ± 5 FPU/mL) was purchased from Novozymes Co., Ltd. (Copenhagen, Denmark). Bis(trimethylsilyl) trifluoroacetamide (BSTFA), trimethylchlorosilane (TMCS) = 99:1, D-xylose (>98 wt%), and D-glucose (>99 wt%) were purchased from Macklin Co., Ltd. (Shanghai, China). 2-Chlorobenzyl alcohol was purchased from Aladdin Co., Ltd. (Los Angeles, CA, USA). Other chemicals were purchased from Beijing Chemical Works, and were under AR grade.

2.2. Enzymatic Hydrolysis of the Steam Exploded Pulp

The enzymatic hydrolysis of SE pulp was carried out in a 2 L bioreactor with 1 L of working volume. Briefly, 0.05 M of H3PO4/KH2PO4 (pH 4.8) was adopted as the buffer. The hydrolysis process was performed at 50 °C and 180 rpm for 72 h, with 10 wt% of SE pulp dosage and 20 FPU/g of cellulase loading [37]. The SE corn stover hydrolysate (SECSH) was obtained after solid–liquid separation, and the pH of the SECSH was adjusted to 5.5 by ammonium hydroxide before using it as the fermentation medium for the screened strains. During the fed-batch hydrolysis of the SE pulp, after batch hydrolysis of the 10% (w/v) SE pulp and loading for an initial 12 h, an additional 20% (w/v) of SE pulp and cellulase were added into the bioreactor in the following 48 h intermittently, and the enzymatic saccharification was terminated after 96 h.

2.3. Strains Construction

E. coli strains constructed in this work were grown in Luria–Bertani (LB) medium (10 g/L peptone, 5 g/L yeast extract, 5 g/L NaCl) at 37 °C and 200 rpm for 18 h. The S. cerevisiae M3013 was laboratory stored and used as a background strain for further metabolic engineering and ALE [38]. Wild-type S. cerevisiae M3013 was grown in yeast extract-peptone–dextrose (YPD) medium (20 g/L peptone, 10 g/L yeast extract, 20 g/L glucose). Xylose-assimilating strains (as summarized in Figure S1 and Table S1) were grown in YPX (20 g/L peptone, 10 g/L yeast extract, 20 g/L xylose). All the yeasts were grown at an optimal ethanol fermentation temperature of 30 °C and 200 rpm for 24 h before inoculation.
The plasmid, guide RNA, synthetic oligos, and primers used in this study are listed in Tables S2 and S3. The gene expression cassettes of the xylose reductase-xylitol dehydrogenase (XR-XDH) pathway were comparable with the previous work [30]. RPE1, TAL1, RKI1, and TKL1 were isolated from S. cerevisiae S288C. All genes were amplified using PrimeSTAR GXL DNA from TaKaRa. The replicating plasmids for gene expression were constructed using a Gibson assembly Master Mix (New England BioLabs, Ipswich, UK) to ligate the pRS416 vector and the amplified gene fragments. The gRNA plasmids were constructed by Golden Gate Cloning to ligate the pLacZ-SalI (Cas9), G418 (resistance screening markers) and guide RNA (gRNA). The gRNA sequences targeting a specific gene/genomic locus were found and compared at http://crispr.dbcls.jp (accessed on 23 September 2022). The plasmids’ construction was confirmed via colony PCR using Taq RCR Master Mix from Biomed and sequencing.
GTR-CRISPR system was used for gene deletion and integration in S. cerevisiae M3013 [39]. Considering that the strain M3013 was non-nutrient-deficient, the plasmid pLacZ-SalI (Cas9) was modified by introducing G418 as a resistance-screening marker (Figure S2). In the integration process, the donors were PCR-amplified from the plasmid that constructed and co-transformed with the related vectors (pLacZ) into cells via electroporation [40].

2.4. Adaptive Laboratory Evolution of the Engineered Strains

An ALE of the xylose-assimilating strain was conducted in xylose and SECSH stress sequentially. Yeast seeds were incubated with a rate of 10% (v/v) at 30 °C and 200 rpm in oxygen-limited 100 mL non-baffled shake flasks containing 20 mL YPX20 (20 g/L xylose) or SECSH, respectively. Transfers were carried out when the strains reached the exponential growth phase and the initial OD600 reached 1. The cells’ concentration was determined using a spectrophotometer detector (TU-1901) at 600 nm, and xylose was quantitatively detected by HPLC. Finally, cells were enriched on YPX plates and the best single colony was isolated and selected from the suspension of the evolved strain (Figure S1).

2.5. Batch Ethanol Fermentation

To guarantee good metabolic properties in the batch fermentation, strains were pre-cultured for twice the amount of time in the YPX medium. Then, cells were transferred to a 250 mL shake flask containing 50 mL YPD medium, and were incubated at 30 °C and 200 rpm for 24 h. The seeds were finally inoculated for fermentation and maintained at an initial OD600 of 1. Batch fermentation of a synthetic medium with inhibitors (to match the concentration of inhibitors tested in SECSH: 8 g/L acetic acid, 5 g/L formic acid or lactic acid, 0.5 g/L furfural or 5-hydroxymethylfurfural (5-HMF), 0.1 g/L phenol, benzoic acid, or 4-hydroxymethylbenzoic acid, and 0.04 g/L of phenolic compounds (vanillin, vanillic acid, ferulic acid, coumaric acid, syringic acid, syringaldehyde, etc.) was added, respectively) was carried out, and realistic SECSH was used in a working volume of 20 mL. All fermentations had three parallel experimental groups.

2.6. Assay

Glucose, xylose and the organic acid by-products in the SECSH and the fermentation broth were analyzed via high-performance liquid chromatography (HPLC, Thermo Scientific™ UltiMate™ 3000, Waltham, MA, USA) with an HPX-87P (Bio-Rad Labs, Hercules, CA, USA) column at 65 °C and refractive index detector (RID) at 50 °C, as described in detail in a previous work [41]. Some 5 mM sulfuric acid was adopted as the mobile phase under a flow rate of 0.6 mL/min. Furan derivates including furfural and 5-hydroxymethylfurfural (5-HMF) were detected via HPLC using a 100-5-C18 column (Kromasil, Bohus, Sweden) at 35 °C and a UV detector at 270 nm. Some 50% (v/v) acetonitrile solution was used as the mobile phase.
Phenolic compounds including vanillin and vanillic acid were detected using GC/MS (Agilent 7890B GC and 5977B MS) [42]. For the derivatization, lignin in SECSH was extracted several times using ethyl acetate. Then, 100 µL of BSTFA:TMCS = 99:1 was added into the solid fraction after evaporation of the ethyl acetate, and the mixture was maintained at 60 °C for 30 min. During the process, 2-chlorobenzyl alcohol was used as an internal standard. The GC conditions were as follows: the oven temperature was maintained at 50 °C for 3 min, then increased to 150 °C at a speed of 10 °C/min, followed by ramping up to 220 °C at a speed of 5 °C/min, and finally increased to 300 °C at 10 °C/min and maintained for another 3 min. Helium was used as carrier gas at a flow rate of 1.27 cm3/min. The injector temperature was maintained at 280 °C in split mode with a 5:1 split ratio. The ion source temperature was 230 °C, and the quadrupole temperature was set at 150 °C in MS detector. All samples were replicated in triplicate.

2.7. Statistical Analysis

The software IBM SPSS Statistics 22 was used for statistical analysis to test significant differences between each treatment. All data are presented as means ± standard deviation of duplicate determination.

3. Results and Discussions

3.1. Composition of the SECSH and the Fermentation Performance of the Background Strain M3013

The SECSH was produced via batch saccharification containing 39.02 ± 0.27 g/L of glucose and 10.66 ± 0.91 g/L of xylose. In addition, by-products including organic acids, furan derivates, and phenolic compounds were also detected in the SECSH, and were likely they to the deacetylation of the hemicellulose fraction, the isomerization and dehydration; and were released from the polymerized lignin structure, respectively, during the SE pretreatment (Figure S1 and Table 1) [37,43,44,45]. These compounds are proven to cause severe inhibition of the growth of S. cerevisiae [46,47]. As shown in Table 1, furfural and 5-HMF are the primary furan inhibitors in SECSH, and their concentrations are 0.333 ± 0.001 g/L and 0.412 ± 0.004 g/L, respectively. The acetic acid concentration in SECSH was 2.110 ± 0.198 g/L, while 3.355 ± 0.136 g/L of lactic acid was also detected. The lactic acid was probably produced by the fermentation of lactic acid bacteria present in the CS during the silage process [48]. Meanwhile, the GC/MS spectra and the corresponding structural formulae of the phenolic compounds in Figure S1 demonstrated that the vanillin (0.064 ± 0.012 g/L) and vanillic acid (0.044 ± 0.001 g/L) were the main phenolic inhibitors in the SECSH, while low concentrations of 4-hydroxy-3-(4-hydroxyphenyl) propanoic acid (0.002 g/L), 4-hydroxy-benzenepropanoic acid (0.002 g/L), and 2-hydroxy-3-(4-hydroxy-3-methoxyphenyl) (0.001 g/L) propanoic acid were also detected.
In order to investigate the degree to which the above inhibitors in SECSH inhibit the parent S. cerevisiae strain, batch fermentations were carried out in a synthesis medium with the addition of organic acids (refer to the results in Table 1, 5 g/L formic acid and lactic acid, 8 g/L acetic acid), furan derivates (0.5 g/L furfural and 5-HMF), and phenols (0.1 g/L phenol, benzoic acid and 4-hydroxy-benzaldehyde, 0.05 g/L p-coumaric acid, vanillin, vanillic acid, ferulic acid, syringaldehyde and syringic acid) were added). Figure 1 shows the tolerance of the S. cerevisiae M3013 to the various inhibitors (For details, please see Table S4). It is suggested that acetic acid exhibited the highest inhibition of the growth of the M3013 strain among the tested organic acids. Compared with the control group using a similar synthesis medium except for the addition of inhibitors (13.31 ± 0.56 of OD600max and 0.472 ± 0.185 g/g of yield), levels of only 10.46 ± 0.16 of OD600max and 0.447 ± 0.096 g/g of yield were accomplished in the acetic acid-containing group. In contrast to the inhibition of acetic acid, lactic acid had a slight negative influence on the M3013 strain. Similar to the phenomenon illustrated in the literature, the S. cerevisiae had a relatively higher tolerance to the furan derivatives than other inhibitors [49]. Despite the phenolic compound concentration in the medium being extremely low, severe inhibition of the strain growth and the ethanol yield was detected. Meanwhile, the phenolic compounds with carboxyl groups showed more severe inhibition of the M3013 strain than the aldehyde counterparts. This can be explained by the directly dissociated carboxyl groups containing phenols outside the cells, which lower the environmental pH. In contrast, the aldehyde groups containing phenols cause proteins to be denatured after they are transformed into cells [50,51].

3.2. Construction of Xylose-Fermenting S. cerevisiae Strains and Their Adaptive Evolution

The experimental results in Section 3.1 suggest that the strain S. cerevisiae M3013 possesses a good fermentation phenotype [38]. Hence, it was selected as a parent strain for the construction of the xylose-assimilating recombinant strains. As shown in Figure 2, the genome of the M3013 strain was modified by metabolic engineering through heterologous expression, knockout, and gene modification via the GTR-CRIPSR system. The XR-XDH pathway containing a mutant XR (R276H) gene mXYL1, XR gene XYL1, XDH gene XYL2, and XK gene XKS1 was integrated into the specific locus in the genome of the S. cerevisiae chromosome (Table S3) [30]. To enhance xylose catabolism and reduce by-product production, the native aldose reductase gene GRE3, which inhibited XI activity and thereby reduced the production of xylitol, and the alkaline phosphatase gene PHO13, which promoted a reduction in ATP consumption, were deleted in the genome [52,53]. Then, the genes (including TAL1, TKL1, RKI1 and RPE1) related to the non-oxidative pentose phosphate pathway were overexpressed.
The resulting strain YL13 was isolated for ALE under the stress of xylose as a sole carbon source in synthetic medium. After 85 days of evolution, the mutant strain YL13-1 that significantly improved xylose assimilation was screened. To further improve the tolerance of inhibitors from SECSH, an ALE was further conducted using the YL13-1 strain with the stress of diluted SECSH. Several single colonies were used for evaluation, and the colony with the best phenotypes (xylose assimilation and inhibitor tolerance) was used for subsequent fermentation. Finally, a single colony named by YL13-2 was isolated, which could tolerance the inhibitors and maintain stable hereditary traits in undetoxified SECSH when using xylose as a sole carbon source (Figure S4).

3.3. Fermentation Performance of the Evolved Strain YL13-2 Using SECSH

The fermentation performances of the evolved YL13-2 strain, with a high tolerance to the basic inhibitors present in the SECSH and high xylose-assimilating efficiency, was investigated. Before using the undetoxified SECSH as the substrate, the synthetic medium to which the key inhibitors were added was analyzed. Compared to strain YL13-1, S. cerevisiae YL13-2 showed better performance in biomass-growing and ethanol fermentation in various inhibitor-containing media (Figure 3 and Table S5), which reflected the significant effect of the ALE of the strain in the inhibitor-containing SECSH in enhancing inhibitor tolerance. In particular, yeast growth and ethanol yield after adding 5-HMF (13.98 ± 1.02 of OD600max and 0.454 ± 0.004 g/g total sugar, respectively), syringic acid (13.84 ± 0.14 of OD600max and 0.430 ± 0.005 g/g total sugar, respectively) and syringaldehyde (13.73 ± 0.66 of OD600max and 0.439 ± 0.010 g/g total sugar, respectively) were very close to those of the control group with added inhibitors (14.02 ± 0.45 of OD600max and 0.457 ± 0.014 g/g total sugar, respectively).
The strong fermentation performance of the YL13-2 strain in the synthesis medium containing inhibitors justified further evaluation of fermentation performance when using undetoxified SECSH as a substrate. Herein, in order to better reflect the xylose utilization and the inhibitor tolerance of the engineered strain YL13-2, the fermentation kinetics of the background strain M3013 and the engineered strain YL13-1 were further investigated (Figure 4). In terms of glucose utilization in the SECSH, all the tested strains generally possessed similar kinetics in the batch fermentation process. As for the xylose assimilation using undetoxified SECSH, YL13-2 showed a significantly increased xylose utilization rate. After 96 h of inoculation, there was no xylose remaining in the fermentation broth of YL13-2, while 3.53 ± 0.59 g/L residual xylose was detected in the broth of YL13-1, and no xylose consumption was detected in the broth of M3013. This can be attributed to the ALE that promoted xylose assimilation in inhibitors in these conditions. Meanwhile, the strain YL13-2 also showed a significant increase in ethanol production and yield (22.96 ± 1.73 g/L and 0.454 ± 0.034 g/g total sugar, respectively), compared to 22.43 ± 0.79 g/L and 0.442 ± 0.016 g/g total sugar in YL13-1. Our further work verified that the performance of the strain YL13-2 in ethanol fermentation with and without YP (10 g/L yeast extract and 20 g/L peptone) added to SECSH did not differ significantly (Table S5). Therefore, the strain YL13-2 exhibited better resistance to SECSH inhibitors, and did not require exogenously added nutrients to promote an intracellular oxidative stress response [54]. The above experimental results confirmed the excellent xylose consumption capability and inhibitor resistance property of strain YL13-2, which allowed hyper bioethanol production in undetoxified SECSH without any other nutrient supplementation.

3.4. Bioethanol Fermentation Using High-Concentration SECSH and Strain YL13-2

In order to reduce of the separation cost of downstream processes, high-concentration bioethanol production in broth is recommended [55]. It is estimated that the energy requirement for ethanol separation via distillation may be as low as one third of the heat of combustion (~30 MJ/kg) when feeding a broth containing ~3 wt% of ethanol [56]. Moreover, end-product inhibition can be achieved when the ethanol concentration in broth is above 5 wt% [57,58]. Therefore, a bioethanol concentration after fermentation maintained at >5 wt% may be more effective in concerns of the fermentation and separation efficiencies. Nonetheless, owing to poor mass transfer in the enzymatic hydrolysis stage, the initial sugar concentration in the substrate was far lower than the ideal titer in >5 wt% bioethanol production [59,60,61].
To realize high-concentration monomeric sugars in lignocellulose hydrolysate, fed-batch saccharification is suggested in the literature [62]. Based on intermittent feeding, the viscosity of the slurry during the enzymatic hydrolysis of the pulps can be maintained at a relatively lower level, and good homogenization and mass transfer can be realized [63,64]. As shown in Figure 5, in total, 30% (w/v) SECS loading was performed via fed-batch enzymatic hydrolysis. After 96 h of hydrolysis, 97.61 ± 0.59 g/L glucose and 22.56 ± 0.53 g/L xylose were achieved in the slurry. The slurry was directly used by the evolved strain YL13-2 for ethanol fermentation after pH neutralization, and there was no extra detoxification step and nutrient supplementation. It is worth noting here that the inhibitor concentration was also increased after fed-batch saccharification (for details, please see Figure S6) compared to the batch process. Therefore, more severe inhibition could be achieved when using fed-batch SECSH as substrate.
As can be seen from Figure 5, attractive bioethanol fermentation results were realized using the evolved strain YL13-2. Despite being negatively affected by higher concentrations of inhibitors, YL13-2 depleted glucose and produced 45.06 ± 2.08 g/L ethanol in 36 h, and continued to produce up to 6.06 g/L of ethanol from xylose in the following 60 h. Even though the bioethanol yield was lower than in the process using batch SECSH (0.436 ± 0.009 g/g using fed-batch hydrolysate vs. 0.454 ± 0.034 in batch hydrolysate), a final ethanol titer of 51.12 ± 1.06 g/L with an average productivity of 0.71 ± 0.01 g/L h can be realized after 96 h of inoculation. The kinetics investigation suggested that obvious carbon catabolite repression occurs in the fermentation process, and consequently, glucose was almost completely consumed before the rapid utilization of xylose by YL13-2 [24,32,65]. Therefore, an important direction in future work may be the mitigation or elimination of carbon catabolite repression for more efficient bioethanol production.

3.5. Mass Balance

The mass balance of bioethanol production from CS by YL13-2 is shown in Figure 6, which shows that 778.8 g of SE pulp can be recovered from 1000 g of raw CS. After enzymatic hydrolysis of SE pulp, 325.4 g of glucose and 75.2 g of xylose can be obtained in the SECSH (based on the fed-batch process). Inhibitors including 0.212 g of phenolic compounds and 4.945 g of others were also co-generated after saccharification. However, due to the high tolerance of inhibitors and the boosting of xylose assimilation caused by the evolved strain YL13-2, 170.4 g of bioethanol can be obtained after fermentation. Table 2 summarizes the current advances in bioethanol production from different types of lignocelluloses. It shows that using strain YL13-2 in the current work produced a high ethanol yield from CS. More importantly, compared with other pieces of research, the avoiding of detoxification and nutrient supplementation simplified the overall production chain of bioethanol, and the relatively higher concentration of the bioethanol produced showed the potential of more energy saving in downstream purification processes. Overall, the evolved strain YL13-2 has great potential for application in scaled-up operations, and we will continue this research in future works.

4. Conclusions

The hydrolysis inhibitor tolerance of xylose-assimilating S. cerevisiae YL13-2 was engineered by introducing the heterologous mXR-XDH pathway and the ALE process under the stress of SECSH. Compared with the parent strain M3013, the evolved strain YL13-2 showed high robustness, and could effectively utilize the xylose fractions in undetoxified SECSH. A maximum of 51.12 g/L of bioethanol could be produced using the undetoxified SECSH, with a yield and productivity of 0.436 g/g and 0.71 g/L h, respectively. This work highlights the great potential of the production of bioethanol from undetoxified lignocellulose hydrolysate in practice. Future works will be concerned with the scaling up of fermentation using the evolved YL13-2 strain, and investigation of the specific molecular mechanisms of inhibitor tolerance.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/fermentation9100906/s1, Figure S1: Lignin monomers presented in SECSH detected by GC/MS; Figure S2: Construction and the evaluation of the genetic strain. (A) Flowchart of the construction process of Saccharomyces cerevisiae YL13-2. (B) Xylose consumption rate and ethanol concentration after batch fermentation of YL13-2 strain using the synthetic medium. Figure S3: A gRNA-tRNA array for CRISPR-Cas9 (GTR-CRISPR). The screening marker replaced by URA3 for G418. Figure S4: Schematic diagram of the xylose-assimilating enhancement and the inhibitors tolerance increases of S. cerevisiae YL 13 by the ALE strategy. Figure S5: (A) Growth curves of S. cerevisiae YL13-1 and YL13-2 in synthetic medium containing organic acids that presence in SE enzymatic hydrolysate. (B) Growth curves of S. cerevisiae YL13-1 and YL13-2 in synthetic medium that containing furan derivates (0.5 g/L of furfural and 5-HMF) presence in SE enzymatic hydrolysate. (C) (D) Growth curves of S. cerevisiae YL13-1 and YL13-2 in synthetic medium containing phenolic compounds (0.1 g/L of phenol, benzoic acid and 4-(hydroxymethyl)benzaldehyde, 0.04 g/L of p-coumaric acid, vanillin, vanillic acid, ferulic acid, syringic acid and syringaldehyde) presence in SE enzymatic hydrolysate. Figure S6: Inhibitors (organic acids, furan derivates and phenolic compounds) concentration in 10 % (w/v) and 30 % (w/v) of SECS loading. Table S1: Strains involved in this study. Table S2: Primers involved in this study. Table S3: Plasmid and gRNA involved in this study. Table S4: Key parameters of batch ethanol fermentation by different strains using the synthetic medium containing inhibitors. Table S5: Ethanol fermentation performances by strains YL13-2 using undetoxified SECSH without adding YP and with adding YP. Table S6: Ethanol fermentation performances by different strains using undetoxified SECSH.

Author Contributions

Conceptualization, Y.W. (Yilu Wu) and D.C.; methodology, Y.W. (Yilu Wu) and C.S.; validation, Y.W. (Yilu Wu), G.Z. and Z.L.; formal analysis, Y.W. (Yilu Wu) and Y.J.; investigation, Y.W. (Yankun Wang) and J.W.; resources, C.Z.; data curation, Y.W. (Yilu Wu) and D.C.; writing—original draft preparation, Y.W. (Yilu Wu); writing—review and editing, Y.W. (Yilu Wu) and D.C.; su-pervision, C.Z.; project administration, D.C.; funding acquisition, D.C. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded by the National Natural Science Foundation of China (Grant No. 22078018).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

We thank Wenqiang Ren from Research Center for Eco-environmental Science, Chinese Academy of Science for kindly providing us with the help of testing.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Ayodele, B.V.; Alsaffar, M.A.; Mustapa, S.I. An overview of integration opportunities for sustainable bioethanol production from first- and second-generation sugar-based feedstocks. J. Clean. Prod. 2020, 245, 118857. [Google Scholar] [CrossRef]
  2. Kumari, D.; Singh, R. Pretreatment of lignocellulosic wastes for biofuel production: A critical review. Renew. Sustain. Energy Rev. 2018, 90, 877–891. [Google Scholar] [CrossRef]
  3. Zhang, C.; Chen, H.; Pang, S.; Su, C.; Lv, M.; An, N.; Wang, K.; Cai, D.; Qin, P. Importance of redefinition of corn stover harvest time to enhancing non-food bio-ethanol production. Renew. Energy 2020, 146, 1444–1450. [Google Scholar] [CrossRef]
  4. Sharma, B.; Larroche, C.; Dussap, C.-G. Comprehensive assessment of 2G bioethanol production. Bioresour. Technol. 2020, 313, 123630. [Google Scholar] [CrossRef] [PubMed]
  5. Devi, A.; Singh, A.; Bajar, S.; Pant, D.; Din, Z.U. Ethanol from lignocellulosic biomass: An in-depth analysis of pre-treatment methods, fermentation approaches and detoxification processes. J. Environ. Chem. Eng. 2021, 9, 105798. [Google Scholar] [CrossRef]
  6. Rosales-Calderon, O.; Arantes, V. A review on commercial-scale high-value products that can be produced alongside cellulosic ethanol. Biotechnol. Biofuels 2019, 12, 1–58. [Google Scholar] [CrossRef]
  7. Cheah, W.Y.; Sankaran, R.; Show, P.L.; Ibrahim, T.N.B.T.; Chew, K.W.; Culaba, A.; Chang, J.-S. Pretreatment methods for lignocellulosic biofuels production: Current advances, challenges and future prospects. Biofuel Res. J. 2020, 7, 1115–1127. [Google Scholar] [CrossRef]
  8. Chen, H.; Huo, W.; Wang, B.; Wang, Y.; Wen, H.; Cai, D.; Zhang, C.; Wu, Y.; Qin, P. L-lactic acid production by simultaneous saccharification and fermentation of dilute ethylediamine pre-treated rice straw. Ind. Crop. Prod. 2019, 141, 111749. [Google Scholar] [CrossRef]
  9. Li, P.; Cai, D.; Zhang, C.; Li, S.; Qin, P.; Chen, C.; Wang, Y.; Wang, Z. Comparison of two-stage acid-alkali and alkali-acid pretreatments on enzymatic saccharification ability of the sweet sorghum fiber and their physicochemical characterizations. Bioresour. Technol. 2016, 221, 636–644. [Google Scholar] [CrossRef]
  10. Zhang, C.; Wen, H.; Zheng, J.; Fu, C.; Chen, C.; Cai, D.; Qin, P.; Wang, Z. A combination of evaporation and chemical preservation for long-term storage of fresh sweet sorghum juice and subsequent bioethanol production. J. Food Process. Preserv. 2018, 42, e13825. [Google Scholar] [CrossRef]
  11. Li, P.; Cai, D.; Luo, Z.; Qin, P.; Chen, C.; Wang, Y.; Zhang, C.; Wang, Z.; Tan, T. Effect of acid pretreatment on different parts of corn stalk for second generation ethanol production. Bioresour. Technol. 2016, 206, 86–92. [Google Scholar] [CrossRef]
  12. Yu, Y.; Wu, J.; Ren, X.; Lau, A.; Rezaei, H.; Takada, M.; Bi, X.; Sokhansanj, S. Steam explosion of lignocellulosic biomass for multiple advanced bioenergy processes: A review. Renew. Sustain. Energy Rev. 2022, 154, 111871. [Google Scholar] [CrossRef]
  13. Singh, J.; Suhag, M.; Dhaka, A. Augmented digestion of lignocellulose by steam explosion, acid and alkaline pretreatment methods: A review. Carbohydr. Polym. 2015, 117, 624–631. [Google Scholar] [CrossRef] [PubMed]
  14. Jacquet, N.; Maniet, G.; Vanderghem, C.; Delvigne, F.; Richel, A. Application of Steam Explosion as Pretreatment on Lignocellulosic Material: A Review. Ind. Eng. Chem. Res. 2015, 54, 2593–2598. [Google Scholar] [CrossRef]
  15. Brandt, B.A.; Jansen, T.; Görgens, J.F.; van Zyl, W.H. Overcoming lignocellulose-derived microbial inhibitors: Advancing the Saccharomyces cerevisiae resistance toolbox. Biofuels Bioprod. Biorefining 2019, 13, 1520–1536. [Google Scholar] [CrossRef]
  16. Qin, L.; Dong, S.; Yu, J.; Ning, X.; Xu, K.; Zhang, S.-J.; Xu, L.; Li, B.-Z.; Li, J.; Yuan, Y.-J.; et al. Stress-driven dynamic regulation of multiple tolerance genes improves robustness and productive capacity of Saccharomyces cerevisiae in industrial lignocellulose fermentation. Metab. Eng. 2020, 61, 160–170. [Google Scholar] [CrossRef]
  17. Sasano, Y.; Watanabe, D.; Ukibe, K.; Inai, T.; Ohtsu, I.; Shimoi, H.; Takagi, H. Overexpression of the yeast transcription activator Msn2 confers furfural resistance and increases the initial fermentation rate in ethanol production. J. Biosci. Bioeng. 2012, 113, 451–455. [Google Scholar] [CrossRef] [PubMed]
  18. Deng, F.; Cheong, D.-Y.; Aita, G.M. Optimization of activated carbon detoxification of dilute ammonia pretreated energy cane bagasse enzymatic hydrolysate by response surface methodology. Ind. Crop. Prod. 2018, 115, 166–173. [Google Scholar] [CrossRef]
  19. Dong, J.-J.; Han, R.-Z.; Xu, G.-C.; Gong, L.; Xing, W.-R.; Ni, Y. Detoxification of furfural residues hydrolysate for butanol fermentation by Clostridium saccharobutylicum DSM 13864. Bioresour. Technol. 2018, 259, 40–45. [Google Scholar] [CrossRef]
  20. Kim, D. Physico-Chemical Conversion of Lignocellulose: Inhibitor Effects and Detoxification Strategies: A Mini Review. Molecules 2018, 23, 309. [Google Scholar] [CrossRef]
  21. Li, B.; Liu, N.; Zhao, X. Response mechanisms of Saccharomyces cerevisiae to the stress factors present in lignocellulose hydrolysate and strategies for constructing robust strains. Biotechnol. Biofuels Bioprod. 2022, 15, 28. [Google Scholar] [CrossRef]
  22. Wang, L.; Li, B.; Su, R.-R.; Wang, S.-P.; Xia, Z.-Y.; Xie, C.-Y.; Tang, Y.-Q. Screening novel genes by a comprehensive strategy to construct multiple stress-tolerant industrial Saccharomyces cerevisiae with prominent bioethanol production. Biotechnol. Biofuels Bioprod. 2022, 15, 11. [Google Scholar] [CrossRef]
  23. Hemansi; Himanshu; Patel, A.K.; Saini, J.K.; Singhania, R.R. 23. Hemansi; Himanshu; Patel, A.K.; Saini, J.K.; Singhania, R.R. Development of multiple inhibitor tolerant yeast via adaptive laboratory evolution for sustainable bioethanol production. Bioresour. Technol. 2022, 344 Pt B, 126247. [Google Scholar] [CrossRef] [PubMed]
  24. Li, H.; Shen, Y.; Wu, M.; Hou, J.; Jiao, C.; Li, Z.; Liu, X.; Bao, X. Engineering a wild-type diploid Saccharomyces cerevisiae strain for second-generation bioethanol production. Bioresour. Bioprocess. 2016, 3, 51. [Google Scholar] [CrossRef]
  25. Li, X.; Wang, Y.; Li, G.; Liu, Q.; Pereira, R.; Chen, Y.; Nielsen, J. Metabolic network remodelling enhances yeast’s fitness on xylose using aerobic glycolysis. Nat. Catal. 2021, 4, 783–796. [Google Scholar] [CrossRef]
  26. Ochoa-Chacón, A.; Martinez, A.; Poggi-Varaldo, H.M.; Villa-Tanaca, L.; Ramos-Valdivia, A.C.; Ponce-Noyola, T. Xylose Metabolism in Bioethanol Production: Saccharomyces cerevisiae vs Non-Saccharomyces Yeasts. BioEnergy Res. 2021, 15, 905–923. [Google Scholar] [CrossRef]
  27. Park, H.; Jeong, D.; Shin, M.; Kwak, S.; Oh, E.J.; Ko, J.K.; Kim, S.R. Xylose utilization in Saccharomyces cerevisiae during conversion of hydrothermally pretreated lignocellulosic biomass to ethanol. Appl. Microbiol. Biotechnol. 2020, 104, 3245–3252. [Google Scholar] [CrossRef] [PubMed]
  28. Wu, Y.; Wen, J.; Wang, K.; Su, C.; Chen, C.; Cui, Z.; Cai, D.; Cheng, S.; Cao, H.; Qin, P. Understanding the Dynamics of the Saccharomyces cerevisiae and Scheffersomyces stipitis Abundance in Co-culturing Process for Bioethanol Production from Corn Stover. Waste Biomass Valorization 2022, 14, 43–55. [Google Scholar] [CrossRef]
  29. Mei, G.-Y.; Bajwa, P.K.; Dashtban, M.; Ho, C.-Y.; Lee, H. Transfer of plasmid into the pentose-fermenting yeast Pachysolen tannophilus. J. Microbiol. Methods 2018, 148, 97–103. [Google Scholar] [CrossRef]
  30. Li, Y.-J.; Wang, M.-M.; Chen, Y.-W.; Wang, M.; Fan, L.-H.; Tan, T.-W. Engineered yeast with a CO2-fixation pathway to improve the bio-ethanol production from xylose-mixed sugars. Sci. Rep. 2017, 7, 43875. [Google Scholar] [CrossRef]
  31. Borgström, C.; Wasserstrom, L.; Almqvist, H.; Broberg, K.; Klein, B.; Noack, S.; Lidén, G.; Gorwa-Grauslund, M.F. Identification of modifications procuring growth on xylose in recombinant Saccharomyces cerevisiae strains carrying the Weimberg pathway. Metab. Eng. 2019, 55, 1–11. [Google Scholar] [CrossRef]
  32. Demeke, M.M.; Dumortier, F.; Li, Y.; Broeckx, T.; Foulquié-Moreno, M.R.; Thevelein, J.M. Combining inhibitor tolerance and D-xylose fermentation in industrial Saccharomyces cerevisiae for efficient lignocellulose-based bioethanol production. Biotechnol. Biofuels 2013, 6, 120. [Google Scholar] [CrossRef] [PubMed]
  33. He, B.; Hao, B.; Yu, H.; Tu, F.; Wei, X.; Xiong, K.; Zeng, Y.; Zeng, H.; Liu, P.; Tu, Y.; et al. Double integrating XYL2 into engineered Saccharomyces cerevisiae strains for consistently enhanced bioethanol production by effective xylose and hexose co-consumption of steam-exploded lignocellulose in bioenergy crops. Renew. Energy 2022, 186, 341e349. [Google Scholar] [CrossRef]
  34. Chen, S.; Xu, Z.; Ding, B.; Zhang, Y.; Liu, S.; Cai, C.; Li, M.; Dale, B.E.; Jin, M. Big data mining, rational modification, and ancestral sequence reconstruction inferred multiple xylose isomerases for biorefinery. Sci. Adv. 2023, 9, eadd8835. [Google Scholar] [CrossRef]
  35. Tang, R.; Ye, P.; Alper, H.S.; Liu, Z.; Zhao, X.; Bai, F. Identification and characterization of novel xylose isomerases from a Bos taurus fecal metagenome. Appl. Microbiol. Biotechnol. 2019, 103, 9465–9477. [Google Scholar] [CrossRef] [PubMed]
  36. Costa, C.E.; Romaní, A.; Cunha, J.T.; Johansson, B.; Domingues, L. Integrated approach for selecting efficient Saccharomyces cerevisiae for industrial lignocellulosic fermentations: Importance of yeast chassis linked to process conditions. Bioresour. Technol. 2017, 227, 24–34. [Google Scholar] [CrossRef] [PubMed]
  37. Su, C.; Zhang, C.; Wu, Y.; Zhu, Q.; Wen, J.; Wang, Y.; Zhao, J.; Liu, Y.; Qin, P.; Cai, D. Combination of pH adjusting and intermittent feeding can improve fermentative acetone-butanol-ethanol (ABE) production from steam exploded corn stover. Renew. Energy 2022, 200, 592–600. [Google Scholar] [CrossRef]
  38. Cai, D.; Dong, Z.; Wang, Y.; Chen, C.; Li, P.; Qin, P.; Wang, Z.; Tan, T. Biorefinery of corn cob for microbial lipid and bio-ethanol production: An environmental friendly process. Bioresour. Technol. 2016, 211, 677–684. [Google Scholar] [CrossRef]
  39. Zhang, Y.; Wang, J.; Wang, Z.; Zhang, Y.; Shi, S.; Nielsen, J.; Liu, Z. A gRNA-tRNA array for CRISPR-Cas9 based rapid multiplexed genome editing in Saccharomyces cerevisiae. Nat. Commun. 2019, 10, 1053. [Google Scholar] [CrossRef]
  40. Xia, F.; Du, J.; Wang, K.; Liu, L.; Ba, L.; Liu, H.; Liu, Y. Application of Multiple Strategies To Debottleneck the Biosynthesis of Longifolene by Engineered Saccharomyces cerevisiae. J. Agric. Food Chem. 2022, 70, 11336–11343. [Google Scholar] [CrossRef]
  41. Wu, Y.; Wen, J.; Su, C.; Jiang, C.; Zhang, C.; Wang, Y.; Jiang, Y.; Ren, W.; Qin, P.; Cai, D. Inhibitions of microbial fermentation by residual reductive lignin oil: Concerns on the bioconversion of reductive catalytic fractionated carbohydrate pulp. Chem. Eng. J. 2023, 452, 139267. [Google Scholar] [CrossRef]
  42. Lyu, G.; Yoo, C.G.; Pan, X. Alkaline oxidative cracking for effective depolymerization of biorefining lignin to mono-aromatic compounds and organic acids with molecular oxygen. Biomass-Bioenergy 2018, 108, 7–14. [Google Scholar] [CrossRef]
  43. Vanmarcke, G.; Demeke, M.M.; Foulquié-Moreno, M.R.; Thevelein, J.M. Identification of the major fermentation inhibitors of recombinant 2G yeasts in diverse lignocellulose hydrolysates. Biotechnol. Biofuels 2021, 14, 92. [Google Scholar] [CrossRef] [PubMed]
  44. Larsson, S.; Palmqvist, E.; Hahn-Hägerdal, B.; Tengborg, C.; Stenberg, K.; Zacchi, G.; Nilvebrant, N.-O. The generation of fermentation inhibitors during dilute acid hydrolysis of softwood. Enzym. Microb. Technol. 1999, 24, 151–159. [Google Scholar] [CrossRef]
  45. Keshav, P.K.; Banoth, C.; Kethavath, S.N.; Bhukya, B. Lignocellulosic ethanol production from cotton stalk: An overview on pretreatment, saccharification and fermentation methods for improved bioconversion process. Biomass Convers. Biorefinery 2021, 13, 4477–4493. [Google Scholar] [CrossRef]
  46. Jhariya, U.; Dafale, N.A.; Srivastava, S.; Bhende, R.S.; Kapley, A.; Purohit, H.J. Understanding Ethanol Tolerance Mechanism in Saccharomyces cerevisiae to Enhance the Bioethanol Production: Current and Future Prospects. BioEnergy Res. 2021, 14, 670–688. [Google Scholar] [CrossRef]
  47. Liu, C.-G.; Li, K.; Li, K.-Y.; Sakdaronnarong, C.; Mehmood, M.A.; Zhao, X.-Q.; Bai, F.-W. Intracellular Redox Perturbation in Saccharomyces cerevisiae Improved Furfural Tolerance and Enhanced Cellulosic Bioethanol Production. Front. Bioeng. Biotechnol. 2020, 8, 615. [Google Scholar] [CrossRef]
  48. Menardo, S.; Balsari, P.; Tabacco, E.; Borreani, G. Effect of Conservation Time and the Addition of Lactic Acid Bacteria on the Biogas and Methane Production of Corn Stalk Silage. BioEnergy Res. 2015, 8, 1810–1823. [Google Scholar] [CrossRef]
  49. Martín, C.; Galbe, M.; Wahlbom, C.; Hahn-Hägerdal, B.; Jönsson, L.J. Ethanol production from enzymatic hydrolysates of sugarcane bagasse using recombinant xylose-utilising Saccharomyces cerevisiae. Enzym. Microb. Technol. 2002, 31, 274–282. [Google Scholar] [CrossRef]
  50. Bensid, A.; El Abed, N.; Houicher, A.; Regenstein, J.M.; Özogul, F. Antioxidant and antimicrobial preservatives: Properties, mechanism of action and applications in food—A review. Crit. Rev. Food Sci. Nutr. 2020, 62, 2985–3001. [Google Scholar] [CrossRef]
  51. Pei, W.; Deng, J.; Wang, P.; Wang, X.; Zheng, L.; Zhang, Y.; Huang, C. Sustainable lignin and lignin-derived compounds as potential therapeutic agents for degenerative orthopaedic diseases: A systemic review. Int. J. Biol. Macromol. 2022, 212, 547–560. [Google Scholar] [CrossRef]
  52. Karhumaa, K.; Sanchez, R.G.; Hahn-Hägerdal, B.; Gorwa-Grauslund, M.-F. Comparison of the xylose reductase-xylitol dehydrogenase and the xylose isomerase pathways for xylose fermentation by recombinant Saccharomyces cerevisiae. Microb. Cell Factories 2007, 6, 5. [Google Scholar] [CrossRef]
  53. Watanabe, S.; Abu Saleh, A.; Pack, S.P.; Annaluru, N.; Kodaki, T.; Makino, K. Ethanol production from xylose by recombinant Saccharomyces cerevisiae expressing protein-engineered NADH-preferring xylose reductase from Pichia stipitis. Microbiology 2007, 153 Pt 9, 3044–3054. [Google Scholar] [CrossRef] [PubMed]
  54. Cunha, J.T.; Romaní, A.; Costa, C.E.; Sá-Correia, I.; Domingues, L. Molecular and physiological basis of Saccharomyces cerevisiae tolerance to adverse lignocellulose-based process conditions. Appl. Microbiol. Biotechnol. 2018, 103, 159–175. [Google Scholar] [CrossRef] [PubMed]
  55. Kumakiri, I.; Yokota, M.; Tanaka, R.; Shimada, Y.; Kiatkittipong, W.; Lim, J.W.; Murata, M.; Yamada, M. Process Intensification in Bio-Ethanol Production–Recent Developments in Membrane Separation. Processes 2021, 9, 1028. [Google Scholar] [CrossRef]
  56. Vane, L.M. Separation technologies for the recovery and dehydration of alcohols from fermentation broths. Biofuels, Bioprod. Biorefining 2008, 2, 553–588. [Google Scholar] [CrossRef]
  57. Stanley, D.; Bandara, A.; Fraser, S.; Chambers, P.; Stanley, G. The ethanol stress response and ethanol tolerance of Saccharomyces cerevisiae. J. Appl. Microbiol. 2010, 109, 13–24. [Google Scholar] [CrossRef] [PubMed]
  58. Ding, J.; Huang, X.; Zhang, L.; Zhao, N.; Yang, D.; Zhang, K. Tolerance and stress response to ethanol in the yeast Saccharomyces cerevisiae. Appl. Microbiol. Biotechnol. 2009, 85, 253–263. [Google Scholar] [CrossRef]
  59. Sun, C.; Meng, X.; Sun, F.; Zhang, J.; Tu, M.; Chang, J.-S.; Reungsang, A.; Xia, A.; Ragauskas, A.J. Advances and perspectives on mass transfer and enzymatic hydrolysis in the enzyme-mediated lignocellulosic biorefinery: A review. Biotechnol. Adv. 2023, 62, 108059. [Google Scholar] [CrossRef]
  60. da Silva, A.S.; Espinheira, R.P.; Teixeira, R.S.S.; de Souza, M.F.; Ferreira-Leitão, V.; Bon, E.P.S. Constraints and advances in high-solids enzymatic hydrolysis of lignocellulosic biomass: A critical review. Biotechnol. Biofuels 2020, 13, 58. [Google Scholar] [CrossRef]
  61. Su, C.; Qi, L.; Cai, D.; Chen, B.; Chen, H.; Zhang, C.; Si, Z.; Wang, Z.; Li, G.; Qin, P. Integrated ethanol fermentation and acetone-butanol-ethanol fermentation using sweet sorghum bagasse. Renew. Energy 2020, 162, 1125–1131. [Google Scholar] [CrossRef]
  62. Modenbach, A.A.; Nokes, S.E. Enzymatic hydrolysis of biomass at high-solids loadings—A review. Biomass- Bioenergy 2013, 56, 526–544. [Google Scholar] [CrossRef]
  63. Li, M.; Wang, L.; Zhao, Q.; Chen, H. High Concentration of Fermentable Sugars Prepared from Steam Exploded Lignocellulose in Periodic Peristalsis Integrated Fed-Batch Enzymatic Hydrolysis. Appl. Biochem. Biotechnol. 2022, 194, 5255–5273. [Google Scholar] [CrossRef]
  64. Afedzi, A.E.K.; Rattanaporn, K.; Parakulsuksatid, P. Impeller selection for mixing high-solids lignocellulosic biomass in stirred tank bioreactor for ethanol production. Bioresour. Technol. Rep. 2022, 17, 100935. [Google Scholar] [CrossRef]
  65. Diao, L.; Liu, Y.; Qian, F.; Yang, J.; Jiang, Y.; Yang, S. Construction of fast xylose-fermenting yeast based on industrial ethanol-producing diploid Saccharomyces cerevisiaeby rational design and adaptive evolution. BMC Biotechnol. 2013, 13, 110. [Google Scholar] [CrossRef] [PubMed]
  66. Ko, J.K.; Enkh-Amgalan, T.; Gong, G.; Um, Y.; Lee, S. Improved bioconversion of lignocellulosic biomass by Saccharomyces cerevisiae engineered for tolerance to acetic acid. GCB Bioenergy 2019, 12, 90–100. [Google Scholar] [CrossRef]
  67. Tran, P.H.N.; Ko, J.K.; Gong, G.; Um, Y.; Lee, S.-M. Improved simultaneous co-fermentation of glucose and xylose by Saccharomyces cerevisiae for efficient lignocellulosic biorefinery. Biotechnol. Biofuels 2020, 13, 12. [Google Scholar] [CrossRef]
  68. Tomás-Pejó, E.; Oliva, J.M.; Ballesteros, M.; Olsson, L. Comparison of SHF and SSF processes from steam-exploded wheat straw for ethanol production by xylose-fermenting and robust glucose-fermentingSaccharomyces cerevisiae strains. Biotechnol. Bioeng. 2008, 100, 1122–1131. [Google Scholar] [CrossRef] [PubMed]
  69. Cunha, J.T.; Soares, P.O.; Romaní, A.; Thevelein, J.M.; Domingues, L. Xylose fermentation efficiency of industrial Saccharomyces cerevisiae yeast with separate or combined xylose reductase/xylitol dehydrogenase and xylose isomerase pathways. Biotechnol. Biofuels 2019, 12, 20. [Google Scholar] [CrossRef]
  70. Wei, F.; Li, M.; Wang, M.; Li, H.; Li, Z.; Qin, W.; Wei, T.; Zhao, J.; Bao, X. A C6/C5 co-fermenting Saccharomyces cerevisiae strain with the alleviation of antagonism between xylose utilization and robustness. GCB Bioenergy 2020, 13, 83–97. [Google Scholar] [CrossRef]
  71. Yuan, Z.; Li, G.; Hegg, E.L. Enhancement of sugar recovery and ethanol production from wheat straw through alkaline pre-extraction followed by steam pretreatment. Bioresour. Technol. 2018, 266, 194–202. [Google Scholar] [CrossRef] [PubMed]
  72. Sasaki, K.; Tsuge, Y.; Sasaki, D.; Teramura, H.; Inokuma, K.; Hasunuma, T.; Ogino, C.; Kondo, A. Mechanical milling and membrane separation for increased ethanol production during simultaneous saccharification and co-fermentation of rice straw by xylose-fermenting Saccharomyces cerevisiae. Bioresour. Technol. 2015, 185, 263–268. [Google Scholar] [CrossRef] [PubMed]
Fermentation 09 00906 g001

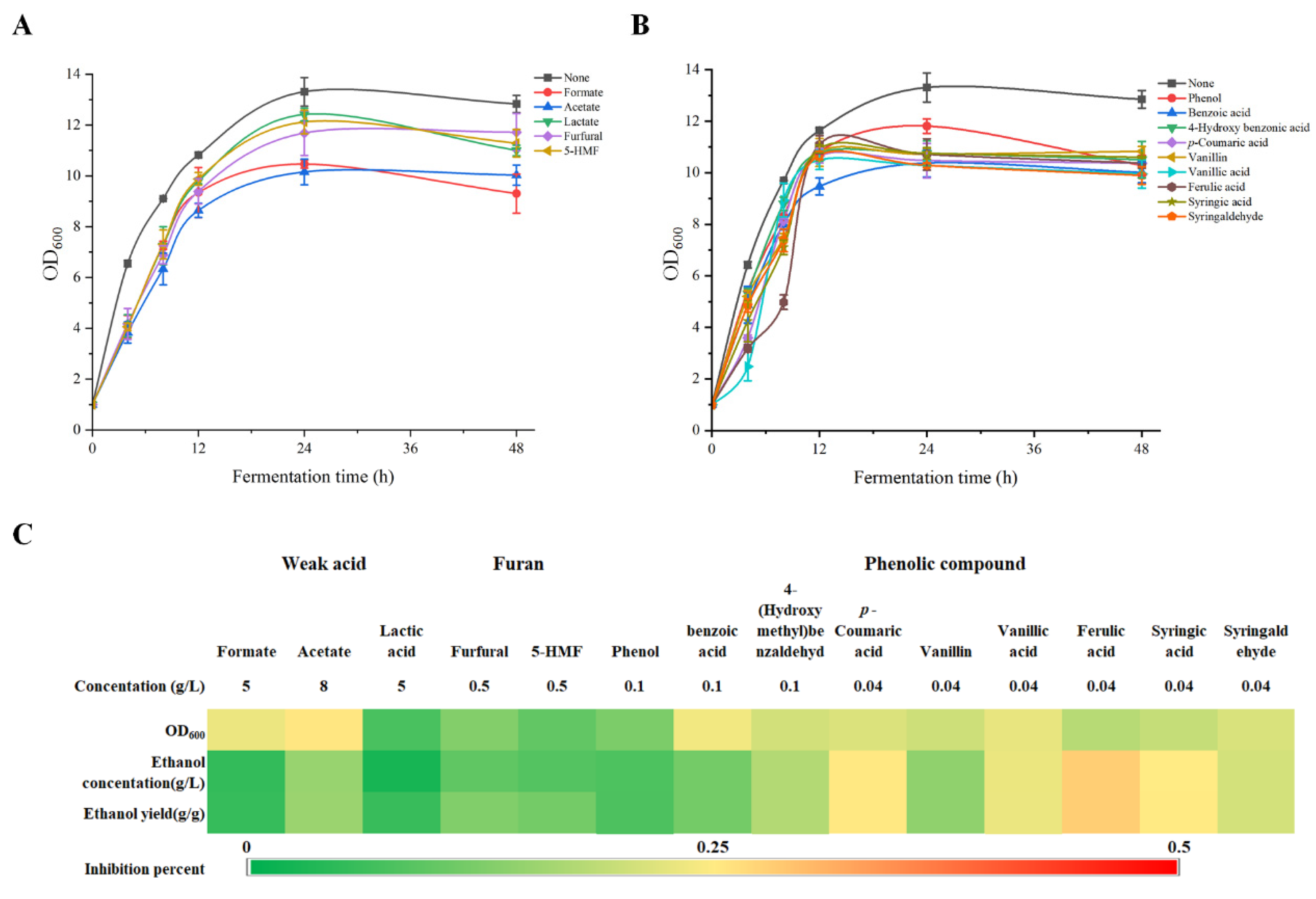

Figure 1. Inhibition of the metabolism of S. cerevisiae M3013 by inhibitors present in SECSH. Growth curves of S. cerevisiae M3013 in synthetic media containing (A) organic acids (5 g/L of formate and lactic acid, 8 g/L of acetate) and furan derivates (0.5 g/L of furfural and 5-HMF), and (B) phenolic compounds (0.1 g/L of phenol, benzoic acid and 4-(hydroxymethyl)benzaldehyde, 0.04 g/L of p-coumaric acid, vanillin, vanillic acid, ferulic acid, syringic acid and syringaldehyde). (C) Heat map for the inhibition degree of different inhibitors of S. cerevisiae M3013 in synthetic mediums. The inhibition degree of OD600 = 1 − (OD600max − OD600min of growth with inhibitors)/(OD600max − OD600min without inhibitors) × 100%. The inhibition degree of ethanol concentration = 1 − the ethanol concentration of the inhibitors/the ethanol concentration in the control without inhibitors × 100%. The inhibition degree of ethanol yield = 1 − the ethanol yield of the inhibitors/the ethanol yield in the control without inhibitors × 100%.
Figure 1. Inhibition of the metabolism of S. cerevisiae M3013 by inhibitors present in SECSH. Growth curves of S. cerevisiae M3013 in synthetic media containing (A) organic acids (5 g/L of formate and lactic acid, 8 g/L of acetate) and furan derivates (0.5 g/L of furfural and 5-HMF), and (B) phenolic compounds (0.1 g/L of phenol, benzoic acid and 4-(hydroxymethyl)benzaldehyde, 0.04 g/L of p-coumaric acid, vanillin, vanillic acid, ferulic acid, syringic acid and syringaldehyde). (C) Heat map for the inhibition degree of different inhibitors of S. cerevisiae M3013 in synthetic mediums. The inhibition degree of OD600 = 1 − (OD600max − OD600min of growth with inhibitors)/(OD600max − OD600min without inhibitors) × 100%. The inhibition degree of ethanol concentration = 1 − the ethanol concentration of the inhibitors/the ethanol concentration in the control without inhibitors × 100%. The inhibition degree of ethanol yield = 1 − the ethanol yield of the inhibitors/the ethanol yield in the control without inhibitors × 100%.
Fermentation 09 00906 g001
Fermentation 09 00906 g002

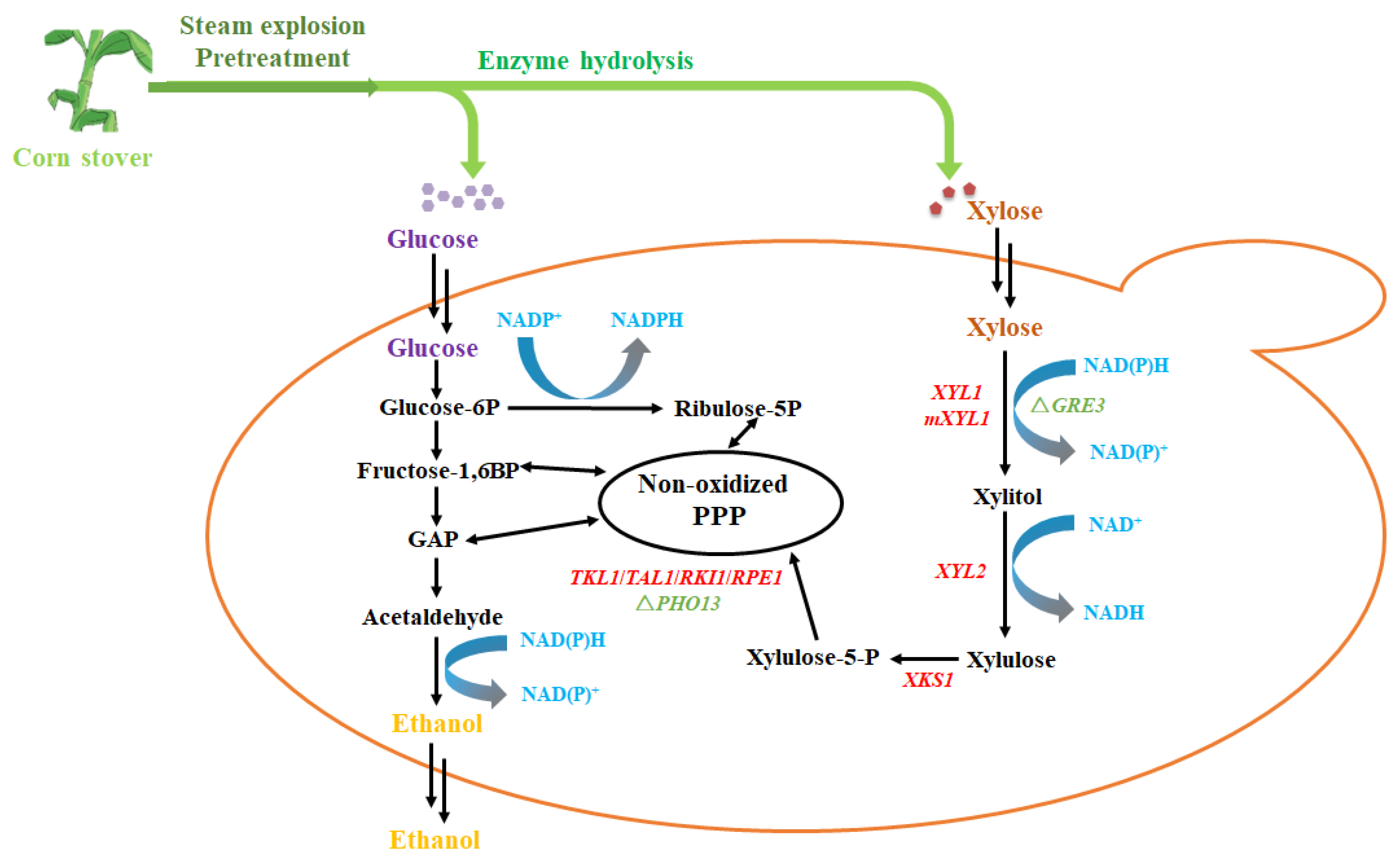

Figure 2. Schematics diagram of the construction of xylose-assimilating yeast for ethanol production. Heterologously expressed and overexpressed genes are shown in red, while knockout genes are shown in green. Glucose-6P: Glucose 6-phosphate; Ribulose-5P: Ribulose-5-phosphate; Fructose-1,6BP: Fructose-1,6-bisphosphate; GAP: Glyceraldehyde 3-phosphate; Xylulose-5-P: Xylulose-5-phosphate; and PPP: pentose phosphate pathway.
Figure 2. Schematics diagram of the construction of xylose-assimilating yeast for ethanol production. Heterologously expressed and overexpressed genes are shown in red, while knockout genes are shown in green. Glucose-6P: Glucose 6-phosphate; Ribulose-5P: Ribulose-5-phosphate; Fructose-1,6BP: Fructose-1,6-bisphosphate; GAP: Glyceraldehyde 3-phosphate; Xylulose-5-P: Xylulose-5-phosphate; and PPP: pentose phosphate pathway.
Fermentation 09 00906 g002
Fermentation 09 00906 g003
Figure 3. (A) Heat map for the degree of inhibition of S. cerevisiae YL13-1 in synthetic media containing toxic compounds. (B) Heat map for the degree of inhibition of S. cerevisiae YL13-2 in synthetic media.
Figure 3. (A) Heat map for the degree of inhibition of S. cerevisiae YL13-1 in synthetic media containing toxic compounds. (B) Heat map for the degree of inhibition of S. cerevisiae YL13-2 in synthetic media.
Fermentation 09 00906 g003
Fermentation 09 00906 g004
Figure 4. Fermentation performances of different S. cerevisiae for ethanol production using SECSH. (A) glucose, xylose, and (B) ethanol concentration.
Figure 4. Fermentation performances of different S. cerevisiae for ethanol production using SECSH. (A) glucose, xylose, and (B) ethanol concentration.
Fermentation 09 00906 g004
Fermentation 09 00906 g005

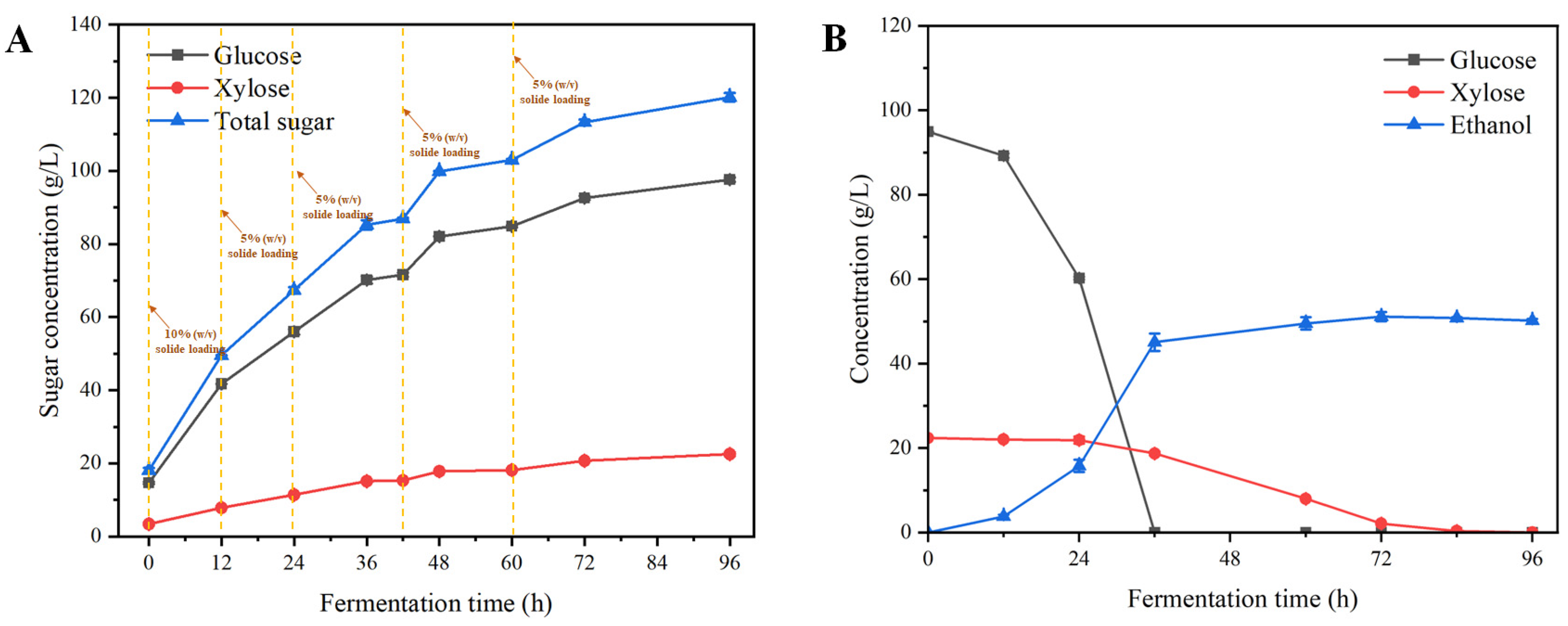

Figure 5. Ethanol production using SECSH containing high sugar levels. (A) Fed-batch hydrolysis of the SE pulp. (B) Batch fermentation of YL13-2 strain in a 5 L bioreactor.
Figure 5. Ethanol production using SECSH containing high sugar levels. (A) Fed-batch hydrolysis of the SE pulp. (B) Batch fermentation of YL13-2 strain in a 5 L bioreactor.
Fermentation 09 00906 g005
Fermentation 09 00906 g006

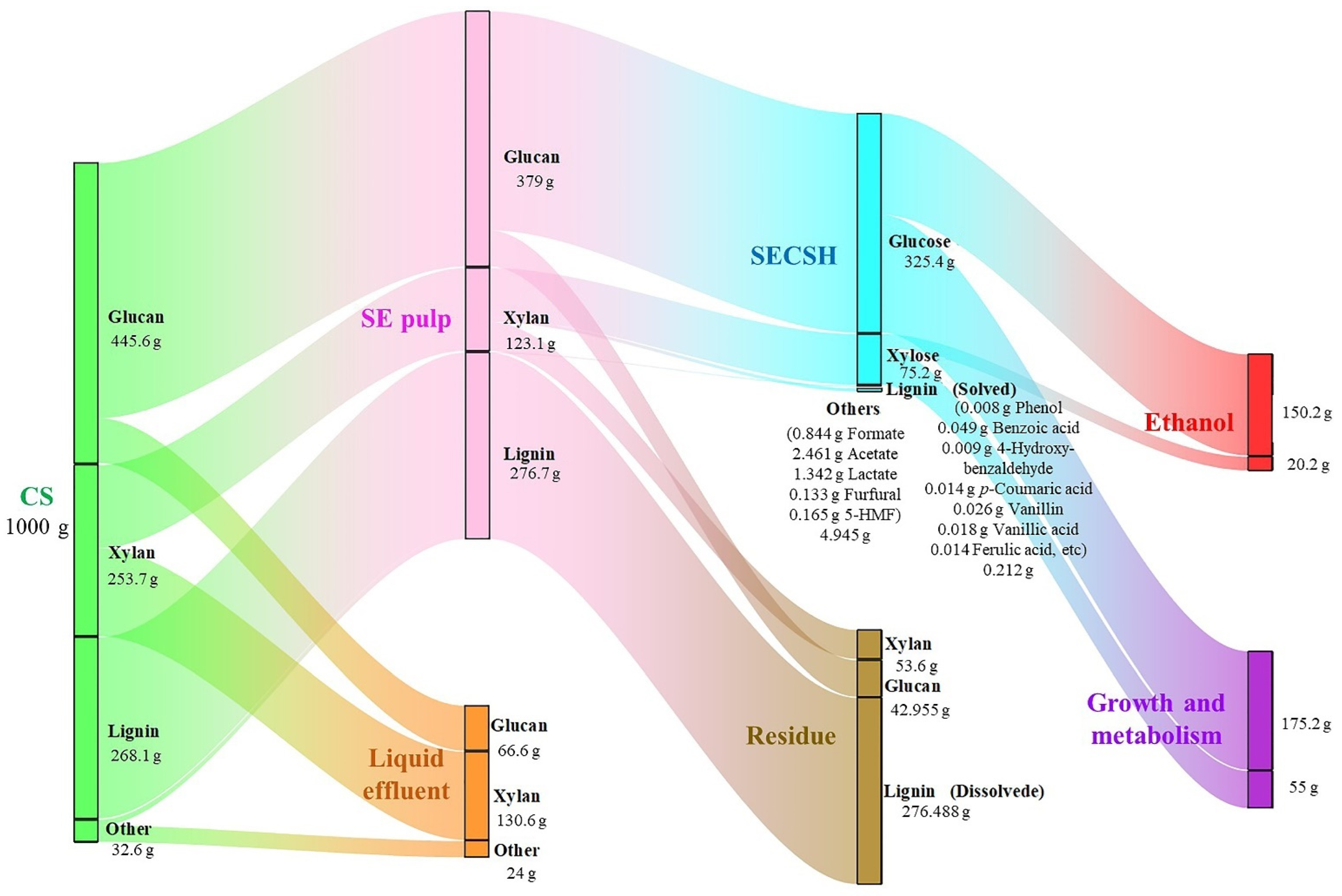

Figure 6. Mass balance of bioethanol production by S. cerevisiae YL13-2 using undetoxified SECSH.
Figure 6. Mass balance of bioethanol production by S. cerevisiae YL13-2 using undetoxified SECSH.
Fermentation 09 00906 g006
Table 1. Inhibitors concentrations in SECSH.
Table 1. Inhibitors concentrations in SECSH.
InhibitorsFormateAcetateLactateFurfural5-HMFPhenol4-MethylphenolBenzoic Acid4-Hydroxy-Benzaldehyde
Concentration (g/L)2.110 ± 0.1986.153 ± 0.8033.355 ± 0.1360.333 ± 0.0010.412 ± 0.0040.021 ± 0.0010.010 ± 0.0000.123 ± 0.0080.022 ± 0.004
Inhibitorsp-Hydroxyacetophenone3-Hydroxy-3-(4-hydroxyphenyl)propanoic acid4-Hydroxyphenethyl alcohol4-Hydroxy benzonic acid4-Hydroxy-benzenepropanoic acidMethylhydroquinoneProtocatechuate3-(4-Hydroxyphenyl)lactatep-Coumaric acid
Concentration (g/L)0.014 ± 0.0020.002 ± 0.0010.003 ± 0.0010.015 ± 0.0050.002 ± 0.0010.002 ± 0.0000.011 ± 0.0040.032 ± 0.0140.035 ± 0.006
Inhibitors2-MethoxyphenolVanillin4-Hydroxy-3-methoxyphenethylene glycolAcetovanilloneVanillic acid4-Hydroxy-3-methoxybenzeneisopropanoic acid4-Hydroxy-3-methoxyphenylacetic acidVanillylmandelic acid2-hydroxy-3-(4-hydroxy-3-methoxyphenyl)
propanoic acid
Concentration (g/L)0.012 ± 0.0040.064 ± 0.0120.012 ± 0.0050.010 ± 0.0030.044 ± 0.0010.007 ± 0.0010.023 ± 0.0070.008 ± 0.0020.001 ± 0.000
InhibitorsFerulic acid2,6-dimethoxyphenolSyringaldehydeSyringic acid
Concentration (g/L)0.034 ± 0.0020.015 ± 0.0060.010 ± 0.0020.020 ± 0.007
Table 2. A summary of current advances in bioethanol production from different types of lignocelluloses using S. cerevisiae. * represents the ploidy of gene integration into the chromosome.
Table 2. A summary of current advances in bioethanol production from different types of lignocelluloses using S. cerevisiae. * represents the ploidy of gene integration into the chromosome.
StrainsSubstratePretreatment ConditionsDescriptionDetoxificationNutrient SupplementsEthanol Concentration (g/L)Ethanol Yield (g/g)Refs.
S. cerevisiae YL13-2Corn stoverSEM3013, mXYL1, XYL1, XYL2, XKS1, TAL1, TKL1, RKI1, RPE1, ∆GRE3, ∆PHO13, ALENoWithout additional nutrients51.120.436This study
S. cerevisiae XUSAE57Sugarcane bagasseDilute acid pretreatmentBY4741, xylA*3, TAL1, XKS1, RPE1, ΔGRE3, ΔPHO13, ALEYesWithout additional nutrients23.20.49[66]
S. cerevisiae XUSEAMicanthus sacchariflorus Goedae-UksaeH2SO4 pretreatmentBY4741, xylA*3, TAL1, XKS1, RPE1, ΔGRE3, ΔPHO13, ΔACS1, ALEYesWithout additional nutrients30.10.48[67]
S. cerevisiae F12Wheat strawSETMB3001, XYL1, XYL2, XKS1, ALENovitamin solution and ergosterol23.70.43[68]
S. cerevisiae PE-2ΔGRE3-XCorn cobHydrothermal treatmentPE-2, xylA, ∆GRE3YesYeast extract 10 g/L, peptone 20 g/L11.60.44[69]
S. cerevisiae LF1Corn stoverSEBSIF (diploid), Ru-xylA, TAL1, MGT05196N360F, TKL1, RKI1, RPE1, ∆GRE3, ∆PHO13, ALENoYeast extract 10 g/L, peptone 20 g/L50.810.413[24]
S. cerevisiae XM20Corn stoverEthylenediamine (EDA) pretreatmentL2612, XYL1, mXYL2, XKS1, TKL1, RKI1, SOD1, GSH1, GLR1, ZWF1, GND2, ACS1, ΔPHO13NoWithout additional nutrients90.7/[16]
S. cerevisiae CRD5HSCorn stoverAlkaline/acidic pretreatmentCRD3, hasxylA, ALENoYeast extract 5 g/L and tryptone 10 g/L85.95/[34]
S. cerevisiae 6M-15Corn strawSELF1, ARTP mutagenesisNoYeast extract 10 g/L, peptone 20 g/L30.950.43[70]
S. cerevisiae Lg8-1Wheat strawAlkaline pre-extraction and acid catalyzed steam treatment/NoWithout additional nutrients54.50.46[71]
S. cerevisiae MN8140X/TF-TFRice strawHydrothermally pretreated and mechanically milledMT8-10, XYL1, XYL2, XKS1, TAL1, FDH1NoYeast extract 10 g/L, peptone 20 g/L52.00.38[72]
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Wu, Y.; Su, C.; Zhang, G.; Liao, Z.; Wen, J.; Wang, Y.; Jiang, Y.; Zhang, C.; Cai, D. High-Titer Bioethanol Production from Steam-Exploded Corn Stover Using an Engineering Saccharomyces cerevisiae Strain with High Inhibitor Tolerance. Fermentation 2023, 9, 906. https://doi.org/10.3390/fermentation9100906

AMA Style

Wu Y, Su C, Zhang G, Liao Z, Wen J, Wang Y, Jiang Y, Zhang C, Cai D. High-Titer Bioethanol Production from Steam-Exploded Corn Stover Using an Engineering Saccharomyces cerevisiae Strain with High Inhibitor Tolerance. Fermentation. 2023; 9(10):906. https://doi.org/10.3390/fermentation9100906

Chicago/Turabian Style

Wu, Yilu, Changsheng Su, Gege Zhang, Zicheng Liao, Jieyi Wen, Yankun Wang, Yongjie Jiang, Changwei Zhang, and Di Cai. 2023. "High-Titer Bioethanol Production from Steam-Exploded Corn Stover Using an Engineering Saccharomyces cerevisiae Strain with High Inhibitor Tolerance" Fermentation 9, no. 10: 906. https://doi.org/10.3390/fermentation9100906

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
