Sol–Gel Synthesis of Dy Co-Doped ZnO:V Nanoparticles for Optoelectronic Applications

Abstract

In this paper, Dy co-doped ZnO:V_1% was prepared using the sol–gel process. We studied the impact of doping on the physical properties of the synthesized nanoparticles. In our synthetic approach, under an esterification reaction the release of water was carried out slowly, and this step was followed by drying beyond the critical point of ethanol then by calcination in air at 500 °C for 2 h. The structural and morphological studies show the presence of wurtzite structure with an average crystallite size of about 30 nm. In addition, no secondary phase was detected, which shows that the doping elements reacted with the matrix. The reflectance measurements show that by increasing the doping concentration the energy of the band gap energy decreases. Photoluminescence (PL) indicates the presence of two emission bands situated at around 481 nm and 577 nm linked to doping with Dy.

1. Introduction

Due to their uses in different application areas such as optoelectronics, photonics, and storage devices [1,2,3,4], semiconductor nanomaterials have attracted remarkable attention in recent years. ZnO, possessing a large band gap (3.37 eV) and important exciton binding energy (60 meV), has attracted great attention as a promising material for different applications such as in optoelectronics and electroluminescence [5,6,7,8]. Furthermore, its large band gap energy made it an important candidate as a host lattice for the incorporation of trivalent lanthanide ions due to its exceptional optical properties [9,10]. The narrow and intense emission lines of the trivalent ions originating from the 4f-4f transitions made them good luminescence centers [11,12]. The Dy³⁺ ion is one of the lanthanide elements that produces the emission in the visible range by activating different inorganic lattices [13,14]. However, due to the parity forbidden nature of the 4f-4f transitions of these ions, it has been shown that direct excitation for Dy³⁺ ions is generally inefficient, unlike the host sensitized [13]. To synthesize ZnO doped with lanthanide elements, several methods have been used. Among the different methods, the sol–gel method offers certain advantages, in particular an almost uniform size and good dispersion of the dopant.

It is known that the use of ZnO in new magneto-optical applications is difficult because of their diamagnetic and paramagnetic behaviors at room temperature. Room temperature ferromagnetism (RTFM) in ZnO has been reported to result from vacancy mediation [15,16,17]. Several works have been carried out to improve the RTFM in ZnO by substituting the Zn atom with dopants of transition metals and rare earths. The doping of ZnO to transition metals provides an RTFM linked to the d-d exchange coupling between the non-localized 3d electron and the exterior of the transition metal [18,19,20,21]. Whereas the stronger magnetization, relative to transition metals, in the case of doping with rare earth ions is related to the interaction of indirect 4f electron exchange via 5d or 6s conduction electrons [22,23,24,25]. Recently, co-doping with two transition metals has enhanced magnetization as was the case of ZnO co-doped Ni, Co, Cu, and Fe [26,27,28]. In recent years, different teams have explored the co-doping of ZnO with a transition metal and rare earth element [29,30,31,32]. In this work, we study the vanadium doping jointly with dysprosium of ZnO nanoparticles prepared by sol–gel. Therefore, we report the role of these doping elements on the different physical properties of ZnO nanoparticles.

2. Materials and Methods

2.1. Preparation Details

For the synthesis of Zn_0.99-xV_0.01Dy_xO nanoparticles, we purchased from Sigma-Aldrich zinc acetate dihydrate (Zn(CH₃COO)₂·2H₂O), ammonium metavanadate (NH₄VO₃), dysprosium nitrate hexahydrate Dy(NO3)3·6H2O, and methanol (CH₃OH). All our samples were prepared by simple sol–gel route mixing the Zn(CH₃COO)₂·2H₂O as precursor, NH₄VO₃ and Dy(NO₃)₃·6H₂O as dopants in methanol. After 15 min of magnetic stirring, the solution was placed in an autoclave and dried under supercritical conditions of ethyl alcohol (EtOH) [33,34].

2.2. Characterization Techniques

X-ray diffractograms and transmission electron microscopy images of our samples were performed using a diffractometer Bruker D8 with Cu-Kα radiation (λ = 1.5406 Å) and a transmission electron microscope JEM-200CX, respectively. Preparation of samples for TEM is as described above in EL GHOUL et al. [30,34]. A SPECS using a PHIBOS100 energy analyzer and Al-Kα radiation (1486.61 eV) was used for the XPS analysis. A Renishaw inVia confocal Raman microscope with 785 nm excitation has been used for the Raman measurement. The reflectance measurement was released by a Shimadzu UV-3101 PC spectrophotometer coupled with an integrating sphere. The values of band gap energies were estimated by using the first derivative reflectance method (dR/dλ) [35].

3. Results and Discussion

3.1. Structural and Morphological Analysis

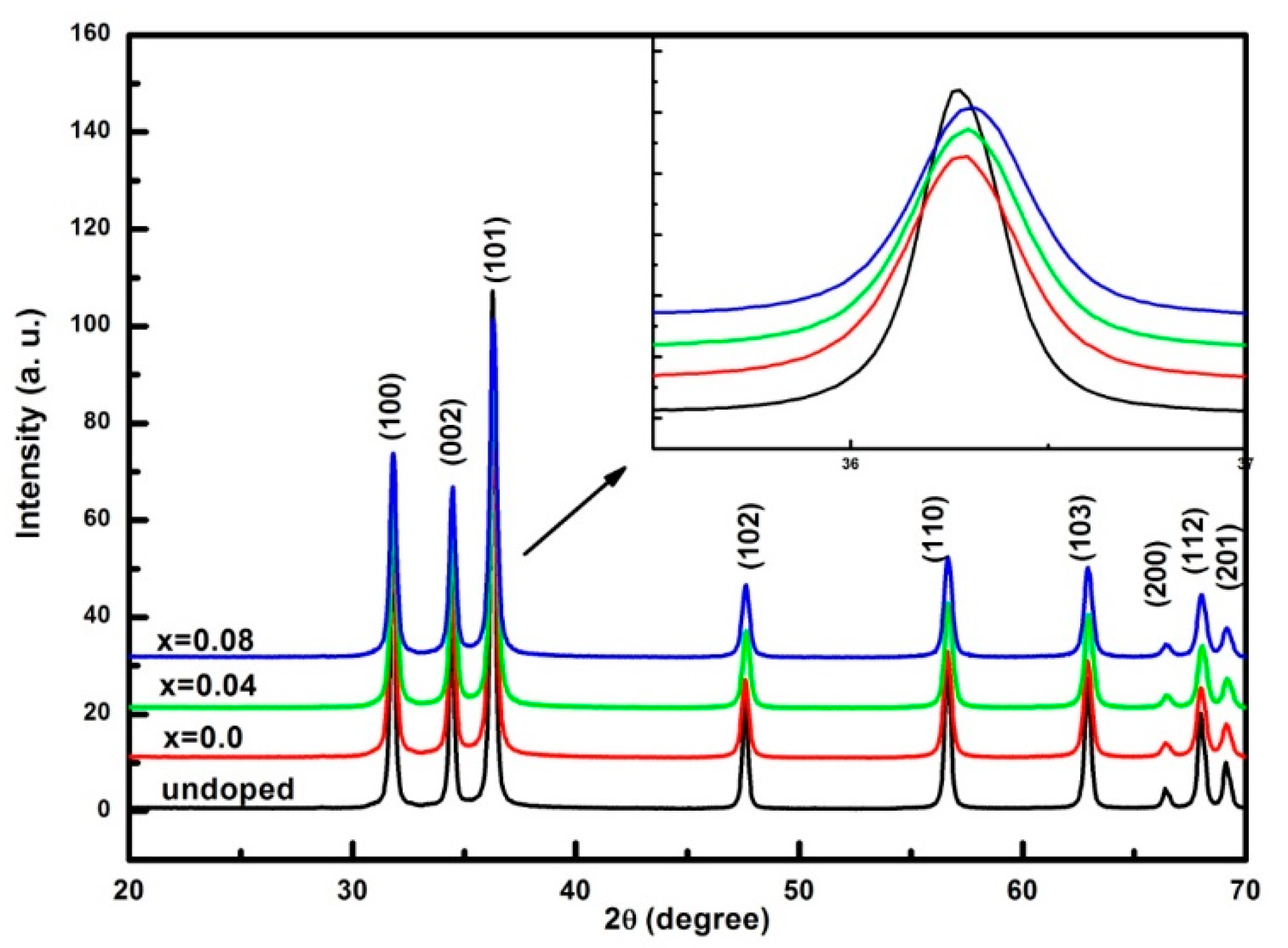

Figure 1 shows typical XRD spectra of the undoped ZnO and Zn_0.99-xV_0.01Dy_xO (x = 0.00, 0.04, and 0.08) samples. The diffractograms confirm the presence of polycrystalline with hexagonal (wurtzite) structure (ICDD file No. 36-1451) with lattice parameters a and c comparable to the undoped ZnO (

Table 1. Variation of different physical parameters for all samples.

Sample	a (Å)	C (Å)	Crystallite Size (nm)	Strain (ε) × 10−4	Bandgap (eV)
Undoped ZnO	3.2498	5.2063	34.71	1.59	3.333
x = 0.0	3.2497	5.2063	32.84	1.48	3.315
x = 0.04	3.2494	5.2064	29.73	1.39	3.287
x = 0.08	3.2495	5.2065	27.38	1.31	3.246

) [36]. No diffraction peak linked to the doping elements appeared, this indicates that the doping is totally successful in the ZnO lattice. We notice, after doping, a small shift toward a larger angle, widening of the peaks, and a decrease in the intensity of the peaks compared to ZnO (inset Figure 1). This is probably linked to the fact that the ionic radii of the present elements are not close {(Zn = 0.74 Å), (V = 0.54 Å), and (Dy = 1.03 Å)}. Likewise, it can also be due to the introduction of a stress or a defect in the structure of crystal which decreases the crystallinity of the nanoparticles [37].

We used the Williamson–Hall formula to obtain some structural parameters like size and strain of synthesized samples using the full width at half height (FWHM) of peak (002) [30]. This result is in good agreement with the displacement of the peaks to higher angles while observing a decrease in the size of the crystallites and strain (Table 1).

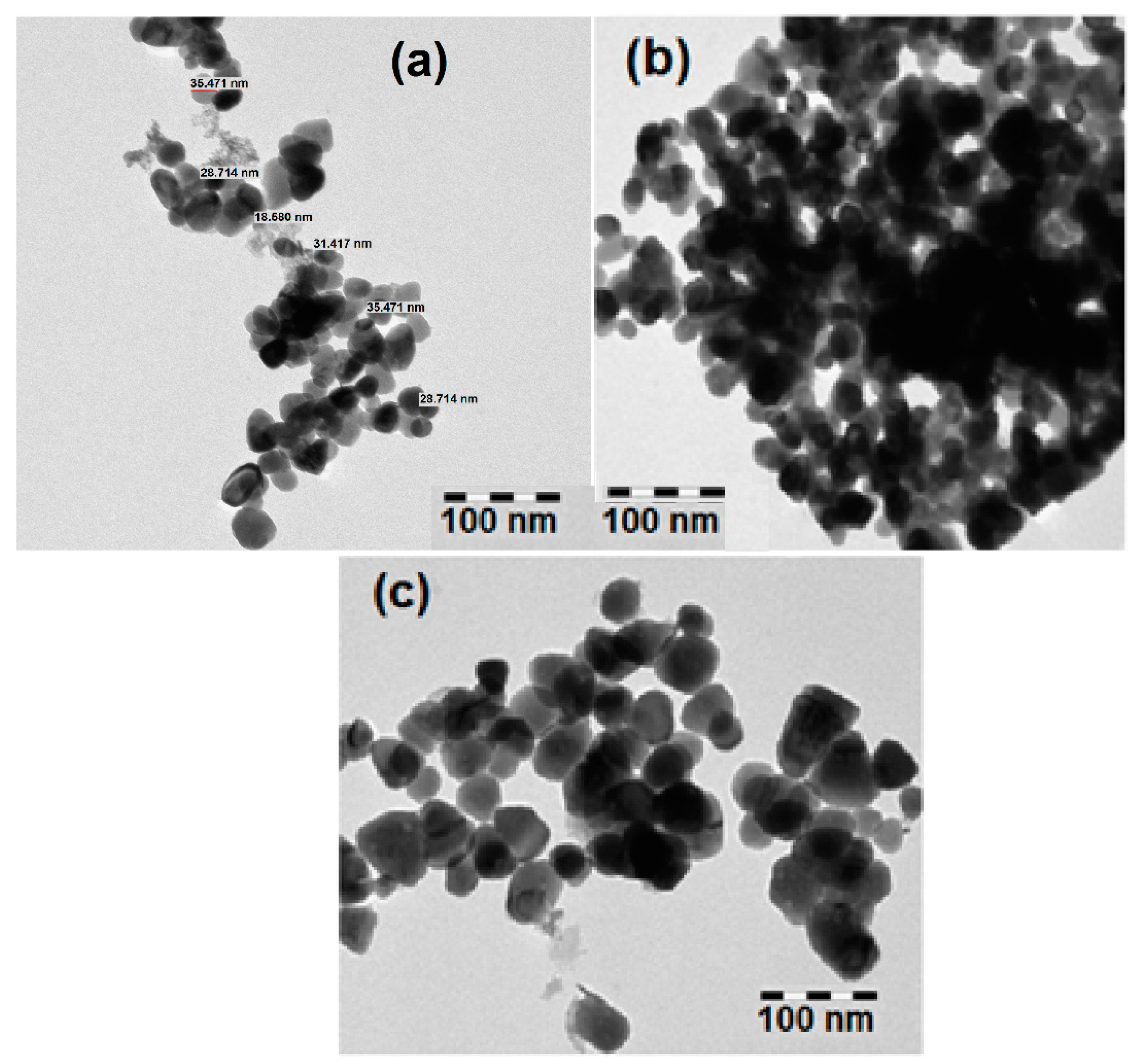

The DRX results were confirmed by TEM micrographs of doped samples shown in Figure 2. These images reveal the presence of a spherical shape with crystallite sizes in the range 25–40 nm.

3.2. Elemental Analysis

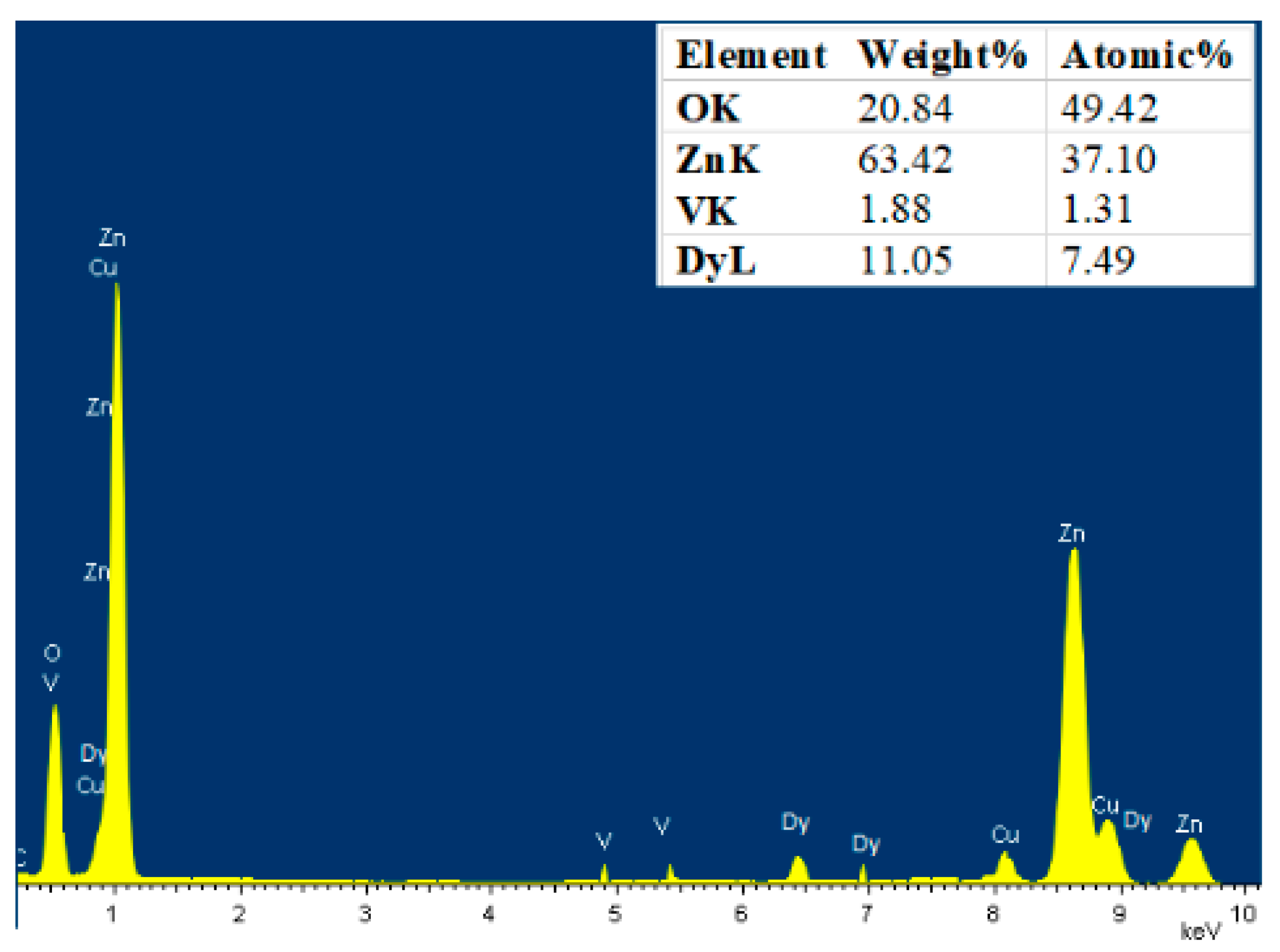

Figure 3 shows the EDX analysis of the sample. All the elements supposed to be present have been identified, confirming the good synthesis of our samples. The substitution of doping ions was also confirmed with acceptable amounts. The elemental composition indicated in the table inserted in Figure 3 shows a slight excess of V and Dy, probably due to the uncertainty of the EDX analysis.

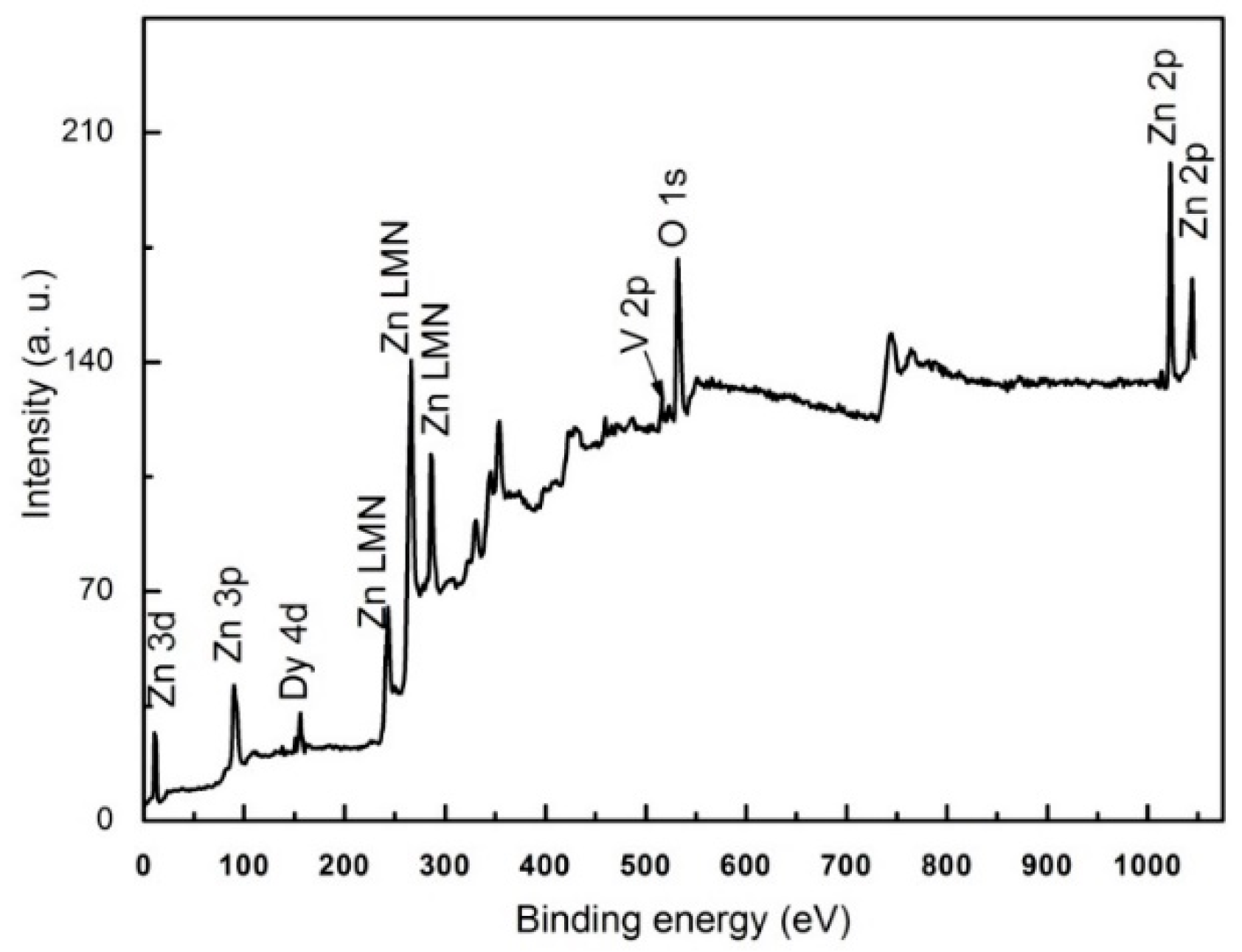

To know more about the characteristics of the constituent atoms, we used the XPS technique by determining the binding energies of each element. The XPS spectrum of Zn_0.91V_0.01Dy_0.08O sample illustrated in Figure 4 shows the presence of peaks of the species zinc, carbon, oxygen, vanadium, and dysprosium. The peak positions of Zn₂p_1/2 and Zn 2p_3/2 orbitals located at 1044.20, 1022.21 eV indicate that the Zn is in the oxidation state of Zn²⁺.

The dysprosium element is represented by the 4d core level located at 156.09 eV. The appearance of this peak is a signal indicating that the Dy ion is with oxidation state Dy⁺³ [38]. The peak located at 517.8 eV corresponds to the V 2p signal and confirms that it is probably present in the V⁵⁺ state [39]. From this, we can conclude that Dy and V are successfully doped into ZnO.

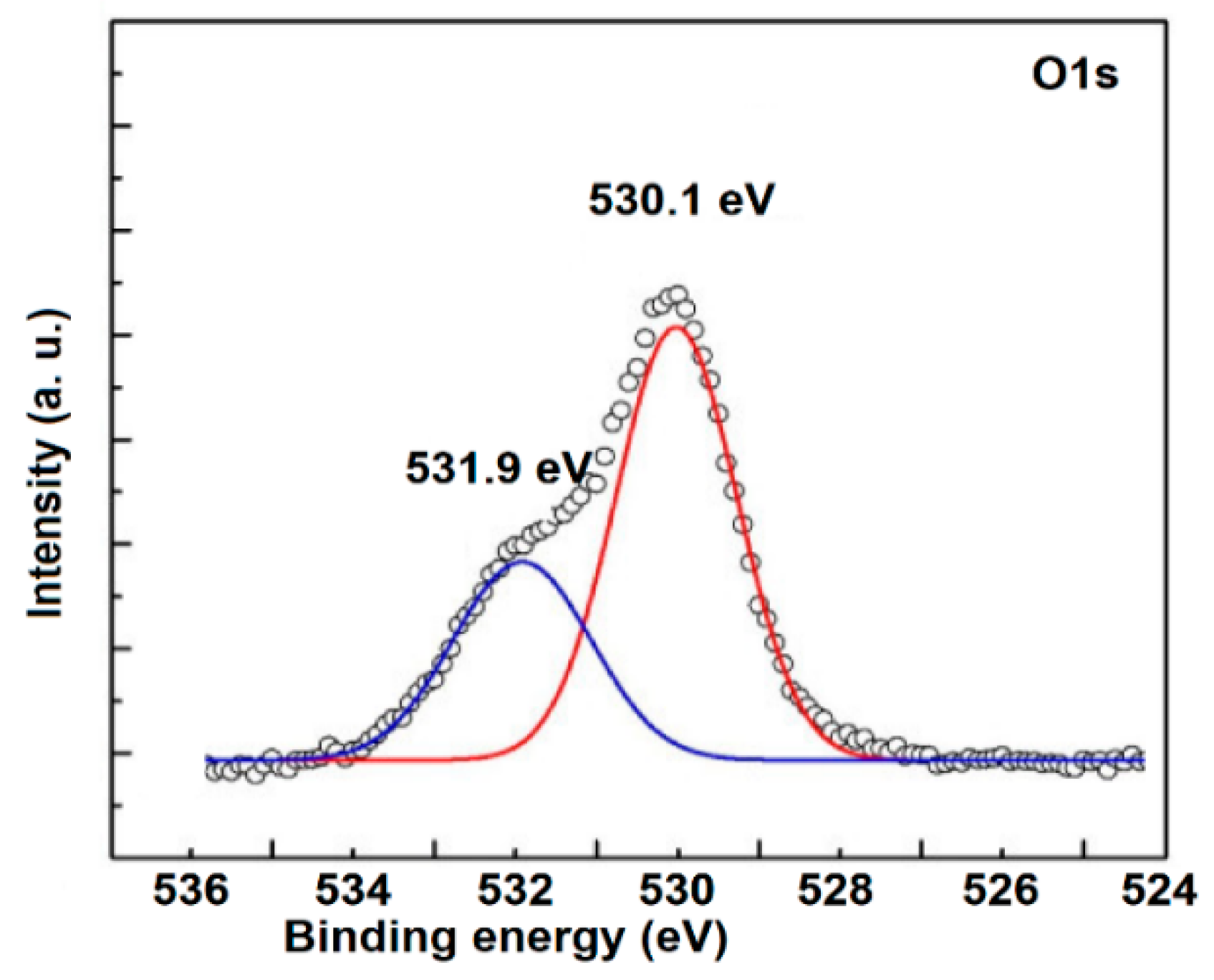

The asymmetric enlarged O1s peak, shown in Figure 5, reveal the presence of two fitting Gaussians peaks located at 531.9 eV and 530.1 eV. These peaks can be attributed to the Zn–OH bonding and O₂ ions in the Zn–O bonding of the wurtzite structure of ZnO, respectively.

3.3. Raman Analysis

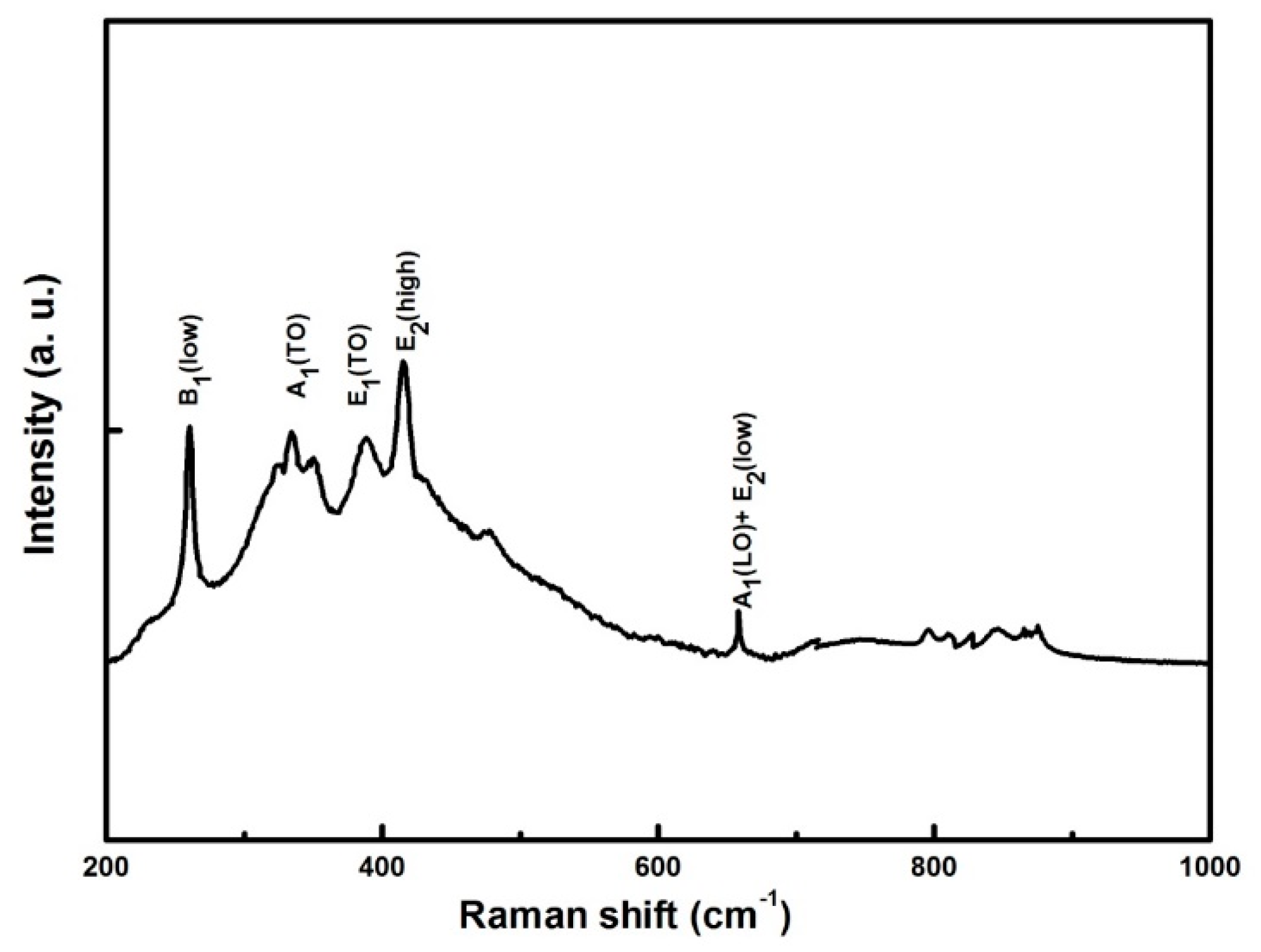

The chemical structure of the Zn_0.91V_0.01Dy_0.08O nanoparticles was approved by the Raman analysis and illustrated in Figure 6. It is known that the active modes A₁, E₁ can move into longitudinal (LO) and transverse (TO) optical modes. The E₁ (LO) is related to lattice defects, while B₁ modes are considered as inactive Raman and infrared modes [40]. On the other hand, the vibrations of the oxygen and zinc elements in the lattice induce the presence of the sub-modes of E₂ high and E₂ low [41].

This spectrum shows the presence of different acoustic and optical modes which are known in the Wurtzite lattice [40]. The peaks around 660 cm⁻¹, 430 cm⁻¹, and 370 cm⁻¹ are assigned to the two-phonon processes A₁ (LO) + E₂ (low), vibration mode E₂ (high) and transverse optical phonon mode E1 (TO), respectively [41,42,43]. We observe the appearance of some peaks corresponding to the optical phonon mode of ZnO as B₁(low) silent and A₁(TO) modes, in the range 220–350 cm^–1. The existence of these types of modes is probably related to the effects of different defects such as V_o and Zn_i. On the right side of the spectrum, the appearance of certain peaks could be a sign of the presence of V doping impurity phases or the optical-acoustic combinations [34,42].

3.4. Optical Properties

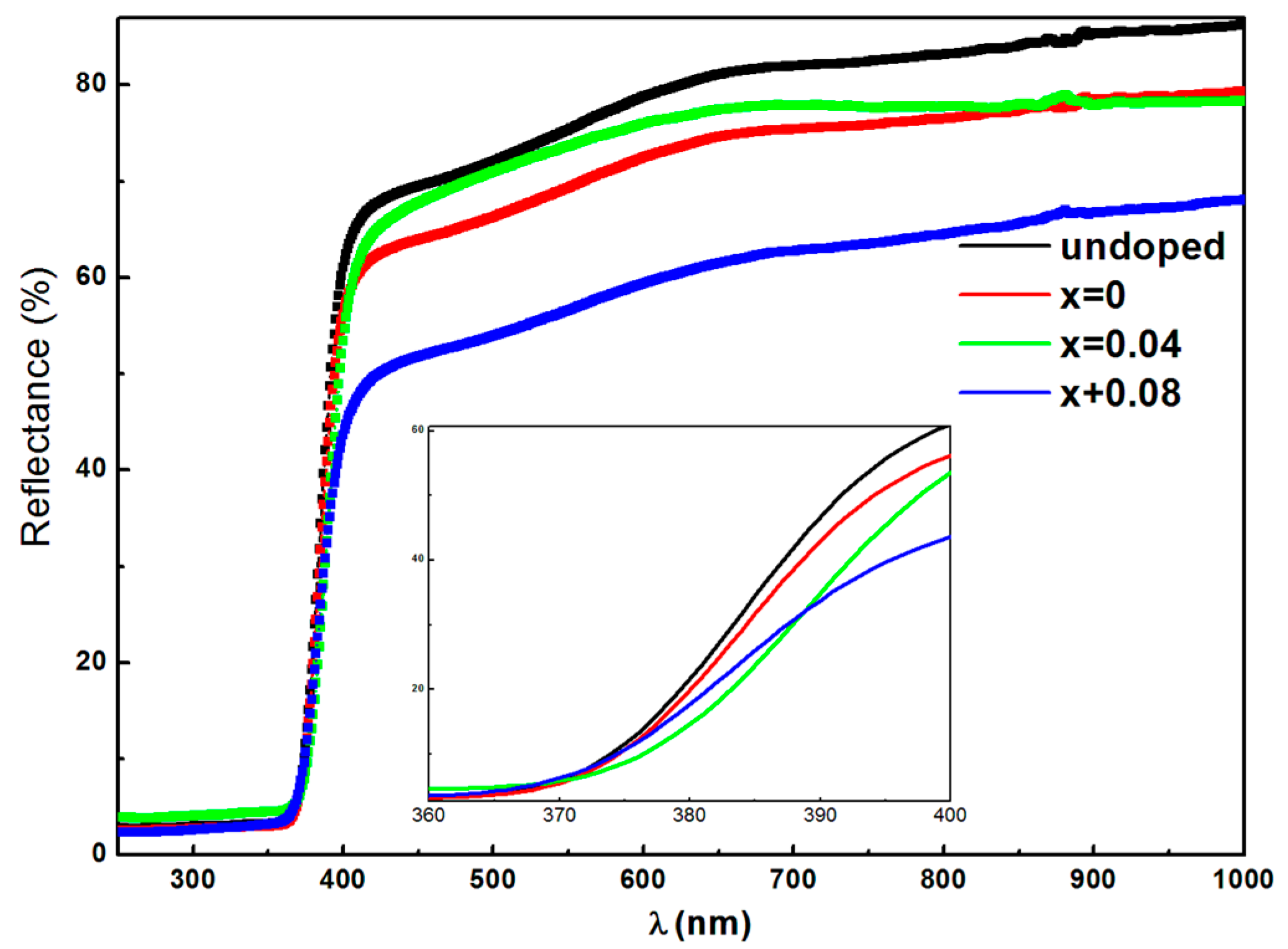

The reflectance spectra illustrated in Figure 7 approves characteristics of nano-ZnO, showing a low reflectance in the UV spectral range and high reflectance in the visible domain. The absorption edge, shown in inset, reveals a small shift leaving a modification in the band gap energy.

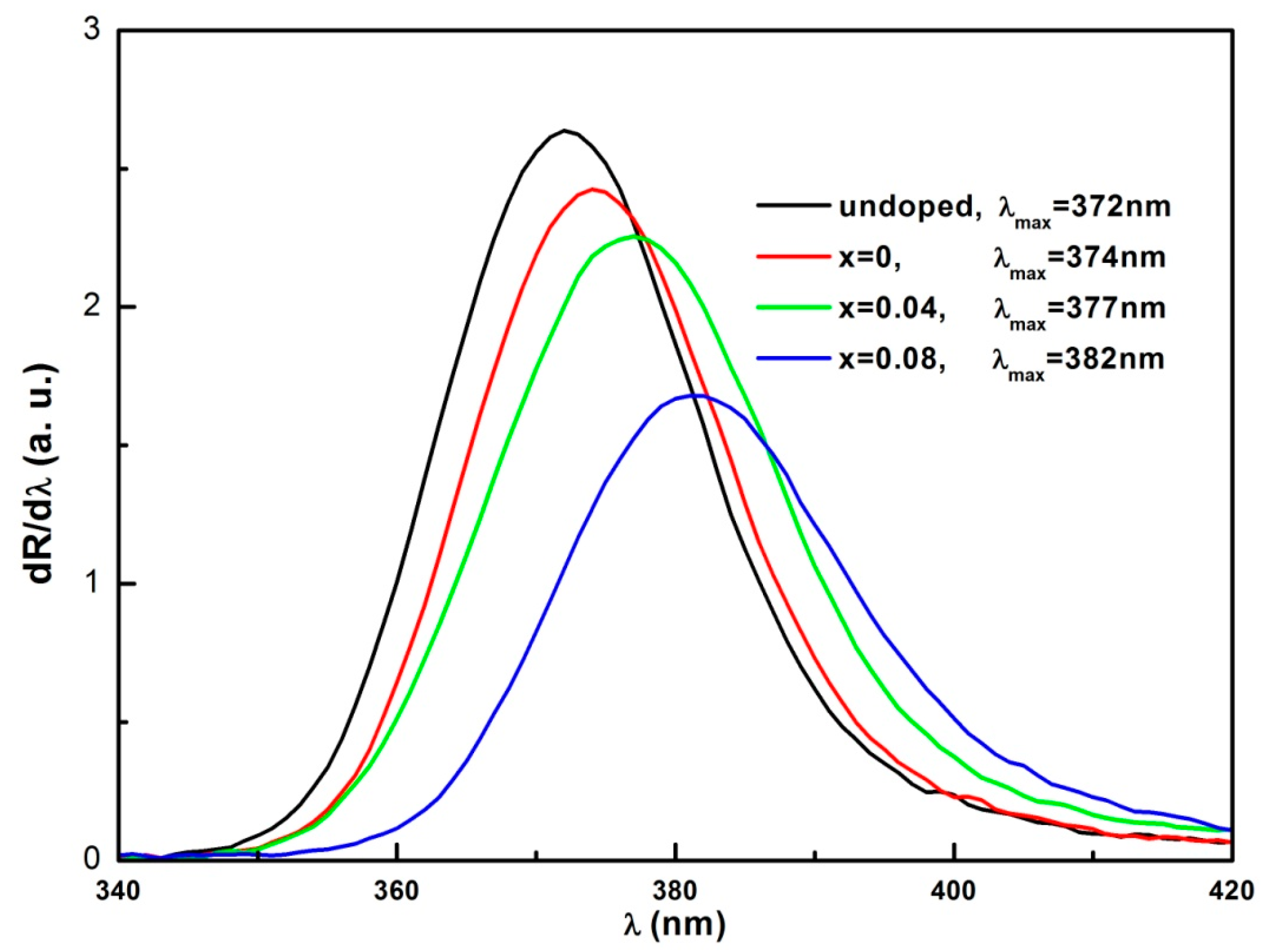

The plot of the first derivative of the reflectance (dR/dλ) as a function of λ, as shown in Figure 8, present a shift toward high wavelengths, that is to say a decrease in band gap value after doping. We suggest that the band gap drop can be attributed to the effect of doping elements in the host lattice [44].

3.5. Photoluminescence (PL)

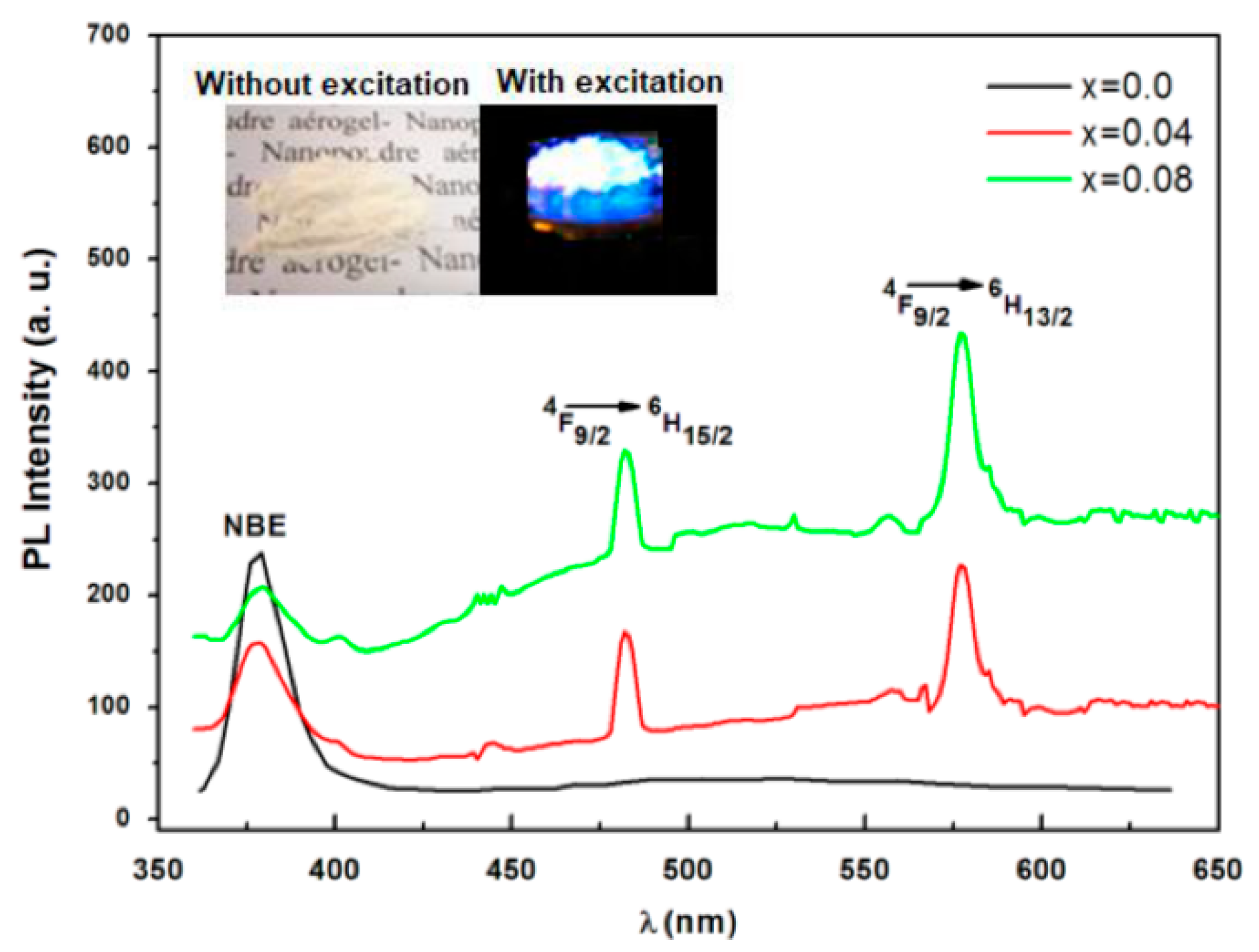

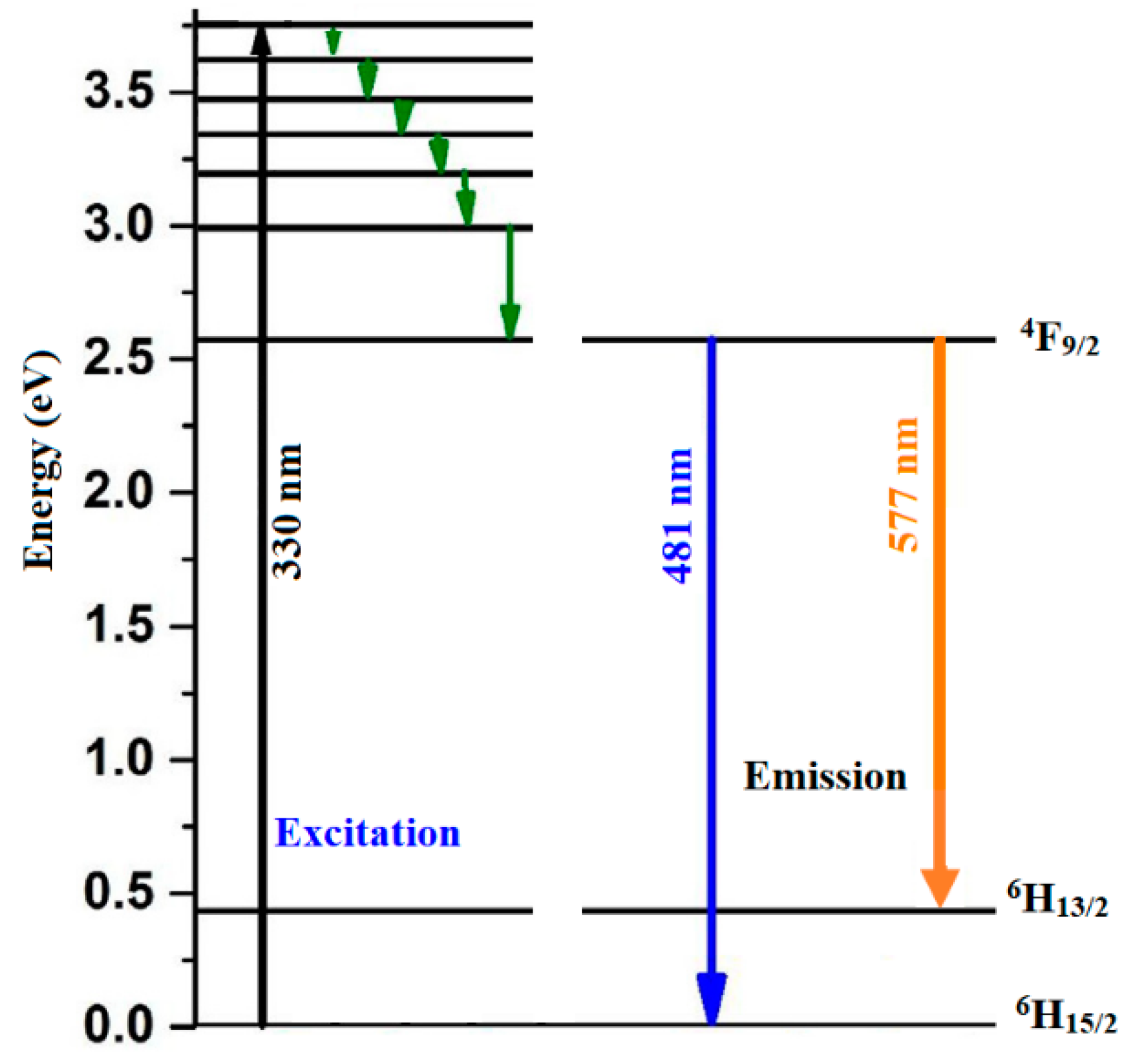

Figure 9 shows the PL spectra of Zn_0.99-xV_0.01Dy_xO (x = 0.00, 0.04, and 0.08) nanoparticles excited with 330 nm at room temperature. The PL studies show that the appearance of a band-edge emission occurs at 380 nm for the Zn_0.99V_0.01O which shifts to the red after Dy doping, confirming the decrease in the bandgap. In addition, the PL spectra consist of two others bands centered at around 481 nm and 577 nm which are attributed to the transitions ⁴F_9/2→⁶H_15/2 and ⁴F_9/2→⁶H_13/2, respectively [45]. No significant change in the position or shape of the bands was manifested with the increase in the concentration of Dy³⁺. This amounts to the protection of the 4f electrons by the outer 5s and 5p electrons.

The two transitions ⁴F_9/2→⁶H_15/2 and ⁴F_9/2→⁴H_13/2 are ascribed to a magnetic and forced electric dipole transitions, respectively. The crystal field strength of host matrix does not strongly affect the transition to the ⁶H_15/2 level, while that the one toward ⁴H_13/2 level is hypersensitive to the surroundings. We have noticed that the spectral intensity of the ⁴F_9/2→⁴H_13/2 transition is higher than the ⁴F_9/2→⁶H_15/2 transition. This is due to the localization of Dy³⁺ ions on sites of low symmetry without centers of inversion. A large interaction between the host matrix and the RE ion is induced by asymmetry when the intensity of the hypersensitive transition is high [46]. For ZnO nanoparticles, the quantum efficiency of the visible emission can reach around 20% after UV excitation [47]. We see that the quantum efficiency increases slightly with the addition of Dy, this may be related to the decrease in particle size [47], confirming the result of XRD. Figure 10 shows the energy level diagram of Dy³⁺-doped ZnO:V. As the excitation energy (330 nm) is greater than the energy of ⁴F_9/2 level (475 nm), the excess energy is lost through non-radiative channels. This produces the radiative emission of the populated level ⁴F_9/2.

4. Conclusions
