Torrefaction of Short Rotation Coppice of Poplar under Oxidative and Non-Oxidative Atmospheres ^†

Abstract

Torrefaction improves some of the poorest characteristics of biomass such as hygroscopicity, low energy density, or poor grindability which may cause some problems during its handling, storage and combustion. The aim of this work is to apply the torrefaction process to a Short Rotation Coppice of Poplar (SRCP) and characterize the new fuel. Therefore, both non-oxidative and oxidative torrefaction of SRCP were conducted in a tube furnace reactor within the range 200–240 °C and the torrefied biomass was fully characterize, i.e., proximate, ultimate, compositional and heating value analysis as well as wettability studies. In addition, Pyrolysis-Gas Chromatography/Mass Spectrometry (Py-GC/MS) was performed at optimal torrefaction temperature. Torrefaction kinetics were obtained using a thermogravimetric analyzer at optimal torrefaction temperature. Minimum mass and energy yields were found to be respectively 85.0% and 87.4% for oxidative torrefaction and 87.5% and 94.1% for non-oxidative option. Moisture was reduced from 6.97% to 4.8% and 4.4% for oxidative and non-oxidative torrefaction, respectively. Wettability studies carried out show an increase in hydrophobic behavior. Lignin was affected by torrefaction since decomposition products from guaiacyl (G) and syringyl (S) units were released during Py-GC/MS experiments. The reaction orders were 1.92 and 1.82 for oxidative and non-oxidative torrefaction, respectively and kinetic constant values were 5.99·× 10⁻⁵ and 2.98·× 10⁻⁵ s⁻¹.

1. Introduction

Torrefaction is an endothermic gas-solid reaction and it is usually carried out under non-oxidative or low oxygen atmospheres. However, torrefaction can occur under air atmosphere named oxidative torrefaction.

Increase of energy density, hydrophobic behavior and improvement of grindability are some of the benefits of torrefied biomass compared to raw biomass. These changes improve the handling, storage and combustion processes of biomass. In addition, the degradation of the torrefied biomass is minimized because the resistance to biological activity is increased. Another advantage of torrefaction is that a wide variety of raw biomass types can be used and the final properties depend on the torrefaction conditions [1].

Torrefied biomass or torrefied biomass together with other fossil fuels is used in numerous energy industries. It can be applied both for electrical uses and for thermal uses. The first refers to the generation of electric power, either with cogeneration systems or co-combustion systems. It is also possible to use biochar as a substitute for coke in blast furnaces. The second refers to thermal energy for heating, hot water supply or in industrial processes.

In the paper industry, non-renewable energy sources were partially or totally replaced by torrefied biomass. In the iron and steel industry, the use of torrefied biomass takes place in injection furnaces where it can completely replace the introduction of pulverized coal, without affecting the efficiency of the boiler. In the cement sector, a combination of torrefied biomass with coal in co-combustion furnaces is used [1,2].

On the contrary, in petrochemical industry the use of torrefied biomass is not yet sufficiently established to assert its success, although there are studies that recognize its use in obtaining engineering thermoplastics, such as the polyamide 6.6 [3].

2. Materials and Methods

Shor Rotation Coppice of Poplar (SRCP) was collected from experimental trial established on abandoned mining land. Biomass samples were grinded and sieved to a size between 710–1000 µm.

Oxidative and non-oxidative torrefaction experiments were carried out in a tube furnace reactor at five different temperatures within the range of 200–240 °C, every 10 °C. Air was used as oxidative atmosphere, while nitrogen was selected as inert atmosphere. The torrefaction temperature was held for 20 min and the flux of oxidizing or inert gas was set to 1 L/min.

Proximate analysis and heating value were carried out according to the ASTM Standards [4,5,6,7] in a muffle furnace, while ultimate analysis was conducted using an elemental analyzer. In compositional analysis, lignin, holocellulose and cellulose were quantified according to NREL procedure, ASTM D1104 standard and TAPPI T212 standard, respectively [8,9,10].

Released gases at optimal torrefaction temperature and inert atmosphere was characterized using pyrolysis gas chromatography/mass spectrometry (Py-GC/MS). For this assay, a micro-furnace type double-shot pyrolyzer attached to a GC/MS system Agilent 6890 was used. Samples (4 mg) were placed in small crucible capsules and introduced in a pre-heated furnace (at optimal torrefaction temperature) in the absence of oxygen. The sample was kept for 2 min at this temperature before the evolved gases where directly injected in the GC/MS for analysis, see [11] for complete description of the method used.

For kinetic study, 4 mg of the sample were subjected to thermal decomposition at optimal torrefaction temperature, using 200 mL min⁻¹ of N₂ as carrier gas and the temperature program described by Chen and Kuo [12].

3. Results and Discussion

3.1. Optimal Torrefaction Temperature

Firstly, the optimal temperature of torrefaction was determined from mass and energy yields of torrefied biomass obtained at different torrefaction conditions. Mass and energy yields were in the range between 85.0–93.0% and 87.4–93.1% respectively for oxidative torrefaction and 87.5–94.0% and 94.1–97.2% for non-oxidative torrefaction. It is widely accepted that the optimal balance of mass and energy for biomass torrefaction is 80% of mass yield and 90% of energy yield in the torrefied biomass [13]. However, since at temperatures higher than 240 °C the sample could be carbonized, the optimal torrefaction temperature for SRCP was set to be 230 °C to avoid carbonization.

3.2. Proximate, Ultimate, Compositional and Kinetic Analysis

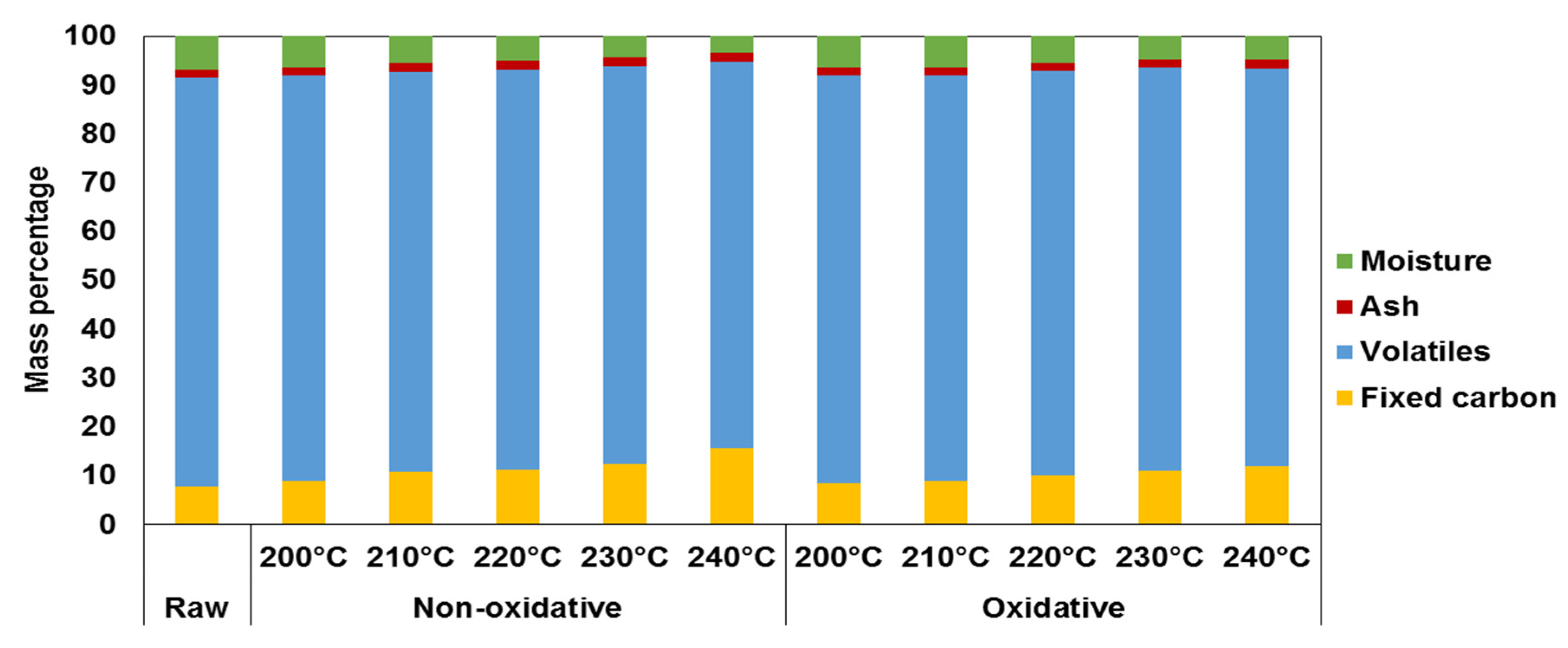

The moisture content decreases as the torrefaction temperature increases and at the optimal temperature, this value is 4.8 and 4.4% for oxidative and non-oxidative torrefaction, respectively (Figure 1).

The atomic O/C and H/C ratios decrease as the torrefaction conditions become more severe. Regarding the compositional analysis, holocellulose decreased while percentage of lignin in torrefied SRCP increased. Torrefaction kinetics of oxidative and non-oxidative processes were depicted on

Table 1. Kinetic parameters of oxidative and non-oxidative torrefaction.

Sample	k (s−1)	n
Oxidatively torrefied SRCP	5.99·× 10−5	1.92
Non-oxidatively torrefied SRCP	2.98·× 10−5	1.82

.

3.3. Hydrophbicity and Contact Angle

The contact angle measurements showed that there was an increase of hydrophobicity due to the increase of contact angle (

Table 2. Contact angle measurements for SRCP samples.

Sample	Oxidative	Non-Oxidative
Raw	79.7
200	98.6	88.4
210	103.7	93.8
220	104.1	96.3
230	103.9	98.2
240	104.4	102.1

). The values obtained ranged from 79.7° for raw SRCP (with no torrefaction treatment) till 104.4° and 102.1° obtained with the samples torrefied at 240 °C for oxidative and non-oxidative torrefaction, respectively.

3.4. Py-GC/MS

The main compounds released at optimal temperature were conipheryl aldehyde and synapaldehyde. Family compounds are shown on

Table 3. Released gases of SRCP at optimal temperature from Py-GC/MS as percentage of total chromatographic area.

Type of Compound	%
Aromatic	2.51
Lignin (G)	29.76
Lignin (S)	37.82
Lipid	6.79
Sugars and sugar-derived products	15.46
Sterols	2.13

. The amount of lignin derived compounds released is higher than sugar-derived fraction. However, it must be taken into account the conditions of the experiment, since CO₂ or acetic acid were not identified due to those conditions.
