The Fatigue Response’s Fingerprint of Composite Materials Subjected to Constant and Variable Amplitude Loadings

Department of Engineering, Università della Campania “Luigi Vanvitelli”, Via Roma 19, 81031 Aversa, Italy
*
Author to whom correspondence should be addressed.
J. Compos. Sci. 2024, 8(1), 11; https://doi.org/10.3390/jcs8010011
Submission received: 15 October 2023 / Revised: 15 November 2023 / Accepted: 14 December 2023 / Published: 27 December 2023
(This article belongs to the Section Composites Modelling and Characterization)

Abstract

:
This paper discusses the theoretical and experimental correlations between fatigue and static strength statistical distributions. We use a two-parameter residual strength model that obeys the qualitative strength-life equal rank assumption (SLERA) for guidance. The modeling approach consists of recovering the model’s parameters by best fitting the constant amplitude (CA) fatigue data at a given stress ratio, R, and the experimental Weibull parameters of the static strength distribution function. An extensive set of fatigue life and residual strength data for AS4 carbon/epoxy 3k/E7K8 Plain Weave Fabric with [45/−45/90/45/−45/45/−45/0/45/−45]S layups, obtained at different stress ratios, R, have been analyzed. The modeling approach consists of recovering the model’s parameters from pure tension or compression fatigue data at R = 0.1 and R = 5, respectively. Once the parameters are fixed, the model’s capabilities, potential, and limits are discussed by comparing its predictions with residual strength and fatigue life data obtained at stress ratios with mixed tension/compression loadings, namely R = −0,2 and R = −1. Moreover, from a preliminary analysis, the theoretical extension of the model’s capabilities to variable amplitude loadings is conceptualized. The application of Miner’s rule is also discussed and compared with a new damage rule to analyze the fatigue responses under variable amplitude loadings.

1. Introduction

The general responses of composite structures to in-service loadings depend on the environmental conditions (temperature and humidity), the loading rate, the frequency, and the loading sequence. Modeling procedures to simultaneously cover all these variances is a difficult task. Moreover, the diversity of the material configurations coming from different fiber reinforcing systems, matrices, process technologies, and lamination sequences, makes each composite structure a unique material requiring extensive mechanical tests. Also, statistical treatments based on large data sets under static or cyclic loading conditions become mandatory as the mechanical properties of polymer composites are broadly scattered. The scatter is attributed to the accumulation of diffuse damage mechanisms that synergistically develop at different lengths and time scales and are eventually triggered by existing defects, including voids, fiber misalignments, and residual stress from the production process.
Thus, the mechanical characterization of composites still represents one of the more expensive activities in structural applications, a requirement for which some industrial compartments do not have the resources or time. Depending on the unicity of each composite structure, the different origins and locations of the damage mechanisms, rather than the propagation of a single crack, prevent any possibility of establishing sound inspection and maintenance criteria, as in metals [1]. Therefore, reliable simulation techniques may significantly reduce testing procedures. Two substantial approaches have been followed over the years. Mechanistic/hierarchical models are based on specific failure criteria depending on the length scales and the sequence/interaction of the damage mechanisms [2,3,4,5,6]. However, the intricacy of damage accumulation mechanisms forces researchers to develop phenomenological models [7,8,9,10,11,12,13,14] without providing any information about the damage mechanisms, the events being predicted based on empirical criteria involving macrostress components. The mechanistic and phenomenological approaches are not in contrast; the latter are addressed to supply analytical tools to perform reliability and scatter analysis on large databases of specific categories of composites subjected to particular loading conditions of fully developed structures. Reifsnider’s “Critical Element Model” [3,4], based on micromechanical representations of strength at increasing length scales, and the “Generalized Material Property Degradation Model” implemented by Shokrieh and Lessard [5], belong to the same model category, representing an intermediate level of modeling the fatigue process between phenomenological and mechanistic approaches. In both cases, the phenomenological models from the macro level are combined with failure criteria and property degradation rules. However, neither Reifsnider’s nor Shokrieh and Lessard’s models account for the highly stochastic behavior observed in the fatigue life of composites, a prerogative of some phenomenological modeling approaches. The argument was discussed comprehensively by Vassilopoulos and Keller [9] and Philippidis and Passipoularidis [10], where several models tested on the same set of fatigue life and residual strength data revealed that the statistical predictions at various stress levels and life fractions were largely unreliable. As a guide, this paper considers fatigue’s stochastic nature in composites using a two-parameter formulation, inherently obeying the strength-life equal rank assumption (SLERA), and explicitly accounting for the stress ratio, R [15,16].
The SLERA states that if a sample of components could be tested for static strength and fatigue life expectancy, each member would occupy the same rank in the strength and life data sets. However, despite its potential powerfulness, the SLERA cannot be proved from one side, and its application to notched specimens is debated.
Based on the literature data, the reliability of the modeling procedure in predicting the fatigue life and the residual strength kinetics of open-hole (OH) laminates will be verified [17]. Then, its robustness is further explored for variable amplitude loadings.

2. Experimental Data

In this paper, we analyze a large set of fatigue life and residual strength data for AS4 carbon/epoxy 3k/E7K8 Plain Weave Fabric with [45/−45/90/45/−45/45/−45/0/45/−45]S layups. The experimental data belong to a series of extensive campaigns under the Federal Aviation Administration (FAA) aegis, where 384 specimens of the same material with different geometries were subjected to various loading conditions [1].
Here, we analyze the fatigue data sets obtained on specimens subjected to tension-tension (OHT) at R = 0, prevailing tension (OHT) at R = −0.2, pure compression (OHC) at R = 5, and tension/compression (OHTC) at R = −1.
As a common practice in the aerospace industry, the experimental characterization included approximately twenty-one fatigue tests performed at three stress levels, six static and three residual strength tests, at a given stress ratio, R [1].
The OH test methods were designed to produce tensile or compressive strength data for allowable structural design. Deeper details on materials and specimen geometry (including hole diameter, diameter-to-thickness ratio, and width-to-diameter ratio) can be found in Ref. [1].
The model presented in [15,16] will be recalled in what follows. Then, the procedure for determining carbon fiber-reinforced composites’ residual strength and fatigue life is illustrated.

3. Model Description

Our approach is based on a formulation that fulfills the following assumptions:
  (i)
A two-parameter Weibull distribution function represents the composites’ static strength;
 (ii)
The fatigue limits seem unlikely in composite materials or irrelevant in the cycles encountered in practical applications. Thus, every load cycle potentially damages a composite structure and should be considered in life prediction calculations;
(iii)
The residual strength, that is, the strength measured on a sample subjected to cyclic loading under a given loading condition, slowly degrades in the first cycle’s decades and suddenly drops toward the maximum applied stress within a narrow cycle interval.
Moreover, the model obeys the strength-life equal rank assumption (SLERA) formulated by Hahn and Kim [14] and then Chou and Croman [7]: “A specimen of a certain rank in the fatigue life distribution is assumed to be equivalent in strength to the specimens of the same rank in the static strength distribution”.
In addition, the fatigue formulation described below simultaneously analyzes fatigue and static strength data, provided the loading rates used to measure the static strength are comparable with those in fatigue. This aspect will be discussed in what follows.
Our fatigue life formulation that was first developed was:
σ 0 = σ m a x α 1 R ( N β 1 ) + 1
where N is the number of cycles to failure, σ m a x the maximum applied cyclic stress, R = σ m i n σ m a x , σ 0 is the static strength, and α and β are the model’s parameters obtained by best fitting the fatigue data through Equation (1), which is rearranged as follows:
σ m a x = σ 0 α N β 1 1 R + 1
We recall that the monotonic material strength, σ0, is well represented by a two-parameter Weibull distribution. Therefore, the probability of finding a σ0 value ≤ x is given by:
F σ 0 x = P σ 0 x = 1 e x p ( x / γ ) δ
where γ is the scale parameter or the characteristic strength and δ is the shape parameter.
Indeed, in Equations (1) and (3), the original strength of the virgin samples, fatigued until failure at cycle N, can be recovered, and it should coincide with the statistical distribution of static strength, σ0.
Furthermore, by coupling Equations (1) and (3), one obtains:
F N ( N * ) = P N * N = 1 E X P σ m a x 1 + α N β 1 1 R γ δ
Equation (4) represents the probability of finding an N* ≤ N; namely, the Weibull distribution of cycles to failure at a given σmax and R, the scatter in fatigue life exhibited by different samples conforms to the variability in monotonic strength. Thus, in principle, Equation (4) obeys the strength-life equal rank assumption (SLERA) [7,14] and accounts for the stochastic nature of strength and fatigue life. By solving Equation (3) for N*, one obtains:
N = 1 + 1 α ( 1 R ) γ σ m a x l n 1 F N N * 1 δ 1 β
where the classical S-N curve for a fixed probability of failure F N N * can be calculated given the stress ratio, R.
Concerning the residual strength, once the parameters α, β, γ, and δ are known, according to the developments already shown in [18], the following distribution function can represent the strength evolution with cycles:
F σ n σ N * = σ n i σ m a x σ O N i σ m a x = E X P σ m a x 1 + α n β 1 1 R γ i δ
In Equation (6), σ n i is the strength of a sample fatigued n ≤ N cycles under a given σ m a x and R; σ O N i is the virgin strength of the sample with a given rank in the nominal static strength distribution function. Thus, Equation (6) describes the residual strength of a generic sample, σ n i   , as it degrades progressively from its virgin value, σ O N i , to the maximum cyclic stress, σ m a x , where failure occurs. Equation (5) can also be used to describe the statistics of the residual strength experimentally obtained at a given number of cycles, n, given σ m a x and R.
Incidentally, rearranging Equation (5), when σ n σ m a x and nN, namely in the vicinity of failure, Equation (1) is recovered as follows:
l n σ n i σ m a x σ O N i σ m a x 1 δ = σ m a x 1 + α N β 1 1 R γ 1
Equation (7) confirms that the fatigue life predictions, namely Equations (1) and (2), can be regarded as an extreme case of the residual strength model, according to Chou and Croman [7].

4. Results and Discussion

The fatigue life data of open-hole tension (OHT) and compression (OHC) samples at different stress ratios, R, are reported in Figure 1. The data at R = 0 and R = 5 are analyzed using Equation (1), allowing, by least square methods, the calculation of the two model’s parameters under pure tension and compression; namely, αt = 0.074 and βt = 0.160 and αc = 0.127 and βc = 0.174, respectively.
According to the proposed procedure, the fatigue data under prevailing tension, namely R = −0.2, are predicted with the model’s parameters αt and βt. Moreover, despite the arithmetic symmetry of the stress ratio, the compression damage mechanisms developing at R = −1 prevail, with higher loading severity in compression, given that the distance from the static strength in compression is lesser than the counterpart in tension. Consequently, the data at R = −1 will be predicted with the parameters already obtained under pure compression, namely αc and βc.
In Figure 1, the model predictions at R = −0.2 and R = −1 show that the fatigue data fall reasonably on the predicted curves. As shown above, Weibull’s and model parameters are easy to obtain and remain fixed in predicting fatigue beyond the experiments. Thus, no adjustments will be allowed in what follows. We only mention that the stress ratio, ROHC, is normalized in modeling compression-dominated fatigue data. For instance, at ROHC = 5, R = 1 R O H C = 0.2 in Equation (1).
The deterministic nature of Equation (1) was converted to its statistical counterpart by applying the strength-life equal rank assumption (SLERA); namely, a longer fatigue life belongs to specimens exhibiting a higher static strength. To substantiate this statement, Equation (1) was solved for σ 0 in Ref. [15]:
σ 0 = σ 0 N = σ m a x α 1 R ( N β 1 ) + 1
Equation (7) states that the static material strength, labeled by the symbol σ 0 N to identify the calculated virgin strength, which can be evaluated from the fatigue data, coincides with the Weibull distribution of the measured strength, namely σ 0 = σ 0 N . Thus, in Equation (8), the nominal static strength distribution, σ0N, of the samples subjected to fatigue until failure can be recovered and reported in Figure 2 for OHT at R = 0 and OHC at R = 5. The corresponding experimental static strength data set, also reported in Figure 2, appears well described in both cases. According to a two-parameter Weibull statistical distribution, the nominal strength’s scale and shape factors are γt = 302 MPa and δt = 53 and γc = 281 MPa and δc = 61, respectively.
It is worth mentioning that the application of Equation (7), namely the superposition of the experimental and calculated static strength, as shown in Figure 2, is subjected to well-defined conditions [17]. The literature frequently reports that static strength is measured at loading rates much lower than fatigue, or no information is given on the loading rates adopted to measure it. In those cases, the fatigue life model’s parameters, Equation (1), are obtained by excluding the static data. This argument has been largely debated so far [18]. The discussion is of primary importance in polymer-based composites where the matrix’s viscoelastic nature is dominant at low fiber content. The loading rate also influences the kinetics of damage accumulation since higher loading rates give rise to higher strength and longer life expectancy. Therefore, scaling procedures are needed when high frequencies are used to minimize the experimental characterization time to predict the responses of composite structures eventually subjected to lower in-service loading frequencies. This aspect is strictly connected with the random loading that composite structures may suffer during their service life. From above, it comes out that the complexity of fatigue response under CA loadings, including the SLERA assumption, can only be managed with coherent data sets and that models predicting the VA response have far to come [19,20]. For instance, the loading rate, LR, in fatigue can be approximated by the following equation:
L R = 2 σ f = 2 σ m a x 1 R f
where f is the loading frequency. To roughly illustrate, σ m a x = 250   M P a , R = 0, and f = 10 Hz results in LR = 5000 MPa/s. Therefore, the static tests under load control for samples with a cross-section of 12 mm2 require the application of 60,000 N/s. If the elastic modulus along the direction of the applied load is 25,000 MPa then, under displacement control, the strain rate is ε ˙ = 0.2 s−1, and the static strength of samples with a length L = 100 mm should be measured at a cross-head speed of 120 mm/s. However, when dealing with high-performance carbon fiber composites, the stacking sequence consists of layers oriented along the load direction. In those cases, the strength sensitivity to the loading rate is very low [18,19,20]. For instance, the strength of unidirectional carbon fiber composites shows negligible loading rate dependence. In all the other cases, measuring the strength as a function of the strain rate is mandatory.
A further implication of the modeling procedure is described in Equation (4), which shows the statistics of failure cycles given σ m a x   and R. With the model’s parameters already found, the experimental data at R = 0 and σ m a x = 240 ,   225 ,   a n d   195   M P a , and the model’s predictions are reported in Figure 3.
With the relatively narrow data set available, we consider satisfying the predictions. Not reported here, the model’s capability to replicate the experimental distribution of fatigue data was verified at different stress ratios, R, with the same quality. Thus, Equation (4) establishes a robust analytical correlation between the static strength and the fatigue distribution functions.
Moreover, based on Equation (6), the statistical distribution of residual strength can be predicted under different loading conditions. To illustrate, let us first recall that given the loading conditions, namely, σ m a x   and R, stronger samples will fail at a higher number of cycles, according to the strength-life equal rank assumption (SLERA). Accordingly, the residual strength data should remain confined between the strongest and weakest samples’ strength degradation curves routinely taken from the extreme tails of the static strength’s cumulative distribution function, namely when F = 0.95 and 0.05, respectively. To this end, Figure 4, Figure 5 and Figure 6 report the model predictions for (OHT) at R = 5, R = 0, and R = −1, respectively. As expected, the residual strength data taken after a million cycles are well within the domain confined between the boundaries referred to as upper and lower bounds, describing the strength degradation kinetics of the weaker and stronger samples. Furthermore, at R = −1, the substantial degradation mechanisms are debited to macrostresses acting in compression and tension. However, it should be mentioned that even if the nominal cyclic loading severity in tension and compression is the same ( σ m a x = σ m i n ), the damage accumulation and strength degradation kinetics result in compression failure. In the framework of our approach modeling, it is evident that given σmax and R, the strength degradation kinetics depend on the “distance” from the virgin strength, which is lower in compression than in tension for the laminate under study. Thus, the predictions at R = −1 use the scale and shape factors, γ and δ, of the cumulative distribution function coming from the calculations based on Equation (1) applied to the pure compression data, namely R = 5. Such deliberate approximation is proof of the approach’s robustness, even if deeper insight can be obtained by recovering the shape and scale factors from the data at R = −1 using Equation (8). Herein, we are proposing a general procedure that at first glance appears promising. Furthermore, it is worth mentioning that in Equation (6), describing the continuous upper and lower bound curves in Figure 4, Figure 5 and Figure 6 delimiting the pertinent residual strength domain, the parameters αc, βc, γc, and δc are already fixed and come from a different data set, while n is the running variable. Thus, the procedure so far illustrated is entirely predictive.
In summary, the fatigue life, the statistical distribution of cycles to failure, and the residual strength can be managed simultaneously through a single set of parameters, namely α, β, γ, and δ, provided that the sign of the prevailing macrostress is recognized. For instance, in composites, the dominant fracture occurs in compression when R = 5 and R = −1, where both tension and compression stresses are in play.
It should be underlined that only two of the four parameters come from the fitting procedure, namely α and β, while γ and δ come from the experimental statistical distribution of strength data. In the framework of our approach, the four parameters represent the material’s fingerprint, even limiting our discussion to the experimental data obtained under constant amplitude loading. A different story and complexity emerge when random loadings are in play. To this end, a preliminary approach is proposed to circumvent the complexity of fatigue response under variable amplitude loadings. The discussion is confined to the simplest case of two-block loading. The blocks have different durations, namely 50,000 and 5000 cycles, and loading is performed at constant amplitude at a given stress ratio, R, and different maximum applied stress, σ m a x = 170   M P a   a n d   σ m a x = 152   M P a , respectively, as depicted in Figure 7, where the schematic of high-to-low (H–L) and low-to-high (L–H) loading sequences is reported.
The sequence is arbitrary, yet it allows discussing Miner’s rule for damage accumulation in detail when variable amplitude loadings are in play. Symbolically, Miner’s rule can be expressed as:
D = i n i N i
where ni is the number of cycles elapsed under a given CA loading condition and Ni is the number of cycles to failure under the same loading condition. For the case under study, the number of cycles to failure was N( σ m a x 1 ) ≈ 105 and N( σ m a x 2 ) ≈ 106, respectively, and the damage calculated by Miner’s rule is D ≈ 0.1, regardless of the loading sequence, as expected. In Figure 8, the strength degradation path for the H–L sequence is schematically described. Starting from the normalized mean static strength, i.e., σr0 = 1, the strength degrades following the baseline degradation curve at higher applied maximum stress, σ m a x 1 , until the end of the first loading block when n1 = 5000. The second block starts with the strength reached at the end of the first block and from the adjourned number of cycles, n′. The strength degradation proceeds for n2 cycles following the degradation curve at lower stress, σ m a x 2 . Similarly, the response to the ascending L–H sequence is illustrated in Figure 9.
The effect of the loading sequence can be quantified employing the damage, D, accumulated within the materials [18,19], defined as follows:
D = i = 1 k σ i r σ ( i + 1 ) r σ 0 σ m a x i
where σ i r σ ( i + 1 ) r is the residual strength variation under the i-th loading block characterized by     σ m a x i and Ri, and σ 0 σ m a x i is the total degradation extent under the same loading condition. The defined damage is compared with the one calculated by Miner’s rule, and the data are reported in Table 1.
Our results evidence the fault of Miner’s rule. First, it cannot discriminate the loading sequence; secondly, the accumulated damage appears highly unconservative. Nonetheless, Miner’s rule is still used in a series of commercial software and as a reference for predicting the damage accumulation with different formulations [20]. Our approach discriminates the loading sequence, and the predicted damage is at least more conservative regarding Miner’s rule.
Finally, the utterly arbitrary loading sequence adopted herein allows the use of our approach cycle-by-cycle for random loadings.

5. Conclusions

A statistical model is needed to predict the stochastic responses of composite materials subjected to fatigue loadings. Based on strength degradation, a phenomenological two-parameter model has been used to predict the residual strength and fatigue life of open-hole (OH) carbon/epoxy laminates subjected to different loading conditions from pure tension to compression and mixed tension/compression.
The fatigue life data on samples subjected to tension and compression loadings were used to fix the model’s parameters. Then, the procedure was applied to predict the fatigue data under prevailing compression or tension loadings with the pertinent set of model parameters. Predictions of fatigue life at different stress ratios and residual strength are excellent, given the limited number of parameters in play.
  • Our modeling approach allows for establishing an analytical correlation between the statistics of static strength and the number of cycles to failure based on fixed parameters.
  • Based on two-block loadings, it was highlighted that the damage accumulation mechanisms show different kinetics, depending on the loading sequence. This aspect is reflected (even if not strictly correlated) in the strength degradation kinetics and implies the possibility of considering our model parameters as the material fingerprint.
  • The approach seems quite promising since under uniaxial loadings, a single set of parameters is required in tension or compression and used at different loading ratios, and R provides the dominant strength in tension or compression that is accounted for.
  • Miner’s damage rule is critically discussed, highlighting our approach’s conservative characteristics and reliability.

Author Contributions

Conceptualization, A.D.; methodology, A.D.; software, L.G.; validation, L.G.; formal analysis, L.G.; writing—original draft preparation, A.D.; writing—review and editing, A.D. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

The data are available requesting them to the authors.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. DOT/FAA/AR-10/6. Determining the Fatigue Life of Composites Aircraft Structures Using Life and Load-Enhancement Factors. 2011. Available online: http://www.tc.faa.gov/its/worldpac/techrpt/ar10-6.pdf (accessed on 1 April 2023).
  2. D’Amore, A.; Caputo, F.; Grassia, L.; Zarrelli, M. Numerical evaluation of structural relaxation-induced stresses in amorphous polymers. Compos. Part A Appl. Sci. Manuf. 2006, 37, 556–564. [Google Scholar] [CrossRef]
  3. Reifsnider, K.L. The Critical Element Model: A modeling philosophy. Eng. Fract. Mech. 1986, 25, 739–749. [Google Scholar] [CrossRef]
  4. Reifsneider, K.L. (Ed.) Fatigue of Composite Materials; Elsevier Publishing: New York, NY, USA, 1990; pp. 231–237. [Google Scholar]
  5. Shokrieh, M.M.; Lessard, L.B. Progressive fatigue damage modelling of composite materials. Part I: Modeling. J. Compos. Mater. 2000, 34, 1056–1080. [Google Scholar] [CrossRef]
  6. Sevenois, R.D.B.; Van Paepegem, W. Fatigue Damage Modeling Techniques for Textile Composites: Review and Comparison with Unidirectional Composite Modeling Techniques. Appl. Mech. Rev. 2015, 67, 020802. [Google Scholar] [CrossRef]
  7. Chou, P.C.; Croman, R. Residual strength in fatigue based on the strength-life equal rank assumption. J. Compos. Mater. 1978, 12, 177–194. [Google Scholar] [CrossRef]
  8. Quaresimin, M.; Carraro, P.A.; Mikkelsen, L.P.; Lucato, N.; Vivian, L.; Brøndsted, P.; Sørensen, B.F.; Varna, J.; Talreja, R. Damage evolution under internal and external multiaxial cyclic stress state: A comparative analysis. Composites Part B 2014, 61, 282–290. [Google Scholar] [CrossRef]
  9. Vassilopuolos, A.P.; Keller, T. Fatigue of Fiber-Reinforced Composites; Springer: London, UK, 2011; ISBN 978-1-84996-180-6. [Google Scholar]
  10. Philippidis, T.P.; Passipoularidis, V.V. Residual strength after fatigue in composites: Theory vs. experiment. Int. J. Fatigue 2007, 29, 2104–2116. [Google Scholar] [CrossRef]
  11. Sendeckyj, G.P. Fitting Models to Composite Materials Fatigue Data. In Test Methods and Design Allowables for Fibrous Composites; ASTM STP 734; Chamis, C.C., Ed.; American Society for Testing and Materials: West Conshohocken, PA, USA, 1981; pp. 245–260. [Google Scholar]
  12. Sendeckyj, G.P. Chapter 10—Life Prediction for Resin-Matrix Composite Materials. In Composite Material Series; Elsevier: Amsterdam, The Netherlands, 1991; Volume 4, pp. 431–483. [Google Scholar]
  13. Kassapoglou, C. Fatigue Life Prediction of Composite Structures Under Constant Amplitude Loading. J. Compos. Mater. 2007, 41, 2737–2754. [Google Scholar] [CrossRef]
  14. Hahn, H.T.; Kim, R.Y. Proof Testing of Composite Materials. J. Compos. Mater. 1975, 9, 297–311. [Google Scholar] [CrossRef]
  15. D’Amore, A.; Giorgio, M.; Grassia, L. Modeling the residual strength of carbon fiber reinforced composites subjected to cyclic loading. Int. J. Fatigue 2015, 78, 31–37. [Google Scholar] [CrossRef]
  16. Yang, Y.; D’Amore, A.; Di, Y.; Nicolais, L.; Li, B. Effect of physical aging on phenolphthalein polyethersulfone/poly(phenylene sulfide) blend. I. Mechanical properties. J. Appl. Polym. Sci. 1996, 59, 1159–1166. [Google Scholar] [CrossRef]
  17. Nixon-Pearson, O.J.; Hallett, S.R.; Withers, P.J.; Rouse, J. Damage development in open-hole composite specimens in fatigue. Part 1: Experimental investigation. Compos. Struct. 2013, 106, 882–889. [Google Scholar] [CrossRef]
  18. D’Amore, A.; Grassia, L. A method to predict the fatigue life and the residual strength of composite materials subjected to variable amplitude (VA) loadings. Compos. Struct. 2019, 228, 111338. [Google Scholar] [CrossRef]
  19. D’Amore, A.; Califano, A.; Grassia, L. Modelling the loading rate effects on the fatigue response of composite materials under constant and variable frequency loadings. Int. J. Fatigue 2021, 150, 106338. [Google Scholar] [CrossRef]
  20. Post, N.L.; Case, S.W.; Lesko, J.J. Modeling the Variable Amplitude Fatigue of Composite Materials: A Review and Evaluation of the State of the Art for Spectrum Loading. Int. J. Fatigue 2008, 30, 2064–2086. [Google Scholar] [CrossRef]

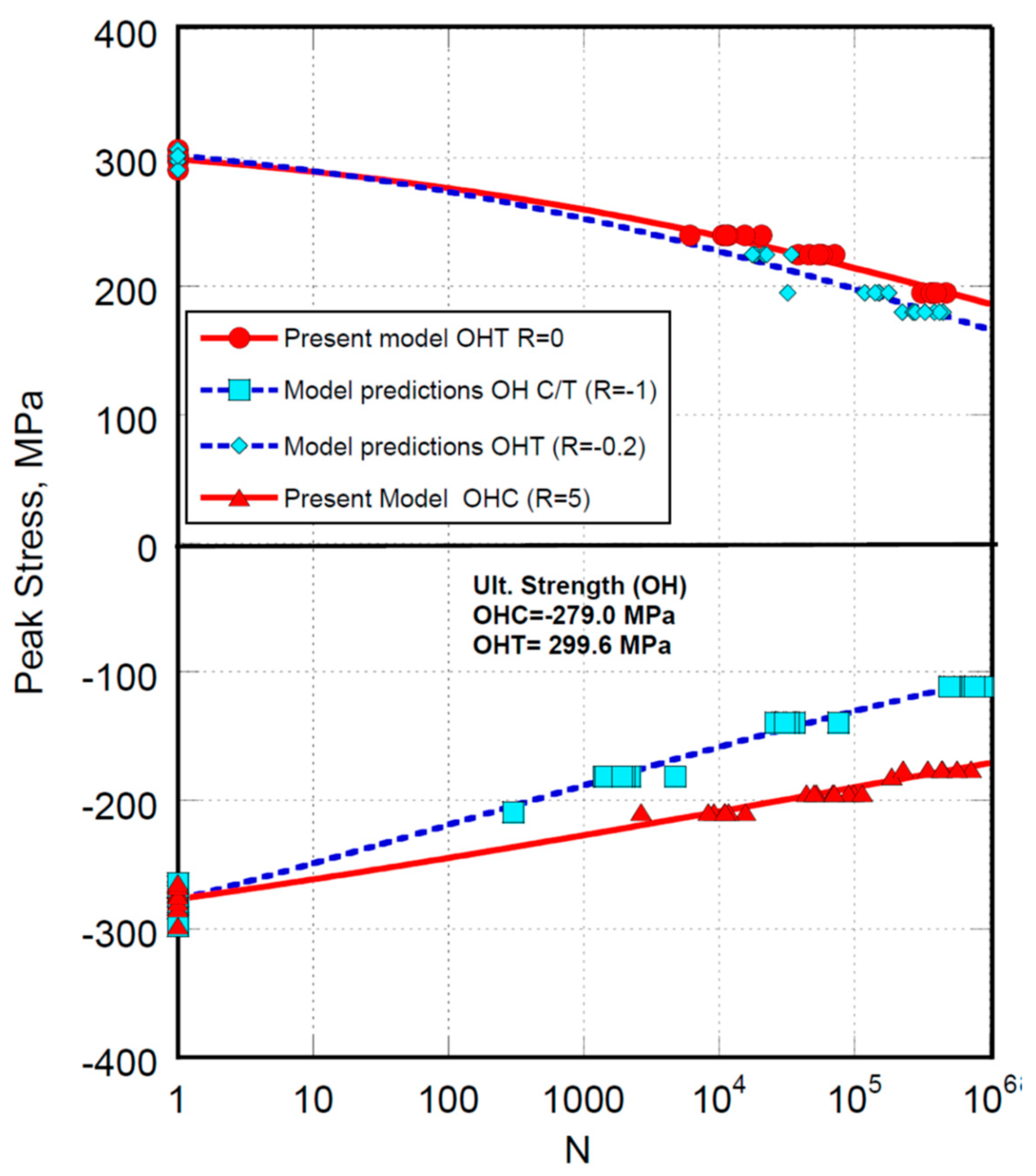

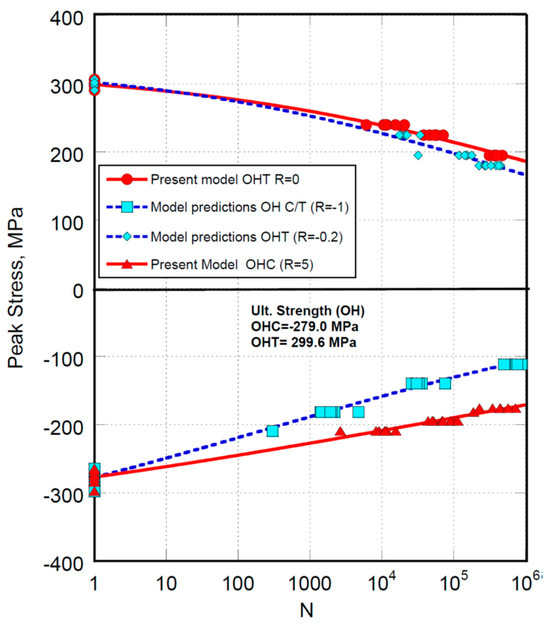

Figure 1. Model predictions of fatigue life at different loading ratios, R, as indicated in the inset. The experimental data are taken from Ref. [1].
Figure 1. Model predictions of fatigue life at different loading ratios, R, as indicated in the inset. The experimental data are taken from Ref. [1].
Jcs 08 00011 g001

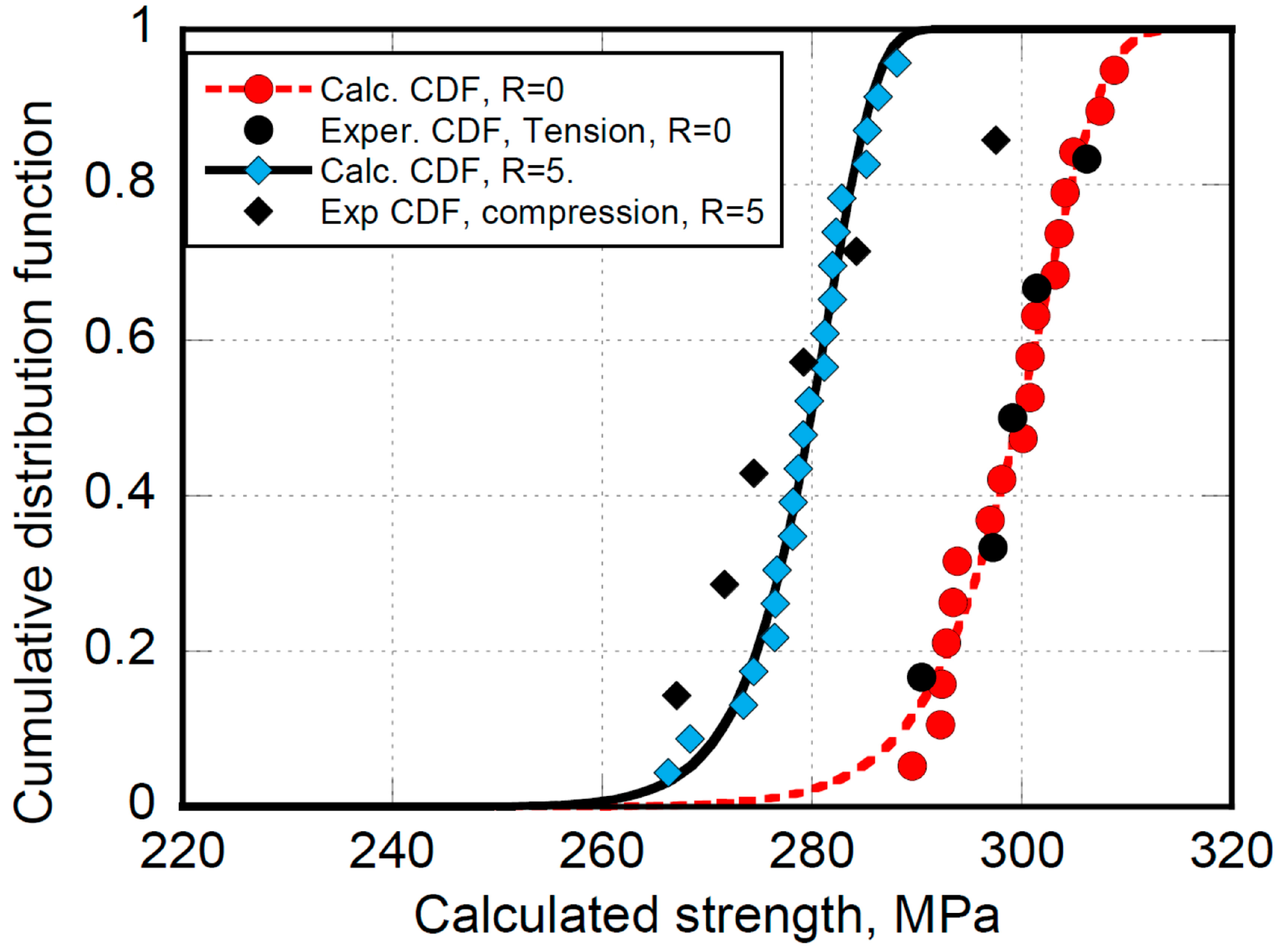

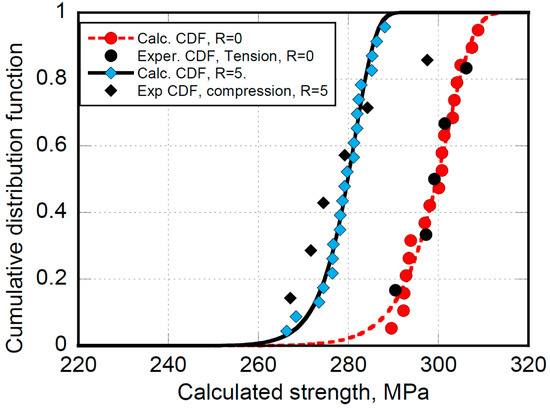

Figure 2. Experimental and calculated static strength distributions.
Figure 2. Experimental and calculated static strength distributions.
Jcs 08 00011 g002

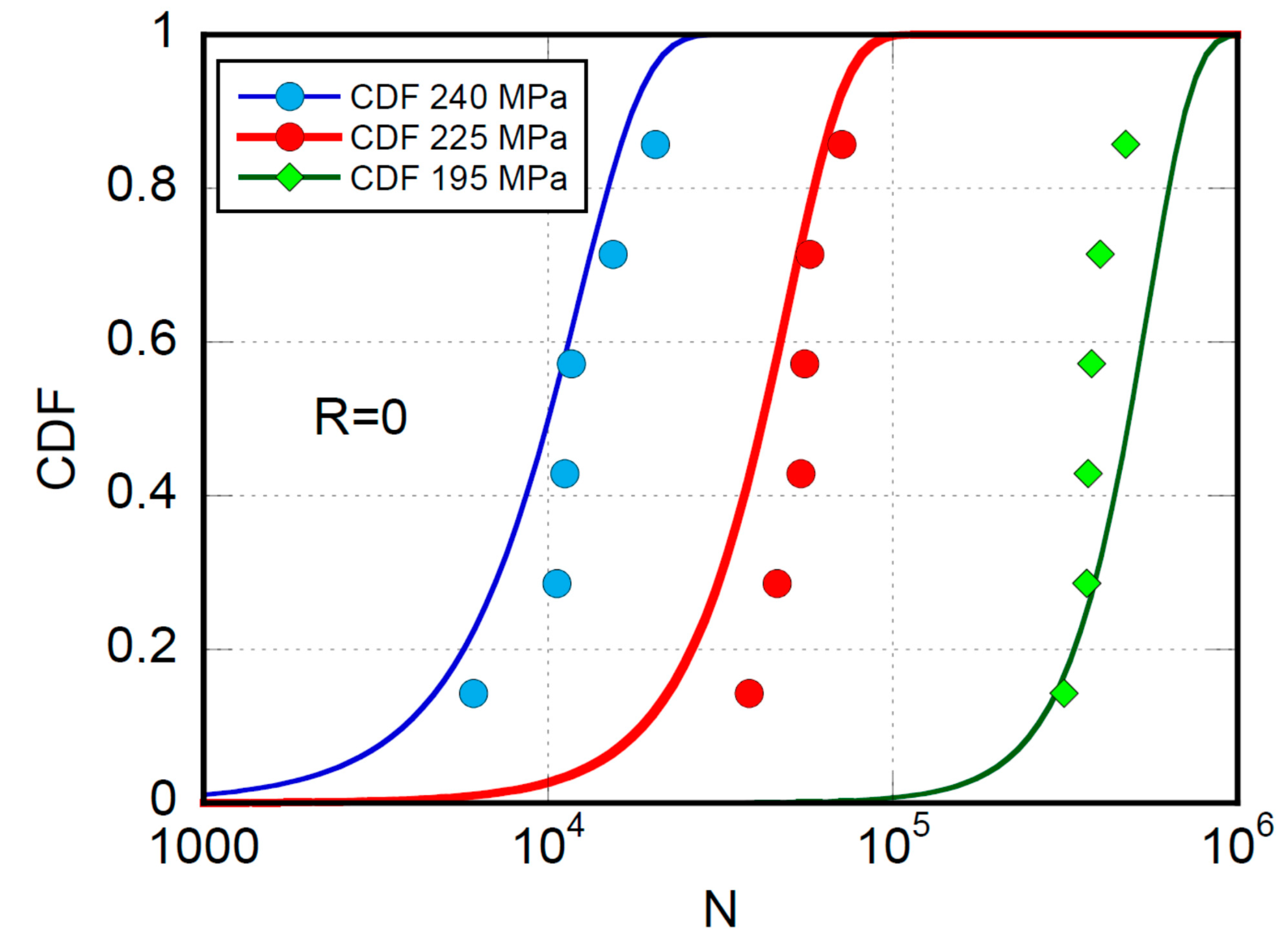

Figure 3. The fatigue life distribution function at different maximum stresses and R = 0.
Figure 3. The fatigue life distribution function at different maximum stresses and R = 0.
Jcs 08 00011 g003

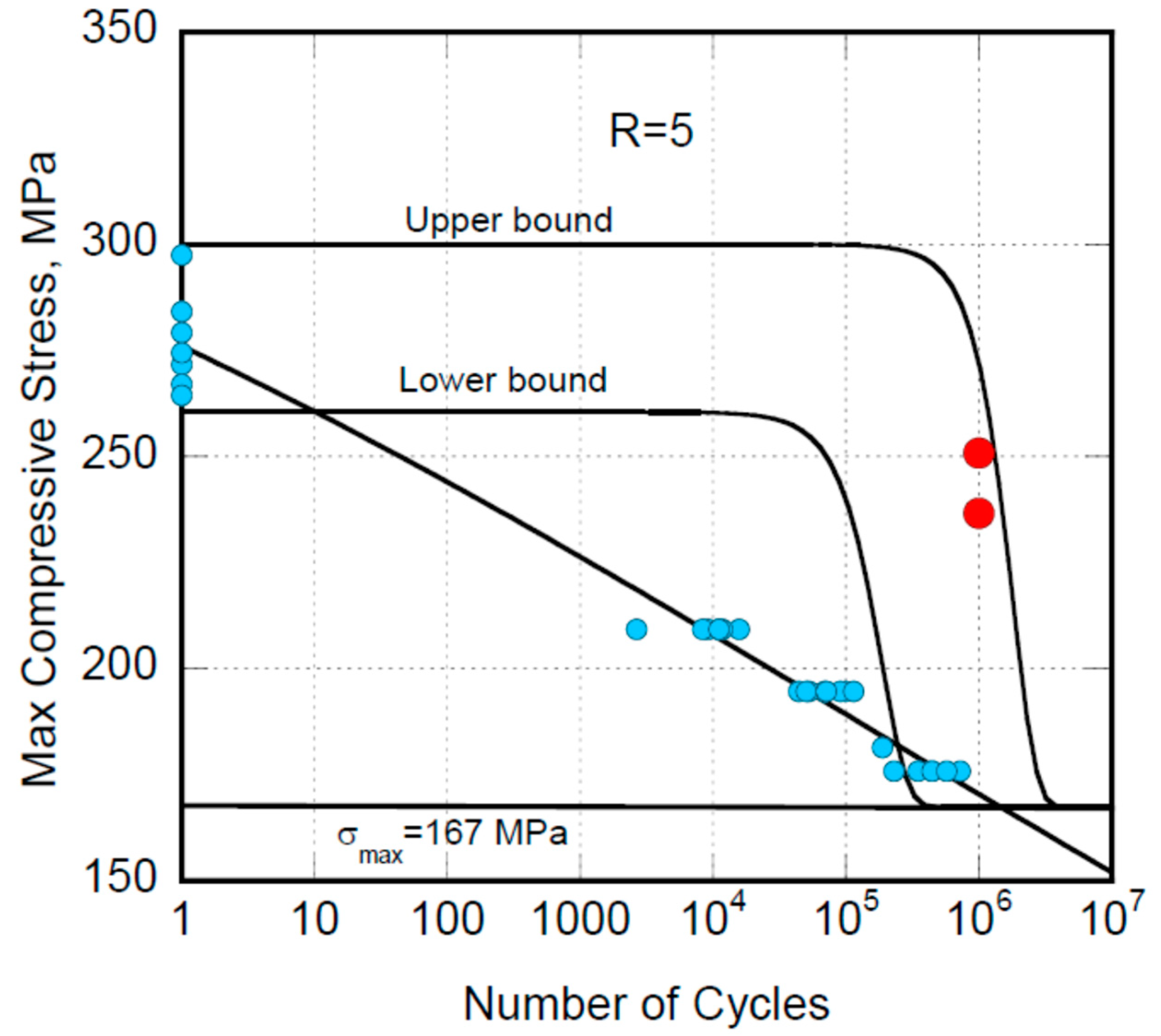

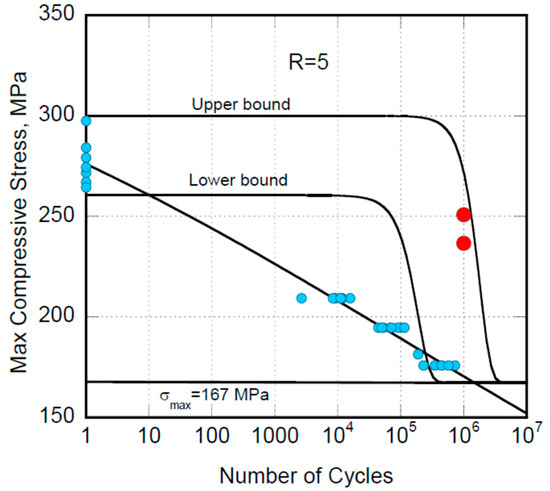

Figure 4. Residual strength (red circles) prediction at R = 5.
Figure 4. Residual strength (red circles) prediction at R = 5.
Jcs 08 00011 g004

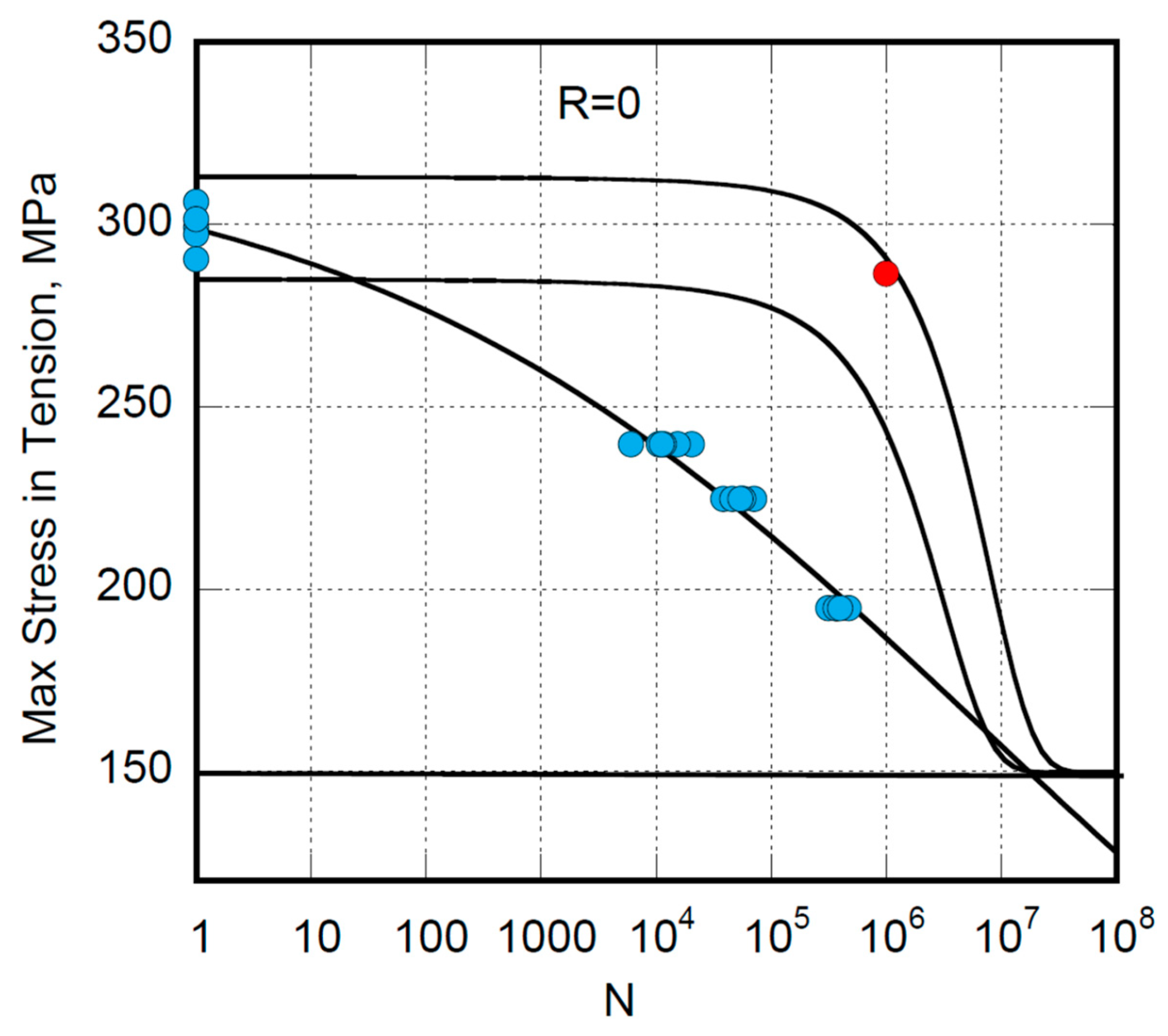

Figure 5. Residual strength (red circles) prediction at R = 0.
Figure 5. Residual strength (red circles) prediction at R = 0.
Jcs 08 00011 g005

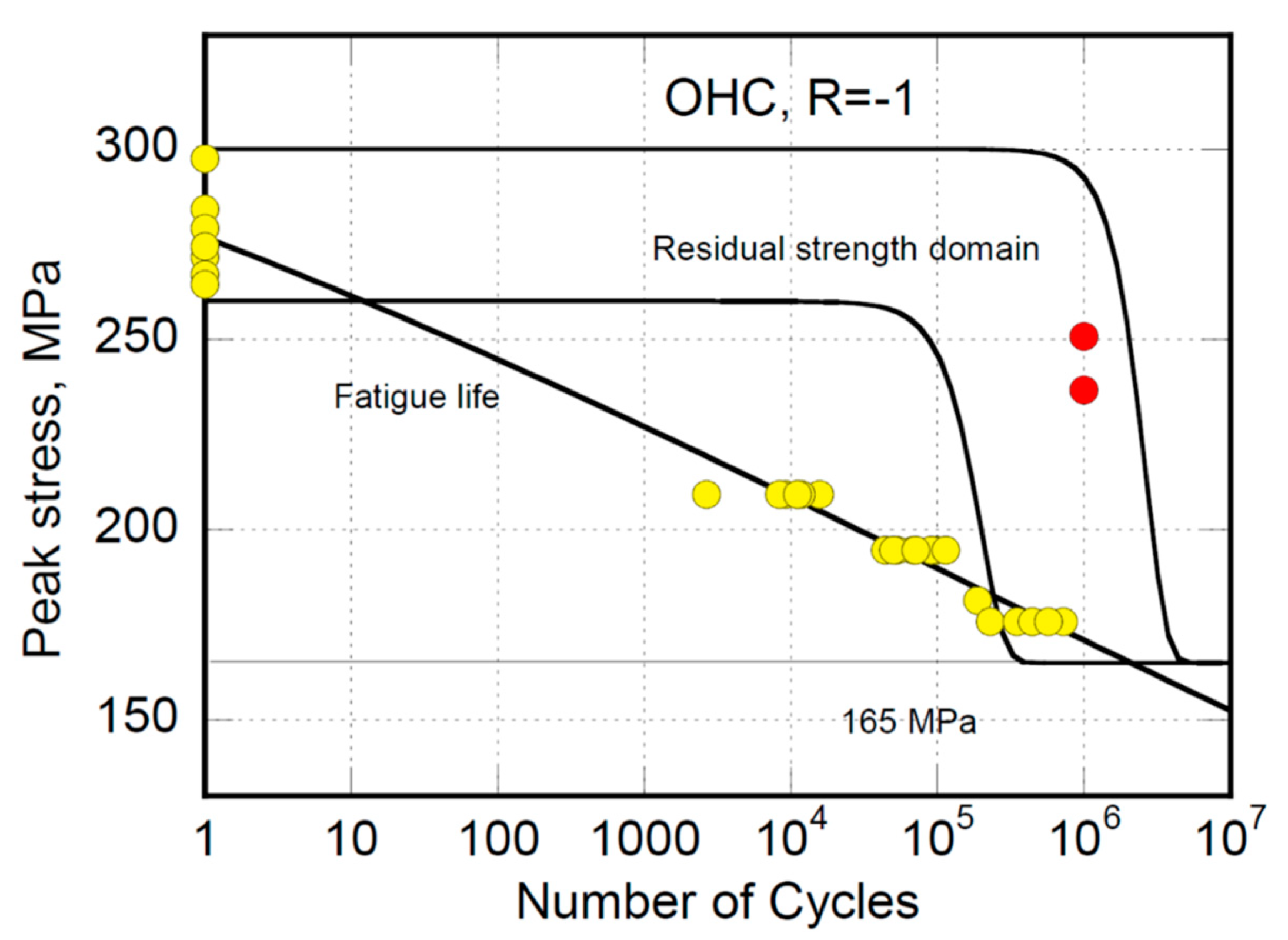

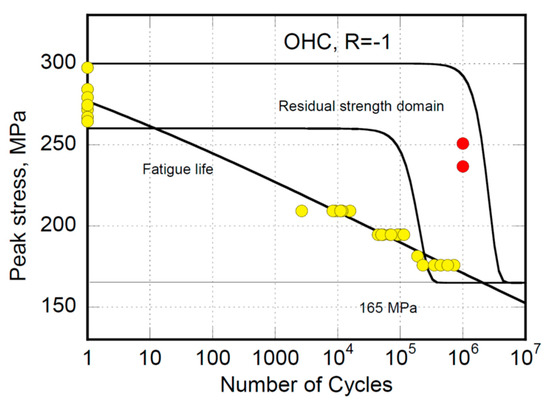

Figure 6. Residual strength (red circles) prediction at R = −1.
Figure 6. Residual strength (red circles) prediction at R = −1.
Jcs 08 00011 g006

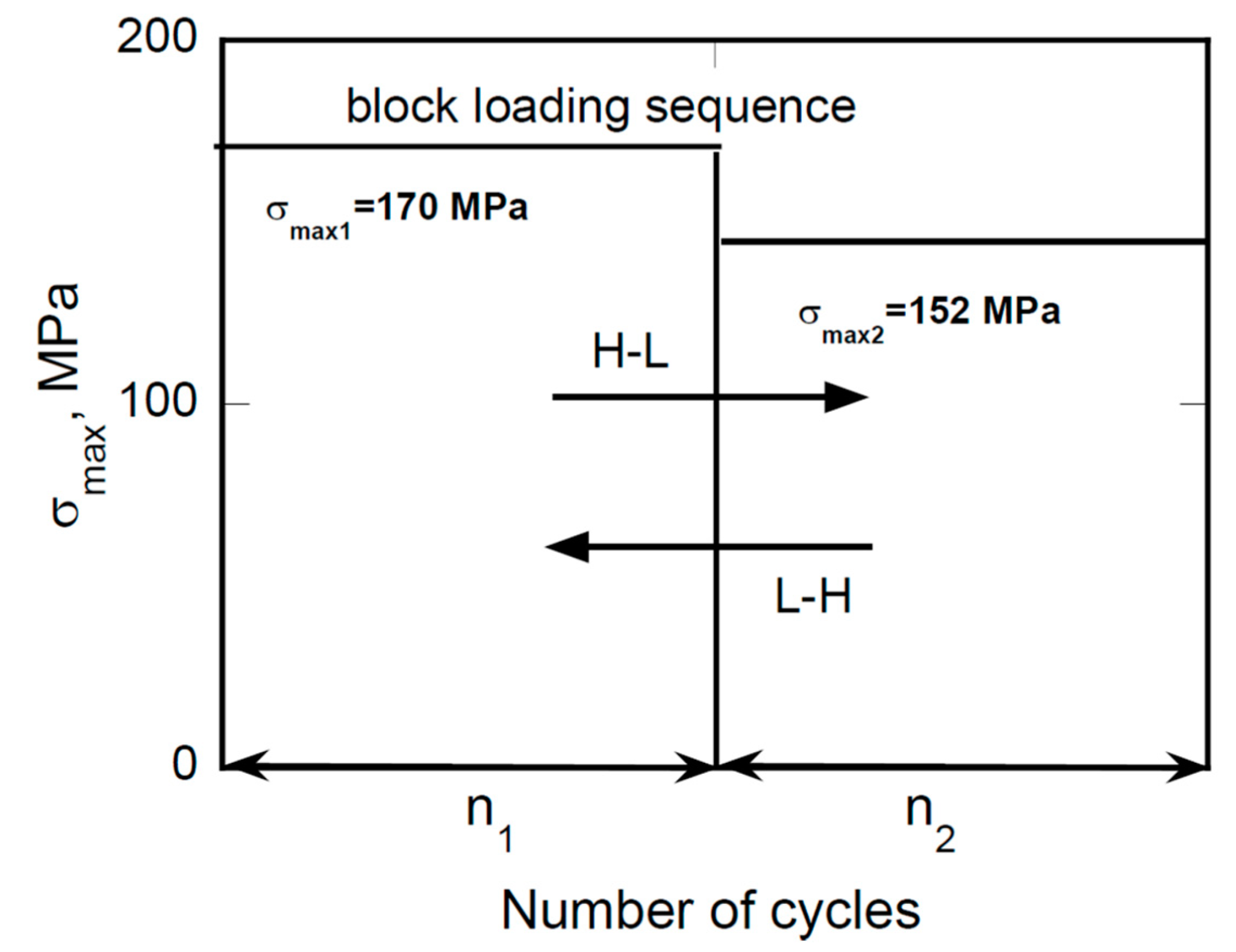

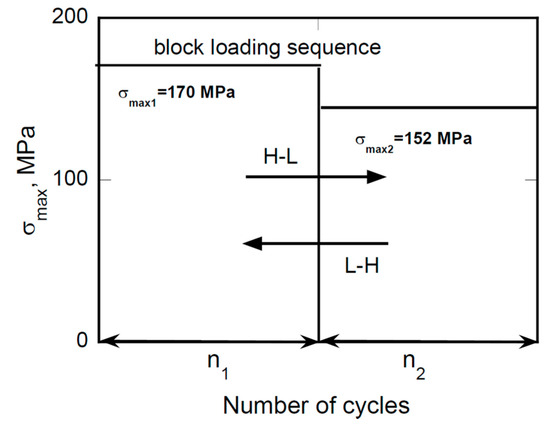

Figure 7. Schematic of the H–L and L–H block cycle sequence.
Figure 7. Schematic of the H–L and L–H block cycle sequence.
Jcs 08 00011 g007

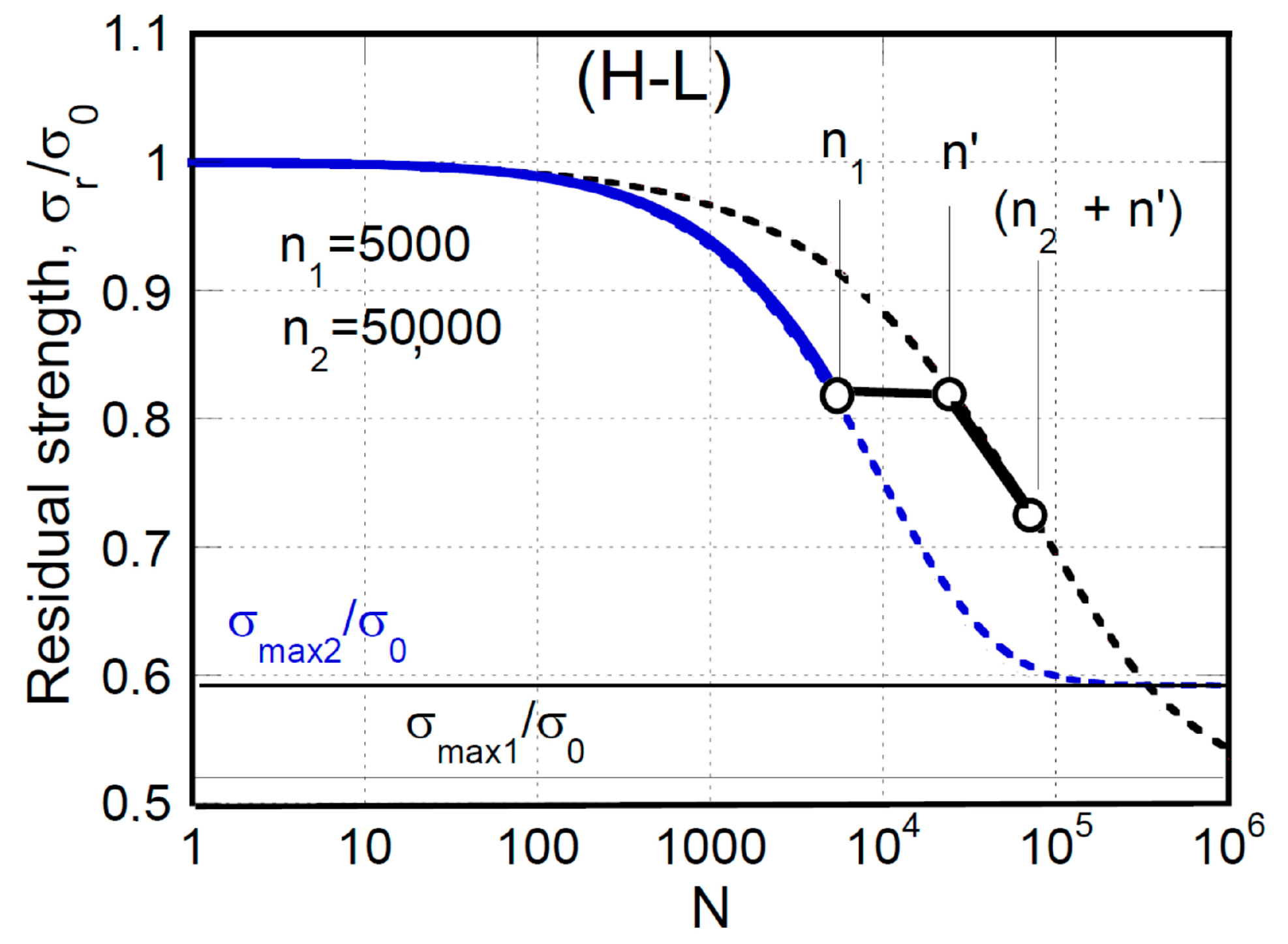

Figure 8. Schematic of the two-block H–L strength degradation path.
Figure 8. Schematic of the two-block H–L strength degradation path.
Jcs 08 00011 g008

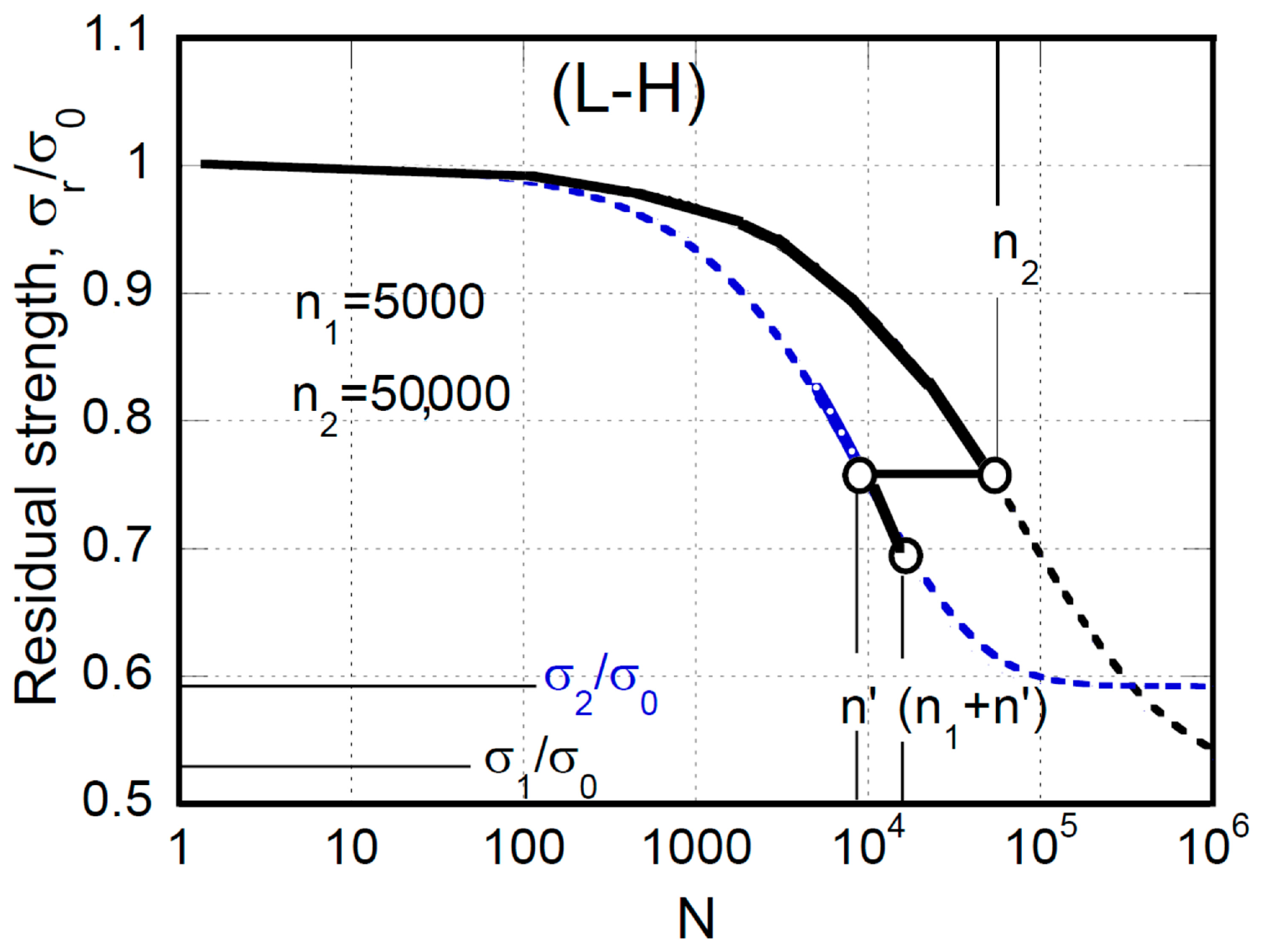

Figure 9. Schematic of the two-block L–H strength degradation path.
Figure 9. Schematic of the two-block L–H strength degradation path.
Jcs 08 00011 g009
Table 1. The damage accumulation predictions based on Miner’s rule and Equation (10).
Table 1. The damage accumulation predictions based on Miner’s rule and Equation (10).
Miner’s RuleEquation (10)
H–L sequence0.10.63
L–H sequence0.10.65
