Lossless Contrast Enhancement of Color Images with Reversible Data Hiding
Abstract
:1. Introduction
2. Reversible Contrast Enhancement Methods for Grayscale Images
2.1. RDH with Image Contrast Enhancement
2.2. An Order-Preserving Preprocessing
2.3. Automatic Contrast Enhancement with Reversible Data Hiding
3. Proposed Scheme for Contrast Enhancement of Color Images
3.1. HSV Color Model

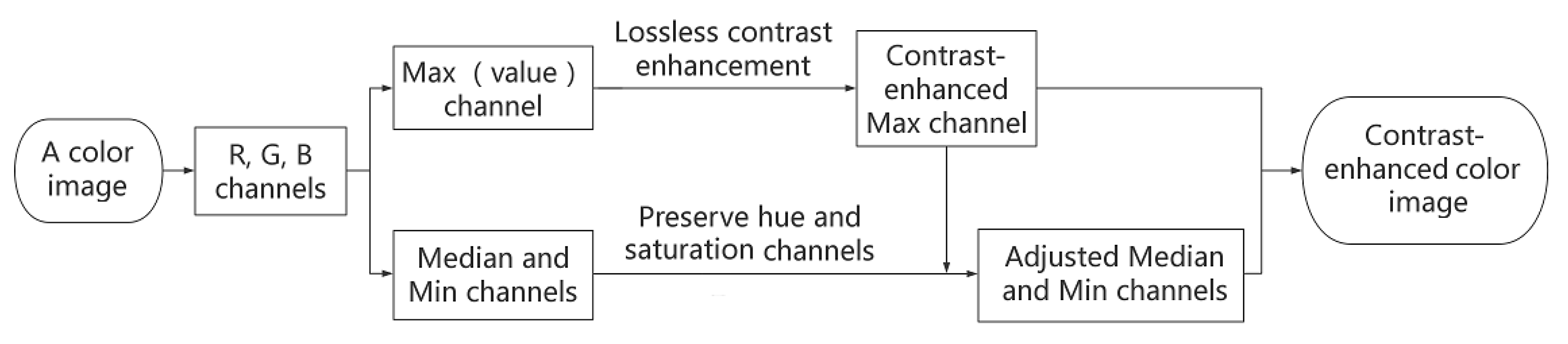

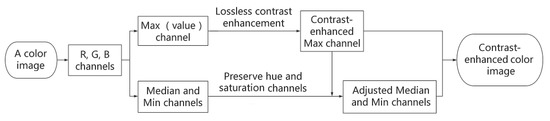

3.2. Proposed Scheme

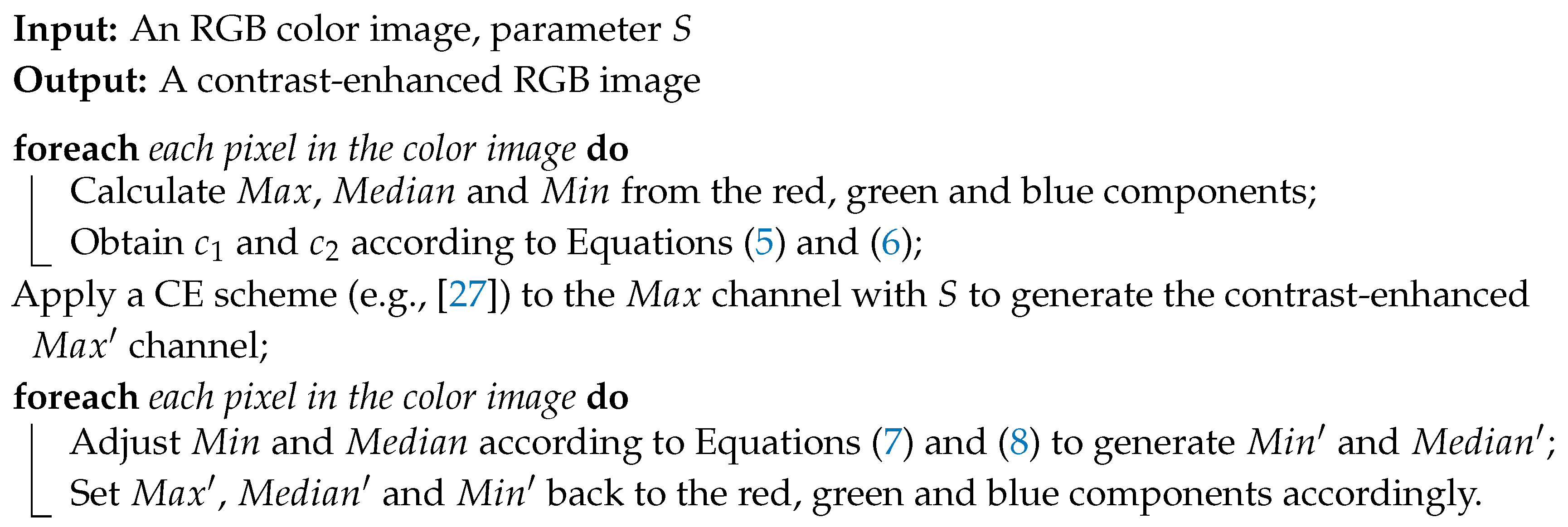

Algorithm 1: Enhancing an RGB image based on HSV color model |
|
- (1)
- Calculate the histogram of channel and carry out the preprocessing described in Section 2.2. Then the bookkeeping data is generated to record the changes made in preprocessing.
- (2)
- Find the highest two bins in the histogram and apply Equation (1) or Equation (2) to every value, respectively. Then find out the highest two bins in the newly generated histogram and repeatedly apply Equation (1) or Equation (2) until pairs of histogram bins have been expanded in total. Hide the necessary information during histogram bin expansion, including the bookkeeping data and its length.
- (3)
- (4)
- Replace the LSBs of the last 16 values with the lastly expanded bin values so that the modified V channel (i.e., channel) is generated.
3.3. Data Extraction and Image Recovery

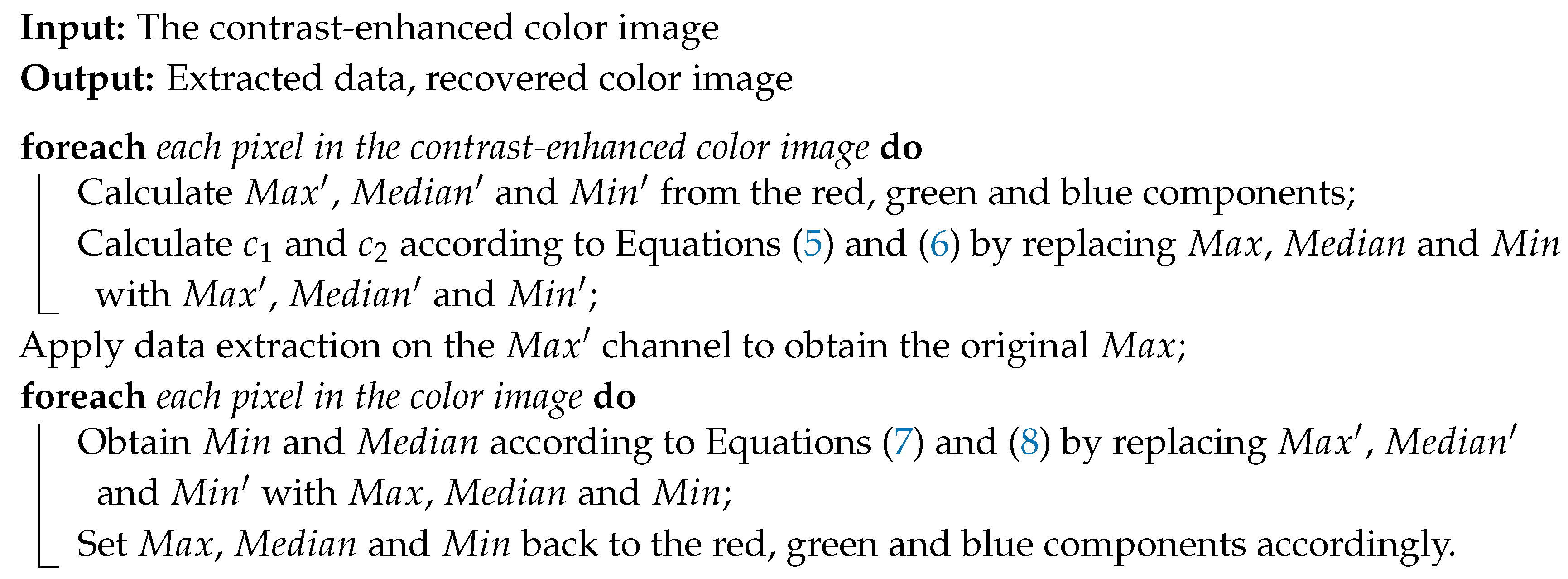

Algorithm 2: Recovering the original color image |
|
- (1)
- Collect the LSBs of the last 16 values in the channel and the last expanded two bins can be obtained as .
- (2)
- Calculate the histogram of channel except the last 16 values and then perform data extraction by
- (3)
- Obtain the value of S, the previously expanded bins and the original LSBs of the last 16 values from the extracted data. Then write back the values of the original 16 LSBs back.
- (4)
- (5)
- Obtain the bookkeeping data from the extracted data and recover the original channel with it.
- (6)
- Make use of the rest extracted data (optional).
4. Experimental Results
4.1. Color Difference and Image Entropy
4.2. Contrast Enhancement Effects
4.3. Original Image Recovery

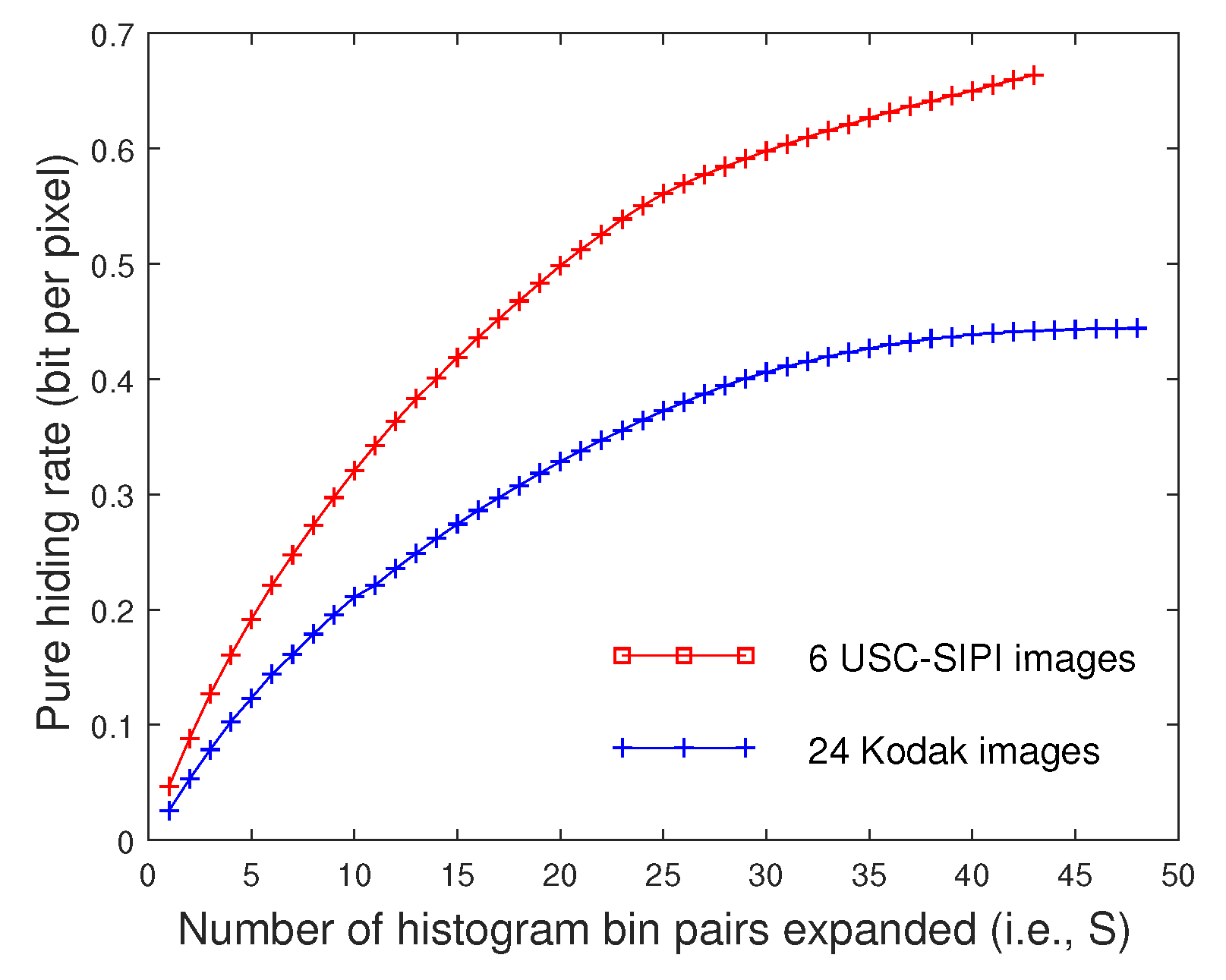

4.4. Pure Hiding Rate
5. Conclusions
Author Contributions
Funding
Conflicts of Interest
References
- Arici, T.; Dikbas, S.; Altunbasak, Y. A histogram modification framework and its application for image contrast enhancement. IEEE Trans. Image Process. 2009, 18, 1921–1935. [Google Scholar] [CrossRef] [PubMed]
- Celik, T. Spatial entropy-based global and local image contrast enhancement. IEEE Trans. Image Process. 2014, 23, 5298–5308. [Google Scholar] [CrossRef] [PubMed]
- Román, J.C.M.; Noguera, J.L.V.; Legal-Ayala, H.; Pinto-Roa, D.P.; Gomez-Guerrero, S.; Torres, M.G. Entropy and contrast enhancement of infrared thermal images using the multiscale top-hat transform. Entropy 2019, 21, 244. [Google Scholar]
- Rodrigues, P.S.; Wachs-Lopes, G.; Santos, R.M.; Coltri, E.; Giraldi, G.A. A q-estension of sigmoid functions and the application for enhancement of ultrasound images. Entropy 2019, 21, 430. [Google Scholar] [CrossRef]
- Shi, Y.-Q.; Li, X.; Zhang, X.; Wu, H.-T.; Ma, B. Reversible data hiding: Advances in the past two decades. IEEE Access 2016, 4, 3210–3237. [Google Scholar] [CrossRef]
- Ou, B.; Li, X.; Zhao, Y.; Ni, R.; Shi, Y.Q. Pairwise prediction-error expansion for efficient reversible data hiding. IEEE Trans. Image Process. 2013, 22, 5010–5021. [Google Scholar] [CrossRef] [PubMed]
- Li, X.; Zhang, W.; Gui, X.; Yang, B. A novel reversible data hiding scheme based on two-dimensional difference-histogram modification. IEEE Trans. Inf. Forensics Secur. 2013, 8, 1091–1100. [Google Scholar]
- Ou, B.; Li, X.; Zhao, Y.; Ni, R. Efficient color image reversible data hiding based on channel-dependent payload partition and adaptive embedding. Signal Process. 2015, 108, 642–657. [Google Scholar] [CrossRef]
- Dragoi, I.-C.; Coltuc, D. Adaptive pairing reversible watermarking. IEEE Trans. Image Process. 2016, 25, 2420–2422. [Google Scholar] [CrossRef]
- Cheung, Y.M.; Wu, H.T. A sequential quantization scheme for data embedding and integrity verification. IEEE Trans. Circuits Syst. Video Technol. 2007, 17, 1007–1016. [Google Scholar] [CrossRef]
- Wu, H.T.; Cheung, Y.M. Reversible watermarking by modulation and security enhancement. IEEE Trans. Instrum. Meas. 2010, 59, 221–228. [Google Scholar]
- Wu, H.T.; Huang, J. Reversible image watermarking on prediction error by efficient histogram modification. Signal Process. 2012, 92, 3000–3009. [Google Scholar] [CrossRef]
- Dragoi, I.-C.; Coltuc, D. On local prediction based reversible watermarking. IEEE Trans. Image Process. 2015, 24, 1244–12465. [Google Scholar] [CrossRef] [PubMed]
- Li, X.; Zhang, W.; Gui, X.; Yang, B. Efficient reversible data hiding based on multiple histograms modification. IEEE Trans. Inf. Forensics Secur. 2015, 10, 2016–20275. [Google Scholar]
- Huang, F.; Qu, X.; Kim, H.J.; Huang, J. Reversible data hiding in JPEG images. IEEE Trans. Circuits Syst. Video Technol. 2016, 26, 1610–1621. [Google Scholar] [CrossRef]
- Li, C.; Zhang, Y.; Xie, E.Y. When an attacker meets a cipher-image in 2018: A year in review. J. Inf. Secur. Appl. 2019, 48, 102361. [Google Scholar] [CrossRef]
- Wang, J.; Mao, N.; Chen, X.; Ni, J.; Shi, Y.Q. Multiple histograms based reversible data hiding by using FCM Clustering. Signal Process. 2019, 159, 193–203. [Google Scholar] [CrossRef]
- Li, J.; Liang, X.; Dai, C.; Xiang, S. Reversible data hiding algorithm in fully homomorphic encrypted domain. Entropy 2019, 21, 625. [Google Scholar] [CrossRef]
- Li, C.; Lin, D.; Feng, B.; Lü, J.; Hao, F. Cryptanalysis of a chaotic image encryption algorithm based on information entropy. IEEE Access 2018, 6, 75834–75842. [Google Scholar] [CrossRef]
- Wu, H.T.; Dugelay, J.L.; Shi, Y.Q. Reversible image data hiding with contrast enhancement. IEEE Signal Process. Lett. 2015, 22, 81–85. [Google Scholar] [CrossRef]
- Gao, G.; Shi, Y.Q. Reversible Data Hiding Using Controlled Contrast Enhancement and Integer Wavelet Transform. IEEE Signal Process. Lett. 2015, 22, 2078–2082. [Google Scholar] [CrossRef]
- Wu, H.T.; Huang, J.; Shi, Y.Q. A reversible data hiding method with contrast enhancement for medical images. J. Vis. Commun. Image Represent. 2015, 31, 146–153. [Google Scholar] [CrossRef]
- Kim, S.; Lussi, R.; Qu, X.; Kim, H.J. Automatic Contrast Enhancement using Reversible Data Hiding. In Proceedings of the IEEE International Workshop on Information Forensics and Security, Abu Dhabi, UAE, 4–7 December 2015. [Google Scholar]
- Yang, Y.; Zhang, W.; Liang, D.; Yu, N. Reversible data hiding in medical images with enhanced contrast in texture area. Digital Signal Process. 2016, 52, 13–24. [Google Scholar] [CrossRef]
- Chen, H.; Ni, J.; Hong, W.; Chen, T.-S. Reversible data hiding with contrast enhancement using adaptive histogram shifting and pixel value ordering. Signal Process. Image Commun. 2016, 46, 1–16. [Google Scholar] [CrossRef]
- Gao, G.; Wang, X.; Yao, S.; Cui, Z.; Sun, X. Reversible data hiding with contrast enhancement and tamper localization for medical images. Inf. Sci. 2017, 385–386, 250–265. [Google Scholar] [CrossRef]
- Wu, H.T.; Tang, S.; Huang, J.; Shi, Y.-Q. A novel reversible data hiding with image contrast enhancement. Signal Process. Image Commun. 2018, 62, 64–73. [Google Scholar] [CrossRef]
- Kim, S.; Lussi, R.; Qu, X.; Huang, F.; Kim, H.J. Reversible data hiding with automatic brightness preserving contrast enhancement. IEEE Trans. Circuits Syst. Video Technol. 2019, 29, 2271–2284. [Google Scholar] [CrossRef]
- Wu, H.T.; Mai, W.; Meng, S.; Cheung, Y.-M.; Tang, S. Reversible data hiding with image contrast enhancement based on two-dimensional histogram modification. IEEE Access 2019, 7, 83332–83342. [Google Scholar] [CrossRef]
- Howard, P.G.; Kossentini, F.; Martins, B.; Forchhammer, S.; Rucklidge, W.J. The emerging JBIG2 standard. IEEE Trans. Circuits Syst. Video Technol. 1998, 8, 838–848. [Google Scholar] [CrossRef]
- Chen, W.; Shi, Y.-Q.; Xuan, G. Identifying computer graphics using HSV color model and statistical moments of characteristic functions. In Proceedings of the 2007 IEEE International Conference on Multimedia and Expo, Beijing, China, 2–5 July 2007; pp. 1123–1126. [Google Scholar]
- Smith, A.R. Color gamut transform pairs. Comput. Graphics 1978, 12, 12–19. [Google Scholar] [CrossRef]
- Naik, S.K.; Murthy, C.A. Hue-Preserving Color Image Enhancement without Gamut Problem. IEEE Trans. Image Process. 2003, 12, 1591–15983. [Google Scholar] [CrossRef] [PubMed]
- Sharma, G.; Wu, W.; Dalal, E.N. The CIEDE2000 color-difference formula: Implementation notes, supplementary test data, and mathematical observations. Color Res. Appl. 2005, 30, 21–30. [Google Scholar] [CrossRef]
- Gao, M.Z.; Wu, Z.G.; Wang, L. Comprehensive evaluation for HE based contrast enhancement techniques. In Advances in Intelligent Systems and Applications; Springer: Berlin/Heidelberg, Germany, 2013; Volume 2, pp. 331–338. [Google Scholar]
- Wang, Z.; Bovik, A.C.; Sheikh, H.R.; Simoncelli, E.P. Image quality assessment: From error visibility to structural similarity. IEEE Trans. Image Process. 2004, 13, 600–612. [Google Scholar] [CrossRef] [PubMed]
Image Set | Scheme | CIEDE2000 | Entropy | ||||||
---|---|---|---|---|---|---|---|---|---|
Original | S = 20 | S = 30 | S = 40 | Original | S = 20 | S = 30 | S = 40 | ||
USC | UCE [28] | 0 | 6.59 | 9.51 | 11.40 | 7.154 | 7.614 | 7.709 | 7.755 |
Proposed | 4.20 | 5.99 | 7.06 | 7.455 | 7.513 | 7.547 | |||
Kodak | UCE [28] | 0 | 6.89 | 9.16 | 10.71 | 7.104 | 7.487 | 7.562 | 7.604 |
Proposed | 4.13 | 5.58 | 6.60 | 7.414 | 7.492 | 7.534 |
Test Image | Scheme | RCE | RMBE | SSIM | PSNR | Entropy (Original) | CIEDE 2000 |
---|---|---|---|---|---|---|---|
Figure 3a | [28] | 0.548 | 0.933 | 0.843 | 19.47 | 7.788 (7.298) | 11.02 |
(S = 50) | Proposed | 0.529 | 0.943 | 0.859 | 20.10 | 7.537 (7.298) | 8.98 |
Figure 3e | [28] | 0.485 | 0.914 | 0.843 | 19.74 | 7.645 (7.293) | 13.71 |
(S = 50) | Proposed | 0.493 | 0.961 | 0.952 | 24.58 | 7.496 (7.293) | 4.30 |
Figure 3i | [28] | 0.552 | 0.919 | 0.862 | 18.45 | 7.815 (7.368) | 14.00 |
(S = 50) | Proposed | 0.549 | 0.996 | 0.905 | 22.41 | 7.642 (7.368) | 6.10 |
Metric | Image Set | t-Value | ||
---|---|---|---|---|
S = 20 | S = 30 | S = 40 | ||
CIEDE2000 | USC (6 images) | 4.648 | 3.011 | 3.539 |
Kodak (24 images) | 10.260 | 9.960 | 9.155 | |
entropy | USC (6 images) | 2.448 | 2.661 | 2.694 |
Kodak (24 images) | 2.688 | 2.270 | 2.188 |
S | Scheme | USC Image Set | Kodak Image Set | ||||||
---|---|---|---|---|---|---|---|---|---|
RCE | RMBE | SSIM | PSNR | RCE | RMBE | SSIM | PSNR | ||
20 | UCE [28] | 0.529 | 0.967 | 0.918 | 24.80 | 0.5348 | 0.9747 | 0.9207 | 24.51 |
Proposed | 0.517 | 0.969 | 0.944 | 26.31 | 0.5319 | 0.9869 | 0.9367 | 26.26 | |
30 | UCE [28] | 0.539 | 0.954 | 0.872 | 21.79 | 0.5476 | 0.9624 | 0.8815 | 21.79 |
Proposed | 0.524 | 0.953 | 0.910 | 23.32 | 0.5445 | 0.9798 | 0.8994 | 23.44 | |
40 | UCE [28] | 0.545 | 0.937 | 0.840 | 20.13 | 0.5569 | 0.9492 | 0.8540 | 20.12 |
Proposed | 0.528 | 0.941 | 0.887 | 21.88 | 0.5533 | 0.9738 | 0.8714 | 21.80 |
S | Image Set | USC Image Set | Kodak Image Set | ||||||
---|---|---|---|---|---|---|---|---|---|
SSIM | PSNR | Entropy | CIEDE2000 | SSIM | PSNR | Entropy | CIEDE2000 | ||
20 | original | 1.0000 | ∞ | 7.154 | 0.0000 | 1.0000 | ∞ | 7.104 | 0.0000 |
recovered | 0.9997 | 60.97 | 7.153 | 0.0703 | 0.9990 | 54.61 | 7.101 | 0.0885 | |
30 | original | 1.0000 | ∞ | 7.154 | 0.0000 | 1.0000 | ∞ | 7.104 | 0.0000 |
recovered | 0.9995 | 58.86 | 7.151 | 0.1016 | 0.9989 | 54.40 | 7.100 | 0.1092 | |
40 | original | 1.0000 | ∞ | 7.154 | 0.0000 | 1.0000 | ∞ | 7.104 | 0.0000 |
recovered | 0.9994 | 58.00 | 7.150 | 0.1199 | 0.9989 | 54.06 | 7.100 | 0.1164 |
