Can de Broglie–Bohm Mechanics Be Considered Complete?

Abstract

In this work celebrating the centenary of quantum mechanics, we review the principles of the de Broglie–Bohm theory (dBB), also known as pilot-wave theory. We assess the most common reading of it (the Nomological interpretation based on the notion of primitive ontology in tridimensional space) and defend instead a more causal and pluralistic approach, drawing on classical analogies with optics and hydrodynamics. Within this framework, we review some of the approaches exploiting mechanical analogies to overcome the limitations of the current dBB theory and perhaps quantum mechanics itself.

1. Introduction

One hundred years ago, quantum mechanics was founded following Heisenberg’s fundamental work on matrix mechanics [1,2]. These brilliant results were amplified and developed by Heisenberg in collaboration with Born, Jordan, Pauli, Dirac [2], and under the patronage of Bohr, who, in 1927, concluded this prolific period with the introduction of the principle of complementarity [3], the keystone of what later became known as the Copenhagen school. At the same time, Schrödinger, building on de Broglie’s ideas, founded wave mechanics in 1926 and introduced the famous equation that bears his name [4]. The two approaches of Heisenberg on the one hand and Schrödinger on the other differed fundamentally in their methods and objectives. Whereas Heisenberg, inspired by Mach’s positivism and the work of Bohr, Kramers, and Sommerfeld, sought to eliminate unobservable quantities from quantum theory, Schrödinger wanted to obtain a mechanical image of the electron in the classical sense but representing it as a vibration extended in space. Schrödinger’s interpretation of his wave function $\mathrm{\Psi }(q,t)$ (defined at time t at coordinate point $q:=[q_1,\dots ,q_{3N}]$ in the $3N$-dimensional configuration space for N particles) was strongly criticized by Heisenberg and Bohr, and the story goes that it was finally Born who officially proposed in 1926 [5] to interpret the density ${\left|\mathrm{\Psi }(q,t)\right|}^2$ as a probability density in configuration space (i.e., eliminating trajectories and determinism from quantum theory).

The official, orthodox interpretation of quantum mechanics thus completely absorbed the Schrödinger wave equation into its general formalism, providing it with a powerful tool without changing the corpus of principles of the Copenhagen interpretation. In fact, in this theory, the probability ${\left|\mathrm{\Psi }(q,t)\right|}^2{d}^{3N}q$ represents the probability of observing at time t the system in the $3N$-dimensional $d^{3N}q$ configuration space element. However, this is by no means a probability of occurrence or presence in the classical sense, as the particles are not assumed to have trajectories or even a pre-existing experimental measurement (in this respect, the situation is very different from the classical statistical mechanics used to justify thermodynamics).

We could, in principle, stop our little summary of the great history of quantum mechanics here, but that would of course be a gross oversimplification. Indeed, up to now we have completely overlooked de Broglie, who, in 1923, developed a very different image of quantum theory [6]. In fact, unlike the Copenhagen school, which was strongly dominated by the positivist and instrumentalist currents of his time, de Broglie sought to unify quantum theory and classical physics in a mechanical vision in which particles have trajectories but are guided by waves [7,8,9]. This essentially deterministic vision differed greatly from Born’s probabilistic and stochastic version, which profoundly rejected any return to an approach involving particle trajectories in space-time or configuration space. De Broglie’s point of view also differed sharply from Schrödinger’s approach, which eliminated trajectories and retained only the wave.

To celebrate the birth of quantum mechanics, we propose to look back at the birth of de Broglie’s theory, which has often been overlooked. The aim is to recall the assumptions on which this original dynamical approach is based and also to discuss the particular conditions and constraints of this theory that would allow it to be generalized. Indeed, as de Broglie’s approach is essentially based on an analogy with classical mechanics (as we shall recall, starting with the Hamilton–Jacobi equation), the question immediately arises as to whether this analogy is complete. Indeed, the Hamilton–Jacobi approach, which is linked to fluid dynamics and the Euler–Bernoulli equation, is not the most generic description of an inviscid continuous fluid. In fact, extensions were discussed in the 1950s by Takabayasi [10] and Schönberg [11] after Bohm’s rediscovery of de Broglie’s theory in 1952 [12]. In this article, we would like to re-analyze these somewhat forgotten approaches within the context of the modern de Broglie–Bohm theory (dBB) [13,14,15,16].

This article is organized as follows: In Section 2, we review the basics of the dBB theory, with particular reference to Madelung’s hydrodynamic formalism. In Section 3, we discuss the “mainstream” current interpretation of the dBB theory, i.e., the so-called “nomological” interpretation of Dürr, Goldstein, and Zanghì (DGZ) [17,18]. We criticize this interpretation and show its physical limitations. In Section 4, we show how we can move beyond the nomological interpretation and seek to extend the accepted dBB theory. In that section, we focus on the Bohm–Vigier research program [19,20] taken up by Valentini [21,22], which seeks to relax the statistical equilibrium conditions that usually give the famous Born rule in ${\left|\mathrm{\Psi }\right|}^2$. In Section 5, we look at interpretations that seek to modify Bohm’s theory from a dynamic point of view. This essentially includes Bohm’s approaches involving stochastic terms. However, we are rather critical of this program and prefer to consider in Section 6 the extension of the dBB theory involving a vorticity field associated with particle velocity. We show that this type of theory could nicely extend the framework of the de Broglie–Bohm approach, while defining a field that could potentially link up with the research proposed by Bohm–Vigier and Valentini. Finally, we conclude and summarize our analysis in Section 7.

2. The de Broglie–Kennard–Bohm Theory and the Madelung Hydrodynamical Approach

First, we briefly summarize the method de Broglie developed to obtain his wave-guided particle mechanics, based on Schrödinger’s wave theory. In fact, both de Broglie’s [8,9] approach and Schrödinger’s [4] approach made extensive use of classical analogies with the famous Hamilton–Jacobi (HJ) mechanics, where classical particles are guided by a function $S(q,t)$ known as the HJ action (for a technical discussion, see [14,23,24,25]). In this formalism, the guiding formula for the system described by the position variable $q(t)$ is given by:

$$\begin{array}{c}\hfill m_k{\displaystyle \frac{d}{dt}}{q}_k(t)={\partial }_{k}S(q(t),t)\end{array}$$

(1)

with ${\partial }_k:={\displaystyle \frac{\partial }{\partial q_k}}$, and $m_k$ are the particles masses $k=1,\dots ,3N$ (here, $m_k$ are degenerated three by three: $m_1=m_2=m_3,\dots ,m_{3N-2}=m_{3N-1}=m_{3N}$). This dynamics corresponds to the nonrelativistic HJ equation

$$\begin{array}{c}\hfill -{\partial }_{t}S(q,t)=\sum _k{\displaystyle \frac{1}{2m_k}}{({\partial }_{k}S(q,t))}^2+V(q,t)\\ \hfill =\sum _k{\displaystyle \frac{m_k}{2}}{({\dot{q}}_k)}^2+V(q,t)\end{array}$$

(2)

in the presence of external potential $V(q,t)$ (we use ${\partial }_t:={\displaystyle \frac{\partial }{\partial t}}$). $-{\partial }_{t}S$ plays the role of the energy, and the HJ relation is more generally written $-{\partial }_{t}S=H(q,p,t)$ with H the Hamiltonian and $p={\partial }_{q}S(q,t):=[p_1={\partial }_{k}S(q,t),\dots ,p_{3N}={\partial }_{3N}S(q,t)]$ the momenta of the particles.

De Broglie’s beautiful central idea was to retain the guiding formula Equation (1) but modify the HJ wave equation, Equation (2), by replacing it with the Schrödinger equation

$$\begin{array}{c}\hfill i{\partial }_t\mathrm{\Psi }(q,t)=\sum _k{\displaystyle \frac{-1}{2m_k}}{\partial }_k^2\mathrm{\Psi }(q,t)+V(q,t)\mathrm{\Psi }(q,t)\end{array}$$

(3)

(in the following, we assume natural units $\hslash =c=1$). The mathematical development begins with the polar equation $\mathrm{\Psi }(q,t)=R(q,t)e^{iS(q,t)}$ (R and S being real functions of q and t), which is inserted into Equation (3) to obtain the pair of equations:

$$\begin{array}{c}\hfill -{\partial }_{t}S(q,t)=\sum _k{\displaystyle \frac{1}{2m_k}}{({\partial }_{k}S(q,t))}^2+V(q,t)+V_{\mathrm{\Psi }}(q,t)\end{array}$$

(4)

$$\begin{array}{c}\hfill \sum _k{\partial }_k(R^2(q,t){\displaystyle \frac{{\partial }_{k}S(q,t)}{m_k}})+{\partial }_t{R}^2(q,t)=0.\end{array}$$

(5)

Clearly, Equation (4) is reminiscent of Equation (3) with the additional quantum potential

$$\begin{array}{c}\hfill V_{\mathrm{\Psi }}(q,t)=\sum _k{\displaystyle \frac{-1}{2m_k}}{\displaystyle \frac{{\partial }_k^{2}R(q,t)}{R(q,t)}}\end{array}$$

(6)

which disappears if the Planck constant ℏ vanishes. The dynamics proposed by de Broglie is thus given by a quantum version of the HJ equation involving $V_{\mathrm{\Psi }}(q,t)$. The guidance formula Equation (1) suggests itself, where $S(q,t)$ is now the phase of the wave function $\mathrm{\Psi }$ (i.e., $S=-{\displaystyle \frac{i}{2}}log(\mathrm{\Psi }/\mathrm{\Psi }*)$)

$$\begin{array}{c}\hfill p_k=m_k{\displaystyle \frac{d}{dt}}{q}_k(t)={\partial }_{k}S(q(t),t)=\mathrm{Im}\left[{\displaystyle \frac{{\partial }_k\mathrm{\Psi }(q,t)}{\mathrm{\Psi }(q,t)}}\right].\end{array}$$

(7)

De Broglie’s particle trajectories are obtained by the integration of the first-order differential equations

$$\begin{array}{c}\hfill {\displaystyle \frac{m_{1}d{q}_1}{{\partial }_{1}S(q(t),t)}}=\dots ={\displaystyle \frac{m_{3N}d{q}_{3N}}{{\partial }_{3N}S(q(t),t)}}=dt.\end{array}$$

(8)

An important relation is obtained by taking the gradient ${\partial }_j$ of Equation (4):

$$\begin{array}{c}\hfill {\displaystyle \frac{d}{dt}}{v}_j(q,t)=({\partial }_t+\sum _k{v}_k(q,t){\partial }_j)v_j(q,t)=-{\displaystyle \frac{1}{m_k}}{\partial }_j(V(q,t)+V_{\mathrm{\Psi }}(q,t))\end{array}$$

(9)

This is Newton’s (second-order) law of motion for the particles in the presence of $V(q,t)$ and $V_{\mathrm{\Psi }}(q,t)$. Naturally, in the absence of quantum potential, we recover classical mechanics, which is just another way of saying that the classical (or quantum) HJ formalism agrees with the Newtonian formalism in terms of force and acceleration. It should be noted that the fact that Newton’s laws can be recovered from the HJ formalism does not imply that the two approaches, HJ and Newton, are equivalent. Indeed, the HJ formalism only considers a restricted class of motions and trajectory distributions in configuration space that are compatible with Newton’s laws (we come back to this issue later).

Another remarkable property of de Broglie’s approach is that it gives immediate meaning to Equation (5), which can be written as:

$$\begin{array}{c}\hfill \sum _k{\partial }_k(R^2(q,t)v_k(q,t))+{\partial }_t{R}^2(q,t)=0..\end{array}$$

(10)

where $v_k(q,t)$ is an Eulerian velocity field for the probability fluid with density ${\rho }_{\mathrm{\Psi }}(q,t):={\left|\mathrm{\Psi }(q,t)\right|}^2$. The Eulerian velocity is in fluid dynamics equals to the Lagrange particle velocity ${\displaystyle \frac{d}{dt}}{q}_k(t):=\dot{q_k}(t)$ along a given trajectory of the system (i.e., ${\displaystyle \frac{d}{dt}}{q}_k(t)=v_k(q(t),t)$). Therefore, the velocity of the probability fluid coincides with the de Broglie guidance formula obtained from Equation (4).

From a historical point of view, it is worth noting that although de Broglie began working on his approach as early as his thesis work in 1923–1925 [6], he did not introduce the polar representation until 1925–1926 in the context of his double-solution theory [7,26,27] (we go back to this point later) and only made full use of it when Schrödinger obtained his equation. In 1926, Brillouin [28] (who worked in the same laboratory as de Broglie) used polar notation to develop the famous WKB (Wentzel-Brillouin-Kramers) semiclassical approximation, starting from a ℏ power expansion of quantum HJ. The exact representation given by Equations (4) and (5) was not introduced by de Broglie until 1927 [7], simultaneously with Madelung, who started working on it in 1926 [29,30] (and the representation is also called the Madelung representation for this reason). De Broglie applied it to both the nonrelativistic Schrödinger equation (for N particles) [7,8,9] and the relativistic version based on the Klein–Gordon equation (which was actually first published by de Broglie) for one particle [31,32].

De Broglie presented his theory at the famous Solvay Congress in 1927 [8], and it was discussed by Lorentz, Kramers, Pauli, Ehrenfest, Brillouin, and Einstein. Despite Einstein’s and Brillouin’s support in principle, the community of physicists working around Bohr and Born (which included the entire Copenhagen school) as a whole rejected the value of an approach based on the notion of a deterministic trajectory. Moreover, the non-intuitive nature of Broglian dynamics did not work in its favor. As a result, de Broglie abandoned his project in 1928.

Remarkably, de Broglie’s pilot-wave theory was nevertheless rediscovered several times in the course of the twentieth century. The most famous of these rediscoveries was of course Bohm’s in 1951–1952 [12,33], and for this reason, the theory is called de Broglie–Bohm. However, before Bohm, it was also rediscovered by Kennard in 1928 [34] and critically analyzed by Rosen in 1945 [35]. In particular, Kennard, before Bohm [36], proposed the first application of the theory to explain quantum measurement processes [34]. The important point is that both Kennard and Rosen do not refer to de Broglie but cite Madelung’s work. So it is worth saying a word here about Madelung’s hydrodynamical theory, which is formally (but not physically) equivalent to de Broglie’s in the nonrelativistic domain.

In fact, Madelung’s theory [29,30] differs essentially only in the physical interpretation of trajectories and dynamics calculated from the guidance formula and the HJ equation. More precisely, Madelung adopts the pure-wave Schrödinger interpretation for a delocalized electron and interprets the $\rho (q,t)$ distribution not as a probability density but rather $e\rho (q,t)$ as the charge density of a hypothetical electron fluid (e being the full electron charge). This perspective is now completely outdated but the hydrodynamical formalism is still valuable for the physical description of supraconductivity and superfluidity [37] and quantum plasma [38] (remarkably the term plasmon was introduced by Bohm and Pines in the 1950’s [39] and the research work of Bohm on plasma played a role in his rediscovery of the pilot-wave theory). The description makes use of the fact that formally, the HJ equation is equivalent to the generalized Euler–Bernoulli equation for an inviscid fluid without vorticity. To motivate this result, we recall [40] that in classical hydrodynamics (in 3D), an Eulerian inviscid fluid obeys a pair of equations:

$$\begin{array}{c}\hfill {\displaystyle \frac{d}{dt}}\mathbf{v}(\mathbf{r},t)=({\partial }_t+\mathbf{v}(\mathbf{r},t)·\mathsf{\nabla })\mathbf{v}(\mathbf{r},t)=-\mathsf{\nabla }{\displaystyle \frac{V(\mathbf{r},t)}{m}}-{\displaystyle \frac{1}{\mu (\mathbf{r},t)}}\mathsf{\nabla }P(\mathbf{r},t)\end{array}$$

(11)

$$\begin{array}{c}\hfill {\partial }_t\mu (\mathbf{r},t)+\mathsf{\nabla }·(\mu (\mathbf{r},t)\mathbf{v}(\mathbf{r},t))=0\end{array}$$

(12)

with $\mathsf{\nabla }:={\displaystyle \frac{\partial }{\partial \mathbf{r}}}$, and where $\mathbf{v}(\mathbf{r},t)$, $\mu (\mathbf{r},t)=m\rho (\mathbf{r},t)$, $V(\mathbf{r},t)$, $P(\mathbf{r},t)$ are, respectively, the velocity field, the mass density (each particle having the mass m), the external potential, and the pressure field defined at position $\mathbf{r}=[x,y,z]$ and time t in the fluid. Equation (11) is of course Euler’s equation (i.e., Newton’s dynamical law for the local fluid), and Equation (12) is a local mass conservation law. Furthermore, we now assume a barotropic fluid, $P=P(\rho )$, and we have ${\displaystyle \frac{1}{\rho }}\mathsf{\nabla }P=\mathsf{\nabla }F$ with the function $F(\rho )={\int }^{\rho }dp/\rho$. After using the identity $\mathsf{\nabla }({\displaystyle \frac{v^2}{2}})=(\mathbf{v}·\mathsf{\nabla })\mathbf{v}+\mathbf{v}\times \mathsf{\Omega }$ (where $\mathsf{\Omega }=\mathsf{\nabla }\times \mathbf{v}$ is the local vorticity), we deduce:

$$\begin{array}{c}\hfill {\partial }_t\mathbf{v}+\mathsf{\nabla }[{\displaystyle \frac{v^2}{2}}+{\displaystyle \frac{F+V}{m}}]=\mathbf{v}\times \mathsf{\Omega }\end{array}$$

(13)

and therefore, taking the curl of Equation (13), we obtain the evolution equation for the vorticity field

$$\begin{array}{c}\hfill {\partial }_t\mathsf{\Omega }=\mathsf{\nabla }\times (\mathbf{v}\times \mathsf{\Omega })\end{array}$$

(14)

$$\begin{array}{c}\hfill =(\mathsf{\Omega }·\mathsf{\nabla })\mathbf{v}-\mathsf{\Omega }(\mathsf{\nabla }·\mathbf{v})-(\mathbf{v}·\mathsf{\nabla })\mathsf{\Omega }\end{array}$$

(15)

Clearly, from Equation (14), we see that if the vorticity field is vanishing, $\mathsf{\Omega }=0$, at a given time, this will be so at any other time. A stronger result is obtained with Equation (15) rewritten as ${\displaystyle \frac{d}{dt}}\mathsf{\Omega }=(\mathsf{\Omega }·\mathsf{\nabla })\mathbf{v}-\mathsf{\Omega }(\mathsf{\nabla }·\mathbf{v})$ or with Equation (12) ${\displaystyle \frac{d}{dt}}({\displaystyle \frac{\mathsf{\Omega }}{\rho }})=({\displaystyle \frac{\mathsf{\Omega }}{\rho }}·\mathsf{\nabla })\mathbf{v}$, from which we deduce that once the condition $\mathsf{\Omega }(\mathbf{r},t)=0$ is assumed at a given space-time point $[\mathbf{r}:=\mathbf{R}(t),t]$, then $\mathsf{\Omega }({\mathbf{r}}^{\prime },t^{\prime })=0$ still holds true at any other space-time point $[{\mathbf{r}}^{\prime }:=\mathbf{R}(t^{\prime }),t^{\prime }]$ belonging to the Lagrangian trajectory of the fluid particle $\mathbf{R}(t)$. Considering an irrotational fluid, we can thus write

$$\begin{array}{c}\hfill \mathbf{v}(\mathbf{r},t)=\mathsf{\nabla }{\displaystyle \frac{S(\mathbf{r},t)}{m}}\end{array}$$

(16)

where $S(\mathbf{r},t)/m$ plays the role of velocity potential. Equation (16) is formally identical to the guidance formula used in the HJ formalism. Moreover, Equation (13) can be rewritten as $\mathsf{\nabla }[{\partial }_{t}S+{\displaystyle \frac{m{v}^2}{2}}+F+V]=0$, from which we obtain the generalized Euler–Bernoulli formula:

$$\begin{array}{c}\hfill -{\partial }_{t}S(\mathbf{r},t)={\displaystyle \frac{{(\mathsf{\nabla }S(\mathbf{r},t))}^2}{2m}}+F(\mathbf{r},t)+V(\mathbf{r},t)+f(t)\end{array}$$

(17)

where $f(t)$ is an arbitrary function of time which can be absorbed in the definition of $S(\mathbf{r},t)$. When this is done, Equation (17) is formally identical to the classical HJ Equation (3) (in three dimensions) up to the term $F(\mathbf{r},t)$ associated with the “1internal energy” of the fluid. Note that we can be more explicit concerning the physical meaning of the function F. More precisely, in the steady regime where the various fields $P,\rho ,\mathbf{v}$ are not explicit functions of time t, we can derive from thermodynamics the relation $\mathsf{\nabla }({\displaystyle \frac{h}{\rho }})={\displaystyle \frac{1}{\rho }}\mathsf{\nabla }P+T\mathsf{\nabla }({\displaystyle \frac{\eta }{\rho }})$, where $\eta (\mathbf{r})$ is the density of entropy (entropy per unit volume) and $h(\mathbf{r})=ϵ(\mathbf{r})+P(\mathbf{r})$ is the local density of enthalpy, the sum of the density of internal energy $ϵ$ and local pressure P. In the adiabatic case with an $\eta /\rho$ constant, we therefore have $\mathsf{\nabla }({\displaystyle \frac{h}{\rho }})={\displaystyle \frac{1}{\rho }}\mathsf{\nabla }P$. In this steady regime, we have ${\displaystyle \frac{h}{\rho }}:=F={\int }^{\rho }dp/\rho$, which shows that F is actually a kind of internal enthalpy.

Madelung’s formalism builds on this hydrodynamic analogy and introduces a quantum fluid of density $\rho (\mathbf{r},t)=R^2(\mathbf{r},t)$ associated with Schrödinger’s delocalized electron but replaces the isotropic pressure field $P(\mathbf{r},t)$ of standard hydrodynamics with a stress tensor ${\sigma }_{ij}(\mathbf{r},t)$ such that $\mathsf{\nabla }P(\mathbf{r},t)$ is replaced by $\mathsf{\nabla }·\overleftrightarrow{\sigma }(\mathbf{r},t)$ in Equation (14). In order to recover Equation (9) in 3D, we must have ${\displaystyle \frac{1}{\rho }}\mathsf{\nabla }·\overleftrightarrow{\sigma }=\mathsf{\nabla }{V}_{\mathrm{\Psi }}$ with $V_{\psi }={\displaystyle \frac{-1}{2m}}{\displaystyle \frac{{\mathsf{\nabla }}^{2}R}{R}}$. The simplest choice is:

$$\begin{array}{c}\hfill {\sigma }_{ij}(\mathbf{r},t)={\displaystyle \frac{-\rho (\mathbf{r},t)}{4m}}{\partial }_i{\partial }_{j}log(\rho (\mathbf{r},t))\end{array}$$

(18)

Using Equation (18), the pair of hydrodynamical relations (11), (12) becomes:

$$\begin{array}{c}\hfill {\displaystyle \frac{d}{dt}}\mathbf{v}(\mathbf{r},t)=-\mathsf{\nabla }{\displaystyle \frac{V(\mathbf{r},t)}{m}}-{\displaystyle \frac{1}{\mu (\mathbf{r},t)}}\mathsf{\nabla }·\overleftrightarrow{\sigma }(\mathbf{r},t)=-\mathsf{\nabla }{\displaystyle \frac{V(\mathbf{r},t)+V_{\mathrm{\Psi }}(\mathbf{r},t)}{m}}\end{array}$$

(19)

$$\begin{array}{c}\hfill {\partial }_t{R}^2(\mathbf{r},t)+\mathsf{\nabla }·(R^2(\mathbf{r},t)\mathbf{v}(\mathbf{r},t))=0\end{array}$$

(20)

The analogy with standard and phenomenological hydrodynamics is very strong with the function F replaced by the quantum potential $V_{\mathrm{\Psi }}$. Therefore, Equations (13)–(15) still hold. Madelung effectively considered an irrotational fluid, $\mathsf{\Omega }=\mathsf{\nabla }\times \mathbf{v}=0$, which implies a velocity potential $S(\mathbf{r},t)/m$ such that the guidance Formula (16) and Euler–Bernoulli law Equation (17) hold true.

Therefore, having obtained the pair of equations

$$\begin{array}{c}\hfill -{\partial }_{t}S(\mathbf{r},t)={\displaystyle \frac{{(\mathsf{\nabla }S(\mathbf{r},t))}^2}{2m}}+V_{\mathrm{\Psi }}(\mathbf{r},t)+V(\mathbf{r},t)\end{array}$$

(21)

$$\begin{array}{c}\hfill {\partial }_t{R}^2(\mathbf{r},t)+\mathsf{\nabla }·(R^2(\mathbf{r},t)\mathsf{\nabla }{\displaystyle \frac{S(\mathbf{r},t)}{m}})=0\end{array}$$

(22)

and used the definition $\mathrm{\Psi }=\sqrt{\rho }{e}^{iS}$, with Madelung, we have recovered Schrödinger’s equation for a single electron and built a hydrodynamical picture of $\mathrm{\Psi }$.

Note that Madelung’s hydrodynamic formalism can be generalized to the N-electron problem (in $3N$-dimensional configuration space), although Madelung himself, inspired by the work of Schrödinger, who, in 1926–1927, hoped to get rid of the configuration space completely, did not do so. Making the link with the de Broglie’s approach presented earlier, the general idea is to start from the “hydrodynamic” equations in configuration space:

$$\begin{array}{c}\hfill {\displaystyle \frac{d}{dt}}{p}_k(q(t),t):=({\partial }_t+\sum _j{\displaystyle \frac{p_j}{m_j}}{\partial }_j)p_k(q,t)=-{\partial }_k(V(q,t)+V_{\mathrm{\Psi }}(q,t))\end{array}$$

(23)

$$\begin{array}{c}\hfill \sum _k{\partial }_k(R^2(q,t){\displaystyle \frac{p_k}{m_k}})+{\partial }_t{R}^2(q,t)=0.\end{array}$$

(24)

with $p_k(q,t)=m_k{v}_k(q,t):=m_k{\displaystyle \frac{d}{dt}}{q}_k(t)$ the particle momenta. Generalizing Equation (13), we obtain the relation

$$\begin{array}{c}\hfill {\partial }_t{p}_k+{\partial }_k(\sum _j{\displaystyle \frac{p_j^2}{2m_j}}+V+V_{\mathrm{\Psi }})=-\sum _j{\displaystyle \frac{p_j}{m_j}}{\omega }_{jk}\end{array}$$

(25)

with the impulse vorticity in the configuration space ${\omega }_{jk}={\partial }_j{p}_k-{\partial }_k{p}_j$. We deduce the vorticity equation

$$\begin{array}{c}\hfill {\partial }_t{\omega }_{ik}=-{\partial }_i(\sum _j{\displaystyle \frac{p_j}{m_j}}{\omega }_{jk})+{\partial }_k(\sum _j{\displaystyle \frac{p_j}{m_j}}{\omega }_{ji})\end{array}$$

(26)

which generalizes Equation (14). With Madelung, we can postulate an irrotational fluid, i.e., one that cancels out the impulse vorticity: ${\omega }_{ij}(q,t)=0$. This allows a gradient field to be created $v_k(q,t)={\displaystyle \frac{p_k}{m_k}}={\displaystyle \frac{{\partial }_{k}S(q,t)}{m_k}}$, in agreement with de Broglie–Bohm guidance formula, and the Euler–Bernoulli equation equivalent to the HJ equation of the pair of Equations (4) and (5) to be justified by integration.

To conclude this section, we would like to make a few important remarks. Firstly, in our descriptions of de Broglie and Madelung’s methods in relation to HJ and Euler equations, we did not seek to be rigorous about the equivalence between the approaches. An interesting point to note, however, is that the transition from the classical HJ to Schrödinger equation is symmetrical in the sense that if we admit the HJ relations (2), and if we adjoin a probability density $\rho (q,t)$ obeying local conservation ${\sum }_k{\partial }_k(\rho (q,t){\displaystyle \frac{p_k}{m_k}})+{\partial }_t\rho (q,t)=0$ in configuration space, then it is possible in classical physics to formally define a complex number ${\mathrm{\Psi }}_{class.}(q,t)=\sqrt{\rho (q,t)}{e}^{iS(q,t)/a}$ (with a a dimensionless constant; as we have posited $\hslash =1$, if we restore the constant ℏ, then a must be replaced by $a\hslash$) satisfying the nonlinear Schrodinger equation:

$$\begin{array}{c}\hfill ia{\partial }_t{\mathrm{\Psi }}_{class.}(q,t)=\sum _k{\displaystyle \frac{-a^2}{2m_k}}{\partial }_k^2{\mathrm{\Psi }}_{class.}(q,t)+V(q,t){\mathrm{\Psi }}_{class.}(q,t)-V_{{\mathrm{\Psi }}_{class.}}{\mathrm{\Psi }}_{class.}(q,t)\end{array}$$

(27)

with the classical analog of the quantum potential $V_{{\mathrm{\Psi }}_{class.}}={\sum }_k{\displaystyle \frac{-a^2}{2m_k}}{\displaystyle \frac{{\partial }_k^2\sqrt{\rho }(q,t)}{\sqrt{\rho }(q,t)}}={\sum }_k{\displaystyle \frac{-a^2}{2m_k}}{\displaystyle \frac{{\partial }_k^2\left|{\mathrm{\Psi }}_{class.}\right|(q,t)}{|{\mathrm{\Psi }}_{class.}|(q,t)}}$. The presence of this potential in Equation (27) is necessary in order to recover the classical HJ relation (2) (this issue was discussed by Schiller [41], Rosen [42], Holland [14], and Vigier [43]). This shows once more the equivalence between different representations (involving wave functions or hydrodynamical variables) not only in quantum but also in classical physics.

Another important remark (connected to the previous ones) concerns a postulate which plays a central role in quantum mechanics and which we have so far omitted to discuss. It is indeed central to all quantum mechanical problems to assume that the wave function $\mathrm{\Psi }(q,t)$ is continuous, regular, and single-valued. This point is trivially accepted in textbooks and articles, but it implies that in the Madelung–de Broglie representation, the phase or action $S(q,t)$ can only be defined to within $2\pi$. Specifically, as noted by Takabayasi [44] (see also Holland [14], Berry [45], and Bialinicky-Birula [46,47]), if we integrate the field $p=\mathrm{\nabla }S$ along a closed contour C in the configuration space, we must have the quantization condition for the circulation:

$$\begin{array}{c}\hfill {\oint }_C\sum _k{p}_{k}d{q}_k=2\pi N\end{array}$$

(28)

with N an integer, which clearly generalizes the semiclassical Bohr–Sommerfeld formula. A non-zero integer N reveals the presence of phase singularities (or vortices) in the configuration space. These vortices can only appear at points q where the wave function $\mathrm{\Psi }(q,t)=A(q,t)+iB(q,t)$ ($A,B\in \mathbb{R}$) cancels out, which occurs at the intersection of surfaces $A(q,t)=B(q,t)=0$ along open or closed nodal lines where the phase is undefined. In keeping with the non-rotational nature of the Madelung fluid, this implies (by analogy with magnetostatics) a localized current term along singularities. According to Holland [14], in the 3D case, we have

$$\begin{array}{c}\hfill m\mathsf{\Omega }(\mathbf{x},t)=m\mathsf{\nabla }\times \mathbf{v}(\mathbf{x},t)=\sum _{a}2\pi N_a{\int }_{L_a}{\displaystyle \frac{\partial {\mathbf{z}}_a({\lambda }_a,t)}{\partial {\lambda }_a}}{\delta }^3(\mathbf{x}-{\mathbf{z}}_a({\lambda }_a,t))d{\lambda }_a\end{array}$$

(29)

where ${\mathbf{z}}_a({\lambda }_a,t)$ are coordinates of a point on the $a^{th}$ nodal line $L_a$ (${\lambda }_a$ is a parameter), and $N_a$ is an integer characterizing the vortex. Note that following Kelvin’s theorem in hydrodynamics, integral (28) is a constant of motion: the vortex can change its shape with time but integral (28) (i.e., the circulation along a loop) is preserved and carried with the local Madelung flow. This is clearly a topological property of the Madelung fluid. We stress that the need for the condition (29) in quantum mechanics has sometimes been used by some [44,48] to argue that Madelung’s hydrodynamic formalism and the Schrödinger equation are not equivalent. In our view, however, the controversy only shows that the $\mathrm{\Psi }$ condition of continuity and regularity, implying Equations (28) and (29), is not imposed by math but by physics. For example, condition (28) is central to explain angular momentum quantization in atoms. Equation (29) is therefore a topological physical property that must be postulated in quantum mechanics to agree with experiments. It is also notable that such a quantization condition is not necessary in classical physics within the framework of HJ dynamics or Eulerian fluid mechanics (the classical function $S(q,t)$ has not in general to be continuous up to $2\pi$). This is an important point, and we come back to its significance later.

3. The Nomological Interpretation and Its Problems

Following the results obtained in the previous section, we can clearly see the emergence of interesting problems concerning the foundations of the dBB theory. We saw with de Broglie that it was possible to define quantum dynamics for material points guided by the phase $S(q,t)$ of the wave function $\mathrm{\Psi }(q,t)$. This phase obeys a generalized HJ equation involving a quantum potential $V_{\mathrm{\Psi }}(q,t)$ acting in configuration space and whose expression is highly non-classical. Moreover, to achieve equivalence with the Schrödinger equation, we must also impose the conservation relation for the fluid of density $R^2(q,t)$ in configuration space. In this way we have the trio of Equations (4)–(6) defining the de Broglie–Bohm dynamics.

However, it is at this point that divergent interpretations arise, and “Bohmians” or “Broglians” differ as to the right axioms to choose for the theory.

One of the most popular interpretations, dating back to the work of de Broglie and Bohm, compares $\mathrm{\Psi }$ to a pilot wave carrying a solid particle (like a surfer on his wave or a “tracer” following the hydrodynamical flow). Although the analogy is useful for a single particle, it poses problems for the N-body case, as the $\mathrm{\Psi }(q,t)$ wave generally moves in configuration space inducing nonlocality between particles (making the pilot-wave image less appealing). In particular, the status of hypothetical “empty waves” (and their undetectability) containing no particle (and therefore energy) is still hotly debated [49,50,51,52,53,54].

In this context, the interpretation or reading most often cited today is probably that associated with the seminal work of DGZ [17,18,55,56,57,58,59], who, drawing on the work of John Bell [60] (at least at a formal level), very cleverly sought to define a minimalist formulation of what they called dBB mechanics (however, in this work, we continue to use the expression dBB theory even for the DGZ approach). In that approach, it is no longer necessary to invoke the HJ equation, the conservation of probability fluid constraint, or the polar expression of $\mathrm{\Psi }$, and it suffices to take as starting axioms the guiding formula and the Schrödinger equation:

$$\begin{array}{c}\hfill \left\{\begin{array}{c}i{\partial }_t\mathrm{\Psi }(q,t)=\sum _k{\displaystyle \frac{-1}{2m_k}}{\partial }_k^2\mathrm{\Psi }(q,t)+V(q,t)\mathrm{\Psi }(q,t)\hfill \\ m_k{\displaystyle \frac{d}{dt}}{q}_k(t)=\mathrm{Im}\left[{\displaystyle \frac{{\partial }_k\mathrm{\Psi }(q,t)}{\mathrm{\Psi }(q,t)}}\right]\hfill \end{array}\right.\end{array}$$

(30)

The great austerity and conciseness of this approach explains its pedagogical and philosophical interest. Indeed, by eliminating any reference to the HJ or Newton equation at a fundamental level, we obtain a description of dBB trajectories reduced to a simple algorithm free of classical metaphysical prejudice. This greatly simplifies the introduction of this theory at an elementary level. On the other hand, Goldstein, Tumulka, and Zanghì [61] (but also Valentini [21,22] and de Broglie [43,49]) criticized the quantum potential $V_{\mathrm{\Psi }}$ for its mysterious nature. It is in fact very different from a traditional force potential such as the Coulomb or gravitational force. Indeed, the quantum potential ${\sum }_k{\displaystyle \frac{-1}{2m_k}}{\displaystyle \frac{{\partial }_k^{2}R(q,t)}{R(q,t)}}$ is expressed as a ratio involving the $|\mathrm{\Psi }(q,t)|$ norm and is unchanged if the wave function is multiplied by an arbitrary constant. What is more, it acts in the configuration space dependent on all positions $q_1\dots ,q_N$ in a highly nonlocal manner. It has no universal expression (unlike the gravitational or electrostatic potential). It does not weaken with distance in a trivial way, can act in a very specific way between two distant particles but can spare neighboring ones, and does not appear to have a source (unlike, for example, electric or gravitational potential). The elimination of any reference to $V_{\mathrm{\Psi }}$ and the HJ equation therefore seems a good thing, and this argument has been very often taken up by dBB advocates and many philosophers.

It is clear, however, that the system of Equation (30) is dissymmetrical, since, on the one hand, the Schrödinger equation is sufficient on its own (by imposing boundary conditions and adding a continuity postulate of $\mathrm{\Psi }$) to determine the evolution of the wave function. In contrast, particle motion $q(t)$ is affected by $\mathrm{\Psi }$. There is no back-action (reaction) of the particle on the wave, contrary to what we might expect from any mechanical explanation involving the interaction of a $\mathrm{\Psi }$ field and particles. Moreover, particles are of course definable both in configuration space and in three-dimensional physical space. This is not the case for the wave function, which is defined only in configuration space. This seems to introduce a strange ontological gap [62]: how can a theory be built with variables acting in different spaces? It is of course possible to say that the real fundamental space is the configuration space (this is the choice of the philosopher David Albert [63], for example), but this does not convince everyone. The configuration space depends on the number of particles presented. Is it realistic to envisage a universe in which the number of dimensions changes as the number of particles increases or decreases? This goes against de Broglie’s remark [9,49]: to have a space of configurations, there must be configurations, in the sense that the space of configurations presupposes the existence of a three-dimensional physical space and not the other way round. To avoid all these problems, DGZ [17,58] (see also [18,59]) proposed interpreting the $\mathrm{\Psi }$ wave not as a physical field variable but as a dynamic or nomological variable, i.e., one associated solely with the notion of a law of motion. According to that approach, the “primitive” variables of the theory are the $q(t)$ coordinates of the particles located in space-time. The wave function does not have the same status and is rather comparable to the Hamiltonian of classical physics $H(q,p)$, which, via first-order equations $\dot{q}=-\partial H(q,p)/\partial p$, $\dot{p}=-\partial H(q,p)/\partial q$, determines the motion of particles.

One problem with this analogy, however, is that the classical Hamiltonian is determined by physical laws and does not change contingently (it could depend on time, if we introduced external fields, but this is also fixed by the laws of physics). This is clearly not the case for the $\mathrm{\Psi }(q,t)$ wave function, which is a solution of the Schrödinger equation and depends on initial (and boundary) conditions $\mathrm{\Psi }(q,t=0)$. The $\mathrm{\Psi }$ variable therefore obeys a dynamic, and this regression of a law dependent on other laws seems hard to swallow. For this reason, DGZ and the followers of the nomological approach sought to eliminate the contingency associated with the initial wave function and relied in particular on the wave function of the universe ${\mathrm{\Psi }}_U$, which is supposed to be a solution of the very hypothetical quantum gravity [64]. If this wave function depends, for example, on the Wheeler–DeWitt equation, DGZ assumed that this wave function was unique, thus eliminating contingency. However, on the one hand, quantum gravity remains speculative and, on the other, it is now accepted since the work of Hartle and Hawking and Vilenkin that the choice of initial or boundary conditions fixing ${\mathrm{\Psi }}_U$ is not unique [65]. This strongly weakens the position of DGZ and their collaborators.

Apart from the reliance on a hypothetical quantum gravity fixing the uniqueness of the universe’s wave function, there are other, more serious problems which we believe undermine the nomological interpretation of dBB mechanics. DGZ’s insistence on an analogy with the classical Hamiltonian $H(q,p,t)$ overlooks the fact that the closest mathematical object to the wave function in classical physics is the action $S(q,t)$ given by HJ Equation (2).

Indeed, comparing the system of equations fixing the classical HJ dynamics:

$$\begin{array}{c}\hfill \left\{\begin{array}{c}-{\partial }_{t}S(q,t)=\sum _k{\displaystyle \frac{1}{2m_k}}{({\partial }_{k}S(q,t))}^2+V(q,t)\hfill \\ m_k{\displaystyle \frac{d}{dt}}{q}_k(t)={\partial }_{k}S(q(t),t)\hfill \end{array}\right.\end{array}$$

(31)

with Equation (30), we see very strong formal similarities. First of all, in both cases, we have first-order systems of equations for the particle and guiding field dynamics $\mathrm{\Psi }(q,t)$ and $S(q,t)$. Moreover, $\mathrm{\Psi }(q,t)$ and $S(q,t)$ both act in 3N-dimensional configuration space (unlike the classical Hamiltonian, which acts in a $6N$-dimensional phase space), so there is no feedback action of q on $\mathrm{\Psi }(q,t)$ and $S(q,t)$. Finally, the classical $S(q,t)$, or more precisely $e^{iS(q,t)}$, defines the semiclassical WKB limit of $\mathrm{\Psi }(q,t)$. So if there is an analogy to be made to develop the nomological approach, it seems to us to be between the systems of relations (30) and (31).

But there is a big difference between (30) and (31). Indeed, the meaning given by DGZ and Allori to the notion of nomological entity has always remained rather vague at the metaphysical or ontological level (even if their formulation is technically clean). But the classic (31) system enables us to give a clear meaning to the expression “this is a nomological property and that is an ontological property”. Indeed, in system (31), the $S(q,t)$ field is by no means necessary to describe the classical dynamics of the particle: it can be completely eliminated from the theoretical description (as clearly emphasized by Goldstein). It can be replaced by the hydrodynamic equations:

$$\begin{array}{c}\hfill \left\{\begin{array}{c}{\displaystyle \frac{d}{dt}}{p}_k(q(t),t):=({\partial }_t+\sum _j{\displaystyle \frac{p_j}{m_j}}{\partial }_j)p_k(q,t)=-{\partial }_{k}V(q,t)\hfill \\ {\omega }_{jk}(q,t)={\partial }_j{p}_k-{\partial }_k{p}_j=0\hfill \\ p_k(q,t)=m_k{v}_k(q,t):=m_k{\displaystyle \frac{d}{dt}}{q}_k(t)\hfill \end{array}\right.\end{array}$$

(32)

The zero-vorticity constraint ${\omega }_{jk}(q,t)=0$ implies of course that $v_k(q,t)={\displaystyle \frac{p_k}{m_k}}={\displaystyle \frac{{\partial }_{k}S(q,t)}{m_k}}$, and to solve the Euler–Newton equation, we must choose as initial condition a velocity field of zero vorticity, i.e., $v_k(q,t=0)={\displaystyle \frac{{\partial }_{k}S(q,t=0)}{m_k}}$. This shows that $S(q,t)$ is only a tool in this description, and of course, in classical physics, we can extend the field of possibilities by relaxing the zero-vorticity constraint. If this constraint is eliminated, then Newton’s equation becomes self-sufficient: it is no longer even necessary to speak of an Eulerian velocity field $v_k(q,t)$, the Lagrangian or Newtonian description is sufficient. We have the fundamental second-order law:

$$\begin{array}{c}\hfill m_k{\displaystyle \frac{d^2}{d{t}^2}}{q}_k(t)=-{\partial }_{k}V(q(t),t)\end{array}$$

(33)

However, the situation is completely different for the dBB system of Equation (30). In the dBB theory, the wave function $\mathrm{\Psi }(q,t)$ cannot be eliminated. More precisely, as we saw in the previous section, using the polar representation, the pair of Equation (30) actually becomes the triplet:

$$\begin{array}{c}\hfill \left\{\begin{array}{c}-{\partial }_{t}S(q,t)=\sum _k{\displaystyle \frac{1}{2m_k}}{({\partial }_{k}S(q,t))}^2+V(q,t)+V_{\mathrm{\Psi }}(q,t)\hfill \\ \sum _k{\partial }_k(R^2(q,t){\displaystyle \frac{{\partial }_{k}S(q,t)}{m_k}})+{\partial }_t{R}^2(q,t)=0\hfill \\ m_k{\displaystyle \frac{d}{dt}}{q}_k(t)={\partial }_{k}S(q(t),t)\hfill \end{array}\right.\end{array}$$

(34)

In this set of Equation (34) the phase $S(q,t)$ and the modulus $R(q,t)$ are fundamentally entangled. In particular, the quantum potential $V_{\mathrm{\Psi }}(q,t)$ depends on $R(q,t)$, which appears in the conservation equation of the probability fluid. When we switch to the Newtonian quantum Equation (23), we see that the quantum potential is still there, of course, and so is the wave function $\mathrm{\Psi }(q,t)$. In other words, if we start with the hydrodynamic equation system:

$$\begin{array}{c}\hfill \left\{\begin{array}{c}{\displaystyle \frac{d}{dt}}{p}_k(q(t),t):=({\partial }_t+\sum _j{\displaystyle \frac{p_j}{m_j}}{\partial }_j)p_k(q,t)=-{\partial }_k(V(q,t)+V_{\mathrm{\Psi }}(q,t))\hfill \\ \sum _k{\partial }_k(R^2(q,t){\displaystyle \frac{p_k}{m_k}})+{\partial }_t{R}^2(q,t)=0\hfill \\ {\omega }_{jk}(q,t)={\partial }_j{p}_k-{\partial }_k{p}_j=0\hfill \\ p_k(q,t)=m_k{v}_k(q,t):=m_k{\displaystyle \frac{d}{dt}}{q}_k(t)\hfill \end{array}\right.\end{array}$$

(35)

we cannot reduce the dynamics to Bohm–Newton Equation (9) alone, because the quantum potential requires the wave function by construction, and the probability density always remains coupled to $\mathrm{\Psi }(q,t)$.

In our view [66], this is a very serious objection to the nomological interpretation, which cannot be sustained. If we nevertheless wish to start from the system of Equation (30), it is possible to construct a somewhat different interpretation by assuming that in the dBB theory, it is necessary to introduce as primitive variables (i.e., primitive ontology) both the positions $q(t)$ of the point particles in real 3D space and the wave function $\mathrm{\Psi }(q,t)$ defined in configuration space. In other words, the variables q and the wave function $\mathrm{\Psi }$ (or its polar representation in terms of functions R and S) are equally real and ontological. This clearly imply a different primitive ontology not restricted to local beables q but also including the wave function $\mathrm{\Psi }$ defined in the configuration space and acting nonlocally on the particles. Moreover, such an approach treats the wave function in the dBB theory as a physical entity with no real perfect classical analogs. Such a so-called “sui generis” position is defended, for example, by the philosophers Chen [67] and Maudlin [68] (who relies on the minimalist formulation of Bell (30)) but also independently by the physicist Valentini [21], who has been developing a competing interpretation to that of DGZ since 1992 and who defines the phase or action $S(q,t)$ as a real fundamental field.

As an historical note, it is perhaps important to note that debates about the nomological or more ontological nature of the $\mathrm{\Psi }$ wave function hark back to debates and discussions that took place in the 19th century about the physical meaning of gravitational and electrical potentials. Initially simple calculation tools and intermediaries in the work of Lagrange, Laplace, and Poisson became independent objects in their own right in the work of Faraday and Maxwell. The big leap was actually made when physicists realized that potentials obey time-dependent differential equations. They thus became true independent physical variables (fields) on the same level as q positional variables. The need for initial conditions for both the field and the particle showed that the field could not generally be eliminated, and that it was not simply a nomological tool. The analogy with the quantum debate is clear, and modern philosophers would do well to refer to the history of ideas in their metaphysical debates.

Note that these ontological approaches come close to the “causal” interpretation proposed by Bohm and Hiley [13], in which the wave function has no perfect classical analog, making it impossible to really interpret the quantum potential $V_{\mathrm{\Psi }}$ as a mechanical field in the classical sense of the word. According to them, it is a nonlocal information field (which they call “active information” to differentiate it from Shannon’s information) with no classical counterpart. This type of field cannot be compared to a signal, as it is not possible in the dBB theory to identify a source for the quantum potential. Note that some authors define the notion of “multi-fields” connecting several points defined in real space in order to talk about the wave function [69]. However, all these alternatives confirm the fundamentally new character of the wave function as a physical variable, i.e., to use John Bell’s lexicon, as a “nonlocal beable”.

However, perhaps to soften or weaken our point a little, we do not think that an extreme position that would consider saying that the $\mathrm{\Psi }$ wave function is just something completely new is the right attitude either. Once again, this would mean overlooking the importance of de Broglie and Madelung’s hydrodynamic formalism, which suggests a close kinship between the dBB theory and classical physics. Moreover, we emphasize that despite some differences with classical forces, the quantum potential is still a good guide for developing mechanical analogies (i.e., contrarily to stronger claims by Valentini, DGZ, and Maudlin). On the other hand, we cannot reject in advance the idea that a better theory will one day replace quantum mechanics by restoring the priority of local variables in space-time. This was certainly Einstein’s wish, but it was also that of de Broglie, who sought to develop his theory of the double solution exclusively in space-time and not the more abstract configuration space. In this context of the double solution [7,49], a return to the more traditional mechanical explanation is immediately essential, provided we can explain the presence of nonlocality. This could make sense in recent variants of the double solution that use retrocausality (see [70,71] for a classical electrodynamical model) as an alternative relativistic mode of explanation to dBB’s nonlocality [72,73,74]. It should also be noted that, irrespective of the desire to eliminate or explain quantum nonlocality (which is strongly rooted in the work of de Broglie and his collaborators on the double solution [75]), it is possible to find nonlocal models of quantum solitons that recover certain aspects of the dBB pilot-wave theory [76,77]. Other elegant approaches based on the hydrodynamic analogies developed by Couder and Bush [78,79,80,81] (and which are strongly linked to the double solution) have recently made it possible to reproduce dBB-type dynamics [82,83,84,85,86]. In addition, mechanical analogies dating back to de Broglie’s thesis make it possible to consider the particle as an oscillating system coupled to a vibrating medium (string, membrane, fluid, etc.), and this in turn makes it possible to develop “acoustic quantum analogs” reproducing certain specifically quantum properties such as the wave–particle duality or the quantization of orbits in atoms [87,88,89,90].

To end this section, we think there is another argument in favor of the ontological (i.e., not just nomological) nature of the $\mathrm{\Psi }(q,t)$ field. Indeed, we have not mentioned the conditions of continuity, regularity, and single-valuedness of $\mathrm{\Psi }(q,t)$, which are however clearly implicitly presupposed in Equations (30), (34), or (35) and which imply the validity of topological quantization relations (28) and (29). As we indicated at the end of Section 2, these conditions are guided by physics and experience rather than mathematical necessity. It should be noted that in the framework of classical wave optics based on Maxwell’s equations, such quantization conditions are observed and appear natural because the classical electromagnetic field is assumed to have a continuous ontological nature (in the classical framework, it was a vibration of the Ether). Discontinuities in the field are generally admitted only in rapid or violent transient phenomena or during interaction with material interfaces. Moreover, discontinuities or dislocations are generally only approximation in optics, and they always must fulfill the conditions (28) and (29). In other words: wave-fields like continuity.

Returning to de Broglie–Bohm quantum mechanics, we think that what is mentioned above argues a little more strongly for the ontological nature of the $\mathrm{\Psi }(q,t)$ field as a beable (even if nonlocal and despite important issues related to the physical meaning of empty waves [49,50,51,52,53,54,73]). Note once again that the continuity postulate on $\mathrm{\Psi }(q,t)$ is not true in general in classical physics. Importantly, in classical HJ theory, the $S(q,t)$ action can be multivalued, as in the case of classical particle scattering by Coulomb potentials generating S discontinuities due to the presence of caustics. In that example, “two Riemann sheets” are connected by a caustic to separate the incoming and outgoing solutions of the HJ equation and the associated part of the hyperbolic orbits. In real space, all incoming and outgoing trajectories can intersect (this type of phenomenon does not occur in the dBB theory—see below). Similarly, in classical Eulerian hydrodynamics, the circulation of the velocity field around a vortex in a potential fluid is not quantized by an integer N (moreover, in hydrodynamics, the velocity field is still regular and continuous). An often-commented-on feature of the dBB theory [14] is that, unlike in the classical case (see [91], for example), the trajectories of predicted particles cannot intersect in configuration space. The multivaluedness of $S(q,t)$ in quantum physics (around phase singularities) does not affect the continuity of congruent trajectories in configuration space. This property leads to an apparent mismatch between classical and quantum theory in the regime of so-called “surrealist” trajectories, where a dBB particle that from a classical point of view should pass from point A to point A’ in fact ends its trajectory at point B’, which again classically would be the logical termination of a trajectory originating from point B [92,93,94]. This issue is strongly related to the empty-wave problem (see, in particular, [52,53,54]). Remarkably, this accusation of surrealism collapses completely if we take into account the fact that dBB trajectories can be physically reconstructed experimentally using the weak measurement method, which allows us to visualize the “anticrossing” behavior of dBB trajectories in the two-slit experience [95] and in situations where the trajectories are surreal and nonlocal [96] (we stress that surrealistic trajectories have also been recently observed in the context of quantum hydrodynamic analogs [97,98]). This anticrossing of dBB paths can be eliminated if we couple the dBB particle to an environment which, due to decoherence in a larger configuration space, allows the particles trajectories to cross. Some of these counter-intuitive phenomena had already been discussed and analyzed by de Broglie and Brillouin at the Solvay Congress in 1927 [8]. Note that, from a Newtonian point of view, it is the singularity induced by the quantum potential $V_{\mathrm{\Psi }}(q,t)$ at the points where the wave function cancels out (which typically occurs in interference phenomena) that is responsible for the repulsive force between the dBB trajectories of the congruence (this has been for example experimentally analyzed from the perspective of hydrodynamical analogies [99]). Once again, the absence of this potential allows the trajectories to cross each other in the classical regime. All these examples show important differences between the classical S action, or velocity potential, and its quantum version, i.e., dBB’s S action. In this context, we can observe that the interpretation of the wave function as a physical field is naturally advanced to explain the phenomena of superconductivity and superfluidity at very low temperatures, where a set of bosons are carried by the same $\mathrm{\Psi }(q)$ wave at the lowest energy level. Quantum vortices are observed for example in superconductors (quantized flux), and Bose–Einstein condensates or polaritonic fluids, and the multivaluedness of the phase $S(q,t)$ is clearly interpreted using the Madelung formalism (see, e.g., Feynman [37]). We believe that all this makes more sense if the field $\mathrm{\Psi }(q,t)$ has a clear ontological character in line with what is admitted for classical waves (in optics or acoustics, for example) even if we must also consider the quantum nonlocality associated with $\mathrm{\Psi }(q,t)$ as a completely new feature absent from classical ontology.

4. Can We Complete or Extend dBB Mechanics? The Case of Born’s Rule

The previous section emphasized the new and original physical character of the wave function $\mathrm{\Psi }(q,t)$ or quantum potential $V_{\mathrm{\Psi }}(q,t)$ as a physical (ontological) variable or cause, which, although defined in configuration space (or as a multifield), is indispensable to the description of the quantum system. However, not all advocates of de Broglie’s theory agree on the meaning of $V_{\mathrm{\Psi }}$. Some authors, such as DGZ [17] and Valentini [21], refrain from referring to this quantity at a fundamental level, as they believe it suggests too classical a mechanical explanation. Others, such as Holland [14] and Bohm and Hiley [13], consider the quantum potential to be a good explanatory tool that also provides a link with the classical world. Note that Bohm, Hiley, and Holland do not suggest a return to classical ontology, as is clear from their use of the active information analogy, which emphasizes the non-mechanical character of $V_{\mathrm{\Psi }}$.

In the remainder of this article, we would like to follow Holland’s suggestions regarding the explanatory power of the quantum potential. Indeed, the very motivation behind Bohm’s theory is to be able to re-establish causality (hence the name causal interpretation attributed by Bohm). So we start from the premise that it is a pity to deprive ourselves of the mechanical and classical analogies that the quantum potential and hydrodynamic formalism provide, even if we then have to deviate from them in the end. The situation is similar to that of de Broglie, who, deeply rooted in history, sought to establish a link between Hamilton–Jacobi’s classical mechanics, geometrical optics, and quantum physics [9].

Another central motivation for this analogy-based approach is the close relationship between dBB’s pilot-wave theory and de Broglie’s research into the double-solution theory [7,49], which he began in 1923–1925. In this approach, particles are assumed to be “hump fields” or solitons, localized around the dBB trajectory and moving with it (the soliton is assumed to be guided by the phase of the $\mathrm{\Psi }$ wave function). The double solution suggests a hydrodynamic analogy in which particles are extended objects immersed in a quantum fluid that Bohm and Vigier named the subquantum medium [13,20,43]. In this context, Madelung and de Broglie’s hydrodynamic analogies take on their full meaning and merit further study.

In the same vein, we remind the readers that over the last two decades, a great deal of theoretical and experimental work has focused on the hydrodynamic analogies suggested by Couder–Fort and Bush’s experiments with bouncing drops or walkers [78,79,80,81]. In these purely classical systems, drops bounce off an oil bath oscillating at a constant frequency, generating waves that guide the drop as it moves over the bath. The interaction of these waves with obstacles and the immediate environment retroacts on the drop, suggesting de Broglie–Bohm-type guiding behavior. This defines a framework that is also of great interest to Madelung–de Broglie hydrodynamic analogies.

The central point, in our view, is that de Broglie–Bohm’s theory, by proposing an explanatory and causal model for quantum mechanics, also allows us to glimpse potential strategies for going beyond or complementing it. This aspect has been often underlined by the creators of this theory since de Broglie, Bohm, and Vigier [20,43,49], who envisaged the pilot-wave theory as a guide to obtaining a theory that would go beyond quantum mechanics and perhaps enable a better understanding of the theory of elementary particles (the quantum theory of relativistic fields) and also create a link with Einstein’s theory of general relativity for a possible unification of quantum physics and gravitation (which is still at the sketching stage).

To be more explicit in what follows, we would like to consider different possibilities for extending or completing the dBB formalism, based on the hydrodynamic analogies suggested by the Madelung and de Broglie formalism (cf. Equation (35)) and relaxing or modifying some of the fundamental assumptions. More specifically, we consider two possibilities, concerning either (i) the notion of probability and Born’s law $\rho (q,t)=R^2(q,t)$ or (ii) dynamics and the irrotational postulate ${\omega }_{ij}(q,t)=0$. In this section, we briefly describe and review possibility (i), which has already been discussed at length in the literature and is the source of much controversy. Possibility (ii) is discussed in the following sections.

The idea of relaxing Born’s rule $\rho (q,t)=R^2(q,t)$ dates back to the early work of de Broglie [7,27], who, from 1926 to 1927, understood that to recover quantum mechanics and its statistical prediction, it was necessary to impose this formula in the postulates. In fact, de Broglie introduced the statistical formulation in a short 1926 paper focusing on photons [27]. In 1927, de Broglie generalized his postulate to all particles, after becoming aware of Born’s theory [7,31]. For de Broglie, unlike Born, probabilities are not fundamental and must be derived from additional postulates about the initial conditions of particles. These initial conditions, and therefore the statistical postulate, are much more contingent in nature than they were for Born and the Copenhagen school. Inspired by the masters of 19th-century statistical physics, de Broglie imagines that particles are initially distributed in such a way as to satisfy Born’s rule and demonstrates that if this is true at one instant, it will be true at all times. More precisely, let us assume that the conservation law ${\sum }_k{\partial }_k(R^2(q,t){\displaystyle \frac{p_k}{m_k}})+{\partial }_t{R}^2(q,t)=0$ in which ${\left|\mathrm{\Psi }\right|}^2:=R^2$ is associated with the guiding field is true but is not necessarily a probability density. According to what we mentioned in Section 3, the $\mathrm{\Psi }(q,t)$ field is indeed a fundamental physical property and cannot be reduced to a probability field. We therefore need to develop a second conservation law to deal with the distribution of particles in configuration space, assuming that the universe contains a large number of identically prepared copies in the same $\mathrm{\Psi }$ and V fields but with different $q(0)$ initial conditions. The local conservation law for this fluid is written in all generality (as in classical physics):

$$\begin{array}{c}\hfill \sum _k{\partial }_k(\rho (q,t){\displaystyle \frac{p_k}{m_k}})+{\partial }_t\rho (q,t)=0\end{array}$$

(36)

with, in general, $\rho (q,t)\ne {\left|\mathrm{\Psi }\right|}^2(q,t)$. By comparing with the local conservation law for $R^2$, we deduce the relation

$$\begin{array}{c}\hfill [{\partial }_t+\sum _k{\displaystyle \frac{p_k}{m_k}}{\partial }_k]({\displaystyle \frac{\rho (q,t)}{R^2(q,t)}}):={\displaystyle \frac{d}{dt}}({\displaystyle \frac{\rho (q,t)}{R^2(q,t)}})=0\end{array}$$

(37)

which shows that the function $f(q,t):={\displaystyle \frac{\rho (q,t)}{R^2(q,t)}}$ is an integral of the motion along the trajectory of the system $q(t)$ [20,43,49]. Basically, this formula is very similar to Liouville’s theorem in classical statistical physics (although the latter is written in phase space and not configuration space). Indeed, if we write $\delta P(q,t)$, the probability of presence in the configuration space element ${\delta }^{3N}q$ we have

$$\begin{array}{c}\hfill \delta P(q,t)=\rho (q,t){\delta }^{3N}q=f(q,t)\delta \mathrm{\Gamma }\end{array}$$

(38)

where the quantity $\delta \mathrm{\Gamma }:={\left|\mathrm{\Psi }\right|}^2(q,t){\delta }^{3N}q$ plays the role of a measure conserved in configuration space (we have ${\displaystyle \frac{d}{dt}}\delta \mathrm{\Gamma }(q(t),t)=0$). Since, by conservation of the probability fluid, we must also have ${\displaystyle \frac{d}{dt}}\delta P(q(t),t)=0$, we find again the relation ${\displaystyle \frac{d}{dt}}f(q(t),t)=0$, which is exactly the same derivation as for Liouville’s theorem and allows us to interpret $f(q,t)$ as a probability density with respect to the $\mathrm{\Gamma }$ measure in configuration space.

In this formalism, de Broglie’s statistical postulate, which we call the quantum equilibrium postulate, is to impose $f=1$ everywhere at time $t=0$, knowing that this will remain true for all times t along the dBB trajectories $q(t)$. This postulate resembles the microcanonical equilibrium postulate in statistical physics, but once again, it is obtained in $3N$-dimensional configuration space, not $6N$-dimensional phase space, and the $d\mathrm{\Gamma }$ measure plays an essential role, replacing the $d{\mathrm{\Gamma }}_{phase}:=d^{3N}q{d}^{3N}p$ measure in phase space in ordinary statistical physics. The problem, of course, is that even if this microcanonical postulate seems natural, since it introduces a form of equiprobability with respect to the $\mathrm{\Gamma }$ measure in configuration space, it is nonetheless contingent and in no way necessary to the dynamic theory of dBB. Other choices are possible: for example, we could consider f constant and different from zero only in a trajectory tube and $f=0$ outside. Ultimately, we could also choose $f(q,t)=c{\delta }^{3N}(q-q_0(t))/{\left|\mathrm{\Psi }(q,t)\right|}^2$, where $q_0(t)$ is a particular dBB trajectory and c a normalization constant (it can be checked that this distribution satisfies the constraint ${\displaystyle \frac{d}{dt}}f(q(t),t)=0$). Since then, this point concerning microcanonality has been criticized, notably by Pauli and Keller [100,101], as arbitrary.

In response to such criticisms, Bohm, Vigier, and de Broglie [20,43,49] defended the idea that the $f=1$ microcanonical distribution corresponding to quantum equilibrium would be an attractor state due to the chaotic complexity of a system’s dBB interactions with its environment. Inspired by Boltzmann’s strategies, they tried to demonstrate that the quantum entropy $-\int d\mathrm{\Gamma }flogf$ naturally relaxed to a maximum for the state $f=1$. To this end, they also introduced the hypothesis of molecular chaos in a hypothetical subquantum medium interacting with the system under consideration.

Much later, Valentini [21,22] took up Bohm-Vigier’s program, but eliminated the too hypothetical subquantum medium and replaced the Boltzmannian approach with that of Gibbs, using coarse-grained averages to average the information and thus create an entropy-increasing mixture. The ultimate aim was still to justify the approach to quantum equilibrium, this time invoking a loss of information due to our approximation in the treatment of the complexity of dBB particle motion. Valentini and his colleagues demonstrated with the help of numerous numerical examples [102,103] that a density initially based in a non-equilibrium state $f\ne 1$ tends rapidly in general towards the homogeneous state $f=1$. This argument, which resembles Gibbs’ in classical statistical physics, works essentially because of the highly nonlinear nature of dBB mechanics (in particular, because of the complexity of the quantum potential $V_{\mathrm{\Psi }}(q,t)$). An alternative (advocated by one of the present authors [104,105]) is to connect the information loss associated with Valentini’s coarse-grained averages to the quantum entanglement of a subsystem with a thermal bath (thermostat) already assumed to be in a state of quantum equilibrium. The idea is that, due to quantum coupling, a subsystem initially in a state very different from $f=1$ will be attracted (relaxation) to the microcanonical $f=1$ state. This mode of relaxation is not independent of Valentini’s approach.

It is important to note that no deviation from quantum equilibrium, i.e., from Born’s rule, has ever been observed experimentally. Clearly, if this were to happen, the consequences would be far-reaching. For example, as Valentini was quick to point out [106], due to the nonlocality of dBB mechanics, any deviation from the $f=1$ law could in principle be used to send a signal faster than light. This is, of course, in violation of the non-signaling theorem used in the discussion of Bell’s theorem, which prohibits such effective supraluminal communication. However, this theorem is based, among other things, on the validity of Born’s rule, and its weakening would lead to new physics. An original possibility, for example, would be to exploit measurements of arrival times predicted by the dBB theory [107,108] in a quantum non-equilibrium regime. Valentini’s current hope [22,109,110] is that such violations may one day be detectable via fluctuations in primordial cosmic radiation that cannot be explained by Born’s rule (this presupposes a state of primordial quantum non-equilibrium). This research is of course very interesting and deserves further studies.

We cannot end this section without mentioning the competing approach to that of Valentini, Bohm, and Vigier advocated by DGZ, which posits Born’s law as somehow inevitable and natural [55]. This approach is based on the Boltzmannian notion of typicality and assumes that for the universe system taken as a whole, the ${\left|\mathrm{\Psi }(Q,t)\right|}^2$ distribution (where Q takes into account all particles) is not associated with a statistical distribution (because there is only one Universe). However, according to DGZ, ${\left|\mathrm{\Psi }(Q,t)\right|}^2{d}^{3N}:=d\mathrm{\Gamma }$ is still the most natural probability measure for describing the configuration space, as it is equivariant. Indeed, if we are looking for a distribution $\rho$ that is an explicit function of ${\left|\mathrm{\Psi }\right|}^2$, i.e., $\rho =F(|\mathrm{\Psi }{|}^2)$, then the only admissible solution is $F(x)=x$, i.e., $\rho ={\left|\mathrm{\Psi }\right|}^2$, and this property is preserved with time: if ${\rho }_{t_0}={\left|{\mathrm{\Psi }}_{t_0}\right|}^2$ holds true at a given time, it will be true at any other times ${\rho }_t={\left|{\mathrm{\Psi }}_t\right|}^2$. The $d\mathrm{\Gamma }$ measure is therefore a priori the obvious choice to weight the configuration space of the Universe. To give a physical meaning to the weight or measure $d\mathrm{\Gamma }$, we need to consider a very large set of quantum-identical subsystems. In other words, we assume that our universe has N factorizable subsystems described by the same wave function $\psi (q_i,t)$ ($3M$ is the dimension of each i subsystem and $q_i\in {\mathbb{R}}^{3M}$ ). For these N subsystems, we then have a global effective wave function $\psi (q_1,t)\psi (q_2,t)\dots \psi (q_N,t)$. Applying the law of large numbers (Bernoulli) to this long sequence of systems weighted by the $\mathrm{\Gamma }$ measure shows that with high probability the statistical distribution ${\displaystyle \frac{1}{N}}{\sum }_i{\delta }^{3M}(q-q_i(t))$ (with $q\in {\mathbb{R}}^{3M}$) tends towards ${\left|\psi (q,t)\right|}^2$. The word very probable, or typical, stands for “almost every system”, i.e., it implies in the overwhelming majority of cases the empirical validity of Born’s rule at the statistical level for sufficiently large samples ($N>>1$). Fluctuations to the rule become negligible, i.e., atypical.

The consensual part of DGZ’s deduction concerns the application of the law of large numbers, which is also used by Valentini in his deductions. In our view, there are two points of criticism in DGZ’s analysis. The first is semantic, and the least important, although it is a source of confusion. DGZ and their colleagues [15,16,55] use the term typicality measure instead of the more common term probability used in the literature. We believe this is linked to a historical confusion: contrary to what they claim, a probability is not a relative statistical frequency; it is the tool invented by the masters of probability theory, from Bernoulli to Laplace, Borel, and Kolmogorov, which enables us to reproduce these statistical frequencies. We claim there is no need to introduce a new notion, typicality, to replace the more accepted notion of probability. To be more precise, the motivation behind the introduction of typicality instead of probability stems from the desire to move away from the apparent circularity present in the application of the law of large numbers, which, according to philosopher David Wallace, can be summed up as follows:

We cannot prove that in the long-run relative frequencies converge to probabilities. What we can prove, is that in the long-run relative frequencies converge to probabilities ⋯ probably.

[111]

With typicality (seen as an independent notion), we try to write “in the long-run relative frequencies converge to probabilities … typically” instead. However, this is far from a consensus and is certainly not the view of the majority of specialists working in the field of probability (mathematicians, statisticians, physicists, and philosophers). In this context, we note that typicality advocates often rely on the complexity and diversity of meanings associated with the word probability (different among frequentists, Bayesians, etc. [112]) to justify the introduction of a new, supposedly clearer concept of typicality. But in our view, there is more discourse than evidence here, and we think it is better to clarify old notions before introducing new ones [113]. We also note that DGZ’s introduction of typicality into quantum mechanics was preceded by the work of Hugh Everett III, who, in 1957 [114], already used typicality to justify quantum statistics within the framework of many-worlds theory (MW). In our view, our arguments also render the whole of MW theory completely obsolete (see [113,115,116]). It is however not the place of this review to defend our critique in detail, and we refer here to works defending [16,117,118] or criticizing [113,116,119,120] typicality for further analysis.

Moreover, the point that has generated the most debate concerns the need to use the equivariant measure $d\mathrm{\Gamma }$, which in fact amounts to postulating from the outset the microcanonality or equiprobability $f=1$ for the Universe. In fact, despite its logical simplicity, there is nothing imposing the equivariance rule as the most natural. We have seen that the equally elegant distribution $f(q,t)=c{\delta }^{3N}(q-q_0(t))/{\left|\mathrm{\Psi }(q,t)\right|}^2$ could be chosen by Nature but clearly has not! The degree of contingency of a probability law cannot be eliminated by decree, and only physics (i.e., experience) decides what is typical and what is not [113]. In other words, the quantum equilibrium rule, being contingent, is still not, despite DGZ’s elegant reasoning, a law of nature, and in fact, its justification always seems to be deferred to a particular choice of initial conditions of the Universe (in connection with cosmology). The merit of Bohm, Vigier, and Valentini’s program, in our view, is that it offers the promise of a better understanding of the robustness of this Born rule (via coupling with a thermostat, for example).

5. Dynamical Completion of the dBB Dynamics: Bohm’s Proposal and Its Critics

As we saw, many de Broglians (DGZ [61], Valentini [21]) have strongly criticized Bohm’s formulation in terms of quantum potentials $V_{\mathrm{\Psi }}$ and his use of Newton’s law. The quantum potential suggests highly complex and, in the words of DGZ and Valentini, inelegant dynamics. Moreover, apart from the criticisms already made, it seems that the quantum potential suggests a coupling force between trajectories (this is the analogy with Madelung’s tension field, which presupposes an interaction force between several fluid elements, i.e., several trajectories). In this case, however, there are not several systems at once: a single dBB trajectory is realized, and it seems strange to see an influence of the collective on the individual in this dBB theory.

This curious impression, already noted by Kennard and Rosen [34,35], is reinforced if we express $V_{\mathrm{\Psi }}$ in the hydrodynamical form $V_{\mathrm{\Psi }}(q,t)={\sum }_k{\displaystyle \frac{-1}{2m_k}}{\displaystyle \frac{{\partial }_k^2\sqrt{\rho }(q,t)}{\sqrt{\rho }(q,t)}}={\sum }_k{\displaystyle \frac{-1}{4m_k}}[{\displaystyle \frac{{\partial }_k^2\rho (q,t)}{\rho (q,t)}}-{\displaystyle \frac{{({\partial }_{k}log\rho (q,t))}^2}{2}}]$, which brings out the (quantum equilibrium) probability density $\rho =R^2$. In fact, most of these criticisms are unjustified. For example, similarity with a real fluid does not necessarily imply the existence of several simultaneously existing trajectories (this is not so in the classical HJ formalism), nor should the density $R^2(q,t)$ be fundamentally interpreted as a probability density: De Broglie, Kennard, Rosen, and Bohm are very clear on that point. The wave function has an ontological status not an epistemic one, and R is before all a dynamical variable, not the square root of $\rho$. In fact, the rejection of the quantum potential seems more a matter of taste than of substance.

If we accept that point, then we can follow Bohm in some of his suggestions: that is what we do in the following. Rigorously speaking, Bohm [12] considers the system of Equation (35) to be the starting point, and so the zero-vorticity condition ${\omega }_{ij}(q,t)=0$ plays an essential role. It defines a constraint on quantum Newton dynamics, and this constraint is specifically Eulerian in nature, i.e., it is defined on the velocity field in configuration space. In other words, the relation $p_k={\partial }_{k}S(q,t)$ defines a subset or class of dBB trajectories obeying the Newton–Bohm law and subject to the constraints given in (34) or (35). Bohm, in 1952 [12], clearly suggested that the condition of null vorticity could be relaxed, i.e., that we could perhaps abandon the guiding condition $p_k={\partial }_{k}S(q,t)$. However, it appears that there are at least two ways of understanding this abandonment of constraint. Bohm’s version, which we briefly outline, and Schönberg’s more interesting one, which we discuss in the next section.

Bohm’s suggestion is to start from the new system

$$\begin{array}{c}\hfill \left\{\begin{array}{c}i{\partial }_t\mathrm{\Psi }(x,t)=\sum _k{\displaystyle \frac{-1}{2m_k}}{\partial }_k^2\mathrm{\Psi }(x,t)+V(x,t)\mathrm{\Psi }(q,t)\hfill \\ m_k{\displaystyle \frac{d^2}{d{t}^2}}{q}_k(t):=-{\partial }_k(V(q(t),t)+V_{\mathrm{\Psi }}(q(t),t)\hfill \end{array}\right.\end{array}$$

(39)

instead of (30) and see how these relations can be modified, either by adding nonlinear terms to the Bohm–Newton equation or to the Schrödinger equation, in order to induce a kind of forced relaxation towards the guiding condition $m_k{\dot{q}}_k(t)=p_k(q(t),t)={\partial }_{k}S(q(t),t)$. Let us note that (39) amounts to adding Newton’s relation to hydrodynamic Equations (34) or (35) deprived of the guiding formula $m_k{\dot{q}}_k(t)=p_k(q(t),t)={\partial }_{k}S(q(t),t)$. In fact, to be more precise, in that theory, we can always define a Lagrangian fluid velocity in accordance with Lagrange’s definition of a Madelung fluid, i.e., $p_k(x(t),t)={\partial }_{k}S(x(t),t)=m_k{\dot{x}}_k(t)$ with $x_k(t)$ a fluid trajectory. However, this fluid trajectory (path line of a “fluid molecule”) is no longer generally identifiable in Bohm’s (39) approach with the actual particle trajectory $q_k(t)\ne x_k(t)$.

The problem is that this new dynamic is much richer than the original de Broglie–Bohm theory, because the Newton–Bohm law $m_k{\displaystyle \frac{d^2}{d{t}^2}}{q}_k(t):=-{\partial }_k(V(q(t),t)+V_{\mathrm{\Psi }}(q(t),t)$ contains many solutions that contradict quantum mechanics and make the theory unstable and not very credible. For example, as discussed in [121], according to that theory, an electron in the ground state of the hydrogen atom is not subject to any force because the repulsive quantum potential rigorously balances the attractive Coulomb potential. Therefore, according to Newton–Bohm’s law $m{\displaystyle \frac{d^{2}q(t)}{d{t}^2}}=0$, the electron’s motion can, in such an atom ground state, follow an inertial motion at constant speed and could therefore escape to infinity. Of course, this is not so in the dBB theory where the electron is at rest. Furthermore, according to that theory and for the same atomic example, we can construct an unrealistic statistical ensemble with particles all having a velocity in the z direction: the Eulerian velocity field in this statistical ensemble is given by an arbitrary function of $x,y$, i.e., $\mathbf{v}(x,y,z)=U(x,y)\widehat{\mathbf{z}}$ (and should not be confused with the Eulerian velocity field deduced from the wave function, which predicts ${\mathbf{v}}_{dBB}=\mathsf{\nabla }S/m=0$). We can introduce a probability density $\rho (x,y,z)=F(x,y)$ given by an arbitrary function of x and y (we have local probability conservation $\mathsf{\nabla }·(\rho \mathbf{v})={\partial }_z(FU)=0$). This distribution is not confined in the atom potential, which demonstrates the a priori non-physical nature of the model. Further numerical calculations confirm the instability of Bohm’s proposal [121,122]. Hence, without the addition of nonlinear terms (of unknown precise form) in (39) forcing the particle system to converge towards dBB trajectories obeying the guidance formula $m_k{\dot{q}}_k(t)=p_k(q(t),t)={\partial }_{k}S(q(t),t)$, it is impossible to accept such an approach.

Another way of looking at the problem is to consider a Hamiltonian formulation instead of the Newtonian one. In that approach, we replace Equation (39) by the equivalent system

$$\begin{array}{c}\hfill \left\{\begin{array}{c}i{\partial }_t\mathrm{\Psi }(x,t)=\sum _k{\displaystyle \frac{-1}{2m_k}}{\partial }_k^2\mathrm{\Psi }(x,t)+V(x,t)\mathrm{\Psi }(x,t)\hfill \\ \dot{q}(t)={\displaystyle \frac{\partial H_{\mathrm{\Psi }}(q(t),p(t))}{\partial p}}\hfill \\ \dot{p}(t)=-{\displaystyle \frac{\partial H_{\mathrm{\Psi }}(q(t),p(t))}{\partial q}}\hfill \end{array}\right.\end{array}$$

(40)

which contains the Hamiltonian $H_{\mathrm{\Psi }}(q,p,t)={\sum }_k{\displaystyle \frac{1}{2m_k}}{p}_k^2+V(q,t)+V_{\mathrm{\Psi }}(q,t)$, with $p_k$ and $q_k$ the canonical variables associated with the particles, not to be confused with the variables obtained from the Madelung formalism and associated with the wave function (here the distinction between the positions variables x associated with $\mathrm{\Psi }$ and the variables q associated with the particles is particularly useful). The problem is similar to what happens in the Newtonian formulation: the congruence of trajectories in the $6N$-dimensional phase space obtained from the Hamiltonian $H_{\mathrm{\Psi }}(q,p,t)$ defines a much larger set than that of simple dBB trajectories subject to the $m_k{\dot{q}}_k(t)=p_k(q(t),t)={\partial }_{k}S(q(t),t)$ constraint. If, for example, we are interested in the problem of quantum equilibrium, it is natural in that theory to start from the probability density $\eta (q,p,t)$ in phase space, and it is well known that this distribution obeys Liouville’s theorem

$$\begin{array}{c}\hfill [{\partial }_t+\sum _k{\dot{q}}_k{\displaystyle \frac{\partial }{\partial q_k}}+{\dot{p}}_k{\displaystyle \frac{\partial }{\partial p_k}}]\eta (q,p,t):={\displaystyle \frac{d}{dt}}\eta (q(t),p(t),t)=0\end{array}$$

(41)

However, this theorem admits several a priori possible solutions to define the notion of equilibrium, and the simplest would seem to be the microcanonical equilibrium $\eta (q,p,t)={\eta }_0=const.$, which is not observed experimentally. Other possibilities are of course possible, for example:

$$\begin{array}{c}\hfill \eta (q,p,t)=c{\delta }^{3N}(q-q_0(t)){\delta }^{3N}(p-p_0(t))\end{array}$$

(42)

$$\begin{array}{c}\hfill \eta (q,p,t)={f(q,t)\left|\mathrm{\Psi }(q,t)\right|}^2{\delta }^{3N}(p-{\partial }_{q}S(q,t))\end{array}$$

(43)

$$\begin{array}{c}\hfill \eta (q,p,t)={\left|\mathrm{\Psi }(q,t)\right|}^2{\delta }^{3N}(p-{\partial }_{q}S(q,t))\end{array}$$

(44)

Equation (42) corresponds to a single trajectory $q_0(t),p_0(t)$ and a state of strong quantum non-equilibrium. Equations (43) and (44) are close to Vigier and Valentini’s formulation discussed before, where the wave function plays its role as an attractor. Only Equation (44) corresponds to a quantum equilibrium with $f(q,t)=1$ (see [44,49]). Bohm’s generalized theory (40) in phase space thus creates a much larger inventory of possibilities than the usual dBB version, and thus a priori adds problems to the existing formulation rather than solving them. Indeed, only the addition of extra terms (Bohm suggests expressions of the type $G[p-{\partial }_{q}S(q,t)]$) in the fundamental equations

$$\begin{array}{c}\hfill \left\{\begin{array}{c}i{\partial }_t\mathrm{\Psi }(x,t)=\sum _k{\displaystyle \frac{-1}{2m_k}}{\partial }_k^2\mathrm{\Psi }(x,t)+V(x,t)\mathrm{\Psi }(q,t)+G_1[p-{\partial }_{x}S(x,t)]\hfill \\ m_k{\displaystyle \frac{d^2}{d{t}^2}}{q}_k(t):=-{\partial }_k(V(q(t),t)+V_{\mathrm{\Psi }}(q(t),t)+G_2[p-{\partial }_{q}S(q,t)]\hfill \end{array}\right.\end{array}$$

(45)

could potentially force motions to stick to de Broglie–Bohm trajectories guided by the wave function: all of which remains rather speculative. It should be noted that despite these shortcomings, this in no way prejudices Bohm’s general project, which was very much inspired by Fürth’s stochastic mechanics of the 1930s [123], and which attempted to establish a link between Heisenberg’s uncertainty principle and the Brownian stochastic motion of a particle subjected to fluctuating forces. The idea inspired Bohm, who, in collaboration with Vigier [20] and later Hiley [13], introduced stochastic fluctuating terms into the dBB dynamics to force convergence to quantum equilibrium over long time scales. Numerous other works flourished in the 1950s and 1960s around stochastic quantum mechanics (the most famous being Nelson’s theory [124] see also [125,126,127]), most of them attributing an important role to the “osmotic velocity” [123], which, for a particle, is written as ${\mathbf{v}}_{osm}=D\mathsf{\nabla }(log\rho )$, where $D={\displaystyle \frac{\hslash }{2m}}={\displaystyle \frac{1}{2m}}$ is a quantum diffusion constant characterizing the “subquantum medium” [20]. We must mention here a very important extension of that work which concerns stochastic electrodynamics (see in particular the work of de La Peña and Cetto [128,129] or [130]) which analyzes the link between the dBB pilot waves and stochastically modeled vacuum fluctuations.

One criticism of this project may be that it departs sharply from de Broglie’s initial desire to re-establish causality and determinism (even though de Broglie later supported the introduction of stochastic aspects into his double solution with his thermodynamics of the isolated particle). Moreover, the possible extension of the stochastic approach to the multi-particle problem poses new fundamental problems, since fluctuating quantum forces are also nonlocal, which sets them apart from the classical stochastic forces associated with local collisional processes. Interestingly, DGZ and Tumulka [131], following an idea of Bell [132] and Vink [133], have more recently reintroduced stochastic dynamics and nonlocality into the dBB version of quantum field theory (QFT) to account for the creation and disappearance of particles in these theories (in particular, Goldstein studied Nelson’s theory in detail in the 1980s [134]).

6. Extension of the de Broglie–Bohm Framework Involving Vorticity and Clebsch Potentials

In order to motivate the present discussion, it is important to recall how the HJ theory is generally introduced and justified in classical mechanics [14,23,24]. Starting from a Hamiltonian $H(q,p,t)$ we assume the existence of a canonical transformation, $q,p\to Q,P$ such that with the new variables, the Hamiltonian $H^{\prime }(Q,P,t)$ cancels out. Such a canonical transformation is introduced, for example, by means of a generating function $F(q,Q,t)$ such that $p=-{\displaystyle \frac{\partial F}{\partial q}}$, $P=-{\displaystyle \frac{\partial F}{\partial Q}}$, and $H^{\prime }=H+{\partial }_{t}F$. If $H^{\prime }=0$, we have, according to Hamilton’s equations $\dot{Q}=0=\dot{P}$, i.e., Q and P define constants of motion. Let $\alpha :=Q$, $S(q,\alpha ,t):=F(q,Q,t)$, and $\beta =P$; then, we have

$$\begin{array}{c}\hfill -{\partial }_{t}S(q,\alpha )=H(q,\nabla S(q,\alpha ,t),t)\end{array}$$

(46)

$$\begin{array}{c}\hfill p=\nabla S(q,\alpha ,t)\end{array}$$

(47)

$$\begin{array}{c}\hfill \beta =-{\displaystyle \frac{\partial S(q,\alpha ,t)}{\partial \alpha }}\end{array}$$

(48)

Following Jacobi’s theorem, the action $S(q,\alpha )$ defines a complete integral of HJ Equation (46) with the momenta $p_k=m_k{\dot{q}}_k$ given by the guidance Formula (47). This solution is characterized by $3N$ non-additive constants $\alpha$ defining a family of trajectories in the configuration space. The other $3N$ constants of integration $\beta$ given by (48) characterize each specific orbit or trajectory of the family requiring $6N$ integration constants for their complete definition.

However, there are a number of points to bear in mind here. Firstly, Jacobi’s method and result are much more general than our brief description based on a specific choice of generating function. Other choices of generating functions, such as $F_2(q,P,t)$, $F_3(p,Q,t)$, or $F_4(p,P,t)$, would be just as suitable for reaching the same general conclusion. Another historical remark is that de Broglie was quick to appreciate that the existence of families of trajectories associated with the $S(q,t)$ function meant that a statistical element was introduced into the pilot-wave theory he was proposing. Traces of this can be found as early as 1925 [27,135,136,137], when he anticipated Born’s rule even though the Schrödinger equation had not yet been discovered! For this reason, we can truly say that the pilot-wave theory, i.e., dBB mechanics, preceded the Copenhagen interpretation.

A more critical remark is that there is no guarantee that we can always find a complete integral $S(q,\alpha ,t)$ solution to HJ Equation (46). The method often used is the separation of variables, but it does not always work [14]. In fact, it seems preferable to look at the problem the other way round. Postulating HJ Equation (46), which is a nonlinear equation dependent on a field $S(q,t)$, we can always define a class or family of trajectories using the guiding Formula (47): this is the central postulate associated with Equation (31) in classical mechanics and Equation (34) in dBB mechanics. All this becomes clearer if we start from the hydrodynamic formalism. In fact, the HJ method in classical mechanics is merely a means of describing the dynamics of a set of trajectories in configuration space, based on the analogy with a fluid without pressure P (the only forces coming from the external field $V(q,t)$) as visible from Equation (32). The HJ description is limited to potential motion, i.e., postulating irrotationality ${\omega }_{ij}(q,t)=0$. This is a restricted class of motion obeying Euler’s equation, i.e., Newton’s. The same is of course true in dBB mechanics (see Equation (35)) with the difference that in this quantum theory, there is a Madelung–de Broglie internal tension field necessary to explain the quantum forces associated with $V_{\mathrm{\Psi }}(q,t)$.

This immediately suggests possible generalizations in both classical and dBB quantum physics. Indeed, if we remove this restriction to potential motions ${\omega }_{ij}(q,t)=0$, it becomes possible to obtain a much larger class of sets of trajectories in configuration space, containing those described by the HJ equation as a special case. Such an approach is well known in hydrodynamics for inviscid fluids [138] and electromagnetics (e.g., magnetohydrodynamics) [139,140], where Clebsch potentials are introduced to describe velocity fields with vorticity. It then becomes possible to imagine extensions of Madelung’s formalism to fluids with non-zero vorticity fields. As demonstrated by Schönberg and Takabayasi [10,11], it even becomes possible to generalize Schrödinger’s equation to take into account such non-potential particle motion. Remarkably, a relativistic extension to the Klein–Gordon equation was independently proposed by Dirac [141] in the limit of zero quantum potentials, and its “dBB” generalization was proposed by Takabayasi and Schönberg [10,11] (for the Klein–Gordon equation and Dirac’s equation for half-spin particles).

In the following, we restrict ourselves to the nonrelativistic regime in a configuration space of dimension three ($N=1$) in order to simplify the analysis, although Clebsch potentials can in principle be discussed for $N>1$. We start with

$$\begin{array}{c}\hfill \left\{\begin{array}{c}({\partial }_t+\mathbf{v}(\mathbf{r},t)·\mathsf{\nabla })\mathbf{v}(\mathbf{r},t)=-\mathsf{\nabla }{\displaystyle \frac{V(\mathbf{r},t)+V_{\mathrm{\Psi }}(\mathbf{r},t)}{m}}\hfill \\ {\partial }_t{R}^2(\mathbf{r},t)+\mathsf{\nabla }·(R^2(\mathbf{r},t)\mathbf{v}(\mathbf{r},t))=0\hfill \end{array}\right.\end{array}$$

(49)

without Madelung’s constraint $\mathsf{\Omega }(\mathbf{r},t)=\mathsf{\nabla }\times \mathbf{v}(\mathbf{r},t)=0$. Following Euler, we can always write in a region where $\mathsf{\Omega }(\mathbf{r},t)\ne 0$

$$\begin{array}{c}\hfill m\mathsf{\Omega }(\mathbf{r},t)=\mathsf{\nabla }\alpha (\mathbf{r},t)\times \mathsf{\nabla }\beta (\mathbf{r},t)\end{array}$$

(50)

where $\alpha$ and $\beta$ are the so-called Euler or Clebsch potentials. This representation can be justified by using Pfaff–Darboux’s theorem [138,142,143]. Comparing with the definition for $\mathsf{\Omega }(\mathbf{r},t)$, this leads to the Clebsch decomposition

$$\begin{array}{c}\hfill m\mathbf{v}(\mathbf{r},t)=\mathsf{\nabla }S(\mathbf{r},t)+\alpha (\mathbf{r},t)\mathsf{\nabla }\beta (\mathbf{r},t)\end{array}$$

(51)

which is however not unique, since the following gauge transformations are allowed [138]:

$$\begin{array}{c}\hfill S\to S^{\prime }=S+f(\alpha ,\beta ,t)\\ \hfill \alpha \to {\alpha }^{\prime }=g(\alpha ,\beta ,t)\\ \hfill \beta \to {\beta }^{\prime }=h(\alpha ,\beta ,t)\end{array}$$

(52)

if ${\displaystyle \frac{\partial f}{\partial \beta }}+g{\displaystyle \frac{\partial h}{\partial \beta }}=\alpha$, ${\displaystyle \frac{\partial f}{\partial \alpha }}+g{\displaystyle \frac{\partial h}{\partial \alpha }}=0$. Using the Lagrangian description of a fluid, Clebsch and Hankel (see [142,143] for a clear discussion of the historical proofs but also [139] where the connection with Euler’s work is done) showed that for consistency the potentials obeyed the conditions

$$\begin{array}{c}\hfill ({\partial }_t+\mathbf{v}(\mathbf{r},t)·\mathsf{\nabla })\alpha (\mathbf{r},t):={\displaystyle \frac{d}{dt}}\alpha (\mathbf{r}(t),t)=0\\ \hfill ({\partial }_t+\mathbf{v}(\mathbf{r},t)·\mathsf{\nabla })\beta (\mathbf{r},t):={\displaystyle \frac{d}{dt}}\beta (\mathbf{r}(t),t)=0\end{array}$$

(53)

It must be noted that Equation (51) looks very similar to the HJ guidance formula for a charged particle in an external magnetic potential $\mathbf{A}(\mathbf{r},t)$ yielding $m\mathbf{v}(\mathbf{r},t)=\mathsf{\nabla }S(\mathbf{r},t)-e\mathbf{A}(\mathbf{r},t)$, where e is the electric charge of the particle.

Although we have not yet introduced electromagnetic fields into our discussion of the dBB theory, we recall that for a nonrelativistic spinless particle obeying the Schrödinger equation in the presence of a magnetic potential $\mathbf{A}$ and an electric potential V, we have:

$$\begin{array}{c}\hfill i{\partial }_t\mathrm{\Psi }(\mathbf{r},t)={\displaystyle \frac{-1}{2m}}{(\mathsf{\nabla }-ie\mathbf{A}(\mathbf{r},t))}^2\mathrm{\Psi }(\mathbf{r},t)+eV(\mathbf{r},t)\mathrm{\Psi }(\mathbf{r},t)\end{array}$$

(54)

This corresponds to Madelung’s hydrodynamic representation

$$\begin{array}{c}\hfill \left\{\begin{array}{c}-{\partial }_{t}S(\mathbf{r},t)={\displaystyle \frac{{(\mathsf{\nabla }S(\mathbf{r},t)-e\mathbf{A}(\mathbf{r},t))}^2}{2m}}+V_{\mathrm{\Psi }}(\mathbf{r},t)+eV(\mathbf{r},t)\hfill \\ {\partial }_t{R}^2(\mathbf{r},t)+\mathsf{\nabla }·(R^2(\mathbf{r},t)\mathbf{v}(\mathbf{r},t))=0\hfill \end{array}\right.\end{array}$$

(55)

which, together with the guidance formula $m\mathbf{v}(\mathbf{r},t)=\mathsf{\nabla }S(\mathbf{r},t)-e\mathbf{A}(\mathbf{r},t)$, defines the associated dBB mechanics. The second-order Newton’s dynamics yields

$$\begin{array}{c}\hfill m({\partial }_t+\mathbf{v}(\mathbf{r},t)·\mathsf{\nabla })\mathbf{v}(\mathbf{r},t)=e[\mathbf{E}(\mathbf{r},t)+\mathbf{v}(\mathbf{r},t)\times \mathbf{B}(\mathbf{r},t)]-\mathsf{\nabla }{V}_{\mathrm{\Psi }}(\mathbf{r},t)\end{array}$$

(56)

which contains the Lorentz force term $e[\mathbf{E}(\mathbf{r},t)+\mathbf{v}(\mathbf{r},t)\times \mathbf{B}(\mathbf{r},t)]$ acting upon the particle, where $\mathbf{E}(\mathbf{r},t)=-{\partial }_t\mathbf{A}(\mathbf{r},t)-\mathsf{\nabla }V(\mathbf{r},t)$ and $\mathbf{B}(\mathbf{r},t)=\mathsf{\nabla }\times \mathbf{A}(\mathbf{r},t)$ are the electric and magnetic fields, respectively. Note, in particular, that the vorticity of the velocity field is non-zero and linked to the magnetic field by $m\mathsf{\Omega }(\mathbf{r},t)=-e\mathbf{B}(\mathbf{r},t)$. Returning to our Clebsch potentials, the electromagnetic analogy suggests the identification

$$\begin{array}{c}\hfill e{\mathbf{A}}_{eff.}(\mathbf{r},t)=-\alpha (\mathbf{r},t)\mathsf{\nabla }\beta (\mathbf{r},t)\\ \hfill e{V}_{eff.}(\mathbf{r},t)=\alpha (\mathbf{r},t){\partial }_t\beta (\mathbf{r},t)\\ \hfill e{\mathbf{E}}_{eff.}(\mathbf{r},t)={\partial }_t\alpha (\mathbf{r},t)\mathsf{\nabla }\beta (\mathbf{r},t)-{\partial }_t\beta (\mathbf{r},t)\mathsf{\nabla }\alpha (\mathbf{r},t)\\ \hfill e{\mathbf{B}}_{eff.}(\mathbf{r},t)=-\mathsf{\nabla }\alpha (\mathbf{r},t)\times \mathsf{\nabla }\beta (\mathbf{r},t)\end{array}$$

(57)

where we have introduced effective potentials associated with $\alpha$ and $\beta$ (note that this constitutes a quadrivector $e{A}_{eff.}^{\mu }(x)=\alpha (x){\partial }^{\mu }\beta (x)$ where $A^{\mu }:=[V,\mathbf{A}]$, $\mathbf{x}:=[t,\mathbf{x}]$, ${\partial }^{\mu }=[{\partial }_t,-\mathsf{\nabla }]$). This immediately leads to the generalized Madelung equations for the fluid with vorticity in the presence of effective electromagnetic fields and real fields $\mathbf{A},V$:

$$\begin{array}{c}\hfill \left\{\begin{array}{c}-{\partial }_{t}S(\mathbf{r},t)={\displaystyle \frac{{[\mathsf{\nabla }S(\mathbf{r},t)+\alpha (\mathbf{r},t)\mathsf{\nabla }\beta (\mathbf{r},t)-e\mathbf{A}(\mathbf{r},t)]}^2}{2m}}+V_{\mathrm{\Psi }}(\mathbf{r},t)+\alpha (\mathbf{r},t){\partial }_t\beta (\mathbf{r},t)+eV(\mathbf{r},t)\hfill \\ {\partial }_t{R}^2(\mathbf{r},t)+\mathsf{\nabla }·(R^2(\mathbf{r},t)\mathbf{v}(\mathbf{r},t))=0\hfill \\ m\mathbf{v}(\mathbf{r},t)=\mathsf{\nabla }S(\mathbf{r},t)+\alpha (\mathbf{r},t)\mathsf{\nabla }\beta (\mathbf{r},t)-e\mathbf{A}(\mathbf{r},t)\hfill \end{array}\right.\end{array}$$

(58)

These equations are completed by the conditions (53) and we deduce the set of fundamental equations proposed by Schönberg:

$$\begin{array}{c}\hfill \left\{\begin{array}{c}i{\partial }_t\mathrm{\Psi }(\mathbf{r},t)={\displaystyle \frac{-1}{2m}}{[\mathsf{\nabla }+i\alpha (\mathbf{r},t)\mathsf{\nabla }\beta (\mathbf{r},t)-ie\mathbf{A}(\mathbf{r},t)]}^2\mathrm{\Psi }(\mathbf{r},t)+[\alpha (\mathbf{r},t){\partial }_t\beta (\mathbf{r},t)+eV(\mathbf{r},t)]\mathrm{\Psi }(\mathbf{r},t)\hfill \\ ({\partial }_t+\mathbf{v}(\mathbf{r},t)·\mathsf{\nabla })\alpha (\mathbf{r},t):={\displaystyle \frac{d}{dt}}\alpha (\mathbf{r}(t),t)=0\hfill \\ ({\partial }_t+\mathbf{v}(\mathbf{r},t)·\mathsf{\nabla })\beta (\mathbf{r},t):={\displaystyle \frac{d}{dt}}\beta (\mathbf{r}(t),t)=0\hfill \end{array}\right.\end{array}$$

(59)

Explained in another way: the Schönberg theory we have just described allows us to find solutions to the pair of hydrodynamic equations

$$\begin{array}{c}\hfill \left\{\begin{array}{c}m({\partial }_t+\mathbf{v}(\mathbf{r},t)·\mathsf{\nabla })\mathbf{v}(\mathbf{r},t)=e[\mathbf{E}(\mathbf{r},t)+\mathbf{v}(\mathbf{r},t)\times \mathbf{B}(\mathbf{r},t)]-\mathsf{\nabla }{V}_{\mathrm{\Psi }}(\mathbf{r},t)\hfill \\ {\partial }_t{R}^2(\mathbf{r},t)+\mathsf{\nabla }·(R^2(\mathbf{r},t)\mathbf{v}(\mathbf{r},t))=0\hfill \end{array}\right.\end{array}$$

(60)

in the presence of vorticity $\mathsf{\Omega }\ne 0$. The condition for this is the introduction of two Clebsch fields $\alpha ,\beta$ nonlinearly coupled to the $\mathrm{\Psi }$ wave function according to Equation (53) and with the generalized guidance condition $m\mathbf{v}(\mathbf{r},t)=\mathsf{\nabla }S(\mathbf{r},t)+\alpha (\mathbf{r},t)\mathsf{\nabla }\beta (\mathbf{r},t)-e\mathbf{A}(\mathbf{r},t)$. Note that Equation (59), or equivalently, Equations (53) and (58), can be derived using a variational principle based on the Lagrangian

$$\begin{array}{c}\hfill \mathcal{L}=-R^2[{\partial }_{t}S+\alpha {\partial }_t\beta +eV+{\displaystyle \frac{{[\mathsf{\nabla }S+\alpha \mathsf{\nabla }\beta -e\mathbf{A}]}^2}{2m}}]-{\displaystyle \frac{{(\mathsf{\nabla }R)}^2}{2m}}\end{array}$$

(61)

Several important properties follow from this dynamics. First, note that we have ${\mathbf{E}}_{eff.}(\mathbf{r},t)+\mathbf{v}(\mathbf{r},t)\times {\mathbf{B}}_{eff.}(\mathbf{r},t)=0$ from which we deduce ${\mathbf{E}}_{eff.}(\mathbf{r},t)·{\mathbf{B}}_{eff.}(\mathbf{r},t)=0$, and the effective Lorentz force ${\mathbf{F}}_{eff}=e[{\mathbf{E}}_{eff.}(\mathbf{r},t)+\mathbf{v}(\mathbf{r},t)\times {\mathbf{B}}_{eff.}(\mathbf{r},t)]$ therefore vanishes. Newton–Bohm’s dynamical law thus becomes

$$\begin{array}{c}\hfill m({\partial }_t+\mathbf{v}(\mathbf{r},t)·\mathsf{\nabla })\mathbf{v}(\mathbf{r},t)=e[\mathbf{E}(\mathbf{r},t)+\mathbf{v}(\mathbf{r},t)\times \mathbf{B}(\mathbf{r},t)]-\mathsf{\nabla }{V}_{\mathrm{\Psi }}(\mathbf{r},t)\end{array}$$

(62)

as in Equation (62). A second remark concerns the vorticity of the velocity field which implies:

$$\begin{array}{c}\hfill m\mathsf{\Omega }(\mathbf{r},t)+e\mathbf{B}(\mathbf{r},t)=-e{\mathbf{B}}_{eff.}(\mathbf{r},t)=\mathsf{\nabla }\alpha (\mathbf{r},t)\times \mathsf{\nabla }\beta (\mathbf{r},t)\end{array}$$

(63)

Moreover, from Equation (57), it is immediately clear that we have the first set of Maxwell’s equations:

$$\begin{array}{c}\hfill {\partial }_t{\mathbf{B}}_{eff.}(\mathbf{r},t)=-\mathsf{\nabla }\times {\mathbf{E}}_{eff.}(\mathbf{r},t)\end{array}$$

(64)

$$\begin{array}{c}\hfill \mathsf{\nabla }·{\mathbf{B}}_{eff.}(\mathbf{r},t)=0\end{array}$$

(65)

which implies the formula ${\partial }_t{\mathbf{B}}_{eff.}(\mathbf{r},t)=\mathsf{\nabla }\times [\mathbf{v}(\mathbf{r},t)\times {\mathbf{B}}_{eff.}(\mathbf{r},t)]$. Therefore, we obtain the hydrodynamic equation for the vorticity field $\mathsf{\Omega }$:

$$\begin{array}{c}\hfill {\partial }_t[m\mathsf{\Omega }(\mathbf{r},t)+e\mathbf{B}(\mathbf{r},t)]=\mathsf{\nabla }\times \left(\mathbf{v}(\mathbf{r},t)\times [m\mathsf{\Omega }(\mathbf{r},t)+e\mathbf{B}(\mathbf{r},t)]\right)\end{array}$$

(66)

which generalizes Equation (14).

To conclude this section, it is important to note that the Clebsch parameters introduced here do not necessarily form a global representation of the field in the entire configuration space (here three-dimensional). In fact, Pfaff–Darboux’s theorem is only valid locally [138,139,142,143]. In some cases, it may be necessary to introduce more than one pair of Clebsch potentials (at least $3N-1$ pairs of parameters are needed in a $3N$-dimensional configuration space [144]). This is linked to the topology and helicity of the velocity field, which we do not discuss here (see [138,139,145]).

6.1. The Quantum Rankine Vortex

To illustrate Schönberg’s theory, let us consider the case of a vorticity tube, which is the quantum analog of Rankine’s classical hydrodynamic model for an idealized tornado. In this model, we suppose no real electromagnetic field and the vorticity is induced by the presence of effective fields according to Equation (57). For a vortex with cylindrical symmetry around the z axis, we use the Clebsch potentials

$$\begin{array}{c}\hfill \alpha (\mathbf{r},t)=f(\xi )\\ \hfill \beta (\mathbf{r},t)=\phi +g(t)\end{array}$$

(67)

where $\xi =\sqrt{(x^2+y^2)},z,\phi$ are cylindrical coordinates, and $f(\xi )$, $g(t)$ are two unknown functions. This choice implies the effective fields:

$$\begin{array}{c}\hfill e{\mathbf{A}}_{eff.}(\mathbf{r},t)=-\alpha (\mathbf{r},t)\mathsf{\nabla }\beta (\mathbf{r},t)=-{\displaystyle \frac{f(\xi )}{\xi }}\widehat{\mathbf{\phi }}\\ \hfill e{V}_{eff.}(\mathbf{r},t)=\alpha (\mathbf{r},t){\partial }_t\beta (\mathbf{r},t)=f(\xi ){\displaystyle \frac{dg(t)}{dt}}\\ \hfill e{\mathbf{E}}_{eff.}(\mathbf{r},t)={\partial }_t\alpha (\mathbf{r},t)\mathsf{\nabla }\beta (\mathbf{r},t)-{\partial }_t\beta (\mathbf{r},t)\mathsf{\nabla }\alpha (\mathbf{r},t)=-{\displaystyle \frac{df(\xi )}{d\xi }}{\displaystyle \frac{dg(t)}{dt}}\widehat{\mathbf{\xi }}\\ \hfill e{\mathbf{B}}_{eff.}(\mathbf{r},t)=-\mathsf{\nabla }\alpha (\mathbf{r},t)\times \mathsf{\nabla }\beta (\mathbf{r},t)=-{\displaystyle \frac{1}{\xi }}{\displaystyle \frac{df(\xi )}{d\xi }}\widehat{\mathbf{z}}\end{array}$$

(68)

This induces a vorticity

$$\begin{array}{c}\hfill m\mathsf{\Omega }(\mathbf{r},t)=-e{\mathbf{B}}_{eff.}(\mathbf{r},t)={\displaystyle \frac{1}{\xi }}{\displaystyle \frac{df(\xi )}{d\xi }}\widehat{\mathbf{z}}\end{array}$$

(69)

corresponding to a tornado surrounding the z axis.

To be consistent, we look for a velocity field given by the guidance formula $m\mathbf{v}(\mathbf{r},t)=\mathsf{\nabla }S(\mathbf{r},t)+\alpha (\mathbf{r},t)\mathsf{\nabla }\beta (\mathbf{r},t)$ such that the motion is azimuthal. The wave function solution of Equation (59) is assumed to be $\mathrm{\Psi }(\mathbf{r},t):=R(\xi )e^{iN\phi }{e}^{-iEt}$, where $N\in \mathbb{R}$ describes the orbital momentum and E the particle energy (note that N is not necessarily an integer but this is later assumed). The velocity field $\mathbf{v}=v_{\phi }\widehat{\mathbf{\phi }}$ is then written

$$\begin{array}{c}\hfill m{v}_{\phi }(\xi )={\displaystyle \frac{N}{\xi }}-e{A}_{eff,\phi }(\xi )={\displaystyle \frac{N+f(\xi )}{\xi }}\end{array}$$

(70)

which can also be justified by calculating the velocity circulation on an integration contour around the z axis. The energy conservation obtained from the generalized HJ Equation (58) reads $E={\displaystyle \frac{{(m{v}_{\phi })}^2}{2m}}+e{V}_{eff}+V_{\mathrm{\Psi }}$ and leads to the radial Schrödinger equation:

$$\begin{array}{c}\hfill 0=2m[E-{\displaystyle \frac{{(N+f(\xi ))}^2}{2m{\xi }^2}}-f(\xi ){\displaystyle \frac{dg(t)}{dt}}]R(\xi )+{\displaystyle \frac{1}{\xi }}{\displaystyle \frac{dR(\xi )}{d\xi }}+{\displaystyle \frac{d^{2}R(\xi )}{d{\xi }^2}}\end{array}$$

(71)

Note that fluid conservation is automatically preserved since $\mathsf{\nabla }·{\left[\right|\mathrm{\Psi }|}^2\mathbf{v}]={\displaystyle \frac{1}{\xi }}{\partial }_{\phi }\left[v_{\phi }(\rho )R^2(\xi )\right]=0$. To further constrain the model, we need Equation (53). The condition ${\displaystyle \frac{d}{dt}}\alpha (\mathbf{r}(t),t)=0$ is automatically, fulfilled but the constraint ${\displaystyle \frac{d}{dt}}\beta (\mathbf{r}(t),t)=0$ becomes

$$\begin{array}{c}\hfill 0={\displaystyle \frac{dg(t)}{dt}}+{\displaystyle \frac{v_{\phi }(\xi )}{\xi }}\end{array}$$

(72)

After combining with Equation (70), we obtain

$$\begin{array}{c}\hfill {\displaystyle \frac{dg(t)}{dt}}=-{\displaystyle \frac{v_{\phi }(\xi )}{\xi }}=-{\displaystyle \frac{N+f(\xi )}{m{\xi }^2}}\end{array}$$

(73)

Moreover, in order for Equation (73) to be true, $N+f(\xi )$ must be proportional to ${\xi }^2$. This is only possible for a constant effective magnetic field $-e{B}_0={\displaystyle \frac{1}{\xi }}{\displaystyle \frac{df(\xi )}{d\xi }}$, which, after integration, leads to

$$\begin{array}{c}\hfill f(\xi )={\displaystyle \frac{-e{B}_0{\xi }^2}{2}}+f_0={\displaystyle \frac{-e{B}_0{\xi }^2}{2}}-N\end{array}$$

(74)

where the constant $f_0$ must be $-N$ to satisfy Equation (73). We deduce $g(t)={\displaystyle \frac{e{B}_0}{2m}}t=-\tilde{\omega }t$ and therefore $\beta =\phi +\tilde{\omega }t$, where $\tilde{\omega }$ is an angular Larmor frequency for the Clebsch potential $\beta$. We have

$$\begin{array}{c}\hfill v_{\phi }(\xi )=-{\displaystyle \frac{e{B}_0}{2m}}\xi =\tilde{\omega }\xi \\ \hfill \mathrm{\Omega }=-{\displaystyle \frac{e{B}_0}{m}}=2\tilde{\omega }\end{array}$$

(75)

The constant vorticity $\mathrm{\Omega }$ is twice the angular frequency $\tilde{\omega }$, a property already obtained with the classical Rankine tornado. In the end, this allows us to rewrite Equation (71) as:

$$\begin{array}{c}\hfill 0=[2mE+Ne{B}_0+{\displaystyle \frac{e^2{B}_0^2{\xi }^2}{4}}]R(\xi )+{\displaystyle \frac{1}{\xi }}{\displaystyle \frac{dR(\xi )}{d\xi }}+{\displaystyle \frac{d^{2}R(\xi )}{d{\xi }^2}}\end{array}$$

(76)

To complete the description of our tornado, we assume that the vorticity is constant and confined within a tube of radius ${\xi }_0$ and such that $\mathrm{\Omega }=0$ outside the tube (or filament). In the external domain, the fluid is irrotational, so let us assume $\alpha =\beta =0$ for $\xi >{\xi }_0$. According to the guiding formula, the velocity field in this domain is given by the standard de Broglie–Bohm formula $m\mathbf{v}(\mathbf{r},t)=\mathsf{\nabla }S(\mathbf{r},t)$ with the wave function ${\mathrm{\Psi }}^{\prime }(\mathbf{r},t):=R^{\prime }(\xi )e^{i{N}^{\prime }\phi }{e}^{-i{E}^{\prime }t}$ as above, with $N^{\prime }$ and $E^{\prime }$ a priori different from N and E in the inner domain ($\xi <{\xi }_0$). Note that $N^{\prime }\in \mathbb{Z}$, as usually assumed. We thus have

$$\begin{array}{c}\hfill m{v}_{\phi }(\xi )={\displaystyle \frac{N^{\prime }}{\xi }}\end{array}$$

(77)

From the energy conservation (i.e., HJ equation), we have $E^{\prime }={\displaystyle \frac{{(m{v}_{\phi })}^2}{2m}}+V_{\mathrm{\Psi }}$ and deduce the radial Schrödinger equation:

$$\begin{array}{c}\hfill 0=2m[E^{\prime }-{\displaystyle \frac{N^2}{2m{\xi }^2}}]R^{\prime }(\xi )+{\displaystyle \frac{1}{\xi }}{\displaystyle \frac{d{R}^{\prime }(\xi )}{d\xi }}+{\displaystyle \frac{d^2{R}^{\prime }(\xi )}{d{\xi }^2}}\end{array}$$

(78)

The two domains of the vortex are connected by assuming the continuity of the velocity field at $\xi ={\xi }_0$, which imposes the equality $v_{\phi }({\xi }_0)={\displaystyle \frac{N^{\prime }}{m{\xi }_0}}=-{\displaystyle \frac{e{B}_0}{2m}}{\xi }_0$ by comparing (75) and (77) and therefore the constraint

$$\begin{array}{c}\hfill N^{\prime }=-{\displaystyle \frac{e{B}_0}{2}}{\xi }_0^2\end{array}$$

(79)

Moreover, by imposing the continuity of E and N, which is equivalent to assuming the continuity of the phase of the wave function, we have $N=N^{\prime }$ and $E=E^{\prime }$. The two radial Equations (76) and (78) are greatly simplified, since the potential energy terms and their radial first derivative are also continuous. We can thus group (76) and (78) into

$$\begin{array}{c}\hfill 0=[2mE+N^2{\displaystyle \frac{({\xi }^2-2{\xi }_0^2)}{{\xi }_0^4}}\mathrm{\Theta }({\xi }_0-\xi )-{\displaystyle \frac{N^2}{{\xi }^2}}\mathrm{\Theta }(\xi -{\xi }_0)]R(\xi )+{\displaystyle \frac{1}{\xi }}{\displaystyle \frac{dR(\xi )}{d\xi }}+{\displaystyle \frac{d^{2}R(\xi )}{d{\xi }^2}}\end{array}$$

(80)

where we removed the notation $R^{\prime }(\xi )$ for the external domain since we have a single continuous radial wave function for the whole space ($\theta (x)$ is the Heaviside function with $\theta (x)=1$ for $x\ge 0$ and zero otherwise). To solve this equation, it is convenient to use the variables $\tau :=\xi /{\xi }_0$ and $R(\xi ):=G(\tau )$, and Equation (80) becomes:

$$\begin{array}{c}\hfill 0=[\epsilon +N^2({\tau }^2-2)\mathrm{\Theta }(1-\tau )-{\displaystyle \frac{N^2}{{\tau }^2}}\mathrm{\Theta }(\tau -1)]G(\tau )+{\displaystyle \frac{1}{\tau }}{\displaystyle \frac{dG(\tau )}{d\tau }}+{\displaystyle \frac{d^{2}G(\tau )}{d{\tau }^2}}\end{array}$$

(81)

with $\epsilon =2mE{\xi }_0^2$. In the domain $\tau >1$, outside the vortex, (81) reduces to a Bessel equation with the general solution

$$\begin{array}{c}\hfill R(\xi )=G(\tau )=C_1{J}_N(\sqrt{\epsilon }\tau )+C_2{Y}_N(\sqrt{\epsilon }\tau )=C_1{J}_N(\sqrt{2mE}\xi )+C_2{Y}_N(\sqrt{2mE}\xi )\end{array}$$

(82)

where $J_N$ and $Y_N$ are the Bessel functions of the first and second kind, respectively and $C_1,C_2$ are two constants. Note that in the absence of a vorticity core, i.e., if $B_0=0$, the only physical solution is the usual Bessel function $J_N(\sqrt{2mE}\xi )$. In particular, if $N>0$, we have $J_N(0)=0$, and the wave function indeed vanishes along the z axis in order to agree with the existence of the phase singularity on the nodal line. If we now assume $B_0\ne 0$, the solution $G(\tau )$ near the origin is given by the expansion

$$\begin{array}{c}\hfill G(\tau )=C_0(1+{\displaystyle \frac{2N^2-\epsilon }{4}}{\tau }^2+O({\tau }^3))\end{array}$$

(83)

with $C_0$ a constant. Note that the sign of the curvature at the origin is negative only if $\epsilon >2N^2$, i.e., $E>{\displaystyle \frac{N^2}{m{\xi }_0^2}}$. This is clearly understood if we write $G(\tau )=W(\tau )\sqrt{\tau }$ leading to the Schrödinger equation

$$\begin{array}{c}\hfill 0=[\epsilon +N^2({\tau }^2-2)\mathrm{\Theta }(1-\tau )-{\displaystyle \frac{N^2-\frac{1}{4}}{{\tau }^2}}\mathrm{\Theta }(\tau -1)]W(\tau )+{\displaystyle \frac{d^{2}W(\tau )}{d{\tau }^2}}\end{array}$$

(84)

This corresponds to the problem of a particle interacting with a one-dimensional potential barrier $U_{eff}(\tau )=N^2(2-{\tau }^2)\mathrm{\Theta }(1-\tau )+{\displaystyle \frac{N^2-\frac{1}{4}}{{\tau }^2}}\mathrm{\Theta }(\tau -1)$ whose value decreases monotonically towards zero for $\tau \to +\infty$ and such that the maximum value $U_{eff}(0)=2N^2$ is reached at the origin $\tau =0$. From this, we deduce that Equation (84), and therefore (81), admits a convergent solution only if $\epsilon >0$. On the other hand, if $\epsilon >U_{eff}(0)=2N^2$, then the energy is greater than the barrier and the wave function must decrease in amplitude. In the opposite case, if $0<\epsilon <2N^2$, the wave function must enter the barrier by tunneling, which explains qualitatively the behavior at the origin in Equation (83).

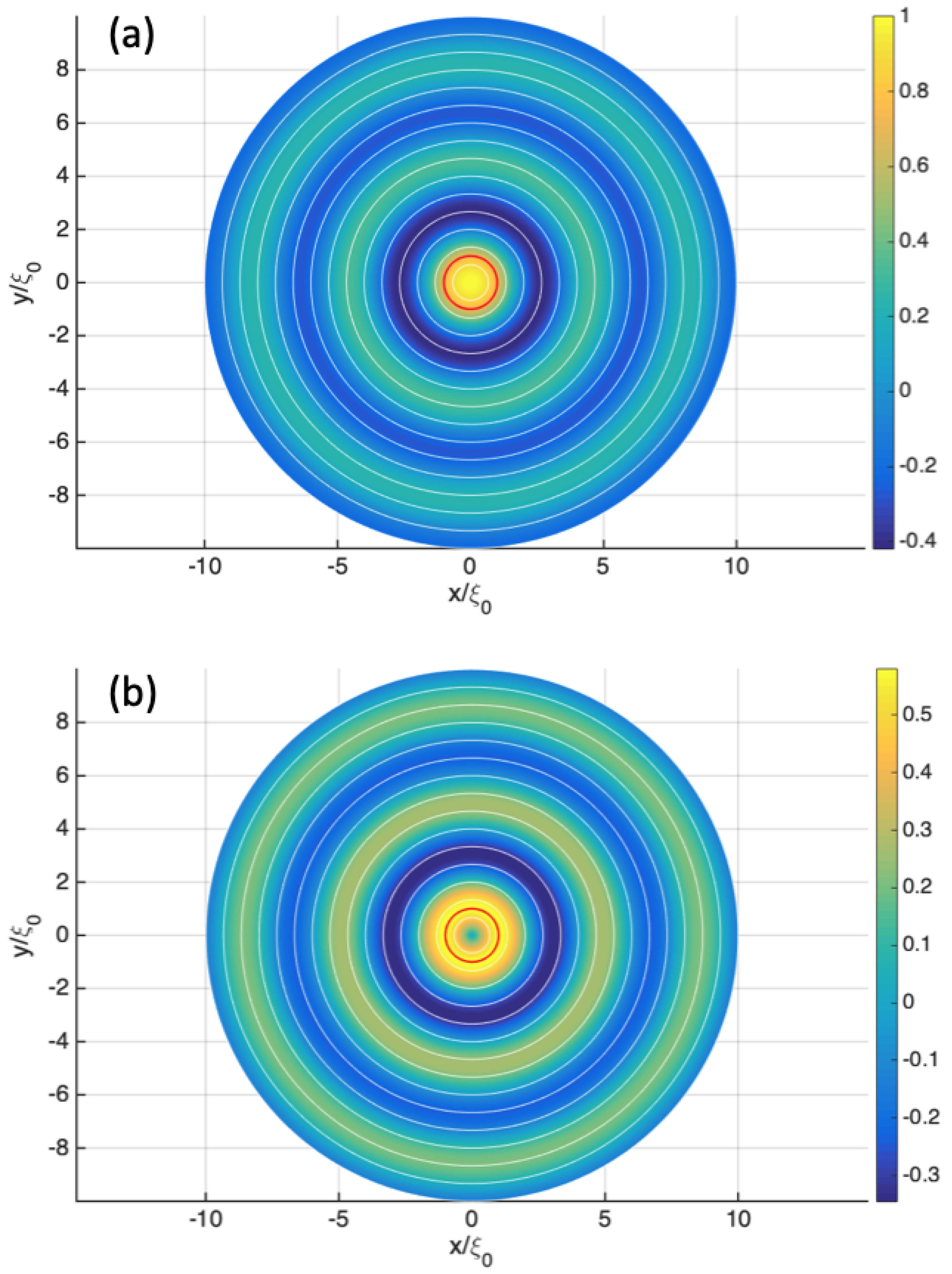

A numerical solution to Equation (81) was obtained by setting $G(0)=C_0=1$, ${\displaystyle \frac{d}{d\tau }}G(0)=0$ and using a Runge–Kutta 4 routine in Matlab. Figure 1 shows two solutions for the $N=1$ case and corresponding to $\epsilon =3>2$ and $\epsilon =1<2$, respectively.

The velocity field is therefore cylindrically symmetrical, surrounding the core of the vortex. The resulting quantum system is virtually indistinguishable from the irrotational case, in which the vortex is a nodal line (specifically, if ${\xi }_0\to 0$). A comparison of the quantum fields is shown in Figure 2.

It is important to note that the discussion here of the Rankine vortex (in its quantum version) is in line with the results obtained in pure classical hydrodynamics for an Eulerian fluid. Moreover, in the usual derivation of Rankine vortex properties, the pressure $p(\mathbf{r},t)$ can be obtained by integration of the Newton–Euler law. The same is possible here for the quantum potential $V_{\psi }(\mathbf{r},)$ replacing the pressure field: Starting from the formula $m{\displaystyle \frac{v_{\phi }^2}{\xi }}={\displaystyle \frac{\partial }{\partial \xi }}{V}_{\mathrm{\Psi }}(\xi )$ and using Equation (75) and (77), by integration, we can obtain the quantum potential in the two domains $\xi <{\xi }_0$ and $\xi >{\xi }_0$. By assuming continuity of these potentials at the core-vortex boundary $\xi ={\xi }_0$, we obtain:

$$\begin{array}{c}\hfill V_{\mathrm{\Psi }}(\xi )={\displaystyle \frac{N^2}{2m{\xi }_0^4}}({\xi }^2-2{\xi }_0^2)\mathrm{\Theta }({\xi }_0-\xi )-{\displaystyle \frac{N^2}{2m{\xi }^2}}\mathrm{\Theta }(\xi -{\xi }_0)+C\end{array}$$

(85)

where C is a constant. The same result is directly obtained from our general HJ Equation (80), which fixes the constant $C=E$.

6.2. Remarks

To conclude this analysis of Schönberg’s theory, several remarks are useful and important. First of all, it is important to remember that the primary motivation for this theory is to extend Schrödinger’s quantum theory, based on Madelung–de Broglie’s hydrodynamic analogy. Based on the idea that the description of a quantum fluid endowed with $\mathrm{\Omega }\ne$ vorticity makes sense, we are directly led through the introduction of Clebsch potentials whose coupling with the $\mathrm{\Psi }$ wave function is nonlinear and non-trivial. This is particularly apparent in the Lagrangian function (61). Takabayasi suggested that the introduction of these Clebsch potentials might have something to do with the theory of nuclear forces and mesons, which had reached an impasse in the 1950s. However, for us, what is important is that in the dBB theory, Clebsch potentials extend the class of possible particle motions beyond the standard HJ guiding formula limited to irrotational motions.

It is interesting in this context to recall that Dirac reached similar conclusions in his classical theory of the electron [141]. Indeed, limiting ourselves to the standard HJ theory based on irrotational motion, we must have the guiding formula $m\mathbf{v}(\mathbf{r},t)=\mathsf{\nabla }S(\mathbf{r},t)-e\mathbf{A}(\mathbf{r},t)$ in the presence of a magnetic field. It is clearly impossible within the framework of this classical theory to imagine a probabilistic cloud of electrons which, at a given instant t, would be motionless in a magnetic field (because then, from $\mathrm{\Omega }=0$, we would have $B=0$). This shows that the HJ theory is limited within the classical framework and is only a subclass of the Newtonian theory. The hydrodynamic formalism makes all this clear. The irrotationality postulate $\mathrm{\Omega }$ is not general enough. Thus, it seems natural to assume that the same applies to dBB’s quantum theory. If, as we believe, following de Broglie, that theory is the natural completion of classical theory (due to its ontological clarity and historical continuity with the work of Hamilton, Jacobi, and others), then the introduction of Clebsch potentials seems self-evident.

From this point of view, the de Broglie–Bohm theory is not only an ontological approach that gives meaning to quantum mechanics; it is also a means of extending or anticipating possible extensions of quantum mechanics. In other words, it becomes useful for imagining new forms of physics beyond current quantum theory. Of course, one question we must ask ourselves here is why we do not see the presence of these Clebsch $\alpha$ and $\beta$ potentials in the laboratory. Two suggestions are possible here. Firstly, in line with the literature on hydrodynamics and the Kelvin–Helmholtz theorem, we can assume that quantum fluids are currently strongly dominated by the irrotational regime $\mathrm{\Omega }=0$. In fact, in Eulerian fluid mechanics, vortices are particular regions of space where this vorticity is confined to the core region. By analogy with that work, we can assume that the same applies to the dBB theory. The example of the Rankine vortex shows that indeed, that region of non-zero vorticity can be completely isolated from the environment, where the quantum fluid can be considered as irrotational.

It is also important to note that vortices associated with nodal lines in the usual Schrödinger theory (without Clebsch potentials) are very difficult regions to study and probe experimentally, since in these regions, the probability of presence given by Born’s rule tends towards zero. This is where the link with the work of Valentini and Bohm–Vigier comes in. It is entirely possible that regions of non-zero vorticity were created in the early universe (close to the Big Bang). These regions could still have a detectable effect via their effect on particle dynamics. Moreover, vortex nodal lines obeying the standard Schrödinger equation (i.e., in the absence of $\alpha$ and $\beta$) are known to be highly chaotic regions for dBB dynamics. In Valentini’s theory, where relaxation to quantum equilibrium is paramount, the presence of vortices plays an essential role in monitoring relaxation to quantum equilibrium and Born’s law. However, the presence of non-zero vorticity domains (sort of dBB cosmic strings) could disturb these processes and could represent regions of space-time where particles out of quantum equilibrium are captured and trapped. This deserves further investigation.

Another point that deserves a more extensive analysis (but which we only touch on briefly because of its great complexity) concerns the link between Clebsch’s formalism and Pauli’s theory of half-spin particles developed by Bohm, Schiller, and Tiomno in a hydrodynamic form [13,14,146]. In Pauli’s theory, single electrons are described by $\mathrm{\Psi }(\mathbf{r},t)=\left(\begin{array}{c}{\mathrm{\Psi }}_{\uparrow }(\mathbf{r},t)\hfill \\ {\mathrm{\Psi }}_{\downarrow }(\mathbf{r},t)\hfill \end{array}\right)$ two-component spinors, of which we can give a hydrodynamic representation. To do this, we write

$$\begin{array}{c}\hfill \mathrm{\Psi }(\mathbf{r},t)=\left(\begin{array}{c}{\mathrm{\Psi }}_{\uparrow }(\mathbf{r},t)\hfill \\ {\mathrm{\Psi }}_{\downarrow }(\mathbf{r},t)\hfill \end{array}\right)=R(\mathbf{r},t)e^{iS(\mathbf{r},t)}\left(\begin{array}{c}cos({\displaystyle \frac{\vartheta (\mathbf{r},t)}{2}})e^{-i{\displaystyle \frac{\phi (\mathbf{r},t)}{2}}(\mathbf{r},t)}\hfill \\ sin({\displaystyle \frac{\vartheta (\mathbf{r},t)}{2}})e^{+i{\displaystyle \frac{\phi (\mathbf{r},t)}{2}}(\mathbf{r},t)}\hfill \end{array}\right)\end{array}$$

(86)

which contains four real fields R, S, $\vartheta$, and $\vartheta$ with a clear kinetic and dynamic interpretation. The simplest quantity is R defined by ${\mathrm{\Psi }}^{†}(\mathbf{r},t)\mathrm{\Psi }(\mathbf{r},t)=R^2(\mathbf{r},t)$ and which is associated, like in the usual dBB theory, with the Born probability distribution (i.e., assuming quantum equilibrium). The two internal angles $\vartheta , \phi$ define the local orientation of the spinor field. In fact, local spin can be introduced by the formula

$$\begin{array}{c}\hfill \Sigma (\mathbf{r},t)={\displaystyle \frac{1}{2}}{\mathrm{\Psi }}^{†}(\mathbf{r},t)\mathbf{\sigma }\mathrm{\Psi }(\mathbf{r},t)={\displaystyle \frac{1}{2}}\widehat{\mathbf{n}}(\mathbf{r},t){\mathrm{\Psi }}^{†}(\mathbf{r},t)\mathrm{\Psi }(\mathbf{r},t)\end{array}$$

(87)

which involves the Pauli matrices ${\sigma }_x,{\sigma }_y,{\sigma }_z$ grouped together in the form of a vector operator $\mathbf{\sigma }={\sigma }_x\widehat{\mathbf{x}}+{\sigma }_y\widehat{\mathbf{y}}+{\sigma }_z\widehat{\mathbf{z}}$ and whose direction $\widehat{\mathbf{n}}=\left[\begin{array}{c}cos\phi sin\vartheta \hfill \\ sin\phi sin\vartheta \hfill \\ cos\vartheta \hfill \end{array}\right]$ (in spherical coordinates) is a unit vector characterized by the internal angles $\vartheta ,\phi$ which vary continuously in the space-time of the Pauli field. The last parameter, the phase $S(\mathbf{x},t)$, is clearly a generalization of the HJ action and, in particular, it can be shown that the dBB probability fluid velocity, which also defines the particle velocity, is given by

$$\begin{array}{c}\hfill \mathbf{v}(\mathbf{r},t)=\mathsf{\nabla }{\displaystyle \frac{S(\mathbf{r},t)}{m}}-{\displaystyle \frac{e}{m}}\mathbf{A}(\mathbf{r},t)-{\displaystyle \frac{1}{2m}}cos\vartheta \mathsf{\nabla }\phi (\mathbf{r},t)+{\displaystyle \frac{\mathsf{\nabla }\times \Sigma (\mathbf{r},t)}{m{\mathrm{\Psi }}^{†}(\mathbf{r},t)\mathrm{\Psi }(\mathbf{r},t)}}\end{array}$$

(88)

In this expression, the first term and second term is the usual de Broglie–Madelung velocity in the presence of magnetic potential $\mathbf{A}(\mathbf{r},t)$. The fourth term is a magnetic term associated with the particle’s spin current. It was omitted by Bohm, Schiller, and Tiomno [146] but must appear if we consider Pauli’s theory as the nonrelativistic limit of Dirac’s equation [13]. Finally, the third term is a special case of the Clebsch representation for the spin fluid with $\alpha =-cos\vartheta$ and $\beta =\phi /2$. All this suggests a link between the particle’s spin and the Clebsch parameters, but this is neither certain nor obligatory, as we can also introduce these parameters without any reference to spin, for example in the Klein–Gordon equation, which is associated with a zero-spin particle. Furthermore, as Schönberg and Takabayasi showed [10,11], the Clebsch potential formalism can be extended to the relativistic Dirac equation for half-spin particles, meaning that the representation (88) can in fact be generalized by adding new Clebsch terms $\alpha \mathsf{\nabla }\beta$ not necessarily connected to spin.

To conclude this section, following de Broglie, we started from the idea that the classical HJ theory is transformed, in quantum physics, into the dBB theory. Since the HJ theory represents only one possible subclass of Newtonian mechanical motion (i.e., the class of irrotational motions with zero vorticity), it becomes natural to look in the quantum domain for the broadest completion corresponding to motions not necessarily limited by the zero-vorticity constraint. This is the theory proposed by Schönberg and Takabayasi [10,11], and offers a natural extension of the Schrödinger equation. Such a completion would clearly be impossible to formulate in the minimalist description of Bell and DGZ, which is limited to a formalism without quantum potential. This shows once again the importance of mechanical analogies and historical links with methods developed in the 19th century in optics, mechanics, and hydrodynamics.

7. Conclusions

A final word at the end of this work obviously concerns the title of our article. It is directly inspired by the one used by Albert Einstein, Boris Podolsky, and Nathan Rosen, who, in 1935, wrote the famous EPR article entitled “Can quantum-mechanical description of physical reality be considered complete?” [147]. The EPR authors were clearly trying to show that the answer to their question is no. For them, relativistic locality was fundamental, and they deduced a contradiction with quantum mechanics, implying its incompleteness. However, the deduction presupposed locality, and there are two other alternatives: either quantum theory is nonlocal and complete, which is the anti-realist view generally associated with Bohr’s name [148] (for a recent critique of Bohr’s analysis see [149]), or nonlocal and incomplete (which is consistent with the dBB theory). Following Bell’s work [60], we know that the alternative chosen by EPR is not tenable: Bell demonstrated that quantum theory was necessarily nonlocal (whether it is complete or not). More precisely, we would even have to say non-(locally) causal, because Bell’s locality is replaced by local causality (Bell’s theorem demonstrates the negation of this property) and we can even include a postulate of statistical independence in addition to local causality in Bell’s reasoning, which amounts to admitting the absence of super-determinism (a hypothesis we abandoned in our recent work inspired from de Broglie’s work [72,73,74]).

Now, the question we were asking in this article was a little different. Is the dBB theory really complete? We think we demonstrated through the many historical examples and technical details that the dBB theory, which is the oldest hidden-variable theory empirically equivalent to quantum mechanics, was in fact a research program. The creators of this theory have always been clear about their goal: to better understand current quantum mechanics so as to one day be able to surpass it. In this sense, the dBB theory cannot be complete. We tried to show in this work that the dBB theory, whose centenary we are celebrating, is extremely rich in physics and mathematics. This theory is strongly based on analogies between optics, fluid mechanics, and the quantum theory intuited by Louis de Broglie as early as 1923–1925. Clearly, we do not believe that this theory can be reduced to the minimal form taught and popularized in recent years on the basis of Bell’s work (even if this minimalist approach may be of pedagogical interest in certain cases). In fact, the dBB theory draws heavily on the work of Hamilton and Jacobi, and even earlier on the work of Maupertuis and Lagrange in mechanics and Fermat in optics.

An important element of this review on the different ways or alternatives of completing or modifying the dBB theory is that they are not really independent. For example, the idea of introducing dynamical fluctuations into the laws of motion could affect the way quantum equilibrium is discussed. Similarly, the idea of introducing vorticity into the quantum fluid could affect the way we see particles (according to Bohm and Vigier [20], for example, we could envisage, in agreement with Takabayasi and Schönberg [10,11], that particles are kind of mini vortices of very small dimensions carried by the fluid forming a subquantum medium and affected by Brownian fluctuations). Vorticity could also have an impact on relaxation to quantum equilibrium (this is related to the work of Valentini [150]). Last but not least, this makes a deep connection with de Broglie’s double-solution approach [49,72], as vortices and other topological structures within a fluid are good candidates for soliton models. In fact, what we see is that all these approaches are part of the same general project: that of better understanding quantum mechanics in order to go beyond it.

All this suggests the importance of a hydrodynamic description in understanding and, if possible, extending the dBB theory. We considered different scenarios for the possible extension of dBB theory, either at the statistical or dynamic level. All are interesting and open up possibilities for a better understanding of quantum mechanics. Basically, the underlying idea is that defended by Bell when he said:

“I’m quite convinced of that: quantum theory is only a temporary expedient”.

[151]
