The Lisbon Supramolecular Green Story: Mechanochemistry towards New Forms of Pharmaceuticals

by
João Luís Ferreira da Silva
1,2,
M. Fátima Minas da Piedade
1,3,
Vânia André
1,4,
Sofia Domingos
1,
Inês C. B. Martins
1 and
M. Teresa Duarte
1,2,*
1
Centro de Química Estrutural, Instituto Superior Técnico, Universidade de Lisboa, Avenida Rovisco Pais, 1049-001 Lisboa, Portugal
2
Departamento de Engenharia Química, Instituto Superior Técnico, Universidade de Lisboa, Avenida Rovisco Pais, 1049-001 Lisboa, Portugal
3
Departamento de Química e Bioquímica, Faculdade de Ciencias, Universidade de Lisboa, 1649-016 Lisboa, Portugal
4
Associação do Instituto Superior Técnico para a Investigação e Desenvolvimento (IST-ID), Av. Rovisco Pais, 1049-003 Lisboa, Portugal
*
Author to whom correspondence should be addressed.
Molecules 2020, 25(11), 2705; https://doi.org/10.3390/molecules25112705
Submission received: 30 April 2020 / Revised: 31 May 2020 / Accepted: 5 June 2020 / Published: 11 June 2020
(This article belongs to the Special Issue 1st CQE Days Meeting: 44 Years Connecting People and Chemistry)
Browse Figures
Versions Notes

Abstract

:
This short review presents and highlights the work performed by the Lisbon Group on the mechanochemical synthesis of active pharmaceutical ingredients (APIs) multicomponent compounds. Here, we show some of our most relevant contributions on the synthesis of supramolecular derivatives of well-known commercial used drugs and the corresponding improvement on their physicochemical properties. The study reflects, not only our pursuit of using crystal engineering principles for the search of supramolecular entities, but also our aim to correlate them with the desired properties. The work also covers our results on polymorphic screening and describes our proposed alternatives to induce and maintain specific polymorphic forms, and our approach to avoid polymorphism using APIs as ionic liquids. We want to stress that all the work was performed using mechanochemistry, a green advantageous synthetic technique.

Graphical Abstract

1. Introduction

Launching new active pharmaceutical ingredients (APIs) in the market is expensive, time consuming, and requires the use of complex production processes. Alternatively, pharmaceutical companies started developing strategies to improve the efficacy of well-known APIs with the aim of enhancing their physicochemical properties (solubility, dissolution rate, and bioavailability) [1,2,3] without changing their pharmacological behavior. Several approaches have been employed over the last years to achieve this goal, including the preparation of API multicomponent crystal forms (co-crystals and salts) [4,5].
Crystal engineering is a powerful tool in the rationalization of the synthesis of these new crystalline forms, searching for molecules with adequate functional groups to establish stable synthons [6] through molecular recognition, mostly involving hydrogen bonds. Defined in 1988 by Gautam Desiraju as the understanding of intermolecular interactions in the context of crystal packing and the utilization of such an understanding in the design of new solids with desired physical and chemical properties [7], it is widely used to predict and analyze the effect of structural variation in the physicochemical properties of APIs and multicomponent API derivatives [8,9,10].
Although the vast majority of the APIs (95%) are marketed as solid crystalline dosage forms, for reasons of purity, thermal stability, and the manufacturing process, there is an increasing interest in developing amorphous pharmaceutical or room temperature ionic liquids (RTILs) [11]. These compounds can not only enhance the APIs’ solubility but also avoid their polymorphic transformations, which are responsible for affecting their physicochemical properties. In this review, we will consider polymorphs as compounds that must present the same chemical composition, therefore excluding solvates or hydrates [12].
Synthetic approaches employed to prepare new multicomponent forms of APIs usually involve solution techniques, as they allow a good control of the reaction parameters (e.g., rate and yield). However, the large amounts of solvent (approximately 85% of the chemicals utilized in the pharmaceutical industry) used, apart from increasing the cost of products, cause environmental pollution and can be harmful for patients [13]. Searching for an answer to these problems has led to an increase in the use of solid-state mechanochemical techniques in the preparation of API derivatives. These solvent-free processes are also used in the synthesis of organic, inorganic, and organometallic compounds, polymers, and, more recently, metal–organic frameworks [13,14,15,16,17,18,19]. Mechanochemistry is based on the energy transfer from mechanical force to promote chemical or structural transformations. It emerged as an alternative process for the synthesis of a 1:1 co-crystal of 4-aminobenzoic acid and 3,5-dinitrobenzoic acid, in 1989 in a seminal work of Etter and Frankenbach, by manually grinding the solids with a mortar and pestle [20].
Grinding not only produced considerably smaller amounts of waste (it can be solvent free) but also proved to be a more practical and efficient (short reaction time, low temperature, absence of solvent effects) technique for the synthesis of new compounds, particularly for the screening of new API derivatives [18]. Another factor in favor of mechanochemistry is its capability to perform syntheses of products that could not be obtained by solution processes [16].
The first major development of mechanochemistry was the introduction of automated shaker and planetary ball mills [21,22]. The improvement in the control of parameters, such as the frequency and milling time, both reflected in the energy transferred, resulted in an increase of the reaction reproducibility. They also contributed to a scale-up of the reactions (from 5 mL up to 25 L) [23], both in the quantities of reactants and in time, as well as an increase of the process safety. The technique evolved with the introduction of liquid-assisted grinding (LAG), involving the addition of small volumes of solvent (in the scale of μL) to the solid reagents [24]. The presence of these solvent drops does not substantially increase the amount of waste produced, so it remains a green technique, but it does provide an increase in the mobility of the reactants, therefore improving the kinetics of product formation and allowing for the synthesis of compounds that could not be obtained by neat grinding (NG) [5,19]. LAG allows a better control of polymorphism [15] than NG and also solves crystallization problems that result from the solubility of co-crystal components, due to the permanent saturation of the solution, which takes it into a region of the ternary diagram that favors co-crystals over the crystallization of starting materials [16,18,21].
In this short review, we will mainly focus on the results obtained by the Lisbon team on co-crystals and salts, using mechanochemistry.

2. Results

In the last 12 years, our group has been involved in the synthesis and structural characterization of API co-crystals and salts, using mechanochemistry as the primary synthetic technique. We will highlight here some of the results we obtained using different APIs, whose physicochemical properties we were able to improve. Drug polymorphism has also been screened in our lab, and more recently, we developed new ionic liquids bearing the API (API-IL) as the principal constituent, using yet again mechanochemistry. We also addressed the study of several other API multicomponent forms, such as the antibiotic 4-aminosalisilic acid [25,26], paracetamol [27]. gabapentin lactam [28], the anti-hipertensive perindopril erbumine [29], and bismuth salicylate [30] that we are not referring to here, as they were done in straight collaboration with other international labs or the Portuguese industry. In all these works we used mechanochemistry as a synthetic technique, which we are also applying in the group in another context, which is that of API coordination networks [31].

2.1. Gabapentin

2.1.1. Polymorphic Screening and Control

Gabapentin is a neuroleptic drug used for the prevention of seizures and for the treatment of mood disorders, anxiety, and tardive dyskinesia, as well as for the treatment of neuropathic pain and limb tremor, presenting a high solubility but with limited and variable bioavailability [32,33,34]. It is known in three anhydrous polymorphic forms (Form II, Form III, Form IV) [35,36,37], and a monohydrate form (Form I) [38,39].
We conducted several studies to determine their thermal behavior, reactivity, and interconversion in different RH% conditions. In shelf conditions, 50%RH, Form II remains stable for 3 months, while the other forms evolve to Form II. At 100%RH all the forms change to Form I. Screening tests, using neat (NG) and liquid-assisted grinding (LAG) experiments, showed that Form II is the most stable form, while Forms III and IV convert into Form II. Upon grinding, Form II remains unchanged under the same conditions (Figure 1). Slurry tests using methanol always led to Form II, while in water the most stable is Form I, the hydrated form. We also demonstrated that Forms III and IV appear concomitantly and are impossible to isolate as pure in a bulk [37].
This experiment led us to conclude, like several other authors, that understanding, predicting, or controlling polymorphism is quite a challenge [40]. The importance of controlling API polymorphism is well known and it is a topic of high importance as 9 out of 10 marketed drugs are sold as solid dosage forms, preferably crystalline, due to their purity and thermal stability [41]. However, this is a problem as they are prone to polymorphic interconversion and it is well known that polymorphs’ physicochemical properties vary drastically [42].
Amidst the different factors influencing the crystallization process, the specific solvent–solute interactions are of major importance, and the solvent can be a determinant in the final polymorphic form [43]. These considerations led us to make use of RTILs, room temperature ionic liquids, as solvents to assess a possible control gabapentin polymorphic behavior [44].

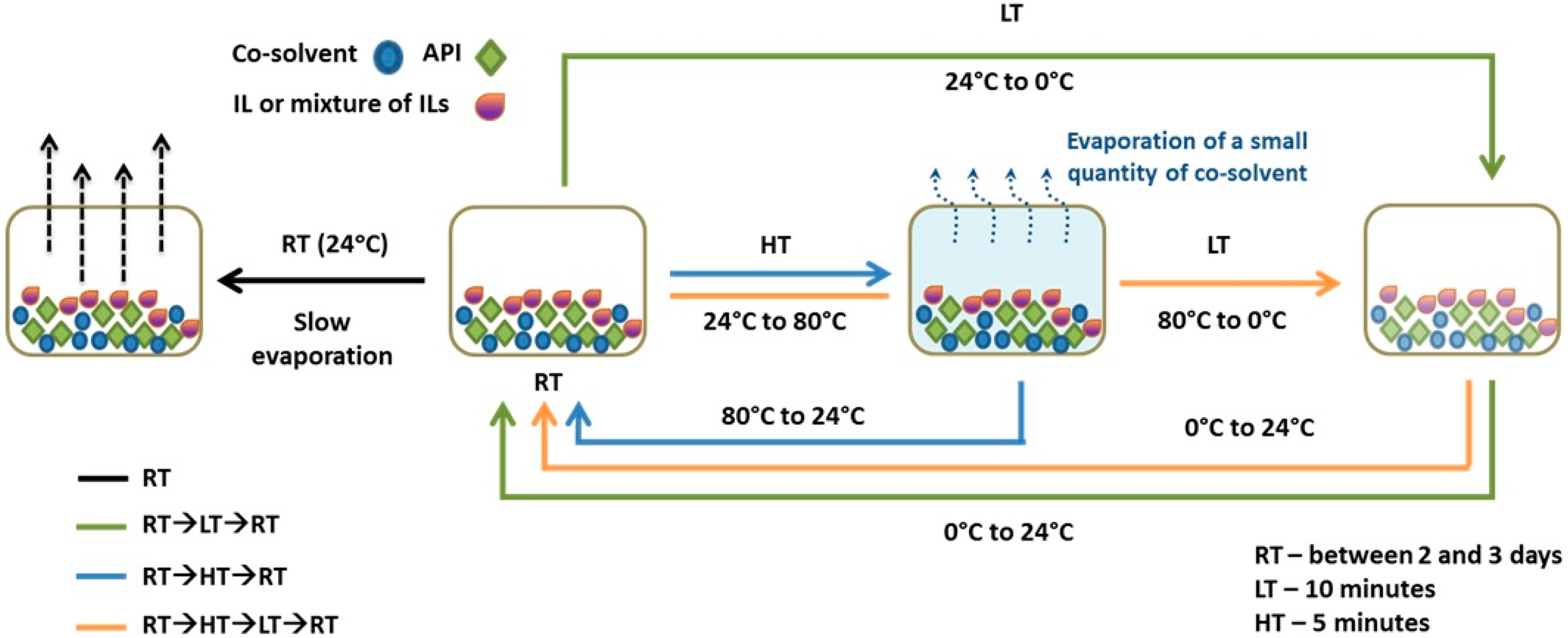

Using imidazolium-based RTILs either pure or as a mixture, we were able to induce mechanochemically the crystallization of the different polymorphic forms and isolate them as pure phases (Table 1), referring to temperature variations as seen in Figure 2.
So, for the first time, pure “bulk” GBP Form IV, a highly unstable polymorph, was isolated as well as Form III. These results were ascertained by single crystal structure determination, and bulk purity was confirmed by powder X-ray diffraction experiments. Molecular dynamics simulations clearly supported the results obtained.
However, besides inducing the preferred crystallization of a polymorphic form, it was also possible to conclude that as long as the different polymorphic forms were kept soaked in the RTILs mixtures, they remained stable over time for up to 4 months (Figure 3).
These results opened new perspectives in polymorphic-induced crystallization, so controlling the form’s appearance and maintaining it over time.

2.1.2. Novel Multicomponent Crystal Forms and Ionic Liquids

In the group we used gabapentin as a model case and, besides the polymorphic studies we presented, we also mechanochemically synthesized multicomponent crystal forms. Five new multicomponent crystal forms with isophthalic acid, phthalic acid, l-glutamine, terephthalic, and trimesic acids were prepared. The single crystal structures of the last two were determined and they were further studied by Differential Scanning Calorimetry (DSC), Thermogravimetric Analysis (TGA), Hot Stage Microscopy (HSM), and Infrared Spectroscopy (IR), and proved to be a hydrated co-crystal with trimesic acid and a molecular salt with terephthalic acid (Figure 4) [45]. The use of mechanochemistry presents a major advantage, especially with terephthalic acid, due to its very low solubility in water, which precluded a meaningful yield using the solution method. Both forms are based on carboxyl⋅⋅⋅carboxylate and amine⋅⋅⋅carboxylate synthons. The hydrate co-crystal with trimesic acid loses the water molecule in the 70–120 °C range and melts at 159 °C, while the molecular salt with terephthalic acid melts at 150 °C. For these forms, we also studied their pH stability; the trimesic acid co-crystal was shown to be stable to decomposition in the range of pH 3–8 while the form with terephthalic acid was only stable between pH 6 and 8. It is worth recalling that the co-crystal with trimesic acid is stable in a wider pH range than any of the gabapentin polymorphic forms [45].
Pursuing our studies with gabapentin and our work with polymorphism, again using mechanochemistry, we decided to check if we could avoid gabapentin polymorphism by using it as a liquid instead of a solid. We synthesized four new ionic liquids containing gabapentin, both as an anion and as a cation, which we called mechanoAPI-ILs (Active Pharmaceutical Ingredient-Ionic Liquids obtained mechanochemically) [46].
A strict comparison was made between the traditional solvent synthetic process and the mechanochemical techniques. An assessment between the two methods can be seen in Figure 5. The products obtained using both techniques were accurately characterized using 1H- and 13C-NMR spectroscopy, as well as differential scanning calorimetry (DSC). The purity of all compounds was ascertained by high-resolution MS, except in the case of (GBP) (gly) salt, for which an elemental analysis was performed because it was not possible to detect the glycolate anion owing to its low molecular weight (Table 2).
Mechanochemistry has proved to be a very promising synthetic strategy and a viable, efficient, and green alternative for the preparation of pharmaceutical ionic liquids. The results compare both the new and the classical approach and clearly show the advantages of the new method. This new technique is faster, solvent free, reproducible, selective, and leads to higher yields.

2.2. Sulfoxides: Robust Synthons in Co-Crystallization

A few years ago, Bernstein and his collaborators controversially established that diphenyl sulfoxide compounds have no tendency to form co-crystals [47]. Recently, Lawrence et al. [48] questioned this conclusion and studied the type of interactions present in supramolecular packings involving sulfoxide and sulfone compounds. They demonstrated that sulfoxide is a powerful hydrogen bond acceptor (N–H···O=S) for a variety of compounds with NH functional groups.
A significant number of drug molecules has sulfoxide groups, leading us to the study of two sulfonamides antibiotics, both highly insoluble, dapsone (DAP) and sulfadimethoxine (SDM), in order to improve their solubility and prove the possibility of expanding the pool of sulfoxide supramolecular interactions [49].

2.2.1. Dapsone Co-Crystals

Dapsone (DAP) is used in the treatment of leprosy and pneumonia but also displays neuro-protective and anti-epileptic effects [49]. So far, no polymorphic forms are known [50], while some multicomponent derivatives were reported [50,51,52].
We succeeded in obtaining two cocrystals, one with caprolactam (CAPRO) and another with 4,4′-bipyridine (BIP). The DAP supramolecular arrangement is based on strong NHNH2···OSO2 hydrogen bonds, and some of them are disrupted in both co-crystals. In the first, DAP:CAPRO, one of the amine groups of DAP interacts preferentially with the amide moiety of CAPRO, NNH2···OCONH interactions. DAP molecules still maintain one of the usual N–H···OSO2 hydrogen bonds between themselves, forming a one-dimensional chain based on C(9) synthons (Figure 6). In 2:1 (DAP:PYR), one of the DAP amine moieties interacts with the pyridine nitrogen atom (NNH2···Npyridine), again breaking the prevailing DAP–DAP interactions [49].
Having changed the supramolecular arrangement, in particular the breaking of the strong NHNH2···OSO2 hydrogen bond, we expected our products to be more soluble than DAP in aqueous solutions, but preliminary qualitative tests showed us that, unfortunately, we were wrong, as the solubility was not improved.

2.2.2. Sulfadimethoxine: Learning about Synthon Competition

In order to continue our study on the specific interactions in molecules with sulfone moieties, we turned to sulfonamides, a family of antibacterial drugs. These pharmaceuticals were one of the first antibiotics to be used systematically, but bacteria soon developed resistance to them [53].
In co-crystallization works with compounds of the sulfonamide family [48,54,55] it has been observed that the sulfone moiety is a good hydrogen bond acceptor, due to the highly polar nature of the sulfur−oxygen bond. Grant et al. [56] verified that the amide proton is the best donor for sulfonamide hydrogen bonding and that the carbonyl, sulfanyl, and activated aromatic nitrogen groups are also good acceptors. In a review about sulfonamide salts, it is stated that the deprotonated amide nitrogen atom acts as the best acceptor [54]. These results highlight the number of hydrogen bonding possibilities and that the synthon competition is great. A crystal engineering overview on the effect of co-crystalization on sulfacetamide solubility modulation, published by Nangia et al. [57], also highlights this variety of interactions and synthons.
We chose to work with sulfadimethoxine (SDM), and before attempting to prepare new crystal forms involving SDM, a Cambridge Structural Database (CSD) [50] search of synthons on pyridine-substituted benzenesulfonamides. The results obtained show that the most common synthon is the C(8) chain involving the N−Hterminal amine···Osulfone hydrogen bond, followed by an R22(8) homosynthon, which can be obtained in two different ways: One making use of two N−Hamide···Nimine hydrogen bonds (Type I) (Figure 7a) and the other by two N−Hsulfonamide···Osulfone hydrogen bonds (Type II) (Figure 7b) [58]. This way, we were able to select the best co-formers and we succeeded in obtaining eight new pure multicomponent crystal forms, using LAG.

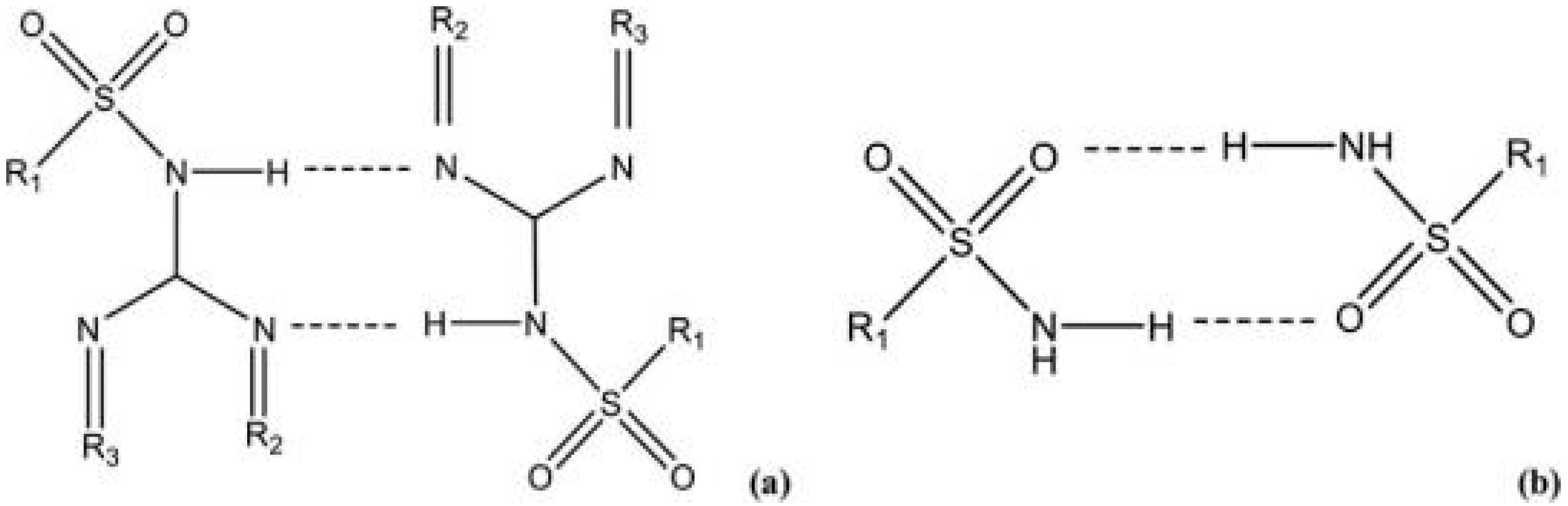

In these new forms, the R22(8) (Type II) synthon prevailing in the SDM crystal structure is always disrupted, while the chains remain unaffected, except in the presence of water molecules. As examples, we present and discuss here the case of the cocrystal with isonicotinamide (SDM:ISO) and the salt with piperazine (SDM:PIP). SDM is acidic enough to transfer the amide proton to PIP but not to ISO molecules.
In SDM:ISO, the amide nitrogen, Nsulfonamide, forms hydrogen bonds with the best acceptor of the co-former molecule, the acetamide oxygen. The C (8) synthon, formed by the terminal NH2 and the sulfone oxygen, is maintained (Figure 8).
In SDM:PIP salt, in which the best proton donor disappears due to the deprotonation of SDM, the N−Hterminal amine···Osulfone synthon C(8) is observed like in the cocrystal, but the amide moiety is not involved in supramolecular interactions. Salts also present hydrogen bonds between the protonated N of the conformer, in this case PIP, and the N atom of the sulfonamide group, but these charge-assisted interactions can also involve as an acceptor one of the oxygen atoms of the sulfonyl group as well as the Npyrazine atom (Figure 9).
Preliminary water solubility tests revealed that all the compounds obtained are more soluble than the pure sulphonamide compound, the most soluble being the salts, as expected.

2.3. Discerning Co-Crystals from Salts by X-ray Diffraction and Solid-State NMR

In the crystal engineering community, it is well known that sometimes it is rather difficult to know if we are dealing with co-crystals or molecular salts, in particular due to the salt–co-crystal continuum [59]. To tackle this issue, we decided to study some co-crystals and salts with the two techniques that allow their full characterization: X-ray diffraction and solid-state NMR (SSNMR). The latter, well established in pharma science, has been used as a complementary technique to probe the short-range local structure, helping the positioning of light atoms, such as hydrogens [60,61,62,63], and in particular to study packing interactions, such as hydrogen bonds (HBs), and even establish their relative strength [62,64].
For this, we selected two APIs, azelaic acid (AA) and adamantilamine (ADA), so that we could study both a carboxylic derivative and an amine one.

2.3.1. Azelaic Acid

AA is used to treat skin diseases, such as acne and rosacea. Usually, it is incorporated in creams or gels (20% and 15%, respectively) using alcohols as formulation solvents, due to its high insolubility in aqueous solutions. This can cause dehydration and seems to promote some instability of AA at room temperature in the lipid layer of the skin; thus, increasing the aqueous solubility of this compound is very important [65].
In the last decade, different multicomponent crystalline forms of AA were published, but mainly using solution as the main synthetic technique [66,67,68].
In our laboratory, we synthetized by mechanochemistry (LAG) five new forms: (i) a co-crystal with 4,4′-bipyridine (AA:BIP); (ii) two molecular salts with piperazine, an anhydrous and a hydrated one (AA:PIP; AA:PIP:W); and (iii) two anhydrous molecular salts with morpholine (AA:MORPH) and 1,4-diazobicyclo [2.2.2]octane (AA:DABCO) (Figure 10).
As mentioned, their structural characterization was performed using single crystal X-ray diffraction and SSNMR supported by GIPAW-DFT calculations [69].
Crystalline packing of all compounds shows that the typical R22(8) homosynthon (carboxylic···carboxylic) present in the two polymorphs of AA is disrupted [50]. The cause of this is the preferential formation of the OHCOOH···N hydrogen bond in the co-crystal, and the charged assisted +N−H···OCOO- hydrogen bond in the molecular salts. These interactions overcome the formation of OHCOOH···OCOO− synthons and stabilize the AA:co-former structure (Figure 11).
Unambiguous assignment of the salt type of compound was achieved by both 1H MAS NMR and 13C CPMAS spectra, detecting respectively a strong N−H···O hydrogen bond and the typical spectrum of COOH in COO− groups.
Thermal and room stability studies were conducted in all the new forms, and we could conclude that their behavior strongly depends on the supramolecular structure and on the strength of the hydrogen bond network.
The new AA:PIP molecular salt presented a higher value of solubility in water (AA, 10 mg/7.5 mL of water against 10 mg/0.5 mL of water for the salt), proving to be a safer alternative to the use of alcoholic solutions in the final formulations. This opens a new perspective for the use of these salts in the market.

2.3.2. Adamantylamine

Adamantylamine (ADA) is a low-affinity noncompetitive N-methyl-d-aspartate receptor antagonist widely used in the treatment of Parkinson’s disease [70,71]. There are also references to its use in the treatment of influenza (H5N1) as well as depression, alone or combined with other drugs [72,73]. ADA-free base has a very low water solubility (1.03 mg/mL) and is currently administrated in hydrochloride form (ADA·HCl), in Europe and the USA [38]. However, it was observed to be associated with some toxic effects on the central nervous system [74], and a new salt (ADA sulfate) has been tested, revealing some advantages, such as a slow concentration increase in blood plasma. This effect allowed the possibility to increase the daily dosage for treating long-term Parkinson’s disease [75].

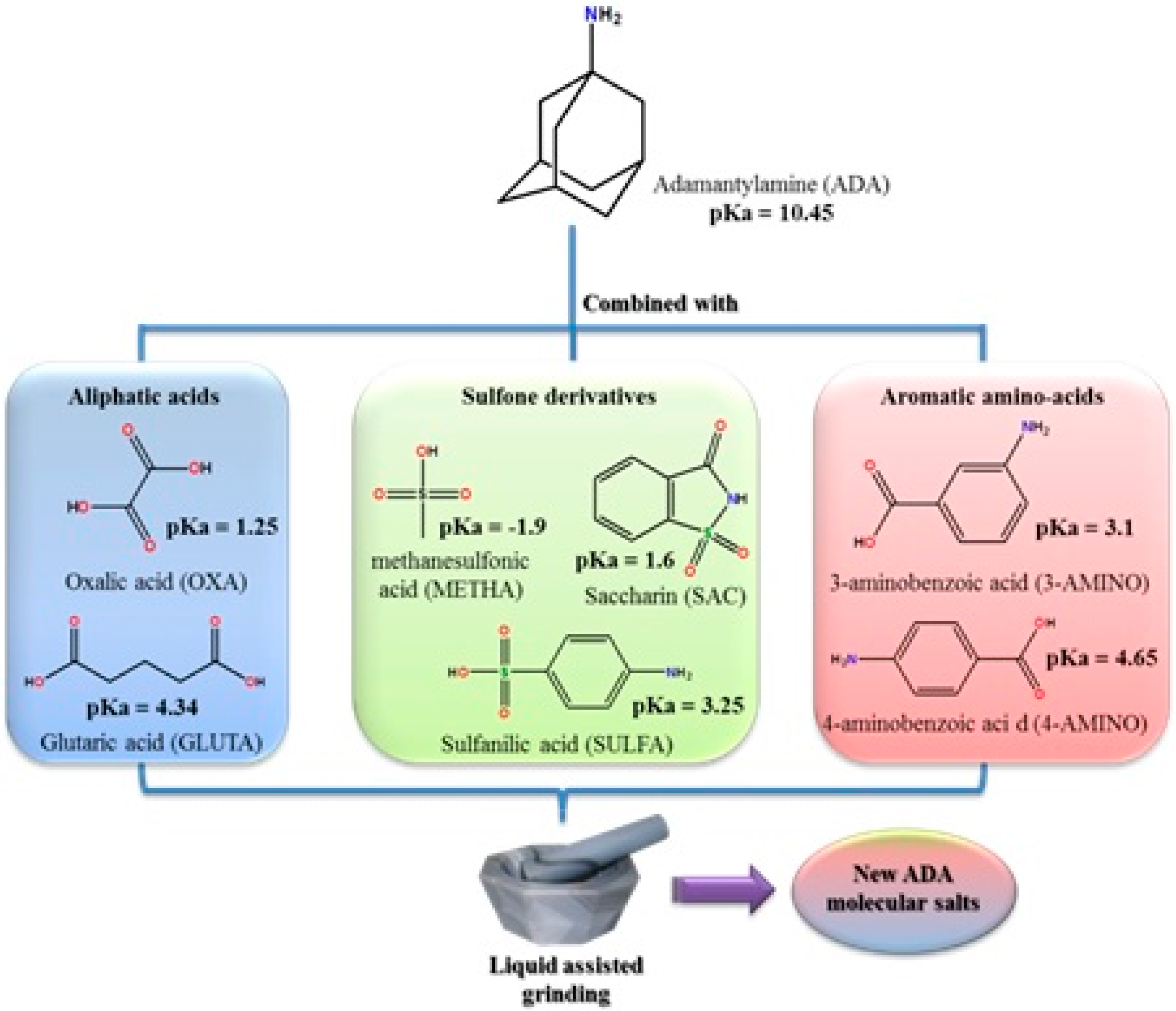

In our lab, we decided to mechanochemically synthesize some other ADA salts, using generally recognized as safe (GRAS) co-formers (Figure 12).
From this pool, we were able to isolate in a pure form seven salts: ADA:OXA, ADA:METHA, ADA:SAC, ADA:SULFA, ADA:4-AMINO, ADA:GLUTA, and ADA:3-AMINO. To carefully characterize these compounds, complementary techniques were combined, such as single crystal and powder X-ray diffraction, 13C- and 15N-solid-state-NMR, and FTIR-ATR.
15N-SSNMR analysis was extremely helpful, as it was easy to assign the protonation of the ADA amine moiety (NH3+), a shift of 5 to 8 ppm when compared with NH2 of pristine ADA (Figure 13).
Salt formation was also confirmed through the analysis of 13C CPMAS NMR, with a special emphasis on the chemical shift variation of the quaternary carbon directly attached to the amine of ADA, which is very sensitive to the protonation state of this amine group (Figure 14).
In all molecular salts, the crystal packing is supported on a common synthon, a +N−H(ADA)···O−(co-former) charge-assisted hydrogen bond. Even though the supramolecular arrangement is supported in the same type of interaction, we observed that depending on the size and functional groups of the co-former, different overall structures were obtained. For small co-formers, such as OXA or METHA, a lamellar-like packing of alternated polar and apolar domains was obtained (Figure 15).
For the other co-formers, as in the case of 4-Amino, a zeolite-like packing was attained (Figure 16).
All of the salts presented improved physicochemical properties when compared to ADA-free base, but only ADA:METHA and ADA:GLUTA performed better than the commercial salt distributed in the market (Table 3).

3. Conclusions

As mentioned, this short overview presents and highlights the work performed by the Lisbon group on the mechanochemical synthesis of active pharmaceutical ingredient (API) multicomponent compounds. This was not an exhaustive presentation and we decided to choose from our work some specific areas: systematic studies on gabapentin polymorphism, crystal engineering based studies exploring new functional groups, and the use of complementarity techniques to discern between co-crystals and molecular salts.
The results obtained on gabapentin polymorphic screening, using mechanochemistry, and the method by which we were able to induce and control its different polymorphic forms using RTILs are completely new. In this approach, we were also able to isolate and maintain the different forms for 4 months, if they were kept soaked. Additionally, we produced for the first time several ionic liquids bearing the drug, avoiding gabapentin polymorphic behavior.
As an application of crystal engineering principles, we presented our work using sulfoxides as robust synthons, analyzing the supramolecular arrangement obtained in multicomponent crystal forms of dapsone and sulfadimethoxine. We correlated their crystal packing with their physicochemical properties, such as thermal and humidity stability and solubility. All the SDM salts presented a higher solubility than pristine sulfadimethoxine.
To distinguish cocrystals from salts using a unique structural characterization technique is sometimes impossible. We presented the results obtained for azelaic acid and adamantylamine; simultaneously, X-ray diffraction, SSNMR, and DFT calculations were used.
We also want to highlight that mechanochemistry has proved to be a very promising synthetic technique, and that, when comparing the results obtained in the preparation of pharmaceutical ionic liquids, the new technique proved to be faster, solvent free, reproducible, selective, and leading to higher yields.

Author Contributions

Preparation, review and editing of this manuscript, J.L.F.d.S.; Supervised part of the work done in sulfadomethoxine, M.F.M.d.P.; Seminal work on Gabapentine polymorphism and Gabapentine multicomponent crystal forms, V.A.; Studies on the supramolecular interactions on sulfadimethoxine derivatives, S.D.; Studies on Gabapentine polymorphic control with ionic liquids, Synthesis of Mechano-API-ILs, Studies with Azelaic acid as well as Dapsone and Adamantylamine, I.C.B.M.; Supervision of all the experimental work presented in this manuscript and writing of the manuscript, M.T.D.; All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Fundação para a Ciência e a Tecnologia, grant numbers PEST-OE/QUI/UI0100/2013 (CQE) and RECI/QEQ-QIN70189/2012 (M.T.D. as PI), V.A. was funded by SFRH/BPD/78854/2011 and CEECIN/02001/2017 post-doctoral grants; S.D. was funded by Research Grant PTDC/CTM-BPC/122447/2010; I.C.B.M. was funded by PhD grant SFRH/BD/93140/2013 and S.Q. by PhD grant SFRH/BD/100024/2014.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Brittain, H.G. Pharmaceutical cocrystals: The coming wave of new drug substances. J. Pharm. Sci. 2013, 102, 311–317. [Google Scholar] [CrossRef]
  2. Jones, W.; Motherwell, S.; Trask, A.V. Pharmaceutical cocrystals: An emerging approach to physical property enhancement. Mrs. Bull. 2006, 31, 875–879. [Google Scholar] [CrossRef] [Green Version]
  3. Schultheiss, N.; Newman, A. Pharmaceutical Cocrystals and Their Physicochemical Properties. Cryst. Growth Des. 2009, 9, 2950–2967. [Google Scholar] [CrossRef] [Green Version]
  4. Arenas-Garcia, J.I.; Herrera-Ruiz, D.; Morales-Rojas, H.; Hopfl, H. Interrelation of the dissolution behavior and solid-state features of acetazolamide cocrystals. Eur. J. Pharm. Sci. 2017, 96, 299–308. [Google Scholar] [CrossRef]
  5. Tan, D.; Loots, L.; Friscic, T. Towards medicinal mechanochemistry: Evolution of milling from pharmaceutical solid form screening to the synthesis of active pharmaceutical ingredients (APIs). Chem. Commun. 2016, 52, 7760–7781. [Google Scholar] [CrossRef]
  6. Desiraju, G. Supramolecular Synthons In Crystal Engineering-A New Organic-Synthesis. Angew. Chem. Int. Ed. Eng. 1995, 34, 2311–2327. [Google Scholar] [CrossRef]
  7. Desiraju, G. Crystal Engineering: The design of Organic Solids; Elsevier: Amsterdam, The Netherlands, 1989. [Google Scholar]
  8. Bond, A.D. Fundamental Aspects of Salts and Co-crystals. In Pharmaceutical Salts and Co-crystals; Wouters, J., Queré, L., Eds.; RSC Publishing: Cambridge, UK, 2016; pp. 9–28. [Google Scholar]
  9. Desiraju, G.R. Crystal Engineering: From Molecule to Crystal. J. Am. Chem. Soc. 2013, 135, 9952–9967. [Google Scholar] [CrossRef]
  10. Friscic, T. Supramolecular concepts and new techniques in mechanochemistry: Cocrystals, cages, rotaxanes, open metal-organic frameworks. Chem. Soc. Rev. 2012, 41, 3493–3510. [Google Scholar] [CrossRef]
  11. Shamshina, J.; Berton, P.; Wang, H.; Zhou, X.; Gurau, G.; Rodgers, R. Ionic Liquids in Pharmaceutical Industry. In Green Techniques for Organic Synthesis and Medicinal Chemistry, 2nd ed.; Zhang, W., Cue, B., Cue, B.W., Cue, B.W., Eds.; John Wiley & Sons, Ltd: Oxford, UK, 2018; pp. 539–577. [Google Scholar]
  12. Nangia, A.; Desiraju, G.R. Pseudopolymorphism: Occurrences of hydrogen bonding organic solvents in molecular crystals. Chem. Commun. 1999, 7, 605–606. [Google Scholar] [CrossRef]
  13. James, S.L.; Adams, C.J.; Bolm, C.; Braga, D.; Collier, P.; Friscic, T.; Grepioni, F.; Harris, K.D.M.; Hyett, G.; Jones, W.; et al. Mechanochemistry: Opportunities for new and cleaner synthesis. Chem. Soc. Rev. 2012, 41, 413–447. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Braga, D.; Maini, L.; Grepioni, F. Mechanochemical preparation of co-crystals. Chem. Soc. Rev. 2013, 42, 7638–7648. [Google Scholar] [CrossRef]
  15. Delori, A.; Friscic, T.; Jones, W. The role of mechanochemistry and supramolecular design in the development of pharmaceutical materials. CrystEngComm 2012, 14, 2350–2362. [Google Scholar] [CrossRef]
  16. Friscic, T.; Jones, W. Application of Mechanochemistry in the Synthesis and Discovery of New Pharmaceutical Forms: Co-crystals, Salts and Coordination Compounds. In Pharmaceutical Salts and Co-Crystals; Wouters, J., Queré, L., Eds.; RSC Publishing: Cambridge, UK, 2016; pp. 154–187. [Google Scholar]
  17. Ventura, B.; Bertocco, A.; Braga, D.; Catalano, L.; d’Agostino, S.; Grepioni, F.; Taddei, P. Luminescence Properties of 1,8-Naphthalimide Derivatives in Sol;ution, in Their Crystals, and in Co-crystals: Toward Room-Temperature Phosphorescence from Organic Materials. J. Phys. Chem. C 2014, 118, 18646–18658. [Google Scholar] [CrossRef]
  18. Weyna, D.R.; Shattock, T.; Vishweshwar, P.; Zaworotko, M.J. Synthesis and Structural Characterization of Cocrystals and Pharmaceutical Cocrystals: Mechanochemistry vs Slow Evaporation from Solution. Cryst. Growth Des. 2009, 9, 1106–1123. [Google Scholar] [CrossRef]
  19. Friscic, T. New opportunities for materials synthesis using mechanochemistry. J. Mater. Chem. 2010, 20, 7599–7605. [Google Scholar] [CrossRef]
  20. Frankenbach, G.M.; Etter, M.C. Relationship between Symmetry in Hydrogen-Bonded Benzoic-Acids and the Formation of Acentric Crystal-Structures. Chem. Mater. 1992, 4, 272–278. [Google Scholar] [CrossRef]
  21. Do, J.L.; Friscic, T. Mechanochemistry: A Force of Synthesis. ACS Cent. Sci. 2017, 3, 13–19. [Google Scholar] [CrossRef] [Green Version]
  22. Hernández, J.G.; Bolm, C. Altering Product Selectivity by Mechanochemistry. J. Org. Chem. 2017, 82, 4007–4019. [Google Scholar] [CrossRef]
  23. Available online: https://www.lithmachine.com/planetary-ball-mill-machine_p163.html (accessed on 25 May 2020).
  24. Shan, N.; Toda, F.; Jones, W. Mechanochemistry and co-crystal formation: Effect of solvent on reaction kinetics. Chem. Commun. 2002, 20, 2372–2373. [Google Scholar] [CrossRef]
  25. Andre, V.; Braga, D.; Grepioni, F.; Duarte, M.T. Crystal Forms of the Antibiotic 4-Aminosalicylic Acid: Solvates and Molecular Salts with Dioxane, Morpholine, and Piperazine. Cryst. Growth Des. 2009, 9, 5108–5116. [Google Scholar] [CrossRef]
  26. Andre, V.; Duarte, M.T.; Braga, D.; Grepioni, F. Polymorphic Ammonium Salts of the Antibiotic 4-Aminosalicylic Acid. Cryst. Growth Des. 2012, 12, 3082–3090. [Google Scholar] [CrossRef]
  27. Andre, V.; da Piedade, M.F.M.; Duarte, M.T. Revisiting paracetamol in a quest for new co-crystals. CrystEngComm 2012, 14, 5005–5014. [Google Scholar] [CrossRef]
  28. Maheshwari, C.; Andre, V.; Reddy, S.; Roy, L.; Duarte, T.; Rodrigez-Hornedo, N. Tailoring aqueous solubility of a highly soluble compound via cocrystallization: effect of co-former ionization, pH(max) and solute-solvent interactions. CrystEngComm 2012, 14, 4801–4811. [Google Scholar] [CrossRef]
  29. Andre, V.; Cunha-Silva, L.; Duarte, M.T.; Santos, P.P. First Crystal Structures of the Antihypertensive Drug Perindopril Erbumine: A Novel Hydrated Form and Polymorphs alpha and beta. Cryst. Growth Des. 2011, 11, 3703–3706. [Google Scholar] [CrossRef]
  30. Andre, V.; Hardeman, A.; Halasz, I.; Stein, R.S.; Jackson, G.J.; Reid, D.G.; Duer, M.J.; Curfs, C.; Duarte, M.T.; Friscic, T. Mechanosynthesis of the Metallodrug Bismuth Subsalicylate from Bi2O3 and Structure of Bismuth Salicylate without Auxiliary Organic Ligands. Angew. Chem. Int. Ed. 2011, 50, 7858–7861. [Google Scholar] [CrossRef] [PubMed]
  31. Quaresma, S.; Andre, V.; Antunes, A.M.M.; Vilela, S.M.F.; Amariei, G.; Arenas-Vivo, A.; Rosal, R.; Horcajada, P.; Duarte, M.T. Novel Antibacterial Azelaic Acid BioMOFs. Cryst. Growth Des. 2020, 20, 370–382. [Google Scholar] [CrossRef]
  32. Jensen, A.A.; Mosbacher, J.; Elg, S.; Lingenhoehl, K.; Lohmann, T.; Johansen, T.N.; Abrahamsen, B.; Mattsson, J.P.; Lehmann, A.; Bettler, B.; et al. The anticonvulsant gabapentin (Neurontin) does not act through gamma-aminobutyric acid-B receptors. Mol. Pharmacol. 2002, 61, 1377–1384. [Google Scholar] [CrossRef] [Green Version]
  33. Taylor, C.P.; Gee, N.S.; Su, T.Z.; Kocsis, J.D.; Welty, D.F.; Brown, J.P.; Dooley, D.J.; Boden, P.; Singh, L. A summary of mechanistic hypotheses of gabapentin pharmacology. Epilepsy Res. 1998, 29, 233–249. [Google Scholar] [CrossRef]
  34. Ettinger, A.B.; Argoff, C.E. Use of Antiepileptic drugs for nonepileptic conditions: Psychiatric disorders and chronic pain. Neurotherapeutics 2007, 4, 75–83. [Google Scholar] [CrossRef]
  35. Reece, H.A.; Levendis, D.C. Polymorphs of gabapenitin. Acta Crystallogr. C 2008, 64, CO105–CO108. [Google Scholar] [CrossRef]
  36. Ibers, J.A. Gabapentin and gabapentin monohydrate. Acta Crystallogr. C 2001, 57, 641–643. [Google Scholar] [CrossRef] [PubMed]
  37. Braga, D.; Grepioni, F.; Maini, L.; Rubini, K.; Polito, M.; Brescello, R.; Cotarca, L.; Duarte, M.T.; Andre, V.; Piedade, M.F.M. Polymorphic gabapentin: Thermal behaviour, reactivity and interconversion of forms in solution and solid-state. New J. Chem. 2008, 32, 1788–1795. [Google Scholar] [CrossRef]
  38. Vasudev, P.G.; Aravinda, S.; Ananda, K.; Veena, S.D.; Nagarajan, K.; Shamala, N.; Balaram, P. Crystal Structures of a New Polymorphic Form of Gabapentin Monohydrate and the E and Z Isomers of 4-Tertiarybutylgabapentin. Chem. Biol. Drug Des. 2009, 73, 83–96. [Google Scholar] [CrossRef] [PubMed]
  39. Butler, D.E.; Greenman, B.J. Gabapentin monohydrate and a process for producing the same. US4894476-A, 16 January 1990. [Google Scholar]
  40. Braga, D.; Grepioni, F.; Maini, L.; Polito, M. Crystal Polymorphism and Multiple Crystal Forms. Mol. Networks 2009, 132, 25–50. [Google Scholar]
  41. Domingos, S.; Andre, V.; Quaresma, S.; Martins, I.C.B.; da Piedade, M.F.M.; Duarte, M.T. New forms of old drugs: Improving without changing. J. Pharm. Pharmacol. 2015, 67, 830–846. [Google Scholar] [CrossRef] [PubMed]
  42. Cruz-Cabeza, A.J.; Reutzel-Edens, S.M.; Bernstein, J. Facts and fictions about polymorphism. Chem. Soc. Rev. 2015, 44, 8619–8635. [Google Scholar] [CrossRef] [PubMed]
  43. Brittain, H.G. Polymorphism and solvatomorphism 2006. J. Pharm. Sci. 2008, 97, 3611–3636. [Google Scholar] [CrossRef]
  44. Martins, I.C.B.; Gomes, J.R.B.; Duarte, M.T.; Mafra, L. Understanding Polymorphic Control of Pharmaceuticals Using lmidazolium-Based Ionic Liquid Mixtures as Crystallization Directing Agents. Cryst. Growth Des. 2017, 17, 428–432. [Google Scholar] [CrossRef]
  45. Andre, V.; Fernandes, A.; Santos, P.P.; Duarte, M.T. On the Track of New Multicomponent Gabapentin Crystal Forms: Synthon Competition and pH Stability. Cryst. Growth Des. 2011, 11, 2325–2334. [Google Scholar] [CrossRef]
  46. Martins, I.C.B.; Oliveira, M.C.; Diogo, H.P.; Branco, L.C.; Duarte, M.T. MechanoAPI-ILs: Pharmaceutical Ionic Liquids Obtained through Mechanochemical Synthesis. Chemsuschem 2017, 10, 1360–1363. [Google Scholar] [CrossRef]
  47. Rafilovich, M.; Bernstein, J.; Hickey, M.B.; Tauber, M. Benzidine: A co-crystallization agent for proton acceptors. Cryst. Growth Des. 2007, 7, 1777–1782. [Google Scholar] [CrossRef]
  48. Eccles, K.S.; Elcoate, C.J.; Stokes, S.P.; Maguire, A.R.; Lawrence, S.E. Sulfoxides: Potent Co-Crystal Formers. Cryst. Growth Des. 2010, 10, 4243–4245. [Google Scholar] [CrossRef]
  49. Martins, I.; Martins, M.; Fernandes, A.; Andre, V.; Duarte, M.T. An insight into dapsone co-crystals: Sulfones as participants in supramolecular interactions. CrystEngComm 2013, 15, 8173–8179. [Google Scholar] [CrossRef] [Green Version]
  50. Allen, F.H. The Cambridge Structural Database: A quarter of a million crystal structures and rising. Acta Crystallogr. B 2002, 58, 380–388. [Google Scholar] [CrossRef] [PubMed]
  51. Lemmer, H.; Stieger, N.; Liebenberg, W.; Caira, M.R. Solvatomorphism of the Antibacterial Dapsone: X-ray Structures and Thermal Desolvation Kinetics. Cryst. Growth Des. 2012, 12, 1683–1692. [Google Scholar] [CrossRef]
  52. Smith, G.; Wermuth, U.D. Hydrogen bonding in cyclic imides and amide carboxylic acid derivatives from the facile reaction of cis-cyclohexane-1,2-carboxylic anhydride with o- and p-anisidine and m- and p-aminobenzoic acids. Acta Crystallogr. C 2012, 68. [Google Scholar]
  53. Skold, O. Sulfonamide resistance: Mechanisms and trends. Drug Resist Update 2000, 3, 155–160. [Google Scholar] [CrossRef]
  54. Caira, M.R. Sulfa drugs as model cocrystal formers. Mol. Pharmaceut. 2007, 4, 310–316. [Google Scholar] [CrossRef]
  55. Hunter, C.A. Quantifying intermolecular interactions: Guidelines for the molecular recognition toolbox. Angew. Chem. Int. Ed. 2004, 43, 5310–5324. [Google Scholar] [CrossRef]
  56. Adsmond, D.A.; Grant, D.J.W. Hydrogen bonding in sulfonamides. J. Pharm. Sci. 2001, 90, 2058–2077. [Google Scholar] [CrossRef] [PubMed]
  57. Goud, N.R.; Khan, R.A.; Nangia, A. Modulating the solubility of sulfacetamide by means of cocrystals. CrystEngComm 2014, 16, 5859–5869. [Google Scholar] [CrossRef]
  58. Domingos, S.; Fernandes, A.; Duarte, M.T.; Piedade, M.F.M. New Multicomponent Sulfadimethoxine Crystal Forms: Sulfonamides as Participants in Supramolecular Interactions. Cryst. Growth Des. 2016, 16, 1879–1892. [Google Scholar] [CrossRef]
  59. Childs, S.L.; Stahly, G.P.; Park, A. The salt-cocrystal continuum: The influence of crystal structure on ionization state. Mol. Pharm. 2007, 4, 323–338. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  60. Schlesinger, C.; Tapmeyer, L.; Gumbert, S.D.; Prill, D.; Bolte, M.; Schmidt, M.U.; Saal, C. Absolute Configuration of Pharmaceutical Research Compounds Determined by X-ray Powder Diffraction. Angew. Chem. Int. Ed. 2018, 57, 9150–9153. [Google Scholar] [CrossRef]
  61. Dempah, K.E.; Barich, D.H.; Kaushal, A.M.; Zong, Z.X.; Desai, S.D.; Suryanarayanan, R.; Kirsch, L.; Munson, E.J. Investigating Gabapentin Polymorphism Using Solid-State NMR Spectroscopy. Aaps. Pharmscitech. 2013, 14, 19–28. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  62. Stevens, J.S.; Byard, S.J.; Seaton, C.C.; Sadiq, G.; Davey, R.J.; Schroeder, S.L.M. Proton transfer and hydrogen bonding in the organic solid state: A combined XRD/XPS/ssNMR study of 17 organic acid-base complexes. Phys. Chem. Chem. Phys. 2014, 16, 1150–1160. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  63. Mafra, L.; Santos, S.M.; Siegel, R.; Alves, I.; Paz, F.A.A.; Dudenko, D.; Spiess, H.W. Packing Interactions in Hydrated and Anhydrous Forms of the Antibiotic Ciprofloxacin: A Solid-State NMR, X-ray Diffraction, and Computer Simulation Study. J. Am. Chem. Soc. 2012, 134, 71–74. [Google Scholar] [CrossRef]
  64. Martins, I.C.B.; Sardo, M.; Santos, S.M.; Femandes, A.; Antunes, A.; Andre, V.; Mafra, L.; Duarte, M.T. Packing Interactions and Physicochemical Properties of Novel Multicomponent Crystal Forms of the Anti-Inflammatory Azelaic Acid Studied by X-ray and Solid-State NMR. Cryst. Growth Des. 2016, 16, 154–166. [Google Scholar] [CrossRef]
  65. Liu, R.H.; Smith, M.K.; Basta, S.A.; Farmer, E.R. Azelaic acid in the treatment of papulopustular rosacea—A systematic review of randomized controlled trials. Arch. Dermatol. 2006, 142, 1047–1052. [Google Scholar] [CrossRef]
  66. Thompson, L.J.; Voguri, R.S.; Male, L.; Tremayne, M. The crystal structures and melting point properties of isonicotinamide cocrystals with alkanediacids HO2C(CH2)(n-2)CO2H n=7-9. CrystEngComm 2011, 13, 4188–4195. [Google Scholar] [CrossRef]
  67. Braga, D.; Dichiarante, E.; Palladino, G.; Grepioni, F.; Chierotti, M.R.; Gobetto, R.; Pellegrino, L. Remarkable reversal of melting point alternation by co-crystallization. CrystEngComm 2010, 12, 3534–3536. [Google Scholar] [CrossRef]
  68. Aakeroy, C.B.; Panikkattu, S.V.; DeHaven, B.; Desper, J. Establishing Supramolecular Control over Solid-State Architectures: A Simple Mix and Match Strategy. Cryst. Growth Des. 2012, 12, 2579–2587. [Google Scholar] [CrossRef]
  69. Yates, J.R.; Pickard, C.J.; Mauri, F. Calculation of NMR chemical shifts for extended systems using ultrasoft pseudopotentials. Phys. Rev. B 2007, 76, 11. [Google Scholar] [CrossRef]
  70. Stanicova, J.; Miskovsky, P.; Sutiak, V. Amantadine: An antiviral and antiparkinsonian agent. Vet. Med.-Czech 2001, 46, 244–256. [Google Scholar] [CrossRef] [Green Version]
  71. Hubsher, G.; Haider, M.; Okun, M.S. Amantadine The journey from fighting flu to treating Parkinson disease. Neurology 2012, 78, 1096–1099. [Google Scholar] [CrossRef] [PubMed]
  72. Jacob, A.; Sood, R.; Chanu, K.V.; Bhatia, S.; Khandia, R.; Pateriya, A.K.; Nagarajan, S.; Dimri, U.; Kulkarni, D.D. Amantadine resistance among highly pathogenic avian influenza viruses (H5N1) isolated from India. Microb. Pathog. 2016, 91, 35–40. [Google Scholar] [CrossRef]
  73. Rodnitzky, R.L.; Narayanan, N.S. Amantadine’s role in the treatment of levodopa-induced dyskinesia. Neurology 2014, 82, 288–289. [Google Scholar] [CrossRef] [Green Version]
  74. Dolin, R.; Reichman, R.C.; Madore, H.P.; Maynard, R.; Linton, P.N.; Webberjones, J. A CONTROLLED TRIAL OF AMANTADINE AND RIMANTADINE IN THE PROPHYLAXIS OF INFLUENZA-A INFECTION. N. Eng. J. Med. 1982, 307, 580–584. [Google Scholar] [CrossRef]
  75. Heim, C.; Sontag, K.H. Memantine prevents progressive functional neurodegeneration in rats. J. Neural Transm. Suppl. 1995, 46, 117–130. [Google Scholar]
  76. Martins, I.C.B.; Sardo, M.; Alig, E.; Fink, L.; Schmidt, M.U.; Mafra, L.; Duarte, M.T. Enhancing Adamantylamine Solubility through Salt Formation: Novel Products Studied by X-ray Diffraction and Solid-State NMR. Cryst. Growth Des. 2019, 19, 1860–1873. [Google Scholar] [CrossRef]
Molecules 25 02705 g001 550

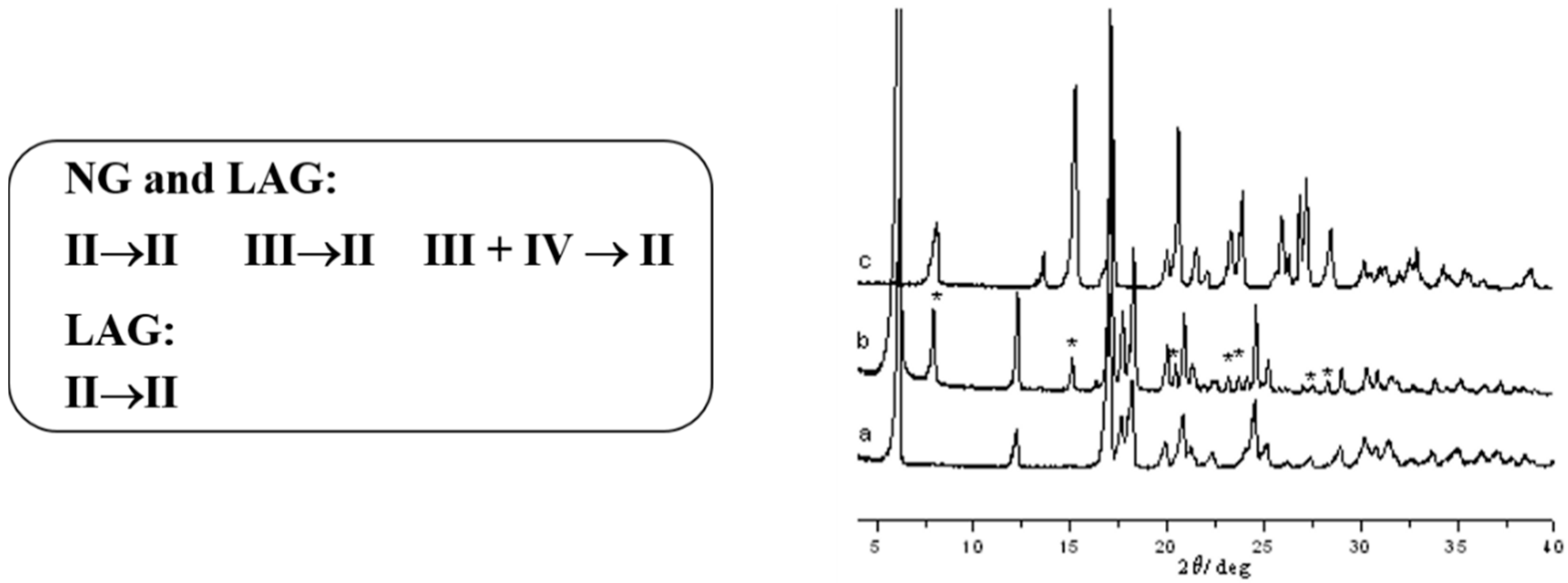

Figure 1. (left) Summary of the neat (NG) and liquid assisted grinding (LAG) polymorphic stability experiments; (right) XRPD patterns of (a) Form III, (b) Form III after grinding (stars indicate peaks of Form II) and (c) Form III after LAG using ethanol leading to complete conversion into Form II [37].
Figure 1. (left) Summary of the neat (NG) and liquid assisted grinding (LAG) polymorphic stability experiments; (right) XRPD patterns of (a) Form III, (b) Form III after grinding (stars indicate peaks of Form II) and (c) Form III after LAG using ethanol leading to complete conversion into Form II [37].
Molecules 25 02705 g001
Molecules 25 02705 g002 550
Figure 2. Schematic representation of the complete process followed to obtain GBP crystals. Conditions steps are represented with different colored arrows: RT (black); RT→HT→RT (green); RT→HT→RT (blue) and RT→HT→LT→RT (orange). RT, LT and HT stand for 24, 0, and 80 °C, respectively [44].
Figure 2. Schematic representation of the complete process followed to obtain GBP crystals. Conditions steps are represented with different colored arrows: RT (black); RT→HT→RT (green); RT→HT→RT (blue) and RT→HT→LT→RT (orange). RT, LT and HT stand for 24, 0, and 80 °C, respectively [44].
Molecules 25 02705 g002
Molecules 25 02705 g003 550

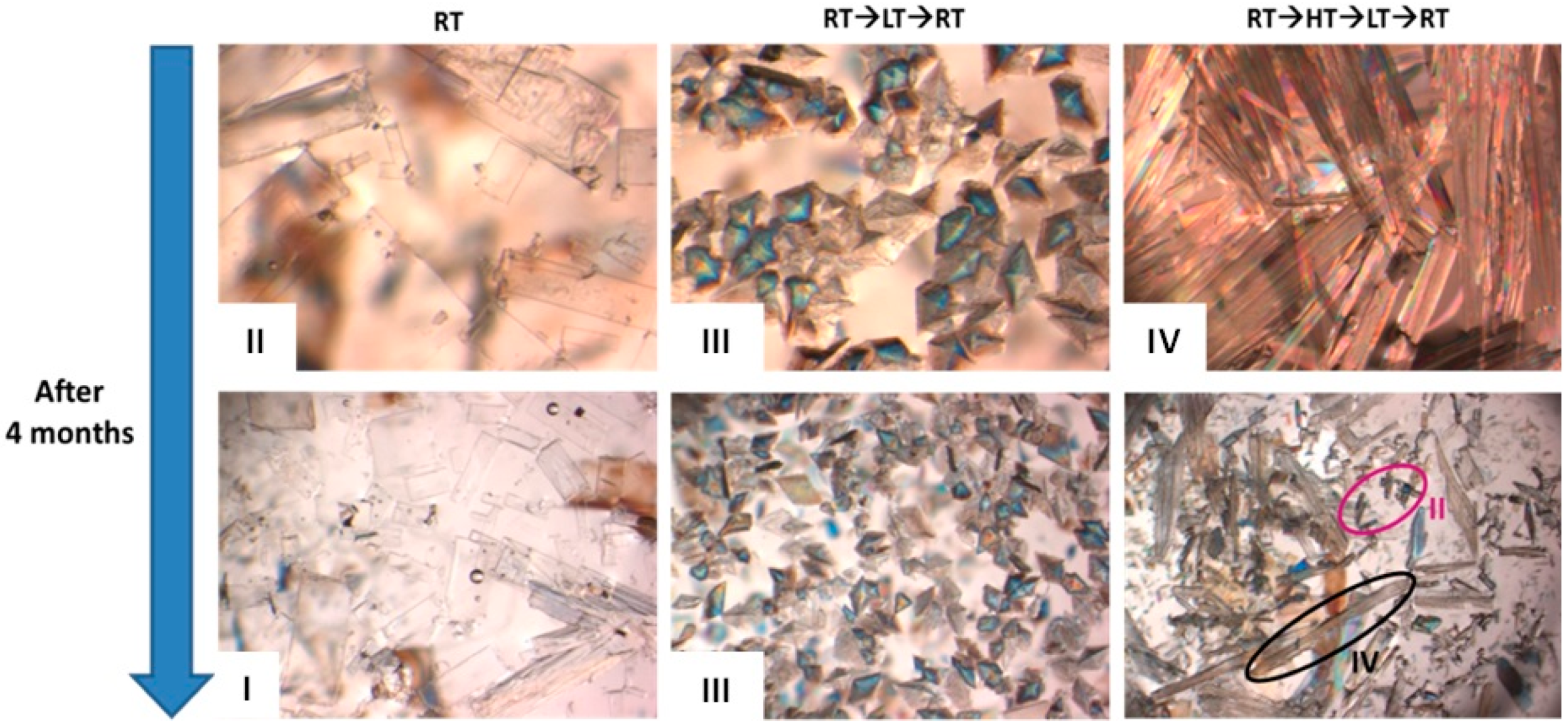

Figure 3. Crystal images of GBP polymorphic forms obtained in C4mimBF4+C6mimBF4 after crystallization and after 4 months [44]. Images obtained using an optical microscope.
Figure 3. Crystal images of GBP polymorphic forms obtained in C4mimBF4+C6mimBF4 after crystallization and after 4 months [44]. Images obtained using an optical microscope.
Molecules 25 02705 g003
Molecules 25 02705 g004 550
Figure 4. Schematic representation of the new multicomponent crystal forms of gabapentin with terephthalic and trimesic acids [45].
Figure 4. Schematic representation of the new multicomponent crystal forms of gabapentin with terephthalic and trimesic acids [45].
Molecules 25 02705 g004
Molecules 25 02705 g005 550
Figure 5. Schematic representation of (a) the traditional method and (b) new method. In the middle, the ionic exchange process, which is common in both strategies, is presented [46].
Figure 5. Schematic representation of (a) the traditional method and (b) new method. In the middle, the ionic exchange process, which is common in both strategies, is presented [46].
Molecules 25 02705 g005
Molecules 25 02705 g006 550

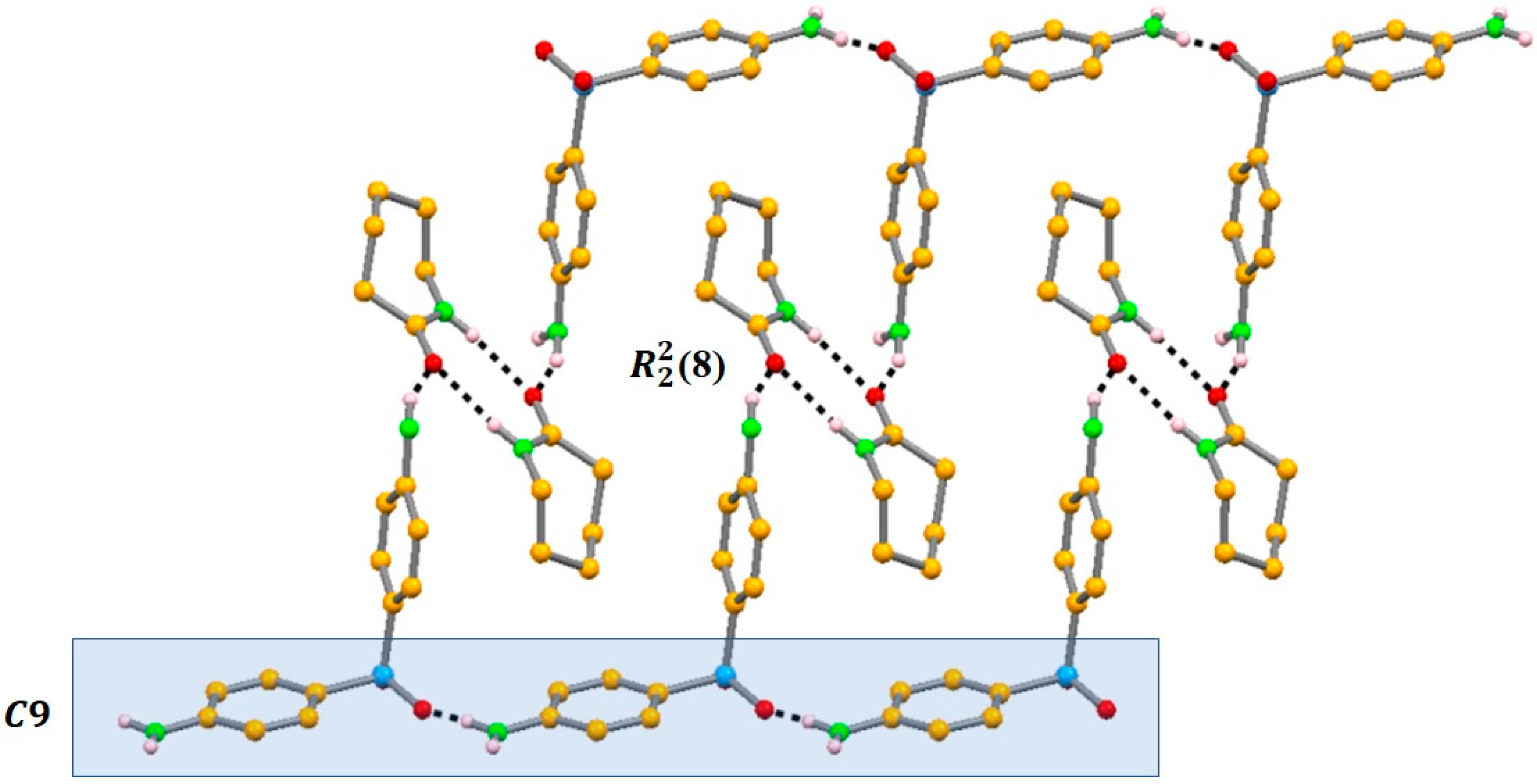

Figure 6. Crystalline packing of DAP:CAPRO: view along c showing the R22(8) formed between CAPRO molecules and the capping by DAP molecules, supporting the chain of DAP molecules along a [49].
Figure 6. Crystalline packing of DAP:CAPRO: view along c showing the R22(8) formed between CAPRO molecules and the capping by DAP molecules, supporting the chain of DAP molecules along a [49].
Molecules 25 02705 g006
Molecules 25 02705 g007 550
Figure 7. Pyrazine-substituted benzenesulfonamides R22(8) synthons: (a) based on N−Hsulfonamide···Nimine hydrogen bonds (Type I); (b) based on N−Hamide···Osulfone hydrogen bonds (Type II) [58].
Figure 7. Pyrazine-substituted benzenesulfonamides R22(8) synthons: (a) based on N−Hsulfonamide···Nimine hydrogen bonds (Type I); (b) based on N−Hamide···Osulfone hydrogen bonds (Type II) [58].
Molecules 25 02705 g007
Molecules 25 02705 g008 550

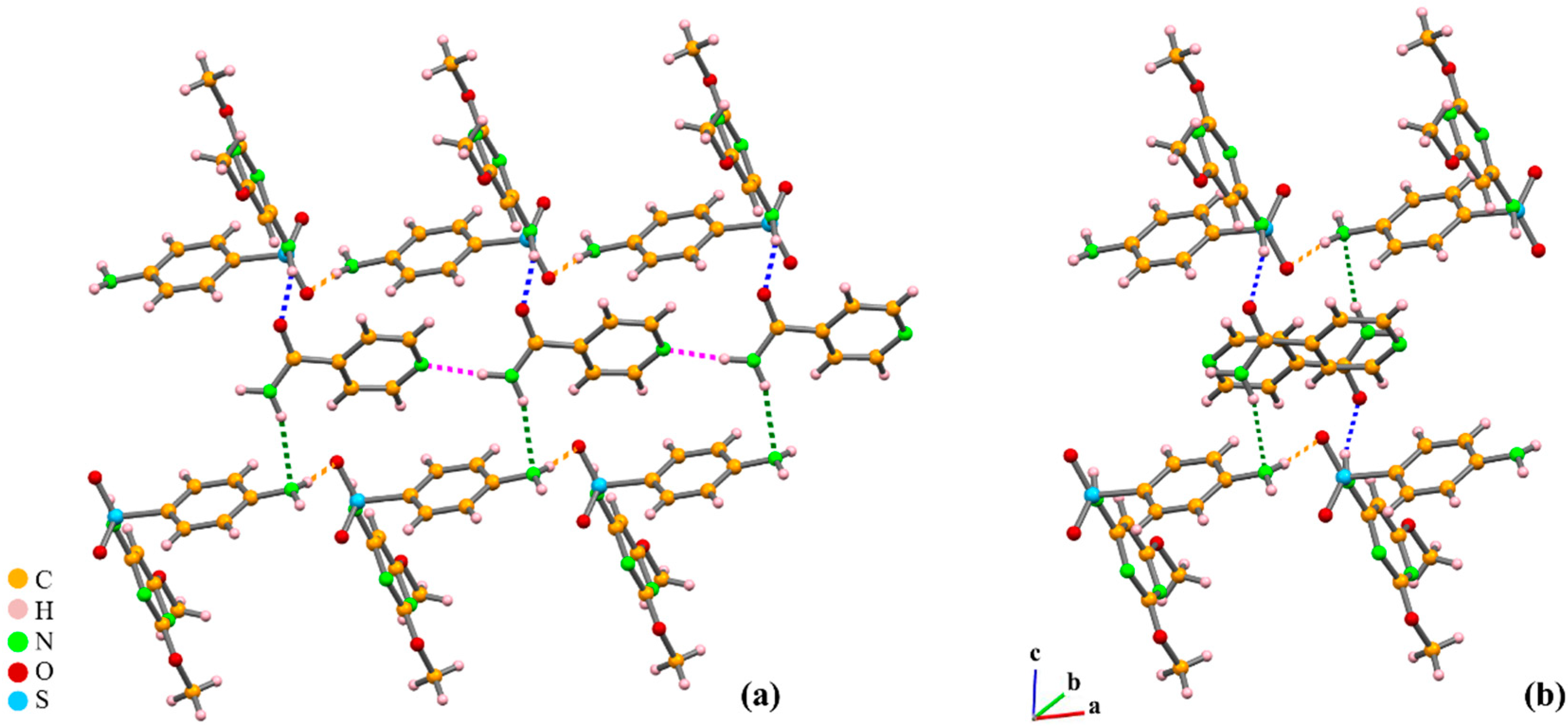

Figure 8. Crystal packing of SDM:ISO cocrystal: (a) in a view along the b-axis, with linear SDM chains interacting with two antiparallel ISO chains; (b) detail depicting the N−Hterminal amine (SDM)···Osulfone (SDM) (yellow), N−Hsulfonamide (SDM)···O(ISO) (blue), and N−Hamide (ISO)···Nterminal amine (SDM) (green) interactions [58].
Figure 8. Crystal packing of SDM:ISO cocrystal: (a) in a view along the b-axis, with linear SDM chains interacting with two antiparallel ISO chains; (b) detail depicting the N−Hterminal amine (SDM)···Osulfone (SDM) (yellow), N−Hsulfonamide (SDM)···O(ISO) (blue), and N−Hamide (ISO)···Nterminal amine (SDM) (green) interactions [58].
Molecules 25 02705 g008
Molecules 25 02705 g009 550

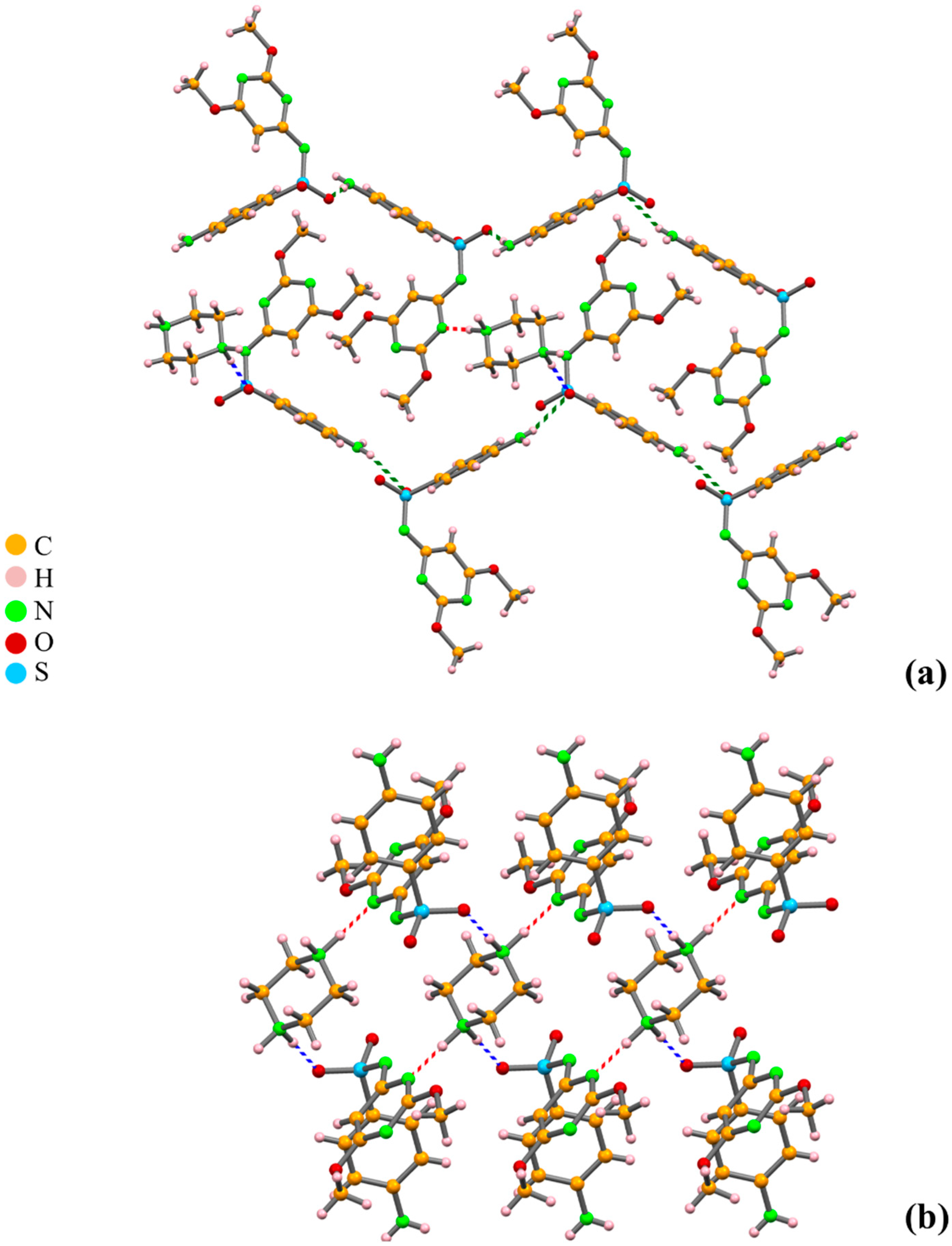

Figure 9. Crystal packing of the molecular salt SDM PIP: (a) view along a of SDM zigzag chains linked by PIP; (b) R44(22) synthon formed by +N−HPIP···Osulfone − blue and +N−HPIP···Npyrazine ring − red) hydrogen bonds, displaying the full use of PIP2+ donor capacity [58].
Figure 9. Crystal packing of the molecular salt SDM PIP: (a) view along a of SDM zigzag chains linked by PIP; (b) R44(22) synthon formed by +N−HPIP···Osulfone − blue and +N−HPIP···Npyrazine ring − red) hydrogen bonds, displaying the full use of PIP2+ donor capacity [58].
Molecules 25 02705 g009
Molecules 25 02705 g010 550

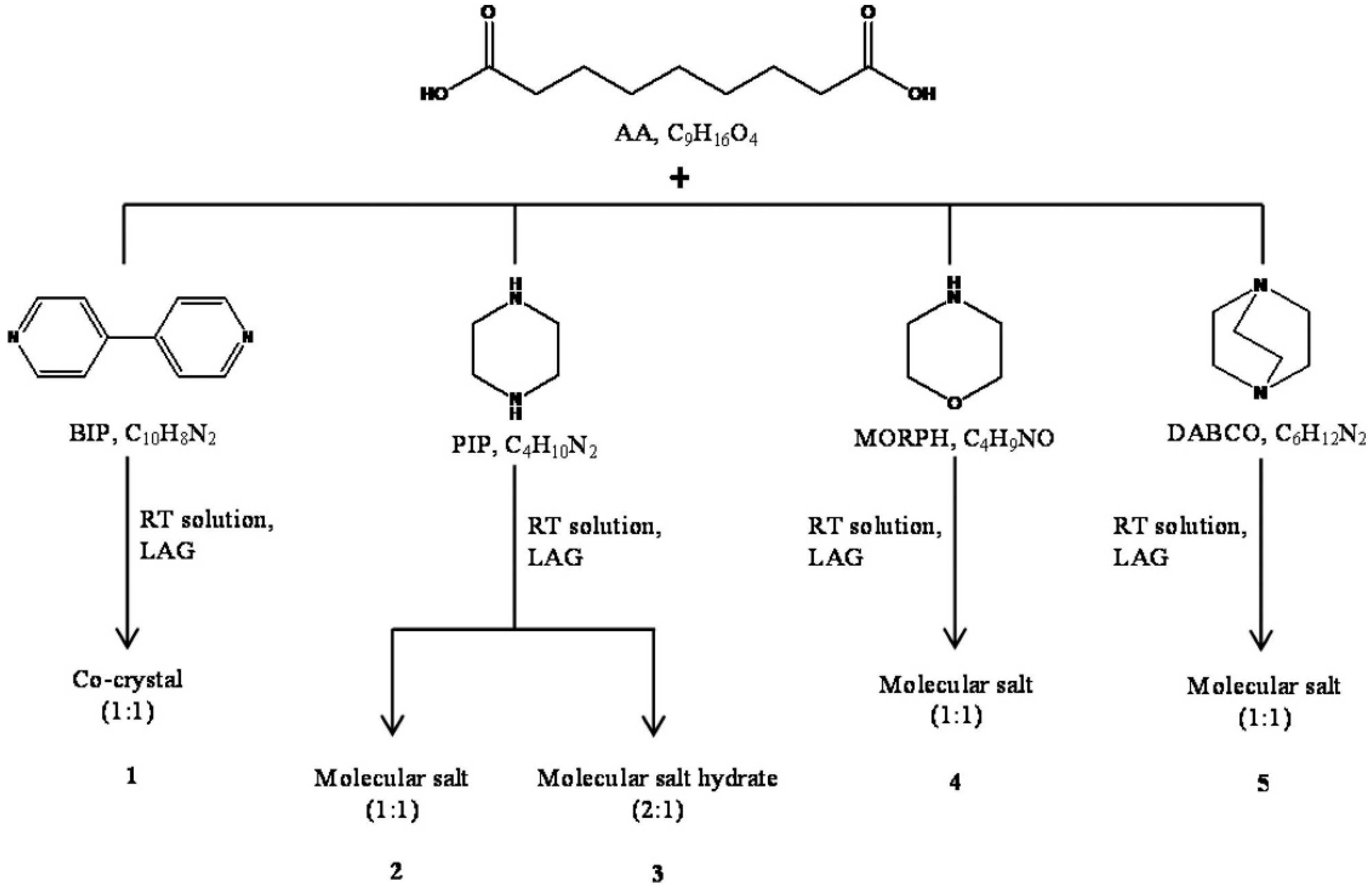

Figure 10. Experimental conditions and products obtained in the reactions between AA and BIP, PIP, MORPH, and DABCO [64].
Figure 10. Experimental conditions and products obtained in the reactions between AA and BIP, PIP, MORPH, and DABCO [64].
Molecules 25 02705 g010
Molecules 25 02705 g011 550

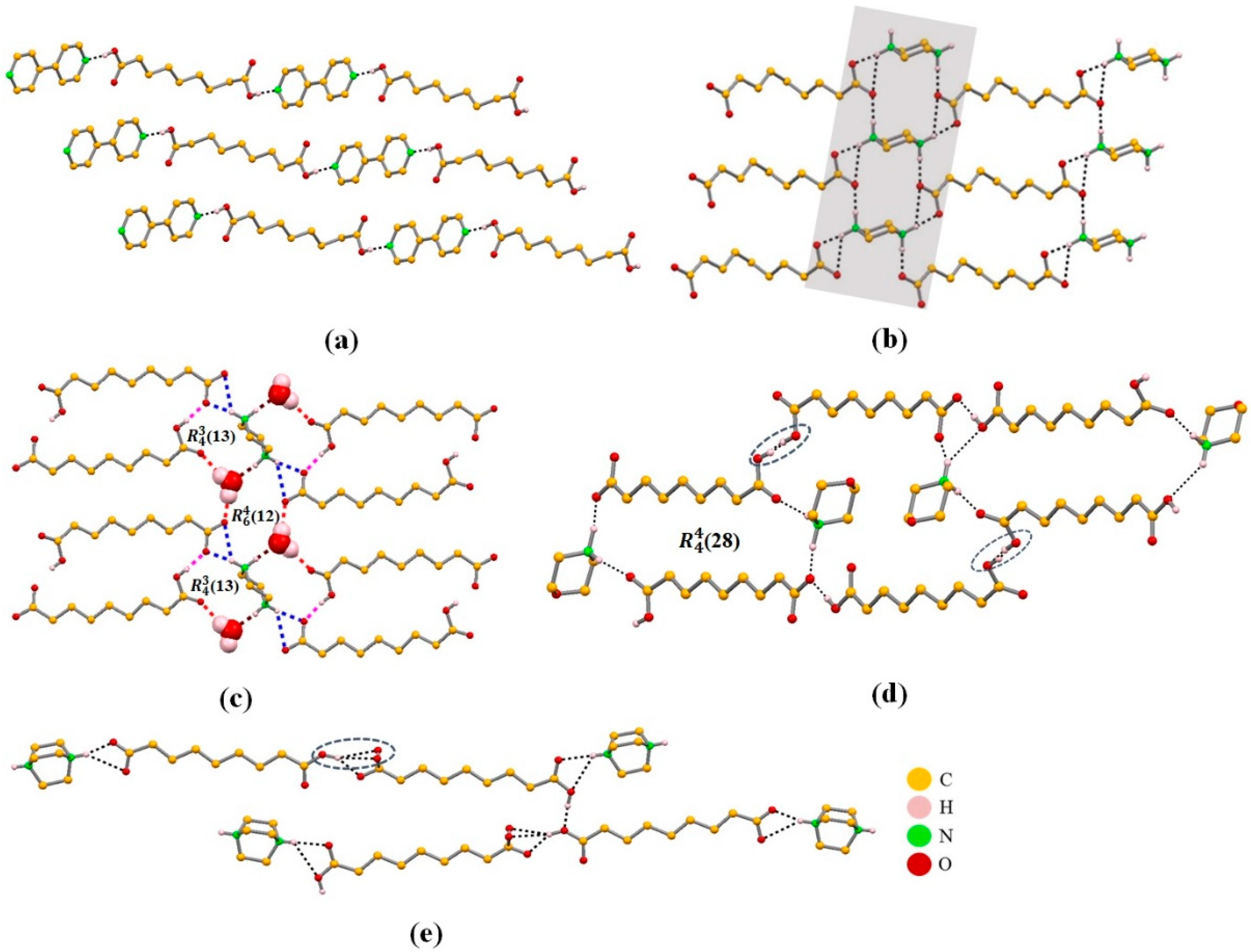

Figure 11. Packing diagrams showing the hydrogen bond OHCOOH···N established in the co-crystal AA:BIP (a) and the charge-assisted interaction +N−H···OCOO- in the molecular salts AA:PIP (b), AA:PIP: water (c), AA: MORPH (d), and AA:DABCO (e) [64].
Figure 11. Packing diagrams showing the hydrogen bond OHCOOH···N established in the co-crystal AA:BIP (a) and the charge-assisted interaction +N−H···OCOO- in the molecular salts AA:PIP (b), AA:PIP: water (c), AA: MORPH (d), and AA:DABCO (e) [64].
Molecules 25 02705 g011
Molecules 25 02705 g012 550
Figure 12. General experimental conditions and products obtained in the reactions between adamantylamine and aliphatic acids, sulfone derivatives, and aromatic acids [76].
Figure 12. General experimental conditions and products obtained in the reactions between adamantylamine and aliphatic acids, sulfone derivatives, and aromatic acids [76].
Molecules 25 02705 g012
Molecules 25 02705 g013 550
Figure 13. 15N CPMAS NMR spectra for all salts. Red, blue, and green rectangles highlight the 15N CS associated with ADA protonated amine, saccarin and sulfanilic acid, respectively [76].
Figure 13. 15N CPMAS NMR spectra for all salts. Red, blue, and green rectangles highlight the 15N CS associated with ADA protonated amine, saccarin and sulfanilic acid, respectively [76].
Molecules 25 02705 g013
Molecules 25 02705 g014 550

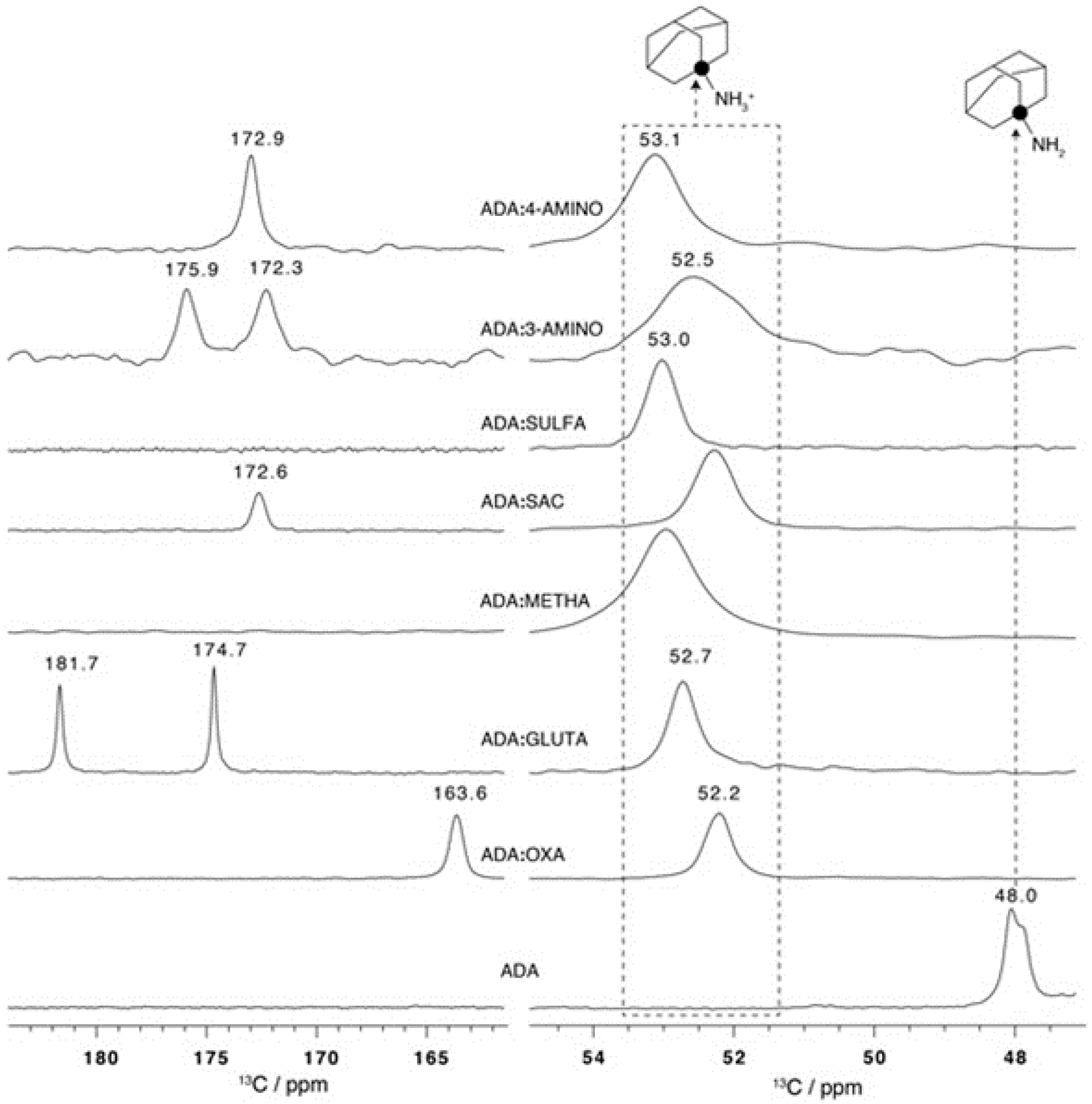

Figure 14. 13C CPMAS NMR spectra for all salts, showing the CS range for C1 (right side) and carboxylic/carboxylate resonances (left side). Filled circles in the ADA structure indicate the position of the C1 quaternary carbon [76].
Figure 14. 13C CPMAS NMR spectra for all salts, showing the CS range for C1 (right side) and carboxylic/carboxylate resonances (left side). Filled circles in the ADA structure indicate the position of the C1 quaternary carbon [76].
Molecules 25 02705 g014
Molecules 25 02705 g015 550
Figure 15. (a) view along a evidencing N-H+(ADA)···O-(OXA) interactions in a mosaic-like fashion mode; (b) view along b showing the lamellar effect. Aliphatic hydrogen atoms were omitted for clarity [76].
Figure 15. (a) view along a evidencing N-H+(ADA)···O-(OXA) interactions in a mosaic-like fashion mode; (b) view along b showing the lamellar effect. Aliphatic hydrogen atoms were omitted for clarity [76].
Molecules 25 02705 g015
Molecules 25 02705 g016 550

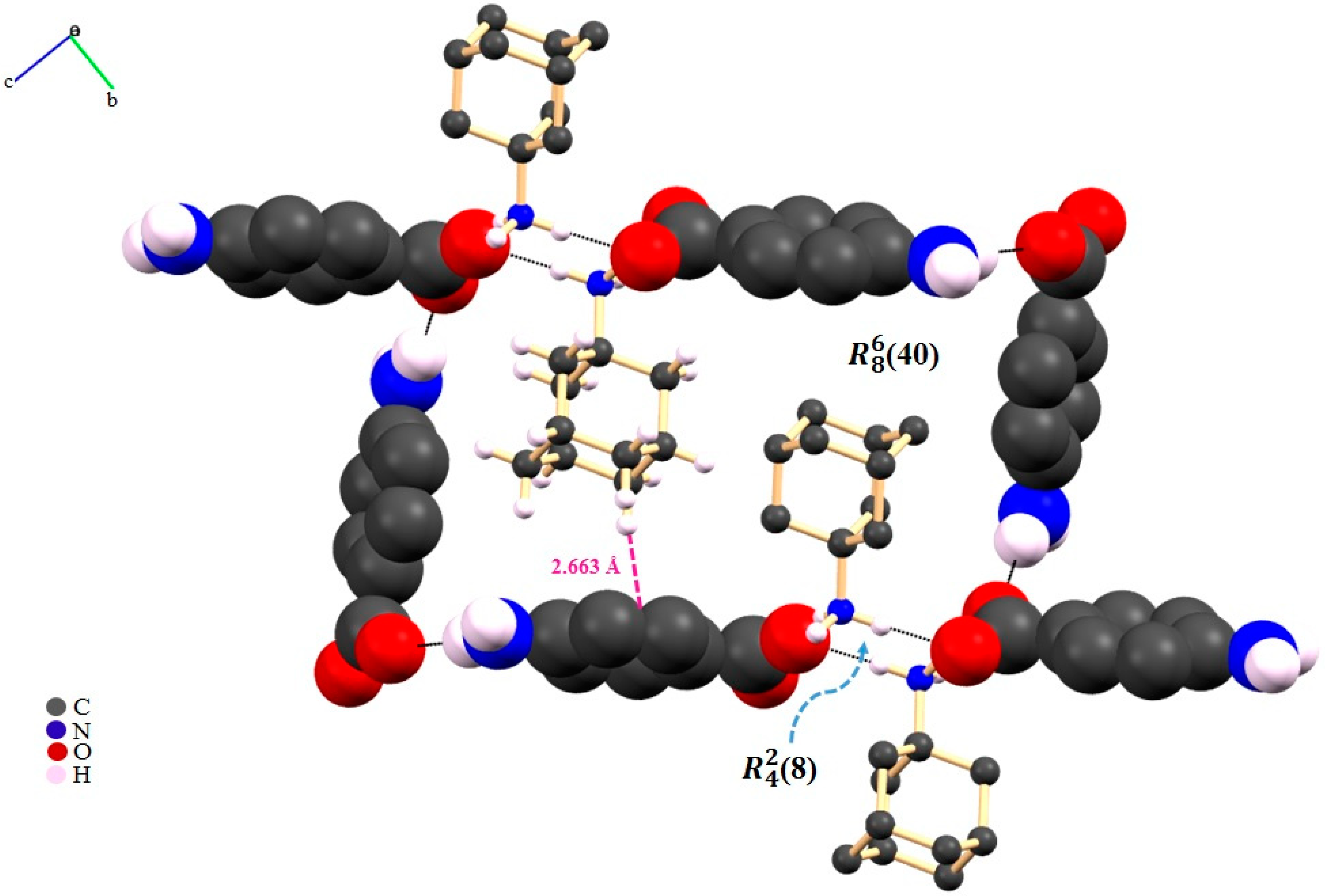

Figure 16. Packing interactions highlighting the R22(8) synthon between ADA and 4-AMINO molecules (N-H+(ADA)···O−(4-AMINO) HB). The presence of the N-H···(4-AMINO)···O-(4-AMINO) HB interaction allows the R68(40) synthon, where ADA aliphatic domains face each other. Some aliphatic hydrogen atoms were omitted for clarity [76].
Figure 16. Packing interactions highlighting the R22(8) synthon between ADA and 4-AMINO molecules (N-H+(ADA)···O−(4-AMINO) HB). The presence of the N-H···(4-AMINO)···O-(4-AMINO) HB interaction allows the R68(40) synthon, where ADA aliphatic domains face each other. Some aliphatic hydrogen atoms were omitted for clarity [76].
Molecules 25 02705 g016
Table
Table 1. Gabapentine polymorphic forms identified by single crystal XRD data [44].
Table 1. Gabapentine polymorphic forms identified by single crystal XRD data [44].
EntryRTIL in MethanolRTRT→LT→RTRT→HT→RTRT→HT→LT→RT
1Control SampleaForm IIForm IIForm IIForm II
2C4mimN(CF3SO2)2Form IIForm IVForm IIIForm III
3C4mimBF4Form IIForm II + IIIForm IIForm II + IV
4C6mimBF4Form IIForm IIIForm II + IVForm IV
5C4mimBF4 + C6mimBF4Form IIForm IIIForm IVForm IV
6C4mimN(CF3SO2)2 + C6mimN(CF3SO2)2Form II + IIIForm II + III + IVForm IIIForm IV
7C6mimN(CF3SO2)2 + C6mimBF4Form IIForm IIForm IIForm II
aThis control sample does not contain RTIL and was used for comparison purposes with respect to the assays containing RTILs.
Table
Table 2. Physical state, yield, thermal properties (Tg), and reaction time obtained for all compounds in each synthetic method [46].
Table 2. Physical state, yield, thermal properties (Tg), and reaction time obtained for all compounds in each synthetic method [46].
Acid-base Neutralization (Traditional Method)Mechanochemistry (New Method)
Compound Name aPhysical State at RTYield (%)Tg (°C)Reaction Time (h)Physical State at RTYield (%)Tg (°C)Reaction Time (min)
(EMIM)(GBP)Transparent liquid96.5−70.915Transparent liquid97.7−72.2180b
(choline)(GBP)Transparent viscous liquid98.5−59.215Transparent viscous liquid99.0−59.0180b
(GBP)(D-glu)Orange viscous liquid92.5−48.610Orange viscous liquid95.2−44.030
(GBP)(gly)Transparent liquid97.2−56.210Transparent liquid99.3−49.115
(TMG)(L-glut)Light yellow liquid93.7−36.26Light yellow liquid97.0−38.910
(DBU)(L-glut)Yellow liquid98.4−39.56Yellow liquid99.5−44.510
a GBP: gabapentine/solid; EMIN—ethyl-methylimidazolium/solid; D-glu: D-gluconic acid/solid; gly: glycolic acid/solid; TMG: tetramethylguanidine/liquid; L-glut: L-glutamic acid/solid; DBU: 1,8-diazabicyclo[5.4.0]undec-7-ene/liquid. bThe time considered is the total time starting from the ionic exchange process and the concentration of the reagent (to eliminate the solvent excess) until the end of the reaction itself (grinding both starting materials). Considering the grinding process, only 30 min were required to finish the reaction.
Table
Table 3. Solubility, thermal stability, in ADA, ADA∙HCl, and molecular salts [76].
Table 3. Solubility, thermal stability, in ADA, ADA∙HCl, and molecular salts [76].
CompoundSolubility (mg/mL)Melting Point (°C)Melting Point Conformers (°C)
ADA1.03206–208-
ADA∙HCl50300-
ADA:OXA (I)0.81223189–191
ADA:GLUTA (II)58.818395–98
ADA:METHA (V)200153.9 a17–19
ADA:SAC (VI)14.3242.6228
ADA:SULFA (VII)5.6347.3 a288
ADA:3-AMINO (VIII)9.1244.2178–180
ADA:4-AMINO (IX)0.96245.9187–189
a Melting point determined by the glass capillary method and by DSC-TGA.

Share and Cite

MDPI and ACS Style

Ferreira da Silva, J.L.; Minas da Piedade, M.F.; André, V.; Domingos, S.; Martins, I.C.B.; Duarte, M.T. The Lisbon Supramolecular Green Story: Mechanochemistry towards New Forms of Pharmaceuticals. Molecules 2020, 25, 2705. https://doi.org/10.3390/molecules25112705

AMA Style

Ferreira da Silva JL, Minas da Piedade MF, André V, Domingos S, Martins ICB, Duarte MT. The Lisbon Supramolecular Green Story: Mechanochemistry towards New Forms of Pharmaceuticals. Molecules. 2020; 25(11):2705. https://doi.org/10.3390/molecules25112705

Chicago/Turabian Style

Ferreira da Silva, João Luís, M. Fátima Minas da Piedade, Vânia André, Sofia Domingos, Inês C. B. Martins, and M. Teresa Duarte. 2020. "The Lisbon Supramolecular Green Story: Mechanochemistry towards New Forms of Pharmaceuticals" Molecules 25, no. 11: 2705. https://doi.org/10.3390/molecules25112705

APA Style

Ferreira da Silva, J. L., Minas da Piedade, M. F., André, V., Domingos, S., Martins, I. C. B., & Duarte, M. T. (2020). The Lisbon Supramolecular Green Story: Mechanochemistry towards New Forms of Pharmaceuticals. Molecules, 25(11), 2705. https://doi.org/10.3390/molecules25112705

Article Metrics

Back to TopTop
