An Oxalate-Bridged Copper(II) Complex Combining Monodentate Benzoate, 2,2′-bipyridine and Aqua Ligands: Synthesis, Crystal Structure and Investigation of Magnetic Properties

Abstract

A dinuclear copper(II) complex of formula [{Cu(bipy)(bzt)(OH₂)}₂(μ-ox)] (1) (where bipy = 2,2′-bipyridine, bzt = benzoate and ox = oxalate) was synthesised and characterised by diffractometric (powder and single-crystal XRD) and thermogravimetric (TG/DTG) analyses, spectroscopic techniques (IR, Raman, electron paramagnetic resonance spectroscopy (EPR) and electronic spectroscopy), magnetic measurements and density functional theory (DFT) calculations. The analysis of the crystal structure revealed that the oxalate ligand is in bis(bidentate) coordination mode between two copper(II) centres. The other four positions of the coordination environment of the copper(II) ion are occupied by one water molecule, a bidentate bipy and a monodentate bzt ligand. An inversion centre located on the ox ligand generates the other half of the dinuclear complex. Intermolecular hydrogen bonds and π-π interactions are responsible for the organisation of the molecules in the solid state. Molar magnetic susceptibility and field dependence magnetisation studies evidenced a weak intramolecular–ferromagnetic interaction (J = +2.9 cm⁻¹) between the metal ions. The sign and magnitude of the calculated J value by density functional theory (DFT) are in agreement with the experimental data.

1. Introduction

Copper(II) complexes are interesting in coordination chemistry because of their vast applicability for bioinorganic purposes and synthesis of metallodrugs [1,2], catalysis [3,4] and magnetism [5,6]. Concerning molecular magnetism, it is known that the magnetic interaction between two or more copper(II) centres is strongly dependent on the nature of the bridging ligand that works like a magnetic exchange pathway [7,8]. Among these ligands, the oxalate ion, ox²⁻, for example, is well known for its capability to create adequate magnetic exchange pathways for ferro- and antiferromagnetic interactions in oligonuclear copper(II) compounds [9,10,11]. The combination of oxalate and copper(II) ions leads to a large structural variety including different nuclearities such as mononuclear [12,13], dinuclear [14,15], trinuclear [16,17], tetranuclear [17,18] and hexanuclear species [19,20] and coordination polymers [14,21]. This class of oxalate-bridged compounds is noteworthy in magnetic applications, as it may comprise many other transition metal ions such as Mn^II, Fe^II/III, Co^II, Ni^II, Cr^II/III, V^IV and Ru^II [22,23,24,25].

The dinuclear copper(II) complexes, which contain only one unpaired electron per metallic ion, are the most straightforward systems to investigate the through-ligand electron exchange mechanism from experimental and theoretical perspectives [26,27,28]. It is well known that the nature and strength of the magnetic interactions in dinuclear complexes including simple inorganic and extended organic bridging ligands such as hydroxo, azide, aromatic dicarboxylate, diamine, oxalate and related derivatives are highly dependent on the nature of the chelating terminal blocking ligands, which prevent complex polymerisation [5]. Furthermore, the variation in the spatial arrangement of terminal ligands may change the orbital overlap angle between the copper(II) and the bridging ligand, leading to different types of magnetic interactions [29,30].

Regarding oxalate-bridged copper(II) compounds, the ferromagnetic or antiferromagnetic behaviour is determined by the overlap between the two magnetic orbitals. Poor overlap through oxalate leads to a weak antiferromagnetic interaction. On the other hand, if the overlap is zero, one could expect a ferromagnetic coupling [8]. Steric hindrance arising from the volume of the ancillary ligands leads to different orientations of the magnetic orbitals concerning the bridge plane, hence generating a different magnitude and nature of the magnetic interaction among the copper(II) centres [17].

Although a variety of oxalate (ox²⁻)-bridged copper(II) complexes can be found in the literature, just a few contain more than one bulky ligand besides the oxalate bridge. A detailed search carried out in the Cambridge Structural Database (CSD) [31] for oxalate-bridged copper(II) complexes with ox^2– in bis-bidentate coordination mode displayed a total of 423 results, of which 86 correspond to dinuclear complexes that possess two additional ligands besides ox^2–. Out of 86 structures, 66 contain pentacoordinate metal ions bound to only one type of organic ligand such as pyridine [1], 2,2′-bipyridine [11,32], phenanthroline [33,34], ethylenediamine [35], pyrazole [36,37] and imidazole [38] and their derivatives, the coordination sphere being completed by simple inorganic ions such as nitrate [39], chloride [33], hydroxide [40] and perchlorate [1], or by solvent molecules such as water [6], methanol [34], dimethylformamide [41], tetrahydrofuran [42] or acetonitrile [43]. In the 20 remaining structures, all of which have been reported more recently, the metal ions are hexacoordinate and the chemical composition of the complexes, regarding the presence of at least one organic ligand, solvent molecules and simple inorganic ions, is similar to that observed for the pentacoordinate species [8,11,14,15,44,45]. Exceptions are found when tetradentate ligands direct hexa-coordination, decreasing the need for other molecular entities to complete the coordination sphere of the copper(II) ion [46,47]. Therefore, such systems show high structural and electronic versatility, which can be modulated by an appropriate choice of ligands other than the ox²⁻ bridge.

Herein the synthesis of a new heteroleptic oxalate-bridged copper(II) dinuclear complex [{Cu(bipy)(bzt)(OH₂)}₂(μ-ox)] (1) (where bipy = 2,2′-bipyridine, bzt = benzoate and ox = oxalate) is reported, in which the coordination environment of the metal ion is described as distorted octahedral with the unusual coordination of two relatively bulky ligands, a bidentate 2,2′-bipyridine and a monodentate benzoate, in addition to one water molecule. Structural correlations on how the orientation of the magnetic orbitals of the Cu^II ions is affected by the crystal field in 1 and the nature of magnetic interactions were investigated. We have also carried out theoretical calculations on the electronic structure and the electron paramagnetic resonance spectroscopy (EPR) spectra to bring light into its magnetic properties.

2. Results and Discussion

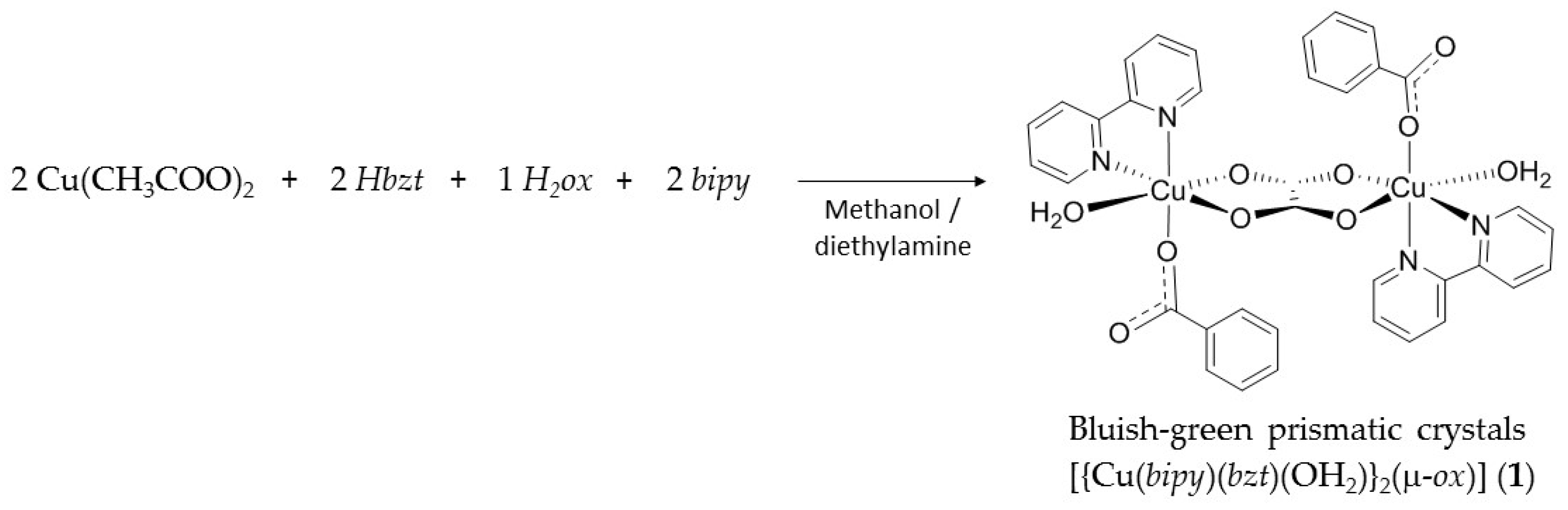

The reaction between copper(II) acetate monohydrate, benzoic acid, 2,2′-bipyridine and oxalic acid dihydrate in methanol gave the bluish-green prismatic shape crystals of [{Cu(bipy)(bzt)(OH₂)}₂(μ-ox)] (1) in high yield, ca 90%, from a reproducible synthetic methodology (Scheme 1). Powder X-ray diffraction (PXRD) analysis revealed good correspondence between the simulated and experimental diffraction patterns (Figure S1 and Table S1).

2.1. Crystal Structure

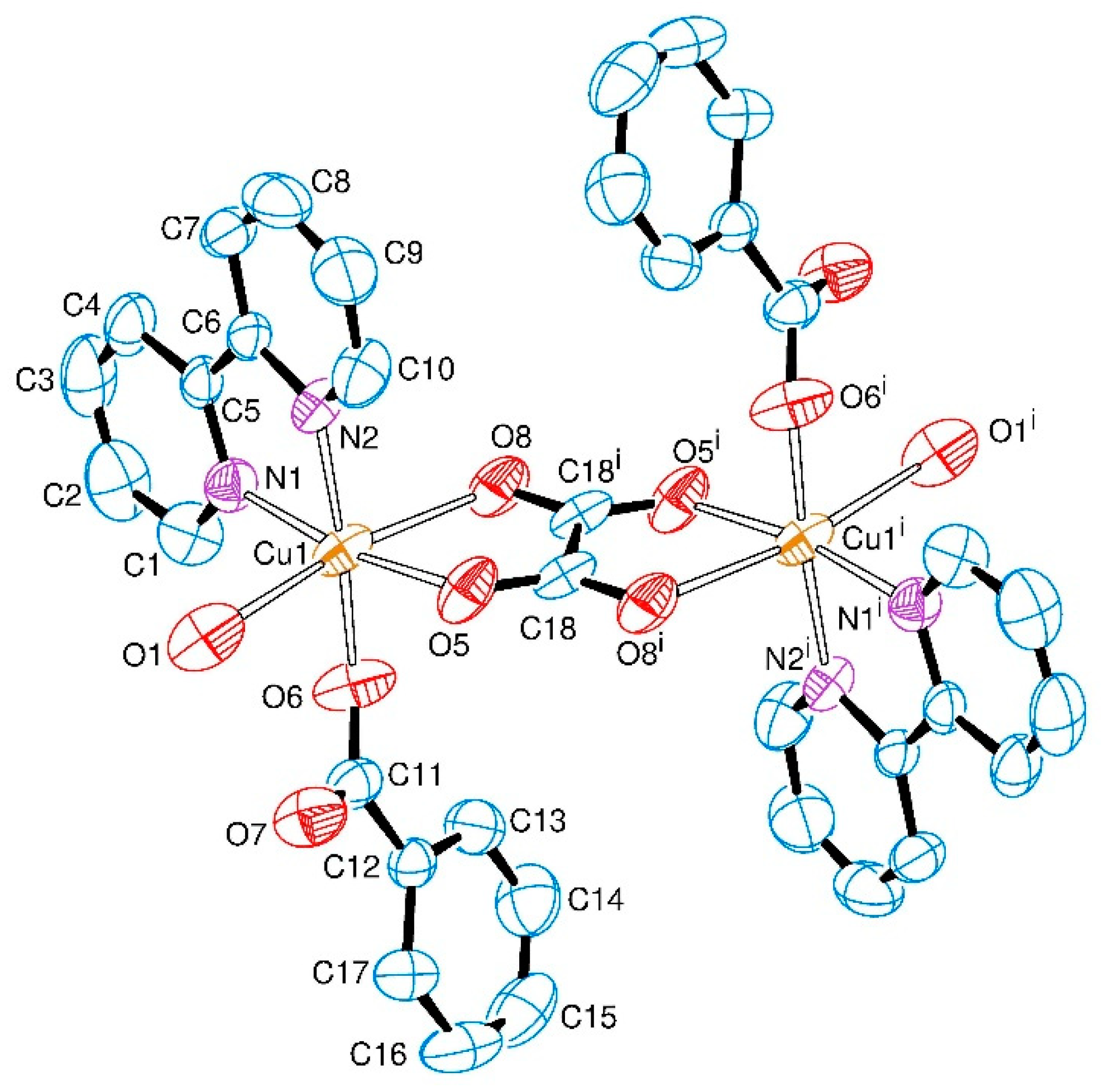

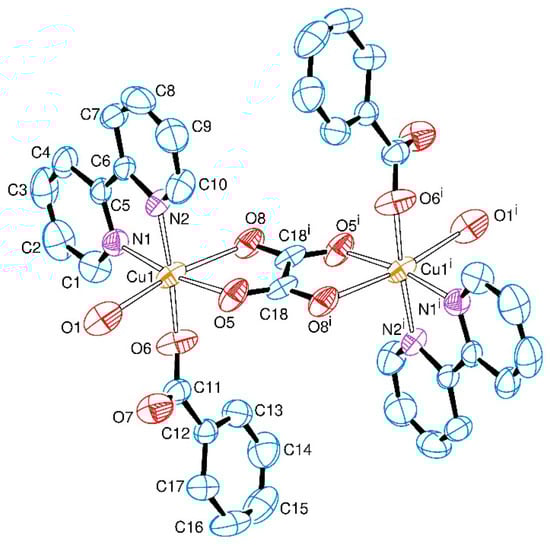

Complex 1, Figure 1, was obtained as single-crystals that belong to the centrosymmetric space group P2₁/n. The asymmetric unit consists of a copper(II) centre coordinated to one of each ligand molecule or ion, namely 2,2′-bipyridine, water, benzoate and one half of the oxalate bridge (the asymmetric term refers to the different C-O bond lengths in the asymmetric unit).

The equatorial positions on each copper(II) ion are occupied by two nitrogen atoms from the 2,2′-bipyridine ligand (N1, N2), one oxygen atom from the bridging oxalate group (O5) and one oxygen atom from the monodentate benzoate ligand (O6). The apical positions are occupied by the oxygen atom from the water molecule (O1) and the second oxygen atom from the bridging oxalate group (O8). There is an inversion centre lying in the middle of the C18–C18ⁱ bond of the oxalate ligand that bridges the two copper(II) ions in the usual bis(bidentate) mode, giving rise to the neutral dimeric entity of [{Cu(bipy)(bzt)(OH₂)}₂(μ-ox)] as shown in Figure 1.

The coordination environment of the metal ion can be described as distorted octahedral with significant deviations exemplified by the O5–Cu1–O8 and O8–Cu1–O1 angles of 76.62(7)° and 170.00(7)°, respectively. The oxalate bridge is asymmetrically coordinated to the copper(II) centres, as indicated by the Cu1–O5 and Cu1–O8 bond lengths of 1.9732(19) and 2.378(2) Å, respectively. Equatorial Cu–N (Cu–N1 and Cu–N2) and Cu–O (Cu1–O5 and Cu–O6) distances average to 2.007(2) Å and 1.9578(19) Å, respectively, and are in good agreement with the corresponding bond lengths reported in the literature for other dimeric oxalate-bridged copper(II) complexes with the 2,2′-bipyridine ligand [6,11,32]. Due to the Jahn–Teller effect, the Cu1–O8 and the Cu1–O1 bonds are elongated (2.378(2) Å and 2.426(3) Å) in comparison to the other bond lengths in the coordination sphere of the metal in 1 (

Table 1. Selected bond lengths (Å) and angles (°) for 1, with estimated standard deviations in parentheses.

Bond Length (Å)
Cu(1)–O(1)	2.426(3)	Cu(1)–N(2)	2.006(2)
Cu(1)–O(5)	1.9732(19)	O(6)–C(11)	1.263(3)
Cu(1)–O(8)	2.378(2)	O(7)–C(11)	1.230(3)
Cu(1)–O(6)	1.9425(19)	C(18)–O(5)	1.260(3)
Cu(1)–N(1)	2.008(2)	C(18) i–O(8)	1.230(3)
Bond Angle (°)
O(5)–Cu(1)–O(8)	76.62(7)	O(5)–Cu(1)–N(2)	93.67(8)
O(6)–Cu(1)–O(1)	89.46(9)	N(1)–Cu(1)–O(8)	95.24(7)
O(1)–Cu(1)–O(5)	94.26(8)	N(2)–Cu(1)–O(8)	94.08(8)
O(1)–Cu(1)–O(8)	170.00(7)	N(1)–Cu(1)–N(2)	80.56(9)
O(6)–Cu(1)–O(5)	92.77(9)	N(1)–Cu(1)–O(1)	94.26(8)
O(6)–Cu(1)–O(8)	86.93(9)	N(2)–Cu(1)–O(1)	90.55(9)
O(6)–Cu(1)–N(1)	93.00(9)	H(1B)–O(1)–H(1A)	104(3)
O(6)–Cu(1)–N(2)	173.55(9)	O(8) i–C(18)–O(5)	124.4(2)
O(5)–Cu(1)–N(1)	169.75(9)	O(7)–C(11)–O(6)	125.7(3)

Symmetry code (i): 1 − x, 1 − y, 1 − z.

). These values are in good agreement with related tetragonally-distorted copper(II) coordination compounds that contain benzoate and/or an oxalate-bridging ligand [11,48]. The oxalate bite angle at the metal ion of 76.6° is also in accordance with other copper(II) complexes containing asymmetric oxalate bridges [8,49]. The selected geometric parameters of 1 are shown in Table 1.

The monodentate, rather than bidentate, coordination mode of the benzoate ion to the copper(II) centre is a remarkable feature of 1. It may be explained by its shorter Cu-N bonds lengths (ca 2.0 Å) than the equivalent ones in analogous manganese(II) [50,51] or cobalt(II) [52,53] complexes, of ca 2.2–2.3 Å and 2.1–2.2 Å, respectively. These short bonds lengths may make it difficult to accommodate bulky ligands around the copper(II) centre. The monodentate binding of bzt⁻ is interesting since it leads to hexacoordination, a surprising result for oxalate-bridged copper(II) systems according to an extensive CSD database search. As already discussed in the Introduction, the metal ion is usually pentacoordinate when the oxalate-bridged copper(II) ions possess two additional ligands besides ox²⁻. Therefore, complex 1 is one of the fairly rare oxalate-bridged copper(II) complexes in octahedral coordination involving more than one bulky ligand [44,54,55,56].

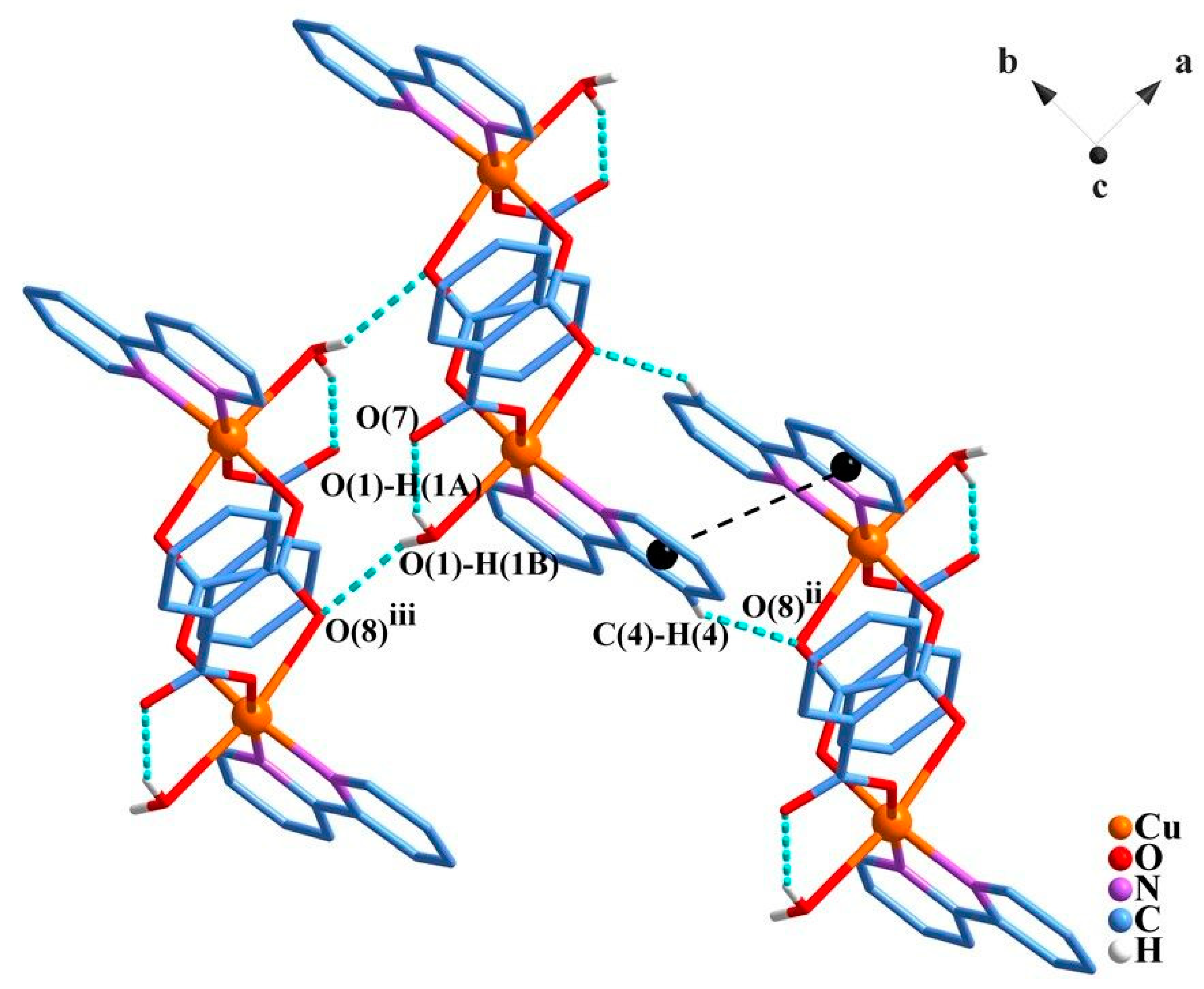

Regarding crystal packing, the centrosymmetric dimeric units are linked in a two-dimensional architecture (parallel to the a-b plane) through moderate O1–H1B^…O8ⁱⁱⁱ (D^…A: 2.954(3) Å; D–H^…A: 152(3)°; iii = x − 1, y, z) and weak C4 –H4^…O8ⁱⁱ (D^…A: 3.096(4) Å; D–H^…A: 145.9°; ii = −x + 1, −y, −z + 1) hydrogen bonds (Figure 2; Table S2).

Further, intermolecular π···π stacking interactions are observed between intercalated aromatic rings of the bipy ligands, building layers that are parallel to the crystallographic a-b plane with distances between centroids of 3.7–3.8 Å (Figure 2), and between overlapping atoms of 3.426 and 3.430 Å for C3^…C9^iv (iv = −x, −y, 1 − z) and C4^…C6ⁱⁱ. Additionally, intramolecular hydrogen bonds, O1 –H1A^…O7, are observed between the non-coordinated benzoate oxygen atom and a hydrogen atom from the coordinated water molecule (D^…A: 2.723(3) Å; D–H···A: 153(3)°).

The intermolecular interactions are crucial for the crystal packing and organisation observed of the molecules in the solid state. The Cu1···Cu1ⁱ (i = 1 − x, 1 − y, 1 − z) distance within the dimer is 5.602 Å, whereas the shortest intramolecular Cu···Cu distance is 5.888 Å for Cu1···Cu1ⁱⁱ, and occurs along the a axis. The intramolecular Cu···Cu contact is significantly longer than corresponding distances in related dimeric oxalate-bridged copper(II) species with bipy ligands, which present values in the range of 5.13–5.17° [11,14,45,48,57]. Finally, the copper(II) centres are displaced 0.01 Å from the principal mean plane formed by the O1, N1, O8, C18 and O5 atoms and their symmetry equivalents.

2.2. Thermal Analysis

In order to investigate the thermal stability of 1, the complex was submitted to thermogravimetric (TG) and differential thermogravimetric (DTG) analyses with a heating rate of 10 °C min⁻¹ under N₂/O₂ flow. The TG/DTG curves and the attribution of each decomposition step are shown in Figure S2 and Table S3, respectively. The thermal profile obtained for 1 shows three significant decomposition steps: in the first step, a mass loss of 5.6% refers to both coordinated water molecules (calc. 4.5%) in the range of 55–136 °C, followed by a second loss with a shoulder at 210 °C that suggest full decomposition of the complex. However, from the found and calculated mass contents it was not possible to distinguish which ligand was lost in these two final steps, although one would expect bzt⁻ to leave the complex first when compared to bipy and ox²⁻ due to the chelate effect [58,59]. The found and calculated values for the loss of bzt⁻ and bipy ligands in step II, 62.5% and 68.9%, respectively, may indicate that their decomposition process continues to decompose in step III, which, in turn, starts at 305 °C. The weight loss observed for ox²⁻ (15.3%), considered here the last ligand lost in step III, is above the calculated content of 10.9%, and this could correspond to ox²⁻ being lost together with the remaining mass of bzt⁻ and/or bipy.

Considering the final mass content at 900 °C, which corresponds to experimental and calculated total mass losses of 84.3% and 83.4%, respectively, one infers that the complex was decomposed generating CuO as the final product (experimental 16.4%; calculated 15.8%). This obtained oxide was confirmed by powder XRD of a sample of 1 treated at 900 °C, as shown in Figure S3.

2.3. Vibrational Spectroscopy

A comparative IR study of 1 and its starting materials is presented in Figure S4 and Table S4. The spectrum of 1 indicates deprotonation of both the benzoic and oxalic acids according to the quenching of the vibrational modes at 1424 cm⁻¹, δ(COH)_COOH, and 936 cm⁻¹, β(OH)_COOH, for Hbzt, and also at 1264 cm⁻¹ for δ(OH)_COOH in H₂ox. The binding of the O-donor ligands to the copper(II) centre is additionally evidenced by the shift of the absorption bands to lower frequency, from 1685–1689 to 1648 cm⁻¹, attributed to ν_as(CO) for H₂ox and Hbzt, respectively. The arisal of an absorption band at 1379 cm⁻¹, assigned to ν_as(CO)_COO−, also indicates the coordination of the bzt⁻ and ox²⁻ ligands [58,60,61,62]. The intense and broadened bands assigned as ν(OH) for the coordinated water molecules confirm the occurrence of hydrogen bonds (O1-H1B···O8ⁱⁱ and O1-H1A···O7, Figure 2 and Table S2) in 1 [61].

The Raman spectrum recorded for 1 (Figure S5 and Table S5) is in accordance with the infrared analysis as far as the incorporation of the three ligands is concerned: bands at 366-619 cm⁻¹, assigned to ν_s(Cu-O) and ν_s(Cu-N), were observed and indicate the coordination of bipy, ox²⁻ and bzt⁻ [63].

2.4. Electron Paramagnetic Resonance Spectroscopy (EPR)

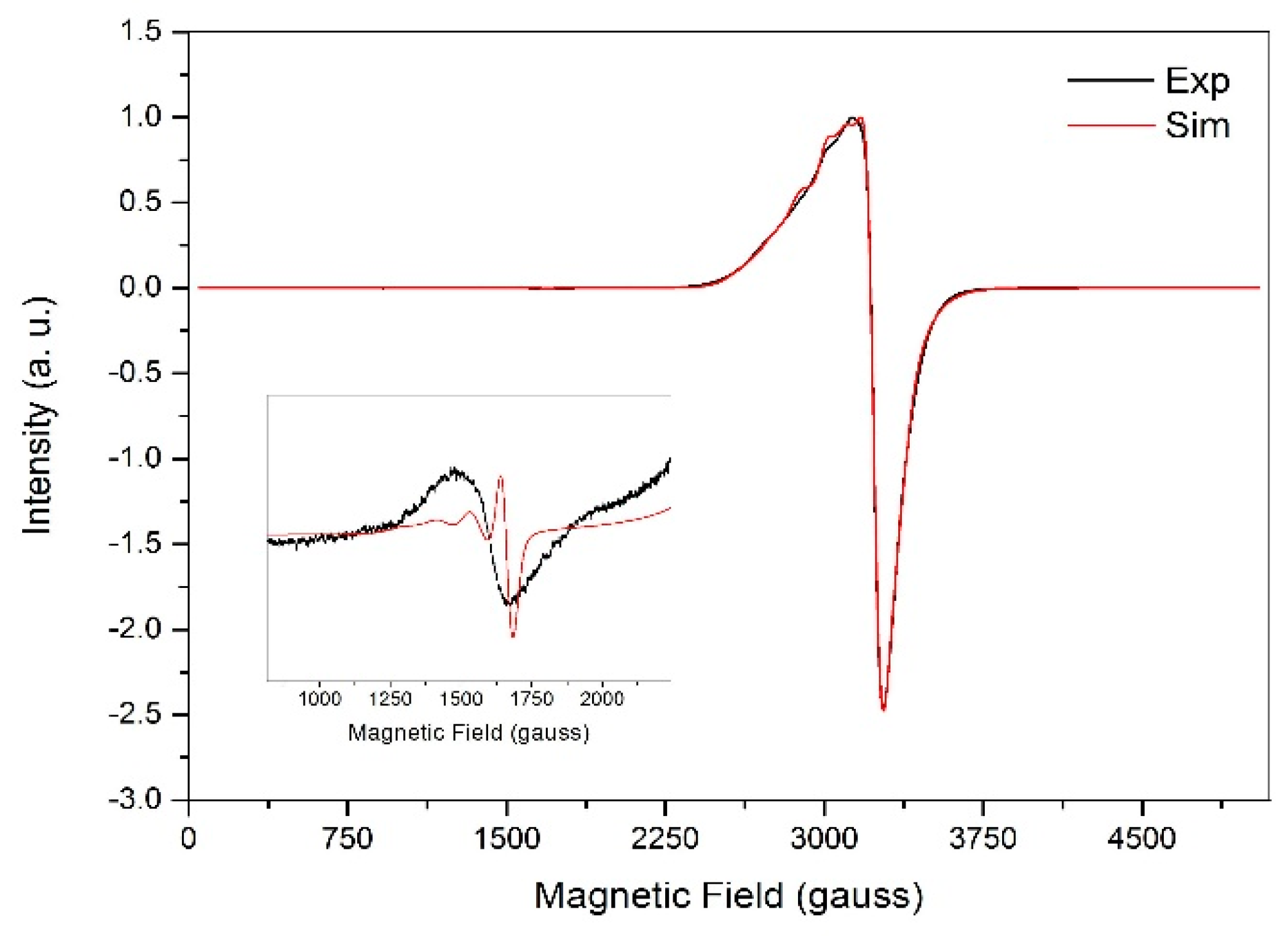

The X-band EPR spectrum recorded for polycrystalline 1 (ground crystals) at 77 K, along with simulation (parameters in

Table 2. EPR spectrum simulation parameters for the frozen solution and solid powder spectra at 77 K.

Sample	g-Matrix			A-Matrix/MHz			D-Matrix/MHz
	gx	gy	gz	Ax	Ay	Az	D	E
Solid	2.079	2.079	2.278	<100	<100	>360	350	65.5
Frozen solution	2.053	2.078	2.262	<100	<100	555.1	-	-

), gives an axial profile with g_⊥ = 2.09 and g_|| = 2.26, as presented in Figure 3. These values are expected for tetragonally-distorted copper(II) complexes with elongation along the z-axis, which is in good agreement with the longest bonds in the complex [Cu(1)–O(1), 2.425(3) Å; Cu(1)–O(8), 2.378(2) Å]. The computed g-values at DFT level (g_⊥ = 2.06 and g_|| = 2.21) are in excellent agreement with the experiment. The g_⊥ < g_|| relationship indicates $d_{x^2-y^2}$ as the singly occupied molecular orbital (SOMO), as suggested by the crystal structure [64,65]. The broadness of the EPR signal centred at 3230 G, which is due to the allowed transitions with ΔM_s = ±1, agrees with the presence of magnetic interaction between the copper(II) centres in the dimer. The very weak half-field signal for the ΔM_s = ±2 transitions, characteristic of copper(II) dimeric compounds with exchange interaction between the metal centres, is also observed as shown in the inset of Figure 3. Such transitions cannot be observed in S = ¹/₂ spin systems, being an irrefutable proof of the dimer formation in this particular case. The simulated axial zero field splitting (ZFS) parameter, D, translates to a Cu···Cu distance of 6.35 Å, which, considering the uncertainty introduced by the non-resolved hyperfine couplings, correlates well to the crystallographic Cu···Cu distance of 5.60 Å.

The frozen solution X-band EPR spectrum of 1 was recorded at 77 K in H₂O/glycerol (9:1). It is also axial with g_x, g_y (2.05 and 2.08) < g_z (2.26). These values are again in agreement with those reported for axial copper(II) complexes containing coordinated ox²⁻ or water [66,67]. The four-line hyperfine structure is observed in Figure 4, and arises from the interaction between the unpaired electron of copper(II) (S = ¹/₂) and its nuclear spin (I = ³/₂) [68].

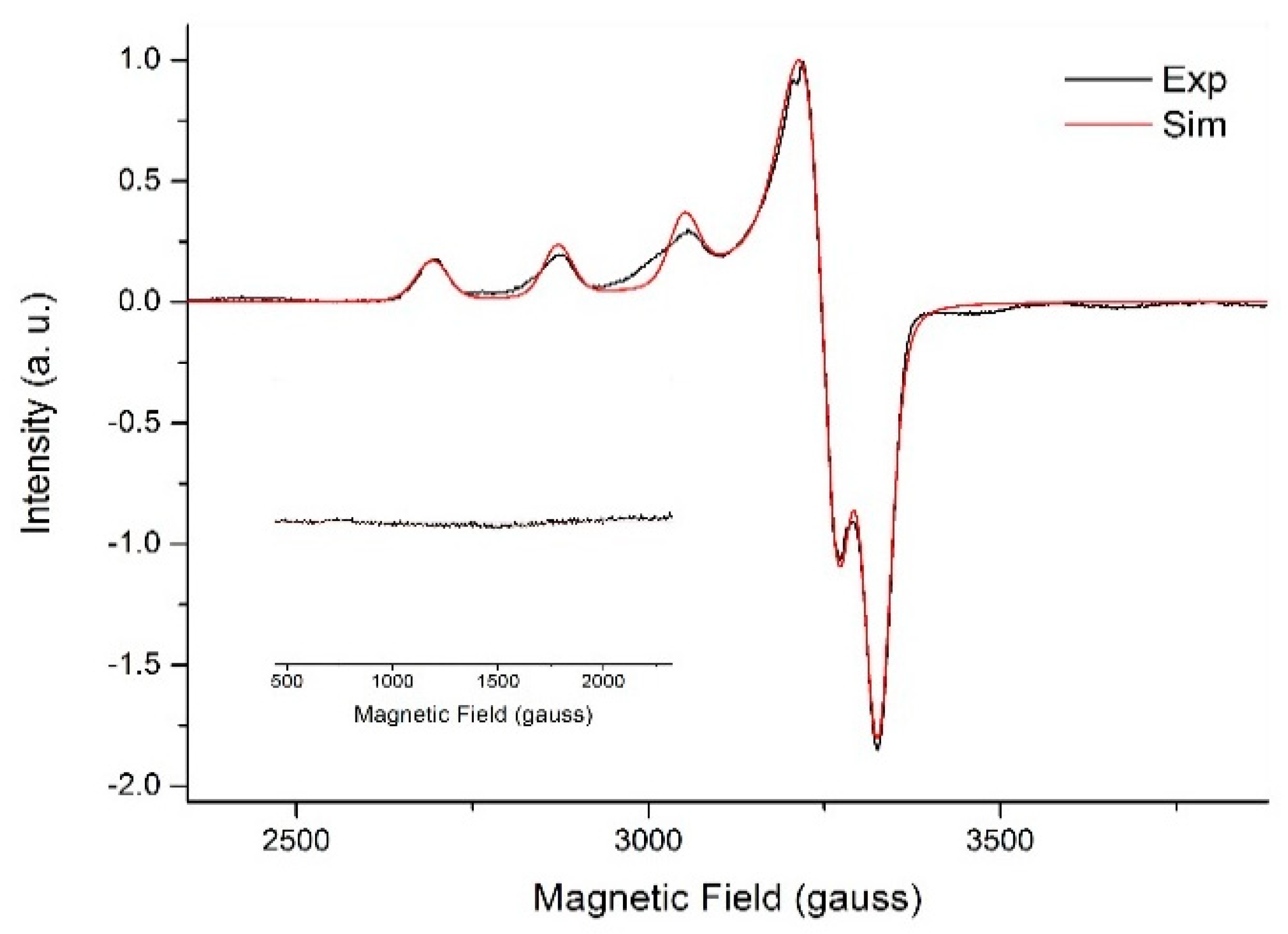

The lack of a half-field transition, according to the inset in Figure 4, indicates that the dimeric structure of 1 is not maintained in solution. This proposition is corroborated by the simulated spectrum (red line in Figure 4, simulation parameter in Table 2), which was generated for a corresponding, hypothetical mononuclear complex in solution.

The proposition of possible structures for the mononuclear complexes formed in solution is difficult given the presence of four different ligands in equal proportion—this raises the possibility of a variety of different structures. Despite this possible structural variety, it is interesting to note that slow evaporation of the EPR solution of complex 1 (3.0 mmol L⁻¹) leads to its regeneration as verified by the unit cell analysis of the resulting crystals.

2.5. UV/Vis Spectroscopy

The electronic spectra recorded for 1 in aqueous solutions of different concentrations, Figure S6, show a broad asymmetric band at 650–750 nm that can be attributed to d-d transitions in d¹ centres. The assignment of the energy states involved in these transitions is difficult due to the lack of information about the structures and, therefore, the symmetries of the mononuclear complexes formed in solution, as suggested by EPR spectroscopy. Besides the d-d transitions, the electronic spectra show intense, higher energy bands below 310 nm which may be assigned to ligand-to-metal charge transfer and/or intra-ligand transitions [17,58,69].

2.6. Magnetic Properties and ab Initio Calculations

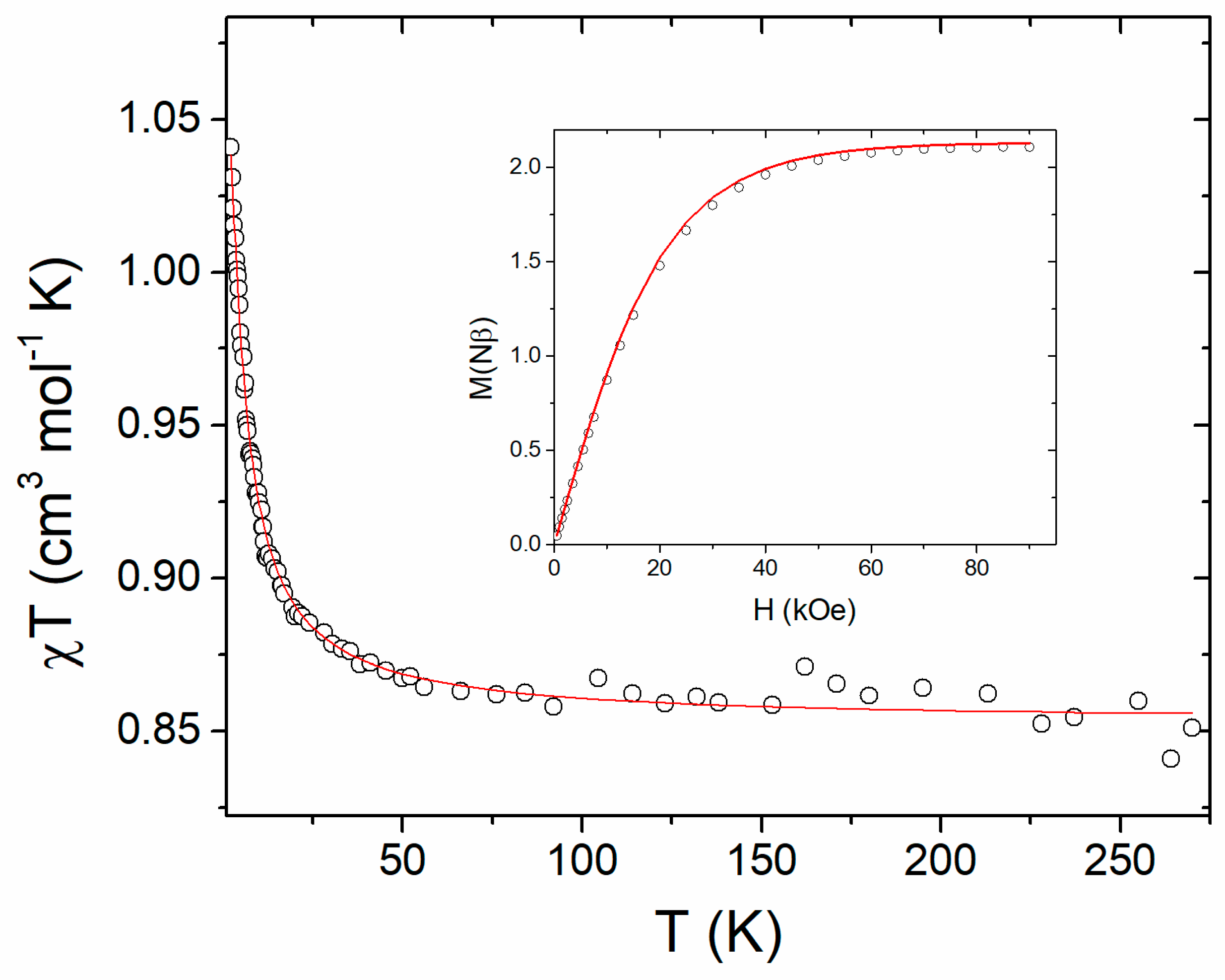

The χ_MT vs. T curve of 1, as well as its field-dependent magnetisation at 2.0 K from a polycrystalline sample are shown in Figure 5.

The χ_MT versus T plot shows that, in the high temperature range (50 < T < 280 K), χ_MT is nearly constant (ca. 0.87 cm³ K mol⁻¹), which is in good agreement with the calculated value (0.85 cm³ K mol⁻¹) considering two copper(II) ions with g = 2.13, as obtained by simulation of the EPR spectra and by ab initio calculations. Upon cooling, there is a gradual increase of χ_MT, reaching a maximum value of 1.04 cm³ K mol⁻¹ at 2.8 K, which gives support to the existence of a ferromagnetic interaction.

Due to the dimeric nature of 1, the magnetic susceptibility data were analysed considering an intramolecular magnetic interaction using the Hamiltonian H = −JS₁.S₂, with S₁ = S₂ = 1/2. The magnetic susceptibility data were fitted using the DAVE software [70]. The best-fit parameters used were the average g-value = 2.14 and the magnetic exchange interaction (J = 2.3 cm⁻¹), confirming that the magnetic exchange interaction between the two magnetic copper(II) ions through the oxalate bridge is weak and ferromagnetic.

The intermolecular through-bond and through-space magnetic interactions were initially neglected. However, since the intermolecular interactions are mediated by hydrogen bonds between water molecules and the oxalate bridge, and by π ·· π interactions between bipyridines, we have verified that the eventual through-bond magnetic interactions are either absent or of lower orders of magnitudes. Therefore, we chose the two pairs of molecules where the closest Cu^II ions lie at 5.88 and 7.22 Å, respectively (see Figure 2, Section 2.1 and Section 3.4). The computed magnetic-coupling constants for the two pairs are antiferromagnetic, and their values are 0.092 and 0.085 cm⁻¹ for the first and second pair, respectively. The strength of these intermolecular interactions is one order of magnitude lower than the intramolecular one. However, such a value cannot be neglected and, therefore, it was included in the fit. In order to prevent over-parametrisation, the intermolecular magnetic interaction was obtained considering the mean field approximation and was fixed to the value obtained from DFT calculation while the magnetic exchange interaction and average g-value were allowed to vary. The best fit parameters obtained were J = 2.9 cm⁻¹, average g-value = 2.13 and intermolecular magnetic interaction λ = −0.09 cm⁻¹ (fixed) (Figure 5). The agreement factor R, defined as R = Σ[(χ_MT)_obs − (χ_MT)_cal]² / Σ[(χ_MT)²_obs, is equal to 1.8 × 10⁻⁵, and is affected by the noisier data for temperatures above 60 K; otherwise, at lower temperatures, the fitting is very good. The inset of Figure 5 shows the field-dependent magnetisation at 2.0 K and the simulated curve using the same Hamiltonian and parameters as the fit of χT vs. T, confirming the intramolecular ferromagnetic interaction. The dipolar through-space magnetic interactions have also been evaluated for the Cu^II ion considering all the magnetic centres in the crystal packing, which are less than 20 Å away from the centre. The interactions were computed using the method described by Bencini and Gatteschi, employing the directions and values of the computed ab initio g-tensor [71]. The isotropic part of such computed magnetic exchange is 0.00019 cm⁻¹, four orders of magnitude lower than the intramolecular one, and three orders of magnitude lower than the through-bond intermolecular one. As a consequence, unlike the through-bond exchange, the dipolar interaction was not included in the fits.

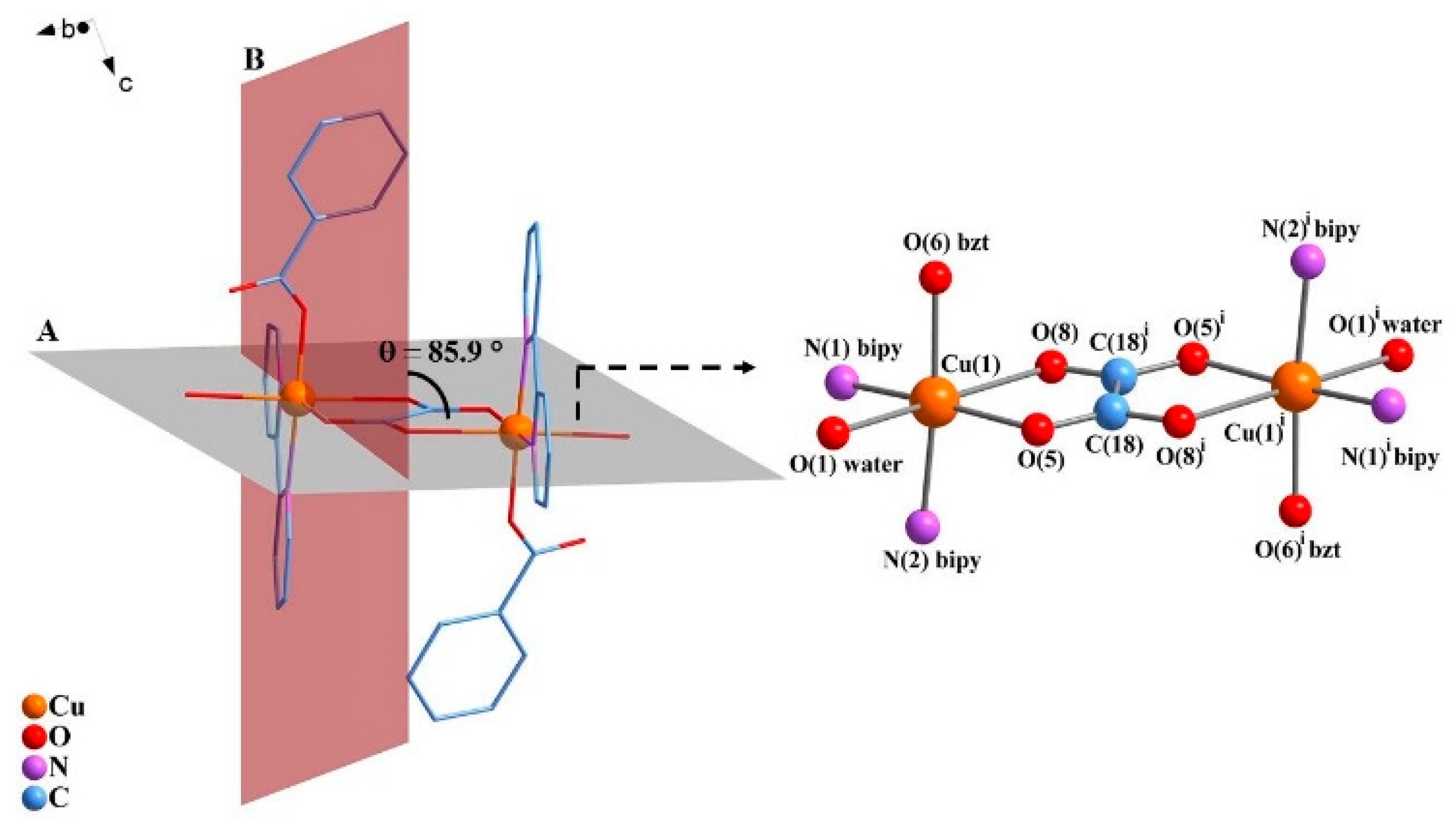

Symmetry considerations applied to the magnetic orbitals of the copper(II) centres help to understand the nature of the magnetic interactions in 1. Structural parameters, such as the Cu···Cu distance (d_Cu···d_Cu) across the bridging oxalate, the distance between the copper(II) ions and the plane described by oxygen and carbon atoms of the oxalate group, and the dihedral angle (θ) between the plane of the containing the bridging oxalate and the equatorial plane of the copper(II) complex, significantly influence the nature and the magnitude of the magnetic interactions. All these data can be useful in predicting the nature of the magnetic exchange [8,9,10,72]. For oxalate-bridged copper(II) compounds it is well known, both from experiments and theoretical calculations, that if the symmetry-related $d_{x^2-y^2}$ magnetic orbitals are orthogonal to the oxalate-bridge, the compound can exhibit a weak ferromagnetic interaction. In 1, the plane of the bridging oxalate ion is formed by O(5), O5ⁱ, O8, O8ⁱ, C18 and C18ⁱ (plane A in Figure 6). So, according to the magnetic data, the magnetic $d_{x^2-y^2}$ orbitals were expected to be located in the plane formed by O5 from ox²⁻, O6 from bzt⁻ and N1 and N2 from bipy (plane B in Figure 6). In this case, the magnetic orbitals for both copper(II) centres would be parallel to each other and almost orthogonal to the oxalate bridge, the so-called ‘accidental orthogonality’, with a dihedral angle of approximately 86°, as reported for other ferromagnetic oxalate-bridged copper(II) dinuclear complexes (

Table 3. Selected magnetostructural parameters for oxalate-bridged copper(II) complexes.

Compound (a)	dCu⋅⋅⋅Cu (Å) (b)	θ (°) (c)	α (°) (d)	J (cm−1) (e)	Reference
[{Cu(bipy)(bzt)(OH2)}2(μ-ox)]	5.60	85.9	107.7	+2.3	Complex 1
[{Cu(dpyam)2}2(μ-ox)](BF4)2·3H2O	5.74	86.1	-	+3.38	[44]
[{Cu(dpyam)2}2(μ-ox)](ClO4)2·3H2O	5.75	77.0	-	+2.42	[44]
[{Cu(prbipy)}2(μ-ox)]·4H2O	5.46	78.7	107.4	+3.22	[9]
[{Cu(bpca)(H2O)}2(μ-ox)]·2H2O	5.63	80.7	106.8	+1.1	[7]
[{Cu(bpca)}2(μ-ox)]	5.44	86.3	107.4	+1.0	[7,49]
[{Cu(bpcam)(H2O)}2(μ-ox)]	5.68	81.6	106.6	+0.75	[8]
[{Cu(dien)}2(μ-ox)](NO3)2	5.14	4.6	110.2	−6.5	[45]
[{Cu(3-ampy)}2(μ-ox)]n	5.46	4.8	111.0	−1.3	[10]
[{Cu(4-ampy)}2(μ-ox)]n	5.66	2.4	109.7	−1.1	[10]

^(a) Ligand abbreviations: ox = oxalate, bipy = 2,2′-bipyridine; bzt = benzoate; prbipy = N-(2-pyrazinyl)-4,4′-bipyridinium; bpca = bis(2-pyridylcarbonyl)amidate; bpcam = bis(2-pyrimidyl)amidate; dpyam = (di-2-pyridylamine); dien = diethylenediamine; ampy = aminopyridine. ^(b) Distance between copper(II) centres mediated by the oxalate bridge. ^(c) Dihedral angle between the oxalate plane and the plane containing the magnetic orbital of the complex. ^(d) Cu−O_axial−C_ox bond angle measured only when the oxalate is asymmetrically coordinated. ^(e) Magnetic coupling parameter.

) [8].

There is also a reported correlation between the Cu–O_axial–C_ox bond angle (α) and the nature of the magnetic interaction for oxalate-bridged copper(II) complexes that present weak magnetic interaction. For α < 109.5°, it is highly probable that the magnetic interaction will be ferromagnetic. On the other hand, if α > 109.5°, the magnetic interaction will most likely be antiferromagnetic [8,9]. For 1, the asymmetrical coordination of the oxalate ligand is assured by the bond lengths Cu1–O5 and Cu1–O8_axial of 1.973(18) and 2.378(2) Å, respectively, and the value of the α angle, given by Cu1–O8_axial–C18ⁱ, is equal to 107.7 ° Based on this discussion, the comparison of the values of d_Cu···d_Cu, θ and α for complexes similar to 1 that exhibit weak ferro- or antiferromagnetic exchange interactions, as determined by temperature-dependent magnetic susceptibility measurements, are shown in Table 3. These structural parameters were obtained from structures reported in the literature as Crystallographic Information Files (CIF files) using Mercury software [73]. The weak magnetic interaction determined for 1 is in the same range reported for other binuclear complexes with this type of structural arrangement.

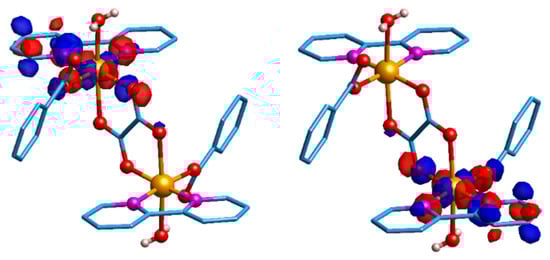

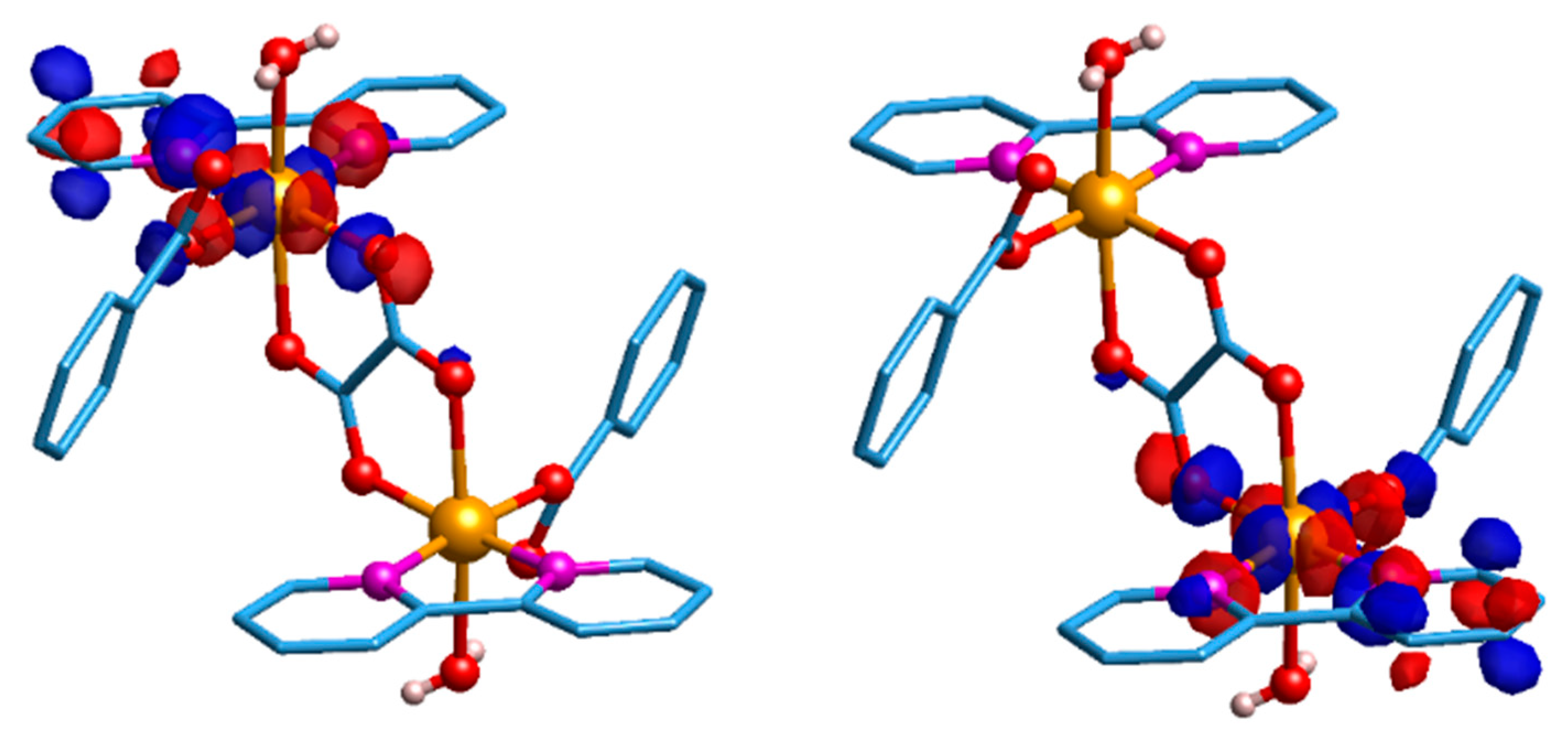

To give support to these magnetic orbital symmetry considerations, DFT calculations were performed using ORCA 4.0.1 software [74]. The magnetic orbitals are sharply localised and the local $d_{x^2-y^2}$ character is confirmed for each copper ion (see Figure 7). Indeed, they are parallel to each other, but perpendicular to the oxalate plane for both broken symmetry (BS) magnetic orbitals. Smaller values of electron density cut-off (≤0.05 e⁻/a₀³) evidenced a small amount of delocalisation on the second magnetic centre. However, such a delocalised density corresponds to a $d_{xz}$ orbital, which, being orthogonal to the local $d_{x^2-y^2}$ orbital, may lead to a ferromagnetic pathway (see Figure S7) [75]. The calculations have also shown that the spin density computed on each of the copper(II) centres is essentially the same, as expected from molecular symmetry considerations. The theoretically predicted J value of +7.72 cm⁻¹ is of the correct sign and order of magnitude, and therefore is in good agreement with the experimental J value, +2.9 cm⁻¹, confirming that the ferromagnetic interaction is weak.

3. Materials and Methods

3.1. Materials and Physical Measurements

All chemicals and solvents were used as acquired, without further purification. Chemicals were purchased from Sigma–Aldrich (St. Luis, MO, USA) and Merck (Merck, Darmstadt, Germany) (purity grade: 99.5%) and solvents from Sigma–Aldrich (St. Luis, MO, USA) (purity grade: 98.8%–99.0%). Elemental (C, H, N) analyses were performed on a Thermo Fisher Scientific Flash EA CHNS-O 1112 series element analyser (Thermo Fischer Scientific Inc., Waltham, MA, USA). Copper dosage was performed on an atomic absorption spectrophotometer (GBC Scientific Equipment Pty Ltd, Hampshire, IL, USA), GBC Avanta, equipped with a flame atomiser. The crystalline phase purity of the sample was examined by powder X-ray diffraction (PXRD) using a Shimadzu XRD-6000 diffractometer (Shimadzu Industrial Systems Co., Ltd., Tokyo, Japan) equipped with Cu-Kα radiation (λ = 1.5418 Å) in a 2θ range of 10–60°. The voltage and current applied were 40 kV and 30 mA. The simulated diffractogram was performed using Mercury software [73] from the data in the CIF file of 1. Infrared (IR) spectra were recorded with a BIORAD FTS 3500GX spectrophotometer (Bio-Rad Laboratory, Hercules, CA, USA) from KBr pellets in the range of 400–4000 cm⁻¹, with a resolution of 4 cm⁻¹ in 32 scans. The Raman spectrum was recorded with a Renishaw Raman image spectrophotometer (Renishaw Plc., New Mills, United Kingdom) coupled with a Leica optical microscope in the range of 100–4000 cm⁻¹; a He-Ne laser (632.8 nm) was employed. The analysed area of the sample was of 1 μm² with an applied voltage of 0.2 mW. Electron paramagnetic resonance (EPR) measurements were carried out in the solid-state (powdered crystals) and in solution (3.0 mmol L⁻¹ in H₂O/glycerol 9:1) using an X-band Bruker ELEXSYS MX-micro spectrometer (Bruker BioSpin Corporation, Billerica, MA, USA) operating at 9.5 GHz. Simulations were carried out with the EasySpin software package [76]. Magnetic measurements were performed on a PPMS Quantum Design magnetometer (Quantum Design North America, San Diego, CA, USA) in the temperature range of 2–300 K—the powdered sample was pressed into a pellet. Temperature dependence of magnetisation was measured with an applied external magnetic field of 1 kOe between 2–60 K and 10 kOe above 60 K. Diamagnetic corrections were made using Pascal constants [77]. Electronic spectra were recorded on a UV/Vis Varian Cary 50 spectrophotometer (Agilent Technologies Inc., Santa Clara, CA, USA) in the range of 190–800 nm. Thermogravimetric (TG) and differential thermogravimetric (DTG) analyses were carried out on a NETZSCHSTA 449 F3 Jupiter analyser (Netzsch, Selb, Germany); the experiment was conducted under O₂/N₂ (flow rate of 50 mL min⁻¹) in the range of 20–900 °C at a heating rate of 10 °C min⁻¹.

3.2. Synthesis of Compound 1

A solution of benzoic acid (0.122 g, 1.00 mmol) and diethylamine (105 μL, 1.00 mmol) in 10 mL of methanol was added to a suspension of copper(II) acetate monohydrate (0.199 g, 1.00 mmol) in 40 mL of methanol at 70 °C. The reaction mixture was stirred for 10 min leading to a bluish-green solution, which then received the addition of a colourless mixture of oxalic acid dihydrate (0.063 g, 0.50 mmol) and diethylamine (105 μL, 1.00 mmol) in 10 mL of methanol. A light-blue solution was immediately formed and was stirred for 10 min. Finally, the addition of a light-yellow solution of 2,2′-bipyridine (0.156 g, 1.00 mmol) in 10 mL of methanol, followed by stirring for 30 min, led to a change of colour to dark-blue. Bluish-green prismatic crystals were obtained after solvent evaporation at room temperature for 36 days (0.3640 g, 90% yield based on copper(II) acetate monohydrate). Solubility: slightly soluble in water, methanol, and glycerol. Elemental analysis calculated (%) for C₃₆H₃₀Cu₂N₄O₁₀: C 53.66, H 3.75, N 6.95, Cu 15.77; found: C 53.26, H 3.77, N 7.14, Cu 16.39. IR (KBr, cm⁻¹, s = strong, m = medium, w = weak): ν(O-H) = 3460(m); ν(C-O, COO⁻) = 1648, 1379(s); ν(C=C and C=N) = 1602–1445(m, w); δ(C-H) = 1305–1019(w); β(C-H) = 779–675(m). Raman (cm⁻¹): ν = 3054(m) (O-H); ν(CO)_COO− = 1597 (s); ν(C=C and C=N) = 1597–1494(s, m); δ(CCH) = 1268(w); δ(OCO) = 843(w); ν(Cu=O and Cu=N) = 619–366(w).

3.3. X-ray Crystallographic Data Collection and Refinement

A bluish-green single crystal of 1 was mounted on a micromount-type mesh (Mitegen). The data was obtained on a Bruker D8 Venture diffractometer equipped with a Photon 100 CMOS detector, Mo-Kα radiation (λ = 0.71073 Å) and graphite monochromator. Diffraction data were measured at 302(2) K and processed using the APEX3 program [78]. The structure was determined by the intrinsic phasing routines in the SHELXT program [79] and refined by full-matrix least-squares methods, on F²’s using SHELXL program [80,81] in the WinGX suite [82]. The non-hydrogen atoms were refined with anisotropic thermal parameters. All hydrogen atoms were located in difference Fourier maps and were refined isotropically and freely. Molecular diagrams were prepared using ORTEP3 [82] and Mercury software [73]. The crystal data collection and refinement parameters are summarised in

Table 4. Crystal data and refinement parameters for compound 1.

Formula	C36H30Cu2N4O10
Formula weight	805.72 g mol−1
Temperature (K)	302(2)
Wavelength (Å)	0.71073 Å
Crystal system	Monoclinic
Space group	P21/n (equiv. to no 14)
Z/calculated density	2/1.593 Mg m−3
a (Å)	7.1994(3)
b (Å)	10.0894(4)
c (Å)	23.1941(10)
β (°)	94.385(2)
Unit cell volume (Å3)	1679.83(12)
Absorption coefficient μ (mm−1)	1.333
F(000)	824
Crystal size (mm)/colour	0.175 × 0.087 × 0.067/bluish-green
θ range (°)	2.9–25.0
h, k, l ranges	±8, ±11, ±27
Completeness to θ = 25°	99.9%
Total reflections/unique reflections/Rint	51619/2953/0.069
No of parameters/restraints	243/2
Goodness-of-fit on F2 (GOF)	1.037
R1, wR2 (all data) b	0.052, 0.085
R1, wR2 [I > 2σ(I)] a,b	0.033, 0.078
Δρmaximum/Δρminimum(eÅ−3)	0.29/−0.17

^a R₁ = Σ||Fo| − |Fc||(Σ|Fo|)⁻¹; ^b wR₂ = {Σ[w(Fo² − Fc²)²[Σ(Fo²)²]⁻¹}^1/2.

.

3.4. Theoretical Methods

Density functional calculations were performed with the quantum chemistry software ORCA 4.0.1 [74]. The X-ray structure of 1 was employed without any further geometry optimisation. The PBE0 [83] hybrid exchange-correlation functional was chosen. The basis sets were: def2-TZVPP [84] on Cu, N, O and C, and def2-SVP on H. The broken symmetry (BS) approach [85] was used to extract the magnetic-coupling constants. Single point calculations on both the triplet and the broken symmetry state were performed. Hence, within the Heisenberg Hamiltonian H = −JS₁·S₂, the value of the exchange constant was computed within the following formula: J = −(E_HS − E_BS)/(2S₁S₂), where HS is the triplet (S = 1). Within the same approach, the intermolecular exchange interaction was also computed in two dimer models. Both models were made using two molecular units of 1, as extracted from the crystal structure—the two molecular pairs whose closest Cu ions lay at 5.88 Å and 7.22 Å away from each other, respectively. The two pairs were chosen due to their Cu···Cu distance below 10 Å. Moreover, in both molecules the first pair interacts via hydrogen bonds between the oxalate bridge and the water molecules, while the second pair interacts through π-π stacking of the bipyridine ligands (see Section 3.1), which could promote a non-negligible superexchange path via π orbital overlap. All the other Cu atoms in the crystal are at a larger distance and, as a consequence, they were neglected in a first approximation. The exchange constant was computed by converging on the quintuplet and on the singlet states, i.e., the two states that arise from the two ground triplets ferromagnetically and antiferromagnetically coupled. The g-matrix of a single copper(II) atom was also computed by DFT methods. For this purpose, one of the two copper(II) atoms of the dimer was substituted in silico for its diamagnetic equivalent zinc(II). The g-matrix was obtained within the coupled-perturbed self-consistent field (CPSCF) approach [86] as implanted in Orca.

4. Conclusions

A new dinuclear copper(II) complex was synthesised and characterised. The crystal structure showed that [[{Cu(bipy)(bzt)(OH₂)}₂(μ-ox)] (1) is centrosymmetric and contains two rather bulky ligands, benzoate and 2,2′-bipyridine, while the majority of the complexes of this class contain just one bulky ligand. The magnetic interaction predicted by EPR was confirmed by magnetic measurements and indicated ferromagnetic coupling between the metal centres. The determined J value was supported by DFT calculations. Therefore, the present study highlights the importance of the oxalate bridge as a magnetic-exchange pathway, and how bulky ancillary ligands can affect the magnetic response.
