Photocatalytic Activity of Fibrous Ti/Ce Oxides Obtained by Hydrothermal Impregnation of Short Flax Fibers

Abstract

Fibrous Ti/Ce oxide photocatalysts were prepared for the first time by a biomimetic solution process using short flax fibers (flax straw processing waste) as a biotemplate. Titanium polyhydroxy complex solutions with 3% and 5% cerium were used as precursors. Flax fibers were impregnated in an autoclave under hydrothermal conditions. Ti/Ce oxides were obtained from the biotemplate by annealing at 600 °C. The photocatalytic activity of the Ti/Ce oxides was studied by the adsorption and decomposition of the dye rhodamine B under UV irradiation. The photocatalytic decomposition of the dye was 50% and 75% faster for Ti/Ce oxides with 3% and 5% Ce, respectively, than for the analogous undoped fibrous TiO₂. The morphologies, textures, and structures of the photocatalysts were studied by scanning electron microscopy, low temperature N₂ adsorption/desorption, UV-Vis spectroscopy, and X-ray and XPS analytical methods. It was shown that the introduction of Ce into the precursor solution increased the surface irregularity of the Ti/Ce oxide crystallites compared to pure TiO₂. This effect scaled with the Ce concentration. Ce improved the UV light absorption of the material. The Ti/Ce oxides contained Ce⁴⁺/Ce³⁺ pairs that played an important role in redox processes and intensified the photocatalytic activity.

1. Introduction

Titanium oxide TiO₂, or titania, is an intensely studied, highly effective photoactive material and photocatalyst [1,2]. Various synthetic methods have been proposed to improve the photoactivity of TiO₂, based on a modified morphology of the material or doping of TiO₂ with different elements [3,4,5]. For example, the biomimetic method uses natural templates, in particular cellulose, to form photocatalytical particles with a hierarchical structure. The particles have a large surface area, with structural elements ranging from nano- to micrometer size, and contain micro-, meso-, and macropores [6]. Such structures promote the diffusion and adsorption of reagent molecules, as well as light absorption, which improves the TiO₂ photocatalytic activity [7,8].

The effectiveness of TiO₂ photocatalysts strongly depends on the probability of the recombination of electron–hole pairs generated on the particle surface by the absorption of photons. Doping TiO₂ with metal ions lowers the probability of electron–hole recombination and improves interphase charge transfer, thus increasing the photocatalytic efficiency [3,9]. Researchers have proposed a number of photocatalytic TiO₂ systems mixed with ZnO [10], Cu₂O [11], ZrO₂ [12], SnO₂ [13], WO₃ [14], and CeO₂ [15,16,17,18,19,20,21,22,23,24,25,26].

CeO₂ is an especially attractive dopant for TiO₂ due to its stability at high temperatures, strong UV absorption, optical transparency in the visible spectral range, chemical stability, and redox reactivity [27]. The most common method for Ti/Ce oxides is a sol–gel synthesis [15,16,17,18]. Besides, some authors apply chemical coprecipitation–peptization methods [19,20] and hydrothermal syntheses [21,22]. Ti/Ce oxides in the form of 3D structures with a specific surface area were prepared by oil-in-water (o/w) [23] and water-in-oil (w/o) suspension techniques [24]. However, there are only a few reported biotemplated syntheses of Ti/Ce oxides. For example, Xiao et al. [25] prepared cerium-doped TiO₂ mesoporous nanofibers from Ti (SO₄)₂ and Ce(SO₄)₂ precursor solutions and collagen fiber templates. The use of collagen fibers in biotemplated synthesis is quite reasonable because they represent a valuable material for various biomedical applications. Wang et al. [26] synthesized CeO₂-TiO₂ samples by impregnating filter paper with Ce(NO₃)₃·6H₂O and TiCl₄ precursor solutions, followed by annealing of the biotemplate. The stability of filter paper in the acidic precursor solutions is extremely low, which makes this preparation method of biomorphic ceramic material rather difficult.

We have earlier reported a method for the preparation of TiO₂ using short flax fibers as a template. As is known, the amount of waste in flax straw processing can reach 75%, as only long flax fibers are used for making linen fabrics, and short fibers are not suitable for these purposes [28]. Flax fibers have a multimeric structure with pores and capillaries and possess higher acid resistance than other cellulose materials; they are most suitable for the biomimetic synthesis of ceramic fibers based on strongly acidic precursor solutions. We used a solution of titanium polyhydroxy complexes as precursor because it is better adsorbed by cellulose biotemplates than the other precursor systems. An intensive impregnation of flax fibers with a solution of titanium polyhydroxy complexes under hydrothermal conditions facilitates the nucleation of photoactive precursor particles and the thermal destruction of the biotemplate when it is annealed during the subsequent TiO₂ synthesis. The obtained samples of fibrous TiO₂ have a better photocatalytic activity than commercially available photocatalysts and their known analogues.

This work is a continuation of our series of studies on obtaining highly effective photocatalysts by the biotemplate method. For the first time, we investigated titanium and cerium hydroxy complexes as precursor solutions to impregnate short flax fibers. The aim of the present study was to establish how a small addition of a cerium salt in the precursor solution affects the photocatalytic activity of the synthesized systems, as well as their morphology, phase composition, and textural characteristics.

2. Results and Discussion

The catalysts were synthesized from mixed solutions of Ti–Ce hydroxy complexes, see Section 3.1 for details. The solutions were hydrothermally impregnated on short flax fibers. The calcination of the fibers resulted in biotemplated Ti/Ce oxides.

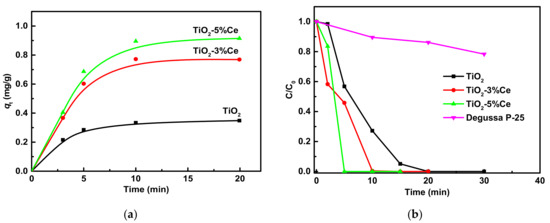

Bearing in mind the aim of the study, we first tested the photocatalytic properties of the synthesized TiO₂, TiO₂–3% Ce, and TiO₂–5% Ce samples. Figure 1a,b show the results of the rhodamine B adsorption on the catalysts and the photocatalytical decomposition of the dye by UV irradiation, respectively.

Photocatalysis is the additive result of two processes: the adsorption and photocatalytic degradation of organic molecules. Figure 1 shows the time-dependent adsorption of the dye rhodamine B by the synthesized samples. The amount of rhodamine B adsorbed by the TiO₂–3% Ce and TiO₂–5% Ce samples was much higher than for pure TiO₂. Saturation was achieved after about 10 min and the maximum adsorbed values increased from 0.34 to 0.77 and 0.91 mg/g for TiO₂, TiO₂–3% Ce, and TiO₂–5% Ce, respectively. The dye decomposition under UV irradiation took 50% and 75% less time in the presence of TiO₂–3% Ce and TiO₂–5% Ce catalysts compared to pure TiO₂, see Figure 1b. These results agreed well with the data obtained in earlier work on photocatalysts synthesized by the sol–gel method [18]—raising the cerium concentration to 5% in mixed Ti–Ce oxides increased their activity in organic pollutant decomposition. Impressively, the materials synthesized in this work showed a higher photocatalytic activity than the commercial photocatalyst P-25 from Degussa.

In the next step, we studied the effect of the cerium addition to the titanium hydroxy complexes on the structure of the biomorphic photocatalysts to rationalize the higher photocatalytic activity of the Ti–Ce oxides compared to pure TiO₂.

The morphologies of the biotemplated TiO₂–3% Ce and TiO₂–5% Ce samples were studied by SEM, see Figure 2. The SEM images of flax fiber and TiO₂ samples were published previously in [28]. The particles of all the photocatalysts had a similar fibrous structure replicating the texture of the flax template. The samples consisted of agglomerated elongated crystallites with pores of different sizes between them.

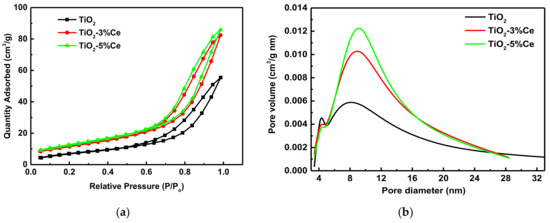

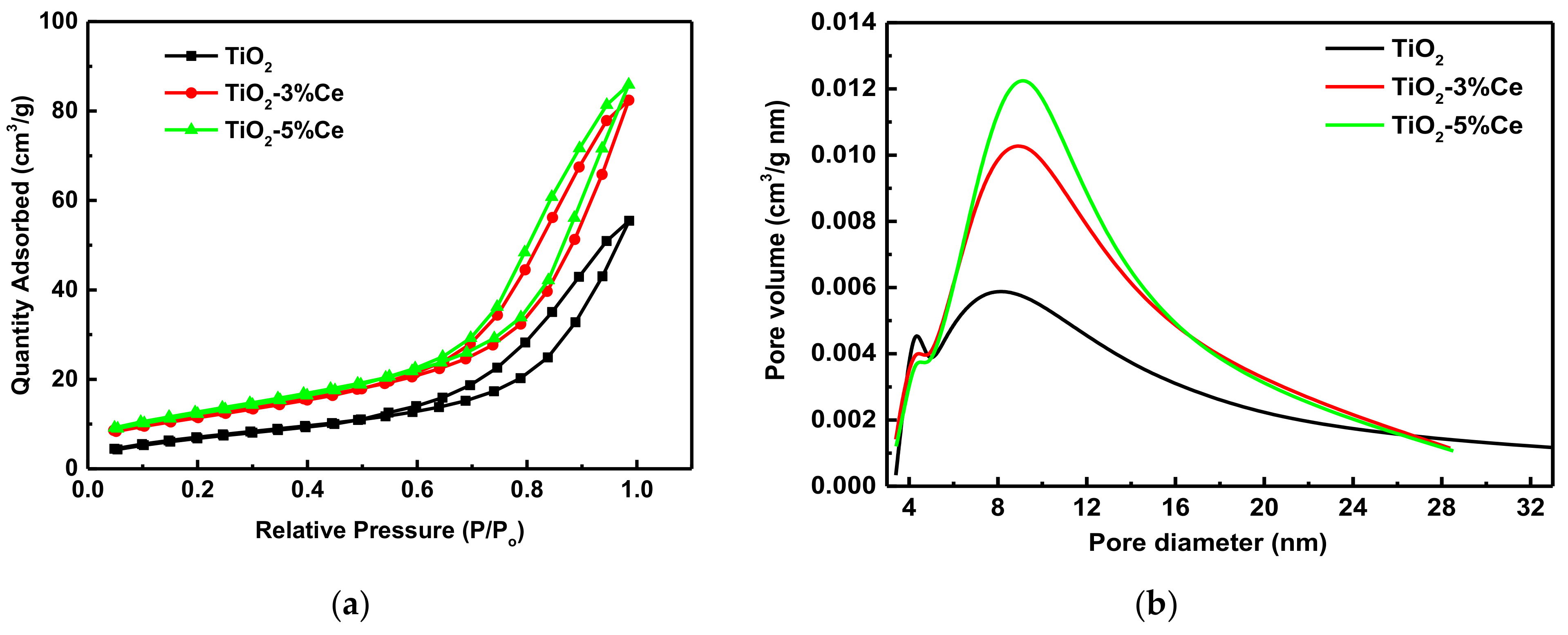

The porosity of the photocatalysts was studied by low temperature N₂ adsorption/desorption measurements, which are presented in Figure 3 and

Table 1. Porosity data for the fibrous TiO₂ and TiO₂–xCe samples.

Sample	SBET (Mesopores) (m2/g)	VBJH (cm3/g)	VTotal (cm3/g)	Dp (nm)	DF
TiO2	27.1 ± 1.4	0.088 ± 0.001	0.086 ± 0.001	7.7 ± 0.9	2.483 ± 0.006
TiO2–3% Ce	42.9 ± 2.1	0.122 ± 0.001	0.128 ± 0.001	9.3 ± 1.1	2.515 ± 0.008
TiO2–5% Ce	46.0 ± 2.3	0.127 ± 0.001	0.133 ± 0.001	9.4 ± 1.1	2.534 ± 0.009

.

The nitrogen adsorption isotherms presented in Figure 3 can be classified as type IV with an H3-type hysteresis loop (according to the IUPAC classification), which is typical of mesoporous materials [29]. The use of a mixed Ti–Ce solution of hydroxy complexes in the synthesis of photocatalysts increases their specific surface area and porosity. The values of all the parameters characterizing the texture of the studied materials become higher with increasing Ce concentrations.

To explain these observations, we calculated the fractal dimensions (D_F) using the nitrogen adsorption results according to the FHH (Frenkel–Halsey–Hill) model [30]. The FHH isotherm equation in the logarithmic form looks as follows:

lnV = const + (D_F − 3) ln(−lnP/P₀)

where V is the volume of the adsorbate gas under equilibrium pressure, P.

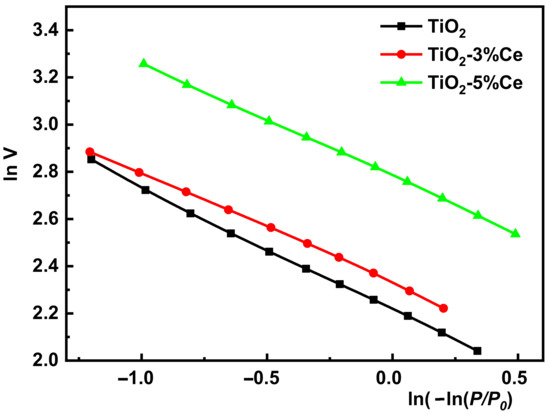

It is evident that the slope of the lnV − ln(−lnP/P₀) dependence is equal to D_F − 3. The dependence is shown in Figure 4; the calculated D_F values are given in Table 1.

As is known, the higher the D_F value (ranging from 2 to 3), the more irregular is the surface. The D_F values were higher in the cerium-containing samples of the photocatalysts obtained in this work. As a result, the crystallites making up their inner structure had a more irregular surface than those in pure TiO₂.

One possible reason for the higher porosity and more developed inner surface of the Ti–Ce oxide samples is the formation of coordination complexes by Ce and Ti hydroxy complexes of various sizes. Such effects observed during the hydrothermal synthesis of large Al-Ce hydroxy complexes were earlier reported in [31]. As in the present work, the D_F values of the pillared montmorillonite crystallite ensemble became higher when small cerium additives were introduced into the aluminum hydroxy complexes, acting as intercalants.

Thus, the texture of the photocatalysts explains the increasing adsorption of rhodamine B along the series TiO₂ < TiO₂–3% Ce < TiO₂–5% Ce.

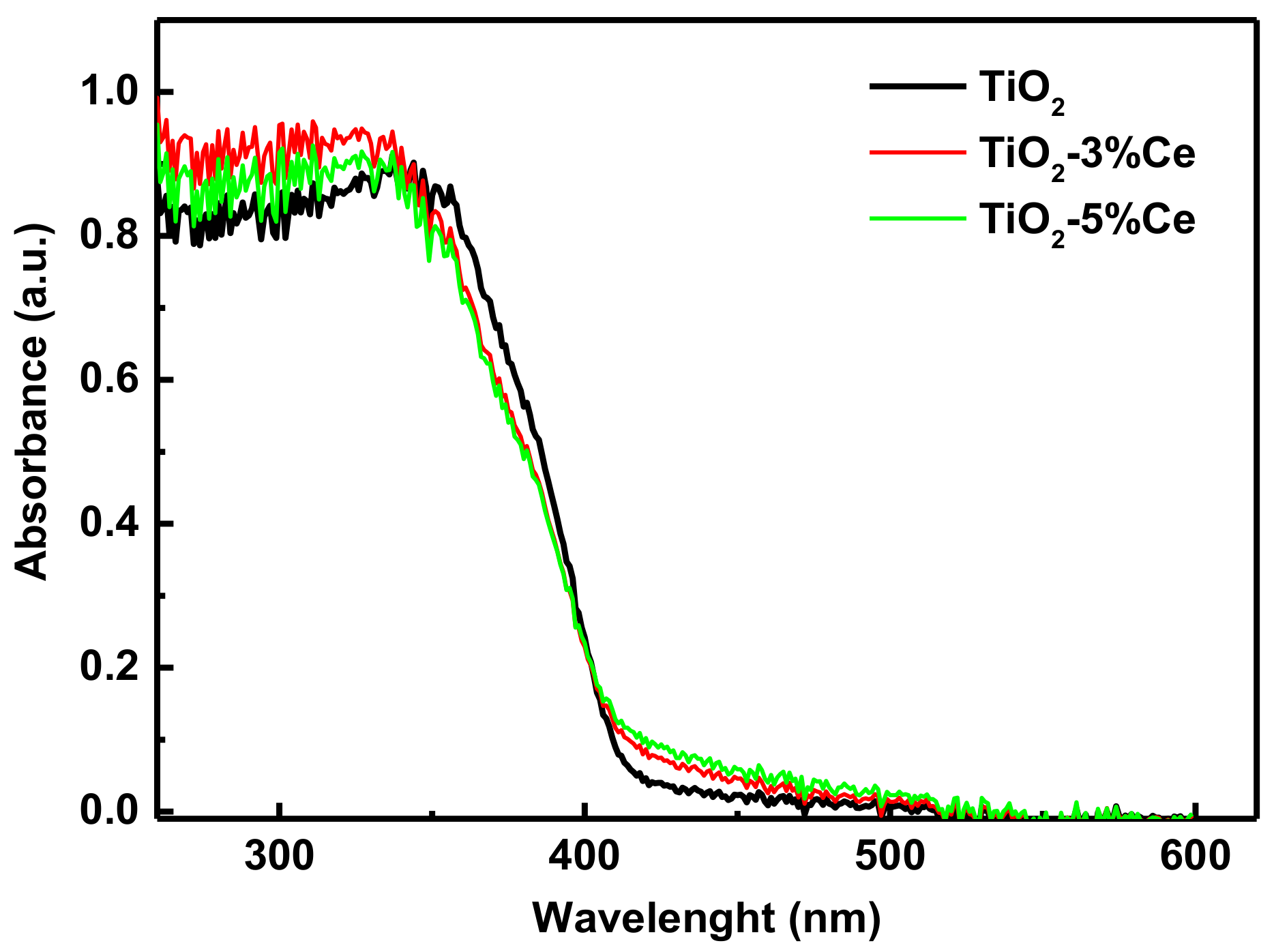

The UV–Vis absorption spectra of the samples are shown in Figure 5. The TiO₂–3% Ce and TiO₂–5% Ce samples showed a stronger (up to 10%) blue/UV light absorption than pure TiO₂. It is evident that a higher UV light absorption by the Ce-doped systems intensifies the formation of electron–hole pairs during the photocatalysis [32] and partly explains why the catalytic properties of the Ti–Ce oxide samples were better than those of pure TiO₂. Ce⁴⁺ compounds are often yellow, which agrees with the higher absorption from 400–470 nm. Ce³⁺ compounds showed a strong 4f-5d absorption in the UV. Both facts indicate a stronger absorption of the Ti–Ce oxides compared to Ti oxide.

We found the band gap of the samples under study by the Tauc method [33] to be 3.16 ± 0.1, 3.15 ± 0.1, and 3.13 ± 0.1 eV for TiO₂, TiO₂–3% Ce and TiO₂–5% Ce, respectively. So, the doping technique applied did not yield any statistically significant changes in the band gap.

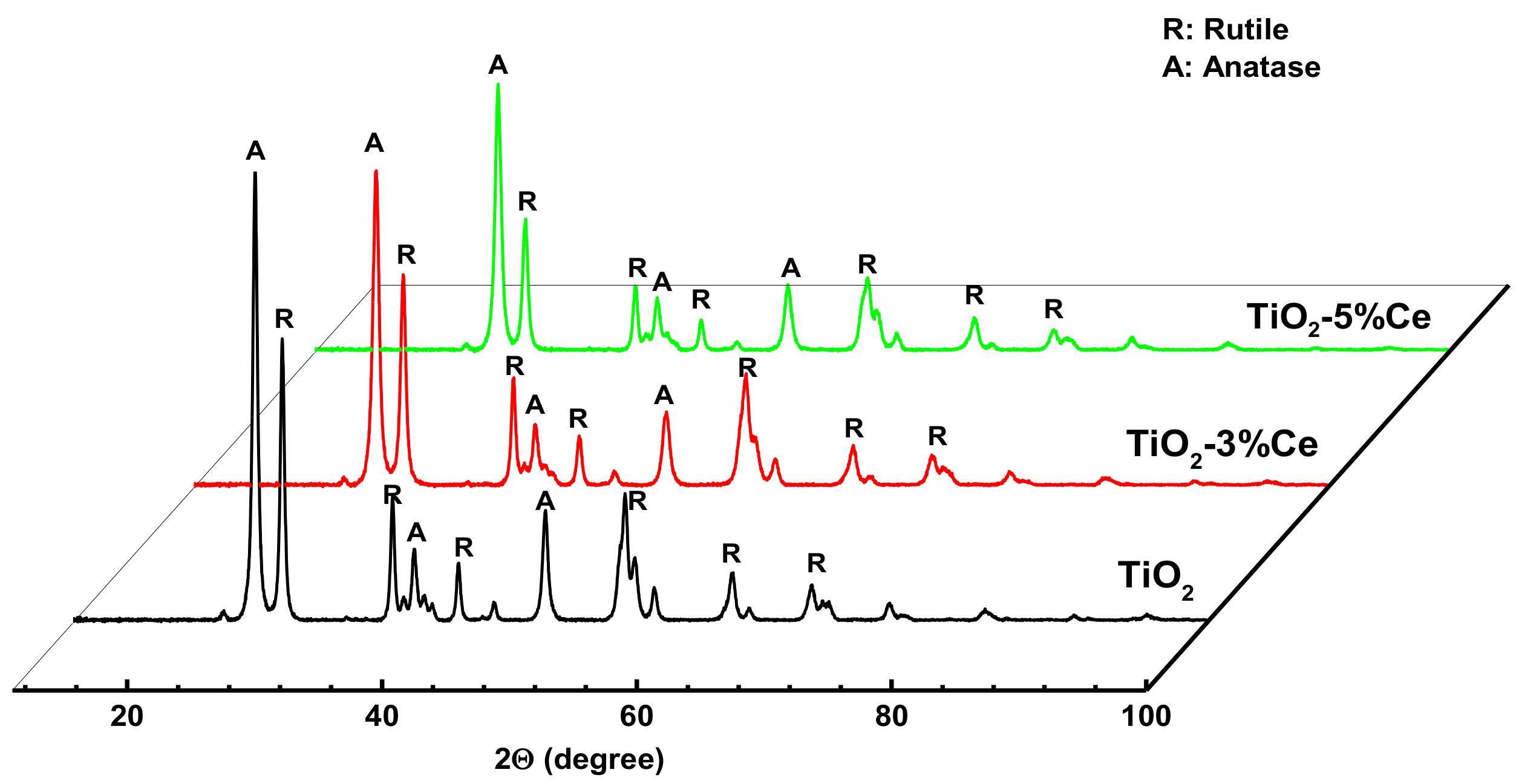

The X-ray diffraction (XRD) patterns of the samples are shown in Figure 6.

All samples showed peaks of rutile (R) and anatase (A) TiO₂ phases, as indicated in the diffraction patterns. No diffraction peaks of cerium oxides were observed. Similar results for mixed Ti–Ce oxides with up to 10 wt.% Ce were obtained by the authors of [18]. They supposed that the formation of nanosized cerium oxide crystallites well dispersed among the TiO₂ crystallites is, evidently, a reasonable explanation as to why no characteristic cerium oxide peaks were observed in the diffraction patterns of the mixed materials. It is noteworthy that mixed Ti/Ce oxides incorporating both Ce⁴⁺ and Ce³⁺ [34] may also form in these systems. The DIFFRAC.SUITE data base provided by the Bruker Company (Karlsruhe, Germany), which we used to evaluate the X-ray patterns, confirmed such probability. However, Ti/Ce oxide peaks, which cannot demonstrate high enough intensity to obtain information due to the low concentration of cerium, overlapped with the TiO₂ ones, and thus it was impossible to obtain reliable information.

The average crystallite size of the TiO₂ phases, as calculated by the Scherrer’s equation, and the relative amount of A and R phases are summarized in

Table 2. Average crystallite size and phase composition of the fibrous TiO₂ and TiO₂–x% Ce samples.

Sample	Average Crystallite Size, nm		Phase Composition, %
	A	R	A	R
TiO2	21.0 ± 1.6	26.4 ± 2.0	51.3 ± 1.0	48.7 ± 0.9
TiO2–3% Ce	17.5 ± 1.5	20.8 ± 1.6	47.3 ± 0.9	52.7 ± 1.0
TiO2–5% Ce	17.4 ± 1.5	22.8 ± 1.8	46.6 ± 0.9	53.4 ± 1.1

.

The data demonstrated that the introduction of Ce into titanium hydroxy complexes somewhat increased the rutile content in the TiO₂–Ce samples. Also, it reduced the size of the crystallites for both TiO₂ phases. A higher rutile content in TiO₂–Ce samples agrees with the earlier results in [35]. The researchers attributed this fact to the lower activation energy of the anatase–rutile phase transition in the presence of a dopant.

To evaluate the chemical state of Ti, O, and Ce on the photocatalyst surface in the mixed Ti–Ce oxide system and to understand the mechanism of dye decomposition under the action of UV radiation in the presence of a Ti–Ce photocatalyst, we carried out an XPS analysis of the TiO₂–5% Ce sample that demonstrated the best photocatalytic activity. The system was studied before and after the photocatalysis. Figure 7a presents the XPS survey spectra of the TiO₂–5% Ce sample. Both spectra clearly showed binding energy peaks characteristic of Ti 2p, O 1s, Ce 3d, and C 1s. It should be noted that the presence of the C element in the sample could be the result of incomplete biotemplate burning during the heat treatment.

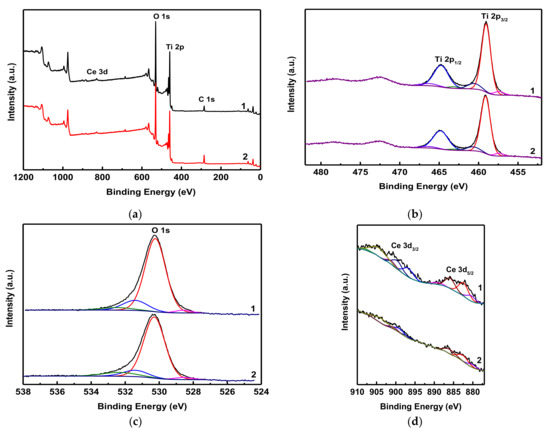

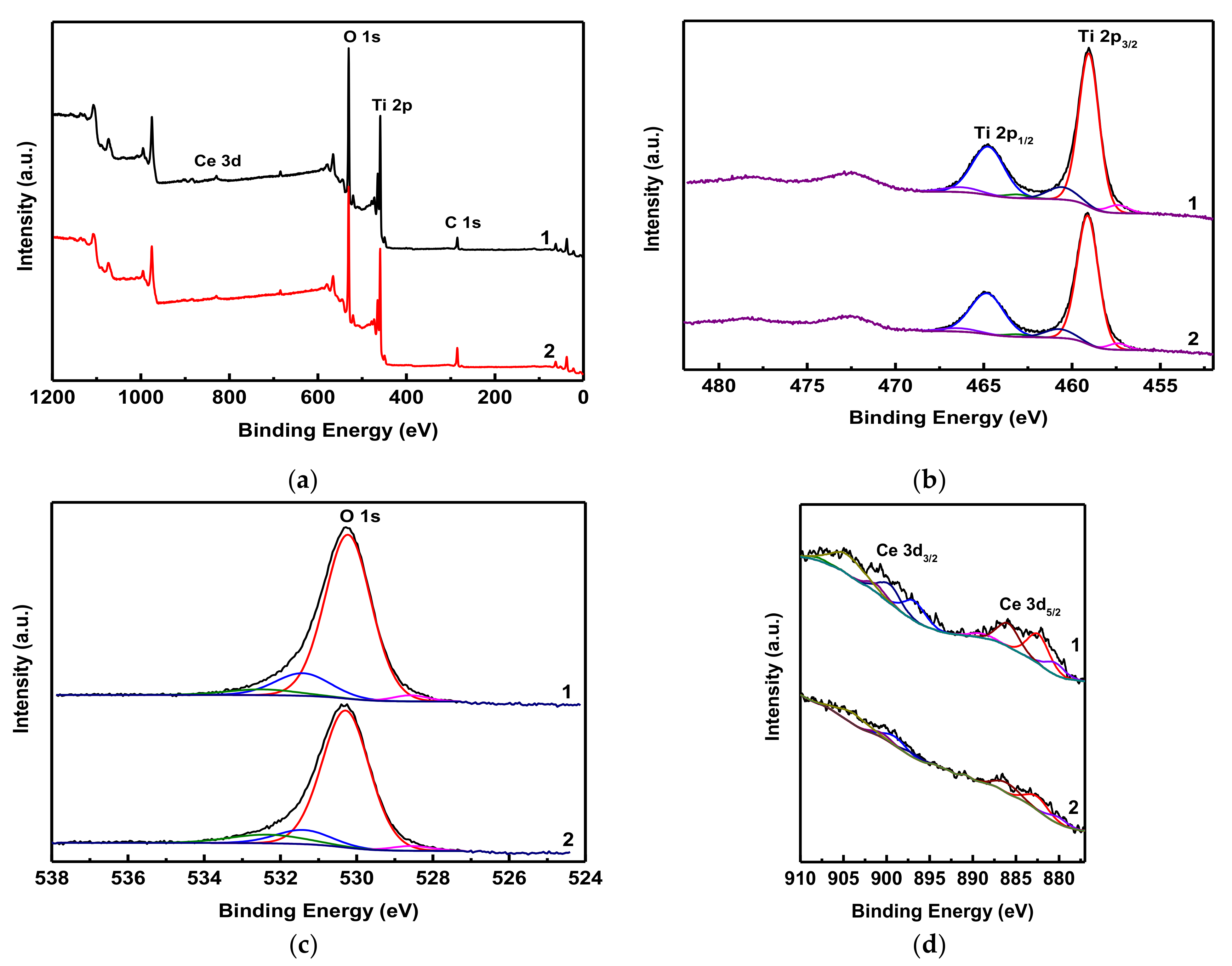

The XPS spectra of the Ti 2p core level are shown in Figure 7b. The spectra had two main peaks at 459.0 and 464.7 eV corresponding to the spin–orbit components of Ti 2p_3/2 and Ti 2p_1/2, respectively. The positions of these peaks indicate that the TiO₂–5% Ce sample contains Ti in the form of Ti⁴⁺ both before and after the photocatalysis. Figure 7c illustrates the O 1s spectra of the TiO₂–5% Ce samples. The peak at 530.2 eV in these spectra is characteristic of the lattice oxygen in the structures of TiO₂ and CeO₂. Figure 7d shows the core level Ce 3d spectra with their fitted deconvolution. The spectra included four Ce 3d_5/2 peaks: two of them—at 882 and 889 eV—corresponded to Ce⁴⁺ and the other two—at 880 and 885 eV—to Ce³⁺. The Ce 3d_3/2 peaks at 899 and 907 eV indicated Ce⁴⁺.

Then. we calculated the Ce⁴⁺/Ce³⁺ ratio by comparing the total areas under the peaks corresponding to Ce⁴⁺ and Ce³⁺. The Ce⁴⁺/Ce³⁺ ratio of the initial TiO₂–5% Ce sample was found to be 6.1/3.9. After this same sample was subjected to photocatalysis, the Ce⁴⁺/Ce³⁺ ratio became 5.3/4.7. It means that a certain amount of Ce⁴⁺ had been reduced to Ce³⁺ as a result of the exposure to ultraviolet irradiation and the photocatalytic process itself.

The obtained XPS results allowed us to make certain conclusions about the photocatalysis mechanism in the presence of the synthesized Ti–Ce oxide photocatalysts.

The authors of [23,36] have shown that Ce⁴⁺/Ce³⁺ pairs increase the efficiency of the photocatalytic process as follows:

Ultraviolet effects:

TiO₂ + hν → TiO₂ (e⁻ + h⁺)

(1)

Redox process on the surface:

Ce⁴⁺ + e⁻ → Ce³⁺

(2)

Formation of active particles/radicals:

Ce³⁺ + O₂ →·O₂⁻ + Ce⁴⁺

(3)

O₂⁻ + H⁺ → ·HO₂

(4)

HO₂ +·HO₂ → H₂O₂ + O₂

(5)

e⁻ + H₂O₂ → HO· + OH⁻

(6)

H₂O₂ + O₂⁻ → HO· + OH⁻ + O₂

(7)

Photocatalytic destruction of the dye:

Rhodamine B + radical → products of Rhodamine B destruction

(8)

Consequently, it can be assumed that cerium oxide crystallites dispersed among the TiO₂ in the synthesized Ti–Ce oxides promote the photocatalytic process due to: (i) a stronger UV light absorption and, as a result, the formation of more electron–hole pairs and (ii) Ce³⁺/Ce⁴⁺ redox processes (2) and (3).

It is quite probable that the rate of exciton generation (1) and subsequent reduction (2) was higher than that of the redox reaction (3), which was limited by diffusion and adsorption. As a result, we observed a higher Ce³⁺ content on the surface of the Ti–Ce photocatalyst after its participation in the photocatalysis.

3. Materials and Methods

3.1. Preparation of Photocatalyst Samples by the Biotemplate Method

The precursor solutions with titanium and cerium polyhydroxy complexes were prepared in the following way. First, we made a solution of titanium hydroxy complexes by hydrolyzing titanium chloride TiCl₄ (Sigma-AldrichRus, Moscow, Russia) at room temperature by the technique described in [28]. For that purpose, we added TiCl₄ dropwise to a 6M HCl solution until the Ti⁴⁺ concentration reached 4.92 M. Then, this solution was slowly diluted with distilled water under constant stirring until the Ti⁴⁺ concentration was 0.56 M. This solution was aged for 3 h at 20 °C leading to the formation of titanium polyhydroxy complexes. At the next stage, we added a solution of Ce(NO₃)₃∙6H₂O of an appropriate concentration to the titanium hydroxy complex solution under constant stirring at 20 °C to obtain 3 and 5 wt.% of CeO₂ in the final catalysts.

Short flax fibers were used as a biotemplate in this work [28]. The biotemplate was impregnated with the precursor solutions in an autoclave for 5 h at 115 °C and a pressure of 170 kPa. Then, the autoclave was cooled passively to room temperature. The samples were separated from the precursor solution in a centrifuge at a circumferential velocity of 1500 rpm and dried at 95 °C until a constant weight was reached. The fibrous photocatalysts were prepared by calcination of the impregnated biotemplates in air in an electric furnace at 600 °C for 30 min. The calcination temperature was in accordance with our previous study that revealed the best photocatalytic activity for fibrous TiO₂ samples was prepared at 600 °C [28]. The Ti/Ce oxides denoted as TiO₂–3% Ce and TiO₂–5% Ce, where 3 and 5 wt.% were the Ce(NO₃)₃∙6H₂O concentrations in the precursor solutions.

3.2. Study of the Structure and Properties of the Photocatalyst Samples

The surface morphologies of the TiO₂ samples were studied on a VEGA3 scanning electron microscope (TESCAN, Brno, Czech Republic). The textural characteristics and the average pore diameter of the samples were determined by low-temperature nitrogen adsorption–desorption on a NOVAtouch LX specific surface and porosity analyzer (Quantachrome, Boynton Beach, FL, USA); the samples were degassed for 3 h at 120 °C and a residual pressure of 1.3 Pa before the measurements.

The UV–Vis spectra of the samples were recorded on an AvaSpec-ULS2048x64-EVO spectrometer (Avantes, Apeldoorn, The Netherlands).

X-ray diffraction patterns were measured with Cu Kα radiation on a D2 PHASER diffractometer (Bruker, Karlsruhe, Germany). The average crystallite size (L) of the catalysts anatase and rutile phases were determined by the Scherrer method [37]:

$$L=\frac{k\lambda }{\beta \cos \theta }$$

where k is the dimensionless particle shape coefficient (0.94), λ is the X-ray wavelength (λ = 0.15425 nm), β is the full width at half maximum of the diffraction peak (in 2θ units), and θ is the diffraction angle.

The elemental composition and chemical state of the surface of the obtained samples were evaluated by X-ray photoelectron spectroscopy (XPS) on an ES2403 electron spectrometer (Institute for Analytic Instrumentation of RAS, St Petersburg, Russia) with an XR-50 X-ray source (SPECS, Berlin, Germany), a Mg Kα anode (hν = 1253.6 eV), and a PHOIBOS 100-MCD5 energy analyzer (SPECS, Berlin, Germany). The survey spectra were recorded with an energy step of 0.5 eV and an analyzer pass energy of 40 eV, while the high-resolution spectra were recorded with an energy step of 0.05 eV and an analyzer pass energy of 7 eV. The spectra were deconvoluted using the CasaXPS software (Casa Software Ltd, Teignmouth, UK).

The textural and X-ray measurements were repeated thrice for each photocatalyst sample; the resulting mean values and uncertainties are given in Table 1 and Table 2.

3.3. Evaluation of the Photocatalytic Activity of the Samples

The photocatalytic activity of the obtained fibrous TiO₂ samples was evaluated by studying the decomposition of the dye rhodamine B [28] in an aqueous solution under UV radiation. The UV source was a 250 W high-pressure mercury lamp (Philips, Royal Philips Electronics, Amsterdam, The Netherlands) with a radiation peak at 365 nm. The lamp in a water-cooled quartz jacket was placed into the center of an 800 mL reaction vessel. A magnetic stirrer at the bottom of the reactor ensured an effective mixing of the reaction components. The reaction solution was purged with air at a constant rate to maintain a steady concentration of the oxygen. In each of the experiments, we added 0.3 g (0.6 g/L) of the photocatalyst powder sample to 500 mL of the dye solution with a concentration of 12 mg/L. The reaction mixture was stirred at 25 °C. For analysis, 3 mL samples of the suspension were taken out of the mixture at certain time intervals; the photocatalyst was separated from the dye solution in a centrifuge at 8000 rpm for 15 min. The dye concentrations in the solutions, before and after the processing in the photocatalytic reactor, were determined photometrically on a Hitachi U-2001 spectrometer (Hitachi, Tokyo, Japan) by measuring the optical density at the wavelength λ_max = 554 nm, which corresponded to the RhB absorption maximum. A preliminary irradiation of the dye solution for 1 h without photocatalyst revealed no changes in the optical density.

The adsorption of rhodamine B by the photocatalyst was studied under the same conditions as for the photocatalytic activity but without UV irradiation. The amount of the adsorbed dye (q_t, mg/g) on the sample over time t was calculated by the equation:

$$q_t=\frac{(C_0-C_t)V}{m}$$

where $C_0$ and $C_t$ (mg/L) are the initial dye concentration and its concentration at the time t (min), V is the dye solution volume (L), m is the weight of the air-dry adsorbent sample (g).

All the adsorption and photocatalytic experiments were repeated twice.

4. Conclusions

We presented the synthesis of fibrous Ti/Ce oxides and investigated their photocatalytic activity. Short flax fibers (flax processing waste) were used as template and impregnated by hydrothermal treatment with a solution of Ti hydroxy complexes containing a small additions (3% and 5%) of cerium. Subsequent calcination in air at 600 °C produced Ti/Ce oxides with improved adsorption and photocatalytic properties compared to pure TiO₂. The adsorption and photocatalytic decomposition of Rhodamine B was investigated; the doping by cerium significantly enhanced the dye decomposition rate. All the fibrous oxides replicated the texture of the flax template. At the same time, the Ti/Ce oxides were characterized by a more developed surface than TiO₂, which may have resulted from the formation of coordinated hydroxy complexes by Ce and Ti of various sizes in precursor solutions. The cerium inclusion in the structure of the photocatalysts increased their UV light absorption to some extent. The XPS results showed the presence of redox-active Ce⁴⁺/Ce³⁺ pairs on the surface of the Ti/Ce oxide fibers. These pairs actively participated in the formation of radicals, which destroyed the dye molecules.
