Ru-Catalyzed Asymmetric Addition of Arylboronic Acids to Aliphatic Aldehydes via P-Chiral Monophosphorous Ligands

by
Rui Miao
1,†,
Yanping Xia
1,†,
Yifei Wei
1,
Lu Ouyang
1,* and
Renshi Luo
1,2,*
1
School of Pharmacy, Gannan Medical University, Ganzhou 341000, China
2
College of Chemistry and Environmental Engineering, Shaoguan University, Shaoguan 512005, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Molecules 2022, 27(12), 3898; https://doi.org/10.3390/molecules27123898
Submission received: 17 May 2022 / Revised: 12 June 2022 / Accepted: 13 June 2022 / Published: 17 June 2022
(This article belongs to the Special Issue Catalytic Green Reductions and Oxidations)
Browse Figures
Versions Notes

Abstract

:
Chiral alcohols are among the most widely applied in fine chemicals, pharmaceuticals and agrochemicals. Herein, the Ru-monophosphine catalyst formed in situ was found to promote an enantioselective addition of aliphatic aldehydes with arylboronic acids, delivering the chiral alcohols in excellent yields and enantioselectivities and exhibiting a broad scope of aliphatic aldehydes and arylboronic acids. The enantioselectivities are highly dependent on the monophosphorous ligands. The utility of this asymmetric synthetic method was showcased by a large-scale transformation.

1. Introduction

Chiral alcohols are widely present in biologically active substances and pharmaceuticals [1,2,3,4,5,6,7]. Of these, chiral aryl alkyl alcohols are one important class of alcohols. The ubiquity of aryl alkyl alcohols as high-ranking intermediates makes them appealing precursors [8,9,10]. Thus, the invention of methods for the preparing of such chiral aryl alkyl alcohols features an important role in organic synthesis. Classic methods for constructing such chiral molecules include asymmetric hydrogenation of ketones [11,12,13], asymmetric hydrogen transfer reduction of ketones or unsaturated ketones [14,15,16,17,18,19,20,21], along with the asymmetric addition of organometallic reagents to aldehydes [22,23,24]. As an alternative, strategies via the asymmetric homologation reaction [25,26,27,28], tandem Michael–MPV reaction and subsequent reductive desulfurization [29], as well as the asymmetric addition of aldehydes with arylboronic acids were also established [30,31]. It is worth noting that the tandem α-alkylation/asymmetric reactions of ketones with alcohols [32] and the asymmetric Guerbet reaction of alcohols [33,34] are green and high-efficient strategies.
Similar to the organometallic reagents, the addition of organoborons to carbonyl compounds allows for the generation of chiral alcohols in direct and effective ways. Compared with the disadvantages of organometallic reagents [22,23,24], the organoborons feature the advantages of easy manipulation, low toxicity and good functional group tolerance [35], which has attracted great attention [36,37,38] since Miyaura reported the first Rh-catalyzed asymmetric addition of arylboronic acid to aldehydes in 1998 [39]. For example, metals including Rh [40,41,42,43,44,45,46,47,48], Ru [49], Ni [50], Co [51] and Pd [52,53,54] have been intensively explored in this regard recently. Additionally, miscellaneous carbonyl compounds, such as asisatins [55,56,57,58], ketoesters [59,60,61,62,63], diketones [64,65,66], trifluoroacetophenones [67,68,69], inactive ketones [70,71,72] and aldehydes [73,74,75] were successfully employed to couple with organoborons reagents.

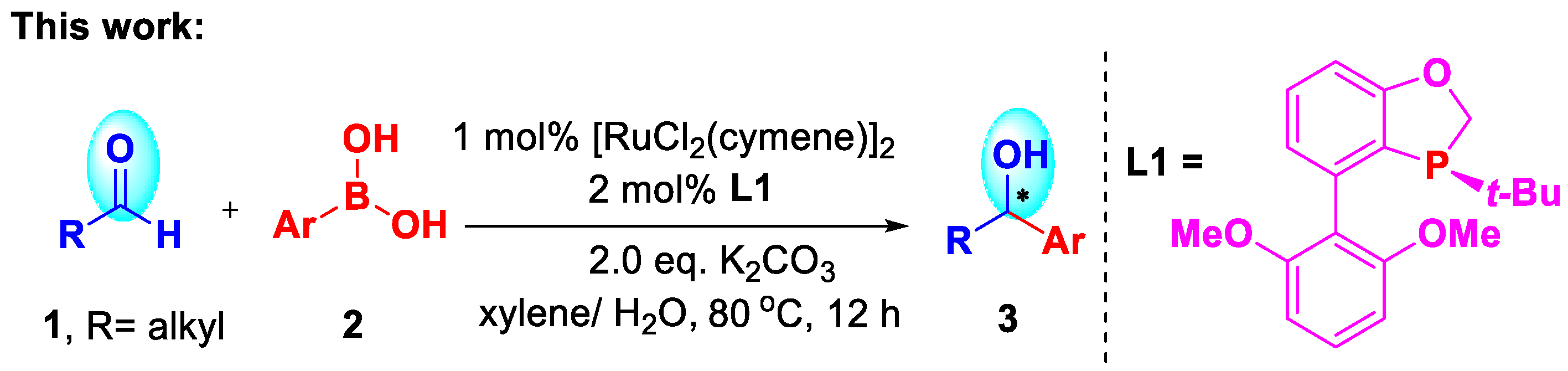

Despite the fact that these remarkable achievements were created in the asymmetric addition of carbonyl compounds with organoboron reagents, efforts have been mainly devoted to the active ketones [55,56,57,58,59,60,61,62,63,64,65,66,67,68,69], inactive ketones [70,71,72], and aromatic aldehydes [73,74,75], but studies on aliphatic aldehydes have been less reported [30]. In this regard, the development of new, high-efficient catalytic systems for the enantioselective addition of aliphatic aldehydes with arylboronic acids still is desirable.

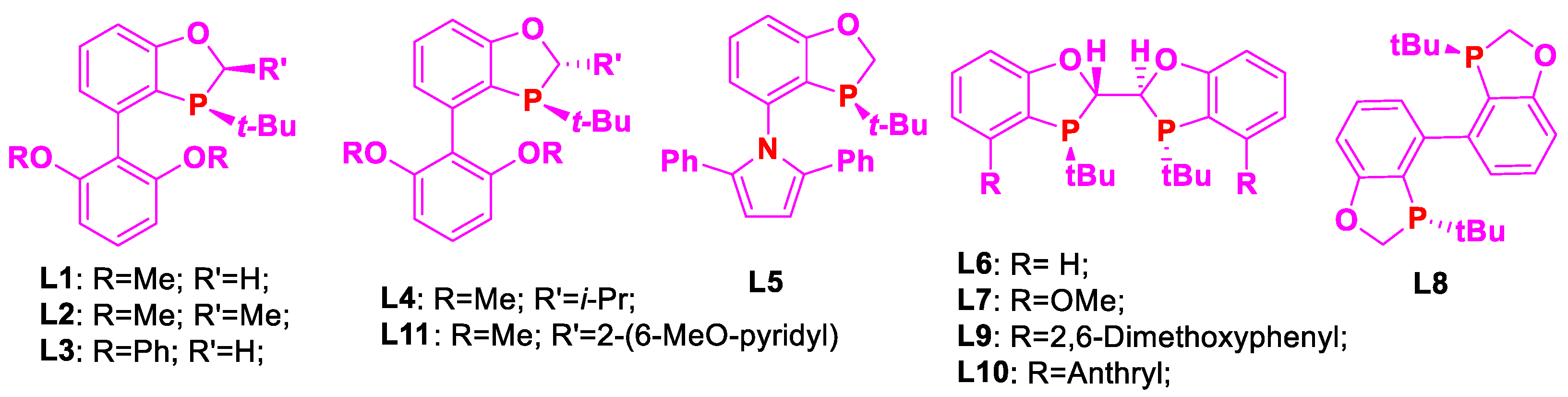

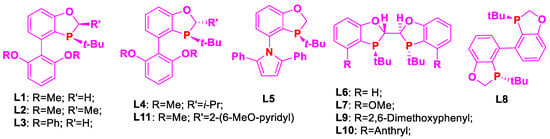

L1~L8 (Scheme 1) represent one kind of phosphorus ligand featured with a P-chiral center, which is successfully utilized in asymmetric synthesis [76,77,78,79,80,81,82]. For example, the ligands L3 and L9 were discovered to realize the asymmetric addition of aromatic aldehydes and active ketones with arylboronic acids with excellent enantioselectivities [67,83]. Based on this, we envisioned to further extend the utility of these chiral phosphorous ligands in the asymmetric catalysis. Herein, we reported the Ru-catalyzed enantioselective addition of aliphatic aldehydes with arylboronic acids via P-chiral monophosphorous ligands to access chiral secondary alcohols (Scheme 2), delivering the desired aryl alkyl alcohols in excellent yields and enantioselectivities. The application for gram-scale synthesis of 3da was also disclosed.

2. Results and Discussions

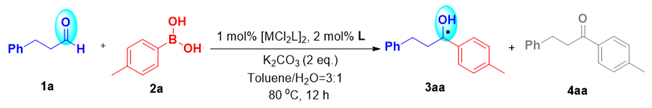

At the outset of the research, initial experimental results show that the monophosphine ligand L1 effectively promoted the Ru (II)-catalyzed asymmetric addition of phenylpropanal 1a with 4-methylphenylboronic acid 2a to access chiral alcohol 3aa in excellent yields and with good enantioselectivity; only a trace amount of 4aa was obtained as a byproduct (Table 1, entry 1). Further ligand investigations indicated that the ligands had a remarkable influence on enantioselectivity (Table 1, entries 2~5 and entry 11). For instance, good enantioselectivities can be afforded by using L3 or L5 as chiral phosphorous ligands (Table 1, entries 3 and 5), while a racemic or nearly racemic product was formed by employing L2, L4 and L11 (Table 1, entries 2, 4 and 11), indicating that the substituents on the carbon between the phosphorus and oxygen atom appear to have a negative influence on enantioselectivity.
Similar trends were also observed by using chiral bisphosphine ligands L6~L7 or L9~L10,which were connected via α-position of a P-chiral center (Table 1, entries 6~7 and 9~10). For example, only low enantioselectivity was shown when bisphosphine ligands L6~L7 and L9~L10 were utilized in the reaction, while a moderate enantioselective product could be afforded by using L8 as a bisphosphine ligand, which was coupled at the β-position (Table 1, entry 8). In general, the ruthenium precursors have no influence on the yields and enantioselectivities of this reaction (Table 1, entries 12 and 13). However, only low yields and enantioselectivities are accomplished using rhodium and iridium complexes as precursors (Table 1, entries 14 and 15).
The reaction was further assessed under various reaction conditions (Table 2). Solvent screening showcased that xylene/H2O was the optimal reaction medium, providing the corresponding asymmetric addition product 3aa in full conversion and 91:9 er (Table 2, entry 7). Interestingly, full conversion and 93:7 er were obtained even when the reaction was conducted within 4 h (Table 2, entry 8). Corresponding various bases also delivered the desired chiral alcohol product 3aa in good enantioselectivities (Table 2, entries 9~16), while organic bases, such as 1, 4-diazabicyclo [2.2.2] octane (DABCO), afforded a lower yield than inorganic bases (Table 2, entry 17).

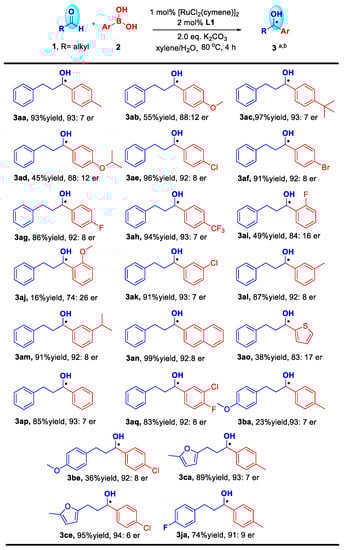

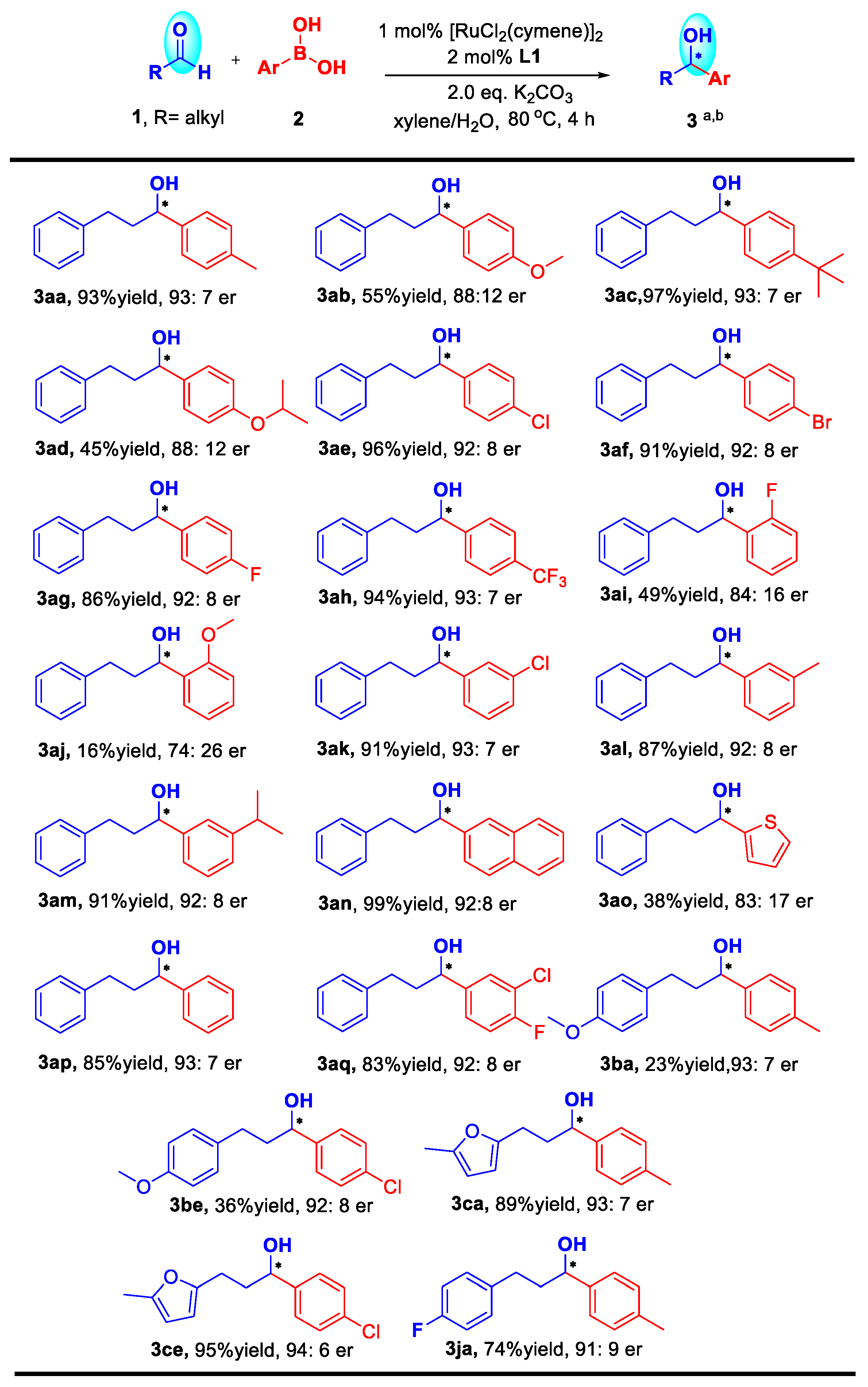

Having established the optimal conditions, we next investigated the scope of the reaction substrates (Scheme 3).
Generally, parasubstituted arylboronic acids bearing electron-donating or electron-withdrawing groups (2a~2h) reacted with phenyl propanal (1a) smoothly to form the relevant alcohol products (3aa, 3ac and 3ae~3ah) in excellent yields and enantioselectivities. However, only moderate yields and good enantioselectivities were observed when arylboronic acids bearing alkoxy substituents in the para position were introduced (3ab and 3ad). On the other hand, the position of the substituent onaryl boronic acid has significant influence on enantioselectivity and yield. For instance, arylboronic acids bearing substituents in the ortho position resulted in low yields and enantioselectivities (3ai and 3aj), presumably due to ortho effects [83]. Gratifyingly, the metasubstituted phenylboronic acids are also well compatible under the standard conditions, giving the desired addition products excellent enantioselectivities and yields (3ak~3am). In addition, except for thiophene boronic acid (3ao), other different boronic acids, including 2-naphthalene boronic acid, phenyl boronic acid and disubstituted boronic acid, worked well in this catalytic system to yield the alcohols in excellent yields and enantioselectivities (3an, 3ap and 3aq). Unlike aryl boronic acid bearing alkoxy, phenyl propanal bearing 4-methoxy substituent on the phenyl group resulted in a low yield but with excellent enantioselectivities (3ba and 3be). To our satisfaction, excellent yields and enantioselectivities resulted when furan-substituted propionaldehyde was loaded in this Ru-monophosphine catalytic system (3ca and 3ce). Interestingly, aldehydes with electron-withdrawing substituents (1j) are also compatible with this catalytic system, giving desirable product 3ja in the yield of 74% and 91:9 er.

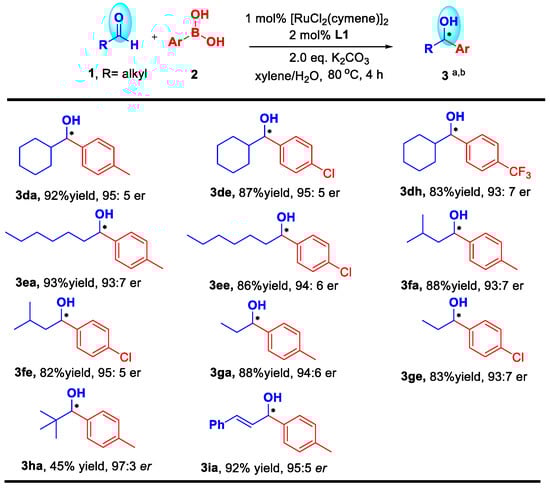

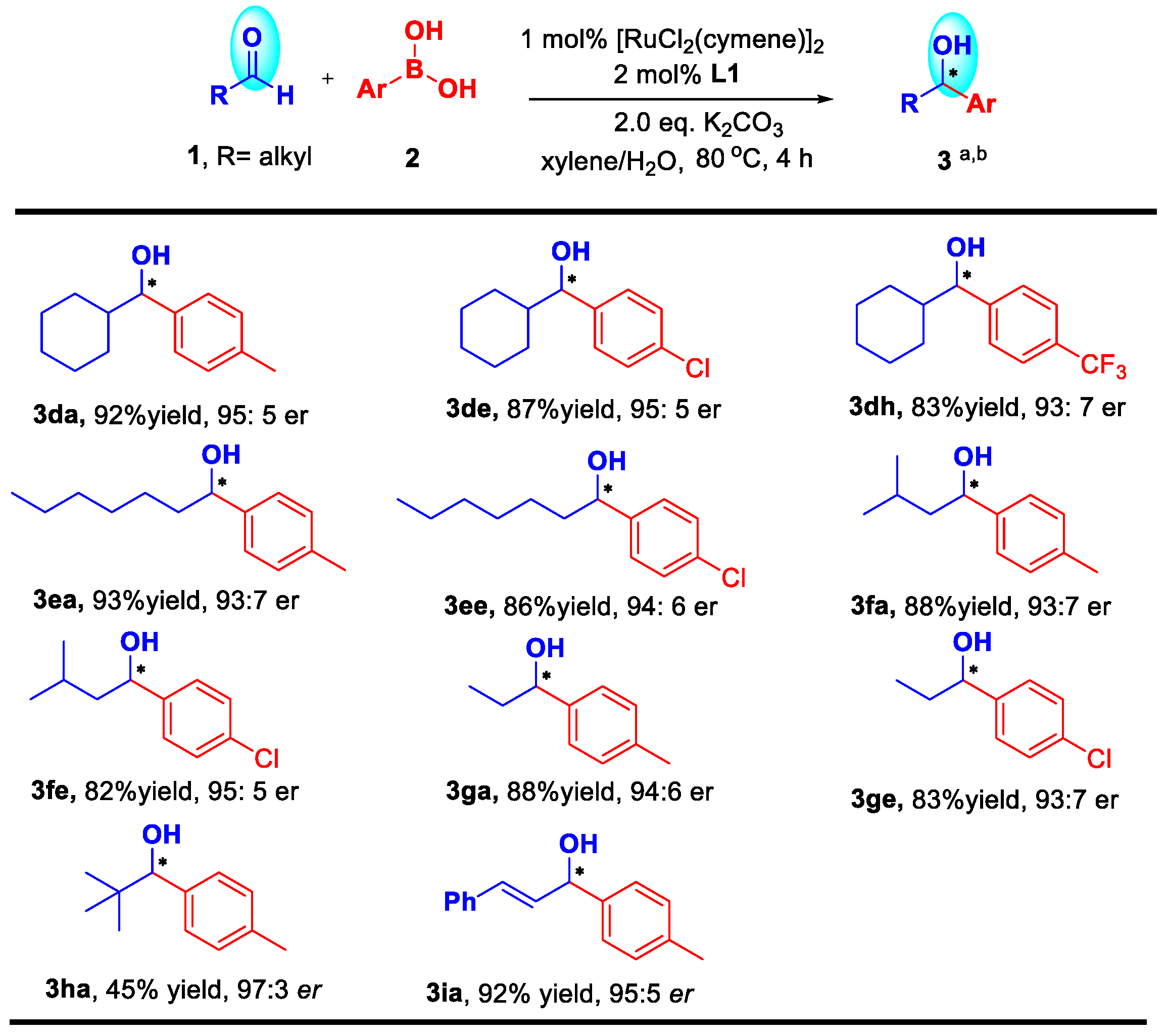

We next investigated the utility of this catalytic system for the substrate scope of aliphatic aldehydes bearing no aryl substituents (Scheme 4). Various common aliphatic aldehydes including cyclohexylformaldehyde, n-heptanal, isovaleraldehyde and propionaldehyde were also well tolerated in this catalytic system. Notably, the electron-withdrawing and electron-donating aryl boronic acids could be used as nucleophiles, generating chiral alcohols in 82%~93% yields and 93:7~95:5 ers (3da~3ge). Due to the steric hindrance, only a moderate yield and good enantioselectivity were afforded (3ha) when t-BuCHO was employed as a substrate under standard conditions. In addition, cinnamaldehyde can also react with 2a, giving 3ia in 90% ee.

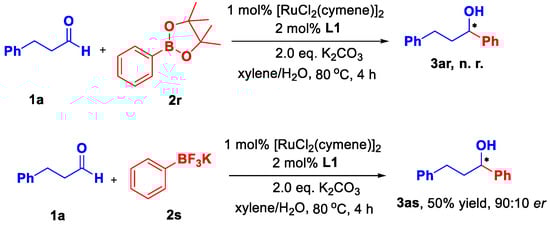

Additionally, in order to gain more insight into the versatility of nucleophilic reagents, other organoboron reagents were utilized under standard conditions. To our delight, potassium trifluoro(phenyl)borate (2s) could be compatible with this catalytic system, providing the desirable product in a moderate yield and with good ee. However, no desired product 3ar was afforded when 4,4,5,5-tetramethyl-2-phenyl-1,3,2-dioxaborolane (2r) was severed as an organoboron reagent in this system (Scheme 5).

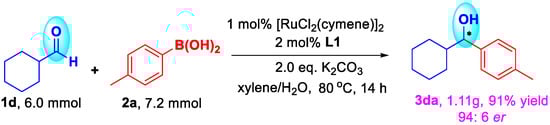

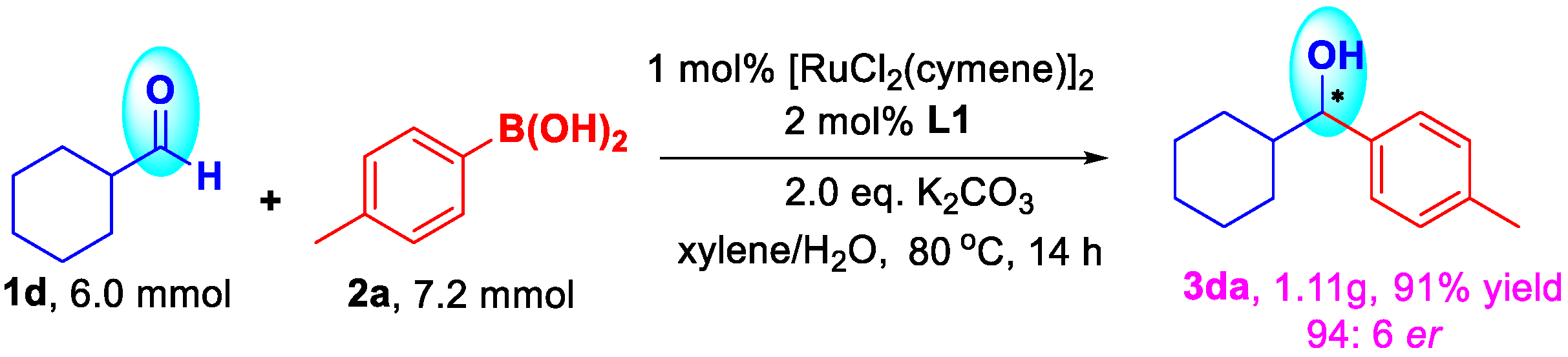

In order to illustrate the practicability of the catalytic system, we carried out a large-scale reaction of cyclohexyl formaldehyde (1d) and p-methylphenyl boronic acid (2a). Indeed, the corresponding addition product 3da was successfully afforded on a 6.0 mmol scale from 1d in a 91% yield and 94:6 er (Scheme 6).

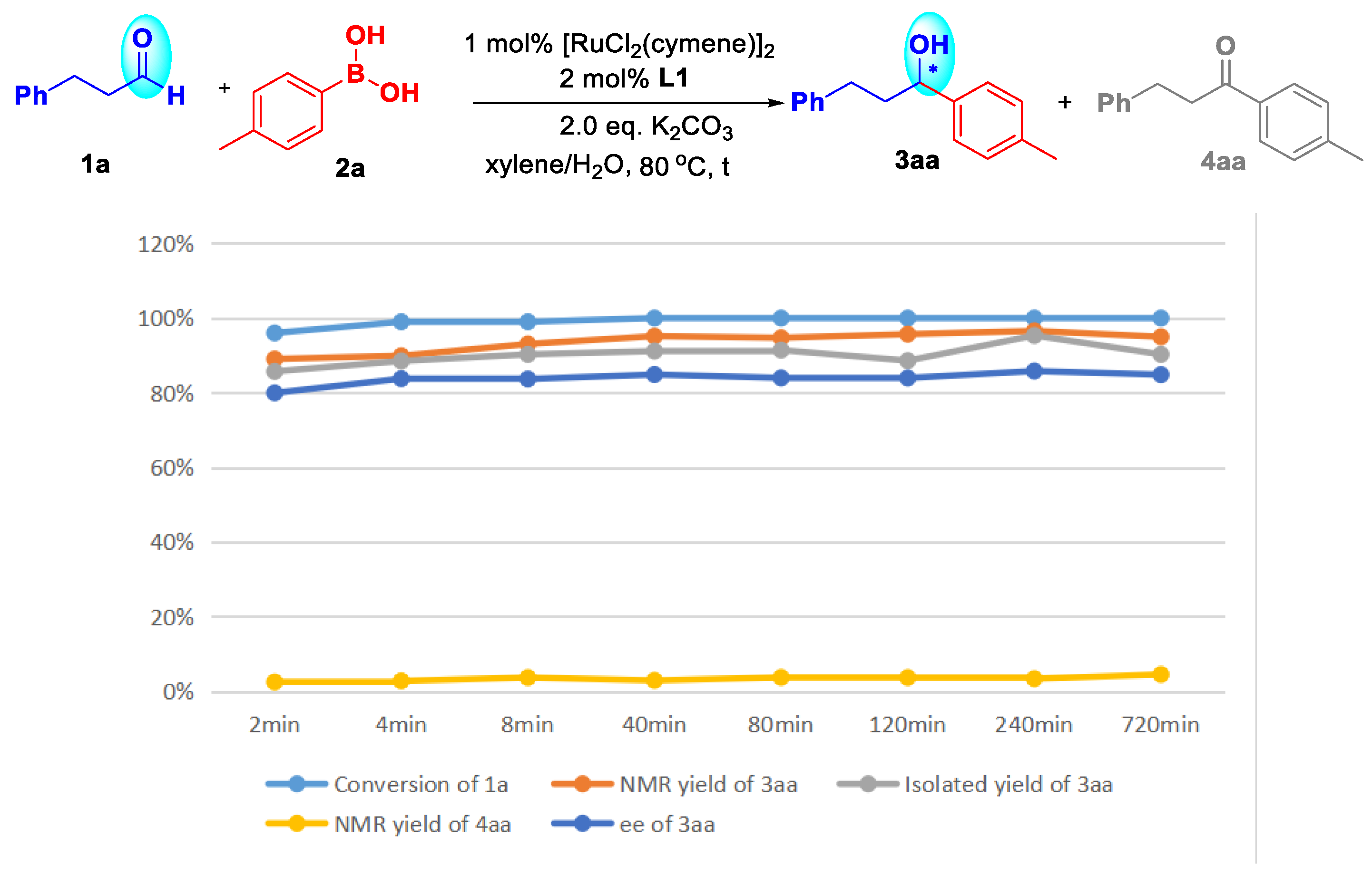

The model reaction was measured over time to know about details of this reaction (Scheme 7). To our surprise, the treatment of 1a with 2a under standard conditions within 4 min afforded the desirable alcohol product 3aa in the yield of 96% and 92:8 er, albeit with trace amounts of a ketone byproduct. The best enantioselectivity of product 3aa was observed in 4 h, after which the enantioselectivities of alcohol decreased slightly, and the byproduct ketone increased slightly as time went by. In addition, the racemization of enantioenriched product 3aa was monitored over time under the standard system, which showcased that the yield of 4aa increased gradually, and a slight loss of enantioselectivity was observed (Scheme 8).

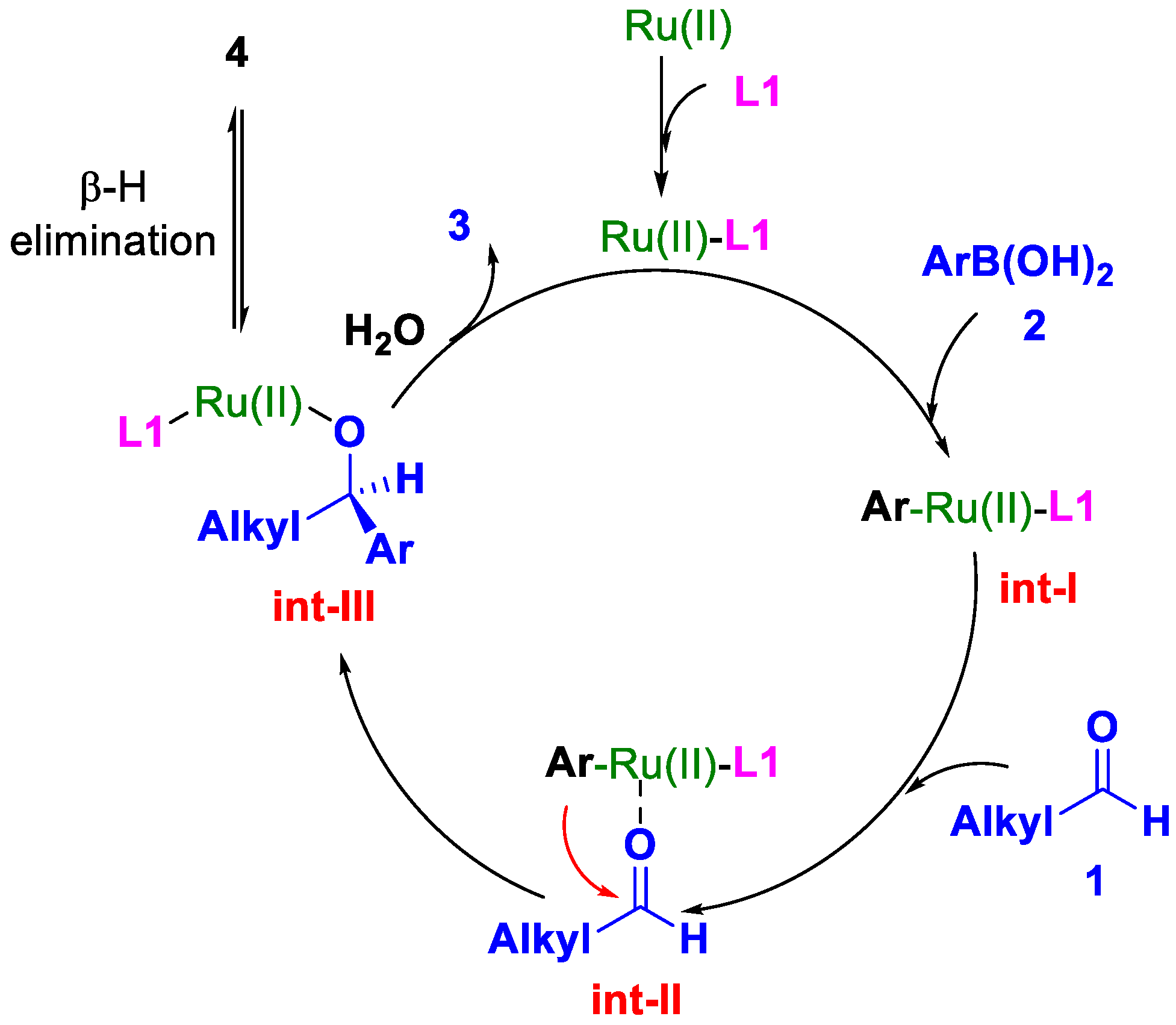

Based on the experimental results, we proposed a possible mechanistic cycle described in Scheme 9 [84]. Firstly, the catalyst Ru-L1 was generated in situ with an Ru precursor and L1, followed by a transmetalation with aryl boronic acid to form Int-I under the condition of base. Subsequently, there was the coordination of aliphatic aldehydes with Int-I to generate the Int-II, followed by carbonyl insertion to produce Int-III. The β-H elimination of Int-III produced byproduct 4. Finally, the addition of product 3 was released, and the catalyst was regenerated under the action of water and aryl boronic acid.
In summary, we described a Ru-catalyzed asymmetric addition of aliphatic aldehydes with aryl boronic acids based on a monophosphorous ligand, providing the corresponding alcohol products in excellent yields and enantioselectivities. A large-scale experiment showcased the utility of this catalytic system, which provides a supplementary method on acquiring chiral aryl alky alcohols.

3. Materials and Methods

3.1. General Information

Aliphatic aldehyde, arylboronic acids, dioxane, H2O, MTBE, THF, xylene and toluene were commercially acquired and used directly without further purifications. Reactions were carried out under a nitrogen atmosphere. 1H and 13C NMR spectra were recorded using a 400 MHz NMR spectrometer (CDCl3, δH = 7.26 ppm, δC = 77.23 ppm). The melting point was determined by a WRR melting point apparatus. The progress of the reaction was monitored by thin layer chromatography (TLC) or Agilent GC-7900. HPLC analyses were performed with an Agilent 1100 instrument using Chiralcel OD-H or OJ-H or Chiralpak AD-H, AS-H, IA or IB columns (0.46 cm diameter × 25 cm length). Optical rotations and MS spectra were recorded on a Perkin Elmer polarimeter (Model 341) and an ESI-ion trap mass spectrometer (Shimadzu LCMS-IT-TOF) separately.

3.2. General Procedure for Asymmetric Addition of Aliphatic Aldehydes

A mixture of aliphatic aldehydes (0.5 mmol), boric acids (1.0 mmol, 2.0 equiv), [RuCl2(cymene)]2 (3.1 mg, 1.0 mol%), L1 (3.3 mg, 2.0 mol%) and K2CO3 (138.2 mg, 2.0 equiv) in p-xylene (1.5 mL)/H2O (0.5 mL) was added to a 25.0 mL Schlenk tube successively. Then, the reaction was stirred at 80 °C under N2 for 4h after which the reaction was diluted with H2O (15.0 mL), neutralized with HCl, and extracted with EtOAc (10.0 mL × 3). The organic layer was washed with brine (10.0 mL × 3) and dried over anhydrous MgSO4 after removal of the solvent under vacuum to afford the crude product, which was purified by column chromatography on silica gel with hexanes or petroleum ether/ethyl acetate (5:1 to 20:1) to deliver the desired product 3. The enantioselectivities were determined by OD-H, AD-H, OJ-H, AS-H, IA or IB columns.
3-phenyl-1-(p-tolyl)propan-1-ol (3aa) [85]
[ a ] D 20 = +17.5 (c 0.29, CH2Cl2). Yield: 93% (105.1 mg) as yellow solid; m.p. 48–53 °C; 1H NMR (400 MHz, CDCl3) δ 7.66–6.66 (m, 9H), 4.60 (dd, J = 7.7, 5.5, 1H), 2.94–2.49 (m, 2H), 2.32 (s, 3H) and 2.21–1.86 (m, 3H).13C NMR (100 MHz, CDCl3) δ 141.94, 141.67, 137.33, 129.24, 128.51, 128.43, 125.98, 125.87, 73.75, 40.42, 32.15 and 21.18. The enantiomeric excess was determined by HPLC using Daicel Chiralpak OJ-H column, hexane/i-PrOH 95:5, flow rate 1.0 mL/min, UV detection at 220 nm, tminor = 13.758 min, tmajor = 16.774 min, and 93:7 er.
1-(4-methoxyphenyl)-3-phenylpropan-1-ol (3ab) [85]
[ a ] D 20 = +19.3 (c 0.66, CH2Cl2). Yield: 55% (66.6 mg) as a yellow oil; 1H NMR (400 MHz, CDCl3) δ 7.35–7.08 (m, 7H), 6.86 (d, J = 8.3, 2H), 4.59 (dd, J = 6.7, 1H), 3.77 (s, 3H), 2.78–2.51 (m, 2H) and 2.19–1.89 (m, 3H). 13C NMR (100 MHz, CDCl3) δ 159.11, 141.91, 136.77, 128.49, 128.42, 127.27, 125.87, 113.92, 73.49, 55.32, 40.39 and 32.16. The enantiomeric excess was determined by HPLC using Daicel Chiralpak AD-H column, hexane/i-PrOH 95:5, flow rate 1.0 mL/min, UV detection at 220 nm, tminor = 19.320 min, tmajor = 21.773 min and 88:12 er.
1-(4-(tert-butyl)phenyl)-3-phenylpropan-1-ol (3ac) [86]
[ a ] D 20 = +10.5 (c 0.32, CH2Cl2). Yield: 97% (130.2 mg) as a yellow oil; 1H NMR (400 MHz, CDCl3) δ 7.54–6.94 (m, 9H), 4.63 (dd, J = 7.9, 5.4, 1H), 2.99–2.54 (m, 2H), 2.25–1.98 (m, 2H), 1.95 (s, 1H) and 1.31 (s, 9H). 13C NMR (100 MHz, CDCl3) δ 150.64, 141.94, 141.62, 128.50, 128.41, 125.85, 125.74, 125.46, 73.71, 40.32, 34.58, 32.18 and 31.42. The enantiomeric excess was determined by HPLC using Daicel Chiralpak OJ-H column, hexane/i-PrOH 95:5, flow rate 1.0 mL/min, UV detection at 220 nm, tminor = 10.092 min, tmajor = 14.461 min and 93:7 er.
1-(4-isopropoxyphenyl)-3-phenylpropan-1-ol (3ad)
[ a ] D 20 = +12.1 (c 0.22, CH2Cl2). Yield: 45% (60.7 mg) as a yellow oil; 1H NMR (400 MHz, CDCl3) δ 7.53–7.03 (m, 7H), 6.86 (d, J = 8.3, 2H), 4.61 (dd, J = 6.7, 1H), 4.53 (p, J = 6.0, 1H), 2.78-2.57 (m, 2H), 2.19-1.93 (m, 2H), 1.87 (s, 1H) and 1.33 (d, J = 6.0, 6H). 13C NMR (100 MHz, CDCl3) δ 157.45, 141.90, 136.51, 128.47, 128.39, 127.25, 125.83, 115.86, 73.55, 69.95, 40.32, 32.17 and 22.09. HRMS-ESI (m/z): calculated for C18H23O2, [M+H]: 271.1698, found 271.1701. The enantiomeric excess was determined by HPLC using Daicel Chiralpak AD-H column, hexane/i-PrOH 95:5, flow rate 1.0 mL/min, UV detection at 220 nm, tminor = 14.219 min, tmajor = 16.039 min and 88:12 er.
1-(4-chlorophenyl)-3-phenylpropan-1-ol (3ae) [87]
[ a ] D 20 = +13.1 (c 1.17, CH2Cl2). Yield: 96% (118.3 mg) as a yellow oil; 1H NMR (400 MHz, CDCl3) δ 7.53–6.94 (m, 9H), 4.60 (dd, J = 7.8, 5.3, 1H), 2.81–2.52 (m, 2H), 2.15 (s, 1H) and 2.12–1.88 (m, 2H).13C NMR (100 MHz, CDCl3) δ 143.06, 141.54, 133.26, 128.67, 128.50, 128.46, 127.37, 126.02, 73.15, 40.51 and 31.95. The enantiomeric excess was determined by HPLC using Daicel Chiralpak IB column, hexane/i-PrOH 95:5, flow rate 0.5 mL/min, UV detection at 220 nm, tminor = 20.451 min, tmajor = 23.591 min and 92:8 er.
1-(4-bromophenyl)-3-phenylpropan-1-ol (3af) [88]
[ a ] D 20 = +10.0 (c 1.31, CH2Cl2). Yield:91% (132.4 mg) as a yellow oil; 1H NMR (400 MHz, CDCl3) δ 7.44 (d, J = 7.9, 2H), 7.35–7.03 (m, 7H), 4.59 (dd, J = 6.6, 1H), 2.75–2.56 (m, 2H), 2.12 (s, 1H) and 2.08–1.89 (m, 2H). 13C NMR (100 MHz, CDCl3) δ 143.58, 141.51, 131.62, 128.50, 128.46, 127.71, 126.02, 121.37, 73.18, 40.47 and 31.93. The enantiomeric excess was determined by HPLC using Daicel Chiralpak IB column, hexane/i-PrOH 95:5, flow rate 0.5 mL/min, UV detection at 220 nm, tminor = 22.304 min, tmajor = 25.606 min and 92:8 er.
1-(4-fluorophenyl)-3-phenylpropan-1-ol (3ag) [33]
[ a ] D 20 = +22.1 (c 0.99, CH2Cl2). Yield: 86% (98.8 mg) as a yellowish oil; 1H NMR (400 MHz, CDCl3) δ 7.60–7.09 (m, 7H), 7.01 (t, J = 8.6, 2H), 4.63 (dd, J = 7.8, 5.4, 1H), 2.77–2.57 (m, 2H) and 2.16–1.90 (m, 3H). 13C NMR (100 MHz, CDCl3) δ 162.24 (d, J = 245.4), 141.61, 140.33 (d, J = 3.1), 128.47, 128.44, 127.60 (d, J = 8.0), 125.97, 115.33 (d, J = 21.3), 73.22, 40.57 and 32.02. The enantiomeric excess was determined by HPLC using Daicel Chiralpak IB column, hexane/i-PrOH 95:5, flow rate 0.5 mL/min, UV detection at 220 nm, tminor = 20.004 min, tmajor = 22.949 min and 92:8 er.
3-phenyl-1-(4-(trifluoromethyl)phenyl)propan-1-ol (3ah) [33]
[ a ] D 20 = +17.1 (c 1.32, CH2Cl2). Yield: 94% (131.9 mg) as a yellow oil; 1H NMR (400 MHz, CDCl3) δ 7.56 (d, J = 8.0, 2H), 7.39 (d, J = 8.0, 2H), 7.34–6.99 (m, 5H), 4.68 (dd, J = 7.9, 5.2, 1H), 2.77–2.57 (m, 2H), 2.36 (s, 1H) and 2.13–1.91 (m, 2H). 13C NMR (100 MHz, CDCl3) δ 148.58, 141.38, 129.78 (q, J = 32.3), 128.54, 128.45, 126.21, 126.09, 125.46 (q, J = 3.8), 124.32 (q, J = 272.0), 73.17, 40.56 and 31.86. The enantiomeric excess was determined by HPLC using Daicel Chiralpak IB column, hexane/i-PrOH 95:5, flow rate 0.5 mL/min, UV detection at 210 nm, tminor = 21.798 min, tmajor = 24.446 min and 93:7 er.
1-(2-fluorophenyl)-3-phenylpropan-1-ol (3ai) [33]
[ a ] D 20 = +20.8 (c 0.53, CH2Cl2). Yield:49% (52.7 mg) as a yellow oil; 1H NMR (400 MHz, CDCl3) δ 7.45 (t, J = 7.6, 1H), 7.39-6.89 (m, 8H), 5.01 (t, J = 6.5, 1H), 2.90–2.58 (m, 2H) and 2.19–1.98 (m, 3H). 13C NMR (100 MHz, CDCl3) δ 159.87 (d, J = 245.5), 141.64, 131.50 (d, J = 13.2), 128.93 (d, J = 8.3), 128.44, 128.43, 127.34 (d, J = 4.7), 125.92, 124.35 (d, J = 3.6), 115.37 (d, J = 21.9), 68.01 (d, J = 2.5), 39.42 and 32.02. The enantiomeric excess was determined by HPLC using Daicel Chiralpak IB column, hexane/i-PrOH 95:5, flow rate 0.5 mL/min, UV detection at 220 nm, tminor = 17.583 min, tmajor = 19.992 min and 84:16 er.
1-(2-methoxyphenyl)-3-phenylpropan-1-ol (3aj) [89]
[ a ] D 20 = +18.5 (c 0.19, CH2Cl2). Yield: 16% (19.4 mg) as a yellow oil; 1H NMR (400 MHz, CDCl3) δ 7.38–7.11 (m, 7H), 6.96 (t, J = 7.4, 1H), 6.88 (d, J = 8.2, 1H), 4.88 (dd, J = 8.0, 5.1, 1H), 3.84 (s, 3H), 2.89–2.57 (m, 3H) and 2.22–2.02 (m, 2H). 13C NMR (100 MHz, CDCl3) δ 156.65, 142.20, 132.27, 128.48, 128.39, 128.31, 127.02, 125.72, 120.80, 110.58, 70.71, 55.27, 38.68 and 32.38. The enantiomeric excess was determined by HPLC using Daicel Chiralpak IB column, hexane/i-PrOH 95:5, flow rate 0.5 mL/min, UV detection at 220 nm, tminor = 19.673 min, tmajor = 24.260 min and 74:26 er.
1-(3-chlorophenyl)-3-phenylpropan-1-ol (3ak) [88]
[ a ] D 20 = +15.0 (c 0.55, CH2Cl2). Yield: 91% (111.7 mg) as a yellow oil; 1H NMR (400 MHz, CDCl3) δ 7.46–6.98 (m, 9H), 4.59 (dd, J = 7.9, 5.2, 1H), 2.85–2.53 (m, 2H), 2.26 (s, 1H) and 2.10–1.90 (m, 2H). 13C NMR (100 MHz, CDCl3) δ 146.74, 141.51, 134.43, 129.83, 128.51, 128.48, 127.73, 126.17, 126.03, 124.11, 73.20, 40.48, 31.94. The enantiomeric excess was determined by HPLC using Daicel Chiralpak IB column, hexane/i-PrOH 95:5, flow rate 0.5 mL/min, UV detection at 220 nm, tminor = 21.487 min, tmajor = 27.495 min and 93:7 er.
3-phenyl-1-(m-tolyl)propan-1-ol (3al) [88]
[ a ] D 20 = +21.0 (c 0.98, CH2Cl2). Yield: 87% (98.3 mg) as a yellow oil; 1H NMR (400 MHz, CDCl3) δ 7.63–6.82 (m, 9H), 4.59 (dd, J = 7.8, 5.5, 1H), 2.84–2.53 (m, 2H), 2.33 (s, 3H) and 2.18–1.91 (m, 3H). 13C NMR (100 MHz, CDCl3) δ 144.64, 141.93, 138.19, 128.52, 128.47, 128.44, 128.42, 126.70, 125.89, 123.08, 73.94, 40.47, 32.17 and 21.53. The enantiomeric excess was determined by HPLC using Daicel Chiralpak IB column, hexane/i-PrOH 95:5, flow rate 0.5 mL/min, UV detection at 220 nm, tminor = 17.873 min, tmajor = 20.271 min and 92:8 er.
1-(3-isopropylphenyl)-3-phenylpropan-1-ol (3am)
[ a ] D 20 = +18.3 (c 1.14, CH2Cl2). Yield:91% (102.8 mg) as a yellow oil; 1H NMR (400 MHz, CDCl3) δ 7.35–7.02 (m, 9H), 4.62 (dd, J = 7.9, 5.3, 1H), 2.89 (hept, J = 6.9, 1H), 2.80–2.59 (m, 2H), 2.16–1.88 (m, 3H) and 1.24 (d, J = 7.0, 6H). 13C NMR (100 MHz, CDCl3) δ 149.23, 144.65, 141.96, 128.55, 128.45, 125.90, 125.77, 124.17, 123.47, 74.11, 40.51, 34.24, 32.23 and 24.12 (d, J = 3.0). HRMS-ESI (m/z): calculated for C18H22NaO, [M+Na]: 277.1568, found 277.1574. The enantiomeric excess was determined by HPLC using Daicel Chiralpak IB column, hexane/i-PrOH 95:5, flow rate 0.5 mL/min, UV detection at 220 nm, tminor = 13.494 min, tmajor = 16.836 min and 92:8 er.
1-(naphthalen-2-yl)-3-phenylpropan-1-ol (3an) [90]
[ a ] D 20 = +13.3 (c 1.31, CH2Cl2). Yield: 99% (130.2 mg) as a light-yellow solid; m.p. 81-83 °C; 1H NMR (400 MHz, CDCl3) δ 7.86–7.62 (m, 4H), 7.42 (dd, J = 12.0, 7.9, 3H), 7.23 (d, J = 7.1, 2H), 7.14 (d, J = 8.0, 3H), 4.74 (t, J = 6.6, 1H), 2.82–2.48 (m, 2H), 2.30 (s, 1H) and 2.22–1.98 (m, 2H). 13C NMR (100 MHz, CDCl3) δ 141.99, 141.86, 133.36, 133.10, 128.56, 128.50, 128.44, 128.04, 127.80, 126.26, 125.97, 125.95, 124.79, 124.17, 74.00, 40.38 and 32.12. The enantiomeric excess was determined by HPLC using Daicel Chiralpak OD-H column, hexane/i-PrOH 90:10, flow rate 1.0 mL/min, UV detection at 220 nm, tminor = 18.230 min, tmajor = 23.050 min and 92:8 er.
3-phenyl-1-(thiophen-2-yl)propan-1-ol (3ao) [91]
[ a ] D 20 = +17.2 (c 0.30, CH2Cl2). Yield: 38% (38.4 mg) as a colorless oil; 1H NMR (400 MHz, CDCl3) δ 7.38–7.12 (m, 6H), 6.97 (d, J = 5.3, 2H), 4.92 (t, J = 6.7, 1H), 2.83–2.64 (m, 2H), 2.40–2.11 (m, 2H) and 2.05 (s, 1H).13C NMR (100 MHz, CDCl3) δ 148.53, 141.47, 128.52, 128.47, 126.70, 125.99, 124.72, 123.96, 69.54, 40.72 and 32.03. The enantiomeric excess was determined by HPLC using Daicel Chiralpak OD-H column, hexane/i-PrOH 95:5, flow rate 1.0 mL/min, UV detection at 220 nm, tminor = 21.015 min, tmajor = 31.268 min and 83:17 er.
1,3-diphenylpropan-1-ol (3ap) [85]
[ a ] D 20 = +21.3 (c 0.29, CH2Cl2). Yield: 85% (90.2 mg) as a yellow solid; m.p. 41–42 °C; 1H NMR (400 MHz, CDCl3) δ 7.52–6.98 (m, 10H), 4.64 (dd, J = 7.8, 5.5, 1H), 2.87–2.46 (m, 2H) and 2.18–1.94 (m, 3H). 13C NMR (100 MHz, CDCl3) δ 144.62, 141.85, 128.56, 128.50, 128.45, 127.68, 126.00, 125.91, 73.90, 40.50 and 32.10. The enantiomeric excess was determined by HPLC using Daicel Chiralpak OJ-H column, hexane/i-PrOH 95:5, flow rate 1.0 mL/min, UV detection at 220 nm, tminor = 16.095 min, tmajor = 19.016 min and 93:7 er.
1-(3-chloro-4-fluorophenyl)-3-phenylpropan-1-ol (3aq)
[ a ] D 20 = +15.2 (c 1.10, CH2Cl2). Yield: 83% (110.2 mg) as a yellow oil; 1H NMR (400 MHz, CDCl3) δ 7.72–6.90 (m, 8H), 4.60 (dd, J = 7.9, 5.2, 1H), 2.77–2.58 (m, 2H), 2.12 (s, 1H) and 2.12-1.88 (m, 2H). 13C NMR (100 MHz, CDCl3) δ 157.40 (d, J = 248.3), 141.70 (d, J = 3.7), 141.31, 128.53, 128.43, 128.18, 126.08, 125.62 (d, J = 7.2), 121.00 (d, J = 17.8), 116.54 (d, J = 21.1), 72.66, 40.56 and 31.89. HRMS-ESI (m/z): calculated for C15H15ClFO, [M+H]: 265.0795, found 265.0791. The enantiomeric excess was determined by HPLC using Daicel Chiralpak IB column, hexane/i-PrOH 95:5, flow rate 0.5 mL/min, UV detection at 220 nm, tminor = 23.081 min, tmajor = 26.696 min and 92:8 er.
3-(4-methoxyphenyl)-1-(p-tolyl)propan-1-ol (3ba) [92]
[ a ] D 20 = +15.0 (c 0.28, CH2Cl2). Yield: 23% (29.5 mg) as a colorless oil; 1H NMR (400 MHz, CDCl3) δ 7.48–6.97 (m, 6H), 6.82 (d, 2H), 4.63 (t, J = 6.7, 1H), 3.78 (s, 3H), 2.74–2.54 (m, 2H), 2.34 (s, 3H), 2.18–1.95 (m, 2H) and 1.80 (s, 1H). 13C NMR (100 MHz, CDCl3) δ 157.79, 141.65, 137.32, 133.88, 129.33, 129.20, 125.92, 113.81, 73.72, 55.27, 40.60, 31.18 and 21.13. The enantiomeric excess was determined by HPLC using Daicel Chiralpak IA column, hexane/i-PrOH 95:5, flow rate 1.0 mL/min, UV detection at 220 nm, tminor = 14.914 min, tmajor = 16.938 min and 93:7 er.
1-(4-chlorophenyl)-3-(4-methoxyphenyl)propan-1-ol (3be) [92]
[ a ] D 20 = +6.9 (c 0.49, CH2Cl2). Yield: 36% (49.8 mg) as a colorless oil; 1H NMR (400 MHz, CDCl3) δ 7.29 (q, J = 8.3, 4H), 7.09 (d, J = 8.2, 2H), 6.82 (d, J = 8.3, 2H), 4.64 (dd, J = 7.9, 5.3, 1H), 3.78 (s, 3H), 2.75–2.54 (m, 2H) and 2.12–1.88 (m, 3H). 13C NMR (100 MHz, CDCl3) δ 157.87, 143.11, 133.51, 133.21, 129.32, 128.63, 127.32, 113.89, 73.13, 55.28, 40.74 and 31.01. The enantiomeric excess was determined by HPLC using Daicel Chiralpak IA column, hexane/i-PrOH 95:5, flow rate 0.5 mL/min, UV detection at 220 nm, tminor = 30.043 min, tmajor = 32.492 min and 92:8 er.
3-(5-methylfuran-2-yl)-1-(p-tolyl)propan-1-ol (3ca)
[ a ] D 20 = +14.4 (c 1.02, CH2Cl2). Yield: 89% (102.3 mg) as a yellow oil; 1H NMR (400 MHz, CDCl3) δ 7.29–7.09 (m, 4H), 5.83 (d, J = 5.1, 2H), 4.64 (t, J = 6.7, 1H), 2.63 (h, J = 8.6, 8.1, 2H), 2.33 (s, 3H), 2.23 (s, 3H) and 2.12–1.94 (m, 3H). 13C NMR (100 MHz, CDCl3) δ 153.78, 150.39, 141.48, 137.30, 129.19, 125.92, 105.86, 105.60, 73.62, 37.24, 24.56, 21.15 and 13.54. HRMS-ESI (m/z): calculated for C15H19O2, [M + H]: 231.1385, found 231.1385. The enantiomeric excess was determined by HPLC using Daicel Chiralpak IB column, hexane/i-PrOH 95:5, flow rate 0.5 mL/min, UV detection at 220 nm, tminor = 13.845 min, tmajor = 14.888 min and 93:7 er.
1-(4-chlorophenyl)-3-(5-methylfuran-2-yl)propan-1-ol (3ce)
[ a ] D 20 = +9.4 (c 1.19, CH2Cl2). Yield: 95% (118.9 mg) as a yellow oil; 1H NMR (400 MHz, CDCl3) δ 7.26 (q, J = 8.4, 4H), 5.84 (d, J = 3.5, 2H), 4.65 (dd, J = 7.7, 5.5, 1H), 2.62 (t, J = 7.7, 2H), 2.28 (s, 1H), 2.23 (s, 3H) and 2.10–1.90 (m, 2H). 13C NMR (100 MHz, CDCl3) δ 153.36, 150.53, 142.87, 133.22, 128.62, 127.31, 105.91, 105.81, 73.02, 37.36, 24.37 and 13.53. HRMS-ESI (m/z): calculated for C14H16ClO2, [M + H]: 251.0839, found 251.0836. The enantiomeric excess was determined by HPLC using Daicel Chiralpak OD-H column, hexane/i-PrOH 95:5, flow rate 1.0 mL/min, UV detection at 220 nm, tminor = 17.860 min, tmajor = 19.360 min and 94:6 er.
3-(4-fluorophenyl)-1-(p-tolyl)propan-1-ol (3ja)
[ a ] D 20 = +20.4 (c 0.86, CH2Cl2). Yield: 74% (90.5 mg) as a yellow oil; 1H NMR (400 MHz, CDCl3) δ 7.24–7.05 (m, 6H), 6.93 (t, J = 8.8, 2H), 4.63–4.55 (m, 1H), 2.74-2.53 (m, 2H), 2.33 (s, 3H), 2.13–2.00 (m, 2H) and 1.94 (ddt, J = 13.6, 9.8, 6.0, 1H).13C NMR (101 MHz, CDCl3) δ 161.28 (d, J = 243.3), 141.53, 137.48 (d, J = 3.1), 137.43, 129.78 (d, J = 7.7), 129.26, 125.92, 115.10 (d, J = 21.1), 73.61, 40.50, 31.29 and 21.16. The enantiomeric excess was determined by HPLC using Daicel Chiralpak OJ-H column, hexane/i-PrOH 95:5, flow rate 1.0 mL/min, UV detection at 220 nm, tminor = 14.161 min, tmajor = 17.151 min and 91:9 er. HRMS-ESI (m/z): calcd for C16H18OF, [M+H]: 245.1342, found 245.1335.
cyclohexyl(p-tolyl)methanol (3da) [93]
[ a ] D 20 = +27.8 (c 0.93, CH2Cl2). Yield: 92% (93.9 mg) as a light-yellow oil; 1H NMR (400 MHz, CDCl3) δ 7.15 (q, J = 7.9, 4H), 4.30 (d, J = 7.3, 1H), 2.33 (s, 3H), 1.99 (d, J = 12.9, 1H), 1.87 (s, 1H), 1.75 (d, J = 12.9, 1H), 1.70–1.52 (m, 3H), 1.35 (d, J = 12.8, 1H) and 1.24–0.85 (m, 5H). 13C NMR (100 MHz, CDCl3) δ 140.71, 137.02, 128.89, 126.60, 79.26, 44.93, 29.33, 28.98, 26.47, 26.13, 26.05 and 21.14. The enantiomeric excess was determined by HPLC using Daicel Chiralpak IB column, hexane/i-PrOH 95:5, flow rate 0.5 mL/min, UV detection at 220 nm, tminor = 9.882 min, tmajor = 10.925 min and 95:5 er.
(4-chlorophenyl)(cyclohexyl)methanol (3de) [93]
[ a ] D 20 = +21.9 (c 0.96, CH2Cl2). Yield: 87% (97.7 mg) as a yellow oil; 1H NMR (400 MHz, CDCl3) δ 7.44–7.09 (m, 4H), 4.33 (d, J = 7.0, 1H), 2.03 (s, 1H), 1.91 (d, J = 12.9, 1H), 1.82–1.47 (m, 4H), 1.36 (d, J = 12.6, 1H) and 1.29–0.85 (m, 5H). 13C NMR (100 MHz, CDCl3) δ 142.03, 132.99, 128.29, 127.99, 78.61, 45.00, 29.19, 28.65, 26.37, 26.05 and 25.97. The enantiomeric excess was determined by HPLC using Daicel Chiralpak IA column, hexane/i-PrOH 98:2, flow rate 0.5 mL/min, UV detection at 220 nm, tminor = 25.489 min, tmajor = 27.163 min and 95:5 er.
cyclohexyl(4-(trifluoromethyl)phenyl)methanol (3dh) [94]
[ a ] D 20 = +16.5 (c 1.06, CH2Cl2). Yield: 83% (107.1 mg) as a white soild; m.p. 55–57 °C; 1H NMR (400 MHz, CDCl3) δ 7.49 (dd, J = 73.7, 8.0, 4H), 4.44 (d, J = 6.7, 1H), 2.09 (s, 1H), 1.88 (d, J = 12.4, 1H), 1.81–1.53 (m, 4H), 1.39 (d, J = 12.6, 1H) and 1.27-0.93 (m, 5H). 13C NMR (100 MHz, CDCl3) δ 147.51, 129.54 (q, J = 32.3), 126.90, 125.08 (q, J = 3.9), 124.22 (q, J = 271.9), 78.63, 45.03, 29.22, 28.36, 26.31, 26.04 and 25.94.The enantiomeric excess was determined by HPLC using Daicel Chiralpak IA column, hexane/i-PrOH 98:2, flow rate 0.5 mL/min, UV detection at 220 nm, tminor = 21.107 min, tmajor = 23.564 min and 93:7 er.
1-(p-tolyl)heptan-1-ol (3ea) [92]
[ a ] D 20 = +21.7 (c 0.95, CH2Cl2). Yield: 93% (95.7 mg) as a yellow solid; m.p. 34–35 °C; 1H NMR (400 MHz, CDCl3) δ 7.44-6.94 (m, 4H), 4.57 (t, J = 6.7, 1H), 2.33 (s, 3H), 2.04 (s, 1H), 1.83–1.59 (m, 2H), 1.43–1.15 (m, 8H) and 0.86 (t, J = 6.6, 3H). 13C NMR (100 MHz, CDCl3) δ 142.07, 137.07, 129.10, 125.91, 74.53, 39.07, 31.82, 29.26, 25.88, 22.66, 21.13 and 14.11. The enantiomeric excess was determined by HPLC using Daicel Chiralpak AS-Hcolumn, hexane/i-PrOH 99:1, flow rate 1.0 mL/min, UV detection at 220 nm, tminor = 8.920 min, tmajor = 11.107 min and 93:7 er.
1-(4-chlorophenyl)heptan-1-ol (3ee) [95]
[ a ] D 20 = +21.1 (c 0.97, CH2Cl2). Yield: 86% (97.4 mg) as a yellow solid; m.p. 50–52 °C; 1H NMR (400 MHz, CDCl3) δ 7.47–7.12 (m, 4H), 4.61 (t, J = 6.7, 1H), 2.13 (s, 1H), 1.81–1.57 (m, 2H), 1.42–1.15 (m, 8H) and 0.87 (t, J = 6.7, 3H). 13C NMR (100 MHz, CDCl3) δ 143.39, 133.04, 128.53, 127.30, 73.97, 39.16, 31.76, 29.16, 25.67, 22.60 and 14.08. The enantiomeric excess was determined by HPLC using Daicel Chiralpak OJ-Hcolumn, hexane/i-PrOH 99:1, flow rate 0.5 mL/min, UV detection at 220 nm, tminor = 28.980 min, tmajor = 32.669 min and 94:6 er.
3-methyl-1-(p-tolyl)butan-1-ol (3fa) [96]
[ a ] D 20 = +35.0 (c 0.78, CH2Cl2). Yield: 88% (78.3 mg) as a yellow solid; m.p. 40–43 °C; 1H NMR (400 MHz, CDCl3) δ 7.40–7.04 (m, 4H), 4.67 (dd, J = 7.9, 5.5, 1H), 2.33 (s, 3H), 1.93 (s, 1H), 1.76–1.59 (m, 2H), 1.47 (td, J = 11.2, 10.0, 5.5, 1H) and 0.93 (dd, J = 6.5, 3.1, 6H).13C NMR (100 MHz, CDCl3) δ 142.30, 137.14, 129.16, 125.88, 72.60, 48.28, 24.84, 23.10, 22.36 and 21.13. The enantiomeric excess was determined by HPLC using Daicel Chiralpak AS-H column, hexane/i-PrOH 95:5, flow rate 1.0 mL/min, UV detection at 220 nm, tminor = 4.584 min, tmajor = 5.628 min and 93:7 er.
1-(4-chlorophenyl)-3-methylbutan-1-ol (3fe) [97]
[ a ] D 20 = +37.9 (c 0.81, CH2Cl2). Yield: 82% (81.4 mg) as a light-yellow oil; 1H NMR (400 MHz, CDCl3) δ 7.27 (q, J = 8.5, 4H), 4.69 (dd, J = 8.1, 5.3, 1H), 2.08 (s, 1H), 1.73–1.57 (m, 2H), 1.50–1.38 (m, 1H) and 0.93 (dd, J = 6.4, 2.0, 6H). 13C NMR (100 MHz, CDCl3) δ 143.70, 133.06, 128.58, 127.27, 72.09, 48.39, 24.75, 23.09 and 22.22. The enantiomeric excess was determined by HPLC using Daicel Chiralpak AS-H column, hexane/i-PrOH 99:1, flow rate 0.5 mL/min, UV detection at 210 nm, tminor = 24.966 min, tmajor = 28.431 min and 95:5 er.
1-(p-tolyl)propan-1-ol (3ga) [98]
[ a ] D 20 = +37.2 (c 0.44, CH2Cl2). Yield: 88% (66.0 mg) as a light-yellow oil; 1H NMR (400 MHz, CDCl3) δ 7.21 (d, J = 8.1, 2H), 7.14 (d, J = 7.4, 2H), 4.53 (t, J = 6.7, 1H), 2.34 (s, 3H), 1.94 (s, 1H), 1.88–1.64 (m, 2H) and 0.90 (t, J = 6.4, 3H). 13C NMR (100 MHz, CDCl3) δ 141.67, 137.14, 129.09, 125.96, 75.89, 31.81, 21.12 and 10.20. The enantiomeric excess was determined by HPLC using Daicel Chiralpak AS-H column, hexane/i-PrOH 98:2, flow rate 1.0 mL/min, UV detection at 220 nm, tminor = 10.091 min, tmajor = 12.376 min and 94:6 er.
1-(4-chlorophenyl)propan-1-ol (3ge) [98]
[ a ] D 20 = +32.9 (c 0.54, CH2Cl2). Yield: 83% (70.5 mg) as a light-yellow oil; 1H NMR (400 MHz, CDCl3) δ 7.39–7.14 (m, 4H), 4.53 (t, J = 6.7, 1H), 2.29 (s, 1H), 1.81–1.61 (m, 2H) and 0.87 (t, J = 8.3, 3H). 13C NMR (100 MHz, CDCl3) δ 143.03, 133.05, 128.49, 127.37, 75.24, 31.91 and 9.97. The enantiomeric excess was determined by HPLC using Daicel Chiralpak OD-H column, hexane/i-PrOH 98:2, flow rate 1.0 mL/min, UV detection at 210 nm, tminor = 13.033min, tmajor = 14.609 min and 93:7 er.
2,2-dimethyl-1-(p-tolyl)propan-1-ol (3ha) [30]
[ a ] D 20 = +30.0 (c 0.23, CH2Cl2). Yield: 45% (40.1 mg) as a light-yellow oil; 1H NMR (400 MHz, CDCl3) δ = 7.20 (d, J = 8.1, 2H), 7.13 (d, J = 8.0, 2H), 4.37 (d, J = 2.2, 1H), 2.35 (s, 3H), 1.83 (s, 1H) and 0.92 (s, 9H). 13C NMR (101 MHz, CDCl3) δ = 139.25, 136.89, 128.27, 127.51, 82.30, 35.62, 25.94 and 21.11. The enantiomeric excess was determined by HPLC using Daicel Chiralpak AS-H column, hexane/i-PrOH 95:5, flow rate 1.0 mL/min, UV detection at 220 nm, tminor = 4.778min, tmajor = 6.400 min and 97:3 er.
(E)-3-phenyl-1-(p-tolyl)prop-2-en-1-ol (3ia) [99]
[ a ] D 20 = +33.9 (c 1.03, CH2Cl2). Yield: 92% (102.7 mg) as a yellow solid; m.p. 65–68 °C; 1H NMR (400 MHz, CDCl3) δ 7.54–6.99 (m, 9H), 6.62 (d, J = 15.8, 1H), 6.33 (dd, J = 15.8, 6.4, 1H), 5.28 (d, J = 6.4, 1H), 2.35 (s, 1H) and 2.32 (s, 3H). 13C NMR (100 MHz, CDCl3) δ 139.98, 137.55, 136.71, 131.79, 130.32, 129.37, 128.62, 127.77, 126.69, 126.43, 74.97 and 21.23. The enantiomeric excess was determined by HPLC using Daicel Chiralpak OD-H column, hexane/i-PrOH 90:10, flow rate 1.0 mL/min, UV detection at 254 nm, tminor = 16.002 min, tmajor = 22.736 min and 95:5 er.
4′-Methyl-3-phenylpropiophenone (4aa) [100]
Yellow oil; 1H NMR (400 MHz, CDCl3) δ 7.85 (d, J = 8.3, 2H), 7.35–7.15 (m, 7H), 3.26 (t, 2H), 3.05 (t, J = 7.8, 2H) and 2.39 (s, 3H). 13C NMR (100 MHz, CDCl3) δ 198.98, 143.92, 141.45, 134.36, 129.34, 128.57, 128.49, 128.22, 126.16, 40.42, 30.23 and 21.72.
Ru-L1
Yield: 85% (35 mg) as a red solid. 1H NMR (400 MHz, CDCl3) δ 7.36 (t, J = 7.9 Hz, 1H), 7.19 (t, J = 8.3 Hz, 1H), 6.93 (dd, J = 7.6, 1.1 Hz, 1H), 6.88-6.77 (m, 3H), 5.38 (d, J = 10.9 Hz, 1H), 4.49 (d, J = 10.9 Hz, 1H), 3.96 (s, 3H), 3.77 (s, 3H) and 0.87 (d, J = 14.0 Hz, 9H). 13C NMR (100 MHz, CDCl3) δ 161.80, 157.76, 157.71, 136.47, 131.00, 127.61, 125.59, 124.43, 118.32, 110.68, 108.49, 70.53, 63.47, 55.94, 36.42 and 27.25. 31P NMR (162 MHz, CDCl3) δ 72.32. HRMS-ESI (m/z): calculated for C38H47O6Cl2RuP2, [M+H]: 833.1268, found 833.1254.

Supplementary Materials

The following are available online: https://www.mdpi.com/article/10.3390/molecules27123898/s1. 1H, 13C and 31P NMR spectra, HRMS, and HPLC data of compounds 3aa–3ia, 4aa and Ru-L1.

Author Contributions

R.L. and L.O. conceived and designed the project and wrote the paper after discussing with R.M. and Y.X. and Y.W. performed the experiments and analyzed the data. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded by the National Natural Science Foundation of China (22161003), Jiangxi provincial department of science and technology (20192BAB203004) and the Fundamental Research Funds for Gannan Medical University (QD201810, TD2021YX05).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study and in the Supplementary Materials are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.
