Synthesis, Structure and Cytotoxic Properties of Copper(II) Complexes of 2-Iminocoumarins Bearing a 1,3,5-Triazine or Benzoxazole/Benzothiazole Moiety

by
Anna Makowska
1,
Franciszek Sączewski
1,†,
Patrick J. Bednarski
2,*,
Maria Gdaniec
3,
Łukasz Balewski
1,
Magdalena Warmbier
1 and
Anita Kornicka
1,*
1
Department of Chemical Technology of Drugs, Faculty of Pharmacy, Medical University of Gdańsk, Al. Gen. J. Hallera 107, 80-416 Gdansk, Poland
2
Department of Pharmaceutical and Medicinal Chemistry, Institute of Pharmacy, University of Greifswald, F.-L. Jahn Strasse 17, D-17489 Greifswald, Germany
3
Faculty of Chemistry, Adam Mickiewicz University, ul. Uniwersytetu Poznańskiego 8, 61-614 Poznań, Poland
*
Authors to whom correspondence should be addressed.
†
Deceased 18 October 2018.
Molecules 2022, 27(21), 7155; https://doi.org/10.3390/molecules27217155
Submission received: 23 September 2022 / Revised: 19 October 2022 / Accepted: 20 October 2022 / Published: 22 October 2022
(This article belongs to the Special Issue Applications of Metal Complexes)
Browse Figures
Versions Notes

Abstract

:

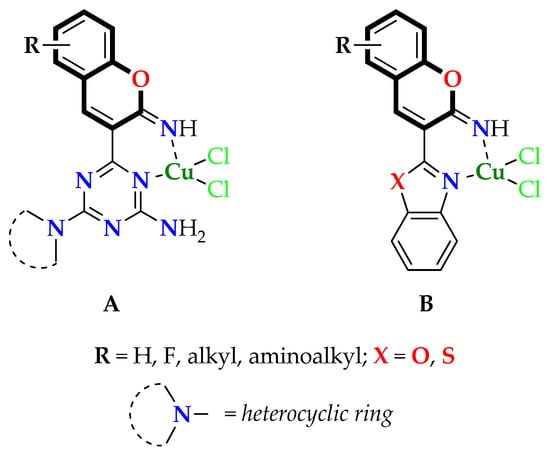

A series of copper(II) complexes of 2-imino-2H-chromen-3-yl-1,3,5-triazines 2a-h, 3-(benzoxazol-2-yl)-2H-chromen-2-imines 4a-b, and 3-(benzothiazol-2-yl)-2H-chromen-2-imines 6a-c were obtained by reacting of appropriate 2-iminocoumarin ligands L1a-h, L3a-b, and L5a-c with 3-fold molar excess of copper(II) chloride. The structure of these compounds was confirmed by IR spectroscopy, elemental analysis, and single-crystal X-ray diffraction data (2f, 2g, 2h, and 6c). All the synthesized complexes were screened for their activity against five human cancer cell lines: DAN-G, A-427, LCLC-103H, SISO, and RT-4 by using a crystal violet microtiter plate assay and relationships between structure and in vitro cytotoxic activity are discussed. The coordination of 2-iminocoumarins with copper(II) ions resulted in complexes 2a-h, 4a-b, and 6a-c with significant inhibitory properties toward tested tumor cell lines with IC50 values ranging from 0.04 μM to 15.66 μM. In comparison to the free ligands L1a-h, L3a-b, and L5a-c, the newly prepared Cu(II) complexes often displayed increased activity. In the series of copper(II) complexes of 2-imino-2H-chromen-3-yl-1,3,5-triazines 2a-h the most potent compound 2g contained a 4-phenylpiperazine moiety at position 6 of the 1,3,5-triazine ring and an electron-donating diethylamino group at position 7′ of the 2-iminocoumarin scaffold. Among the Cu(II) complexes of 3-(benzoxazol-2-yl)-2H-chromen-2-imines 4a-b and 3-(benzothiazol-2-yl)-2H-chromen-2-imines 6a-c the most active was benzoxazole-2-iminocoumarin 4b that also possessed a diethylamino group at position 7′ of the 2-iminocoumarin moiety. Moreover, compound 4b was found to be the most prominent agent and displayed the higher potency than cisplatin against tested cell lines.

1. Introduction

Cancer—a multifactorial disease—constitutes the second leading cause of worldwide mortality, being a major public health issue. Despite the fact that there are several various approaches in cancer treatment, chemotherapy still remains one of the most important strategies [1]. Among clinically approved antineoplastic drugs cisplatin and its analogues have a leading and well-established position in the treatment of cancer. Unfortunately, their use is limited by toxicity and severe side effects [2]. In addition to high toxicity, another serious problem is acquired resistance of cancer cells to platinum drugs [3,4]. Therefore, there is a need for novel transition metal-complexes as a drug-candidates with less undesirable effects.
Among transition metals, copper occupies an important position with respect to its presence in living organisms and biological role in physiological processes, such as cell metabolism or mitochondrial respiration [5,6,7,8]. Moreover, copper displays a redox-active properties and possess an ability to form stable complexes with diverse ligands containing donor atoms, such as nitrogen, sulfur, or oxygen. In the field of medicinal chemistry, it has been confirmed that metal complexes may possess a higher biological activity, selectivity, and lower toxicity compared to the free ligands [9,10]. It was found that the uptake of copper complexes by normal cells is lower than by tumor cells [11]. Therefore, considerable research has been devoted to the synthesis of copper(II) complexes with anticancer properties [12,13,14,15,16,17].
The antiproliferative effects of the copper(II) complexes may result from various mechanisms. For example, copper(II) complexes with a well-defined antitumor mechanism of action include intercalators of DNA [18,19,20,21,22,23], inhibitors of protein disulfide isomerase (PDI) [24] or topoisomerases I and II (dual Top1/Top2α inhibitors) [25,26], as well as inductors of p53-dependent apoptosis [27]. Copper compounds with SOD-mimicking properties are of particular interest since oxidative stress is involved in cancers or neurodegenerative disorders which result from an imbalance of ROS concentration [28]. The antiproliferative effects of copper complexes may also result from their ability to induce ROS generation that trigger tumor cell death [29] or antiangiogenic properties [30]. Additionally, copper complexes were extensively explored due to their antimicrobial [31,32], antifungal [33], antiviral activity [34], and anti-inflammatory properties [35,36,37,38].
Several compounds with a central 2-iminocoumarin (2-imino-2H-chromene)—less known coumarin analogs—are studied for many interesting potential applications due to their optical or fluorescent properties [39,40,41,42,43,44,45,46,47,48,49,50,51,52]. Furthermore, it was found that compounds bearing 2-iminocoumarin core possess antimicrobial [53,54,55] and anti-inflammatory [56] activities, or neuroprotective properties, such as BACE1 inhibitors [57]. Worth noting is the fact that 2-iminocoumarins have been reported as potential anticancer agents [58,59,60,61,62], whereas their metal complexes have been described as antioxidants and antimicrobials [63,64]. Nevertheless, the research of biological activity of 2-iminocoumarins, especially their metal complexes, is not very extensive.
Our previous studies on the synthesis and cytotoxic evaluation of 2-iminocoumarins bearing 2,4-diamino-1,3,5-triazine [65], benzoxazole, or benzothiazole moiety [66] showed that such hybrid molecules exhibit pronounced anticancer activity against several human tumor cell lines. Continuing the search for compounds with an expectation of higher antitumor activity, we focused on the synthesis of copper(II) complexes of the above-mentioned hybrid molecules composed of 2-iminocoumarins and 2,4-diamino-1,3,5-triazines A or benzoxazole/benzothiazole-2-iminocoumarins B (Figure 1).

2. Results and Discussion

2.1. Chemistry

2.1.1. Synthesis of Copper(II) Complexes of 2-imino-2H-chromen-3-yl-1,3,5-triazine Derivatives 2a-h

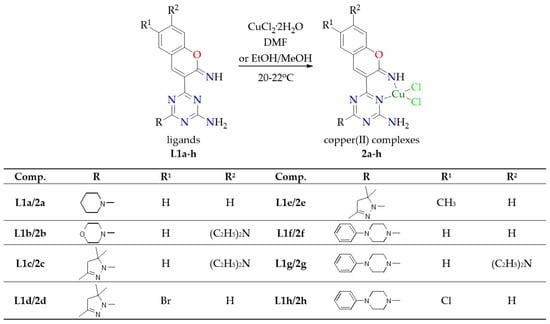

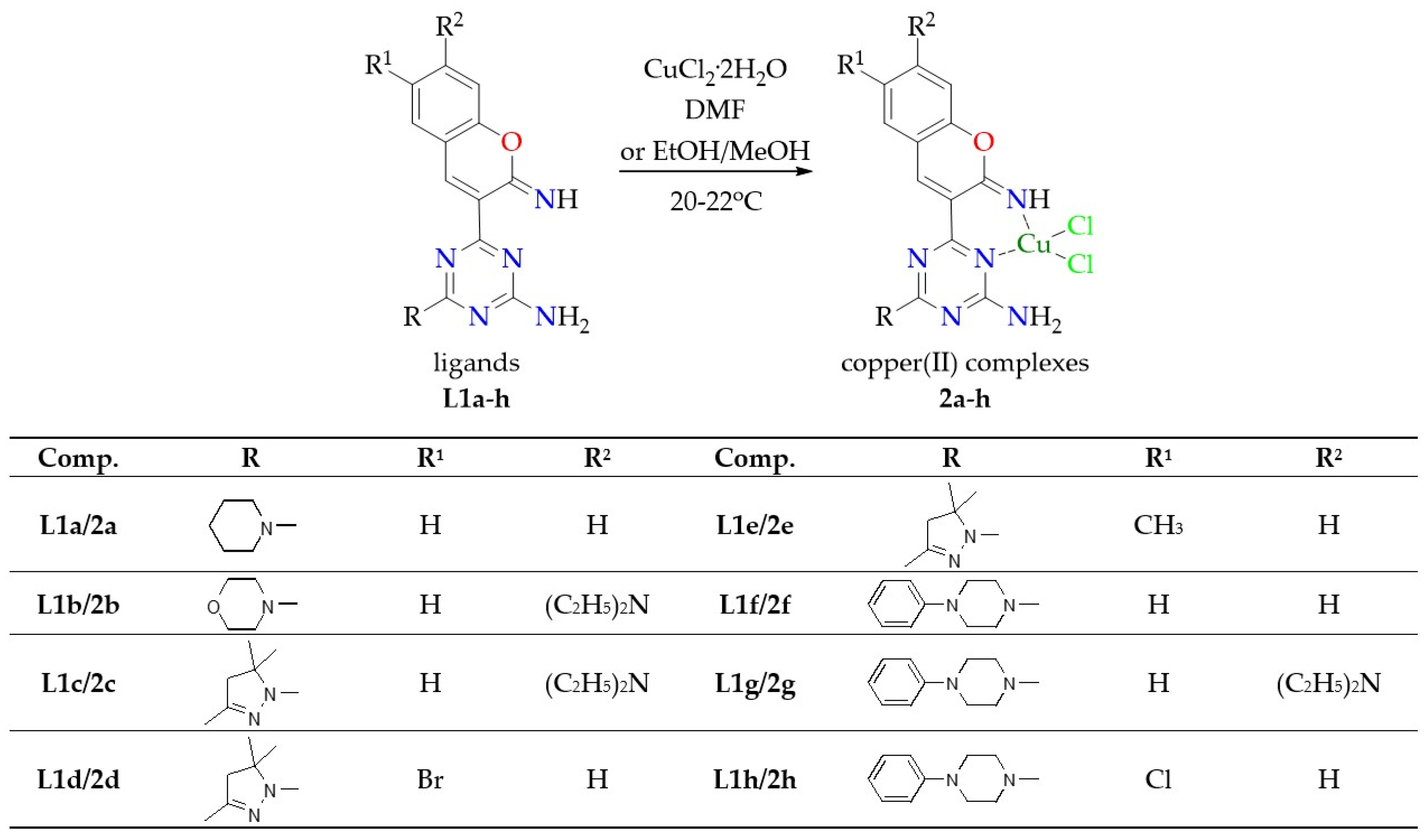

Copper(II) complexes of 2-imino-2H-chromen-3-yl-1,3,5-triazine derivatives 2a-h were prepared by reaction of copper(II) chloride dihydrate with previously described ligands L1a-h [65]. The reactions were carried out at 20–22 °C in solvents such as dimethylformamide, ethanol, or methanol, containing 1–2% of water (Scheme 1). Dimethylformamide turned out to be the most convenient due to better solubility of 2-iminocoumarin ligands.
Dark brown, orange, violet, or green crystals of copper(II) complexes were obtained upon slow evaporation of the solvent over 1–4 days. It should be noted that this process in some cases resulted in the isolation of a significant amount of coumarin as a result of the hydrolysis of the imine moiety. For this reason, dimethylformamide was replaced with lower boiling ethanol (compounds: 2b, 2c, and 2f) or methanol (compounds: 2e, 2g, and 2h).
The best yields (26–27%) were achieved with ligands L1b and L1g containing morpholine or phenylpiperazine rings (R = morpholine, phenylpiperazine) and an electron-donating substituent—diethylamino group (R1 = H, R2 = (C2H5)2N). It was found that the best results were obtained using appropriate ligand and copper(II) chloride in a molar ratio of 1:3. Stoichiometric amounts, as well as 1:2 ratio of ligand, copper(II), and copper salt, led to the products constituting a mixture of the 2-iminocoumarin and coumarin complexes.

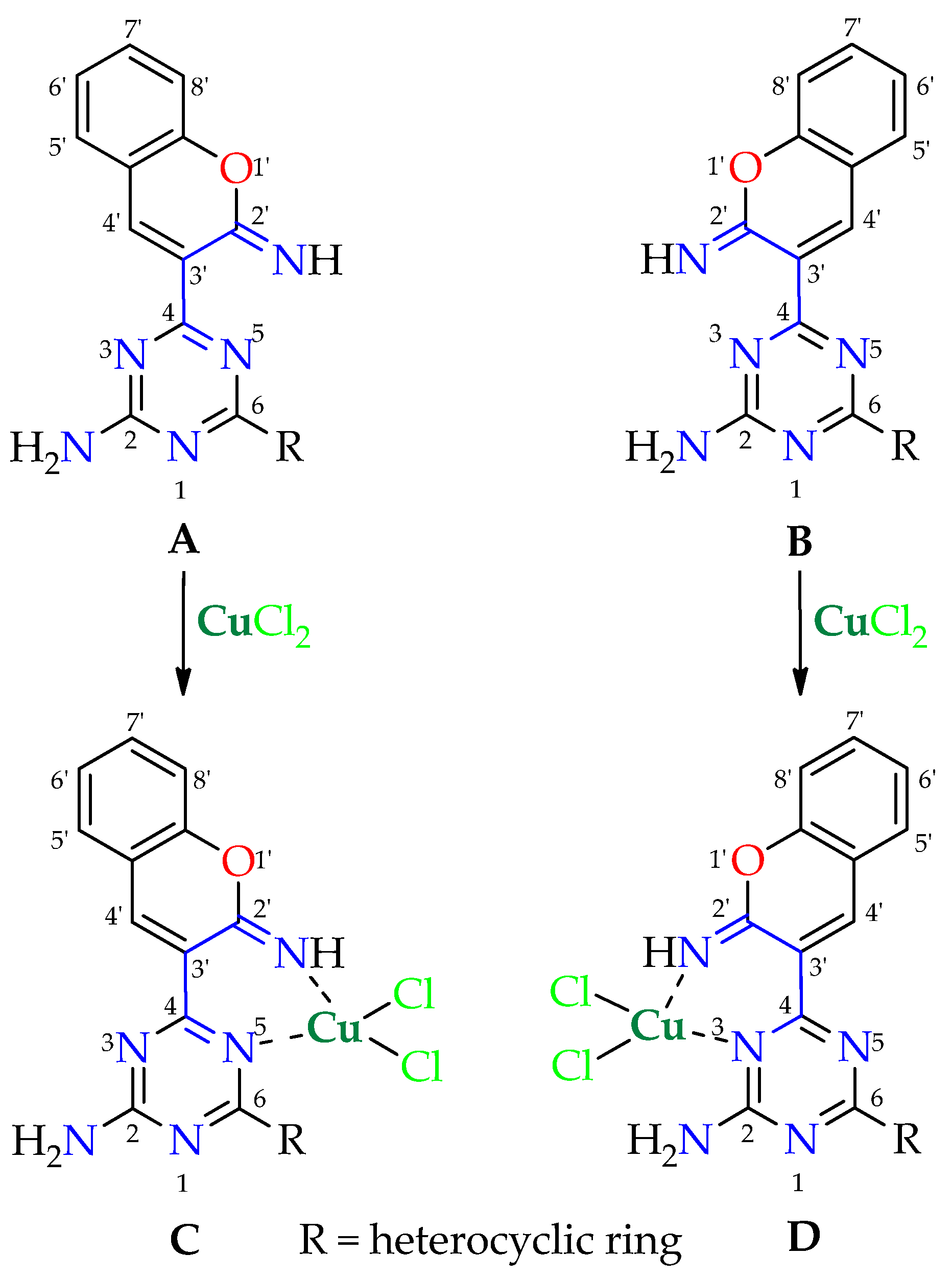

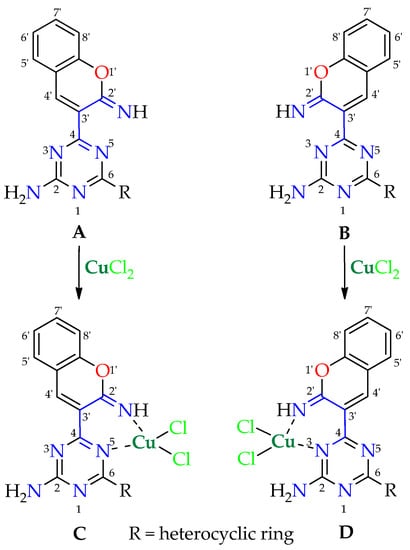

Copper(II) complexes of 2-iminocoumarin are formed by self-assembly of a mixture of copper(II), chloride, and appropriate ligand containing nitrogen donor atoms of 2-iminocoumarin skeleton and the 1,3,5-triazine ring. Formally, we are dealing here with a β-diimine system (β-NN) and due to the conjugation of π electrons of both heterocyclic rings, we may consider two possible conformations of copper(II) complex (structures C and D, as shown in Figure 2. Thus, the reaction of 2-iminocoumarins A and B may lead to complexes in which the central copper atom is chelated by a bidentate neutral ligand forming a six-membered ring -Cu-N5-C4-C3′-C2′-N (structure C) or -Cu-N3-C6-C3′-C2′-N (structure D). Therefore, to obtain better insight into the structure of the ligands used for complexation with copper salt, the relative stability of conformers A and B for ligand L1a (Figure 2) containing piperidine moiety was determined using the Spartan computer program (version ‘14 V 1.1.4.’). The obtained data revealed that conformer A was calculated to be slightly lower in energy than conformer B (ΔE = 1.36 kcal/mol). However, based on their calculated dipole moments, the conformer B (μ = 2.85 debye) would be predicted to predominate over the conformer A (μ = 1.98 debye) in a polar solvent used for the reaction—ethanol or dimethylformamide (Figure 3). It should be noted, that more stable conformer A upon complexation gives rise the formation of mononuclear copper(II) complex (structure C, Figure 2), where central metal atom is chelated by neutral 2-iminocoumarin-1,3,5-triazine ligand with formation of six-membered ring involving two nitrogen atoms—at position 5 of heterocyclic ring and imine moiety (C2=NH), respectively.

2.1.2. Synthesis of Copper(II) Complexes of 3-(benzoxazol-2-yl)-2H-chromen-2-imines 4a-b and 3-(benzothiazol-2-yl)-2H-chromen-2-imines 6a-c

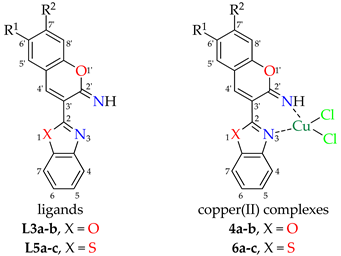

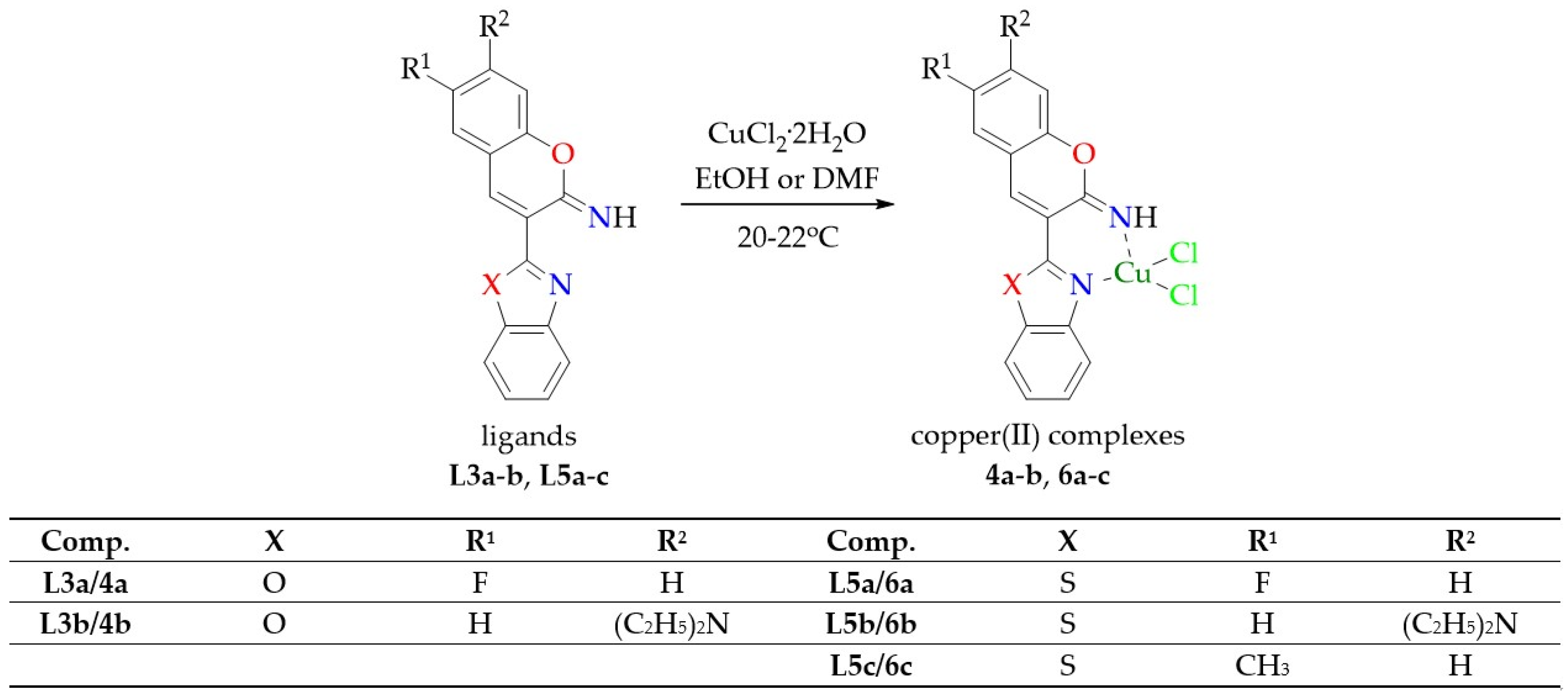

Copper(II) complexes of 3-(benzoxazol-2-yl)-2H-chromen-2-imines 4a-b and 3-(benzothiazol-2-yl)-2H-chromen-2-imines 6a-c were obtained by the reaction of appropriate ligands L3a-b or L5a-c [66] with copper(II) chloride dihydrate in 98% ethanol or dimethylformamide. Violet-dark or green crystals were collected after slow evaporation of the solvent at room temperature (20–22 °C) over 24 h to 4 days (Scheme 2).

2.2. Structure of Copper(II) Complexes of 2-imino-2H-chromen-3-yl-1,3,5-triazines 2a-h, 3-(benzoxazol-2-yl)-2H-chromen-2-imines 4a-b, and 3-(benzothiazol-2-yl)-2H-chromen-2-imines 6a-c

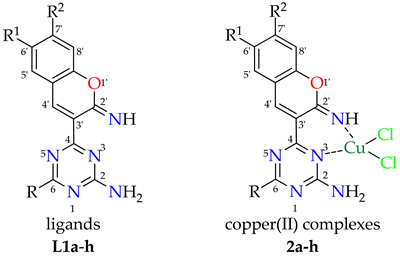

The structures of the copper(II) complexes of 2-imino-2H-chromen-3-yl-1,3,5-triazines 2a-h or 3-(benzoxazol-2-yl)-2H-chromen-2-imines 4a-b and 3-(benzothiazol-2-yl)-2H-chromen-2-imines 6a-c were confirmed by elemental analysis, infrared spectroscopic data, as well as X-ray crystallographic studies for 2f, 2g, 2h, and 6c (Figure 4, Figure 5, Figure 6 and Figure 7).
In the IR spectra of copper(II) complexes of 2-imino-2H-chromen-3-yl-1,3,5-triazine derivatives 2a-h a strong band in a rage of 3110 to 3488 cm−1 is assigned to the N-H stretching vibrations of the −C=N-H group and the primary amine group (NH2) of the 1,3,5-triazine ring. On the other hand, a broad absorption observed at 3209–3392 cm−1 in the IR spectra of the free ligands L1a-h [65], has disappeared in the IR spectra of complexes 2a-h. In the discussed spectra of complexes 2a-h a strong absorption attributable to the −C=N- of the −C=N-H group occurs in the range of 1643–1654 cm−1 and is shifted toward higher or lower wavenumbers in comparison with the spectra of the free ligands L1a-h (1649–1672 cm−1) [65]. In turn, spectroscopic characterization of the copper(II) complexes of 3-(benzoxazol-2-yl)-2H-chromen-2-imines 4a-b and 3-(benzothiazol-2-yl)-2H-chromen-2-imines 6a-c shows that the N-H of the −C=N-H group vibrational stretching modes appear in the 3119 to 3292 cm−1 and 3178 to 3338 cm−1 regions, and are shifted toward lower or higher wavenumbers in comparison with the IR spectra of the free ligands L3a-b and L5a-c (3290–3279 cm−1 and 3213–3230 cm−1, respectively) [66]. The vibration modes of ν(C=N) of the −C=N-H group appear in the ranges of 1635–1654 cm−1 and 1636–1664 cm−1. In general, these frequencies shift toward lower frequencies in comparison with those of the free ligands L3a-b and L5a-c (1655–1663 cm−1 and 1662–1664 cm−1, respectively) [66].
It should be noted that the presence of copper(II) ions, that can act as Lewis acid in solution, could facilitate the hydrolysis of the 2-iminocoumarin ligands under experimental conditions. On the other hand, due to the presence of an unpaired electron resulting in paramagnetic properties of copper(II) complexes, the nuclear magnetic resonance (NMR) spectra cannot be registered. Thus, the great emphasis was placed on obtaining the single crystals suitable for X-ray diffraction studies to confirm structures of synthesized copper(II) complex compounds.

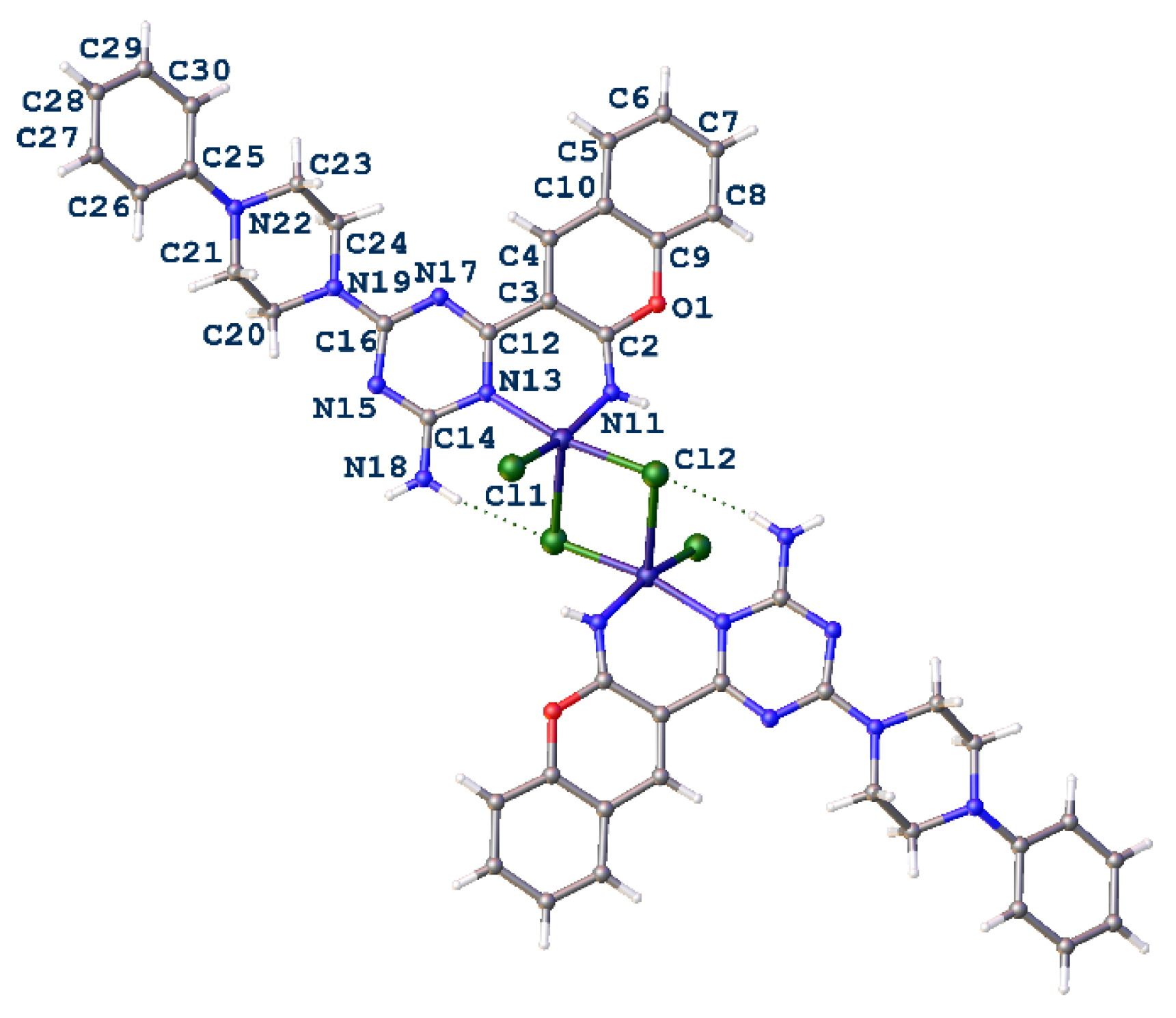

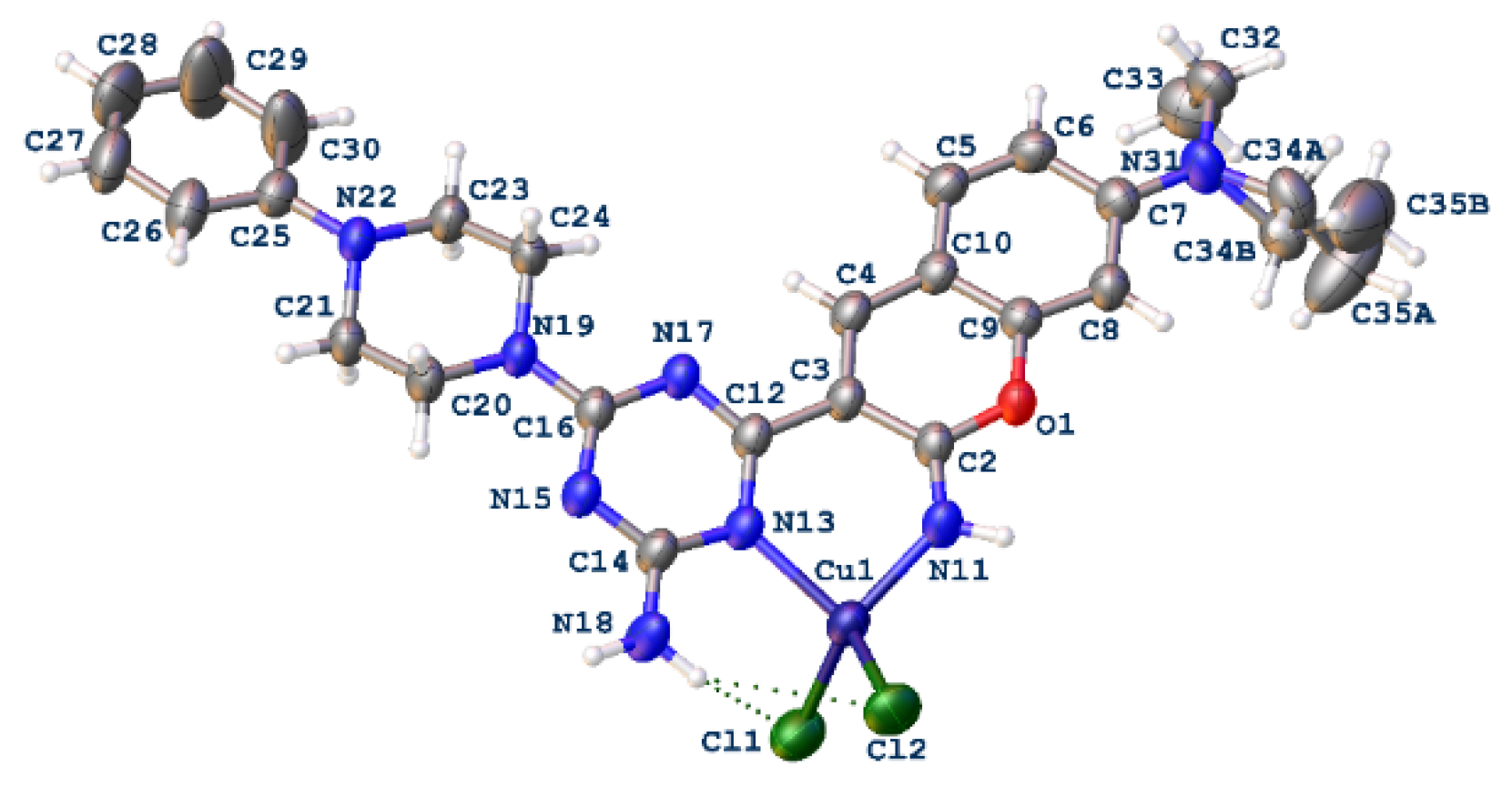

In all studied compounds, the organic ligands L act as bidentate N,N-chelates forming neutral mononuclear [LCuCl2] or binuclear [(LCuCl)2(μ-Cl)2] complexes with CuCl2. In complexes 2f, 2g, and 2h, the ligand on binding to the metal ion adopts the B conformation. In mononuclear complexes 2h, 2g, and 6c, the Cu (II) atom is tetracoordinated with the coordination environment intermediate between tetrahedral and square planar as indicated by the analysis with the SHAPE program (version 2.1). In the dinuclear complex, 2f, the pentacoordinated metal center is in a slightly distorted tetragonal pyramidal environment. In this compound, one of the Cl ligands is acting in a bridging mode binding asymmetrically the metal centers in the Cu2Cl2 coordination ring [Cu-Cl distances are 2.3330(6) and 2.6959(7) Å]. The bond formed by the metal center with the primary imine group N atom of the 2-iminocoumarin fragment, which is in the range 1.930(2)–1.957(2) Å, is always shorter than the bond to the secondary imine group N atom in the chelate ring (1.994(2)–2.053(2) Å).
In 2f, 2h, and 2g primary NH2 amino groups are involved in intramolecular N-H···Cl hydrogen bonds and intermolecular N-H···N or N-H···Cl interactions, whereas the imino =N-H group does not take part in any hydrogen bonding. In the case of 6c, where the primary NH2 group is missing, the imino C=N-H proton takes part in N-H···Cl interaction assembling the coordination molecules into hydrogen-bonded centrosymmetric dimer, where the distance between the two-metal center is 3.9916(5) Å.
Some additional geometrical details can be found in the Supplementary Materials.

2.3. UV-Vis Studies of Copper(II) Complexes of 2-imino-2H-chromen-3-yl-1,3,5-triazines 2a-h, 3-(benzoxazol-2-yl)-2H-chromen-2-imines 4a-b, and 3-(benzothiazol-2-yl)-2H-chromen-2-imines 6a-c in Aqueous Buffer Solution

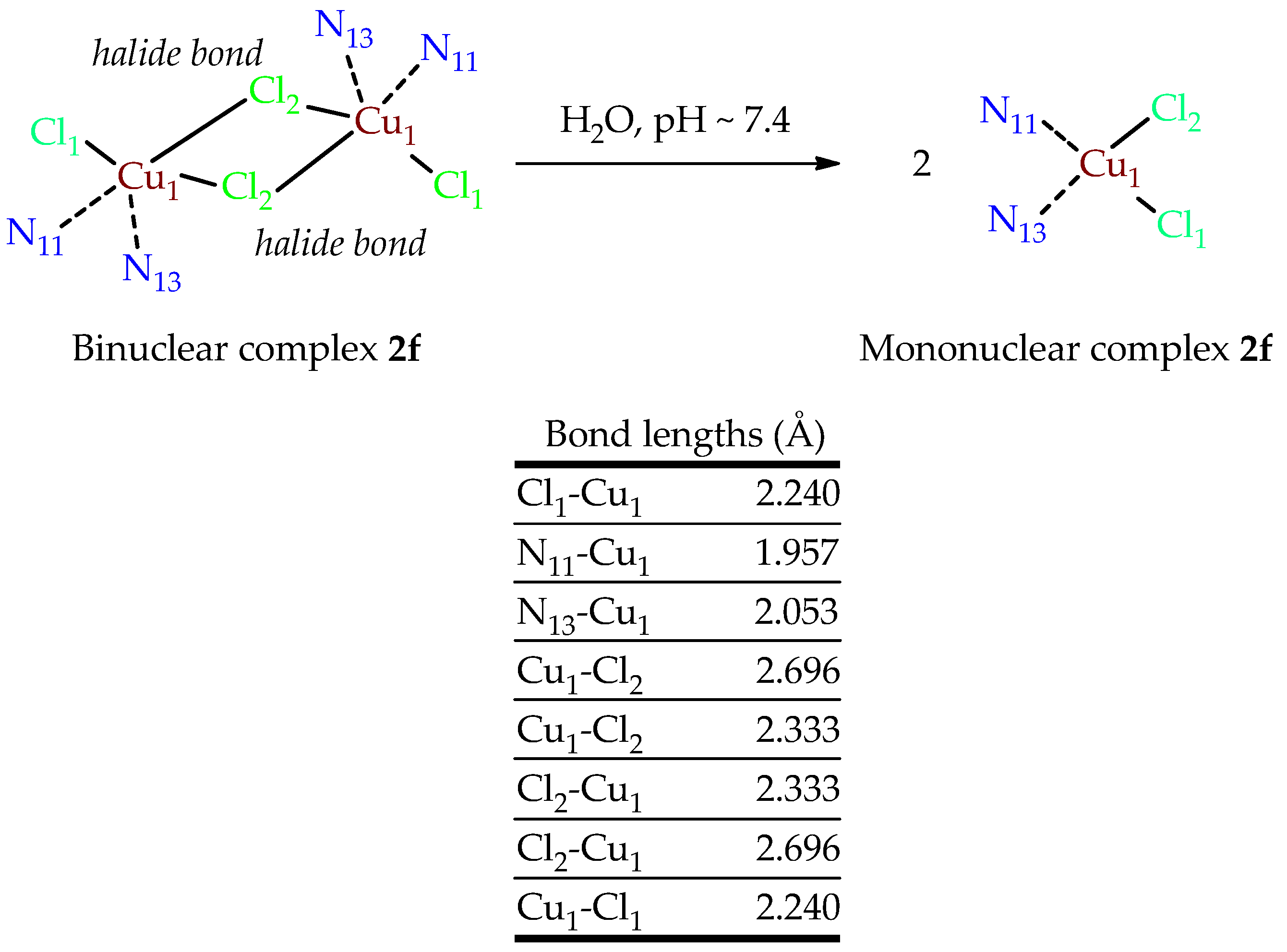

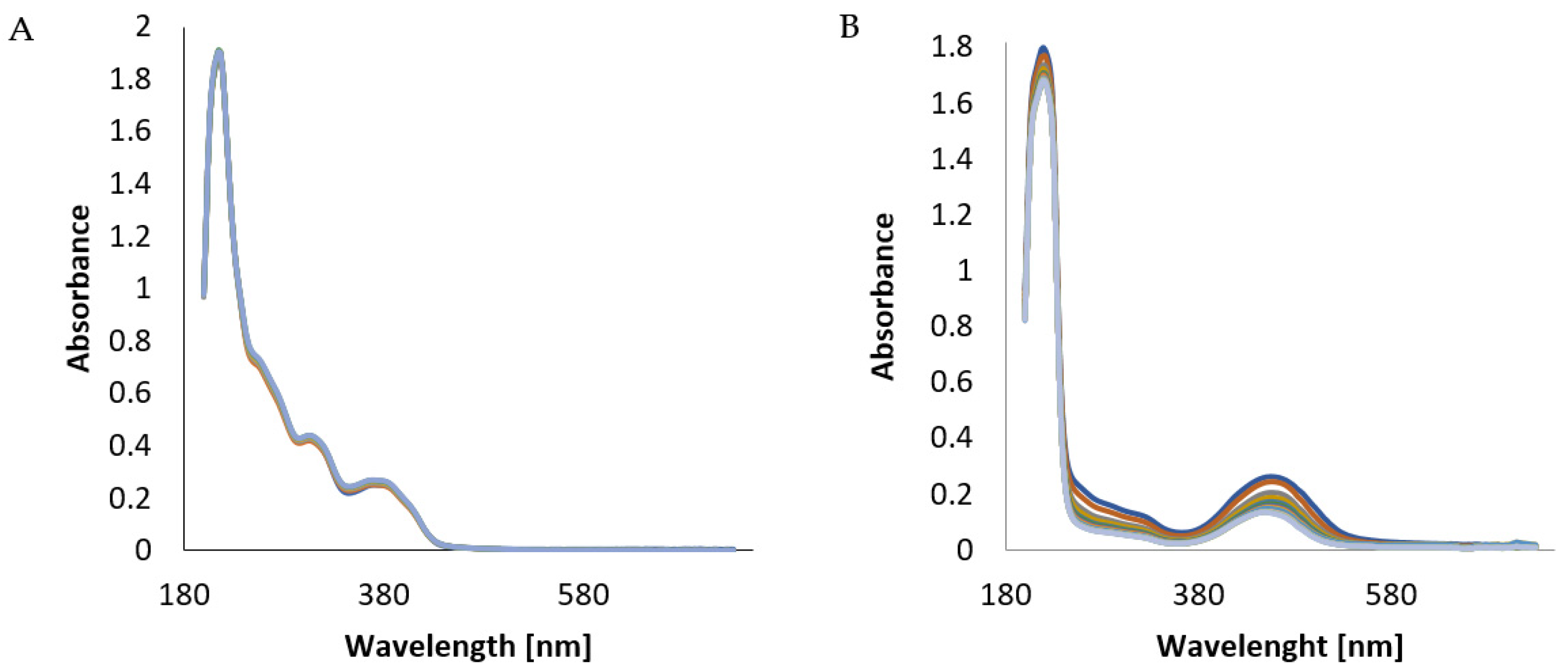

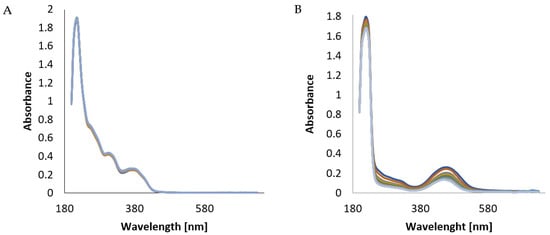

The chemical stability of copper(II) complexes 2a-h, 4a-b, and 6a-c in phosphate-buffered saline solution (PBS, Dulbecco’s buffer, pH 7.4) at 37 °C was investigated using UV-Vis spectroscopy. The Figure 8 shows the time-dependent changes in the UV-Vis spectra of the selected complexes 2b and 2d over 6 h when they were incubated at 37 °C in PBS. In general, all copper(II) complexes tested proved to be relatively stable in the PBS solution, as exemplified by the complexes 2b and 2d, since no new spectra with the formation of isosbestic points were observed. The complex 2d (Figure 8A) showed no noticeable time-dependent changes, whereas complex 2b (Figure 8B) displayed a decrease in the intensity of the initial spectrum, but no change in the shape of the spectrum.

2.4. In Vitro Cytotoxic Activity of Copper(II) Complexes of 2-imino-2H-chromen-3-yl-1,3,5-triazines 2a-h, 3-(benzoxazol-2-yl)-2H-chromen-2-imines 4a-b, and 3-(benzothiazol-2-yl)-2H-chromen-2-imines 6a-c

All copper(II) complexes of 2-imino-2H-chromen-3-yl-1,3,5-triazines 2a-h and 3-(benzoxazol-2-yl)-2H-chromen-2-imines 4a-b and 3-(benzothiazol-2-yl)-2H-chromen-2-imines 6a-c were investigated for antiproliferative activity in a panel of five human cancer cell lines of different origin including: human pancreas adenocarcinoma DAN-G, human lung carcinoma A-427, human non-small cell lung cancer LCLC-103H, human cervix cancer SISO, and human urinary bladder carcinoma RT-4.
In regards to the cytotoxicity studies, it should be mentioned that the bond length of the halide bridge (Cu1-Cl2) of copper(II) complex 2f is 2.696 Å (Figure 9). Compared to the Cu-Cl bond lengths observed in the mononuclear complexes 2g-h (2.24–2.33 Å), the dimer 2f under physiological conditions can easily dissociate to form a mononuclear copper(II) complex with the structure analogous to the discussed complexes 2a-e and 2g-h. Thus, it can be assumed that in the solution, the tested complex 2f possesses a similar structure to that of the complexes 2a-e and 2g-h.

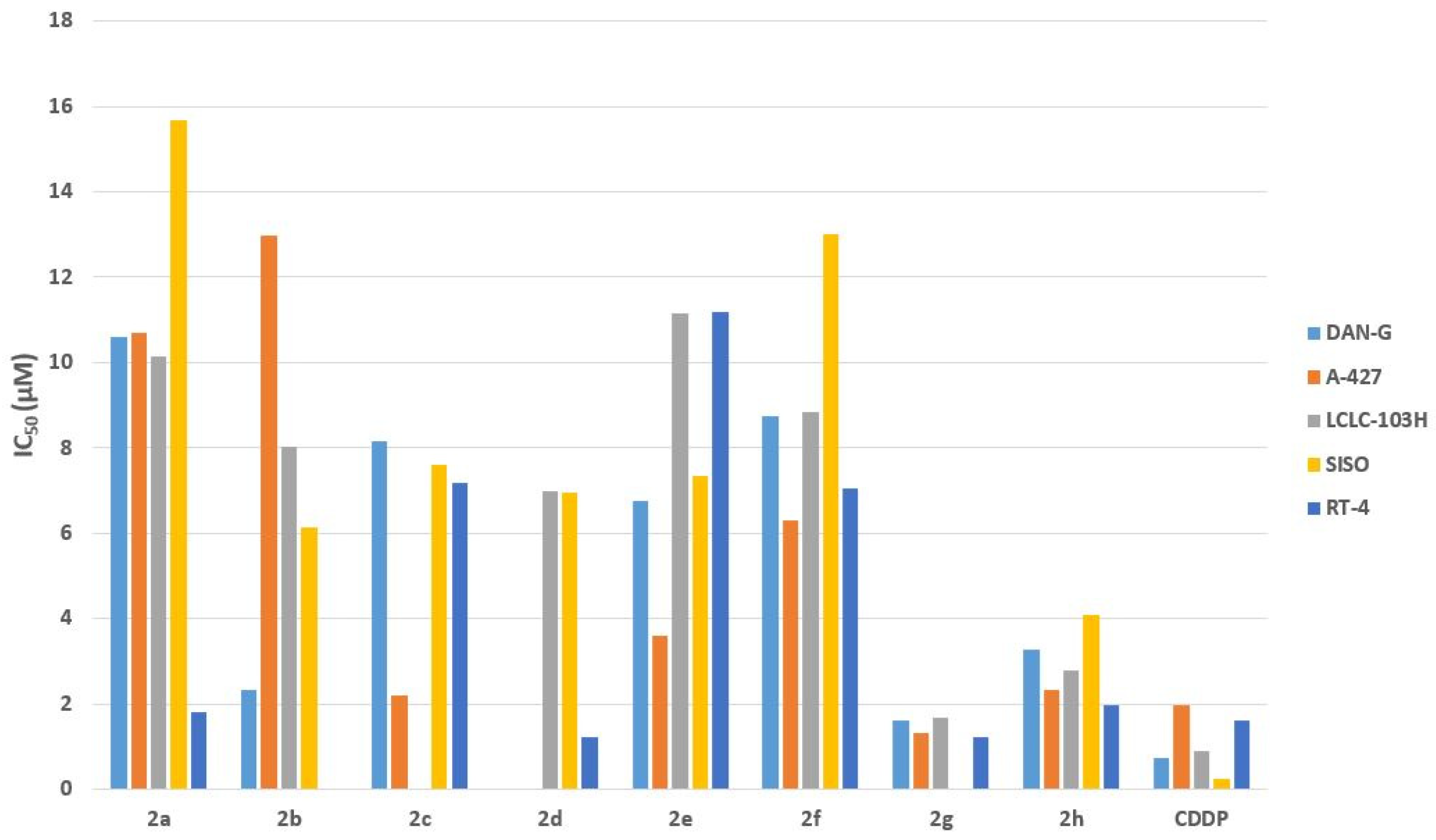

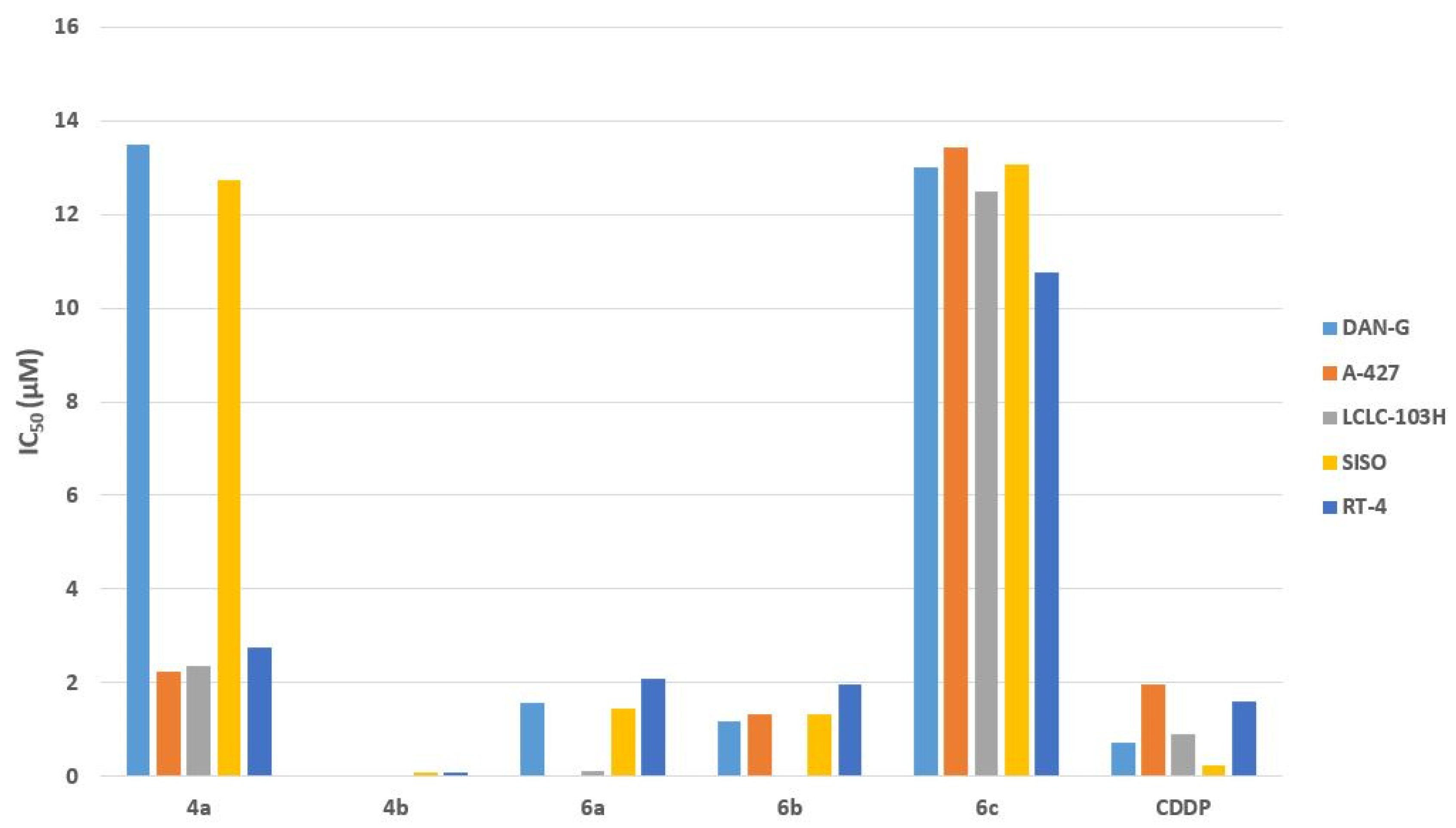

The IC50 values of the tested copper(II) complexes, 2a-h, 4a-b, and 6a-c, together with the data obtained for previously reported free ligands, 2-imino-2H-chromen-3-yl-1,3,5-triazines L1a-h [65], 3-(benzoxazol-2-yl)-2H-chromen-2-imines 3a-b, and 3-(benzothiazol-2-yl)-2H-chromen-2-imines 5a-c [66], are presented in Table 1 and Table 2 and Figure 10 and Figure 11, respectively.
As revealed by the data in Table 1, the copper(II) complexes of 2-imino-2H-chromen-3-yl-1,3,5-triazines 2a-h displayed similar or even higher growth inhibitory potency than that of their free ligands L1a-h (IC50 = 1.21–15.66 µM vs. 1.51–37.19 µM). The highest difference in antiproliferative activity was shown by 4-phenylpiperazine-containing complex 2h (R = 4-phenylpiperazine) with a chlorine atom at position 6′ (R1 = Cl) of the 2-iminocoumarin moiety (compare 2h with L1h: IC50 = 1.97–4.09 µM vs. 23.26–37.19 µM).
Similarly to the free ligands L1a-h [65], among the tested compounds, the most potent complex was the compound 2g bearing a bulky lipophilic 4-phenylpiperazine moiety at position 6 of the 1,3,5-triazine ring (R = 4-phenylpiperazine) and an electron-donating diethylamino group at position 7′ of the 2-iminocoumarin skeleton (R2 = (C2H5)2N), which showed slightly lower cytotoxic activity than the reference cisplatin in the DAN-G, A-427, LCLC-103H and RT-4 cell lines (IC50 = 1.21–1.66 µM vs. 0.73–1.96 µM) (Table 1, Figure 10). On the other hand, the least active in this series was analogue 2a containing piperidine moiety at position 6 of the 1,3,5-triazine ring (R = piperidine), and the unsubstituted 2-iminocoumarin scaffold (R1 = R2 = H) (IC50 = 1.82–15.66 µM) (Table 1, Figure 10).
In previous work we showed that a significant antiproliferative activity of 2-iminocoumarin-1,3,5-triazines is associated with the diethylamino substituent at position 7′ of the 2-iminocoumarin scaffold (R2 = (C2H5)2N) [65]. However, from the data presented in the Table 1 and Figure 10, it is apparent that not all active Cu (II) complexes of 2-iminocoumarin-1,3,5-triazines possess an electron-donating diethylamino group (R = (C2H5)2N) at position 7′ of the 2-iminocoumarin moiety. For example, within the series of Cu(II) complexes 2c-e containing a pyrazoline moiety (R = pyrazoline) at position 6 of the 1,3,5-triazine ring, derivatives 2c and 2d with an electron-donating diethylamino (R2 = (C2H5)2N) at position 7′ (2c) or an electron-withdrawing Br substituent (R1 = Br) at position 6′ (2d) of the 2-iminocoumarin scaffold were shown to display a comparable level of ability to inhibit the growth of human cancer cell lines (IC50 values in the range of 2.19–8.15 µM and 1.21–6.97 µM, respectively). Interestingly, introducing an electron-donating methyl group (R1 = CH3) at position 6′ resulted in slight decrease in antiproliferative potency (compare 2e with 2c and 2d: IC50 = 3.60–11.17 µM vs. 2.19–8.15 µM and 1.21–6.97 µM).
The above pattern was also seen in the series of 4-phenylpiperazine-containing complexes 2f-h. Thus, replacement of the 7′-diethylamino group (R2 = (C2H5)2N) for an electron-withdrawing 6′-Cl substituent (R1 = Cl) in the 2-iminocoumarin scaffold led to compound with similar activity (compare 2g with 2h: IC50 = 1.21–1.66 µM vs. 1.97–3.28 µM). It should be pointed out that the lack of the substituents R1 and R2 yielded less active analogue 2f (IC50 = 6.29–8.84 µM) (Table 1, Figure 10), but this compound still retained pronounced growth inhibitory properties toward the tested tumor cell lines. The results obtained seem to indicate that electronic and steric effects brought about the R1 and R2 substituents and may affect the biological activity of these compounds.
As in the case of copper(II), complexes of 2-iminocoumarins containing 1,3,5-triazine moiety, copper(II) complexes of benzoxazole/benzothiazole-2-iminocoumarins 4b, 6a-c were found to possess similar or higher activity than their free ligands L3b and L5a-c, respectively (IC50 = 0.04–13.42 µM vs. 0.06–14.03 µM) (Table 2). The exception to this was benzoxazole-containing compounds 4a and L3a, where the complex 4a was less active than its free ligand L3a (IC50 = 2.25–13.50 µM vs. 0.99–3.22 µM). The most active compound in this category was the 7′-ethylamino substituted benzoxazole-2-iminocoumarin complex 4b which showed greater potency than cisplatin against the LCLC-103H, SISO and RT-4 cell lines with IC50 values ranging from 0.04 µM to 0.08 µM (Table 2, Figure 11).
On the other hand, analogue 6b with benzothiazole instead a benzoxazole was found to be less active than the benzoxazole counterpart 4b (IC50 = 1.18–1.96 µM vs. 0.04–0.08 µM), while benzothiazole-containing complex 6a with a fluorine atom at position 6′ of the 2-iminocoumarin moiety showed higher potency than its benzoxazole analogue 4a (IC50 = 0.13–2.08 µM vs. 2.25–13.50 µM) (Table 2, Figure 11). These observations are in line with our previous studies of free ligands—benzoxazole/benzothiazole-2-iminocoumarins [66].
Moreover, from the pattern of IC50 values, it can be concluded that within series of Cu(II) complexes of 2-imino-2H-chromen-3-yl-1,3,5-triazines and benzoxazole/benzothiazole-2H-chromen-2-imines, the best antiproliferative potency was shown for compounds bearing an electron-donating diethylamino substituent at position 7′ of the 2-iminocoumarin ring as evidenced by compounds 2g (Table 1, Figure 10) and 4b (Table 2, Figure 11), nonetheless benzoxazole-containing complex 4b was significantly more active than 2-iminocoumarin-1,3,5-triazine complex 2g in the LCLC-103H, SISO, RT-4 cell lines (IC50 = 0.04–0.08 µM vs. 1.21–1.66 µM). Additionally, the data presented above support the hypothesis that by introducing a metal ion into an organic moiety, the antiproliferative activity may be enhanced [10,11].

3. Experimental Section

3.1. General Information

The melting points were determined with a Boëtius apparatus and are uncorrected. The infrared spectra were recorded on a Nicolet 380 FT-IR spectrophotometer (Thermo Fisher Scientific Inc., Waltham, MA, USA). The elemental analyses of carbon, hydrogen, nitrogen, and sulfur determined for compounds were within ± 0.4% of the theoretical values.
UV-Vis spectra were recorded on Carl Zeiss Technology Spekol 1200 (Analytik Jena AG, Jena, Germany) in a 1.0 cm cuvette maintained at 37 °C by a thermostatically controlled cuvette holder.
Diffraction experiments were carried out at room temperature with an Oxford Diffraction SuperNova diffractometer (Agilent Technologies Inc., Santa Clara, CA, USA) using Cu Kα radiation. Diffraction data were processed with CrysAlisPro software [68]. The structures were solved with the program SHELXT [69] and refined by full-matrix least-squares method on F2 with SHELXL-2018/3 [70] within the Olex2 software [71]. C-H hydrogen atoms were placed in calculated positions and refined as riding on their carriers. In 2f, 2h and 6c hydrogen atoms from the N-H groups were freely refined, whereas those in 2g were placed in the geometrically predicted positions and refined as riding on their carriers.

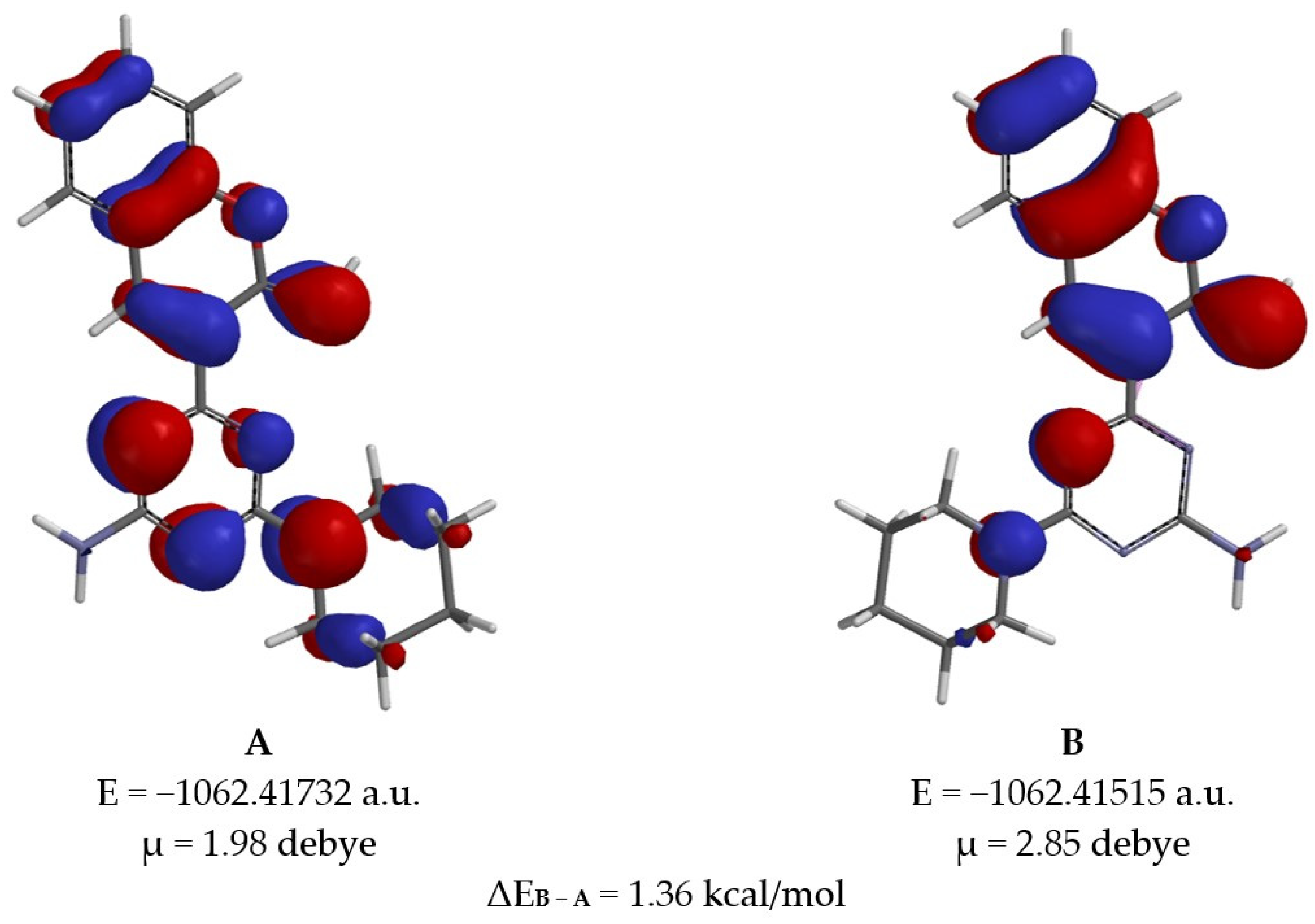

Molecular modeling studies were performed at ab initio level using the density functional method (B3LYP) with the 6-31G* basis set as implemented into SPARTAN program version ‘14 V 1.1.4’ [72].

3.2. Chemistry

3.2.1. Synthesis of Copper(II) Complexes of 2-imino-2H-chromen-3-yl-1,3,5-triazine derivatives 2a and 2d (Method A)

A solution of appropriate 2-iminocoumarin-1,3,5-triazine derivative L1a or L1d (1 mmol) in dimethylformamide (2–4 mL) containing 1–2% of water was heated to a tem-perature of 80 °C and then cooled. Copper(II) chloride dihydrate (3 mmol) was dissolved in 1 mL of dimethylformamide and added gradually to the solution of 1,3,5-triazine in dimethylformamide at room temperature (20–22°C). Upon slow evaporation of the solvent over 1–4 days, copper(II) complex was formed. Precipitate was filtered, washed with cold dimethylformamide (2 × 0.5 mL) and dried in a desiccator. The following complexes were obtained to above procedure:
Dichloro[4-(2-imino-2H-chromen-3-yl)-6-(piperidin-1-yl)-1,3,5-triazin-2-amine]copper(II) (2a). Yield 13% as orange colored powder; m.p. 261–262 °C; IR (KBr) νmax (cm−1): 3468, 2934, 2855, 1647, 1550, 1482, 1240, 803, 776. Anal. calcd for C17H18Cl2CuN6O (456.82): C, 44.70; H, 3.97; N, 18.40. Found: C, 44.62; H, 3.78; N, 18.32.
Dichloro[4-(6-bromo-2-imino-2H-chromen-3-yl)-6-(3,5,5-trimethyl-4,5-dihydro-1H-pyrazol-1-yl)-1,3,5-triazin-2-amine]copper(II) (2d). Yield 23% as green crystals; m.p. 211–212 °C; IR (KBr) νmax (cm−1): 3298, 2923, 1643, 1544, 1493, 1233, 804, 756. Anal. calcd for C18H18BrCl2CuN7O (562.74): C, 38.42; H, 3.22; N, 17.42. Found: C, 38.36; H, 3.12; N, 17.23.

3.2.2. Synthesis of Copper(II) Complexes of 2-imino-2H-chromen-3-yl-1,3,5-triazine Derivatives 2b-c, and 2f (Method B)

An appropriate 2-iminocoumarin-1,3,5-triazine derivative L1b, L1c, or L1f (1 mmol) was dissolved in 98% ethanol (4–10 mL) at a temperature of 40 °C. After cooling to room temperature (20–22 °C), copper(II) chloride dihydrate (3 mmol) dissolved in 1 mL of 98% ethanol and was added gradually. If precipitate of 1,3,5-triazine derivative was formed after cooling to room temperature the second portion of 98% ethanol was added. Upon slow evaporation of the solvent over 1–4 days, the copper(II) complex was formed. Precipitate was filtered off, washed with cold 98% ethanol (2 × 0.5 mL) and dried in a desiccator. The following complexes were obtained to above procedure:
Dichloro{4-[7-(diethylamino)-2-imino-2H-chromen-3-yl]-6-morpholino-1,3,5-triazin-2-amine}copper(II) (2b). Yield 26% as violet crystals; m.p. 189–190 °C; IR (KBr) νmax (cm−1): 3307, 1653, 1598, 1498, 1351, 1237, 1173, 800. Anal. Calcd for C20H25Cl2CuN7O2 (529.91): C, 45.33; H, 4.76; N, 18.50. Found: C, 45.14; H, 4.68; N, 18.42.
Dichloro{4-[7-(diethylamino)-2-imino-2H-chromen-3-yl]-6-(3,5,5-trimethyl-4,5-dihydro-1H-pyrazol-1-yl)-1,3,5-triazin-2-amine}copper(II) (2c). Yield 18% as dark brown crystals; m.p. 189 °C (dec.); IR (KBr) νmax (cm−1): 3110, 1654, 1595, 1500, 1466, 1340, 1247, 1183, 1015, 800, 693. Anal. calcd for C22H28Cl2CuN8O (554.96): C, 47.61; H, 5.09; N, 20.19. Found: C, 47.58; H, 5.01; N, 20.08.
Tetrachloro-bis-{[4-(2-imino-2H-chromen-3-yl)-6-(4-phenylpiperazin-1-yl)-1,3,5-triazin-2-amine]copper(II)} (2f). Yield 23% as dark green crystals; m.p. 169–170 °C; IR (KBr) νmax (cm−1): 3489, 3336, 1649, 1546, 1494, 1231, 804, 757.

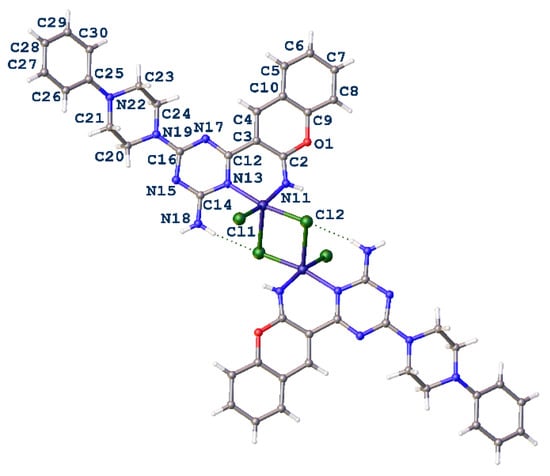

Crystal data for 2f ([(C22H21N7O)2Cl4Cu2]·C2H5OH, M = 1113.86 g/mol): triclinic, space group P-1 (no. 2), a = 10.4108(4) Å, b = 11.3726(4) Å, c = 11.4595(5) Å, α = 83.833(3)°, β = 64.171(4)°, γ = 77.430(3)°, V = 1191.84(9) Å3, Z = 1, T = 293(2) K, μ(Cu Kα) = 3.641 mm−1, Dcalc = 1.552 g/cm3, 24,433 reflections measured (8.574° ≤ 2Θ ≤ 151.718°), 4866 unique (Rint = 0.0381, Rsigma = 0.0196) which were used in all calculations. The final R1 was 0.0393 (I > 2σ(I)) and wR2 was 0.1187 (all data). The crystals were unstable in the air. The solvent ethanol molecule is disordered around an inversion center. The methylene and methyl group C atoms from the ethanol molecules occupying different sites were found in overlapping positions. The molecule of 2f is shown in Figure 4.

3.2.3. Synthesis of Copper(II) Complexes of 2-imino-2H-chromen-3-yl-1,3,5-triazine Derivatives 2e, 2g and 2h (Method C)

An appropriate 2-iminocoumarin-1,3,5-triazine derivative L1e, L1g or L1h (1 mmol) was dissolved in methanol (6 mL) at a temperature of 40 °C. After cooling to room temperature (20–22 °C) copper(II) chloride dihydrate (3 mmol) dissolved in 1 mL of methanol and was added gradually. Upon slow evaporation of the solvent over 1–4 days, copper(II) complex was formed. Precipitate was filtered off, washed with cold methanol (2 × 0.5 mL) and dried in a desiccator. The following complexes were obtained to above procedure:
Dichloro[4-(2-imino-6-methyl-2H-chromen-3-yl)-6-(3,5,5-trimethyl-4,5-dihydro-1H-pyrazol-1-yl)-1,3,5-triazin-2-amine]copper(II) (2e). Yield 21% as green crystals; m.p. 171–172 °C; IR (KBr) νmax (cm−1): 3227, 2923, 1654, 1582, 1508, 1467, 1380, 1340, 1250, 803. Anal. calcd for C19H21Cl2CuN7O (497.87): C, 45.84; H, 4.25; N, 19.69. Found: C, 45.68; H, 4.12; N, 19.54.
Dichloro{4-[7-(diethylamino)-2-imino-2H-chromen-3-yl]-6-(4-phenylpiperazin-1-yl)-1,3,5-triazin-2-amine}copper(II) (2g). Yield 27% as violet crystals; m.p. 194–195 °C; IR (KBr) νmax (cm−1): 3352, 2923, 1654, 1586, 1501, 1232, 804, 748.
Crystal data for 2g ([(C26H30N8OCl2Cu], M = 605.02 g/mol): triclinic, space group P-1 (no. 2), a = 8.8366(7) Å, b = 11.1171(8) Å, c = 15.0104(9) Å, α = 100.138(6)°, β = 93.417(6)°, γ = 105.259(7)°, V = 1391.65(18) Å3, Z = 2, T = 293(2) K, μ(Cu Kα) = 3.161 mm−1, Dcalc = 1.444 g/cm3, 14,878 reflections measured (6.018° ≤ 2Θ ≤ 133.202°), 4927 unique (Rint = 0.0242, Rsigma = 0.0211) which were used in all calculations. The final R1 was 0.0423 (I > 2σ(I)) and wR2 was 0.1293 (all data). One of the ethyl groups of the diethylamino substituent is disordered over two sites. The molecule of 2g is shown in Figure 5.
Dichloro[4-(6-chloro-2-imino-2H-chromen-3-yl)-6-(4-phenylpiperazin-1-yl)-1,3,5-triazin-2-amine]copper(II) (2h). Yield 22% as greenish crystals; m.p. 191 °C (dec.); IR (KBr) νmax (cm−1): 3295, 1643, 1570, 1545, 1496, 1233, 803, 761.

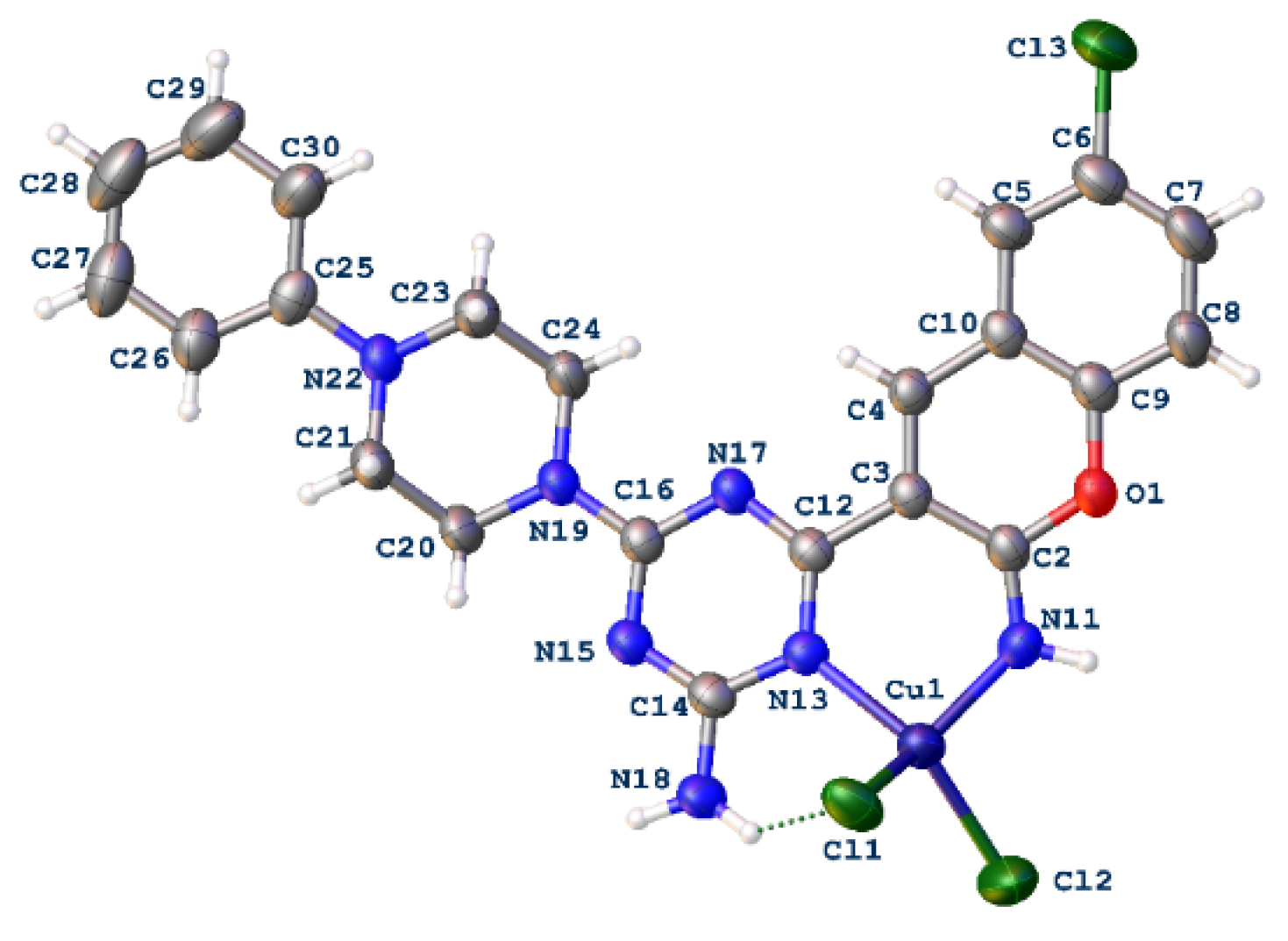

Crystal data for 2h ([(C22H20ClN7O]Cl2Cu]·0.5(H2O), M = 577.35g/mol): monoclinic, space group P21/n (no. 14), a = 16.9813(4) Å, b = 8.8458(2) Å, c = 17.1929(4) Å, β = 109.043(3)°, V = 2441.26(11) Å3, Z = 4, T = 294 K, μ(Cu Kα) = 4.563 mm−1, Dcalc = 1.571 g/cm3, 13,722 reflections measured (6.352° ≤ 2Θ ≤ 133.198°), 4315 unique (Rint = 0.030 0, Rsigma = 0.0224) which were used in all calculations. The final R1 was 0.0453 (I > 2σ(I)) and wR2 was 0.1335 (all data). The water molecule is disordered over two sites related by an inversion center. Hydrogen atoms of the water molecule were not located. The molecule of 2h is shown in Figure 6.

3.2.4. Synthesis of Copper(II) Complexes of 3-(benzoxazol-2-yl)-2H-chromen-2-imine Derivatives 4a-b (General Procedure)

An appropriate 3-(benzoxazol-2-yl)-2H-chromen-2-imine derivative L3a or L3b (1 mmol) was dissolved in 98% ethanol (4–10 mL) at a temperature of 40 °C. To the solution was added dropwise at ambient temperature (20–22 °C) copper(II) chloride dihydrate (3 mmol) dissolved in ethanol (1 mL). The solution was left at room temperature (20–22 °C) and the solvent was slowly evaporated. The resulting precipitate (24 h to 4 days) was filtered, washed with cold ethanol (2 × 0.5 mL), and dried in a desiccator. The following complexes were prepared according to above given procedure.
Dichloro[3-(benzo[d]oxazol-2-yl)-6-fluoro-2H-chromen-2-imine]copper(II) (4a). Yield 20% as violet-brown crystals; m.p. > 350 °C; IR (KBr) νmax (cm−1): 3119, 3067, 2927, 1635, 1586, 1560, 1471, 1430, 1374, 1269, 1205, 1155, 1054, 876, 794, 722. Anal. calcd for C16H9Cl2CuFN2O2 (414.71): C, 46.34; H, 2.19; N, 6.76. Found: C, 46.17; H, 2.35; N, 6.85.
Dichloro[3-(benzo[d]oxazol-2-yl)-N,N-diethyl-2-imino-2H-chromen-7-amine]copper(II) (4b). Yield 24% as violet crystals; m.p. 229–230 °C; IR (KBr) νmax (cm−1): 3292, 2976, 1654, 1601, 1574, 1527, 1497, 1399, 1343, 1240, 1184, 1123, 1077, 973, 773, 757. Anal. calcd for C20H19Cl2CuN3O2 (467.84): C, 51.35; H, 4.09; N, 8.98. Found: C, 51.43; H, 3.89; N, 9.05.

3.2.5. Synthesis of Copper(II) Complexes of 3-(benzothiazol-2-yl)-2H-chromen-2-imine Derivatives 6a-c (General Procedure)

An appropriate 3-(benzothiazol-2-yl)-2H-chromen-2-imine derivative L5a, L5b, or L5c (1 mmol) was dissolved in dimethylformamide (2–4 mL) containing 1–2% water at a temperature of 80 °C. To the resulting solution, copper(II) chloride dihydrate (3 mmol) was added dropwise at ambient temperature (20–22 °C) and dissolved in dimethylformamide (1 mL). The solution was left at room temperature (20–22 °C) and the solvent was slowly evaporated. The resulting precipitate (24 h to 4 days) was filtered, washed with cold dimethylformamide (2 × 0.5 mL) and dried in a desiccator. The following complexes were prepared according to above given procedure.
Dichloro[3-(benzo[d]thiazol-2-yl)-6-fluoro-2H-chromen-2-imine]copper(II) (6a). Yield 29% as violet-dark blue crystals; m.p. 231–232 °C; IR (KBr) νmax (cm−1): 3178, 3062, 3017, 1664, 1642, 1596, 1566, 1491, 1413, 1272, 1248, 957, 880, 784, 763, 753. Anal. calcd for C16H9Cl2CuFN2OS (430.77): C, 44.61; H, 2.11; N, 6.50. Found: C, 44.49; H, 2.31; N, 5.87.
Dichloro[3-(benzo[d]thiazol-2-yl)-N,N-diethyl-2-imino-2H-chromen-7-amine]copper(II) (6b). Yield 29% as violet-dark blue crystals; m.p. 231–232 °C; IR (KBr) νmax (cm−1): 3338, 2963, 2922, 1646, 1592, 1573, 1510, 1380, 1350, 1271, 1185, 1115, 756, 745. Anal. calcd for C20H19Cl2CuN3OS (483.90): C, 49.64; H, 3.96; N, 8.63. Found: C, 49.55; H, 3.83; N, 8.57.
Dichloro[3-(benzo[d]thiazol-2-yl)-6-methyl-2H-chromen-2-imine]copper(II) (6c). Yield 24% as dark green crystals; m.p. 248–249 °C; IR (KBr) νmax (cm−1): 3190, 3007, 2922, 1636, 1613, 1588, 1568, 1457, 1412, 1327, 1247, 1209, 1127, 956, 861, 825, 752.

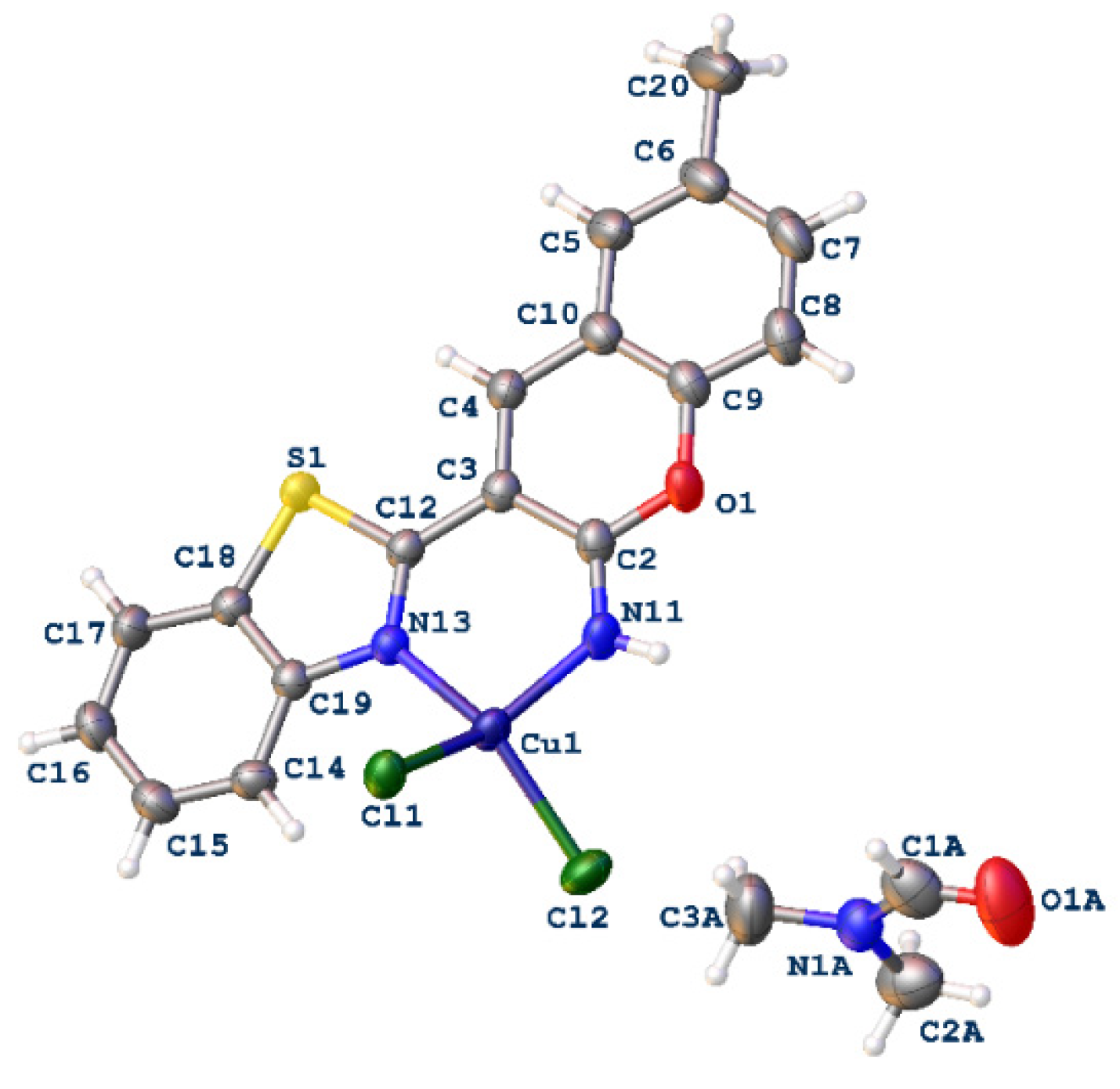

Crystal data for 6c ([(C17H12N2OS)Cl2Cu]·C3H7NO, M = 499.88 g/mol): triclinic, space group P-1 (no. 2), a = 8.8247(3) Å, b = 9.9302(4) Å, c = 12.6944(5) Å, α = 104.339(3)°, β = 90.641(3)°, γ = 102.895(3)°, V = 1047.99(7) Å3, Z = 2, T = 293(2) K, μ(Cu Kα) = 4.935 mm−1, Dcalc = 1.584 g/cm3, 8178 reflections measured (7.206° ≤ 2Θ ≤ 136.502°), 3828 unique (Rint = 0.0181, Rsigma = 0.0200) which were used in all calculations. The final R1 was 0.0266 (I > 2σ(I)) and wR2 was 0.0770 (all data). The asymmetric unit of 6c is shown in Figure 7.

3.3. Stability Studies

To 5.0 mL of phosphate-buffered saline at pH 7.4 and pre-warmed at 37 °C was added 10 µL of a 20 mM DMF solution of the copper(II) complex 2a-h, 4a-b, or 6a-c, resulting in a final concentration of 40 µM. The solution was then transferred to a 1.0 cm quartz cuvette and placed in a heated cuvette holder maintained at 37 °C. UV-Vis spectra were recorded at 60 min intervals between wavelengths of 200 nm and 600 nm by means of UV-Vis spectrophotometer (Carl Zeiss Technology Spekol 1200, Analytik Jena AG, Jena, Germany) connected to a personal computer running the Vision 32 software.

3.4. In Vitro Cytotoxicity Studies

The antiproliferative activities of the compounds on human cancer cells were determined by the Crystal Violet assay as previously described [67]. All cell culture materials were purchased from SigmaAldrich (Deisenhofen, FRG). Cancer cell lines: human pancreas cell adenocarcinoma (DAN-G), human lung carcinoma (A-427), human non-small cell lung carcinoma (LCLC-103H), human uterine cervical adenocarcinoma (SISO), and human urinary bladder carcinoma (RT-4) and were obtained from the German Collection of Microorganisms and Cell Cultures (DSMZ, Deutsche Sammlung von Mikroorganismen und Zellkulturen, Braunschweig, FRG). The culture medium for cell lines was RPMI-1640 medium containing 2 g/L HCO3, and 10% sterile calf serum, suitable for cell culture. Cells were incubated in a humid atmosphere of 5% CO2 at 37 °C in 75 cm2 plastic culture flasks (Sarstedt, Nümbrecht, FRG) and were passaged shortly before becoming confluent. For the cytotoxicity studies, 100 μL of a cell suspension was seeded into 96-well microtiter plates (Sarstedt) at a density of 1000 cells per well except for the LCLC-103H cell line, which was plated out at 250 cells per well. One day after plating, the cells were treated with a test substance at five concentrations per compound. The 1000-fold concentrated stock solutions in dimethylformamide (DMF) or dimethylsulfoxide (DMSO) were serially diluted by 50% in DMF or DMSO to give the feed solutions, which were diluted 500-fold into the culture medium. The controls received DMF or DMSO at a final concentration of 0.1%. Each concentration was tested in eight wells, with each well receiving 100 μL of the medium containing the substance. The concentration ranges were chosen to bracket the expected IC50 values as best as possible. Cells were then incubated for 96 h, after which time the medium was removed and replaced with 1% glutaraldehyde/phosphate-buffered saline for 30 min. The glutaraldehyde solution was discarded, and the plates washed with water before staining cells for 30 min with an aqueous solution of 0.02% Crystal Violet. After washing out excess Crystal Violet from the plates, optical density (OD) was measured at λ = 570 nm by use of an Anthos 2010 plate reader (Salzburg, Austria). Corrected T/C values were calculated according to the Equation (1):
(T/C)corr(%) = (O.D.T − O.D.c.0)/(O.D.C − O.D.c.0) × 100
where O.D.T is the mean optical density of the wells from the treated cells; O.D.C the mean optical density of the control wells and O.D.c.0 the mean optical density on day 0 when the time drug was added. The IC50 values were estimated by linear least-squares regression of the (T/C)corr values versus the logarithm of the substance concentration by using MS-Excel; only concentrations that yielded (T/C)corr values between 10% and 90% were used in the calculation of the IC50 values. The reported IC50 values are the averages of three independent experiments [67].

4. Conclusions

In this paper we have described the synthesis, structure, and cytotoxic activity of two series of novel Cu(II) complexes of 2-iminocoumarins bearing a 1,3,5-triazine or benzoxazole/benzothiazole moiety. The coordination of 2-iminocoumarin ligands with copper(II) results in metal complexes with significant growth inhibitory properties toward tested human tumor cell lines with IC50 values ranging from 0.04 to 15.66 μM. Furthermore, it was observed that newly prepared Cu(II) complexes often possess higher activity than the related ligands. As expected, in the series of Cu(II) complexes of 2-imino-2H-chromen-3-yl-1,3,5-triazine derivatives, the highest potency was shown for compound 2g bearing 4-phenylpiperazine moiety at position 6 of the 1,3,5-triazine ring and an electron-donating diethylamino group at position 7’ of the 2-iminocoumarin scaffold. On the other hand, the SAR studies of this series indicate that 2-iminocoumarin scaffold is open for variation such that halogen, diethylamino, and methyl substituents are allowed. In turn, in the category of Cu(II) complexes of benzoxazole/benzothiazole-2H-chromen-2-imines the best antiproliferative activity was found for 7’-diethylamino-substituted benzoxazole derivative 4b. Additionally, compound 4b was found to be the most promising agent with higher potency than cisplatin against the LCLC-103H, SISO, and RT-4 cell lines. Based on the results obtained, one may conclude that the most active compounds in either triazine or benzazole series possess a diethylamino group in the 2-iminocoumarin skeleton as evidenced by compounds 2g and 4b, suggesting that this group is somehow involved in the mechanism of action. In this context, it is worth noting that coumarin-based agents [65,73,74,75,76] display the intercalative mode of binding properties with DNA and are well-known DNA minor groove binders. Thus, the presence of diethylamino group in the structure of designed compounds may increase the efficiency in the intercalative binding giving extra non-covalent force between the substituent and DNA grooves. Therefore, additional work is needed to elucidate their mechanism of action.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules27217155/s1, checkCIF/PLATON reports for compounds 2h, 2f, 2g and 6c. Crystallographic data (CCDC 2191576-2191579) associated with this article are available online at: www.ccdc.cam.ac.uk/conts/retrieving.html (accessed on 1 September 2022).

Author Contributions

F.S.—conceived and designed the project; P.J.B.—designed and supervised biological tests; A.M.—performed chemical experiments and biological tests; M.W.—review of the literature; Ł.B.—performed molecular modeling studies; M.G.—analyzed the X-ray data; A.K., Ł.B., M.G. and P.J.B.—wrote the paper. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by the Funds for Statutory Activity of the Medical University of Gdańsk (ST-020038/07).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

The X-ray structure analysis was carried out at The Structural Research Laboratory, Faculty of Chemistry, Adam Mickiewicz University, Poznań, Poland. Anna Makowska thanks the European Union student exchange program Erasmus for partial financial support of a research stay in Greifswald.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the compounds L1a-h, 2a-h, L3a-b, 4a-b, L5a-c and 6a-c are not available from the authors.
