3-Nitroindoles Serving as N-Centered Nucleophiles for Aza-1,6-Michael Addition to para-Quinone Methides

by
Jian-Qiang Zhao
1,*,
Wen-Jie Wang
1,
Shun Zhou
1,2,
Qi-Lin Xiao
1,
Xi-Sha Xue
1,
Yan-Ping Zhang
1,
Yong You
1,
Zhen-Hua Wang
1 and
Wei-Cheng Yuan
1,*
1
Innovation Research Center of Chiral Drugs, Institute for Advanced Study, Chengdu University, Chengdu 610106, China
2
National Engineering Research Center of Chiral Drugs, Chengdu Institute of Organic Chemistry, Chinese Academy of Sciences, Chengdu 610041, China
*
Authors to whom correspondence should be addressed.
Molecules 2023, 28(14), 5529; https://doi.org/10.3390/molecules28145529
Submission received: 3 July 2023 / Revised: 15 July 2023 / Accepted: 18 July 2023 / Published: 20 July 2023
(This article belongs to the Special Issue Design, Synthesis and Biological Activity of Nitrogen-Containing Heterocyclic Compounds)
Browse Figures
Versions Notes

Abstract

:
An unprecedented N-alkylation of 3-nitroindoles with para-quinone methides was developed for the first time. Using potassium carbonate as the base, a wide range of structurally diverse N-diarylmethylindole derivatives were obtained with moderated to good yields via the protection group migration/aza-1,6-Michael addition sequences. The reaction process was also demonstrated by control experiments. Different from the previous advances where 3-nitrodoles served as electrophiles trapping by various nucleophiles, the reaction herein is featured that 3-nitrodoles is defined with latent N-centered nucleophiles to react with ortho-hydrophenyl p-QMs for construction of various N-diarylmethylindoles.

1. Introduction

Indole-based motifs are privileged structures for construction of various valuable complex heteroaromatic units, which widely exist in numerous biologically active natural products and pharmaceutically relevant compounds with potential pharmacological activities, such as against cancer, HIV, inflammation, tuberculosis, hypertension, diabetes, and against microbial, viral, and fungal infections [1,2,3,4,5,6]. As a result, enormous efforts have been devoted to exploring versatile techniques for the efficient synthesis of structurally diverse indole derivatives, and thus the indole-based chemistry has become a hotspot in organic synthesis [7,8,9,10,11,12]. In conventional indole alkylation reactions, the most common synthetic modifications occurred at the C2 and C3-positions of indoles due to the innate nucleophilic nature (Scheme 1a) [13,14]. In contrast, the N-alkylation of indoles is challenging, and only a few reports have been disclosed to directly fabricate such compounds (Scheme 1b) [15,16]. Among the established N-alkylation of indoles, the studies mainly focused on modification of N-H indole derivatives by taking advantage of the nucleophilicity of the nitrogen atom [17,18,19,20,21,22,23]. However, the weak nucleophilicity of the nitrogen atom in indoles commonly resulted in the C2 or C3-positions alkylated by-products. In order to increase the N-centered nucleophilicity, an alternative method is the introduction of a protecting group at the N1-position of indoles made it latent nucleophiles [24,25,26,27], which are themselves not nucleophilic but can produce a strong nucleophile in situ via deprotection. To the best of our knowledge, it was only in 2019 that the Vilotijevic group reported that N-silyl indoles were employed as latent N-centered nucleophiles in the substitution of allylic fluorides for N-allyl indoles [28]. Therefore, the exploration of N-protected indoles as latent N-centered nucleophiles in N-alkylation reaction is huge challenges.
In recent years, there have an increasing number of reports on 3-nitroindoles as electrophiles in the reaction with various nucleophiles for the construction of diverse indolines via dearomative process [29,30,31,32,33]. Among these reactions, 3-nitroindoles are characterized by their readiness to be attacked by nucleophiles at the C2-position and sequentially trapped by electrophiles with the C3-position for the synthesis of indoline-containing polycyclic compounds (Scheme 2a). On the other hand, we have noticed that in the field of para-quinone methides (p-QMs) chemistry [34,35,36,37], ortho-hydrophenyl p-QMs have been used as donors to trigger some cycloaddition reactions with electron-deficient 2π-components, providing an access to chromans with structural diversity [38,39,40,41,42,43,44]. Along this line, as well as our continuing efforts on the dearomatization of nitroheteroarenes [45,46,47,48], we conceived that the dearomative [4 + 2] cycloaddition of electron-deficient 3-nitroindoles and ortho-hydrophenyl p-QMs might occur via the tandem oxy-Michael addition/1,6-addition under alkaline conditions (Scheme 2b) [49]. To our surprise, the reaction between 3-nitroindoles and ortho-hydrophenyl p-QMs did undergo smoothly but providing unanticipated N-alkylation products via protection group migration/aza-1,6-Michael addition pathway instead of the dearomative [4 + 2] cyclo-adducts (Scheme 2c). In this manuscript, the N-protected 3-nitroindoles served as latent N-centered nucleophiles to couple with ortho-hydrophenyl p-QMs and the protecting group was transferred from the N-center of indoles to the O-center of ortho-hydrophenyl p-QMs, leading to the N-diarylmethylindoles with good yields. Obviously, different from the previous advances where 3-nitroindoles serving as electrophiles were attacked by various nucleophiles, the reaction herein is featured that 3-nitrodoles is defined with latent N-centered nucleophiles to react with ortho-hydrophenyl p-QMs. Herein, we wish to reported the initial finds toward this protection group migration/aza-1,6-Michael addition sequences.

2. Results and Discussion

2.1. Optimization Studies

We started our research with the selection of N-Ts 3-nitroindole 1a and ortho-hydroxyphenyl-substituted para-quinone methide 2a as the model substrates for optimizing the reaction conditions (Table 1). Using 1,4-diazabicyclo[2.2.2]octane (DABCO) as the base, the desired N-alkylated product 3a was obtained in 44% yield in toluene at 50 °C for 7 days (entry 1). However, when DABCO was replaced with stronger organic base 1,8-diazabicyclo[5.4.0]undec-7-ene (DBU), a reduced yield was observed (entry 2). We then tested different inorganic bases such as Na2CO3 and K2CO3 (entries 3 and 4), and it was found that K2CO3 was the best candidate, giving the product 3a with a yield of 60% (entry 4). Afterward, various solvents including CH2Cl2, THF, EtOAc, CH3CN and MeOH were examined, and it was found that CH3CN was the best choice to give the product 3a in 67% yield (entry 8 vs. entries 5–7 and 9). By cooling the reaction temperature to room temperature (rt), the yield of 3a could be increased to 71% (entry 10). A slightly lower yield was obtained when the amount of K2CO3 was reduced to 1.0 equivalent (entry 11). Though a series of detailed investigations, the reaction conditions were eventually optimized as follows: 1.0 mmol of 1a and 1.0 mmol of 2a, 2.0 equiv. of K2CO3 as base in CH3CN as solvent at room temperature.

2.2. Substrate Scope Studies

With the optimal reaction conditions in hand, we next surveyed the scope and generality for the N-alkylation of 3-nitroindoles with para-quinone methides. As shown in Scheme 3, by installing a fluorine atom into the aromatic ring at the C5-, C6- or C7-position of N-Ts-3-nitroindoles, these reactions proceeded well to provide the corresponding products 3b–d in moderate yields. Moreover, 3-nitroindoles bearing different electron-withdrawing group, such as Cl- and Br-, regardless of their position on the aromatic ring, could react smoothly with 2a to deliver products 3e–i in satisfactory results. Nevertheless, the 3-nitroindole bearing a methyl group on the aromatic ring was also viable under the standard conditions, as demonstrated by the formation of product 3j in 49% yield. Changing the N1-proceting group of 3-nitroindole from -Ts to -Bs, had little effect on the reactivity, which could react smoothly with ortho-hydroxyphenyl-substituted para-quinone methide 2a, providing the corresponding product 3k in 69% yield. In addition, the developed catalytic system was also compatible with the N-Ac and N-alkoxycarbonylated protected 3-nitroindoles, generating the desired products 3l and 3m in acceptable yields via tandem protection group migration/aza-1,6-Michael addition sequences. On the other hand, various ortho-hydroxy p-QMs with either electron-withdrawing or -donating groups in the phenyl ring irrespective of their position were well tolerated to provide the expected products 3n–t in moderate to good yields.

2.3. Scale-Up Experiment

To demonstrate the synthetic potential of this unprecedented N-alkylation of 3-nitroindoles and para-quinone methides, a scale-up experiment was performed between 1a and 2a, which is 27 times larger than the scale of the model reaction in Scheme 3. As shown in Scheme 4, the gram-scale reaction proceeded well under the standard conditions and afforded the desired product 3a in 64% yield, suggesting that the developed protocol has good scalability in organic synthesis.

2.4. Control Experiments

In order to clarify the possible reaction mechanism, some control experiments were carried out (Scheme 5). The reaction of 1a and 2a provided the desired N-alkylated product 3a in 69% yield under the standard reaction conditions (Scheme 5a). Changing the nitro group of 1a to methyl resulted in the substrate 4 being formed, which failed to react with 2a (Scheme 5b). When the N-Ts indole-3-carboxylate 5 was reacted with 2a, the reaction gave the corresponding product 6 in 40% yield (Scheme 5c). These experimental results show that the installation of an electron-withdrawing group at the C3-posion of indole is crucial for this aza-1,6-Michael addition. Furthermore, the effect of the N1-protecting group of 3-nitroindole on the reactivity was also investigated (Scheme 5d,e). With the electron-donating group N-Me 3-nitroindole 7 or N-H 3-nitroindole 8 as the substrate, no desired N-alkylated product was detected (Scheme 5d,e). Comparing the results with Scheme 5a, it can be concluded that the N1-electron-withdrawing group of indoles plays an important role in assisting migration of N-electron-withdrawing group of 3-nitroindoles to O-center of ortho-hydrophenyl p-QMs and forming the N-centered nucleophiles. In addition, it was found that the one-pot reaction of N-H 3-nitroindole 8, 2a and TsCl could give product 3a in 53% yield (Scheme 5f), and the reaction of N-H 3-nitroindole 8 and ortho-oTs p-QM 9 could also afford 3a in 63% yield (Scheme 5g). From these two reactions, it can be confirmed that the sulfonylation of ortho-hydroxy p-QMs could enhance the electrophilicity and facilitate subsequent aza-1,6-Michael addition. Moreover, the reaction of N-Ts-3-nitroindole 1a and ortho-OTs p-QM 9 could not happen under the standard reaction conditions (Scheme 5h). However, by adding 1.0 equivalent PhOH into the reaction system, the reaction was able to give 3a in 60% yield, together with the formation of PhOTs (Scheme 5i). Meanwhile, the three-component reaction of 1a, ortho-OMe p-QM 10 and PhOH also proceeded to give product 11 and PhOTs (Scheme 5j). These control experiments show that the N-EWG of 1a is first transferred to O-EWG of 2a to form 9 under alkaline condition, and then the aza-1,6-Michel addition to para-quinone methides takes place to give the N-alkylated products.

2.5. Plausible Reaction Mechanism

Based on our experimental results and the above control experiments, a plausible reaction mechanism was proposed for this base-mediated N-alkylation of 3-nitroindoles with para-quinone methides. As shown in Scheme 6, the initially K2CO3-promoted deprotonation of ortho-hydroxy phenyl p-QMs 2 affords intermediate A. Then the protecting group was transferred from the N-center of indoles to the O-center of ortho-hydrophenyl p-QMs to give ortho-OEWG phenyl p-QMs and the 3-nitroindole anion intermediates B, which undergoes an aza-1,6-Michael addition to give the intermediate C. Finally, the protonation of intermediate C gives rise to the formation of the N-alkylated products 3.

2.6. X-ray Crystallographic Structures

All the N-alkylation products obtained from the reaction of 3-nitroindoles with ortho-hydrophenyl p-QMs were unambiguously characterized by nuclear magnetic resonance spectroscopy and high resolution mass spectroscopy. Nevertheless, the structures of products 3l and 3p were confirmed by X-ray crystallographic study of the single crystals, which could be readily prepared from the mixture solvents of dichloromethane/EtOH (V: V = 1/10) at room temperature by slow evaporation of solvents (Figure 1). CCDC-2268774 (3l) and CCDC-2268775 (3p) contain the supplementary crystallographic data for this paper, which can be obtained free of charge from The Cambridge Crystallographic Data Centre.

3. Materials and Methods

3.1. General Information

Reagents were purchased from commercial sources and were used as received unless mentioned otherwise. Reactions were monitored by thin layer chromatography (TLC). 1H NMR and 13C NMR spectra were recorded in CDCl3 and DMSO-d6. 1H NMR chemical shifts are reported in ppm relative to tetramethylsilane (TMS) with the solvent resonance employed as the internal standard (CDCl3 at 7.26 ppm, DMSO-d6 at 2.50 ppm). Data are reported as follows: chemical shift, multiplicity (s = singlet, br s = broad singlet, d = doublet, t = triplet, q = quartet, m = multiplet), coupling constants (Hz), and integration. 13C NMR chemical shifts are reported in ppm from tetramethylsilane (TMS) with the solvent resonance as the internal standard (CDCl3 at 77.20 ppm, DMSO-d6 at 39.52 ppm). Melting points products were recorded on a Büchi Melting Point B-545. The HRMS were recorded by The HRMS were recorded by Agilent 6545 LC/Q-TOF mass spectrometer.

3.2. General Experimental Procedure for the N-Alkylation of 3-Nitroindoles with para-Quinone Methides for the Synthesis of N-Diarylmethylindole Derivatives 3 (Scheme 3)

In a reaction tube equipped with a magnetic stirring bar, the 3-nitroindoles 1 (0.1 mmol, 1 equiv), ortho-hydroxyphenyl-substituted para-quinone methide 2 (0.1 mmol, 1.0 equiv), K2CO3 (0.2 mmol, 2.0 equiv) and acetonitrile (1.0 mL) were added. Then, the mixture was stirred at room temperature. After completion, the mixture was concentrated and purified by flash chromatography on silica gel to give the corresponding products 3.
3a, white solid, 41.8 mg, 69% yield; m.p. 199.5–200.8 °C; 1H NMR (400 MHz, Chloroform-d) δ 8.34–8.27 (m, 1 H), 7.70 (s, 1 H), 7.69–7.64 (m, 2 H), 7.43–7.26 (m, 4 H), 7.26–7.17 (m, 4 H), 7.07 (s, 1H), 6.80 (s, 2 H), 6.71 (dd, J = 7.8, 1.7 Hz, 1 H), 5.33 (s, 1 H), 2.42 (s, 3H), 1.33 (s, 18H). 13C NMR (101 MHz, Chloroform-d) δ 154.3, 147.2, 145.9, 136.7, 135.6, 132.7, 132.0, 130.0, 129.9, 129.9, 128.8, 128.5, 128.1, 127.4, 126.2, 125.4, 124.7, 124.5, 122.4, 121.4, 120.7, 112.2, 60.0, 34.4, 30.1, 21.7. HRMS (ESI-TOF) calcd. for C36H38N2O6SNa [M + Na]+ 649.2343; found: 649.2357.
3b, white solid, 30.9 mg, 48% yield; m.p. 194.4–195.1 °C; 1H NMR (400 MHz, Chloroform-d) δ 7.96 (dd, J = 9.1, 2.5 Hz, 1H), 7.76–7.62 (m, 3H), 7.38–7.15 (m, 6H), 7.10–6.94 (m, 2H), 6.81 (s, 2H), 6.69 (dd, J = 7.8, 1.7 Hz, 1H), 5.35 (s, 1H), 2.44 (s, 3H), 1.33 (s, 18H). 13C NMR (101 MHz, Chloroform-d) δ 160.6 (d, J = 241.4 Hz), 154.4, 147.2, 146.0, 136.8, 132.6, 132.0, 131.9, 131.0, 130.0, 130.0, 128.4, 128.1, 127.5, 125.9, 125.3, 122.5, 122.2, 122.1, 113.6, 113.5 (d, J = 6.8 Hz), 113.2, 106.4 (d, J = 26.4 Hz), 60.4, 34.4, 30.1, 21.7. HRMS (ESI-TOF) calcd. for C36H37FN2O6SNa [M + Na]+ 667.2249; found: 667.2261.
3c, white solid, 32.2 mg, 50% yield; m.p. 190.1–191.4 °C; 1H NMR (400 MHz, Chloroform-d) δ 8.24 (dd, J = 8.8, 5.3 Hz, 1H), 7.73–7.66 (m, 3H), 7.43–7.10 (m, 6H), 7.03 (dd, J = 9.3, 2.3 Hz, 1H), 6.94 (s, 1H), 6.80 (s, 2H), 6.69 (dd, J = 7.7, 1.7 Hz, 1H), 5.35 (s, 1H), 2.44 (s, 3H), 1.34 (s, 18H). 13C NMR (101 MHz, Chloroform-d) δ 160.7 (d, J = 243.2 Hz), 154.4, 147.3, 146.0, 136.8, 135.7, 135.3, 132.6, 131.7, 130.3 (d, J = 2.7 Hz), 130.0, 128.8, 128.4, 128.2, 127.5, 125.8, 125.3, 122.6, 122.0 (d, J = 9.8 Hz), 117.8, 113.2 (d, J = 24.4 Hz), 99.0 (d, J = 27.1 Hz), 60.3, 34.4, 30.1, 21.7. HRMS (ESI-TOF) calcd. for C36H37FN2O6SNa [M + Na]+ 667.2249; found: 667.2257.
3d, white solid, 42.5 mg, 69% yield; m.p. 192.7–193.7 °C; 1H NMR (400 MHz, Chloroform-d) δ 8.06 (dd, J = 8.1, 1.0 Hz, 1H), 7.65 (s, 1H), 7.58–7.51 (m, 2H), 7.49 (dd, J = 8.2, 1.3 Hz, 1H), 7.39 (td, J = 8.3, 7.9, 1.7 Hz, 1H), 7.28 (s, 1H), 7.28 (td, J = 8.1, 4.5 Hz, 1 H), 7.22 (td, J = 7.6, 1.3 Hz, 1H), 7.18–7.11 (m, 2H), 7.00–6.91 (m, 1H), 6.74 (dd, J = 7.8, 1.7 Hz, 1H), 6.72 (s, 2H), 5.31 (s, 1H), 2.37 (s, 3H), 1.32 (s, 18H). 13C NMR (101 MHz, Chloroform-d) δ 154.2, 146.7 (d, J = 225.5 Hz), 136.5, 132.8, 131.2, 130.6, 130.2, 129.8, 129.3, 128.9, 127.9, 126.9, 125.0, 124.9, 124.6, 123.8, 121.7, 116.6, 116.6, 110.7, 110.6, 61.7 (d, J = 7.0 Hz), 34.3, 30.1, 21.7. HRMS (ESI-TOF) calcd. for C36H37FN2O6SNa [M + Na]+ 667.2249; found: 667.2258.
3e, white solid, 45.5 mg, 69% yield; m.p. 174.9–175.4 °C; 1H NMR (400 MHz, Chloroform-d) δ 8.29 (d, J = 2.0 Hz, 1H), 7.72–7.64 (m, 3H), 7.38–7.15 (m, 8H), 7.04 (s, 1H), 6.80 (s, 2H), 6.68 (dd, J = 7.8, 1.7 Hz, 1H), 5.36 (s, 1H), 2.44 (s, 3H), 1.33 (s, 18H). 13C NMR (101 MHz, Chloroform-d) δ 154.5, 147.1, 146.0, 136.8, 133.9, 132.6, 131.8, 130.8, 130.7, 130.1, 130.0, 128.4, 128.2, 128.1, 127.5, 125.8, 125.3, 125.3, 122.5, 122.3, 120.3, 113.4, 60.4, 34.4, 30.1, 21.8. HRMS (ESI-TOF) calcd. for C36H37ClN2O6SNa [M + Na]+ 683.1953; found: 683.1972.
3f, white solid, 436.4 mg, 55% yield; m.p. 234.8–236.0 °C; 1H NMR (400 MHz, Chloroform-d) δ 8.21 (d, J = 8.6 Hz, 1H), 7.75–7.65 (m, 3H), 7.44–7.13 (m, 8H), 6.97 (s, 1H), 6.78 (s, 2H), 6.69 (dd, J = 7.8, 1.7 Hz, 1H), 5.36 (s, 1H), 2.44 (s, 3H), 1.34 (s, 18H). 13C NMR (101 MHz, Chloroform-d) δ 154.5, 147.2, 146.0, 136.8, 135.9, 132.6, 131.6, 130.8, 130.4, 130.2, 130.0, 128.8, 128.5, 128.2, 127.5, 125.8, 125.2, 125.2, 122.7, 121.6, 119.8, 112.2, 60.2, 34.4, 30.1, 21.8. HRMS (ESI-TOF) calcd. for C36H37ClN2O6SNa [M + Na]+ 683.1953; found: 683.1965.
3g, white solid, 47.9 mg, 68% yield; m.p. 238.4–239.7 °C; 1H NMR (400 MHz, Chloroform-d) δ 8.46 (d, J = 1.9 Hz, 1H), 7.67 (d, J = 9.0 Hz, 3H), 7.42–7.30 (m, 2H), 7.30–7.13 (m, 6H), 7.04 (s, 1H), 6.80 (s, 2H), 6.68 (dd, J = 7.7, 1.6 Hz, 1H), 5.36 (s, 1H), 2.44 (s, 3H), 1.33 (s, 18H). 13C NMR (101 MHz, Chloroform-d) δ 154.5, 147.1, 146.0, 136.8, 134.2, 132.6, 131.7, 130.6, 130.1, 130.0, 128.4, 128.1, 128.0, 127.9, 127.5, 125.8, 125.3, 123.4, 122.7, 122.5, 118.4, 113.7, 60.4, 34.4, 30.1, 21.8. HRMS (ESI-TOF) calcd. for C36H37BrN2O6SNa [M + Na]+ 729.1434; found: 729.1445.
3h, white solid, 40.1 mg, 57% yield; m.p. 202.6–203.9 °C; 1H NMR (400 MHz, Chloroform-d) δ 8.16 (d, J = 8.6 Hz, 1H), 7.74–7.65 (m, 3H), 7.58 (d, J = 1.6 Hz, 1H), 7.50 (dd, J = 8.6, 1.6 Hz, 1H), 7.35 (td, J = 7.8, 1.7 Hz, 1H), 7.28 (d, J = 8.2 Hz, 2H), 7.26–7.16 (m, 2H), 6.98 (s, 1H), 6.78 (s, 2H), 6.70 (dd, J = 7.8, 1.7 Hz, 1H), 5.36 (s, 1H), 2.44 (s, 3H), 1.34 (s, 18H). 13C NMR (101 MHz, Chloroform-d) δ 154.5, 147.2, 146.0, 136.8, 136.2, 132.6, 131.6, 130.3, 130.2, 130.0, 128.8, 128.5, 128.2, 127.8, 127.5, 125.8, 125.2, 122.7, 122.0, 120.1, 118.4, 115.2, 60.2, 34.4, 30.1, 21.8. HRMS (ESI-TOF) calcd. for C36H37BrN2O6SNa [M + Na]+ 729.1434; found: 729.1442.
3i, white solid, 38.0 mg, 54% yield; m.p. 230.2–231.1 °C; 1H NMR (400 MHz, Chloroform-d) δ 8.03 (d, J = 8.1 Hz, 2H), 7.75–7.68 (m, 2H), 7.43–7.32 (m, 3H), 7.17–7.08 (m, 3H), 7.08–6.92 (m, 3H), 6.87 (td, J = 7.4, 1.3 Hz, 1H), 5.22 (s, 1H), 4.97 (s, 1H), 2.46 (s, 3H), 1.39 (s, 18H). 13C NMR (101 MHz, Chloroform-d) δ 153.9, 151.7, 143.9, 142.5, 138.7, 137.3, 136.2, 131.7, 129.3, 129.2, 127.5, 127.2, 126.7, 125.9, 125.4, 125.3, 124.8, 124.1, 117.9, 110.2, 96.6, 92.6, 51.6, 34.4, 30.2, 21.7. HRMS (ESI-TOF) calcd. for C36H37BrN2O6SNa [M + Na]+ 729.1434; found: 729.1439.
3j, white solid, 31.3 mg, 49% yield; m.p. 193.8–194.9 °C; 1H NMR (400 MHz, Chloroform-d) δ 8.16 (d, J = 8.2 Hz, 1H), 7.69–7.62 (m, 3H), 7.37–7.29 (m, 1H), 7.29–7.15 (m, 6H), 7.04 (s, 1H), 6.79 (s, 2H), 6.72 (dd, J = 7.8, 1.7 Hz, 1H), 5.32 (s, 1H), 2.44 (s, 3H), 2.42 (s, 3H), 1.33 (s, 18H). 13C NMR (101 MHz, Chloroform-d) δ 154.3, 147.2, 145.8, 136.6, 136.0, 135.0, 132.7, 132.1, 129.9, 129.8, 129.5, 128.9, 128.5, 128.1, 127.4, 126.3, 126.3, 125.4, 122.3, 120.4, 119.2, 111.9, 59.8, 34.4, 30.1, 21.9, 21.7. HRMS (ESI-TOF) calcd. for C37H41N2O6S [M + H]+ 641.2680; found: 641.2690.
3k, white solid, 41.8 mg, 69% yield; m.p. 178.6–179.4 °C; 1H NMR (400 MHz, Chloroform-d) δ 8.30 (d, J = 8.0 Hz, 1H), 7.83–7.76 (m, 2H), 7.71 (s, 1H), 7.69–7.60 (m, 1H), 7.50–7.27 (m, 6H), 7.24–7.16 (m, 2H), 7.07 (s, 1H), 6.82 (s, 2H), 6.70 (dd, J = 8.2, 1.6 Hz, 1H), 5.35 (s, 1H), 1.33 (s, 18H). 13C NMR (101 MHz, Chloroform-d) δ 154.4, 147.1, 136.7, 135.6, 135.5, 134.5, 132.0, 130.1, 129.9, 129.3, 128.8, 128.5, 128.1, 127.5, 126.1, 125.4, 124.8, 124.6, 122.5, 121.4, 120.8, 112.1, 60.0, 34.4, 30.2. HRMS (ESI-TOF) calcd. for C35H36N2O6SNa [M + Na]+ 635.2186; found: 635.2197.
3l, white solid, 33.9 mg, 66% yield; m.p. 168.4–169.1 °C; 1H NMR (400 MHz, Chloroform-d) δ 8.33 (d, J = 8.1 Hz, 1H), 7.82 (s, 1H), 7.45–7.33 (m, 2H), 7.36–7.25 (m, 2H), 7.20–7.11 (m, 2H), 6.90 (s, 2H), 6.85 (s, 1H), 6.60 (dd, J = 7.8, 1.6 Hz, 1H), 5.38 (s, 1H), 1.89 (s, 3H), 1.36 (s, 18H). 13C NMR (101 MHz, Chloroform-d) δ 168.2, 154.5, 148.1, 136.9, 135.5, 130.7, 130.3, 129.5, 128.9, 127.4, 126.4, 126.2, 125.6, 124.7, 124.5, 123.6, 121.3, 121.0, 111.6, 60.6, 34.4, 30.1, 20.3. HRMS (ESI-TOF) calcd. for C31H34N2O5Na [M + Na]+ 537.2360; found: 537.2369.
3m, white solid, 19.5 mg, 34% yield; m.p. 167.4–168.1 °C; 1H NMR (400 MHz, Chloroform-d) δ 8.31 (dt, J = 8.1, 1.0 Hz, 1H), 7.77 (s, 1H), 7.42–7.27 (m, 4H), 7.24 (dd, J = 8.1, 1.2 Hz, 1H), 7.16 (td, J = 7.6, 1.3 Hz, 1H), 7.02 (s, 1H), 6.89 (s, 2H), 6.63 (dd, J = 7.8, 1.6 Hz, 1H), 5.34 (s, 1H), 1.35 (s, 19H), 1.26 (s, 9H). 13C NMR (101 MHz, Chloroform-d) δ 154.5, 150.8, 148.4, 136.6, 135.5, 130.8, 130.4, 129.6, 128.8, 127.5, 126.5, 126.1, 125.7, 124.6, 124.5, 123.3, 121.4, 120.9, 111.7, 83.7, 59.9, 34.4, 30.1, 29.7, 27.4. HRMS (ESI-TOF) calcd. for C34H40N2O6Na [M + Na]+ 595.2779; found: 595.2790.
3n, white solid, 41.2 mg, 64% yield; m.p. 209.4–210.0 °C; 1H NMR (400 MHz, Chloroform-d) δ 8.24 (d, J = 8.0 Hz, 1H), 7.66–7.57 (m, 3H), 7.39–7.17 (m, 5H), 7.09 (dd, J = 9.1, 4.6 Hz, 1H), 6.95 (d, J = 9.3 Hz, 2H), 6.74 (s, 2H), 6.31 (dd, J = 8.7, 3.0 Hz, 1H), 5.30 (s, 1H), 2.36 (s, 3H), 1.27 (s, 18H). 13C NMR (101 MHz, Chloroform-d) δ 160.9 (d, J = 248.9 Hz), 154.6, 146.2, 142.8 (d, J = 3.1 Hz), 136.8, 135.4, 134.7 (d, J = 7.1 Hz), 132.3, 130.1, 129.7, 129.0, 128.2, 125.5, 124.9, 124.7, 124.3 (d, J = 8.7 Hz), 121.3, 120.9, 116.6 (d, J = 23.5 Hz), 115.4 (d, J = 25.1 Hz), 112.0, 60.1, 34.4, 30.1, 21.8. HRMS (ESI-TOF) calcd. for C36H38FN2O6S [M + H]+ 645.2429; found: 645.2437.
3o, white solid, 36.9 mg, 56% yield; m.p. 182.4–183.6 °C; 1H NMR (400 MHz, Chloroform-d) δ 8.32 (d, J = 8.0 Hz, 1H), 7.73–7.63 (m, 3H), 7.48–7.21 (m, 5H), 7.17 (d, J = 8.7 Hz, 1H), 7.01 (s, 1H), 6.81 (s, 2H), 6.67 (d, J = 2.6 Hz, 1H), 5.39 (s, 1H), 2.44 (s, 3H), 1.35 (s, 18H). 13C NMR (101 MHz, Chloroform-d) δ 154.6, 146.3, 145.6, 136.8, 135.4, 134.0, 133.2, 132.2, 130.1, 130.0, 129.7, 129.0, 128.3, 128.2, 125.4, 125.3, 124.9, 124.7, 123.8, 121.3, 120.9, 111.9, 59.9, 34.4, 30.1, 21.8. HRMS (ESI-TOF) calcd. for C36H37ClN2O6SNa [M + Na]+ 683.1953; found: 683.1961.
3p, white solid, 42.2 mg, 60% yield; m.p. 193.8–195.9 °C; 1H NMR (400 MHz, Chloroform-d) δ 8.32 (d, J = 8.0 Hz, 1H), 7.72–7.62 (m, 3H), 7.49–7.23 (m, 6H), 7.10 (d, J = 8.7 Hz, 1H), 7.00 (s, 1H), 6.82 (d, J = 2.3 Hz, 1H), 6.80 (s, 2H), 5.38 (s, 1H), 2.43 (s, 3H), 1.34 (s, 18H). 13C NMR (101 MHz, Chloroform-d) δ 154.6, 146.3, 146.2, 136.8, 135.4, 134.3, 133.0, 132.2, 131.2, 130.1, 129.7, 129.1, 128.2, 125.4, 125.4, 124.9, 124.7, 124.1, 121.3, 120.9, 111.9, 59.8, 3.4, 30.1, 21.8. HRMS (ESI-TOF) calcd. for C36H37BrN2O6SNa [M + Na]+ 729.1434; found: 729.1448.
3q, white solid, 38.0 mg, 54% yield; m.p. 259.8–260.4 °C; 1H NMR (400 MHz, Chloroform-d) δ 8.30 (d, J = 8.0 Hz, 1H), 7.70–7.63 (m, 3H), 7.45–7.37 (m, 2H), 7.37–7.21 (m, 6H), 6.96 (s, 1H), 6.79 (s, 2H), 6.55 (d, J = 8.3 Hz, 1H), 5.37 (s, 1H), 2.44 (s, 3H), 1.33 (s, 18H). 13C NMR (101 MHz, Chloroform-d) δ 154.5, 147.2, 146.3, 136.8, 135.4, 132.1, 131.2, 130.6, 130.1, 129.8, 129.5, 128.9, 128.2, 125.8, 125.5, 125.3, 124.9, 124.7, 122.7, 121.3, 120.8, 112.0, 59.8, 34.4, 30.1, 21.8. HRMS (ESI-TOF) calcd. for C36H37BrN2O6SNa [M + Na]+ 729.1434; found: 729.1439.
3r, white solid, 45.4 mg, 71% yield; m.p. 196.3–197.4 °C; 1H NMR (400 MHz, Chloroform-d) δ 8.34–8.27 (m, 1H), 7.72 (s, 1H), 7.69–7.62 (m, 2H), 7.45–7.36 (m, 2H), 7.36–7.20 (m, 4H), 7.11 (dd, J = 8.4, 1.9 Hz, 1H), 7.06 (d, J = 17.7 Hz, 2H), 6.80 (s, 2H), 6.49 (d, J = 1.9 Hz, 1H), 5.33 (s, 1H), 2.42 (s, 3H), 2.21 (s, 3H), 1.33 (s, 18H). 13C NMR (101 MHz, Chloroform-d) δ 154.3, 145.8, 145.0, 137.5, 136.6, 135.6, 132.7, 131.5, 130.4, 130.2, 129.9, 128.8, 128.7, 128.2, 126.3, 125.4, 124.7, 124.5, 122.2, 121.3, 120.7, 112.2, 59.9, 34.4, 30.2, 21.8, 21.2. HRMS (ESI-TOF) calcd. for C37H40N2O6SNa [M + Na]+ 663.2499; found: 663.2508.
3s, white solid, 28.9 mg, 44% yield; m.p. 203.5–204.6 °C; 1H NMR (400 MHz, Chloroform-d) δ 8.29 (d, J = 8.0 Hz, 1H), 7.67 (s, 1H), 7.61 (d, J = 8.0 Hz, 2H), 7.44–7.36 (m, 1H), 7.29 (dd, J = 16.3, 9.0 Hz, 2H), 7.19 (d, J = 8.0 Hz, 2H), 6.96 (s, 1H), 6.86 (d, J = 2.5 Hz, 1H), 6.76 (s, 2H), 6.73 (d, J = 2.5 Hz, 1H), 6.65 (d, J = 8.7 Hz, 1H), 5.31 (s, 1H), 3.76 (s, 3H), 2.40 (s, 3H), 1.32 (s, 18H). 13C NMR (101 MHz, Chloroform-d) δ 160.5, 154.1, 148.0, 145.9, 136.5, 135.5, 132.4, 130.0, 129.9, 129.6, 128.6, 128.1, 126.7, 124.9, 124.7, 124.5, 123.3, 121.3, 120.7, 112.9, 112.2, 108.3, 59.4, 55.7, 34.4, 30.2, 21.8. HRMS (ESI-TOF) calcd. for C37H40N2O7SNa [M + Na]+ 679.2448; found: 679.2458.
3t, white solid, 48.5 mg, 74% yield; m.p. 216.9–217.6 °C; 1H NMR (400 MHz, Chloroform-d) δ 8.30 (d, J = 8.1 Hz, 1H), 7.87–7.80 (m, 3H), 7.54 (d, J = 8.3 Hz, 1H), 7.43–7.35 (m, 1H), 7.35–7.27 (m, 3H), 7.21 (s, 1H), 7.18–7.08 (m, 1H), 6.90 (s, 3H), 6.31 (dd, J = 8.0, 1.4 Hz, 1H), 5.34 (s, 1H), 3.59 (s, 3H), 2.44 (s, 3H), 1.35 (s, 18H). 13C NMR (101 MHz, Chloroform-d) δ 154.4, 152.6, 145.2, 136.7, 136.5, 135.7, 134.6, 134.2, 130.3, 129.5, 128.7, 128.2, 127.9, 126.1, 125.8, 124.7, 124.5, 121.4, 120.7, 119.2, 112.7, 112.5, 60.5, 55.6, 34.4, 30.2, 21.7. HRMS (ESI-TOF) calcd. for C37H40N2O7SNa [M + Na]+ 679.2448; found: 679.2455.

3.3. The Experimental Procedure for Synthesis of Compound 6 (Scheme 5)

In a reaction tube equipped with a magnetic stirring bar, the indole-3-carboxylate 5 (0.1 mmol, 1 equiv), ortho-tosylaminophenyl p-QMs 2 (0.1 mmol, 1.0 equiv), K2CO3 (0.2 mmol, 2.0 equiv) and acetonitrile (1.0 mL) were added. Then, the mixture was stirred at room temperature. After completion, the mixture was concentrated and purified by flash chromatography on silica gel (petroleum ether/ethyl acetate = 15/1) to afford 6 in 40% yield.
6, 25.5 mg, 40% yield; 1H NMR (400 MHz, Chloroform-d) δ 8.19–8.14 (m, 1H), 7.68–7.62 (m, 2H), 7.48 (s, 1H), 7.31–7.26 (m, 2H), 7.26–7.24 (m, 2H), 7.23–7.21 (m, 1H), 7.21–7.17 (m, 2H), 7.17–7.13 (m, 1H), 6.99 (s, 1H), 6.78 (s, 2H), 6.65 (dd, J = 7.8, 1.6 Hz, 1H), 5.27 (s, 1H), 3.88 (s, 3H), 2.41 (s, 3H), 1.32 (s, 18H). 13C NMR (101 MHz, Chloroform-d) δ 165.7, 153.9, 147.2, 145.6, 136.9, 136.2, 133.6, 132.9, 132.8, 129.9, 129.4, 128.7, 128.1, 127.3, 127.2, 126.9, 125.5, 122.9, 122.2, 122.1, 121.5, 111.4, 107.1, 59.3, 51.0, 34.3, 30.2, 21.7. HRMS (ESI-TOF) calcd. for C38H41NO6SNa [M + Na]+ 662.2547; found: 662.2553.

3.4. The Experimental Procedure for Synthesis of Compound 11 (Scheme 5)

In a reaction tube equipped with a magnetic stirring bar, the 3-nitroindoles 1 (0.1 mmol, 1 equiv), ortho-OMe phenyl p-QM 10 (0.1 mmol, 1.0 equiv), K2CO3 (0.2 mmol, 2.0 equiv), PhOH (1.0 mmol, 1.0 equiv) and acetonitrile (1.0 mL) were added. Then, the mixture was stirred at room temperature. After completion, the mixture was concentrated and purified by flash chromatography on silica gel to give the corresponding product 11.
11, white solid, 9.7 mg, 20% yield; m.p. 227.4–228.2 °C; 1H NMR (400 MHz, Chloroform-d) δ 8.30 (d, J = 8.1 Hz, 1H), 7.83 (s, 1H), 7.43–7.22 (m, 4H), 7.10 (s, 1H), 6.99–6.89 (m, 4H), 6.78 (dd, J = 7.7, 1.7 Hz, 1H), 5.30 (s, 1H), 3.77 (s, 3H), 1.35 (s, 18H). 13C NMR (101 MHz, Chloroform-d) δ 156.7, 154.0, 136.4, 135.7, 130.4, 130.0, 128.6, 128.4, 127.1, 126.4, 125.1, 124.3, 124.3, 121.4, 120.9, 120.8, 111.9, 111.0, 59.2, 55.7, 34.4, 30.2. HRMS (ESI-TOF) calcd. for C30H34N2O4Na [M + Na]+ 509.2411; found: 509.2419.

4. Conclusions

In conclusion, we have described an unprecedented N-alkylation of 3-nitroindoles and para-quinone methides by using K2CO3 was the base via a protection group migration/aza-1,6-Michael addition sequences. With the developed protocol, a series of structurally diverse N-diarylmethylindole derivatives were obtained in moderate to good yields under mild conditions. According to the control experiments, a reasonable reaction mechanism was proposed. Importantly, the reaction herein is featured that 3-nitrodoles is defined with latent N-centered nucleophiles to react with ortho-hydrophenyl p-QMs, which is different from the previous reports where 3-nitrodoles was served as electrophiles trapped by various nucleophiles.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules28145529/s1, X-ray data for products 3l and 3p; copies of 1H and 13C NMR spectra.

Author Contributions

Conceptualization, J.-Q.Z. and W.-C.Y.; methodology, W.-J.W., S.Z. and Q.-L.X.; investigation, X.-S.X., Y.-P.Z., Y.Y. and Z.-H.W.; writing—original draft preparation, J.-Q.Z.; writing—review and editing, J.-Q.Z. and W.-C.Y.; supervision, J.-Q.Z. and W.-C.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Natural Science Foundation of China, grant number 22271027, 22171029 and 21901024; the Sichuan Science and Technology Program, grant number 2021YFS0315; and the Talent Program of Chengdu University, grant number 2081919035, 2081921038.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All the required data are reported in the manuscript and Supplementary Materials.

Acknowledgments

This work was performed using the equipment of Chengdu University and Chengdu Institute of Organic Chemistry, Chinese Academy of Sciences.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the compounds are available from the authors upon request.

References

  1. Somei, M.; Yamada, F. Simple indole alkaloids and those with a non-rearranged monoterpenoid unit. Nat. Prod. Rep. 2005, 22, 73–103. [Google Scholar] [CrossRef] [PubMed]
  2. de Sa Alves, F.R.; Barreiro, E.J.; Fraga, C.A.M. From Nature to Drug Discovery: The Indole Scaffold as a ‘Privileged Structure’. Mini-Rev. Med. Chem. 2009, 9, 782–793. [Google Scholar] [CrossRef]
  3. Kochanowska-Karamyan, A.J.; Hamann, M.T. Marine indole alkaloids: Potential new drug leads for the control of depression and anxiety. Chem. Rev. 2010, 110, 4489–4497. [Google Scholar] [CrossRef] [Green Version]
  4. Sravanthi, T.V.; Manju, S.L. Indoles–A Promising Scaffold for Drug Development. Eur. J. Pharm. Sci. 2016, 91, 1–10. [Google Scholar] [CrossRef] [PubMed]
  5. Chadha, N.; Silakari, O. Indoles as therapeutics of interest in medicinal chemistry: Bird’s eye view. Eur. J. Med. Chem. 2017, 134, 159–184. [Google Scholar] [CrossRef] [PubMed]
  6. Wan, Y.; Li, Y.; Yan, C.; Yan, M.; Tang, Z. Indole: A privileged scaffold for the design of anti-cancer agents. Eur. J. Med. Chem. 2019, 183, 111691. [Google Scholar] [CrossRef] [PubMed]
  7. Humphrey, G.R.; Kuethe, J.T. Practical Methodologies for the Synthesis of Indoles. Chem. Rev. 2006, 106, 2875–2911. [Google Scholar] [CrossRef]
  8. Bandini, M.; Eichholzer, A. Catalytic Functionalization of Indoles in a New Dimension. Angew. Chem. Int. Ed. 2009, 48, 9608–9644. [Google Scholar] [CrossRef]
  9. Bartoli, G.; Bencivenni, G.; Dalpozzo, R. Organocatalytic strategies for the asymmetric functionalization of indoles. Chem. Soc. Rev. 2010, 39, 4449–4465. [Google Scholar] [CrossRef]
  10. Dalpozzo, R. Strategies for the asymmetric functionalization of indoles: An update. Chem. Soc. Rev. 2015, 44, 742–778. [Google Scholar] [CrossRef]
  11. Sheng, F.-T.; Wang, J.-Y.; Tan, W.; Zhang, Y.-C.; Shi, F. Progresses in organocatalytic asymmetric dearomatization reactions of indole derivatives. Org. Chem. Front. 2020, 7, 3967–3998. [Google Scholar] [CrossRef]
  12. Zhang, H.-H.; Shi, F. Organocatalytic Atroposelective Synthesis of Indole Derivatives Bearing Axial Chirality: Strategies and Applications. Acc. Chem. Res. 2022, 55, 2562–2580. [Google Scholar] [CrossRef] [PubMed]
  13. You, S.-L.; Cai, Q.; Zeng, M. Chiral Brønsted acid catalyzed Friedel–Crafts alkylation reactions. Chem. Soc. Rev. 2009, 38, 2190–2201. [Google Scholar] [CrossRef]
  14. Sandtorv, A.H. Transition Metal-Catalyzed C–H Activation of Indoles. Adv. Synth. Catal. 2015, 357, 2403–2435. [Google Scholar] [CrossRef]
  15. Trubitsõn, D.; Kanger, T. Enantioselective Catalytic Synthesis of N-alkylated Indoles. Symmetry 2020, 12, 1184. [Google Scholar] [CrossRef]
  16. Ma, J.; Feng, R.; Dong, Z.-B. Recent Advances in Indole Synthesis and the Related Alkylation. Asian J. Org. Chem. 2023, 12, e202300092. [Google Scholar] [CrossRef]
  17. Chen, M.; Sun, J. Catalytic Asymmetric N-Alkylation of Indoles and Carbazoles through 1,6-Conjugate Addition of Aza-para-quinone Methides. Angew. Chem. Int. Ed. 2017, 56, 4583–4587. [Google Scholar] [CrossRef] [PubMed]
  18. Zhang, L.; Wu, B.; Chen, Z.; Hu, J.; Zeng, X.; Zhong, G. Chiral phosphoric acid catalyzed enantioselective N-alkylation of indoles with in situ generated cyclic N-acyl ketimines. Chem. Commun. 2018, 54, 9230–9233. [Google Scholar] [CrossRef]
  19. Allen, J.R.; Bahamonde, A.; Furukawa, Y.; Sigman, M.S. Enantioselective N-Alkylation of Indoles via an Intermolecular Aza-Wacker-Type Reaction. J. Am. Chem. Soc. 2019, 141, 8670–8674. [Google Scholar] [CrossRef]
  20. Gnanamani, E.; Yan, X.; Zare, R.N. Chemoselective N-Alkylation of Indoles in Aqueous Microdroplets. Angew. Chem. Int. Ed. 2020, 59, 3069–3072. [Google Scholar] [CrossRef]
  21. Clanton, N.A.; Spiller, T.E.; Ortiz, E.; Gao, Z.; Rodriguez-Poirier, J.M.; DelMonte, A.J.; Frantz, D.E. A Metal-Free Reductive N-Alkylation of Indoles with Aldehydes. Org. Lett. 2021, 23, 3233–3236. [Google Scholar] [CrossRef] [PubMed]
  22. Yang, S.; Li, L.; Zhao, J. Chiral Phosphoric Acid-Catalyzed Chemo- and Enantioselective N-Alkylation of Indoles with Imines. Adv. Syn. Catal. 2022, 364, 4166–4172. [Google Scholar] [CrossRef]
  23. Zha, T.; Rui, J.; Zhang, Z.; Zhang, D.; Yang, Z.; Yu, P.; Wang, Y.; Peng, F.; Shao, Z. Direct Catalytic Asymmetric and Regiodivergent N1-and C3-Allenylic Alkylation of Indoles. Angew. Chem. Int. Ed. 2023, 62, e202300844. [Google Scholar] [CrossRef] [PubMed]
  24. Shaw, M.H.; Shurtleff, V.W.; Terrett, J.A.; Cuthbertson, J.D.; MacMillan, D.W.C. Native functionality in triple catalytic cross-coupling: sp3 C–H bonds as latent nucleophiles. Science 2016, 352, 1304–1308. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Geri, J.B.; Wade Wolfe, M.M.; Szymczak, N.K. The Difluoromethyl Group as a Masked Nucleophile: A Lewis Acid/Base Approach. J. Am. Chem. Soc. 2018, 140, 9404–9408. [Google Scholar] [CrossRef]
  26. Lange, M.; Zi, Y.; Vilotijevic, I. Enantioselective Synthesis of Pyrrolizin-1-ones via Lewis Base Catalyzed N-Allylation of N-Silyl Pyrrole Latent Nucleophiles. J. Org. Chem. 2020, 85, 1259–1269. [Google Scholar] [CrossRef]
  27. Kumar, S.; Lange, M.; Zi, Y.; Görls, H.; Vilotijevic, I. Latent Pronucleophiles in Lewis Base Catalysis: Enantioselective Allylation of Silyl Enol Ethers with Allylic Fluorides. Chem. Eur. J. 2023, 29, e202300641. [Google Scholar] [CrossRef]
  28. Zi, Y.; Lange, M.; Schultz, C.; Vilotijevic, I. Latent Nucleophiles in Lewis Base Catalyzed Enantioselective N-Allylation of N-Heterocycles. Angew. Chem. Int. Ed. 2019, 58, 10727–10731. [Google Scholar] [CrossRef]
  29. Cerveri, A.; Bandini, M. Recent Advances in the Catalytic Functionalization of “Electrophilic” Indoles. Chin. J. Chem. 2020, 38, 287–294. [Google Scholar] [CrossRef]
  30. Rkein, B.; Bigot, A.; Birbaum, L.; Manneveau, M.; De Paolis, M.; Legros, J.; Chataigner, I. Reactivity of 3-nitroindoles with electron-rich species. Chem. Commun. 2021, 57, 27–44. [Google Scholar] [CrossRef]
  31. Nair, S.R.; Baire, B. Recent Dearomatization Strategies of Benzofurans and Benzothiophenes. Asian J. Org. Chem. 2021, 10, 932–948. [Google Scholar] [CrossRef]
  32. Wang, N.; Ren, J.; Li, K. Dearomatization of Nitro(hetero)arenes through Annulation. Eur. J. Org. Chem. 2022, 2022, e202200039. [Google Scholar] [CrossRef]
  33. Li, Y.-L.; Wang, K.-K.; He, X.-L. Recent Progress of Electron-Withdrawing-Group-Tethered Arenes Involved Asymmetric Nucleophilic Aromatic Functionalizations. Adv. Synth. Catal. 2022, 364, 3630–3650. [Google Scholar] [CrossRef]
  34. Jaworski, A.A.; Scheidt, K.A. Emerging Roles of in situ Generated Quinone Methides in Metal-Free Catalysis. J. Org. Chem. 2016, 81, 10145–10153. [Google Scholar] [CrossRef] [PubMed]
  35. Li, W.; Xu, X.; Zhang, P.; Li, P. Recent Advances in the Catalytic Enantioselective Reactions of para-Quinone Methides. Chem.-Asian J. 2018, 13, 2350–2359. [Google Scholar] [CrossRef]
  36. Wang, J.-Y.; Hao, W.-J.; Tu, S.-J.; Jiang, B. Recent Developments in 1,6-Addition Reactions of para-Quinone Methides (p-QMs). Org. Chem. Front. 2020, 7, 1743–1778. [Google Scholar] [CrossRef]
  37. Wang, D.; Sun, J.; Yan, C.-G. Diastereoselective Synthesis of Spiro[chromane-3,3′-indolines] and Spiro[chromane-3,2′-indenes] via DBU Promoted Formal [4 + 2] Cycloaddition Reaction. Green Synth. Catal. 2022, 3, 53–58. [Google Scholar] [CrossRef]
  38. Zhao, K.; Zhi, Y.; Shu, T.; Valkonen, A.; Rissanen, K.; Enders, D. Organocatalytic Domino Oxa-Michael/1,6-Addition Reactions: Asymmetric Synthesis of Chromans Bearing Oxindole Scaffolds. Angew. Chem. Int. Ed. 2016, 55, 12104–12108. [Google Scholar] [CrossRef]
  39. Jiang, X.-L.; Wu, S.-F.; Wang, J.-R.; Mei, G.-J.; Shi, F. Catalytic Asymmetric [4 + 2] Cyclization of para-Quinone Methide Derivatives with 3-Alkyl-2-vinylindoles. Adv. Syn. Catal. 2018, 360, 4225–4235. [Google Scholar] [CrossRef]
  40. Xiang, M.; Li, C.-Y.; Song, X.-J.; Zou, Y.; Huang, Z.-C.; Li, X.; Tian, F.; Wang, L.-X. Organocatalytic and enantioselective [4 + 2] cyclization between hydroxymaleimides and ortho-hydroxyphenyl para-quinone methide-selective preparation of chiral hemiketals. Chem. Commun. 2020, 56, 14825–14828. [Google Scholar] [CrossRef]
  41. You, Y.; Li, T.-T.; Yuan, S.-P.; Xie, K.-X.; Wang, Z.-H.; Zhao, J.-Q.; Zhou, M.-Q.; Yuan, W.-C. Catalytic asymmetric [4 + 2] cycloaddition of 1-((2-aryl)vinyl)naphthalen-2-ols with in situ generated ortho-quinone methides for the synthesis of polysubstituted chromanes. Chem. Commun. 2020, 56, 439–442. [Google Scholar] [CrossRef] [PubMed]
  42. Chen, G.; Li, H.; Liang, G.; Pu, Q.; Bai, L.; Zhang, D.; Ye, Y.; Li, Y.; Zhou, J.; Zhou, H. Facile construction of dibenzodioxo[3.3.1]nonanes bearing spirocyclohexadienones via domino [4 + 2] cycloaddition/C(sp3)–H oxidative dehydrogenation coupling reactions. Org. Biomol. Chem. 2022, 20, 9392–9396. [Google Scholar] [CrossRef] [PubMed]
  43. Li, J.; Xi, W.; Liu, S.; Yang, Y.; Yang, J.; Ding, H.; Wang, Z. HFIP-catalyzed highly diastereoselective formal [4 + 2] cyclization to synthesize difluorinated multisubstituted chromans using difluoroenoxysilanes as C2 synthons. Chin. Chem. Lett. 2022, 33, 3007–3011. [Google Scholar] [CrossRef]
  44. Li, H.-H.; Meng, Y.-N.; Chen, C.-M.; Wang, Y.-Q.; Zhang, Z.-X.; Xu, Z.; Zhou, B.; Ye, L.-W. Chiral Brønsted acid-catalyzed asymmetric intermolecular [4 + 2] annulation of ynamides with para-quinone methides. Sci. China Chem. 2023, 66, 1467–1473. [Google Scholar] [CrossRef]
  45. Zhao, J.-Q.; Zhou, S.; Wang, Z.-H.; You, Y.; Chen, S.; Liu, X.-L.; Zhou, M.-Q.; Yuan, W.-C. Catalytic asymmetric dearomative [4 + 2] annulation of 2-nitrobenzofurans and 5H-thiazol-4-ones: Stereoselective construction of dihydrobenzofuran-bridged polycyclic skeletons. Org. Chem. Front. 2021, 8, 6330–6336. [Google Scholar] [CrossRef]
  46. Zhao, J.-Q.; Zhou, S.; Qian, H.-L.; Wang, Z.-H.; Zhang, Y.-P.; You, Y.; Yuan, W.-C. Higher-order [10 + 2] cycloaddition of 2-alkylidene-1-indanones enables the dearomatization of 3-nitroindoles: Access to polycyclic cyclopenta[b]indoline derivatives. Org. Chem. Front. 2022, 9, 3322–3327. [Google Scholar] [CrossRef]
  47. Zhou, X.-J.; Zhao, J.-Q.; Lai, Y.-Q.; You, Y.; Wang, Z.-H.; Yuan, W.-C. Organocatalyzed asymmetric dearomative 1,3-dipolar cycloaddition of 2-nitrobenzofurans and N-2,2,2-trifluoroethylisatin ketimines. Chirality 2022, 34, 1019–1034. [Google Scholar] [CrossRef]
  48. Yuan, W.-C.; Chen, X.-M.; Zhao, J.-Q.; Zhang, Y.-P.; Wang, Z.-H.; You, Y. Ag-Catalyzed Asymmetric Interrupted Barton-Zard Reaction Enabling the Enantioselective Dearomatization of 2- and 3-Nitroindoles. Org. Lett. 2022, 24, 826–831. [Google Scholar] [CrossRef]
  49. Zhou, S.; Qian, H.-L.; Zhao, J.-Q.; You, Y.; Wang, Z.-H.; Yin, J.-Q.; Zhang, Y.-P.; Chen, M.-F.; Yuan, W.-C. Diastereoselective synthesis of polycyclic indolines via dearomative [4 + 2] cycloaddition of 3-nitroindoles with ortho-aminophenyl p-quinone methides. Org. Biomol. Chem. 2023, 21, 1373–1378. [Google Scholar] [CrossRef]
Molecules 28 05529 sch001 550

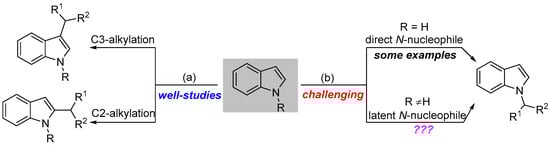

Scheme 1. The strategies of direct alkylation of indoles. (a) C2 and C3-alkylation of indoles; (b) N-alkylation of indoles.
Scheme 1. The strategies of direct alkylation of indoles. (a) C2 and C3-alkylation of indoles; (b) N-alkylation of indoles.
Molecules 28 05529 sch001
Molecules 28 05529 sch002 550

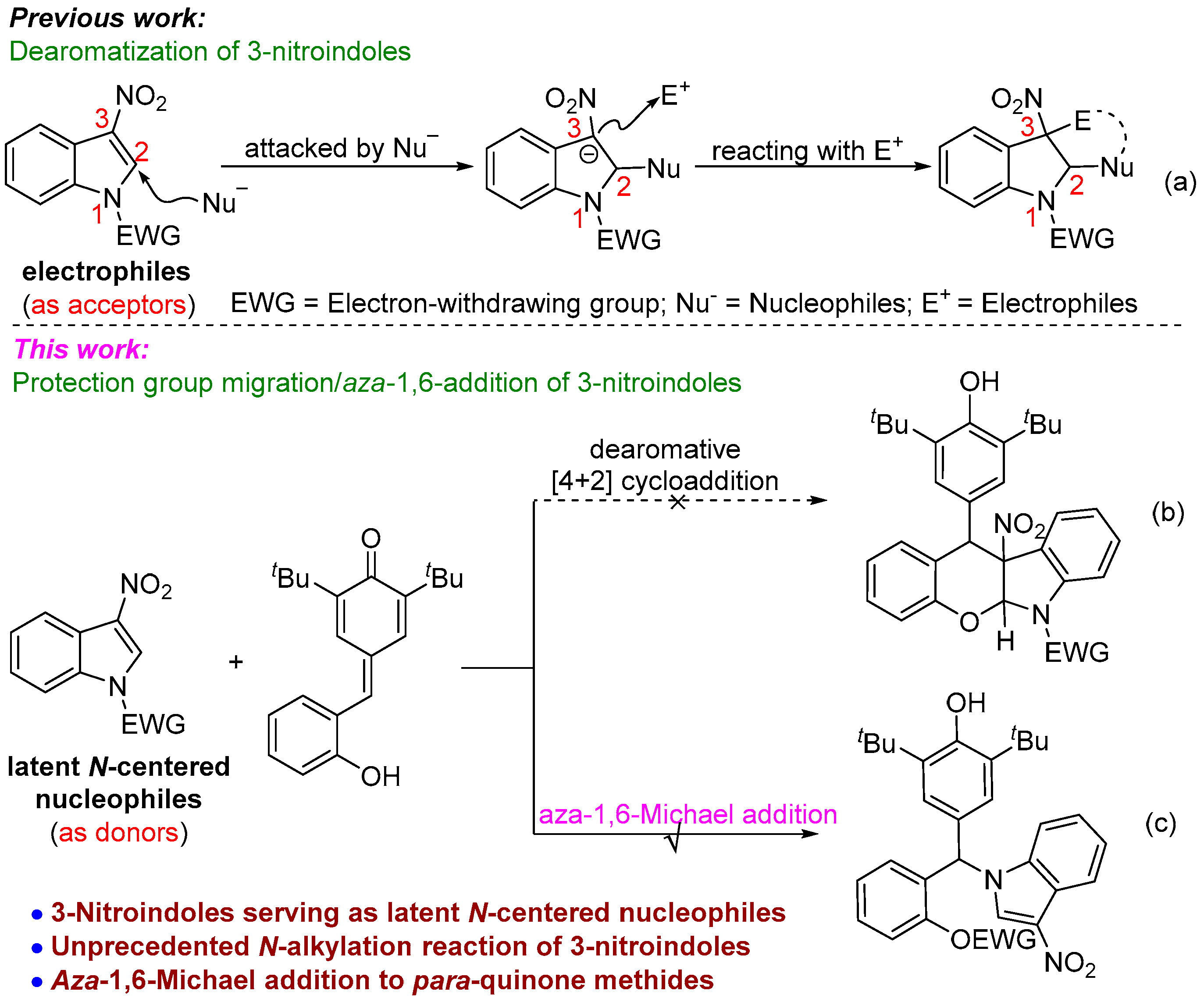

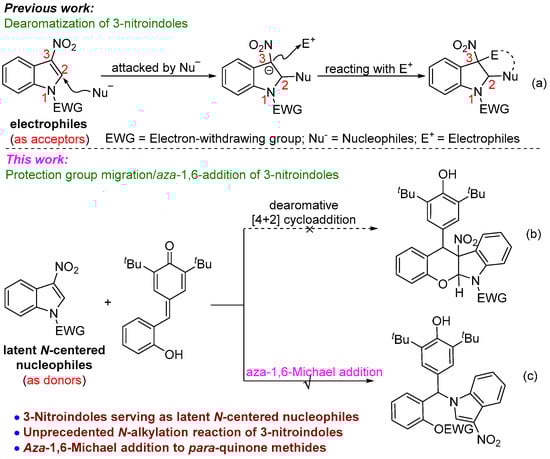

Scheme 2. The profile of dearomatization of 3-nitroindoles and this work on unprecedented N-alkylation of 3-nitroindoles. (a) The reaction feature of 3-nitroindoles; (b) The expected dearomative [4 + 2] cycloaddition of 3-nitroindoles; (c) The unanticipated N-alkylation of 3-nitroindoles in this work.
Scheme 2. The profile of dearomatization of 3-nitroindoles and this work on unprecedented N-alkylation of 3-nitroindoles. (a) The reaction feature of 3-nitroindoles; (b) The expected dearomative [4 + 2] cycloaddition of 3-nitroindoles; (c) The unanticipated N-alkylation of 3-nitroindoles in this work.
Molecules 28 05529 sch002
Molecules 28 05529 sch003 550

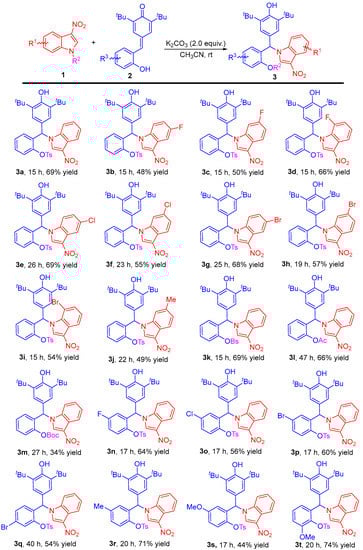

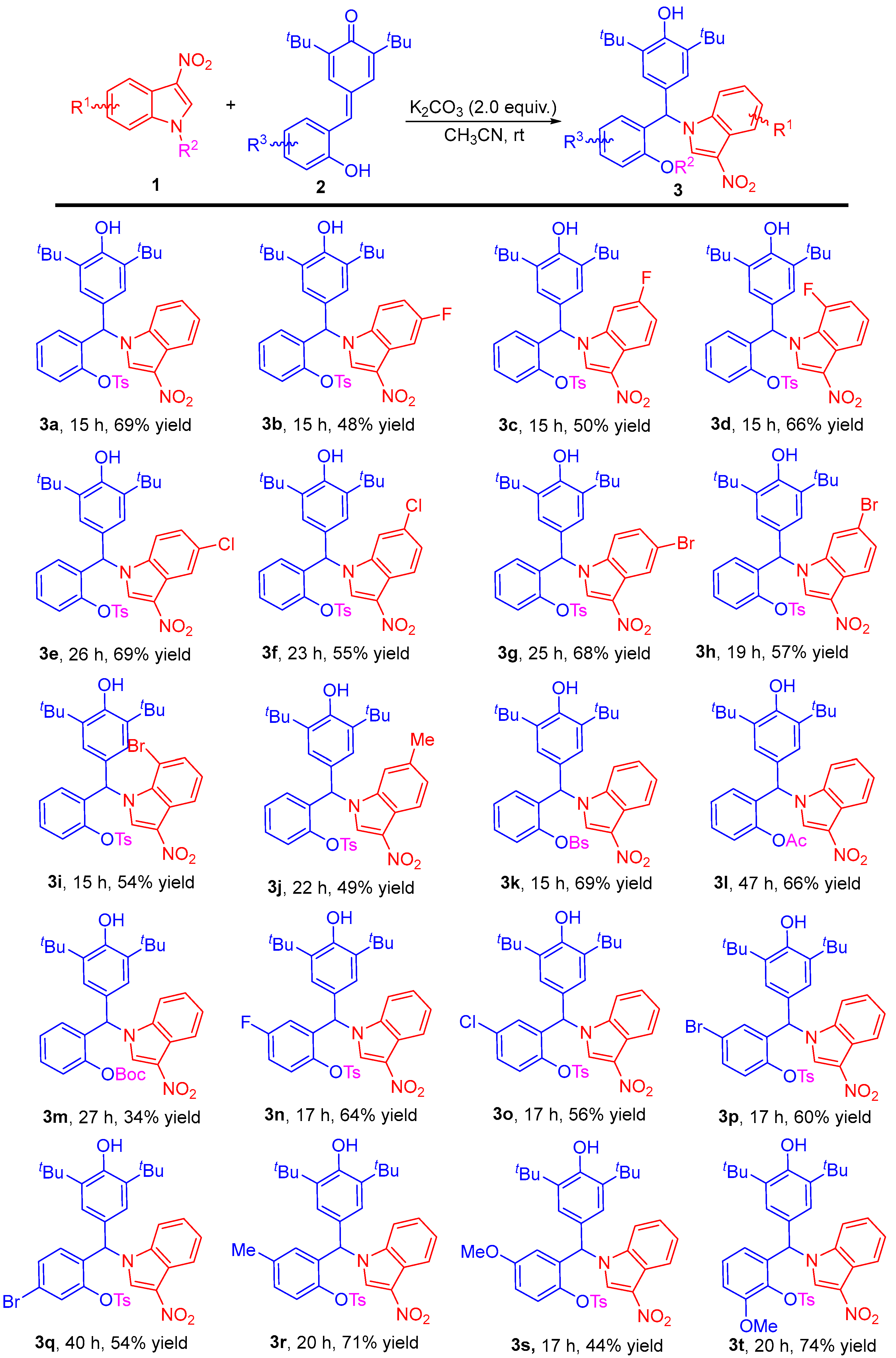

Scheme 3. Substrate scope of ortho-hydroxy p-QMs and 3-nitroindoles. Reaction conditions: the reactions were carried out with 1 (0.1 mmol), 2 (0.1 mmol) and K2CO3 (2.0 equiv) in 1.0 mL of CH3CN at room temperature. The yield refers to the isolated yield.
Scheme 3. Substrate scope of ortho-hydroxy p-QMs and 3-nitroindoles. Reaction conditions: the reactions were carried out with 1 (0.1 mmol), 2 (0.1 mmol) and K2CO3 (2.0 equiv) in 1.0 mL of CH3CN at room temperature. The yield refers to the isolated yield.
Molecules 28 05529 sch003
Molecules 28 05529 sch004 550

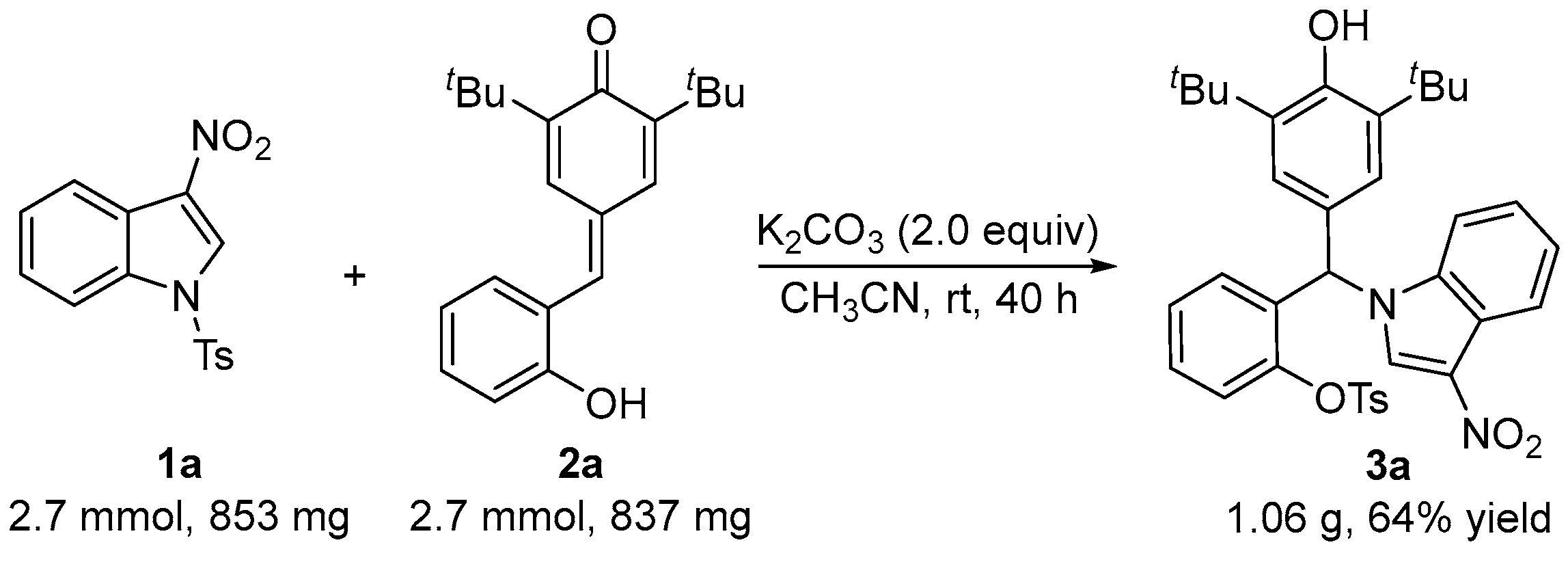

Scheme 4. Scale-up experiment.
Scheme 4. Scale-up experiment.
Molecules 28 05529 sch004
Molecules 28 05529 sch005 550

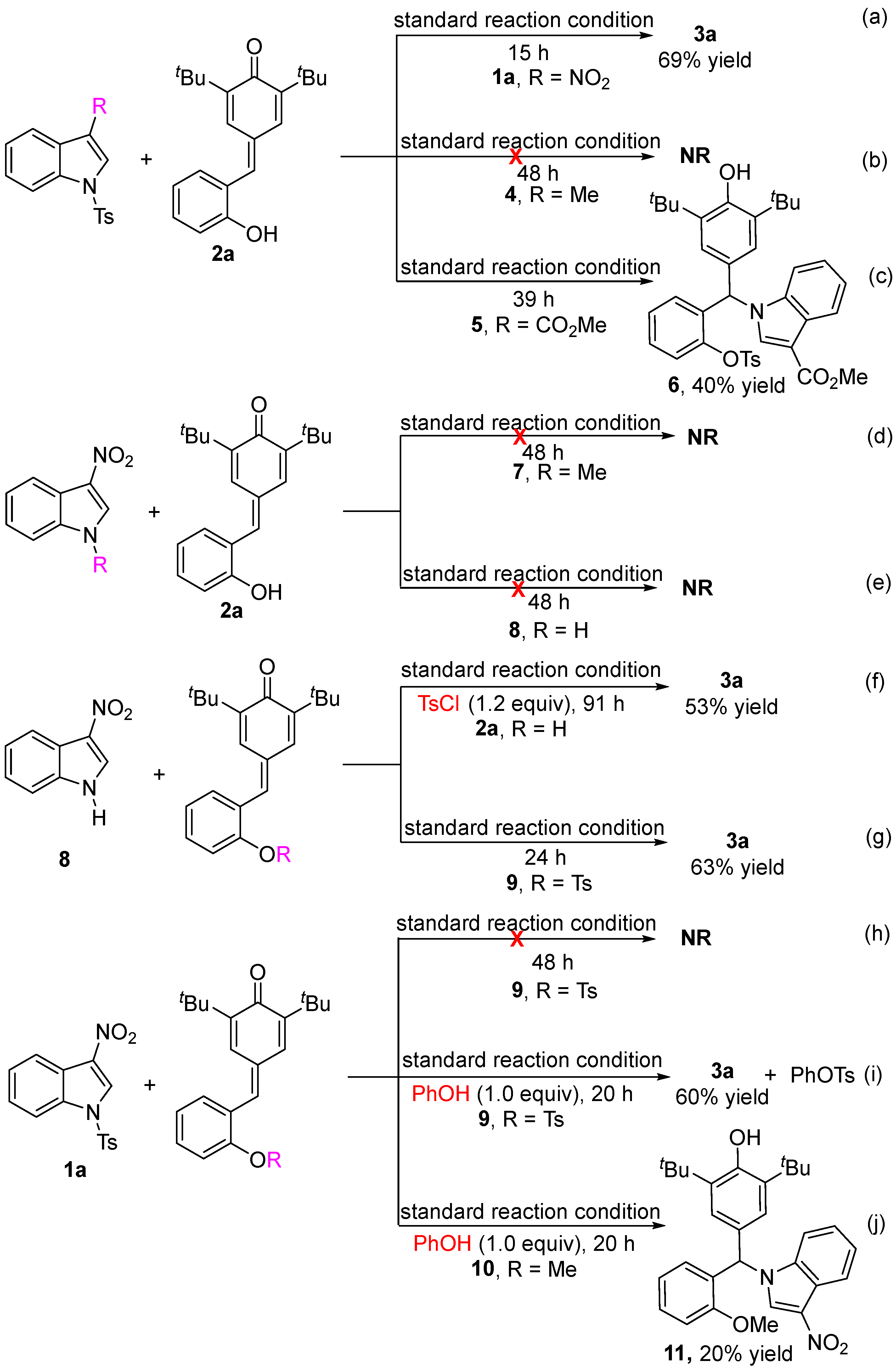

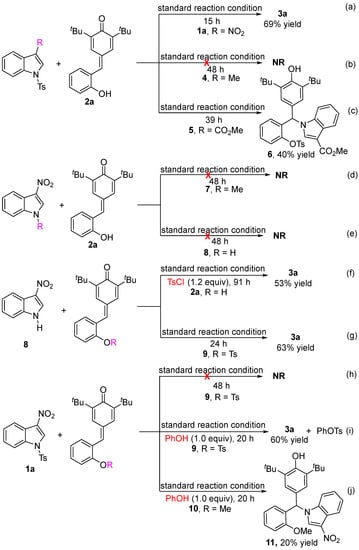

Scheme 5. Control experiments.
Scheme 5. Control experiments.
Molecules 28 05529 sch005
Molecules 28 05529 sch006 550

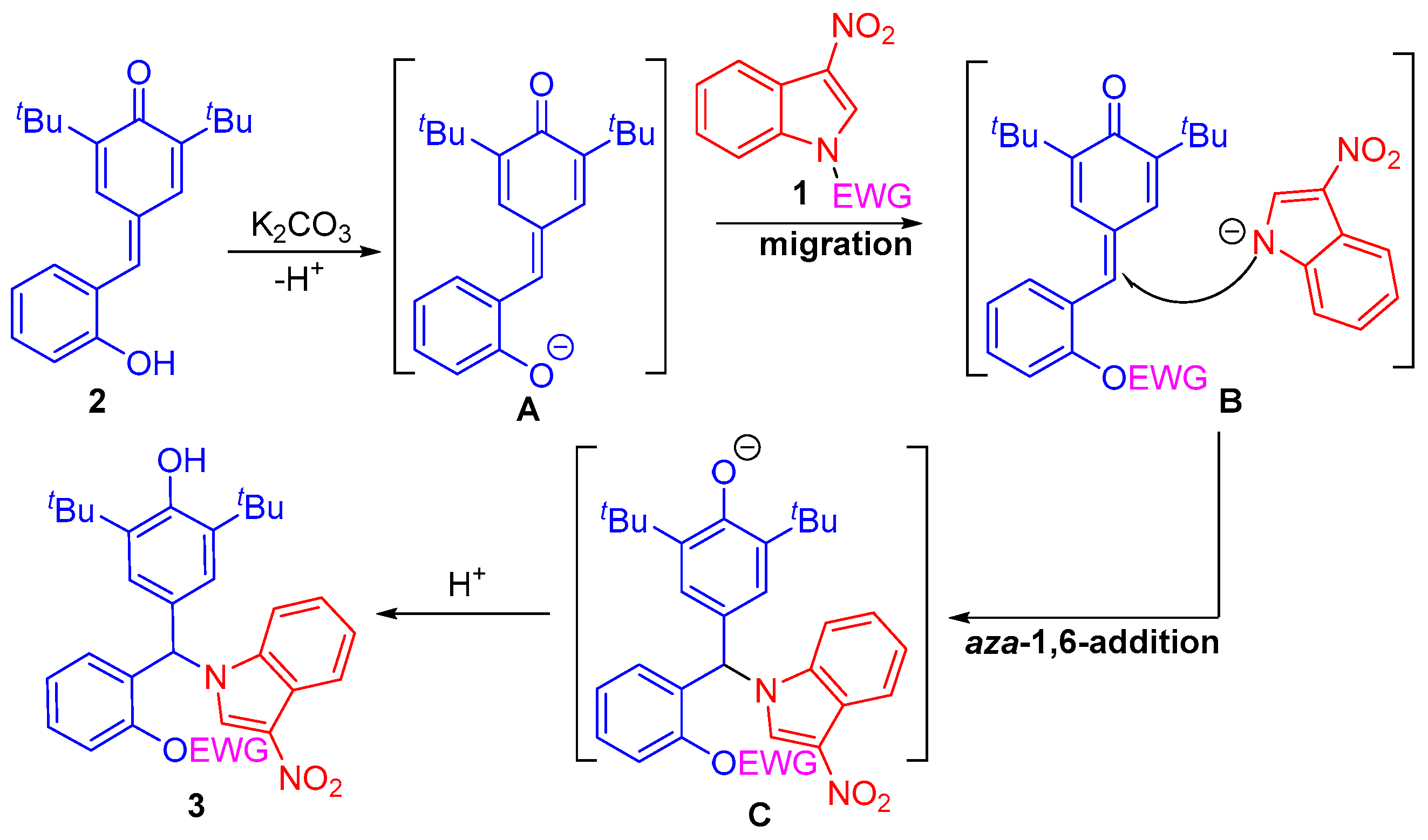

Scheme 6. Plausible reaction mechanism.
Scheme 6. Plausible reaction mechanism.
Molecules 28 05529 sch006
Molecules 28 05529 g001 550

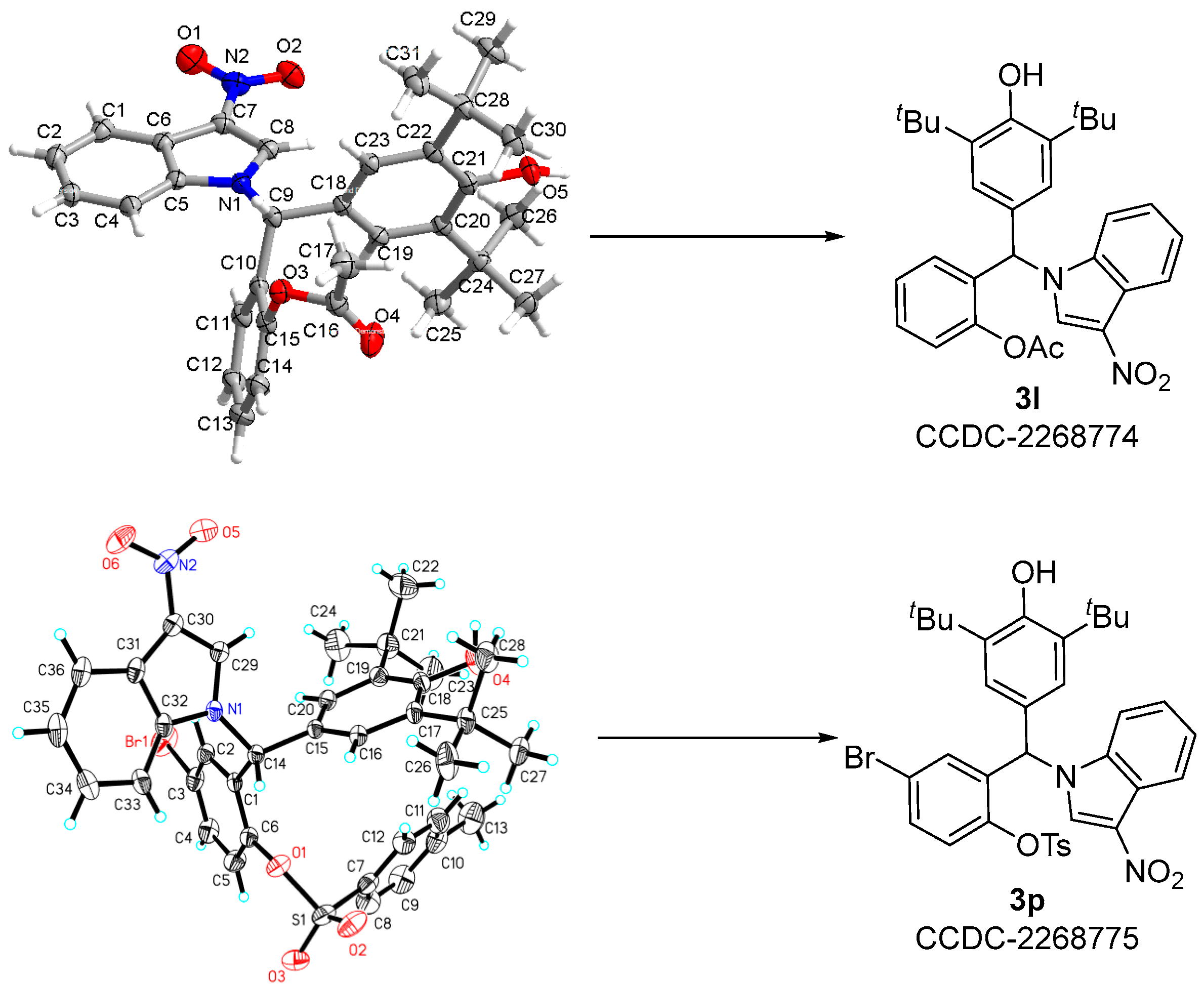

Figure 1. X-ray crystallographic structures of 3l and 3p.
Figure 1. X-ray crystallographic structures of 3l and 3p.
Molecules 28 05529 g001
Table

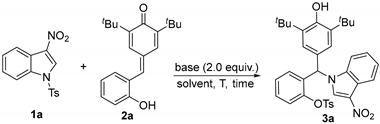

Table 1. Optimization of reaction conditions [a].
Table 1. Optimization of reaction conditions [a].
Molecules 28 05529 i001
EntryBaseSolventT (°C)Time (h)Yield [b]
1DABCOtoluene5016844
2DBUtoluene506824
3Na2CO3toluene50145trace
4K2CO3toluene502660
5K2CO3CH2Cl2508857
6K2CO3THF506358
7K2CO3EtOAc5013663
8K2CO3CH3CN502367
9K2CO3MeOH502019
10K2CO3CH3CNrt2371
11 [c]K2CO3CH3CNrt4864
[a] Unless otherwise noted, the reaction was carried out with 1a (0.05 mmol), 2a (0.05 mmol), and base (2.0 equiv.) in 0.5 mL of solvent at indicated temperature for specified time. [b] Isolated yield. [c] 1.0 equiv K2CO3 was used.
