Fluorinated Fullerenes as Electrolyte Additives for High Ionic Conductivity Lithium-Ion Batteries

by
Haoyu Pan
1,†,
Zhanlin Yang
1,†,
Jianhui Chen
1,
Hengyi Li
2,*,
Cuilian Wen
1 and
Baisheng Sa
1,*
1
Multiscale Computational Materials Facility & Materials Genome Institute, School of Materials Science and Engineering, Fuzhou University, Fuzhou 350108, China
2
Fujian Applied Technology Engineering Center of Power Battery Materials, Fujian College of Water Conservancy and Electric Power, Yong’an 366000, China
*
Authors to whom correspondence should be addressed.
†
These authors equally contributed to this work.
Molecules 2024, 29(13), 2955; https://doi.org/10.3390/molecules29132955
Submission received: 27 May 2024 / Revised: 17 June 2024 / Accepted: 19 June 2024 / Published: 21 June 2024
(This article belongs to the Special Issue Computational Studies of Novel Function Materials—2nd Edition)
Browse Figures
Versions Notes

Abstract

:
Currently, lithium-ion batteries have an increasingly urgent need for high-performance electrolytes, and additives are highly valued for their convenience and cost-effectiveness features. In this work, the feasibilities of fullerenes and fluorinated fullerenes as typical bis(fluorosulfonyl)imide/1,2-dimethoxymethane (LiFSI/DME) electrolyte additives are rationally evaluated based on density functional theory calculations and molecular dynamic simulations. Interestingly, electronic structures of C60, C60F2, C60F4, C60F6, 1-C60F8, and 2-C60F8 are found to be compatible with the properties required as additives. It is noted that that different numbers and positions of F atoms lead to changes in the deformation and electronic properties of fullerenes. The F atoms not only show strong covalent interactions with C cages, but also affect the C-C covalent interaction in C cages. In addition, molecular dynamic simulations unravel that the addition of trace amounts of C60F4, C60F6, and 2-C60F8 can effectively enhance the Li+ mobility in LiFSI/DME electrolytes. The results expand the range of applications for fullerenes and their derivatives and shed light on the research into novel additives for high-performance electrolytes.

Graphical Abstract

1. Introduction

In the context of the growing prevalence of electrification and the development of renewable energy sources, electrochemical energy storage technology is becoming an increasingly pivotal solution to the challenges associated with energy storage and conversion [1,2,3]. One of the most crucial performance parameters in electrochemical energy storage devices is the optimization and enhancement of ionic conductivity [4], which has emerged as a significant area of research and development [5,6,7]. Ionic conductivity not only directly affects the charging and discharging rate, energy density, and cycle life of devices such as batteries and supercapacitors, but also determines the operating stability of the devices at different temperatures [8,9]. Therefore, research on the enhancement of ionic conductivity is imperative to gain a deeper understanding and to optimize electrochemical energy storage technologies, thereby providing more effective solutions for sustainable energy transitions.
Additives play a vital role in electrolyte systems and are widely used in a variety of electrochemical devices and systems, including lithium-ion batteries, fuel cells, and supercapacitors [10,11,12,13]. The incorporation of additives can remarkably enhance the functionality of electrolytes, conferring a multitude of benefits and capabilities. Firstly, the addition of appropriately selected additives can enhance the ion transport properties of the electrolyte, thereby increasing the mobility of ions through the electrolyte. This, in turn, can improve the efficiency and kinetic response of the electrochemical reaction [14]. It thereby facilitates the enhancement of the energy density, power density, and cycle stability of the battery or electrochemical system [15,16]. In addition, some additives can have a significant effect on the electrode, forming a protective layer on the electrode surface to reduce electrolyte decomposition and electrode corrosion, thus further optimizing the electrochemical performance [17]. Moreover, additives are employed to enhance the high-temperature, freezing, or flame-retardant properties of electrolytes, enabling them to meet specific application requirements. One such additive is capable of releasing free radicals that interrupt the combustion chain reaction by trapping hydrogen or hydroxyl radicals in the gas phase, thus achieving flame-retardant properties [18,19,20]. However, the search for ideal additives that play an irreplaceable role in electrolyte systems by providing key support for the performance enhancement and optimization of electrochemical devices, improving ionic transport properties, modulating physicochemical properties, and providing specific functionality and protection mechanisms is still ongoing [21]. It is important that future research further explores the design and application of novel additives to meet the needs of the evolving field of electrochemistry.
The fullerene family and its derivatives exhibit distinctive physicochemical properties and three-dimensional topologies, rendering them highly effective in a diverse array of applications [22,23,24]. Due to its significant polarizability and very high electronegativity, the introduction of a F atom into organic molecules can lead to a significant electron distribution shift, which in turn affects the neighboring groups as well [25,26]. In addition, the F element has relatively high electron affinity energy compared with other elements, and the access to fluorine atoms on fullerene molecules can result in the formation of significant C-F bonds, which can directly change the electronic properties of fullerenes [25]. Therefore, fluorinated fullerenes exhibit peculiar structures and unique properties, which have attracted the interest of a wide range of researchers and scholars [27,28]. In recent years, there has been a great deal of interest in the research area of improving the performance of LIBs by introducing fluoride or generating fluoride intermediates. For instance, it is proposed to stabilize lithium metal batteries by means of the local redistribution of fluoride, which enables the active lithium metal to be locked in place [29]. Pentafluorophenylboron oxalate (PFPBO) has been synthesized and used as an additive in electrolytes to exhibit high ionic conductivity [30]. However, the understanding of fluorinated fullerenes as additives for electrolytes is not complete. In addition, accelerating materials development and exploring mechanisms by means of computational simulation is widely used in many studies [31,32,33]. Therefore, a systematic study of fluorinated fullerenes as additives based on advanced computational simulation is of great interest to promote the development and research of high-performance electrolytes and to provide theoretical guidance.
This study presents for the first time the introduction of small amounts of fullerene and fluorinated fullerene as additives in bis(fluorosulfonyl)imide/1,2-dimethoxymethane (LiFSI/DME) electrolytes to design the electrolyte and to comprehensively analyze the improvement of its performance using density functional theory (DFT) calculations and molecular dynamics (MD) simulations. The effects of fullerene and fluorinated fullerene on LiFSI/DME electrolytes are fully elucidated. The study provides accurate electronic structure information and description of the dynamic behavior. It is worth highlighting that although the electronic properties exhibited by the selected fullerenes and several fluorinated fullerenes in the study meet the requirements to be used as additives to LiFSI/DME electrolytes, after actual addition to the LiFSI/DME electrolyte, the MD results show that only some of the fluorinated fullerenes have an enhancement effect on the lithium ions’ mobility. This study demonstrates the potential of fluorinated fullerenes as electrolyte additives, a discovery with significant implications for the advancement of electrochemical energy storage technology. It not only provides theoretical guidance and technical support for the development and improvement of new electrolytes, but also broadens the application fields of fullerenes and their derivatives.

2. Results and Discussion

Figure 1 shows the most stable structures for C60, C60F2, C60F4, C60F6, 1-C60F8, and 2-C60F8 after full optimization. The fullerenes selected for our study were all successfully isolated, and the bonding sites of the F atoms were identified [34]. It can be seen from Figure 1 that the introduction of different numbers of F atoms and different sites leads to different degrees of changes in the shape of the initial fullerene carbon cage. For example, although 1-C60F8 and 2-C60F8 have the same number of fluorine atoms, the different positions of the F atoms on the C cage result in different deformations of the fluorinated fullerene, potentially giving them different properties.
In order to probe the effect of the introduction of F atoms in depth, a localized orbital locator (LOL) map analysis was performed (shown in Figure 2) for six structures using DFT simulations to analyze the interaction of the introduced F atoms with the carbon cages as well as the effect of this interaction on the C-C covalent bonding between the initial carbon cages. Based on the results in Figure 2, the LOL data between the C-C atoms shows highly localized regions, which suggests strong covalent interactions between the C-C atoms. Whereas the highly localized regions between the F atoms and C atoms appear to be relatively weak compared with those between the C-C atoms, there are still strong localized regions, which suggests covalent interactions between C-F atoms as well. Interestingly, both before and after the introduction of F atoms, the C-C in the fullerene cage shows highly localized regions that retain covalent interactions. These results provide important clues for further understanding the effects of introducing F atoms on molecular structures and interactions, which is helpful to reveal the properties and potential applications of these compounds.
In order to deeply explore the strong covalent interactions between F and C atoms as well as between C and C atoms in C60, C60F2, C60F4, C60F6, 1-C60F8, and 2-C60F8, bond critical point (BCP) and Mayer bond order (MBO) calculations were also performed. Figure 3 illustrates the distribution of critical points, while Table 1 lists the bond descriptors for the BCPs and MBO results. For all six cases, the calculations observe ρBCP > 0, HBCP < 0, |VBCP|/GBCP > 2, and MBO > 0.8, and these results indicate the presence of strong covalent interactions between carbon atoms [35]. Similarly, significant covalent interactions exist between C and F atoms. It is noteworthy that F atoms lead to noticed changes in the values of ρBCP, |VBCP|/GBCP, and MBOs between C-C, further demonstrating that the introduction of F atoms changes the strength of covalent interactions between C-C to some extent.
To analyze whether fullerenes and fluorinated fullerenes have the potential to be applied as additives to DME-based electrolytes in terms of their electronic energy levels, we have calculated the molecular orbitals of fullerenes, fluorinated fullerenes, and the electrolyte solvent DME. Figure 4 represents the highest occupied molecular orbital (HOMO) and the lowest unoccupied molecular orbital (LUMO) for each fullerene and fluorinated fullerene. The HOMO–LUMO energy levels of solvent DME were also calculated as a comparison. From Figure 4, it can be seen that the fluorinated fullerenes with different degrees of fluorination show different electronic properties and are very obvious, reflecting from the side that the influence of F atoms on the initial fullerene carbon cage effect cannot be neglected. Even with the same number of F atoms introduced into the carbon cage, the different F atom sites result in different electronic energy levels. For example, the two fluorinated fullerenes 1-C60F8 and 2-C60F8 show LUMO levels of −3.00 and −4.21 eV, respectively.
Next, we theoretically assessed the feasibility of fullerenes and fluorinated fullerenes as additives to DME-based electrolytes by comparing their HOMO–LUMO energy levels with those of the solvent DME. The HOMO and LUMO energy levels of DME are −6.69 and 2.52 eV, respectively. In comparison, the HOMO energy levels of C60, C60F2, C60F4, C60F6, 1-C60F8, and 2-C60F8 are higher than the HOMO energy level of DME. This property causes them to be oxidized preferentially to the electrolyte solvent DME when used as an additive and form a protective layer on the cathode surface, which further improves its stability, resulting in the construction of lower-resistance cathode electrolyte interface (CEI) films. In addition, calculations showed that the LUMO energy levels of these compounds were lower than those of the solvent DME, suggesting that they were preferentially reduced over the DME molecules, thus facilitating the formation of insoluble solid electrolyte interphase (SEI) films on the anode surface. This effectively prevents solvent decomposition and greatly enhances the electrochemical performance of Li-ion batteries. From the global perspective of electronic energy levels, C60 and fluorinated fullerenes demonstrate the possibility of being used as additives in DME-based solvent electrolytes and may provide important reference ideas for battery performance enhancement.
However, whether C60, C60F2, C60F4, C60F6, 1-C60F8, and 2-C60F8 as additives can play a positive role in the electrolyte still needs to be further explored and investigated in the actual electrolyte system. Herein, LiFSI/DME is used as the research object to construct a real-environment electrolyte system with different additives. We first performed MD simulations of the LiFSI/DME electrolyte to observe its own physicochemical properties and solvation structure, as shown in Figure 5a. Figure 5b presents the results of the radial distribution function (RDF) and coordination number (CN) of the electrolyte model. Based on our simulation results, we can observe that the distribution of the solvent DME in the first solvation layer is higher than that of the anionic FSI− in the LiFSI/DME system, which provides an important initial reference for the further evaluation of the modulation of the electrolyte properties by fullerenes and fluorinated fullerenes as additives.
Considering that C60, C60F2, C60F4, C60F6, 1-C60F8, and 2-C60F8 have the electronic properties to be used as additives in DME-based electrolytes, the additive performance was further carried out by doping these six substances one by one in LiFSI/DME electrolytes to form electrolyte systems for MD simulations. Figure 6 illustrates the constructed models and the RDF and CN of the six electrolytes after MD simulations. The simulation results demonstrate that fullerene and fluorinated fullerenes, when incorporated into the electrolytes as additives, do not significantly alter the RDF and CN of the LiFSI/DME electrolytes. The first solvation layer is still predominantly occupied by the solvent DME, whose concentration is significantly higher than that of the anionic FSI−. Nevertheless, the incorporation of diverse additives still exerted some subtle influences on the initial RDF and the C. In order to facilitate a more accurate comparison of the magnitude of the CN, the details of the electrolyte systems are presented in Table 2. Another interesting finding is that the CN of the solvent DME decreases when the coordination number of anionic FSI− increases after the addition of additives, and vice versa; when the coordination number of anionic FSI− decreases, the coordination number of solvent DME increases. Generally speaking, they show a kind of mutual constraint relationship.
In order to show more clearly the environment of the solvation layer within a certain range around the additive, we extracted the MD snapshots of the electrolyte systems within a range of 5 Å around the additive in Figure 7. As can be seen, in the electrolyte systems, the additives are not directly involved in the solvation structure of the lithium ions, but they are surrounded by different solvation substances and some free molecules. This phenomenon suggests that the additives used in the study have electrolyte-compatible properties and are able to be incorporated into the electrolyte rather than being present in a separate free state. To further confirm the interaction between different fluorinated fullerenes and electrolytes, we performed DFT optimizations of the electrolyte systems for solvation environments around Li+ based on the ratio of anionic and solvent coordination numbers, as shown in Figure 7b. Herein, the accurate DFT data show that fullerenes and fluorinated fullerenes do not participate in the solvation layer of Li+, which is consistent with the results of the molecular dynamics simulations that we extracted.
Figure 8 shows the self-diffusion coeafficient of Li+ in different electrolytes obtained by MD simulations, a property that plays a crucial role in the ionic conductivity of LIBs. It is noted that the self-diffusion coefficients of Li+ are significantly different in the presence of different additives. The results of the MD simulations show that the migration properties of Li+ are significantly enhanced with the addition of partially fluorinated fullerene. Specifically, the diffusion coefficient of Li+ reached the maximum value in the LiFSI/DME/2-C60F8 electrolyte system, while different degrees of enhancement were also achieved in the LiFSI/DME/C60F2 and LiFSI/DME/C60F4 electrolyte systems, respectively. However, the effects of the other studied additives were less pronounced and even hindered Li+ migration to some extent. Overall, only C60F4, C60F6, and 2-C60F8 as the additives can significantly enhanced Li+ migration compared with the original LiFSI/DME electrolytes, suggesting their good application potential in practical electrolyte systems. Therefore, we found that the properties of fluorinated fullerenes can change significantly due to the number and position of the introduced fluorine atoms, and therefore, not all fluorinated fullerenes have a positive effect on the electrolyte system. The effects of specific substances need to be analyzed in detail in a real environment. Table 3 lists the electrolyte simulation systems and their properties as a summary, including details of the dimensions of the simulation box, the proportions of the components of the electrolyte, and the viscosity and diffusion coefficients.

3. Computational Details

The B3LYP exchange-correlation approximation and the 6-31g(d,p) basis set were utilized with hybrid DFT, and an implicit solvation model (Solvation Model Density, SMD, Carnegie Mellon University, Pittsburgh, PA, USA) was used [36]. The molecular structure of the electrolyte was optimized and analyzed by Gaussian16 [37] and Multiwfn 3.8 [38]. All calculations were performed using the GD3BJ correction. The dissolution structure of the electrolyte was derived from MD simulations using the GROMACS2018 (Berendsen Laboratory, University of Gottingen, Göttingen, Germany) software package [39], which is based on the OPLS-AA force field [40] generated with the help of AuToFF [41]. Modeling was performed with the help of PACKMOL v20.14.4 software (Herman Berendsen’s group, department of Biophysical Chemistry of Groningen University) [42]. The initial structure size used for the MD simulations was 10.0 × 10.0 × 10.0 nm. The particle-particle-grid method was included to treat the long-range Coulomb interactions. The van der Waals interactions were described using the Lennard-Jones interaction model. In order to eliminate as much as possible unreasonable configurations in the initial structure, a conjugate gradient energy minimization scheme was applied to the initial configurations. A 20 ns NPT simulation was first performed at 298.15 K to achieve full equilibrium. Then, 10 ns NVT simulations were performed at 298.15 K for data sampling. Finally, the electrolyte structure was visualized using VMD [43] and VESTA [44]. The mean square displacement (MSD) of Li+ was tracked during the simulations [45]. By analyzing the MSD results, the diffusion coefficient D of Li+ in the electrolyte were calculated according to the following equation:
D = 1 6 N a lim t → ∞ d d t ∑ i = 1 N a [ r i ( t ) − r i ( 0 ) ] 2
where Nα is the number of atoms, and ri(t) and ri(0) are the positions of atom i at times t and 0, respectively.

4. Conclusions

In summary, the structural and electronic properties of C60, C60F2, C60F4, C60F6, 1-C60F8, and 2-C60F8 are systematically investigated in this study using DFT calculations. The results show that the introduction of F atoms affects the initial structure of C60, leading to different degrees of deformation of the carbon cage, and there are certain covalent interactions between the introduced F atoms and the carbon cage. In addition, the introduction of F atoms into fullerenes will also have a certain effect on the strength of the initial C-C covalent interactions of fullerenes, which leads to significant differences in properties between different fluorinated fullerenes. By calculating the frontier molecular orbitals, we found that the HOMO–LUMO energy levels of C60, C60F2, C60F4, C60F6, 1-C60F8, and 2-C60F8 show potential for application as DME-based electrolyte additives. Furthermore, continuing with MD simulations of real electrolyte environments, we analyzed the kinetic properties and solvation shell layers of LiFSI/DME electrolytes in the presence of different additives. The results show that C60F4, C60F6, and 2-C60F8 all enhance the migration of Li+ in the electrolyte to a certain extent, with 2-C60F8 having the most significant enhancement effect, but the introduction of other additives leads to a decrease in Li+ migration. Therefore, whether different fluorinated fullerenes have the prospect of practical electrolyte additive applications has to be analyzed specifically for different F atom numbers and F atom introduction sites. In conclusion, the study shows to some extent that fullerenes and their fluorinated derivatives have promising applications in the field of electrolytes. This study not only expands the application scope of fullerenes and their derivatives, but also promotes the further development of electrochemical energy storage to a certain extent.

Author Contributions

Conceptualization, H.P., Z.Y. and B.S.; methodology, J.C.; software, Z.Y. and B.S.; validation, J.C., H.L. and C.W.; formal analysis, H.P., Z.Y. and B.S.; investigation, H.P. and Z.Y.; resources, H.L. and B.S.; data curation, Z.Y., J.C., H.L. and C.W.; writing—original draft preparation, H.P. and Z.Y.; writing—review and editing, H.L., C.W. and B.S.; visualization, Z.Y.; supervision, H.L. and B.S.; project administration, H.L. and B.S.; funding acquisition, C.W. and B.S. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Key Research and Development Program of China (No. 2022YFB3807200), the National Natural Science Foundation of China (No. 21973012), the Natural Science Foundation of Fujian Province (Nos. 2021J06011, 2021H6011, and 2021J01590), and the “Qishan Scholar” Scientific Research Project of Fuzhou University.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding authors.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Yang, J.; Li, M.; Fang, S.; Wang, Y.; He, H.; Wang, C.; Zhang, Z.; Yuan, B.; Jiang, L.; Baughman, R.H.; et al. Water-induced strong isotropic MXene-bridged graphene sheets for electrochemical energy storage. Science 2024, 383, 771–777. [Google Scholar] [CrossRef]
  2. Zhang, F.; Wei, M.; Viswanathan, V.V.; Swart, B.; Shao, Y.; Wu, G.; Zhou, C. 3D printing technologies for electrochemical energy storage. Nano Energy 2017, 40, 418–431. [Google Scholar] [CrossRef]
  3. Wan, H.; Wang, Z.; Zhang, W.; He, X.; Wang, C. Interface design for all-solid-state lithium batteries. Nature 2023, 623, 739–744. [Google Scholar] [CrossRef]
  4. Quilty, C.D.; Wu, D.; Li, W.; Bock, D.C.; Wang, L.; Housel, L.M.; Abraham, A.; Takeuchi, K.J.; Marschilok, A.C.; Takeuchi, E.S. Electron and ion transport in lithium and lithium-ion battery negative and positive composite electrodes. Chem. Rev. 2023, 123, 1327–1363. [Google Scholar] [CrossRef]
  5. Li, C.; Li, X.; Yu, W.; Xiao, R.; Huang, F.; Tian, H.; Wang, C.; Chen, X.; Shao, J. Scalable fabrication of turbostratic graphene with high density and high ion conductivity for compact capacitive energy storage. Matter 2023, 6, 4032–4049. [Google Scholar] [CrossRef]
  6. Sun, Y.; Liu, B.; Liu, L.; Lang, J.; Qiu, J. A low-concentration and high ionic conductivity aqueous electrolyte toward ultralow-temperature zinc-ion hybrid capacitors. Small Struct. 2023, 4, 2200345. [Google Scholar] [CrossRef]
  7. Shi, P.; Ma, J.; Liu, M.; Guo, S.; Huang, Y.; Wang, S.; Zhang, L.; Chen, L.; Yang, K.; Liu, X.; et al. A dielectric electrolyte composite with high lithium-ion conductivity for high-voltage solid-state lithium metal batteries. Nat. Nanotechnol. 2023, 18, 602–610. [Google Scholar] [CrossRef]
  8. Wee, G.; Larsson, O.; Srinivasan, M.; Berggren, M.; Crispin, X.; Mhaisalkar, S. Effect of the ionic conductivity on the performance of polyelectrolyte-based supercapacitors. Adv. Funct. Mater. 2010, 20, 4344–4350. [Google Scholar] [CrossRef]
  9. Lu, D.-L.; Zhao, R.-R.; Wu, J.-L.; Ma, J.-M.; Huang, M.-L.; Yao, Y.-B.; Tao, T.; Liang, B.; Zhai, J.-W.; Lu, S.-G. Investigations on the properties of Li3xLa2/3−xTiO3 based all-solid-state supercapacitor: Relationships between the capacitance, ionic conductivity, and temperature. J. Eur. Ceram. Soc. 2020, 40, 2396–2403. [Google Scholar] [CrossRef]
  10. Hu, E.; Xu, K. An electrolyte additive allows stable high-voltage cycling of a nickel-rich layered cathode. Nat. Energy 2022, 7, 482–483. [Google Scholar] [CrossRef]
  11. Xu, J.; Zhang, J.; Pollard, T.P.; Li, Q.; Tan, S.; Hou, S.; Wan, H.; Chen, F.; He, H.; Hu, E.; et al. Electrolyte design for Li-ion batteries under extreme operating conditions. Nature 2023, 614, 694–700. [Google Scholar] [CrossRef] [PubMed]
  12. Tölle, P.; Köhler, C.; Marschall, R.; Sharifi, M.; Wark, M.; Frauenheim, T. Proton transport in functionalised additives for PEM fuel cells: Contributions from atomistic simulations. Chem. Soc. Rev. 2012, 41, 5143–5159. [Google Scholar] [CrossRef] [PubMed]
  13. Wang, P.; Xie, X.; Xing, Z.; Chen, X.; Fang, G.; Lu, B.; Zhou, J.; Liang, S.; Fan, H.J. Mechanistic insights of Mg2+-electrolyte additive for high-energy and long-life zinc-ion hybrid capacitors. Adv. Energy Mater. 2021, 11, 2101158. [Google Scholar] [CrossRef]
  14. Zhang, J.; Wang, L.; Liu, A.; Zhang, Y.; Li, Z.; Chen, H.; Shi, Z. Effect of LiOH solution additives on ionic conductivity of Li6.25Al0.25La3Zr2O12 electrolytes prepared by cold sintering. J. Mater. Sci. Mater. Electron. 2022, 33, 19187–19194. [Google Scholar] [CrossRef]
  15. Kim, S.; Kwon, Y.M.; Cho, K.Y.; Yoon, S. Metal iodides (LiI, MgI2, AlI3, TiI4, and SnI4) potentiality as electrolyte additives for Li−S batteries. Electrochim. Acta 2021, 391, 138927. [Google Scholar] [CrossRef]
  16. Goo, D.E.; Lee, G.R.; Hong, S.H.; Moon, H.C. Effect of novel ionic additives on the performance of lithium batteries. J. Ind. Eng. Chem. 2024, 132, 546–551. [Google Scholar] [CrossRef]
  17. Palluzzi, M.; Tsurumaki, A.; Mozhzhukhina, N.; Rizell, J.; Matic, A.; D’Angelo, P.; Navarra, M.A. Ionic liquids as cathode additives for high voltage lithium batteries. Batter. Supercaps 2024, e202400068. [Google Scholar] [CrossRef]
  18. Huang, Q.; Weng, J.; Ouyang, D.; Chen, M.; Wang, X.; Wang, J. Comparative studies on the combustion characteristics of electrolytes and carbonate mixed solvents with flame retardant additives under low pressures. Case Stud. Therm. Eng. 2023, 43, 102810. [Google Scholar] [CrossRef]
  19. Chen, M.; Mei, J.; Wang, S.; Chen, Q.; Zhao, L.; Kong, Q.; Wu, X. Comparative studies on the combustion characters of the lithium-ion battery electrolytes with composite flame-retardant additives. J. Energy Chem. 2022, 47, 103642. [Google Scholar] [CrossRef]
  20. Sun, M.; Zhang, Z.; Fu, S.; Zhang, Y.; Wang, R.; Mu, H.; Lian, C.; Wang, W.; Wang, G. A multifunctional electrolyte additive for zinc-ion capacitors with low temperature resistant and long lifespan. J. Energy Chem. 2024, 94, 477–485. [Google Scholar] [CrossRef]
  21. Haregewoin, A.M.; Wotango, A.S.; Hwang, B.-J. Electrolyte additives for lithium ion battery electrodes: Progress and perspectives. Energy Environ. Sci. 2016, 9, 1955–1988. [Google Scholar] [CrossRef]
  22. Liu, L.; Meng, H.; Chai, Y.; Chen, X.; Xu, J.; Liu, X.; Liu, W.; Guldi, D.M.; Zhu, Y. Enhancing built-in electric fields for efficient photocatalytic hydrogen evolution by encapsulating C60 fullerene into zirconium-based metal-organic frameworks. Angew. Chem. Int. Ed. 2023, 62, e202217897. [Google Scholar] [CrossRef] [PubMed]
  23. Xu, Z.; Wang, Y.; Li, Y.; Wang, Y.; Peng, B.; Davey, K.; Sun, L.; Li, G.; Zhang, S.; Guo, Z. C60 and derivatives boost electrocatalysis and photocatalysis: Electron buffers to heterojunctions. Adv. Energy Mater. 2023, 13, 2302438. [Google Scholar] [CrossRef]
  24. Shen, W.; Azmy, A.; Li, G.; Mishra, A.; Syrgiannis, Z.; Zheng, W.; Volonakis, G.; Kepenekian, M.; Even, J.; Wojtas, L.; et al. A crystalline 2D fullerene-based metal halide semiconductor for efficient and stable ideal-bandgap perovskite solar cells. Adv. Energy Mater. 2024, 14, 2400582. [Google Scholar] [CrossRef]
  25. Szala-Bilnik, J.; Costa Gomes, M.F.; Pádua, A.A.H. Solvation of C60 fullerene and C60F48 fluorinated fullerene in molecular and ionic liquids. J. Phys. Chem. C 2016, 120, 19396–19408. [Google Scholar] [CrossRef]
  26. Okino, F.; Yajima, S.; Suganuma, S.; Mitsumoto, R.; Seki, K.; Touhara, H. Fluorination of fullerene C60 and electrochemical properties of C60Fx. Synth. Met. 1995, 70, 1447–1448. [Google Scholar] [CrossRef]
  27. Oreshkin, A.I.; Muzychenko, D.A.; Oreshkin, S.I.; Panov, V.I.; Bakhtizin, R.Z.; Petukhov, M.N. Fluorinated fullerene molecule on Cu(001) surface as a controllable source of fluorine atoms. J. Phys. Chem. C 2018, 122, 24454–24458. [Google Scholar] [CrossRef]
  28. Kalika, E.B.; Katin, K.P.; Kochaev, A.I.; Kaya, S.; Elik, M.; Maslov, M.M. Fluorinated carbon and boron nitride fullerenes for drug delivery: Computational study of structure and adsorption. J. Mol. Liq. 2022, 353, 118773. [Google Scholar] [CrossRef]
  29. Li, G.; Duan, X.; Liu, X.; Zhan, R.; Wang, X.; Du, J.; Chen, Z.; Li, Y.; Cai, Z.; Shen, Y.; et al. Locking active Li metal through localized redistribution of fluoride enabling stable Li-metal batteries. Adv. Mater. 2023, 35, 2207310. [Google Scholar] [CrossRef]
  30. Li, L.F.; Lee, H.S.; Li, H.; Yang, X.Q.; Huang, X.J. A pentafluorophenylboron oxalate additive in non-aqueous electrolytes for lithium batteries. Electrochem. Commun. 2009, 11, 2296–2299. [Google Scholar] [CrossRef]
  31. Wang, R.; Parent, L.R.; Zhong, Y. Sulfur poisoning mechanism of LSCF cathode material in the presence of SO2: A computational and experimental study. J. Mater. Inf. 2023, 3, 3. [Google Scholar] [CrossRef]
  32. Ma, B.; Yu, F.; Zhou, P.; Wu, X.; Zhao, C.; Lin, C.; Gao, M.; Lin, T.; Sa, B. Machine learning accelerated discovery of high transmittance in (K0.5Na0.5)NbO3-based ceramics. J. Mater. Inf. 2023, 3, 13. [Google Scholar] [CrossRef]
  33. Bauer, B.; Bravyi, S.; Motta, M.; Chan, G.K.-L. Quantum algorithms for quantum chemistry and quantum materials science. Chem. Rev. 2020, 120, 12685–12717. [Google Scholar] [CrossRef]
  34. Goryunkov, A.A.; Kareev, I.E.; Ioffe, I.N.; Popov, A.A.; Kuvychko, I.V.; Markov, V.Y.; Goldt, I.V.; Pimenova, A.S.; Serov, M.G.; Avdoshenko, S.M.; et al. Reaction of C60 with KMnF4: Isolation and characterization of a new isomer of C60F8 and re-evaluation of the structures of C60F7(CF3) and the known isomer of C60F8. J. Fluor. Chem. 2006, 127, 1423–1435. [Google Scholar] [CrossRef]
  35. Zhang, Y.; Zheng, Z.; Si, Y.; Sa, B.; Li, H.; Yu, T.; Wen, C.; Wu, B. Structural, electronic, and nonlinear optical properties of C66H4 and C70Cl6 encapsulating Li and F atoms. ACS Omega 2021, 6, 16234–16240. [Google Scholar] [CrossRef]
  36. Raghavachari, K. Perspective on “Density functional thermochemistry. III. The role of exact exchange”. Theor. Chem. Acc. 2000, 103, 361–363. [Google Scholar] [CrossRef]
  37. Frisch, M.J.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Petersson, G.A.; Nakatsuji, H.; Li, X.; et al. Gaussian 16, Revision C.01; Gaussian, Inc.: Wallingford, CT, USA, 2016.
  38. Lu, T.; Chen, F. Multiwfn: A multifunctional wavefunction analyzer. J. Comput. Chem. 2011, 33, 580–592. [Google Scholar] [CrossRef] [PubMed]
  39. Abraham, M.J.; Murtola, T.; Schulz, R.; Páll, S.; Smith, J.C.; Hess, B.; Lindahl, E. GROMACS: High performance molecular simulations through multi-level parallelism from laptops to supercomputers. SoftwareX 2015, 1–2, 19–25. [Google Scholar] [CrossRef]
  40. Jorgensen, W.L.; Maxwell, D.S.; Tirado-Rives, J. Development and testing of the opls all-atom force field on conformational energetics and properties of organic liquids. J. Am. Chem. Soc. 1996, 118, 11225–11236. [Google Scholar] [CrossRef]
  41. Wang, C.L.W.; Liao, K.; Wang, Z.; Wang, Y.; Gong, K. AuToFF Program; Version 1.0; Hzwtech: Shanghai, China, 2023. [Google Scholar]
  42. Martínez, L.; Andrade, R.; Birgin, E.G.; Martínez, J.M. PACKMOL: A package for building initial configurations for molecular dynamics simulations. J. Comput. Chem. 2009, 30, 2157–2164. [Google Scholar] [CrossRef]
  43. Humphrey, W.; Dalke, A.; Schulten, K. VMD: Visual molecular dynamics. J. Mol. Graph. 1996, 14, 33–38. [Google Scholar] [CrossRef] [PubMed]
  44. Momma, K.; Izumi, F. VESTA 3 for three-dimensional visualization of crystal, volumetric and morphology data. J. Appl. Crystallogr. 2011, 44, 1272–1276. [Google Scholar] [CrossRef]
  45. Lai, P.; Huang, B.; Deng, X.; Li, J.; Hua, H.; Zhang, P.; Zhao, J. A localized high concentration carboxylic ester-based electrolyte for high-voltage and low temperature lithium batteries. Chem. Eng. J. 2023, 461, 141904. [Google Scholar] [CrossRef]
Molecules 29 02955 g001

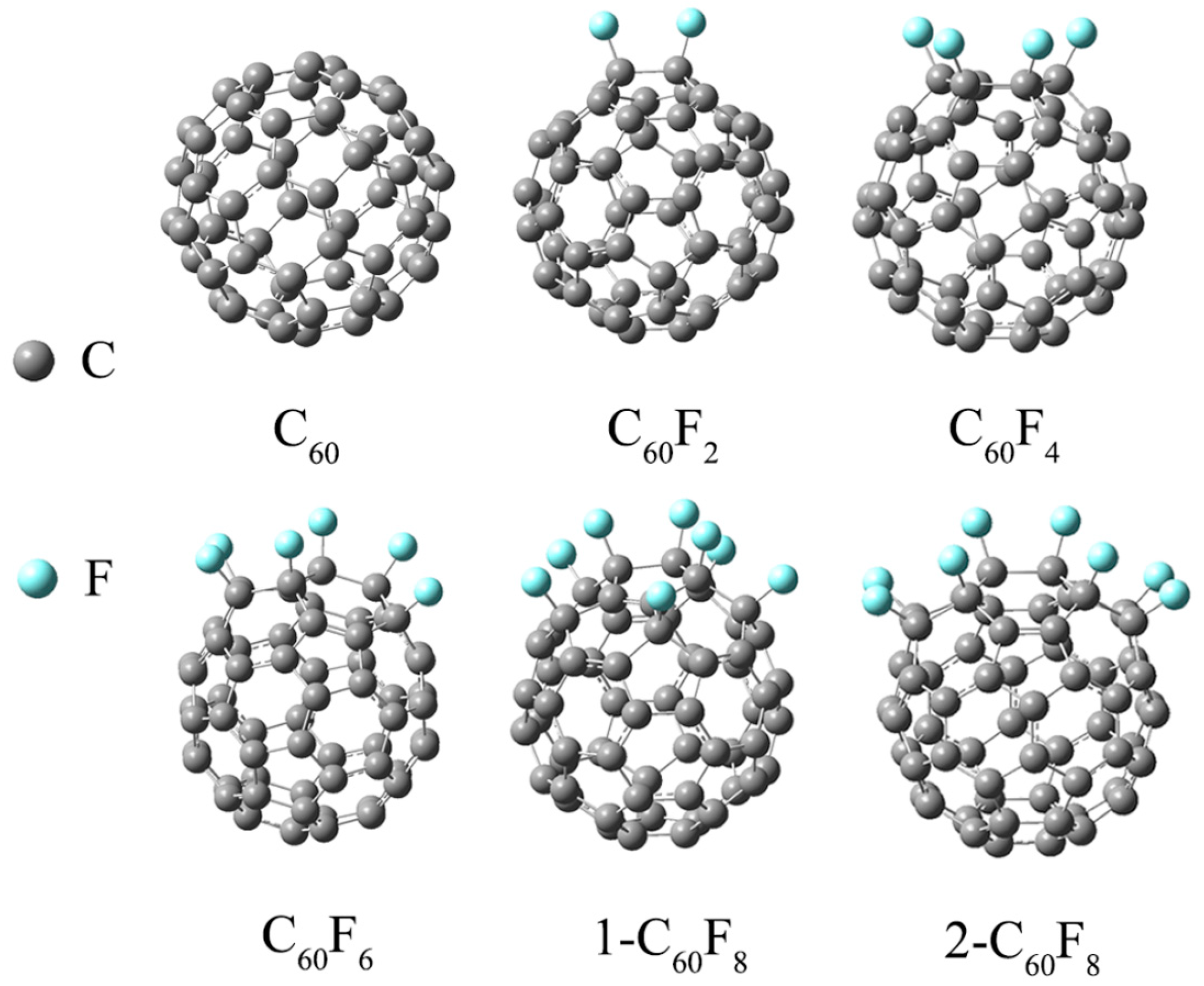

Figure 1. Optimized geometry of fullerene C60 and fluorinated fullerene.
Figure 1. Optimized geometry of fullerene C60 and fluorinated fullerene.
Molecules 29 02955 g001
Molecules 29 02955 g002

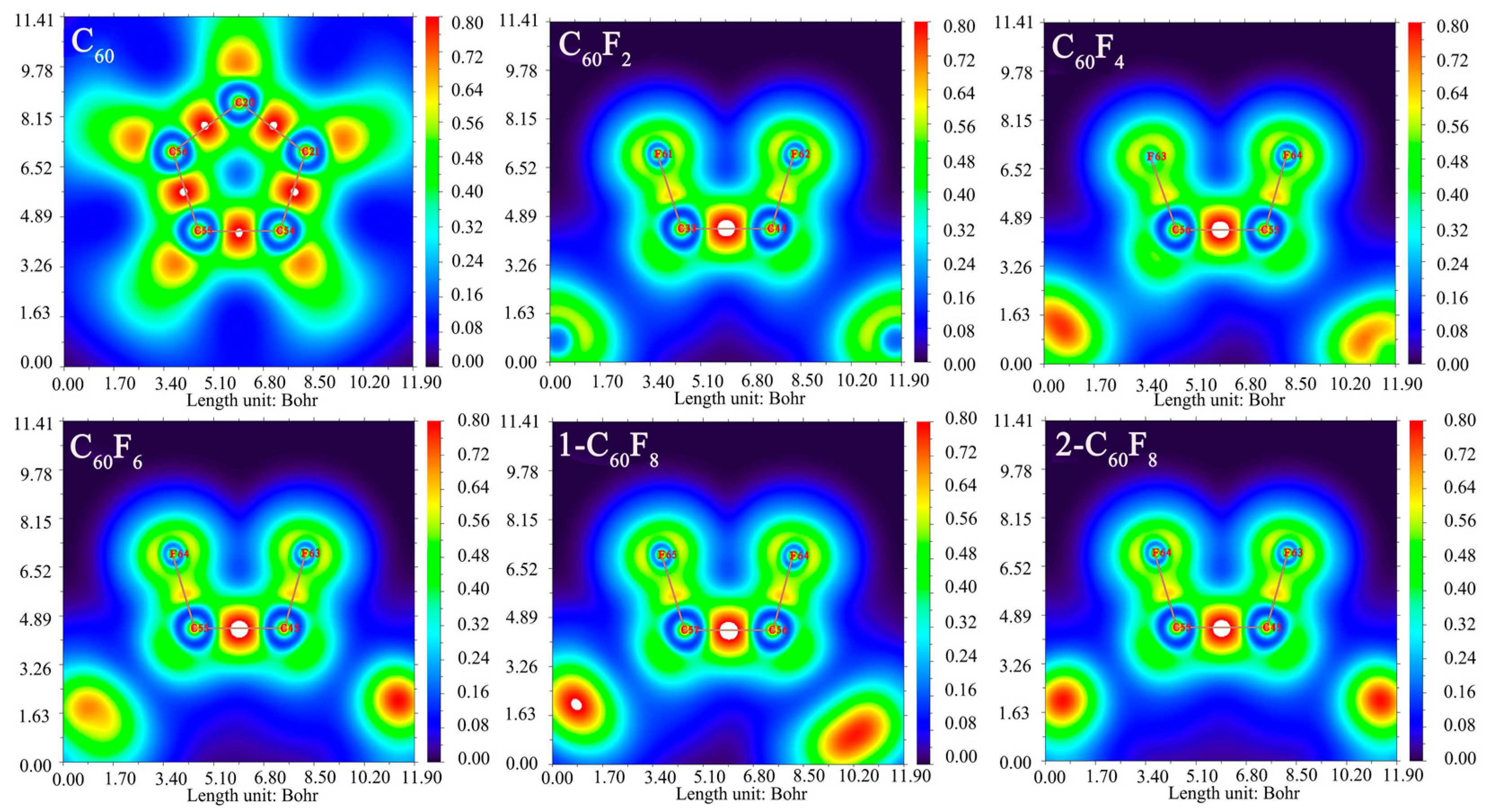

Figure 2. Two-dimensional localized orbital locator (LOL) map of fullerenes and fluorinated fullerenes. The slice plane is defined by the C and F atoms.
Figure 2. Two-dimensional localized orbital locator (LOL) map of fullerenes and fluorinated fullerenes. The slice plane is defined by the C and F atoms.
Molecules 29 02955 g002
Molecules 29 02955 g003

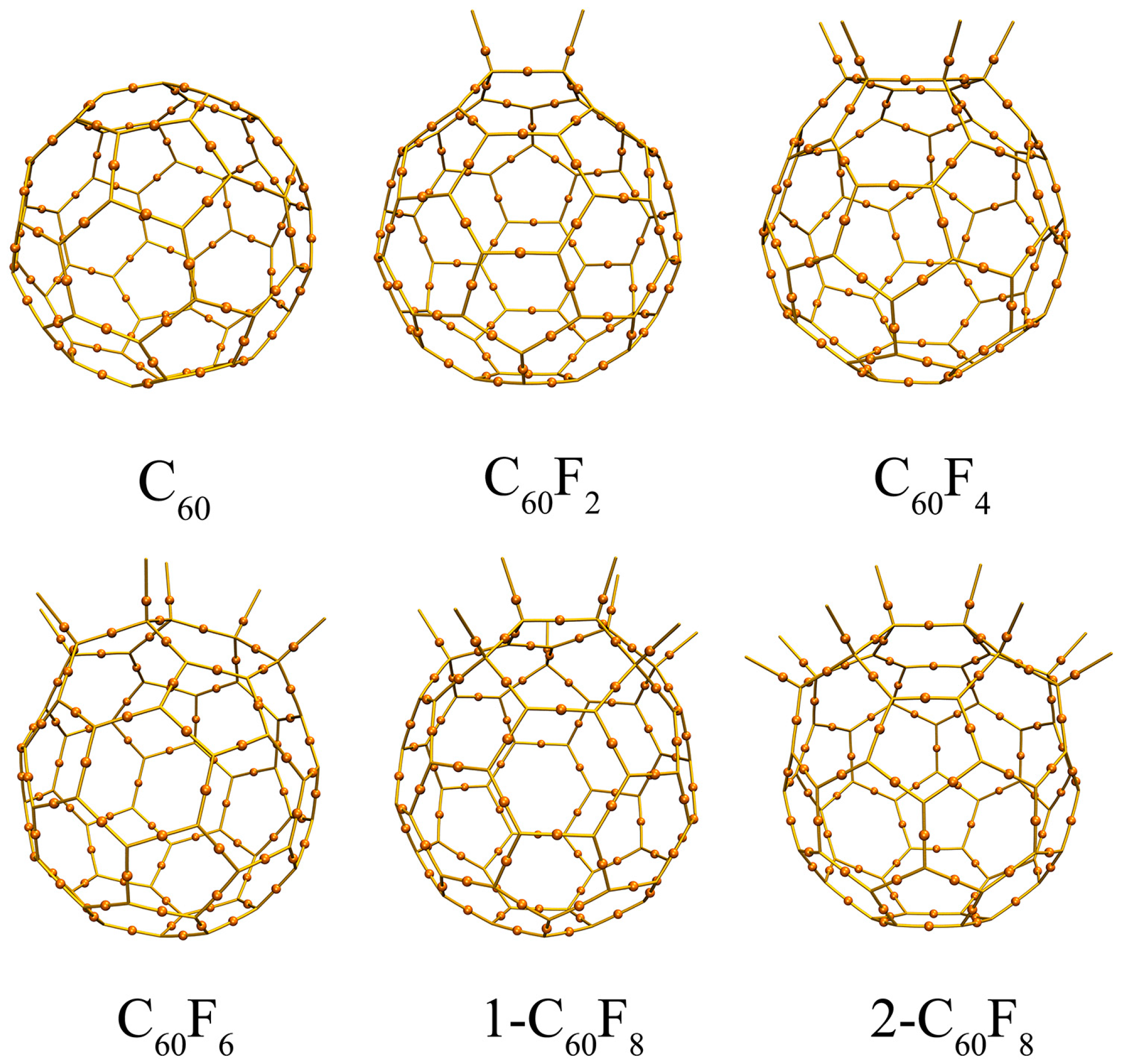

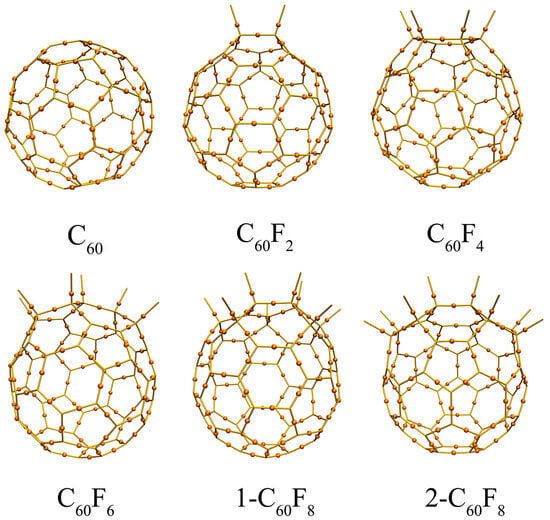

Figure 3. Critical points of (3, −1) for fullerene and fluorinated fullerenes.
Figure 3. Critical points of (3, −1) for fullerene and fluorinated fullerenes.
Molecules 29 02955 g003
Molecules 29 02955 g004

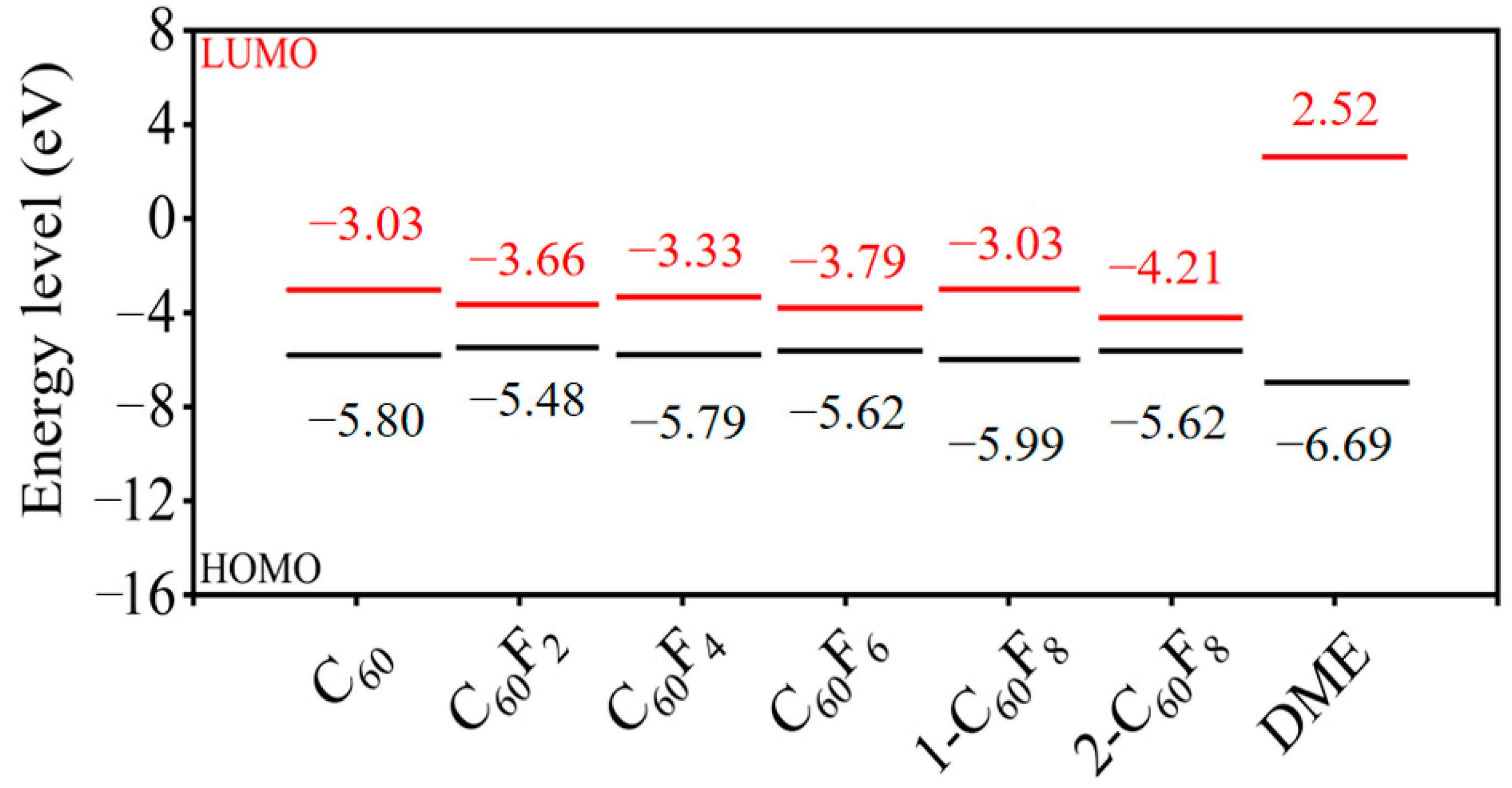

Figure 4. HOMO and LUMO energy levels for fullerene, fluorinated fullerene, and solvent DME.
Figure 4. HOMO and LUMO energy levels for fullerene, fluorinated fullerene, and solvent DME.
Molecules 29 02955 g004
Molecules 29 02955 g005

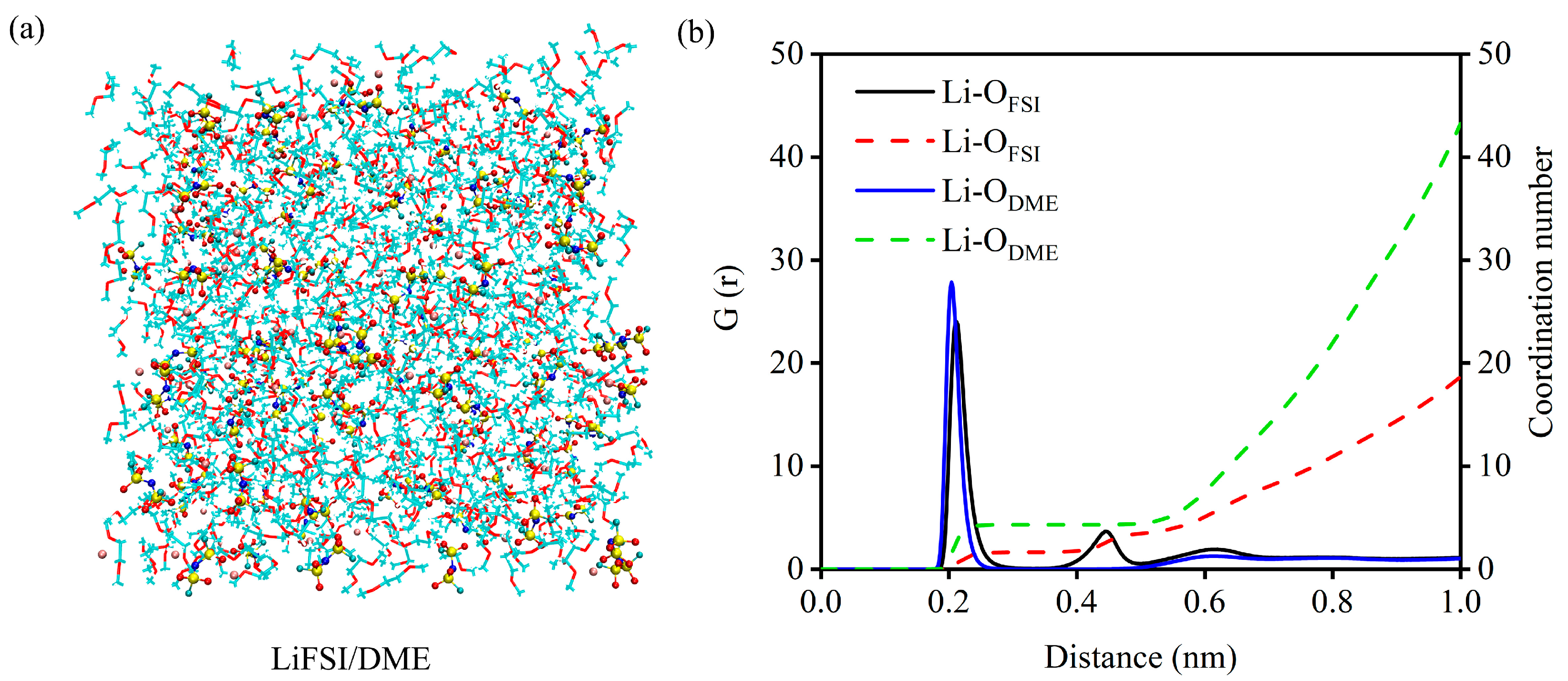

Figure 5. (a) Structure snapshot, (b) radial distribution function and coordination number of LiFSI/DME electrolyte model. The DME solvent molecules are shown in line models, and LiFSI molecules are shown in ball-and-stick models, the red balls are the oxygen atoms, the yellow balls are the sulfur atoms, the blue balls are the nitrogen atoms, the cyan balls are the fluorine atoms and the pink balls are the lithium atoms.
Figure 5. (a) Structure snapshot, (b) radial distribution function and coordination number of LiFSI/DME electrolyte model. The DME solvent molecules are shown in line models, and LiFSI molecules are shown in ball-and-stick models, the red balls are the oxygen atoms, the yellow balls are the sulfur atoms, the blue balls are the nitrogen atoms, the cyan balls are the fluorine atoms and the pink balls are the lithium atoms.
Molecules 29 02955 g005
Molecules 29 02955 g006

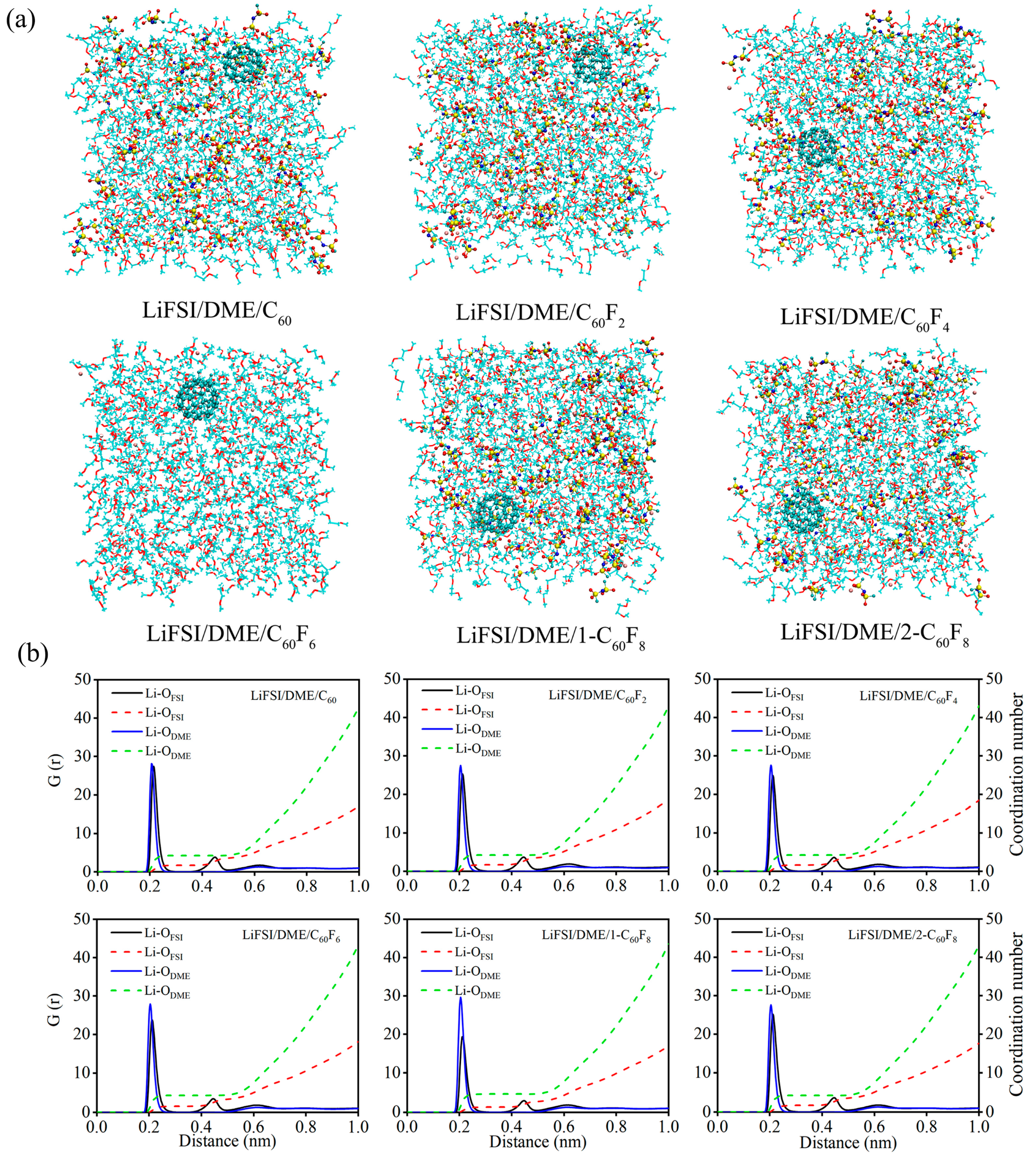

Figure 6. (a) Structure snapshots, (b) radial distribution functions and coordination numbers of Li+ with anions and solvents for different electrolytes. The DME solvent molecules are shown in line models, fullerene, fluorinated fullerenes and and LiFSI molecules are shown in ball-and-stick models, the red balls are the oxygen atoms, the yellow balls are the sulfur atoms, the blue balls are the nitrogen atoms, the cyan balls are the fluorine atoms and the pink balls are the lithium atoms.
Figure 6. (a) Structure snapshots, (b) radial distribution functions and coordination numbers of Li+ with anions and solvents for different electrolytes. The DME solvent molecules are shown in line models, fullerene, fluorinated fullerenes and and LiFSI molecules are shown in ball-and-stick models, the red balls are the oxygen atoms, the yellow balls are the sulfur atoms, the blue balls are the nitrogen atoms, the cyan balls are the fluorine atoms and the pink balls are the lithium atoms.
Molecules 29 02955 g006
Molecules 29 02955 g007

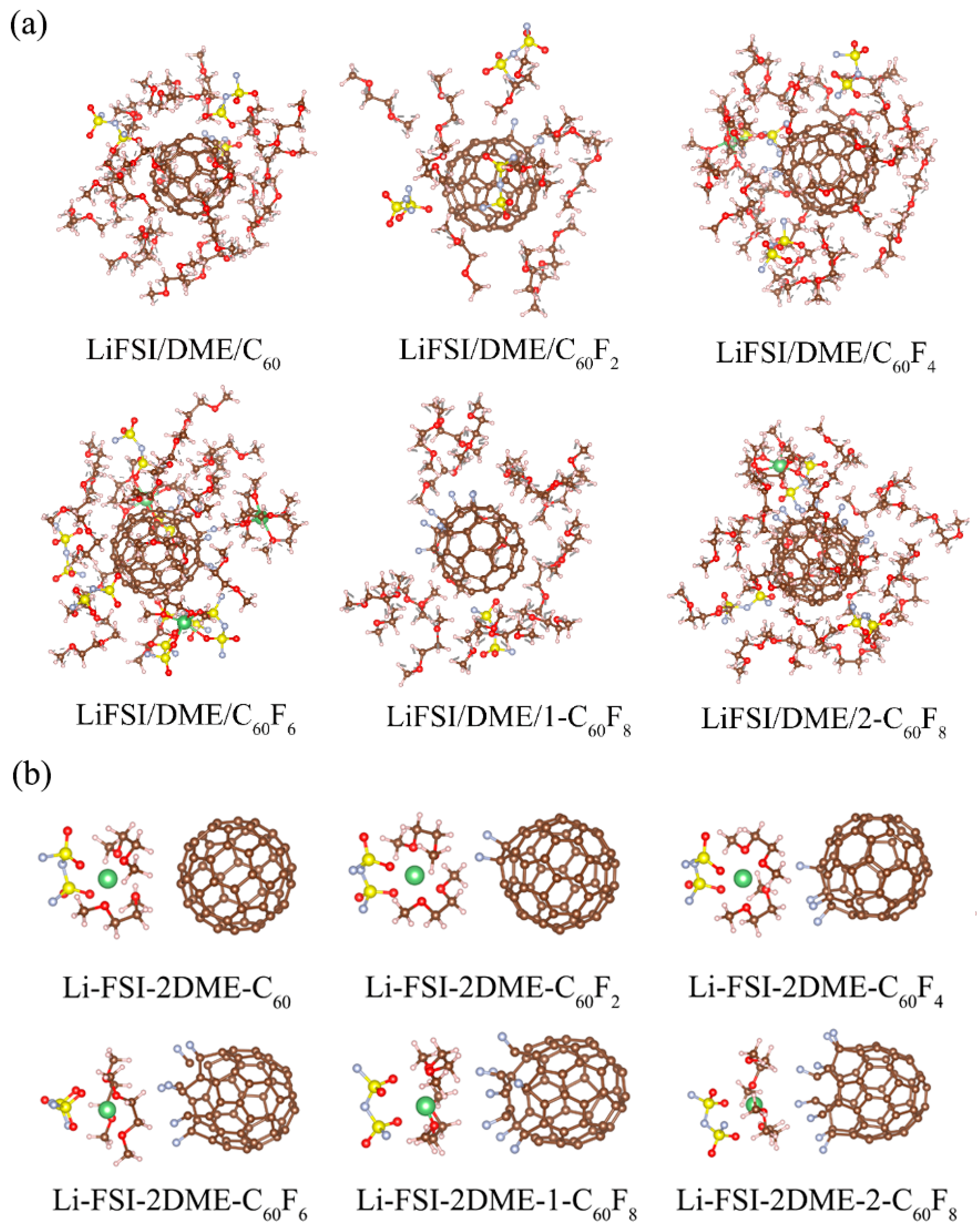

Figure 7. (a) Substances within 5 Å of the additive after MD equilibration. (b) Optimized solvation structures by DFT. The brown balls are carbon atoms, the gray balls are fluorine atoms, the red balls are oxygen atoms, the pink balls are hydrogen atoms, the yellow balls are sulfur atoms, and the green balls are the lithium atoms.
Figure 7. (a) Substances within 5 Å of the additive after MD equilibration. (b) Optimized solvation structures by DFT. The brown balls are carbon atoms, the gray balls are fluorine atoms, the red balls are oxygen atoms, the pink balls are hydrogen atoms, the yellow balls are sulfur atoms, and the green balls are the lithium atoms.
Molecules 29 02955 g007
Molecules 29 02955 g008

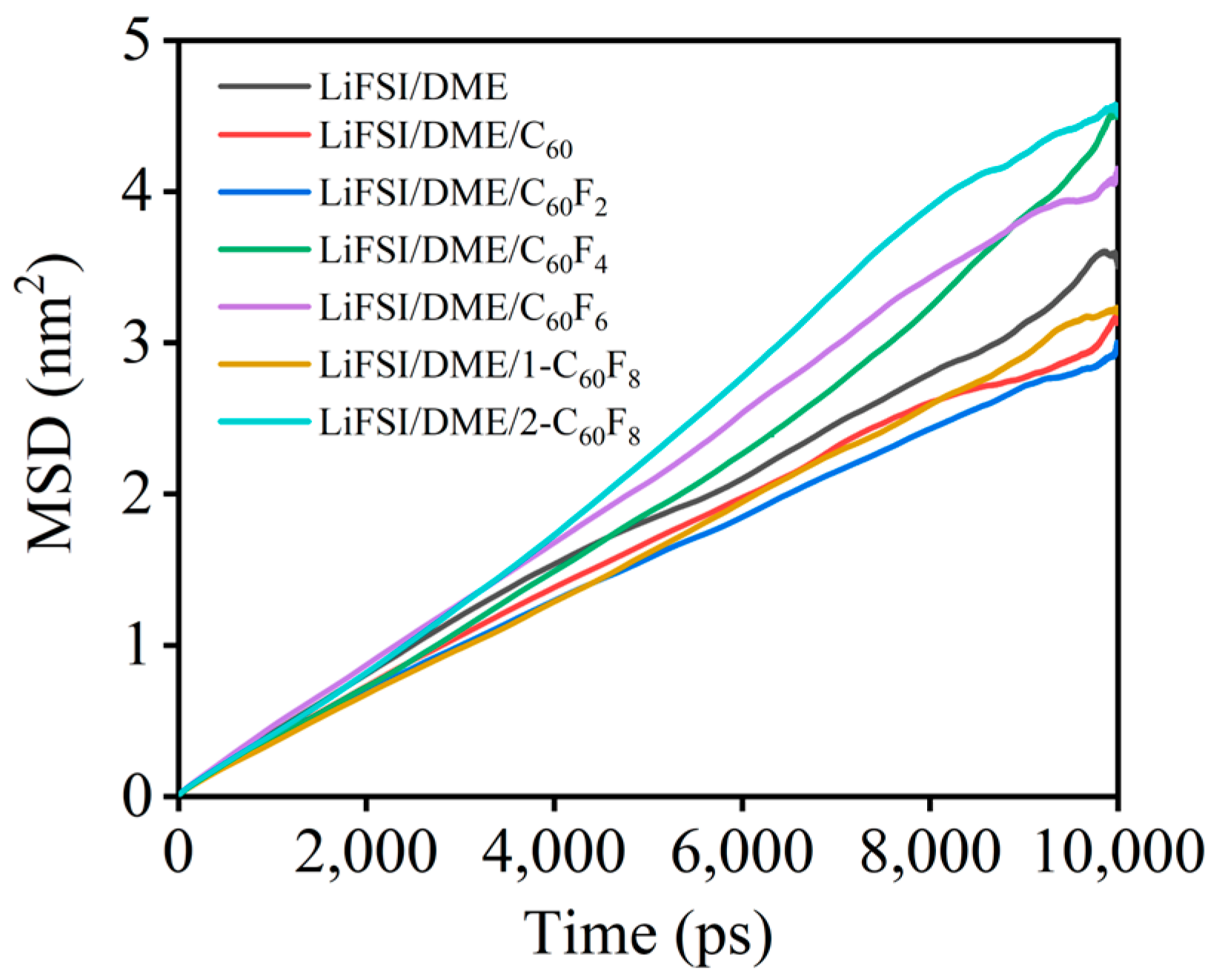

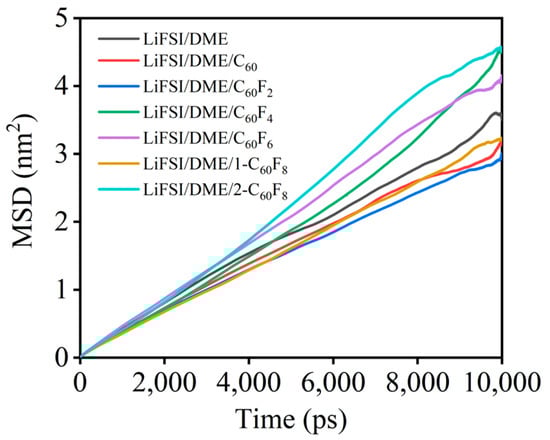

Figure 8. Mean square displacements of Li+ under different electrolytes.
Figure 8. Mean square displacements of Li+ under different electrolytes.
Molecules 29 02955 g008
Table 1. The calculated bond length (L), density of all electrons (ρBCP), energy density (HBCP), potential energy density to Lagrangian kinetic energy (|VBCP|/GBCP), and Mayer bond order (MBO) values for C-C and C-F bonding. Also shown is the NPA charge of the F atom in fullerenes and fluorinated fullerenes.
Table 1. The calculated bond length (L), density of all electrons (ρBCP), energy density (HBCP), potential energy density to Lagrangian kinetic energy (|VBCP|/GBCP), and Mayer bond order (MBO) values for C-C and C-F bonding. Also shown is the NPA charge of the F atom in fullerenes and fluorinated fullerenes.
FeaturesC60C60F2C60F4C60F61-C60F82-C60F8
C-C bondingL (Å)1.451.621.601.621.581.58
ρBCP0.280.220.260.220.230.21
HBCP−0.25−0.16−0.21−0.16−0.18−0.15
|VBCP|/GBCP4.114.674.604.674.874.71
MBO1.160.870.890.890.890.88
C-F bondingL (Å)/1.391.381.391.361.38
ρBCP/0.240.240.240.250.24
HBCP/−0.32−0.34−0.33−0.35−0.33
|VBCP|/GBCP/2.122.052.072.042.07
MBO/0.830.810.820.840.83
F atomNPA charge/−0.37−0.36−0.35−0.35−0.35
Table 2. Coordination number of Li+ with anions (CN-Li+-OFSI−) and solvents (CN-Li+-ODME) in different electrolyte systems.
Table 2. Coordination number of Li+ with anions (CN-Li+-OFSI−) and solvents (CN-Li+-ODME) in different electrolyte systems.
ElectrolytesCN-Li+-OFSI−CN-Li+-ODME
LiFSI/DME1.904.07
LiFSI/DME/C601.744.25
LiFSI/DME/C60F21.734.25
LiFSI/DME/C60F41.684.29
LiFSI/DME/C60F61.614.37
LiFSI/DME/1-C60F81.334.65
LiFSI/DME/2-C60F81.734.24
Table 3. Electrolyte properties simulated by molecular dynamics.
Table 3. Electrolyte properties simulated by molecular dynamics.
ElectrolytesBox Size
(nm)		Molar RatioViscosity
(103 μPa·s)		Diffusion Coefficient
(1 × 107 cm2/s)
LiFSI/DME4.81 × 4.81 × 4.81100:6023.645.30
LiFSI/DME/C604.82 × 4.82 × 4.82100:602:13.595.16
LiFSI/DME/C60F24.81 × 4.81 × 4.81100:602:14.464.78
LiFSI/DME/C60F44.81 × 4.81 × 4.81100:602:14.416.43
LiFSI/DME/C60F64.81 × 4.81 × 4.81100:602:13.576.79
LiFSI/DME/1-C60F84.81 × 4.81 × 4.81100:602:14.925.26
LiFSI/DME/2-C60F84.82 × 4.82 × 4.82100:602:13.998.15
