Review

Structural and Photophysical Trends in Rhenium(I) Carbonyl Complexes with 2,2′:6′,2″-Terpyridines

by
Joanna Palion-Gazda
*,
Katarzyna Choroba
,
Anna Maria Maroń
,
Ewa Malicka
and
Barbara Machura
*
Institute of Chemistry, University of Silesia, 9 Szkolna Str., 40-006 Katowice, Poland
*
Authors to whom correspondence should be addressed.
Molecules 2024, 29(7), 1631; https://doi.org/10.3390/molecules29071631
Submission received: 25 March 2024 / Revised: 2 April 2024 / Accepted: 4 April 2024 / Published: 5 April 2024
(This article belongs to the Section Inorganic Chemistry)
Browse Figures
Versions Notes

Abstract

:
This is the first comprehensive review of rhenium(I) carbonyl complexes with 2,2′:6′,2″-terpyridine-based ligands (R-terpy)—encompassing their synthesis, molecular features, photophysical behavior, and potential applications. Particular attention has been devoted to demonstrating how the coordination mode of 2,2′:6′,2″-terpyridine (terpy-κ2N and terpy-κ3N), structural modifications of terpy framework (R), and the nature of ancillary ligands (X—mono-negative anion, L—neutral ligand) may tune the photophysical behavior of Re(I) complexes [Re(X/L)(CO)3(R-terpy-κ2N)]0/+ and [Re(X/L)(CO)2(R-terpy-κ3N)]0/+. Our discussion also includes homo- and heteronuclear multicomponent systems with {Re(CO)3(R-terpy-κ2N)} and {Re(CO)2(R-terpy-κ3N)} motifs. The presented structure–property relationships are of high importance for controlling the photoinduced processes in these systems and making further progress in the development of more efficient Re-based luminophores, photosensitizers, and photocatalysts for modern technologies.

Graphical Abstract

1. Introduction

Rhenium(I) tricarbonyl coordination compounds with phenanthroline-based ligands were the first metal carbonyls reported to exhibit luminescence in solution at room temperature (RT). The broad and non-structured emission band of these systems was attributed to phosphorescence from the triplet excited state of metal-to-ligand charge transfer (MLCT) nature, evolving from the optically populated 1MLCT state via intersystem crossing (ISC) due to the large spin–orbit coupling constant of the Re(I) ion [1]. Since Wrighton’s pioneering report, photoluminescent tricarbonyl rhenium(I) compounds with ligands based on diimine cores have been widely synthesized and extensively explored in order to: (i) understand light-induced energy and charge transfer processes in transition metal complexes, (ii) design functional materials suitable for use in optoelectronics, photoinduced catalysis, and biomedicine, as well as (iii) establish reliable relationships between structural modifications of diimine (N∩N)/ancillary (X/L) ligands and the photophysical behavior of the resulting [Re(X/L)(CO)3(N∩N)]0/+, necessary for progress in improving phosphorescent materials and potent chemotherapeutic drugs. It has been evidenced that [Re(X/L)(CO)3(N∩N)]0/+ complexes may be characterized by different triplet excited states, including metal-to-ligand charge transfer (MLCT), ligand-to-ligand-charge-transfer (LLCT), intraligand (IL), intraligand-charge-transfer (ILCT), or their superposition, and each of these excited states brings characteristic photophysical properties to the resulting complex [2,3,4,5,6,7,8,9,10,11,12,13]. Due to the rich and finely tuned photochemistry, achieved through an appropriate combination of diimine and ancillary ligands, accompanied by their efficient synthesis, and possessing good thermal and photochemical stability, the systems [Re(X/L)(CO)3(N∩N)]0/+ have proven to be appealing for various applications. These include photocatalytic carbon dioxide reduction [14,15,16,17,18,19] and H2 evolution [20,21,22,23], organic light-emitting diodes (OLEDs) [24,25,26,27], phosphorescent molecular sensing [28,29], and medicinal applications [11,13,30,31].
Within this work, we present a comprehensive review of Re(I) carbonyl complexes with 2,2′:6′,2″-terpyridine-based ligands (R-terpy). The rhenium(I) carbonyl complex with 2,2′:6′,2″-terpyridine (terpy) was first reported in 1988 by Juris et al. In analogy to diimine tricarbonyl Re(I) coordination compounds, it was obtained by reacting [Re(CO)5Cl] with the terpy ligand in toluene under reflux conditions. Initially identified as [ReCl(CO)2(terpy-κ3N)], with terpy meridionally-coordinated to the Re(I) center (terpy-κ3N) [32], the more advanced spectroscopic investigations and isolation of the terpy Re(I) carbonyl complex in a monocrystalline form, followed by subsequent X-ray analysis, revealed a bidentate coordination mode of terpy (terpy-κ2N) in the product of the reaction [33,34,35]. As widely reported later [36,37,38], further removal of the carbonyl group and formation of [ReCl(CO)2(terpy-κ3N)] require much harsher reaction conditions. The Re(I) carbonyls with meridionally coordinated terpy are obtained by the solid-state thermal elimination of CO following the coordination of the pendant pyridyl group in the [ReCl(CO)3(terpy-κ2N)] precursor [36,37,38].
Regarding photophysical behavior, [ReCl(CO)3(terpy-κ2N)] was initially found to be non-emissive in solution at RT [32], which led to a noticeable decline in scientific interest in this class of compounds compared to diimine Re(I) tricarbonyl compounds. The striking difference in the emission properties between [ReCl(CO)3(terpy-κ2N)] and its analog [ReCl(CO)3(bipy)] (bipy—2,2′-bipyridine) was rationalized by the thermal coupling of 3MLCT and 3IL excited states, diminished in the bipy-based Re(I) carbonyl due to the larger energy separation between 3MLCT and 3IL [39]. However, the repetition of spectroscopic investigation of [ReCl(CO)3(terpy-κ2N)] by Amoroso et al. showed that the complex is weakly emissive, both in solution and the solid state [39]. Since 2013, there has been renewed interest in the photophysics of terpy-based Re(I) carbonyl complexes. It was assumed that variations in the terpy core and ancillary ligand (X/L) might lead to a significant enhancement of photoluminescence and improve the photocatalytic performance of [Re(X/L)(CO)3(R-terpy-κ2N)]0/+ systems, offering a chance to develop new functional materials for modern technologies and expand the fundamental knowledge and understanding in optimizing the photophysical properties of transition metal complexes. The great advantage of 2,2′:6′,2″-terpyridines is their efficient synthesis method (Kröhnke condensation), allowing for the incorporation of a wide range of electron-withdrawing or donating groups into the terpy core. Furthermore, compared to diimine derivatives, 2,2′:6′,2″-terpyridine-based ligands provide the possibility of additional modification of the photophysical properties of Re(I) carbonyl systems through coordination to the Re(I) center.
The purpose of this review is to demonstrate the effect of the 2,2′:6′,2″-terpyridine coordination mode (terpy-κ2N and terpy-κ2N), structural modifications of the terpy core (R-terpy), and the nature of ancillary ligands (X/L) in controlling the photophysical properties of mononuclear and multicomponent systems with {Re(CO)3(R-terpy-κ2N)} and {Re(CO)2(R-terpy-κ3N)} motifs.

2. Structural Features of [ReX(CO)3(terpy-κ2N)] and [ReX(CO)2(terpy-κ3N)] Systems and Their Derivatives

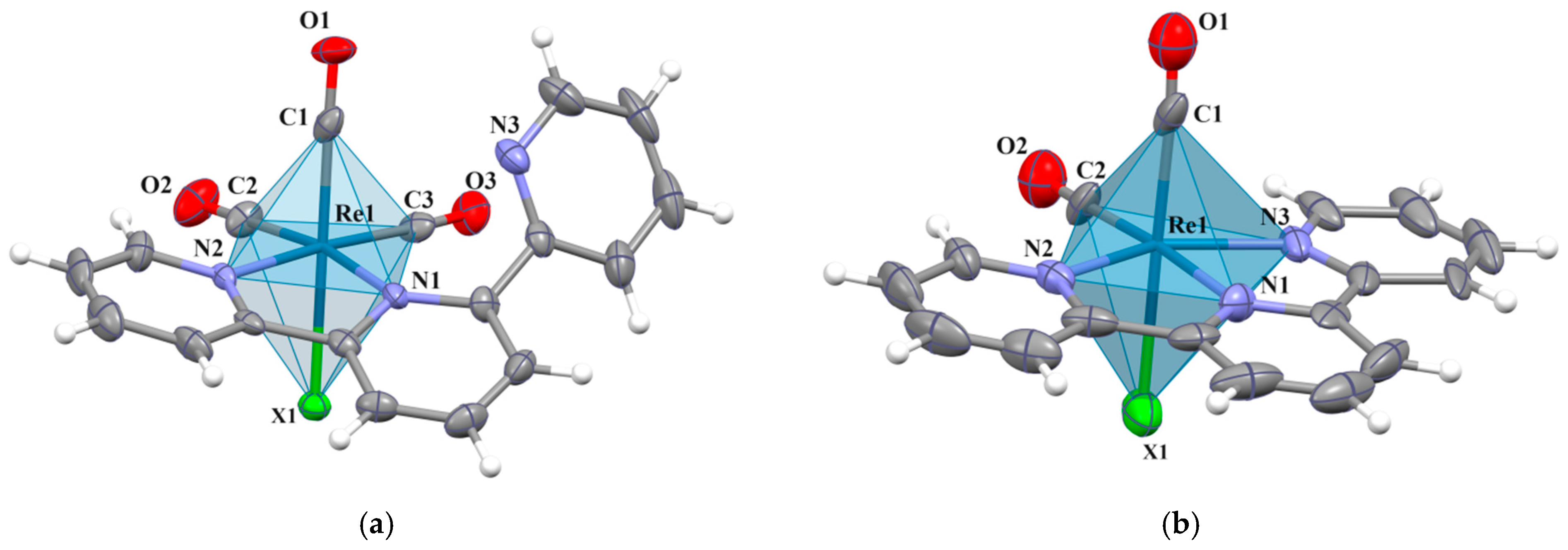

The solid-state structures of [ReX(CO)3(terpy-κ2N)] and [ReX(CO)2(terpy-κ3N)] (X = Cl, Br) were reported in [33,34,35,38], and the important structural features of these systems are depicted in Figure 1 and summarized in Table 1. In both [ReX(CO)3(terpy-κ2N)] and [ReX(CO)2(terpy-κ3N)], the Re(I) atom adopts a distorted octahedral geometry. The coordination sphere of [ReX(CO)3(terpy-κ2N)] is defined by three carbonyl ligands in a facial arrangement, a chloride ion, and two nitrogen atoms of the bidentate-coordinated terpy ligand (Figure 1a). On the other hand, the geometry around the Re(I) center in [ReX(CO)2(terpy-κ3N)] is determined by two cis-oriented carbonyl groups, a chloride ion and three nitrogen atoms of a meridionally-coordinated terpy ligand (Figure 1b). From a structural point of view, [ReX(CO)3(terpy-κ2N)] can be considered as a derivative of the diimine tricarbonyl complex [ReX(CO)3(bipy)] with an uncoordinated pyridyl ring as a substituent.

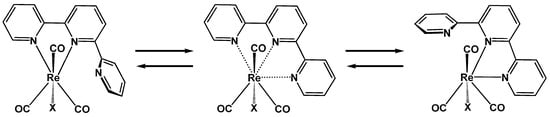

A different coordination mode of terpy induces noticeable variations in the bond lengths and angles in [ReX(CO)3(terpy-κ2N)] and [ReX(CO)2(terpy-κ3N)] (Table 1). The Re–N distances, especially those between the metal ion and the central pyridine ring of terpy, undergo shortening after conversion from the κ2N to κ3N coordination mode, indicating a stronger Re-terpy interaction in the complex bearing a meridionally-coordinated terpy ligand. In turn, the Re–CO bonds become elongated upon changing the terpy coordination mode from bidentate to tridentate, and elongation of the Re–CO distances in [ReX(CO)2(terpy-κ3N)] is accompanied by the shortening of C–O bond lengths relative to those in [ReX(CO)3(terpy-κ2N)]. Opposite trends are also noticed when Re–Ncentral pyridine and Re–Nlateral pyridine distances are compared for [ReX(CO)3(terpy-κ2N)] and [ReX(CO)2(terpy-κ3N)]. While the Re(I) complexes with terpy-κ3N show Re–Ncentral pyridine bond lengths significantly shorter than Re–Nlateral pyridine ones, the Re–Ncentral pyridine distances are noticeably elongated in relation to Re–Nlateral pyridine ones in the terpy-κ2N systems. Expectedly, the longer Re–N bond distances induce the smaller bite angles in [ReX(CO)3(terpy-κ2N)] relative to those for [ReX(CO)2(terpy-κ3N)] [40]. For both systems, [ReX(CO)3(terpy-κ2N)] and [ReX(CO)2(terpy-κ3N)], however, due to the geometrical constraints imposed by the formation of the five-member chelate rings upon coordination of terpy, the angles N–Re–N are noticeably smaller than 90°, leading to an essential distortion from the ideal octahedron. In Re(I) complexes with the terpy ligand coordinated in a bidentate mode, the relevant angular distortion of the coordination sphere is also contributed by steric interactions between the uncoordinated peripheral pyridine ring and the carbonyl group C(3)–O(3), leading to the loss of the coplanarity of the terpy skeleton in [ReX(CO)3(terpy-κ2N)] and enlargement of the C(3)–Re(1)–N(1) bond angle. For reported structures of [ReX(CO)3(terpy-κ2N)], the bond angles C(3)–Re(1)–N(1) are the largest ones among those for cis-arranged ligands, falling in the range 100.7(4)–102.67(3)°. The dihedral angles between the least squares planes of the central pyridine and the pendant pyridyl group in [ReX(CO)3(terpy-κ2N)] structures vary from 40.2(4) to 69.58(3)° (Table 1).
As widely reported in [33,35,41,42,43,44], the terpy bidentate coordination mode of [ReX(CO)3(terpy-κ2N)] is also maintained in solution, with the terpy ligand exhibiting fluxionality. It switches its metal coordination sites between pendant pyridyl groups via an associative mechanism implying a seven-coordinate intermediate (Scheme 1).
Table 1. Selected bond lengths (Å) and angles (s) for [ReX(CO)3(terpy-κ2N)] and [ReX(CO)2(terpy-κ3N)] (X = Cl, Br).
Table 1. Selected bond lengths (Å) and angles (s) for [ReX(CO)3(terpy-κ2N)] and [ReX(CO)2(terpy-κ3N)] (X = Cl, Br).
[ReX(CO)3(terpy-κ2N)][ReCl(CO)3(terpy-κ3N)]
Refcode *WAFVOO
[33]		WAFVOO1
[33]		BOFYOLILEGIR
[38]		PAVKUS
[34] 		SUHDII
[35]		SUHDII01
[35]		SUHDII02
[35]		ILEHIS
[38]
XClClClClCl Br Br Br –
Bond lengths
Re(1)–X(1)2.4877(6)2.4936(7)2.4907(8)2.496(2)2.4932(11)2.6306(13)2.6409(3)2.6408(6)2.489(2)
Re(1)–N(1)2.2059(5)2.214(2)2.215(2)2.232(9)2.228(3)2.210(8)2.2283(19)2.233(3)2.079(7)
Re(1)–N(2)2.1710(3)2.161(2)2.159(3)2.165(6)2.151(2)2.144(8)2.174(3)2.173(4)2.118(8)
Re(1)–N(3) 2.124(8)
Re(1)–C(1)1.9019(5)1.907(3)1.915(3)1.902(10)1.880(4)1.896(13)1.886(3)1.895(4)1.963(8)
Re(1)–C(2)1.9085(4)1.909(3)1.904(3)1.892(11)1.903(4)1.889(11)1.913(3)1.911(4)1.917(8)
Re(1)–C(3)1.9363(3)1.928(2)1.937(3)1.935(8)1.909(4)1.898(11)1.922(3)1.921(5)
C(1)–O(1)1.1509(3)1.154(4)1.146(4)1.150(12)1.157(6)1.158(15)1.154(3)1.152(5)1.061(11)
C(2)–O(2)1.1349(3)1.150(3)1.158(4)1.159(14)1.153(5)1.158(14)1.150(3)1.150(5)1.14(1)
C(3)–O(3)1.1139(2)1.147(3)1.146(4)1.125(11)1.171(5)1.160(13)1.152(4)1.154(7)
Bond angles
N(1)–Re(1)–Cl(1)83.21(3)83.16(6)82.66(7)81.59(19)81.98(8)82.3(2)82.05(5)82.09(9)82.04(19)
N(2)–Re(1)–Cl(1)83.62(2)83.35(6)82.26(7)84.05(18)82.66(9)84.6(2)85.71(5)85.68(8)85.29(19)
N(3)–Re(1)–Cl(1) 88.71(19)
N(1)–Re(1)–N(2)75.15(1)74.74(7)75.02(9)74.50(20)74.3(1)74.2(3)74.80(8)74.63(11)77.3(3)
N(1)–Re(1)–N(3) 76.6(3)
N(2)–Re(1)–N(3) 153.8(3)
C(1)–Re(1)–Cl(1)178.046(1)178.22(8)177.53(11)179.9(3)175.68(12)176.8(3)177.89(9)177.61(13)176.3(2)
C(1)–Re(1)–N(1)94.64(3)96.66(10)95.51(12)98.3(4)99.41(14)98.8(4)96.37(9)95.92(14)94.5(3)
C(1)–Re(1)–N(2)94.45(2)94.89(9)98.90(11)95.9(3)93.75(15)98.6(4)92.53(11)92.53(15)92.7(3)
C(1)–Re(1)–N(3) 91.8(4)
C(2)–Re(1)–Cl(1)90.78(3)90.42(9)96.05(9)91.7(3)89.71(14)92.3(4)92.70(8)92.68(12)91.8(2)
C(2)–Re(1)–N(1)169.974(3)169.58(10)171.13(11)169.2(3)168.48(14)170.7(4)171.26(12)171.12(16)173.6(3)
C(2)–Re(1)–N(2)96.26(1)96.43(9)96.11(11)95.5(3)96.82(14)97.9(4)97.92(11)97.91(14)103.9(3)
C(2)–Re(1)–N(3) 101.8(3)
C(2)–Re(1)–C(1)89.09(3)89.50(12)86.01(14)88.5(4)88.33(18)87.0(5)88.70(11)89.12(16)91.7(4)
C(2)–Re(1)–C(3)85.34(2)85.68(11)86.70(14)87.5(4)85.87(17)86.6(5)86.11(13)85.75(17)
C(3)–Re(1)–Cl(1)90.59(2)91.43(9)89.22(9)92.9(3)94.52(14)88.1(4)91.58(8)91.63(12)
C(3)–Re(1)–N(1)102.67(1)102.62(9)102.04(12)101.1(4)102.64(14)100.7(4)100.95(10)101.50(14)
C(3)–Re(1)–N(2)174.003(1)174.38(10)171.26(10)175.0(4)176.07(16)171.6(4)175.23(9)175.55(13)
C(3)–Re(1)–C(1)91.35(2)90.33(11)89.53(13)87.1(4)89.17(18)88.7(5)90.09(13)90.06(18)
Dihedral angle **69.58(3)68.95(9)63.75(11)40.2(4)53.27(13)52.9(4)42.31(9)42.26(13)–
* Refcode in the Cambridge Structural Database, version 2023.3 (November 2023) [45]. ** Dihedral angle between the least squares planes of the central pyridine and pendant pyridyl group.
Analysis of X-ray results for [ReX(CO)3(R-terpy-κ2N)] and [ReX(CO)2(R-terpy-κ3N)] bearing 4′-substituted 2,2′:6′,2″-terpyridines (R-terpy) indicates that the introduction of different types of groups into the terpy core, directly or via an aromatic linker, does not induce noticeable structural variations in the {ReClN2C3} coordination core. The bond lengths and bond angles around the Re(I) ion are comparable to those for the model chromophores [ReX(CO)3(terpy-κ2N)] and [ReX(CO)2(terpy-κ3N)] (Tables S1 and S2). Also, the replacement of the halide ion by a neutral ligand and formation of [ReL(CO)3(R-terpy-κ2N)]+ and [ReL(CO)2(R-terpy-κ3N)]+ does not generate large changes in structural parameters in the {ReN2C3} {ReN3C2} coordination units, respectively (Tables S2 and S3). Among complexes [Re(X/L)(CO)3(R-terpy-κ2N)]0/+, structural differences are mainly noticed regarding the relative orientation of the appended aromatic group and central pyridine ring as well as the dihedral angle between the least squares planes of the central pyridine and the uncoordinated pyridyl group.

3. Photophysical Properties of [ReX(CO)3(terpy-κ2N)] and [ReX(CO)2(terpy-κ3N)]

The optical properties of [ReX(CO)3(terpy-κ2N)] (X = Cl, Br) have been extensively investigated, as reported in [32,39,46,47,48,49,50]. The absorption behavior of [ReX(CO)3(terpy-κ2N)] was found to be typical of [ReX(CO)3(diimine)] chromophores. Similar to the structurally related [ReX(CO)3(bipy)], the UV-Vis spectra of [ReX(CO)3(terpy-κ2N)] display intense bands below 350 nm attributed to π→π* and n→π* intraligand (IL) transitions, along with moderate, broad absorption in the range of 350–450 nm largely assigned to MLCT excitations (Figure 2 and Table S4). This assignment was also supported by density functional (DFT) calculations [46,47,48].

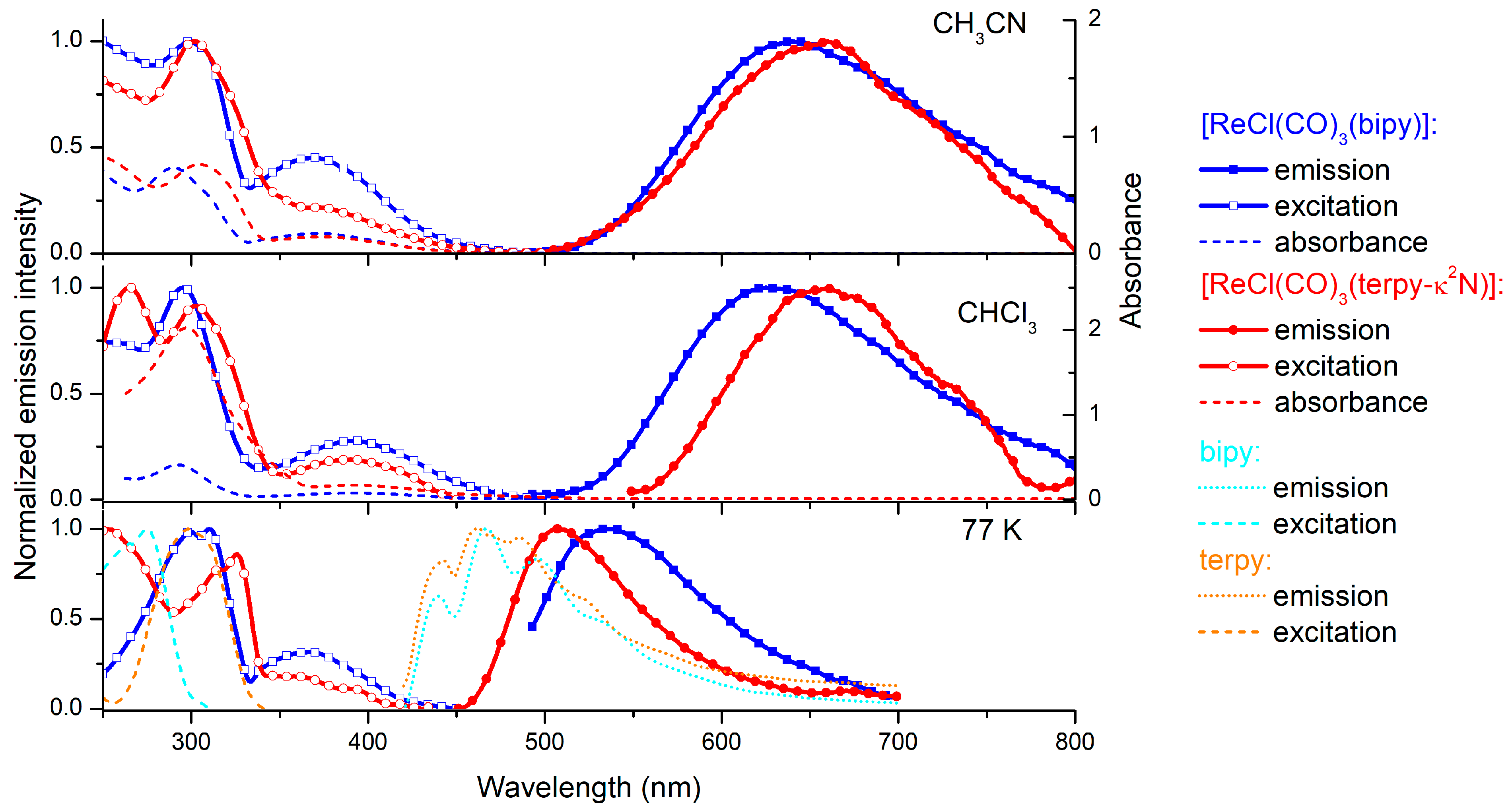

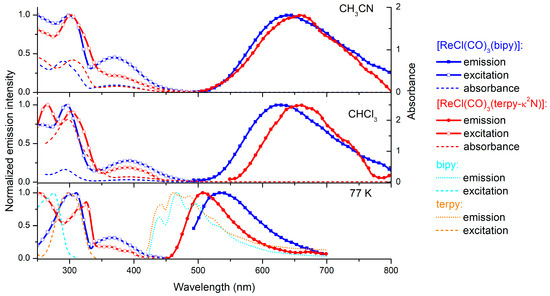

Regarding the photoluminescence properties of the Re(I) complex bearing the terpy-κ2N ligand, there is a significant discrepancy in the literature data (Table 2). The complex [ReCl(CO)3(terpy-κ2N)] was initially reported as non-luminescent in DMF solution at RT, displaying emission only at 77 K in a 9:1 DMF–CH2Cl2 glass [32]. Subsequent studies of [ReCl(CO)3(terpy-κ2N)] [39] revealed weak emission in its acetonitrile solution at 506 nm following the photoexcitation at 360 nm, but no photoluminescence quantum yield and lifetimes were recorded. The authors of [49] demonstrated that [ReCl(CO)3(terpy-κ2N)] in CH2Cl2, excited at 442 nm, displayed the emission band at 509 nm, with photoluminescence quantum yield and decay times recorded as 0.3 % and 2.02 μs, respectively. Worthy of note, the emission spectrum of [ReCl(CO)3(terpy-κ2N)], presented in [49], comprised two emission bands (at 509 and ~630 nm), but only the higher energy one was discussed by the authors. Concerning time-resolved measurements, the accuracy cannot be estimated based on the decay curves included in the ESI materials [49]. The latest studies conducted by our research group [46] revealed somewhat different photophysics of [ReCl(CO)3(terpy-κ2N)]. The emission of this complex was found to occur above 600 nm, namely at 638 nm in CHCl3 and 656 nm in MeCN, with excited-state lifetimes falling in the nanosecond range (Figure 2 and Table 2). These emission maxima and lifetimes correlate well with the results for the related bromide complex [ReBr(CO)3(terpy-κ2N)] in acetonitrile, recently reported in [47]. According to the findings of the latest research [46,47], the Re(I) complexes with the bidentate terpy ligand exhibit typical features of 3MLCT emitters, similar to their structural analogs [ReX(CO)3(bipy)]. Typically of 3MLCT, the emission bands of [ReCl(CO)3(terpy-κ2N)] remain broad and structureless in both solution and rigid-glass matrix (77 K). The solvent polarity induces bathochromic shift of the emission upon going from chloroform to acetonitrile, and the frozen-state emissions are significantly blue-shifted and show prolonged lifetimes due to the rigidochromic effect [51,52]. Consistent with a larger conjugation of terpy relative to bipy, the solution emission of [ReCl(CO)3(terpy-κ2N)] appears at slightly longer wavelengths compared to that for [ReCl(CO)3(bipy)] (Figure 2). In turn, the frozen-state emission of [ReCl(CO)3(terpy-κ2N)] is of higher energy relative to that for [ReCl(CO)3(bipy)] and better overlaps with the terpy phosphorescence, indicating a larger competition between 3MLCT and 3IL in the case of the terpy Re(I) complex, as suggested in [39]. A shortening of the emitting triplet-state lifetime (τ = 3.0 ns in CHCl3) of [ReCl(CO)3(terpy-κ2N)] relative to [ReCl(CO)3(bipy)] (τ = 51.0 ns in CHCl3) was rationalized by the presence of a dangling (non-coordinated) pyridine ring in [ReCl(CO)3(terpy-κ2N)], resulting in greater complex flexibility [50].
A more comprehensive understanding of excited-state processes in [ReX(CO)3(terpy-κ2N)] was achieved through femtosecond transient absorption (fs-TA) spectroscopy [48,50]. By analogy to [ReX(CO)3(bipy)] [53,54], the TA spectra of [ReX(CO)3(terpy-κ2N)] were characterized by two positive signals attributed to excited-state absorptions (ESA): a sharp band below 400 nm assigned to the absorption of the bipy/terpy anion radical and a broad absorption in the visible region corresponding to X/L•−→Re (Ligand-to-Metal-Charge-Transfer, LMCT) transitions. Based on global lifetime analysis, it was revealed that the optically populated 1MLCT state of [ReCl(CO)3(terpy-κ2N)] underwent femtosecond intersystem crossing (ISC), populating an interligand-localized excited state (3IL) and vibrationally hot 3MLCT excited states. The former one is converted into 3MLCT on a picosecond timescale, and the relaxed 3MLCT state decays via minor radiative and major non-radiative pathways to the ground state [50].

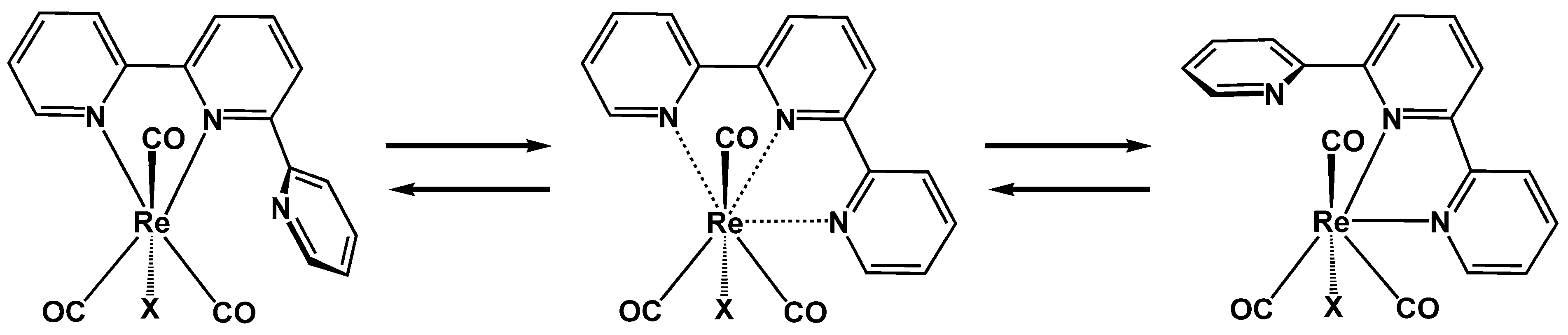

As reported in [36,47,55], the conversion from the terpy-κ2N to terpy-κ3N coordination mode results in dramatic changes in the absorption profile, attributed to the significant increase in conjugation due to the planarization of the terpy ligand, and the destabilization of the HOMO level of [ReX(CO)2(terpy-κ3N)] in relation to that of [ReX(CO)3(terpy-κ2N)], owing to the replacement of a strongly π-accepting CO group by weakly π-accepting pyridine of the terpy ligand. Regarding the LUMO level, almost no energy changes are observed after the conversion from κ2N to the κ3N coordination mode. Consistent with the reduced HOMO–LUMO energy gap, the longest wavelength absorption band of [ReX(CO)2(terpy-κ3N)] exhibits a significant bathochromic shift relative to that of [ReX(CO)3(terpy-κ2N)]. The complexes [ReX(CO)2(terpy-κ3N)] are rare examples of dyes that display panchromatic absorption, occurring across the entire visible range of 400–800 nm (Table 3 and Figure 3). Based on the solvent sensitivity of the absorption bands, comparative analysis with the absorption features of the free ligand and theoretical calculations, it was found that intense absorptions in the range of 200–300 nm are best represented by IL transitions, while three broad bands in the visible part of the spectrum of [ReX(CO)2(terpy-κ3N)] correspond to MLCT transitions.
Conversely to [ReX(CO)3(terpy-κ2N)], the emission spectrum of [ReX(CO)2(terpy-κ3N)] was only recorded at 77 K in a 4:1 ethanol–methanol glass. Typically of Re-based 3MLCT emitters, the frozen emission band was structureless [36]. In solution at RT, [ReX(CO)2(terpy-κ3N)] appeared to be non-emissive up to 800 nm [36,47]. According to density functional theory (DFT) and time-dependent density functional theory (TD-DFT) calculations, the emission of Re(I) complexes with meridionally-coordinated terpy is predicted at wavelengths longer than 900 nm [47], but experimentally has not been evidenced so far.

4. Rhenium(I) Tricabonyl Complexes with 4′-Subsituted 2,2′:6′,2″-Terpyridine Derivatives: Substituent Effects

Structural variations in ligands induce alternations in electron density distribution and spatial configuration of the resulting metal complexes, providing an opportunity to optimize their ground- and excited-state properties, and thus their functional properties. Thanks to a highly efficient Krönhke methodology [56,57], 2,2′:6′,2″-terpyridines substituted at the 4-position of the central pyridine ring (R-terpys) are among the most extensively utilized organic building blocks in coordination chemistry [58]. Since 2013, complexes [ReX(CO)3(R-terpy-κ2N)] have also been the subject of extensive photophysical characterization.
Within this review, the impact of 45 chemical motifs introduced into the terpy framework at the 4′-position is analyzed. For a better understanding of the substituent role in controlling the photophysical properties of [ReX(CO)3(R-terpy-κ2N)], four different classes (Scheme 2, Scheme 3, Scheme 4 and Scheme 5) have been specified, namely (i) [ReX(CO)3(R-terpy-κ2N)] bearing 2,2′:6′,2″-terpyridines substituted with phenyl and more π-conjugated aryl groups (class A), (ii) [ReX(CO)3(R-terpy-κ2N)] possessing methoxy-decorated phenyl and naphthyl groups (class B), (iii) [ReX(CO)3(R-terpy-κ2N)] with heterocyclic or strong electron-releasing groups directly attached to the terpy core at the 4′-position (class C), and (iv) [ReCl(CO)3(R-C6H4-terpy-κ2N)] with remote substituents attached via a phenylene bridge to the central pyridine ring of terpy (class D). The photophysics of the above-mentioned systems is discussed in the next Section 4.1, Section 4.2, Section 4.3 and Section 4.4.

4.1. Phenyl and More π-Conjugated Hydrocarbon Groups

The relationships between the π-conjugation and linking mode of the aryl hydrocarbon groups attached to the terpy core and the photophysics of resulting complexes [ReCl(CO)3(R-terpy-κ2N)] were extensively investigated by our research group for the series of chloride complexes 1–7 [59,60,61,62].
Molecules 29 01631 sch002

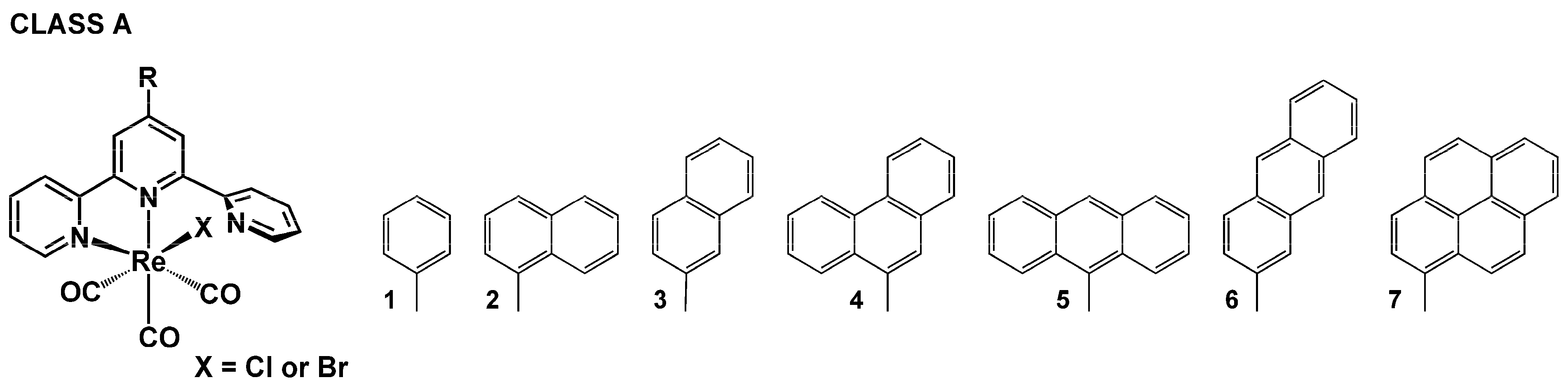

Scheme 2. Molecular structures of [ReX(CO)3(R-terpy-κ2N)] complexes discussed in Section 4.1 (Class A).
Scheme 2. Molecular structures of [ReX(CO)3(R-terpy-κ2N)] complexes discussed in Section 4.1 (Class A).
Molecules 29 01631 sch002

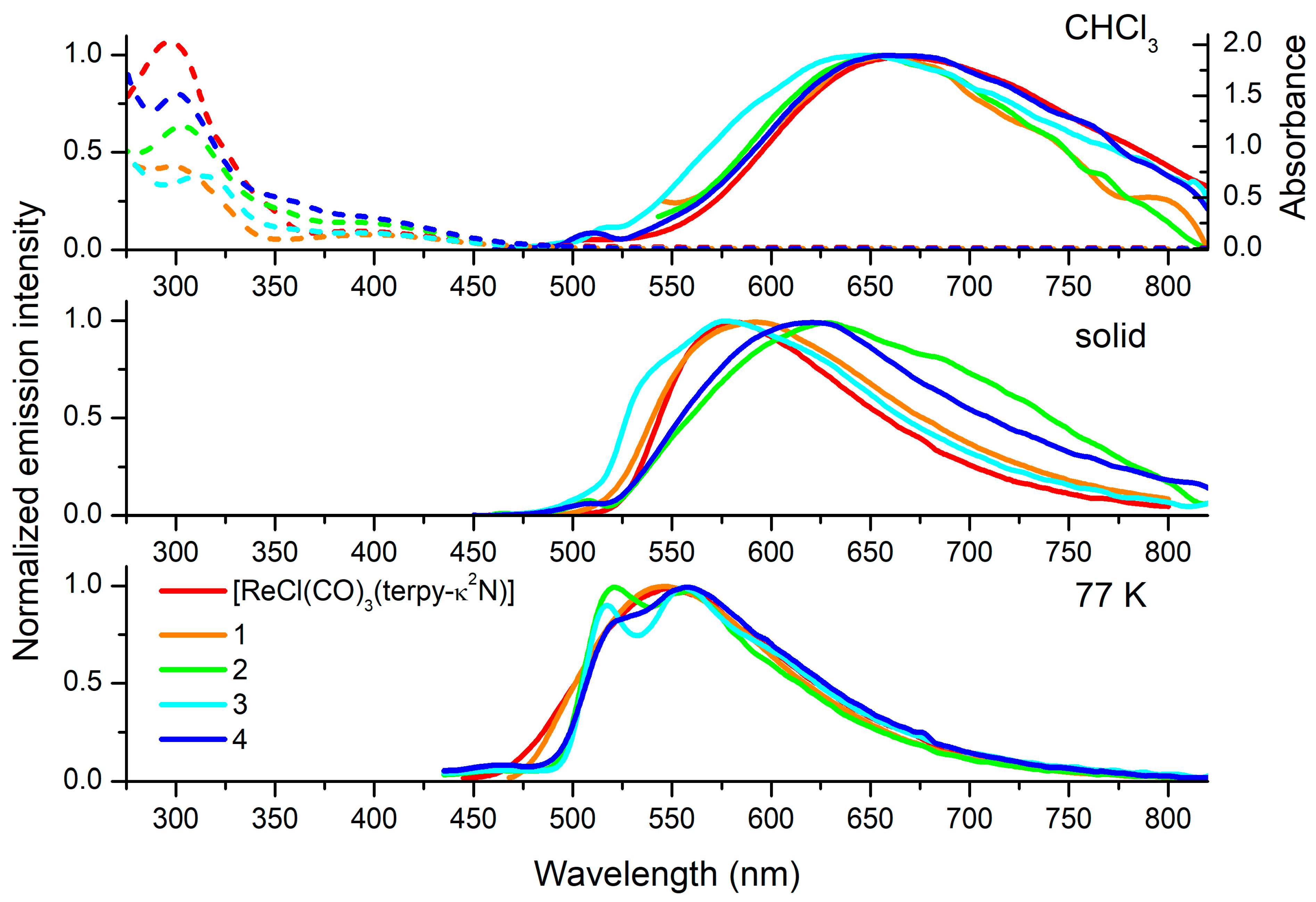

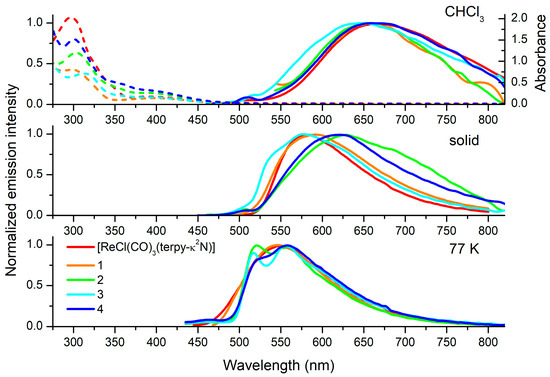

Based on UV-Vis absorption spectra, emission wavelengths, and lifetimes, we demonstrated that the complexes [ReCl(CO)3(R-terpy-κ2N)] with phenyl, naphtyl, and phenanthrenyl pendant groups preserve MLCT character, and the aryl-localized triplet excited state is not accessed upon photoexcitation in these systems. Relative to the model chromophore [ReCl(CO)3(terpy-κ2N)], the changes in the absorption and solution RT emission maxima are rather negligible; likewise, the lifetimes of 1Cl–4Cl fall in the nanosecond range. The presence of the π-conjugated naphtyl and phenanthrenyl substituents is generally manifested in a slight intensity increase of the visible light absorption and the appearance of vibrational progression in the frozen emission band (Figure 4 and Table S5). Consistent with the predominant 3MLCT character of the lowest triplet state of 1Cl–4Cl and its destabilization due to an increase in medium rigidity upon cooling [51,52], the frozen-state emission of 1Cl–4Cl appears in a noticeably higher energy region and shows a significantly prolonged luminescence lifetime in relation to the RT emission in solution.
Further evidence for the formation of the 3MLCT state in these systems was provided using fs-TA spectroscopy, carried out for the representative complexes [ReX(CO)3(R-terpy-κ2N)] with phenyl (1Cl, 1Br) and 1-naphtyl substituent (2Cl) [48,59,61], as well as time-resolved infrared spectroscopy performed for 1Cl [63]. All these studies confirmed the formation of the 3MLCT state in [ReX(CO)3(R-terpy-κ2N)] on a picosecond time scale.
The experimental findings were fully supported by DFT calculations, which showed that the attachment of phenyl (1Cl, 1Br), 1-naphtyl (2Cl), 2-naphtyl (3Cl), and 2-triphenylenyl (4Cl) induced only subtle changes in the HOMO and LUMO energies and character of 1–4 relative to [ReX(CO)3(terpy-κ2N)]. Similarly to the model chromophores [ReX(CO)3(terpy-κ2N)], the highest occupied molecular orbital (HOMO) of 1–4 is principally localized on the {Re(CO)3X} unit, and the lowest unoccupied molecular orbital (LUMO) is contributed by the π-antibonding orbitals of the coordinated rings of the terpy core [47,62,64,65]. The HOMO–LUMO energy gaps of 1Cl–4Cl, varying from 3.79 eV to 3.82 eV, correlate well with the value of 3.89 eV calculated for [ReCl(CO)3(terpy-κ2N)] [53,59,60]. Some variations in photophysical properties between bromide- and chloride-substituted complexes 1Cl and 1Br (Table S5) were attributed to the halide contribution to the excited state [47].
Distinctly from the Re(I) complexes with phenyl, naphtyl, and phenanthrenyl pendant groups, the complexes [ReCl(CO)3(R-terpy-κ2N)] with 9-anthryl (5Cl), 2-anthryl (6Cl), and 1-pyrenyl (7Cl) groups are non-emissive in the solid state, and their solution photophysical properties are strongly affected by the aryl substituent [61,62]. As supported by DFT calculations, the HOMO of these systems is localized on the aryl substituent and is effectively destabilized (~0.4 eV) compared to the model chromophore. The LUMO largely resides on the terpy core, and its energy is hardly perturbed by the anthryl and pyrenyl substituents in relation to that for [ReCl(CO)3(terpy-κ2N)]. A slight stabilization of the LUMO can be noticed upon the replacement of 9-anthryl by 2-anthryl, which was rationalized by a stronger coupling between the 2-anthryl group and the terpy unit. Consistent with the reduced HOMO–LUMO gaps, the lowest energy absorptions of 5Cl–7Cl have a noticeable red-shift relative to 1Cl. For 6Cl and 7Cl, a bathochromic shift of the longest wavelength absorption is accompanied by a significant increase in its visible absorptivity due to the overlapping of 1MLCT and 1ILCT/1IL transitions. A large dihedral angle between the appended 9-anthryl and central pyridine ring of terpy results in the separation of 1MLCT and 1IL states in 5Cl.
The complex [ReCl(CO)3(R-terpy-κ2N)] with the pendant pyrenyl group (7Cl) was demonstrated to exhibit “ping-pong” energy transfer. Its excitation leads to a predominant population of the 1ILCT state, which undergoes energy transfer to the 1MLCT* state via the Förster resonance energy transfer (FRET) mechanism. In the next step, the 1MLCT is converted to the 3MLCT* by femtosecond intersystem crossing (ISC), and the formed 3MLCT is further relaxed to the lower energy triplet excited state localized on the pyrenyl-terpy ligand. Also, the time-resolved emission spectra at 77 K and ns-TA spectroscopy confirmed that the T1 state of 7Cl is localized on the pyrenyl moiety. Due to the energetic proximity of the 3MLCT and 3IL/3ILCT excited states, and the establishment of the triplet-state equilibrium between them, the complex 7Cl shows a prolonged triplet excited-state lifetime at RT (4.4 μs) [61]. The pyrene chromophore in 7Cl acts as an energy reservoir for 3MLCT [65,66,67,68,69,70].
Also, complexes 5Cl and 6Cl were found to exhibit a substantial enhancement of RT lifetimes in DMSO solution as a result of accessing the low-lying 3IL state of the anthracene chromophore. Using steady-state and time-resolved optical techniques, our group demonstrated the impact of the different relative orientations of anthracene and {ReCl(CO)3(terpy-κ2N)} chromophores on the photophysical behavior of the resulting complexes, 5Cl and 6Cl. A more planar geometry of 2-anthryl-terpy, and thus stronger overlapping orbitals of 2-anthryl and terpy moieties, was evidenced to facilitate the population of the anthracene triplet excited state, leading to the prolongation of its lifetime. The phosphorescence lifetimes of 5Cl and 6Cl were determined as 14.28 μs for 5Cl and 22.71 μs for 6Cl. It should be noted that transition metal complexes with extended emission lifetimes are strongly desirable for applications involving intermolecular photoinduced energy triplet state transfer, such as photodynamic therapy (PDT), time-resolved bioimaging, or triplet–triplet annihilation up-conversion (TTA UC) [19,69,71,72,73,74,75,76,77]. The suitability of 5Cl and 6Cl to transfer the excited triplet state energy to molecular oxygen was confirmed in our studies [62], demonstrating a slightly enhanced singlet oxygen sensitizing ability of 6Cl (ΦΔO2 = 0.45) in relation to 5Cl (ΦΔO2 = 0.42). Importantly, the complexes [ReCl(CO)3(R-terpy-κ2N)] with 9-anthryl (5Cl) and 2-anthryl (6Cl) were demonstrated to be rare examples that show both 3MLCT and 3anthracene emission. Consequently, their DMSO solution and electroluminescence spectra cover a broad range from 500 nm to the near-infrared region of 700–900 nm. The addition of a component with an emission from 400 to 500 nm might yield a diode, which emits white light [62].

4.2. Methoxy-Decorated Phenyl and Naphthyl Groups

The photophysical properties of [ReX(CO)3(R-terpy-κ2N)] with methoxy-decorated phenyl and naphthyl groups (class B) were the subject of the research reported in [23,78,79,80].
Molecules 29 01631 sch003

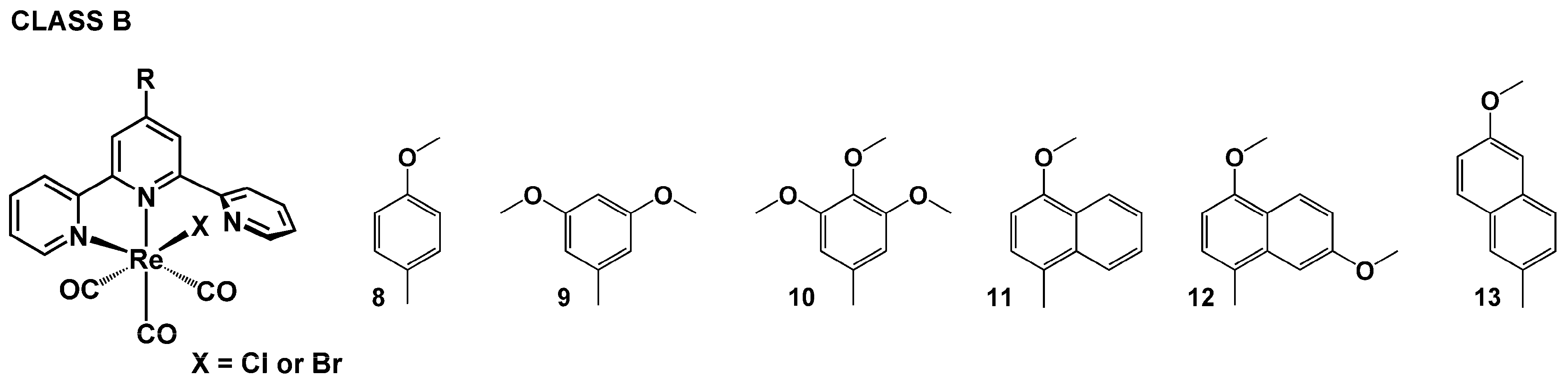

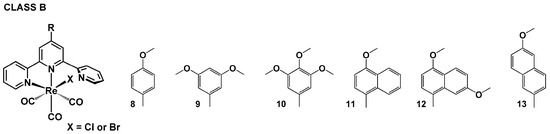

Scheme 3. Molecular structures of [ReX(CO)3(R-terpy-κ2N)] complexes discussed in Section 4.2 (Class B).
Scheme 3. Molecular structures of [ReX(CO)3(R-terpy-κ2N)] complexes discussed in Section 4.2 (Class B).
Molecules 29 01631 sch003
The attachment of one or more methoxy groups was found to induce only subtle variations in the solution emission properties of 8Cl–13Cl relative to those for corresponding model chromophores 1Cl–3Cl, implying that the emitting state is of 3MLCT nature in all these systems. As shown in Table S6, the wavelength maxima of the broad and structureless emission bands of 8Cl–13Cl in acetonitrile and chloroform fall in a narrow range of 645–675 nm, lifetimes are in the nanosecond domain, and emission quantum yields are below 1.5%, similarly to features of model chromophores 1Cl–3Cl.
Conversely, the solid-state emission of 8Cl–13Cl was evidenced to be strongly affected by the number of methoxy groups and their substitution pattern. The bathochromic shift of the solid-state emission maximum follows the order 4-methoxy-1-naphthyl (11Cl, λem = 574 nm) < 3,4,5-trimethoxy-1-phenyl (10Cl, λem = 580 nm) < 4-methoxy-1-phenyl (8Cl, λem = 584 nm) < 3,5-dimethoxy-1-phenyl (9Cl, λem = 600 nm) < 4,7-dimethoxy-1-naphthyl (12Cl, λem = 633 nm) ~ 6-methoxy-2-naphthyl (13Cl, λem = 631 nm), indicating that the methoxy group at the para position of the phenyl/naphtyl ring attached to the central pyridine ring of terpy tends to induce a larger hypsochromic shift of the emission. These findings were rationalized by the fact that the electron-rich methoxy group at the para position is known to add electron density into π-acceptor moiety, leading to the destabilization of the 3MLCT excited state in resulting transition metal complexes. In contrast, meta-positioned –OCH3 groups are expected to withdraw electron density [81]. Consistent with the rigidochromic effect, the solid emission spectra of 8Cl–13Cl were blue-shifted compared to those in solution (Table S6).
Noticeable differences were also observed in the solid-state emission lifetimes of 8Cl–13Cl, which varied from nano- to microseconds. Relative to the model chromophores 1Cl–3Cl, a substantial prolongation of the solid-state emission lifetime was evidenced for complexes 8Cl, 10Cl, 11Cl, and 13Cl. The triplet excited-state lifetimes were extended to 586 ns for 8Cl, 446 ns for 10Cl, 8.62 μs for 11Cl, and 49.62 μs for 13Cl, compared to 52 ns for 1Cl, 162 ns for 2Cl, and 102 ns for 3Cl. Except for 12Cl, the solid-state emission lifetimes of the Re(I) complexes belonging to class B underwent extension with an increase in π-conjugation of the pendant aryl group. Lowering the temperature down to 77 K resulted in a further increase in their excited-state lifetimes and a blue-shift of the emission maxima. As supported theoretically [78,79,82], methoxy-decoration of naphthyl groups resulted in an increased contribution of the organic ligand in the ground and excited states of resulting [ReX(CO)3(R-terpy-κ2N)], which may explain their prolonged solid-state emission lifetimes. To obtain triplet emitters with long excited states, both radiative and non-radiative decay rate constants must be small, meaning that the triplet excited state has a predominant ligand character [83].
Regarding the solid-state emission quantum yield, the complex [ReCl(CO)3(R-terpy-κ2N)] with 4-trimethoxy-1-phenyl substituent (8Cl) was found to be outstanding. Its emission quantum yield of ~30% is superior to the values recorded for chloride systems 1–3 and 9–13 (Tables S5 and S6).
Having good thermal properties and suitable energy levels, IP, and EA, the compounds 8Cl–13Cl were employed as active layers in light-emitting diodes ITO/PEDOT:PSS/compound/Al and ITO/PEDOT:PSS/PVK:PBD:compound/Al, fabricated in the laboratory. Most of the obtained devices with the Re(I) complexes exhibited orange or red emission under external voltage [78,79,82]. The authors of [82] demonstrated the additional possibility of electroluminescence enhancement by incorporating silver nanowires (AgNWs) into the PEDOT:PSS layer.

4.3. Heterocyclic or Strong Electron-Releasing Groups Directly Attached to the Terpy Core at 4′-Position

Among the compounds 14Cl–24Cl [37,47,50,84,85], outstanding photophysical behavior was revealed for the chloride Re(I) complex with the strong electron-donating bithiophene substituent (17Cl).
Molecules 29 01631 sch004

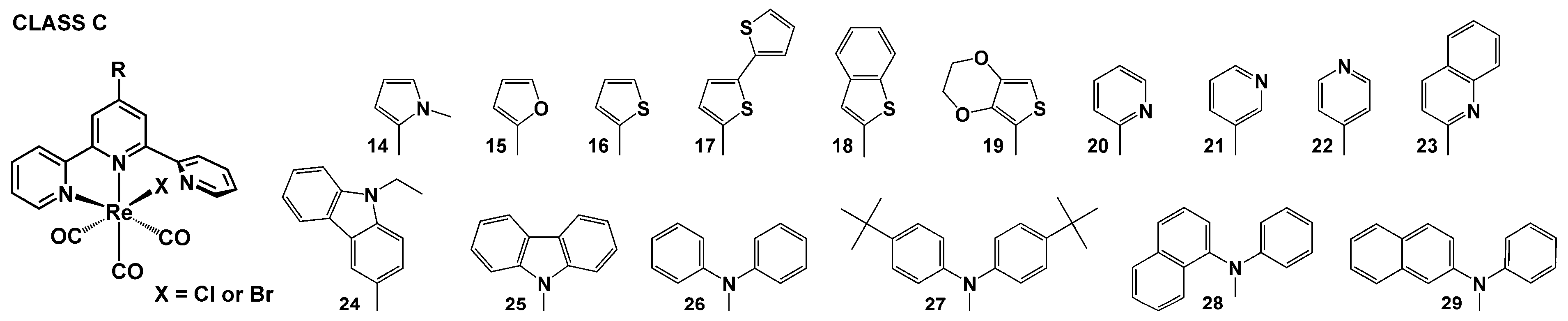

Scheme 4. Molecular structures of [ReX(CO)3(R-terpy-κ2N)] complexes discussed in Section 4.3 (Class C).
Scheme 4. Molecular structures of [ReX(CO)3(R-terpy-κ2N)] complexes discussed in Section 4.3 (Class C).
Molecules 29 01631 sch004

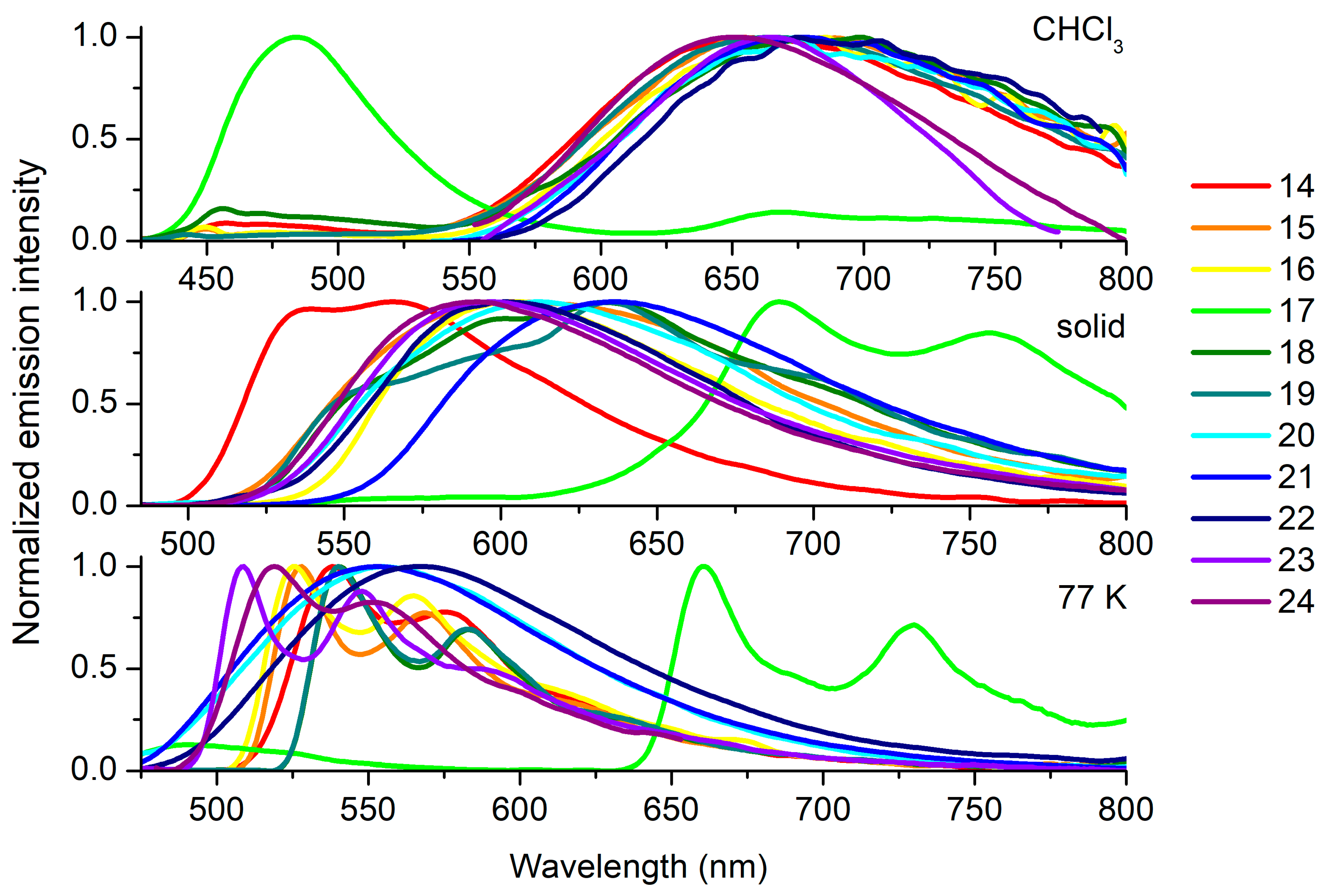

Its emission profile was found to be markedly distinct in comparison to other compounds of this class. As depicted in Figure 5, the emission spectrum of 17Cl in CHCl3 is primarily dominated by the 1ILCT fluorescence band. The lower energy phosphorescence band of 17Cl exhibits a weak vibronic structure, and it is nearly overlapping with the solid-state and frozen ligand-centered emission. The triplet-emitting state of 17Cl is of 3ILCT nature, likely originating from optically populated 1ILCT. Both fluorescence and phosphorescence are discernible in the solution and frozen matrix emission spectra. Compared to 14Cl–16Cl and 18Cl–24Cl, the absorption and phosphorescence bands of 17Cl appear at significantly lower energies (Figure 5 and Table S7). In the solid state and EtOH–MeOH (4:1) glass matrix, the triplet excited-state lifetimes of 17Cl are extended to 24.4 μs and 178 μs, respectively.
Using static and time-resolved emission spectroscopy, ultrafast transient absorption measurements, and DFT/TD-DFT calculations [37,47,50,84,85], the emitting excited states of 14Cl–16Cl and 18Cl–24Cl were demonstrated to have a predominant 3MLCT character. A significantly noticeable effect on the position of the emission band in solution was observed for complexes bearing electron-donating groups, namely 14Cl in both MeCN and CHCl3, 18Cl in MeCN, and 19Cl in MeCN (Table S7), compared to the model chromophore [ReCl(CO)3(terpy-κ2N)]. In the research work [85], the variations in the emission position of 20Cl–22Cl were correlated with Hammett σ parameters, demonstrating a decrease in the emission energy in accordance with the increased electron-withdrawing properties of the pendant n-pyridyl groups attached to terpy. For all complexes 14Cl–16Cl and 18Cl–24Cl, the emission lifetimes in solution are in the nanosecond domain, and quantum yields are below 1%. Furthermore, typically of the emission from a 3MLCT state, the frozen and solid-state emission of 14Cl–16Cl and 18Cl–24Cl occurs in a higher energy region, showing prolonged lifetimes with reference to the solution (Table S7).
Analogously to the compounds of class B, the solid-state photo-characteristics of 14Cl–24Cl were noticeably affected by substituents at the 4′-position of terpy. The solid emission wavelengths varied with the terpy substituents from 543 nm for 14Cl to 636 nm for 21Cl, confirming the key role of the donor-acceptor abilities of the pendant substituent. A substantial prolongation of the solid-state emission lifetimes was confirmed for 14Cl (11.8 μs), 18Cl (5.2 μs), and 19Cl (17.0 μs). As supported theoretically [37], the appended N-methyl-pyrrole, benzothiophene, and ethylenedioxythiophene electron-donating groups induce an enhanced contribution of the organic ligand in the ground and excited states of the resulting [ReX(CO)3(R-terpy-κ2N)]. Enhanced emission efficiency in the solid state (above 10%) was found for compounds 19Cl and 24Cl.
The capability of 14Cl–24Cl for the emission of light under voltage was examined in [50,84,85], and the fabricated diodes ITO/PEDOT:PSS/PVK:PBD:complex/Al were found to emit light under the applied voltage, with maximum electroluminescence falling in the light range from yellow to red.
The photophysical properties of 25Cl–29Cl were the subject of experimental studies reported in [49]. It was evidenced that the hole-transporting carbazole and diphenylamine moieties, directly attached to the central pyridine of the terpy core, favor the energy transfer process from the substituent to the terpy core, leading to an enhancement of the visible absorptivity and luminescence performance of the resulting [ReX(CO)3(R-terpy-κ2N)] complexes. The emission performances of 26Cl–28Cl largely exceeded that of the model chromophore [ReCl(CO)3(terpy-κ2N)] (Table S7). The phosphorescence maximum of 26Cl–28Cl appears in the range of 578–601 nm in CH2Cl2 solution and 533–611 nm in the solid state. In solution, the emission lifetime decays are in the microsecond domain, and emission quantum yields vary from 0.3% to 1.3%.
The photophysical properties of 25Cl–29Cl were also investigated theoretically, and computed ground- and excited-state properties were analyzed in terms of the potential utility of these systems for OLED technology [86]. The visible absorption of 25Cl–29Cl was assigned to electronic transitions of mixed 1MLCT/1LLCT/1ILCT character, while the phosphorescence was associated with 3MLCT/3LLCT/3ILCT triplet states. As supported by the reorganization energy calculations, the carbazole and diphenylamine moieties noticeably improve the electron transport performance of the resulting Re(I) complexes, and 25Cl–29Cl can be regarded as suitable candidates for OLED materials.

4.4. [ReX(CO)3(R-C6H4-terpy-κ2N)] with Remote Substituents Attached via a Phenylene Bridge to the Central Pyridine Ring of Terpy

The remote substituent impact in [ReX(CO)3(R-C6H4-terpy-κ2N)] was explored by the Fernández-Terán [63,64], Hanan [47], and Machura [46,59,60,78,82,87,88] research groups (Table S8). The authors of [63] conducted a comprehensive investigation of a series of complexes 1Cl, 8Cl, 31Cl, 32Cl, 34Cl, 35Cl, and provided definitive experimental evidence for a change in the excited-state character from 3MLCT (1Cl, 8Cl, 31Cl, 32Cl and 34Cl) to 3ILCT in [ReX(CO)3(R-C6H5-terpy-κ2N)] with the strongest electron-releasing substituent, –NMe2 (35Cl).
Molecules 29 01631 sch005

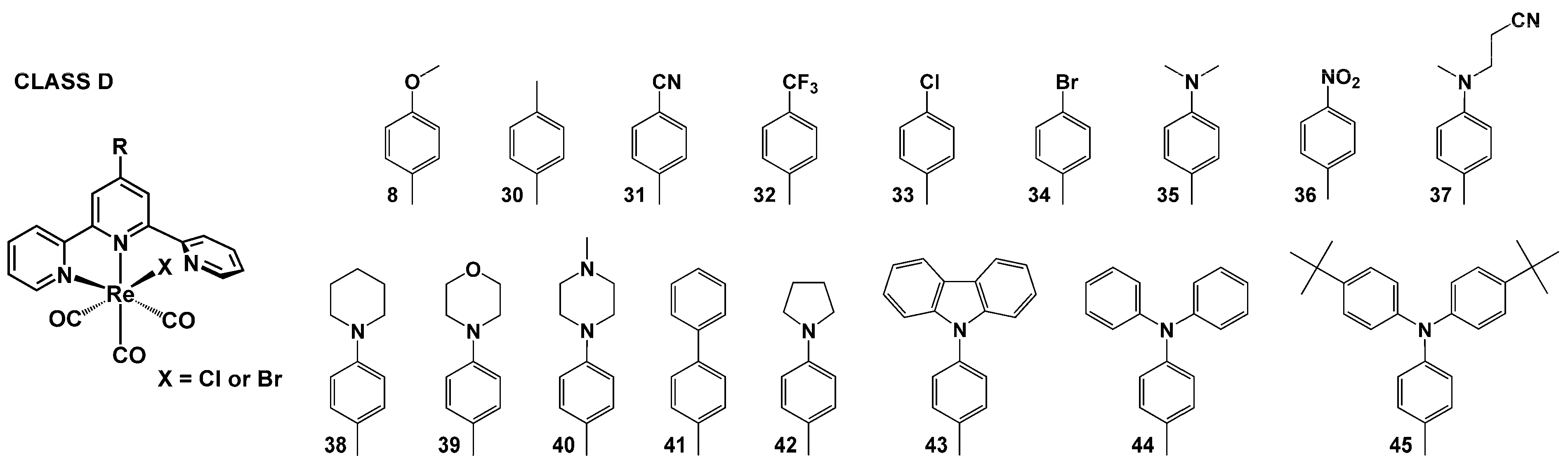

Scheme 5. Molecular structures of [ReX(CO)3(R-terpy-κ2N)] complexes discussed in Section 4.4 (Class D).
Scheme 5. Molecular structures of [ReX(CO)3(R-terpy-κ2N)] complexes discussed in Section 4.4 (Class D).
Molecules 29 01631 sch005
The optical properties of 1Cl, 8Cl, 31Cl, 32Cl, 34Cl were found to be systematically varied with electron-donating substituent abilities, as demonstrated by a hypsochromic shift of the 1MLCT absorption and 3MLCT emission bands with the increased electron-donating character of the substituent, linear correlations between the 3MLCT lifetimes and Hammett σp substituent constants, and linear correlations of ΔGS-T values obtained from a linear fit of the high-energy side of the low-temperature emission spectra with the Hammett σp substituent constants. At RT, all these systems exhibit broad and unstructured emission, with lifetimes varying from 0.58 to 2.3 ns between the CN- and OMe-substituted complexes. Typically of 3MLCT emitters, their photoluminescence spectra show significant hypsochromic shifts in solid states and at cryogenic temperatures (77 K).
Markedly different absorption and emission properties were demonstrated for 35Cl. Most importantly, the change in the singlet and triplet excited-state character from MLCT to ILCT was manifested in the appearance of a very strong visible absorption band, red-shifted by ~100 nm relative to 1Cl, dramatic enhancement of the excited-state lifetime in solution (380 ns in DMF), and a bathochromic shift of the emission upon cooling, accompanied by the appearance of a vibronic structure. Clear differences between 3MLCT and 3ILCT Re(I) emitters belonging to this group were also evidenced in photocatalytic hydrogen evolution experiments, performed for 8Cl and 35Cl as representative photosensitizers [63]. Contrary to 8Cl, which induced stable hydrogen evolution with a turnover number (TON) for the photosensitizer of 580 ± 40, the use of 35Cl with 10-fold-smaller photosensitizer concentrations resulted in very fast hydrogen evolution, with TONs of over 2100. The complex 35Cl was also demonstrated to possess superior capability for 1O2 generation and release of CO under ultrasound irradiation. Its excellent sonocytotoxicities towards both normoxic and hypoxic cancer cells were confirmed in in vitro and in vivo experiments. Notably, the complex 35Cl had significant advantages in sonocytotoxicity relative to its analog with electron-withdrawing 36Cl, characterized by considerably lower luminescence intensity, shorter lifetime, and smaller 1O2 quantum yield [89].
In the paper [64], Fernández-Terán and co-workers presented a theoretical and experimental comparative analysis of the one-photon and two-photon absorption properties of 8Cl and 35Cl. Their studies revealed that the nonlinear behavior of [ReX(CO)3(R-C6H4-terpy-κ2N)] is predominately governed by the conjugation size of the aromatic system, while the increased charge-transfer character of the excited states plays a minor role in the two-photon absorption behavior, contrary to the one-photon properties of these systems.
The effect of the conjugation degree and electron-donating ability of remote groups in controlling ground- and excited-state properties of [ReX(CO)3(R-C6H4-terpy-κ2N)] was demonstrated for compounds 42Cl and 43Cl in [59,60]. In contrast to five-membered pyrrolidine, the N-carbazolyl is also able to accept electron density due to the presence of two benzene rings fused on either side of the heterocyclic amine ring. Based on transient absorption studies in nano- and femtosecond domains, it was demonstrated that the attachment of 9-carbazole via the phenylene bridge to the terpy core did not lead to a switch in the excited-state character of [ReX(CO)3(R-C6H4-terpy-κ2N)] from 3MLCT to 3ILCT. The emission of 43Cl was largely superimposed with the band of 1Cl in solution and rigid-glass matrix at 77 K. In turn, the introduction of the electron-donating pyrrolidine group resulted in different emission behavior of 42Cl in acetonitrile and chloroform solutions, showing a red- and blue-shift in relation to the reference chromophore 1Cl, respectively. Upon cooling to 77 K, the complex 42Cl showed a clear bathochromic shift relative to the model chromophore. Similar trends were also observed for 38Cl, 39Cl, 43Cl, and 44Cl, indicating the presence of 3MLCT to 3ILCT in energy proximity in [ReX(CO)3(R-C6H4-terpy-κ2N)] with electron-donating substituents (Table S8).
The authors of [88] conducted comprehensive studies of photoinduced processes in 37Cl and 40Cl depending on the polarity of the environment, confirming the change in the nature of the triplet excited state from 3MLCT to 3ILCT in polar solvents. A bathochromic shift in the emission position of these systems in polar solvents was accompanied by the enhancement of the excited-state lifetime relative to the unsubstituted chromophore 1Cl (Table S8).

5. Substituent Effect in Rhenium(I) Dicarbonyl Complexes with Meridionally-Coordinated 4′-Subsituted 2,2′:6′,2″-Terpyridines: The Impact of the Coordination Mode

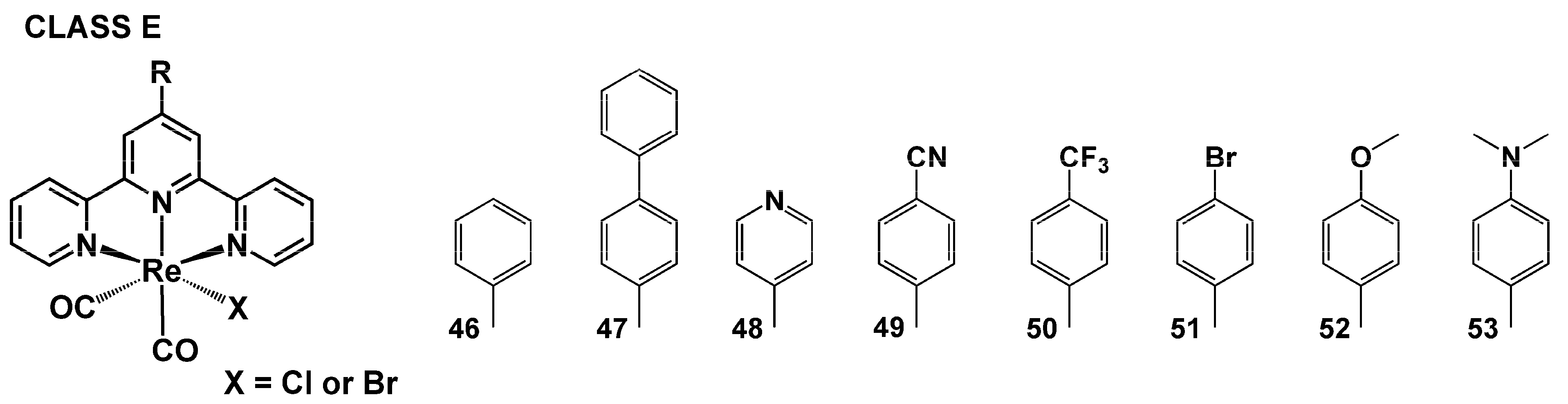

The ground and excited states of [ReX(CO)2(R-terpy-κ3N)] with 4′-subsituted 2,2′:6′,2″-terpyridines (Scheme 6 and Table S9) were evaluated in [37,47,80]. Importantly, the investigations of the Fernández-Terán [80] and Hanan [47] research groups are complementary to those for [ReX(CO)2(R-C6H5-terpy-κ2N)], making it possible to establish the impact of the coordination mode on the photophysical properties of terpy-based Re(I) carbonyl complexes.
By analogy to the model chromophores [ReX(CO)2(terpy-κ3N)] (see Section 3), all Re(I) complexes with meridionally-coordinated R-terpys absorb in the entire visible region, exhibiting three strong bands at approximately 720 nm, 480 nm, and 410 nm, assigned experimentally and theoretically to 1MLCT transitions. For complexes 46Br, 47Br, and 48Br, only a slight red-shift is observed relative to [ReBr(CO)2(terpy-κ3N)], attributed to the extended conjugation following the introduction of the aromatic substituent [47]. As reported by the Fernández-Terán group [80], the complexes 46Cl, 49Cl–53Cl exhibit small hypsochromic shifts in the visible absorption maxima with an increased electron-donating character of the substituent, accompanied by a noticeable increase in the extinction coefficients for [ReX(CO)3(R-C6H4-terpy-κ2N)] with the strongest electron-releasing substituent –NMe2 (53Cl). In contrast to 35Cl, however, the visible absorptions of 53Cl are not contributed by ILCT transitions.
Conversely to [ReX(CO)3(R-C6H4-terpy-κ2N)], all halide Re(I) complexes with meridionally-coordinated 4′-substituted-terpyridines are non-emissive in solution at RT, which was attributed to fast non-radiative deactivation, in agreement with significantly red-shifted absorption.
Based on the time-resolved infrared (TRIR) spectra, Fernández-Terán and co-workers [80] evidenced that the photophysical properties of 46Cl, 49Cl–53Cl are governed by the 3MLCT excited state, independent of the substituent on the terpy core. The 3MLCT excited state evolves from the optically populated 1MLCT state via intersystem crossing, and complexes 46Cl, 49Cl–53Cl show linear correlations between the 3MLCT lifetimes and Hammett σp substituent constants. The studies demonstrated clearly that the presence of the electron-rich {Re(CO)2}+ moiety in [ReX(CO)2(R-terpy-κ3N)] systems hinders access to ILCT excited states.

6. The Effect of the Ancillary Ligand

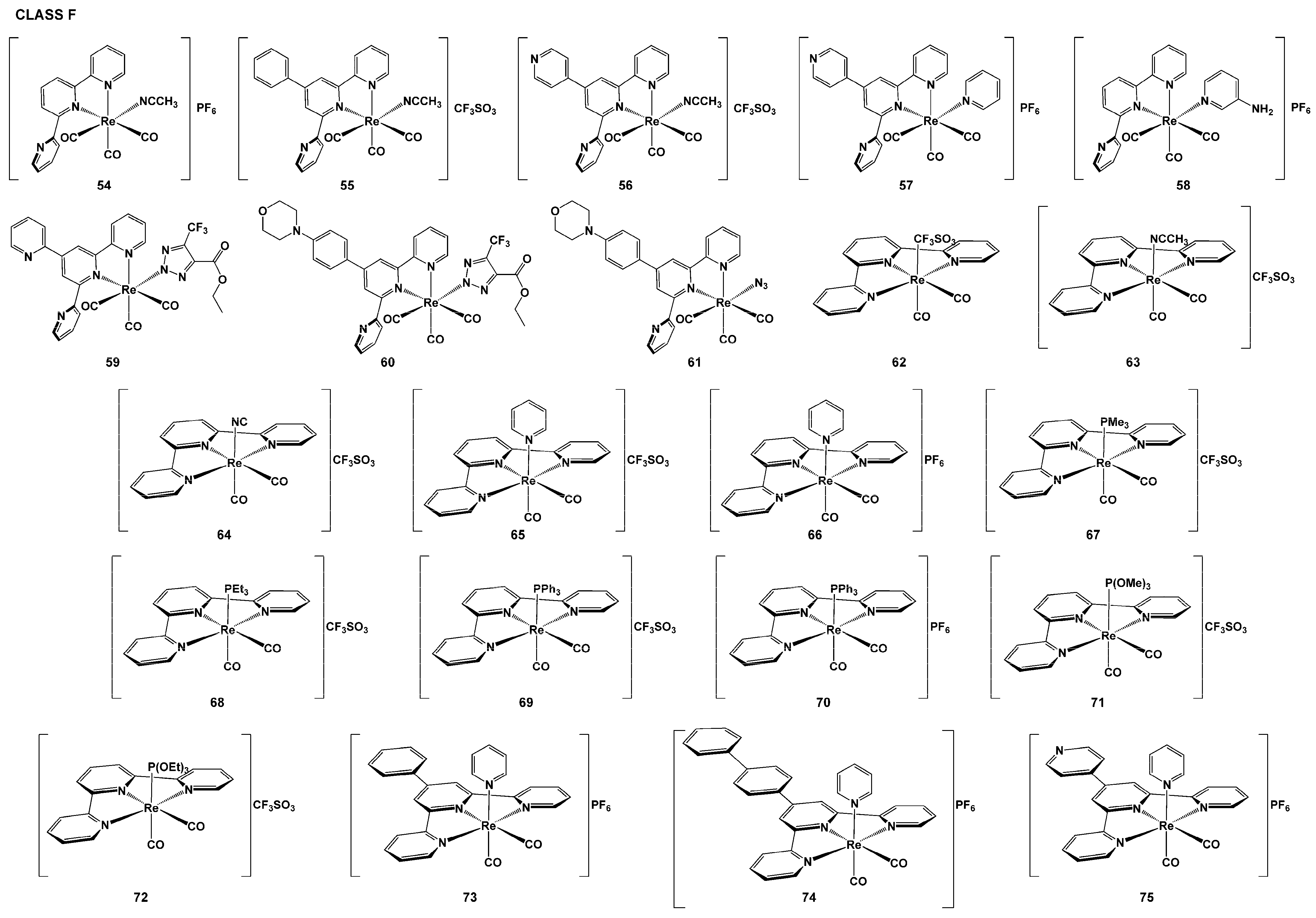

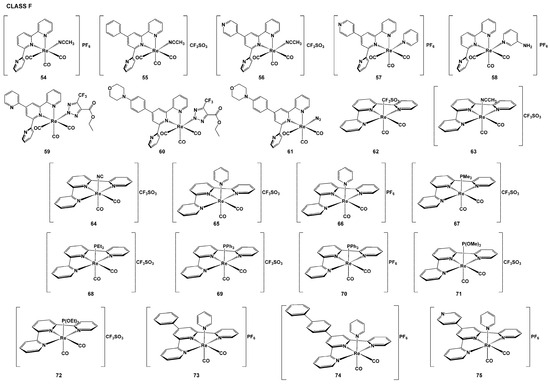

The impact of varying the ancillary ligand nature on the photophysical properties of Re(I) carbonyl complexes with R-terpy remains rather unexplored. The findings in this field were reported in [36,47,55,90,91,92,93]. The complexes [Re(X/L)(CO)3(R-terpy-κ2N)]0/+ and [Re(X/L)(CO)2(R-terpy-κ3N)]0/+ bearing ancillary ligands different from halide ions (Scheme 7, Class F) exhibit typical absorption profiles for [Re(Cl/Br)(CO)3(R-terpy-κ2N)] and [Re(Cl/Br)(CO)2(R-terpy-κ3N)], respectively.
According to TDDFT calculations and experimental findings, all visible absorptions of [Re(X/L)(CO)2(R-terpy-κ3N)]0/+ are purely MLCT in nature, while the longest wavelength absorption band of [Re(X/L)(CO)3(R-terpy-κ2N)]0/+ generally has mixed MLCT/LLCT/IL character, but with a predominant contribution of MLCT transitions [36,47,91]. As shown in Table S10, the replacement of halide ions by neutral N- and P-donor ligands generally leads to blue-shift of the lowest energy absorption, and much more profound shifts are noticeable for Re(I) complexes with meridionally-coordinated terpys. For example, the lowest energy band of 66 and 70 appears at ~40 and ~100 nm shorter wavelengths relative to [ReBr(CO)2(terpy-κ3N)], respectively [47].
The emission spectra of [Re(X/L)(CO)3(R-terpy-κ2N)]0/+ in solution at RT were recorded only for 54 and 57 [39,91]. Consistent with a blue-shift observed in the absorption spectra, their emission appears in a higher energy region relative to [ReCl(CO)3(terpy-κ2N)] and [ReCl(CO)2(py-terpy-κ3N)] (22), respectively (Table S10). The complexes 53 and 56 emit below 600 nm, showing a broad and structureless band, typically of the emission originating from the lowest energy 3MLCT excited state.
Most importantly, the complexes 66, 70, 73, 74, and 75 emit in a NIR range, with the emission maximum at 870 nm, 800 nm, 876 nm, 865 nm, and 950 nm, respectively. The emission quantum yields of 66, 70, 73, 74, and 75 fall in the range of 0.76–0.02, while the lifetime was able to record only for 70 (10.2 ns). The emission of these systems occurs from the 3MLCT excited state [47,91]. Since cells and tissues show negligible absorption and autofluorescence in the NIR range, metal complexes emitting above 750 nm are of particular significance in view of their potential in biomedical molecular imaging [94,95,96,97,98,99,100].

7. Insight into the Molecular Structures of [Re(X/L)(CO)3(R-terpy-κ2N)]0/+ and [Re(X/L)(CO)2(R-terpy-κ3N)]0/+ from Electrochemistry

The electrochemical properties of [Re(X/L)(CO)3(R-terpy-κ2N)]0/+ and [Re(X/L)(CO)2(R-terpy-κ3N)]0/+ were examined using cyclic voltammetry by several groups [32,36,39,46,47,48,49,50,59,60,61,62,63,78,79,80,82,84,85,87,90,91]. The electrochemical data are summarized in Table S11, and the first oxidation and reduction potentials are presented in Figure 6. For the vast majority of the halide Re(I) carbonyl complexes, the first reduction peak, associated with the terpy-centered reduction, is reversible or quasi-reversible and falls in a potential range varying from −1.65 to −1.85 V versus the ferrocene/ferrocenium redox couple. Slightly more positive Ered potentials were confirmed for compounds 14Cl–22Cl bearing heterocyclic substituents, while a more noticeable cathodic shift was revealed for [ReCl(CO)3(R-terpy-κ2N)] with pendant 3,4,5-trimethoxy-1-phenyl group (10Cl). The replacement of the halide ion by the N- or P-donor ligand results in anodic shifts of reduction potentials. As evidenced in [47,60,79,80,87], the first reduction potentials of [ReX(CO)3(R-terpy-κ2N)] and [ReX(CO)2(R-terpy-κ3N)] become slightly more negative with more electron-donating substituents, while electron-accepting groups make Re(I) carbonyl complexes easier to reduce. Rather small variations in Ered potentials are observed between Re(I) complexes bearing the same ligand but differing in the terpy coordination mode. In contrast, the oxidation potentials of the halide systems [ReX(CO)3(R-terpy-κ2N)] and [ReX(CO)2(R-terpy-κ3N)] are most affected by the terpy coordination mode. The conversion from terpy-κ2N to terpy-κ3N results in significant anodic shifts of Eox potentials, as well as modifying the reversibility, making the oxidation processes reversible in [ReX(CO)2(R-terpy-κ3N)]. Compared to [ReX(CO)3(R-terpy-κ2N)] and [ReX(CO)2(R-terpy-κ3N)], the cationic complexes [ReL(CO)3(R-terpy-κ2N)]+ and [ReL(CO)2(R-terpy-κ3N)]+ are noticeably harder to oxidize. The cationic Re(I) tricarbonyl complexes with R-terpy-κ2 are the most difficult to oxidize (55–57). For all complexes [Re(X/L)(CO)3(R-terpy-κ2N)]0/+ and [Re(X/L)(CO)2(R-terpy-κ3N)]0/+, oxidation potentials slightly decrease upon the attachment of pendant electron-donating groups to the terpy framework [36,47,60,63,79,80,87].

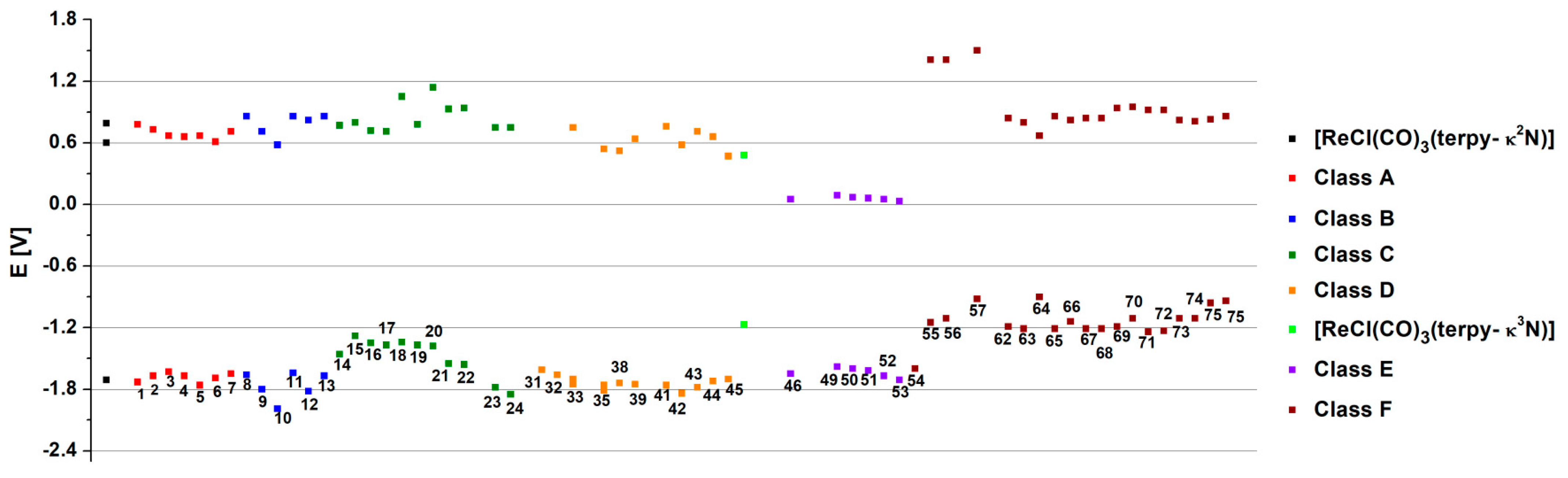

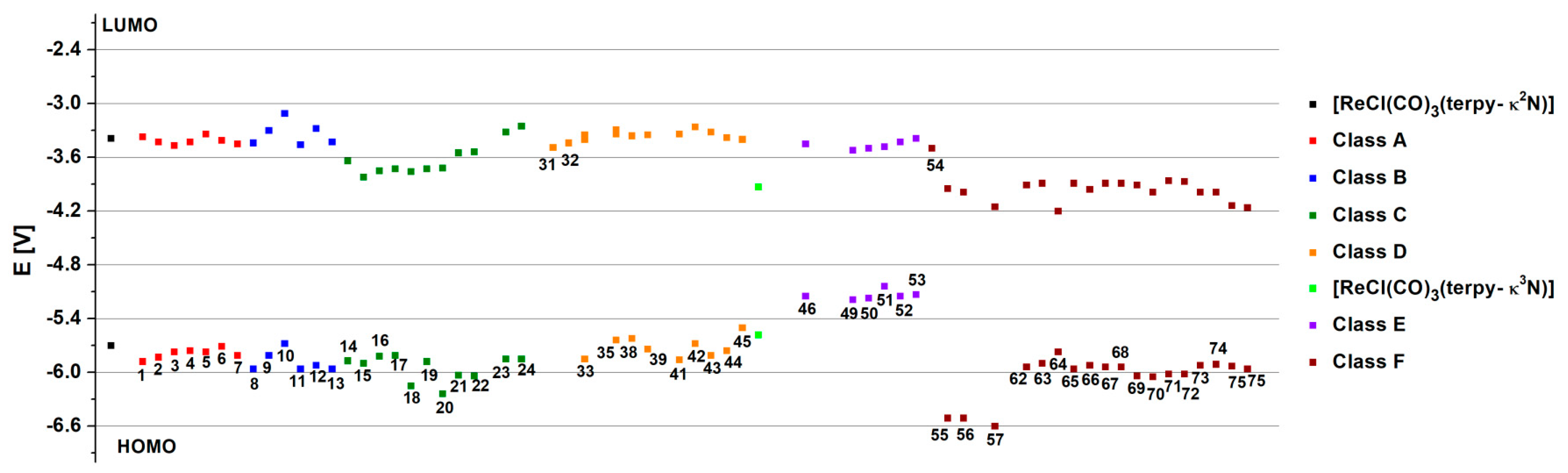

The HOMO and LUMO energy levels of [Re(X/L)(CO)3(R-terpy-κ2N)]0/+ and [Re(X/L)(CO)2(R-terpy-κ3N)]0/+, estimated on the basis of the potentials of the oxidation and reduction couples with regard to the energy level of the ferrocene reference [101,102], reproduce well the trends observed in their absorption spectra and as predicted by DFT/TDDFT calculations (Section 4 and Section 5). The most reduced HOMO–LUMO gaps, reflected experimentally in a significant red-shift of the lowest energy absorption, is observed for [ReX(CO)2(R-terpy-κ3N)]. The conversion of the coordination mode from terpy-κ2N to terpy-κ3N leads to a significant destabilization of the HOMO levels in halide Re(I) carbonyl complexes. To a much smaller extent, the HOMO energy level is destabilized by the appended electron-donating groups in the halide systems [ReX(CO)3(R-terpy-κ2N)], while the formation of cationic complexes [ReL(CO)3(R-terpy-κ2N)]+ and [ReL(CO)2(R-terpy-κ3N)]+ results in the stabilization of both HOMO and LUMO levels (Figure 7).

8. Higher Nuclearity Coordination Systems with {Re(CO)3(R-terpy-κ2N)} and {Re(CO)2(R-terpy-κ3N)} Motives

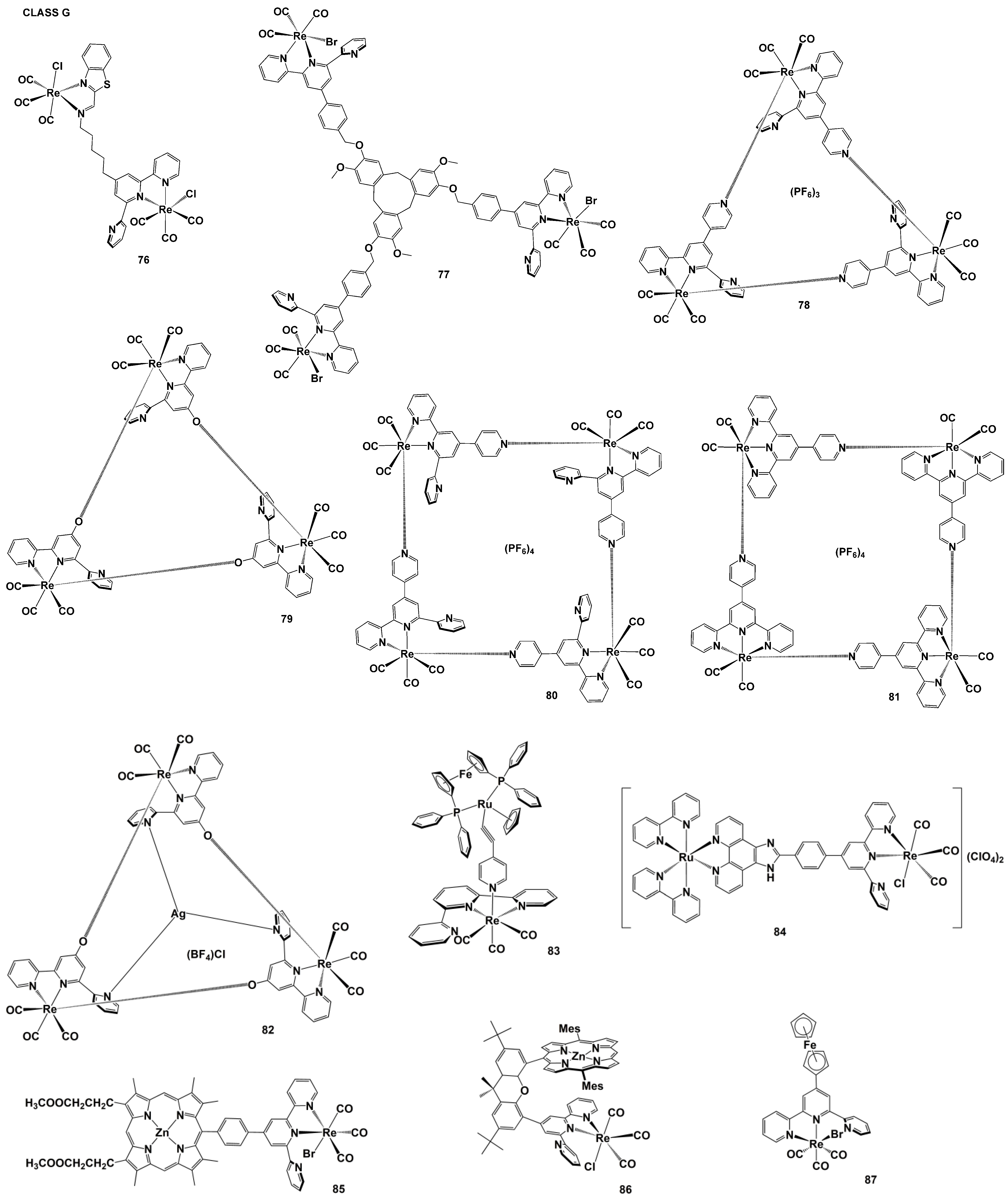

The photoactive {Re(CO)3(R-terpy-κ2N)} and {Re(CO)2(R-terpy-κ3N)} units were also utilized to build higher nuclearity coordination compounds [37,48,103,104,105,106,107,108,109]. For the preparation of bi-, tri-, and multicomponent systems with {Re(CO)3(R-terpy-κ2N)} and {Re(CO)2(R-terpy-κ3N)} motives (Scheme 8), different synthetic strategies may be employed, namely (i) structural modifications of the terpy framework aiming at the introduction of additional binding sites, (ii) attachment of the terpy core to organic ligands showing higher coordination preferences for other transition metals, and (iii) abstraction of the halide ion from [ReX(CO)3(R-terpy-κ2N)] and [ReX(CO)2(R-terpy-κ3N)] by a silver salt followed by coordination of the other component. Noteworthy is that the integration of different metal centers into one system may provide complementary functionalities, as well as result in photoinduced electron or energy transfer processes between metal centers.
As shown in Table S12, the Re-based multicomponent systems exhibit photophysical properties typical of the corresponding mononuclear compounds [ReCl(CO)3(R-terpy-κ2N)] (76–80) and [ReCl(CO)2(R-terpy-κ3N)] (81). The complex 81 with meridionally-coordinated terpy absorbs across the entire UV-Vis range, up to 800 nm, and emits in the NIR region, with a maximum of 980 nm [91]. The homonuclear systems with R-terpy-κ2N (76–80) absorb energy in a much narrower range of wavelengths, and their emission maxima fall in the range of 460–650. By analogy to the mononuclear chromophores, the absorptions of 76–81 occurring above 350 nm are predominantly of a MLCT nature, while higher energy bands in UV-Vis spectra correspond to ligand-centered transitions [91,103,108,109]. The emission of 76, 78, 79, 80, and 81 was found to be consistent with 3MLCT phosphorescence [91,103,109]. For complex 77, it was evidenced as an unusual excitation-dependent variation of the emission wavelength, assigned to the presence of different molecular species in solution due to the rapid exchange between the coordinated and free terminal pyridines [109]. The incorporation of the silver ion into the structure 79 shifts the 3MLCT emission maximum from 557 nm to 566 nm, as well as decreasing the emission quantum yield and photostability of the macrocyclic system 82. While the macrocyclic system 79 shows no evidence of any decomposition upon irradiation for 24 h at 405 nm, the silver-containing form easily loses the silver ion upon standing in sunlight [108]. The potential of the rhenium trimer system 79 as a metal ion transport vector was reported in [110].
Typically of d6 metal transition complexes, the absorption features of 83 and 84 are governed by 1IL and 1MLCT bands occurring in energy ranges of 200–340 nm and 340–500 nm, respectively. MLCT transitions attributed to RuII → π*L transitions occur at lower energies (400–500 nm) compared to ReI-based 1MLCT (340–400 nm), but some mixing of RuII → π*L and ReI → π*L is also possible [104,105]. For complex 83, the electronic communication between Ru- and Re-based units was evidenced by the remarkable increase in nonlinear response, confirming its potential applications in optical signal processing [104,105]. Conversely to 83 which shows no noticeable changes in the solution color and the longest wavelength absorption band as the pendant pyridine converts to its pyridinium form upon acid titration, compound 84 undergoes two successive protonation–deprotonation processes upon increasing the pH from 0.40 to 10 due to the proton dissociation from the protonated imidazole group and uncoordinated pyridyl of the terpy moiety [104,105]. Excitation into any of the absorption bands of 84 resulted in a broad emission at 608 nm, attributed to the emission of the Ru-based chromophore. The attachment of {ReCl(CO)3(R-terpy-κ2N)} unit was found to induce some quenching of the emission quantum yield and lifetime, without any changes in the emission position compared to the model Ru-based chromophore. Importantly, complex 84 was demonstrated to act as a sensitive pH-induced “off–on–off” luminescence switching molecule, an efficient “turn on” emission sensor for H2PO4−, and a “turn off” emission sensor for F− and OAc−. In addition, it was found to be better for cell imaging than the Ru-based chromophore [105]. The photoluminescence properties of 83 were not investigated [104].
The Re-Zn dyads (85 and 86) were reported in [106,107], but comprehensive photophysical studies were performed only for compound 86. The absorption properties of the so-called hetero-Pacman compound (86), built as a result of the {ReCl(CO)3(R-terpy-κ2N)} fragment being covalently linked through the xanthene backbone to the porphyrin unit with the encapsulated Zn2+ ion, were found to be a superposition of the individual units. These include a strong (Soret) absorption centered at 423 nm and moderately intense Q-band absorption bands centered at 547 nm of the tetramesitylporphyrinato zinc unit, as well as 1IL (200–350) and 1MLCT (350–400 nm) bands of {ReCl(CO)3(R-terpy-κ2N)}. Regardless of the excitation wavelength, dyad 86 shows luminescence assigned to the fluorescence of the zinc porphyrin unit. A modest quenching effect of the attached {ReCl(CO)3(R-terpy-κ2N)} moiety on the emission quantum yield and lifetime of 86 may indicate the photoinduced electron transfer from the porphyrin S1 state to form a charge-separated state involving the [ReCl(CO)3(R-terpy-κ2N)]. However, no definitive spectroscopic evidence for the formation of a long-lived charge-separated state in a Re-based fragment could be found, even with the use of TA spectroscopy on the pico- and nanosecond timescales. Importantly, the Re-Zn dyad 86 exhibits enhanced photocatalytic activity in CO2-to-CO reduction upon excitation >450 nm relative to the corresponding Zn- and Re-based mononuclear chromophores and their 1:1 mixture.
The ferrocenyl-appended Re(I) compound (87) was also designed as an electrocatalyst for CO2 reduction, and the ferrocenyl group was introduced to extend the visible absorptivity of the dyad. The lowest energy band at 516 nm, tailing up to 650 nm, was assigned to d–d transitions in the ferrocene moiety, while the second visible absorption band was characterized as a combination of ILCT and MLCT transitions. The presence of two triplet charge-transfer excited states in energetic proximity was evidenced using TA spectroscopy [48].

9. Conclusions and Future Directions

Within this review, we demonstrated variations in the structural and photophysical properties of rhenium(I) carbonyl complexes with terpy-based ligands, induced by the conversion of terpy coordination mode from terpy-κ2N to terpy-κ3N, structural modifications of the terpy framework, and changes of the ancillary ligands. The Re(I) carbonyls with meridionally-coordinated terpys, which show the most reduced HOMO–LUMO gaps due to a significant destabilization of the HOMO level as a result of the replacement of a strongly π-accepting CO group by the weakly π-accepting pyridine of the terpy ligand, are examples of coordination compounds that show panchromatic absorption. Independent of structural modifications of the terpy framework and type of ancillary ligand, the ground- and excited-state properties of [Re(X/L)(CO)2(R-terpy-κ3N)]0/+ are governed by electronic transitions of a pure MLCT nature. While the emission of the halide Re(I) complexes with meridionally-coordinated terpys, predicted theoretically at wavelengths longer than 900 nm, has not been evidenced experimentally, the replacement of the halide ion of [ReX(CO)2(R-terpy-κ3N)] by the neutral N- and P-donor ligand induces a blue-shift of the lowest energy absorption and made it possible to obtain [ReL(CO)2(R-terpy-κ3N)]0/+ systems showing emission in the NIR range, where cells and tissues show negligible absorption and autofluorescence. Conversely to [Re(X/L)(CO)2(R-terpy-κ3N)]0/+, the excited-state character of [Re(X/L)(CO)3(R-terpy-κ2N)]0/+ may be switched from 3MLCT to 3IL or 3ILCT, which results in the formation of Re-based emitters with significantly prolonged triplet lifetimes. As demonstrated, Re(I) carbonyl complexes with a triplet excited state based on the organic ligand may be obtained by the introduction of extended π-conjugated polyaromatic hydrocarbons or strong electron-donating groups into the central pyridine of terpy. These systems were evidenced to be promising for applications involving intermolecular photoinduced energy triplet state transfer. Their usefulness as triplet photosensitizers was demonstrated in experiments concerning 1O2 generation, photocatalytic hydrogen evolution, and CO2-to-CO reduction. The complex [ReCl(CO)3(R-C6H4-terpy-κ2N)] with the strong electron-releasing substituent -NMe2 was found to be suitable for simultaneous production of CO and 1O2 in anti-tumor treatment under ultrasound irradiation, showing excellent sonocytotoxicities towards both normoxic and hypoxic cancer cells.
Regarding the promising application potential of Re(I) carbonyl complexes as luminophores, photosensitizers, and photocatalysts, the presented structure–property relationships are of high significance for better understanding and controlling the excited-state nature in these systems, and making further progress in the development of more efficient phosphorescent materials for innovative technologies, such as photodynamic therapy, time-resolved bioimaging, photocatalysis, and triplet–triplet annihilation up-conversion. Principally, triplet emitters with strong absorption in the entire visible range and sufficiently long excited-state lifetimes still face challenges. As we demonstrated in this review, such systems can be obtained via the attachment of the properly designed terpy-based ligand to the {Re(CO)3} and {Re(CO)2)} units, accompanied by suitable ancillary ligands.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules29071631/s1, Table S1: Selected bond lengths (Å) and angles (°) for [ReCl(CO)3(R-terpy-κ2N)]. Table S2: Selected bond lengths (Å) and angles (°) for [Re(X/L)(CO)2(R-terpy-κ3N)]0/+. Table S3: Selected bond lengths (Å) and angles (°) for [Re(X/L)(CO)3(R-terpy-κ2N)]0/+. Table S4: The absorption and emission properties of [ReX(CO)3(bipy)]. Table S5: The absorption and emission properties of compounds 1–7 (class A). Table S6: The absorption and emission properties of compounds 8–13 (class B). Table S7: The absorption and emission properties of compounds 14–29 (class C). Table S8: The absorption and emission properties of compounds 30–45 (class D). Table S9: The absorption and emission properties of [ReX(CO)2(R-terpy-κ3N)] (X = Cl, Br) (class E). Table S10: The absorption and emission properties of [Re(X/L)(CO)3(R-terpy-κ2N)]0/+ and [Re(X/L)(CO)2(R-terpy-κ3N)]0/+ bearing the ancillary ligands different from halide ions (class F). Table S11: Electrochemical data of [Re(X/L)(CO)3(R-terpy-κ2N)]0/+ and [Re(X/L)(CO)2(R-terpy-κ3N)]0/+. Table S12: The absorption and emission properties of higher nuclearity coordination compounds with photoactive {Re(CO)3(R-terpy-κ2N)} and {Re(CO)2(R-terpy-κ3N)} subunits (class G).

Author Contributions

Conceptualization, B.M., writing—original draft preparation, B.M., J.P.-G., K.C., A.M.M. and E.M.; writing—review and editing, B.M., J.P.-G., K.C., A.M.M. and E.M.; visualization, J.P.-G. and K.C.; supervision, B.M.; funding acquisition, B.M. and A.M.M. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded by the National Science Centre of Poland, SONATA grant no. 2020/39/D/ST4/00286 (AM), and co-financed by the funds granted under the Research Excellence Initiative of the University of Silesia in Katowice.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The datasets generated and/or analysed during the current study are available within the manuscript and Supplementary Materials.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Wrighton, M.; Morse, D.L. Nature of the Lowest Excited State in Tricarbonylchloro-1,10-Phenanthrolinerhenium(I) and Related Complexes. J. Am. Chem. Soc. 1974, 96, 998–1003. [Google Scholar] [CrossRef]
  2. Stufkens, D.J.; Vlček, A. Ligand-Dependent Excited State Behaviour of Re(I) and Ru(II) Carbonyl–Diimine Complexes. Coord. Chem. Rev. 1998, 177, 127–179. [Google Scholar] [CrossRef]
  3. Striplin, D.R.; Crosby, G.A. Photophysical Investigations of Rhenium(I)Cl(CO)3(Phenanthroline) Complexes. Coord. Chem. Rev. 2001, 211, 163–175. [Google Scholar] [CrossRef]
  4. Blanco Rodríguez, A.M.; Gabrielsson, A.; Motevalli, M.; Matousek, P.; Towrie, M.; Šebera, J.; Záliš, S.; Vlček, A. Ligand-to-Diimine/Metal-to-Diimine Charge-Transfer Excited States of [Re(NCS)(CO)3(α-Diimine)] (α-Diimine = 2,2′-Bipyridine, Di-iPr-N,N-1,4-Diazabutadiene). A Spectroscopic and Computational Study. J. Phys. Chem. A 2005, 109, 5016–5025. [Google Scholar] [CrossRef] [PubMed]
  5. Vlček, A.; Busby, M. Ultrafast Ligand-to-Ligand Electron and Energy Transfer in the Complexes Fac-[ReI(L)(CO)3(Bpy)]n+. Coord. Chem. Rev. 2006, 250, 1755–1762. [Google Scholar] [CrossRef]
  6. Vlček, A.; Záliš, S. Modeling of Charge-Transfer Transitions and Excited States in D6 Transition Metal Complexes by DFT Techniques. Coord. Chem. Rev. 2007, 251, 258–287. [Google Scholar] [CrossRef]
  7. Kumar, A.; Sun, S.-S.; Lees, A.J. Photophysics and Photochemistry of Organometallic Rhenium Diimine Complexes. In Photophysics of Organometallics; Lees, A.J., Ed.; Topics in Organometallic Chemistry; Springer: Berlin/Heidelberg, Germany, 2010; pp. 37–71. ISBN 978-3-642-04729-9. [Google Scholar]
  8. Vlček, A. Ultrafast Excited-State Processes in Re(I) Carbonyl-Diimine Complexes: From Excitation to Photochemistry. In Photophysics of Organometallics; Lees, A.J., Ed.; Topics in Organometallic Chemistry; Springer: Berlin/Heidelberg, Germany, 2010; pp. 115–158. ISBN 978-3-642-04729-9. [Google Scholar]
  9. Baková, R.; Chergui, M.; Daniel, C.; Vlček, A.; Záliš, S. Relativistic Effects in Spectroscopy and Photophysics of Heavy-Metal Complexes Illustrated by Spin–Orbit Calculations of [Re(Imidazole)(CO)3(Phen)]+. Coord. Chem. Rev. 2011, 255, 975–989. [Google Scholar] [CrossRef]
  10. Yue, Y.; Grusenmeyer, T.; Ma, Z.; Zhang, P.; Pham, T.T.; Mague, J.T.; Donahue, J.P.; Schmehl, R.H.; Beratan, D.N.; Rubtsov, I.V. Evaluating the Extent of Intramolecular Charge Transfer in the Excited States of Rhenium(I) Donor–Acceptor Complexes with Time-Resolved Vibrational Spectroscopy. J. Phys. Chem. B 2013, 117, 15903–15916. [Google Scholar] [CrossRef] [PubMed]
  11. Hostachy, S.; Policar, C.; Delsuc, N. Re(I) Carbonyl Complexes: Multimodal Platforms for Inorganic Chemical Biology. Coord. Chem. Rev. 2017, 351, 172–188. [Google Scholar] [CrossRef]
  12. Dilworth, J.R. Rhenium Chemistry—Then and Now. Coord. Chem. Rev. 2021, 436, 213822. [Google Scholar] [CrossRef]
  13. Bauer, E.B.; Haase, A.A.; Reich, R.M.; Crans, D.C.; Kühn, F.E. Organometallic and Coordination Rhenium Compounds and Their Potential in Cancer Therapy. Coord. Chem. Rev. 2019, 393, 79–117. [Google Scholar] [CrossRef]
  14. Grice, K.A.; Kubiak, C.P. Recent Studies of Rhenium and Manganese Bipyridine Carbonyl Catalysts for the Electrochemical Reduction of CO2. In Advances in Inorganic Chemistry; Aresta, M., van Eldik, R., Eds.; CO Chemistry; Academic Press: Cambridge, MA, USA, 2014; Volume 66, pp. 163–188. [Google Scholar]
  15. Elgrishi, N.; Chambers, M.B.; Wang, X.; Fontecave, M. Molecular Polypyridine-Based Metal Complexes as Catalysts for the Reduction of CO2. Chem. Soc. Rev. 2017, 46, 761–796. [Google Scholar] [CrossRef] [PubMed]
  16. Kuramochi, Y.; Ishitani, O.; Ishida, H. Reaction Mechanisms of Catalytic Photochemical CO2 Reduction Using Re(I) and Ru(II) Complexes. Coord. Chem. Rev. 2018, 373, 333–356. [Google Scholar] [CrossRef]
  17. Lang, P.; Giereth, R.; Tschierlei, S.; Schwalbe, M. Unexpected Wavelength Dependency of the Photocatalytic CO2 Reduction Performance of the Well-Known (Bpy)Re(CO)3Cl Complex. Chem. Commun. 2019, 55, 600–603. [Google Scholar] [CrossRef]
  18. Rotundo, L.; Grills, D.C.; Gobetto, R.; Priola, E.; Nervi, C.; Polyansky, D.E.; Fujita, E. Photochemical CO2 Reduction Using Rhenium(I) Tricarbonyl Complexes with Bipyridyl-Type Ligands with and without Second Coordination Sphere Effects. ChemPhotoChem 2021, 5, 526–537. [Google Scholar] [CrossRef]
  19. Nandal, N.; Jain, S.L. A Review on Progress and Perspective of Molecular Catalysis in Photoelectrochemical Reduction of CO2. Coord. Chem. Rev. 2022, 451, 214271. [Google Scholar] [CrossRef]
  20. Probst, B.; Guttentag, M.; Rodenberg, A.; Hamm, P.; Alberto, R. Photocatalytic H2 Production from Water with Rhenium and Cobalt Complexes. Inorg. Chem. 2011, 50, 3404–3412. [Google Scholar] [CrossRef]
  21. Guttentag, M.; Rodenberg, A.; Kopelent, R.; Probst, B.; Buchwalder, C.; Brandstätter, M.; Hamm, P.; Alberto, R. Photocatalytic H2 Production with a Rhenium/Cobalt System in Water under Acidic Conditions. Eur. J. Inorg. Chem. 2012, 2012, 59–64. [Google Scholar] [CrossRef]
  22. Zarkadoulas, A.; Koutsouri, E.; Kefalidi, C.; Mitsopoulou, C.A. Rhenium Complexes in Homogeneous Hydrogen Evolution. Coord. Chem. Rev. 2015, 304–305, 55–72. [Google Scholar] [CrossRef]
  23. Kefalidi, C.; Koutsouri, E.; Marchiò, L.; Zarkadoulas, A.; Efstathiadou, S.; Mitsopoulou, C.A. Synthesis, Characterization and Crystal Structure of Rhenium(I) Tricarbonyl Diimine Complexes Coupled with Their Efficiency in Producing Hydrogen in a Photocatalytic System. Polyhedron 2016, 110, 157–164. [Google Scholar] [CrossRef]
  24. Zhao, G.-W.; Zhao, J.-H.; Hu, Y.-X.; Zhang, D.-Y.; Li, X. Recent Advances of Neutral Rhenium(I) Tricarbonyl Complexes for Application in Organic Light-Emitting Diodes. Synth. Met. 2016, 212, 131–141. [Google Scholar] [CrossRef]
  25. Hu, Y.-X.; Zhao, G.-W.; Dong, Y.; Lü, Y.-L.; Li, X.; Zhang, D.-Y. New Rhenium(I) Complex with Thiadiazole-Annelated 1,10-Phenanthroline for Highly Efficient Phosphorescent OLEDs. Dyes Pigments 2017, 137, 569–575. [Google Scholar] [CrossRef]
  26. Li, X.; Zhao, G.-W.; Hu, Y.-X.; Zhao, J.-H.; Dong, Y.; Zhou, L.; Lv, Y.-L.; Chi, H.-J.; Su, Z. Rational Design and Characterization of Novel Phosphorescent Rhenium(I) Complexes for Extremely High-Efficiency Organic Light-Emitting Diodes. J. Mater. Chem. C 2017, 5, 7629–7636. [Google Scholar] [CrossRef]
  27. Gonçalves, M.R.; Benvenho, A.R.V.; Frin, K.P.M. Electrical and Optical Properties of Organic Light-Emitting Diodes with Rhenium(I) Complexes Using DC and AC Methods. Opt. Mater. 2019, 94, 206–212. [Google Scholar] [CrossRef]
  28. Baggaley, E.; Weinstein, J.A.; Williams, J.A.G. Lighting the Way to See inside the Live Cell with Luminescent Transition Metal Complexes. Coord. Chem. Rev. 2012, 256, 1762–1785. [Google Scholar] [CrossRef]
  29. Gong, J.; Zhang, X. Coordination-Based Circularly Polarized Luminescence Emitters: Design Strategy and Application in Sensing. Coord. Chem. Rev. 2022, 453, 214329. [Google Scholar] [CrossRef]
  30. Pete, S.; Roy, N.; Kar, B.; Paira, P. Construction of Homo and Heteronuclear Ru(II), Ir(III) and Re(I) Complexes for Target Specific Cancer Therapy. Coord. Chem. Rev. 2022, 460, 214462. [Google Scholar] [CrossRef]
  31. Yang, J.; Zhao, J.-X.; Cao, Q.; Hao, L.; Zhou, D.; Gan, Z.; Ji, L.-N.; Mao, Z.-W. Simultaneously Inducing and Tracking Cancer Cell Metabolism Repression by Mitochondria-Immobilized Rhenium(I) Complex. ACS Appl. Mater. Interfaces 2017, 9, 13900–13912. [Google Scholar] [CrossRef] [PubMed]
  32. Juris, A.; Campagna, S.; Bidd, I.; Lehn, J.M.; Ziessel, R. Synthesis and Photophysical and Electrochemical Properties of New Halotricarbonyl(Polypyridine)Rhenium(I) Complexes. Inorg. Chem. 1988, 27, 4007–4011. [Google Scholar] [CrossRef]
  33. Anderson, P.A.; Keene, F.R.; Horn, E.; Tiekink, E.R.T. Ambidentate Coordination of the Tripyridyl Ligands 2,2′:6′,2″-Terpyridyl, Tris(2-Pyridyl)-Amine, Tris(2-Pyridyl)Methane and Tris(2-Pyridyl)Phosphine to Carbonylrhenium Centres: Structural and Spectroscopic Studies. Appl. Organomet. Chem. 1990, 4, 523–533. [Google Scholar] [CrossRef]
  34. Civitello, E.R.; Dragovich, P.S.; Karpishin, T.B.; Novick, S.G.; Bierach, G.; O’Connell, J.F.; Westmoreland, T.D. Spectroscopic and Crystallographic Characterization of Tricarbonylchloro(.Sigma.2-Terpyridyl)Rhenium. 2D-NMR Evidence for a Linkage Isomerization Reaction. Inorg. Chem. 1993, 32, 237–241. [Google Scholar] [CrossRef]
  35. Abel, E.W.; Dimitrov, V.S.; Long, N.J.; Orrell, K.G.; Osborne, A.G.; Pain, H.M.; Šik, V.; Hursthouse, M.B.; Mazid, M.A. 2,2′:6′,2″-Terpyridine (Terpy) Acting as a Fluxional Bidentate Ligand. Part 2. Rhenium Carbonyl Halide Complexes, Fac-[ReX(CO)3(Terpy)](X = Cl, Br or I): NMR Studies of Their Solution Dynamics, Synthesis of Cis-[ReBr(CO)2(Terpy)] and the Crystal Structure of [ReBr(CO)3(Terpy)]. J. Chem. Soc. Dalton Trans. 1993, 4, 597–603. [Google Scholar] [CrossRef]
  36. Frenzel, B.A.; Schumaker, J.E.; Black, D.R.; Hightower, S.E. Synthesis, Spectroscopic, Electrochemical and Computational Studies of Rhenium(I) Dicarbonyl Complexes Based on Meridionally-Coordinated 2,2′:6′,2″-Terpyridine. Dalton Trans. 2013, 42, 12440–12451. [Google Scholar] [CrossRef] [PubMed]
  37. Laramée-Milette, B.; Lachance-Brais, C.; Hanan, G.S. Synthesis of Discrete Re(I) Di- and Tricarbonyl Assemblies Using a [4 × 1] Directional Bonding Strategy. Dalton Trans. 2014, 44, 41–45. [Google Scholar] [CrossRef]
  38. Bulsink, P.; Al-Ghamdi, A.; Joshi, P.; Korobkov, I.; Woo, T.; Richeson, D. Capturing Re(I) in an Neutral N,N,N Pincer Scaffold and Resulting Enhanced Absorption of Visible Light. Dalton Trans. 2016, 45, 8885–8896. [Google Scholar] [CrossRef] [PubMed]
  39. Amoroso, A.J.; Banu, A.; Coogan, M.P.; Edwards, P.G.; Hossain, G.; Malik, K.M.A. Functionalisation of Terpyridine Complexes Containing the Re(CO)3+ Moiety. Dalton Trans. 2010, 39, 6993–7003. [Google Scholar] [CrossRef] [PubMed]
  40. Alvarez, S. Distortion Pathways of Transition Metal Coordination Polyhedra Induced by Chelating Topology. Chem. Rev. 2015, 115, 13447–13483. [Google Scholar] [CrossRef]
  41. Gelling, A.; Orrell, K.G.; Osborne, A.G.; Šik, V. The Energetics and Mechanism of Fluxionality of 2,2′:6′,2″-Terpyridine Derivatives When Acting as Bidentate Ligands in Transition-Metal Complexes. A Detailed Dynamic NMR Study. J. Chem. Soc. Dalton Trans. 1998, 6, 937–946. [Google Scholar] [CrossRef]
  42. Gelling, A.; Olsen, M.D.; Orrell, K.G.; Osborne, A.G.; Šik, V. Synthesis and Dynamic NMR Studies of Fluxionality in Rhenium(I), Platinum(II) and Platinum(IV) Complexes of ‘Back-to-Back’ 2,2′∶6′,2″-Terpyridine Ligands. J. Chem. Soc. Dalton Trans. 1998, 20, 3479–3488. [Google Scholar] [CrossRef]
  43. Abel, E.W.; Gelling, A.; Orrell, K.G.; Osborne, A.G.; Šik, V. The Mechanism of 1,4-Metallotropic Shifts in Transition-Metal Complexes of Bidentate 2,2′: 6′,2″-Terpyridine Ligands. Chem. Commun. 1996, 20, 2329–2330. [Google Scholar] [CrossRef]
  44. Abel, E.W.; Long, N.J.; Orrell, K.G.; Osborne, A.G.; Pain, H.M.; Šik, V. The First Examples of 2,2′:6′,2″-Terpyridine as a Fluxional Bidentate Ligand. J. Chem. Soc. Chem. Commun. 1992, 4, 303–304. [Google Scholar] [CrossRef]
  45. Groom, C.R.; Bruno, I.J.; Lightfoot, M.P.; Ward, S.C. The Cambridge Structural Database. Acta Crystallogr. Sect. B Struct. Sci. Cryst. Eng. Mater. 2016, 72, 171–179. [Google Scholar] [CrossRef]
  46. Maroń, A.M.; Szlapa-Kula, A.; Matussek, M.; Kruszynski, R.; Siwy, M.; Janeczek, H.; Grzelak, J.; Maćkowski, S.; Schab-Balcerzak, E.; Machura, B. Photoluminescence Enhancement of Re(I) Carbonyl Complexes Bearing D–A and D–π–A Ligands. Dalton Trans. 2020, 49, 4441–4453. [Google Scholar] [CrossRef] [PubMed]
  47. Auvray, T.; Del Secco, B.; Dubreuil, A.; Zaccheroni, N.; Hanan, G.S. In-Depth Study of the Electronic Properties of NIR-Emissive κ3N Terpyridine Rhenium(I) Dicarbonyl Complexes. Inorg. Chem. 2021, 60, 70–79. [Google Scholar] [CrossRef] [PubMed]
  48. Saha, S.; Doughty, T.; Banerjee, D.; Patel, S.K.; Mallick, D.; Iyer, E.S.S.; Roy, S.; Mitra, R. Electrocatalytic Reduction of CO2 to CO by a Series of Organometallic Re(I)-Tpy Complexes. Dalton Trans. 2023, 52, 15394–15411. [Google Scholar] [CrossRef]
  49. Wang, D.; Xu, Q.-L.; Zhang, S.; Li, H.-Y.; Wang, C.-C.; Li, T.-Y.; Jing, Y.-M.; Huang, W.; Zheng, Y.-X.; Accorsi, G. Synthesis and Photoluminescence Properties of Rhenium(I) Complexes Based on 2,2′:6′,2″-Terpyridine Derivatives with Hole-Transporting Units. Dalton Trans. 2013, 42, 2716–2723. [Google Scholar] [CrossRef]
  50. Choroba, K.; Kotowicz, S.; Maroń, A.; Świtlicka, A.; Szłapa-Kula, A.; Siwy, M.; Grzelak, J.; Sulowska, K.; Maćkowski, S.; Schab-Balcerzak, E.; et al. Ground- and Excited-State Properties of Re(I) Carbonyl Complexes–Effect of Triimine Ligand Core and Appended Heteroaromatic Groups. Dyes Pigments 2021, 192, 109472. [Google Scholar] [CrossRef]
  51. Lees, A.J. Luminescence Properties of Organometallic Complexes. Chem. Rev. 1987, 87, 711–743. [Google Scholar] [CrossRef]
  52. Lees, A.J. The Luminescence Rigidochromic Effect Exhibited by Organometallic Complexes: Rationale and Applications. Comments Inorg. Chem. 1995, 17, 319–346. [Google Scholar] [CrossRef]
  53. El Nahhas, A.; Cannizzo, A.; van Mourik, F.; Blanco-Rodríguez, A.M.; Záliš, S.; Vlček, A., Jr.; Chergui, M. Ultrafast Excited-State Dynamics of [Re(L)(CO)3(Bpy)] n Complexes: Involvement of the Solvent. J. Phys. Chem. A 2010, 114, 6361–6369. [Google Scholar] [CrossRef]
  54. Cannizzo, A.; Blanco-Rodríguez, A.M.; El Nahhas, A.; Šebera, J.; Záliš, S.; Vlček, A., Jr.; Chergui, M. Femtosecond Fluorescence and Intersystem Crossing in Rhenium(I) Carbonyl−Bipyridine Complexes. J. Am. Chem. Soc. 2008, 130, 8967–8974. [Google Scholar] [CrossRef] [PubMed]
  55. Black, D.R.; Hightower, S.E. Preparation and Characterization of Rhenium(I) Dicarbonyl Complexes Based on the Meridionally-Coordinated Terpyridine Ligand. Inorg. Chem. Commun. 2012, 24, 16–19. [Google Scholar] [CrossRef]
  56. Cave, G.W.V.; Raston, C.L. Efficient Synthesis of Pyridines via a Sequential Solventless Aldol Condensation and Michael Addition. J. Chem. Soc. Perkin 1 2001, 24, 3258–3264. [Google Scholar] [CrossRef]
  57. Tu, S.; Jia, R.; Jiang, B.; Zhang, J.; Zhang, Y.; Yao, C.; Ji, S. Kröhnke Reaction in Aqueous Media: One-Pot Clean Synthesis of 4′-Aryl-2,2′:6′,2″-Terpyridines. Tetrahedron 2007, 63, 381–388. [Google Scholar] [CrossRef]
  58. Taniya, O.S.; Kopchuk, D.S.; Khasanov, A.F.; S.Kovalev, I.; Santra, S.; Zyryanov, G.V.; Majee, A.; Charushin, V.N.; Chupakhin, O.N. Synthetic Approaches and Supramolecular Properties of 2,2′:N′,M″-Terpyridine Domains (N = 3,4,5,6; M = 2,3,4) Based on the 2,2′-Bipyridine Core as Ligands with k2N-Bidentate Coordination Mode. Coord. Chem. Rev. 2021, 442, 213980. [Google Scholar] [CrossRef]
  59. Choroba, K.; Maroń, A.; Świtlicka, A.; Szłapa-Kula, A.; Siwy, M.; Grzelak, J.; Maćkowski, S.; Pedzinski, T.; Schab-Balcerzak, E.; Machura, B. Carbazole Effect on Ground- and Excited-State Properties of Rhenium(I) Carbonyl Complexes with Extended Terpy-like Ligands. Dalton Trans. 2021, 50, 3943–3958. [Google Scholar] [CrossRef] [PubMed]
  60. Klemens, T.; Świtlicka, A.; Szlapa-Kula, A.; Krompiec, S.; Lodowski, P.; Chrobok, A.; Godlewska, M.; Kotowicz, S.; Siwy, M.; Bednarczyk, K.; et al. Experimental and Computational Exploration of Photophysical and Electroluminescent Properties of Modified 2,2′:6′,2″-Terpyridine, 2,6-Di(Thiazol-2-Yl)Pyridine and 2,6-Di(Pyrazin-2-Yl)Pyridine Ligands and Their Re(I) Complexes. Appl. Organomet. Chem. 2018, 32, e4611. [Google Scholar] [CrossRef]
  61. Szlapa-Kula, A.; Małecka, M.; Maroń, A.M.; Janeczek, H.; Siwy, M.; Schab-Balcerzak, E.; Szalkowski, M.; Maćkowski, S.; Pedzinski, T.; Erfurt, K.; et al. In-Depth Studies of Ground- and Excited-State Properties of Re(I) Carbonyl Complexes Bearing 2,2′:6′,2″-Terpyridine and 2,6-Bis(Pyrazin-2-Yl)Pyridine Coupled with π-Conjugated Aryl Chromophores. Inorg. Chem. 2021, 60, 18726–18738. [Google Scholar] [CrossRef]
  62. Małecka, M.; Szlapa-Kula, A.; Maroń, A.M.; Ledwon, P.; Siwy, M.; Schab-Balcerzak, E.; Sulowska, K.; Maćkowski, S.; Erfurt, K.; Machura, B. Impact of the Anthryl Linking Mode on the Photophysics and Excited-State Dynamics of Re(I) Complexes [ReCl(CO)3(4′-An-Terpy-κ2N)]. Inorg. Chem. 2022, 61, 15070–15084. [Google Scholar] [CrossRef]
  63. Fernández-Terán, R.; Sévery, L. Living Long and Prosperous: Productive Intraligand Charge-Transfer States from a Rhenium(I) Terpyridine Photosensitizer with Enhanced Light Absorption. Inorg. Chem. 2021, 60, 1334–1343. [Google Scholar] [CrossRef]
  64. Fernández-Terán, R.J.; Sucre-Rosales, E.; Echevarria, L.; Hernández, F.E. Dissecting Conjugation and Electronic Effects on the Linear and Non-Linear Optical Properties of Rhenium(I) Carbonyl Complexes. Phys. Chem. Chem. Phys. 2022, 24, 28069–28079. [Google Scholar] [CrossRef] [PubMed]
  65. Ford, W.E.; Rodgers, M.A.J. Reversible Triplet-Triplet Energy Transfer within a Covalently Linked Bichromophoric Molecule. J. Phys. Chem. 1992, 96, 2917–2920. [Google Scholar] [CrossRef]
  66. Medlycott, E.A.; Hanan, G.S. Designing Tridentate Ligands for Ruthenium(II) Complexes with Prolonged Room Temperature Luminescence Lifetimes. Chem. Soc. Rev. 2005, 34, 133–142. [Google Scholar] [CrossRef] [PubMed]
  67. Yarnell, J.E.; Deaton, J.C.; McCusker, C.E.; Castellano, F.N. Bidirectional “Ping-Pong” Energy Transfer and 3000-Fold Lifetime Enhancement in a Re(I) Charge Transfer Complex. Inorg. Chem. 2011, 50, 7820–7830. [Google Scholar] [CrossRef]
  68. Cui, X.; Zhao, J.; Mohmood, Z.; Zhang, C. Accessing the Long-Lived Triplet Excited States in Transition-Metal Complexes: Molecular Design Rationales and Applications. Chem. Rec. 2016, 16, 173–188. [Google Scholar] [CrossRef] [PubMed]
  69. Zhang, X.; Hou, Y.; Xiao, X.; Chen, X.; Hu, M.; Geng, X.; Wang, Z.; Zhao, J. Recent Development of the Transition Metal Complexes Showing Strong Absorption of Visible Light and Long-Lived Triplet Excited State: From Molecular Structure Design to Photophysical Properties and Applications. Coord. Chem. Rev. 2020, 417, 213371. [Google Scholar] [CrossRef]
  70. Wells, K.A.; Yarnell, J.E.; Palmer, J.R.; Lee, T.S.; Papa, C.M.; Castellano, F.N. Energy Migration Processes in Re(I) MLCT Complexes Featuring a Chromophoric Ancillary Ligand. Inorg. Chem. 2020, 59, 8259–8271. [Google Scholar] [CrossRef]
  71. Zhang, K.Y.; Yu, Q.; Wei, H.; Liu, S.; Zhao, Q.; Huang, W. Long-Lived Emissive Probes for Time-Resolved Photoluminescence Bioimaging and Biosensing. Chem. Rev. 2018, 118, 1770–1839. [Google Scholar] [CrossRef] [PubMed]
  72. Monro, S.; Colón, K.L.; Yin, H.; Roque, J.I.; Konda, P.; Gujar, S.; Thummel, R.P.; Lilge, L.; Cameron, C.G.; McFarland, S.A. Transition Metal Complexes and Photodynamic Therapy from a Tumor-Centered Approach: Challenges, Opportunities, and Highlights from the Development of TLD1433. Chem. Rev. 2019, 119, 797–828. [Google Scholar] [CrossRef]
  73. McKenzie, L.K.; Bryant, H.E.; Weinstein, J.A. Transition Metal Complexes as Photosensitisers in One- and Two-Photon Photodynamic Therapy. Coord. Chem. Rev. 2019, 379, 2–29. [Google Scholar] [CrossRef]
  74. Glaser, F.; Wenger, O.S. Recent Progress in the Development of Transition-Metal Based Photoredox Catalysts. Coord. Chem. Rev. 2020, 405, 213129. [Google Scholar] [CrossRef]
  75. Pham, T.C.; Nguyen, V.-N.; Choi, Y.; Lee, S.; Yoon, J. Recent Strategies to Develop Innovative Photosensitizers for Enhanced Photodynamic Therapy. Chem. Rev. 2021, 121, 13454–13619. [Google Scholar] [CrossRef] [PubMed]
  76. Ankathatti Munegowda, M.; Manalac, A.; Weersink, M.; McFarland, S.A.; Lilge, L. Ru(II) Containing Photosensitizers for Photodynamic Therapy: A Critique on Reporting and an Attempt to Compare Efficacy. Coord. Chem. Rev. 2022, 470, 214712. [Google Scholar] [CrossRef] [PubMed]
  77. Kar, B.; Das, U.; Roy, N.; Paira, P. Recent Advances on Organelle Specific Ru(II)/Ir(III)/Re(I) Based Complexes for Photodynamic Therapy. Coord. Chem. Rev. 2023, 474, 214860. [Google Scholar] [CrossRef]
  78. Klemens, T.; Świtlicka, A.; Machura, B.; Kula, S.; Krompiec, S.; Łaba, K.; Korzec, M.; Siwy, M.; Janeczek, H.; Schab-Balcerzak, E.; et al. A Family of Solution Processable Ligands and Their Re(I) Complexes towards Light Emitting Applications. Dyes Pigments 2019, 163, 86–101. [Google Scholar] [CrossRef]
  79. Małecka, M.; Machura, B.; Świtlicka, A.; Kotowicz, S.; Szafraniec-Gorol, G.; Siwy, M.; Szalkowski, M.; Maćkowski, S.; Schab-Balcerzak, E. Towards Better Understanding of Photophysical Properties of Rhenium(I) Tricarbonyl Complexes with Terpy-like Ligands. Spectrochim. Acta. A Mol. Biomol. Spectrosc. 2020, 231, 118124. [Google Scholar] [CrossRef] [PubMed]
  80. Fernández-Terán, R.J.; Sévery, L. Coordination Environment Prevents Access to Intraligand Charge-Transfer States through Remote Substitution in Rhenium(I) Terpyridinedicarbonyl Complexes. Inorg. Chem. 2021, 60, 1325–1333. [Google Scholar] [CrossRef] [PubMed]
  81. Wu, F.; Liu, J.; Wang, G.; Song, Q.; Zhu, L. M-Methoxy Substituents in a Tetraphenylethylene-Based Hole-Transport Material for Efficient Perovskite Solar Cells. Chem.-Eur. J. 2016, 22, 16636–16641. [Google Scholar] [CrossRef] [PubMed]
  82. Klemens, T.; Świtlicka-Olszewska, A.; Machura, B.; Grucela, M.; Janeczek, H.; Schab-Balcerzak, E.; Szlapa, A.; Kula, S.; Krompiec, S.; Smolarek, K.; et al. Synthesis, Photophysical Properties and Application in Organic Light Emitting Devices of Rhenium(I) Carbonyls Incorporating Functionalized 2,2′:6′,2″-Terpyridines. RSC Adv. 2016, 6, 56335–56352. [Google Scholar] [CrossRef]
  83. To, W.-P.; Wan, Q.; Tong, G.S.M.; Che, C.-M. Recent Advances in Metal Triplet Emitters with D6, D8, and D10 Electronic Configurations. Trends Chem. 2020, 2, 796–812. [Google Scholar] [CrossRef]
  84. Klemens, T.; Świtlicka-Olszewska, A.; Machura, B.; Grucela, M.; Schab-Balcerzak, E.; Smolarek, K.; Mackowski, S.; Szlapa, A.; Kula, S.; Krompiec, S.; et al. Rhenium(I) Terpyridine Complexes–Synthesis, Photophysical Properties and Application in Organic Light Emitting Devices. Dalton Trans. 2016, 45, 1746–1762. [Google Scholar] [CrossRef] [PubMed]
  85. Klemens, T.; Świtlicka, A.; Kula, S.; Siwy, M.; Łaba, K.; Grzelak, J.; Szalkowski, M.; Maćkowski, S.; Schab-Balcerzak, E.; Machura, B. The Effect of 2-, 3- and 4-Pyridyl Substituents on Photophysics of Fac-[ReCl(CO)3(n-Pytpy-κ2N)] Complexes: Experimental and Theoretical Insights. J. Lumin. 2019, 209, 346–356. [Google Scholar] [CrossRef]
  86. Velmurugan, G.; Venuvanalingam, P. Luminescent Re(I) Terpyridine Complexes for OLEDs: What Does the DFT/TD-DFT Probe Reveal? Dalton Trans. 2015, 44, 8529–8542. [Google Scholar] [CrossRef]
  87. Klemens, T.; Świtlicka, A.; Szlapa-Kula, A.; Łapok, Ł.; Obłoza, M.; Siwy, M.; Szalkowski, M.; Maćkowski, S.; Libera, M.; Schab-Balcerzak, E.; et al. Tuning Optical Properties of Re(I) Carbonyl Complexes by Modifying Push–Pull Ligands Structure. Organometallics 2019, 38, 4206–4223. [Google Scholar] [CrossRef]
  88. Palion-Gazda, J.; Szłapa-Kula, A.; Penkala, M.; Erfurt, K.; Machura, B. Photoinduced Processes in Rhenium(I) Terpyridine Complexes Bearing Remote Amine Groups: New Insights from Transient Absorption Spectroscopy. Molecules 2022, 27, 7147. [Google Scholar] [CrossRef] [PubMed]
  89. Li, Y.; Lu, N.; Lin, Q.; Wang, H.; Liang, Z.; Lu, Y.; Zhang, P. Sono-ReCORMs for Synergetic Sonodynamic-Gas Therapy of Hypoxic Tumor. Chin. Chem. Lett. 2023, 34, 107653. [Google Scholar] [CrossRef]
  90. Metcalfe, C.; Spey, S.; Adams, H.; Thomas, J.A. Extended Terpyridyl and Triazine Complexes of D6-Metal Centres. J. Chem. Soc. Dalton Trans. 2002, 24, 4732–4739. [Google Scholar] [CrossRef]
  91. Laramée-Milette, B.; Zaccheroni, N.; Palomba, F.; Hanan, G.S. Visible and Near-IR Emissions from k2N- and k3N-Terpyridine Rhenium(I) Assemblies Obtained by an [N × 1] Head-to-Tail Bonding Strategy. Chem.-Eur. J. 2017, 23, 6370–6379. [Google Scholar] [CrossRef]
  92. Mansour, A.M.; Radacki, K. Terpyridine Based ReX(CO)3 Compounds (X = Br–, N3– and Triazolate): Spectroscopic and DFT Studies. Polyhedron 2021, 194, 114954. [Google Scholar] [CrossRef]
  93. Mansour, A.M.; Radacki, K.; Shehab, O.R. Role of the Ancillary Ligand in Controlling the Lysozyme Affinity and Electronic Properties of Terpyridine Fac-Re(CO)3 Complexes. Dalton Trans. 2021, 50, 1197–1201. [Google Scholar] [CrossRef]
  94. Fairlamb, I.J.S.; Lynam, J.M. Organometallic Chemistry: Volume 38; Royal Society of Chemistry: Cambridge, UK, 2012; ISBN 978-1-84973-486-8. [Google Scholar]
  95. Shaikh, S.; Wang, Y.; ur Rehman, F.; Jiang, H.; Wang, X. Phosphorescent Ir (III) Complexes as Cellular Staining Agents for Biomedical Molecular Imaging. Coord. Chem. Rev. 2020, 416, 213344. [Google Scholar] [CrossRef]
  96. Lo, K.K.-W. Molecular Design of Bioorthogonal Probes and Imaging Reagents Derived from Photofunctional Transition Metal Complexes. Acc. Chem. Res. 2020, 53, 32–44. [Google Scholar] [CrossRef] [PubMed]
  97. Kanagasundaram, T.; Kramer, C.S.; Boros, E.; Kopka, K. Rhenium and Technetium-Complexed Silicon Rhodamines as near-Infrared Imaging Probes for Bimodal SPECT- and Optical Imaging. Dalton Trans. 2020, 49, 7294–7298. [Google Scholar] [CrossRef] [PubMed]
  98. Zhang, Y.; Qiao, J. Near-Infrared Emitting Iridium Complexes: Molecular Design, Photophysical Properties, and Related Applications. iScience 2021, 24, 102858. [Google Scholar] [CrossRef]
  99. Chelushkin, P.S.; Shakirova, J.R.; Kritchenkov, I.S.; Baigildin, V.A.; Tunik, S.P. Phosphorescent NIR Emitters for Biomedicine: Applications, Advances and Challenges. Dalton Trans. 2022, 51, 1257–1280. [Google Scholar] [CrossRef] [PubMed]
  100. Li, C.; Pang, Y.; Xu, Y.; Lu, M.; Tu, L.; Li, Q.; Sharma, A.; Guo, Z.; Li, X.; Sun, Y. Near-Infrared Metal Agents Assisting Precision Medicine: From Strategic Design to Bioimaging and Therapeutic Applications. Chem. Soc. Rev. 2023, 52, 4392–4442. [Google Scholar] [CrossRef] [PubMed]
  101. Bujak, P.; Kulszewicz-Bajer, I.; Zagorska, M.; Maurel, V.; Wielgus, I.; Pron, A. Polymers for Electronics and Spintronics. Chem. Soc. Rev. 2013, 42, 8895–8999. [Google Scholar] [CrossRef] [PubMed]
  102. Cardona, C.M.; Li, W.; Kaifer, A.E.; Stockdale, D.; Bazan, G.C. Electrochemical Considerations for Determining Absolute Frontier Orbital Energy Levels of Conjugated Polymers for Solar Cell Applications. Adv. Mater. 2011, 23, 2367–2371. [Google Scholar] [CrossRef] [PubMed]
  103. Ismail, M.B.; Booysen, I.N.; Hosten, E.; Akerman, M.P. Synthesis, Characterization and DNA Interaction Studies of Tricarbonyl Rhenium(I) Compounds Containing Terpyridine Schiff Base Chelates. J. Organomet. Chem. 2017, 833, 1–9. [Google Scholar] [CrossRef]
  104. Ge, Q.; Corkery, T.C.; Humphrey, M.G.; Samoc, M.; Hor, T.S.A. Organobimetallic RuII–ReI4-Ethynylpyridyl Complexes: Structures and Non-Linear Optical Properties. Dalton Trans. 2009, 31, 6192–6200. [Google Scholar] [CrossRef]
  105. Zheng, Z.-B.; Wu, Y.-Q.; Wang, K.-Z.; Li, F. pH Luminescence Switching, Dihydrogen Phosphate Sensing, and Cellular Uptake of a Heterobimetallic Ruthenium(II)–Rhenium(I) Complex. Dalton Trans. 2014, 43, 3273–3284. [Google Scholar] [CrossRef] [PubMed]
  106. Suzuki, M.; Uehara, T.; Arano, Y.; Hoshino, T.; Neya, S. Fabrications of Potential Imaging Probes Based on a β-Alkyl Substituted Porphyrin with a Terpyridine External Coordination Site. Tetrahedron Lett. 2011, 52, 7164–7167. [Google Scholar] [CrossRef]
  107. Lang, P.; Pfrunder, M.; Quach, G.; Braun-Cula, B.; Moore, E.G.; Schwalbe, M. Sensitized Photochemical CO2 Reduction by Hetero-Pacman Compounds Linking a ReI Tricarbonyl with a Porphyrin Unit. Chem.-Eur. J. 2019, 25, 4509–4519. [Google Scholar] [CrossRef]
  108. Coogan, M.P.; Fernández-Moreira, V.; Kariuki, B.M.; Pope, S.J.A.; Thorp-Greenwood, F.L. A Rhenium Tricarbonyl 4′-Oxo-Terpy Trimer as a Luminescent Molecular Vessel with a Removable Silver Stopper. Angew. Chem. Int. Ed. 2009, 48, 4965–4968. [Google Scholar] [CrossRef] [PubMed]
  109. Thorp-Greenwood, F.L.; Pritchard, V.E.; Coogan, M.P.; Hardie, M.J. Tris(Rhenium Fac-Tricarbonyl) Polypyridine Functionalized Cyclotriguaiacylene Ligands with Rich and Varied Emission. Organometallics 2016, 35, 1632–1642. [Google Scholar] [CrossRef]
  110. Thorp-Greenwood, F.L.; Fernández-Moreira, V.; Millet, C.O.; Williams, C.F.; Cable, J.; Court, J.B.; Hayes, A.J.; Lloyd, D.; Coogan, M.P. A ‘Sleeping Trojan Horse’ Which Transports Metal Ions into Cells, Localises in Nucleoli, and Has Potential for Bimodal Fluorescence/PET Imaging. Chem. Commun. 2011, 47, 3096–3098. [Google Scholar] [CrossRef]
Molecules 29 01631 g001
Figure 1. Perspective views of [ReX(CO)3(terpy-κ2N)] (a) and [ReX(CO)2(terpy-κ3N)] (b) molecular structures indicating the numbering schemes used in Table 1 and Tables S1–S3.
Figure 1. Perspective views of [ReX(CO)3(terpy-κ2N)] (a) and [ReX(CO)2(terpy-κ3N)] (b) molecular structures indicating the numbering schemes used in Table 1 and Tables S1–S3.
Molecules 29 01631 g001
Molecules 29 01631 sch001
Scheme 1. The interconverting structures of the complex [ReX(CO)3(terpy-κ2N)] in solution.
Scheme 1. The interconverting structures of the complex [ReX(CO)3(terpy-κ2N)] in solution.
Molecules 29 01631 sch001
Molecules 29 01631 g002
Figure 2. Comparative analysis of the absorption and emission properties of [ReCl(CO)3(terpy-κ2N)] and [ReCl(CO)3(bipy)], performed using the spectral data reported in our previous works [46,50].
Figure 2. Comparative analysis of the absorption and emission properties of [ReCl(CO)3(terpy-κ2N)] and [ReCl(CO)3(bipy)], performed using the spectral data reported in our previous works [46,50].
Molecules 29 01631 g002
Molecules 29 01631 g003

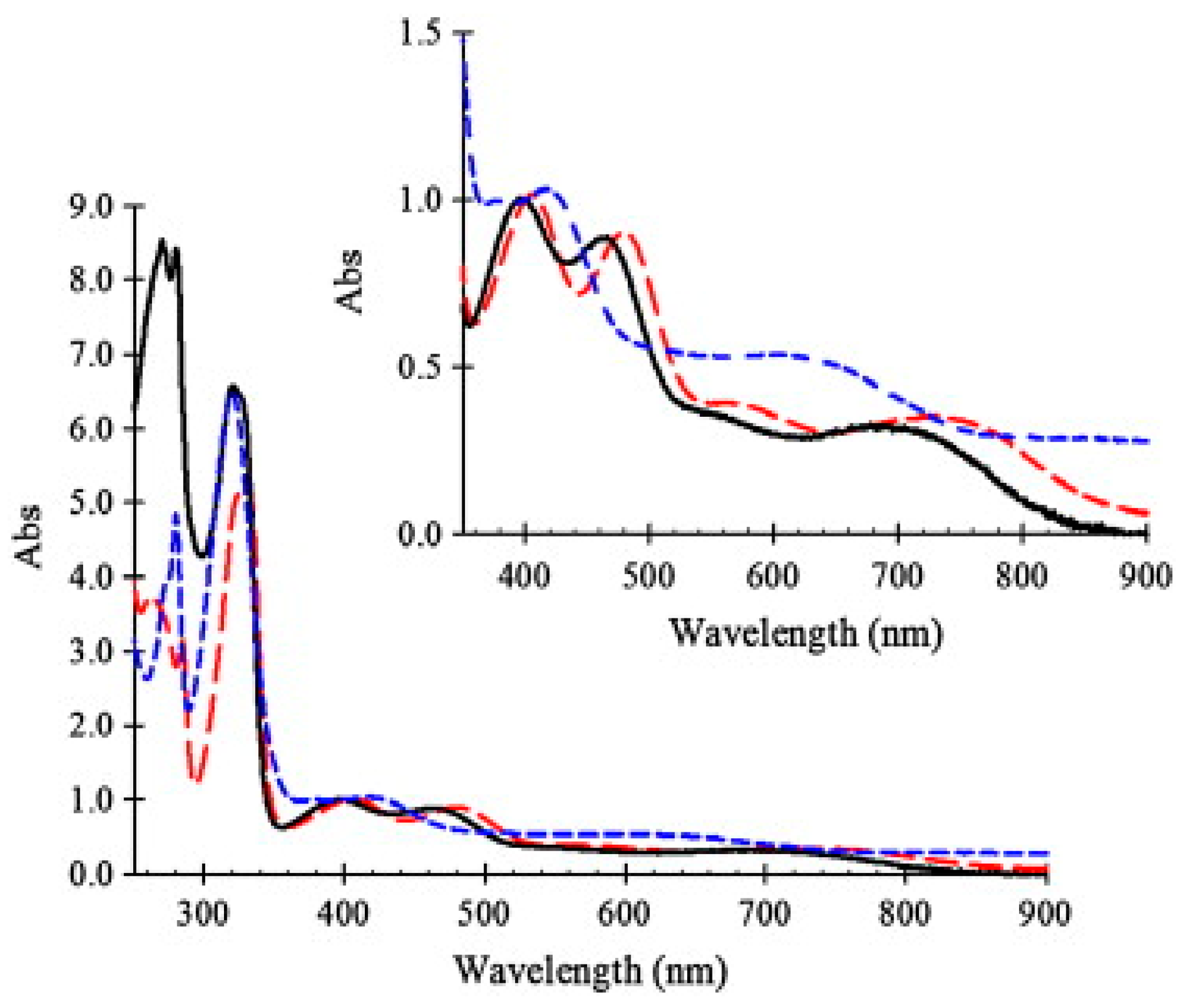

Figure 3. Absorption spectra of [ReCl(CO)2(terpy-κ3N)] in MeCN (black solid line), CH2Cl2 (red, long dash) and H2O (blue, short dash). Reprinted with permission from Ref. [55]. Copyright 2012 Elsevier.
Figure 3. Absorption spectra of [ReCl(CO)2(terpy-κ3N)] in MeCN (black solid line), CH2Cl2 (red, long dash) and H2O (blue, short dash). Reprinted with permission from Ref. [55]. Copyright 2012 Elsevier.
Molecules 29 01631 g003
Molecules 29 01631 g004
Figure 4. The absorption (dashed lines) and emission (soild lines) properties of [ReCl(CO)3(R-terpy-κ2N)] with phenyl, naphtyl, and phenanthrenyl pendant groups in relation to the model chromophore [ReCl(CO)3(terpy-κ2N)]. The spectra are readapted from our previous works [46,50,59,60,61].
Figure 4. The absorption (dashed lines) and emission (soild lines) properties of [ReCl(CO)3(R-terpy-κ2N)] with phenyl, naphtyl, and phenanthrenyl pendant groups in relation to the model chromophore [ReCl(CO)3(terpy-κ2N)]. The spectra are readapted from our previous works [46,50,59,60,61].
Molecules 29 01631 g004
Molecules 29 01631 g005
Figure 5. The normalized emission spectra of 14Cl–24Cl in CHCl3, solid state and frozen matrices at 77 K. The spectra are readapted from our previous works [50,84,85].
Figure 5. The normalized emission spectra of 14Cl–24Cl in CHCl3, solid state and frozen matrices at 77 K. The spectra are readapted from our previous works [50,84,85].
Molecules 29 01631 g005
Molecules 29 01631 sch006
Scheme 6. Molecular structures of [ReX(CO)2(R-terpy-κ3N)] complexes discussed in this section (Class E).
Scheme 6. Molecular structures of [ReX(CO)2(R-terpy-κ3N)] complexes discussed in this section (Class E).
Molecules 29 01631 sch006
Molecules 29 01631 sch007
Scheme 7. Molecular structures of [Re(X/L)(CO)3(R-terpy-κ2N)]0/+ and [Re(X/L)(CO)2(R-terpy-κ3N)]0/+ complexes discussed in Section 6. (Class F). X is a mono-negative anion different from Cl and Br, and L stands for a neutral ligand.
Scheme 7. Molecular structures of [Re(X/L)(CO)3(R-terpy-κ2N)]0/+ and [Re(X/L)(CO)2(R-terpy-κ3N)]0/+ complexes discussed in Section 6. (Class F). X is a mono-negative anion different from Cl and Br, and L stands for a neutral ligand.
Molecules 29 01631 sch007
Molecules 29 01631 g006
Figure 6. The first oxidation and reduction potentials of [Re(X/L)(CO)3(R-terpy-κ2N)]0/+ and [Re(X/L)(CO)2(R-terpy-κ3N)]0/+ determined by cyclic voltammetry.
Figure 6. The first oxidation and reduction potentials of [Re(X/L)(CO)3(R-terpy-κ2N)]0/+ and [Re(X/L)(CO)2(R-terpy-κ3N)]0/+ determined by cyclic voltammetry.
Molecules 29 01631 g006
Molecules 29 01631 g007
Figure 7. The HOMO and LUMO energy levels of [Re(X/L)(CO)3(R-terpy-κ2N)]0/+ and [Re(X/L)(CO)2(R-terpy-κ3N)]0/+, estimated on the basis of potentials of the oxidation and reduction couples with regard to the energy level of the ferrocene reference: HOMO energy levels estimated from equation IP= −5.1 − Eox; LUMO energy levels estimated from equation EA= −5.1 − Ered.
Figure 7. The HOMO and LUMO energy levels of [Re(X/L)(CO)3(R-terpy-κ2N)]0/+ and [Re(X/L)(CO)2(R-terpy-κ3N)]0/+, estimated on the basis of potentials of the oxidation and reduction couples with regard to the energy level of the ferrocene reference: HOMO energy levels estimated from equation IP= −5.1 − Eox; LUMO energy levels estimated from equation EA= −5.1 − Ered.
Molecules 29 01631 g007
Molecules 29 01631 sch008
Scheme 8. Higher nuclearity coordination compounds including photoactive {Re(CO)3(R-terpy-κ2N)} and {Re(CO)2(R-terpy-κ3N)} motives (Class G).
Scheme 8. Higher nuclearity coordination compounds including photoactive {Re(CO)3(R-terpy-κ2N)} and {Re(CO)2(R-terpy-κ3N)} motives (Class G).
Molecules 29 01631 sch008
Table 2. The absorption and emission properties of [ReX(CO)3(terpy-κ2N)] (X = Cl, Br).
Table 2. The absorption and emission properties of [ReX(CO)3(terpy-κ2N)] (X = Cl, Br).
XMediumλabs (nm)λexcλemτavφPL [%]Ref.
Cl77 K
DMF–CH2Cl2 (9:1 v/v)		––5303.4 μs–[32]
DMSO320–400, 290–320––––[38]
MeCN320–400, 250–300360506––[39]
CH2Cl2378, 295, 2204425092.02 μs0.3[49]
Solid–3655621.95 μs–
CHCl3–3936384.59 ns0.42[46]
MeCN375, 323, 3063806563.59 ns<0.01
Solid–4915820.6 μs–
BrMeCN367, 310, 247–6404.41 ns0.03[47]
DMF375, 309––––[48]
MeCN372, 310, 247––––
Table 3. The absorption and emission properties of [ReX(CO)2(terpy-κ3N)] (X = Cl, Br).
Table 3. The absorption and emission properties of [ReX(CO)2(terpy-κ3N)] (X = Cl, Br).
XMediumλabs (nm) (ε (10−4/dm3mol−1cm−1))λexcλemRef.
ClMeCN689 (0.13), 567 (0.14), 466 (0.36), 398 (0.40), 321 (0.26), 280 (3.39), 271 (3.40), 239 (2.91)––[36]
EtOH–MeOH
77 K		–385520
MeCN671 (0.14), 460 (0.38), 397 (0.40), 320 (2.66), 280 (4.75)––[55]
BrMeCN690 (0.11), 547 (0.12), 446 (0.33), 395 (0.33), 330 (2.10), 323 (2.20), 278 (1.65), 241 (2.74), 214 (4.27)––[47]
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Palion-Gazda, J.; Choroba, K.; Maroń, A.M.; Malicka, E.; Machura, B. Structural and Photophysical Trends in Rhenium(I) Carbonyl Complexes with 2,2′:6′,2″-Terpyridines. Molecules 2024, 29, 1631. https://doi.org/10.3390/molecules29071631

AMA Style

Palion-Gazda J, Choroba K, Maroń AM, Malicka E, Machura B. Structural and Photophysical Trends in Rhenium(I) Carbonyl Complexes with 2,2′:6′,2″-Terpyridines. Molecules. 2024; 29(7):1631. https://doi.org/10.3390/molecules29071631

Chicago/Turabian Style

Palion-Gazda, Joanna, Katarzyna Choroba, Anna Maria Maroń, Ewa Malicka, and Barbara Machura. 2024. "Structural and Photophysical Trends in Rhenium(I) Carbonyl Complexes with 2,2′:6′,2″-Terpyridines" Molecules 29, no. 7: 1631. https://doi.org/10.3390/molecules29071631

Article Metrics

Back to TopTop
