Article

Genome-Wide Identification and in Silico Analysis of Poplar Peptide Deformylases

1
State Key Laboratory of Forest Genetics and Tree Breeding, Northeast Forestry University, 26 Hexing Road, Harbin 150040, China
2
Laboratory for Chemical Defense and Microscale Analysis, P.O. Box 3, Zhijiang 443200, China
3
Forestry College, Beihua University, Jilin 132013, China
4
School of Basic Medical Sciences, Jiamusi University, Jiamusi 154000, China
5
Forestry Research Institution of Heilongjiang Province, Harbin 150081, China
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2012, 13(4), 5112-5124; https://doi.org/10.3390/ijms13045112
Submission received: 17 January 2012 / Revised: 12 April 2012 / Accepted: 18 April 2012 / Published: 23 April 2012
(This article belongs to the Section Biochemistry)

Abstract

:
Peptide deformylases (PDF) behave as monomeric metal cation hydrolases for the removal of the N-formyl group (Fo). This is an essential step in the N-terminal Met excision (NME) that occurs in these proteins from eukaryotic mitochondria or chloroplasts. Although PDFs have been identified and their structure and function have been characterized in several herbaceous species, it remains as yet unexplored in poplar. Here, we report on the first identification of two genes (PtrPDF1A and PtrPDF1B) respectively encoding two putative PDF polypeptides in Populus trichocarpa by genome-wide investigation. One of them (XP_002300047.1) encoded by PtrPDF1B (XM_002300011.1) was truncated, and then revised into a complete sequence based on its ESTs support with high confidence. We document that the two PDF1s of Populus are evolutionarily divergent, likely as a result of independent duplicated events. Furthermore, in silico simulations demonstrated that PtrPDF1A and PtrPDF1B should act as similar PDF catalytic activities to their corresponding PDF orthologs in Arabidopsis. This result would be value of for further assessment of their biological activities in poplar, and further experiments are now required to confirm them.

1. Introduction

In all organisms, the protein synthesis machinery requires newly synthesized peptides to start systematically with methionine (Met) [1]. Approximately two-thirds of mature proteins undergo N-terminal Met excision (NME) by Met aminopeptidase (MAP; EC 3.4.11.18), which proteolytically removes the N-terminal Met if the residue at position two has a side-chain with a radius of gyration of 1.29 Å or less [25]. However, MAP cannot cleave Met with an N-formyl group (Fo) from eubacteria, mitochondria and chloroplasts, where the N-terminal Met moiety must be N-formylated by a formyltransferase [5,6].
Removal of the Fo is undertaken by peptide deformylase (PDF), and is therefore an essential first step in allowing the subsequent NME occurrence in the eukaryotic mitochondria or chloroplasts [1,2,7]. Most PDFs are monomeric hydrolases and all contain three signature sequence motifs, comprising the active pocket of the enzyme and a metal cation: (i) GψGψAAXQ (motif 1); (ii) EGCLS (motif 2) and (iii) HEψDH (motif 3), where ψ is a hydrophobic amino acid [8,9]. The Cys of motif 2 and the two His residues of motif 3 stabilize metal ion coordination at the active site of PDF [8,9]. PDFs are important for some biological processes such as development of chloroplast in rice [10], and cell proliferation in humans [11].
Recent studies, together with the release of complete genome sequences for different organisms, have led to the identification of PDFs in eukaryotes; two PDFs have been identified in Arabidopsis [8,9], three in rice [10] and one in humans [11]. Since these PDFs do not contain the two insertions typical of PDF2 molecules, all eukaryotic PDFs are grouped as type 1 (PDF1). In Arabidopsis, the two PDF1s form two subclasses: PDF1A that localizes to the mitochondria, and PDF1B that localizes to plastids [1,12]. These crystal structures of Arabidopsis PDF1A and PDF1B have been determined, not only indicating several similarities to bacterial PDFs and their function activity for the removal of the N-formyl group, but also showing several clear differences between AtPDF1A (At1g15390.1) and AtPDF1B (At5g14660.1) [8,9].
Although amount of research efforts have been employed in exploring PDFs structure and function for several plant species, such as Arabidopsis [1,8,9,12] and rice [10], such research has not yet been directed towards woody trees. In order to identify all genes encoding PDFs and explore their function in poplar, we initiate one genome-wide investigation combined with in silico simulations. In this work, we identified two genes encoding PDFs across the complete P. trichocarpa genome, and proposed that poplar PDFs should possess similar biological activities to their corresponding PDF orthologs in Arabidopsis. This result would be valuable towards further assessment of their functional roles in poplar.

2. Results and Discussion

2.1. Identification and Characterization of PDF Genes in Populus

To identify poplar PDF genes and their putative encoded polypeptides occurred in the complete P. trichocarpa genome, Hidden Markov Model (HMM) profile file of the PDF domain (PF01327) [13,14] was exploited as a query file for a search across the P. trichocarpa protein sequence data [15]. A total of two non-redundant putative genes were identified as PDF genes because of their encoding polypeptides significantly matched the known PDF domain (Table 1). Furthermore, to calibrate our identification of the two PDF genes from JGI poplar database, their encoding proteins were further compared by a BLASTP search against NCBI Reference sequence (RefSeq) database, which provides a non-redundant and validated collection of sequences representing genomic data, transcripts and proteins [16,17]. As a result, the two poplar PDF genes (640630 and 173925) respectively possess their individual counterparts of protein and mRNA in NCBI RefSeq database (Table 1), suggesting that they should represent correct proteins or genes. Thus, in this endeavor, two PDF1 genes (and their corresponding encoding PDF proteins) were identified in total across the P. trichocarpa genome by the genome-wide investigation. The P. trichocarpa genome encodes the similar numbers of PDF1 gene members as several herbaceous plants, such as Arabidopsis [12] and rice [1], indicating no expansion present in poplar PDF gene members. In contrast, the expansion was often present in large number of Populus multigene families [15]. The result might reflect the analogous need for PDF activities involved in Fo Removal between woody and herbaceous plants.

2.2. Revision of Poplar PDF Gene-encoding Proteins

To provide a simplified nomenclature for each identified protein, the two identified PDFs were respectively denominated as PtrPDF1B (XP_002300047.1) and PtrPDF1A (XP_002298107.1) according to their individual best hits with their orthologs in Arabidopsis (Figure 1 and Table 1). It is noteworthy that the coding sequence (CDS, XM_002300011.1) encoding PtrPDF1B might be uncompleted because of its absence of start codon “ATG” and stop codon, which leads to the truncated N-terminus and C-terminus of PtrPDF1B proteins. In order to amend it (XM_002300011.1) into complete CDS sequence, its corresponding Expressed Sequence Tags (ESTs) were retrieved by a BLASTN online search [18]. These 5′ and 3′ perfectly matched ESTs from NCBI were respectively applied for the alignment with 5′ and 3′ terminus of the CDS sequence (Figure 2a,b). The sequence alignment and further comparative analyses clearly demonstrated that upstream of the first three nucleotides “CTA” from the transcript (XM_002300011.1) should be extended by the “ATG” encoding Met as initiation codon as well as the followed 24 nucleotide acid sequences encoding one polypeptide with 8 consecutive amino acids (Figure 2a). Furthermore, downstream of the last three nucleotides “AAA” from the transcript (XM_002300011.1) should be extended by the “TTA” encoding Leu as well as the following “TAA” encoding stop codon (Figure 2b). Although the CDS (XM_002300011.1) and protein sequence (XP_002300047.1) of PtrPDF1B were obtained from the NCBI Reference sequence (RefSeq) database, which provides a non-redundant and validated collection of sequences representing genomic data, transcripts and proteins [16,17], they will need to be refined since they could represent one truncated transcript or protein. In this endeavor, the truncated CDS/transcript of PtrPDF1B were confirmed by ESTs support with high confidence and revised into complete CDS sequence, whereas the corresponding full-length protein sequence of PtrPDF1B was also obtained, as shown in Figure 2a–c.

2.3. Divergence in Poplar PDF1s

Divergence in PDF1s that might give rise to be functionally distinct has found in herbaceous plants, such as Arabidopsis and rice. To examine whether similar PDF1s divergence occurs in Populus, an unrooted tree was constructed by both Neighbor-Joining [19] and Minimum-Evolution methods using MEGA 5.0 [20] based on alignments of these full-length PDF proteins sequences (Figure 3a). The tree topologies generated by the two methods were comparable without modifications at branches, and supported by their high bootstrap values of >60, suggesting that we constructed a reliable unrooted tree topology, in which two distinct clans occur, including PDF1 and PDF2 clans (Figure 3a). Phylogenetic analysis demonstrates that PDF1 of Populus is encoded by evolutionarily divergent genes, which is consistent with previous reports in Arabidopsis and rice (PDF1A and PDF1B; Figure 3a) [2]. In addition, divergence occurred between PtrPDF1A and PtrPDF1B. This is supported by an apparent difference in their amino acid sequences, especially with one relatively shorter C-terminal sequence in PtrPDF1B. Our results indicated that divergence of PDF1 should be extended to Populus as a model woody plant, and the divergence might be caused by independent duplicated events. It is worth noting that another obvious divergence also exists in PDF1A (plant type PDF1A and animal type PDF1A) that the result supports previous phylogenetic analyses (Figure 3a) [2].
The gene structural display could provide us additional information for the evolutionary relationship of multi-gene families [21]. To further gain novel insight into the phylogenetic relationship of poplar PDF1 genes, the exon/intron organization was illustrated for individual PDF1 genes by comparison of the cDNA sequences and their corresponding genomic sequences (Figure 3b). As a result, the two evolutionarily divergent PDF1 genes members in poplar exhibited a different distribution of exon/intron structure such that PtrPDF1A and PrtPDF1B respectively possessed four and six exons in their individual coding regions (Figure 3b). The difference in exon/intron architecture of PtrPDF1A and PrtPDF1B might support the divergence in PDF1 genes of poplar from the phylogenetic analysis (Figure 3a).

2.4. Chromosome Location and Duplication of PDF1 Genes in Populus

In silico mapping of the gene loci showed that both the two PDF genes of PtrPDF1A and PtrPDF1B were found on Linkage Group I (LG I), one of the 19 LGs (Table 1 and Figure 4). Previous analysis of Populus genome has identified the presence of paralogous segments caused by the whole-genome duplication event in the Salicaceae (salicoid duplication), which occurred 65 million years ago and significantly contributed to the amplification of many multi-gene families [15]. To determine the possible relationship between the PDF1 genes and paralogous segments, the Populus PDF1 genes were mapped to the duplicated blocks of P. trichocarpa established in the studies of Tuskan and its coworkers [15]. The distribution of PDF1 genes relative to the duplicated blocks is illustrated in Figure 4. It was found that PtrPDF1B gene (50%), are represented within duplicated blocks, whereas PtrPDF1A are outside these duplicated blocks, suggesting that their occurrence should be caused by independent duplication events. The result is surprisingly consistent with the deduction from our phylogenetic analysis above. Furthermore, one duplicated pair (PtrPDF1B) harbored PDF1 genes on only one of the blocks and lack corresponding duplicates, suggesting that dynamic changes on the loss event of its corresponding paralogous genes might have occurred following segmental duplication (Figure 4). The findings support the result that the most abundant genes losses in eukaryotes occur following the whole genome duplication [22].

2.5. In Silico Simulation on the Poplar PDFs Reveal Analogous Activities with Their Individual Counterparts in Arabidopsis

The sequence alignment of PtrPDF1A and PtrPDF1B with known PDF sequences from Arabidopsis separately revealed high sequence similarity, especially the three conserved function-related regions, motif 1, motif 2 and motif 3 (Figure 1a,b). Consequently, PDF activity should be present in the two identified PtrPDFs in poplar. However, high sequence homology of the primary structure only partly provides evidence for their analogous catalytic activity. The in silico modeling of PtrPDF1A and PtrPDF1B were performed to explore the functions of these two proteins. As Figure 5 shows, PtrPDF1A consists mainly of helices, β-sheets, turns and random coils (Figure 5c). It is identical to the structure of the known AtPDF1A (PDB code 1ZY1) protein [9], especially for the three conserved motifs (Figure 5a). However, there are differences in regions not directly related to the function. For example, the N-terminal α1-helix region of PtrPDF1A is split into two α-helices by a single turn whereas in AtPDF1A this is one continuous α1-helix. A similar situation is also observed between PtrPDF1B and AtPDF1B (PDB code 3CPM) [8] (Figure 5b,d).
As discussed above, the structures of PtrPDF1A and PtrPDF1B are similar to AtPDF1A and AtPDF1B, respectively. This conclusion is further supported by the analysis of the electrostatic potential surfaces (EPS). It is clear that the active sites of PtrPDF1A and PtrPDF1B are nearly the same as those of AtPDF1A and AtPDF1B, respectively (Figure 6). In addition, the binding sites of the substrate Met-Ala-Ser within AtPDF1A and PtrPDF1A are close in the structure (Figure 6a,c). The interaction energies (Einter) were calculated to be −208.75 and −122.21 kcal mol−1, respectively. During the ligand binding processes electrostatic effects play a large role, which amounts to 79% and 60% of the binding energies, respectively. For AtPDF1B and PtrPDF1B (Figure 6b,d), the energy values were −199.31 and −222.30 kcal mol−1, respectively. Electrostatic interactions (Eele) rather than van der Waals interactions (EvdW) play a dominant role in the ligand binding processes, contributing to almost 79% and 85% of the binding energies, respectively. In particular, PtrPDF1A and PtrPDF1B recognize the tripeptide Met-Ala-Ser, which is consist with experiments and previous reports [8,9]. The results provide a hypothesis that the putative PDFs of poplar should act with PDF catalytic activity and in a similar mechanism to their corresponding PDF orthologs in Arabidopsis. This result is important for further studying and examining their biological activities.

3. Experimental Section

3.1. Identification of PDF Genes across Poplar Genome

The complete protein sequence database was downloaded from Populus trichocarpa v1.1 [23]. Hidden Markov Model (HMM) profile file (Pep_deformylase.hmm) of the Pfam PDF domain (PF01327) from the Pfam database [24], was exploited as a query file to identify PDF genes in the Populus protein database using the hmmer search command of the HMMER (v 3.0) program, which was widely applied for identification of homologues of an interested protein family [14,25].

3.2. Revision of Poplar PDF Proteins

The expressed sequence tags (EST) were retrieved by BLASTN the corresponding transcript/CDS from P. trichocarpa v1.1 [23] as query sequence online search against all of the Populus EST sequences in NCBI. Matches above 95% identity and over an alignment of at least 100 bp were considered as corresponding sequences of the PDF genes. Multiple sequences alignments of these sequences with their individual transcript/CDS sequence were performed using ClustalW program in BioEdit software under the default parameters settings [26]. Sequence alignments were manually adjusted to get maximum matching.

3.3. Phylogenetic Analysis and Gene Structural Display

The unrooted phylogenetic trees were constructed using MEGA 5.0 software [20], by both the Neighbor-joining method [19] and Maximum Likelihood method with parameters (p-distance and completed deletion) based on 11 aligned PDF sequences. The reliability of the phylogenetic tree was estimated using bootstrap value with 1000 replicates. Gene structure display server (GSDS) program [21] was applied to the illustrate exon/intron organization for individual PDF genes by comparison of the cDNA sequences and their corresponding genomic sequences.

3.4. Chromosomal Location and in Silico Simulation

The two identified PDF genes were located in the genome of P. trichocarpa using NCBI map viewer [27]. Identification of duplicated regions between chromosomes was completed as described in Tuskan et al. [15].
All the flexible docking simulations were performed with the different modules implemented under the InsightII 2005 software package [28] on Linux workstations, using the consistent-valence force-field (CVFF). The X-ray crystal structures AtPDF1A (PDB code 1ZY1) [9] and AtPDF1B (PDB code 3CPM) [8] were recovered from the RCSB Protein Data Bank and employed to construct the structures of PtrPDF1A and PtrPDF1B, applying the workspace in the Swiss Model [29,30]. The two protein models were optimized with the conjugated gradient algorithm (Discover 3.0 module). Geometry and partial atomic charges of the tripeptide Met-Ala-Ser were conducted throughout the Discover 3.0 module by applying the BFGS algorithm [31] with a convergence criterion of 0.01 kcal·mol−1·Å−1. As demonstrated by previous results [32,33], the docking simulations were performed to explore and understand the interactions of PtrPDF1A and PtrPDF1B with the tripeptide Met-Ala-Ser using the general protocols in the InsightII 2005 software packages [32,34]. The interaction energies of the substrate with proteins were calculated by the Docking module [34]. More details describing the calculation processes can be found elsewhere [32,33].

4. Conclusions

Removal of the Fo undertaken by PDF is an essential first step of the NME occuring in the eukaryotic mitochondria or chloroplasts. Some advances have been made in exploring structure and function of PDFs for several plant species, such as Arabidopsis, maize and rice. However, such effort has not yet been directed towards poplars as model woody trees. In this work, the above issues are addressed using the method of one genome-wide investigation combined with in silico simulations. P. trichocarpa genome contains two evolutionarily divergent genes of PtrPDF1A and PtrPDF1B, which might be caused by independent duplicated events. Furthermore, PtrPDF1A and PtrPDF1B should act with similar PDF catalytic activity to their corresponding PDF orthologs in Arabidopsis. These results would be valuable resources for understanding the function of PDFs in poplar, and further experiments, based on our results, should be performed in the future.

Acknowledgments

We are grateful for the financial support from the National Basic Research Priorities Programme (Grant No. 2009CB119102), Natural Science Foundation of Heilongjiang Province of China (Grant NO. GJN04-0102), the excellent doctor degree dissertation in the Northeast Forestry University (Grant No. 140-602055). The authors declare no conflicts of interest.

References

  1. Giglione, C.; Serero, A.; Pierre, M.; Boisson, B.; Meinnel, T. Identification of eukaryotic peptide deformylases reveals universality of N-terminal protein processing mechanisms. EMBO J 2000, 19, 5916–5929. [Google Scholar]
  2. Giglione, C.; Boularot, A.; Meinnel, T. Protein N-terminal methionine excision. Cell Mol. Life Sci 2004, 61, 1455–1474. [Google Scholar]
  3. Polevoda, B.; Sherman, F. N-terminal acetyltransferases and sequence requirements for N-terminal acetylation of eukaryotic proteins. J. Mol. Biol 2003, 325, 595–622. [Google Scholar]
  4. Martinez, A.; Traverso, J.A.; Valot, B.; Ferro, M.; Espagne, C.; Ephritikhine, G.; Zivy, M.; Giglione, C.; Meinnel, T. Extent of N-terminal modifications in cytosolic proteins from eukaryotes. Proteomics 2008, 8, 2809–2831. [Google Scholar]
  5. Ross, S.; Giglione, C.; Pierre, M.; Espagne, C.; Meinnel, T. Functional and developmental impact of cytosolic protein N-terminal methionine excision in arabidopsis. Plant Physiol 2005, 137, 623–637. [Google Scholar]
  6. Pesaresi, P.; Gardner, N.A.; Masiero, S.; Dietzmann, A.; Eichacker, L.; Wickner, R.; Salamini, F.; Leister, D. Cytoplasmic N-terminal protein acetylation is required for efficient photosynthesis in Arabidopsis. Plant Cell 2003, 15, 1817–1832. [Google Scholar]
  7. Giglione, C.; Vallon, O.; Meinnel, T. Control of protein life-span by N-terminal methionine excision. EMBO J 2003, 22, 13–23. [Google Scholar]
  8. Dirk, L.; Schmidt, J.; Cai, Y.; Barnes, J.; Hanger, K.; Nayak, N.; Williams, M.; Grossman, R.; Houtz, R.; Rodgers, D. Insights into the substrate specificity of plant peptide deformylase, an essential enzyme with potential for the development of novel biotechnology applications in agriculture. Biochem. J 2008, 413, 417–427. [Google Scholar]
  9. Fieulaine, S.; Juillan-Binard, C.; Serero, A.; Dardel, F.; Giglione, C.; Meinnel, T.; Ferrer, J. The crystal structure of mitochondrial (Type 1A) peptide deformylase provides clear guidelines for the design of inhibitors specific for the bacterial forms. J. Biol. Chem 2005, 280, 42315–42324. [Google Scholar]
  10. Moon, S.; Giglione, C.; Lee, D.; An, S.; Jeong, D.; Meinnel, T.; An, G. Rice peptide deformylase PDF1B is crucial for development of chloroplasts. Plant Cell Physiol 2008, 49, 1536–1546. [Google Scholar]
  11. Escobar-Alvarez, S.; Goldgur, Y.; Yang, G.; Ouerfelli, O.; Li, Y.; Scheinberg, D. Structure and activity of human mitochondrial peptide deformylase, a novel cancer target. J. Mol. Biol 2009, 387, 1211–1228. [Google Scholar]
  12. Dirk, L.; Williams, M.; Houtz, R. Eukaryotic peptide deformylases. Nuclear-encoded and chloroplast-targeted enzymes in Arabidopsis. Plant Physiol 2001, 127, 97–107. [Google Scholar]
  13. Bateman, A.; Birney, E.; Cerruti, L.; Durbin, R.; Etwiller, L.; Eddy, S.; Griffiths-Jones, S.; Howe, K.; Marshall, M.; Sonnhammer, E. The Pfam protein families database. Nucleic Acids Res 2002, 30, 276–280. [Google Scholar]
  14. Finn, R.D.; Mistry, J.; Tate, J.; Coggill, P.; Heger, A.; Pollington, J.E.; Gavin, O.L.; Gunasekaran, P.; Ceric, G.; Forslund, K. The Pfam protein families database. Nucleic Acids Res 2010, 38, D211–D222. [Google Scholar]
  15. Tuskan, G.; Difazio, S.; Jansson, S.; Bohlmann, J.; Grigoriev, I.; Hellsten, U.; Putnam, N.; Ralph, S.; Rombauts, S.; Salamov, A. The genome of black cottonwood, Populus trichocarpa (Torr. & Gray). Science 2006, 313, 1596–1604. [Google Scholar]
  16. Pruitt, K.D.; Tatusova, T.; Maglott, D.R. NCBI reference sequences (RefSeq): A curated non-redundant sequence database of genomes, transcripts and proteins. Nucleic Acids Res 2006, 35, D61–D65. [Google Scholar]
  17. Pruitt, K.D.; Tatusova, T.; Maglott, D.R. NCBI Reference Sequence (RefSeq): A curated non-redundant sequence database of genomes, transcripts and proteins. Nucleic Acids Res 2005, 33, D501–504. [Google Scholar]
  18. Basic Local Alignment Search Tool. National Center for Biotechnology Information (NCBI). Available online: http://blast.ncbi.nlm.nih.gov/ accessed on 5 April 2012.
  19. Saitou, N.; Nei, M. The neighbor-joining method: A new method for reconstructing phylogenetic trees. Mol. Biol. Evol 1987, 4, 406–425. [Google Scholar]
  20. Tamura, K.; Peterson, D.; Peterson, N.; Stecher, G.; Nei, M.; Kumar, S. MEGA5: Molecular evolutionary genetics analysis using maximum likelihood, evolutionary distance, and maximum parsimony methods. Mol. Biol. Evol 2011, 28, 2731–2739. [Google Scholar]
  21. Guo, A.Y.; Zhu, Q.H.; Chen, X.; Luo, J.C. GSDS: A gene structure display server (in Chinese). Yi Chuan 2007, 29, 1023–1026. [Google Scholar]
  22. Abdel-Haleem, H. The origins of genome architecture. J. Hered 2007, 98, 633–634. [Google Scholar]
  23. The Genome Portal of the Department of Energy Joint Genome Institute. Available online: www.jgi.doe.gov/poplar accessed on 10 April 2012.
  24. Punta, M.; Coggill, P.C.; Eberhardt, R.Y.; Mistry, J.; Tate, J.; Boursnell, C.; Pang, N.; Forslund, K.; Ceric, G.; Clements, J. The Pfam protein families database. Nucleic Acids Res 2012, 40, D290–D301. [Google Scholar]
  25. Eddy, S.R. A new generation of homology search tools based on probabilistic inference. Genome Inform 2009, 23, 205–211. [Google Scholar]
  26. Hall, T.A. BioEdit: A User-Friendly Biological Sequence Alignment Editor and Analysis Program for Windows 95/98/NT. Nucleic Acids Symposium Series, Washington, DC, USA; 1999; pp. 95–98. [Google Scholar]
  27. Map Viewer. National Center for Biotechnology Information (NCBI). Available online: http://www.ncbi.nlm.nih.gov/projects/mapview/ accessed on 10 April 2012.
  28. Accelrys, InisghtII 2005; Accelrys Inc: San Diego, CA, USA, 2005.
  29. Arnold, K.; Bordoli, L.; Kopp, J.; Schwede, T. The SWISS-MODEL workspace: A web-based environment for protein structure homology modelling. Bioinformatics 2006, 22, 195–201. [Google Scholar]
  30. Bordoli, L.; Kiefer, F.; Arnold, K.; Benkert, P.; Battey, J.; Schwede, T. Protein structure homology modeling using SWISS-MODEL workspace. Nat. Protoc 2008, 4, 1–13. [Google Scholar]
  31. Head, J.D.; Zerner, M.C. A Broyden–Fletcher–Goldfarb–Shanno optimization procedure for molecular geometries. Chem. Phys. lett 1985, 122, 264–270. [Google Scholar]
  32. Yang, Z.W.; Yang, G.; Zu, Y.G.; Fu, Y.J.; Zhou, L.J. The conformational analysis and proton transfer of the neuraminidase inhibitors: A theoretical study. Phys. Chem. Chem. Phys 2009, 11, 10035–10041. [Google Scholar]
  33. Yang, Z.; Nie, Y.; Yang, G.; Zu, Y.; Fu, Y.; Zhou, L. Synergistic effects in the designs of neuraminidase ligands: Analysis from docking and molecular dynamics studies. J. Theor. Biol 2010, 267, 363–374. [Google Scholar]
  34. Accrlrys, Affinity User Guide; Accelrys Inc: San Diego, CA, USA, 2005.
Figure 1. Alignment of the PDF sequences between poplar and Arabidopsis. One complete amino acid sequence alignment of the two poplar PDFs with their orthologs in Arabidopsis was performed. It was found that they respectively shared the best amino acid sequence identities with AtPDF1A (AT1G15390) and AtPDF1B (AtPDF1B). Motifs 1, 2 and 3 are indicated as blue frames. White characters in grey boxes indicate strict identity, and black characters in white boxes indicate similarity. α, η and β represent α-helix, short 310 helix and β-sheets, respectively. (a) Sequence alignment of PtrPDF1A (XP_002298107.1) with AtPDF1A of Arabidopsis; (b) Sequence alignment of PtrPDF1B (XP_002300047.1) with AtPDF1B of Arabidopsis. Gaps were introduced to insure maximum identity.
Figure 1. Alignment of the PDF sequences between poplar and Arabidopsis. One complete amino acid sequence alignment of the two poplar PDFs with their orthologs in Arabidopsis was performed. It was found that they respectively shared the best amino acid sequence identities with AtPDF1A (AT1G15390) and AtPDF1B (AtPDF1B). Motifs 1, 2 and 3 are indicated as blue frames. White characters in grey boxes indicate strict identity, and black characters in white boxes indicate similarity. α, η and β represent α-helix, short 310 helix and β-sheets, respectively. (a) Sequence alignment of PtrPDF1A (XP_002298107.1) with AtPDF1A of Arabidopsis; (b) Sequence alignment of PtrPDF1B (XP_002300047.1) with AtPDF1B of Arabidopsis. Gaps were introduced to insure maximum identity.
Ijms 13 05112f1
Figure 2. Revision of PtrPDF1B transcript and its encoding protein from NCBI RefSeq database by multiple sequence alignment. (a) Multiple sequence alignment of 5′ terminus between the original PtrPDF1B transcript, as well as its corresponding genome DNA and ESTs; (b) Multiple sequence alignment of 3′ terminus between the original PtrPDF1B transcript and its corresponding ESTs; (c) Schematic diagram of the revised complete CDS of PtrPDF1B and its encoding full-length protein sequence. The amino acid encoded by each codon is displayed in the bottom of sequence alignment. Nucleotide acid sequences marked with open blue box represents the extended 5′ or 3′ terminus of PtrPDF1B transcript, while amino acid sequences marked with open blue box represents the extended N- or C- terminus of PtrPDF1B protein.
Figure 2. Revision of PtrPDF1B transcript and its encoding protein from NCBI RefSeq database by multiple sequence alignment. (a) Multiple sequence alignment of 5′ terminus between the original PtrPDF1B transcript, as well as its corresponding genome DNA and ESTs; (b) Multiple sequence alignment of 3′ terminus between the original PtrPDF1B transcript and its corresponding ESTs; (c) Schematic diagram of the revised complete CDS of PtrPDF1B and its encoding full-length protein sequence. The amino acid encoded by each codon is displayed in the bottom of sequence alignment. Nucleotide acid sequences marked with open blue box represents the extended 5′ or 3′ terminus of PtrPDF1B transcript, while amino acid sequences marked with open blue box represents the extended N- or C- terminus of PtrPDF1B protein.
Ijms 13 05112f2

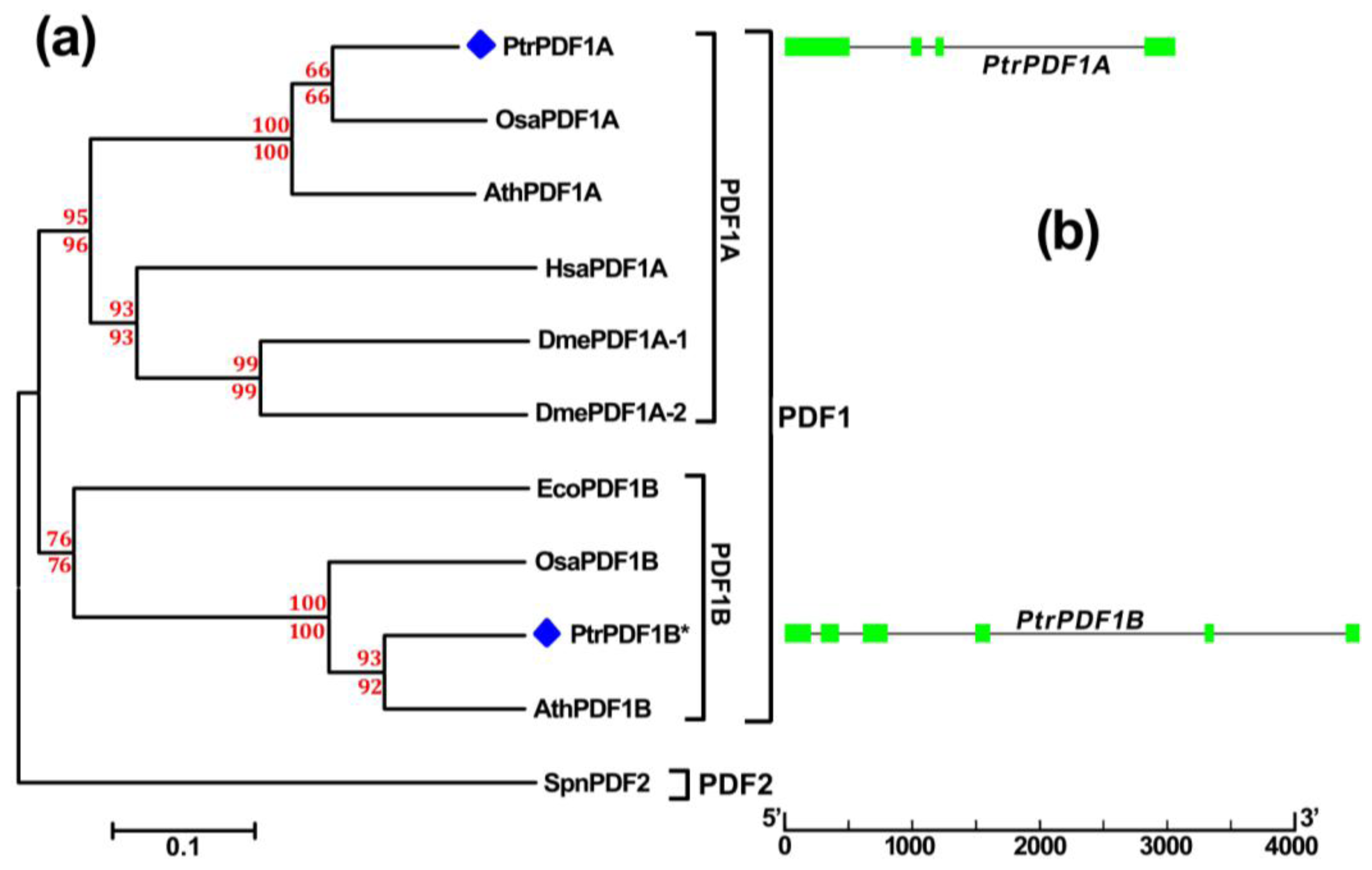

Figure 3. Phylogenetic analysis and gene structure display of the Populus PDF1 genes (a) Phylogenetic analysis of Populus PDF1 genes. Neighbor-joining bootstrap and Minimum Evolution values for clans supported above the 60% level were respectively indicated above and below the branches in red font. All PDF protein names and their individual corresponding ID number for phylogenetic analysis are listed as follows: SpnPDF2 (Q9F2F0); EcoPDF1B (P0A6K3); DmePDF1A-1 (Q8INL3); DmePDF1A-2 (Q9VGY2); HsaPDF1A (Q9HBH1); OsaPDF1B (Q5VNN5); OsaPDF1A (B6RGY0); AthPDF1B (Q9FUZ2); AthPDF1A (Q9FV53); PtrPDF1A (XP_002298107.1); PtrPDF1B (XP_002300047.1). The blue diamonds are highlighted in the front of all PtrPDF1A and PtrPDF1B from Populus. PtrPDF1B* represents the revised PtrPDF1B protein sequence in our study; (b) Schematic representation of the intron/exon structure for the Populus PDF1 genes. Exons and introns of Populus PDF1 genes are represented by green boxes and black lines, respectively, and their sizes could be estimated by the scale at the bottom.
Figure 3. Phylogenetic analysis and gene structure display of the Populus PDF1 genes (a) Phylogenetic analysis of Populus PDF1 genes. Neighbor-joining bootstrap and Minimum Evolution values for clans supported above the 60% level were respectively indicated above and below the branches in red font. All PDF protein names and their individual corresponding ID number for phylogenetic analysis are listed as follows: SpnPDF2 (Q9F2F0); EcoPDF1B (P0A6K3); DmePDF1A-1 (Q8INL3); DmePDF1A-2 (Q9VGY2); HsaPDF1A (Q9HBH1); OsaPDF1B (Q5VNN5); OsaPDF1A (B6RGY0); AthPDF1B (Q9FUZ2); AthPDF1A (Q9FV53); PtrPDF1A (XP_002298107.1); PtrPDF1B (XP_002300047.1). The blue diamonds are highlighted in the front of all PtrPDF1A and PtrPDF1B from Populus. PtrPDF1B* represents the revised PtrPDF1B protein sequence in our study; (b) Schematic representation of the intron/exon structure for the Populus PDF1 genes. Exons and introns of Populus PDF1 genes are represented by green boxes and black lines, respectively, and their sizes could be estimated by the scale at the bottom.
Ijms 13 05112f3

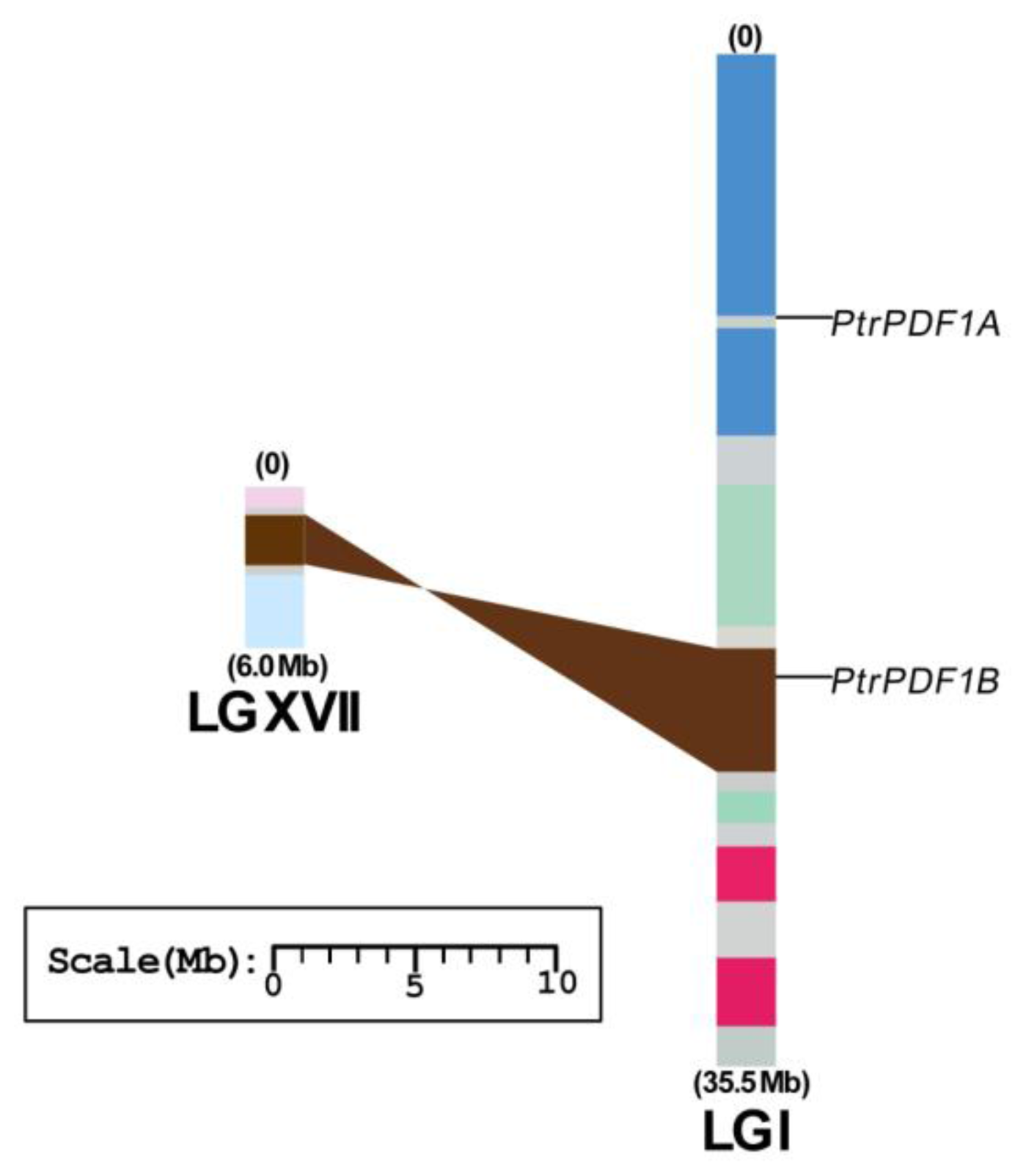

Figure 4. Chromosomal location of the Populus PDF1 genes. Both two genes are mapped to the Linkage Groups I (LG I), one of nineteen LGs. Segmental duplicated homologous regions in the LG I and LG XVII of Populus obtained from the research of Tuskan and its co-workers [15], are shown with the common colors. The duplication blocks containing PDF1 genes are connected with lines in shaded colors. Chromosome numbers (LG I and XVII) and sizes (Mb) are indicated at the bottom and end of each chromosome. Scale at the bottom represents a 10 Mb chromosomal distance.
Figure 4. Chromosomal location of the Populus PDF1 genes. Both two genes are mapped to the Linkage Groups I (LG I), one of nineteen LGs. Segmental duplicated homologous regions in the LG I and LG XVII of Populus obtained from the research of Tuskan and its co-workers [15], are shown with the common colors. The duplication blocks containing PDF1 genes are connected with lines in shaded colors. Chromosome numbers (LG I and XVII) and sizes (Mb) are indicated at the bottom and end of each chromosome. Scale at the bottom represents a 10 Mb chromosomal distance.
Ijms 13 05112f4

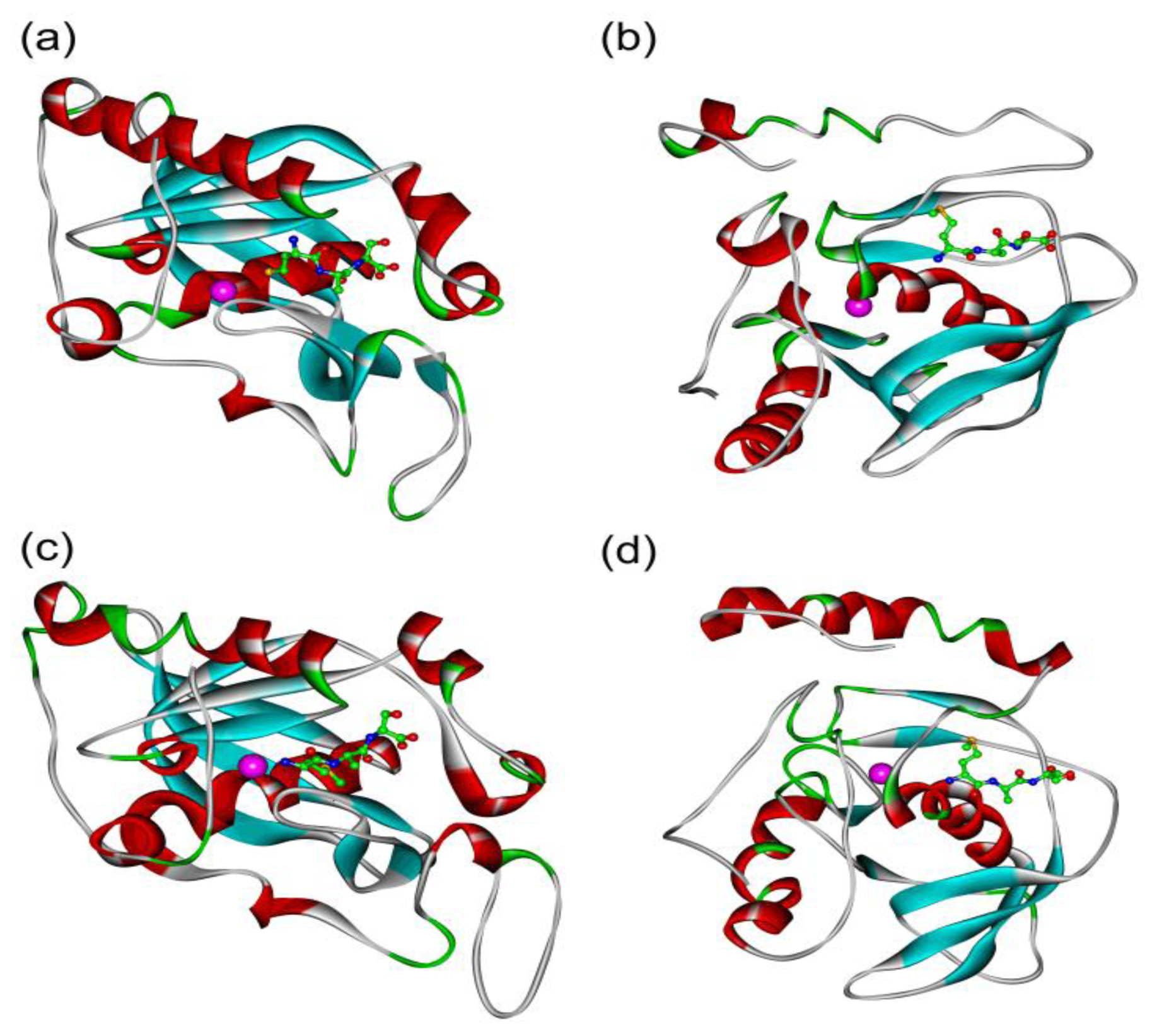

Figure 5. Ribbons stereo views. (a) Ribbons stereo views of AtPDF1A; (b) Ribbons stereo views of AtPDF1A; (c) Ribbons stereo views of PtrPDF1A; (d) Ribbons stereo views of PtrPDF1B. The substrate Met-Ala-Ser is represented by a ball and stick model. Zn2+ is in the purple CPK model. Ribbon colors: helices, β-sheets, turns and random coils are in red, cyan, green and white, respectively.
Figure 5. Ribbons stereo views. (a) Ribbons stereo views of AtPDF1A; (b) Ribbons stereo views of AtPDF1A; (c) Ribbons stereo views of PtrPDF1A; (d) Ribbons stereo views of PtrPDF1B. The substrate Met-Ala-Ser is represented by a ball and stick model. Zn2+ is in the purple CPK model. Ribbon colors: helices, β-sheets, turns and random coils are in red, cyan, green and white, respectively.
Ijms 13 05112f5
Figure 6. Surface electrostatic potential. (a) Surface electrostatic potential of AtPDF1A; (b) Surface electrostatic potential of AtPDF1B; (c) Surface electrostatic potential of PtrPDF1A; (d) Surface electrostatic potential of PtrPDF1B. The Connolly surfaces of the proteins were created using the InsightII 2005 scripts. The electrostatic potential is indicated by the color saturation (red for negative and blue for positive).
Figure 6. Surface electrostatic potential. (a) Surface electrostatic potential of AtPDF1A; (b) Surface electrostatic potential of AtPDF1B; (c) Surface electrostatic potential of PtrPDF1A; (d) Surface electrostatic potential of PtrPDF1B. The Connolly surfaces of the proteins were created using the InsightII 2005 scripts. The electrostatic potential is indicated by the color saturation (red for negative and blue for positive).
Ijms 13 05112f6
Table 1. Characterization and identification of Peptide deformylases (PDF) genes of poplar.
Table 1. Characterization and identification of Peptide deformylases (PDF) genes of poplar.
JGI NO.Novel simplified nomenclatureRefseq protein IDRefseq RNA ID (CDS)Chromosome Location
640630PtrPDF1AXP_002298107.1XM_002298071.1LG_I: 9208431–9211542 (+)
173925PtrPDF1BXP_002300047.1XM_002300011.1LG_I: 21839768–21844235 (−)
