Nano-ZnO-Induced Drought Tolerance Is Associated with Melatonin Synthesis and Metabolism in Maize

by
Luying Sun
1,2,
Fengbin Song
1,2,*,
Junhong Guo
1,
Xiancan Zhu
3,
Shengqun Liu
1,
Fulai Liu
4 and
Xiangnan Li
1,2,*
1
Key Laboratory of Mollisols Agroecology, Northeast Institute of Geography and Agroecology, Chinese Academy of Sciences, Changchun 130102, China
2
University of Chinese Academy of Sciences, Beijing 100049, China
3
College of Life Sciences, Anhui Normal University, Wuhu 241000, China
4
Department of Plant and Environmental Sciences, University of Copenhagen, Taastrup 2630, Denmark
*
Authors to whom correspondence should be addressed.
Int. J. Mol. Sci. 2020, 21(3), 782; https://doi.org/10.3390/ijms21030782
Submission received: 31 December 2019 / Revised: 20 January 2020 / Accepted: 23 January 2020 / Published: 25 January 2020
(This article belongs to the Special Issue Antioxidant Metabolic Pathways in Plants)
Browse Figures
Review Reports Versions Notes

Abstract

:
The applications of ZnO nanoparticles in agriculture have largely contributed to crop growth regulation, quality enhancement, and induction of stress tolerance, while the underlying mechanisms remain elusive. Herein, the involvement of melatonin synthesis and metabolism in the process of nano-ZnO induced drought tolerance was investigated in maize. Drought stress resulted in the changes of subcellular ultrastructure, the accumulation of malondialdehyde and osmolytes in leaf. The nano-ZnO (100 mg L−1) application promoted the melatonin synthesis and activated the antioxidant enzyme system, which alleviated drought-induced damage to mitochondria and chloroplast. These changes were associated with upregulation of the relative transcript abundance of Fe/Mn SOD, Cu/Zn SOD, APX, CAT, TDC, SNAT, COMT, and ASMT induced by nano-ZnO application. It was suggested that modifications in endogenous melatonin synthesis were involved in the nano-ZnO induced drought tolerance in maize.

1. Introduction

Drought is one of the major abiotic stresses that largely limit crop production and threaten global food security. Drought influences plant growth and development at various levels [1]. For instance, at a sub-cellular level, drought-induced lipid peroxidation causes reorganization of the chloroplast ultrastructure [2]. Additionally, drought damages the stroma lamellae and grana of the chloroplast and decreases the accumulation of starch granules [3]. Thus, protecting the cell ultrastructure under drought is of primarily importance for enhancing plant performance under drought.
ZnO nanoparticles (nano-ZnO) have been widely applied due to their unique physiochemical properties and large specific surface area [4,5]. Nanomaterials regulate plant growth and development at multiple levels [6]. For instance, the beneficial effect of nano-ZnO at low concentrations has been well documented in peanut [7], mung bean [8], and tomato [9], suggesting that nanoparticles induce the tolerance to various abiotic stresses, including drought [10], salt [11], and low temperature [12]. The alleviation of abiotic stress by nanoparticles was often associated with the enhanced antioxidant enzymes activities [13]. In addition, modulation of phytohormones levels was involved in the nanoparticles-induced stress tolerance [14]. For example, nano-Fe2O3 (1000 mg kg−1) application increases the concentrations of gibberellic acid (GA) and zeatin riboside (ZR), which benefits the growth of peanut [15]. The nanomaterials (nano-Fe2O3 or nano-TiO2) suspension (50 mg L−1) maintains the integrity of the cell structure and suppresses turnip mosaic virus infection by altering the concentrations of ZR, brassinolide (BR), and abscisic acid (ABA) in tobacco [16]. In addition, nano-Fe2O3 (80 mg L−1) treatment increases the concentrations of jasmonic acid and 12-oxo phytodienoic acid, thereby enhancing the stress tolerance in watermelon [17].
Melatonin (N-acetyl-5-methoxy-tryptamine) is an effective free radical scavenger and naturally occurring antioxidant in response to abnormal cellular metabolic and abiotic stress [18]. The original sites of melatonin biosynthesis are mitochondria and chloroplasts in higher plants [19,20,21]. Normally, melatonin biosynthesis is based on tryptophan, which is catalyzed by tryptophan decarboxylase (TDC) and tryptamine 5-hydroxylase (T5H) and converted into serotonin. Then serotonin is converted into melatonin by serotonin N-acetyltransferase (SNAT) and N-acetylserotonin O-methyltransferase (ASMT)/caffeic acid O-methyltransferase (COMT) [22]. Under stress conditions, the endogenous melatonin level normally increased through alterations in biosynthesis and metabolism pathways, to protect mitochondria and chloroplast against oxidative stress [23]. Once synthesized, melatonin is rapidly metabolized into 2-hydroxymelatonin (2-HM). Byeon and Back [24] observed that the accumulation of 2-hydroxymelatonin was higher than melatonin. The melatonin metabolites, such as 2-HM and N1-acetyl-N2-formyl-5-methoxyknuramine (AFMK), have been proven to have higher antioxidant effects [25]. Previous studies found that not only melatonin but also its precursors and metabolites play crucial roles in stress response in plants [26]. It was found that the accumulation of serotonin attributes to the scavenging of ROS, hence, delaying senescence in rice leaves [27]. Lee and Back [28] documented 2-hydroxymelatonin promotes the tolerance to various abiotic stresses, partly through induction of the Myb4 TF in rice. In addition, the reduction of melatonin synthesis caused by the suppression of the SNAT and ASMT leads to high sensitivity to abiotic stress [24].
Currently, the applications of nanomaterials lead to great breakthroughs in the regulation of plant growth and the alleviation of stresses in agriculture. The zinc is a necessary micronutrient in regulating various metabolic pathways in plants [29]. The grain yield in nano-ZnO-treated (400 mg L−1) maize was 42% and 15% higher than that in the control and ZnSO4 treated maize [30]. However, the physiochemical mechanisms of nano-ZnO-induced drought tolerance in maize remain largely unknown. Here, we hypothesized that nano-ZnO application could modulate the melatonin synthesis and metabolism contributing to drought tolerance in maize plants.

2. Results

2.1. Characteristics of Nano-ZnO

The phase purity of nano-ZnO particles used in this study was verified by the X-ray diffractograms (XRD) (Figure 1A). The absence of additional impurity peaks indicated nano-ZnO phase purity. Using TEM, the nano-ZnO was detected to be nearly spheroidal to oblong in shape, and the average size of the particles was 37.7 ± 15.5 nm (Figure 1B). The 100 mg L−1 nano-ZnO suspension showed an absorption peak at 376 nm (Figure 1C). The hydrodynamic size of nano-ZnO was around 300 nm, which indicated the presence of aggregates and/or agglomerates of nano-ZnO in suspension (Figure 1D). For zeta potential distribution, the 100 mg L−1 nano-ZnO denoted monodispersity with one peak at 14 mV (Figure 1E).

2.2. Chloroplast and Mitochondria of Maize Plants

In the non-stress control, the chloroplasts in maize leaf were located near the cell wall and had an uninjured outer membrane with clear boundaries (Figure 2). Chloroplast grana and stroma lamella were arranged parallel to the long axis of the chloroplast. There were small high-electron density osmium granules, and the size of the starch granules was relatively small in chloroplasts. The mitochondria were abundant, which were regular spheroid or ellipsoid in the cytoplasm. Its structure was complete, and the cristae was clearly visible. Compared with non-ZnO treatment (N) plants, there was no obvious alteration in the ultrastructure of leaf mesophyll cells in the nano-ZnO-treated plants under non-stress condition.
Under drought, chloroplast ultrastructure was reorganized, including distortion of chloroplast morphology, changes of membrane system, and increase of osmium particle. The starch grains were degraded, while vacuoles appeared in the chloroplast lamella. In addition, most of the mitochondria disintegrated under drought stress. It should be noted that the ultrastructure of mesophyll cells in nano-ZnO plants showed no obvious changes under drought.

2.3. Soluble Sugar, Proline, and Soluble Protein

Drought (D) significantly increased the proline concentration, while decreased the soluble protein concentration, compared with the non-stress control (W) (Figure 3; Table 1). However, drought had no significant effect on soluble sugar concentration in leaf in both nano-ZnO and N plants. Compared with N plants, the concentrations of soluble sugar and soluble protein in nano-ZnO plants were significantly higher under two water regimes. Meanwhile, two-way ANOVA output indicated the significant interactive effects of nano-ZnO × water regime on proline concentration. Compared with N plants, the nano-ZnO plants had higher proline concentration in leaf under drought, while a reversed trend was found under non-stress condition.

2.4. Antioxidant Enzyme Activity

Significantly higher concentrations of malondialdehyde (MDA) and H2O2 and activities of total superoxide dismutase (SOD) and ascorbate peroxidase (APX) in maize leaf were found under drought, in relation to the non-stress control (Table 1, Figure 4). The SOD and catalase (CAT) activities were significantly increased by nano-ZnO plants, compared with N plants under both non-stress and drought conditions. The H2O2 concentration was significantly reduced in nano-ZnO plants, compared with N plants under both conditions. Interestingly, the trend of APX activities in nano-ZnO plants were like that in N plants under non-stress condition. Under drought, the APX activity in nano-ZnO plants was significantly higher than that of N plants. In addition, two-way ANOVA indicated the significant interactive effect of nano-ZnO × water regime on APX activity.

2.5. Melatonin Metabolism

Drought decreased the tryptamine concentration significantly in leaves; however, there was no significant effect on tryptophan, serotonin, N-acetylserotonin (NAS), and melatonin concentrations, compared with the non-stress control (Table 1). Under drought, the tryptophan, tryptamine, serotonin, and melatonin concentrations were significantly increased by nano-ZnO treatment, compared with N treatment (Figure 5). It should be noted that the serotonin concentration in nano-ZnO plants was 10.8% and 83.5% higher than that of N plants under non-stress and drought. The melatonin concentration in nano-ZnO plants was 22.8% and 77.8% higher than that in N plants under non-stress and drought. In addition, two-way ANOVA showed a significant interactive effect of nano-ZnO × water regime on tryptamine concentration in maize leaves.
Significantly higher 2-HM and AFMK concentrations were found in drought treatments, compared with the control (Table 1, Figure 6). Nano-ZnO treatment significantly increased 2-HM and AFMK concentrations under non-stress condition, while it significantly reduced the levels of 2-HM and AFMK under drought. The outputs of two-way ANOVA showed a significant effect of interaction of nano-ZnO × water regime on 2-HM and AFMK concentrations.

2.6. Gene Expression

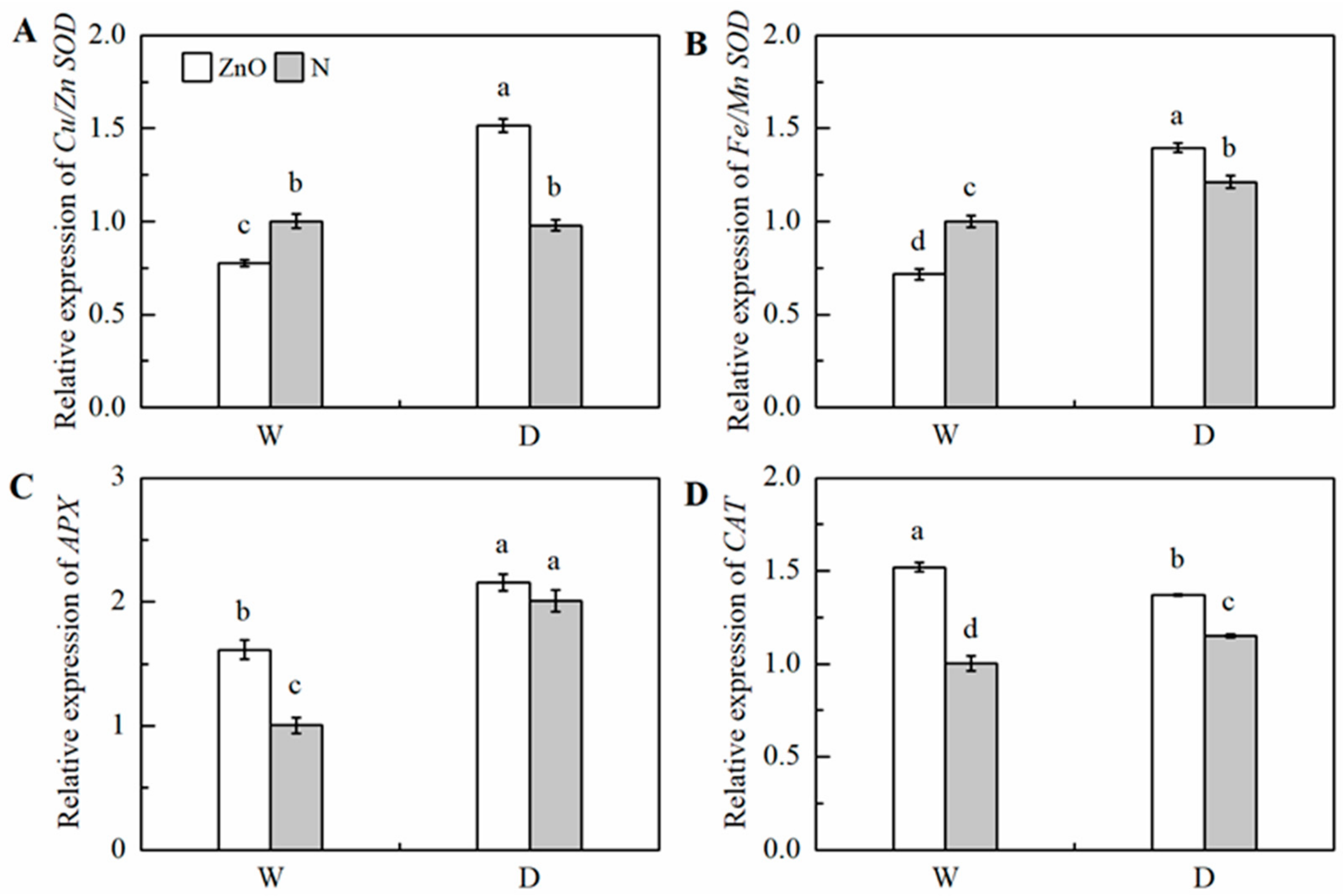

The relative transcript abundance of Cu/Zn SOD, Fe/Mn SOD, and APX was significantly up-regulated by drought (Figure 7). The relative transcript abundance of Fe/Mn SOD, Cu/Zn SOD, APX, and CAT in nano-ZnO plants was 15.2%, 54.8%, 7.4%, and 19.0% higher than that of N plants under drought. Significant interactive effects of nano-ZnO × water regime on the expressions of Cu/Zn SOD, Fe/Mn SOD, and CAT were found (Table 2).

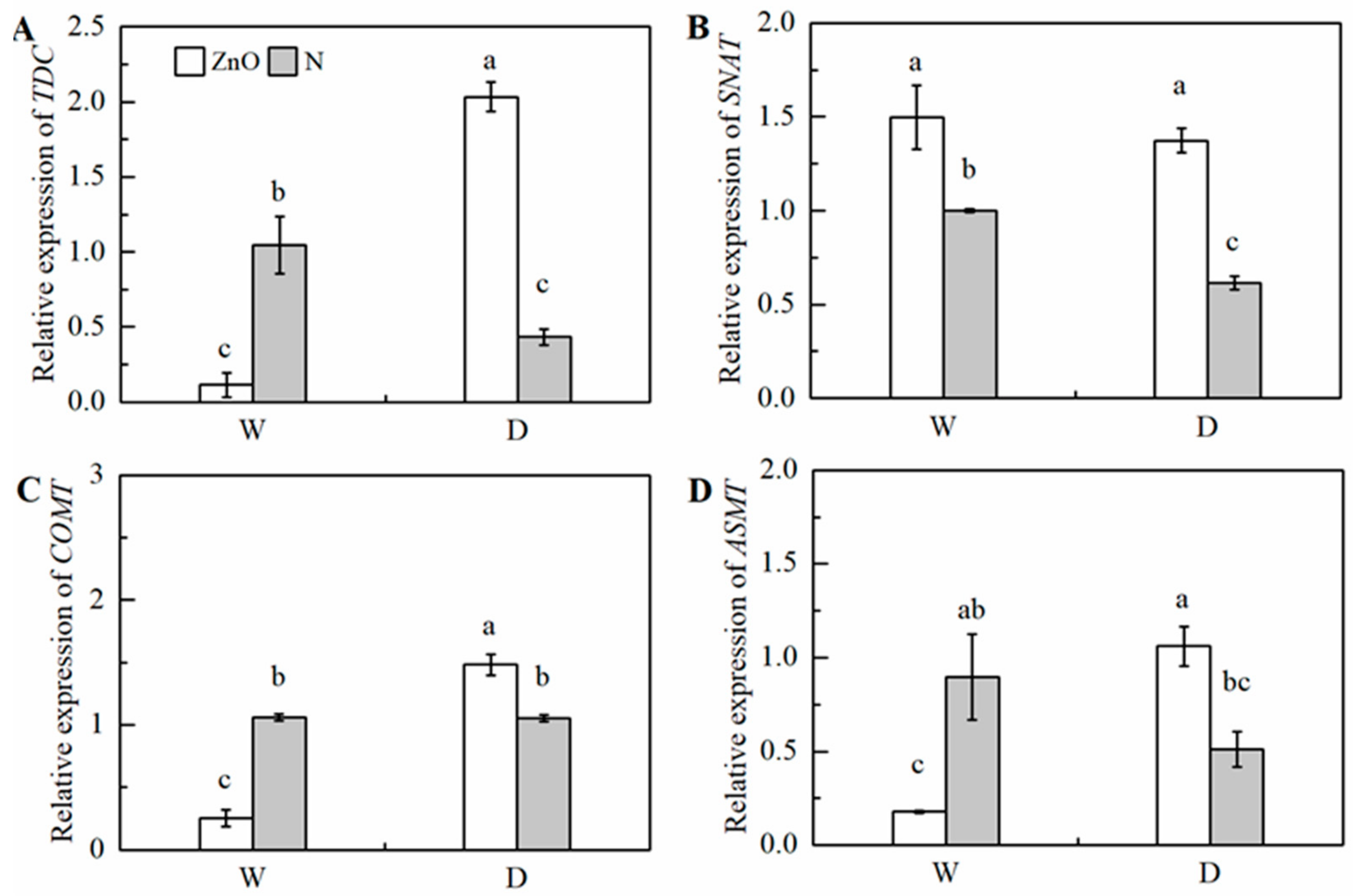

Compared with the non-stress control, the relative transcript abundances of TDC and SNAT were significantly down-regulated by drought (Figure 8 and Figure 9). The relative transcript abundance of TDC, ASMT, COMT, and SNAT in nano-ZnO plants was 369.6%, 107.0%, 40.4%, and 123.2% higher than that in N plants under drought, respectively. In addition, the significant effect of interaction of nano-ZnO × water regime on the expressions of TDC, ASMT, and COMT was observed (Table 2).

2.7. Correlations

A significant positively linear relationship was found between tryptophan concentration and CAT activity in maize leaves (Table 3). Tryptamine concentration was significantly positively correlated to soluble protein concentration, while negatively correlated to the concentrations of proline, H2O2, and MDA and the activity of APX, respectively. Serotonin concentration was significantly positively correlated to concentrations of melatonin, soluble sugar, and soluble protein, respectively. In addition, the proline concentration was positively correlated to the NAS concentration in leaves.

3. Discussion

Mitochondria possess a remarkable flexibility in energy dissipation and electron transfer, both are important for drought tolerance in plants [31]. The respiration in mitochondria alleviates the effects of drought on the intracellular environment in plants [32]. In the present study, the chloroplast and mitochondria in N plants were adversely affected by drought, by resulting in the destruction of membrane and lamellar structure formation in chloroplast [33]. Nano-ZnO increased the structure stabilization of chloroplast and mitochondria under drought, which helped to maintain a better photosynthesis. Positive effects on chloroplast and mitochondria have been reported for various metal oxide nanoparticles. For instance, nano-TiO2 protects the chloroplast and mitochondria from environmental stress via increasing antioxidant enzyme activities and up-regulating At3g23990 [34,35]. Similarly, the single-walled carbon nanotubes increase the photosynthetic activity and the threshold of electron transport due to their protective effects on lipid membranes in chloroplast [36]. In addition, Sharif et al. [37] documented that the accumulation of endogenous melatonin can repair mitochondria damaged by drought stress and enhances nitric oxide concentration and antioxidant enzymes activities, hence, improving plant drought tolerance. Thus, the nano-ZnO application might cause the alteration of membrane potential and fluidity of the endomembrane system and stimulate the antioxidant defense system to protect the structural and functional integrity of the membrane system, which contributes to drought tolerance.
Osmotic adjustment through accumulating osmolytes maintains higher cell turgor, hence, protecting plants from drought [38]. Higher proline and soluble sugar concentrations caused by nano-ZnO treatment are related to the salt tolerance in maize [39]. In this study, the soluble protein, sugar, and proline concentrations were all higher in nano-ZnO plants than N plants under drought, indicating that nano-ZnO enhanced the osmotic regulation. The endogenous proline level depends on its synthesis and degradation, which were catalyzed by Δ1-pyrroline-5-carboxylate synthetase (P5CS), ornithine aminotransferase (OAT), and proline dehydrogenase (PDH) [40]. The increment of proline caused by enhancement of P5CS and OAT activities and the reduction of PDH activity under cold stress is well documented [41]. Soluble protein has a positive effect on cell membrane [42]. Consistent with this, in cluster bean, it was also found that nano-ZnO treatment increased the total soluble protein concentration [43].
Drought results in accumulation of ROS, leading to lipid peroxidation of the cell membrane system, which is mainly due to the production of MDA. Herein, nano-ZnO significantly increased the activities of SOD, CAT, and APX, which reduced the accumulation of H2O2 under drought. In agreement with this, the relative transcript abundance of Fe/Mn SOD, Cu/Zn SOD, APX, and CAT were significantly up-regulated in nano-ZnO plants under drought, as compared with the N plants. Similarly, nano-ZnO minimizes the oxidative effect of drought in wheat [44]. Thus, the nanoparticles were likely involved in scavenging ROS by activating antioxidant enzyme systems [45]. Significantly higher antioxidant enzymes activities in nano-ZnO plants reduced the H2O2 and MDA levels in maize leaves, which reduce the drought-induced lipid peroxidation, hence maintaining the stabilization of chloroplasts and mitochondria [46].
Numerous studies have indicated melatonin, as an effective antioxidant and/or regulator of plant growth and development, is involved in the induction of drought tolerance [47,48]. Further, the precursors of melatonin synthesis were related to the stress tolerance [49]. In the present study, the results documented that nano-ZnO significantly enhanced the metabolic pathways of tryptophan in maize under drought. As the precursor of auxins and melatonin, higher tryptophan and tryptamine concentrations might contribute to drought tolerance via alleviating oxidative damage and regulating osmotic balance [50]. The initial precursor of melatonin synthesis is tryptophan, which is catalyzed by TDC and T5H to synthesize the intermediate of melatonin, i.e., tryptamine and serotonin [25]. In addition, the L-tryptophan is the precursor for auxins production, which benefits for the osmotic balance and plant growth through regulating the osmotic pressure of vacuolar and mediating the translocation of metabolites required by cell elongation under drought [51]. Meanwhile, tryptamine is a precursor of indole-3-acetic acid [52], which is related to the drought tolerance in plants [53]. In addition, nano-ZnO treatment caused a significant boost in serotonin and melatonin levels in maize leaves under drought. The process of serotonin synthesis melatonin is catalyzed by SNAT and ASMT/COMT. In addition to regulating plant growth and morphogenesis, both melatonin and serotonin play an important role in the defense against abiotic stress. For instance, serotonin improves salt tolerance through mediating the influx of ions into chloroplast [54]. Evidence has indicated that exogenous melatonin application induced a significant increase in endogenous melatonin concentration, hence, promoting drought tolerance through increasing the antioxidant enzymes activities by up-regulating the expressions of SOD, CAT, and POD in maize [55]. Higher melatonin concentration enhanced drought tolerance by regulating nitro-oxidative balance and proline metabolism, hence, improving biomass production and photoprotection [55]. In this study, the NAS concentration was neither affected by drought nor nano-ZnO treatment. Although NAS exhibits antioxidant ability in animals, the role of NAS in plant against abiotic stress has not been evidenced [56]. Melatonin is decomposed by enzymatic reaction, pseudo-enzyme reaction, and cascade interaction with free radicals to produce a variety of metabolites, including 2-hydroxymelatonin and AFMK. Galano and Reiter [57] documented that AFMK might inhibit OH production via Fenton-like reactions. Melatonin is catalyzed to produce 2-HM by multiple M2H enzymes, which are classified in the 2-oxoglutarate-dependent dioxygenases (2-ODD) superfamily. Genes encoding 2-ODD members are involved in the synthesis of flavonoid. 2-HM, whose biological activity is half of that of melatonin, is a signaling molecule inducing the expression of defense related genes [58]. Lee and Back [59] documented that 2-HM-induced MAP kinase activation was similar to that of melatonin in Arabidopsis. Here, it was found that 2-HM and AFMK concentrations were unaffected by nano-ZnO and drought, suggesting that 2-HM and AFMK were not involved in the nano-ZnO-induced drought tolerance in maize. Under drought, nano-ZnO increased the melatonin concentration mainly through enhancing the upstream substrate concentrations and gene expression of key enzymes in melatonin biosynthesis.
As a ROS scavenger, melatonin plays key roles in drought response in plants. The endogenous melatonin level depends on the balance of melatonin synthesis and metabolism. TDC is identified as the first rate-limiting enzyme in the melatonin synthesis pathway. Overexpression of TDC increases melatonin and melatonin intermediate levels [60]. SNAT and ASMT are also two key enzymes involving in the melatonin synthesis [61]. Conversely, it has been documented that the over-expression of SNAT in chloroplasts and cytoplasm increased the SNAT enzyme activity, while had no effect on melatonin concentration. This might be due to that the melatonin synthesis is multiple factors dependent [62]. In addition, serotonin can be also catalyzed by COMT to produce 5-methoxytryptamine, which is further converted into melatonin. The overexpression of TaCOMT enhances drought resistance in transgenic Arabidopsis via increasing the melatonin and proline levels and decreasing MDA concentration [63]. Further, COMT contributed to stem mechanical strength by enhancing lignin synthesis, which also benefited the drought tolerance in maize [64]. Previous studies reported that transgenic tomato overexpressing ovine ASMT had higher melatonin production and enhanced drought tolerance [65]. In maize, the overexpression of MzASMT1 also increased the melatonin concentration, hence, promoting the drought tolerance [66]. Consistent with many studies, in this study the nano-ZnO led to up-regulated expressions of TDC, SNAT, COMT, and ASMT to enhance melatonin synthesis under drought, compared with the non-nano treatment.
In conclusion, drought caused the changes in the ultrastructure of chloroplast and mitochondria and the accumulation of MDA, H2O2, and osmolytes in maize. The nano-ZnO (100 mg L−1) up-regulated the melatonin synthesis pathways and activated the antioxidant enzyme system, which benefited the alleviation of drought-induced damage to mitochondria and chloroplast, hence, enhancing the drought tolerance. Consistent with these modifications, the relative transcript abundances of Fe/Mn SOD, Cu/Zn SOD, APX, CAT, TDC, SNAT, COMT, and ASMT were all up-regulated by nano-ZnO application. It is suggested that the nano-ZnO application-induced drought tolerance involves the up-regulation of endogenous melatonin synthesis in maize.

4. Materials and Methods

4.1. Nanoparticles

Nano-ZnO (code XFZn01) used in this study was produced by XFNANO Materials Tech Co. (Nanjing, China). The particles were white single crystal, 99.9% purity, 20 nm in average size, and 21.5 m2 g−1 of specific surface. Suspensions of nano-ZnO were prepared at 100 mg L−1 (particle concentration) in H2O, stirred for 30 min and then sonicated for 30 min. The morphology and size of nano-ZnO suspension were characterized in the Results section.

4.2. Experimental Setup

Four maize (Zea mays L. cv. Jidan 27) seeds were sown in plastic pots containing 1.1 kg soil. Two seedlings were retained after thinning, and the suspensions of nano-ZnO were added into half of these pots at 7 days after emergence. A total amount of 1000 mL nano-ZnO suspensions (100 mg L−1) was added in thrice. Twenty days after nano-ZnO treatment, half of the nano-ZnO-treated and the control plants were exposed to a 6-day drought stress treatment by withholding watering until the relative soil water content reached approximately 45%. Thus, four treatments were established: ZnO-W, nano-ZnO treatment, and normal water supply; N-W, non-ZnO treatment, and normal water supply; ZnO-D, nano-ZnO treatment, and drought stress; N-D, non-ZnO treatment, and drought stress. A randomized block design was used in the experiment with three replicates for each treatment. The mixture of samples from four plants were used as a replicate. All pots were placed randomly in a climate chamber at 25/20 °C (day/night) with 75%–85% relative humidity and 14 h of photoperiod.

4.3. Physicochemical Characterization of Nano-ZnO

The phase compositions and average crystallite sizes were conducted by X-ray diffractograms (XRD). The morphology and structure were determined by transmission electron microscopy (TEM). The hydrodynamic size distribution and zeta potential of nano-ZnO (100 mg L−1) suspended in distilled and deionized water were measured by dynamic light scattering (DLS) and zeta potential. In addition, the UV-visible spectra were measured by an Ultra-visible spectrophotometer [67].

4.4. Transmission Electron Microscope (TEM) Analysis

Samples (1 mm × 1 mm) were taken from near the center vein of each leaf (applied in 2.5% glutaraldehyde on ice bed). The samples were fixed with 2.5% glutaraldehyde (pre-cooling), then pumped with a vacuum pump until the leaf materials floating in glutaraldehyde sunk to the bottom, and stored in 4 °C refrigerator for measurements. For the transmission electron microscope analysis (Hitachi HT7700, Tokyo, Japan), the samples were washed, dehydrated, and embedded with paraffin. Thin slices were removed from the samples with an ultra-micro diamond knife (Leica EM UC6) and stained [2].

4.5. Soluble Sugar, Proline, and Soluble Protein Concentrations

Anthrone method was applied to the determination of soluble sugar concentration [68]. Proline concentration was measured following the indene triketone method [39]. Coomassie brilliant blue staining method was used to detect soluble protein concentration [68].

4.6. MDA and H2O2 Concentrations and Antioxidant Enzyme Activity

Malondialdehyde (MDA) concentration was measured according to Anjum et al. [46]. Total superoxide dismutase (SOD) activity was measured by the inhibition of photochemical reduction of nitroblue tetrazolium (NBT) [69]. Catalase (CAT) activity was measured according to Li et al. [65]. Ascorbate peroxidase (APX) activity was measured by monitoring the decrease at 290 nm according to the protocol of Zheng et al. [70] with a few modifications. The reaction system contained 0.1 mL enzyme extraction, 2.75 mL buffer (50 mM HEPES + 300 μM AsA + 100 μM EDTA Na2, pH 7.0), and 0.15 mL 30% H2O2. Leaf H2O2 concentration was determined by monitoring the absorbance of titanium peroxide complex at 410 nm according to Zheng et al. [70].

4.7. High-Performance Liquid Chromatography (HPLC) Analysis of Tryptophan, Tryptamine, and Serotonin

Leaf samples (0.5 g) were mixed with cooled 5% perchloric acid for 300 s, and ultrasonically extracted in a cold water bath for 1 h. The homogenates were centrifuged at 5000 g for 10 min at 4 °C. Five mL supernatant with 1 mL NaOH and 20 μL benzoyl chloride were vortexed for 30 s and reacted in water bath for 20 min, during which vortexing was performed for 30 s every 5 min. Then 2 mL saturated NaCl and 2 mL anhydrous ether were added, shaken, and blown dry with nitrogen, which was dissolved with 1 mL methanol and filtered with membrane filter (0.22 μm). The supernatants were analyzed by HPLC system. Samples were separated on an Atlantis C18 column (4.6 mm × 250 mm) with mobile phase containing 5% (v/v) methanol, 30% (v/v) acetonitrile, and 65% (v/v) ammonium acetate at a flow rate of 1.0 mL min−1. Detection of samples were monitored at 254 nm. All measurements were reproduced in triplicate [71].

4.8. High-Performance Liquid Chromatography (HPLC) Analysis of Melatonin

Melatonin concentration was measured according to Byeon et al. [59] with a few modifications. Leaf samples (0.2 g) were pulverized to powder in liquid nitrogen and extracted with 10 mL chloroform for 1 h and ultrasound for 15 min. Then the extracts were centrifuged at 10,000× g for 15 min at 4 °C and evaporated with nitrogen gas to dry. The substance was dissolved in 1 mL 80% methanol and filtered by a membrane filter (0.22 µm). 10 µL samples were analyzed by HPLC system with a fluorescence detector system (Waters, Milford, MA, USA). All measurements were determined in triplicate.

4.9. Quantification of N-Acetylserotonin (NAS), 2-Hydroxymelatonin (2-HM), and N1-Acetyl-N2-Formyl-5-Methoxyknuramine (AFMK)

Leaf samples (0.2 g) were ground into a fine powder with liquid nitrogen and extracted with 1.8 mL 0.1 M extraction mixture (acetone: methanol: water (v/v/v) = 89:10:1) in a 2.0 mL centrifuge tube. The mixture was centrifuged at 10,000× g for 15 min at 4 °C and supernatant was collected for measurement. The N-acetylserotonin (NAS), 2-hydroxymelatonin (2-HM), and N1-acetyl-N2-formyl-5-methoxyknuramine (AFMK) were detected using enzyme-linked immunosorbent assay (ELISA) Kit (Shanghai Youxuan Biotech Co., Ltd., Shanghai, China), and their concentrations were measured by Epoch Microplate Spectrophotometer (BioTek Instruments, Inc., Winosky, VT, USA).

4.10. RNA Extraction and Quantitative Real-Time Polymerase Chain Reactions (RT-qPCR)

Total RNA was extracted using Trizol (Sangon Biotech, Shanghai, China) and cDNA was reverse-transcribed using PrimeScriptTM RT reagent Kit with gDNA Eraser (TaKaRa, Shiga, Japan) according to the manufacturer’s instructions, respectively. The RT-qPCR was carried out using the PowerUpTM SYBRTM Green Master Mix (Thermo Fisher Scientific, Inc., Waltham, MA, USA) on QuantStudio 1 Real-Time PCR System (Thermo Fisher Scientific, Inc., Waltham, MA, USA). The reaction system: 10 µL 2 × PowerUpTM SYBRTM Green Master Mix, 1 µL cDNA solution, 0.4 µL forward primers (10 µM), 0.4 µL reverse primers (10 µM), 8.2 µL ddH2O. The PCR program was as follows: 50 °C for 2 min, 95 °C for 2 min, 40 cycles at 95 °C for 15 s, 60 °C for 15 s, 72 °C for 30 s. Melting curves were used to verify the amplification specificity via a stepwise heating of the amplicon from 60 to 95 °C at a ramp rate of 0.15 °C s−1. In this study, ZmActin was used as the internal gene. Gene-specific primers are listed in Table 4. Each extraction and RT-qPCR were replicated three times. The relative expression levels of the target gene were calculated by the 2−△△Ct method.

4.11. Data Analysis

Statistical analysis was performed using Statistical Package for the Social Sciences (SPSS 22.0, SPSS Inc., Chicago, IL, USA). All data were first tested for homogeneity of variance and then tested by two-way ANOVA.

Author Contributions

X.L. and F.S. conceived the idea and led the study design. L.S. carried out the experiment, performed analyses, and wrote the paper. X.Z., J.G., S.L., and F.L. assisted with study design, data analysis, and writing. All authors contributed to the editing of the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Key Research & Development Program of China (2018YFD0300201), the Science & Technology Development Program of Jilin Province (20190201118JC), National Natural Science Foundation of China (31701362), and CAS Pioneer Hundred Talents Program (C08Y194).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Pornsiriwong, W.; Estavillo, G.M.; Chan, K.X.; Tee, E.E.; Ganguly, D.; Crisp, P.A.; Phua, A.Y.; Zhao, C.C.; Qiu, J.E.; Park, J.Y.; et al. A chloroplast retrograde signal, 3′-phosphoadenosine 5′-phosphate, acts as a secondary messenger in abscisic acid signaling in stomatal closure and germination. Elife 2017, 6, e23361. [Google Scholar] [CrossRef] [PubMed]
  2. Hu, W.; Tian, S.B.; Di, Q.; Duan, S.H.; Dai, K. Effects of exogenous calcium on mesophyll cell ultrastructure, gas exchange, and photosystem II in tobacco (Nicotiana tabacum Linn.) under drought stress. Photosynthetica 2018, 56, 1204–1211. [Google Scholar] [CrossRef]
  3. Xu, Z.Z.; Zhou, G.S.; Shimizu, H. Effects of soil drought with nocturnal warming on leaf stomatal traits and mesophyll cell ultrastructure of a perennial grass. Crop. Sci. 2009, 49, 1843–1851. [Google Scholar] [CrossRef]
  4. Lv, J.T.; Zhang, S.Z. Accumulation, speciation and uptake pathway of ZnO nanoparticles in maize. Environ. Sci-Nano. 2017, 2, 68–77. [Google Scholar] [CrossRef]
  5. Yang, R.L.; Du, H.W.; Lin, Z.Q.; Yang, L.L.; Zhu, H.; Zhang, H.; Tang, Z.K.; Gui, X.C. ZnO nanoparticles filled tetrapod-shaped carbon shell for lithium-sulfur batteries. Carbon 2019, 141, 258–265. [Google Scholar] [CrossRef]
  6. Kwak, J.I.; An, Y.J. The current state of the art in research on engineered nanomaterials and terrestrial environments: Different-scale approaches. Environ. Res. 2016, 151, 368–382. [Google Scholar] [CrossRef]
  7. Prasad, T.N.; Sudhakar, P.; Sreenivasulu, Y.; Latha, P.; Munaswamy, V.; Reddy, K.R.; Sreeprasad, T.S.; Pradeep, T. Effect of nanoscale zinc oxide particles on the germination, growth and yield of peanut. J. Plant. Nutr. 2012, 35, 905–927. [Google Scholar] [CrossRef]
  8. Mahajan, P.; Dhoke, S.; Khanna, A. Effect of nano-ZnO particle suspension on growth of mung (Vigna radiata) and gram (Cicer arietinum) seedlings using plant agar method. J. Nanotech. 2011, 2011, 696535. [Google Scholar] [CrossRef] [Green Version]
  9. Singh, A.; Singh, N.; Hussain, I.; Singh, H.; Yadav, V.; Singh, S. Green synthesis of nano zinc oxide and evaluation of its impact on germination and metabolic activity of Solanum lycopersicum. J. Biotechnol. 2016, 233, 84–94. [Google Scholar] [CrossRef]
  10. Zaimenko, N.V.; Didyk, N.P.; Dzyuba, O.I.; Zakrasov, O.V.; Rositska, N.V.; Viter, A.V. Enhancement of drought resistance in wheat and corn by nanoparticles of natural mineral analcite. Ecologia Balkanica 2014, 6, 1–10. [Google Scholar]
  11. Almutairi, Z.M. Effect of nano-silicon application on the expression of salt tolerance genes in germinating tomato (Solanum lycopersicum L.) seedlings under salt stress. Plant. Omics 2016, 9, 106–114. [Google Scholar]
  12. Hawrylak-Nowak, B.; Matraszek, R.; Szymańska, M. Selenium modifies the effect of short-term chilling stress on cucumber plants. Biol. Trace Elem. Res. 2010, 138, 307–315. [Google Scholar] [CrossRef] [PubMed]
  13. Sturikova, H.; Krystofova, O.; Huska, D.; Adam, V. Zinc, zinc nanoparticles and plants. J. Hazard. Mater. 2018, 349, 101–110. [Google Scholar] [CrossRef] [PubMed]
  14. Hao, Y.; Fang, P.H.; Ma, C.X.; White, J.C.; Xiang, Z.Q.; Wang, H.T.; Zhang, Z.; Rui, Y.K.; Xing, B.S. Engineered nanomaterials inhibit podosphaera pannosa infection on rose leaves by regulating phytohormones. Environ. Res. 2019, 170, 1–6. [Google Scholar] [CrossRef] [PubMed]
  15. Rui, M.M.; Ma, C.X.; Hao, Y.; Guo, J.; Rui, Y.K.; Tang, X.L.; Zhao, Q.; Fan, X.; Zhang, Z.T.; Hou, T.Q.; et al. Iron oxide nanoparticles as a potential iron fertilizer for peanut (Arachis hypogaea). Front. Plant. 2016, 7, 815. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Hao, Y.; Yuan, W.; Ma, C.X.; White, J.C.; Zhang, Z.T.; Adeel, M.; Zhou, T.; Rui, Y.K.; Xing, B.S. Engineered nanomaterials suppress turnip mosaic virus infection in tobacco (Nicotiana benthamiana). Environ. Sci-Nano. 2018, 5, 1685–1693. [Google Scholar] [CrossRef]
  17. Kasote, D.M.; Lee, J.H.; Jayaprakasha, G.K.; Patil, B.S. Seed priming with iron oxide nanoparticles modulate antioxidant potential and defense-linked hormones in watermelon seedlings. ACS Sustain. Chem. Eng. 2019, 7, 5142–5151. [Google Scholar] [CrossRef]
  18. Zhang, H.M.; Zhang, Y.Q. Melatonin: A well-documented antioxidant with conditional pro-oxidant actions. J. Pineal Res. 2014, 57, 131–146. [Google Scholar] [CrossRef]
  19. Tan, D.X.; Manchester, L.C.; Liu, X.; Rosales-Corral, S.A.; Acuna-Castroviejo, D.; Reiter, R.J. Mitochondria and chloroplasts as the original sites of melatonin synthesis: A hypothesis related to melatonin’s primary function and evolution in eukaryotes. J. Pineal Res. 2013, 54, 127–138. [Google Scholar] [CrossRef]
  20. Tan, D.X.; Reiter, R.J. Mitochondria: The birth place, battle ground and the site of melatonin metabolism in cells. Melatonin Res. 2019, 2, 44–66. [Google Scholar] [CrossRef]
  21. Zheng, X.; Tan, D.X.; Allan, A.C.; Zuo, B.; Zhao, Y.; Reiter, R.J.; Wang, L.; Wang, Z.; Guo, Y.; Zhou, J.Z.; et al. Chloroplastic biosynthesis of melatonin and its involvement in protection of plants from salt stress. Sci. Rep. 2017, 7, 41236. [Google Scholar] [CrossRef] [PubMed]
  22. Tan, D.X.; Hardeland, R.; Back, K.; Manchester, L.C.; Alatorre-Jimenez, M.A.; Reiter, R.J. On the significance of an alternate pathway of melatonin synthesis via 5-methoxytryptamine: Comparisons across species. J. Pineal Res. 2016, 61, 27–40. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Kobylinska, A.; Borek, S.; Posmyk, M.M. Melatonin redirects carbohydrates metabolism during sugar starvation in plant cells. J. Pineal Res. 2018, 64, e12466. [Google Scholar] [CrossRef] [PubMed]
  24. Byeon, Y.; Back, K. Low melatonin production by suppression of either serotonin N-acetyltransferase or N-acetylserotonin methyltransferase in rice causes seedling growth retardation with yield penalty, abiotic stress susceptibility, and enhanced coleoptile growth under anoxic conditions. J. Pineal Res. 2016, 60, 348–359. [Google Scholar]
  25. Tan, D.X.; Manchester, L.C.; Esteban-Zubero, E.; Zhou, Z.; Reiter, R.J. Melatonin as a potent and inducible endogenous antioxidant: Synthesis and metabolism. Molecules 2015, 20, 18886–18906. [Google Scholar] [CrossRef] [Green Version]
  26. Yasmin, H.; Nosheen, A.; Naz, R.; Bano, A.; Keyani, R. L-tryptophan-assisted PGPR-mediated induction of drought tolerance in maize (Zea mays L.). J. Plant. Interact. 2017, 12, 567–578. [Google Scholar] [CrossRef] [Green Version]
  27. Kang, K.; Kim, Y.S.; Park, S.; Back, K. Senescence-induced serotonin biosynthesis and its role in delaying senescence in rice leaves. Plant. Physiol. 2009, 150, 1380–1393. [Google Scholar] [CrossRef] [Green Version]
  28. Lee, H.J.; Back, K. 2-hydroxymelatonin promotes the resistance of rice plant to multiple simultaneous abiotic stresses (combined cold and drought). J. Pineal Res. 2016, 61, 303–316. [Google Scholar] [CrossRef]
  29. Hafeez, B.; Khanif, Y.M.; Saleem, M. Role of zinc in plant nutrition-a review. Am. J. Exp. Agric. 2013, 3, 374–391. [Google Scholar] [CrossRef]
  30. Subbaiah, L.V.; Prasad, T.; Krishna, T.G.; Sudhakar, P.; Reddy, B.R.; Pradeep, T. Novel effects of nanoparticulate delivery of zinc on growth, productivity, and zinc biofortification in maize (Zea mays L.). J. Agric. Food Chem. 2016, 64, 3778–3788. [Google Scholar] [CrossRef]
  31. Barreto, P.; Yassitepe, J.; Wilson, Z.A.; Arruda, P. Mitochondrial uncoupling protein 1 overexpression increases yield in Nicotiana tabacum under drought stress by improving source and sink metabolism. Front. Plant. Sci. 2017, 8, 1836. [Google Scholar] [CrossRef] [PubMed]
  32. Atkin, O.K.; Macherel, D. The crucial role of plant mitochondria in orchestrating drought tolerance. Ann. Bot. 2009, 103, 581–597. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Zhang, F.J.; Zhang, K.K.; Du, C.Z.; Li, J.; Xing, Y.X.; Yang, L.T.; Li, Y.R. Effect of drought stress on anatomical structure and chloroplast ultrastructure in leaves of sugarcane. Sugar Tech. 2015, 17, 41–48. [Google Scholar] [CrossRef]
  34. Ruotolo, R.; Maestri, E.; Pagano, L.; Marmiroli, M.; White, J.C.; Marmiroli, N. Plant response to metal-containing engineered nanomaterials: An omics-based perspective. Environ. Sci. Technol. 2018, 52, 2451–2467. [Google Scholar] [CrossRef] [PubMed]
  35. Pagano, L.; Maestri, E.; Caldara, M.; White, J.C.; Marmiroli, N.; Marmiroli, M. Engineered nanomaterial activity at the organelle level: Impacts on the chloroplasts and mitochondria. ACS Sustain. Chem. Eng. 2018, 6, 12562–12579. [Google Scholar] [CrossRef]
  36. Giraldo, J.P.; Landry, M.P.; Faltermeier, S.M.; McNicholas, T.P.; Iverson, N.M.; Boghossian, A.A.; Reuel, N.F.; Hilmer, A.J.; Sen, F.; Brew, J.A.; et al. Plant nanobionics approach to augment photosynthesis and biochemical sensing. Nat. Mater. 2014, 13, 400–408. [Google Scholar] [CrossRef] [Green Version]
  37. Sharif, R.; Xie, C.; Zhang, H.; Arnao, M.; Ali, M.; Ali, Q.; Muhammad, I.; Shalmani, A.; Nawaz, M.A.; Chen, P.; et al. Melatonin and its effects on plant systems. Molecules 2018, 23, 2352. [Google Scholar] [CrossRef] [Green Version]
  38. Shao, R.X.; Xin, L.F.; Guo, J.M.; Zheng, H.F.; Mao, J.; Han, X.P.; Jia, L.; Jia, S.J.; Du, C.G.; Song, R.; et al. Salicylic acid-induced photosynthetic adaptability of Zea mays L. to polyethylene glycol-simulated water deficit is associated with nitric oxide signaling. Photosyhntetica 2018, 56, 1370–1377. [Google Scholar] [CrossRef]
  39. Soliman, A.S.; El-feky, S.A.; Darwish, E. Alleviation of salt stress on Moringa peregrina using foliar application of nanofertilizers. J. Hortic. Forest. 2015, 7, 36–47. [Google Scholar]
  40. Vebruggen, N.; Hermans, C. Proline accumulation in plants: A review. Amino Acids. 2008, 35, 753–759. [Google Scholar] [CrossRef]
  41. Sun, H.J.; Luo, M.L.; Zhou, Q.; Sun, Y.Y.; Ge, W.Y.; Wei, B.D.; Cheng, S.C.; Ji, S.J. Exogenous glycine betaine treatment alleviates low temperature-inducedpericarp browning of ‘Nanguo’ pears by regulating antioxidant enzymes and proline metabolism. Food Chem. 2020, 306, 125626. [Google Scholar] [CrossRef] [PubMed]
  42. Shan, C.; Wang, Y. Exogenous salicylic acid-induced nitric oxide regulates leaf water condition through root osmoregulation of maize seedlings under drought stress. Braz. J. Bot. 2017, 40, 591–597. [Google Scholar] [CrossRef]
  43. Raliya, R.; Tarafdar, J.C. ZnO nanoparticle biosynthesis and its effect on phosphorous-mobilizing enzyme secretion and gum contents in clusterbean (Cyamopsis tetragonoloba L.). Agric. Res. 2013, 2, 48–57. [Google Scholar] [CrossRef] [Green Version]
  44. Khan, Z.S.; Rizwan, M.; Hafeez, M.; Ali, S.; Javed, M.R.; Adrees, M. The accumulation of cadmium in wheat (Triticum aestivum) as influenced by zinc oxide nanoparticles and soil moisture conditions. Environ. Sci. Pollut. R. 2019, 26, 19859–19870. [Google Scholar] [CrossRef]
  45. Khan, M.N.; Mobin, M.; Abbas, Z.K.; AlMutairi, K.A.; Siddiqui, Z.H. Role of nanomaterials in plants under challenging environments. Plant. Physiol. Biochy. 2017, 110, 194–209. [Google Scholar] [CrossRef]
  46. Anjum, S.A.; Wang, L.; Farooq, M.; Xue, L.; Ali, S. Fulvic acid application improves the maize performance under well-watered and drought conditions. J. Agron. Crop. Sci. 2011, 197, 409–417. [Google Scholar] [CrossRef]
  47. Antoniou, C.; Chatzimichail, G.; Xenofontos, R.; Pavlou, J.J.; Panagiotou, E.; Christou, A.; Fotopoulos, V. Melatonin systemically ameliorates drought stress-induced damage in Medicago sativa plants by modulating nitro-oxidative homeostasis and proline metabolism. J. Pineal Res. 2017, 62, e12401. [Google Scholar] [CrossRef]
  48. Liang, B.; Ma, C.; Zhang, Z.; Wei, Z.; Gao, T.; Zhao, Q.; Ma, F.W.; Li, C. Long-term exogenous application of melatonin improves nutrient uptake fluxes in apple plants under moderate drought stress. Environ. Exp. Bot. 2018, 155, 650–661. [Google Scholar] [CrossRef]
  49. Yu, Y.; Lv, Y.; Shi, Y.N.; Li, T.; Chen, Y.C.; Zhao, D.K.; Zhao, Z.W. The role of phyto-melatonin and related metabolites in response to stress. Molecules 2018, 23, 1887. [Google Scholar] [CrossRef] [Green Version]
  50. Jamil, M.; Ahamd, M.; Anwar, F.; Zahir, Z.A.; Kharal, M.A.; Nazli, F. Inducing drought tolerance in wheat through combined use of L-tryptophan and pseudomonas fluorescens. Pak. J. Agr. Sci. 2018, 55, 331–337. [Google Scholar]
  51. Awan, I.U.; Baloch, M.S.; Sadozai, N.S.; Sulemani, M.Z. Stimulatory effect of GA3 and IAA on ripening process, kernel development and quality of rice. Pak. J. Biol. Sci. 1999, 2, 410–412. [Google Scholar]
  52. Ueno, M.; Kihara, J.; Arase, S. Tryptamine and sakuranetin accumulation in sekiguchi lesions associated with the light-enhanced resistance of the lesion mimic mutant of rice to magnaporthe oryzae. J. Gen. Plant. Pathol. 2014, 81, 1–4. [Google Scholar] [CrossRef]
  53. Zhang, F.; Wang, P.; Zou, Y.N.; Wu, Q.S.; Kuča, K. Effects of mycorrhizal fungi on root-hair growth and hormone levels of taproot and lateral roots in trifoliate orange under drought stress. Arch. Agron. Soil Sci. 2019, 65, 1316–1330. [Google Scholar] [CrossRef]
  54. Pickles, V.; Sutcliffe, J. The effects of 5-hydroxytryptamine, indole-3-acetic acid, and some other substances, on pigment effusion, sodium uptake, and potassium efflux, by slices of red beetroot in vitro. BBA. 1955, 17, 244–251. [Google Scholar] [CrossRef]
  55. Fleta-Soriano, E.; Diaz, L.; Bonet, E.; Munne-Bosch, S. Melatonin may exert a protective role against drought stress in maize. J. Agron. Crop. Sci. 2017, 203, 286–294. [Google Scholar] [CrossRef]
  56. Alvarez-Diduk, R.; Galano, A.; Tan, D.X.; Reiter, R.J. N-Acetylserotonin and 6-hydroxymelatonin against oxidative stress: Implications for the overall protection exerted by melatonin. J. Phys. Chem. B. 2015, 119, 8535–8543. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  57. Galano, A.; Reiter, R.J. Melatonin and its metabolites vs oxidative stress: From individual actions to collective protection. J. Pineal Res. 2018, 65, e12514. [Google Scholar] [CrossRef] [Green Version]
  58. Byeon, Y.; Tan, D.X.; Reiter, R.J.; Back, K. Predominance of 2-hydroxymelatonin over melatonin in plants. J. Pineal Res. 2015, 59, 448–454. [Google Scholar] [CrossRef]
  59. Lee, H.Y.; Back, K. Mitogen-activated protein kinase pathways are required for melatonin-mediated defense responses in plants. J. Pineal Res. 2016, 60, 327–335. [Google Scholar] [CrossRef]
  60. Zhao, D.; Wang, R.; Liu, D.; Wu, Y.; Sun, J.; Tao, J. Melatonin and expression of tryptophan decarboxylase gene (TDC) in herbaceous peony (Paeonia lactiflora Pall.) flowers. Molecules 2018, 23, 1164. [Google Scholar] [CrossRef] [Green Version]
  61. Lee, H.Y.; Byeon, Y.; Tan, D.X.; Reiter, R.J.; Back, K. Arabidopsis serotonin N-acetyltransferase knockout mutant plants exhibit decreased melatonin and salicylic acid levels resulting in susceptibility to an avirulent pathogen. J. Pineal Res. 2015, 58, 291–299. [Google Scholar] [CrossRef] [PubMed]
  62. Byeon, Y.; Lee, H.Y.; Hwang, O.J.; Lee, H.J.; Lee, K.; Back, K. Coordinated regulation of melatonin synthesis and degradation genes in rice leaves in response to cadmium treatment. J. Pineal Res. 2015, 58, 470–478. [Google Scholar] [CrossRef] [PubMed]
  63. Yang, W.J.; Du, Y.T.; Zhou, Y.B.; Chen, J.; Xu, Z.S.; Ma, Y.Z.; Chen, M.; Min, D.H. Overexpression of TaCOMT improves melatonin production and enhances drought tolerance in transgenic Arabidopsis. Int. J. Mol. Sci. 2019, 20, 652. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  64. Li, L.; Osakabe, Y.; Joshi, C.P.; Chiang, V.L. Secondary xylem-specific expression of caffeoyl-coenzyme a 3-O-methyltransferase plays an important role in the methylation pathway associated with lignin biosynthesis in loblolly pine. Plant. Mol. Biol. 1999, 40, 555–565. [Google Scholar] [CrossRef]
  65. Wang, L.; Zhao, Y.; Reiter, R.J.; He, C.; Liu, G.; Lei, Q.; Zuo, B.X.; Zheng, X.D.; Li, Q.T.; Kong, J. Changes in melatonin levels in transgenic ‘Micro-Tom’ tomato overexpressing ovine AANAT and ovine HIOMT genes. J. Pineal Res. 2014, 56, 134–142. [Google Scholar] [CrossRef]
  66. Zuo, B.X.; Zheng, X.D.; He, P.L.; Wang, L.; Lei, Q.; Feng, C.; Zhou, J.Z.; Li, Q.T.; Han, Z.H.; Kong, J. Overexpression of MzASMT improves melatonin production and enhances drought tolerance in transgenic Arabidopsis thaliana plants. J. Pineal Res. 2014, 57, 408–417. [Google Scholar] [CrossRef]
  67. Fang, X.; Jiang, L.Y.; Gong, Y.; Li, J.; Liu, L.L.; Cao, Y. The presence of oleate stabilized ZnO nanoparticles (NPs) and reduced the toxicity of aged NPs to Caco-2 and HepG2 cells. Chem-Biol. Interact. 2017, 278, 40–47. [Google Scholar] [CrossRef]
  68. Li, X.; Hao, C.; Zhong, J.; Liu, F.; Cai, J.; Wang, X.; Zhou, Q.; Dai, T.B.; Cao, W.X.; Jiang, D. Mechano-stimulated modifications in the chloroplast antioxidant system and proteome changes are associated with cold response in wheat. BMC Plant. Biol. 2015, 15, 219. [Google Scholar] [CrossRef] [Green Version]
  69. Gao, J. Experimental Guidance for Plant Physiology; China Higher Education Press: Beijing, China, 2006. [Google Scholar]
  70. Zheng, C.F.; Jiang, D.; Liu, F.L.; Dai, T.B.; Jing, Q.; Cao, W.X. Effects of salt and waterlogging stresses and their combination on leaf photosynthesis, chloroplast ATP synthesis, and antioxidant capacity in wheat. Plant. Sci. 2009, 176, 575–582. [Google Scholar] [CrossRef]
  71. Park, S.; Lee, K.; Kim, Y.S.; Back, K. Tryptamine 5-hydroxylase-deficient Sekiguchi rice induces synthesis of 5-hydroxytryptophan and N-acetyltryptamine but decreases melatonin biosynthesis during senescence process of detached leaves. J. Pineal Res. 2012, 52, 211–216. [Google Scholar] [CrossRef]
Ijms 21 00782 g001 550

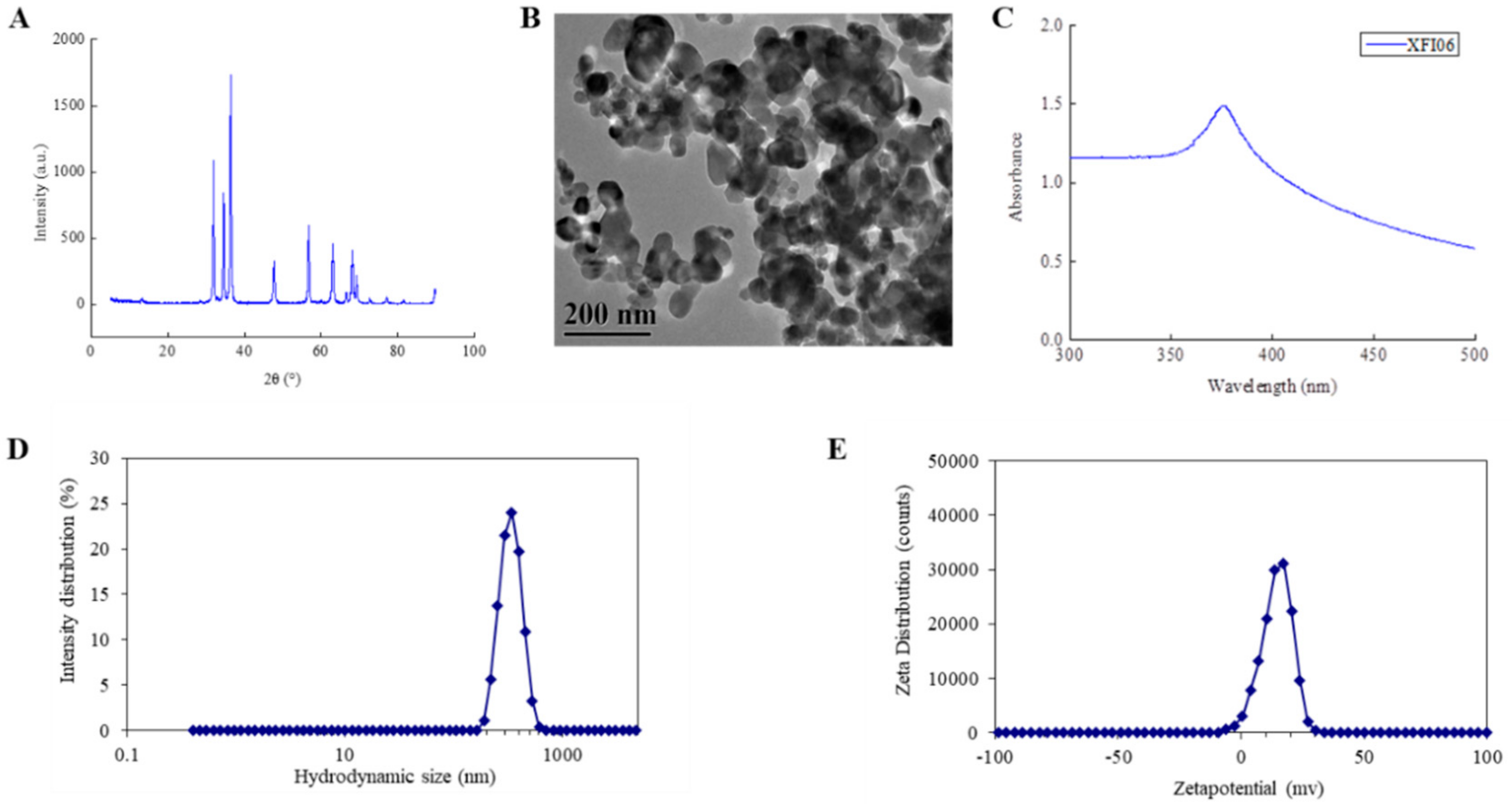

Figure 1. (A) X-ray diffractograms (XRD) pattern of nano-ZnO; (B) the transmission electron microscopy (TEM) image of nano-ZnO (code XFI06); (C) the UV-visible spectra of 100 mg L−1 nano-ZnO; (D) the hydrodynamic size distribution of nano-ZnO; (E) the zeta potential distribution of nano-ZnO.
Figure 1. (A) X-ray diffractograms (XRD) pattern of nano-ZnO; (B) the transmission electron microscopy (TEM) image of nano-ZnO (code XFI06); (C) the UV-visible spectra of 100 mg L−1 nano-ZnO; (D) the hydrodynamic size distribution of nano-ZnO; (E) the zeta potential distribution of nano-ZnO.
Ijms 21 00782 g001
Ijms 21 00782 g002 550
Figure 2. TEM images of chloroplast and mitochondria in maize leaves as affected by nano-ZnO and drought stress. ZnO, nano-ZnO treatment; N, non-ZnO treatment; W, normal water supply; D, drought stress. Ch, chloroplast; Mi, mitochondrion; G, granum; SL, stoma lamellae; St, stroma; N, nucleus; V, vacuolar; Pm, plasma membrane; W, cell wall; Sg, starch granule.
Figure 2. TEM images of chloroplast and mitochondria in maize leaves as affected by nano-ZnO and drought stress. ZnO, nano-ZnO treatment; N, non-ZnO treatment; W, normal water supply; D, drought stress. Ch, chloroplast; Mi, mitochondrion; G, granum; SL, stoma lamellae; St, stroma; N, nucleus; V, vacuolar; Pm, plasma membrane; W, cell wall; Sg, starch granule.
Ijms 21 00782 g002
Ijms 21 00782 g003 550

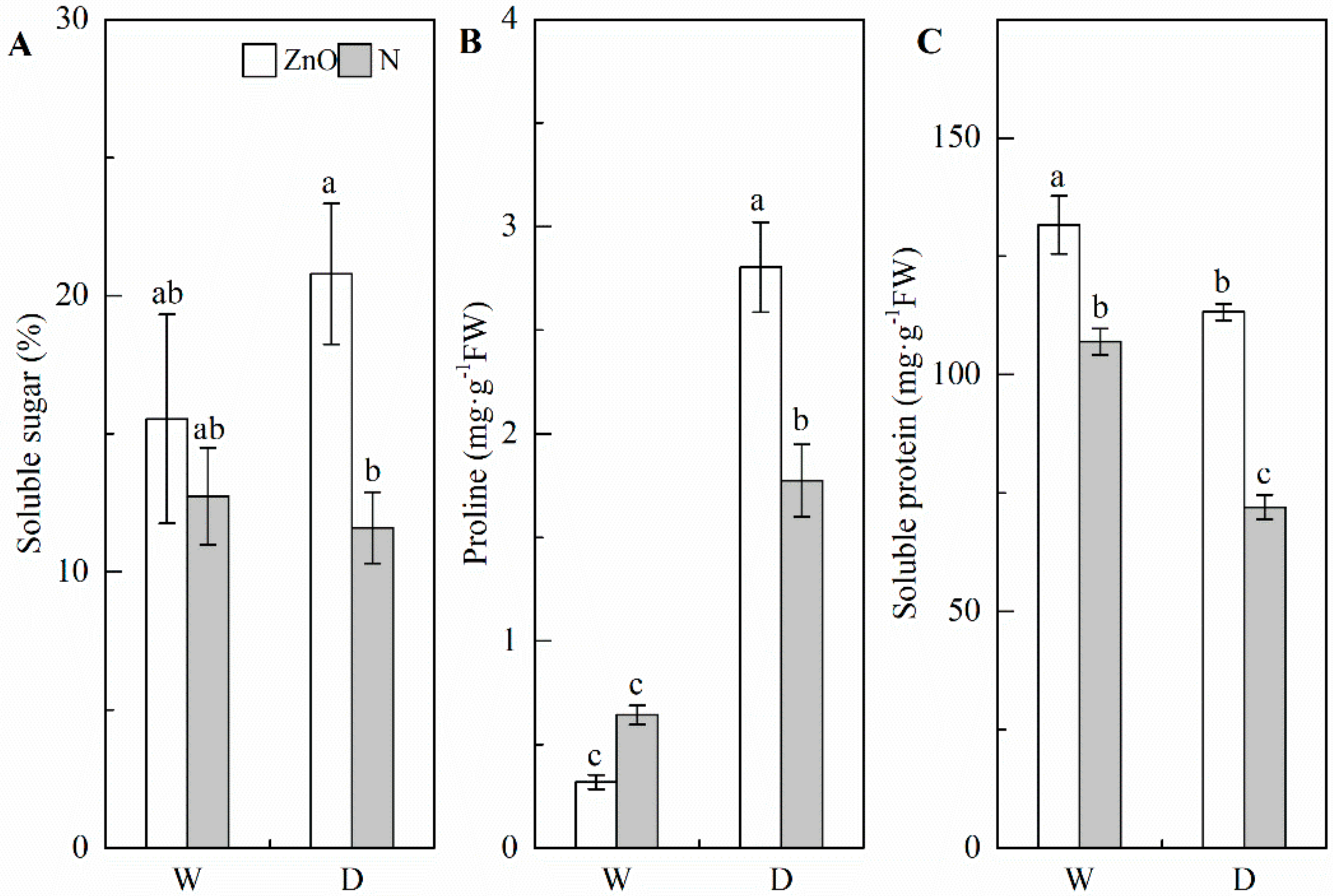

Figure 3. Concentrations of soluble sugar (A), proline (B), and soluble protein (C) in maize leaves as affected by nano-ZnO and drought stress. Data are reported as mean ± SE (n = 3). Different small letters indicate significant difference at p < 0.05 level. ZnO, nano-ZnO treatment; N, non-ZnO treatment; W, normal water supply; D, drought stress.
Figure 3. Concentrations of soluble sugar (A), proline (B), and soluble protein (C) in maize leaves as affected by nano-ZnO and drought stress. Data are reported as mean ± SE (n = 3). Different small letters indicate significant difference at p < 0.05 level. ZnO, nano-ZnO treatment; N, non-ZnO treatment; W, normal water supply; D, drought stress.
Ijms 21 00782 g003
Ijms 21 00782 g004 550

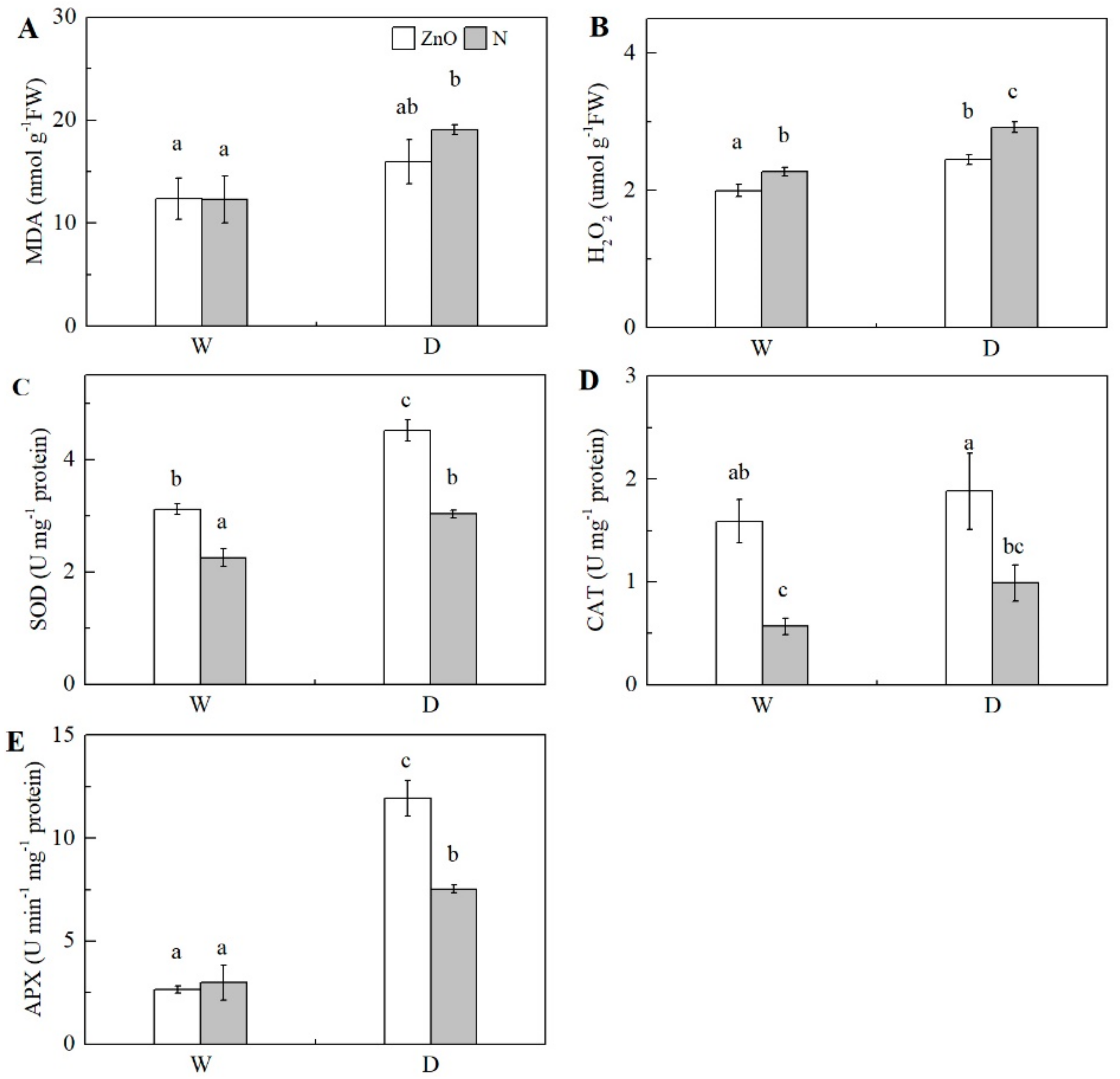

Figure 4. Concentrations of MDA and H2O2 (A, B) and activities of SOD (C), CAT (D), and APX (E) in maize leaves as affected by nano-ZnO and drought stress. Data are reported as mean ± SE (n = 3). Different small letters indicate significant difference at p < 0.05 level. ZnO, nano-ZnO treatment; N, non-ZnO treatment; W, normal water supply; D, drought stress.
Figure 4. Concentrations of MDA and H2O2 (A, B) and activities of SOD (C), CAT (D), and APX (E) in maize leaves as affected by nano-ZnO and drought stress. Data are reported as mean ± SE (n = 3). Different small letters indicate significant difference at p < 0.05 level. ZnO, nano-ZnO treatment; N, non-ZnO treatment; W, normal water supply; D, drought stress.
Ijms 21 00782 g004
Ijms 21 00782 g005 550

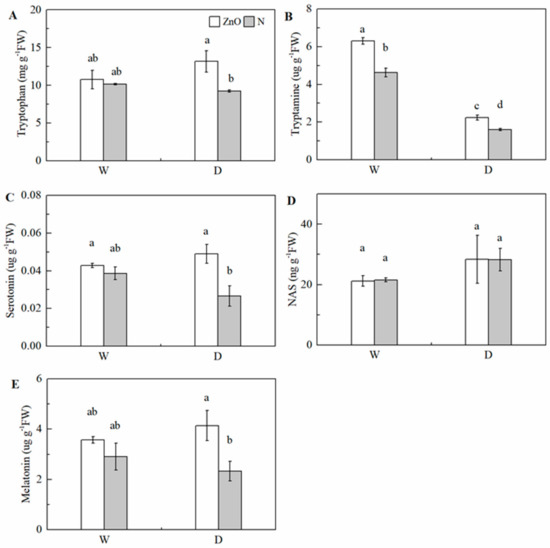

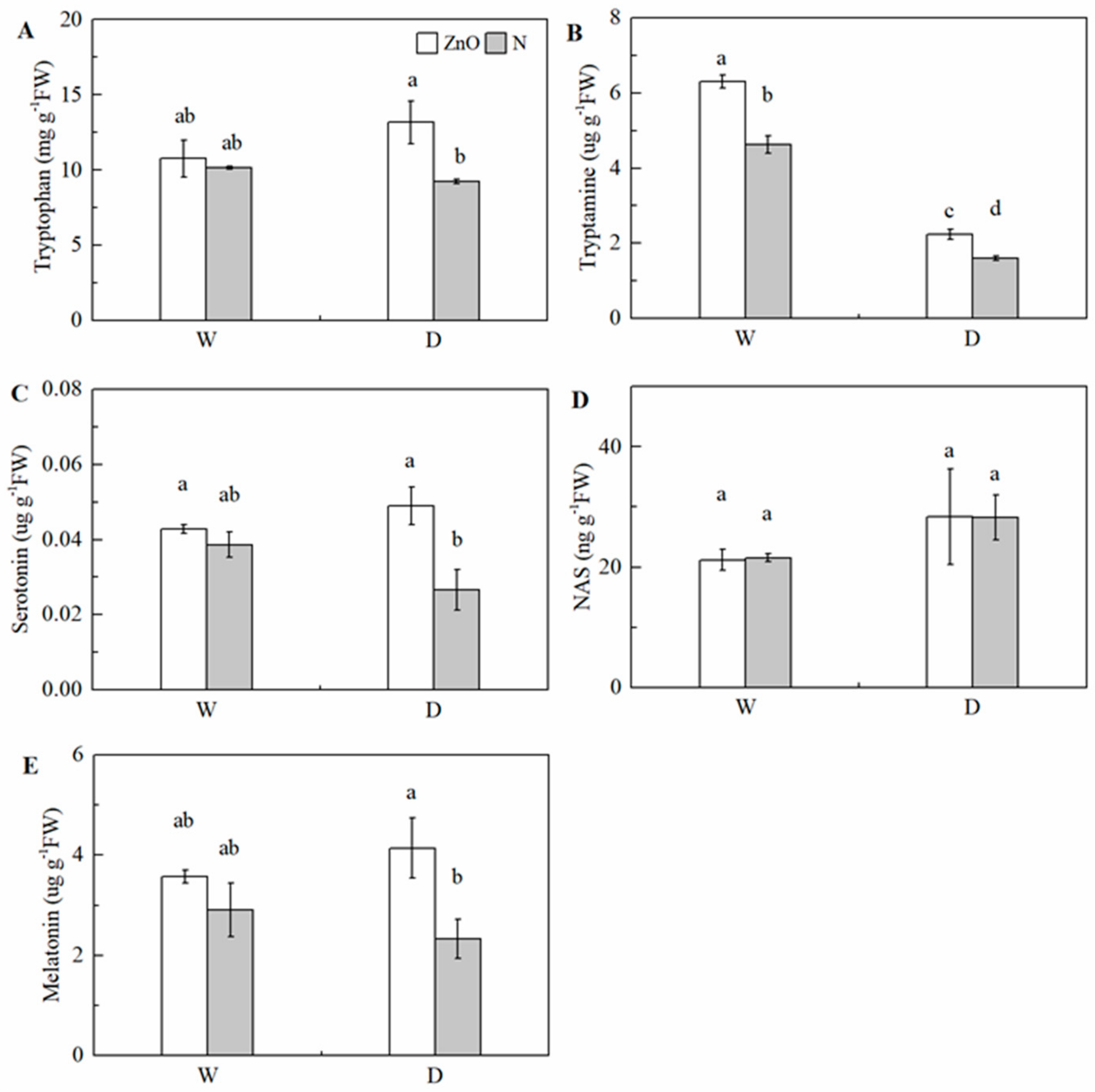

Figure 5. Concentrations of tryptophan (A), tryptamine (B), serotonin (C), NAS (D), and melatonin (E) in maize leaves as affected by nano-ZnO and drought stress. Data are reported as mean ± SE (n = 3). Different small letters indicate significant difference at p < 0.05 level. NAS, N-acetylserotonin; ZnO, nano-ZnO treatment; N, non-ZnO treatment; W, normal water supply; D, drought stress.
Figure 5. Concentrations of tryptophan (A), tryptamine (B), serotonin (C), NAS (D), and melatonin (E) in maize leaves as affected by nano-ZnO and drought stress. Data are reported as mean ± SE (n = 3). Different small letters indicate significant difference at p < 0.05 level. NAS, N-acetylserotonin; ZnO, nano-ZnO treatment; N, non-ZnO treatment; W, normal water supply; D, drought stress.
Ijms 21 00782 g005
Ijms 21 00782 g006 550

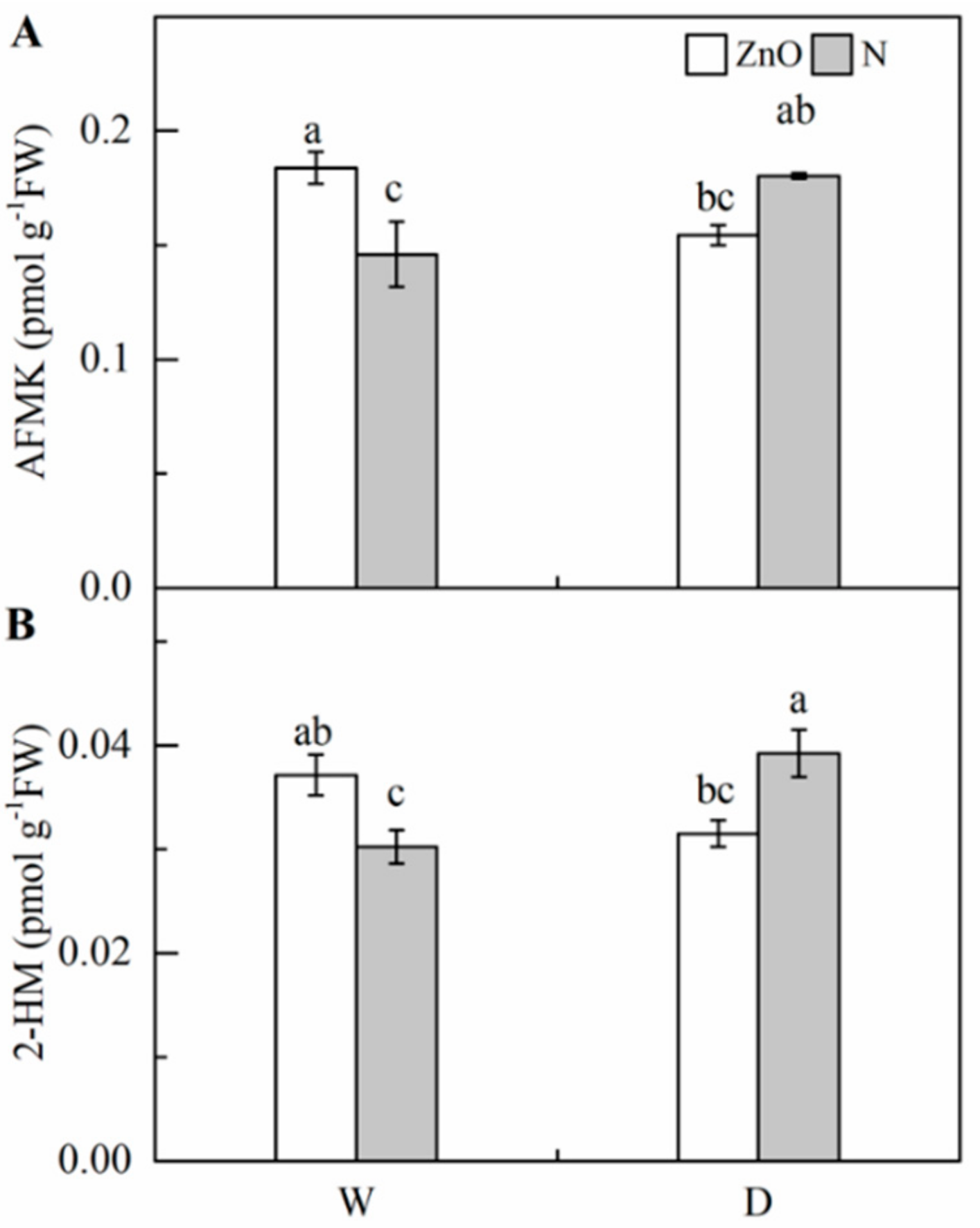

Figure 6. Concentrations of AFMK (A) and 2-HM (B) in maize leaves as affected by nano-ZnO and drought stress. Data are reported as mean ± SE (n = 3). Different small letters indicate significant difference at p < 0.05 level. 2-HM, 2-hydroxymelatonin; AFMK, N1-acetyl-N2-formyl-5-methoxyknuramine; ZnO, nano-ZnO treatment; N, non-ZnO treatment; W, normal water supply; D, drought stress.
Figure 6. Concentrations of AFMK (A) and 2-HM (B) in maize leaves as affected by nano-ZnO and drought stress. Data are reported as mean ± SE (n = 3). Different small letters indicate significant difference at p < 0.05 level. 2-HM, 2-hydroxymelatonin; AFMK, N1-acetyl-N2-formyl-5-methoxyknuramine; ZnO, nano-ZnO treatment; N, non-ZnO treatment; W, normal water supply; D, drought stress.
Ijms 21 00782 g006
Ijms 21 00782 g007 550
Figure 7. The relative transcript abundance of Cu/Zn SOD (A), Fe/Mn SOD (B), APX (C), and CAT (D) in maize leaves as affected by nano-ZnO and drought stress. Data are reported as mean ± SE (n = 3). Different small letters indicate significant difference at p < 0.05 level. ZnO, nano-ZnO treatment; N, non-ZnO treatment; W, normal water supply; D, drought stress.
Figure 7. The relative transcript abundance of Cu/Zn SOD (A), Fe/Mn SOD (B), APX (C), and CAT (D) in maize leaves as affected by nano-ZnO and drought stress. Data are reported as mean ± SE (n = 3). Different small letters indicate significant difference at p < 0.05 level. ZnO, nano-ZnO treatment; N, non-ZnO treatment; W, normal water supply; D, drought stress.
Ijms 21 00782 g007
Ijms 21 00782 g008 550
Figure 8. The relative transcript abundance of TDC (A), SNAT (B), COMT (C), and ASMT (D) in maize leaves as affected by nano-ZnO and drought stress. Data are reported as mean ± SE (n = 3). Different small letters indicate significant difference at p < 0.05 level. ZnO, nano-ZnO treatment; N, non-ZnO treatment; W, normal water supply; D, drought stress.
Figure 8. The relative transcript abundance of TDC (A), SNAT (B), COMT (C), and ASMT (D) in maize leaves as affected by nano-ZnO and drought stress. Data are reported as mean ± SE (n = 3). Different small letters indicate significant difference at p < 0.05 level. ZnO, nano-ZnO treatment; N, non-ZnO treatment; W, normal water supply; D, drought stress.
Ijms 21 00782 g008
Ijms 21 00782 g009 550

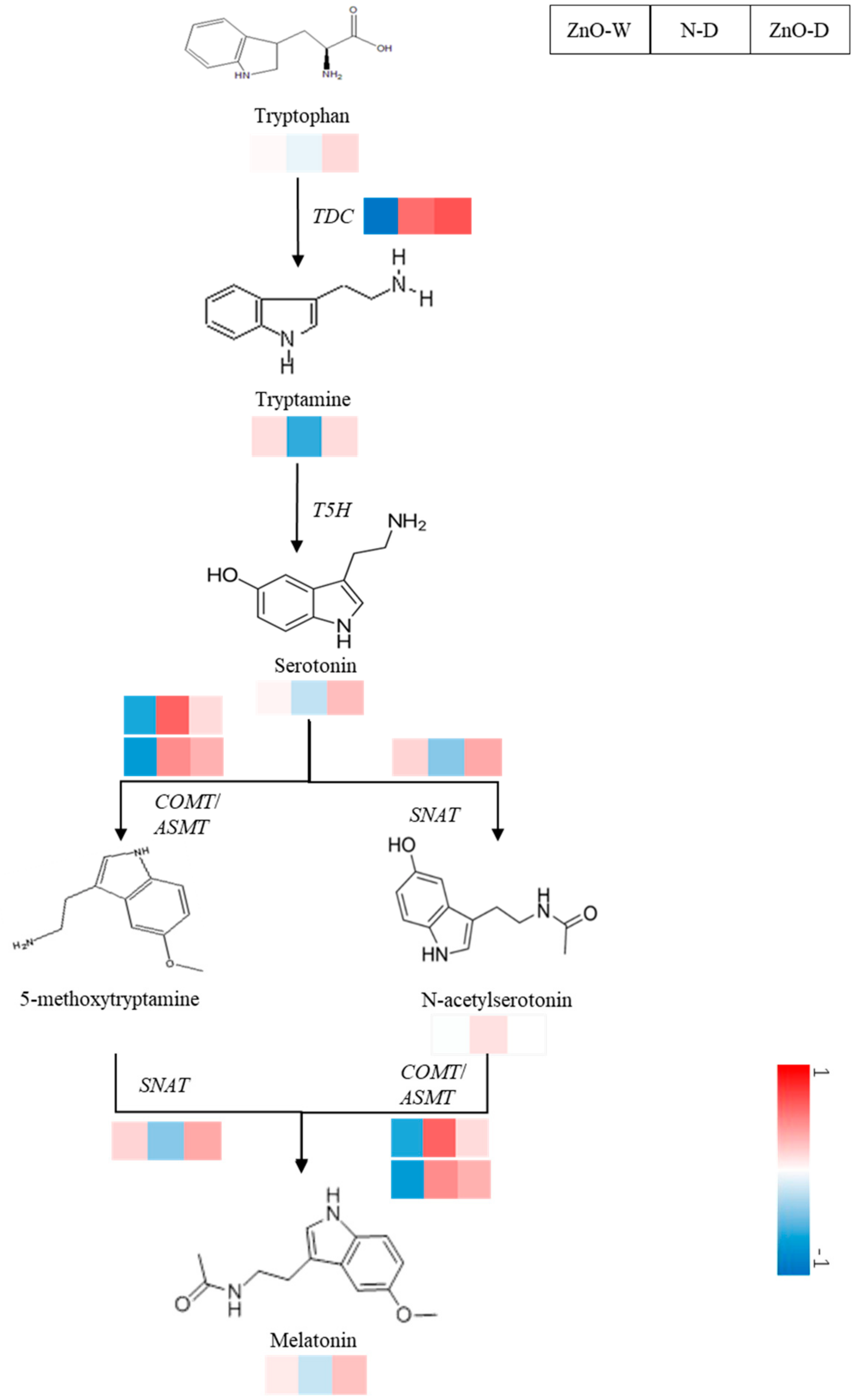

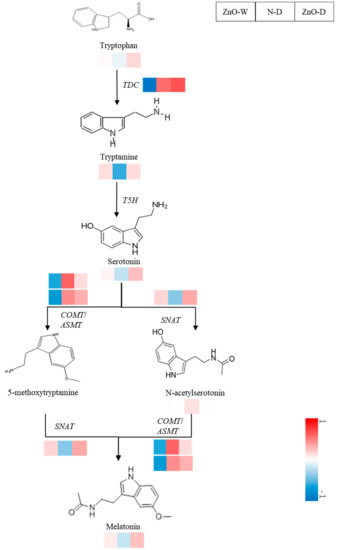

Figure 9. Modifications of relative expression of related genes and concentrations of metabolites involved in melatonin synthesis in maize leaf induced by nano-ZnO and drought stress. Compared with N-W, the differences in genes expression and intermediate concentrations level for a given enzyme under ZnO-W, N-D and ZnO-D, were log-normalized and converted to a color scale. It was reorganized after analysis with the PageMan software. Up-regulation and down-regulation were indicated in increasing red and blue, respectively. The unaltered level was indicated in white. TDC, tryptophan decarboxylase; ASMT, N-acetylserotonin O-methyltransferase; COMT, caffeic acid O-methyltransferase; SNAT, serotonin N-acetyltransferase; ZnO, nano-ZnO treatment; N, non-ZnO treatment; W, normal water supply; D, drought stress.
Figure 9. Modifications of relative expression of related genes and concentrations of metabolites involved in melatonin synthesis in maize leaf induced by nano-ZnO and drought stress. Compared with N-W, the differences in genes expression and intermediate concentrations level for a given enzyme under ZnO-W, N-D and ZnO-D, were log-normalized and converted to a color scale. It was reorganized after analysis with the PageMan software. Up-regulation and down-regulation were indicated in increasing red and blue, respectively. The unaltered level was indicated in white. TDC, tryptophan decarboxylase; ASMT, N-acetylserotonin O-methyltransferase; COMT, caffeic acid O-methyltransferase; SNAT, serotonin N-acetyltransferase; ZnO, nano-ZnO treatment; N, non-ZnO treatment; W, normal water supply; D, drought stress.
Ijms 21 00782 g009
Table
Table 1. Output of two-way ANOVA for the interactive effects of drought stress and nano-ZnO on the tested parameters in maize.
Table 1. Output of two-way ANOVA for the interactive effects of drought stress and nano-ZnO on the tested parameters in maize.
Nano-ZnOWater RegimeNano-ZnO × Water Regime
Soluble sugar*nsns
Proline******
Soluble protein****ns
MDAns*ns
SOD****ns
APX*****
CAT**nsns
H2O2****ns
Tryptophan*nsns
Tryptamine*****
Serotonin*nsns
NASnsnsns
Melatonin*nsns
2-HMnsns**
AFMKnsns*
MDA, malondialdehyde; SOD, total superoxide dismutase; APX, ascorbate peroxidase; CAT, catalase; H2O2, hydrogen peroxide; NAS, N-acetylserotonin; 2-HM, 2-hydroxymelatonin; AFMK, N1-acetyl-N2-formyl-5-methoxyknuramine; * p < 0.05; ** p < 0.01; ns, not significant by Duncan’s test.
Table
Table 2. Output of two-way ANOVA for the interactive effects of drought stress and nano-ZnO on the gene relative expression in maize.
Table 2. Output of two-way ANOVA for the interactive effects of drought stress and nano-ZnO on the gene relative expression in maize.
Nano-ZnOWater RegimeNano-ZnO × Water Regime
Cu/Zn SOD******
Fe/Mn SODns****
CAT**ns**
APX****ns
TDC*****
ASMTnsns**
COMT*****
SNAT***ns
* p < 0.05; ** p < 0.01; ns, not significant by Duncan’s test.
Table
Table 3. Pearson’s correlation coefficients between the tested parameters in maize.
Table 3. Pearson’s correlation coefficients between the tested parameters in maize.
Soluble SugarProlineSoluble ProteinMDAAPXSODCATH2O2TryTryptamineSerotoninNASMT
Soluble sugar10.220.4720.2970.4760.667*0.54−0.1990.57−0.0750.671 *0.0710.409
Proline 1−0.4430.3710.973**0.707*0.4410.5600.458−0.831 **−0.0940.734 *0.037
Soluble protein 1−0.544−0.2990.1720.44−0.917 **0.4690.752 **0.600 *−0.2390.519
MDA 10.4760.315−0.0930.700 *−0.077−0.739 **−0.2760.052−0.284
APX 10.828 **0.4260.5430.348−0.787 **0.2450.3990.255
SOD 10.673*0.1560.539−0.4220.5010.2180.492
CAT 1−0.2400.659*−0.0250.3390.4310.290
H2O2 1−0.311−0.857**−0.4030.260−0.451
Try 1−0.060.430.2040.55
Tryptamine 10.28−0.4070.137
Serotonin 1−0.2620.627 *
NAS 1−0.328
MT 1
MDA, malondialdehyde; SOD, total superoxide dismutase; POD, peroxidase; CAT, catalase; H2O2, hydrogen peroxide; Try, tryptophan; NAS, N-acetylserotonin; MT, melatonin; * p < 0.05; ** p < 0.01.
Table
Table 4. Primers used in this study.
Table 4. Primers used in this study.
PrimersSequences
ZmActin-F5′-GCCGATCGTATGAGCAAGGA-3′
ZmActin-R5′-CCACCGATCCAGACACTGTA-3′
Cu/Zn SOD-F5′-GTGCATATCGACAGGACCAC-3′
Cu/Zn SOD-R5′-CAATGGTTGCCTCGGCTATG-3′
Fe/Mn SOD-F5′-GGCGGTCATGTGAACCATTCAATC-3′
Fe/Mn SOD-R5′-CGCCTTCTGCATTCATCCTC-3′
APX-F5′-GAGCGATCAGGACATTGTTG-3′
APX-R5′-CTTTGTCACTTGGGAGCTGAAG-3′
CAT-F5′-CAGATTGCTTTCTGCCCAGC-3′
CAT-R5′-GCATCAGATAGTTTGGACCAAGGC-3′
TDC-F5′-CATGCTCGTCACGCTTGTCTC-3′
TDC-R5′-GCCTTGAAGAAGGTGGAGTG-3′
ASMT-F5′-CTGGACCTCTCACACGTCGTC-3′
ASMT-R5′-CCCAGTCATGCAGAATCCACTTG-3′
COMT-F5′-GATCCACTTCATGAGGATGGC-3′
COMT-R5′-CCCAGTCATGCAGAATCCACTTG-3′
SNAT-F5′-CATCGTGCTCTACGCCGAGAC-3′
SNAT-R5′-GGACTTGCGGTAGTATGCCATC-3′

Share and Cite

MDPI and ACS Style

Sun, L.; Song, F.; Guo, J.; Zhu, X.; Liu, S.; Liu, F.; Li, X. Nano-ZnO-Induced Drought Tolerance Is Associated with Melatonin Synthesis and Metabolism in Maize. Int. J. Mol. Sci. 2020, 21, 782. https://doi.org/10.3390/ijms21030782

AMA Style

Sun L, Song F, Guo J, Zhu X, Liu S, Liu F, Li X. Nano-ZnO-Induced Drought Tolerance Is Associated with Melatonin Synthesis and Metabolism in Maize. International Journal of Molecular Sciences. 2020; 21(3):782. https://doi.org/10.3390/ijms21030782

Chicago/Turabian Style

Sun, Luying, Fengbin Song, Junhong Guo, Xiancan Zhu, Shengqun Liu, Fulai Liu, and Xiangnan Li. 2020. "Nano-ZnO-Induced Drought Tolerance Is Associated with Melatonin Synthesis and Metabolism in Maize" International Journal of Molecular Sciences 21, no. 3: 782. https://doi.org/10.3390/ijms21030782

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
