Article

Preparation and Characterization of Degradable Cellulose−Based Paper with Superhydrophobic, Antibacterial, and Barrier Properties for Food Packaging

by
Xiaofan Jiang
1,
Qiang Li
1,
Xinting Li
1,
Yao Meng
1,
Zhe Ling
2,
Zhe Ji
1,3,* and
Fushan Chen
1,*
1
College of Marine Science and Bioengineering, Qingdao University of Science and Technology, Qingdao 266042, China
2
Jiangsu Co−Innovation Center of Efficient Processing and Utilization of Forest Resources, College of Chemical Engineering, Nanjing Forestry University, Nanjing 210037, China
3
State Key Laboratory of Biobased Material and Green Papermaking, Qilu University of Technology, Shandong Academy of Sciences, Jinan 250353, China
*
Authors to whom correspondence should be addressed.
Int. J. Mol. Sci. 2022, 23(19), 11158; https://doi.org/10.3390/ijms231911158
Submission received: 1 September 2022 / Revised: 12 September 2022 / Accepted: 14 September 2022 / Published: 22 September 2022
(This article belongs to the Special Issue Bio-Polymer Materials and Bio-Refinery)
Browse Figures
Review Reports Versions Notes

Abstract

:
A great paradigm for foremost food packaging is to use renewable and biodegradable lignocellulose−based materials instead of plastic. Novel packages were successfully prepared from the cellulose paper by coating a mixture of polylactic acid (PLA) with cinnamaldehyde (CIN) as a barrier screen and nano silica−modified stearic acid (SA/SiO2) as a superhydrophobic layer. As comprehensively investigated by various tests, results showed that the as−prepared packages possessed excellent thermal stability attributed to inorganic SiO2 incorporation. The excellent film−forming characteristics of PLA improved the tensile strength of the manufactured papers (104.3 MPa) as compared to the original cellulose papers (70.50 MPa), enhanced by 47.94%. Benefiting from the rough nanostructure which was surface−modified by low surface energy SA, the contact angle of the composite papers attained 156.3°, owning superhydrophobic performance for various liquids. Moreover, the composite papers showed excellent gas, moisture, and oil bacteria barrier property as a result of the reinforcement by the functional coatings. The Cobb300s and WVP of the composite papers were reduced by 100% and 88.56%, respectively, and their antibacterial efficiency was about 100%. As the novel composite papers have remarkable thermal stability, tensile strength, and barrier property, they can be exploited as a potential candidate for eco−friendly, renewable, and biodegradable cellulose paper−based composites for the substitute of petroleum−derived packages.

Graphical Abstract

1. Introduction

Plastic pollution is a rising serious and global ecological issue. The widespread abuses in single−use consumer plastics that are used for food or drug packages have been a major cause for the concern [1]. Most disposable food packaging items are made of petroleum−based, non−degradable thermoplastics, which has given rise to increasing environmental contaminations and threats to human health. In 2015, the annual consumption of single−use plastic packages was over 407 million tons and kept increasing trend year by year [2]. Due to its recalcitrance to biodegradation, plastic packages not only cause white pollution and soil hardening but also flow into the ocean forming permanent microplastics [3]. Scientists have discovered microplastics in the placentas of human newborns and adult blood, which is the criminality for numerous deadly diseases [4]. Therefore, developing low ecotoxicity and biodegradable food packages to replace petrochemical based single−use plastics has become a research focus. It is imperative to find biodegradable alternatives to compostable plastic packaging [5].
In recent decades, enormous efforts have been devoted to exploiting biodegradable and high−quality food packages from cellulose, starch, polycaprolactone, and polybutylene adipate−co−terephthalate (PBAT) [6,7]. The cellulose paper−based materials manufactured from lignocellulose fibers particularly stand out due to the advantages of biosafety, biodegradability, vast availability, and low cost [8,9]. Food packaging is aimed at safeguarding food quality and preventing food from being damaged during transportation and sale. Except for the mechanical strength, the barrier to water and steam is one of the most significant properties. However, cellulose contains many hydrophilic hydroxyl groups. Additionally, the three−dimensional networks of fiber papers can jointly induce capillary action, resulting in a high hygroscopicity [10]. These intrinsic features limited the ability of papers to moisture barrier, thus deteriorating their mechanical performance as well as food shelf−life [11].
To overcome the defects, internal sizing, or surface treatment of papers with functional coatings, has been adopted. Considering the cost and feasibility, exploiting coated composite paper packages with natural polymers is a promising strategy [12]. Among the natural polymers, polylactic acid (PLA) has attracted much attention owing to its non−toxicity, biocompatibility, and excellent mechanical properties. The high crystallinity and excellent film−forming characteristics endow PLA with favorable barrier qualities [13,14]. Especially the presence of vast ester linkages in PLA grants its high resistance to water [15,16,17]. Rhim et al. manufactured a PLA−coated paperboard with improved tensile strength, water resistance, and heat sealing qualities, which could be a substitute for PE−coated paper [18]. Additionally, PLA can create a weakly acidic environment on the film surface to restrain bacterial and mold [19]. Moderate incorporation of natural antibacterial agents will further reinforce its activity [20,21,22,23,24]. The chemical compound cinnamaldehyde cinnamonaldehyde (CIN) is widely utilized in the production of feed, cosmetics, fragrances, and medications. With considerable bactericidal effects on Gram−positive bacteria (E. coli) and Gram−negative bacteria (S. aureus), broad−spectrum antibacterial capabilities, and significant efficacy on fungus, CIN has essential uses in bactericidal disinfection and antisepsis [25,26]. CIN is recognized as “Generally Recognized as Safe” (GRAS) by the Food and Drug Administration and current European legislation (EU N10/2011 Regulation), which means it can be used in food processing without further approval [27]. Villegas et al. proposed a supercritical impregnation procedure to introduce cinnamaldehyde into PLA sheets for improving its antibacterial property, while the method was high−cost [28].
However, single−component PLA is brittle and shows a limited hydrophobic property. For food packaging, super−hydrophobicity can expand its applications in the areas of re−humidity, barrier, and self−cleaning. Two critical strategies for achieving superhydrophobic characteristics are nanoscale rough textures and low surface energy compounds [29]. Chen et al. coated hydrophobic silica nanoparticles onto the surface of PLA films to achieve a contact angle of 150.2° for self−cleaning packaging [30]. Sbardella et al. used ZnO and stearic acid (SA) to treat PLA/linen fabric green composites to achieve high tensile strength and a superhydrophobic fiber surface of 150° [31]. However, few alterations that would give the superhydrophobic paper−based food packages a barrier to gas molecules and water vapor have been suggested in previous investigations. In order to extend the passage path of water molecules and improve the solid’s ability to block the passage of water vapor, balanced polymer structural morphology and tortuous paths are necessary [32,33].
In the present work, we developed an easy process for producing antibacterial, biodegradable, and superhydrophobic composite paper packages. The as−designed packages were prepared from the cellulose paper by coating a mixture of PLA/CIN as a barrier screen and nano−SiO2−modified SA as a superhydrophobic layer. The schematic illustration of the preparation is displayed in Figure 1. The chemical structure, thermal stability, mechanical property, morphology, superhydrophobic property, water vapor, oxygen, and oil barrier properties, as well as antibacterial efficiency, were comprehensively investigated by a series of advanced characterization techniques.

2. Results and Discussion

2.1. FT−IR Analysis

FT−IR analysis was conducted to investigate the chemical structures of composite papers. As illustrated in Figure 2a, the (CH2)n of SA is represented by the absorption peak at 1186–1313 cm−1. The peaks at 2916 cm−1, 2846 cm−1, 1706 cm−1, and 1470 cm−1 indicate the stretching vibration of CH3, CH2, C=O, and the in−plane bending vibration of CH of SA, respectively [34]. The vibrations of Si−O−Si are responsible for the larger absorption bands between 850–1100 cm−1 [35]. The peak in the SA/SiO2 curve, which overlaps and extends with the curve of SA stretching vibration, is present at many of the above locations. The OH symmetric stretching and bending vibration at 3300–3500 cm−1 is attenuated in the spectrum of SA/SiO2, suggesting the interaction of SiO2 and SA (Figure 1b).
In Figure 2b, the specific bands at 3280 cm−1, 2890 cm−1, 1320 cm−1, and 1020 cm−1 were characteristic peaks of cellulose papers [28]. After coating by PLA/CIN, the 1450 cm−1 and 1358 cm−1 peaks of CH3 symmetric bending and the 1743 cm−1 of the unique carbonyl group (C=O) are detected as the typical bands of PLA [36]. A distinctive peak of CIN can be collected at 1680 cm−1, which is induced by the stretching vibration of R−CHO [37]. In the curve of PC−SA, PLA was essentially covered due to the spraying modification of SA. It shows that the COOH absorption peak emerges faintly at 1706 cm−1. The peaks at 2890 cm−1 and 2851 cm−1 represent the vibration of CH3 and C−H in SA. In the spectra of PC−SA/SiO2, Si−O−Si bonds have vibration absorption maxima at 1100 cm−1 and 860 cm−1, respectively. It coincides with the curve of SA stretching vibration and broadens, demonstrating that SiO2 nanoparticles and SA work well together, which is also consistent with the trend of the curve in Figure 2a.

2.2. Thermal Stability and Mechanical Properties

The thermal stability of cellulose paper and coated paper was investigated by TGA and DTG analysis under a nitrogen atmosphere. According to TGA curves (Figure 3a), all samples show great pyrolysis−related similarities that were divided into three stages. First, when the temperature rises to about 170 °C and levels off, mass loss begins to happen for cellulose paper. For the other samples, there is an initial mass loss below 290 °C due to the decomposition of water. After that in the temperature range of 290–390 °C, a significant mass loss driven by the decomposition of cellulose paper and PLA can be observed. Finally, with rising temperature the curves essentially remain unchanged, resulting in consistent quality. Among them, the cellulose paper is completely decomposed at 547 °C, while the other samples retain some ash at the end of the TGA experiment. The constant mass of PC−SA/SiO2 is higher than that of the others because of the incorporated inorganic SiO2.
From the DTG curves (Figure 3b), the lower peak temperature of PC compared to CP is due to the addition of CIN to PLA, which has a plasticizing effect on the polymer base material and increases the fluidity of the polymer chains. It improved the flexibility and ductility of the material, which resulted in a decrease in thermal properties [13,37]. In contrast, the thermal degradation temperature of PC−SA/SiO2 increased accompanied by the peak temperature rising from 355 to 360 °C, virtually matching that of CP. It indicates that the presence of hydrophobic nanoparticles enhances the material’s crystallinity, thus promoting its thermal stability. The results suggest that the material’s outstanding thermal stability can be ensured by the superhydrophobic modified samples for use in food packaging.
The stress−strain curves of cellulose paper and coated paper are shown in Figure 3c. Benefiting from the PLA, PLA interactions on the surface of papers and its excellent film−forming characteristics, the TS of PC raised to 118.9 MPa increased by 68.65% as compared to that of CP (70.5 MPa). The decrease in breaking elongation might be due to physical interaction between PLA and CIN (Figure 3d), which restricts PLA chain mobility to some extent [38]. Unexpectedly, a slight reduction in the TS of superhydrophobic modified composites was observed. A reason for the phenomenon is that the unsatisfactory surface free energy of the sprayed particles at the interface of multilayers limited the interfacial adhesive strength between the multi−coatings. Thus, when the samples are subjected to external loads, the stress cannot be effectively transferred to the inorganic particles, but instead, the bearing cross−sectional area of the paper is reduced, lowering the tensile strength of the composite papers [39]. Even so, they do outperform the original paper in terms of mechanical strength with PC−SA and PC−SA/SiO2 rising by 43.83% and 47.94%, respectively (Table S1). The results suggested the improved mechanical strength of the coated composite papers than the base one.

2.3. SEM and Superhydrophobic Properties

SEM and CA were used to examine the surface morphology and contact angle states of the original and coated paper samples. The paper was porous and the fiber texture can be obviously distinguished (Figure 4a). The capillary action and the exposed OH groups on the fiber surface are easier to absorb water with a lower CA of 85°. After coating PLA/CIN, the surface became smooth and compact, which indicated the excellent film−forming ability at the interface (Figure 4b). The CA of PC samples (90.1°) was slightly higher than the base papers (Figure 4c). For the superhydrophobic modified samples, rough surface structure can be observed (Figure 3d,e). SA has low surface energy, a multi−vacancy surface, and a micro−nano structure. The features help to increase the surface’s hydrophobicity [34]. With a contact angle of 130.9°, the surface of the coated paper spray with SA has more “clusters” gathered on it, making the surface structure rougher and increasing the area of air trapping, thereby enhancing hydrophobicity (Figure 4d). after multilayer coating, the generated paper surface showed more dense shape. The loading of nanoparticles enhances the contact area with air and decreases the surface energy, resulting in a greater hydrophobicity with a contact angle of 156.3° (Figure 4e).
Figure 5a shows that the water contact angle of the base cellulose paper is much lower (85°) than expected due to its intrinsic hydrophilic. Benefiting from a rough surface, the PC−SA/SiO2 possesses the best super−hydrophobicity with a contact angle of 156.3°. To measure the hydrophobicity of as−prepared packages to different liquids, the states of several liquids poured on the sample surfaces were captured (Figure 5b). Water, oolong tea, red sparkling water, and blue sparkling water are the four transparent liquids on the left, while coffee, milk, methyl blue stain, and methyl red stain are the four opaque liquids on the right, all of which have near−perfect sphericity. Figure 5c demonstrates how water sprayed from a straw onto a superhydrophobic surface bounces back instantly and leaves no trace, exhibiting excellent superhydrophobic qualities and a weak contact between water and the modified sample surface. In Movie M1, this is also proven. When utilized as the inside wall of containers for various liquid food products, the created superhydrophobic material can decrease waste by reducing residue.
The self−cleaning property of a superhydrophobic surface is an important attribute, as it swiftly eliminates dirty dust from the surface and keeps it clean. Carbon black powder was sprinkled over a superhydrophobic surface tilted at 20°, and then water was progressively dripped onto the contaminated surface to investigate the changed samples’ self−cleaning properties (Figure 5d). As can be seen, water droplets may readily carry dust along a path, providing a visible path delineated by dotted lines. A heavy layer of toner powder was applied to the droplets. Finally, the water droplets fully remove the carbon black powder and totally clean the surface, displaying the surface’s excellent self−cleaning capability. The self−cleaning effect was well demonstrated in Movie M2. This also demonstrates that the material may be used as a packing material and is dust and dirt−proof on the exterior surface, indicating that it has a wide range of applications.
All the above phenomena indicated that because the surface of the super−hydrophobically modified sample constitutes micro/nanoscale asperities with air trapped between it and water, it exhibited excellent superhydrophobic properties, which was in accordance with the Cassie−Baxter model.

2.4. Barrier Performance

To prevent food quality degradation, food packaging must have strong water, oil, and gas barrier qualities. Modification, as demonstrated in Figure 6 and Table 1. Figure 6a demonstrates that after coating with PLA, the cellulose paper has superior water resistance, which is owing to PLA’s intrinsic hydrophobicity [40]. The larger the contact angle with water after the superhydrophobic alteration, the better the waterproof performance of the samples, as indicated in Table S2. When compared to the original paper, the Cobb value of sample PC−SA/SiO2 can be lowered by 100% in 60–300 s. Even when the test duration is prolonged to 600 s, the Cobb value is 1.2, which is 82.75% lower compared with CP. While extending the time to 1800 s, the cobb value of sample PC−SA/SiO2 can still be kept below 10, which is a 50.51% decrease compared to CP. The results show that the superhydrophobic modified samples have excellent water resistance.
The thickness and gram weight of the coated and modified cellulose papers coupled with their corresponding barrier properties were indicated in Table 1. The porous structure of the base cellulose paper led to poor oil resistance with a valley Kit number of 0, while the oil resistance of all modified samples was enhanced to the greatest level (Kit number 12). In order to evaluate the effectiveness of coatings on the gas barrier, the base, and coated papers were subjected to a 24 h oxygen transmission test. The oxygen transmission rate (OTR) of CP was out of the measuring range of the instrument (500,000 cm3/m2·24 h·0.1 MPa) due to its loosened structure as illustrated by SEM. As expected, the OTR of the coated and superhydrophobic modified papers was sharply dropped to a minimum value of 57.942 cm3/m2·24 h·0.1 MPa. The water vapor permeability (WVP) was another key parameter for assessing the barrier performance. The WVP of PC−SA/SiO2 (206.95 g/m2·24 h·Pa) was greatly reduced as compared to the original paper (1802.35 g/m2·24 h·Pa). CIN that is evenly diffused in PLA works as an efficient heterogeneous nucleating agent and stimulates the production of PLA crystals [41]. Coupled with the excellent film−forming characteristic of PLA and surface nanomodification, the transport pathway of gas and water vapor is changed and inhibited to some extent [42]. Compared with the commonly used non−degradable plastic food packaging materials in Table 2, PC−SA/SiO2 shows comparative oxygen barrier performance, although its WVP was not so satisfactory. While referring to the recently reported self−developed food packages, our novel composite paper package exhibits outstanding barrier performance to oil, gas, and water vapor.

2.5. Antibacterial Properties

The antimicrobial performance of packages is an important property that was usually measured by observing how well the samples inhibited the development of E. coli and S. aureus. The antibacterial activity of samples was assessed by comparing the colonies number in the test and control groups at a certain time. As shown in Figure 7, the inhibitory action of CIN−rich samples is obviously improved compared to the PLA−coated papers. The hydrophobic nature of CIN allows it to permeate the phospholipid bilayer of bacteria, disorganizing its cell walls and releasing internal contents [46]. Meanwhile, CIN can also stop cells from breathing by disrupting associated enzymes, resulting in cell death [47]. PC exhibits 91.94 ± 0.52% and 97.19 ± 0.92% inhibition against E. coli and S. aureus, respectively. The capacity to suppress S. aureus was superior to that of E. coli. A possible explanation is that the outer barrier surrounding the cell walls of E. coli prevents chemicals from accessing their lipopolysaccharide layers, rendering them resistant [37]. It should be noted that the samples that functioned with super−hydrophobicity had stronger antibacterial activity, which shows the higher hydrophobicity, the better antimicrobial capabilities. The reason is that super−hydrophobicity lowers the attachment of bacteria to solid surfaces, allowing germs to be readily removed before biofilm formation [48]. PC−SA inhibited E. coli and S. aureus growth by 99.18 ± 0.23% and 99.31 ± 0.46%, respectively, whereas the antibacterial efficiency of samples modified by PC−SA/SiO2 to both bacteria reached up to 100% (Table S3).

3. Materials and Methods

3.1. Materials

Polylactic acid (PLA 4032D), in pellets, was obtained from Nature Works with Mw = 1.0 × 105. The hydrophobic nano−silica (SiO2, 99%) was supplied by Macklin (Shanghai, China) with a specific area of 300 ± 50 m2/g and an average particle size of 15 nm. Stearic acid (SA, 95%) and cinnamaldehyde (CIN) were acquired from Aladdin. Dichloromethane (DCM) was purchased from the National Medicine Group Chemical Reagents Co., Ltd., Suzhou, China. All the chemicals were of analytical grade and were used without further purification.

3.2. Sample Preparation

A solution of 10% PLA in DCM was stirred at room temperature for 1 h and then CIN and span80 were dissolved in the above solution with stirring for 10 min to prepare the antibacterial coating solutions. Subsequently, the antibacterial coating solutions were coated on cellulose paper’s surface using a coating rod model RDS−24 on the automatic film coating instrument (BEVS 1811) at a rate of 30 mm/s, and the solvent was evaporated under natural conditions. To prepare solution I, 1 g of stearic acid was dissolved in 100 mL of ethanol solution. Modification of cellulose paper is sprayed by solution I. 2 g hydrophobic nano−silica was added to Solution I and stirred for 2 h at room temperature to make Solution II. Solution II was sprayed on the coating paper to yield a superhydrophobic surface. During the spraying process, the synthesized superhydrophobic solution was uniformly coated on the surface of the paper samples using a spray gun with an air pressure of 30 psi from 30 cm [49]. The freshly coated surface was then dried at 60 °C for 5 min. The coating and drying process was repeated 3 more times to provide a homogeneous and thick coating. The samples are labeled as follows: CP is cellulose paper, PC is PLA/CIN coated paper, PC−SA is PLA/CIN coated paper with SA spraying, and PC−SA/SiO2 is PLA/CIN coated paper with SA/SiO2 spraying.

3.3. Characterization Techniques

FT−IR (Nicolet IS10, Waltham, MA, USA) was used to determine the functional groups of the samples, and the wavenumber range was set at 600–4000 cm−1. Thermal characterization of the materials was carried out by a TGA (TG 209 F3 Tarsus, Bavaria, German) from 30 to 600 °C at a heating rate of 10 °C/min under a nitrogen atmosphere. The tensile strength and elongation at the break of the samples were collected d by a tensile testing machine (AI−3000−UL, Taiwan, China). SEM (regulus 8100, Tokyo, Japan) was used to investigate the surface morphology of papers.
To value the hydrophobicity, a goniometer (JC2000D1, Shanghai, China) was utilized to ascertain the contact angle. The contact angle of the modified papers was observed using different transparent and opaque liquids attached to the sample surface. In the self−cleaning test, the carbon−black powder was deposited on the inclined (approximately 20°) sample surface with deionized water passing over its surface until all carbon dust was washed off. Water is shot onto the surface of the hydrophobic paper to observe hydrophobicity. The status of the modified hydrophobic paper was observed using different drops of transparent and opaque liquids. The grammage of films was calculated based on the ratio between their mass and area (g/m2).

3.4. Barrier Properties

The oil resistance of cellulose paper and coated papers was evaluated according to a TAPPI standard test T559 pm−96 using a Kit test procedure [50]. For this, a series of solutions with different Kit numbers (1–12) were created by specific proportions of castor oil, toluene, and n−heptane. The highest−numbered solution that remained on the surface of the coated papers without causing staining was reported as the Kit number for the coated papers. Kit number 1 represented the weakest oil resistance and Kit number 12 represented the strongest oil resistance. Water absorptiveness (WA) was tested by an ACT2500 automatic Cobb water absorption tester (BTG, Stockholm, Sweden). Water vapor permeability (WVP) was measured by W3/010 analyzer (Labthink, Shandong, China) following GB/T 16928 standard. The oxygen transmission rate (OTR) of the paper samples was determined according to GB/T 1038–2000 standard by VAC−V3 pressure difference gas permeameter (Labthink, Shandong, China).

3.5. Antibacterial Efficacy

The antimicrobial performance of the samples was evaluated using PLA−coated paper as a control according to “GB4789.2−2016“. All samples were cut into slices and sterilized under a UV lamp for 30 min. First, E. coli and S. aureus were incubated in the LB medium for 24 h to obtain a bacterial suspension at a concentration of 107 CFU/mL. Then the bacterial suspension was diluted to 105 CFU/mL with normal saline. Additionally, 0.1 mL of the test bacterial solution was added dropwise to the samples. Three parallels were made for each sample. After covering the samples with sterilized film to make the bacteria evenly touch the samples, we place them in sterilized dishes and incubate them at (37 ± 1) °C with a relative humidity greater than 90% for 24 h. Remove the samples from the 24 h incubation, add 20 mL of eluent, wash the samples and covering film repeatedly, shake well, and then inoculate a certain amount into nutrient agar medium at (37 ± 1) °C. The live bacteria were counted after 24–48 h incubation.

4. Conclusions

A novel kind of degradable composite paper package with super−hydrophobicity and excellent barrier properties was successfully fabricated. By coating a mixture of PLA/CIN as a barrier screen and nano−SiO2−modified SA as a superhydrophobic layer, the as−prepared packages possessed excellent thermal stability. Additionally, the tensile strength of the manufactured papers reached up to 104.3 MPa attributed to the excellent film−forming characteristics of PLA and the compatibilizer effect, and the PLA−SA interactions at the multilayer interface. As a result of the rough surface formed by SA/SiO2, the CAs of the composite papers attained 156.3°, showing superhydrophobic performance for various liquids and self−cleaning properties. The bifunctional coatings also changed the surface absorbability and transport pathway of small molecules, resulting in an excellent barrier performance for oil, gas, and water vapor. The antibacterial efficiency of the novel composite paper was about 100%, which suggested a promising prospect in the degradable packaging application.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms231911158/s1.

Author Contributions

Data curation, X.J.; formal analysis, X.J.; funding acquisition, Z.J.; investigation, Q.L.; methodology, Y.M.; project administration, Z.L.; resources, Y.M.; supervision, F.C.; validation, X.L.; writing-original draft, X.J.; writing-review and editing, Z.J. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by National Natural Science Foundation of China (32001277, 22078167, 22008132) and Natural Science Foundation of Shandong Province (2019JZZY020213). Foundation (No. KF201913) of State Key Laboratory of Biobased Material and Green Papermaking, Qilu University of Technology, Shandong Academy of Science.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Samantaray, P.K.; Little, A.; Wemyss, A.M.; Iacovidou, E.; Wan, C. Design and control of compostability in synthetic biopolyesters. ACS Sustain. Chem. Eng. 2021, 9, 9151–9164. [Google Scholar] [CrossRef]
  2. Diggle, A.; Walker, T.R. Implementation of harmonized extended producer responsibility strategies to incentivize recovery of single-use plastic packaging waste in Canada. Waste Manag. 2020, 110, 20–23. [Google Scholar] [CrossRef]
  3. Ding, R.; Tong, L.; Zhang, W. Microplastics in freshwater environments: Sources, fates and toxicity. Water Air Soil Pollut. 2021, 232, 5. [Google Scholar] [CrossRef]
  4. Vethaak, A.D.; Legler, J. Microplastics and human health. Science 2021, 371, 672–674. [Google Scholar] [CrossRef] [PubMed]
  5. Samantaray, P.K.; Little, A.; Haddleton, D.M.; McNally, T.; Tan, B.; Sun, Z.; Huang, W.; Ji, Y.; Wan, C. Poly (Glycolic acid) (PGA): A versatile building block expanding high performance and sustainable bioplastic applications. Green Chem. 2020, 22, 4055–4081. [Google Scholar] [CrossRef]
  6. Huang, X.; Luo, X.; Liu, L.; Dong, K.; Yang, R.; Lin, C.; Song, H.; Li, S.; Huang, Q. Formation mechanism of egg white protein/κ-carrageenan composite film and its application to oil packaging. Food Hydrocoll. 2020, 105, 105780. [Google Scholar] [CrossRef]
  7. Wu, C.; Sun, J.; Zheng, P.; Kang, X.; Chen, M.; Li, Y.; Ge, Y.; Hu, Y.; Pang, J. Preparation of an intelligent film based on chitosan/oxidized chitin nanocrystals incorporating black rice bran anthocyanins for seafood spoilage monitoring. Carbohydr. Polym. 2019, 222, 115006. [Google Scholar] [CrossRef]
  8. Shu, L.; Zhang, X.F.; Wang, Z.; Yao, J. Structure reorganization of cellulose hydrogel by green solvent exchange for potential plastic replacement. Carbohydr. Polym. 2022, 275, 118695. [Google Scholar] [CrossRef]
  9. Li, H.; He, Y.; Yang, J.; Wang, X.; Lan, T.; Peng, L. Fabrication of food-safe superhydrophobic cellulose paper with improved moisture and air barrier properties. Carbohydr. Polym. 2019, 211, 22–30. [Google Scholar] [CrossRef] [PubMed]
  10. Rhim, J.W. Effect of moisture content on tensile properties of paper-based food packaging materials. Food Sci. Biotechnol. 2010, 19, 243–247. [Google Scholar] [CrossRef]
  11. Andersson, C. New ways to enhance the functionality of paperboard by surface treatment—A review. Packag. Technol. Sci. 2008, 21, 339–373. [Google Scholar] [CrossRef]
  12. Qiang, T.; Wang, J.; Wolcott, M.P. Facile fabrication of 100% bio-based and degradable ternary cellulose/PHBV/PLA composites. Materials 2018, 11, 330. [Google Scholar] [CrossRef] [PubMed]
  13. Bodbodak, S.; Shahabi, N.; Mohammadi, M.; Ghorbani, M.; Pezeshki, A. Development of a novel antimicrobial electrospun nanofiber based on polylactic acid/hydroxypropyl methylcellulose containing pomegranate peel extract for active food packaging. Food Bioprocess Technol. 2021, 14, 2260–2272. [Google Scholar] [CrossRef]
  14. Liu, Y.W.; Liang, X.; Wang, S.Y.; Qin, W.; Zhang, Q. Electrospun antimicrobial polylactic acid/tea polyphenol nanofibers for food-packaging applications. Polymers 2018, 10, 561. [Google Scholar] [CrossRef]
  15. Taboada-Rodriguez, A.; Garcia-Garcia, I.; Cava-Roda, R.; Lopez-Gomez, A.; Marin-Iniesta, F. Hydrophobic properties of cardboard coated with polylactic acid and ethylene scavengers. J. Coat. Technol. Res. 2013, 10, 749–755. [Google Scholar] [CrossRef]
  16. Wang, X.; Tang, Y.; Zhu, X.; Zhou, Y.; Hong, X. Preparation and characterization of polylactic acid/polyaniline/nanocrystalline cellulose nanocomposite films. Int. J. Biol. Macromol. 2020, 146, 1069–1075. [Google Scholar] [CrossRef]
  17. Han, Y.; Ding, J.; Zhang, J.T.; Li, Q.Y.; Yang, H.; Sun, T.; Li, H.H. Fabrication and characterization of polylactic acid coaxial antibacterial nanofibers embedded with cinnamaldehyde/tea polyphenol with food packaging potential. Int. J. Biol. Macromol. 2021, 184, 739–749. [Google Scholar] [CrossRef]
  18. Rhim, J.W.; Kim, J.H. Properties of poly (lactide)-coated paperboard for the use of 1-way paper cup. J. Food Sci. 2009, 74, 105–111. [Google Scholar] [CrossRef]
  19. Valerini, D.; Tammaro, L.; Villani, F.; Rizzo, A.; Caputo, I.; Paolella, G.; Vigliotta, G. Antibacterial Al-doped ZnO coatings on PLA films. J. Mater. Sci. 2020, 55, 4830–4847. [Google Scholar] [CrossRef]
  20. Rieger, K.A.; Schiffman, J.D. Electrospinning an essential oil: Cinnamaldehyde enhances the antimicrobial efficacy of chitosan/poly (Ethylene oxide) nanofibers. Carbohydr. Polym. 2014, 113, 561–568. [Google Scholar] [CrossRef]
  21. Khorsandi, A.; Ziaee, E.; Shad, E.; Razmjooei, M.; Eskandari, M.H.; Aminlari, M. Antibacterial effect of essential oils against spoilage bacteria from vacuum-packed cooked cured sausages. J. Food Prot. 2018, 81, 1386–1393. [Google Scholar] [CrossRef] [PubMed]
  22. Sun, X.; Narciso, J.; Wang, Z.; Ference, C.; Bai, J.; Zhou, K. Effects of chitosan-essential oil coatings on safety and quality of fresh blueberries. J. Food Sci. 2014, 79, 955–960. [Google Scholar] [CrossRef] [PubMed]
  23. Zhang, L.Y.; Huang, C.X.; Xu, Y.F.; Huang, H.H.; Zhao, H.; Wang, J.; Wang, S.F. Synthesis and characterization of antibacterial polylactic acid film incorporated with cinnamaldehyde inclusions for fruit packaging. Int. J. Biol. Macromol. 2020, 164, 4547–4555. [Google Scholar] [CrossRef]
  24. Faikoh, E.N.; Hong, Y.H.; Hu, S.Y. Liposome-encapsulated cinnamaldehyde enhances zebrafish (Danio rerio) immunity and survival when challenged with vibrio vulnificus and streptococcus agalactiae. Fish Shellfish Immunol. 2014, 38, 15–24. [Google Scholar] [CrossRef]
  25. Johny, A.K.; Darre, M.J.; Hoagland, T.A.; Schreiber, D.T.; Donoghue, A.M.; Donoghue, D.J.; Venkitanarayanan, K. Antibacterial effect of trans-cinnamaldehyde on Salmonella Enteritidis and Campylobacter jejuni in chicken drinking water. J. Appl. Poult. Res. 2008, 17, 490–497. [Google Scholar] [CrossRef]
  26. Pérez Córdoba, L.J.; Sobral, P.J.A. Physical and antioxidant properties of films based on gelatin, gelatin-chitosan or gelatin-sodium caseinate blends loaded with nanoemulsified active compounds. J. Food Eng. 2017, 213, 47–53. [Google Scholar] [CrossRef]
  27. Xu, F.; Zhang, J.; Guo, Z.; Chen, S.; Dong, H.; Zhang, X.; Qin, Y.; Yao, C. High-barrier, strong, and antibacterial paper fabricated by coating acetylated cellulose and cinnamaldehyde for food packaging. Cellulose 2021, 28, 4371–4384. [Google Scholar]
  28. Villegas, C.; Torres, A.; Rios, M.; Rojas, A.; Romero, J.; de Dicastillo, C.L.; Valenzuela, X.; Galotto, M.J.; Guarda, A. Supercritical impregnation of cinnamaldehyde into polylactic acid as a route to develop antibacterial food packaging materials. Food Res. Int. 2017, 99, 650–659. [Google Scholar] [CrossRef]
  29. Li, A.; Wang, G.; Zhang, Y.; Zhang, J.; He, W.; Ren, S.; Xu, Z.; Wang, J.; Ma, Y. Preparation methods and research progress of superhydrophobic paper. Co-ord. Chem. Rev. 2021, 449, 214207. [Google Scholar] [CrossRef]
  30. Chen, Y.; Gao, X.R.; Huang, H.D.; Xu, L.; Ji, X.; Zhong, G.J.; Lin, H.; Li, Z.M. Superhydrophobic, self-cleaning, and robust properties of oriented polylactide imparted by surface structuring. ACS Sustain. Chem. Eng. 2021, 9, 6296–6304. [Google Scholar] [CrossRef]
  31. Sbardella, F.; Rivilla, I.; Bavasso, I.; Russo, P.; Vitiello, L.; Tirillo, J.; Sarasini, F. Zinc oxide nanostructures and stearic acid as surface modifiers for flax fabrics in polylactic acid biocomposites. Int. J. Biol. Macromol. 2021, 177, 495–504. [Google Scholar] [CrossRef] [PubMed]
  32. Liu, S.; Cai, P.; Li, X.; Chen, L.; Li, L.; Li, B. Effect of film multi-scale structure on the water vapor permeability in hydroxypropyl starch (HPS)/Na-MMT nanocomposites. Carbohydr. Polym. 2016, 154, 186–193. [Google Scholar] [CrossRef] [PubMed]
  33. Tang, Z.; Fan, F.; Chu, Z.; Fan, C.; Qin, Y. Barrier properties and characterizations of poly (Lactic acid)/ZnO nanocomposites. Molecules 2020, 25, 1310. [Google Scholar] [CrossRef] [PubMed]
  34. He, M.; Xu, M.; Zhang, L. Controllable stearic acid crystal induced high hydrophobicity on cellulose film surface. ACS Appl. Mater. Interfaces 2013, 5, 585–591. [Google Scholar] [CrossRef] [PubMed]
  35. Seyedmehdi, S.-A.; Vrckovnik, R.; Amirfazli, A. Robust superhydrophobic coatings from modified siloxane resin. Surf. Innov. 2017, 5, 203–210. [Google Scholar] [CrossRef]
  36. Pamuła, E.; Błażewicz, M.; Paluszkiewicz, C.; Dobrzyński, P. FTIR study of degradation products of aliphatic polyesters–carbon fibres composites. J. Mol. Struct. 2001, 596, 69–75. [Google Scholar] [CrossRef]
  37. Wang, L.; Liu, F.; Jiang, Y.; Chai, Z.; Li, P.; Cheng, Y.; Jing, H.; Leng, X. Synergistic antimicrobial activities of natural essential oils with chitosan films. J. Agric. Food Chem. 2011, 59, 12411–12419. [Google Scholar] [CrossRef] [PubMed]
  38. Ahmed, J.; Arfat, Y.A.; Castro-Aguirre, E.; Auras, R. Mechanical, structural and thermal properties of Ag-Cu and ZnO reinforced polylactide nanocomposite films. Int. J. Biol. Macromol. 2016, 86, 885–892. [Google Scholar] [CrossRef]
  39. Leong, Y.W.; Abu Bakar, M.B.; Ishak, Z.M.; Ariffin, A.; Pukanszky, B. Comparision of the mechanical properties and interfacial interaction between talc, kaolin and calcium carbonate filled polypropylene composites. J. Appl. Polym. Sci. 2004, 91, 3315–3326. [Google Scholar] [CrossRef]
  40. Lu, J.; Sun, C.; Yang, K.; Wang, K.; Jiang, Y.; Tusiime, R.; Yang, Y.; Fan, F.; Sun, Z.; Liu, Y.; et al. Properties of polylactic acid reinforced by hydroxyapatite modified nanocellulose. Polymers 2019, 11, 1009. [Google Scholar] [CrossRef]
  41. Kanehashi, S.; Kusakabe, A.; Sato, S.; Nagai, K. Analysis of permeability; solubility and diffusivity of carbon dioxide; oxygen; and nitrogen in crystalline and liquid crystalline polymers. J. Membr. Sci. 2010, 365, 40–51. [Google Scholar] [CrossRef]
  42. Kakroodi, A.R.; Kazemi, Y.; Nofar, M.; Park, C.B. Tailoring poly (Lactic acid) for packaging applications via the production of fully bio-based in situ microfibrillar composite films. Chem. Eng. J. 2017, 308, 772–782. [Google Scholar] [CrossRef]
  43. Samantaray, P.K.; Ellingford, C.; Farris, S.; O’Sullivan, D.; Tan, B.; Sun, Z.; McNally, T.; Wan, C. Electron beam-mediated cross-linking of blown film-extruded biodegradable PGA/PBAT blends toward high toughness and low oxygen permeation. ACS Sustain. Chem. Eng. 2022, 10, 1267–1276. [Google Scholar] [CrossRef]
  44. Guzman-Puyol, S.; Hierrezuelo, J.; Benitez, J.J.; Tedeschi, G.; Porras-Vazquez, J.M.; Heredia, A.; Athanassiou, A.; Romero, D.; Heredia-Guerrero, J.A. Transparent, UV-blocking, and high barrier cellulose-based bioplastics with naringin as active food packaging materials. Int. J. Biol. Macromol. 2022, 209, 1985–1994. [Google Scholar] [CrossRef]
  45. Wang, F.; Wang, L.; Zhang, X.; Ma, S.; Zhao, Z. Study on the barrier properties and antibacterial properties of cellulose-based multilayer coated paperboard used for fast food packaging. Food Biosci. 2022, 46, 101398. [Google Scholar] [CrossRef]
  46. Valizadeh, S.; Naseri, M.; Babaei, S.; Hosseini, S.M.H.; Imani, A. Development of bioactive composite films from chitosan and carboxymethyl cellulose using glutaraldehyde, cinnamon essential oil and oleic acid. Int. J. Biol. Macromol. 2019, 134, 604–612. [Google Scholar] [CrossRef]
  47. Carson, C.F.; Mee, B.J.; Riley, T.V. Mechanism of action of melaleuca alternifolia (tea tree) oil on staphylococcus aureus determined by time-kill, lysis, leakage, and salt tolerance assays and electron microscopy. Antimicrob. Agents Chemother. 2002, 46, 1914–1920. [Google Scholar] [CrossRef]
  48. Zhang, X.; Wang, L.; Levänen, E. Superhydrophobic surfaces for the reduction of bacterial adhesion. RSC Adv. 2013, 3, 12003–12020. [Google Scholar] [CrossRef]
  49. Wang, W.; Zhou, Y.; Yang, L.; Yang, X.; Yao, Y.; Meng, Y.; Tang, B. Stimulus-responsive photonic crystals for advanced security. Adv. Funct. Mater. 2022, 2204744. [Google Scholar] [CrossRef]
  50. Ham-Pichavant, F.; Sèbe, G.; Pardon, P.; Coma, V. Fat resistance properties of chitosan-based paper packaging for food applications. Carbohydr. Polym. 2005, 61, 259–265. [Google Scholar] [CrossRef]
Ijms 23 11158 g001 550

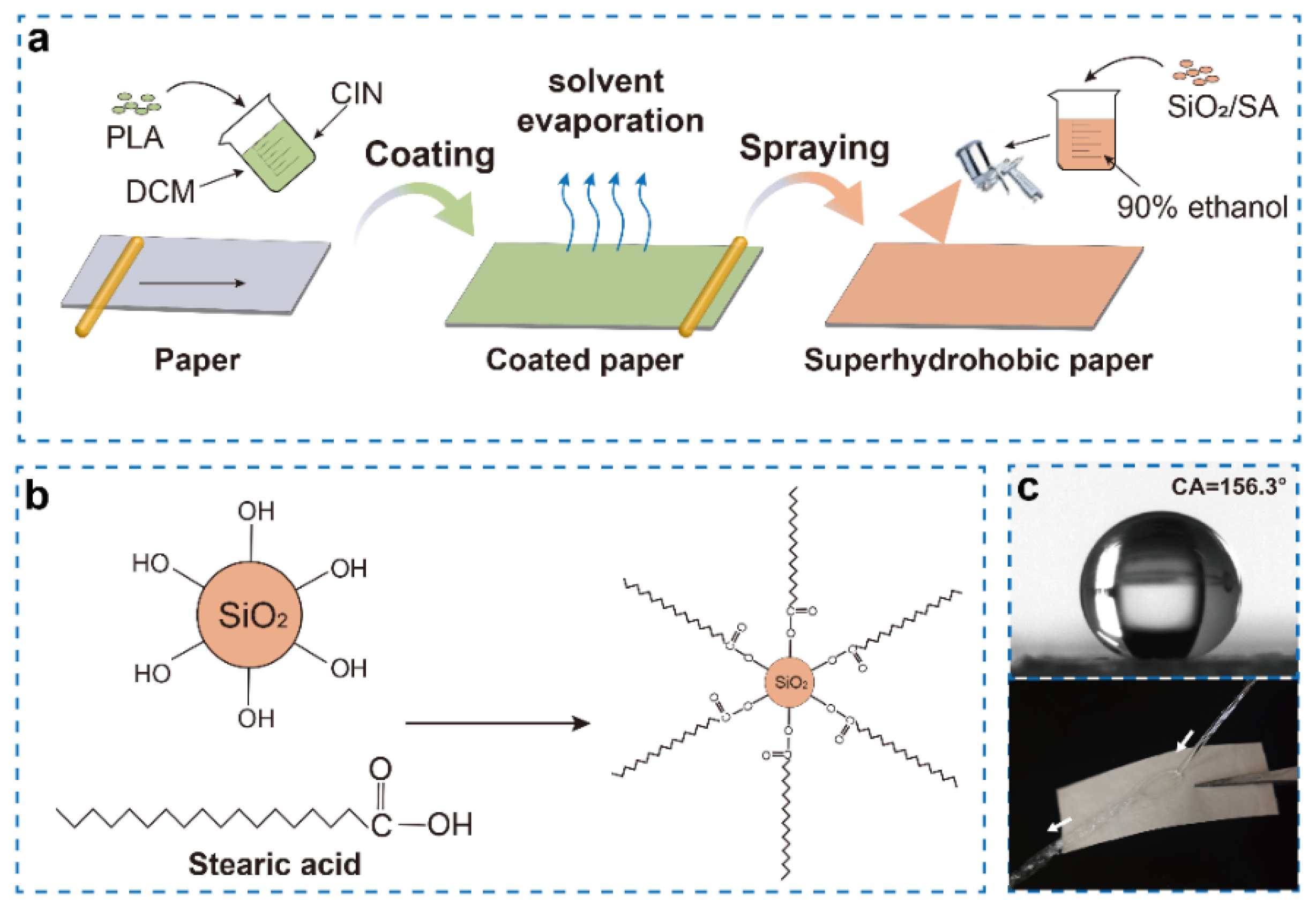

Figure 1. Schematic illustration of the preparation of degradable cellulose−based superhydrophobic antibacterial materials (a); mechanism diagram of nano−SiO2 modified stearic acid (b); contact angle and bounce of water column on the superhydrophobic paper (c).
Figure 1. Schematic illustration of the preparation of degradable cellulose−based superhydrophobic antibacterial materials (a); mechanism diagram of nano−SiO2 modified stearic acid (b); contact angle and bounce of water column on the superhydrophobic paper (c).
Ijms 23 11158 g001
Ijms 23 11158 g002 550

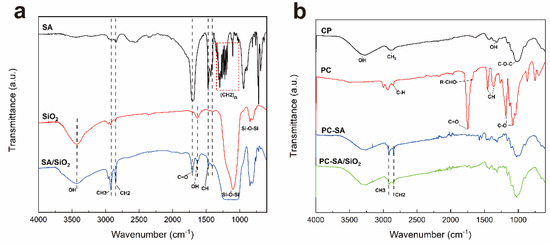

Figure 2. FT−IR spectra of SA (stearic acid), SiO2, SA/SiO2 (a) and CP (cellulose paper), PC (coated paper), PC−SA (coated paper with SA spraying), PC−SA/SiO2 (coated paper with SA/SiO2 spraying) (b).
Figure 2. FT−IR spectra of SA (stearic acid), SiO2, SA/SiO2 (a) and CP (cellulose paper), PC (coated paper), PC−SA (coated paper with SA spraying), PC−SA/SiO2 (coated paper with SA/SiO2 spraying) (b).
Ijms 23 11158 g002
Ijms 23 11158 g003 550

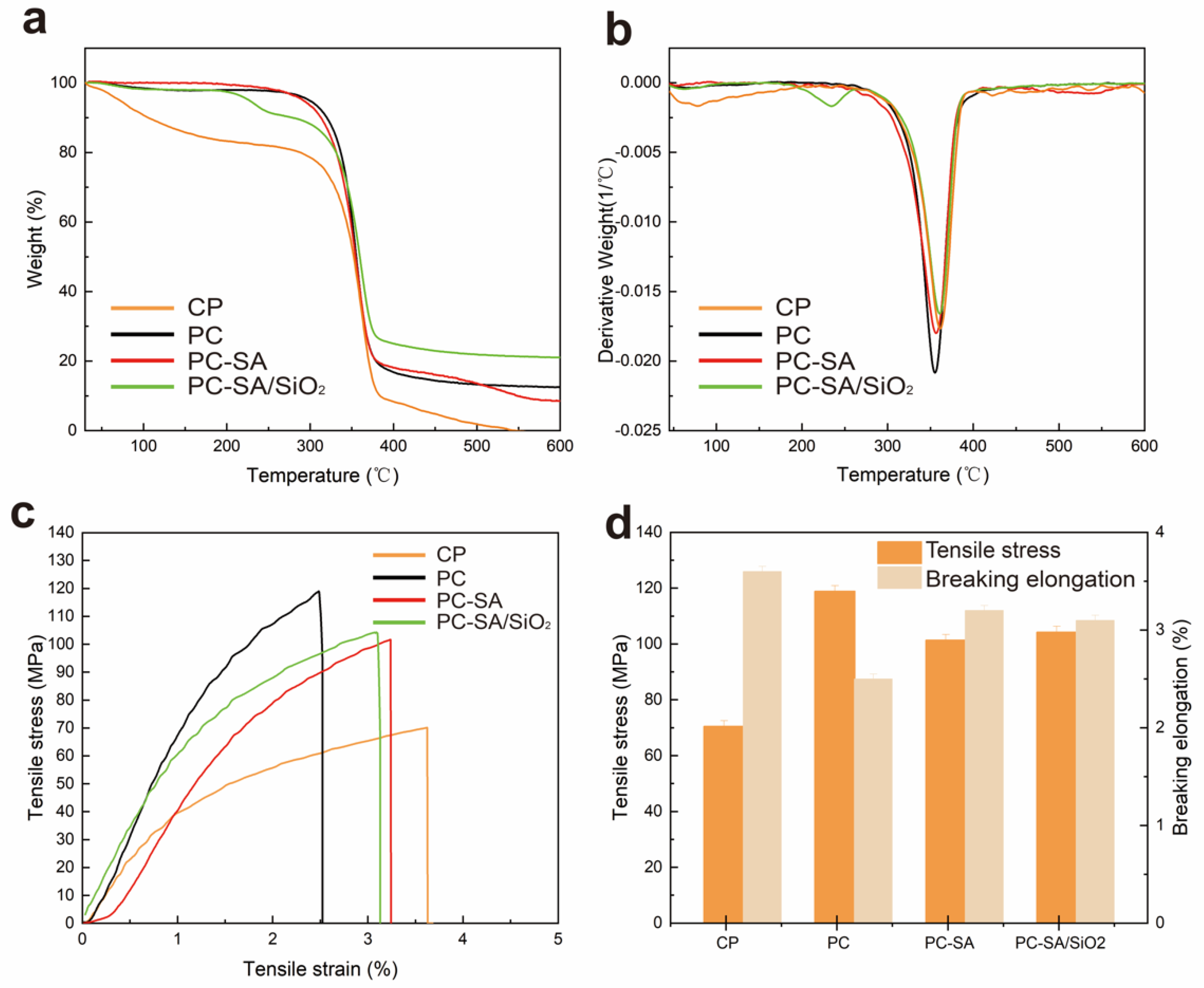

Figure 3. Thermogravimetric curves (a), differential thermogravimetric curves (b), tensile stress−strain curves (c), and breaking elongation (d) of samples.
Figure 3. Thermogravimetric curves (a), differential thermogravimetric curves (b), tensile stress−strain curves (c), and breaking elongation (d) of samples.
Ijms 23 11158 g003
Ijms 23 11158 g004 550
Figure 4. SEM and CA images of samples: CP (a); PC (b,c); PC−SA (d); PC−SA/SiO2 (e).
Figure 4. SEM and CA images of samples: CP (a); PC (b,c); PC−SA (d); PC−SA/SiO2 (e).
Ijms 23 11158 g004
Ijms 23 11158 g005 550
Figure 5. Photographs show the water contact angle of samples (a), state of different liquids (b), bouncing with the water column (c), and self−cleaning properties of PC−SA/SiO2 (d). The red arrows indicate the chronological order of the experiments.
Figure 5. Photographs show the water contact angle of samples (a), state of different liquids (b), bouncing with the water column (c), and self−cleaning properties of PC−SA/SiO2 (d). The red arrows indicate the chronological order of the experiments.
Ijms 23 11158 g005
Ijms 23 11158 g006 550

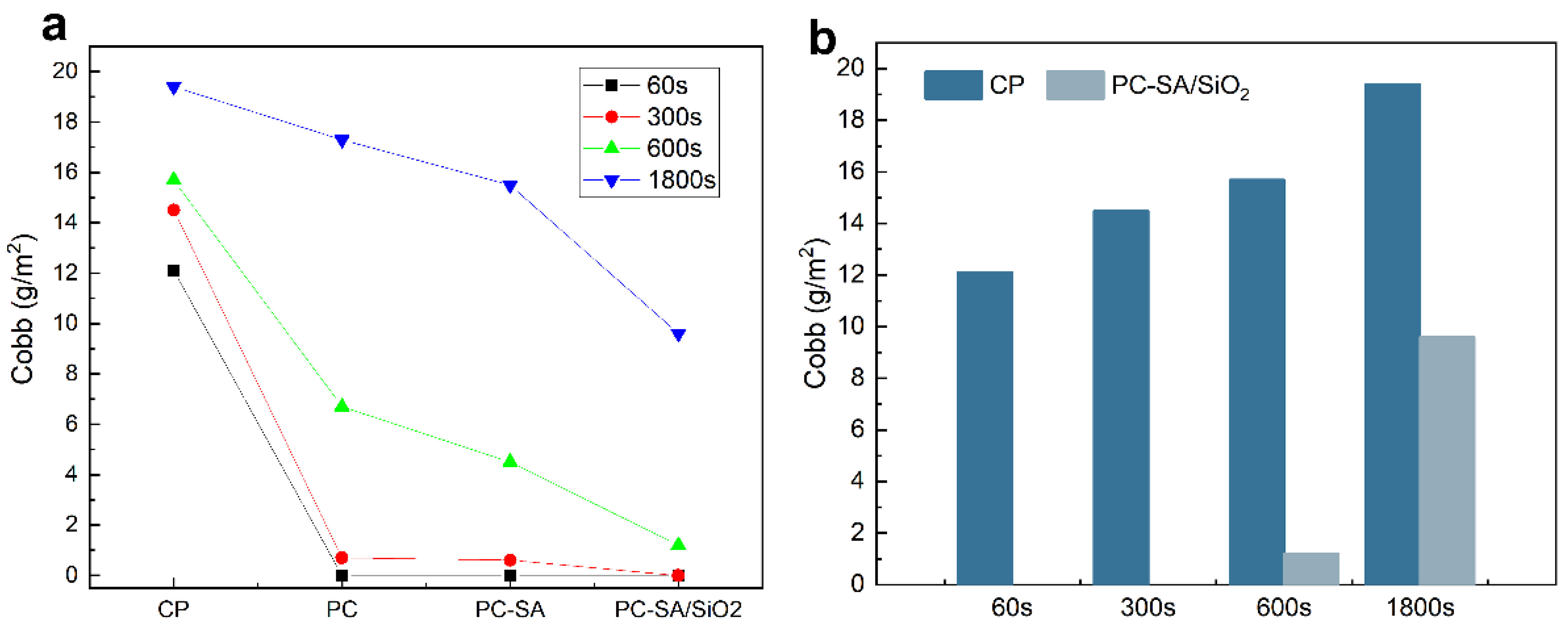

Figure 6. Waterproof performance curve of CP, PC, PC−SA and PC−SA/SiO2 with test time (a), and comparison of CP and PC−SA/SiO2 in water resistance (b).
Figure 6. Waterproof performance curve of CP, PC, PC−SA and PC−SA/SiO2 with test time (a), and comparison of CP and PC−SA/SiO2 in water resistance (b).
Ijms 23 11158 g006
Ijms 23 11158 g007 550
Figure 7. Antibacterial response of different samples after 24 h of incubation against E. coli (a) and S. aureus (b).
Figure 7. Antibacterial response of different samples after 24 h of incubation against E. coli (a) and S. aureus (b).
Ijms 23 11158 g007
Table
Table 1. Thickness, gram weight, and barrier properties of cellulose paper and coated paper.
Table 1. Thickness, gram weight, and barrier properties of cellulose paper and coated paper.
SampleThickness
(μm)		Grammage
(g/m2)		KitOTR
(cm3/m2·24 h·0.1 MPa)		WVP
(g/m2·24 h·Pa)
CP32.730.640/1802.35
PC47.342.3212143.237315.21
PC−SA52.645.451279.315265.11
PC−SA/SiO254.645.491257.942206.95
Table
Table 2. Comparison of barrier performance of PC−SA/SiO2 with the commonly used food packaging materials and recently reported self−developed food packages.
Table 2. Comparison of barrier performance of PC−SA/SiO2 with the commonly used food packaging materials and recently reported self−developed food packages.
SampleOther
Substances		Thickness
(μm)		Grammage
(g/m2)		OTR
(cm3/m2·24 h·0.1 MPa)		WVP
(g/m2·24 h·Pa)		References
LDPE/20–80/98–45325[43]
HDPE/20–80/26.3–98.55–62.5[43]
PTFE/50/222–3870.09–6[43]
PP/20–60/35–3776.7–10[43]
PGA/PBATGMA95.4–123/59.8–74.3236.9–277.5[43]
Nanofiber filmPLA///1029.36[17]
PLACIN//312027.59[23]
Kraft paperAcetylated
cellulose		28490.2260020.84[27]
CelluloseNaringin70308.8553000[44]
PLACMCS/CMC505.8309.2924166[45]
PLA/ZnONPsCMCS/CMC505.8/40672[45]
PC−SA/SiO2/54.645.4957.942206.95This work
