Dendrimers with Tetraphenylmethane Moiety as a Central Core: Synthesis, a Pore Study and the Adsorption of Volatile Organic Compounds

by
Zi-Ting Gu
1,
Chung-Hao Tzeng
1,
Hung-Jui Chien
2,
Chun-Chi Chen
2 and
Long-Li Lai
1,*
1
Department of Applied Chemistry, National Chi Nan University, No. 1 University Rd., Puli, Nantou 54561, Taiwan
2
Department of Environmental Engineering and Science, Feng Chia University, Taichung 40724, Taiwan
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2022, 23(19), 11155; https://doi.org/10.3390/ijms231911155
Submission received: 19 August 2022 / Revised: 16 September 2022 / Accepted: 19 September 2022 / Published: 22 September 2022
(This article belongs to the Special Issue Dendrimers, Dendrigrafts, and Molecular Brushes: Synthesis, Experimental and Theoretical Studies, and Applications)
Browse Figures
Review Reports Versions Notes

Abstract

:
Reasonable yields of two dendrimers with central tetraphenylmethane and peripheral 3,5-di-(tert-butanoylamino)benzoylpiperazine moieties are prepared. These dendrimers have a void space in the solid state so they adsorb guest molecules. Their BET values vary, depending on the H-bond interaction between the peripheral moiety and the gas molecules, and the dendritic framework that fabricates the void space is flexible. In the presence of polar gas molecules such as CO2, the BET increases significantly and is about 4–8 times the BET under N2. One dendrimer adsorbs cyanobenzene to a level of 436 mg/g, which, to the authors’ best knowledge, is almost equivalent to the highest reported value in the literature.

1. Introduction

Dendrimers with a central core, bridging and peripheral units have been the subject of many studies and are produced using a convergent or divergent approach that allows their monodispersity and control of the molecular size [1]. Different functional groups are incorporated at the periphery or internal part, and this produces special desired properties. A long flexible chain that is attached at the periphery promotes the formation of mesogenic phases of dendrimers [2,3,4,5,6,7]. A rigid or semi-rigid moiety may act as a linker for the fabrication of intramolecular void spaces, so many dendrimers adsorb metal ions or small molecules in solution. In addition to liquid crystals [2,3,4,5,6,7], these marcromolecules have therefore been focused on drug delivery [8,9,10] or catalysis [11,12,13], too.
Like metal-organic frameworks (MOFs) [14,15,16], dendrimers have a void space in the solid state and adsorb gas molecules or volatile organic compounds (VOCs) [17,18,19,20]. However, dendrimers do not generally contain metal ions in their framework and are always constructed with C-C, C-N or C-O covalent bonds, so they have a low density and good thermal stability. Most dendrimers are also soluble in organic solvents and can be reprocessed and purified easily, so they are more suited to practical applications than MOFs. In particular, dendrimers with non-flexible frameworks are noteworthy as they can contain void space in the solid stacking, which can be used for sensing guest molecules as shown by Müllen [21,22]. The non-flexible framework may also prevent dendrimers from close packing, which may result in quenching, so the rigid dendrimers, studied in light harvesting by Balzani, are very interesting [23,24].
A previous study by the authors designed 3,5-di-(tert-butanoylamino)benzoylpiperazine (BABP-H) as a peripheral block for constructing dendrimers and showed that H-bond interaction allows the dendrimers to fabricate a void space in the solid state [19]. In the continuing research, we aim at the relative applications and further prepare dendrimers with BABP units, as shown in Scheme 1, for adsorbing VOCs, such as benzonitrile, which is a major undesired component of biofuel and generates nitrogen oxides after combustion, thus causing acid rain [25].
To promote the adsorption of VOCs, a tetraphenyl moiety is used as a central core, and dendrimers TAPM-4Den and TAPM-8Den are produced. Both dendrimers are soluble in organic solvents, so the adsorbed VOCs are easily quantified using 1H-NMR spectroscopy, which is more convenient than using gravimetric gas analysis [15] or the traditional GC technique [26,27]. According to the literature, the greatest adsorption capacity for benzonitrile is 442 mg/g [16]. The present study shows that the adsorption capacity for TAPM-8Den is 436 mg/g, which is almost equivalent to the best-reported value in the literature.

2. Results and Discussion

3,5-di-(tert-butanoylamino)benzoylpiperazine (BABP-H) was produced using the method of a previous study [19]. Eight equivalents of BABP-H were treated with TAPM-8Cl in the presence of triethylamine in THF at 80 °C in a sealed tube to produce the dendrimer, TAPM-8Den with a yield of 60%. Four equivalents of BABP-H were reacted with TAPM-8Cl in the presence of triethylamine in THF at 0 °C, generating the dendrimer, TAPM-4 Den, with a yield of 65% (Scheme 1). TAPM-8 Den and TAPM-4Den were characterized using elemental analysis, mass spectrometry and 1H- and 13C-NMR spectroscopy.
The mass spectrum in Figure 1 was obtained using MALDI-TOF and shows that there is a peak of m/z at 3788.1 from the [M]+ ion of TAPM-8Den. A peak of m/z at 2380.0 from [M]+ ion of TAPM-4Den was also observed (Figure S1). The dendrimer, TAPM-8Den, is stable up to 400 °C, as shown by TGA analysis (Figure 2). The slight weight loss at less than 200 °C is due to water vaporization because amide moieties at the peripheral part of the dendrimer adsorb water molecules from the surroundings, which is also supported by the results of elemental analysis. The thermal stability of TAPM-4Den is slightly less than that of TAPM-8Den, possibly due to the reactive chloro substituents in TAPM-4Den (Figure S2). The error between experimental and theoretical values for TAPM-8Den·12H2O and TAPM-4Den·6H2O for C, H and N is less than 0.4%.
The dendrimers, TAPM-8Den and TAPM-4Den, were first degassed under vacuum at 110 °C for 3 h to remove moisture, and the adsorptions of CO2 gas at 195K and N2 gas at 77 K were studied (Figure 3). The Brunauer–Emmett–Teller (BET) surface areas of TAPM-8Den and TAPM-4Den were calculated using CO2 isotherms at 195 K as 213.7 and 177.6 m2/g, respectively, using the method of a previous study [28,29,30].
The BET surface area of TAPM-8Den and TAPM-4Den is calculated to be 27.0 and 45.9 m2/g, respectively, using the N2 isotherms at 77 K. The void spaces in both dendrimers due to the sorption of CO2 are larger than those due to the sorption of N2 sorption because the CO2 isotherms were measured at 195 K and the N2 isotherms were measured at 77 K. At higher temperatures, the molecular stacking is less condensed, and the corresponding void space increases. However, the BET from CO2 isotherms is about eight times that of the BET from N2 isotherms for TAPM-8Den, and the BET from CO2 estimation is about four times that of the BET from N2 estimation for TAPM-4Den. Using the CO2 isotherms, the BET for TAPM-8Den is greater than that for TAPM-4Den, but using the N2 isotherms, the BET for TAPM-8Den is less than that of TAPM-4Den.
Based on the above observation of isotherms, it is proposed that the frameworks of dendrimers TAPM-8Den and TAPM-4Den are flexible. If there is less interaction between the dendrimer and the gas (for example, the interaction between the amido moiety of dendrimer and N2 is not significant), the size of the fabricated void space depends on the stacking between dendrimers. One molecule of TAPM-4Den has four BABP moieties but one molecule of TAPM-8Den has eight BABP moieties. During stacking, the amido groups in the TAPM-8Den moiety strongly interact with each other by H-bonding, so TAPM-8Den is more condensed and has a lower BET.
N2 isotherms were used to calculate the pore sizes for TAPM-8Den and TAPM-4Den. Figure 4 shows that the pore distribution for TAPM-8Den is 13.5–71.0 Å and most are between 13.5 and 20.0 Å. The pore distribution for TAPM-4Den is 16.0–105.0 Å and most are between 25.0 and 70.0 Å. The pores of TAPM-8Den are generally smaller than those of TAPM-4Den because there is more H-bond interaction between BABP moieties of TAPM-8Den.
If there is stronger interaction between the dendrimer and the gas molecules (for example, the interaction between the amido moiety of dendrimer and the O of CO2 is significant), the void space that is fabricated by the dendritic framework increases in size because gas is introduced between dendritic molecules. Therefore, the BET of TAPM-8Den is greater than that of TAPM-4Den. The TEM images of TAPM-8Den and TAPM-4Den, taken under similar conditions, are shown in Figure 5; the shapes of both dendrimers look somewhat circular, and the pores of two dendrimers seem to be amorphous.
The sorptions of CO2 by TAPM-8Den and TAPM-4Den at 273 and 298 K (Figure S3) are used to calculate the isosteric heat for CO2 sorption (Qst) using the virial method (Section S1) [31,32,33,34] The Qst value for TAPM-8Den was measured as 26.5 kJ/mol at zero coverage, and the Qst value for TAPM-4Den is 27.2 kJ/mol at zero coverage (Figure 6). Both Qst values gradually decrease when more CO2 is adsorbed by dendrimers TAPM-8Den and TAPM-4Den.
For an uptake of 0.1 mmole, the Qst value for TAPM-8Den is similar to that for TAPM -4Den, which is ~25.0 kJ/mol. For an uptake of less than 0.1 mmole, the Qst value for TAPM-4Den is a little greater than that for TAPM-8Den. For an uptake over 0.1 mmole, the Qst value for TAPM-4Den is less than that for TAPM-8Den. The Qst value for TAPM-4Den decreases much faster than that for TAPM-8Den when more CO2 is adsorbed by porous dendrimers.
For a very low uptake of CO2, the pores of TAPM-8Den and TAPM-4Den are similar in size to those under N2 because the void space that is fabricated by the dendritic framework arises from the H-bond interaction between BABP moieties [19]. Therefore, CO2 is adsorbed by TAPM-4Den more quickly than by TAPM-8Den, so the Qst value for TAPM-4Den is greater at this stage. If more CO2 is adsorbed, the interaction of CO2 with the BABP moiety of dendrimers is more important, so the void space that is fabricated by the dendritic framework increases in size because CO2 is inserted between BABP moieties.
TAPM-8Den contains more BABP moieties at the periphery so the corresponding interaction in TAPM-8Den is much more significant. Therefore, TAPM-8Den has more void spaces and the Qst value decreases more slowly (Figure 6).
As the H-bond interaction plays an important role in fabricating the void space of TAPM-8Den and TAPM-4Den, both compounds were investigated by FT-IR spectroscopy. As indicated in the literature, the free N-H stretching and hydrogen bond N-H stretching of the amide moiety arises at about 3444 cm−1 and 3310 cm−1, respectively [35,36]. TAPM-8Den and TAPM-4Den consist of a strong stretching at about 3303 cm−1 and 3332 cm−1, respectively (Figure S4), indicating the existence of the strong H-bond interaction of TAPM-8Den and TAPM-4Den in their solid stackings.
To support the assumption that the framework of TAPM-8Den and TAPM-4Den is flexible, both dendrimers were used to adsorb VOCs. The dendrimer, TAPM-8Den or TAPM-4Den, was firstly recrystallized from hexane-THF (3:1), and 1H-NMR spectroscopy was used to confirm the complete removal of solvents under vacuum at 110 °C for 3 h.
The vacuumed TAPM-8Den or TAPM-4Den (6.5 mg) was kept in a closed bottle (50 mL) containing a small amount of VOC (1 mL) in an isolated bottle (2 mL) at room temperature (~28 °C). After 24 h, TAPM-8Den or TAPM-4Den was removed from the VOC bottle and placed in a fume hood for 10 min. Samples containing VOC were then dissolved in DMSO-D6 for a 1H-NMR spectroscopic analysis, and a specific chemical shift (δ) of the dendrimer, away from the signals for H2O and other impurities, was used as an internal standard to calculate the amount of adsorbed VOC.
The intensity at ~8.1 ppm due to the chemical shift of H (at C4) in the BABP moiety (Scheme 1) was compared with the intensity for o-H (~7.8 ppm (d)) in cyanobenzene, and the amount of cyanobenzene that is adsorbed was thus measured. The chemical shifts for the dendrimers, TAPM-8Den or TAPM-4Den and cycnobenzene are all away from the signals for H2O and other impurities, so signal interference can be excluded. The amounts of other VOCs that are adsorbed by the dendrimers, TAPM-8Den or TAPM-4Den, were also identified in a similar manner.
Table 1 shows that one molecule of the dendrimer, TAPM-4Den, adsorbs 0.54, 4.07, 3.61, 1.37, 0.38, 0.42 and 0.38 equivalents of hexane, benzonitrile, nitrobenzene, toluene, o-xylene, m-xylene and p-xylene, respectively (Figure S5). One molecule of the dendrimer, TAPM-8Den, adsorbs 0.34, 16.07, 9.73, 1.80, 1.92, 1.57 and 1.62 equivalents of the corresponding VOCs.
Studies show that the capacity of porous materials to adsorb VOCs depends on the functionalities on the pore surface of the substrate and the void spaces that are fabricated by the dendritic framework and on the physical properties of VOCs, such as dipole moments, boiling point and kinetic diameter (Table 2) [37,38]. The kinetic diameter of the adsorbed VOCs is 4–8 Å, which is smaller than the pore sizes for the two dendrimers that are studied (Figure 4), so they can be adsorbed by TAPM-4Den and TAPM-8Den. The kinetic diameter of cyanobenzene and nitrobenzene are not reported in the literature but are believed to fall in this range, as their molecular size is comparable to that of toluene and xylene.
Only 0.54 and 0.34 equivalents of hexane are, respectively, adsorbed by TAPM-4Den and TAPM-8Den. Hexane has a very small dipole moment (0.09 debye), so there is little interaction between hexane and the porous substrates of TAPM-4Den and TAPM-8Den. The void spaces that are fabricated by both dendrimers are almost unaffected by adsorption, so only a small amount of hexane is adsorbed by each dendrimer, and TAPM-8Den adsorbs less hexane than TAPM-4Den. This observation agrees with the results of N2 isotherms (Figure 3).
When toluene, o-xylene, m-xylene and p-xylene are used as VOCs, the adsorption capacity of TAPM-4Den remains virtually unchanged, even though the dipole moments of o-xylene and p-xylene are, respectively, slightly greater and less than that of hexane. However, the adsorption capacity of TAPM-8Den increases (Table 2). p-Xylene has a zero dipole moment, but the TAPM-8Den adsorbs more p-xylene than TAPM-4Den, which may arise from the H-π interaction between the amido moiety of BABP and the benzene derivative. However, the corresponding interaction in TAPM-4Den is much less significant. This is also true if cyanobenzene and nitrobenzene are used as VOCs because these two molecules exhibit strong polarity and interact strongly with the amido moiety of BABP in an H-bond interaction.
TAPM-8Den has more BABP moieties, so the H-bond interaction has a more significant effect in TAPM-8Den than in TAPM-4Den, and significantly more cyanobenzene or nitrobenzene is adsorbed by TAPM-8Den than by TAPM-4Den, which is in agreement with the results of CO2 isotherm at 273 K (Figure 3). TAPM-8Den adsorbs more cyanobenzene than nitrobenzene, possibly because cyanobenzene has a lower boiling point than nitrobenzene, so cyanobenzene vaporizes more easily into the pores of dendrimers under similar conditions.
The 1H-NMR spectroscopy results show that TAPM-8Den adsorbs ~16 equivalents of cyanobenzene (Figure S6), which is equivalent to 436 mg/g of the adsorption capacity. In adsorbing nitrogen-containing compounds, such as cyanobenzene, by porous materials, the H-bond interaction between the porous substrates and the N of VOCs should be very important, and several reports on removing nitrogen-containing compounds from biofuels by adsorptions have been published [16,43,44,45,46]. The best adsorption capacity for benzonitrile is 442 mg/g according to the literature [16], which is almost equivalent to our reported value although the BET value based on N2 isotherms for TAPM-8Den is smaller (27.0 m2/g) than the BET values for other porous MOFs [14,15,16]. This may be due to the function of a flexible dendritic framework.

3. Methods and Materials

3.1. General

With no further purification, all reagents were used as received. 1H and 13C NMR spectra were measured using a Bruker AMX-300 spectrometer. The mass spectra were recorded using a Microflex MALDI-TOF MS. Elemental analysis used an Elementar Unicube analyzer (EA000600). Thermogravimetric analysis used a Perkin-Elmer TGA-7 TG analyzer under N2. Brunauer–Emmett–Teller (BET) analysis used a Micrometrics TriStar II Plus system, with N2 as the adsorbate at 77 K and CO2 as the adsorbate at 195 K, 273 K and 298 K, respectively. All gases for these experiments had a purity of 99.9995%. The morphology of the samples was studied using high-resolution electron microscopy (HRTEM, JEOL JEM-2010) at 200 kV.

3.2. Preparation of TAPM-8Cl

Cyanuric chloride (1.987 g, 10.775 mmol) was added to acetone (32 mL) in an ice bath, and tetrakis(4-aminophenyl)methane (1 g, 2.628 mmol) in acetone (21 mL) was then slowly added. The resulting solution was stirred at 0 °C for 1 h. After the reaction, K2CO3 (1.141 g, 10.770 mmol) in water (250 mL) was added to produce an intermediate, TAPM-8Cl, in 74.3% yield. As TAPM-8Cl decomposes gradually, it was immediately used for further reaction after preparation. 1H-NMR (300 MHz, DMSO-d6, 25 °C, TMS): δ = 7.19 (d, 8H, J = 8.7Hz, 8×Ar-H), 7.54 (d, 8H, J = 8.7Hz, 8×Ar-H), 11.19 (s, 4H, 4×NH) ppm.

3.3. Preparation of TAPM-8Den

3,5-di-(tert-butanoylamino)benzoylpiperazine (BABP-H) (0.776 g, 2 mmol), prepared by the literature method [19], was dissolved in THF (40 mL) and then added to TAPM-8Cl (0.243 g, 0.25 mmol) in THF (20 mL) at 0 °C. Triethylamine (1.2 mL, 6 mmol) was added, and the resulting mixture was heated at 80 °C in a sealed tube for 16 h. Solvent was removed at reduced pressure, and water (100 mL) was added to generate a solid, which was further purified by chromatography (SiO2: 2.1 × 15 cm; eluate: THF:CH2Cl2 = 1:1) to give a crude product. Pure TAPM-8Den was thus obtained in 60% yield (0.57g) after further recrystallization by THF-hexane (1;10). 1H-NMR (300 MHz, DMSO-d6, 25 °C, TMS): δ = 1.19(s, 144H, 48×CH3), 3.42~3.77(m, 64H, 32×CH2), 7.00(s, 8H, 8×Ar-H), 7.39(s, 16H, 16×Ar-H), 7.61(s, 8H, 8×Ar-H), 8.09(s, 8H, 8×Ar-H), 9.15(s, 4H, 4×NH), 9.32(s, 16H, 16×NH) ppm; 13C-NMR (75 MHz, DMSO-d6, 25 °C, TMS): δ = 27.12, 41.63, 42.81, 47.19, 113.52, 113.95, 117.95, 130.64, 136.69, 137.91, 139.42, 163.99, 164.65, 169.04, 176.61 ppm; MS: M/Z: calcd for C205H268N48O24 (M)+: 3788.6; found: 3788.1; elemental analysis: calcd (%) for (C205H268N48O24 · 12H2O) C 61.48, H 7.35, N 16.79; found: C 61.57, H 7.42, N 16.79.

3.4. Preparation of TAPM-4Den

3,5-di-(tert-butanoylamino)benzoylpiperazine (BABP-H) (0.311g, 0.8 mmol) was dissolved in THF (20 mL) and then added to TAPM-8Cl (0.194 g, 0.2 mmol) in THF (20 mL) at 0 °C. Triethylamine (0.5 mL, 2.4 mmol) was added, and the resulting mixture was stirred at 0 °C for 2 h. Solvent was removed at reduced pressure, and water (100 mL) was added to generate a solid, which was further purified by chromatography (SiO2: 2.1 × 15 cm; eluate: THF-hexane (1;1) to give a crude product. Pure TAPM-4Den was thus obtained in 65% yield (0.31g) after further recrystallization by THF-hexane (1;10). 1H-NMR (300 MHz, DMSO-d6, 25 °C, TMS): δ = 1.19(s, 72H, 24×CH3), 3.42~3.77(m, 32H, 16×CH2), 7.07(s, 4H, 4×Ar-H), 7.39(s, 8H, 8×Ar-H), 7.60(s, 8H, 8×Ar-H), 8.09(s, 8H, 8×Ar-H), 9.32(s, 8H, 8×NH), 10.18(s, 4H, 4×NH) ppm; 13C-NMR (75 MHz, DMSO-d6, 25 °C, TMS): δ = 27.06, 40.07, 43.15, 46.84, 47.50, 113.91, 118.45, 119.79, 125.06, 130.77, 131.22, 135.51, 136.43, 139.40, 141.24, 163.13, 163.64, 164.27, 168.11, 169.02, 176.52 ppm; MS: M/Z: calcd for C121H144Cl4N32O12 (M)+: 2380.5; found: 2380.0; elemental analysis: calcd (%) for (C121H144Cl4N32O12 · 6H2O) C 58.40, H 6.32, N 18.01; found: C 58.53, H 6.42, N 17.61.

4. Conclusions

The dendrimers, TAPM-8Den and TAPM-4Den, which have tetraphenylmethane as a central core and 3,5-di-(tert-butanoylamino)benzoylpiperazine as a peripheral functionality, are successfully produced and are observed to contain void space in the solid state. These void spaces are fabricated by an H-bond interaction between BABP at the periphery, so the dendritic framework is regarded to be flexible when guest molecules are present inside the dendrimers.
In the presence of more polar molecules, there is a stronger interaction between the dendrimer and guest molecules, so the H-bond interaction between BABP moieties may be weakened, and guest molecules insert between BABPs to expand the void space that is fabricated by the dendritic framework. In the presence of fewer polar molecules, there is a weaker interaction between dendrimer and guest molecules, so the H-bond interaction between BABP moieties is less changed, and the void space that is fabricated by the BABP moiety does not change significantly. The size of void spaces inside the dendritic framework depends on the degree of interaction between BABP and guest molecules. Therefore, although the BET value for the dendrimer, TAPM-8Den, is much smaller than that for other porous MOFs, TAPM-8Den has a good adsorption capacity (436 mg/g) because it has a flexible framework. Therefore, TAPM-8Den is a good candidate for adsorbing nitrogen-containing VOCs in the biofuel industry or the related laboratory. Particularly, TAPM-8Den can be prepared in a mild condition and easily recrystallized for removing VOCs after usage.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/ijms231911155/s1.

Author Contributions

Conceptualization, methodology, writing—original draft preparation, writing—review, editing, funding acquisition and project administration, L.-L.L.; software, formal analysis, investigation visualization, validation, data curation, Z.-T.G. and C.-H.T.; software and formal analysis, H.-J.C. and C.-C.C. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Chi Nan University and the Ministry of Science and Technology, Taiwan (109-2113-M-260-001 and 110-2113-M-260-001) and the use of TEM belonging to the Instrument Center at NCHU.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Caminade, A.-M.; Turrin, C.-O.; Laurent, R.; Ouali, A.; Delavaux-Nicot, B. Dendrimers: Towards Catalytic, Material and Biomedical Uses; Wiley: Chichester, west Susses, UK, 2011. [Google Scholar]
  2. Lu, Y.-C.; Hsu, H.-F.; Lai, L.-L. Unconventional Approaches to Prepare Triazine-Based Liquid Crystal Dendrimers. Nanomaterials 2021, 11, 2112. [Google Scholar] [CrossRef] [PubMed]
  3. Lee, C.-H.; Huang, C.-C.; Li, C.-Y.; Lai, L.-L.; Lee, J.-J.; Hsu, H.-F. Both increasing the Iso-to-Col transition and lowering the solidifying temperatures of a triazine-based dendrimer by introducing CN polar groups in the dendritic core. J. Mater. Chem. C 2019, 7, 14232–14238. [Google Scholar] [CrossRef]
  4. Tsai, M.-J.; Hsieh, J.-W.; Lai, L.-L.; Cheng, K.-L.; Liu, S.-H.; Lee, J.-J.; Hsu, H.-F. Converting Nonliquid Crystals into Liquid Crystals by N-Methylation in the Central Linker of Triazine-Based Dendrimers. J. Org. Chem. 2016, 81, 5007–5013. [Google Scholar] [CrossRef] [PubMed]
  5. Lai, L.-L.; Hsieh, J.-W.; Cheng, K.-L.; Liu, S.-H.; Lee, J.-J.; Hsu, H.-F. A Small Change in Central Linker Has a Profound Effect in Inducing Columnar Phases of Triazine-Based Unconventional Dendrimers. Chem. Eur. J. 2014, 20, 5160–5166. [Google Scholar] [CrossRef]
  6. Lai, L.-L.; Wang, S.-W.; Cheng, K.-L.; Lee, J.-J.; Wang, T.-H.; Hsu, H.-F. Induction of the Columnar Phase of Unconventional Dendrimers by Breaking the C2 Symmetry of Molecules. Chem. Eur. J. 2012, 18, 15361–15367. [Google Scholar] [CrossRef]
  7. Lai, L.-L.; Hsu, S.-J.; Hsu, H.-C.; Wang, S.-W.; Cheng, K.-L.; Chen, C.-J.; Wang, T.-H.; Hsu, H.-F. Formation of Columnar Liquid Crystals on the Basis of Unconventional Triazine-Based Dendrimers by the C3-Symmetric Approach. Chem. Eur. J. 2012, 18, 6542–6547. [Google Scholar] [CrossRef]
  8. Janaszewska, A.; Lazniewska, J.; Trzepiński, P.; Marcinkowska, M.; Klajnert-Maculewicz, B. Cytotoxicity of Dendrimers. Biomolecules 2019, 9, 330. [Google Scholar] [CrossRef]
  9. Chauhan, A.S. Dendrimers for Drug Delivery. Molecules 2018, 23, 938. [Google Scholar] [CrossRef]
  10. Sherje, A.P.; Jadhav, M.; Dravyakar, B.R.; Kadam, D. Dendrimers: A versatile nanocarrier for drug delivery and targeting. Int. J. Pharm. 2018, 548, 707–720. [Google Scholar] [CrossRef]
  11. Liu, Y.; Lopes, R.P.; Lüdtke, T.; Di Silvio, D.; Moya, S.; Hamon, J.-R.; Astruc, D. “Click” dendrimer-Pd nanoparticle assemblies as enzyme mimics: Catalytic o-phenylenediamine oxidation and application in colorimetric H2O2 detection. Inorg. Chem. Front. 2021, 8, 3301–3307. [Google Scholar] [CrossRef]
  12. Yamamoto, K.; Imaoka, T.; Tanabe, M.; Kambe, T. New Horizon of Nanoparticle and Cluster Catalysis with Dendrimers. Chem. Rev. 2020, 120, 1397–1437. [Google Scholar] [CrossRef] [PubMed]
  13. Tang, Y.-H.; Cangiotti, M.; Kao, C.-L.; Ottaviani, M.F. EPR Characterization of Copper(II) Complexes of PAMAM-Py Dendrimers for Biocatalysis in the Absence and Presence of Reducing Agents and a Spin Trap. J. Phys. Chem. B 2017, 121, 10498–10507. [Google Scholar] [CrossRef] [PubMed]
  14. Pirzadeh, K.; Ghoreyshi, A.A.; Rohani, S.; Rahimnejad, M. Strong Influence of Amine Grafting on MIL-101 (Cr) Metal–Organic Framework with Exceptional CO2/N2 Selectivity. Ind. Eng. Chem. Res. 2020, 59, 366–378. [Google Scholar] [CrossRef]
  15. Sudan, S.; Gładysiak, A.; Valizadeh, B.; Lee, J.-H.; Stylianou, K.C. Sustainable Capture of Aromatic Volatile Organic Compounds by a Pyrene-Based Metal–Organic Framework under Humid Conditions. Inorg. Chem. 2020, 59, 9029–9036. [Google Scholar] [CrossRef] [PubMed]
  16. Mondol, M.M.H.; Jhung, S.H. Oxidative modification of metal-organic framework-derived carbon: An effective strategy for adsorptive elimination of carbazole and benzonitrile. Fuel 2022, 307, 121764. [Google Scholar] [CrossRef]
  17. Wang, Y.; He, X.; Lu, Q. Polyamidoamine dendrimer functionalized cellulose nanocrystals for CO2 capture. Cellulose 2021, 28, 4241–4251. [Google Scholar] [CrossRef]
  18. Lu, Y.-C.; Chien, C.-Y.; Hsu, H.-F.; Lai, L.-L. Adsorbing Volatile Organic Chemicals by Soluble Triazine-Based Dendrimers under Ambient Conditions with the Adsorption Capacity of Pyridine up to 946.2 mg/g. Molecules 2021, 26, 4862. [Google Scholar] [CrossRef]
  19. Lee, C.-H.; Soldatov, D.V.; Tzeng, C.-H.; Lai, L.-L.; Lu, K.-L. Design of a Peripheral Building Block for H-Bonded Dendritic Frameworks and Analysis of the Void Space in the Bulk Dendrimers. Sci. Rep. 2017, 7, 3649. [Google Scholar] [CrossRef]
  20. Lee, C.-H.; Tsai, M.-R.; Chang, Y.-T.; Lai, L.-L.; Lu, K.-L.; Cheng, K.-L. Preparation of Unconventional Dendrimers that Contain Rigid NH—Triazine Linkages and Peripheral tert-Butyl Moieties for CO2-Selective Adsorption. Chem. Eur. J. 2013, 19, 10573–10579. [Google Scholar] [CrossRef]
  21. Figueira-Duarte, T.M.; Simon, S.C.; Wagner, M.; Druzhinin, S.I.; Zachariasse, K.A.; Müllen, K. Polypyrene Dendrimers. Angew. Chem. Int. Ed. 2008, 47, 10175–10178. [Google Scholar] [CrossRef]
  22. Hammer, B.A.G.; Moritz, R.; Stangenberg, R.; Baumgarten, M.; Müllen, K. The polar side of polyphenylene dendrimers. Chem. Soc. Rev. 2015, 44, 4072–4090. [Google Scholar] [CrossRef] [PubMed]
  23. Balzani, V.; Campagna, S.; Denti, G.; Juris, A.; Serroni, S.; Venturi, M. Designing Dendrimers Based on Transition-Metal Complexes. Light-Harvesting Properties and Predetermined Redox Patterns. Acc. Chem. Res. 1998, 31, 26–34. [Google Scholar] [CrossRef]
  24. Balzani, V.; Bergamini, G.; Ceroni, P.; Marchi, E. Designing light harvesting antennas by luminescent dendrimers. New J. Chem. 2011, 35, 1944–1954. [Google Scholar] [CrossRef]
  25. Li, F.; Srivatsa, S.C.; Bhattacharya, S. A review on catalytic pyrolysis of microalgae to high-quality bio-oil with low oxygeneous and nitrogenous compounds. Renew. Sustain. Energy Rev. 2019, 108, 481–497. [Google Scholar] [CrossRef]
  26. Vellingiri, K.; Kumar, P.; Deep, A.; Kim, K.-H. Metal-organic frameworks for the adsorption of gaseous toluene under ambient temperature and pressure. Chem. Eng. J. 2017, 307, 1116–1126. [Google Scholar] [CrossRef]
  27. Shafiei, M.; Alivand, M.S.; Rashidi, A.; Samimi, A.; Mohebbi-Kalhori, D. Synthesis and adsorption performance of a modified micro-mesoporous MIL-101(Cr) for VOCs removal at ambient conditions. Chem. Eng. J. 2018, 341, 164–174. [Google Scholar] [CrossRef]
  28. Kecili, R.; Hussain, C.M. Chapter 4—Mechanism of Adsorption on Nanomaterials. In Nanomaterials in Chromatography; Hussain, C.M., Ed.; Elsevier: Amsterdam, The Netherlands, 2018; pp. 89–115. [Google Scholar]
  29. Sing, K.S.W. Reporting physisorption data for gas/solid systems with special reference to the determination of surface area and porosity (Recommendations 1984). Pure Appl. Chem. 1985, 57, 603–619. [Google Scholar] [CrossRef]
  30. Brunauer, S.; Emmett, P.H.; Teller, E. Adsorption of Gases in Multimolecular Layers. J. Am. Chem. Soc. 1938, 60, 309–319. [Google Scholar] [CrossRef]
  31. Pan, H.; Ritter, J.A.; Balbuena, P.B.J.L. Examination of the approximations used in determining the isosteric heat of adsorption from the Clausius-Clapeyron equation. Langmuir 1998, 14, 6323–6327. [Google Scholar] [CrossRef]
  32. Zukal, A.; Pawlesa, J.; Čejka, J. Isosteric heats of adsorption of carbon dioxide on zeolite MCM-22 modified by alkali metal cations. Adsorption 2009, 15, 264–270. [Google Scholar] [CrossRef]
  33. Pribylov, A.A.; Murdmaa, K.O.; Solovtsova, O.V.; Knyazeva, M.K. Methane adsorption on various metal-organic frameworks and determination of the average adsorption heats at supercritical temperatures and pressures. Russ. Chem. Bull. 2018, 67, 1807–1813. [Google Scholar] [CrossRef]
  34. Bakhtyari, A.; Mofarahi, M. A New Approach in Predicting Gas Adsorption Isotherms and Isosteric Heats Based on Two-Dimensional Equations of State. Arab. J. Sci. Eng. 2019, 44, 5513–5526. [Google Scholar] [CrossRef]
  35. Skrovanek, D.J.; Howe, S.E.; Painter, P.C.; Coleman, M.M. Hydrogen bonding in polymers: Infrared temperature studies of an amorphous polyamide. Macromolecules 1985, 18, 1676–1683. [Google Scholar] [CrossRef]
  36. Ghadiri, M.R.; Granja, J.R.; Milligan, R.A.; McRee, D.E.; Khazanovich, N. Self-assembling organic nanotubes based on a cyclic peptide architecture. Nature 1993, 366, 324–327. [Google Scholar] [CrossRef] [PubMed]
  37. Li, X.; Zhang, L.; Yang, Z.; Wang, P.; Yan, Y.; Ran, J. Adsorption materials for volatile organic compounds (VOCs) and the key factors for VOCs adsorption process: A review. Sep. Purif. Technol. 2020, 235, 116213. [Google Scholar] [CrossRef]
  38. Zhang, X.; Gao, B.; Creamer, A.E.; Cao, C.; Li, Y. Adsorption of VOCs onto engineered carbon materials: A review. J. Hazard. Mater. 2017, 338, 102–123. [Google Scholar] [CrossRef]
  39. Bárcia, P.S.; Nicolau, M.P.M.; Gallegos, J.M.; Chen, B.; Rodrigues, A.E.; Silva, J.A.C. Modeling adsorption equilibria of xylene isomers in a microporous metal–organic framework. Microporous Mesoporous Mater. 2012, 155, 220–226. [Google Scholar] [CrossRef]
  40. Woods, P.M.; Millar, T.J.; Zijlstra, A.A.; Herbst, E. The Synthesis of Benzene in the Proto–planetary Nebula CRL 618. Astrophys. J. 2002, 574, L167–L170. [Google Scholar] [CrossRef]
  41. U.S. Department of Commerce, Washington, DC, USA. NIST Chemistry WebBook. 2017. Available online: https://webbook.nist.gov/chemistry/ (accessed on 30 June 2022).
  42. Solvent Physical Properties. Available online: https://people.chem.umass.edu/xray/solvent.html (accessed on 30 June 2022).
  43. Bhadra, B.N.; Jhung, S.H. Adsorptive removal of nitrogenous compounds from microalgae-derived bio-oil using metal-organic frameworks with an amino group. Chem. Eng. J. 2020, 388, 124195. [Google Scholar] [CrossRef]
  44. Mondol, M.M.H.; Bhadra, B.N.; Jhung, S.H. Removal of nitrogen-containing compounds from microalgae derived biofuel by adsorption over functionalized metal organic frameworks. Fuel 2020, 280, 118622. [Google Scholar] [CrossRef]
  45. Li, F.; Katz, L.; Qiu, S. Adsorptive Selectivity and Mechanism of Three Different Adsorbents for Nitrogenous Compounds Removal from Microalgae Bio-Oil. Ind. Eng. Chem. Res. 2019, 58, 3959–3968. [Google Scholar] [CrossRef]
  46. Li, F.; Katz, L.; Hu, Z. Adsorption of Major Nitrogen-Containing Components in Microalgal Bio-Oil by Activated Carbon: Equilibrium, Kinetics, and Ideal Adsorbed Solution Theory (IAST) Model. ACS Sustain. Chem. Eng. 2019, 7, 16529–16538. [Google Scholar] [CrossRef]
Ijms 23 11155 sch001 550

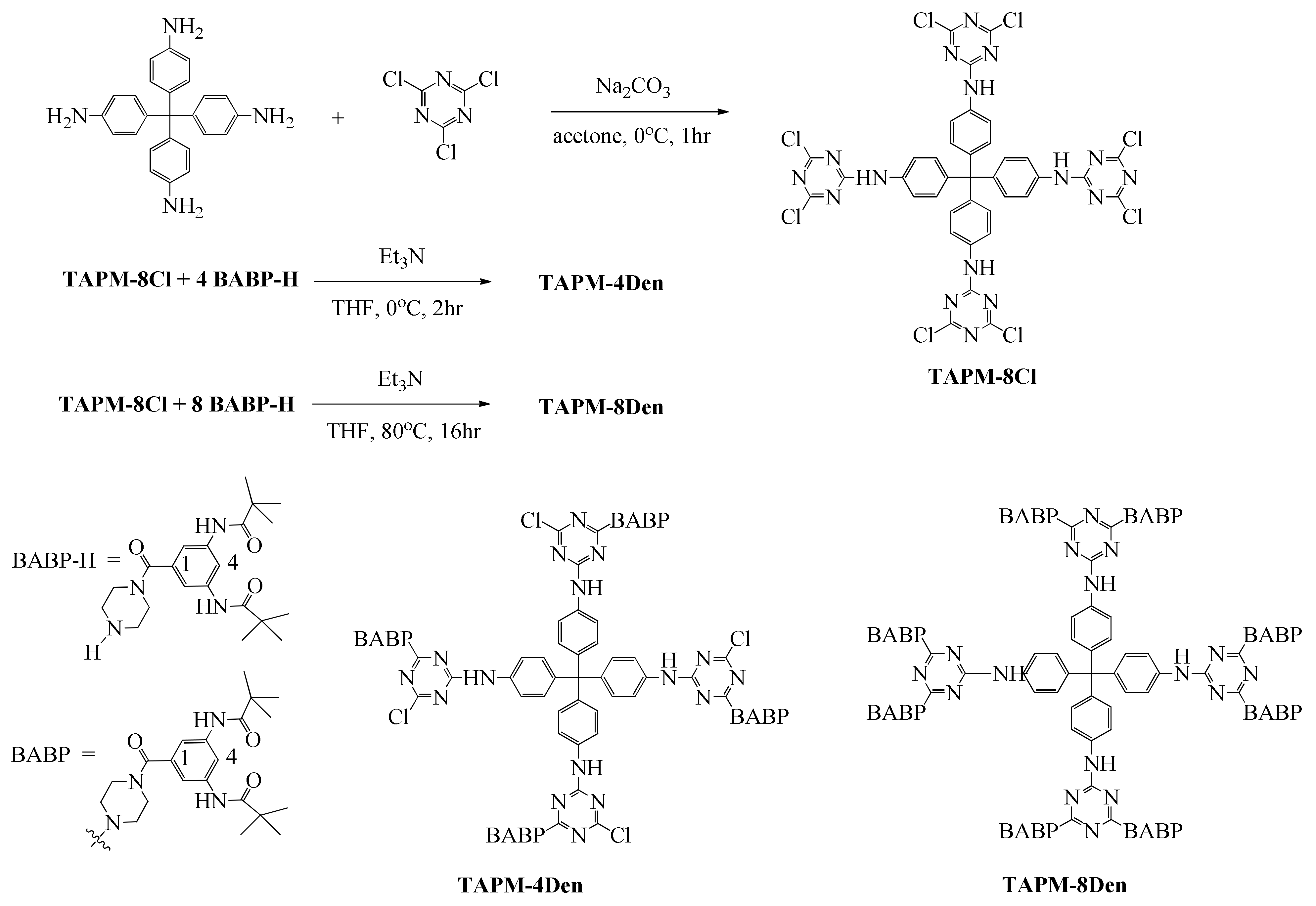

Scheme 1. Preparation of dendrimers TAPM-4Den and TAPM-8Den.
Scheme 1. Preparation of dendrimers TAPM-4Den and TAPM-8Den.
Ijms 23 11155 sch001
Ijms 23 11155 g001 550

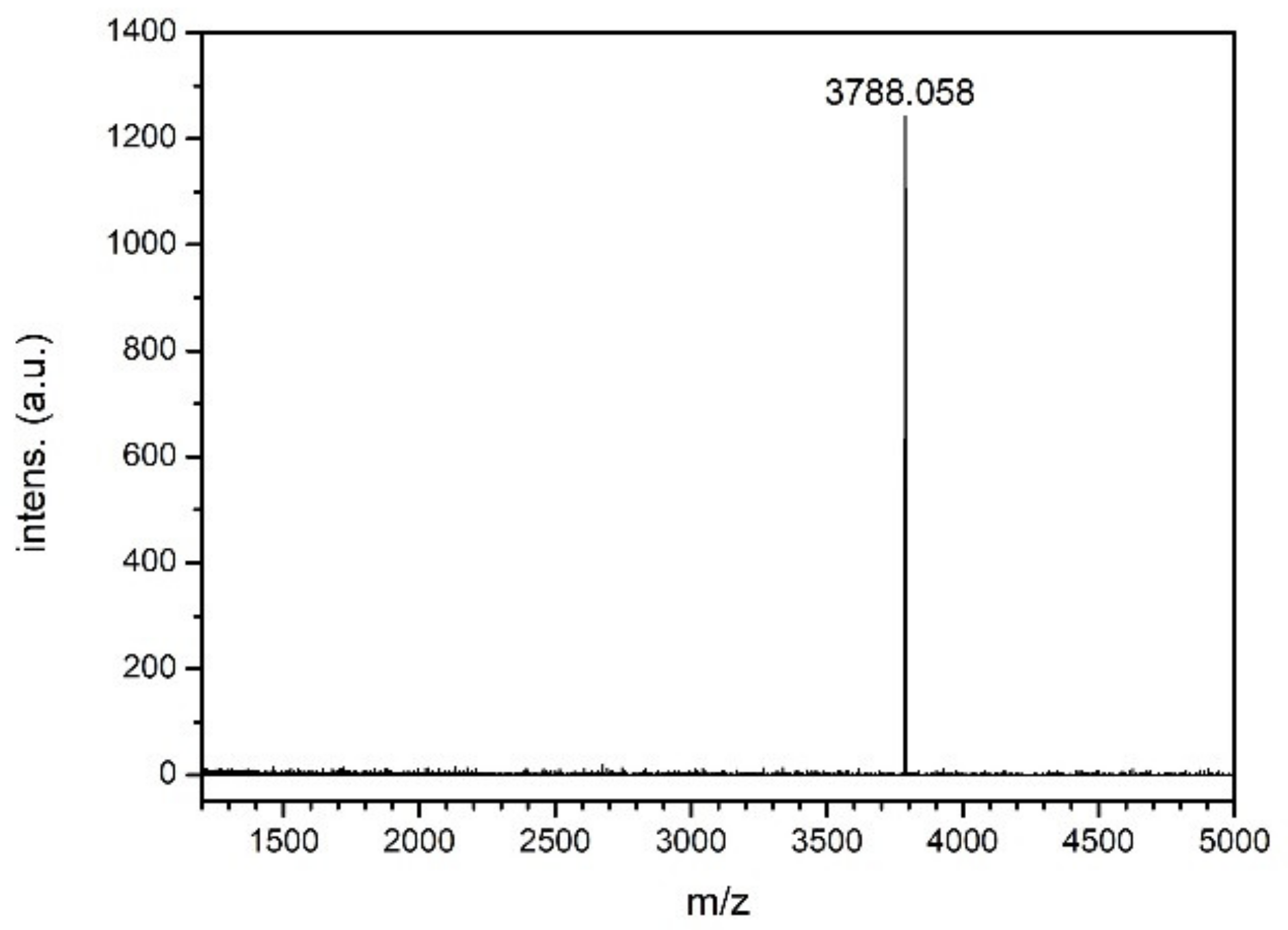

Figure 1. The mass spectrum of dendrimer TAPM-8Den.
Figure 1. The mass spectrum of dendrimer TAPM-8Den.
Ijms 23 11155 g001
Ijms 23 11155 g002 550
Figure 2. Thermogravimetric analysis of dendrimers TAPM-8Den from 50 to 850 °C at a heating rate of 10 °C min−1 under an N2 atmosphere.
Figure 2. Thermogravimetric analysis of dendrimers TAPM-8Den from 50 to 850 °C at a heating rate of 10 °C min−1 under an N2 atmosphere.
Ijms 23 11155 g002
Ijms 23 11155 g003 550

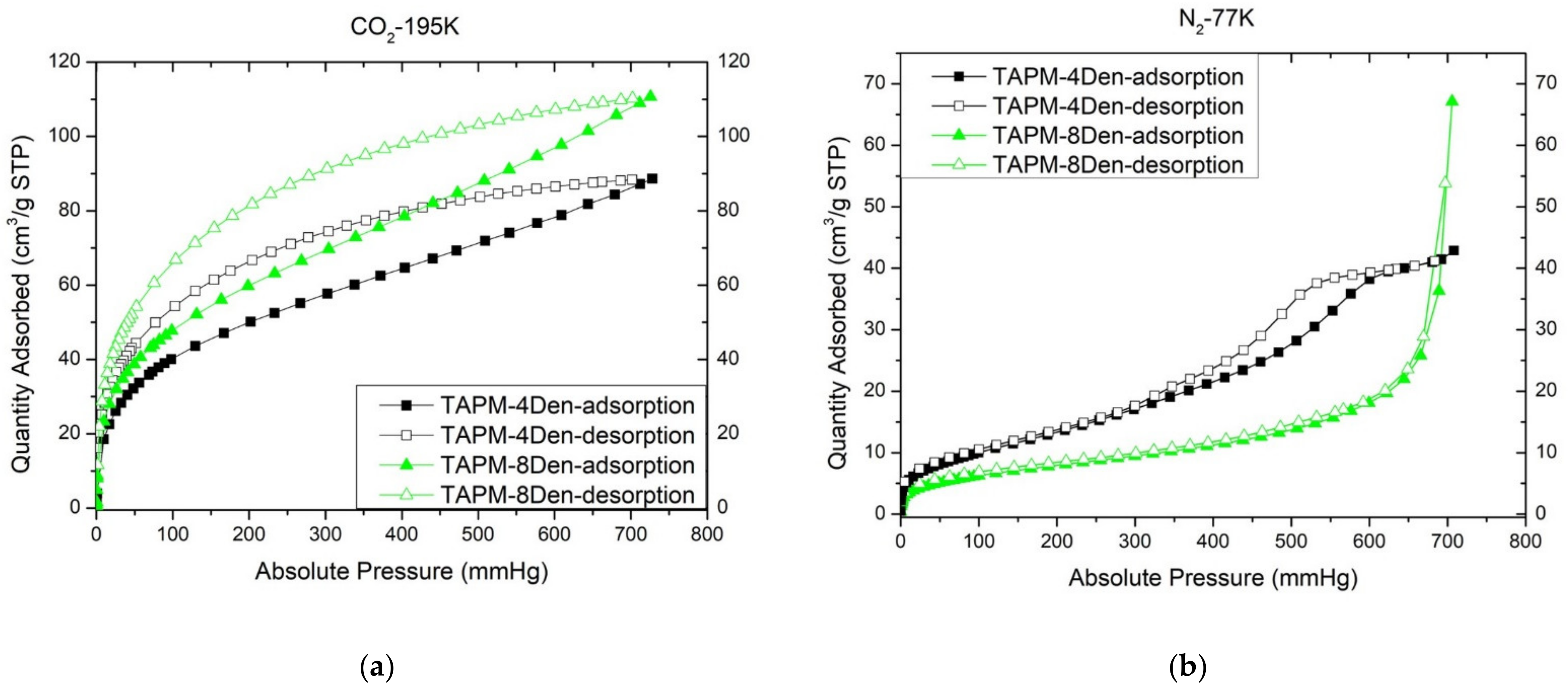

Figure 3. (a) The CO2 sorption isotherms of dendrimers TAPM-8Den and TAPM-4Den at 195 K. (b) The N2 sorption isotherms of dendrimer TAPM-8Den and TAPM-4Den at 77K.
Figure 3. (a) The CO2 sorption isotherms of dendrimers TAPM-8Den and TAPM-4Den at 195 K. (b) The N2 sorption isotherms of dendrimer TAPM-8Den and TAPM-4Den at 77K.
Ijms 23 11155 g003
Ijms 23 11155 g004 550

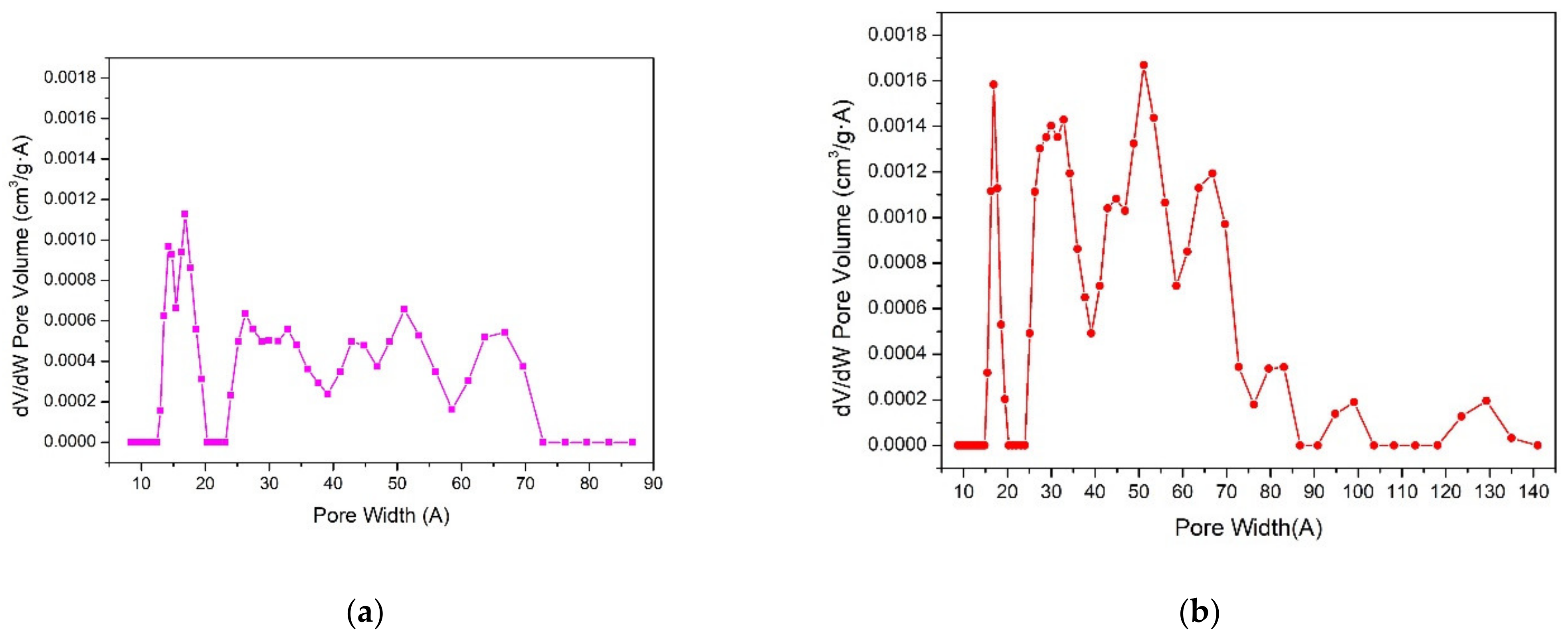

Figure 4. The pore size distributions of (a) TAPM-8Den and (b) TAPM-4Den.
Figure 4. The pore size distributions of (a) TAPM-8Den and (b) TAPM-4Den.
Ijms 23 11155 g004
Ijms 23 11155 g005 550
Figure 5. TEM images of TAPM-8Den (left) and TAPM-4Den (right), taken under similar conditions.
Figure 5. TEM images of TAPM-8Den (left) and TAPM-4Den (right), taken under similar conditions.
Ijms 23 11155 g005
Ijms 23 11155 g006 550

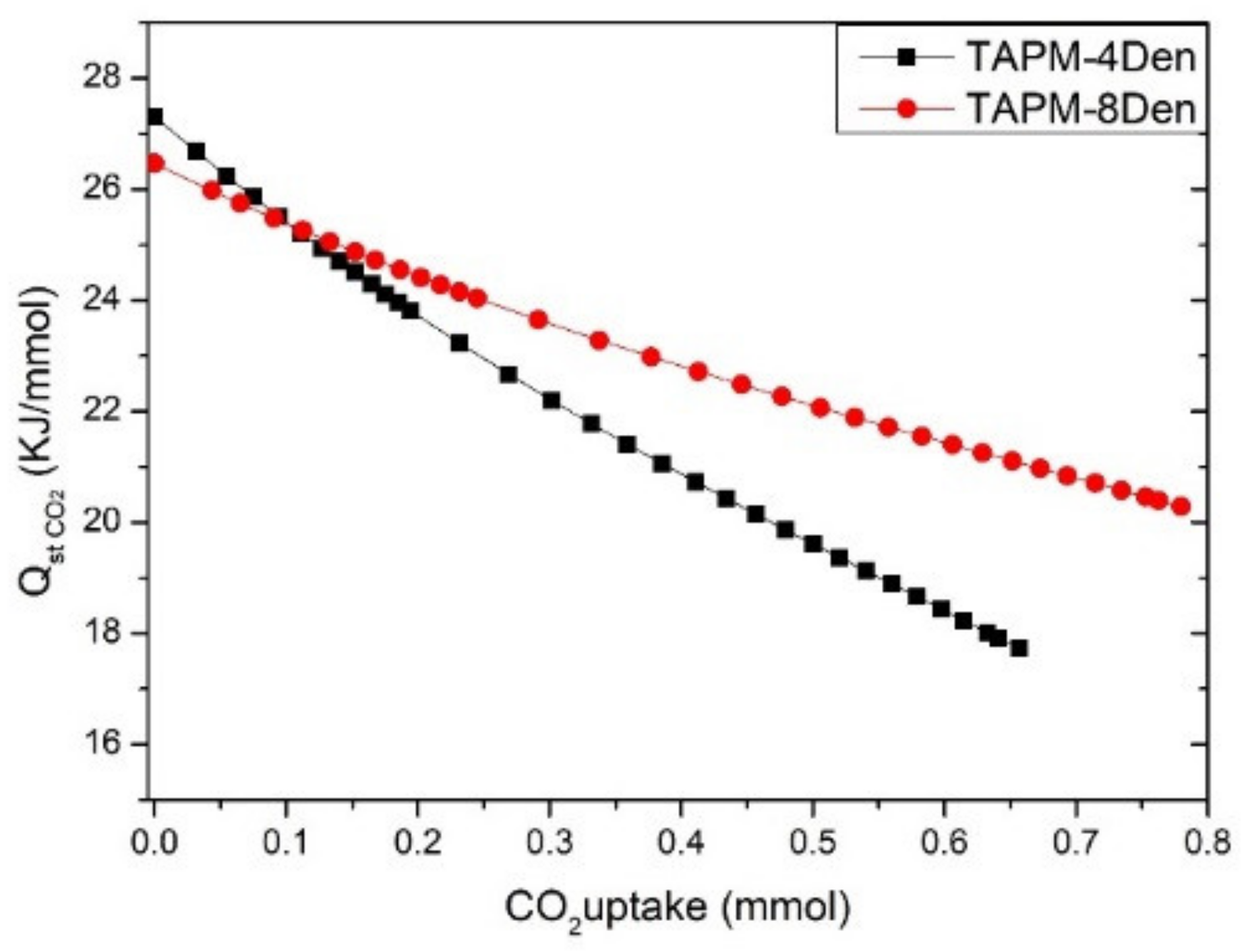

Figure 6. The isosteric heat (Qst) of CO2 sorption of dendrimers TAPM-8Den and TAPM-4Den.
Figure 6. The isosteric heat (Qst) of CO2 sorption of dendrimers TAPM-8Den and TAPM-4Den.
Ijms 23 11155 g006
Table
Table 1. The adsorbed VOC equivalents by TAPM-8Den and TAPM-4Den.
Table 1. The adsorbed VOC equivalents by TAPM-8Den and TAPM-4Den.
Hosthexanecyano-benzenenitro-benzenetolueneo-xylenem-xylenep-xylene
Guest
TAPM-4Den0.544.243.611.540.380.430.38
TAPM-8Den0.3416.029.731.801.921.571.61
Table
Table 2. The physical properties of adsorbed VOCs [39,40,41,42].
Table 2. The physical properties of adsorbed VOCs [39,40,41,42].
VOCshexanecyano-benzenenitro-benzenetolueneo-xylenem-xylenep-xylene
boiling point (°C)68191210110145139139
dipole moment (debye)0.094.34.20.350.620.360
kinetic diameter (Å)4.3--5.87.47.16.7
