Potential Resistance of SARS-CoV-2 Main Protease (Mpro) against Protease Inhibitors: Lessons Learned from HIV-1 Protease

by
János András Mótyán
1,†,
Mohamed Mahdi
1,†,
Gyula Hoffka
1,2 and
József Tőzsér
1,*
1
Department of Biochemistry and Molecular Biology, Faculty of Medicine, University of Debrecen, 4032 Debrecen, Hungary
2
Doctoral School of Molecular Cell and Immune Biology, University of Debrecen, 4032 Debrecen, Hungary
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Int. J. Mol. Sci. 2022, 23(7), 3507; https://doi.org/10.3390/ijms23073507
Submission received: 28 February 2022 / Revised: 16 March 2022 / Accepted: 22 March 2022 / Published: 23 March 2022
(This article belongs to the Section Biochemistry)
Browse Figures
Versions Notes

Abstract

:
Coronavirus disease 2019 (COVID-19), caused by the severe acute respiratory syndrome 2 (SARS-CoV-2), has been one of the most devastating pandemics of recent times. The lack of potent novel antivirals had led to global health crises; however, emergence and approval of potent inhibitors of the viral main protease (Mpro), such as Pfizer’s newly approved nirmatrelvir, offers hope not only in the therapeutic front but also in the context of prophylaxis against the infection. By their nature, RNA viruses including human immunodeficiency virus (HIV) have inherently high mutation rates, and lessons learnt from previous and currently ongoing pandemics have taught us that these viruses can easily escape selection pressure through mutation of vital target amino acid residues in monotherapeutic settings. In this paper, we review nirmatrelvir and its binding to SARS-CoV-2 Mpro and draw a comparison to inhibitors of HIV protease that were rendered obsolete by emergence of resistance mutations, emphasizing potential pitfalls in the design of inhibitors that may be of important relevance to the long-term use of novel inhibitors against SARS-CoV-2.

1. Introduction

The pandemic caused by the betacoronavirus severe acute respiratory syndrome 2 (SARS-CoV-2) has caught the world by surprise. As of the date of writing this manuscript, the virus had resulted in over 470 million infections and more than 6 million deaths worldwide, according to the World Health Organization (WHO; https://covid19.who.int/) (accessed date on 20 February 2022). While no novel anti-SARS-CoV-2 drugs are currently being marketed, a great interest had risen in repurposing already available drugs in hope of temporarily halting the spread of the infection.
Of the first antivirals to be repurposed were the human immunodeficiency virus (HIV) protease inhibitors (PIs) lopinavir and ritonavir, which possess an excellent efficacy against the HIV-1; however, clinical experience as well as in vitro studies have later shown that they are not effective against SARS-CoV-2 [1,2,3]. Currently, the only approved and widely used antiviral with agreeable potency against SARS-CoV-2 is the viral RNA-dependent RNA polymerase (RdRp) inhibitor remdesivir, and more recently, a novel protease inhibitor was granted emergency approval by the Food and Drug Administration (FDA), and it is thought to be the most efficacious anti-SARS-CoV-2 drug to date.
Nirmatrelvir (PF-07321332) targets the main protease (Mpro) of SARS-CoV-2, and while the initial trial results and in vitro studies have been very promising, with reportedly an efficacy in the nanomolar concentrations, it is of vital importance to continuously assess and analyze the potency of such drugs targeting proteases of RNA viruses. Given their lack of efficient proof-reading mechanisms and their extraordinary ability to adapt and overcome selective pressures, RNA viruses and coronaviruses, for that matter, are prone to evade antiviral suppression through substitution of target amino acid residues.
As an inherent feature of their replication cycle, RNA viruses, such as coronaviruses and retroviruses, are error prone, hence possessing a relatively large mutation capability. Therefore, in the case of HIV-1, we consider the virus replicating in a patient as a quasispecies that cannot be described by one sequence although there is typically a predominant one. However, whenever an antiretroviral therapy is utilized, this shifts towards a form that is more or less resistant to the drug. The quasispecies idea has also been introduced into coronavirus infections [4,5] due to the error-prone nature of the drug-resistance development and is inevitable in the future whenever antiviral drugs are utilized. What remains to be determined is its degree. Studies on HIV-1 PR drug-resistant mutants provide an excellent example on how enzyme-substrate interactions can be maintained by mutations that cause loss of interactions with the inhibitors. This is independent from the fact that the mechanism of the two enzymes are different. Therefore, our hypothesis is that using the knowledge we gained from HIV PR, we can predict drug-resistant mutations that might occur in SARS-CoV2 PR inhibitor use.
In this review, we explore the binding properties of nirmatrelvir to the Mpro of SARS-CoV-2 and delineate binding target residues in the complex, mutations of which may interfere with the inhibitor’s binding efficacy, learning vital lessons from history by drawing a comparison to HIV PIs, most of which have now been rendered ineffective as a result of emergence of resistance-inducing mutations.

2. RNA Viruses

Recent challenging pandemics (AIDS, influenza, COVID-19, Ebola outbreaks) were caused by RNA viruses. As compared to viruses having DNA as the genome, viruses having RNA genomes tend to have higher mutation rates, as they are copied less accurately, even though virus-encoded RNA-dependent RNA polymerases responsible for the replication of these genomes do have some repair mechanisms.
Many viruses require a step called maturation as part of their replication cycle to become infectious. This process generally involves structural changes in the virus particle that may result from specific proteolytic cleavages or conformational changes, which occur in proteins during or after assembly. Virus-encoded proteases are frequently involved in maturation [6] and are usually highly specific for particular amino acid sequences and structures typically for only a few peptide bonds in large and complex virus proteins. Proteases often play an essential function in the replication of a variety of viruses, including those responsible for human diseases. The most well-characterized examples are human immunodeficiency virus type 1 and 2 (HIV-1 and HIV-2), hepatitis viruses, and coronaviruses (CoVs), including severe acute respiratory syndrome coronavirus (SARS-CoV) and severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2, also referred to as 2019-nCoV).
Retroviruses are enveloped viruses containing a non-segmented, single-stranded (+)RNA genome. They can be classified into seven genera, the most prominent of which are the HIV-1 and HIV-2 viruses, which belong to the Lentivirus genus of the Retroviridae family and are the causative agents of acquired immunodeficiency syndrome (AIDS). A unique feature of lentiviruses is that, in contrast to other retroviruses, they are capable of infecting non-dividing cells. HIVs mainly attack the CD4 T lymphocytes of the immune system [7]. The genomes of HIVs contain the three main genes (gag, pol, and env) as well as accessory genes. The structural proteins of the virus, such as the matrix (MA), capsid (CA), and nucleocapsid (NC), are encoded by the gag gene and the pol codes for the viral enzymes (reverse transcriptase, RT; integrase, IN; protease, PR), while the env encodes the surface glycoprotein (SU) and transmembrane (TM) proteins [8]. The first step of the retroviral replication cycle is the attachment of the virion to the target cell via interacting with CD4 as primary and CCR5 or CXCR4 as co-receptors. Fusion of the cell membrane and the viral envelope enables the entry of the virus, followed by synthesis of the retroviral DNA by reverse transcription using the genomic RNA as a template, which is the most error-prone step of the HIVs life cycle [9]. Thereafter, viral DNA is integrated into the genome of the cell, and the cells with integrated proviruses can permanently produce replication-competent HIV virions [10]. The reverse transcription and the integration are unique for the retroviral life cycle [7]; these steps are missing from the replication cycles of other viruses, including CoVs [11]. Viral RNA molecules are transcribed from the integrated proviral DNA and can be used for the translation of viral polyproteins. Genomic RNA and the viral proteins are assembled into immature virions, which become infectious only after limiting proteolysis of the polyproteins into functional units by the viral protease (maturation) [8,12,13,14].
CoVs are a family of enveloped non-segmented (+)RNA viruses that are distributed widely among mammals and birds and many other wild animals, causing principally respiratory or enteric diseases. They usually infect their hosts in a species-specific manner, and infections can be acute or chronic. Infections are transmitted mainly via respiratory and fecal-oral routes. The outbreaks of SARS in 2002 and the Middle East respiratory syndrome (MERS) in 2012 demonstrated the possibility of animal-to-human and human-to-human transmission of newly emerging CoVs, followed by the outbreak of COVID-19 originally in Wuhan (China), causing a pandemic in early 2020 [15]. This viral subfamily includes four genera: alpha-, beta-, gamma-, and deltacoronavirus. SARS-CoV, the MERS coronavirus (MERS-CoV), and SARS-CoV-2 belong to the Betacoronavirus genus [16].
The genome of CoVs is positive-sense, single-stranded RNA that is capped and polyadenylated; these viruses have the largest genomes among all RNA viruses (~30 kb). Unlike most eukaryotic mRNAs, CoVs genomes contain multiple ORFs [17,18]. The genomic RNA is used as template to directly translate polyprotein 1a/1ab (pp1a/pp1ab), which encodes non-structural proteins (nsps). Four structural proteins are essential for virion assembly and infection of CoVs [19]. Homotrimers of spike (S) proteins make up the spikes on the viral surface, and they are responsible for attachment to host receptors. The membrane (M) protein has three transmembrane domains, and it shapes the virions, promotes membrane curvature, and binds to the nucleocapsid (N). The envelope (E) protein plays a role in virus assembly and release, and it is involved in viral pathogenesis. The N protein binds virus RNA genome and is also an antagonist of interferon (IFN) and viral-encoded repressor of RNA interference, which appears to be beneficial for viral replication. After attachment and entry, during the process of uncoating, the genomic RNA becomes available [11,20]. The positive-sense genome, which also serves as the first mRNA of infection, is translated into the enormous replicase polyprotein. The replicase then uses the genome as the template for the synthesis via negative-strand intermediates of both progeny genomes and a set of subgenomic mRNAs. The replication transcription centers (RTCs) are closely associated with double-membrane vesicles (DMVs), which are proposed to be adopted from the modified ER, possibly by the combined activities of nsp3, nsp4, and nsp6. A set of subgenomic RNAs (sgRNAs) are synthesized by RTC. These negative-strand sgRNAs serve as the templates for the production of subgenomic mRNAs (+sgRNAs) [21,22]. The S, E, and M proteins are synthesized and anchored on the endoplasmic reticulum (ER), whereas the N protein is translated in the cytosol. Assembly takes place in the ER-Golgi intermediate compartment (ERGIC), and mature virions are released via smooth-walled vesicles by exocytosis [23]. At the cell surface, S protein can result in the fusion of an infected cell with adjacent, uninfected cells, leading to the formation of large, multinucleate syncytia. This enables the spread of infection independent of the action of extracellular virus, thereby providing some measure of escape from immune surveillance [18,24].

3. Proteases Inhibitors and Mutations

3.1. HIV-1 Protease and Protease Inhibitors

The virally coded PR of HIV viruses is one of the enzymes required for viral replication. HIV PR belongs to the group of aspartic proteases, named after the conserved catalytic residues Asp-Thr/Ser-Gly at the catalytic site. It is a homodimeric enzyme composed of two identical polypeptide chains, each containing 99 residues. During catalysis, the catalytic triad located at the hydrophobic core of the enzyme mediates proteolytic processing of the substrate through a coordination of a water molecule, leading to the hydrolysis of the target peptide bond. The interaction between the PR and its substrate is governed by a series of structural changes orchestrated by movement of the flap region that is present at the top of the dimer as well as internal movements within the core of PR. Evidence suggests that interaction of at least seven amino acid residues between the substrate and the PR is required for successful proteolysis [25]. It is important to note that the HIV PR binds the substrate in an asymmetric manner, interacting with its peptide backbone in addition to side chains extending into the substrate binding subsites, facilitated by a series of hydrogen bond interactions between C=O and NH groups of the inhibitor and the PR [26].
Given its pivotal role in the viral life cycle, processing polyprotein precursors post-translationally into mature active proteins and hence being indispensable to viral maturation, the PR became one of the first targets for antiretroviral therapies, and the introduction highly active anti-retroviral therapy (HAART) with the availability of first-generation HIV-1 PR inhibitors provided the possibility to re-classify AIDS from deadly disease to a chronic one. However, the quick appearance of drug resistance caused by mutations mainly in the PR gene to diminish PR-inhibitor interactions while maintaining efficient enzyme–substrate interactions initiated a long-term race between drug design and drug resistance, leading to the development of second- and third-generation inhibitors.
Currently, nine PR inhibitors are approved by the FDA, out of which less than a handful remain in production today. The so-called second-generation inhibitors, such as darunavir, lopinavir, and atazanavir, are still being prescribed to date as second-line regimens in combination with reverse transcriptase (RT) inhibitors or inhibitors of the viral integrase (IN). These newer drugs, in addition to third-generation inhibitors in the pipeline, have practically limited the use of first-generation inhibitors, as they were specifically designed to address resistance-inducing mutations selected by the older drugs, improving bioavailability and dosing frequency and minimizing the side effects [27].
Generally speaking, most PIs of HIV are competitive active-site binders, containing a hydroxyethylene core, mimicking the transition state of proteolysis, and preventing cleavage of the inhibitor by the enzyme. They possess functional groups that come into contact with the same residues in the active site of the mature protease dimer, forming a “lock” configuration in addition to being significantly smaller than the PR’s natural substrates. The cleavage sites of HIV-1 PR are diverse, and there is no consensus recognition sequence. In addition, its specificity is very strongly sequence context dependent, and this feature is shared by the retroviral PRs [28]. The particular substrate sequence is not an exclusive determinant of the specificity; rather, the volume (space) filled by the substrate is crucial for efficient binding. The substrate binding pockets of HIV-1 PR overlap, and interactions may occur between the side chains of the substrate [29]. Analysis of crystal structures revealed that the target sequences of the PR have a conserved shape, which was considered to be the basis of the recognition [30]. The space filled by the substrates is referred to as substrate envelope, and accordingly, the space filled by the inhibitor molecules is referred to as inhibitor envelope. Indeed, if we overlay the inhibitors on the substrate envelope, these common binding sites would be identifiable, most commonly between P3 and P2’ sites (based on nomenclature introduced by Schechter and Berger, where the inhibitors tend to interact with specific residues in the viral PR. Therefore, it is easy to comprehend how mutation of these anchoring residues may lead to a multi-drug resistant protease and subsequently treatment failure [31]. This is where in silico studies have immensely aided the development of reliable second-generation inhibitors. The design of HIV-1 PR inhibitors using the substrate envelope model was found to be a promising strategy because the drug molecules that optimally fit to and do not protrude from the envelope may be less susceptible to drug resistance [31,32,33]. Tipranavir, for example, a second-generation non-peptidic PI, was designed to be the most flexible of the lot, conforming to multiple variants of the enzyme with critical drug-resistance mutations and inhibiting dimerization of the enzyme. However, even this agile inhibitor was reduced to limited potential in the face of dual or more mutations at certain critical sites [34].

3.2. HIV-1 Protease Inhibitor-Associated Mutations and the Mechanism of Resistance

The development of drug-resistance mutations and selection of resistant variants in the case of HIV PR is mainly due to the lack of proofreading mechanism of the RT, resulting in a high error rate during replication [12,35]. The error rate of replication is approximately 1 × 10−4; therefore, considering the 10 kbp size of the genome as an average, each replication cycle could introduce a mutation, providing a vast mutation capability of the virus. This appears in drug-naïve patients [36,37,38], wherein transmission of resistance mutations—including those of the HIV PR—may decrease the efficacy of the antiviral therapy. The overall prevalence of transmitted resistance mutations in newly diagnosed and drug-naïve individuals may be high and varies in different countries [39,40]. Therefore, testing for the transmitted drug-resistance-associated mutations prior to commencing anti-retroviral therapy (ART) is important, according to international guidelines [41]. The resistance mutations may also be acquired as a response to selective pressures introduced by antiretroviral drugs. This is further complicated by the wide genetic diversity of HIV since in addition to having two main types (HIV-1 and HIV-2), each type can be classified into 5–8 main groups, respectively, and combination of viral genomes of different subtypes results in circulating recombinant forms (CRFs) lineages derived from inter-subtype recombination. It is therefore not uncommon to see a genetic distances of 25 and 35% across different subtypes [42]. Resistance mutations against HIV PIs were initially detected in patients undergoing monotherapy, and it is important to note that the development of mutations in the context of combination ART is much harder to approach and further complicated by the selective pressure induced by each agent and the cost of resistance to the virus [43].
Initially, first-generation PIs were considered very potent antivirals; however, it soon became apparent that polymorphism in the HIV-1 PR sequence with substitutions at more than 20 amino acid in the sequence rendered those inhibitors of limited functionality [44]. Moreover, there is more than 50% polymorphism in the amino acid sequences between HIV-1 and HIV-2 PRs, which was found to alter the specificity of the protease for certain peptide inhibitors, resulting in reduced susceptibility to the drugs [45,46].
Mutations conferring resistance to the PIs may arise from amino acid substitutions in either the active site or at sites in close proximity to this region [47]. These mutations are commonly referred to as primary ones, which result in the alteration of the substrate binding site and thus interfere with the binding of the inhibitor either directly or indirectly. Secondary mutations, on the other hand, are additional mutations that tend to accumulate under selection pressure and may either intensify or alleviate effects of the primary mutations. It is not uncommon to encounter 1–6 amino acid insertions at various sites in the viral protease sequence during the course of PI-based therapy, which tend to alleviate selection pressure and improve viral replication [48,49].
Of the most commonly encountered PI-associated resistance mutations are those located within the active cavity or the flap region of the PR, forming hydrophobic interactions with the neighboring flap and loop residues. L90M substitution as a primary example is selected by saquinavir, nelfinavir, indinavir, and lopinavir and results in reduced susceptibility to other PIs with the exception of tipranavir and darunavir. This substitution occurs in the hydrophobic core of the protease, near the catalytic aspartate residues. Another example of a multi-drug resistance-inducing mutation is the I54M substitution, a non-polymorphic mutation that was found to be selected primarily by fosamprenavir, lopinavir, and darunavir, resulting in cross-resistance to nelfinavir, indinavir, and saquinavir [50]. Moreover, mutations inducing cross-resistance were also attributed to substitutions at other critical sites, such as positions 10, 36, 46, 48, 71, 77, 82, and 84 [51]. A thorough discussion regarding mutations of HIV-1 PR and their implication in reducing the susceptibility to PI-based regimens was published previously [52,53,54].
Although the mutation frequency in CoVs is less pronounced, already a large number of sequence variations were detected in the absence of any drug-induced selective pressure, implying that in the long-term, we have to face the inevitable appearance of drug-resistance mutations following mass administration of antivirals.

3.3. SARS-CoV-2 Mpro

The SARS-CoV-2 Mpro is also referred to as 3-chymotrypsin-like protease (3CLpro). It functions as a functional homodimer whose structural characteristics highly resemble those of SARS-CoV Mpro [55,56,57]. The full-length protease contains three domains: domain I (10–99 residues) and II (100–184 residues) contain mainly antiparallel β-barrels, while domain III (201–303) has a helical arrangement (Figure 1a). The substrate binding site is located in the cleft between domain I and II, and the long flexible loop that connects domain II and III borders the active site and contains residues that are involved in ligand binding [58]. The catalytic site comprises the His41 and Cys145 residues, which form the catalytic dyad [55,56,57,59].
SARS-CoV-2 Mpro is highly specific and shows strong preference for Leu at P2, Gln at P1, and Gly/Ala/Ser residues at P1’ position [60], but histidine may also occupy P1 position in a small minority of the cleavage sites [61]. The substrate binding sites show high conservation among coronavirus PRs. The S4 is a shallow hydrophobic site, the S3 can bind a wide range of residues due to the exposition of P3 side chain to the solvent, and the S2 and S1 are deep sites. The S1’ site is relatively shallow and preferably binds Ser/Ala residues [57,61].
Ijms 23 03507 g001 550

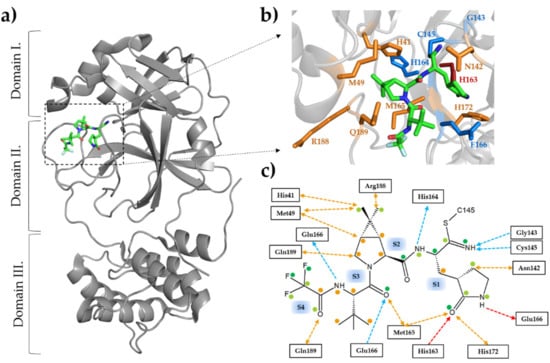

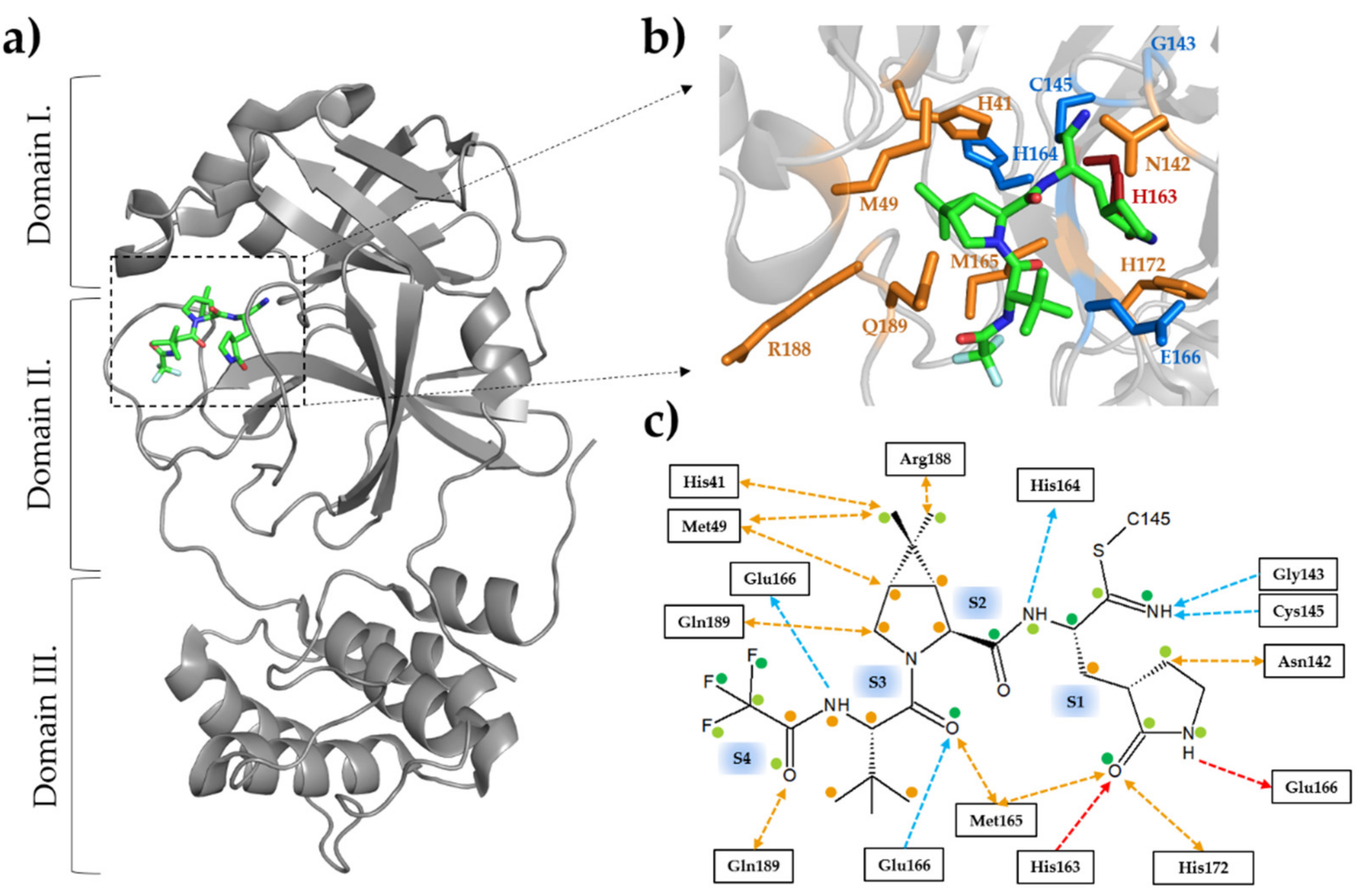

Figure 1. Structure of SARS-CoV-2 Mpro with nirmatrelvir. (a) The domain organization is represented based on the crystal structure of the enzyme complexed with nirmatrelvir (7RFS.pdb). The inhibitor is represented as sticks, the carbon atoms are green, the oxygen atoms are red, and the nitrogen atoms are blue. (b) Enlarged view of the active site showing the most relevant enzyme-inhibitor interactions. The active-site residues forming at least one main-chain- and side-chain-mediated hydrogen bond are colored by blue and red, respectively. The residues forming apolar interactions are shown in orange. (c) Most relevant inhibitor-binding interactions at the active site. The backbone- and side-chain-mediated hydrogen bonds are colored by blue and red, respectively. The direction of the arrow indicates the donated hydrogen atom. Apolar interactions are shown in orange. Colored dots indicate the average of non-bonded contacts for individual atoms. Orange represents 1 contact, light green represent 2–4 contacts, and dark green represent ≥ 5 contacts. The interactions were mapped based on five crystal structures (7vh8, 7si9, 7te0, 7rfs, and 7rfw) using PDBSum [62] and LigPlot+ [63]. See the details in Table 1. An interaction was considered to be relevant if it was present in at least three of the five studied structures.
Figure 1. Structure of SARS-CoV-2 Mpro with nirmatrelvir. (a) The domain organization is represented based on the crystal structure of the enzyme complexed with nirmatrelvir (7RFS.pdb). The inhibitor is represented as sticks, the carbon atoms are green, the oxygen atoms are red, and the nitrogen atoms are blue. (b) Enlarged view of the active site showing the most relevant enzyme-inhibitor interactions. The active-site residues forming at least one main-chain- and side-chain-mediated hydrogen bond are colored by blue and red, respectively. The residues forming apolar interactions are shown in orange. (c) Most relevant inhibitor-binding interactions at the active site. The backbone- and side-chain-mediated hydrogen bonds are colored by blue and red, respectively. The direction of the arrow indicates the donated hydrogen atom. Apolar interactions are shown in orange. Colored dots indicate the average of non-bonded contacts for individual atoms. Orange represents 1 contact, light green represent 2–4 contacts, and dark green represent ≥ 5 contacts. The interactions were mapped based on five crystal structures (7vh8, 7si9, 7te0, 7rfs, and 7rfw) using PDBSum [62] and LigPlot+ [63]. See the details in Table 1. An interaction was considered to be relevant if it was present in at least three of the five studied structures.
Ijms 23 03507 g001

3.4. Inhibitors of SARS-CoV-2 Mpro as (Potential) Therapeutic Drugs

Two years now into the pandemic, clinicians are largely reliant on repurposed broad-spectrum antivirals, such as the RdRp inhibitor remdesevir, to combat mild-to-moderate COVID-19, in addition to monoclonal antibodies and symptomatic therapy. Recently, a novel CoV antiviral targeting the SARS-CoV-2 Mpro has emerged with a very promising potential.
To date, thousands of candidate SARS-CoV-2 Mpro inhibitor compounds have been screened so far in order to identify potent drug candidates [64], but many of them were shown to have no or only limited clinical potential since high concentration was usually required to achieve significant inhibition. Actually, most of the investigational 3CLpro inhibitors are of similar peptidomimetic scaffolds [65].
PF-00835231 is the active metabolite of the PF-07304814, a ketone-based, covalent cysteine protease inhibitor formulated for IV use that contains a phosphonate group to enhance solubility. While it is hard to imagine, PF-00835231 was developed in 2003, organically intended to inhibit the Mpro of SARS-CoV; however, the inhibitor never made it to commercial market given the prompt control of the previous pandemic by public health measures. PF-00835231 was shown to exhibit potent activity against alpha-, beta-, and gammacoronavirus 3CL PRs, with Ki values ranging from 30 pM to 4 nM. The inhibitor was also found not to be active against a panel of human proteases, with little inhibition of human cathepsin B. Following the outbreak of COVID-19, interest in PF-00835231 was revived, as it was immediately identified as a potential SARS-CoV-2 Mpro inhibitor [66,67,68].
Nirmatrelvir (PF-07321332) is a promising attempt at addressing the early stage of COVID-19 and the concept of prophylaxis. It is a second-generation, reversible covalent inhibitor of SARS-CoV-2 Mpro, binding to the catalytic cysteine residue (C145) via its nitrile warhead [69,70] (Figure 1b,c).
This inhibitor is based on rupintrivir, a peptidomimetic rhinovirus 3C protease inhibitor in development for use against human rhinovirus (HRV) infections that showed good efficacy against all 48 HRV serotypes [71]. Rupintrivir and nirmatrelvir contain the P1 γ-lactam group mimicking glutamine since both HRV and CoV PRs process their substrate after glutamine residues although nirmatrelvir has been better modified to interact with and covalently bind to the active site of SARS-CoV-2 Mpro.
In order to further improve the in vivo stability of nirmatrelvir, the oral SARS-CoV-2 antiviral PAXLOVID (Pfizer; New York, NY, USA) contains the nirmatrelvir combined with HIV-1 PI ritonavir as booster. Ritonavir is not a potent inhibitor of SARS-CoV-2 Mpro [1], but it is applied as a pharmacokinetic enhancer of several other PIs given its potent inhibition of CYP3A4 [72]. Therefore, ritonavir can inhibit the CYP3A4-mediated metabolism of nirmatrelvir and boost its therapeutic concentration.
Nirmatrelvir was found to inhibit the prototypic SARS-CoV-2 Mpro at nanomolar concentration (Ki = 3.1 nM) [70]. The drug entered phase III clinical trials (NCT04960202, NCT05011513, and NCT05047601). The aim of the active EPIC-HR clinical trial (NCT04960202) is to evaluate the safety of nirmatrelvir/ritonavir among non-hospitalized COVID-19 adult patients (https://clinicaltrials.gov, accessed on 20 February 2022). This NCT04960202 clinical trial is a phase II/III randomized, double blind, placebo-controlled study, and PAXLOVID was shown to be effective in the treatment of mild-to-moderate COVID-19, reducing hospitalization risk by 89% [73]. Additionally, an intravenous candidate (PF-07304814) is also under investigation. This drug contains a phosphonate group to enhance solubility; however, it is yet to gain FDA authorization.
The European Medicines Agency (EMA) has also recommended granting a conditional marketing authorization for PAXLOVID oral antiviral on 27 January 2022; thus, it became the first oral antiviral drug in the European Union as well. PAXLOVID is intended for oral administration and is given twice daily as three pills (two of nirmatrelvir and one of ritonavir) for a total duration of five days.
Another promising peptidomimetic compound in the pipelines is the GC-376, which is an investigational veterinary drug, a broad-spectrum 3CL protease inhibitor. This inhibitor was found to inhibit PRs of CoVs in addition to those of picornaviruses and noroviruses as well [74]. The anti-SARS-CoV-2 activity of this inhibitor was EC50 = 3.37 µM while inhibiting the Mpro at a much lesser concentration (IC50 value of 0.03 µM) [75].
Finally, boceprevir is an oral ketoamide reversible inhibitor of hepatitis C virus (HCV) NS3 PR. This inhibitor was FDA approved in 2011 and showed excellent efficacy and high selectivity against HCV PR while showing no cross-reactivity with other serine proteases [76]. In the context of SARS-CoV-2, it was found to inhibit Mpro with IC50 of 4.13 µM, with an EC50 of 1.90 µM against whole-virus infection [75].

3.5. Binding of Nirmatrelvir to SARS-CoV-2 Mpro

The enzyme-inhibitor interactions between nirmatrelvir and SARS-CoV-2 Mpro are well established based on molecular dynamical analyses [77,78] and crystallographic studies as well. In February 2022, in total, six structural coordinates of the Mpro complexed with nirmatrelvir became available in the RCSB database; the first was deposited on September of 2021 (7VH8.pdb) [79]. Other crystal structures of the same complex have also been released (Table 1), and a coordinate file of only a single variant is available in the RCSB PDB database so far (7TLL.pdb); this variant contains a P132H mutation [80]. Each structure was determined using X-ray crystallography with ≤2 Å resolution.
In order to combat the resistance mutations of HIV-1 PR, a main strategy of the structure-based inhibitor design is the maximization of the enzyme-inhibitor interactions at the active site by targeting the protein backbone. Based on this concept, the interactions at the active site—mediated by the backbone atoms of the enzyme—are expected to be retained in the case of substitution of the side chains; thus, the mutant enzymes can hardly evade the inhibitors through resistance mutations [81]. Nirmatrelvir bound to the enzyme also forms extensive hydrophobic interactions with the active-site residues; hydrogen bonds are formed mainly at S1 site, where the inhibitor’s nitrile warhead interacts with the catalytic cysteine residue (Cys145). We have summarized the key residues that are responsible for ligand binding based on structures of the enzyme-inhibitor complex (Figure 1c) (Table 1).
The catalytic C145 is able to form a reversible covalent bond via the electrophile nitrile group of nirmatrelvir. The residues that are able to form hydrogen bonds with their backbone atoms include G143, C145, H164, and E166. The G143 and C145 residues interact with the imine nitrogen of the thioimidate inhibitor moiety at the S1 site. The main chain carbonyl oxygen of H164 is able to form a hydrogen bond with an amide nitrogen of the inhibitor. Another hydrogen bond is present between the oxygen atom of the lactam ring and H163. This interaction occurs through the side chain of H163 and can be prone to mutations. Two backbone hydrogen bonds are formed by E166, and these interact with the amide nitrogen prior to the trifluoroacetyl group and the carbonyl oxygen at the S3 site. Besides, E166 form a side-chain hydrogen bond with the amide nitrogen of the lactam ring, which could also be affected by mutations.
Additionally, the residues that are involved in the binding of the substrate and the inhibitor are almost identical (Figure 2). Most of the hydrogen bonds that bind the substrate are also formed with the nirmatrelvir. Most H-bonds that are formed with nirmatrelvir at S4-S2 sites are mediated by the main-chain atoms of the active-site residues (Table 1), indicating that the effects of resistance mutations on the backbone-mediated enzyme-inhibitor interactions may be more moderate as compared to the side-chain-mediated contacts. Most of the hydrogen bond interactions are formed at the S1 site. The apolar interactions show a significantly different network for the inhibitor, as it is able to form several interactions via the dimethylcyclopropylproline group at the S2 site. Residues that interact with the inhibitor at S2 site also bind the substrate; however, they also form interactions at different sites. For example, the H41 and M49 residues interact with the P1’ residue of the substrate but also interact with the inhibitor at the S2 site as well. Interestingly, Asn142 is involved in apolar interactions with the inhibitor only; it forms no relevant interactions with the substrate.
Table
Table 1. Substrate and inhibitor-binding interactions at the active site of SARS-CoV-2 Mpro. The enzyme-ligand interactions were mapped using LigPlot+ v2.2.4 [63] and based on data available in PDBsum database [62]. H-bonds (H) and non-polar interactions (NP) are also shown. The interactions that are mediated by the side chains of enzyme residues are bold, and asterisk indicates modified catalytic residue (C145A) in the enzyme-substrate complexes. The graphical representation of the interactions is shown in Figure 2.
Table 1. Substrate and inhibitor-binding interactions at the active site of SARS-CoV-2 Mpro. The enzyme-ligand interactions were mapped using LigPlot+ v2.2.4 [63] and based on data available in PDBsum database [62]. H-bonds (H) and non-polar interactions (NP) are also shown. The interactions that are mediated by the side chains of enzyme residues are bold, and asterisk indicates modified catalytic residue (C145A) in the enzyme-substrate complexes. The graphical representation of the interactions is shown in Figure 2.
PDB7MGR7MGS7N897VH87RFW7RFS7SI97TE07TLL
Reference[82][82][83][79][70][70][84]Unpublished Study[80]
LigandAVKLQ*NNESAVLQ*SGFSAVLQ*SGFnirmatrelvirnirmatrelvirnirmatrelvirnirmatrelvirnirmatrelvirnirmatrelvir
InteractionHNPHNPHNPHNPHNPHNPHNPHNPHNP
S5 site P168 P168
Q189		 P168
S4 siteT190M165
L167
R188
Q189
Q192		T190R188
Q189
Q192		T190R188
Q192		 Q189 M165
Q189
T190		 M165
Q189
T190		 Q189Q192Q189 M165
Q189
Y190
S3 siteE166
N142		M165
Q189		E166M165E166M165E166M165E166M165E166M165E166M165E166M165E166M165
S2 site H41
M165
Q189		 H41
M49
H164
M165		Q189H41
H164
M165
D187		 H41
M49
Y54
D187
R188
Q189		 H41
M49
Y54
H164
M165
D187
R188
Q189		 H41
M49
H164
R188
Q189		 H41
M49
Q189		 H41
M49
M165
Q189		 H41
M49
Y54
D187
R188
Q189
S1 siteF140
G143
A145*
H163
H164
E166		L141
S144
M165
H172		F140
G143
A145 *
H163
H164		L141
H172		F140
G143
A145 *
H163
H164
E166		L141
N142
S144
H172		F140
G143
C145
H163
H164
E166		H41
M49
Y54
L141
N142
H172
D187		G143
C145
H163		H41
M49
Y54
F140
N142
H164
M165
H172
D187
T190		C145
H163		H41
M49
F140
L141
N142
G143
H164
M165
H172
T190		F140
H163
H164
E166		H41
M49
N142
M165
H172		G143
C145
H163
H164
E166		F140
N142
G143
H172		C145
H163
H164
E166		H41
F140
L141
N142
G143
S144
H172
S1’ siteG143T25
H41
M49		N142T25
H41
M49		 T25
H41
M49
N142
S2’ siteT26T25T26T25T26T25
S3’ site T24 T24 T24
S46
Ijms 23 03507 g002 550

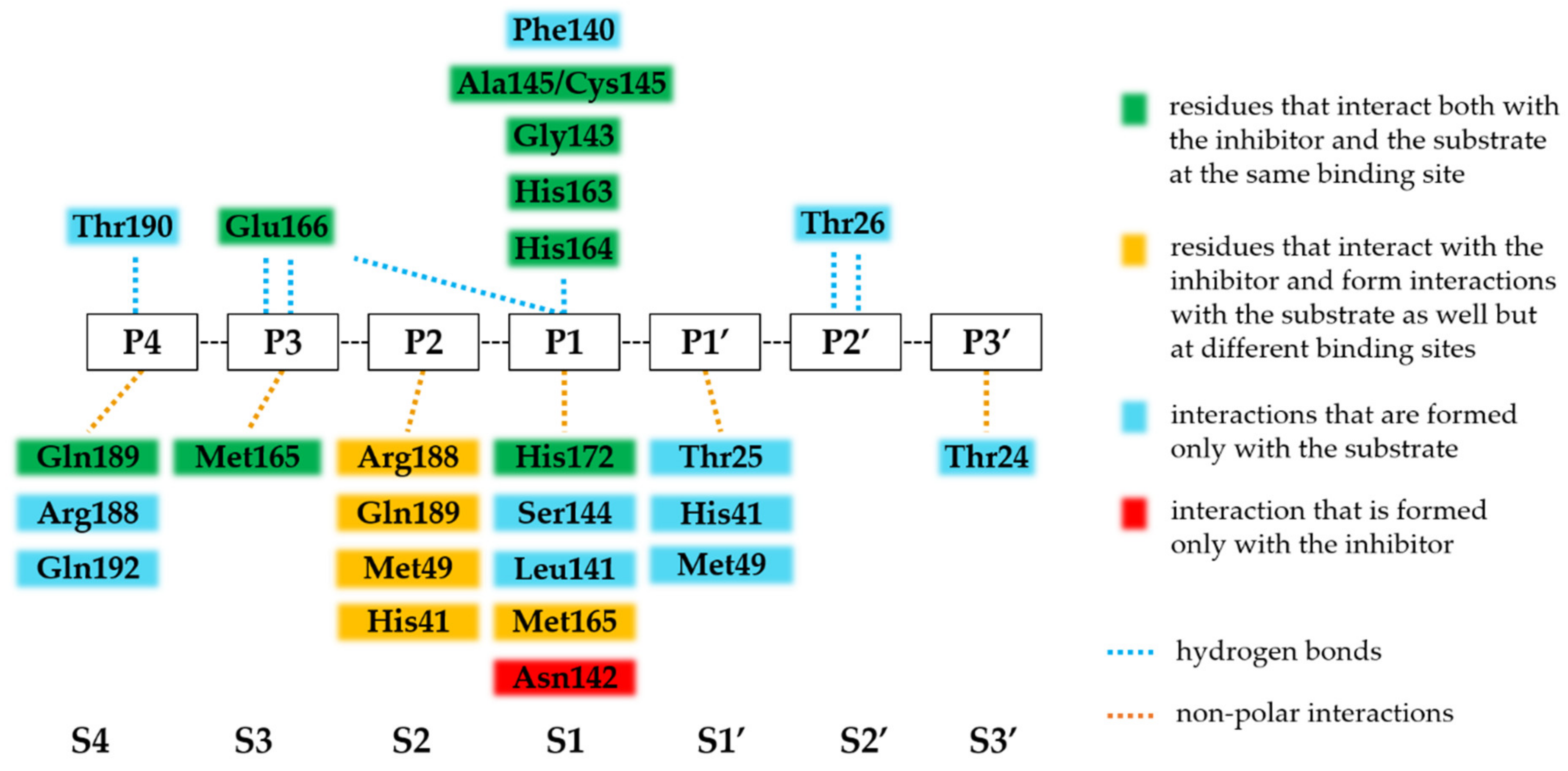

Figure 2. Comparison of substrate- and nirmatrelvir-binding interactions of SARS-CoV-2 Mpro. The interactions are represented based on Table 1. An interaction was considered as relevant if it was present in >50% of the studied enzyme-substrate or enzyme-nirmatrelvir complexes. The enzyme-substrate complexes contain modified catalytic residue (C145A). The substrate binding sites at the active site (S4-S3’) and the substrate residues (P4-P3’) that bind to these sites are labeled based on nomenclature introduced by Schechter and Berger [85], and the scissible bond is located between P1 and P1’ residues.
Figure 2. Comparison of substrate- and nirmatrelvir-binding interactions of SARS-CoV-2 Mpro. The interactions are represented based on Table 1. An interaction was considered as relevant if it was present in >50% of the studied enzyme-substrate or enzyme-nirmatrelvir complexes. The enzyme-substrate complexes contain modified catalytic residue (C145A). The substrate binding sites at the active site (S4-S3’) and the substrate residues (P4-P3’) that bind to these sites are labeled based on nomenclature introduced by Schechter and Berger [85], and the scissible bond is located between P1 and P1’ residues.
Ijms 23 03507 g002
Based on analysis of the crystal structures of enzyme-substrate complexes, the substrate envelope of SARS-CoV-2 Mpro was also defined [86]. Nirmatrelvir—binding to the S4-S1 sites of the enzyme—was found to fit the substrate envelope, and the sites where the inhibitor protrudes the envelope and which may be most vulnerable to resistance were also mapped. The enzyme-inhibitor interactions were found to be even beyond the substrate envelope (formed with, e.g., M49, N142, E166, and Q189 residues) [86]. Some of these positions are more variable (e.g., M49) and thus may be correlated to resistance development, while E166 is conserved due to its importance in the dimerization of the Mpro [87]. As in the case of HIV-1 PIs, the substrate envelope hypothesis may be a promising strategy of drug design [65] in order to avoid resistance against SARS-CoV-2 Mpro inhibitors.

3.6. SARS-CoV-2 Mpro Variants

The SARS-CoV-2 genome sequences are available through databases, such as the Global Initiative on Sharing All Influenza Data (GISAID) [88] and NCBI databases, and additional databases are also available that can aid variant analysis, including COVID-3D online resource [89], SCoV2-MD [90], and SARS-CoV-2 3D [91]. For this review, we obtained data about SARS-CoV-2 variants from the COVID-3D online resource (http://biosig.unimelb.edu.au/covid3d/, accessed on 20 February 2022) [89]. Currently, data are available only for the circulating natural variants of SARS-CoV-2 Mpro, and PI-resistant variants have not been identified to date although multiple studies were conducted for the identification of those residues of SARS-CoV and SARS-CoV-2 PRs that may confer to drug resistance.

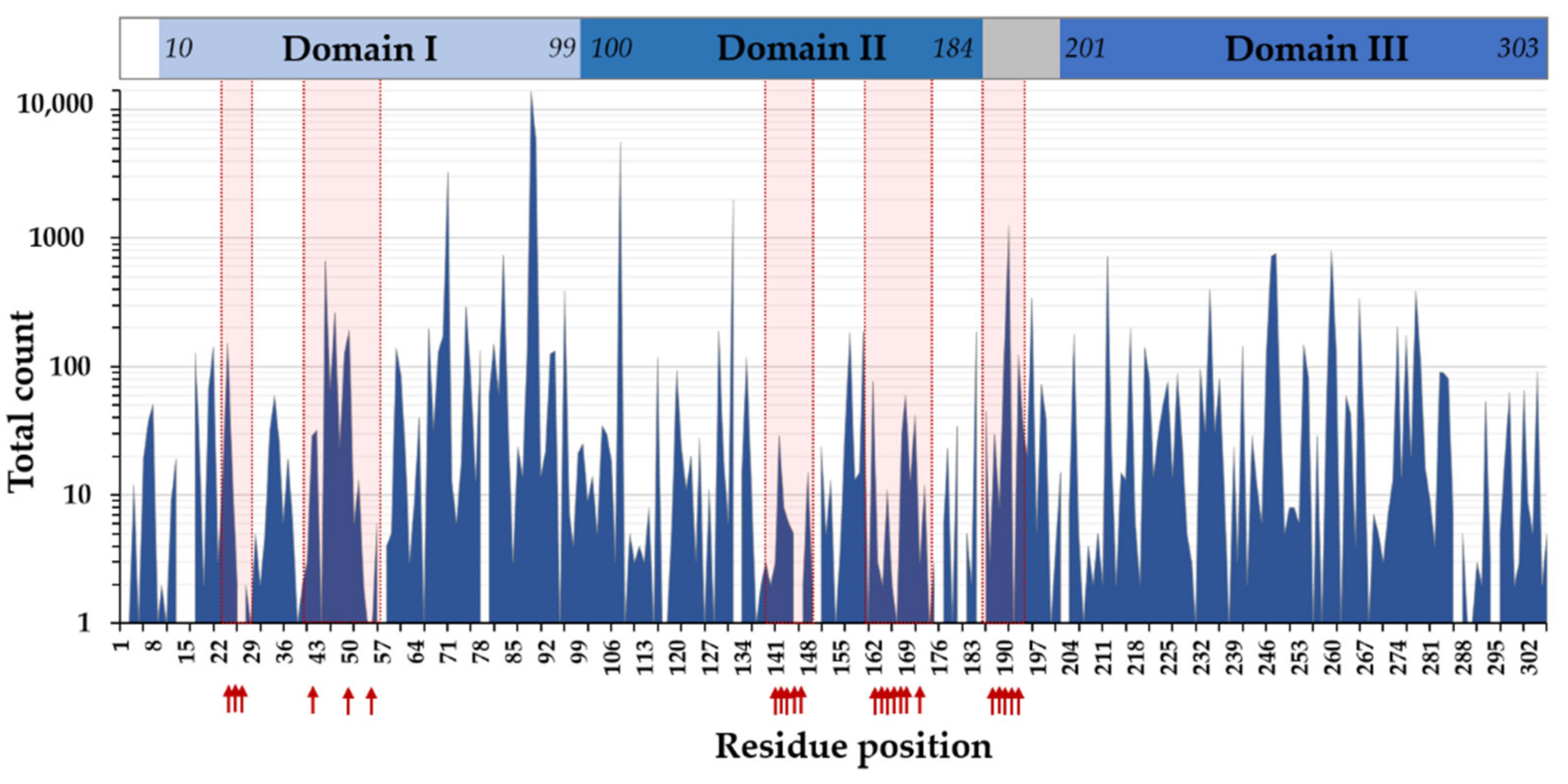

The COVID-3D resource includes more than 11,000 variants, which were detected in circulating SARS-CoV-2 genomic sequences [89]. Based on data from COVID-3D database, 291/306 residues of Mpro are known to have at least one variant (Figure 3), and the variable positions, even with a single count of a known variant, cover almost the entire sequence of SARS-CoV-2 Mpro [92]. The most frequently mutated positions obtained from the COVID-3D database (Figure 4) were found to be in good agreement with the missense mutations that are available in the GISAID database [92].

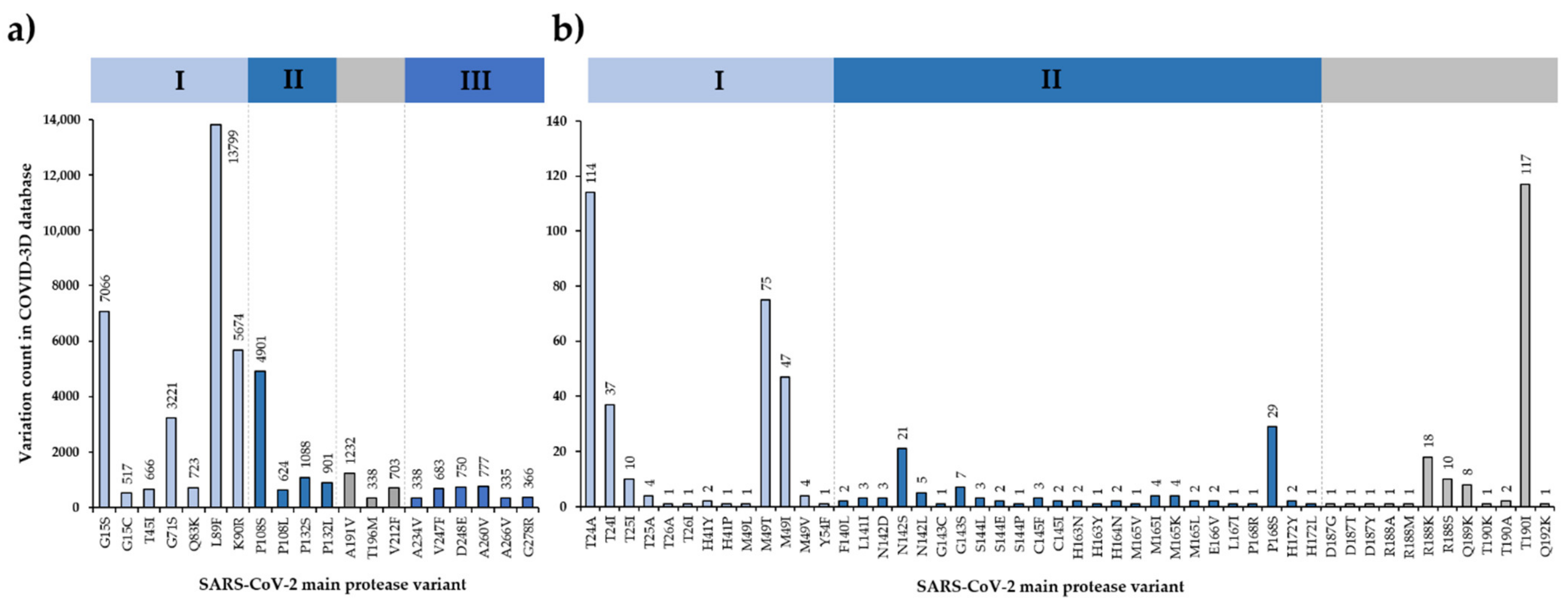

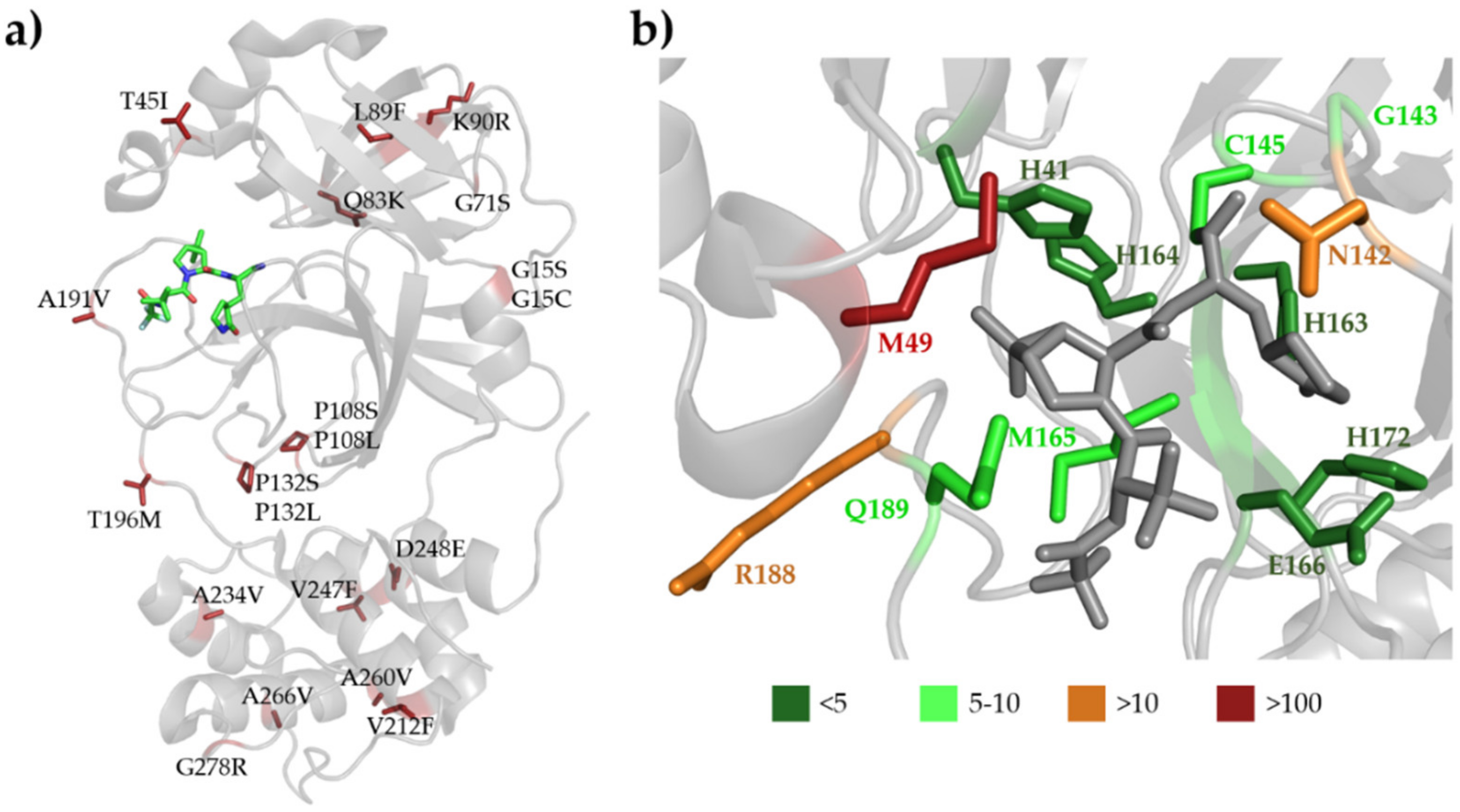

The residues that are the most polymorphic in the circulating variants (Figure 4a and Figure 5a) are not directly involved in the binding of nirmatrelvir. Out of the inhibitor-binding residues, the variants of M49 residue have the highest frequency, and the M49T and M49I variants are the most frequent ones. The N142 is also prone to mutations (in total, 29 of the known variants: N142S, N142L, and N142D) (Figure 4b and Figure 5b). Both M49 and N142 residues were found to be located at highly mobile sites and can adopt various conformations; hence, both residues were considered to be potential sites of resistance [86,93].
Different variants of G15 (G15S, G15C), P108 (P108S, P108L), and P132 (P132S, P132L) residues are among the most frequent mutations, indicating higher variability of these residues (Figure 4a). The Y54, N142, T190, A191 [94], H163, and E166 residues at the active site [95] were predicted to be potentially linked to drug resistance. Of these residues, only the A191 is one of the top 20 most frequent variants (Figure 3); the T24, M49, N142, P168, R188, and T190 active-site residues have considerably high variability (Figure 4b). Although A191 residue is not directly involved in inhibitor binding, it is located near the active-site cavity (S4 site). Its mutation may potentially affect the flexibility of the loop that connects domain II and III and contains inhibitor-binding residues (e.g., T190, Q192) [93]. Comparison of ligand-free and -bound structures revealed that the ligand binding-induced conformational changes of the active site play a role in the ligand binding [96]; therefore, the altered conformational flexibilities of the different variants may be correlated to development of resistance.
It was proposed that the cold spots of the active site (or the surface), where the residues are highly conserved and show low mutation frequency, may be promising target for the design of mutation-resistance inhibitors [92]. Mutation-induced structural changes may correlate with the activities of the protease variants [97]; therefore, the circulating mutations that are the most prevalent and/or are potentially related to drug resistance must be investigated, followed by correlation of the structural features with the in vitro enzymatic characteristics.

3.7. Efficacy of Nirmatrelvir against SARS-CoV-2 Variants

Data exist regarding the efficacy of nirmatrelvir against SARS-CoV-2 variants and Mpro mutants, and some of the most frequently occurring variants have already been studied by investigating enzymes containing single-point mutations or virus variants (e.g., omicron).
It was found that G15S, T21I, L89F, K90R, and L205V circulating (but not treatment-induced resistance) mutations of SARS-CoV-2 Mpro show similar catalytic features in vitro to the wild-type (wild-type: kcat/KM = 0.016 s−1µM−1, mutants: kcat/KM = 0.009–0.015 s−1µM−1). The inhibitory potential of nirmatrelvir against these variants was also highly comparable that the point mutations did not decrease the efficacy of the inhibitor [98].
A purified SARS-CoV-2 Mpro harboring P132H mutation was studied in vitro [80]. The P132 is one of the most frequently mutated residues of the Mpro (Figure 4a), and the P132H mutation has much lower frequency than P132S and P132L variants. The wild-type and the P132H mutant enzymes exhibited highly comparable catalytic properties: the kcat, KM, and kcat/KM values were almost identical (wild-type: kcat/KM = 22,411 s−1M−1, P132H: kcat/KM = 22,691 s−1M−1). Nirmatrelvir showed a slightly higher inhibitory potential against the P132H mutant as compared to the wild-type enzyme (wild-type: Ki = 0.933 nM, P132H: Ki = 0.635 nM). The highly similar catalytic properties of the wild-type and P132H mutants and their comparable sensitivities towards nirmatrelvir are in agreement with the fact that the P132H mutation induces no remarkable conformational changes and that the active site remains unchanged [80]. Enzyme-inhibitor interactions at the active site of P132H mutant are also identical with those of the wild-type protease (Table 1) since the P132 residue is not located in close proximity to the inhibitor-binding pocket (Figure 5a).
In agreement with results of an in vitro assay, which proved that the purified variants maintained their activity and sensitivity towards nirmatrelvir [98], investigation of infected Calu-3 cells also proved that nirmatrelvir is able to inhibit the prototypic and the omicron SARS-CoV-2 variants as well [99]. Both the level of intracellular viral genomic RNA and the titer of the infectious virus was efficiently decreased by treatment with the protease inhibitor, and the effects were highly comparable in the different strains. Interestingly, the omicron variant showed a slightly higher sensitivity towards the inhibitor in Calu-3 cell model system while not showing higher sensitivity in a human airway organoid model consisting of multiple cell lineages as compared to the wild-type [99]. Additional studies also revealed that different virus variants have similar sensitivity towards nirmatrelvir in Vero E6 cells [100,101]. Despite promising evidence of nirmatrelvir efficacy against different strains [99,100,101], the sequence characteristics of the studied variants have not been revealed, and no information were obtained for the mutation profile of the Mpro. Therefore, a more detailed analysis is required in order to carry out detailed correlation between the inhibitor’s potency and sequence variations of the Mpro and other regions, such as autoproteolytic cleavage sites.

3.8. SARS-CoV-2 Cleavage-Site Variants

In addition to ligand-binding site residues, non-active-site mutations of HIV-1 PR are also known to confer resistance against PIs [32,52,102]. Major and minor resistance mutations can be differentiated, with major mutations present at the active site, while the minor mutations may be distant from it. Due to the direct effect on ligand binding, major mutations are more inhibitor specific and can reduce the catalytic efficiency of the protease, decreasing the viral fitness. Minor mutations are considered as accessory mutations, which compensate the effects of major mutations. In addition, mutations that contribute to resistance may be located at the cleavage sites of the protease as well in the Gag and pol polyproteins [103,104,105,106].
Sequences of the circulating SARS-CoV-2 variants also show differences in the autoproteolytic cleavage sites of the viral polyprotein. Mutations are known for all cleavage sites of the Mpro, and some of them show remarkably high frequency (e.g., nsp12-13 site: A598S) (Table 2). Interestingly, the highly conserved P1-Gln residue may be changed to His in multiple cleavage sites (Table 2). Experimental studies have already revealed that minority of the SARS-CoV-2 Mpro cleavage sites contain His residue in P1 position [61] [107]. Specificity profiling studies also showed that SARS-CoV Mpro can cleave substrates containing His in P1 position, and both higher [108] and lower cleavage efficiency [109,110] were observed for the P1-His substrate as compared to that containing Gln in P1 position, respectively.
Cleavage-site mutants were found to emerge in HIV-1-infected patients receiving antiviral therapy due to the positive selection of PI-naïve variants. The growth advantage conferred by the cleavage site mutations is caused by elevated proteolytic activity, as the mutant sites can be cleaved more efficiently by the mutant HIV-1 protease [111,112]. By this mechanism, the HIV-1 cleavage-site mutations can compensate for the effects of major resistance mutations of the protease. Therefore, it remains to be determined how alterations of SARS-CoV-2 cleavage-site sequences change the cleavage efficiencies of the wild-type and mutant PRs and which cleavage-site mutations may be compensatory.

4. Conclusions and Perspectives

The COVID-19 pandemic represents a global health crisis. The lack of novel effective antivirals so far had led to an uncontrollable spread of the infection and a sharp rise in mortality rates worldwide. By their nature, RNA viruses have inherently high mutation rates that add to their enhanced virulence, adaptation, and transmission fitness. The multiple variants observed for the prototypical Wuhan SARS-CoV-2 within such a relatively short time is an attestation to their evolvability. However, novel formulations of SARS-CoV-2-specific drugs targeting the viral Mpro may indeed curb the pandemic, at least in the short term.
PAXLOVID, a combination of nirmatrelvir and the booster PI ritonavir, is currently being prepared for mass distribution and has shown an excellent efficacy against SARS-CoV-2 both in in vitro experiments and clinical trials as well; however, we should always be cautious of the perspective of applying mono-therapeutic agents in the context of rapidly evolving RNA virus infection, as history had taught us from previous pandemics that these viruses are capable within a short time of substituting target amino acid residues under treatment pressure in order to evade suppression, exemplified in this review by comparing it to HIV PR and the lessons we have learnt from this decades-old pandemic.
Similar to HIV-1 PR [113], it is not unreasonable to expect resistant mutations arising in SARS-CoV-2 Mpro (and in its cleavage sites), driven by selective drug pressure. The high mutational frequencies of the active-site and dimer-interface hotspots of SARS-CoV-2 Mpro imply potential development of the resistance against inhibitors. The resistant mutations of HIV-1 PR are well characterized, while the occurrence of treatment-induced mutations can be investigated by follow-up studies after the use of PAXLOVID. Thereafter, primary and secondary resistance mutations of the protease may also be distinguished, and the most frequently co-occurring cleavage-site mutations may also be identified. Sufficient structural information are available for the SARS-CoV-2 Mpro as well as HIV-1 PR, which may aid the structure-based drug design. Despite the comparable efficacy of nirmatrelvir against the wild-type protease and its point mutants or variants in different virus strains, currently, we only have information about the PI-naïve variations [80,98,99,100,101]. The currently circulating mutations of the residues that are involved in nirmatrelvir binding are less frequent, and the drug-selective pressure may drive the selection of resistance mutations.
The efficiency of the antiviral therapies are improved in the case of HIV-1 by the application of the combination therapy. In combination ART, a variety of antiretroviral drugs are applied, each targeting different steps of the viral replication cycle, such as reverse transcription (nucleoside and non-nucleoside reverse transcription inhibitors, NRTIs and NNRTIs, respectively), maturation (PIs), entry (entry or fusion inhibitors), and integration (integrase inhibitors, INSTIs) [114]. The simultaneous use of the antivirals which target different viral enzymes can reduce the likelihood of drug resistance development. Due to the ease of resistance development in monotherapy, the co-administration of ritonavir with nirmatrelvir may increase the risk of the development of resistance against HIV PIs in the case of non-diagnosed HIV-1 infections [115]. Therefore, in the case of SARS-CoV-2, combination therapies may decrease the risk of resistance development against the protease inhibitor. The therapeutic application of the ritonavir-boosted nirmatrelvir may be aided by the already-existing guidelines and the clinicians’ experiences in the treatment of HIV-infected patients in order to decrease the risks (e.g., side-effects or drug–drug interactions) [116].

Author Contributions

Conceptualization, J.A.M., M.M., G.H. and J.T.; data analysis, J.A.M. and G.H.; software, J.A.M. and G.H.; writing—original draft preparation, J.A.M., M.M., G.H. and J.T.; writing—review and editing, J.A.M., M.M., G.H. and J.T.; visualization, J.A.M. and G.H.; funding acquisition, J.T. All authors have read and agreed to the published version of the manuscript.

Funding

Project no. TKP2021-EGA-20 (Biotechnology) has been implemented with the support provided from the National Research, Development and Innovation Fund of Hungary, financed under the TKP2021-EGA funding scheme.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

The authors are grateful for the members of the Laboratory of Retroviral Biochemistry at University of Debrecen.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Mahdi, M.; Mótyán, J.A.; Szojka, Z.I.; Golda, M.; Miczi, M.; Tőzsér, J. Analysis of the efficacy of HIV protease inhibitors against SARS-CoV-2’s main protease. Virol. J. 2020, 17, 190. [Google Scholar] [CrossRef] [PubMed]
  2. Cao, B.; Wang, Y.; Wen, D.; Liu, W.; Wang, J.; Fan, G.; Ruan, L.; Song, B.; Cai, Y.; Wei, M.; et al. A trial of Lopinavir-Ritonavir in adults hospitalized with severe COVID-19. N. Engl. J. Med. 2020, 382, 1787–1799. [Google Scholar] [CrossRef] [PubMed]
  3. von Hentig, N. Repositioning HIV protease inhibitors and nucleos(t)ide RNA polymerase inhibitors for the treatment of SARS-CoV-2 infection and COVID-19. Eur. J. Clin. Pharmacol. 2021, 77, 1297–1307. [Google Scholar] [CrossRef] [PubMed]
  4. Sun, F.; Wang, X.; Tan, S.; Dan, Y.; Lu, Y.; Zhang, J.; Xu, J.; Tan, Z.; Xiang, X.; Zhou, Y.; et al. SARS-CoV-2 quasispecies provides an advantage mutation pool for the epidemic variants. Microbiol. Spectr. 2021, 9, e0026121. [Google Scholar] [CrossRef]
  5. Karakasiliotis, I.; Lagopati, N.; Evangelou, K.; Gorgoulis, V.G. Cellular senescence as a source of SARS-CoV-2 quasispecies. FEBS J. 2021. [Google Scholar] [CrossRef]
  6. Cann, A.J. Principles of Molecular Virology, 6th ed.; Academic Press: London, UK, 2015; pp. 128–130. [Google Scholar]
  7. Deeks, S.G.; Overbaugh, J.; Phillips, A.; Buchbinder, S. HIV infection. Nat. Rev. Dis. Primers. 2015, 1, 15035. [Google Scholar] [CrossRef]
  8. Bell, N.M.; Lever, A.M. HIV Gag polyprotein: Processing and early viral particle assembly. Trends Microbiol. 2013, 21, 136–144. [Google Scholar] [CrossRef]
  9. Smyth, R.P.; Davenport, M.P.; Mak, J. The origin of genetic diversity in HIV-1. Virus Res. 2012, 169, 415–429. [Google Scholar] [CrossRef]
  10. Craigie, R.; Bushman, F.D. HIV DNA integration. Cold Spring Harb. Perspect. Med. 2012, 2, a006890. [Google Scholar] [CrossRef] [Green Version]
  11. V’kovski, P.; Kratzel, A.; Steiner, S.; Stalder, H.; Thiel, V. Coronavirus biology and replication: Implications for SARS-CoV-2. Nat. Rev. Microbiol. 2021, 19, 155–170. [Google Scholar] [CrossRef]
  12. Coffin, J.M. HIV population dynamics in vivo: Implications for genetic variation, pathogenesis, and therapy. Science 1995, 267, 483–489. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Freed, E.O. HIV-1 assembly, release and maturation. Nat. Rev. Genet. 2015, 13, 484–496. [Google Scholar] [CrossRef] [PubMed]
  14. Engelman, A.; Cherepanov, P. The structural biology of HIV-1: Mechanistic and therapeutic insights. Nat. Rev. Microbiol. 2012, 10, 279–290. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Wu, F.; Zhao, S.; Yu, B.; Chen, Y.M.; Wang, W.; Song, Z.G.; Hu, Y.; Tao, Z.W.; Tian, J.H.; Pei, Y.Y.; et al. A new coronavirus associated with human respiratory disease in China. Nature 2020, 579, 265–269. [Google Scholar] [CrossRef] [Green Version]
  16. Cui, J.; Li, F.; Shi, Z.L. Origin and evolution of pathogenic coronaviruses. Nat. Rev. Microbiol. 2019, 17, 181–192. [Google Scholar] [CrossRef] [Green Version]
  17. Fehr, A.R.; Perlman, S. Coronaviruses: An overview of their replication and pathogenesis. Methods Mol. Biol. 2015, 1282, 1–23. [Google Scholar]
  18. Zhou, H.; Yang, J.; Zhou, C.; Chen, B.; Fang, H.; Chen, S.; Zhang, X.; Wang, L.; Zhang, L. A review of SARS-CoV-2: Compared with SARS-CoV and MERS-CoV. Front Med. 2021, 8, 628370. [Google Scholar] [CrossRef]
  19. Hardenbrook, N.J.; Zhang, P. A structural view of the SARS-CoV-2 virus and its assembly. Curr. Opin. Virol. 2022, 52, 123–134. [Google Scholar] [CrossRef]
  20. Jackson, C.B.; Farzan, M.; Chen, B.; Choe, H. Mechanisms of SARS-CoV-2 entry into cells. Nat. Rev. Mol. Cell Biol. 2022, 23, 3–20. [Google Scholar] [CrossRef]
  21. Malone, B.; Urakova, N.; Snijder, E.J.; Campbell, E.A. Structures and functions of coronavirus replication-transcription complexes and their relevance for SARS-CoV-2 drug design. Nat. Rev. Mol. Cell Biol. 2022, 23, 21–39. [Google Scholar] [CrossRef]
  22. Baggen, J.; Vanstreels, E.; Jansen, S.; Daelemans, D. Cellular host factors for SARS-CoV-2 infection. Nat. Microbiol. 2021, 6, 1219–1232. [Google Scholar] [CrossRef] [PubMed]
  23. Fung, T.S.; Liu, D.X. Coronavirus infection, ER stress, apoptosis and innate immunity. Front. Microbiol. 2014, 5, 296. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Zhang, S.; Wang, L.; Cheng, G. The battle between host and SARS-CoV-2: Innate immunity and viral evasion strategies. Mol. Ther. 2022, S1525-0016(22)00097-1. [Google Scholar] [CrossRef] [PubMed]
  25. Coffin, J.M.; Hughes, S.H.; Varmus, H.E. (Eds.) Retroviruses; Cold Spring Harbor Laboratory Press: Cold Spring Harbor, NY, USA, 1997. [Google Scholar]
  26. Tözsér, J.; Gustchina, A.; Weber, I.T.; Blaha, I.; Wondrak, E.M.; Oroszlan, S. Studies on the role of the S4 substrate binding site of HIV proteinases. FEBS Lett. 1991, 279, 356–360. [Google Scholar] [CrossRef] [Green Version]
  27. Pokorná, J.; Machala, L.; Rezáčová, P.; Konvalinka, J. Current and novel inhibitors of HIV protease. Viruses 2009, 1, 1209–1239. [Google Scholar] [CrossRef] [Green Version]
  28. Tözsér, J. Comparative studies on retroviral proteases: Substrate specificity. Viruses 2010, 2, 147–165. [Google Scholar] [CrossRef] [Green Version]
  29. Tözsér, J.; Bagossi, P.; Weber, I.T.; Louis, J.M.; Copeland, T.D.; Oroszlan, S. Studies on the symmetry and sequence context dependence of the HIV-1 proteinase specificity. J. Biol. Chem. 1997, 272, 16807–16814. [Google Scholar] [CrossRef] [Green Version]
  30. Prabu-Jeyabalan, M.; Nalivaika, E.; Schiffer, C.A. Substrate shape determines specificity of recognition for HIV-1 protease: Analysis of crystal structures of six substrate complexes. Structure 2002, 10, 369–381. [Google Scholar] [CrossRef]
  31. King, N.M.; Prabu-Jeyabalan, M.; Nalivaika, E.A.; Schiffer, C.A. Combating susceptibility to drug resistance: Lessons from HIV-1 protease. Chem. Biol. 2004, 11, 1333–1338. [Google Scholar]
  32. Ali, A.; Bandaranayake, R.M.; Cai, Y.; King, N.M.; Kolli, M.; Mittal, S.; Murzycki, J.F.; Nalam, M.N.; Nalivaika, E.A.; Ozen, A.; et al. Molecular Basis for Drug Resistance in HIV-1 Protease. Viruses 2010, 2, 2509–2535. [Google Scholar] [CrossRef]
  33. Nalam, M.N.; Ali, A.; Reddy, G.S.; Cao, H.; Anjum, S.G.; Altman, M.D.; Yilmaz, N.K.; Tidor, B.; Rana, T.M.; Schiffer, C.A. Substrate envelope-designed potent HIV-1 protease inhibitors to avoid drug resistance. Chem. Biol. 2013, 20, 1116–1124. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Sungkanuparph, S.; Sukasem, C.; Manosuthi, W.; Wiboonchutikul, S.; Piyavong, B.; Chantratita, W. Tipranavir resistance associated mutations in protease inhibitor-naïve patients with HIV-1 subtype A/E infection. J. Clin. Virol. 2008, 43, 284–286. [Google Scholar] [CrossRef] [PubMed]
  35. Holland, J.; Spindler, K.; Horodyski, F.; Grabau, E.; Nichol, S.; VandePol, S. Rapid evolution of RNA genomes. Science 1982, 215, 1577–1585. [Google Scholar] [CrossRef] [PubMed]
  36. Pillay, D.; Bhaskaran, K.; Jurriaans, S.; Prins, M.; Masquelier, B.; Dabis, F.; Gifford, R.; Nielsen, C.; Pedersen, C.; Balotta, C.; et al. The impact of transmitted drug resistance on the natural history of HIV infection and response to first-line therapy. AIDS 2006, 20, 21–28. [Google Scholar]
  37. Bennett, D.E.; Camacho, R.J.; Otelea, D.; Kuritzkes, D.R.; Fleury, H.; Kiuchi, M.; Heneine, W.; Kantor, R.; Jordan, M.R.; Schapiro, J.M.; et al. Drug resistance mutations for surveillance of transmitted HIV-1 drug-resistance: 2009 update. PLoS ONE 2009, 4, e4724. [Google Scholar] [CrossRef] [Green Version]
  38. Vercauteren, J.; Wensing, A.M.; van de Vijver, D.A.; Albert, J.; Balotta, C.; Hamouda, O.; Kücherer, C.; Struck, D.; Schmit, J.C.; Asjö, B.; et al. Transmission of drug-resistant HIV-1 is stabilizing in Europe. J. Infect Dis. 2009, 200, 1503–1508. [Google Scholar] [CrossRef]
  39. Grgic, I.; Lepej, S.Z.; Lunar, M.M.; Poljak, M.; Vince, A.; Vrakela, I.B.; Planinic, A.; Seme, K.; Begovac, J. The prevalence of transmitted drug resistance in newly diagnosed HIV-infected individuals in Croatia: The role of transmission clusters of men who have sex with men carrying the T215S surveillance drug resistance mutation. AIDS Res. Hum. Retroviruses 2013, 29, 329–336. [Google Scholar] [CrossRef] [Green Version]
  40. Áy, É.; Müller, V.; Mezei, M.; Pocskay, Á.; Koroknai, A.; Müller, D.; Győri, Z.; Marschalkó, M.; Tóth, B.; Kárpáti, S.; et al. Transmitted drug resistance in newly diagnosed and treatment-naïve HIV type 1-infected patients in Hungary. J. Glob. Antimicrob. Resist. 2020, 20, 124–130. [Google Scholar] [CrossRef]
  41. Günthard, H.F.; Calvez, V.; Paredes, R.; Pillay, D.; Shafer, R.W.; Wensing, A.M.; Jacobsen, D.M.; Richman, D.D. Human immunodeficiency virus drug resistance: 2018 recommendations of the international antiviral society-USA panel. Clin. Infect Dis. 2019, 68, 177–187. [Google Scholar] [CrossRef]
  42. Hemelaar, J.; Gouws, E.; Ghys, P.D.; Osmanov, S. Global and regional distribution of HIV-1 genetic subtypes and recombinants in 2004. AIDS 2006, 20, W13–W23. [Google Scholar] [CrossRef]
  43. Miller, V. International perspectives on antiretroviral resistance. resistance to protease inhibitors. J. Acquir. Immune Defic. Syndr. 2001, 26, S34–S50. [Google Scholar] [CrossRef] [PubMed]
  44. Boden, D.; Markowitz, M. Resistance to human immunodeficiency virus type 1 protease inhibitors. Antimicrob. Agents Chemother. 1998, 42, 2775–2783. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Menéndez-Arias, L.; Tözsér, J. HIV-1 protease inhibitors: Effects on HIV-2 replication and resistance. Trends Pharmacol. Sci. 2008, 29, 42–49. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Mahdi, M.; Szojka, Z.; Mótyán, J.A.; Tőzsér, J. Inhibition profiling of retroviral protease inhibitors using an HIV-2 modular system. Viruses 2015, 7, 6152–6162. [Google Scholar] [CrossRef] [Green Version]
  47. Chen, Z.; Li, Y.; Schock, H.B.; Hall, D.; Chen, E.; Kuo, L.C. Three-dimensional structure of a mutant HIV-1 protease displaying cross-resistance to all protease inhibitors in clinical trials. J. Biol. Chem. 1995, 270, 21433–21436. [Google Scholar] [CrossRef] [Green Version]
  48. Geretti, A.M. (Ed.) Antiretroviral Resistance in Clinical Practice; Mediscript: London, UK, 2006. Available online: https://www.ncbi.nlm.nih.gov/books/NBK2239/ (accessed on 20 February 2022).
  49. Wensing, A.M.J.; Fun, A.; Nijhuis, M. HIV Protease Inhibitor Resistance. In Handbook of Antimicrobial Resistance; Gotte, M., Berghuis, A., Matlashewski, G., Wainberg, M., Sheppard, D., Eds.; Springer: New York, NY, USA, 2017. [Google Scholar]
  50. Rhee, S.Y.; Gonzales, M.J.; Kantor, R.; Betts, B.J.; Ravela, J.; Shafer, R.W. Human immunodeficiency virus reverse transcriptase and protease sequence database. Nucleic Acids Res. 2003, 31, 298–303. [Google Scholar] [CrossRef] [Green Version]
  51. Hertogs, K.; Bloor, S.; Kemp, S.D.; van den Eynde, C.; Alcorn, T.M.; Pauwels, R.; van Houtte, M.; Staszewski, S.; Miller, V.; Larder, B.A. Phenotypic and genotypic analysis of clinical HIV-1 isolates reveals extensive protease inhibitor cross-resistance: A survey of over 6000 samples. AIDS 2000, 14, 1203–1210. [Google Scholar] [CrossRef]
  52. Weber, I.T.; Agniswamy, J. HIV-1 protease: Structural perspectives on drug resistance. Viruses 2009, 1, 1110–1136. [Google Scholar] [CrossRef]
  53. Menéndez-Arias, L. Molecular basis of human immunodeficiency virus type 1 drug resistance: Overview and recent developments. Antivir. Res. 2013, 98, 93–120. [Google Scholar] [CrossRef]
  54. Weber, I.T.; Kneller, D.W.; Wong-Sam, A. Highly resistant HIV-1 proteases and strategies for their inhibition. Future Med. Chem. 2015, 7, 1023–1038. [Google Scholar] [CrossRef] [Green Version]
  55. Xue, X.; Yu, H.; Yang, H.; Xue, F.; Wu, Z.; Shen, W.; Li, J.; Zhou, Z.; Ding, Y.; Zhao, Q.; et al. Structures of two coronavirus main proteases: Implications for substrate binding and antiviral drug design. J. Virol. 2008, 82, 2515–2527. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. Yang, H.; Xie, W.; Xue, X.; Yang, K.; Ma, J.; Liang, W.; Zhao, Q.; Zhou, Z.; Pei, D.; Ziebuhr, J.; et al. Design of wide-spectrum inhibitors targeting coronavirus main proteases. PLoS Biol. 2005, 3, e324. [Google Scholar]
  57. Jin, Z.; Du, X.; Xu, Y.; Deng, Y.; Liu, M.; Zhao, Y.; Zhang, B.; Li, X.; Zhang, L.; Peng, C.; et al. Structure of Mpro from SARS-CoV-2 and discovery of its inhibitors. Nature 2020, 582, 289–293. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  58. Zhang, L.; Lin, D.; Sun, X.; Curth, U.; Drosten, C.; Sauerhering, L.; Becker, S.; Rox, K.; Hilgenfeld, R. Crystal structure of SARS-CoV-2 main protease provides a basis for design of improved α-ketoamide inhibitors. Science 2020, 368, 409–412. [Google Scholar] [CrossRef] [Green Version]
  59. Xiong, M.; Su, H.; Zhao, W.; Xie, H.; Shao, Q.; Xu, Y. What coronavirus 3C-like protease tells us: From structure, substrate selectivity, to inhibitor design. Med. Res. Rev. 2021, 41, 1965–1998. [Google Scholar] [CrossRef]
  60. Kiemer, L.; Lund, O.; Brunak, S.; Blom, N. Coronavirus 3CLpro proteinase cleavage sites: Possible relevance to SARS virus pathology. BMC Bioinform. 2004, 5, 72. [Google Scholar] [CrossRef] [Green Version]
  61. Koudelka, T.; Boger, J.; Henkel, A.; Schönherr, R.; Krantz, S.; Fuchs, S.; Rodríguez, E.; Redecke, L.; Tholey, A. N-terminomics for the identification of in vitro substrates and cleavage site specificity of the SARS-CoV-2 main protease. Proteomics 2021, 21, e2000246. [Google Scholar] [CrossRef]
  62. Laskowski, R.A.; Jabłońska, J.; Pravda, L.; Vařeková, R.S.; Thornton, J.M. PDBsum: Structural summaries of PDB entries. Protein Sci. 2018, 27, 129–134. [Google Scholar] [CrossRef]
  63. Laskowski, R.A.; Swindells, M.B. LigPlot+: Multiple ligand–protein interaction diagrams for drug discovery. J. Chem. Inf. Model. 2011, 51, 2778–2786. [Google Scholar] [CrossRef]
  64. Macip, G.; Garcia-Segura, P.; Mestres-Truyol, J.; Saldivar-Espinoza, B.; Pujadas, G.; Garcia-Vallvé, S. A review of the current landscape of SARS-CoV-2 main protease inhibitors: Have we hit the bullseye yet? Int. J. Mol. Sci. 2021, 23, 259. [Google Scholar] [CrossRef]
  65. Zephyr, J.; Kurt Yilmaz, N.; Schiffer, C.A. Viral proteases: Structure, mechanism and inhibition. Enzymes 2021, 50, 301–333. [Google Scholar] [PubMed]
  66. Boras, B.; Jones, R.M.; Anson, B.J.; Arenson, D.; Aschenbrenner, L.; Bakowski, M.A.; Beutler, N.; Binder, J.; Chen, E.; Eng, H.; et al. Discovery of a novel inhibitor of coronavirus 3CL protease for the potential treatment of COVID-19. bioRxiv 2021. [Google Scholar] [CrossRef]
  67. Boras, B.; Jones, R.M.; Anson, B.J.; Arenson, D.; Aschenbrenner, L.; Bakowski, M.A.; Beutler, N.; Binder, J.; Chen, E.; Eng, H.; et al. Preclinical characterization of an intravenous coronavirus 3CL protease inhibitor for the potential treatment of COVID19. Nat. Commun. 2021, 12, 6055. [Google Scholar] [CrossRef] [PubMed]
  68. Baig, M.H.; Sharma, T.; Ahmad, I.; Abohashrh, M.; Alam, M.M.; Dong, J.J. Is PF-00835231 a Pan-SARS-CoV-2 Mpro inhibitor? A comparative study. Molecules 2021, 26, 1678. [Google Scholar] [CrossRef] [PubMed]
  69. Vandyck, K.; Deval, J. Considerations for the discovery and development of 3-chymotrypsin-like cysteine protease inhibitors targeting SARS-CoV-2 infection. Curr. Opin. Virol. 2021, 49, 36–40. [Google Scholar] [CrossRef]
  70. Owen, D.R.; Allerton, C.M.N.; Anderson, A.S.; Aschenbrenner, L.; Avery, M.; Berritt, S.; Boras, B.; Cardin, R.D.; Carlo, A.; Coffman, K.J.; et al. An oral SARS-CoV-2 Mpro inhibitor clinical candidate for the treatment of COVID-19. Science 2021, 374, 1586–1593. [Google Scholar] [CrossRef]
  71. Patick, A.K.; Brothers, M.A.; Maldonado, F.; Binford, S.; Maldonado, O.; Fuhrman, S.; Petersen, A.; Smith, G.J., 3rd; Zalman, L.S.; Burns-Naas, L.A.; et al. In vitro antiviral activity and single-dose pharmacokinetics in humans of a novel, orally bioavailable inhibitor of human rhinovirus 3C protease. Antimicrob. Agents Chemother. 2005, 49, 2267–2275. [Google Scholar] [CrossRef] [Green Version]
  72. Hull, M.W.; Montaner, J.S. Ritonavir-boosted protease inhibitors in HIV therapy. Ann. Med. 2011, 43, 375–388. [Google Scholar] [CrossRef]
  73. Pfizer, 2021.11.05. Available online: https://www.pfizer.com/news/press-release/press-release-detail/pfizers-novel-covid-19-oral-antiviral-treatment-candidate (accessed on 15 February 2022).
  74. Kim, Y.; Lovell, S.; Tiew, K.C.; Mandadapu, S.R.; Alliston, K.R.; Battaile, K.P.; Groutas, W.C.; Chang, K.O. Broad-spectrum antivirals against 3C or 3C-like proteases of picornaviruses, noroviruses, and coronaviruses. J. Virol. 2012, 86, 11754–11762. [Google Scholar] [CrossRef] [Green Version]
  75. Ma, C.; Sacco, M.D.; Hurst, B.; Townsend, J.A.; Hu, Y.; Szeto, T.; Zhang, X.; Tarbet, B.; Marty, M.T.; Chen, Y.; et al. Boceprevir, GC-376, and calpain inhibitors II, XII inhibit SARS-CoV-2 viral replication by targeting the viral main protease. Cell Res. 2020, 30, 678–692. [Google Scholar] [CrossRef]
  76. Boceprevir. Drugs RD 2010, 10, 203–210. [CrossRef] [PubMed]
  77. Ahmad, B.; Batool, M.; Ain, Q.U.; Kim, M.S.; Choi, S. Exploring the binding mechanism of PF-07321332 SARS-CoV-2 protease inhibitor through molecular dynamics and binding free energy simulations. Int. J. Mol. Sci. 2021, 22, 9124. [Google Scholar] [CrossRef] [PubMed]
  78. Macchiagodena, M.; Pagliai, M.; Procacci, P. Characterization of the non-covalent interaction between the PF-07321332 inhibitor and the SARS-CoV-2 main protease. J. Mol. Graph. Model. 2022, 110, 108042. [Google Scholar] [CrossRef]
  79. Zhao, Y.; Fang, C.; Zhang, Q.; Zhang, R.; Zhao, X.; Duan, Y.; Wang, H.; Zhu, Y.; Feng, L.; Zhao, J.; et al. Crystal structure of SARS-CoV-2 main protease in complex with protease inhibitor PF-07321332. Protein Cell 2021, 1–5. [Google Scholar] [CrossRef] [PubMed]
  80. Greasley, S.E.; Noell, S.; Plotnikova, O.; Ferre, R.; Liu, W.; Bolanos, B.; Fennell, K.; Nicki, J.; Craig, T.; Zhu, Y.; et al. Structural basis for Nirmatrelvir in vitro efficacy against the Omicron variant of SARS-CoV-2. bioRxiv 2022. [Google Scholar] [CrossRef]
  81. Ghosh, A.K.; Chapsal, B.D.; Weber, I.T.; Mitsuya, H. Design of HIV protease inhibitors targeting protein backbone: An effective strategy for combating drug resistance. Acc. Chem. Res. 2008, 41, 78–86. [Google Scholar] [CrossRef] [PubMed]
  82. MacDonald, E.A.; Frey, G.; Namchuk, M.N.; Harrison, S.C.; Hinshaw, S.M.; Windsor, I.W. Recognition of divergent viral substrates by the SARS-CoV-2 main protease. ACS Infect Dis. 2021, 7, 2591–2595. [Google Scholar] [CrossRef]
  83. Kneller, D.W.; Zhang, Q.; Coates, L.; Louis, J.M.; Kovalevsky, A. Michaelis-like complex of SARS-CoV-2 main protease visualized by room-temperature X-ray crystallography. IUCr J. 2021, 8, 973–979. [Google Scholar] [CrossRef]
  84. Kneller, D.; Li, H.; Phillips, G.; Weiss, K.; Zhang, Q.; Arnould, M.; Jonsson, C.; Surendranathan, S.; Parvathareddy, J.; Blakeley, M.; et al. Covalent narlaprevir- and boceprevir-derived hybrid inhibitors of SARS-CoV-2 main protease: Room-temperature X-ray and neutron crystallography, binding thermodynamics, and antiviral activity. Res. Sq. 2022, preprint. [Google Scholar] [CrossRef]
  85. Schechter, I.; Berger, A. On the size of the active site in proteases. I. Papain. Biochem. Biophys. Res. Commun. 1967, 27, 157–162. [Google Scholar] [CrossRef]
  86. Shaqra, A.M.; Zvornicanin, S.; Huang, Q.Y.; Lockbaum, G.J.; Knapp, M.; Tandeske, L.; Barkan, D.T.; Flynn, J.; Bolon, D.N.A.; Moquin, S.; et al. Defining the substrate envelope of SARS-CoV-2 main protease to predict and avoid drug resistance. bioRxiv 2022. [Google Scholar] [CrossRef]
  87. Cheng, S.C.; Chang, G.G.; Chou, C.Y. Mutation of Glu-166 blocks the substrate-induced dimerization of SARS coronavirus main protease. Biophys. J. 2010, 98, 1327–1336. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  88. Elbe, S.; Buckland-Merrett, G. Data, disease and diplomacy: GISAID’s innovative contribution to global health. Glob. Chall. 2017, 1, 33–46. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  89. Portelli, S.; Olshansky, M.; Rodrigues, C.H.M.; D’Souza, E.N.; Myung, Y.; Silk, M.; Alavi, A.; Pires, D.E.V.; Ascher, D.B. Author correction: Exploring the structural distribution of genetic variation in SARS-CoV-2 with the COVID-3D online resource. Nat. Genet. 2021, 53, 254, Erratum in Nat. Genet. 2020, 52, 999–1001. [Google Scholar] [CrossRef]
  90. Torrens-Fontanals, M.; Peralta-García, A.; Talarico, C.; Guixà-González, R.; Giorgino, T.; Selent, J. SCoV2-MD: A database for the dynamics of the SARS-CoV-2 proteome and variant impact predictions. Nucleic Acids Res. 2022, 50, D858–D866. [Google Scholar] [CrossRef]
  91. Alsulami, A.F.; Thomas, S.E.; Jamasb, A.R.; Beaudoin, C.A.; Moghul, I.; Bannerman, B.; Copoiu, L.; Vedithi, S.C.; Torres, P.; Blundell, T.L. SARS-CoV-2 3D database: Understanding the coronavirus proteome and evaluating possible drug targets. Brief Bioinform. 2021, 22, 769–780. [Google Scholar] [CrossRef]
  92. Krishnamoorthy, N.; Fakhro, K. Identification of mutation resistance coldspots for targeting the SARS-CoV2 main protease. IUBMB Life 2021, 73, 670–675. [Google Scholar] [CrossRef]
  93. Sheik Amamuddy, O.; Verkhivker, G.M.; Tastan Bishop, Ö. Impact of early pandemic stage mutations on molecular dynamics of SARS-CoV-2 Mpro. J. Chem. Inf. Model. 2020, 60, 5080–5102. [Google Scholar] [CrossRef]
  94. Sharma, T.; Abohashrh, M.; Baig, M.H.; Dong, J.J.; Alam, M.M.; Ahmad, I.; Irfan, S. Screening of drug databank against WT and mutant main protease of SARS-CoV-2: Towards finding potential compound for repurposing against COVID-19. Saudi. J. Biol. Sci. 2021, 28, 3152–3159. [Google Scholar] [CrossRef]
  95. Nakayoshi, T.; Kato, K.; Kurimoto, E.; Oda, A. Virtual alanine scan of the main protease active site in severe acute respiratory syndrome Coronavirus 2. Int. J. Mol. Sci. 2021, 22, 9837. [Google Scholar] [CrossRef]
  96. Kneller, D.W.; Phillips, G.; O’Neill, H.M.; Jedrzejczak, R.; Stols, L.; Langan, P.; Joachimiak, A.; Coates, L.; Kovalevsky, A. Structural plasticity of SARS-CoV-2 3CLMpro active site cavity revealed by room temperature X-ray crystallography. Nat. Commun. 2020, 11, 3202. [Google Scholar] [CrossRef]
  97. Cross, T.J.; Takahashi, G.R.; Diessner, E.M.; Crosby, M.G.; Farahmand, V.; Zhuang, S.; Butts, C.T.; Martin, R.W. Sequence characterization and molecular modeling of clinically relevant variants of the SARS-CoV-2 main protease. Biochemistry 2020, 59, 3741–3756. [Google Scholar] [CrossRef]
  98. Ullrich, S.; Ekanayake, K.B.; Otting, G.; Nitsche, C. Main protease mutants of SARS-CoV-2 variants remain susceptible to nirmatrelvir. Bioorg. Med. Chem. Lett. 2022, 62, 128629. [Google Scholar] [CrossRef] [PubMed]
  99. Li, P.; Wang, Y.; Lavrijsen, M.; Lamers, M.M.; de Vries, A.C.; Rottier, R.J.; Bruno, M.J.; Peppelenbosch, M.P.; Haagmans, B.L.; Pan, Q. SARS-CoV-2 Omicron variant is highly sensitive to molnupiravir, nirmatrelvir, and the combination. Cell Res. 2022, 32, 322–324. [Google Scholar] [CrossRef] [PubMed]
  100. Rai, K.D.; Yurgelonis, I.; McMonagle, P.; Rothan, H.A.; Hao, L.; Gribenko, A.; Titova, E.; Kreiswirth, B.; White, K.M.; Zhu, Y.; et al. Nirmatrelvir, an orally active Mpro inhibitor, is a potent inhibitor of SARS-CoV-2 Variants of Concern. bioRxiv 2022. [Google Scholar] [CrossRef]
  101. Vangeel, L.; Chiu, W.; De Jonghe, S.; Maes, P.; Slechten, B.; Raymenants, J.; André, E.; Leyssen, P.; Neyts, J.; Jochmans, D. Remdesivir, Molnupiravir and Nirmatrelvir remain active against SARS-CoV-2 Omicron and other variants of concern. Antivir. Res. 2022, 198, 105252. [Google Scholar] [CrossRef] [PubMed]
  102. Nijhuis, M.; Deeks, S.; Boucher, C. Implications of antiretroviral resistance on viral fitness. Curr. Opin. Infect. Dis. 2001, 14, 23–28. [Google Scholar] [CrossRef] [PubMed]
  103. Chang, M.W.; Torbett, B.E. Accessory mutations maintain stability in drug-resistant HIV-1 protease. J. Mol. Biol. 2011, 410, 756–760. [Google Scholar] [CrossRef] [Green Version]
  104. Prabu-Jeyabalan, M.; Nalivaika, E.A.; King, N.M.; Schiffer, C.A. Structural basis for coevolution of a human immunodeficiency virus type 1 nucleocapsid-p1 cleavage site with a V82A drug-resistant mutation in viral protease. J. Virol. 2004, 78, 12446–12454. [Google Scholar] [CrossRef] [Green Version]
  105. Nijhuis, M.; Schuurman, R.; De Jong, D.; Erickson, J.; Gustchina, E.; Albert, J.; Schipper, P.; Gulnik, S.; Boucher, C.A.B. Increased fitness of drug resistant HIV-1 protease as a result of acquisition of compensatory mutations during suboptimal therapy. AIDS 1999, 13, 2349–2359. [Google Scholar] [CrossRef]
  106. Su, C.T.; Koh, D.W.; Gan, S.K. Reviewing HIV-1 gag mutations in protease inhibitors resistance: Insights for possible novel gag inhibitor designs. Molecules 2019, 24, 3243. [Google Scholar] [CrossRef] [Green Version]
  107. Pablos, I.; Machado, Y.; de Jesus, H.C.R.; Mohamud, Y.; Kappelhoff, R.; Lindskog, C.; Vlok, M.; Bell, P.A.; Butler, G.S.; Grin, P.M.; et al. Mechanistic insights into COVID-19 by global analysis of the SARS-CoV-2 3CLpro substrate degradome. Cell Rep. 2021, 37, 109892. [Google Scholar] [CrossRef]
  108. Goetz, D.H.; Choe, Y.; Hansell, E.; Chen, Y.T.; McDowell, M.; Jonsson, C.B.; Roush, W.R.; McKerrow, J.; Craik, C.S. Substrate specificity profiling and identification of a new class of inhibitor for the major protease of the SARS coronavirus. Biochemistry 2007, 46, 8744–8752. [Google Scholar] [CrossRef] [PubMed]
  109. Chuck, C.P.; Chong, L.T.; Chen, C.; Chow, H.F.; Wan, D.C.; Wong, K.B. Profiling of substrate specificity of SARS-CoV 3CLpro. PLoS ONE 2010, 5, e13197. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  110. Chuck, C.P.; Chow, H.F.; Wan, D.C.; Wong, K.B. Profiling of substrate specificities of 3C-like proteases from group 1, 2a, 2b, and 3 coronaviruses. PLoS ONE 2011, 6, e27228. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  111. Zhang, Y.M.; Imamichi, H.; Imamichi, T.; Lane, H.C.; Falloon, J.; Vasudevachari, M.B.; Salzman, N.P. Drug resistance during indinavir therapy is caused by mutations in the protease gene and in its Gag substrate cleavage sites. J. Virol. 1997, 71, 6662–6670. [Google Scholar] [CrossRef] [Green Version]
  112. Doyon, L.; Payant, C.; Brakier-Gingras, L.; Lamarre, D. Novel Gag-Pol frameshift site in human immunodeficiency virus type 1 variants resistant to protease inhibitors. J. Virol. 1998, 72, 6146–6150. [Google Scholar] [CrossRef] [Green Version]
  113. Wensing, A.M.; van Maarseveen, N.M.; Nijhuis, M. Fifteen years of HIV Protease Inhibitors: Raising the barrier to resistance. Antivir. Res. 2010, 85, 59–74. [Google Scholar] [CrossRef]
  114. Arts, E.J.; Hazuda, D.J. HIV-1 antiretroviral drug therapy. Cold Spring Harb. Perspect. Med. 2012, 2, a007161. [Google Scholar] [CrossRef]
  115. Pfizer, 2022.01.18. Available online: https://www.pfizer.com/news/press-release/press-release-detail/pfizer-shares-vitro-efficacy-novel-covid-19-oral-treatment (accessed on 15 February 2022).
  116. Heskin, J.; Pallett, S.J.C.; Mughal, N.; Davies, G.W.; Moore, L.S.P.; Rayment, M.; Jones, R. Caution required with use of ritonavir-boosted PF-07321332 in COVID-19 management. Lancet 2022, 399, 21–22. [Google Scholar] [CrossRef]
Ijms 23 03507 g003 550
Figure 3. SARS-CoV-2 Mpro sequence variations based on COVID-3D database. The schematic representation of domain organization is also represented, and the arrows show ligand-binding active-site residues based on Table 1.
Figure 3. SARS-CoV-2 Mpro sequence variations based on COVID-3D database. The schematic representation of domain organization is also represented, and the arrows show ligand-binding active-site residues based on Table 1.
Ijms 23 03507 g003
Ijms 23 03507 g004 550
Figure 4. SARS-CoV-2 Mpro sequence variations based on COVID-3D database. Top20 variations: residues with more than 300 known variants (a). Mutation frequency of active-site residues involved in the binding of nirmatrelvir (b). The database was accessed at 14 January 2022. The bars are colored based on domain organization (domain I–III are blue, while the linker between domain II and III is gray).
Figure 4. SARS-CoV-2 Mpro sequence variations based on COVID-3D database. Top20 variations: residues with more than 300 known variants (a). Mutation frequency of active-site residues involved in the binding of nirmatrelvir (b). The database was accessed at 14 January 2022. The bars are colored based on domain organization (domain I–III are blue, while the linker between domain II and III is gray).
Ijms 23 03507 g004
Ijms 23 03507 g005 550
Figure 5. SARS-CoV-2 Mpro sequence variations at the active site. (a) The 20 most frequently occurring mutations (based on Figure 3) are shown by red sticks in the crystal structure of the enzyme (7RFS.pdb); the nirmatrelvir bound to the active site is also shown by sticks. (b) Enlarged view of the active site showing the inhibitor (gray) and the residues involved in nirmatrelvir binding. The residues are colored according to the number of the known variations in the given position.
Figure 5. SARS-CoV-2 Mpro sequence variations at the active site. (a) The 20 most frequently occurring mutations (based on Figure 3) are shown by red sticks in the crystal structure of the enzyme (7RFS.pdb); the nirmatrelvir bound to the active site is also shown by sticks. (b) Enlarged view of the active site showing the inhibitor (gray) and the residues involved in nirmatrelvir binding. The residues are colored according to the number of the known variations in the given position.
Ijms 23 03507 g005
Table
Table 2. Sequence variations of the SARS-CoV-2 Mpro cleavage sites of the polyprotein. The P5-P5’ cleavage site residues are shown, the circulating variants are indicated, and the variant counts are shown in parentheses based on COVID-3D resource. n.a., data are not available; -, no variant at this position is included in the database.
Table 2. Sequence variations of the SARS-CoV-2 Mpro cleavage sites of the polyprotein. The P5-P5’ cleavage site residues are shown, the circulating variants are indicated, and the variant counts are shown in parentheses based on COVID-3D resource. n.a., data are not available; -, no variant at this position is included in the database.
P5P4P3P2P1P1’P2’P3’P4’P5’
nsp4-nsp5SAVLQSGFRK
S496L (3)A497S (1)V498I (25)L499A (1)---F3L (1)R4K (11)K5E (1)
V498F (1) R4G (1)
nsp5-nsp6GVTFQSAVKR
G302C (8)V303I (4)T304I (54)F305L (1)Q306H (4)S1N (127)-V3M (25)K4E (36)R5G (13)
G302S (1)V303G (1)T304N (35)F305C (1)Q306R (1) V3L (10)K4R (21)
T304P (1) V3I (5)K4Q (6)
V3A (4)K4G (1)
nsp6-nsp7VATVQSKMSD
V286I (22)A287T (35)T288I (22)V289L (20)Q290H (90)-K2R (4)M3I (1096)S4A (7)D5A (7)
V286L (8)A287V (32)T288A (3)V289I (7) K2E (2)M3T (12)S4L (3)D5E (4)
A287S (2)T288S (3)V289E (1) M3V (3)
A287D (1)T288N (2)
nsp7-nsp8RATLQAIASE
R79M (5)A80V (250)T81I (257)L82S (2)Q83H (3)-I2V (20)A3V (26)S4L (37)E5D (8)
R79G (4)A80T (8)T81A (4) I2M (6)A3S (3)S4T (5)
R79S (1) I2T (3)A3T (2)S4A (1)
R79K (1) I2L (2)A3D (1)
nsp8-nsp9AVKLQNNELS
A194V (74)V195I (35)--Q198H (31)----S5G (11)
V195F (3) S5N (5)
V195A (1) S5R (1)
nsp9-nsp10TVRLQAGNAT
T109I (287)V110L (1)R111H (1)L112T (1)Q113R (1)n.a.n.a. n.a.n.a.n.a.
T109R (1)V110N (1)R111C (1)
nsp10-nsp11EPMLQSADAQ
n.a.n.a.n.a.n.a.n.a.n.a.A2V (44)D3G (12)A4V (54)Q5P (1)
A2T (5)D3N (6)A4T (4)Q5K (1)
A2S (5)D3E (1)A4S (1)Q5L (1)
A2D (2) A4E (1)Q5R (1)
nsp11-nsp12HTVLQAVGAC
H928Y (100)T929I (2)V930I (14)L931T (1)Q932H (41)-V2I (3)G3R (1)A4V (152)C5S (1)
H928Q (4)T929A (1)V930F (1)L931Y (1) A4S (41)
H928L (2)T929S (1)V930L (1) A4T (1)
nsp12-nsp13VATLQAENVT
V597L (13)A598S (6763)T599I (744)L600Y (1)Q601H (2)-E2A (1)N3T (6)V4L (5)T5I (9)
V597A (11)A598V (418)T599N (10) Q601K (1) E2G (1)N3S (2)V4I (4)T5A (6)
V597M (3)A598T (10)T599A (1) E2K (1)N3H (1)V4A (1)
V597W (1)A598E (1)T599L (1) E2Q (1)N3I (1)
A598L (1) E2V (1)
A598Q (1)
nsp13-nsp14FTRLQSLENV
F523C (1)T524I (114)R525K (32)L526F (2)Q527P (1)-----
F523L (1)T524A (2)R525I (3)L526P (1)
T524Q (1)R525D (1)
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Mótyán, J.A.; Mahdi, M.; Hoffka, G.; Tőzsér, J. Potential Resistance of SARS-CoV-2 Main Protease (Mpro) against Protease Inhibitors: Lessons Learned from HIV-1 Protease. Int. J. Mol. Sci. 2022, 23, 3507. https://doi.org/10.3390/ijms23073507

AMA Style

Mótyán JA, Mahdi M, Hoffka G, Tőzsér J. Potential Resistance of SARS-CoV-2 Main Protease (Mpro) against Protease Inhibitors: Lessons Learned from HIV-1 Protease. International Journal of Molecular Sciences. 2022; 23(7):3507. https://doi.org/10.3390/ijms23073507

Chicago/Turabian Style

Mótyán, János András, Mohamed Mahdi, Gyula Hoffka, and József Tőzsér. 2022. "Potential Resistance of SARS-CoV-2 Main Protease (Mpro) against Protease Inhibitors: Lessons Learned from HIV-1 Protease" International Journal of Molecular Sciences 23, no. 7: 3507. https://doi.org/10.3390/ijms23073507

APA Style

Mótyán, J. A., Mahdi, M., Hoffka, G., & Tőzsér, J. (2022). Potential Resistance of SARS-CoV-2 Main Protease (Mpro) against Protease Inhibitors: Lessons Learned from HIV-1 Protease. International Journal of Molecular Sciences, 23(7), 3507. https://doi.org/10.3390/ijms23073507

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
