Co₃O₄ Nanoparticles Uniformly Dispersed in Rational Porous Carbon Nano-Boxes for Significantly Enhanced Electrocatalytic Detection of H₂O₂ Released from Living Cells

Abstract

A facile and ingenious method to chemical etching-coordinating a metal-organic framework (MOF) followed by an annealing treatment was proposed to prepare Co₃O₄ nanoparticles uniformly dispersed in rational porous carbon nano-boxes (Co₃O₄@CNBs), which was further used to detect H₂O₂ released from living cells. The Co₃O₄@CNBs H₂O₂ sensor delivers much higher sensitivity than non-etching/coordinating Co₃O₄, offering a limit of detection of 2.32 nM. The wide working range covers 10 nM-359 μM H₂O₂, while possessing good selectivity and excellent reproducibility. Moreover, this biosensor was used to successfully real-time detect H₂O₂ released from living cells, including both healthy and tumor cells. The excellent performance holds great promise for Co₃O₄@CNBs’s applications in electrochemical biomimetic sensing, particularly real-time monitor H₂O₂ released from living cells.

1. Introduction

H₂O₂ is a reactive oxygen species (ROS) frequently used as a marker for oxidative stress analysis. It is a by-product of reactions catalyzed by most oxidase enzymes [1], and is also involved in numerous physiological processes including cell differentiation and mediating immune responses [2,3]. Excess H₂O₂ will attack methionine residues and cysteine, which will cause cell damage and cytotoxicity. Owing to its peculiar capability, the concentration of H₂O₂ can be used as an indicator of several diseases diagnoses, such as Parkinson’s disease [4,5], cancer [6,7], diabetes [8] and acute myocardial infarction [9]. Thus, the determination of H₂O₂ is of great significance in biomedical, industrial, and academic applications. The H₂O₂ levels in the intracellular physiology range are from 0.001 to 0.7 μM [10]. Therefore, sensors with high sensitivity, specificity and broad working range are needed to probe the intracellular H₂O₂. The excellent detection of H₂O₂ mainly depends on the detection method and material two aspects. Among the technique for accurate and reliable detection of cellular H₂O₂, such as colorimetry [11,12], fluorescence [13,14], chromatography [15] and chemiluminescence [16], electrochemical techniques increasingly attracted attention due to their high sensitivity, good selectivity, low cost, as well as rapid response. For electrochemical detection, natural enzymes are usually the choice of sensing materials due to their remarkable specificity and high sensitivity in catalyzing the decomposition of H₂O₂. However, the inherent defect of natural enzymes, such as instability and ease to reduce or even deactivate the activity, limited their further applications [17]. Thus, non-enzymatic electrochemical sensors were proposed to overcome the limitations of natural enzyme sensing platforms [18]. Various nanomaterials have been used in H₂O₂ sensors, including transition metals oxides (e.g., Fe₃O₄, Co₃O₄, NiO, CuO) [19,20,21,22]. Transition metals have multiple oxidation states. They can absorb other substances onto their surface, meanwhile activating them in the process. These good abilities make them an excellent choice in synthesizing nanoenzymes [1]. Among these materials, Co₃O_4, a kind of intrinsic p-type transition metal oxide, was reported in electrochemically detecting H₂O₂ because of its high electrochemical stability, fair price, and environmentally friendly [23]. However, the close-packed structures and poor electronic conductivity of Co₃O₄ could reduce their specific surface area and deteriorate its performance in H₂O₂ detection.

Metal-organic framework (MOF) possesses the periodic network structures made by the self-assembly of organic linkers and inorganic metal-containing nodes [24]. Recently, the unique merits of crystalline porous structure, highly dispersed metal components, and adjustable pore size of MOFs grant them outstanding performances in various applications [25]. In addition, MOF-derived carbon materials overcome the aggregation of metal nanoparticles that is induced by a further pyrolysis process [26]. Hence, metal-organic framework (MOF)-derived Co₃O₄ are promising in synthesis Co₃O₄ with uniform morphology and good electronic conductivity.

Tannic acid (TA) is a plant polyphenol. The chemical structure of TA is usually a decagalloyl glucose (C₇₆H₅₂O₄₆) [27]. It widely exists in plant tissues such as tea, wood, and wine [28]. Its adhesive and reduction capability have been demonstrated in materials synthesis for lithium-ion batteries [29,30], dye remove [31], oil/water separation [32], catalytic [33], cell proliferation [34] and drug delivery [35]. As a kind of phenolic acid, TA is a weak organic acid and can release protons [36], which is applied in etching MOF materials to synthesize hollow structured materials [37].

In this study, to achieve sensitive and specific H₂O₂ detection, we rationally designed an ingenious method to synthesize ZIF-67 MOF-derived Co₃O₄ nanoparticles (NPs) dispersing in porous carbon nano-box (Co₃O₄ @CNBs) as a H₂O₂ nanozyme. The function of TA is to etch ZIF-67 while preserving the overall cubic architectures during thermal annealing process. The Co₃O₄ nanoparticles uniformly dispersed in porous carbon nano-boxes (Co₃O₄@CNBs) was synthesized by delicately tuning TA concentration and thermal annealing temperature. The sensing performance of Co₃O₄@CNBs in H₂O₂ sensing was characterized. The dispersion of Co₃O₄ NPs in the porous carbon nano-boxes (CNBs) was further investigated for its enhancement mechanism toward the specific reduction of H₂O₂. Moreover, the application of the Co₃O₄@CNBs H₂O₂ sensor was demonstrated in detecting H₂O₂ released from living cells.

2. Material and Methods

2.1. Chemicals

All of the chemicals were of analytical grade and used as received. The aqueous solutions were prepared with ultra-pure water (>18.25 MΩ/cm) obtained from Q-Grad^®1 system (Millipore Corporation, Burlington, MA, USA). Cobalt nitrate hexahydrate (Co(NO₃)₂•6H₂O), cetyltrimethylammonium bromide (CTAB), 2-methylimidazole (2-MeIm), tannic acid (TA), hydrogen peroxide (H₂O₂), glucose (Glu), cysteine (Cys), dopamine (DA), uric acid (UA), ascorbic acid (AA), glycine(Gly), sucrose (SUC), glutathione (GSH), urea and catalase from bovine liver were purchased from Aladdin (Shanghai, China). Phorbol 12-myristate-13-acetate (PMA) and Nafion (5%, wt %), were ordered from Sigma-Aldrich (Shanghai, China). Phosphate buffered saline (PBS, pH 7.4) was purchased from Dingguo (Beijing, China). Human non-small cell lung cancer A549, mouse breast cancer cells 4T1, and human umbilical vein endothelial HUVEC cell lines were obtained from the Type Culture Collection of the Chinese Academy of Sciences (Shanghai, China). Dulbecco’s Modified Eagle Medium (DMEM) medium, 10% fetal bovine serum (FBS), 1× antibiotic antimycotic were from Gibco (USA). Thiazolyl blue tetrazolium bromide (MTT) was purchased from Beyotime Biotechnology (Beijing, China).

2.2. Characterizations

The morphologies of the synthesized materials were observed by field emitted scanning electron microscopy (FESEM, JSM-7800 F, JEOL, Tokyo, Japan) and transmission electron microscopy (TEM, JEM-2100, JEOL, Japan). HAADF-STEM characterization was conducted with TEM (JEM-2100, JEOL, Japan). The surface properties of the materials were characterized by X-ray photoelectron spectroscopy (XPS, ESCALAB 250Xi, Thermo Scientific, Waltham, MA, USA). The crystal structure was characterized by X-ray diffraction (XRD, MAXima-X XRD-7000, Shimadzu, Tokyo, Japan). The chemical groups of the samples were recorded by Fourier transform infrared spectroscopy (FTIR, Thermo-Nicolet 6700, Thermo Scientific, MA, USA) with air as a reference. Thermogravimetric analysis (TGA, TA Instruments Q50, TA Instruments, New Castle, DE, USA) was performed using a thermal analyzer under airflow (10 °C min⁻¹). JW-BK300C (JWGB SCI. & TECH., Beijing, China) determined N₂ adsorption-desorption isotherms and pore-size distributions. All electrochemical measurements were performed at room temperature on a CHI 760D (Chenhua Instruments, Shanghai, China). PBS (0.01 M, pH = 7.4) was used as the electrolyte for all electrochemical measures except in detection with cell viability.

2.3. Preparation Co₃O₄@CNBs from ZIF-67

Synthesis of Co₃O₄@CNBs involves the following three-steps:

Synthesis of ZIF-67 nanocubes (ZIF-67 NCs): ZIF-67 NCs were synthesized according to the previous works [38]. 580 mg of Co(NO₃)₂•6H₂O and 4 mg of etyltrimethylammonium bromide (CTAB) were dissolved in 20 mL of deionized water and marked as solution A. 9.08 g of 2-methyimidazole (2-MIM) was dissolved in 140 mL of deionized water, and marked as a solution B. Then the 20 mL solution A was rapidly injected into 140 mL solution B and stirred at room temperature for 20 min. The mixture was centrifuged at 10,000 rpm for 10 min. The collected precipitate (ZIF-67 NCs) was washed with ethanol several times and then dried in an oven at dried at 60 °C for 24 h.

Synthesis of TA-Co nano boxes (TA-Co NBs): The as-prepared ZIF-67 NCs were first dispersed into 10 mL of ethanol, then poured into 150 mL of ethanol and deionized water mixture solution (Volume ratio of H₂O and ethanol = 1:1) containing different concentration of TA solution (0 mg/mL, 0.5 mg/mL, 1 mg/mL, 2 mg/mL) and stirred at room temperature for 5 min. The precipitate collected by centrifugation was washed with ethanol and then dried in an oven at dried at 60 °C for 24 h. The TA etched ZIF-67 was recorded as TA-Co nano boxes (TA-Co NBs).

Synthesis of Co₃O₄@CNBs: The as-prepared TA-Co NBs powder was first annealed at 200 °C for 30 min and then further annealed at different temperatures (500 °C, 600 °C, 700 °C, 800 °C) for 1 h with a heating rate of 1 °C min⁻¹ under N₂ flow, and cooled down to room temperature naturally. After that, the powder was annealed at 200 °C for 6 h in air with a heating rate of 10 °C min⁻¹. The obtained materials named as Co₃O₄@CNBs. In comparison, pristine ZIF-67 without TA etching was thermally annealed with the same condition and recorded as Co₃O₄@carbon (Co₃O₄@C).

2.4. Preparation of Co₃O₄@CNBs Modified Electrode

All electrochemical measurements were performed on a CHI 760D electrochemical workstation (Chenhua Instruments, China). A conventional three-electrode cell was used with a modified glass carbon electrode as the working electrode, Ag/AgCl (in saturated KCl solution) as the reference electrode, and platinum wire as the counter electrode. Glassy carbon electrodes (GCE) were polished with 0.3 and 0.05 μm alumina slurry on a polishing cloth and cleaned sequentially through water and ethanol under sonication for 3 min and dried in nitrogen flow for further use. Next, 7 μL 2 mg/mL Co₃O₄@CNBs aqueous dispersion was dropped on it and dried for 3 h at room temperature. After that, 5 μL 0.05% Nafion were dropped on it successively and dried at room temperature. Nafion film acts as a protective layer, preventing the falling of the loaded Co₃O₄@CNBs from the electrode. The supporting electrolyte of PBS (0.01 M, pH = 7.4) was deoxygenated using nitrogen before use and kept inside a nitrogen atmosphere. The prepared working electrodes were activated by cyclic voltammetric (CV) scanning for 20 cycles in the potential range from −1.0 to 1.0 V at a scan rate of 50 mV·s⁻¹. Amperometric current-time curves (i-t) were collected at −0.22 V in 0.01 M 10 mL PBS by successive injecting H₂O₂ at 50 s intervals.

2.5. Detection of H₂O₂ Released from Living Cells

In this work, three types of living human cells, A549, 4T1 and HUVEC cell were cultured in DMEM containing 10% FBS, 1 × antibiotic antimycotic. All the cells were supplemented with 10% FBS in a humidified incubator (with 5% CO₂ atmosphere) at 37 °C and grown in polystyrene-coated T25 (25 cm²) cell culture flasks. Cells were washed three times with 0.01 M PBS (pH 7.4), detached by 1% Trypsin, collected by centrifugation, and the number was calculated using a cell counter. The response of H₂O₂ released from approximately 1.0 × 10⁵ cells was measured by Co₃O₄@CNBs modified GCE at −0.22 V in 2 mL DMEM medium.

3. Results and Discussion

3.1. Co₃O₄ NPs Dispersed in Porous Carbon Nano Boxes by TA Assisted Etchings

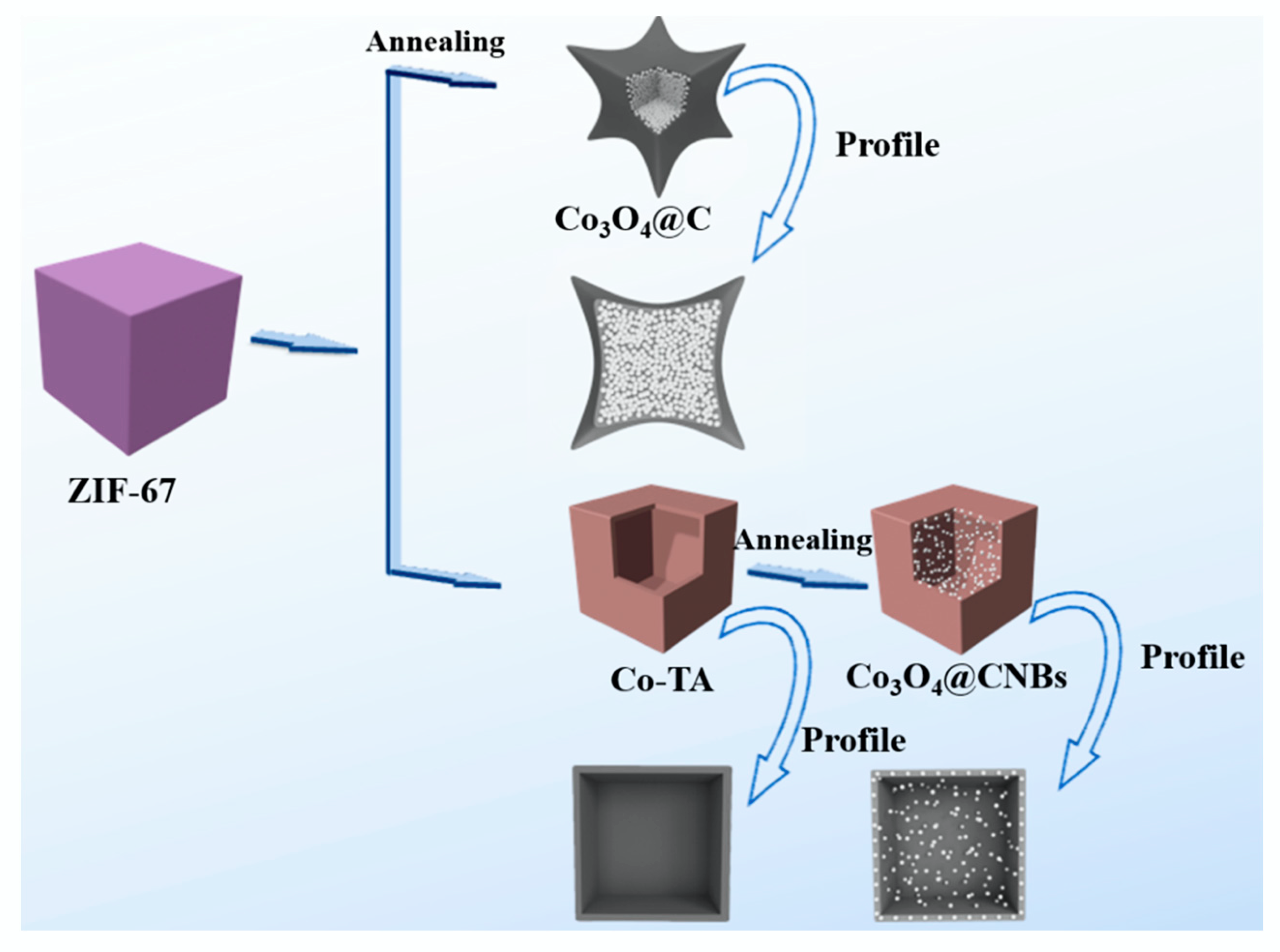

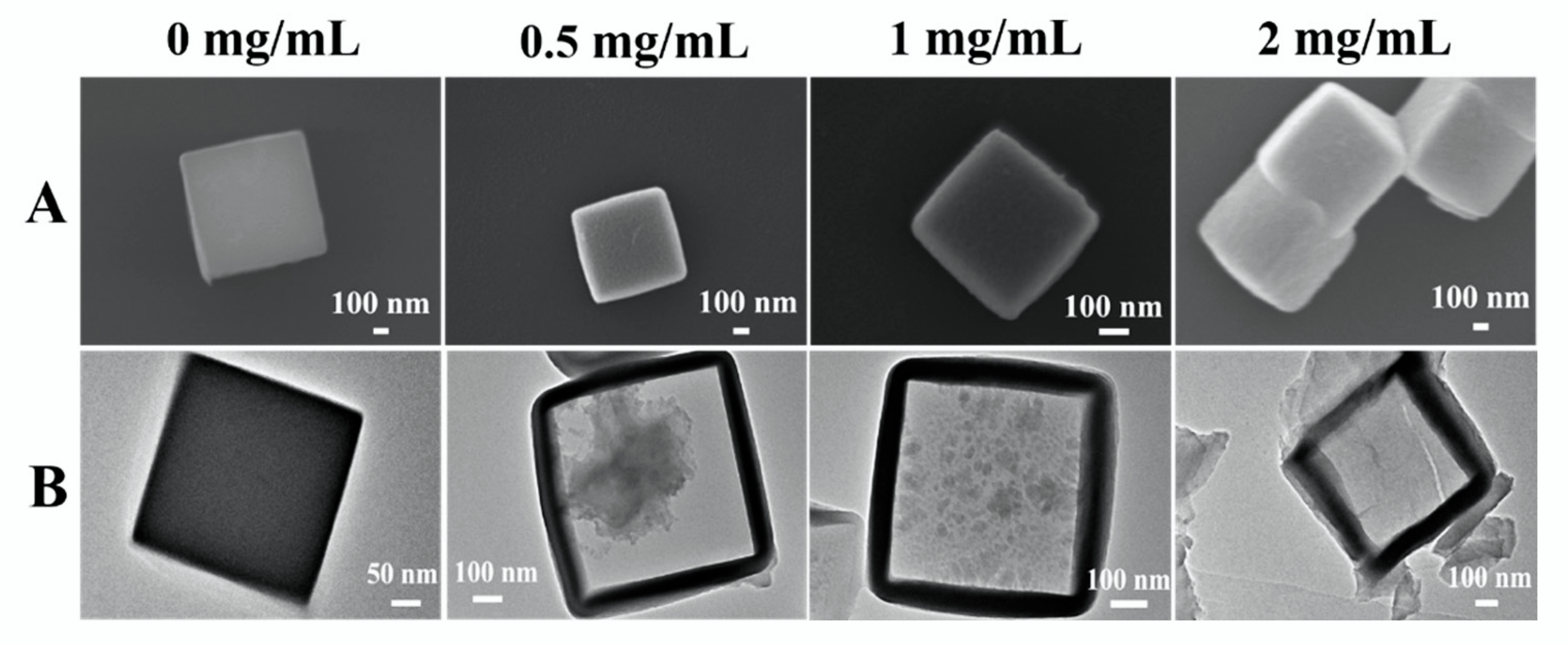

Synthesis of Co₃O₄@CNBs involves the following three-step reaction (Scheme 1). First, ZIF-67 was synthesized by using the co-precipitation method [38]. Next, TA was used to etch the ZIF-67 to form the unique Co₃O₄ NBs. Last, the Co₃O₄ NBs were thermal annealed to carbonize the TA and subsequent low-temperature oxidation in the air to form Co₃O₄@CNBs. The FESEM characterization found that the co-precipitation method synthesized ZIF-67 is uniform regular cubic with a smooth surface (Supplementary Information Figure S1). The size of the cubic is about 760 nm. In our approach, TA functions as green and facile etching agent to etch ZIF-67 directly without extra procedures and chemicals. We found that TA (0.5 mg/mL, 1.0 mg/mL, 2.0 mg/mL) treatment did not change the overall size and the surface morphology of the ZIF-67 cubic. As compared in in FESEM characterization (Figure 1A), TA treated ZIF-67 cubic has a size of 760 nm with a smooth surface. However, TEM characterization (Figure 1B) reveals that the cubic’s inner structure changes significantly after treated by TA with different concentrations. Though TA etched the inside of ZIF-67 cubic, the wall thickness of the cubic had no significant difference as TA concentration changed. The main effect of TA concentration influences the degree of etching reaction inside the cubic. As shown in Figure 1B, with the TA concentration increase from 0 to 2 mg/mL TA, the inside of ZIF-67 was solid at first and then showed the yolk-shelled heterogeneous structure. Finally, the ZIF-67 cubic was completely etched to form hollow interior TA-Co NBs (Figure 1B). Incubating ZIF-67 cubic in 2 mg/mL TA solution for 5 min resulted in a ZIF-67 NB with a wall thickness of about 80 nm.

The TA etching reaction is illustrated in Supplementary Information Figure S2. First, the protons released from TA etch the ZIF-67, releasing the Co²⁺ and 2-MIM simultaneously. At the same time, Co²⁺ and TA coordinate together quickly to form the TA-Co shell. The attached TA block the exposed surface of ZIF-67, thus protecting the outer parts of MOFs from further etching, resulting in internal etching of the ZIF-67 to form TA-Co NBs [29,37,39].

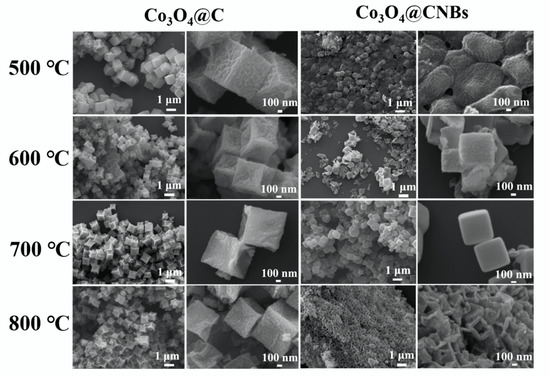

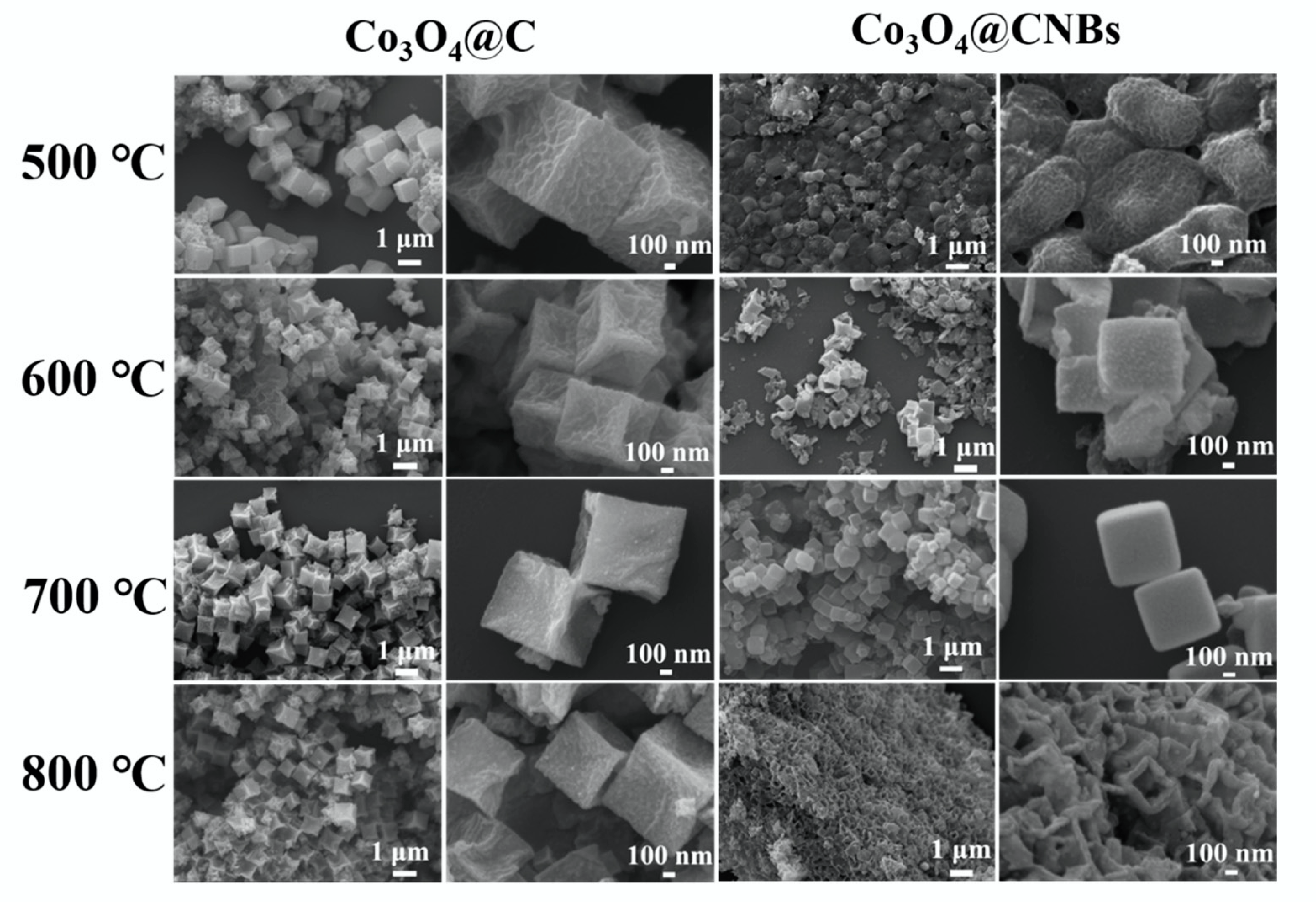

Next, TA-Co NBs were carbonized in an N₂ atmosphere to synthesize the Co₃O₄@CNBs. First, the thermal carbonization and subsequent low-temperature oxidation in air at 200 °C were conducted with ZIF-67 cubic without TA treatment. From the SEM images in Figure 2, we found that even though the ZIF-67 is solid cubic, the thermal annealing still caused the shrink towards the inner side at the middle portion of each side. The morphology and structure have undergone apparent changes to a certain extent. This phenomenon is in line with previous studies in which ZIF-67 crystals obtained by direct annealing methods usually have a rough surface because of the aggregation of the nanoparticles [20,40,41,42]. However, as the FESEM images shown in Figure 2, the TA-Co NBs lost their structural integrity when the thermal carbonization was conducted at 500 °C, 600 °C, and 800 °C. Uniform cubic structures were observed from the products obtained at 700 °C. The SEM characterized morphology in Figure 2 confirms that TA-assisted etching successfully avoids the high-temperature carbonization induced cubic shrink. We speculated that the thermal carbonization caused structure changes could be induced by the partial collapse of pores on the nano-boxes. We examined the porosity of the products obtained from different temperatures. From the N₂ adsorption-desorption isotherms curves shown in Figure 3, the porosity of Co₃O₄@CNBs obtained at 500, 600, 700, and 800 °C was 18.9 m²/g, 255.9 m²/g, 297.2 m²/g, 107.6 m²/g, respectively. The highest BET surface area is from the Co₃O₄@CNBs obtained at 700 °C. According to the N₂ adsorption-desorption isotherms, the adsorption isotherm for 500 °C and 600 °C were similar to a BET type II isotherm. While 700 °C and 800 °C appears the BET type IV shape adsorption according to BET classification. It is worth noting that, as shown in Figure 2, materials at 800 °C has shown the collapse of the cubics. Collectively, the SEM (Figure 2) and BET results suggested that the intact cubic after annealing at 700 °C benefit the preserving of nano-pores on the nano box.

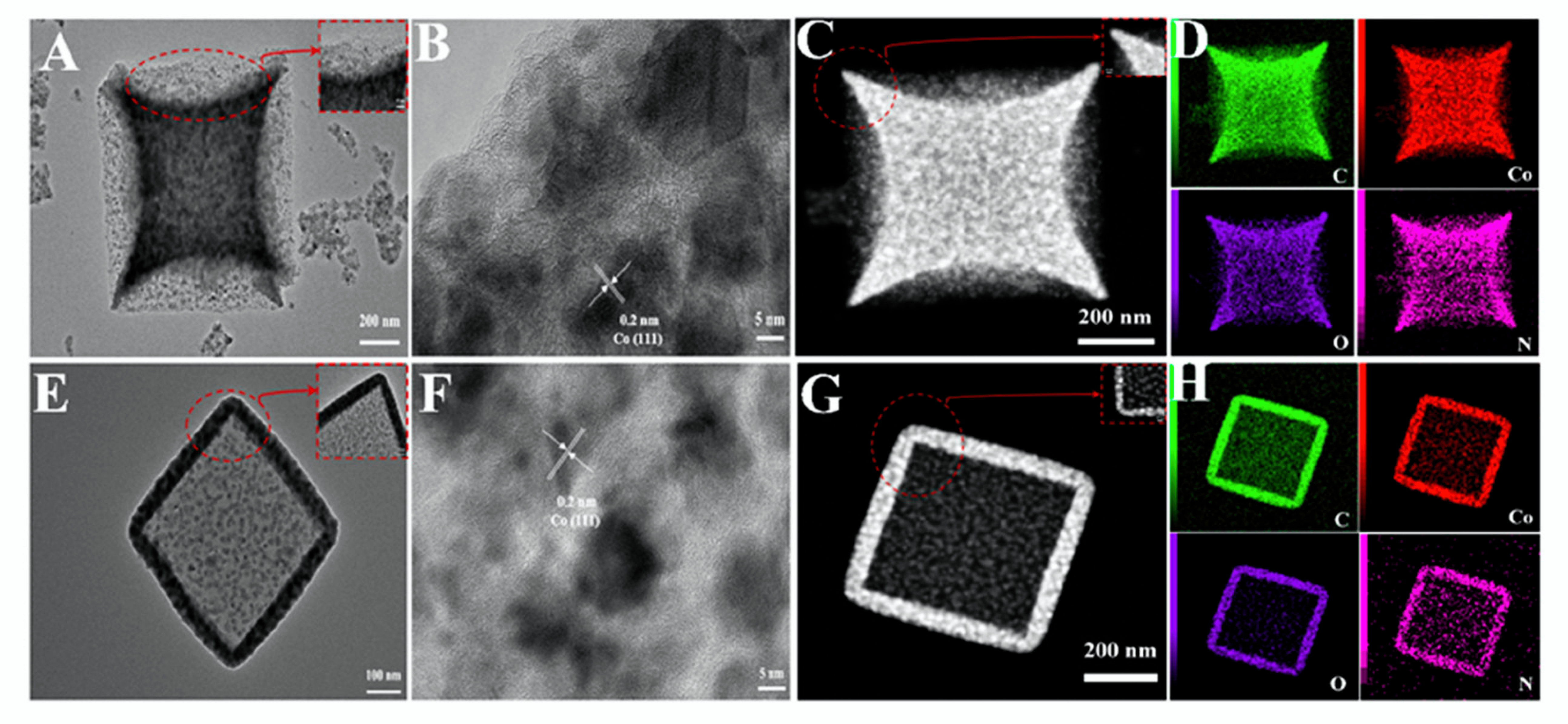

The structures of Co₃O₄@C and Co₃O₄@CNBs were further compared through TEM characterization. Thermal annealing action caused the shrink of ZIF-67, resulting in a quadrangular star shape (Figure 4A). From the HRTEM characterization, the (111) planes of the metallic Co can be differentiated from the packed Co₃O₄ NPs (Figure 4B). The HAADF-STEM images (Figure 4C) and the corresponding elemental mapping images of C, Co, O, N elements in Co₃O₄@C (Figure 4D) clearly show the shrinking towards the inside at the four corners, and the inside of the cubic packed with dense and aggregated Co₃O₄ NPs. In comparison, with the action of TA, the dispersed Co₃O₄ was preserved nicely within the nano box (Figure 4E). HRTEM image of Co₃O₄@CNBs in Figure 4F shows the lattice fringe spacing is about 0.20 nm, corresponding to the (111) planes of Co₃O₄. The HAADF-STEM images of Co₃O₄@CNBs (Figure 4G) and the corresponding elemental mapping images of C, Co, O, N elements in Co₃O₄@CNBs (Figure 4H) confirmed that the Co₃O₄ NPs are highly dispersed in nano box. The evenly distributed C element would ensure electron transfer during electrochemical detection. The C, Co, O, N elements mapping images of Co₃O₄@CNBs thermal annealed at 500 °C, 600 °C, and 800 °C were shown in Supplementary Information Figure S3. From the FESEM and elements mapping, we confirmed that the C and Co are evenly distributed on the cubic. As the temperature increases, the structure gradually collapses at 800 °C.

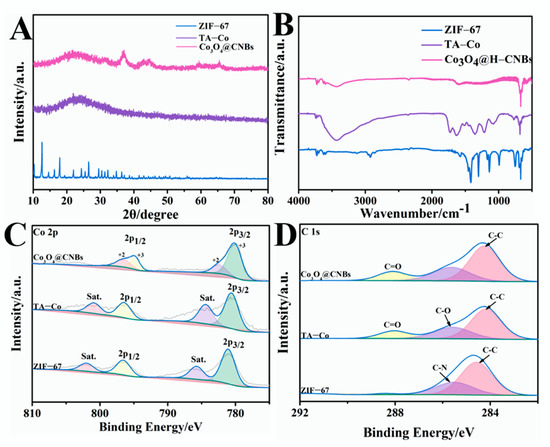

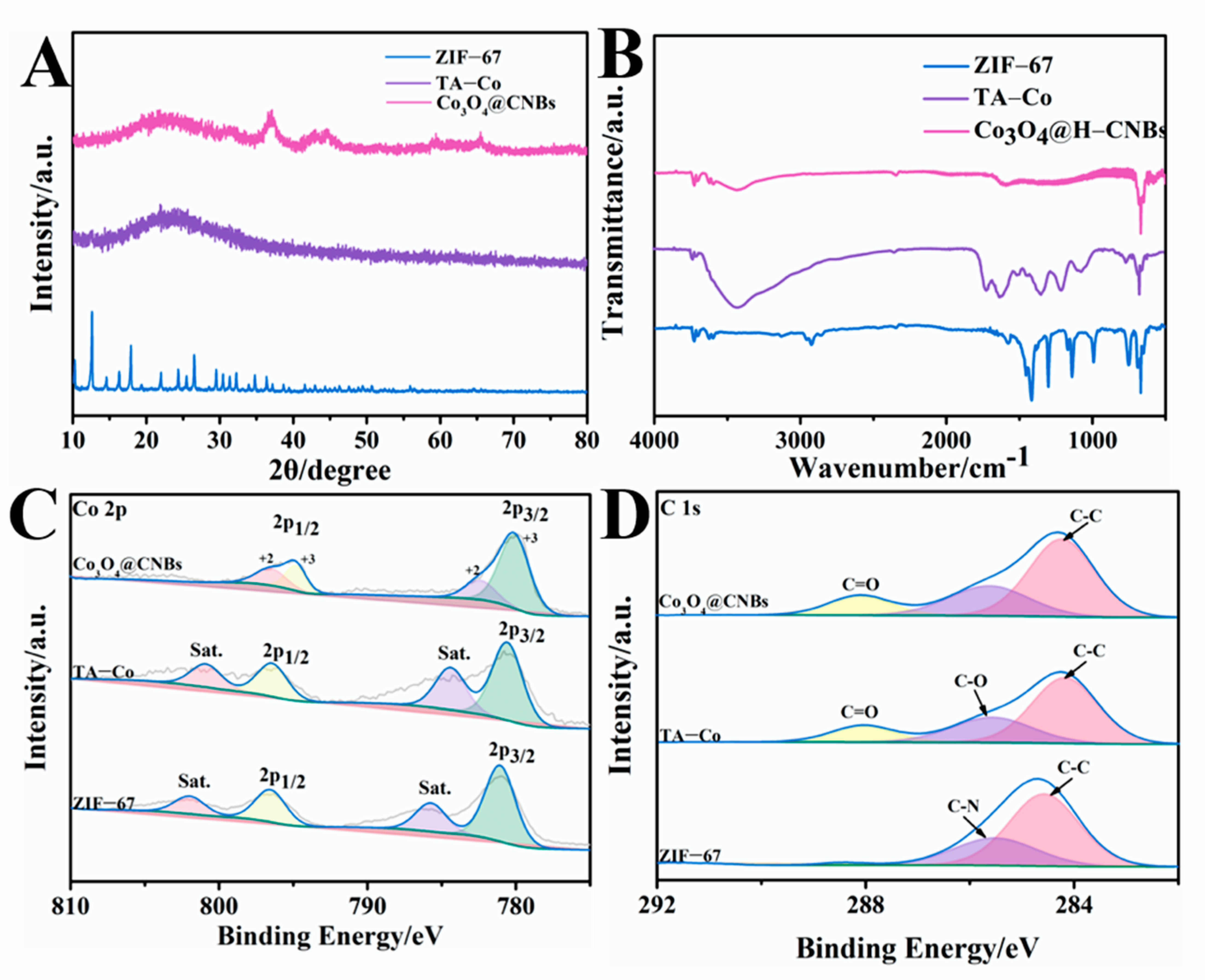

Apart from tracking the reaction by morphological characterization (Figure 1, Figure 2, Figure 3 and Figure 4), the crystalline materials were characterized by XRD, FTIR, and XPS. First, the C 1s, Co 2p peaks can be observed from the XRD spectra, confirming the success in synthesis ZIF-67 (Figure 5A). The ZIF-67 precursor completely disappears after TA etching, indicating the completion of chemical transformation. Diffraction peaks of Co₃O₄@CNBs in XRD characterization perfectly match with the standard patterns of Co₃O₄ (PDF # 42-1467). The FTIR spectrum also supports the formation of Co₃O₄ (Figure 5B). FTIR spectrum shows that the prominent peaks at 3400 cm⁻¹ are attributed to the vibration and stretching bands of functional groups of TA, which on account of TA complete substitution of 2-methylimidazole during the etching process [37]. Another strong bands at 667 cm⁻¹ is attributed to the stretching vibration mode of Co-O with Co²⁺ [40].

XPS analysis was applied to reveal the elemental valence state of the Co₃O₄@CNBs. Compared with ZIF-67, TA-Co NBs present observable changes in C and Co’s contents, which are attributed to the introduction of TA and pyrolysis of organic ligands. As shown in Figure 5C, the spectrum of Co 2p can be best-fitted with two prominent peaks at binding energies by Co 2p_3/2 and Co 2p_1/2 peaks located at around 780.3 and 795.1 eV, corresponding to the state of Co₃O₄ phase. According to the XPS analysis (Figure 5D), the appearance of C=O, C-O, and C-C in a high-resolution spectrum of C 1 s are caused by the structure of TA [41]. As shown in Supplementary Information Figure S4, the TGA analysis reveals the weight content of Co₃O₄ in the composite is about 46.3 wt%. The weight loss under 250 °C is attributed to the evaporation of water molecules and air absorbed by the sample surface [42]. By analyzing FESEM, TEM, XRD, XPS, and FTIR results, we confirmed that Co₃O₄ nanoparticles well dispersed in Co₃O₄@CNBs synthesized from 2 mg/mL TA etching.

3.2. Dispersed Co₃O₄ NPs in Porous Carbon Nano Box Facilitate the Sensitive Electrochemical Detection of H₂O₂

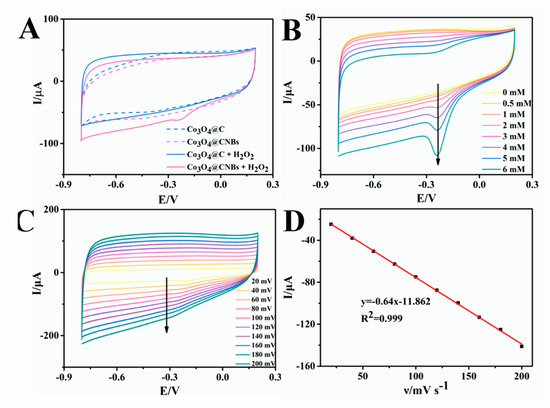

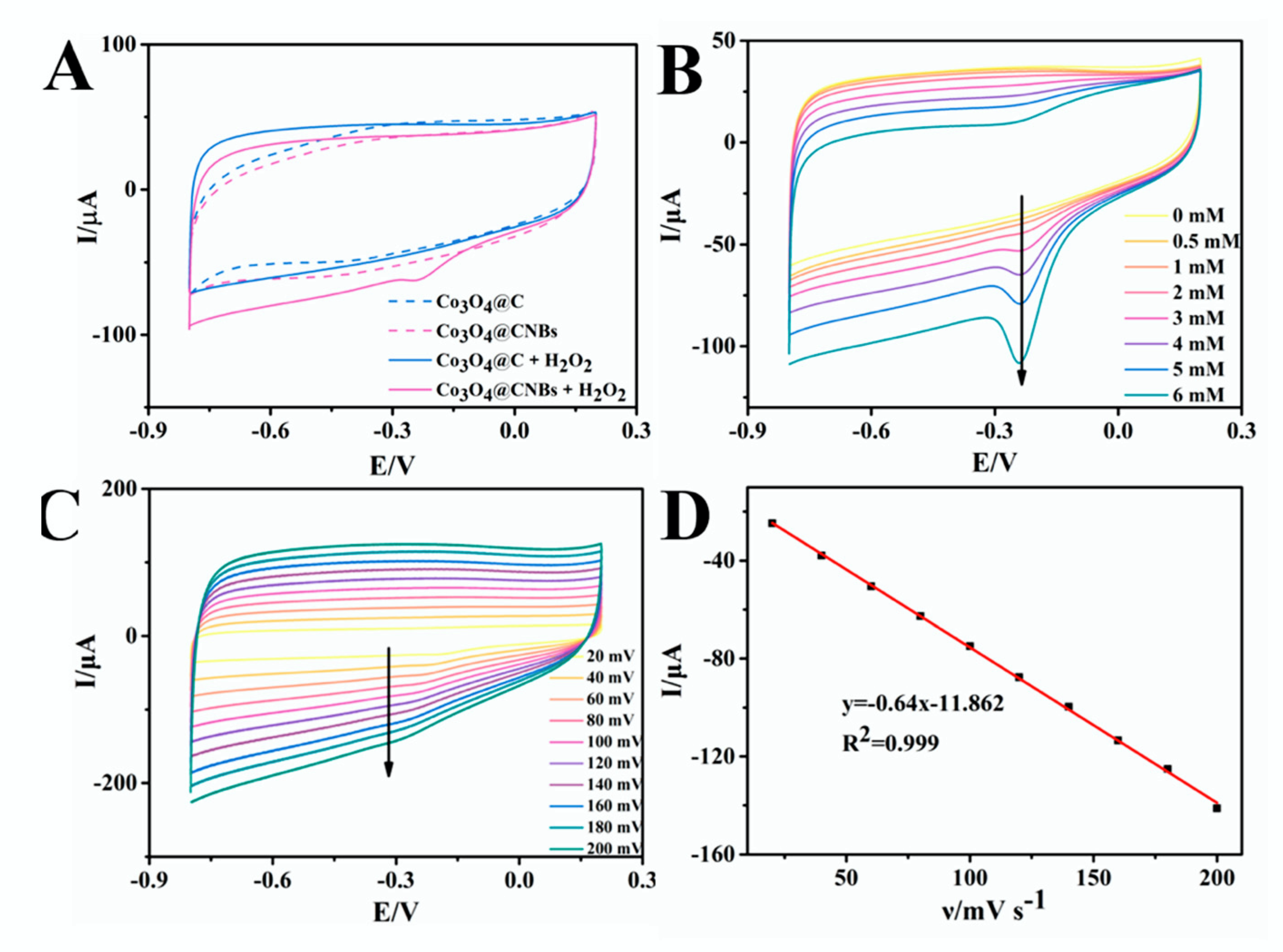

CV measurements were conducted to compare the electrochemical performance of carbonized ZIF-67 (Co₃O₄@C) and Co₃O₄@CNBs modified glassy carbon electrode (Co₃O₄@C/GCE and Co₃O₄@CNBs/GCE) in H₂O₂ detection. In Figure 6A, the dotted line and solid line represent the Co₃O₄@C/GCE and Co₃O₄@CNBs/GCE, respectively. The blue and purple lines represent the absence and addition of H₂O₂, respectively. With the addition of 2 mM H₂O₂, a cathode current around the potential of −0.22 V can be observed clearly from Co₃O₄@CNBs/GCE. In contrast, as shown in Figure 6A, no noticeable change was observed from Co₃O₄@C/GCE, indicating that Co₃O₄@C is inactive for electrooxidation of H₂O₂. Figure 6B displays the cyclic voltammetry (CV) curves of Co₃O₄@CNBs modified GCE in 10 mL 0.01 M PBS solution (pH 7.4) in the absence and presence of different concentrations of H₂O₂ (0.5, 1, 2, 3, 4, 5, and 6 mM). With the increasing concentrations of H₂O₂, a noticeable reduction peak current around −0.22 V dramatically increased. According to the previous reports, the electrocatalysis of H₂O₂ on the Co₃O₄@CNBs can be expressed by the following equation [43]:

$$2\mathrm{Co}\left(\mathrm{II}\right)+{\mathrm{H}}_2{\mathrm{O}}_2+{\mathrm{H}}_2\mathrm{O}\to 2\mathrm{Co}\left(\mathrm{III}\right)+2{\mathrm{OH}}^{-}+{\mathrm{H}}_2\mathrm{O}$$

The obvious reduction current indicated that Co₃O₄@CNBs nanocomposite have an excellent electrocatalytic activity for H₂O₂. The CV curves of Co₃O₄@CNBs/GCE were collected at different scan rates between −0.8 and 0.2 V in 0.01 M PBS (pH = 7.4). The reduction peak currents were enhanced with increasing scan rates. The current was in good linear with the scan rates (Figure 6C), suggesting that the H₂O₂ reduction on the Co₃O₄@CNBs/GCE’s surface was a typical adsorption control process.

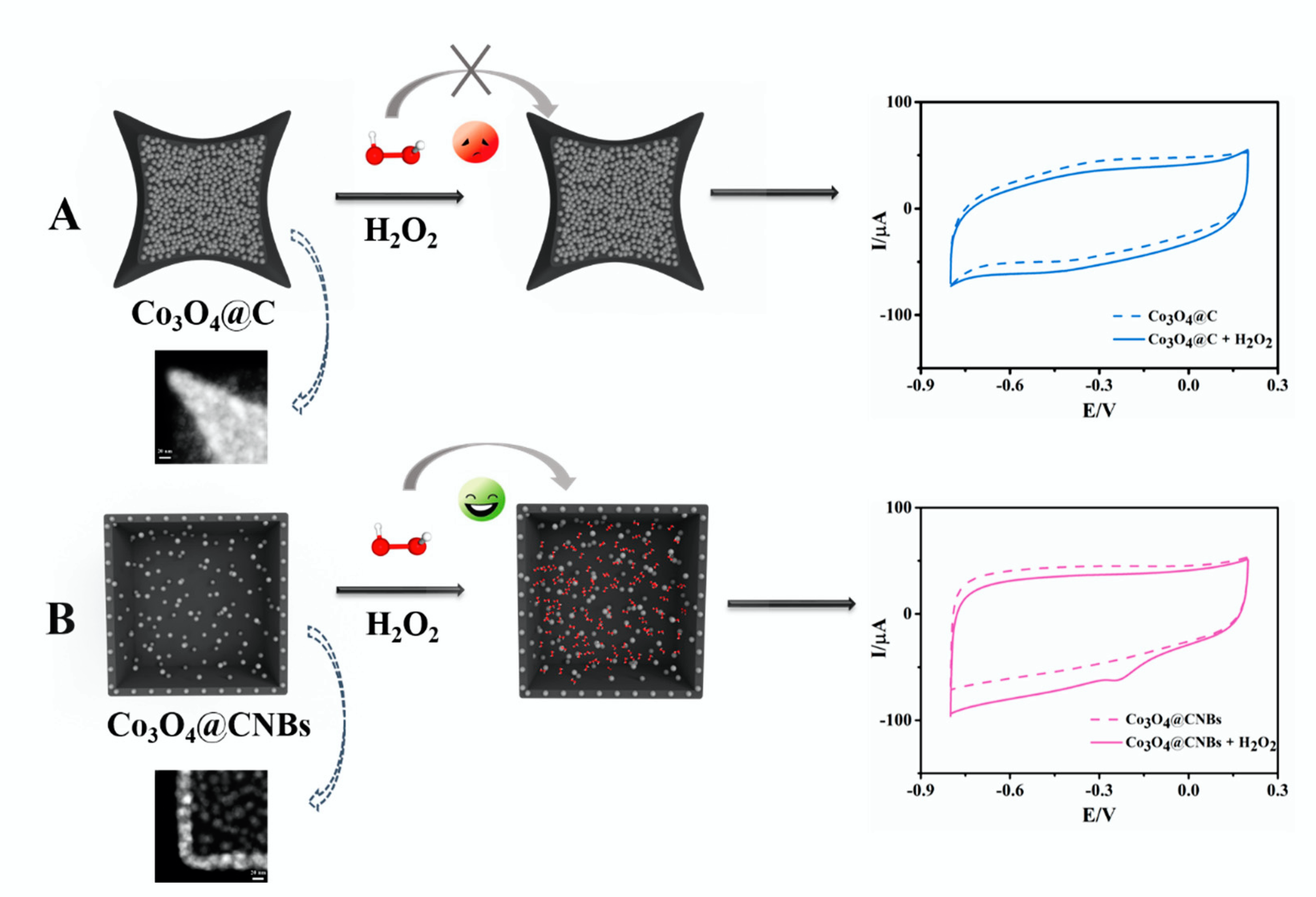

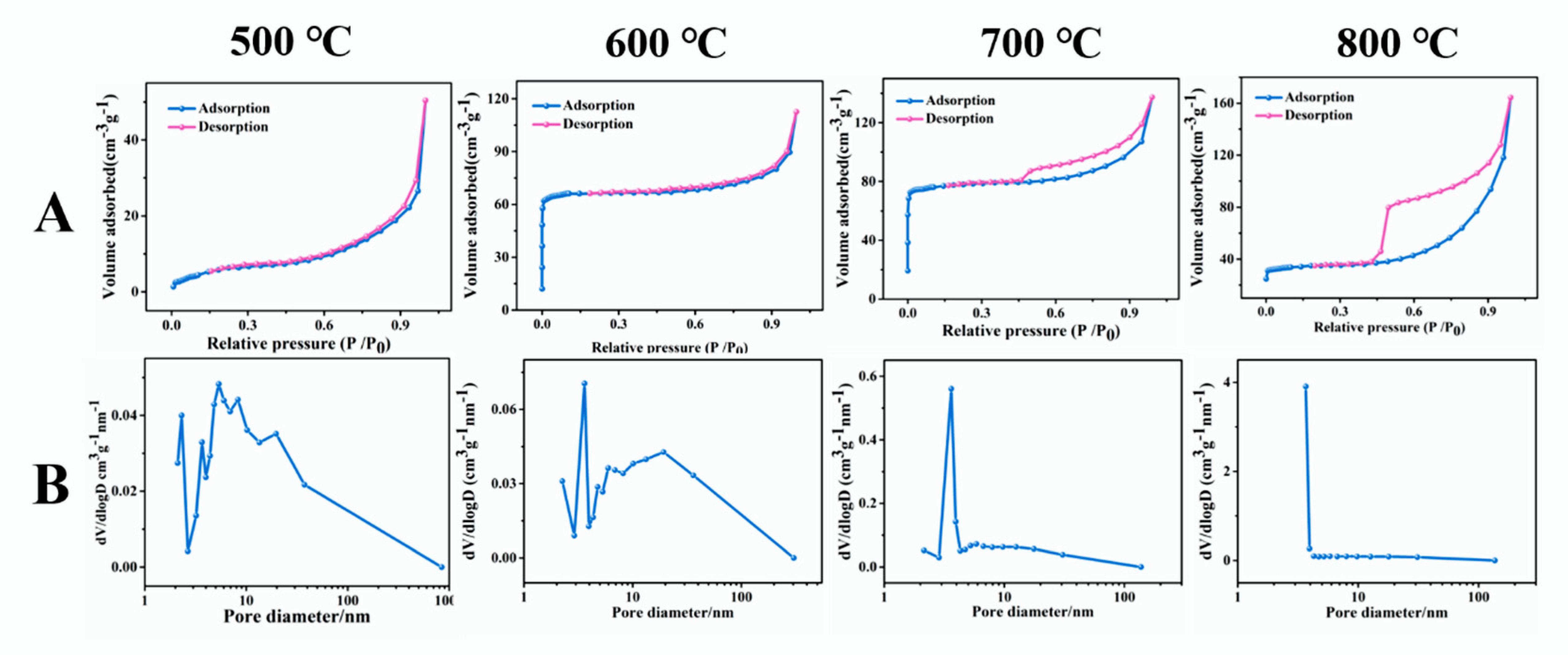

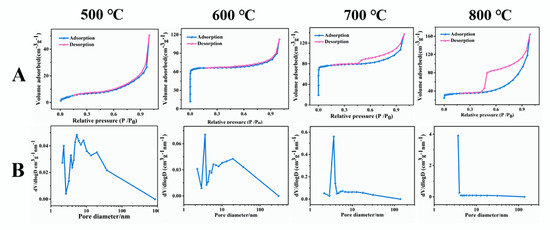

The different performance between Co₃O₄@C and Co₃O₄@CNBs towards H₂O₂ sensing is discussed. The thermal annealing and subsequent low-temperature oxidation will cause the four edges to shrink inward pristine ZIF-67 (Figure 4A,C). The structural changes are accompanied by the decrease of porosity (Supplementary Information Figure S5) because the porosity of Co₃O₄@C is 149.5 m²/g which is significantly smaller than that of Co₃O₄@CNBs (297.2 m²/g). Furthermore, the obvious aggregated Co₃O₄ nanoparticles in Co₃O₄@C (Figure 4A–C) impact the available sites of Co₃O₄ to react with H₂O₂ and potentially reduce the specific reaction area contributing to the electrochemical reduction of H₂O₂ (Scheme 2A). For the Co₃O₄@CNBs obtained from TA etching, the TA layer balanced the shrinkage stresses at different directions applied on the cubic during the annealing process. The architecture integrity avoids pore-collapse induced Co₃O₄ NPs aggregation (BET data in Figure 3 and TEM data in Figure 4). The porous structures would facilitate the transportation of H₂O₂ into the Co₃O₄@CNBs during electrochemical measurement. In addition, the TA protective layer alleviated the “stresses induced orientation contraction”, ensuring the uniform disperse of Co₃O₄ in CNBs to react with H₂O₂ (Scheme 2B).

3.3. Analytical Performance of Co₃O₄@CNBs Based H₂O₂ Sensors

To construct a sensitive H₂O₂ sensors, the electrochemical testing condition was optimized. The electrochemical behavior of Co₃O₄@CNBs/GCE was analyzed in 10 mL 0.01 M PBS (pH = 7.4). It is noted that the CV signal to H₂O₂ is affected by the concentration of Co₃O₄@CNBs and the adding volume. Supplementary Information Figure S6A,B show that 7 μL, 2 mg/mL Co₃O₄@CNBs leads to the highest signal. Hence, 7 μL 2 mg/mL Co₃O₄@CNBs were employed in the following study. The amperometric technique was employed to measure the response of Co₃O₄@CNBs modified electrode. The optimal working potential for detecting H₂O₂ was −0.22 V.

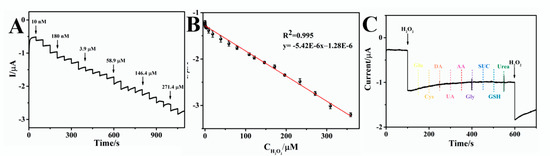

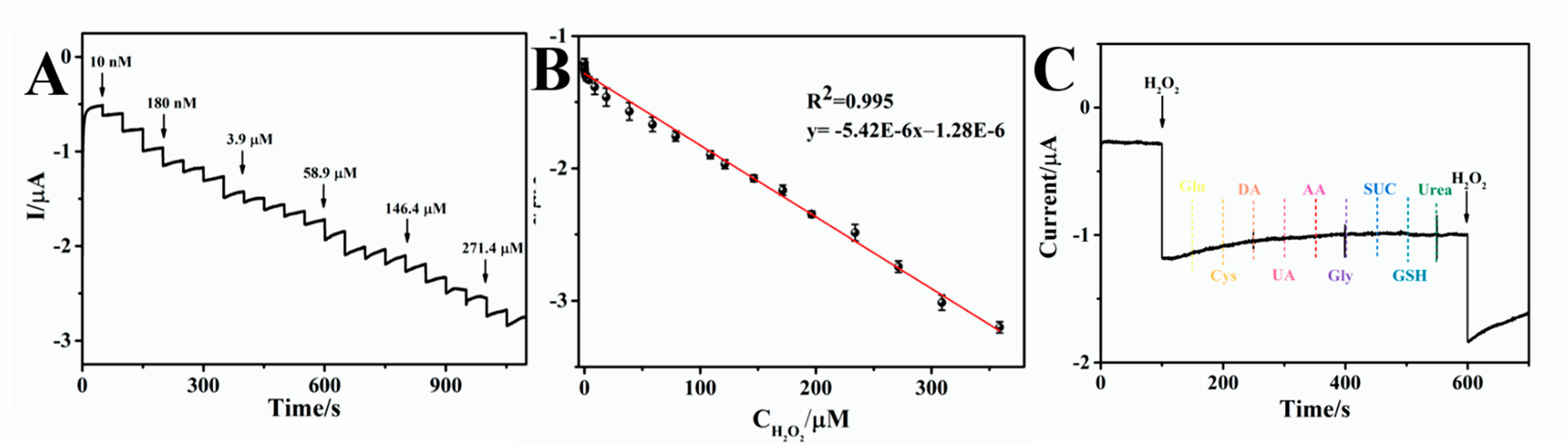

With the optimized Co₃O₄@CNBs loading and electrochemical working voltage, the sensitivity and working range of the Co₃O₄@CNBs H₂O₂ sensor were characterized. The electrochemical response was recorded when successive adding varying H₂O₂ concentrations into 10 mL 0.01 M PBS (pH 7.4) solution. As shown in Figure 7A, the response was linear with H₂O₂ concentrations from 0.01 to 359 μM with a correlation coefficient of R² = 0.995 (insert picture), and the regression equation was I (μA) = −5.42 × 10⁻⁶ − 1.28 × 10⁻⁶C (μM). The detection limit calculated was 2.32 nM (ratio of signal-to-noise (S/N) = 3). Comparison of Co₃O₄@CNBs based H₂O₂ detection with other H₂O₂ biosensors (

Table 1. Comparison the sensing performance of Co₃O₄@CNBs reported with other H₂O₂ sensor in literatures.

Electrode Materials	Working Range/μM	Detection Limit/nM	Reference
Pt@Co3O4 NPs	10–300	100	[17]
Hollow Co3O4	0.4–2200	105	[20]
Au/Co@HNCF	25–2500	23	[44]
Au@C-Co3O4 NPs	-	19	[45]
Co3O4/NCNTs	5–11,000	1	[46]
Co3O4 NPs	-	21.7	[47]
Co3O4@H-CNBs	0.01–358.9	2.32	This work

) showed that our electrocatalytic performance of Co₃O₄@CNBs was satisfactory and even better than previous sensors.

Anti-interference ability is one of the critical analytical indicators for nonenzymatic biosensors. The amperometric method was adopted to study the interference of major interfering substances on Co₃O₄@CNBs based H₂O₂ detecting. As shown in Figure 7B, there are negligible signal responding to 0.15 mM glucose (Glu), cysteine (Cys), dopamine (DA), uric acid (UA), ascorbic acid (AA), glycine (Gly), sucrose (SUC), glutathione (GSH), and urea. While 0.05 mM H₂O₂ can induce a significantly larger signal, suggesting good selectivity for reducing H₂O₂.

The stability and reproducibility of the Co₃O₄@CNBs-based sensor were also tested. Supplementary Information Figure S7 shows the amperometric electrochemical response of five modified independent electrodes from different batches. After statistical analysis of the test results, the relative standard deviation (RSD) obtained by five parallel tests was 2.4%, demonstrating a good reproducibility. The actual concentration of H₂O₂ present and the detected concentration were further tested, and the results in Supplementary Information Table S1 showed that the recovery rate of the Co₃O₄@CNBs-based sensor is from 95.62% to 105.78%. For the stability experiment, the modified electrode was stored at 4 °C for 15 days, and the current response to H₂O₂ (2 mM) was recorded every three days. It can be seen that after 15 days of storage, the current response of the sensor is maintained at 92% of the initial current.

3.4. Real-Time Detection of H₂O₂ Secreted from Living Cells by Co₃O₄@CNBs

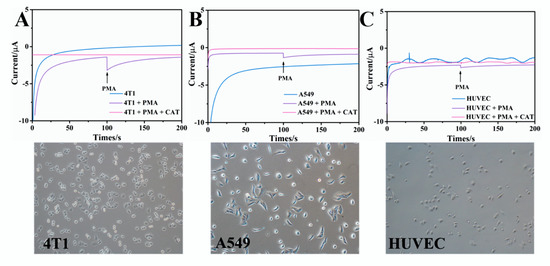

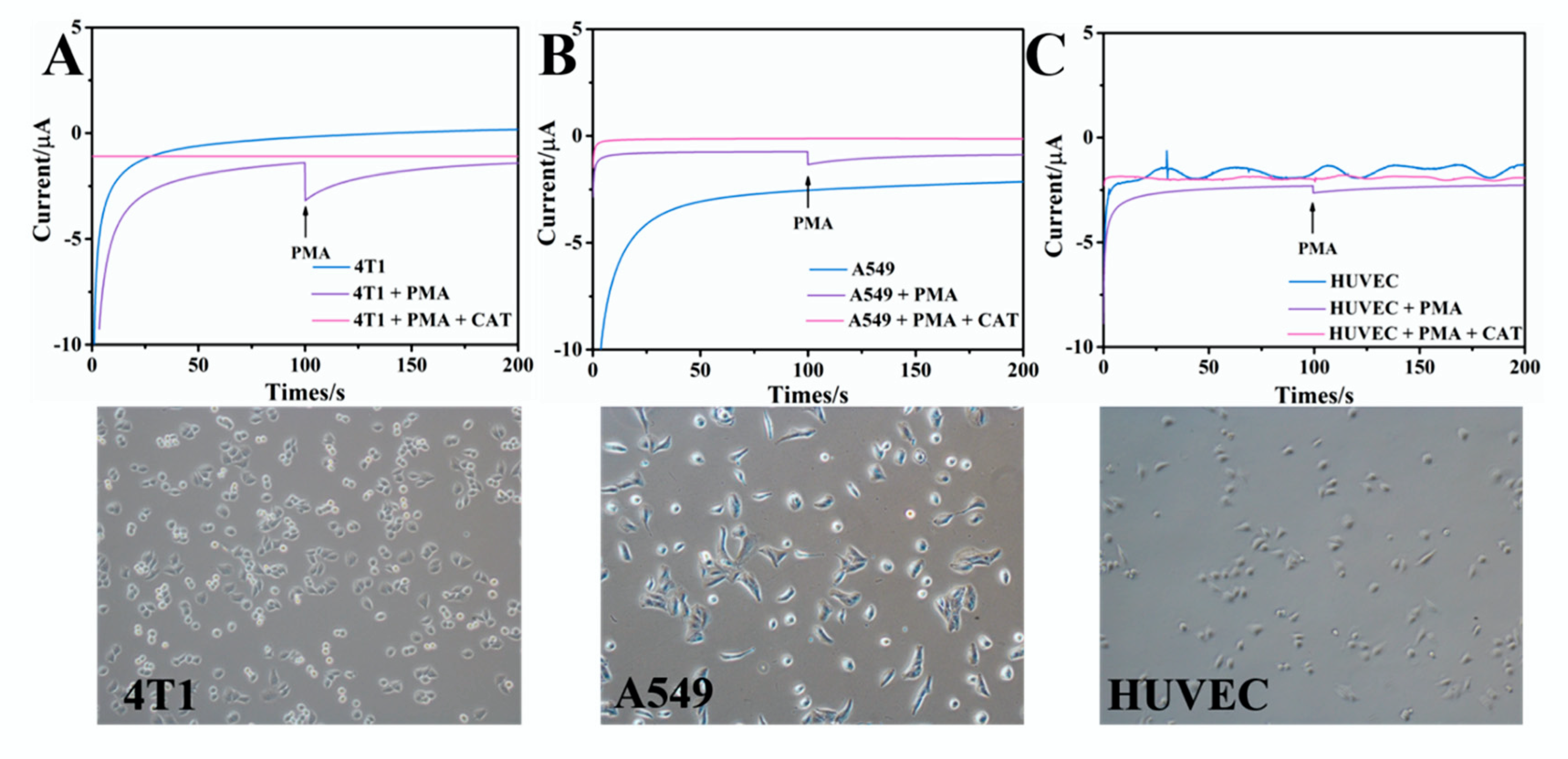

To investigate the capability in actual samples application, Co₃O₄@CNBs H₂O₂ sensor was explored to real-time detect H₂O₂ from the living cell in a culture medium. The response of human epithelial cell HUVEC, mouse breast cancer cell 4T1, and human lung cancer cell A549 to PMA, a diester of phorbol, which can activate many cell types to produce H₂O₂, was studied. First, the potential cytotoxicity of Co₃O₄@CNBs was evaluated by the standard MTT assay. Supplementary Information Figure S8 reveals that no significant decrease in cell viability was observed from 10 to 50 μg·mL⁻¹ Co₃O₄@CNBs-treated HUVEC cells and HeLa cells, demonstrating its good biocompatibility. The response of cells to PMA stimulation was measured by amperometric signal recorded in DMEM at −0.22 V. PMA is an activator widely used in in vitro experiments, which can stimulate cells to produce H₂O₂. As shown in Figure 8, the current has no obvious change when only cells exist. A promote and sharp increase of current peak was observed from all three cells challenged by 2.5 μg/mL PMA. In contrast, injecting PMA and catalase (CAT), an enzyme that catalyzes the decomposition of H₂O₂ into water and oxygen, at the same time will demolish the current change, which was observed in only PMA stimulation. Since CAT will decomposite the H₂O₂ released by PMA treated cells, by adding the PMA and CAT, we confirmed the current changes observed from cell stimulated by PMA only were induced by cell-released H₂O₂. The amperometric signal (Figure 8) recorded from the cells proves that the Co₃O₄@CNBs H₂O₂ sensor can detect the H₂O₂ released by living cells, highlighting its potential in studying cell metabolism. Next, the actual amount of H₂O₂ released from living cells was calculated according to the current and the calibration curve shown in Figure 7B. First, the current of the point reaching the plateau was read from the reaction curve. Then the H₂O₂ amount was calculated by placing the current value into the calibration curve equation. As shown in Figure 8, according to the current change and the calibration curve, the amount from three different cells was calculated at 0.16 μM (HUVEC), 0.26 μM (A549) and 0.19 μM (4T1), respectively.

4. Conclusions

In conclusion, Co₃O₄@CNBs nanocomposites have been prepared using a facile and green method. Their application in the determination of H₂O₂ has been explored. The used TA improves the materials’ specific surface area and provides more active sites, further enhancing its electrocatalysis to reduce H₂O₂. The Co₃O₄@CNBs/GCE exhibits a good selectivity and high sensitivity for the determination of H₂O₂. Furthermore, the Co₃O₄@CNBs H₂O₂ sensor can detect the H₂O₂ secreted by HUVEC cells and 4T1, A549 cancer cells, highlighting its potential in biosensing and catalysis and biomedicine.
