The Role of Chitooligosaccharidolytic β-N-Acetylglucosamindase in the Molting and Wing Development of the Silkworm Bombyx mori

by
Bili Zhang
1,
Chunlin Li
1,
Yue Luan
1,
Yaru Lu
1,
Hai Hu
1,
Yanyu Liu
1,
Kunpeng Lu
1,
Guizheng Zhang
2,
Fangyin Dai
1,* and
Xiaoling Tong
1,*
1
State Key Laboratory of Silkworm Genome Biology, Key Laboratory of Sericultural Biology and Genetic Breeding, Ministry of Agriculture and Rural Affairs, College of Biotechnology, Southwest University, Chongqing 400715, China
2
Guangxi Academy of Sericultural Sciences, Nanning 530007, China
*
Authors to whom correspondence should be addressed.
Int. J. Mol. Sci. 2022, 23(7), 3850; https://doi.org/10.3390/ijms23073850
Submission received: 15 February 2022 / Revised: 21 March 2022 / Accepted: 27 March 2022 / Published: 31 March 2022
(This article belongs to the Section Molecular Biology)
Browse Figures
Versions Notes

Abstract

:
The insect glycoside hydrolase family 20 β-N-acetylhexosaminidases (HEXs) are key enzymes involved in chitin degradation. In this study, nine HEX genes in Bombyx mori were identified by genome-wide analysis. Bioinformatic analysis based on the transcriptome database indicated that each gene had a distinct expression pattern. qRT-PCR was performed to detect the expression pattern of the chitooligosaccharidolytic β-N-acetylglucosaminidase (BmChiNAG). BmChiNAG was highly expressed in chitin-rich tissues, such as the epidermis. In the wing disc and epidermis, BmChiNAG has the highest expression level during the wandering stage. CRISPR/Cas9-mediated BmChiNAG deletion was used to study the function. In the BmChiNAG-knockout line, 39.2% of female heterozygotes had small and curly wings. The ultrastructure of a cross-section showed that the lack of BmChiNAG affected the stratification of the wing membrane and the formation of the correct wing vein structure. The molting process of the homozygotes was severely hindered during the larva to pupa transition. Epidermal sections showed that the endocuticle of the pupa was not degraded in the mutant. These results indicate that BmChiNAG is involved in chitin catabolism and plays an important role in the molting and wing development of the silkworm, which highlights the potential of BmChiNAG as a pest control target.

1. Introduction

Crop pests pose a serious challenge to agricultural production and food security [1,2]. As such, target-based insecticides have high specificity and safety to non-target organisms and the environment; thus, they have attracted considerable attention [3,4,5,6,7,8]. Chitin is a long-chain polymer of N-acetylglucosamine that is present in many insect tissues including the epidermis, integument, trachea, salivary gland, and intestinal peritrophic membrane. Chitin serves as a protective and supporting polysaccharide in insect exoskeletons and the peritrophic membrane [9,10]. Abnormal chitin synthesis and degradation impairs insect growth and development, and can cause mortality [11]. Chitin metabolism-related enzymes could be promising targets for insect pest control [12].
Two types of enzymes, namely chitinases (EC 3.2.1.14; CHTs) and β-N-acetyl-hexosaminidases (EC 3.2.1.52; HEXs), are responsible for chitin degradation in insects. Chitinases are responsible for the hydrolysis of chitin to chitosan oligosaccharides, whereas β-N-acetyl-hexosaminidases convert the oligomers into monomers from the nonreducing end [9,13]. Insect HEXs belong to the glycoside hydrolase family 20 (GH20). They are encoded by a large and diverse group of genes, and each gene contains at least one catalytic GH20 domain [14,15]. Based on their sequence features and functions, insect HEXs are often classified into four subgroups: NAGI (group I), NAGII (group II), FDL (group III), and Hex (group IV) [16]. HEXs are involved in the degradation of glycoconjugates [16], post-translational N-linked glycan modification [17,18,19], and the mediation of egg–sperm interactions [20,21,22]. HEXs function in chitin degradation, which involves the insect molting process, and their roles have been identified in many insect species. RNA interference (RNAi)-mediated knockdown of NAGI group genes causes molting failure in Tribolium castaneum [16], Nilaparvata lugens [23], Locusta migratoria [24], Mamestra brassicae [25], Heortia vitessoides [26], and Lasioderma serricorne [27]. A NAGI group gene in H. vitessoides [26] and L. serricorne [27], and a NAGII group gene in Ostrinia furnacalis and L. serricorne [27] are essential for successful molting and the proper formation of adult wings [28,29]. HEXs have a variety of critical physiological functions and might be targeted for the development of selective pesticides. OfHex1, a specific chitinolytic enzyme identified in O. furnacalis, is the only insect-derived HEX with crystal structure information that belongs to the NAGI group [30]. Many OfHex1-targeted inhibitors have been reported. These have the potential for development in pest management and include TMG-chitotriomycin [31], allosamidin [32], PUGNAc [33], NMAGT [34], glycosylated naphthalimide [35], the natural products phlegmacin B1 [36] and berberine [37], and biphenyl–sulfonamides [38].
However, HEXs inhibitors have yet to be developed for agricultural applications [30]. In target-based insecticide design, selectivity should be considered to reduce risks to non-target organisms [11]. In this regard, functional research on HEXs in insects is limited and information on HEXs from many different species is required. Many Lepidoptera pests damage crops. Bombyx mori is a lepidopteran model insect used for research due to its many conserved basic physiological processes [39]. Thus, identifying the function and regulatory mechanisms of HEX genes in B. mori may provide clues for target-based insecticide design. However, the function of the HEX genes in B. mori is not well known. Zhai et al. investigated the expression profiles of six HEX genes and analyzed the promoter of the NAGII group BmGlcNase1 [40]. We found that the BmGlcNase1 gene is involved in sericin synthesis and silkworm cocooning [41].
In this study, we identified nine HEX genes in B. mori by genome-wide analysis and cloned the full-length open reading frame (ORF) sequence of chitooligosaccharidolytic β-N-acetylglucosaminidase (BmChiNAG) that belongs to the NAGI group. We then analyzed the expression patterns of BmChiNAG in different developmental stages and tissues. Through CRISPR/Cas9-mediated gene knockout, we determined the biological function of BmChiNAG in the molting process and wing development. These data revealed a potential gene target for the development of a novel insecticide.

2. Results

2.1. Genome-Wide Identification and Expression Profiles of the HEX Genes in B. mori

To identify HEX genes in B. mori, the amino acid sequences from previously characterized HEXs from three species (N. lugens, O. furnacalis, and T. castaneum) were used to search the B. mori genome and transcriptome databases. A total of nine genes encoding proteins that contain the GH20 domain were identified in B. mori (Table 1). Different HEX genes contained different exon numbers ranging from one to 15 (Figure 1A). Domain analysis showed that all putative HEXs contain GH20b and GH20 domains except for BmHexD-like, which only had the GH20 domain. Only BmHex-C, BmGlcNase1, and BmChiNAG have a putative signal peptide, and BmFDL-B has a transmembrane helix at the N-terminus (Figure 1B). The GH20 HEX enzymes have two minimal model architectures: model A containing at least a non-catalytic GH20b domain and the catalytic one (GH20), and model B with only the catalytic GH20 domain. In model A, the non-catalytic domain GH20b is required for expression and to stabilize GH20 enzymes [15]. Therefore, most HEX genes in B. mori belong to model A and only BmHexD-like belongs to model B. To decipher the sequence conservation, a multiple sequence alignment of these HEXs was done and the GenBank accession numbers used in the multiple alignments are listed in Table S1. The results showed that the conserved catalytically active sites were located in the GH20 domain regions and the mean similarity between these HEX genes was 29.02% (Figure S1).
To categorize the evolutionary relationship of putative HEXs in silkworms with their homologous protein from other species, we compiled all 53 HEXs by a BLAST search and analyzed their phylogeny. Table S2 shows the GenBank accession numbers and the protein sequences used in the phylogenetic tree. Evolutionary analysis showed that these HEXs could be classified into five major groups, namely NAGI group, NAGII group, a fused lobes (FDL) group, a Hex group, and a HexD-like group (Figure 1C). We analyzed the temporal expression profiles and tissue distribution of these HEX genes in silkworms based on a transcriptome database, namely SilkDB. The results showed that they are mainly expressed in the epidermis, head, silk gland, reproductive organs, and trachea (Figure 1D). Specifically, BmFDL-B, BmHex-B, and BmHex-C were highly expressed in the anterior silk gland or middle silk gland. BmFDL-A, BmFDL-C, BmHex-B, BmHex-C, and BmHexD-like were highly expressed in reproductive organs. BmFDL-A and BmFDL-C were specifically expressed in the testis during all testing periods. BmHex-A was highly expressed in the epidermis during the period of the rapid growth of the silkworm. BmChiNAG was highly expressed during the larval wandering stage and mainly expressed in chitin-rich tissues such as the epidermis, head, and anterior silk gland. Compared to the other seven genes, BmChiNAG had the highest expression level in the epidermis at the larval wandering stage and showed a periodic trend that included high transcript levels peaking before each molt (Figure 1E). Coincidentally, BmChiNAG was grouped with the enzymatically characterized NAGI group and previous HEXs studies on Nilaparvata lugens and Tribolium castaneum also showed that the NAGI group’s genes are essential for the insects to successfully molt [16,23]. Therefore, to explore a potential target for insect pest control, BmChiNAG was selected for further study.

2.2. Sequence Analysis and Expression Patterns of BmChiNAG

To determine the sequence information of BmChiNAG, we cloned its open reading frame (ORF) from the silkworm epidermis and analyzed its sequence in detail. BmChiNAG possesses an ORF of 1791 bp (Figure S2), coding a BmChiNAG protein consisting of 596 amino acids with an estimated molecular mass (MM) and isoelectric point (pI) of 68.33 kDa and 5.26, respectively. Domain analysis revealed that the BmChiNAG protein contained a conserved GH20 catalytic domain (residues 211–554), an additional GH20b domain (residues 67–187), and a conserved catalytic motif (HMGGDEV×××CW). Based on the structure of O. furnacalis, Hex1 comparison domain models of BmChiNAG were constructed using SWISS-MODEL (Figure 2A). Conserved active site residues were also found in the BmChiNAG protein sequence (Figure 2B). Multiple sequence alignment illustrated that ChiNAGs from B. mori and other insects are highly conserved especially at the GH20 catalytic region (Figure S3). For example, the deduced protein sequence of BmChiNAG shared a high similarity (74.62 and 72.77%) with T. ni and O. furnacalis compared with A. aegypti (36.11%). However, at the GH20 catalytic region, the BmChiNAG shared a higher similarity (82.14, 81.19 and 42.73%) with T. ni, O. furnacalis, and A. aegypti. Table S3 shows the species and GenBank accession numbers used in the multiple alignments.
qRT-PCR was performed to determine the tissue and temporal expression patterns of BmChiNA. A total of 12 tissues from silkworm on day 3 of the fifth instar were analyzed to determine the tissue-specific expression profiles. The mRNA of BmChiNAG was transcribed in all of the tested tissues, with the highest mRNA expression levels in the wing disc, followed by the hemocyte, epidermis, and head (Figure 2C). We analyzed the temporal expression patterns in the wing disc and epidermis from day 1 of the fourth instar larva to day 1 of the pupa. The data showed that BmChiNAG expression was highest during the larval wandering stage both in the wing disc and the epidermis. (Figure 2D,E).

2.3. Effect of Functional Defects of BmChiNAG on the Wing Development

We previously constructed a BmChiNAG-knockout line in which the BmChiNAG gene was knocked out by CRISPR/cas9 [42]. A 38-base deletion on the third exon of the BmChiNAG gene resulted in premature termination of translation (Figure S4). This caused the loss of the additional GH20b catalytic domain and the GH20 catalytic domain, and led to the failure of protein function. Accordingly, we used the BmChiNAG-knockout line to study the functional defects of BmChiNAG.
The lack of BmChiNAG severely impaired wing development in 39.2% of females with the BmChiNAG/+ heterozygote genotype (Table 2). Mutant pupae exhibited tiny wings that did not cover the meta-thorax and their weights were significantly lower than those of normal-winged individuals (Figure 3A,E). The area of mutanted wing was 77.34% smaller than normal (Figure 3B,F). The wing membrane was wrinkled and the wing veins were both shorter and thicker than the control (Figure 3C,G). To fully understand the precise roles of BmChiNAG in wing formation, the ultrastructure of a cross-section of the forewing was observed by scanning electron microscopy (SEM). In the normal wing structure, the upper wing membrane protrudes outward to form smooth, hollow, tube-like wing veins. Compared with the normal wing structure, the upper and lower wing membrane of the BmChiNAG/+ heterozygous were separated and wrinkled, and the wing veins were uneven in thickness and larger in diameter (Figure 3D). Taken together, the BmChiNAG is required for normal wing membrane stratification and wing vein structure.

2.4. Effects of Functional Defects of BmChiNAG on the Morphology of Larvae and the Molting Process

The BmChiNAG mutant homozygotes exhibited multiple morphological abnormalities compared to the wild-type. First, the lack of BmChiNAG resulted in blackening of the head of the fifth instar larva and a smaller larval body size (Figure 4A,D). Second, all of the BmChiNAG homozygous mutant larvae could not properly molt to the pupa. Their head capsule could not split and eventually they died at about 10 days into the pupal stage (Figure 4B). Additionally, the weight of the mutant pupae was significantly lower than that of the wild-type pupae (Figure 4E). Third, the pupa skin sections showed that the epidermal cells and endocuticle of the pupal skin were not degraded in the mutant (Figure 4C). The skin of the homozygous pupae was significantly thicker than that of the wild-type (Figure 4F).
Insects undergo periodic molting during their lifetime in order to ensure normal growth and development. Due to the knockout of BmChiNAG, the fifth instar larvae failed to molt successfully. To determine if BmChiNAG expression levels were affected by ecdysone given that ecdysone is closely related to insect molting and metamorphosis development, the fifth instar larvae were injected with 20E (20-hydroxyecdysone) and changes of the mRNA levels of BmChiNAG at different post-injection time points were observed. The expression levels of BmChiNAG were significantly increased after treatment with 20E (Figure 4G). This indicated that BmChiNAG expression is regulated by 20E at the larval stage. Due to molting, including a series of continuous processes such as the secretion of molting fluid, the formation of a new epidermis and the shedding of the old epidermis occur, in which a variety of enzymes are involved. During molting processes, chitinases (Cht) and β-N-acetyl-hexosaminidases (HEX) are responsible for the hydrolysis of chitin to chitosan oligosaccharides and monosaccharides, respectively; phenol oxidase (PPO1) and tyrosine hydroxylase (Th) play a key role in the hardening of insect exoskeletons, while dopa decarboxylase (Ddc) and acetyltransferase (At) are involved in the tanning of newly formed cuticles [43]. To further study the effects of functional defects of BmChiNAG on the molting process, we explored the expression changes of these five molting-related genes in the BmChiNAG mutant homozygous epidermis. The qPCR results showed that compared to the control group, the expression levels of these molting-related genes were all significantly decreased in the mutant group (Figure 4H). These results clearly indicate that BmChiNAG affects the expression of molting-related genes.

3. Discussion

Chitin metabolism is an important process of successful insect molting and metamorphosis [11,44,45]. If chitin digestion and degradation in the old cuticle are hindered, insect growth and development will be blocked [10]. The key genes that affect insect molting are potential insect control targets [6,7,44]. HEXs are enzymes involved in chitin catabolism during insect growth [30]. Multiple HEX genes as a gene family are present in insects. Their roles have been studied in numerous insect species but a comprehensive and systematic study of all HEX genes only in three insect species has been conducted. There are four HEX genes in T. castaneum (Coleoptera) [16], five in D. melanogaster (Diptera) [22], and 11 in N. lugens (Homoptera) [23]. We identified nine HEX genes in B. mori and phylogenetic analysis grouped these HEX proteins into five major groups (Figure 1). The numbers of HEX genes differ among insect species, implying that the HEX family has undergone frequent gene loss and duplication [16]. Furthermore, the mean similarity between the HEX genes of B. mori was low (29.02%). These findings suggest that functional divergence of insect HEXs genes occurred as a result of species differentiation as they evolved in various habitats with different requirements. This can also be seen from spatial and temporal expression patterns. HEX family genes of some species have varied spatiotemporal expression patterns, with high abundance in specific tissues or development stages [16,23,43]. In B. mori, BmFDL-B, BmHex-B, and BmHex-C are highly expressed in the silk gland and this indicates that they may be involved in the formation of cocoon silk [41]. BmFDL-A, BmFDL-C, BmHex-B, BmHex-C, and BmHexD-like were highly expressed in reproductive organs, indicating that these genes may be involved in gametogenesis and fertilization [21,22]. BmChiNAG had high transcript levels in chitin-rich tissues and showed a cyclic trend with high transcript levels peaking before each molt. This suggests that BmChiNAG may be important in chitin catabolism and molting. Previous study showed that only the insects injected with dsRNA targeting the NAGI group’s genes exhibited lethal phenotypes in N. lugens and T. castaneum [16,23]. Coincidentally, phylogenetic analysis in this study showed that BmChiNAG was grouped with the enzymatically characterized NAGI group. These results indicated that the genes of the NAGI group are essential for the insects to successfully molt and may be preferred targets for novel pesticides.
In 1927, the BmChiNAG protein was first purified from B. mori integument tissue and this enzyme was shown to react with chitooligosaccharides to produce GlcNAc [46]. In the present study, BmChiNAG seemed to be involved in chitin catabolism and played a crucial role in B. mori metamorphosis. First, BmChiNAG was highly expressed in chitin-rich tissues, such as the wing disc, epidermis, and head (Figure 2). Specific high expression levels of BmChiNAG were also observed during the metamorphosis period in the wing disc and critical period of molting in the epidermis [47]. Second, BmChiNAG knockout impaired wing development in 39.2% of female moths with the BmChiNAG/+ heterozygote genotype (Figure 3). Wing-mutated individuals had small and curly wings during pupal and adult stages compared with wild-type B. mori. Studies in O. furnacalis, T. castaneum, and D. melanogaster also demonstrated that NAGs were important for the normal formation of adult wings. Moth wings are mainly made up of protein and chitin, which have a sandwich-like structure involving one protein layer sandwiched between two chitin layers [48]. The chitin fibers contributed to the mechanical strength of the lightweight and rigid wing [49]. In this study, the ultrastructure of a cross-section of the forewing showed that the lack of BmChiNAG affected the stratification of the wing membrane and the formation of the normal wing vein structure. This suggested that BmChiNAG may affect wing development by affecting chitin metabolism. Third, the BmChiNAG homozygous mutants had molting defects and eventually died. Relatively low expression of molting-related genes was caused by the lack of BmChiNAG (Figure 4). Molting is an essential insect developmental process in which a variety of enzymes are involved. Chitinases and HEXs are responsible for the hydrolysis of chitin to chitosan oligosaccharides and monosaccharides, respectively [9]. The lack of BmChiNAG may affect the complete hydrolysis of chitosan oligosaccharides into monosaccharides, which may inhibit the expression of BmCht and thus disrupt chitin degradation. Previous studies have shown that when the chitin metabolism-related NAG was suppressed, new chitin biosynthesis was also inhibited [28]. We speculate that this indirectly affected the expression of several genes related to cuticle tanning and hardening. The insect cuticle is composed of the envelope, the epicuticle (outer), the exocuticle (medial), and the endocuticle (inner). Among these, the exocuticle and endocuticle are composed of chitin and protein complexes [50]. The pupa skin sections showed that the endocuticle of pupa skin in the BmChiNAG homozygous mutants was not degraded, indicating that the BmChiNAG gene appears to be involved in chitin catabolism and plays a vital role in the molting process. Therefore, BmChiNAG may be a valuable insecticidal target because normal periodic molting and flight ability are key factors underlying insect growth, movement, and reproduction [51].
Some HEXs inhibitors have been uncovered via structure-based virtual screening [7,38,52,53,54] but they are all based on the crystal structure information of OfHex1. This is because the OfHex1 of O. furnacalis is the only insect-derived HEX with crystal structure information. Thus, no HEXs inhibitors have been developed for the control of agricultural pests [30]. A major issue involving the application of HEXs inhibitors as pesticides is selectivity. Insecticides should consider the toxicity risks to non-target organisms such as humans and some economic insects [11]. B. mori is a lepidopteran model insect in various life science research due to its many basic physiological processes conserved among insects [42,55,56]. Thus, identifying the crystal structure information and regulatory mechanisms of HEXs in B. mori can provide clues to target-based insecticide design.
In summary, this study characterized nine HEX genes in B. mori using genome databases and focused on one of them, namely BmChiNAG. BmChiNAG is involved in insect chitin catabolism and plays an important role in successful molting and wing development. Future studies are needed to clarify the crystal structure information of BmChiNAG and to consider the crystal structures of targetable HEXs.

4. Materials and Methods

4.1. Experimental Animals

The control strain Dazao was obtained from the State Key Laboratory of Silkworm Genome Biology (Southwest University, Chongqing, China). The BmChiNAG-knockout line, in which the BmChiNAG gene was knockout by CRISPR/cas9, was obtained from a previous study [42]. Specifically, the single-guide RNA (sgRNA) target was predited by the online tool (http://crispr.dbcls.jp/, accessed on 15 July 2021) to obtain the target sites. Subsequently, the GeneArt™ Precision gRNA Synthesis Kit (Thermo Fisher Scientific, Shanghai, China) was used to synthesize sgRNA according to the manufacturer’s manual. The eggs from Bombyx mori within 2 h of oviposition were collected and fixed on a microscope slide (Promega, USA). Then, the eggs were microinjected under a stereomicroscope (SZX-ILLK200, Olympus) with an individual injection volume of 10 nL mixture of sgRNA (500 ng/μL) and Cas9 protein (500 ng/μL, Thermo Fisher Scientific, Shanghai, China). Among the injected embryos (n = 240), 52.1% hatched and all individuals survived to the adult stage. The genomic DNA was extracted from the adult’s wings and then PCR-amplified as well as sequenced to screen out the chimeric individuals of the BmChiNAG gene. The chimeric individuals were crossed with wild-type individuals to produce the progeny and then screen out the heterozygous mutant individuals with a loss of function of the BmChiNAG gene, and the heterozygous mutants were self-crossed to obtain homozygous mutant individuals.
These B. mori strains were reared on fresh mulberry leaves at 25 °C under a 12:12 h (L:D) photoperiod. Adults mated and laid eggs at room temperature.

4.2. Identification of GH20 Hexosaminidase Genes in B. mori

The HEX genes of B. mori were predicted in the silkworm genome through multiple databases including NCBI (https://www.ncbi.nlm.nih.gov/, accessed on 10 June 2021), SilkDB 3.0 (https://silkdb.bioinfotoolkits.net/main/species-info/-1, accessed on 10 June 2021) [57], OrthoVenn2 (https://orthovenn2.bioinfotoolkits.net/home, accessed on 10 June 2021) [58], and SilkBase (http://silkbase.ab.a.u-tokyo.ac.jp/cgi-bin/index.cgi, accessed on 10 June 2021) [59]. Protein domain and signal peptides were predicted by the online research tools SMART (http://smart.embl-heidelberg.de/, accessed on 17 June 2021) and SignalP-5.0 (http://www.cbs.dtu.dk/services/SignalP/, accessed on 17 June 2021), respectively. The CONSERVED Domain Architecture Retrieval Tool in NCBI was used to predict the protein catalytically active sites (https://www.ncbi.nlm.nih.gov/Structure/lexington/lexington.cgi, accessed on 21 June 2021). The isoelectric point (pI) was predicted by the ExPASy Proteomics website (http://web.expasy.org/compute_pi/, accessed on 21 June 2021).

4.3. Multiple Sequence Alignments, Phylogenetic Analysis, and 3D Structure Prediction

The multiple sequence alignment of HEXs and homologous proteins downloaded from NCBI (https://www.ncbi.nlm.nih.gov/, accessed on 23 June 2021) were created by Clustal X and Jalview software, and a phylogenetic tree was constructed by MEGA 7 software with the Neighbor-joining method with 1000 bootstrap values to confirm the reliability of the branching. The 3D structure of BmChiNAG was predicted by SWISS-MODEL online (http://swissmodel.expasy.org/interactive, accessed on 23 June 2021). PyMOL bioinformatics software was used to highlight the conserved domains and motifs of the 3D structures.

4.4. RNA Isolation and cDNA Synthesis

To analyze tissue-specific expression, 12 tissues (head, midgut, fat body, Malpighian tubule, silk gland, wing disc, hemocyte, epidermis, nerve, muscle, and male and female reproductive organs) were dissected from silkworms on day 3 of the 5th instar. The wing disc and epidermis of B. mori from day 1 of the 4th instar larva to day 1 of the pupae samples were prepared to detect the temporal expression patterns. RNA was extracted and purified by an SV Total RNA Isolation System Kit (Promega, Madison, WI, USA) according to the manufacturer’s instructions. After integrity confirmation by agarose gel electrophoresis and concentration determination by NanoDropTM 2000 (Thermo Fisher, Wilmington, DE, USA), 2 μg RNA was used to synthesize the first-strand cDNA using the SuperScriptTM III Reverse Transcriptase System (Invitrogen, Carlsbad, CA, USA).

4.5. Molecular Cloning of BmChiNAG

The mRNA full-length sequence of BmChiNAG was obtained from B. mori full-length transcripts [60]. The open reading frame (ORF) of BmChiNAG was predicted using the ORF Finder (http://www.ncbi.nlm.nih.gov/gorf/gorf.html, accessed on 27 June 2021). Polymerase chain reaction (PCR) was employed to clone the ORF of BmChiNAG with gene-specific primers (Table S4). cDNA synthesized from total RNA isolated from the epidermis at the larval wandering stage was used as the template. PCR was performed by initially denaturing the cDNA template for 2 min at 98 °C followed by 35 cycles, each consisting of 10 s at 98 °C, 15 s at 60 °C, 110 s at 68 °C, and a final extension step of 10 min at 70 °C. The PCR products were purified using an E.Z.N.A.TM Gel Extraction Kit (OMEGA, Norcorss, GA, USA) and the purified product was subcloned into a pEASY®-Blunt Zero Cloning Kit (TransGen Biotech, Beijing, China) for sequencing from both directions.

4.6. Quantitative Real-Time PCR (qRT-PCR)

qPCR was performed to analyze the relative mRNA expression levels of selected genes. A Bio-rad CFX96 sequence detection system with an iTaqSYBRGreen (Bio-rad, Hercules, CA, USA) was used to assess the transcript level of the gene of interest. The relative expression level of each gene was calculated by the 2−ΔΔCt method and normalized to the abundance of the eif4A gene. Comparisons of target gene expressions were performed using Student’s t-test. The primers used for qRT-PCR are listed in Table S5.

4.7. 20-Hydroxyecdysone (20E) Induction

Silkworm larvae at day 2 of the 5th instar were injected with 20E (Sigma Aldrich, St. Louis, MO, USA) to investigate its effect on the expression of BmChiNAG. Larvae were divided into two groups and each group contained >36 larvae. The 20E was diluted with 75% ethanol at a concentration of 10 µg/µL. Ten uL 20E (10 µg/µL) was injected with a glass capillary and 10 uL 75% ethanol was used as a control. One hour after injection, the silkworm was allowed to feed on mulberry leaves as normal. Epidermis samples were collected at 6 h, 12 h, 24 h, and 48 h post-injection.

4.8. Morphology Observation of Wings and Pupa Skins

The wing morphology of B. mori was observed using an encoded stereo microscope (M205A, Leica) and then Image-J was used to calculate the surface area of the wings. The wing and pupal skin were sectioned using a freezing microtome (HM525 NX, Thermo) to obtain serial sections of 3 μm thickness and then their ultrastructure was both observed and photographed by a fluorescence microscope (DP80, Olympus) as well as scanning electron microscopy (SU3500, HITACHI).

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms23073850/s1.

Author Contributions

Methodology, B.Z., F.D. and X.T.; software, B.Z. and K.L.; validation, B.Z., F.D. and X.T.; formal analysis, B.Z.; investigation, B.Z., Y.L. (Yue Luan) and Y.L. (Yanyu Liu); resources, H.H., G.Z. and F.D.; data curation, B.Z. and C.L.; writing—original draft preparation, B.Z.; writing—review and editing, X.T., C.L. and Y.L. (Yaru Lu); visualization, B.Z. and Y.L. (Yaru Lu); supervision, X.T. and F.D.; project administration, F.D., B.Z. and C.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (Nos.: 31902211, 31830094, and U20A2058) and the Municipal Graduate Student Research Innovation Project of Chongqing (No.: CYS1913).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data that support the findings of this study are available from the corresponding author upon reasonable request.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Koumandou, V.L.; Papageorgiou, L.; Tsaniras, S.C.; Papathanassopoulou, A.; Hagidimitriou, M.; Cosmidis, N.; Vlachakis, D. Microbiome Hijacking Towards an Integrative Pest Management Pipeline. Adv. Exp. Med. Biol. 2020, 1195, 21–32. [Google Scholar] [PubMed]
  2. Derek, F.; Kelly, A.H.; Mark, B.; Rachael, E.G.; Jeffrey, C.W.; Frank, G.Z. Economic analysis of revenue losses and control costs associated with the spotted wing drosophila, Drosophila suzukii (Matsumura), in the California raspberry industry. Pest Manag. Sci. 2017, 73, 1083–1090. [Google Scholar]
  3. Lin, H.Y.; Chen, X.; Chen, J.N.; Wang, D.W.; Wu, F.X.; Lin, S.Y.; Zhan, C.G.; Wu, J.W.; Yang, W.C.; Yang, G.F. Crystal Structure of 4-Hydroxyphenylpyruvate Dioxygenase in Complex with Substrate Reveals a New Starting Point for Herbicide Discovery. Research 2019, 2019, 2602414. [Google Scholar] [CrossRef] [Green Version]
  4. Xiong, L.; Zhu, X.L.; Gao, H.W.; Fu, Y.; Hu, S.Q.; Jiang, L.N.; Yang, W.C.; Yang, G.F. Discovery of Potent Succinate-Ubiquinone Oxidoreductase Inhibitors via Pharmacophore-linked Fragment Virtual Screening Approach. J. Agric. Food Chem. 2016, 64, 4830–4837. [Google Scholar] [CrossRef]
  5. Dong, Y.; Jiang, X.; Liu, T.; Ling, Y.; Yang, Q.; Zhang, L.; He, X. Structure-Based Virtual Screening, Compound Synthesis, and Bioassay for the Design of Chitinase Inhibitors. J. Agric. Food Chem. 2018, 66, 3351–3357. [Google Scholar] [CrossRef] [PubMed]
  6. Dong, Y.; Hu, S.; Jiang, X.; Liu, T.; Ling, Y.; He, X.; Yang, Q.; Zhang, L. Pocket-based Lead Optimization Strategy for the Design and Synthesis of Chitinase Inhibitors. J. Agric. Food Chem. 2019, 67, 3575–3582. [Google Scholar] [CrossRef]
  7. Dong, Y.; Hu, S.; Zhao, X.; He, Q.; Yang, Q.; Zhang, L. Virtual screening, synthesis, and bioactivity evaluation for the discovery of β-N-acetyl-D-hexosaminidase inhibitors. Pest Manag. Sci. 2020, 76, 3030–3037. [Google Scholar] [CrossRef] [PubMed]
  8. Zhang, J.; Gonzalez, L.E.; Hall, T. Structural analysis reveals the flexible C-terminus of Nop15 undergoes rearrangement to recognize a pre-ribosomal RNA folding intermediate. Nucleic Acids Res. 2017, 45, 2829–2837. [Google Scholar] [CrossRef] [Green Version]
  9. Karl, J.K.; Daizo, K. Insect chitin: Physical state, synthesis, degradation and metabolic regulation. Insect Biochem. 1986, 16, 851–877. [Google Scholar]
  10. Merzendorfer, H.; Zimoch, L. Chitin metabolism in insects: Structure, function and regulation of chitin synthases and chitinases. J. Exp. Biol. 2003, 206 Pt 24, 4393–4412. [Google Scholar] [CrossRef] [Green Version]
  11. Chen, W.; Yang, Q. Development of Novel Pesticides Targeting Insect Chitinases: A Minireview and Perspective. J. Agric. Food Chem. 2020, 68, 4559–4565. [Google Scholar] [CrossRef] [PubMed]
  12. Zhao, X.; Situ, G.; He, K.; Xiao, H.; Su, C.; Li, F. Functional analysis of eight chitinase genes in rice stem borer and their potential application in pest control. Insect Mol. Biol. 2018, 27, 835–846. [Google Scholar] [CrossRef]
  13. Yang, Q.; Liu, T.; Liu, F.; Qu, M.; Qian, X. A novel beta-N-acetyl-D-hexosaminidase from the insect Ostrinia furnacalis (Guenee). FEBS J. 2008, 275, 5690–5702. [Google Scholar] [CrossRef] [PubMed]
  14. Slamova, K.; Bojarova, P.; Petraskova, L.; Kren, V. β-N-acetylhexosaminidase: What’s in a name…? Biotechnol. Adv. 2010, 28, 682–693. [Google Scholar] [CrossRef] [PubMed]
  15. Val-Cid, C.; Biarnés, X.; Faijes, M.; Planas, A. Structural-Functional Analysis Reveals a Specific Domain Organization in Family GH20 Hexosaminidases. PLoS ONE 2015, 10, e0128075. [Google Scholar] [CrossRef]
  16. Hogenkamp, D.G.; Arakane, Y.; Kramer, K.J.; Muthukrishnan, S.; Beeman, R.W. Characterization and expression of the β-N-acetylhexosaminidase gene family of Tribolium castaneum. Insect Biochem. Mol. Biol. 2008, 38, 478–489. [Google Scholar] [CrossRef] [PubMed]
  17. Geisler, C.; Jarvis, D.L. Identification of genes encoding N-glycan processing beta-N-acetylglucosaminidases in Trichoplusia ni and Bombyx mori: Implications for glycoengineering of baculovirus expression systems. Biotechnol. Prog. 2010, 26, 34–44. [Google Scholar]
  18. Huo, Y.; Chen, L.; Qu, M.; Chen, Q.; Yang, Q. Biochemical characterization of a novel beta-N-acetylhexosaminidase from the insect Ostrinia furnacalis. Arch. Insect Biochem. Physiol. 2013, 83, 115–126. [Google Scholar] [CrossRef] [PubMed]
  19. Leonard, R.; Rendic, D.; Rabouille, C.; Wilson, I.B.; Preat, T.; Altmann, F. The Drosophila fused lobes gene encodes an N-acetylglucosaminidase involved in N-glycan processing. J. Biol. Chem. 2006, 281, 4867–4875. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  20. Qu, M.; Liu, T.; Chen, P.; Yang, Q. A sperm-plasma beta-N-acetyl-D-hexosaminidase interacting with a Chitinolytic beta-N-Acetyl-D-hexosaminidase in insect molting fluid. PLoS ONE 2013, 8, e71738. [Google Scholar] [CrossRef] [Green Version]
  21. Intra, J.; Veltri, C.; De Caro, D.; Perotti, M.E.; Pasini, M.E. In vitro evidence for the participation of Drosophila melanogaster sperm beta-N-acetylglucosaminidases in the interactions with glycans carrying terminal N-acetylglucosamine residues on the egg’s envelopes. Arch. Insect Biochem. Physiol. 2017, 96, e21403. [Google Scholar] [CrossRef]
  22. Pasini, M.E.; Intra, J.; Gomulski, L.M.; Calvenzani, V.; Petroni, K.; Briani, F.; Perotti, M.E. Identification and expression profiling of Ceratitis capitata genes coding for beta-hexosaminidases. Gene 2011, 473, 44–56. [Google Scholar] [CrossRef]
  23. Xi, Y.; Pan, P.L.; Zhang, C.X. The β-N-acetylhexosaminidase gene family in the brown planthopper, Nilaparvata lugens. Insect Mol. Biol. 2015, 24, 601–610. [Google Scholar] [CrossRef]
  24. Rong, S.; Li, D.; Zhang, X.; Li, S.; Zhu, K.Y.; Guo, Y.; Ma, E.; Zhang, J. RNA interference to reveal roles of β-N-acetylglucosaminidase gene during molting process in Locusta migratoria. Insect Sci. 2013, 20, 109–119. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Zhang, H.; Zhao, K.; Fan, D. Molecular cloning and RNA interference analysis of β-N-acetylglucosaminidase in Mamestra brassicae L. J. Asia-Pac. Entomol. 2016, 19, 721–728. [Google Scholar] [CrossRef]
  26. Lyu, Z.; Chen, J.; Li, Z.; Cheng, J.; Wang, C.; Lin, T. Knockdown of β-N-acetylglucosaminidase gene disrupts molting process in Heortia vitessoides Moore. Arch. Insect Biochem. 2019, 101, e21561. [Google Scholar] [CrossRef]
  27. Chen, X.; Xu, K.; Yan, X.; Chen, C.; Cao, Y.; Wang, Y.; Li, C.; Yang, W. Characterization of a β-N-acetylglucosaminidase gene and its involvement in the development of Lasioderma serricorne (Fabricius). J. Stored Prod. Res. 2018, 77, 156–165. [Google Scholar] [CrossRef]
  28. Yang, W.; Xu, K.; Yan, X.; Li, C. Knockdown of β-N-acetylglucosaminidase 2 Impairs Molting and Wing Development in Lasioderma serricorne (Fabricius). Insects 2019, 10, 396. [Google Scholar] [CrossRef] [Green Version]
  29. Liu, F.; Liu, T.; Qu, M.; Yang, Q. Molecular and Biochemical Characterization of a Novel β-N-Acetyl-D-Hexosaminidase with Broad Substrate-Spectrum from the Aisan Corn Borer, Ostrinia Furnacalis. Int. J. Biol. Sci. 2012, 8, 1085–1096. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  30. Liu, T.; Duan, Y.; Yang, Q. Revisiting glycoside hydrolase family 20 beta-N-acetyl-d-hexosaminidases: Crystal structures, physiological substrates and specific inhibitors. Biotechnol. Adv. 2018, 36, 1127–1138. [Google Scholar] [CrossRef] [PubMed]
  31. Yang, Y.; Li, Y.; Yu, B. Total synthesis and structural revision of TMG-chitotriomycin, a specific inhibitor of insect and fungal β-N-acetylglucosaminidases. J. Am. Chem. Soc. 2009, 131, 12076–12077. [Google Scholar] [CrossRef]
  32. Wang, Y.; Liu, T.; Yang, Q.; Li, Z.; Qian, X. A modeling study for structure features of β-N-acetyl-D-hexosaminidase from Ostrinia furnacalis and its novel inhibitor allosamidin: Species selectivity and multi-target characteristics. Chem. Biol. Drug Des. 2012, 79, 572–582. [Google Scholar] [CrossRef]
  33. Liu, T.; Zhang, H.; Liu, F.; Chen, L.; Shen, X.; Yang, Q. Active-pocket size differentiating insectile from bacterial chitinolytic β-N-acetyl-D-hexosaminidases. Biochem. J. 2011, 438, 467–474. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Liu, T.; Xia, M.; Zhang, H.; Zhou, H.; Wang, J.; Shen, X.; Yang, Q. Exploring NAG-thiazoline and its derivatives as inhibitors of chitinolytic beta-acetylglucosaminidases. FEBS Lett. 2015, 589, 110–116. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Shen, S.; Dong, L.; Lu, H.; Dong, Y.; Yang, Q.; Zhang, J. Synthesis of ureido thioglycosides as novel insect β-N-acetylhexosaminidase OfHex1 inhibitors. Bioorg. Med. Chem. 2020, 28, 115602. [Google Scholar] [CrossRef]
  36. Chen, L.; Liu, T.; Duan, Y.; Lu, X.; Yang, Q. Microbial Secondary Metabolite, Phlegmacin B1, as a Novel Inhibitor of Insect Chitinolytic Enzymes. J. Agric. Food Chem. 2017, 65, 3851–3857. [Google Scholar] [CrossRef] [PubMed]
  37. Duan, Y.; Liu, T.; Zhou, Y.; Dou, T.; Yang, Q. Glycoside hydrolase family 18 and 20 enzymes are novel targets of the traditional medicine berberine. J. Biol. Chem. 2018, 293, 15429–15438. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Chen, T.; Li, W.Q.; Liu, Z.; Jiang, W.; Liu, T.; Yang, Q.; Zhu, X.L.; Yang, G.F. Discovery of Biphenyl-Sulfonamides as Novel β-N-Acetyl-d-Hexosaminidase Inhibitors via Structure-Based Virtual Screening. J. Agric. Food Chem. 2021, 69, 12039–12047. [Google Scholar] [CrossRef]
  39. Hu, X.; Zhang, K.; Pan, G.; Hao, X.; Li, C.; Li, C.; Gul, I.; Kausar, S.; Abbas, M.N.; Zhu, Y.; et al. The identification of nuclear factor Akirin with immune defense role in silkworm, Bombyx mori. Int. J. Biol. Macromol. 2021, 188, 32–42. [Google Scholar] [CrossRef] [PubMed]
  40. Zhai, Y.; Huang, M.; Wu, Y.; Zhao, G.; Du, J.; Li, B.; Shen, W.; Wei, Z. The expression profile and promoter analysis of β-N-acetylglucosaminidases in the silkworm Bombyx mori. Mol. Biol. Rep. 2014, 41, 6667–6678. [Google Scholar] [CrossRef]
  41. Li, C.; Tong, X.; Zuo, W.; Hu, H.; Xiong, G.; Han, M.; Gao, R.; Luan, Y.; Lu, K.; Gai, T.; et al. The beta-1, 4-N-acetylglucosaminidase 1 gene, selected by domestication and breeding, is involved in cocoon construction of Bombyx mori. PLoS Genet. 2020, 16, e1008907. [Google Scholar] [CrossRef] [PubMed]
  42. Tong, X.; Han, M.; Lu, K.; Tai, S.; Liang, S.; Liu, Y.; Hu, H.; Shen, J.; Long, A.; Zhan, C.; et al. Reference genomes of 545 silkworms enable high-throughput exploring genotype-phenotype relationships. bioRxiv 2021. [Google Scholar] [CrossRef]
  43. Wang, M.X.; Cai, Z.Z.; Lu, Y.; Xin, H.H.; Chen, R.T.; Liang, S.; Singh, C.O.; Kim, J.N.; Niu, Y.S.; Miao, Y.G. Expression and functions of dopa decarboxylase in the silkworm, Bombyx mori was regulated by molting hormone. Mol. Biol. Rep. 2013, 40, 4115–4122. [Google Scholar] [CrossRef] [PubMed]
  44. Muthukrishnan, S.; Mun, S.; Noh, M.Y.; Geisbrecht, E.R.; Arakane, Y. Insect Cuticular Chitin Contributes to Form and Function. Curr. Pharm. Des. 2020, 26, 3530–3545. [Google Scholar] [PubMed]
  45. Truman, J.W. The Evolution of Insect Metamorphosis. Curr. Biol. 2019, 29, R1252–R1268. [Google Scholar] [CrossRef]
  46. Nagamatsu, Y.; Yanagisawa, I.; Kimoto, M.; Okamoto, E.; Koga, D. Purification of a chitooligosaccharidolytic β-N-acetylglucosaminidase from Bombyx mori larvae during metamorphosis and the nucleotide sequence of its cDNA. Biosci. Biotechnol. Biochem. 1995, 59, 219–225. [Google Scholar] [CrossRef]
  47. Chen, P.; Tong, X.L.; Li, D.D.; Fu, M.Y.; He, S.Z.; Hu, H.; Xiang, Z.H.; Lu, C.; Dai, F.Y. Antennapedia is involved in the development of thoracic legs and segmentation in the silkworm, Bombyx mori. Heredity 2013, 111, 182–188. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  48. Ye, Z.F.; Zhang, P.; Gai, T.T.; Lou, J.H.; Dai, F.Y.; Tong, X.L. Sob gene is critical to wing development in Bombyx mori and Tribolium castaneum. Insect Sci. 2021, 29, 65–77. [Google Scholar] [CrossRef] [PubMed]
  49. Dong, W.; Gao, Y.H.; Zhang, X.B.; Moussian, B.; Zhang, J.Z. Chitinase 10 controls chitin amounts and organization in the wing cuticle of Drosophila. Insect Sci. 2020, 27, 1198–1207. [Google Scholar] [CrossRef] [PubMed]
  50. Moussian, B. Recent advances in understanding mechanisms of insect cuticle differentiation. Insect Biochem. Mol. Biol. 2010, 40, 363–375. [Google Scholar] [CrossRef] [PubMed]
  51. Engel, M.S.; Grimaldi, D.A. New light shed on the oldest insect. Nature 2004, 427, 627–630. [Google Scholar] [CrossRef]
  52. Dong, L.; Shen, S.; Xu, Y.; Wang, L.; Yang, Q.; Zhang, J.; Lu, H. Identification of novel insect β-N-acetylhexosaminidase OfHex1 inhibitors based on virtual screening, biological evaluation, and molecular dynamics simulation. J. Biomol. Struct. Dyn. 2021, 39, 1735–1743. [Google Scholar] [CrossRef] [PubMed]
  53. Yang, H.; Liu, T.; Qi, H.; Huang, Z.; Hao, Z.; Ying, J.; Yang, Q.; Qian, X. Design and synthesis of thiazolylhydrazone derivatives as inhibitors of chitinolytic N-acetyl-beta-d-hexosaminidase. Bioorg. Med. Chem. 2018, 26, 5420–5426. [Google Scholar] [CrossRef] [PubMed]
  54. Hu, S.; Zhao, X.; Zhang, L. Computational Screening of Potential Inhibitors of β-N-Acetyl-D-Hesosaminidases Using Combined Core-Fragment Growth and Pharmacophore Restraints. Appl. Biochem. Biotechnol. 2019, 189, 1262–1273. [Google Scholar] [CrossRef] [PubMed]
  55. Xiang, H.; Liu, X.; Li, M.; Zhu, Y.; Wang, L.; Cui, Y.; Liu, L.; Fang, G.; Qian, H.; Xu, A.; et al. The evolutionary road from wild moth to domestic silkworm. Nat. Ecol. Evol. 2018, 2, 1268–1279. [Google Scholar] [CrossRef] [PubMed]
  56. Xia, Q.; Guo, Y.; Zhang, Z.; Li, D.; Xuan, Z.; Li, Z.; Dai, F.; Li, Y.; Cheng, D.; Li, R.; et al. Complete resequencing of 40 genomes reveals domestication events and genes in silkworm (Bombyx). Science 2009, 326, 433–436. [Google Scholar] [CrossRef] [Green Version]
  57. Lu, F.; Wei, Z.; Luo, Y.; Guo, H.; Zhang, G.; Xia, Q.; Wang, Y. SilkDB 3.0: Visualizing and exploring multiple levels of data for silkworm. Nucleic Acids Res. 2020, 48, D749–D755. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  58. Xu, L.; Dong, Z.; Fang, L.; Luo, Y.; Wei, Z.; Guo, H.; Zhang, G.; Gu, Y.Q.; Coleman-Derr, D.; Xia, Q.; et al. OrthoVenn2: A web server for whole-genome comparison and annotation of orthologous clusters across multiple species. Nucleic Acids Res. 2019, 47, W52–W58. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  59. Kawamoto, M.; Jouraku, A.; Toyoda, A.; Yokoi, K.; Minakuchi, Y.; Katsuma, S.; Fujiyama, A.; Kiuchi, T.; Yamamoto, K.; Shimada, T. High-quality genome assembly of the silkworm, Bombyx mori. Insect Biochem. Mol. Biol. 2019, 107, 53–62. [Google Scholar] [CrossRef] [PubMed]
  60. Dai, Z.; Ren, J.; Tong, X.; Hu, H.; Lu, K.; Dai, F.; Han, M.J. The Landscapes of Full-Length Transcripts and Splice Isoforms as Well as Transposons Exonization in the Lepidopteran Model System, Bombyx mori. Front. Genet. 2021, 12, 704162. [Google Scholar] [CrossRef] [PubMed]
Ijms 23 03850 g001 550

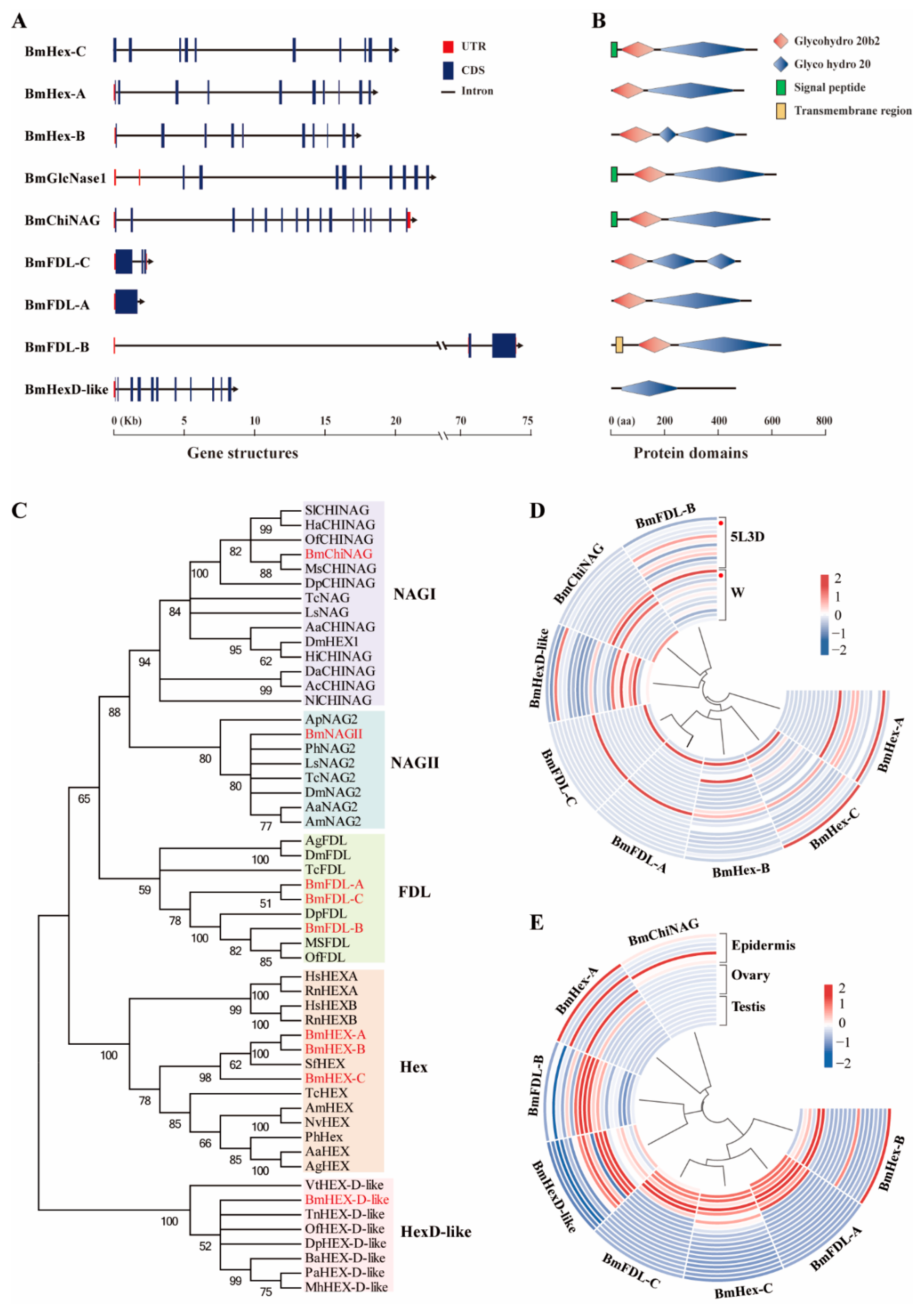

Figure 1. Genome-wide identification and expression profiles of the HEX genes in B. mori. (A) Gene structure and (B) protein domains of nine GH20 HEX genes identified in B. mori. Glycohydro 20b2 and Glyco hydro 20 are abbreviations of glycoside hydrolase 20b2 and glycoside hydrolase 20 in SMART. (C) Phylogenetic analysis of HEXs of B. mori and other species. The phylogenetic tree was constructed using neighbor-joining method and bootstrap support values on 1000 replicates by MEGA7. The HEX proteins in B. mori are labeled with a red line. (D) Heatmap of the expression level of eight HEX genes in 12 tissues (from the outside to the inside: anterior silk gland, epidermis, fat body, head, hemolymph, Malpighian tubule, middle silk gland, midgut, ovary, posterior silk gland, testis, and trachea) on day three of the fifth instar and wandering stage. Red dots indicate epidermis. 5L3D: day three of fifth instar and W: wandering stage. (E) Heatmap of the expression level of eight HEX genes in seven developmental stages (from the outside to the inside: day three of fourth instar; molting phase in the fourth instar; the start of the fifth instar; day three of fifth instar; W, wandering stage; PP, pre-pupa stage; and P1, day one of pupa) of the epidermis, ovary, and testis in Bombyx mori. Blue indicates low expression and red indicates high expression.
Figure 1. Genome-wide identification and expression profiles of the HEX genes in B. mori. (A) Gene structure and (B) protein domains of nine GH20 HEX genes identified in B. mori. Glycohydro 20b2 and Glyco hydro 20 are abbreviations of glycoside hydrolase 20b2 and glycoside hydrolase 20 in SMART. (C) Phylogenetic analysis of HEXs of B. mori and other species. The phylogenetic tree was constructed using neighbor-joining method and bootstrap support values on 1000 replicates by MEGA7. The HEX proteins in B. mori are labeled with a red line. (D) Heatmap of the expression level of eight HEX genes in 12 tissues (from the outside to the inside: anterior silk gland, epidermis, fat body, head, hemolymph, Malpighian tubule, middle silk gland, midgut, ovary, posterior silk gland, testis, and trachea) on day three of the fifth instar and wandering stage. Red dots indicate epidermis. 5L3D: day three of fifth instar and W: wandering stage. (E) Heatmap of the expression level of eight HEX genes in seven developmental stages (from the outside to the inside: day three of fourth instar; molting phase in the fourth instar; the start of the fifth instar; day three of fifth instar; W, wandering stage; PP, pre-pupa stage; and P1, day one of pupa) of the epidermis, ovary, and testis in Bombyx mori. Blue indicates low expression and red indicates high expression.
Ijms 23 03850 g001
Ijms 23 03850 g002 550

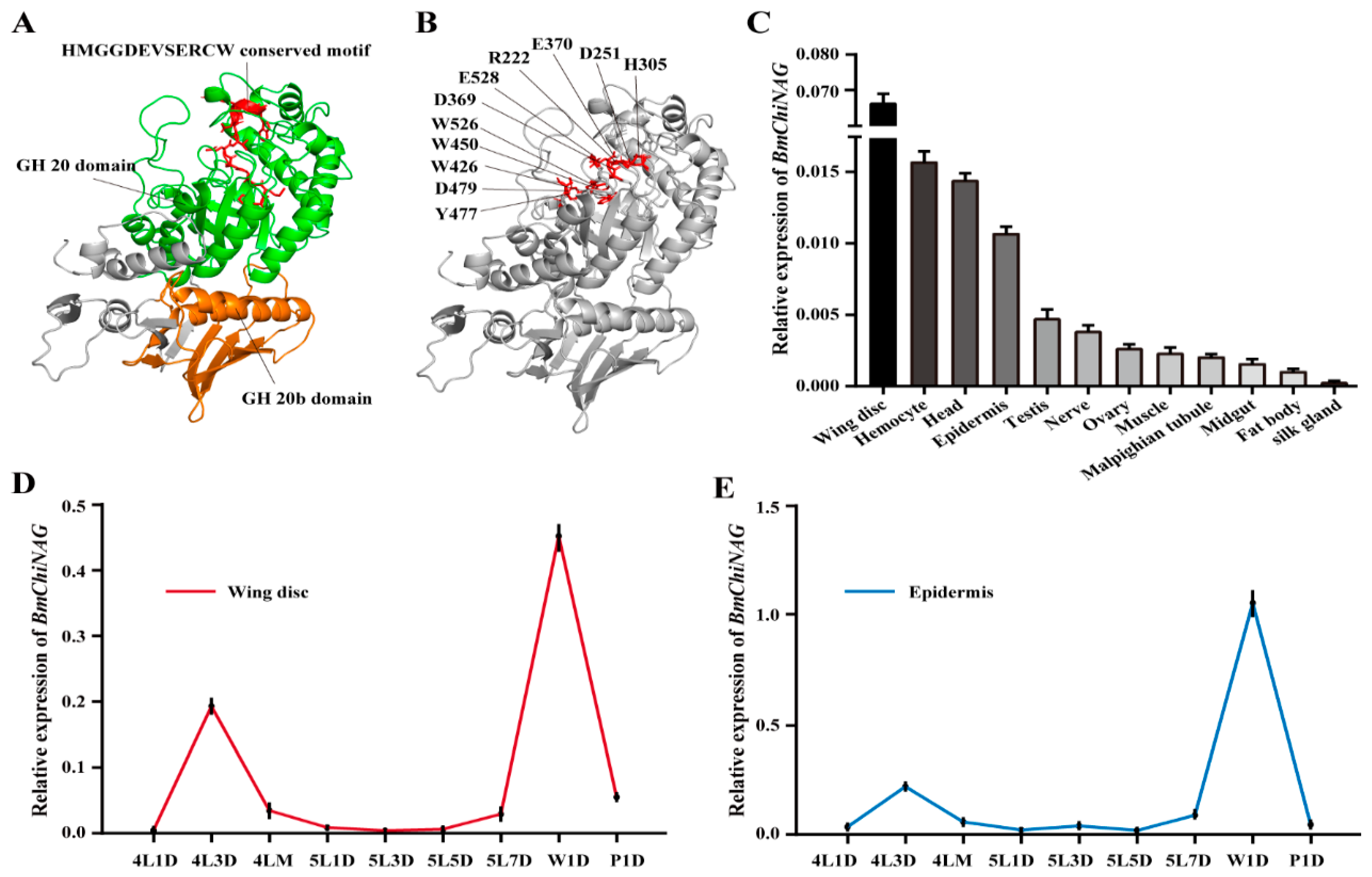

Figure 2. Protein catalytically active domain of BmChiNAG and expression patterns of BmChiNAG. (A) The predicted GH20 catalytic domain, additional GH20b domain, and conserved HMGGDEV×××CW motif in BmChiNAG. Based on the structure of O. furnacalis, Hex1 comparison domain model of BmChiNAG was constructed using SWISS-MODEL. (B) The protein catalytically active sites. CONSERVED Domain Architecture Retrieval Tool in NCBI was used to predict the protein catalytically active sites. (C) Expression pattern of BmChiNAG in different tissues of wild-type larvae on day three of fifth instar determined by real-time RT-PCR. The data are shown as mean ± SEM (n = 3). (D,E) Developmental pattern of expression of BmChiNAG in the wing disc and epidermis determined by real-time RT-PCR. The data are shown as mean ± SEM (n = 3). 4L1D, day one of fourth instar; 4L3D, day three of fourth instar; 4LM, molting phase in the fourth instar; 5L1D, the start of the fifth instar; 5L3D, day three of fifth instar; 5L7D, day seven of fifth instar; W1D, day one of the wandering stage; and P1, day one of pupa stage.
Figure 2. Protein catalytically active domain of BmChiNAG and expression patterns of BmChiNAG. (A) The predicted GH20 catalytic domain, additional GH20b domain, and conserved HMGGDEV×××CW motif in BmChiNAG. Based on the structure of O. furnacalis, Hex1 comparison domain model of BmChiNAG was constructed using SWISS-MODEL. (B) The protein catalytically active sites. CONSERVED Domain Architecture Retrieval Tool in NCBI was used to predict the protein catalytically active sites. (C) Expression pattern of BmChiNAG in different tissues of wild-type larvae on day three of fifth instar determined by real-time RT-PCR. The data are shown as mean ± SEM (n = 3). (D,E) Developmental pattern of expression of BmChiNAG in the wing disc and epidermis determined by real-time RT-PCR. The data are shown as mean ± SEM (n = 3). 4L1D, day one of fourth instar; 4L3D, day three of fourth instar; 4LM, molting phase in the fourth instar; 5L1D, the start of the fifth instar; 5L3D, day three of fifth instar; 5L7D, day seven of fifth instar; W1D, day one of the wandering stage; and P1, day one of pupa stage.
Ijms 23 03850 g002
Ijms 23 03850 g003 550
Figure 3. Phenotypic characterization in the wild-type and heterozygous mutant silkworm. The data are shown as mean ± SEM. Comparisons of target group were performed using Student’s t-test, ** p < 0.01. (A) BmChiNAG mutant heterozygous female pupa’s wing observation. (B,C) BmChiNAG mutant heterozygous female moth’s wing observation. (D) Morphological observation of control and BmChiNAG mutant heterozygous female moth forewing’s cross-section ultrastructure. The upper and lower wing membrane and the hollow tube-like wing vein are marked with yellow and red arrows, respectively. (E) Knockout of BmChiNAG affects the heterozygous pupa weight. The data are shown as mean ± SEM (n ≥ 20). (F) Area of forewing and hindwing between wing mutated heterozygous and wild-type. (G) Diameter of forewing veins between wing-mutated heterozygous and wild-type.
Figure 3. Phenotypic characterization in the wild-type and heterozygous mutant silkworm. The data are shown as mean ± SEM. Comparisons of target group were performed using Student’s t-test, ** p < 0.01. (A) BmChiNAG mutant heterozygous female pupa’s wing observation. (B,C) BmChiNAG mutant heterozygous female moth’s wing observation. (D) Morphological observation of control and BmChiNAG mutant heterozygous female moth forewing’s cross-section ultrastructure. The upper and lower wing membrane and the hollow tube-like wing vein are marked with yellow and red arrows, respectively. (E) Knockout of BmChiNAG affects the heterozygous pupa weight. The data are shown as mean ± SEM (n ≥ 20). (F) Area of forewing and hindwing between wing mutated heterozygous and wild-type. (G) Diameter of forewing veins between wing-mutated heterozygous and wild-type.
Ijms 23 03850 g003
Ijms 23 03850 g004 550
Figure 4. Phenotypic characterization in the homozygous mutant silkworm. Comparisons of target group were performed using Student’s t-test, * p < 0.05, and ** p < 0.01. (A,B) Morphological observation of larva at the wandering stage and pupa at day six of the pupal stage. (C) Observation of pupal skin surface and its cross-section at 10 days into the pupal stage. The layers of the cuticle from the inner to outer section are indicated as epidermal cells (epc), endocuticle (endo), exocuticle (exo), and epicuticle (epi). (D,E) Knockout of BmChiNAG affects the larval body length and the pupa weight. The data are shown as mean ± SEM (n = 6 and n = 20 biological replicates). (F) Knockout of BmChiNAG affects the pupal skin thickness. The data are shown as mean ± SEM (n = 6 biological replicates). (G) Expression profiles of BmChiNAG in the epidermis of silkworm exposed to 20E. (H) The expression levels of molting-related genes in the larva epidermis at the wandering stage. BmCht, BmPPO1, BmTh, BmDdc, and BmAt represent the gene of chitinases, phenol oxidase, tyrosine hydroxylase, dopa decarboxylase, and acetyltransferase in Bombyx mori, respectively. The data are shown as mean ± SEM (n = 3 biological replicates).
Figure 4. Phenotypic characterization in the homozygous mutant silkworm. Comparisons of target group were performed using Student’s t-test, * p < 0.05, and ** p < 0.01. (A,B) Morphological observation of larva at the wandering stage and pupa at day six of the pupal stage. (C) Observation of pupal skin surface and its cross-section at 10 days into the pupal stage. The layers of the cuticle from the inner to outer section are indicated as epidermal cells (epc), endocuticle (endo), exocuticle (exo), and epicuticle (epi). (D,E) Knockout of BmChiNAG affects the larval body length and the pupa weight. The data are shown as mean ± SEM (n = 6 and n = 20 biological replicates). (F) Knockout of BmChiNAG affects the pupal skin thickness. The data are shown as mean ± SEM (n = 6 biological replicates). (G) Expression profiles of BmChiNAG in the epidermis of silkworm exposed to 20E. (H) The expression levels of molting-related genes in the larva epidermis at the wandering stage. BmCht, BmPPO1, BmTh, BmDdc, and BmAt represent the gene of chitinases, phenol oxidase, tyrosine hydroxylase, dopa decarboxylase, and acetyltransferase in Bombyx mori, respectively. The data are shown as mean ± SEM (n = 3 biological replicates).
Ijms 23 03850 g004
Table
Table 1. The brief description and position of GH20 hexosaminidases genes in Bombyx mori.
Table 1. The brief description and position of GH20 hexosaminidases genes in Bombyx mori.
Gene IDGene NameBrief DescriptionPosition
KWMTBOMO04299BmHeX-Aβ-N-acetylglucosaminidase 2 precursorChr8: 42434…47615
(− strand)
KWMTBOMO04300BmHeX-Bβ-N-acetylglucosaminidase 3 precursorChr8: 2098477…2116999
(− strand)
KWMTBOMO06535BmGlcNase1β-N-acetylglucosaminidase 1 isoform X1Chr11: 9963920…9986523
(+ strand)
KWMTBOMO07501BmChiNAGChitooligosaccharidolytic β-N-acetylglucosaminidase isoform X1Chr12: 15174332…15195228
(− strand)
KWMTBOMO10588BmHexD-likehexosaminidase DChr17: 14817238…14825636
(− strand)
KWMTBOMO11651BmFDL-Aprobable β-hexosaminidase fdl isoform X2Chr19: 10667903…10669707
(− strand)
KWMTBOMO11657BmFDL-BFDL (fused lobes)Chr19: 10745073…10819197
(− strand)
KWMTBOMO11738BmHeX-Cβ-hexosaminidase subunit βChr19: 13055214…13075111 (+ strand)
KWMTBOMO14319BmFDL-Cprobable β-hexosaminidase fdl isoform X3Chr24: 1868831…1871175
(+ strand)
Note: gene ID, brief description, and position are from the SilkBase, which is a database of expressed genes from Bombyx mori.
Table
Table 2. The wrinkled wings ratio of wild-type and female heterozygous mutants.
Table 2. The wrinkled wings ratio of wild-type and female heterozygous mutants.
GenotypeNumberWrinkled Wing’s Ratioχ2p-Value
Wild-type (+/+)Normal wing: 27Wrinkled wing: 26.9%9.054** 0.0026
Heterozygous (+/−)Normal wing: 37Wrinkled wing: 2239.29%
Note: comparisons of target group were performed using Chi-square test, ** p < 0.01.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Zhang, B.; Li, C.; Luan, Y.; Lu, Y.; Hu, H.; Liu, Y.; Lu, K.; Zhang, G.; Dai, F.; Tong, X. The Role of Chitooligosaccharidolytic β-N-Acetylglucosamindase in the Molting and Wing Development of the Silkworm Bombyx mori. Int. J. Mol. Sci. 2022, 23, 3850. https://doi.org/10.3390/ijms23073850

AMA Style

Zhang B, Li C, Luan Y, Lu Y, Hu H, Liu Y, Lu K, Zhang G, Dai F, Tong X. The Role of Chitooligosaccharidolytic β-N-Acetylglucosamindase in the Molting and Wing Development of the Silkworm Bombyx mori. International Journal of Molecular Sciences. 2022; 23(7):3850. https://doi.org/10.3390/ijms23073850

Chicago/Turabian Style

Zhang, Bili, Chunlin Li, Yue Luan, Yaru Lu, Hai Hu, Yanyu Liu, Kunpeng Lu, Guizheng Zhang, Fangyin Dai, and Xiaoling Tong. 2022. "The Role of Chitooligosaccharidolytic β-N-Acetylglucosamindase in the Molting and Wing Development of the Silkworm Bombyx mori" International Journal of Molecular Sciences 23, no. 7: 3850. https://doi.org/10.3390/ijms23073850

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
