Genome-Wide Characterization and Evolutionary Expansion of Poplar NAC Transcription Factors and Their Tissue-Specific Expression Profiles under Drought

by
Lu Meng
1,
Siyuan Chen
1,
Dawei Li
1,
Minren Huang
2 and
Sheng Zhu
1,2,*
1
College of Biology and the Environment, Nanjing Forestry University, Nanjing 210037, China
2
Key Laboratory of Forest Genetics and Biotechnology, Ministry of Education of China, Co-Innovation Center for the Sustainable Forestry in Southern China, Nanjing Forestry University, Nanjing 210037, China
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2023, 24(1), 253; https://doi.org/10.3390/ijms24010253
Submission received: 26 November 2022 / Revised: 21 December 2022 / Accepted: 22 December 2022 / Published: 23 December 2022
(This article belongs to the Special Issue Comparative Genomics and Functional Genomics Analysis of Horticulture Plants 2022)
Browse Figures
Review Reports Versions Notes

Abstract

:
The NAC (NAM, ATAF1/2 and CUC2) is a large gene family of plant-specific transcription factors that play a pivotal role in various physiological processes and abiotic stresses. Due to the lack of genome-wide characterization, intraspecific and interspecific synteny, and drought-responsive expression pattern of NAC genes in poplar, the functional characterization of drought-related NAC genes have been scarcely reported in Populus species. Here, we identified a total of 170 NAC domain-containing genes in the P. trichocarpa genome, 169 of which were unevenly distributed on its nineteen chromosomes. These NAC genes were phylogenetically divided into twenty subgroups, some of which exhibited a similar pattern of exon–intron architecture. The synteny and Ka/Ks analysis indicated that the expansion of NAC genes in poplar was mainly due to gene duplication events occurring before and after the divergence of Populus and Salix. Ten PdNAC (P. deltoids × P. euramericana cv.’Nanlin895’) genes were randomly selected and cloned. Their drought-responsive expression profiles showed a tissue-specific pattern. The transcription factor PdNAC013 was verified to be localized in the nucleus. Our research results provide genomic information for the expansion of NAC genes in the poplar genome, and for further characterizing putative poplar NAC genes associated with water-deficit.

1. Introduction

NAC (Petunia NAM [1], and Arabidopsis ATAF1/2 and CUC2 [2] is one of the largest multigene families of plant-specific transcription factors (TFs), which are the important regulatory proteins in gene expression networks [3]. The NAC proteins are roughly partitioned into two parts, including a hypervariable transcription regulatory domain (TRD) at its C-terminus and a highly conservative NAC domain of nearly 150 amino acids at the N-terminus [4]. The N-terminal domain (NTD) of NAC proteins functions as a DNA-binding domain (DBD) which regulates the expression level of target genes by interacting with the cis-element at their promoters [5]. In addition to DNA-binding, the NAC domains are associated with nuclear localization and NAC dimer formation [4]. The NAC TFs have been found to regulate the expression of genes involved in the response of plant against diverse abiotic stresses, such as drought, high salinity, high (heat) and low (cold) temperature [6,7].
Identification of NAC TFs at the genome-wide level has been documented in the genomic sequences of angiosperm species, such as 75 in Oryza sativa [8], 105 in Arabidopsis thaliana [8], 74 in Vitis vinifera [9], 189 in Eucalyptus grandis [10], and 93 in Solanum lycopersicum [11]. Meanwhile, recent studies suggested that plant NAC TFs are related to the transcriptional regulation of drought-induced genes, water movement in plants, and the improvement of drought tolerance. For example, overexpression of the OsNAC10 gene enhanced drought resistance of transgenic rice plants with an increased grain yield [12]. ANAC016 in A. thaliana has an inhibitory effect on the expression of AREB1 (ABSCISIC ACID-RESPONSIVE ELEMENT BINDING PROTEIN1) gene, which encodes an important regulator in ABA-dependent signaling pathway [13]. Two Arabidopsis VND (vascular related NAC-domain) genes, including VND6 and VND7, are involved in xylem differentiation and cell fiber differentiation [14]. The NAC TFs in Physcomitrella patens are related to water transport in cellular tissues [15]. Overexpression of the CarNAC3 gene from Cicer arietinum, can lead to an increase in proline content and antioxidant enzyme activities, and a decrease in MDA (malondialdehyde) concentration of transgenic poplar NL895 (Populus deltoides × P. euramericana cv. ′Nanlin895’) [16]. In addition, only a handful of drought-related poplar NAC TFs, such as PeNAC034, PeNAC045, PeNAC036 and PeNAC122 genes of P. euphratica, have been functionally characterized to date [17,18].
The frequency of extreme meteorological events and the change of rainfall pattern aggravate the degree of drought at a regional scale [19]. Severe droughts have caused widespread tree mortality across many forest biomes with profound impact on the function of the ecosystem and the carbon balance [20,21]. The Populus species, as a settled and woody perennial species, may have evolved a sophisticated regulatory mechanism by which genes are regulated in response to water deficit occurring over the poplar lifetime. However, the regulating role of NAC TFs in poplar in response to drought stress remains largely unknown. This is, in part, due to the lack of the basic information of poplar NAC TFs, such as their coding sequence, physical and chemical properties, subcellular localization, drought stress-responsive expression profiling, and divergent evolutionary pattern.
In this research, NAC transcription factors in the whole P. trichocarpa genome were identified, in which comprehensive bioinformatics analyses were performed, including the physicochemical attribution, chromosomal distribution, phylogenetic classification, and intraspecific and interspecific collinearity detection. Ten poplar NAC genes were randomly selected and cloned from the genome of the poplar clone NL895. Their drought-responsive expression patterns were analyzed in three tissues (e.g., root, stem and leaf) of poplar NL895 using quantitative real-time PCR (qRT-PCR). Finally, the subcellular localization of PdNAC013 protein, which was encoded by one of the selected ten NAC genes, was verified in poplar NL895 protoplasts.

2. Results

2.1. Identification of PtrNAC Family Genes in Poplar

Here, we identified a total of 289 putative NAC (Pfam No.PF02365) domain-containing transcripts located in the entire P. trichocarpa genome. These transcripts were transcribed from 170 gene loci of the P. trichocarpa genome. The 170 NAC genes were reassigned as PtrNAC001-PtrNAC170 according to their corresponding chromosome number and physical location. Only one (PtrNAC170) of all PtrNAC genes was not located on any of the nineteen P. trichocarpa chromosomes.
The PtrNAC proteins ranged from 122 amino acid (aa) (PtrNAC125) to 1524 aa (PtrNAC170) in size, with an average length of 350.71 aa. Their corresponding molecular weights were between 14.84 kDa (PtrNAC125) and 174.42 kDa (PtrNAC170). Their predicted pI (isoelectric point) varied from 4.28 (PtrNAC138) to 10.73 (PtrNAC021). The coding sequences of these PtrNAC genes had an average GC content of 43.89%, with a relatively wide range of from 37.84% (PtrNAC120) to 52.44% (PtrNAC055). Detailed information on these data was summarized in Table S1.

2.2. Chromosomal Distributions and Collinearity Analysis of PtrNACs

Of all 170 PtrNAC genes, 169 were located on all nineteen chromosomes of P. trichocarpa. The 169 PtrNAC genes shared an uneven chromosomal distribution (Figure 1). The total number of PtrNAC genes per chromosomes varied from four (Chromosome 18, Chr18) to sixteen (Chr01). The average number of PtrNACs per 10 Mb (megabase pair) also differed among nineteen chromosomes in P. trichocarpa, ranging from 2.36 (Chr18) to 6.87 (Chr14). It seemed obvious that PtrNAC genes were not evenly distributed over a few chromosomes. Three NAC gene-rich clusters were found in Chr02 (PtrNAC025-PtrNAC029), Chr06 (PtrNAC060-PtrNAC067) and Chr14 (PtrNAC129-PtrNAC134). In addition, there were eight tandem duplicated gene pairs distributed on eight chromosomes, including Chr01 (PtrNAC011 and PtrNAC012), Chr02 (PtrNAC022 and PtrNAC023), Chr06 (PtrNAC063 and PtrNAC064), Chr09 (PtrNAC089 and PtrNAC090), Chr12 (PtrNAC112 PtrNAC113), Chr14 (PtrNAC132 and PtrNAC133), Chr16 (PtrNAC146 and PtrNAC147) andand Chr19 (PtrNAC168 and PtrNAC169).
Gene duplication events, such as tandem duplication and whole-genome duplication (WGD), were considered as a common process during plant evolutionary process, and could lead to the expansion of multigene families [22]. In order to further investigate the diversity and evolution of NAC gene family members in poplar, we identified the replication events of 170 PtrNAC genes during evolutionary innovation. A total of 117 PtrNAC genes were identified to be derived from WGD events, suggesting that WGD contributed mainly to the expansion of the NAC gene family in poplar.
The chromosomal synteny analysis discovered a total of 90 collinear gene pairs (Figure 1, Table S2). The synonymous (Ks) and non-synonymous (Ka) ratio of all duplicated PtrNAC gene pairs were less than 1, demonstrating that PtrNAC members had experienced purifying selective pressure and their functions might be conserved after the expansion of NAC genes in poplar [23,24]. The divergence time of homologous PtrNAC pairs could be estimated based on Ks-based distribution. Their divergence times ranged from 9.5 to 208.09 million years ago (Mya). The divergence times for 55 out of all 90 collinear gene pairs were less than 31 Mya. This showed that the expansion of PtrNACs occurred after and before the split between Populus and Salix (45 Mya) [25].
To further elaborate the evolutionary relationship of the NAC gene family, we constructed interspecific collinear relationships between P. trichocarpa and four other plants, including Salix purpurea, Eucalyptus grandis, Vitis vinifera and Arabidopsis thaliana (Figure 2). A total number of 208, 90, 84 and 70 PtrNACs shared a collinear relationship with that of S. purpurea, E. grandis, V. vinifera and A. thaliana, respectively. The number of orthologous NAC gene pairs between P. trichocarpa and S. purpurea were more than two-fold that of homologous gene pairs between P. trichocarpa and the remaining three species, indicating that a large part of PtrNAC genes might be arisen after the divergence of the Populus genus from the Salicaceae family.

2.3. Phylogenetic Tree and Gene Structures of PtrNACs

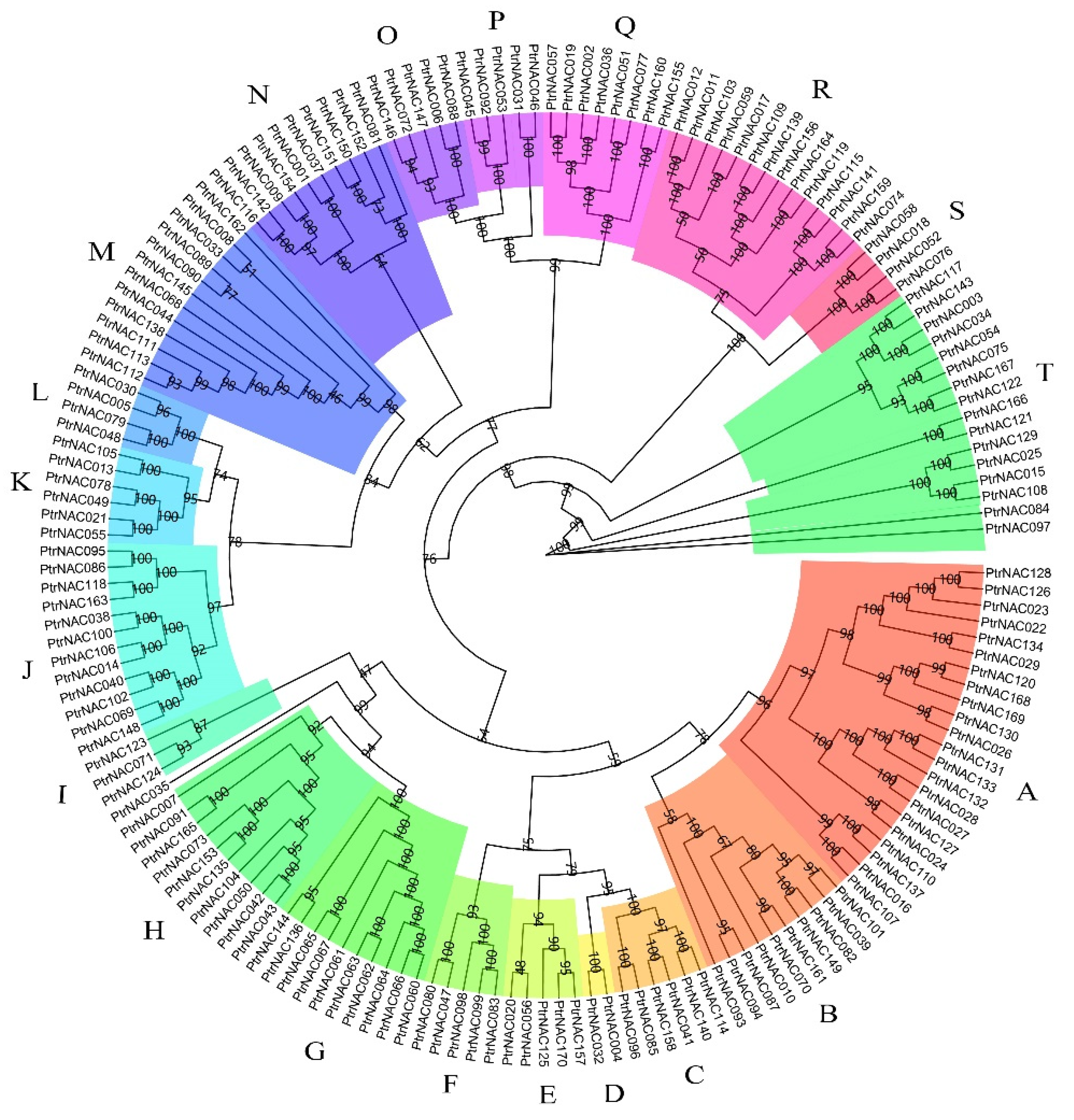

To explore the evolutionary relationships of PtrNACs, a total of 170 PtrNAC genes were phylogenetically categorized into twenty subfamilies in the maximum likelihood (ML) tree. These subfamilies were designated alphabetically as A through T. The number of PtrNAC genes in these subfamilies were between two (subfamily D) and twenty-two (subfamily A) (Figure 3). Moreover, the eight tandem duplicated gene pairs belonged to the eight subfamilies distributed on the eight chromosomes A, F, G, K, R, C, K and O, respectively.

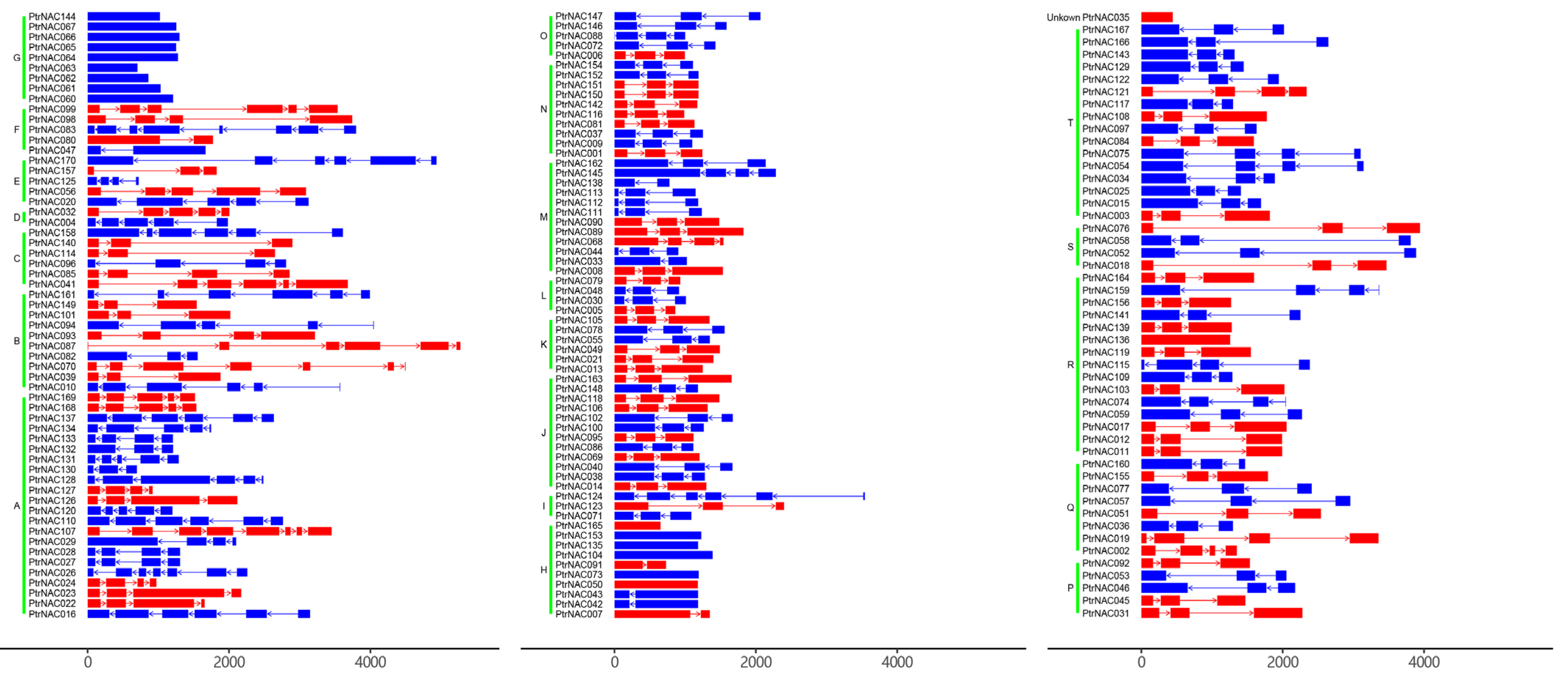

To further understand the characteristics of the PtrNAC genes, we investigated the exon–intron patterns of PtrNAC genes (Figure 4). A total of 74 (44%) and 95 (56%) PtrNAC genes were transcribed at the forward (+) and reverse (−) strand of all P. trchocarpa chromosomes. Exons or introns were unequally distributed over PtrNAC genes, but most related members of the same subfamily had similar intron/exon structures. For example, all PtrNAC genes contained introns except for all members belonging to the subfamily G, five genes (e.g., PtrNAC165, PtrNAC153, PtrNAC135, PtrNAC104 and PtrNAC073) belonging to the subfamily H, and PtrNAC136 in the subfamily R. In contrast, each of the six subfamilies (e.g., N, L, K, J, S and P) shared three exons pattern. The exons in the PtrNAC genes had an average number of 3.34. Two PtrNAC genes, including PtrNAC083 and PtrNAC107, possessed the maximum number of eight exons.

2.4. Cis-Element Analysis of PtrNAC Promoters

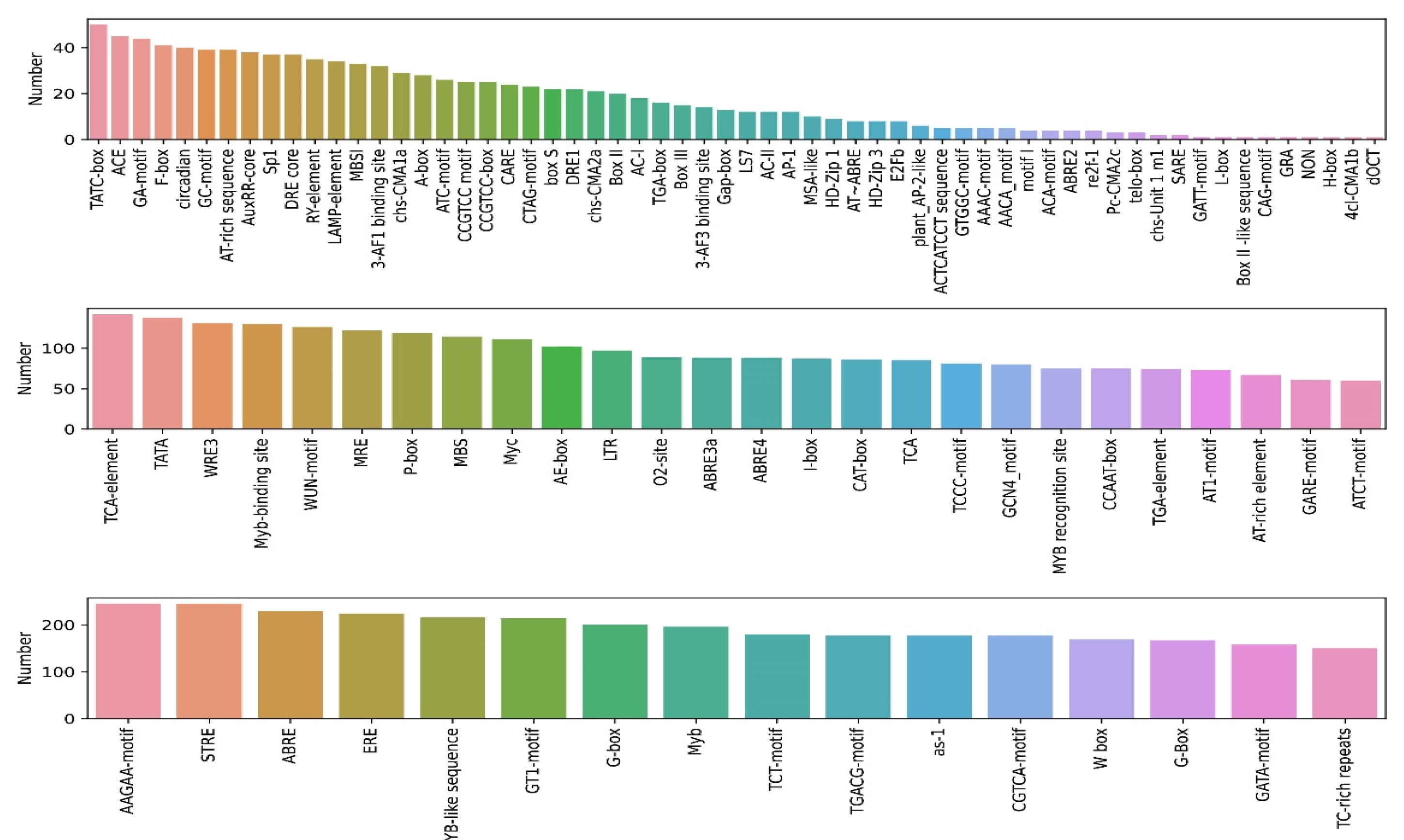

Transcription factors have a close association with the regulation of gene expression via binding the promotor region of their target genes [26]. Here we analyzed the cis-elements in the upstream region of 289 PtrNAC transcripts (Figure 5, Table S3). Cis-acting elements that appeared at the promoter region of more than 150 of all 289 transcripts could roughly fall into three categories: light-responsive elements, phytohormone-responsive elements, stress-responsive elements. The cis-acting elements associated with phytohormone could be divided into three subcategories, including ABA-related elements (ABRE (abscisic acid-responsive element) and G-box) [27], ethylene-related elements (ERE (ethylene-responsive element)) [28] and MeJA-related elements (CGTCA-motif and TGACG-motif) [29]. ABA and MeJA were two major phytohormones related to an increase of ROS (reactive oxygen species) and NO (nitric oxide) and a regulator of stomatal closure [30]. The cis-elements belonging to stress-responsive element were consisted of STRE (stress response element), TC-rich repeat, MYB and MYB-like sequence. A large proportion of PtrNACs contained MYB binding sites in their promoter region, suggesting that MYB might be a major kind of transcription factors binding to PtrNACs [31]. This result indicated that PtrNAC genes were implicated in abiotic stress response (e.g., drought), and plant growth and development.

2.5. Cloning of Poplar NAC Genes Cloning and Analysis of PtrNAC Expression Patterns in Response to Drought Stress

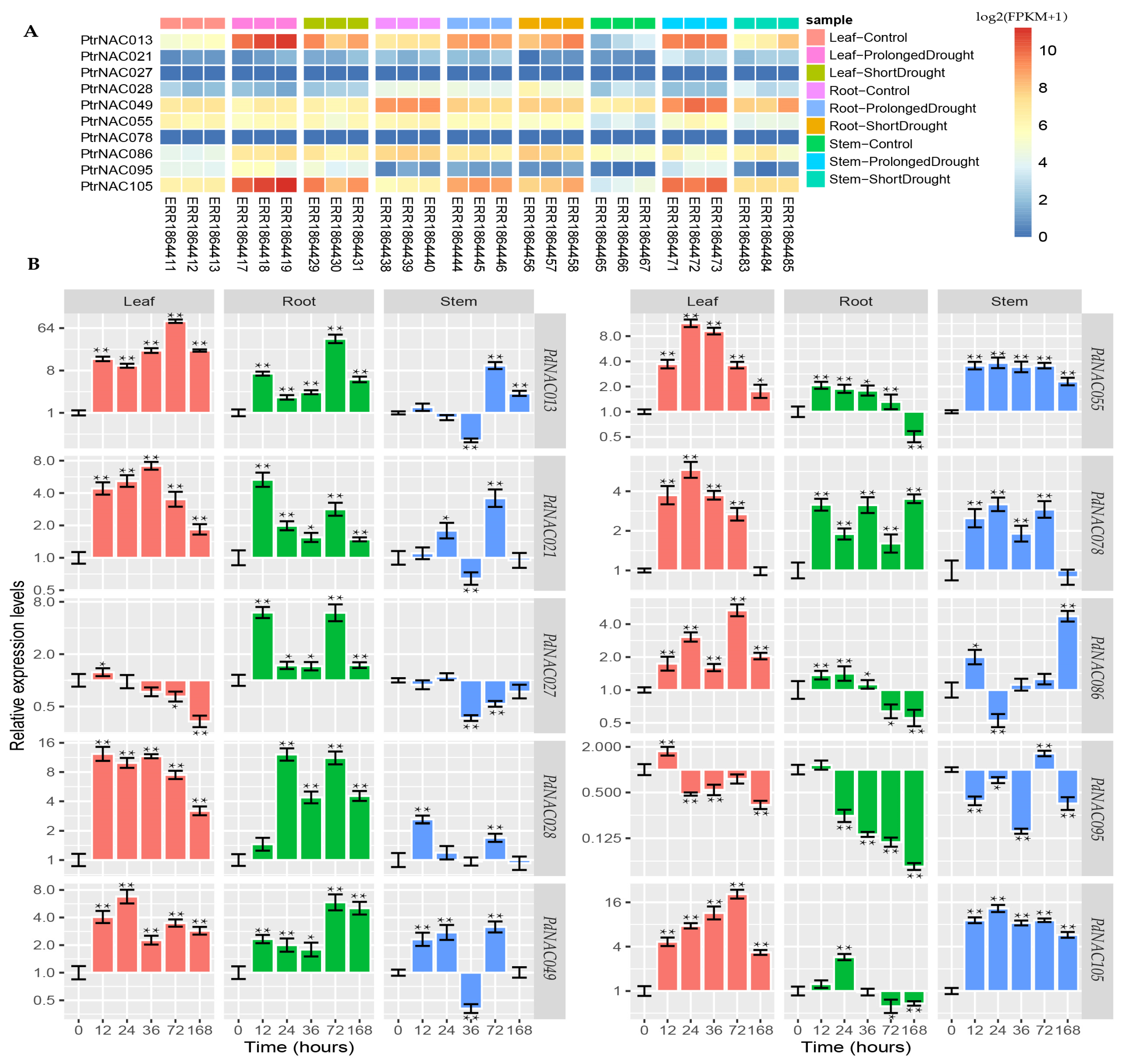

Based on the RNA-seq profiling of PtrNAC genes under drought stress, ten PtrNAC genes were randomly selected for cloning these genes from the NL895 poplar. They were named according to the homology with their corresponding genes in P. trichocarpa. The NAC gene sequences of the NL895 poplar were compared with that of P. trichocarpa and I-69 poplar (Populus deltoides bartr. cv. ‘Lux’). Each of these genes shared a pairwise sequence identity of nearly 99% between the three Populus sepcies.
The external environment stimulus had a major influence on plant growth and development, and the plant could respond to environmental stress by regulating crucial molecular processes. The RNA-seq profiling data provided a drought-responsive expression pattern of PtrNAC genes in different tissues of P. trichocarpa. The majority of NAC genes were induced by drought stress in poplar. Among them, ten genes were selected for cloning genes from the NL895 poplar, and their drought-responsive expression pattern in P. trichocarpa had been shown in Figure 6A. The RNA-seq profile analysis showed that the drought-responsive expression pattern of these PtrNAC genes could be a marked difference among three tissues, including roots, stems and leaves.
Thus, to investigate whether the ten PdNAC genes were implicated in poplar responses to drought, we adopted qRT-PCR to analyze their tissue-specific patterns under drought stress. As shown in Figure 6B, the expression levels of the PdNACs changed after 3% (w/v) PEG6000 treatment. The results shown that the drought-responsive expression patterns of a few PdNACs were the difference among the leaf, root and stem tissues. In the leaf tissues, drought-induced expression of all but PdNAC027 genes shared a single-pulse pattern. The expression abundance of PdNAC013, PdNAC86 and PdNAC105 genes reached the peak at 72 h after PEG6000 treatment. The expression levels of PdNAC013 and PdNAC105 genes increased by nearly 85-fold and 20-fold at 72 h compared to control group (0 h), respectively. The highest expression level of PdNAC049, PdNAC55 and PdNAC78 genes occurred at 24 h after PEG6000 treatment. In the root tissues, drought-induced expression of all but PdNAC055 genes could be clustered into three patterns, including single-peak (PdNAC013, PdNAC049, PdNAC086, PdNAC095 and PdNAC105), double-peak (PdNAC021, PdNAC027 and PdNAC028) and triple-peak (PdNAC078) pattern. In the stem tissues, only three genes (PdNAC013, PdNAC055 and PdNAC105) exhibited a single-pulse pattern in response to drought stress, and genes (PdNAC021, PdNAC028, PdNAC049 and PdNAC078) showed a double-peak pattern. In short, transcriptional time series of some PdNAC genes under PEG6000 treatment might have an impulse pattern [32].

2.6. Subcellular Localization Prediction and Verification

Here, we predicted the subcellular localization of 289 PtrNAC transcripts, more than 240 of which were predicted to be localized in the nucleus (Table S4). The PtrNAC013 and its orthologous protein PdNAC013 in hybrid poplar NL895 were predicted as nuclear-located proteins. To validate further the subcellular localization of PdNAC013 protein, we conducted the transient expression of a GFP-tagged PdNAC013 constructed in protoplasts of NL895 poplar, with expressing a red nuclear marker D53-mCherry protein [33]. The pBI221::PdNAC013 fusion was observed microscopically only to localize in the nucleus with the red nuclear marker D53-mCherry protein (Figure 7). In contrast, pBI221-GFP was ubiquitously distributed without specific localization in the cell. The results showed that PdNAC013 was a protein localized clearly in the nucleus.

3. Discussion

In this study, we identified a total of 170 NAC genes in P. trichocarpa genome, which were more than the number of NAC family genes in O. sativa (75) [8], A. thaliana (105) [8], V. vinifera (74) [9] and S. lycopersicum (93) [11]. It was obvious that NAC family genes had expanded in P. trichocarpa. The intraspecific and interspecific collinearity analysis suggested that the expansion of NAC genes in poplar was caused mainly by WGD events. Recent studies also suggest that WGD event is a major driving force for expansion of multigene family in plant genome [34,35,36]. The expansion of NAC gene family driven by WGD has also been documented in Pyrus pyrifolia [37] and Zea mays [38]. In addition, PtrNACs showed diverse expression, indicating that modifications, such as point mutations, might occur in regulatory regions of duplicated genes, which affected the function and expression patterns [39,40].
Populus and Salix are two sister lineages which shared common WGD events (named salicoid duplication) happening in approximately 58 Mya [41,42]. This was consistent with our interspecific collinearity results that the number of orthologous NAC gene pairs between P. trichocarpa and S. purpurea were more than twice those of between P. trichocarpa and the remaining three species (E. grandis, V. vinifera and A. thaliana). Likewise, the analysis of Ks-based distribution showed that the divergence times for more than half of homologous PtrNAC pairs were less than 31 Mya. These results suggested that the expansion of PtrNACs occurred after and before the separation time of Populus and Salix (45 Mya) [25]. Additionally, it is worth noting whether the young PtrNACs arisen after the divergence of Populus and Salix play a role in the adaptation of Populus species to their local environment (e.g., drought, salinity and heat) [43,44].
Based on the RNA-seq profile of PtrNACs under drought treatment, ten NAC (PdNAC) genes were randomly selected and cloned from P. deltoids × P. euramericana cv.’NL895’. The promoter region of these NAC genes contained many cis-acting elements related to drought stress, such as ABRE, DRE and G-box binding sites [45,46,47]. Previous studies have shown that NAC transcription factor binds to cis-acting elements in the downstream promoter region of drought-related genes, thereby activating the expression of this gene and improving drought resistance in plants [48,49,50]. For example, TaABFs and TaAREB3 can bind to cis-acting ABA-responsive element (ABRE elements) of TaSNAC8-6A and TaNAC48 promoter and activated their expression in wheat, thus enhancing drought tolerance of plants [51,52]. ONAC066 could bind the JBS-like (JBSL) cis-element in the promoter region of OsDREB2A gene to positively regulate drought and oxidative stress response [53].
Therefore, we analyzed the drought-responsive expression patterns of ten PdNAC genes in three tissues of poplar NL895. Six PdNAC genes had sequence similarity to ATAF1 (ANAC002) and RD26 (ANAC072) genes, which were found to be drought-responsive NAC genes in A. thaliana [54]. ATAF1 is an Arabidopsis NAC transcription factor that regulates ABA synthesis [55,56]. OsNAC6, a member of ATAF family, can mediate the adaptation of plant root structure and up-regulate the expression of drought-resistant genes, which enhances the drought tolerance of rice plants [57,58,59]. Four poplar NAC genes, including PdNAC055 (Potri.005G180200), PdNAC021 (Potri.002G081000), PdNAC049 (Potri.005G069500) and PdNAC078 (Potri.007G099400), shared high sequence similarity to ATAF1 from A. thaliana. It seemed obvious that the expression levels of the four PdNAC genes were induced by drought stress. PagNAC045 (Potri.007G099400), which was isolated from P. alba × P. glandulosa cv.84K, might be implicated with NaCl and ABA-mediated stresses [60]. However, whether the four PdNAC genes were implicated with ABA remains unknown.
ANAC072 /RD26 is a positive regulator of ABA and drought stress [61]. The gene expression of ANAC072 /RD26 can up-regulated under drought and salt stress, and the plants showed obvious drought resistance [61,62]. PdNAC105|PtrNAC105 (Potri.011G123300) and PdNAC013|PtrNAC013 (Potri.001G404100) were two highly homologous sequences of ANAC072 /RD26. PtrNAC013 gene is overexpressed in poplar 84k (Populus alba × P. glandulosa), and the overexpressed plants had better salt tolerance than the wild type [63]. PdNAC013 and PdNAC105 had significant changes in gene expression levels in leaves, roots and stems under PEG-stress treatment. PdNAC013 shared a drought-responsive single-impulse pattern in the three tissues, which reached its peak at 72 h after PEG6000 treatment. PdNAC013 protein was localized in the nucleus in the protoplasts of NL895 poplar, which was consistent with the subcellular localization of PtrNAC013 gene in tobacco [63]. In conclusion, PdNAC013 and PdNAC105 may play an important role in drought stress.
The study indicated that a few PdNAC genes were induced by drought, and might be implicated in poplar response to drought. However, the regulatory role of NAC genes in drought response in Populus species remains complex and elusive. For example, almost all PtrNAC genes had MYB binding sites (MBS) in their upstream regions, suggesting that MBS elements of a few PtrNAC genes might be bound by PtrMYB proteins. In wheat, TaMYBL1 protein can bind to two MBS cis-acting elements inserted in the promoter region of a drought-related gene TaNAC071-A, causing an increase in its expression level and drought tolerance in plant [64]. Thus, we will identify cis-acting elements and trans-acting factors, transcriptional activation domain and DNA-binding domain of poplar NAC genes associated with drought stress.

4. Materials and Methods

4.1. Genomic Data Retrieval and Poplar NAC Gene Identification

Genomic sequence (transcript and protein sequences) and GFF/GTF annotation files of P. trichocarpa (v3.0), Salix purpurea (v5.1), Eucalyptus grandis (v2.0) and Vitis vinifera L (v2.1) were downloaded from the Phytozome database (https://phytozome.jgi.doe.gov/ (accessed on 2 March 2022)). The GFF/GTF, transcript and protein files for Arabidopsis thaliana were retrieved from the EnsemblPlant release 53 (https://plants.ensembl.org/ (accessed on 2 March 2022)). The A. thaliana NAC (AthNAC) sequences were searched and acquired from the Arabidopsis information resource (TAIR, https://www.arabidopsis.org/ (accessed on 2 March 2022)).
To identify the P. trichocarpa NAC (PtrNAC) proteins, the HMM (hidden Markov model) profile of NAM domain (PF02365.15) was searched against all P. trichocarpa proteins by using HMMER (v3.3.2) with an E-value threshold of 1 × 10−3 [65]. All candidate PtrNAC proteins were aligned against AthNACs with BLASTp (v2.9.0) under an E-value cutoff of 1 × 10−5 [65]. These candidate proteins were further validated by searching NAC core sequences via InterProScan (https://www.ebi.ac.uk/interpro/about/interproscan/ (accessed on 8 July 2022)) and Pfam (http://pfam.xfam.org/ (accessed on 8 July 2022)) service. The length, GC-content, isoelectric point (pI), and molecular weight (MW) of all PtrNACs were calculated with Biopython (v1.79).

4.2. Multiple Alignment and Phylogenetic Analysis

Multiple sequence alignment (MSA) of PtrNAC protein sequences was performed via ClustalW (v2.1, http://www.clustal.org/clustal2/ (accessed on 2 March 2022)) with default parameter. The best-fitted substitution model ‘JTT+F+R7′ was inferred from the PtrNAC MSA file by ModelFinder implemented in IQ-TREE (v1.6.12) based on minimum BIC value [66]. The MSA file was used to reconstruct the maximum likelihood (ML) phylogenetic tree by using IQ-TREE with the best-fitted substitution model and 1000 bootstrap replicates [67]. The ML tree was graphically viewed with the R package ggtree (v3.2.1) [68].

4.3. PtNACs Gene Structures and Conserved Motifs

The PtrNACs genome database and gff3 annotation file were used to investigate the exon and intron distributions of the PtrNAC genes, and structure diagrams of PtrNACs were visualized by the R package ggplot2 (v3.3.6, https://github.com/tidyverse/ggplot2 (accessed on 10 March 2022)). Conserved motifs on the PtrNAC proteins were analyzed using MEME (v5.4.1, http://meme-suite.org/tools/meme (accessed on 10 March 2022)). The MEME parameters were specified as follows: the optimum motif width was between 6 and 50 in length, and the maximum number of motifs was 15.

4.4. Subcellular Localization Prediction and Verification

The subcellular localization of PtrNAC proteins were predicted using three web tools, including Cello (http://cello.life.nctu.edu.tw/ (accessed on 5 May 2022)), WoLFPSORT (https://wolfpsort.hgc.jp/ (accessed on 5 May 2022)) and BUSCA (http://busca.biocomp.unibo.it/ (accessed on 5 May 2022)).
In order to verify the subcellular localization of PdNAC013 (Potri.001G404100.1) in poplar NL895 (P. deltoids × P. euramericana cv. ′Nanlin895′), we did the following experiments. First, the newly expanded leaves were harvested from 8-week-old plantlets, and used for the poplar protoplast isolation with Cellulase RS (Takara, Japan, 200115-01) and Pectolyase Y23 (Takara, Japan, Y-011) according to the method of Yoo et al. [69]. Then, the recombinant plasmid PdNAC013::GFP (green fluorescence protein) was constructed according to homologous recombination method. D53-mCherry is a nuclear marker plasmid fused with rice protein D53 [33]. Finally, the recombinant plasmid PdNAC013::GFP and D53-mCherry was transformed into poplar protoplast through PEG-Ca2+ (PEG-4000) mediated transformation [69]. Its fluorescent photographs were captured on a BX53 fluorescence microscope (Olympus, Tokyo, Japan). The empty plasmid pBI221:GFP (control) was also infiltrated into the protoplasts.

4.5. Chromosomal Distribution and Gene Duplication Analysis

The chromosomal locations of PtrNAC genes were retrieved from the P. trichocarpa GFF annotation file, and visualized using the R package circlize (v0.4.15) [70]. Pairwise alignment of pooled protein sequences from five dicotyledonous species, including P. trichocarpa, S. purpurea, E. grandis, V. vinifera and A. thaliana, was carried out by BLASTp in the BLAST+ (v2.9.0) package. The resulting BLASTp outputs were used to analyze the collinearity of NAC proteins between P. trichocarpa and the other four species, by using Multiple Collinear Scan Toolkit (MCScanX, https://github.com/wyp1125/MCScanX (accessed on 10 March 2022)). The collinearity relationship of between P. trichocarpa and each of the other four species was plotted with JCVI (v0.8.12, https://github.com/tanghaibao/jcvi (accessed on 10 March 2022)). To further evaluate the characteristics of the influence of evolutionary on PtrNACs family, a simple Ka/Ks calculator was used to calculate the synonymous (Ks) and non-synonymous (Ka) of PtrNAC gene pairs using ParaAT (v2.0) and KaKs-Calculator (v2.0) [71]. The divergent times of duplicated poplar gene pairs were estimated with r (the rate of synonymous substitutions per site per years) = 9.1 × 10−9 [72,73].

4.6. Cis-Element Analysis

The 2 kb sequence in the front of the PtrNACs start codon (ATG) was obtained from P. trichocarpa genomic sequence with SeqKit (v0.8.0) [74]. The 2 kb upstream sequences were used to predict their cis-regulatory elements using the PlantCARE database (http://bioinformatics.psb.ugent.be/webtools/plantcare/html/ (accessed on 10 March 2022)).

4.7. RNA-Seq Acquisition and Expression Analysis

The RNA-seq data for the three tissues (leaf, stem and root) of P. trichocarpa under drought treatment were derived from NCBI SRA database (BioProject no. PRJEB19784). These RNA-seq data were pre-processed and trimmed with FastQC (v0.11.8) and Trimmomatic (v0.38). The spliced mapping of the trimmed RNA-seq reads against the P. trichocarpa genome (v3.0) was performed using STAR (v2.7.3a) [75]. Different expression genes (DEGs) were identified by the R package DESeq2 (v1.31.1) with a p-value cutoff of 0.01 [76]. The heatmap was plotted using the R package ggplot2 (v3.3.6).

4.8. Plant Materials and Treatments with Drought Stress

Plantlets of hybrid poplar NL895 (P. deltoids × P. euramericana cv. ‘Nanlin895′) were grown on the 1/2 Murashige and Skoog (MS) medium (pH = 5.8). The poplar NL895 seedlings were cultivated in a greenhouse at a room temperature (23 °C) and a relative humidity of 74%. They were cultured in 1/2 MS medium for two months and then transferred to 1/2 MS medium with 3% (w/v) PEG6000 for drought treatment. Samples were harvested at 12 h, 24 h, 36 h, 72 h and 168 h (7 days) after 3% PEG6000 treatment, respectively. These samples were immediately frozen in liquid nitrogen and stored at −80 °C for subsequent RNA isolation. The total RNA was extracted from the leaf, stem and root tissues of the poplar NL895 with plant RNA extraction kit (No. DP441, Tiangen, Beijing, China), respectively.

4.9. RNA Isolation and qRT-PCR

The total RNA was isolated from three vegetative organs (e.g., root, stem and leaf) of the poplar NL895 using a plant RNA extraction kit (No.DP441, Tiangen, Beijing, China). The concentration and integrity of the extracted RNA was determined using a combination of an ultraviolet-visible (UV-Vis) spectrophotometer (BioDrop, Cambridge, UK) and 1% agarose gel electrophoresis. The extracted RNA was reverse-transcribed into cDNA by a reverse transcription kit (No.AG11706, Accurate Biotechnology, Changsha, China). Then the cDNA was diluted 10 times for qRT-PCR experiment.
Prior to qRT-PCR (quantitative reverse transcription PCR), the specific primers were designed with Oligo (v7.37) using poplar CDSs (coding sequences) as reference. The primer sequences were listed in Supplemental Table S5. The ten genes were cloned using the poplar NL895 cDNA as template (Supplemental Figure S1). The cloned fragments were linked to the pClone007 Blunt Vector (No.TSV-007B, TSINGKE, Beijing, China). Then the vectors were transferred to TreliefTM 5α chemoreceptor cells (No.TSC-C01, TSINGKE, Beijing, China). Finally, a single colony was screened to verify the size of bands in gel-electrophoresis, and sequenced on an ABI 3730xl DNA analyzer.
Using the sequences of the ten genes as reference, the qRT-PCR primers of these PdNAC genes were designed by Primer Premier (v5.0) to analyze their expression patterns (Supplemental Table S6). Then, the gene expression levels were detected using ABI 7500 Fast Real-Time PCR system (Applied Biosystems, Foster City, CA, USA) and SYBR Green Premix Pro Taq HS qPCR Kit (No. AG11701, Accurate biotechnology, Changsha, China). The following conditions were used: 95 °C for 10 s, followed by 40 cycles at 95 °C for 5 s, 60 °C for 30 s, and the melting curve conditions were 60 °C for 60 s and 95 °C for 15 s. Poplar actin gene (Potri.019G006700.1) was selected as an internal reference gene. The relative expression level of PdNAC genes was calculated by 2−ΔΔCt method [77]. Each sample was repeated three times.

5. Conclusions

In the research, a total of 170 P. trichocarpa NAC domain-containing (PtrNAC) genes were identified at the entire genome level. The physicochemical property calculating, chromosomal locating, phylogenetic classifying, intraspecific/interspecific collinearity inferencing, and dehydration-responsive expression profiling of these PtrNAC genes were performed. Analysis of cis-acting elements and drought-responsive expression pattern of PtrNACs indicated that these genes might be involved in drought stress response. In addition, ten NAC genes from poplar NL895 were cloned. The PdNAC013 exhibited a tissue-specific and pulsing expression pattern under drought treatment. The subcellular localization analysis suggested that PdNAC013 protein localized in the nucleus. In summary, these findings will provide a valuable clue for further screening and characterization of NAC genes in relation to poplar drought response.

Supplementary Materials

The supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms24010253/s1.

Author Contributions

S.Z. and M.H. conceived the project. S.Z. designed the experiment. L.M. and S.C. performed the molecular experiments. S.Z., L.M. and S.C. conducted the bioinformatics analysis. L.M. wrote the first draft of the manuscript. S.Z. and D.L. revised the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by grants from grants from ‘Fourteen Five-Year’ National Science and Technology Support Program (Grant No.2021YFD2201200), and Natural Science Foundation of Jiangsu Province (Grant No. BK20150879). The funding bodies did not have a role in the design of the study, data collection, analysis, interpretation of data, writing the manuscript, nor the decision to publish.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

We would like to thank Hui Wei at Nantong University and Xinye Zhang at Hubei Forestry Academy, for technical assistance.

Conflicts of Interest

The authors declare no conflict of interest.
