Article

Genome-Wide Analysis of the Universal Stress Protein Gene Family in Blueberry and Their Transcriptional Responses to UV-B Irradiation and Abscisic Acid

by
Yan Song
,
Bin Ma
,
Xinghua Feng
,
Qingxun Guo
,
Lianxia Zhou
,
Xinsheng Zhang
and
Chunyu Zhang
*
College of Plant Science, Jilin University, Changchun 130062, China
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2023, 24(23), 16819; https://doi.org/10.3390/ijms242316819
Submission received: 28 October 2023 / Revised: 16 November 2023 / Accepted: 23 November 2023 / Published: 27 November 2023
(This article belongs to the Special Issue Molecular Mechanisms of Plant Abiotic Stress Tolerance)
Browse Figures
Versions Notes

Abstract

:
Universal stress proteins (USPs) play essential roles in plant development, hormonal regulation, and abiotic stress responses. However, the characteristics and functional divergence of USP family members have not been studied in blueberry (Vaccinium corymbosum). In this study, we identified 72 VcUSP genes from the Genome Database for Vaccinium. These VcUSPs could be divided into five groups based on their phylogenetic relationships. VcUSPs from groups Ⅰ, Ⅳ, and Ⅴ each possess one UspA domain; group Ⅰ proteins also contain an ATP-binding site that is not present in group Ⅳ and Ⅴ proteins. Groups Ⅱ and Ⅲ include more complex proteins possessing one to three UspA domains and UspE or UspF domains. Prediction of cis-regulatory elements in the upstream sequences of VcUSP genes indicated that their protein products are likely involved in phytohormone signaling pathways and abiotic stress responses. Analysis of RNA deep sequencing data showed that 21 and 7 VcUSP genes were differentially expressed in response to UV-B radiation and exogenous abscisic acid (ABA) treatments, respectively. VcUSP41 and VcUSP68 expressions responded to both treatments, and their encoded proteins may integrate the UV-B and ABA signaling pathways. Weighted gene co-expression network analysis revealed that VcUSP22, VcUSP26, VcUSP67, VcUSP68, and VcUSP41 were co-expressed with many transcription factor genes, most of which encode members of the MYB, WRKY, zinc finger, bHLH, and AP2 families, and may be involved in plant hormone signal transduction, circadian rhythms, the MAPK signaling pathway, and UV-B-induced flavonoid biosynthesis under UV-B and exogenous ABA treatments. Our study provides a useful reference for the further functional analysis of VcUSP genes and blueberry molecular breeding.

1. Introduction

Universal stress proteins (USPs) are members of the adenine nucleotide alpha hydrolase (AANH) superfamily (PF00582 protein family in the Pfam classification) that are widely conserved in bacteria, archaea, plants, and metazoans [1]. There are six USPs (UspA, UspC, UspD, UspE, UspF, and UspG) in Escherichia coli; UspA was the first of these genes to be cloned and sequenced [2,3,4,5]. The USP domain has the capacity to form homodimers and heterodimers. USPs contained a single USP domain or two tandem repeats of USP domains or a USP domain alongside other functional domains [6,7]. The USP domain contains 130–160 highly conserved amino acid residues and can be classified into two categories based on the presence or absence of the ATP-binding site G-2X-G-9X-G-(S/T) [8,9,10]. USPs participate in responses to a multitude of starvation and stress stimuli [5,11].
The first plant USP was identified in rice (Oryza sativa). Many USPs have been characterized in a variety of plant species, including Arabidopsis thaliana, wild tomato (Solanum pennellii), wild apple (Malus sieversii), and grapevine (Vitis vinifera) [12,13,14,15,16]. USPs respond to abiotic stress (salt, drought, cold, heat, UV-B, wounding, and osmotic stress) in plants and are also involved in plant hormone signaling pathways, including abscisic acid (ABA), gibberellin (GA), and ethylene signaling [12,15,17,18,19]. Most AtUSPs in Arabidopsis are induced by UV-B treatment, while most VvUSPA genes in grapevine show transcriptional responses to ABA [19,20]. In Arabidopsis, USPs regulate the circadian rhythm of the central oscillator genes CIRCADIAN CLOCK ASSOCIATED 1 (CCA1) and TIMING OF CAB EXPRESSION 1 (TOC1) [21]. Various USPs interact with other proteins to mediate stress tolerance [17]; for example, SpUSPs in wild tomato may interact with annexin to increase drought tolerance in the seedling and adult stages by influencing ABA-induced stomatal movement, increasing photosynthesis, and alleviating oxidative stress [22]. VyUSPA3 enhances drought tolerance in Chinese wild grape (Vitis yeshanensis), possibly by interacting with phytohormone signaling pathways, the ubiquitination system, ethylene-responsive element binding factors, or nuclear factors [16].
Plants are subjected to a variety of abiotic stresses. UV-B radiation is an environmental signal that affects plant growth and development and controls many processes involved in physiological and biochemical acclimation. The phytohormone ABA modulates physiological processes by controlling plant responses to biotic and abiotic stress. Several studies have explored the interaction between UV-B and ABA signaling [23,24,25]. ABA treatment increased the tolerance of grapevine leaves to UV-B, while phenol levels in berry skins additively increased, including changes in anthocyanin and non-anthocyanin profiles, under both UV-B and ABA treatments [23,26]. However, it is not clear which genes integrate the UV-B and ABA signaling pathways.
Blueberry (Vaccinium corymbosum) is an economically important small fruit crop worldwide due to the high phenolic acid and flavonoid contents of its fruits and leaves [27,28]. Both UV-B and ABA promote flavonoid accumulation in blueberry fruit by regulating the expression of genes encoding MYB transcription factors and proteins involved in flavonoid biosynthesis [29,30,31,32]. Although USP genes have been identified in Arabidopsis, barley (Hordeum vulgare), grapevine, and rice, a comprehensive study of USP genes in blueberry has not yet been reported [19,33,34,35,36]. The sequencing and assembly of the V. corymbosum cv. Draper genome was completed, and its function was annotated in March 2019. This Genome Database offers the possibility to systematically identify and investigate the putative functions of USP family members in blueberry because of its high-quality data [37]. A recent study showed that VcUSP1 responds to UV-B radiation [38]; however, the roles of all VcUSP family members in UV-B and ABA responses remain unknown.
In this study, we identified 72 VcUSP genes from the Genome Database for Vaccinium and predicted their gene structures, evolutionary relationships, and conserved motifs and domains of both the encoded proteins and the cis-regulatory elements in the promoters. We analyzed the responses of VcUSP genes to UV-B radiation and ABA treatments based on RNA deep sequencing (RNA-seq) data and examined the relationships between VcUSPs and transcription factors under UV-B and ABA treatments via weighted gene co-expression network analysis (WGCNA). Our results provide valuable information for the further functional characterization of blueberry VcUSP genes and guidance for blueberry breeding under UV-B radiation and ABA treatments.

2. Results

2.1. Identification of VcUSP Gene Family Members in the Blueberry Genome

To identify putative VcUSPs, we conducted a Hidden Markov Model (HMM) search using the USP domain (PF00582) as a query against the Genome Database for V. corymbosum cv. Draper V1.0. After removing sequences without USP or AANH domains and short and redundant sequences, 72 putative USP family genes were identified in blueberry (Supplementary Table S1). We named these USP genes VcUSP1 to VcUSP72 based on evolutionary analysis (Figure 1). The VcUSP proteins ranged from 150 to 587 amino acids in length and possessed a UspA domain; some also contained UspE or UspF domains (Table 1). The molecular weights of the VcUSPs ranged from 16.22 to 63.69 kDa, and the theoretical isoelectric point (pI) ranged from 4.62 to 10.51.

2.2. Phylogenetic Analysis of the VcUSP Family

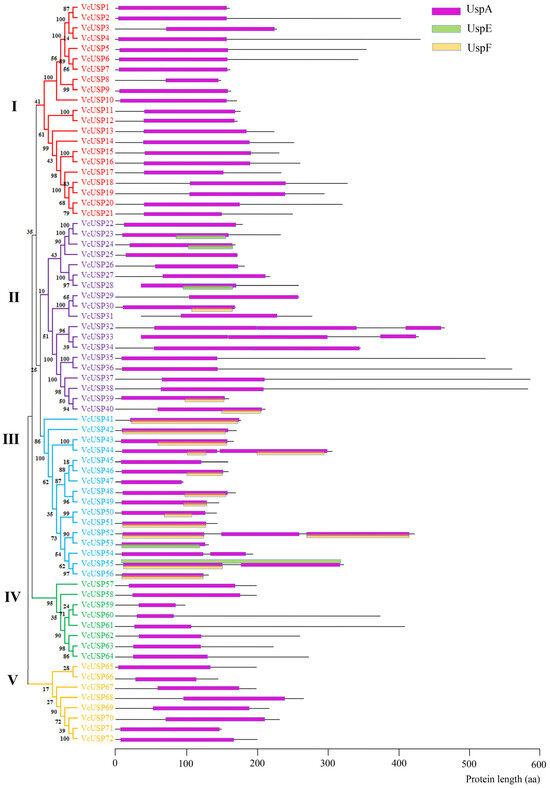

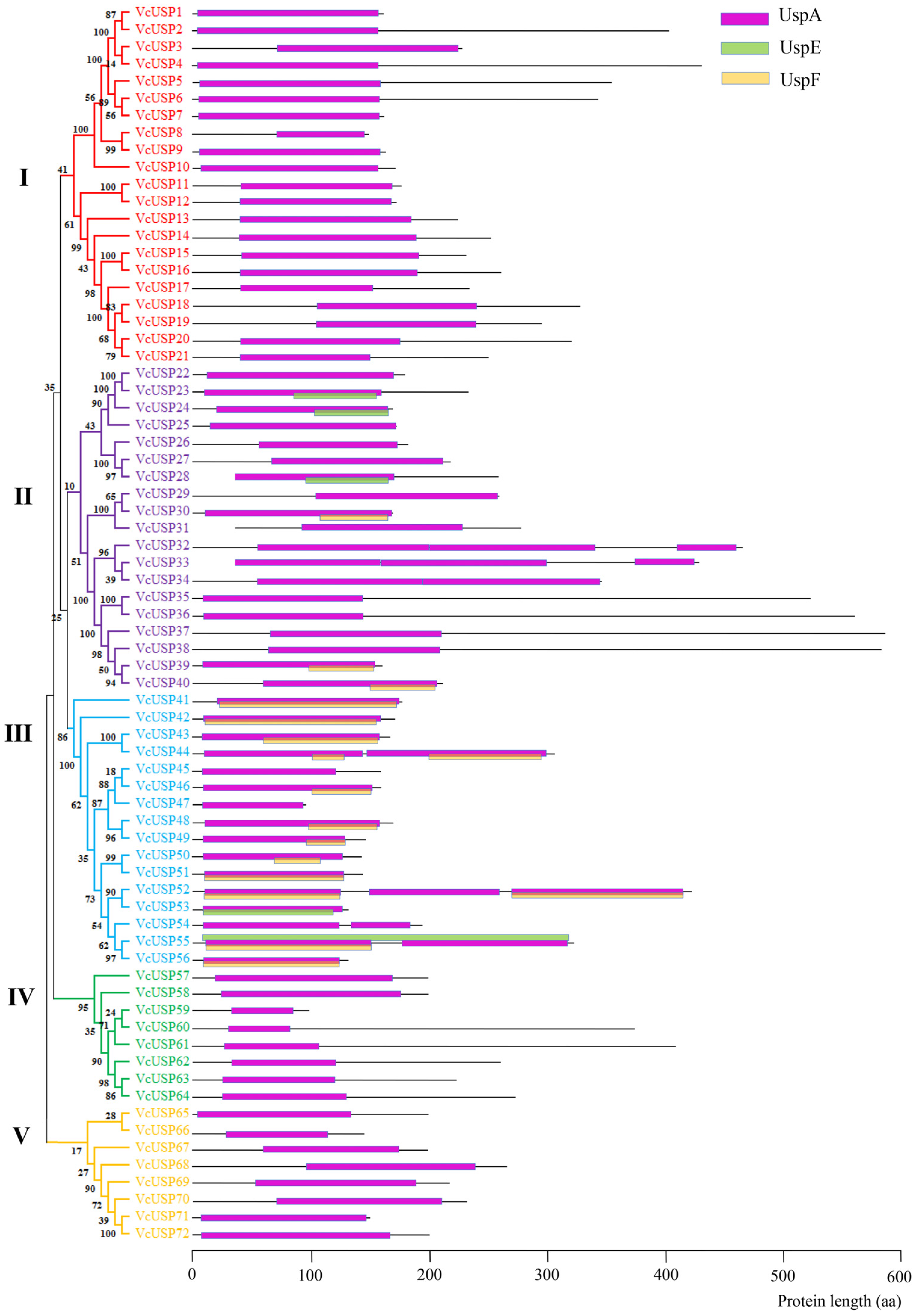

To investigate the evolutionary relationships of the 72 VcUSP family members, we constructed a phylogenetic tree based on their deduced amino acid sequences (Figure 1). The VcUSPs were categorized into five groups. VcUSPs in group Ⅰ (VcUSP1–21), group Ⅳ (VcUSP57–65), and group Ⅴ (VcUSP65–72) only contained one UspA domain, while those in group Ⅱ (VcUSP22–40) and group Ⅲ (VcUSP41–56) possessed one to three UspA domains, with some also possessing UspE or UspF domains. VcUSP23, VcUSP24, VcUSP28, and VcUSP53 contained a UspE domain, while 14 VcUSPs (VcUSP30, VcUSP39–44, VcUSP46, VcUSP48–52, and VcUSP56) contained a UspF domain. VcUSP55 contained both a UspE domain and a UspF domain. The 53 other VcUSPs contained only a UspA domain.

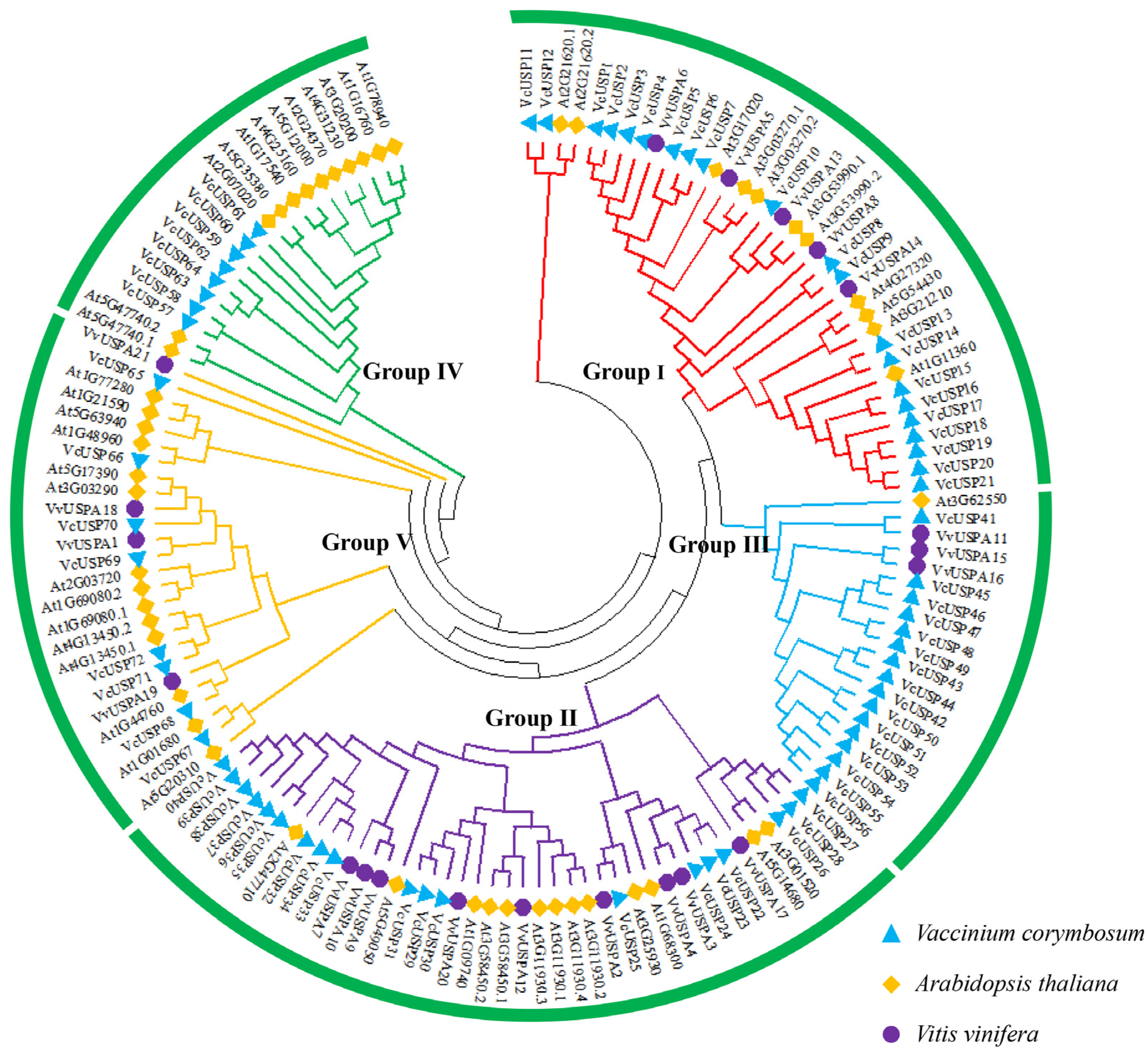

We constructed another phylogenetic tree of USPs from blueberry (72 members), Arabidopsis (51 members), and grapevine (21 members). These USPs were categorized into the five blueberry USP groups (Figure 2). Most VcUSPs were distributed in group Ⅰ (21), with 19 VcUSPs in group Ⅱ, 16 in group Ⅲ, 8 in group Ⅳ, and 8 in group Ⅴ. Among the 21 VvUSPs, 9 belong to group Ⅱ, 5 to group Ⅰ, 4 to group Ⅴ, and 3 to group Ⅲ. Most of the Arabidopsis USPs were distributed in group Ⅳ (14), group Ⅱ (13), group Ⅴ (12), and group Ⅰ (11), and only one AtUSP belonged to group Ⅲ. Many USP family members from blueberry, Arabidopsis, and grapevine were clustered in the same groups, suggesting that VcUSPs share similar functions with USPs from other plant species.

2.3. Multiple Sequence Alignment of VcUSPs

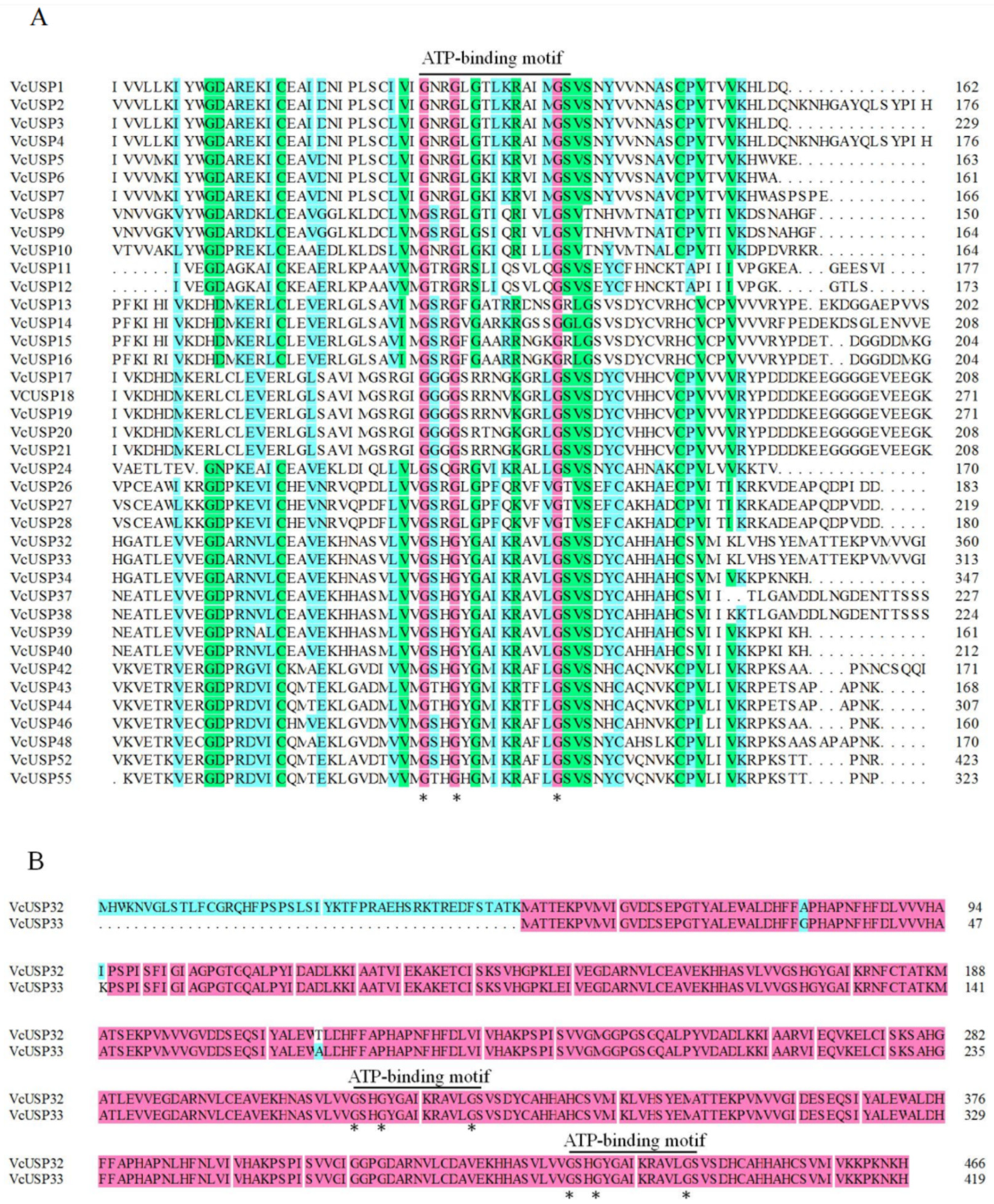

USPs can be classified as ATP binding or non-ATP binding based on the presence or absence of ATP-binding sites [8,9,10]. Sequence alignment showed that 39 VcUSPs contained an ATP-binding site, with VcUSP32 and VcUSP33 possessing two ATP-binding sites (Figure 3A,B). All group Ⅰ VcUSPs contained a single ATP-binding site, while all group Ⅳ and Ⅴ VcUSPs lacked an ATP-binding site. Of the 19 VcUSPs in group Ⅱ, 11 contained an ATP-binding site, while 7 of the 15 in group III VcUSPs contained an ATP-binding site (Table 1).
We also analyzed the UspA domains of the VcUSPs via sequence alignment (Supplementary Figure S1). Of the 72 VcUSPs, 65 contained one UspA domain (Supplementary Figure S1A); VcUSP34, VcUSP44, VcUSP54, and VcUSP55 contained two UspA domains (Supplementary Figure S1B); and VcUSP32, VcUSP33, and VcUSP52 contained three UspA domains (Supplementary Figure S1C). Group Ⅰ, Ⅳ, and Ⅴ VcUSPs all contained only one UspA domain, while those in groups Ⅱ and Ⅲ contained one, two, or three UspA domains. These results indicate that VcUSP from groups Ⅱ and Ⅲ have more complex structures than those from groups Ⅰ, Ⅳ, and Ⅴ.

2.4. Gene Structures of VcUSPs

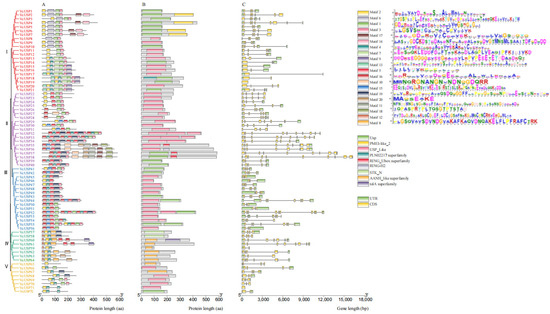

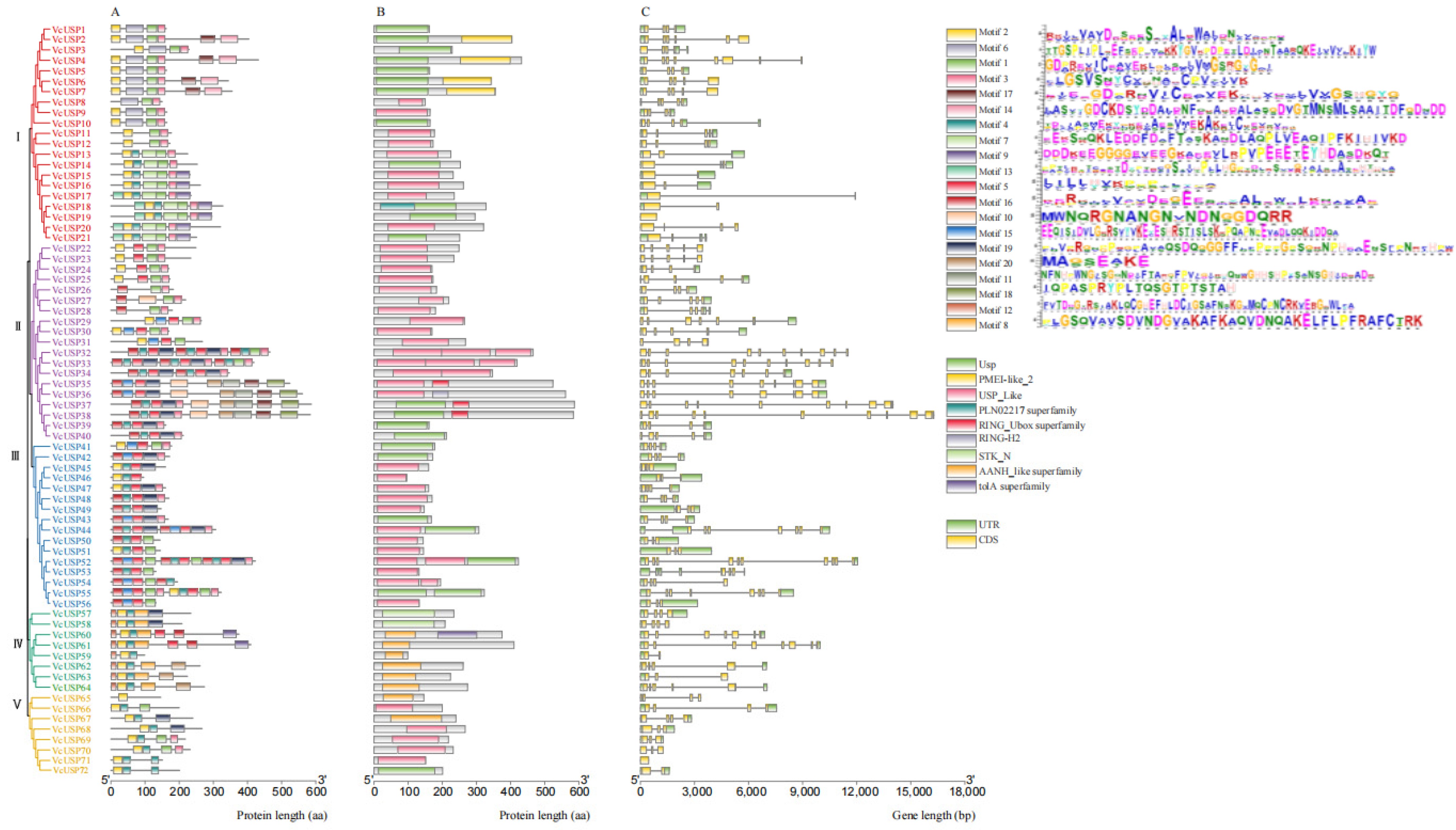

To gain further insight into the structural characteristics of VcUSP genes, we predicted the presence of 20 conserved motifs in these genes using the MEME website (Figure 4A). These motifs were distributed across different VcUSPs, with the highest number (13) found in VcUSP32, VcUSP33, and VcUSP52; VcUSP65 contained only one motif. All VcUSPs from group Ⅰ contained conserved motifs 1, 2, and 3; most VcUSPs from groups Ⅱ and Ⅲ contained conserved motifs 3, 5, 6, and 16; and most VcUSPs from groups Ⅳ and Ⅴ contained conserved motifs 2 and 4. Conserved motifs 6, 7, 13, and 14 were only observed in group Ⅰ, while motifs 10, 11, and 18 were found only in group Ⅱ. Conserved motifs 8 and 12 were detected only in group Ⅳ, while motif 15 was found in groups Ⅱ and Ⅲ. VcUSPs that clustered in the same groups shared a similar motif pattern. Conserved motifs 1, 2, 3, and 4 were present in all groups; therefore, we considered these to be the main motifs of the VcUSP family.
In addition to the USP domain, we also identified six other domains in VcUSPs (Figure 4B). In group I, the plant invertase/pectin methylesterase inhibitor (PMEI-like_2, cd15800) domain was observed near the C-termini of VcUSP2, VcUSP4, VcUSP6, and VcUSP7, while the pectinesterase/pectinesterase inhibitor (PME, PLN02217) domain was present near the N-terminus of VcUSP18. The conserved motifs 7 and 14 are related to PMEI-like_2. In group II, the RING finger domain and U-box domain superfamily (RING_Ubox, cl17238) was found near the C-termini of VcUSP35, VcUSP37, and VcUSP38, while the H2 subclass of RING finger (RING-H2, cd16448) domain was found near the C-terminus of VcUSP36; conserved motif 10 is related to both RING_Ubox and RING-H2. In group Ⅳ, VcUSP57 and VcUSP58 contained the N-terminal domain of eukaryotic serine threonine kinases (STK_N, cd01989) in the same position as the USP domain (in the middle of the coding sequence), while the C-terminus of VcUSP60 contained the cell envelope integrity inner membrane protein (tolA, PRK09510) domain. These results highlight the complexity and diversity of the VcUSP protein structures.
We also characterized the exon/intron structures within the VcUSP genes (Figure 4C). VcUSP genes all possessed between 1 and 11 exons; group Ⅰ VcUSP genes contained 1–8 exons, group Ⅱ genes contained 4–11 exons, group Ⅲ genes contained 3–8 exons, group Ⅳ genes contained 2–8 exons, and group Ⅴ genes contained 1–4 exons. Among the 72 VcUSP genes, 26 contained four exons, 15 contained three exons, and VcUSP32–38 in group Ⅱ contained 7–11 exons. Overall, most VcUSPs harbored three or four exons, and the gene structures of group Ⅱ VcUSPs were the most complex.

2.5. cis-Regulatory Elements of VcUSPs

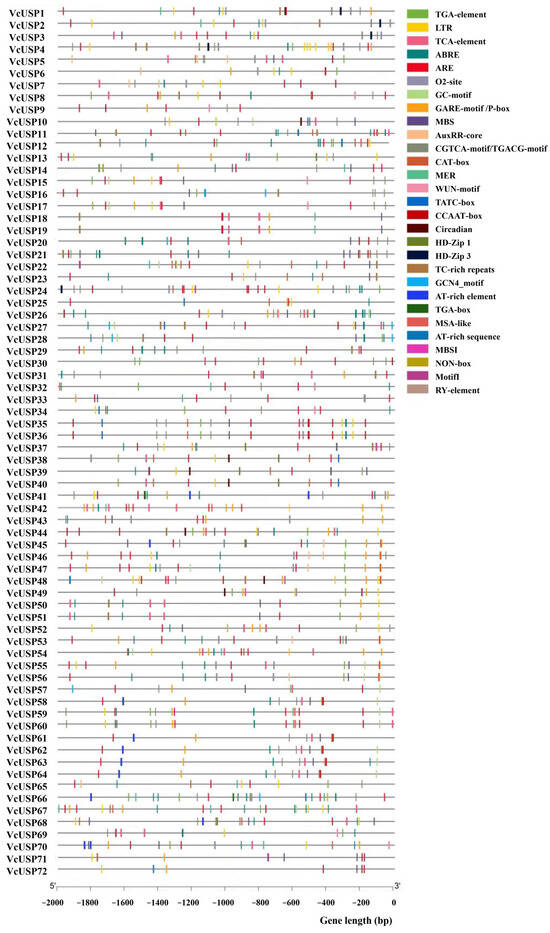

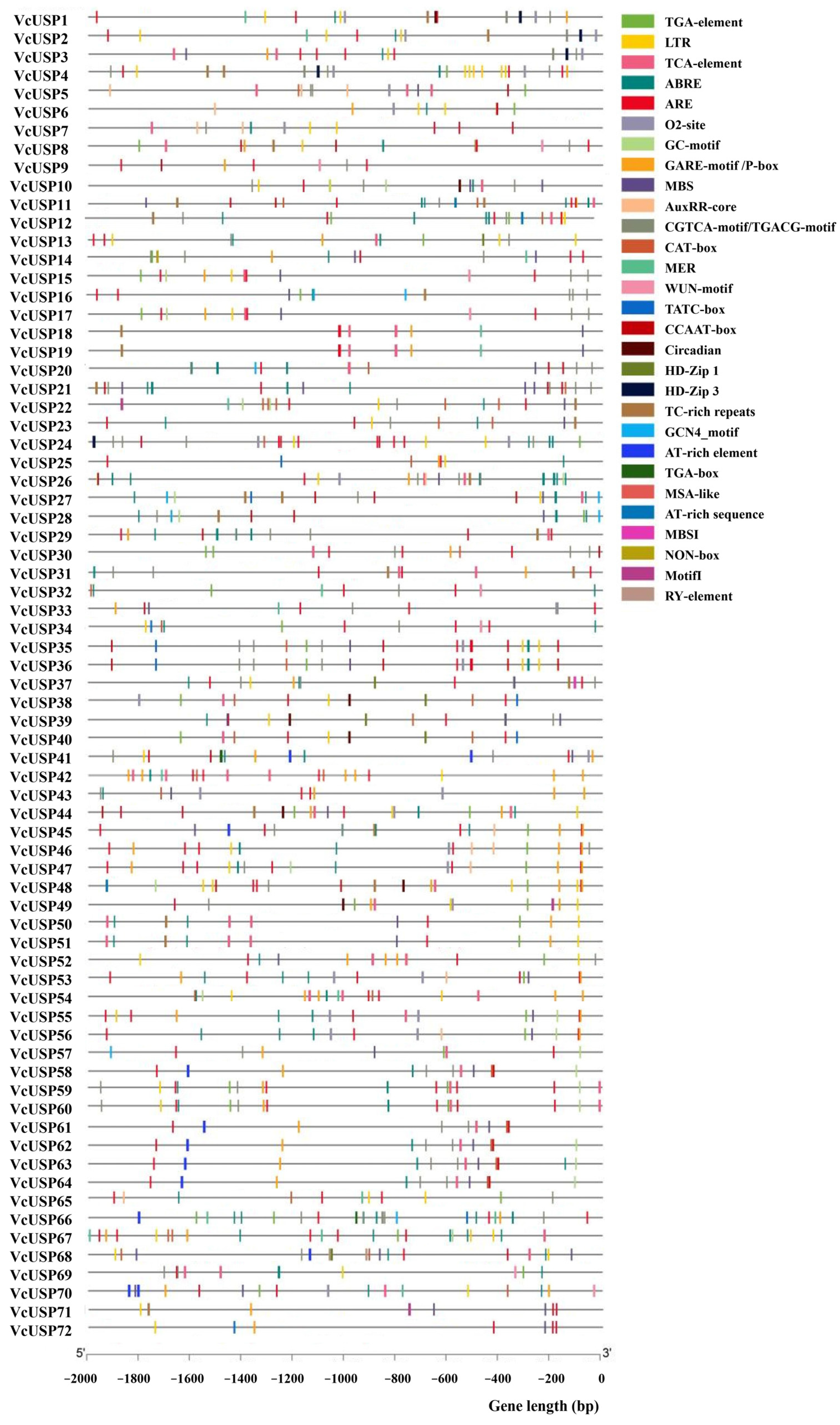

To predict the potential functions of VcUSPs, we analyzed their promoter sequences (2000 bp upstream from the ATG start codon) by predicting and visualizing the cis-regulatory elements in these regions (Supplementary Table S2; Figure 5). In addition to cis-acting elements related to plant growth and development, we also found environmental stress-responsive elements, including those responsive to light (G box, GTGGC motif, MRE, Sp1, TCCC motif, and TCT motif), low temperature (LTR), drought (MBS), wounding (WUF motif), and biotic defense (TC-rich repeats). We also identified phytohormone-responsive elements, such as those responsive to auxin (TGA element, AuxRR core, and TGA box), GA (GARE motif, P box, and TATC box), salicylic acid (TCA element), jasmonate (CGTCA motif and TGACG motif), and ABA (TCA element). Light-responsive elements were present in the promoters of all VcUSPs, while the ABA-responsive element was identified in the promoters of 56 VcUSPs, suggesting that most VcUSPs are involved in plant responses to light and ABA.

2.6. VcUSP Expression Patterns in Response to UV-B Radiation

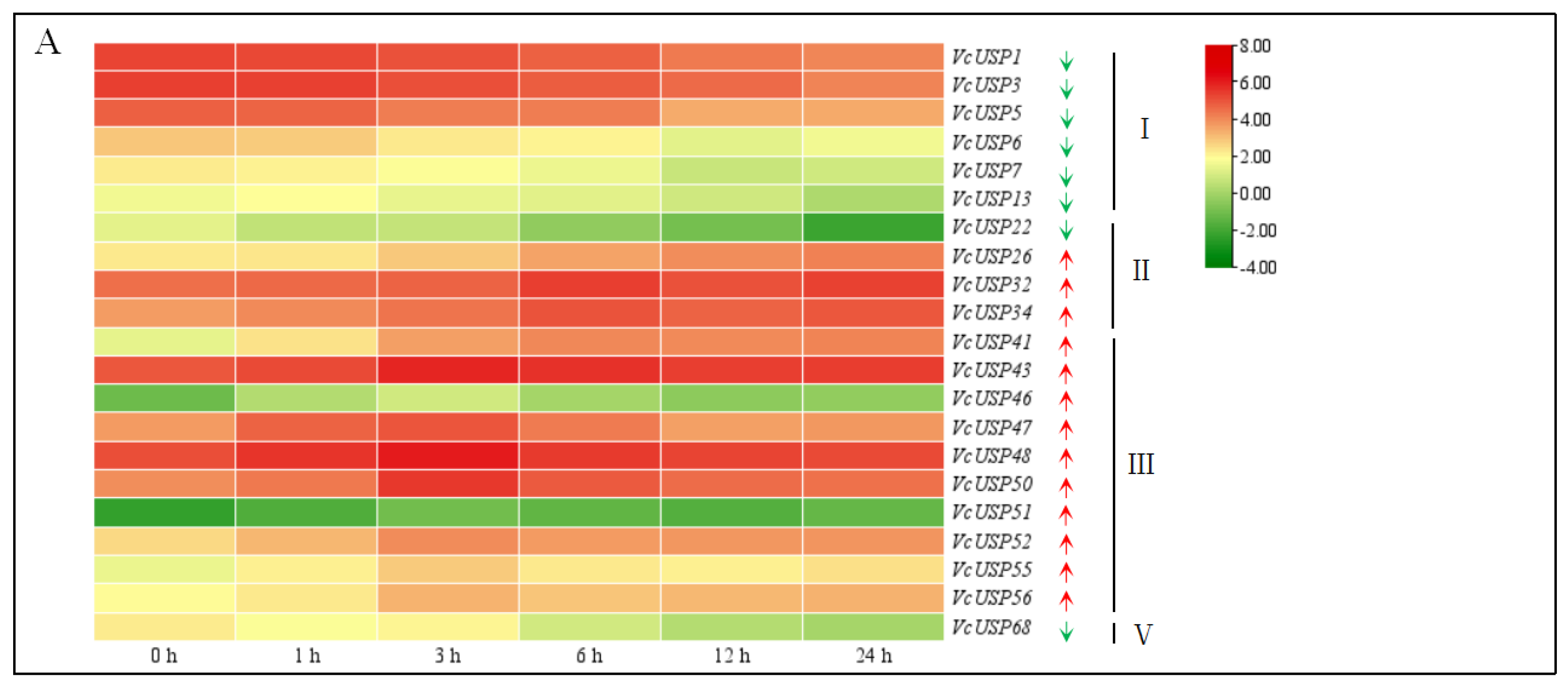

To explore the expression patterns of VcUSPs in response to light stress, we downloaded RNA-seq data from blueberry calli after 0, 1, 3, 6, 12, and 24 h of UV-B treatment from the BioProject database (Supplementary Table S3). Twenty-one VcUSPs were differentially expressed in response to UV-B radiation, including fourteen that were upregulated and seven that were downregulated. Of these differentially expressed genes (DEGs), all six VcUSPs from group I (VcUSP1, VcUSP3, VcUSP5–7, and VcUSP13), VcUSP22 from group Ⅱ, and VcUSP68 from group Ⅴ were downregulated, while 10 VcUSP genes from group III (VcUSP41, VcUSP43, VcUSP46–48, VcUSP50–52, and VcUSP55–56) and three VcUSP genes from group II (VcUSP26, VcUSP32, and VcUSP34) were upregulated by UV-B treatment (Figure 6A; Supplementary Table S3). Overall, UV-B treatment mainly repressed the expression of group Ⅰ genes and promoted the expression of group Ⅲ genes.

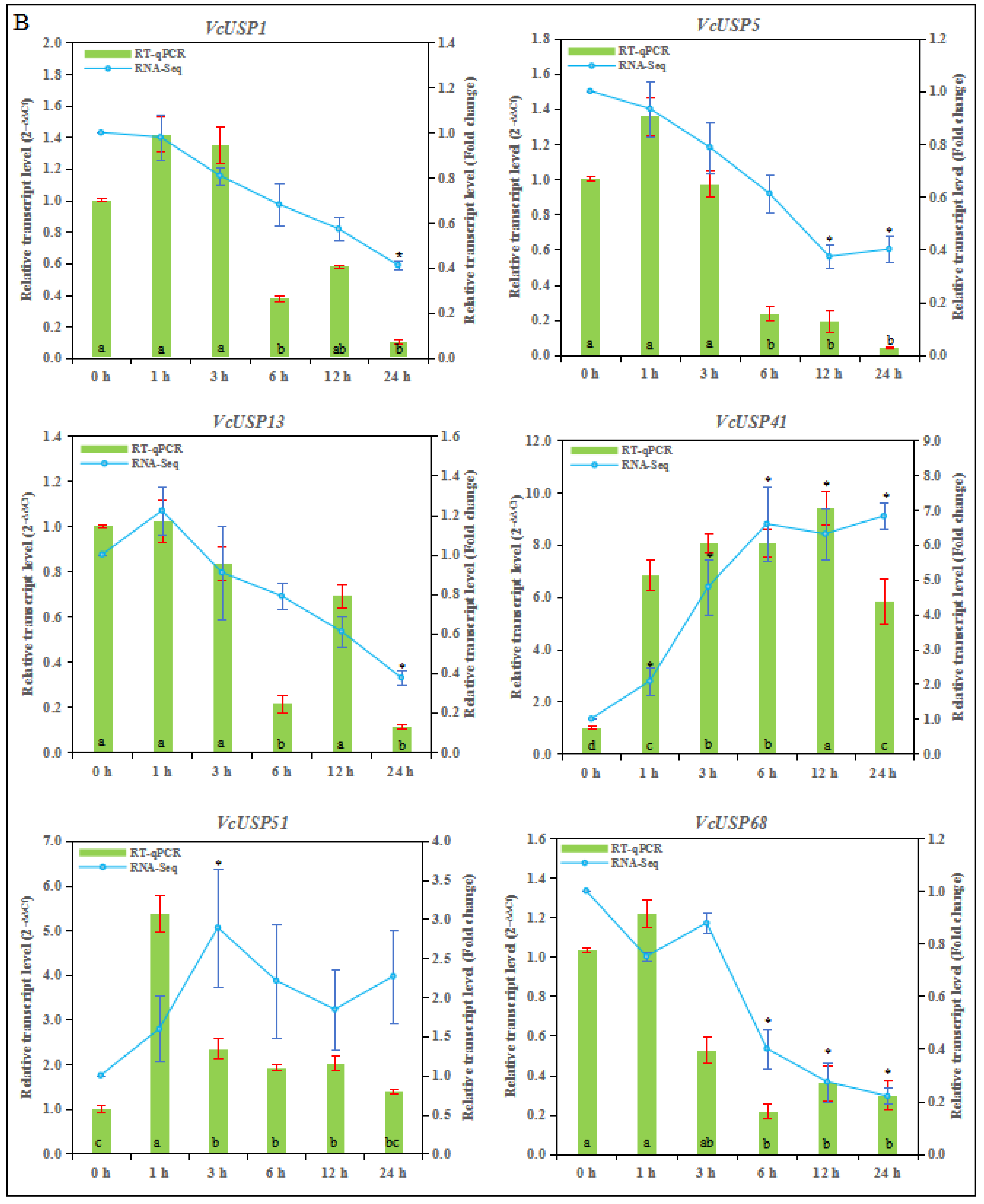

To validate the accuracy and reliability of the VcUSP gene expression patterns determined based on RNA-seq data, we subjected six differentially expressed VcUSPs to RT-qPCR analysis (Figure 6B). The expression levels of VcUSP1 decreased after 6 h and 24 h of UV-B treatment compared to the control (0 h of UV-B). VcUSP5, VcUSP13, and VcUSP68 were also downregulated by UV-B treatment. In contrast, UV-B radiation promoted the expressions of VcUSP41 and VcUSP51. These results verified the accuracy and reliability of the VcUSP gene expression patterns determined based on RNA-seq data.

2.7. VcUSP Expression Patterns in Response to ABA

We demonstrated that the promoters of VcUSP genes contain cis-regulatory elements related to phytohormones, especially ABA. Therefore, we downloaded RNA-seq data of in vitro-grown blueberry seedlings subjected to ABA treatment from the BioProject database (Supplementary Table S4). Only seven VcUSP DEGs were responsive to 6 h and 12 h of ABA treatment. In group Ⅰ, VcUSP4 was downregulated by ABA. VcUSP11, VcUSP15, and VcUSP16 of group Ⅰ, VcUSP39 of group Ⅱ, VcUSP41 of group Ⅲ, and VcUSP68 of group Ⅴ were upregulated by ABA (Figure 7A). Most of these differentially expressed VcUSP genes were from group Ⅰ and were upregulated under ABA treatment.

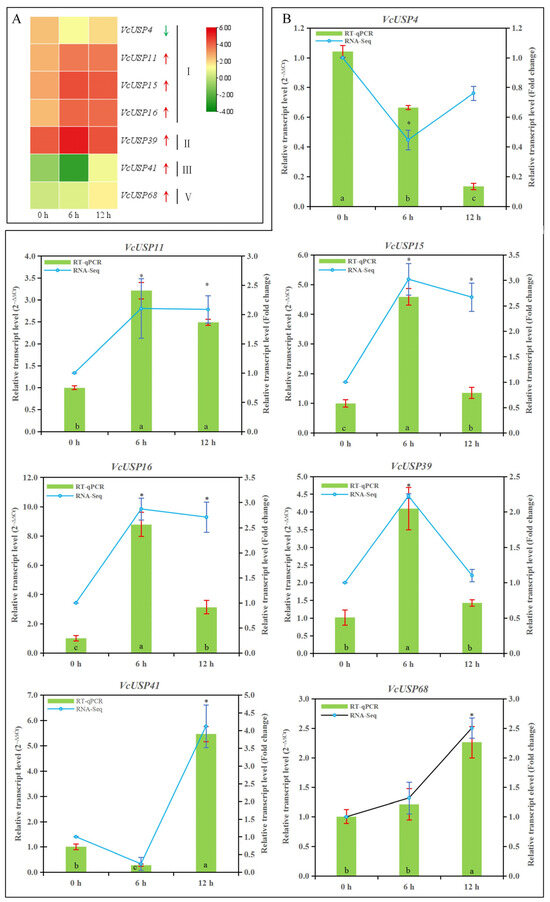

To confirm the accuracy and reliability of the expression patterns of these seven differentially expressed VcUSP genes based on RNA-seq data, we examined their expression using RT-qPCR (Figure 7B). The expression levels of VcUSP11, VcUSP15, VcUSP16, and VcUSP39 significantly increased in response to ABA treatment, reaching levels that were 3.2-, 4.6-, 8.8-, and 4.1-fold higher than the control after 6 h of ABA treatment, respectively, while VcUSP41 showed a significant (5.5-fold) increase in expression after 12 h of ABA treatment. These expression patterns determined using RT-qPCR were similar to those observed in the RNA-seq data, verifying the reliability of the RNA-seq data.

2.8. Identification of VcUSPs Co-Expressed with Transcription Factor Genes under UV-B and ABA Treatments Using WGCNA

USPs regulate plant responses to abiotic stress, likely via interactions with transcription factors [16]. To elucidate the interactions of VcUSPs with transcription factors that function in plant responses to UV-B radiation and ABA, we searched for transcription factor genes that were co-expressed with VcUSPs using the WGCNA package in R and calculated their Pearson’s correlation coefficients (r values). The WGCNA clustered all the DEGs into three modules per treatment: kMEblue, kMEbrown, and kMEturquoise for UV-B radiation and kMEblack, kMEblue, and kMEturquoise for ABA (Supplementary Figure S2). VcUSPs were present in the kMEblue and kMEturquoise modules under UV-B treatment and the kMEblue module under ABA treatment (Figure 8A–C; Supplementary Table S5). Thus, we used the kMEblue and kMEturquoise modules (UV-B radiation) and the kMEblue module (ABA treatment) for protein interaction analysis.

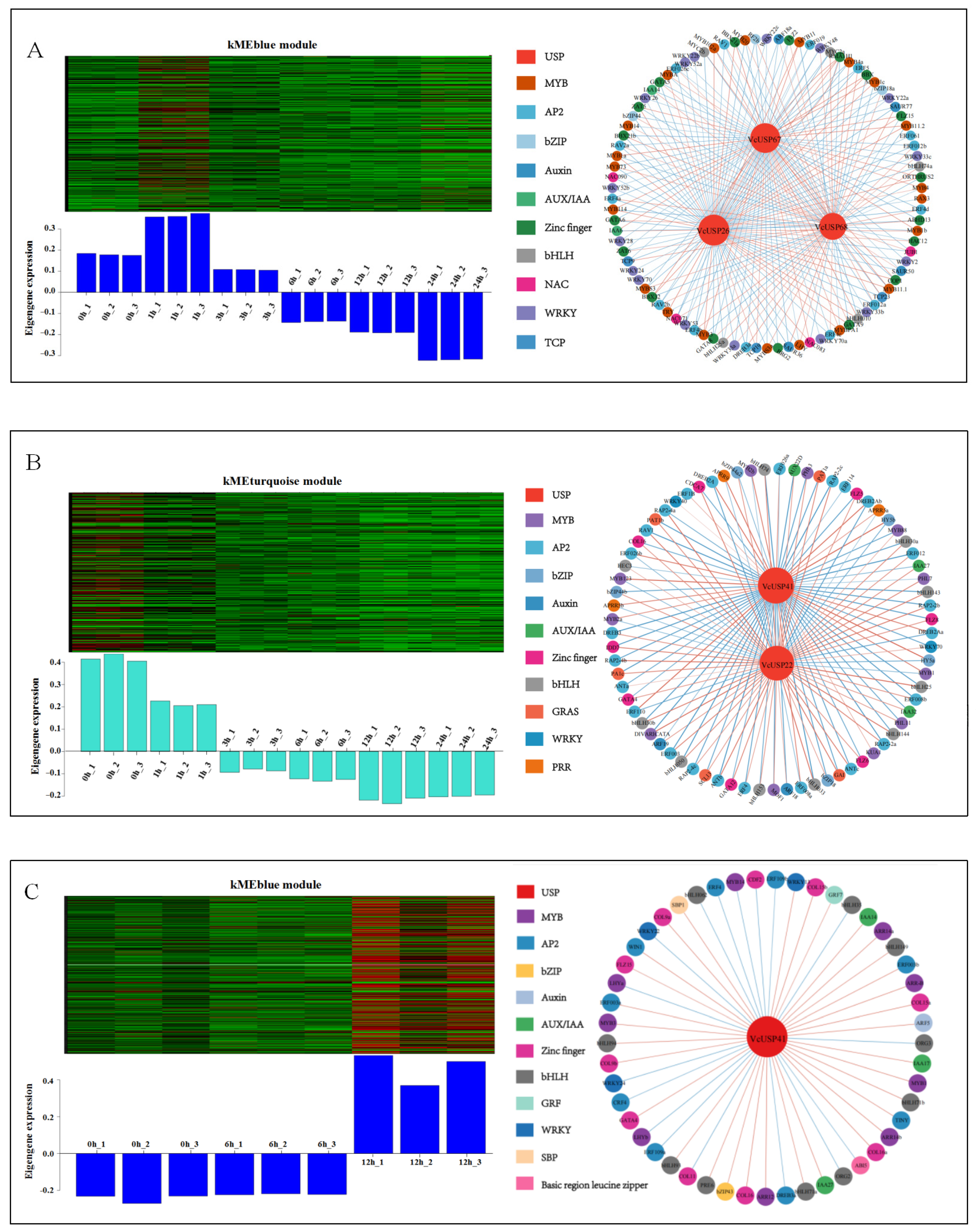

We identified transcription factor genes and VcUSPs from the above modules. For the kMEblue module (UV-B treatment), VcUSP26, VcUSP67, and VcUSP68 were co-expressed with 89 genes encoding transcription factors from the MYB (26.6% of these genes), WRKY (16.85%), bHLH (5.62%), zinc finger (21.35%), AP2 (15.73%), auxin, AUX/IAA, bZIP, TCP, and NAC families (Supplementary Table S6; Supplementary Figure S3A). For the kMEturquoise module under UV-B treatment, VcUSP22 and VcUSP41 were co-expressed with 72 transcription factor genes (Supplementary Table S7), including 33.33% from the AP2 family, 15.28% from the MYB family, 13.89% from the bHLH family, 11.11% from the zinc finger family, and 26.39% from other families (including WRKY, auxin, AUX/IAA, bZIP, GRAS, and PRR; Supplementary Figure S3B). The kMEblue module under ABA treatment contains only VcUSP41 and VcUSP49 transcription factor genes, including members of the zinc finger (20.41%), bHLH (20.41%), MYB (18.37%), AP2 (18.37%), and other transcription factor families (auxin, AUX/IAA, bZIP, GRF, and SBP; Supplementary Table S8; Supplementary Figure S3C).
To screen for transcription factors whose expressions are significantly correlated with VcUSPs, we calculated Pearson’s correlation coefficients and reconstructed the co-expression networks according to the r values (Supplementary Table S9; Figure 8A–C). VcUSPs were positively or negatively correlated with the corresponding transcription factors; for example, VcUSP67 was positively correlated with most MYB family members and negatively correlated with AP2 family members, while VcUSP26 was positively correlated with 13 MYB transcription factors and negatively correlated with 8 MYB transcription factors in the kMEblue module under UV-B treatment. Kyoto Encyclopedia of Genes and Genomes (KEGG) pathway analysis showed that most of these transcription factors were involved in hormone signal transduction (ko04075), the circadian rhythm (ko04712), and the MAPK signaling pathway (ko04016). These results indicate that VcUSPs are mainly co-expressed with transcription factors from the MYB, AP2, zinc finger, and bHLH families and that VcUSPs may regulate the expression of downstream genes through synergistic or antagonistic effects with certain transcription factors under UV-B or ABA treatment.

3. Discussion

3.1. Structural Diversity of the VcUSP Family

USPs are present in a wide variety of organisms and participate in a range of cellular responses to biotic and abiotic stress. To date, 44 USP genes have been identified in Arabidopsis, 21 in barley, 21 in grapevine, and 44 in rice [19,34,35,36]. In the present study, we identified 72 VcUSP genes in blueberry. This high number relative to Arabidopsis and other previously characterized plant species may be related to genome duplication in blueberry or to differences in genome size or evolutionary histories between the species [37,39].
We determined that VcUSPs can be structurally diverse. USPs in other species generally contain a single UspA domain or two tandem repeats of UspA domains [3]. Most VcUSPs contained one or two UspA domains; however, several VcUSPs contained three tandem repeats of UspA domains. Some VcUSPs contained not only UspA domains but also UspE and/or UspF domains; VcUSP55 contained two UspA domains, one UspE domain, and one UspF domain. In bacteria and plants, USPs contain other domains in addition to USP domains; for example, protein kinase-like, TPR-like, ApoLplll-like, U-box, and CDC37_N_like domains are present in UspA proteins in Madagascar periwinkle (Catharanthus roseus), while pkinase, pkinanse_Try, and U-box domains are found in Arabidopsis and rice USPs [36,40]. In this study, we determined that six domains (PMEI-like_2, PME, RING_Ubox, RING-H2, STK_N, and tolA) coexisted with the USP domains in VcUSPs. PMEI and PME are the main enzymes acting on pectin, a major component of the plant cell wall [41]. Most proteins containing RING_Ubox and RING-H2 domains are E3 ubiquitin ligases with a variety of cellular functions, including development, signal transduction, and stress responses [42,43,44]. The N-terminal domain STK_N is homologous to the ATP-binding fold in the USP family [45]. The TolA protein is involved in maintaining the integrity of the outer membrane [46]. These domains endow the VcUSP proteins a variety of functions.
To further elucidate the structural characteristics of the blueberry VcUSPs, we analyzed their conserved motifs and exon–intron structures. We identified 20 motifs, with motifs 1–11 found in each of the VcUSPs. Some motifs (such as motifs 6–8, 10–14, and 18) were only present in one VcUSP group. The number of exons in VcUSPs ranged from 1 to 11 per gene (Figure 4). Only four motifs are present in VvUSPs from grapevine, and all VvUSPs contain two to four introns [19]. The 44 rice OsUSP genes each contain 3–10 motifs and show moderate variation in terms of the number of exons, ranging from 1 to 11 [36]. Most USPs in Arabidopsis and barley contain two to four exons [35]. These results indicate that VcUSPs are more variable than USPs of other species in terms of both their conserved motifs and exon–intron structures.

3.2. The Evolutionary Relationships of VcUSPs

Our phylogenetic analyses classified all VcUSPs into five subgroups, which is consistent with previous findings in grapevine, Arabidopsis, and barley [19]. All VcUSPs from groups Ⅰ, Ⅳ, and Ⅴ contained only one UspA domain but no UspE or UspF domains. The UspA domains were further subdivided based on whether they contained an ATP-binding site: VcUSPs from group Ⅰ contained a UspA ATP-binding site, but all VcUSPs from groups Ⅳ and Ⅴ did not (Table 1; Figure 1). Therefore, it appears that group Ⅰ VcUSPs originated in different branches of the evolutionary tree compared to groups Ⅳ and Ⅴ VcUSPs. On the contrary, the components of group Ⅱ and Ⅲ were complex, with some VcUSPs containing one, two, or three UspA domains and UspE or UspF domains; VcUSPs with or without ATP-binding sites were also clustered into two groups (Table 1; Figure 1). Our findings suggest that groups Ⅱ and Ⅲ underwent rapid expansion, while groups Ⅰ, Ⅳ, and Ⅴ underwent a rapid loss of VcUSPs. These conclusions are supported by the conserved motifs and exon–intron structures of these genes, in that the genes of groups Ⅳ and Ⅴ had more complex and diverse structures (Table 1; Figure 1). Figure 4 shows that USPs from blueberry and Arabidopsis were distributed in each phylogenetic group, pointing to similar evolutionary trajectories in blueberry and Arabidopsis [19,34,35].

3.3. VcUSPs Play Important Roles in Plant Responses to UV-B Radiation and ABA Treatments

USPs participate in a broad range of cellular responses to biotic and abiotic stress, and their roles in providing stress resistance in many plants have been reported. For instance, the overexpression of MfUSP1 (Medicago falcata) resulted in increased tolerance to freezing, salinity, osmotic stress, and methyl viologen-induced oxidative stress [22]. The heterologous expression of VvUSPA2, VvUSPA3, VvUSPA11, VvUSPA13, and VvUSPA16 in E. coli enhanced resistance to drought stress [19]. The overexpression of AtUSP (At3g53990) conferred strong tolerance to heat shock and oxidative stress in Arabidopsis [18]; however, AtUSP17 negatively regulates salt tolerance in Arabidopsis by modulating ethylene, ABA, reactive oxygen species, and G-protein signaling and responses [17]. Therefore, USP homologs may play different roles in plant stress responses.
UV-B radiation, an environmental signal, limits plant growth and development. In E. coli, the deletion of UspA, UspC, UspD, or UspE resulted in an enhanced sensitivity to UV-B exposure [47,48]. Microarray data show that most Arabidopsis AtUSP genes are induced by UV-B treatment [20]. In this study, we identified 21 VcUSP genes that were responsive to UV-B radiation based on transcriptome data. Most of these VcUSPs belong to groups Ⅰ and Ⅲ; group I VcUSPs were downregulated and group Ⅲ VcUSPs were upregulated in response to UV-B treatment. All group Ⅰ VcUSP proteins contained one UspA domain and one ATP-binding site and shared highly similar conserved motifs, while most group Ⅲ VcUSP proteins contained not only a UspA domain but also an UspF domain and similar conserved motifs. These results indicate that proteins within the same phylogenetic clade share close evolutionary relationships, conserved structures, and similar functions. Similar results have been obtained for other proteins, including MYBs and NACs [49,50].
The phytohormone ABA regulates plant responses to abiotic stress. In the wild tomato, SpUSP expression is markedly induced by ABA and plays important roles in drought tolerance by influencing ABA-induced stomatal movement [14]. Exogenously overexpressing VyUSPA3 from Chinese wild grape improved drought tolerance in transgenic V. vinifera, likely by regulating the ABA signaling pathway [16]. Indeed, USP genes are induced by ABA in various plant species [19,22,36]. In the current study, we determined that only seven VcUSP genes responded to ABA treatment, including six upregulated and one (VcUSP4 from group Ⅰ) downregulated gene. Most of the upregulated VcUSP genes (VcUSP15, VcUSP16, VcUSP39, and VcUSP41) showed a more than four-fold increase in expression compared to control conditions. Similar to other plant species, most differentially expressed VcUSPs in response to ABA were upregulated. Therefore, these genes might improve stress tolerance in blueberry by regulating the ABA signaling pathway. The large changes in expression of the seven DEGs in response to ABA treatment confirm the notion that these genes regulate ABA-related stress responses.
ABA mediates the core signaling network in the plant abiotic stress response [51,52]. Several studies showed that ABA treatment increased the tolerance of grapevine to UV-B radiation [23,26]; however, the evidence for a direct interaction between the UV-B and ABA pathways was only obtained for a few measured traits in Yunnan poplar (Populus yunnanensis) [24]. Which proteins are possibly involved in the interaction between ABA and UV-B signaling is unclear currently. Here, we found that both UV-B radiation and ABA treatments induced the expressions of VcUSP41 and VcUSP68, with the former upregulated by both treatments and the latter upregulated by ABA but downregulated by UV-B. Therefore, it is possible that VcUSP41 and VcUSP68 act to bridge the UV-B and ABA signaling pathways for regulating stress responses or physiological and biochemical functions in blueberry.

3.4. Functional Analysis of VcUSPs under UV-B Radiation and ABA Treatments

USPs are small proteins that exist as monomers, dimers, trimers, and oligomers and regulate stress responses by interacting with various proteins [4,14,16,53]. In Catharanthus roseus, uspA-like transcripts are co-expressed with many putative ethylene-responsive bHLH or WRKY transcription factor genes [54]. In the current study, we used WGCNA to elucidate whether selected VcUSP proteins (VcUSP26, VcUSP67, VcUSP68, VcUSP22, and VcUSP41) possibly interact with transcription factors, such as MYB, WRKY, AP2, zinc finger, bHLH, auxin, and AUX/IAA family members, under UV-B or ABA treatment. KEGG pathway annotation showed that these transcription factors were mainly involved in the plant MAPK signaling pathway, plant–pathogen interactions, plant hormone signal transduction, and circadian rhythms (Tables S6–S8). WRKY transcription factors regulate physiological programs including pathogen defense, senescence, and the MAPK signaling pathway [55,56,57,58]. The auxin-responsive protein IAA (IAA or AUX) and auxin response factors (ARFs) are associated with the auxin signaling pathway [59], while ABA-INSENSITIVE 5 (ABI5) is involved in the ABA signaling pathway [60]. LATE ELONGATED HYPOCOTYL (LHY) of the MYB family and PSEUDO RESPONSE REGULATOR (PRR) form an early feedback loop in the circadian clock [61,62]. In Arabidopsis, USP regulates the circadian rhythm of the central clock genes [21]. Exogenously overexpressing VyUSPA3 from Chinese wild grape improved drought tolerance in transgenic V. vinifera, possibly by interacting with a phytohormone signaling pathway, an ubiquitination system, ethylene-responsive element binding factors, or nuclear factors [16]. Thus, VcUSP26, VcUSP67, VcUSP68, VcUSP22, and VcUSP41 may be involved in the UV-B or ABA-induced MAPK signaling pathways, plant–pathogen interactions, plant hormone signal transduction, and circadian rhythms.

3.5. VcUSPs May Be Involved in UV-B-Induced Flavonoid Biosynthesis

Plants are typically subjected to UV-B radiation, which activates UV RESISTANCE LOCUS 8 (UVR8) to interact with the E3 ubiquitin ligase CONSTITUTIVE PHOTOMORPHOGENIC 1 (COP1) [63,64]. ELONGATED HYPOCOTYL 5 (HY5) acts downstream of the UV-B photoreceptor UVR8 to regulate the expression of MYB12 in response to UV-B radiation [65,66], which regulates flavonol accumulation [67,68]. In this regulatory network, the B-box protein BBX21 directly binds to cis-elements in the HY5 promoter to activate its expression and interacts with BBX32 [69,70]. We found that VcUSP26, VcUSP67, and VcUSP68 were co-expressed with COP1, BBX21, BBX32, and MYB12, while VcUSP22 and VcUSP41 were co-expressed with HY5 under UV-B treatment. At the same time, VcUSP26, VcUSP67, and VcUSP68 were co-expressed with MYB114 (AtMYB114 homolog), MYBA (AtTT2 homolog), MYB11 (AtMYB114 homolog), MYB12 (AtMYB12 homolog), and MYBPA (AtMYB5 homolog) under UV-B radiation; these co-expressed genes control the biosynthesis of flavonoids, including anthocyanins, proanthocyanidins, and flavonols [71,72,73,74]. These finding suggest that VcUSP26, VcUSP67, VcUSP68, VcUSP22, and VcUSP41 function in the network involved in UV-B-induced flavonoid biosynthesis.

4. Materials and Methods

4.1. Identification of Putative VcUSPs

To identify putative VcUSPs, Hidden Markov Model searches were performed in the Genome Database for the Vaccinium corymbosum cv. Draper V1.0 genome sequence (https://www.vaccinium.org/ (accessed on 1 July 2023)) using the USP domain (PF00582) from the Pfam database (http://pfam.xfam.org/ (accessed on 1 July 2023)) as a query. The candidate VcUSPs were investigated using the online programs Pfam and CDD (https://www.ncbi.nlm.nih.gov/Structure/cdd/wrpsb.cgi (accessed on 2 July 2023)), and genes without USP or AANH domains in their encoded proteins were removed. Finally, a list of VcUSPs with at least one USP domain was obtained by deleting redundant sequences based on sequence alignments generated using DNAMAN version 6.0.3.99 (Lynnon Biosoft, San Ramon, CA, USA). The molecular weight, theoretical isoelectric point (pI), instability index, aliphatic index, and grand average of hydropathicity of the proteins were calculated for the VcUSP proteins using the online program ExPASy (https://web.expasy.org/protparam/ (accessed on 4 July 2023)).

4.2. Phylogenetic Analysis and Multiple Sequence Alignment

The deduced amino acid sequences of the VcUSPs were aligned using DNAMAN version 6.0.3.99. The USP amino acid sequences of A. thaliana and V. vinifera were downloaded from NCBI (https://www.ncbi.nlm.nih.gov/ (accessed on 5 July 2023)). The phylogenetic trees were constructed in MEGA X version 11.0.10 (https://www.megasoftware.net/ (accessed on 2 July 2023)) using the Maximum Likelihood method. A bootstrap analysis was carried out with 1000 replicates [75].

4.3. Analysis of the Major Characteristics of VcUSP Family Members

The amino acid sequences of the VcUSPs were subjected to a BLAST search against the NCBI database to predict the conserved UspA, UspE, and UspF domains. The conserved domains used for visualization were predicted using the online program CDD (https://www.ncbi.nlm.nih.gov/Structure/bwrpsb/bwrpsb.cgi (accessed on 10 July 2023)). Generic feature format files of the VcUSP family members were downloaded from the Genome Database for Vaccinium, including sequence information for the untranslated regions (UTRs), exons, and introns. The conserved motifs of the VcUSP amino acid sequences were uploaded to the online search tool MEME (http://meme-suite.org/tools/meme (accessed on 10 July 2023)), with the maximum number of motifs set at 20 and the order of site distribution set to zero or one occurrence per sequence. To analyze the cis-regulatory elements in the promoters of the VcUSPs, the 2000 bp upstream sequence of each gene was downloaded from the Genome Database for Vaccinium and submitted to the online program PlantCARE (https://bioinformatics.psb.ugent.be/webtools/plantcare/html/ (accessed on 20 July 2023)). The conserved domains, conserved motifs, exon–intron structures, and cis-regulatory elements in the promoters of the VcUSPs were visualized using TBtools-Ⅱ software (version 2.003) [76].

4.4. Differentially Expressed VcUSPs under UV-B Radiation or ABA Treatment

Differentially expressed VcUSP genes under 311 nm UV-B radiation (0, 1, 3, 6, 12, or 24 h) or 100 µM ABA treatment (0, 6, or 12 h) were downloaded from the BioProject database in the NCBI repository (https://www.ncbi.nlm.nih.gov/bioproject; accession numbers PRJNA831018 and PRJNA997066, respectively. (accessed on 1 Auguest 2023)) [77]. The DEGs were identified by comparing the ABA-treated samples with the control (0 h) sample based on the FPKM (Fragments per Kilobase of transcript per Million mapped reads) values using the criteria of absolute log2(fold change) ≥ 1 and false discovery rate (FDR) < 0.01 performed using DESeq2 [78]. A heatmap of DEGs based on log10 (FPKM) values under UV-B radiation (0, 1, 3, 6, 12, or 24 h) or ABA treatment (0, 6, or 12 h) was constructed with TBtools-Ⅱ software (version 2.003).

4.5. WGCNA

WGCNA was performed on transcriptome data obtained from plants under UV-B radiation or ABA treatment using the WGCNA package in R [79]. The hierarchical clustering tree was built based on the correlation coefficients of different nodes. The different branches of the clustering tree represent different gene modules. Genes with different expression levels were assigned to various modules using the Dynamic Tree Cut R package. Since the degree of co-expression is high for genes in the same modules, VcUSPs and transcription factor genes from the same module were screened. Pearson’s correlation coefficient (r) analysis was performed between VcUSPs and transcription factor genes according to the FPKM values using SPSS 19.0 software (IBM, Armonk, NY, USA). Pairs of genes with a p value ≤ 0.05 were considered to be significantly correlated. The co-expression networks were visualized based on their r values using Cytoscape version 3.9.1 [80]. The KEGG [81], NCBI non-redundant protein sequences (NR) [82], and Protein family (Pfam) [83] databases, as well as a manually annotated and reviewed protein sequence database (Swiss-Prot) [84] and evolutionary genealogy of genes, Non-supervised Orthologous Groups (eggNOG) [85], were used to screen the transcription factor genes and predict their biological functions.

4.6. Validation of RNA-Seq Data Using RT-qPCR

The blueberry cultivar ‘Northland’ calli and in vitro–grown seedlings were used for UV-B radiation and ABA treatments, respectively. The blueberry calli and in vitro–grown seedlings were cultured on modified woody plant medium (WPM) containing Murashige and Skoog vitamins with 3.0 mg/L 2,4-dichlorophenoxyacetic acid (calli) or 1.0 mg/L trans-Zeatin (seedlings) under a 16 h light/8 h dark photoperiod at 25 °C and subcultured every 3 weeks (calli) and 5 weeks (seedlings). UV-B was applied by the means of narrow band lamps (TL20/01; 311 nm Philips, Amsterdam, Netherlands) positioned above the calli at the height of about 10 cm for 0, 1, 3, 6, 12, or 24 h [77]. The seedlings with ten to twelve blades were transferred to the medium containing 100 µM ABA for 0, 6 or 12 h. The calli or seedlings were harvested right after treatments of UV-B radiation or ABA and frozen in liquid nitrogen and stored at −80 °C for RT-qPCR analysis.
Total RNA was extracted from each sample subjected to UV-B radiation (0, 1, 3, 6, 12, or 24 h) or 100 µM ABA treatment (0, 6, or 12 h) using an RNA Extraction Kit (Sangon Biotech, Shanghai, China), and first-strand cDNAs were synthesized using PrimeScript RT Master Mix (Takara Bio, Kusatsu, Japan). Six differentially expressed VcUSP genes under UV-B radiation (VcUSP1, VcUSP5, VcUSP13, VcUSP41, VcUSP51, and VcUSP68) and seven under ABA treatment (VcUSP4, VcUSP11, VcUSP15, VcUSP16, VcUSP39, VcUSP41, and VcUSP68) were subjected to RT-qPCR analysis using an ABI 7900HT Real-time PCR system (Thermo Fisher Scientific, Waltham, MA, USA). Glyceraldehyde-3-phosphate dehydrogenase (GAPDH; GenBank accession no. AY123769) was used as the reference gene; the primer sequences are shown in Supplementary Table S10. The relative expression level of each gene was calculated using the 2−∆∆Ct method for RT-qPCR analysis and the fold change method for the RNA-seq data. All experiments were carried out with three independent biological replicates, and three technical replicates were performed for each biological replicate. Tukey’s test was used to identify significant differences at p value ≤ 0.05 using SPSS 19.0 software.

5. Conclusions

In conclusion, a total of 72 putative VcUSP genes were identified and classified into five groups, in which 21 VcUSPs responded to UV-B radiation and 7 responded to exogenous ABA, and VcUSP41 and VcUSP68 might act as bridges integrating UV-B and ABA signaling. WGCNA predicted that VcUSP22, VcUSP41, VcUSP26, VcUSP67, and VcUSP68 may be involved in plant hormone signal transduction, circadian rhythms, the MAPK signaling pathway, and UV-B-induced flavonoid biosynthesis under UV-B or ABA treatment. Our findings provide a useful reference for subsequent research investigating the biological function of VcUSP family members in blueberry.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms242316819/s1.

Author Contributions

Conceptualization, C.Z. and Y.S.; methodology, B.M.; software, B.M. and Y.S.; validation, Y.S., B.M. and X.F.; formal analysis, B.M. and X.F.; investigation, Q.G.; resources, X.Z.; data curation, L.Z.; writing—original draft preparation, Y.S.; writing—review and editing, C.Z.; visualization, L.Z.; supervision, L.Z.; project administration, C.Z. and Q.G.; funding acquisition, C.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (grant number: 31700260).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All data in this study are included in the Supplementary Materials.

Conflicts of Interest

The authors declare no conflict of interest.
