Communication

Synthesis of 3,4-Disubstituted Maleimide Derivatives via Phosphine-Catalyzed Isomerization of α-Succinimide-Substituted Allenoates Cascade γ′-Addition with Aryl Imines

by
Zhenzhen Gao
*,
Xiaoming Zhou
,
Baoshen Nie
,
Hanchong Lu
,
Xiaotong Chen
,
Jiahui Wu
,
Xuekun Wang
and
Lei Li
*
School of Pharmaceutical Sciences, State Key Laboratory for Macromolecule Drugs and Large-Scale Manufacturing, Liaocheng University, Liaocheng 252059, China
*
Authors to whom correspondence should be addressed.
Int. J. Mol. Sci. 2024, 25(13), 6916; https://doi.org/10.3390/ijms25136916
Submission received: 11 June 2024 / Revised: 21 June 2024 / Accepted: 23 June 2024 / Published: 24 June 2024
(This article belongs to the Special Issue Recent Advances in Organic Chemistry: Molecules Synthesis and Reactions)
Browse Figures
Versions Notes

Abstract

:
3,4-disubstituted maleimides find wide applications in various pharmacologically active compounds. This study presents a highly effective approach for synthesizing derivatives of 3,4-disubstituted maleimides through the direct isomerization of α-succinimide-substituted allenoates, followed by a cascade γ′-addition and aryl imines using PR3 as a catalyst. The resulting series of 3,4-disubstituted maleimides exhibited excellent stereoselectivities, achieving yields of up to 86%. To our knowledge, the phosphine-mediated γ′-addition reaction of allenoates is seldom reported.

1. Introduction

Maleimide derivatives have been found to possess diverse biological activities. In fact, some 3,4-disubstituted maleimides are frequently found in natural products and bioactive molecules [1]. Figure 1 provides some examples of the different 3,4-disubstituted maleimide skeletons that occur. Rebeccamycin A, an antibiotic, has demonstrated noteworthy effectiveness against certain types of tumor cell lines [2]. Additionally, indolylmaleimide derivative B has the ability to inhibit the growth and movement of cancer cells, indicating its potential as an anticancer drug [3]. Compound C, a highly active inhibitor of glycogen synthase kinase, has been identified [4]. Recently, N-substituted maleimide D has been found to be an attractive inhibitor for GSK-3 and a potential treatment for Alzheimer’s disease [5]. E is an antifungal derived from the metabolite of the Serpula himantoides strain [6]. Additionally, 3,4-di(aryl)maleimide F is an antitumor agent that exhibits antitubulin activity [7]. As a result, the synthesis of these interesting molecular structures has presented a constant challenge to synthetic organic chemists.
Phosphine-catalyzed reactions have attracted significant interest over the past few decades [8,9,10,11,12,13,14,15,16,17] due to their ability to facilitate a variety of C-C and C-N bond formations in organic synthesis without introducing metal contamination into the organic products [18,19,20,21,22,23,24,25,26,27]. In 1994, Trost described the first example of a phosphine-catalyzed γ-umpolung addition of nucleophiles onto the γ-carbon of 2-butyrates (Scheme 1a) [28]. Subsequently, Lu utilized 2,3-allenoates for reacting with a nucleophile in the presence of PPh3, resulting in another γ-umpolung addition on the γ-carbon of the 2,3-allenoate (Scheme 1a) [29]. In the following years, Lu, Kwon, and Huang each demonstrated successful phosphine-catalyzed β-Michael additions to allenoates (Scheme 1b) [30,31,32,33,34,35,36]. In 2011, Kwon and Shi independently introduced α-alkyl allenoates and achieved a novel β′-umpolung addition for synthesizing functionalized acrylates (Scheme 1c) [37,38]. In 2020, Huang and colleagues employed vinyl allenoates to achieve the remote activation of the ε-carbon, leading to 1,7-addition reactions (Scheme 1d) [39]. Aside from nucleophile addition reactions, addition reactions of electrophiles with δ-substitute allenoates have also been reported. Prior studies have shown that most reactions between allenoates and electrophiles result in cyclizations. However, Xu and Li separately reported a notable phosphine-catalyzed δ-umpolung addition of isatin derivatives (Scheme 1e) or para-quinone methides (Scheme 1f) with δ-substitute allenoates [40,41]. Despite the recent advances, further diversification of allenoates is still necessary to foster the development of new addition reactions and versatile product motifs.
Our group has recently presented a novel set of α-succinimide-substituted allenoates, demonstrating the ability to undergo [4+2] annulation reactions with 1,1-dicyanoalkenes under phosphine catalysis, specifically involving the γ′-carbon of the allenoates [42]. However, as far as we know, the phosphine-mediated γ′-addition reaction of allenoates has been uncommon until now.
In this work, we introduce a new phosphine-catalyzed direct isomerization of α-succinimide-substituted allenoates, leading to cascade γ′-addition reactions with imine derivatives. It is conceivable that the attack of a phosphine on α-succinimide-substituted allenoates, along with subsequent proton transfers, could result in the formation of a putative intermediate where the remote γ′-carbon becomes nucleophilic, initiating fresh reactions. These reactions progress smoothly, yielding good to high yields of corresponding 3,4-disubstituted maleimide adducts under mild conditions (Scheme 1g).

2. Results and Discussion

The investigation began by combining N-tosyl (Ts) imine 1a with α-succinimide-substituted allenoate 2a in the presence of PBu3 (20 mol %) in DCM (2 mL) at room temperature, resulting in a 40% yield of 3a (Table 1, entry 1). Further examination of the tertiary phosphine catalysts revealed that PMe3, MePPh2, EtPPh2, and PrPPh2 facilitated the addition reactions, yielding 37%, 43%, 55%, and 48%, respectively (Table 1, entries 2–5). Among these, EtPPh2 demonstrated the highest catalytic activity, producing the highest product yield (entry 4). The solvent exploration showed that DCE provided similar results to toluene (entries 6 and 8), while THF, CH3CN, and EtOAc yielded inferior results (entries 7, 9, and 10). In some phosphine-catalyzed reactions, protic reagents like phenol or benzoic acid were found to promote [1, 2], [1, 3], or [1, n] proton shifts and accelerate the reaction rates. Hence, various acidic protic additives were screened. The addition of the additives proved crucial to achieving higher yields (Table 1, entries 11–14). Using 30 mol % 3,5-(OH)2BzOH as an additive increased the yield to 73%. Adjusting the feeding ratio to 1a:2a = 1:1.5 resulted in more efficient reaction progress and an 81% product yield (Table 1, entry 15). Consequently, the optimal reaction conditions were determined: DCM as the solvent, at room temperature, 20 mol % of the EtPPh2 as the catalyst, and 30 mol % 3,5-(OH)2BzOH as an additive.
Under the optimized conditions, we investigated the performance of various imines 1 and allenoates 2 in the γ′-addition reaction. The outcomes are outlined in Table 2. We observed that, when employing different substituted imines 1 (1a–1n) as substrates, the reaction proceeded effectively, yielding the desired product 3 in moderate to good yields (Table 2, entries 1–14). However, the presence of the electron-donating groups on the aromatic rings of the imines exhibited higher reactivity compared to the electron-withdrawing groups. Imine substrates 1b–1i with electron-donating groups on the benzene ring yielded the desired products in moderate to good yields (72–86%) (Table 2, entries 2–9). Conversely, imines 1j–1n with halogen substitutions on the benzene ring resulted in slightly lower yields (49–67%) (Table 2, entries 10–14). Unfortunately, when attempting to use alkyl imine (1o) as a reactant, no desired product was observed (Table 2, entry 15). Substituting the N-substituents in allenoates 2 with the 2-MeCH2C6H4 (2b), 4-MeCH2C6H4 (2c), and 4-OMeCH2C6H4 (2d) groups did not significantly alter the reactivity. Using these allenoates, the reaction proceeded smoothly to yield the desired products 3 in 59–64% yields (Table 2, entries 16–18).
Moreover, the configurations and stereochemical properties of compound 3 were elucidated using NMR, high-resolution mass spectrometry (HRMS) data, and crystallographic analysis via X-ray diffraction (Figure 2). For detailed information on single crystal of 3da, see Tables S1–S6 in the Supplementary Materials. The crystallographic data for 3da have been submitted to the Cambridge Crystallographic Data Centre with deposition number CCDC 2258229 [43].
To demonstrate the applicability of our approach, we conducted a reaction at a larger scale. As shown in Scheme 2, under optimal conditions, the reaction between 1a and α-succinimide-substituted allenoate 2a proceeded smoothly, resulting in the production of the desired product 3aa at the gram scale with no observable loss of yield.
A plausible reaction mechanism is presented in Scheme 3 [42]. This addition reaction begins with the nucleophilic addition of a phosphine to the allenoates 2, forming zwitterionic intermediates (A ⟷ A′). Subsequently, proton transfer occurs, leading to the formation of intermediate B, followed by the generation of intermediate D through isomerization and proton transfer. Intermediate D then reacts with imines 1, producing intermediate E. Subsequently, the intermediate E undergoes a series of H-transfers to form intermediate G. The elimination of PR3 from G yields product 3 and regenerates PR3 to complete the catalytic cycle.

3. Materials and Methods

Unless otherwise stated, all reagents were purchased from commercial suppliers and used without further purification. All solvents were filtered and dried according to standard procedures before use. All reactions were performed in dry glass vessels under nitrogen and magnetic stirring. The reaction was monitored by thin-layer chromatography (TLC) on silica precoated glass plates. The chromatogram was viewed under 254 nm UV light. Qingdao Marine flash silica gel (100–200 mesh) (Qingdao, China) was used for flash column chromatography. The 1H and 13C NMR spectra of CDCl3 were recorded using a 500 MHz NMR instrument. Melting point was measured using an X-4 digital micromelting point meter (Shanghai, China). Accurate mass measurements were conducted using Agilent instruments and ESI-MS technology (Santa Clara, CA, USA). X-ray crystallographic data were obtained using a Bruker D8 VENTURE instrument (Billerica, Germany).

3.1. General Procedure for the Synthesis of N-Tosyl Imines 1

Molecular Sieves (MS) 4Å was preactivated by microwave and dried under vacuum. A screw capped vial was charged with aldehyde (1.2 mmol), TsNH2 (1.0 mmol), and preactivated MS 4Å (1.0 g). Dried dichloromethane (3.0 mL) and pyrrolidine (6.22 μL, 0.10 mmol) were then added to the mixture. The resultant mixture was stirred at 60 °C for 24 h. The mixture was cooled to rt and filtered through a short pad of Celite® from Tianjin Heowns (Tianjin, China). The organic phase was concentrated under reduced pressure, and the crude product was purified by crystallization (hexane/ethyl acetate system). The resulting solid was collected by filtration and then dried under vacuum.

3.2. General Procedure for the Synthesis of α-Succinimide-Substituted Allenoate 2

Maleimide (0.15 mmol), allene (0.30 mmol), DABCO (0.030 mmol), and 1,4-dioxane (1.0 mL) were added into a Schlenk tube. The reaction mixture was stirred at room temperature for 3 h or at room temperature for 3 h, the solvent was removed under reduced pressure, and the residue was purified by flash column chromatography (PE/EA = 4/1~2/1) to afford products 2a–2d.

3.3. General Procedure for the Isomerization Cascade γ′-Addition Reaction

Under argon atmosphere, to a mixture of N-tosyl imines 1 (0.10 mmol), α-succinimide-substituted allenoate 2 (0.15 mmol), catalyst PR3 (20 mol %, 0.02 mmol), and the additive (30 mol %, 0.03 mmol) in a Schlenk tube, 2 mL of DCM was added at room temperature. The resulting mixture was stirred until the starting material was completely consumed (monitored by TLC) and then was concentrated to dryness. The residue was purified through flash column chromatography (EtOAc/PE) to afford the corresponding products 3.

4. Conclusions

In conclusion, we have established a novel method for synthesizing functionalized 3,4-disubstituted maleimides in good yields. This reaction involves a phosphine-catalyzed isomerization cascade γ′-addition reaction between α-succinimide-substituted allenoates and aryl imine derivatives. Given the numerous biologically active natural products and industrially useful compounds containing 3,4-disubstituted maleimide components reported in the literature, our methodology offers a new protocol for efficiently synthesizing these compounds.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/ijms25136916/s1. References [44,45] are mentioned in Supplementary Materials.

Author Contributions

Conceptualization, Z.G. and L.L.; methodology, X.Z.; validation, B.N. and H.L.; formal analysis, X.C.; investigation, J.W.; data curation, X.Z.; writing—original draft preparation, Z.G.; writing—review and editing, X.W.; supervision, X.W.; project administration, L.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by project ZR2021MB110 supported by Shandong Province Natural Science Foundation, the National Natural Science Foundation of China (No. 22101002), the Support Plan on Science and Technology for Youth Innovation of Universities in Shandong Province (2022KJ111), Guangyue Young Scholar Innovation Team Foundation of Liaocheng University (LCUGYTD2022–04), and the Special Construction Project Fund for Shandong Province Taishan Scholars.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the authors.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Panov, A.A.; Simonov, A.Y.; Lavrenov, S.N.; Lakatosh, S.A.; Trenin, A.S. 3,4-Disubstituted maleimides: Synthesis and biological activity. Chem. Heterocycl. Comp. 2018, 54, 103–113. [Google Scholar] [CrossRef]
  2. Anizon, F.; Golsteyn, R.M.; Léonce, S.; Pfeiffer, B.; Prudhomme, M. A three-step synthesis from rebeccamycin of an efficient checkpoint kinase 1 inhibitor. Eur. J. Med. Chem. 2009, 44, 2234–2238. [Google Scholar] [CrossRef] [PubMed]
  3. Merkel, A.L.; Meggers, E.; Ocker, M. PIM1 kinase as a target for cancer therapy. Expert. Opin. Investig. Drugs. 2012, 21, 425–436. [Google Scholar] [CrossRef] [PubMed]
  4. Smith, D.G.; Buffet, M.; Fenwick, A.E.; Haigh, D.; Lfe, R.J.; Saunders, M.; Slingsby, B.P.; Stacey, R.; Ward, R.W. 3-Anilino-4-arylmaleimides: Potent and selective inhibitors of glycogen synthase kinase-3 (GSK-3). Bioorg. Med. Chem. Lett. 2001, 11, 635–639. [Google Scholar] [CrossRef] [PubMed]
  5. Sivaprakasam, P.; Xie, A.; Doerksen, R.J. Probing the physicochemical and structural requirements for glycogen synthase kinase-3α inhibition: 2D-QSAR for 3-anilino-4-phenylmaleimides. Bioorg. Med. Chem. 2006, 14, 8210–8218. [Google Scholar] [CrossRef] [PubMed]
  6. Sortino, M.; Garibotto, F.; Filho, V.; Gupta, M.; Enriz, R.; Zacchina, S. Antifungal, cytotoxic and SAR studies of a series of N-alkyl, N-aryl and N-alkylphenyl-1,4-pyrrolediones and related compounds. Bioorg. Med. Chem. 2011, 19, 2823–2834. [Google Scholar] [CrossRef] [PubMed]
  7. Peifer, C.; Stoiber, T.; Unger, E.; Totzke, F.; Schächtele, C.; Marmé, D.; Brenk, R.; Klebe, G.; Schollmeyer, D.; Dannhardt, G. Design, Synthesis, and Biological Evaluation of 3,4-Diarylmaleimides as Angiogenesis Inhibitors. J. Med. Chem. 2006, 49, 1271–1281. [Google Scholar] [CrossRef]
  8. Guo, H.C.; Fan, Y.C.; Sun, Z.H.; Wu, Y.; Kwon, O. Phosphine Organocatalysis. Chem. Rev. 2018, 118, 10049–10293. [Google Scholar] [CrossRef] [PubMed]
  9. Ni, H.Z.; Chan, W.-L.; Lu, Y.X. Phosphine-Catalyzed Asymmetric Organic Reactions. Chem. Rev. 2018, 118, 9344–9411. [Google Scholar] [CrossRef]
  10. Fan, Y.C.; Kwon, O. Advances in nucleophilic phosphine catalysis of alkenes, allenes, alkynes, and MBHADs. Chem. Commun. 2013, 49, 11588–11619. [Google Scholar] [CrossRef]
  11. Wei, Y.; Shi, M. Recent Advances in Organocatalytic Asymmetric Morita–Baylis–Hillman/aza-Morita–Baylis–Hillman Reactions. Chem. Rev. 2013, 113, 6659–6690. [Google Scholar] [CrossRef] [PubMed]
  12. Basavaiah, D.; Reddy, B.S.; Badsara, S.S. Recent Contributions from the Baylis–Hillman Reaction to Organic Chemistry. Chem. Rev. 2010, 110, 5447–5674. [Google Scholar] [CrossRef] [PubMed]
  13. Wei, Y.; Shi, M. Multifunctional Chiral Phosphine Organocatalysts in Catalytic Asymmetric Morita–Baylis–Hillman and Related Reactions. Acc. Chem. Res. 2010, 43, 1005–1018. [Google Scholar] [CrossRef] [PubMed]
  14. Aroyan, C.E.; Miller, S.J. Enantioselective Rauhut–Currier Reactions Promoted by Protected Cysteine. J. Am. Chem. Soc. 2007, 129, 256–257. [Google Scholar] [CrossRef] [PubMed]
  15. Nair, V.; Menon, R.S.; Sreekanth, A.R.; Abhilash, N.; Biju, A.T. Engaging Zwitterions in Carbon–Carbon and Carbon–Nitrogen Bond–Forming Reactions: A Promising Synthetic Strategy. Acc. Chem. Res. 2006, 39, 520–530. [Google Scholar] [CrossRef] [PubMed]
  16. Methot, J.L.; Roush, W.R. Nucleophilic Phosphine Organocatalysis. Adv. Synth. Catal. 2004, 346, 1035–1050. [Google Scholar] [CrossRef]
  17. Lu, X.Y.; Zhang, C.M.; Xu, Z.R. Reactions of Electron-Deficient Alkynes and Allenes under Phosphine Catalysis. Acc. Chem. Res. 2001, 34, 535–544. [Google Scholar] [CrossRef] [PubMed]
  18. Yoshioka, K.; Yamada, K.; Uraguchi, D.; Ooi, T. Unique site-selectivity control in asymmetric Michael addition of azlactone to alkenyl dienyl ketones enabled by P-spiro chiral iminophosphorane catalysis. Chem. Commun. 2017, 53, 5495–5498. [Google Scholar] [CrossRef] [PubMed]
  19. Li, E.Q.; Jin, H.X.; Jia, P.H.; Dong, X.L.; Huang, Y. Bifunctional-Phosphine-Catalyzed Sequential Annulations of Allenoates and Ketimines: Construction of Functionalized Poly-heterocycle Rings. Angew. Chem. Int. Ed. 2016, 55, 11591–11594. [Google Scholar] [CrossRef]
  20. Ziegler, D.T.; Riesgo, L.; Ikeda, T.; Fujiwara, Y.; Fu, G.C. Biphenyl-Derived Phosphepines as Chiral Nucleophilic Catalysts: Enantioselective [4+1] Annulations To Form Functionalized Cyclopentene. Angew. Chem. Int. Ed. 2014, 53, 13183–13187. [Google Scholar] [CrossRef]
  21. Gicquel, M.; Gomez, C.; Retailleau, P.; Voituriez, A.; Marinetti, A. Synthesis of 3,3′-Spirocyclic Oxindoles via Phosphine Catalyzed [4+2] Cyclizations. Org. Lett. 2013, 15, 4002–4005. [Google Scholar] [CrossRef] [PubMed]
  22. Han, X.Y.; Wang, Y.Q.; Zhong, F.R.; Lu, Y.X. Enantioselective [3+2] Cycloaddition of Allenes to Acrylates Catalyzed by Dipeptide-Derived Phosphines: Facile Creation of Functionalized Cyclopentenes Containing Quaternary Stereogenic Centers. J. Am. Chem. Soc. 2011, 133, 1726–1729. [Google Scholar] [CrossRef] [PubMed]
  23. Wang, T.; Ye, S. Diastereoselective Synthesis of 6-Trifluoromethyl-5,6-dihydropyrans via Phosphine-Catalyzed [4+2] Annulation of α-Benzylallenoates with Ketones. Org. Lett. 2010, 12, 4168–4171. [Google Scholar] [CrossRef] [PubMed]
  24. Zhang, Q.M.; Yang, L.; Tong, X.F. 2-(Acetoxymethyl)buta-2,3-dienoate, a Versatile 1,4-Biselectrophile for Phosphine-Catalyzed (4+n) Annulations with 1,n-Bisnucleophiles (n = 1, 2). J. Am. Chem. Soc. 2010, 132, 2550–2551. [Google Scholar] [CrossRef] [PubMed]
  25. Chung, Y.K.; Fu, G.C. Phosphine-Catalyzed Enantioselective Synthesis of Oxygen Heterocycle. Angew. Chem. Int. Ed. 2009, 48, 2225–2227. [Google Scholar] [CrossRef] [PubMed]
  26. Wurz, R.P.; Fu, G.C. Catalytic Asymmetric Synthesis of Piperidine Derivatives through the [4+2] Annulation of Imines with Allenes. J. Am. Chem. Soc. 2005, 127, 12234–12235. [Google Scholar] [CrossRef] [PubMed]
  27. Zhu, X.-F.; Lan, J.; Kwon, O. An Expedient Phosphine-Catalyzed [4+2] Annulation: Synthesis of Highly Functionalized Tetrahydropyridines. J. Am. Chem. Soc. 2003, 125, 4716–4717. [Google Scholar] [CrossRef] [PubMed]
  28. Trost, B.M.; Li, C.-J. Novel “Umpolung” in C-C Bond Formation Catalyzed by Triphenylphosphine. J. Am. Chem. Soc. 1994, 116, 3167–3168. [Google Scholar] [CrossRef]
  29. Zhang, C.; Lu, X. Umpolung Addition Reaction of Nucleophiles to 2,3-Butadienoates Catalyzed by a Phosphine. Synlett 1995, 6, 645–646. [Google Scholar] [CrossRef]
  30. Lu, C.; Lu, X.Y. Unexpected results in the reaction of active methylene compounds with phenylsulfonyl-1,2-propadiene triggered by triphenylphosphine. Tetrahedron 2004, 60, 6575–6579. [Google Scholar] [CrossRef]
  31. Li, E.Q.; Xie, P.Z.; Yang, L.H.; Liang, L.; Huang, Y. Tuning Catalysts to Tune the Products: Phosphine-Catalyzed Aza-Michael Addition Reaction of Hydrazones with Allenoates. Chem. Asian J. 2013, 8, 603–610. [Google Scholar] [CrossRef] [PubMed]
  32. Gandi, V.R.; Lu, Y.X. Phosphine-catalyzed regioselective Michael addition to allenoates. Chem. Commun. 2015, 51, 16188–16190. [Google Scholar] [CrossRef] [PubMed]
  33. Zhou, Q.-F.; Zhang, K.; Cai, L.C.; Kwon, O. Phosphine-Catalyzed Intramolecular Cyclizations of α-Nitroethylallenoates Forming (Z)-Furanone Oximes. Org. Lett. 2016, 18, 2954–2957. [Google Scholar] [CrossRef] [PubMed]
  34. Huang, Z.S.; Yang, X.Q.; Yang, F.L.; Lu, T.; Zhou, Q.F. Phosphine-Catalyzed Domino β/γ-Additions of Benzofuranones with Allenoates: A Method for Unsymmetrical 3,3-Disubstituted Benzofuranones. Org. Lett. 2017, 19, 3524–3527. [Google Scholar] [CrossRef] [PubMed]
  35. Szeto, J.; Sriramurthy, V.; Kwon, O. Phosphine-Initiated General Base Catalysis: Facile Access to Benzannulated 1,3-Diheteroatom Five-Membered Rings via Double-Michael Reactions of Allenes. Org. Lett. 2011, 13, 5420–5423. [Google Scholar] [CrossRef] [PubMed]
  36. Vaishanv, N.K.; Zaheer, M.K.; Kant, R.; Mohanan, K. Phosphine-Catalyzed β-Selective Conjugate Addition of α-Fluoro-β-ketoamides to Allenic Esters. Eur. J. Org. Chem. 2019, 35, 6138–6142. [Google Scholar] [CrossRef]
  37. Martin, T.J.; Vakhshori, V.G.; Tran, Y.S.; Kwon, O. Phosphine-Catalyzed β′-Umpolung Addition of Nucleophiles to Activated α-Alkyl Allenes. Org. Lett. 2011, 13, 2586–2589. [Google Scholar] [CrossRef]
  38. Guan, X.-Y.; Wei, Y.; Shi, M. Phosphane-Catalyzed Umpolung Addition Reaction of Nucleophiles to Ethyl 2-Methyl-2,3-butadienoate. Eur. J. Org. Chem. 2011, 2011, 2673–2677. [Google Scholar] [CrossRef]
  39. Feng, J.X.; Huang, Y. Phosphine-Catalyzed Remote 1,7-Addition for Synthesis of Diene Carboxylates. ACS Catal. 2020, 10, 3541–3547. [Google Scholar] [CrossRef]
  40. Wang, D.; Song, Z.-F.; Wang, W.-J.; Xu, T. Highly Regio- and Enantioselective Dienylation of p-Quinone Methides Enabled by an Organocatalyzed Isomerization/Addition Cascade of Allenoates. Org. Lett. 2019, 21, 3963–3967. [Google Scholar] [CrossRef]
  41. Wu, L.L.; Chen, K.H.; Huang, Y.; Li, E.-Q. Phosphine-Catalyzed δ-Addition Reaction of γ-Substituted Allenoates with Isatin Derivatives. Asian J. Org. Chem. 2020, 9, 1179–1182. [Google Scholar] [CrossRef]
  42. Gao, Z.; Zhou, X.; Xie, L.; Wang, X.; Wang, S.; Liu, H.; Guo, H. Phosphine-Catalyzed [4+2] Annulation of Allenoates Bearing Acidic Hydrogen with 1,1-Dicyanoalkenes. J. Org. Chem. 2024, 89, 7169–7174. [Google Scholar] [CrossRef] [PubMed]
  43. Crystallographic Datas for 3da Has Been Deposited with the Cambridge Crystallographic Data Centre as Deposition Number CCDC 2258229. [CrossRef]
  44. Morales, S.; Guijarro, F.G.; Ruano, J.G.; Cid, M.B. A general aminocatalytic method for the synthesis of aldimines. J. Am. Chem. Soc. 2014, 136, 1082. [Google Scholar] [CrossRef] [PubMed]
  45. Zhao, Q.Y.; Pei, C.K.; Guan, X.Y.; Shi, M. Enantioselective Intermolecular Rauhut–Currier Reaction of Electron-Deficient Allenes with Maleimides. Adv. Synth. Catal. 2011, 353, 1973–1979. [Google Scholar] [CrossRef]
Ijms 25 06916 g001

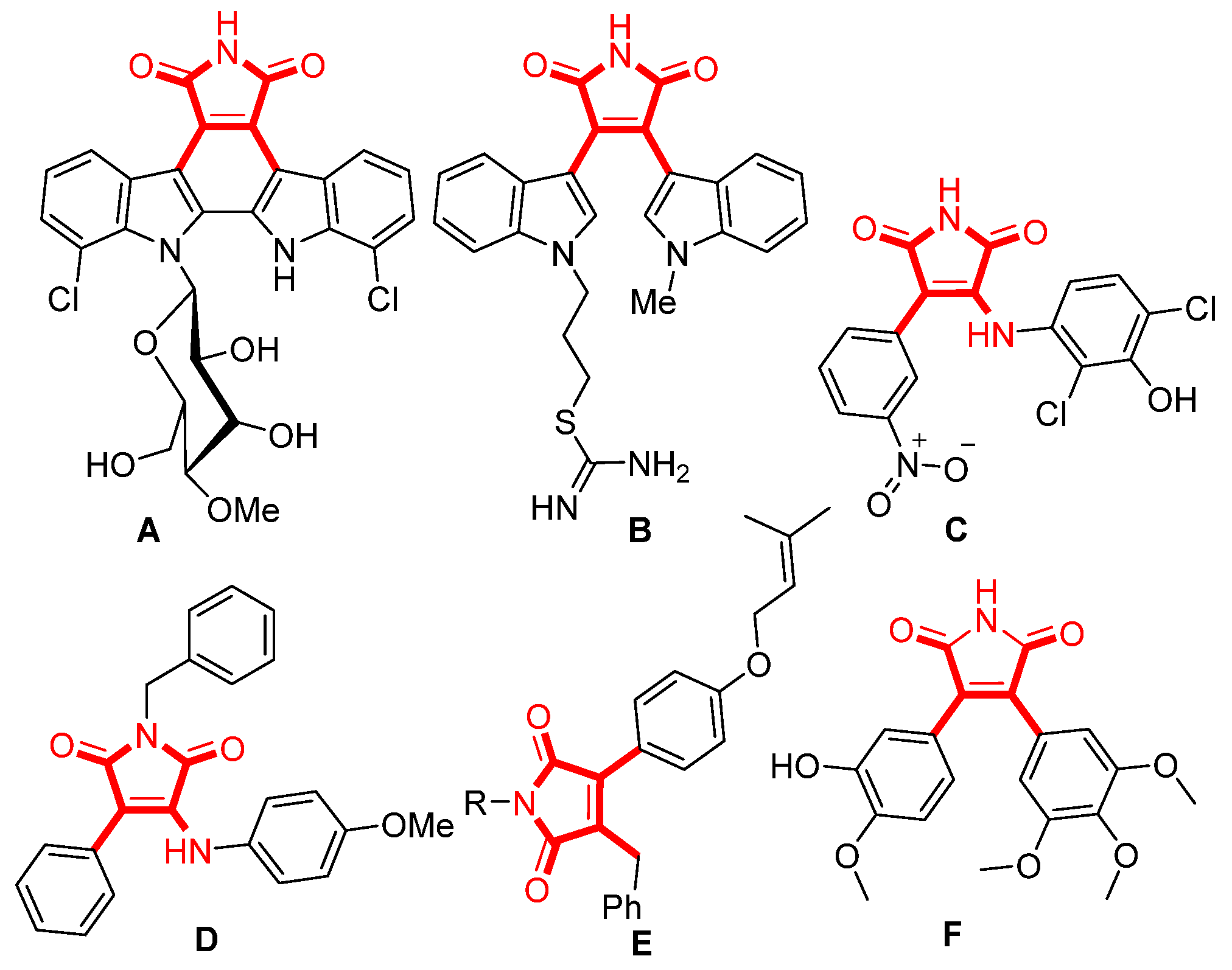

Figure 1. Some natural products and bioactive molecules. Compound A: rebeccamycin, an antibiotic; Compound B: indolylmaleimide derivative, inhibitor for cancer cells; Compound C: inhibitor of glycogen synthase kinase; Compound D: inhibitor for GSK-3; Compound E: an antifungal derived from the metabolite of the Serpula himantoides strain; Compound F: an antitumor agent.
Figure 1. Some natural products and bioactive molecules. Compound A: rebeccamycin, an antibiotic; Compound B: indolylmaleimide derivative, inhibitor for cancer cells; Compound C: inhibitor of glycogen synthase kinase; Compound D: inhibitor for GSK-3; Compound E: an antifungal derived from the metabolite of the Serpula himantoides strain; Compound F: an antitumor agent.
Ijms 25 06916 g001
Ijms 25 06916 sch001

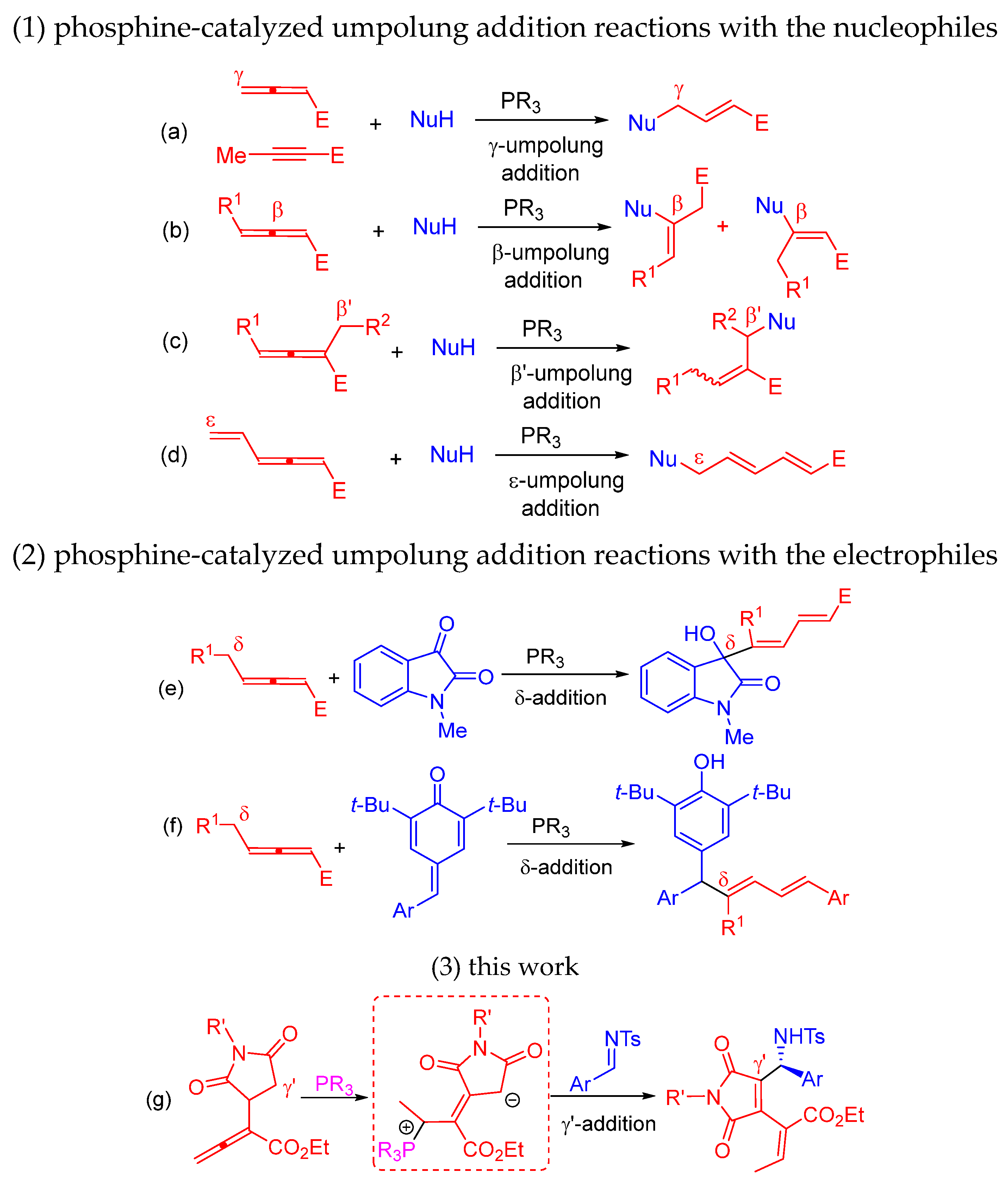

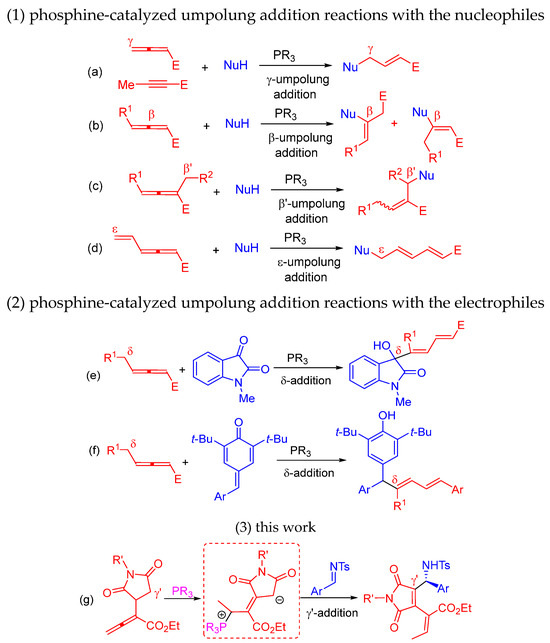

Scheme 1. Various types of addition reactions to allenoates. (a): phosphine-catalyzed γ-umpolung addition of nucleophiles; (b): phosphine-catalyzed β-Michael additions to allenoates; (c): phosphine-catalyzed β′-umpolung addition; (d): phosphine-catalyzed ε-carbon 1,7-addition reactions; (e): phosphine-catalyzed δ-umpolung addition of isatin derivatives; (f): phosphine-catalyzed δ-umpolung addition of para-quinone methides; (g): phosphine-catalyzed isomerization cascade γ′-addition reaction.
Scheme 1. Various types of addition reactions to allenoates. (a): phosphine-catalyzed γ-umpolung addition of nucleophiles; (b): phosphine-catalyzed β-Michael additions to allenoates; (c): phosphine-catalyzed β′-umpolung addition; (d): phosphine-catalyzed ε-carbon 1,7-addition reactions; (e): phosphine-catalyzed δ-umpolung addition of isatin derivatives; (f): phosphine-catalyzed δ-umpolung addition of para-quinone methides; (g): phosphine-catalyzed isomerization cascade γ′-addition reaction.
Ijms 25 06916 sch001
Ijms 25 06916 g002

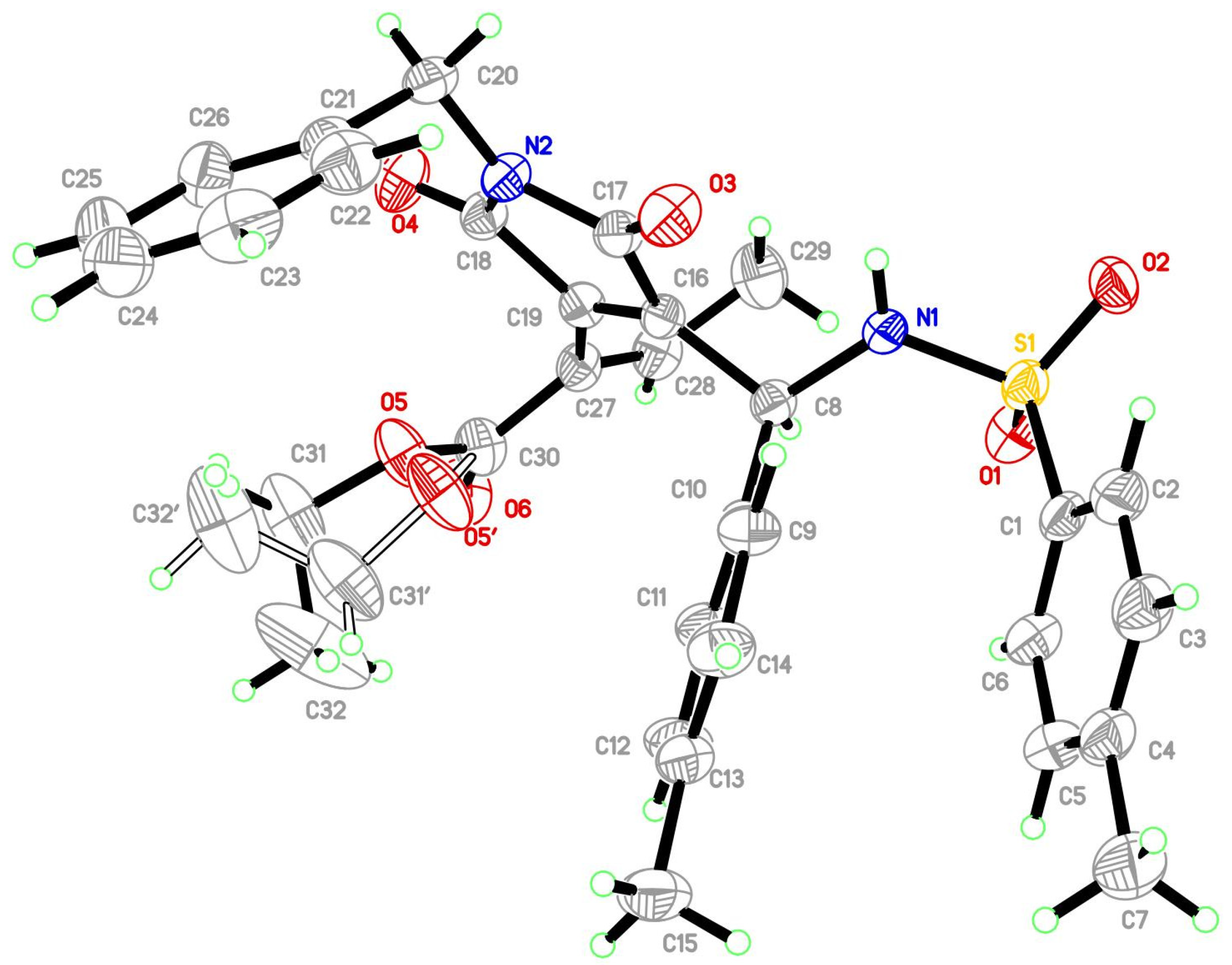

Figure 2. X-ray crystal structure of the 3da. Grey balls: carbon atoms; red balls: oxygen atoms; blue balls: nitrogen atoms.
Figure 2. X-ray crystal structure of the 3da. Grey balls: carbon atoms; red balls: oxygen atoms; blue balls: nitrogen atoms.
Ijms 25 06916 g002
Ijms 25 06916 sch002

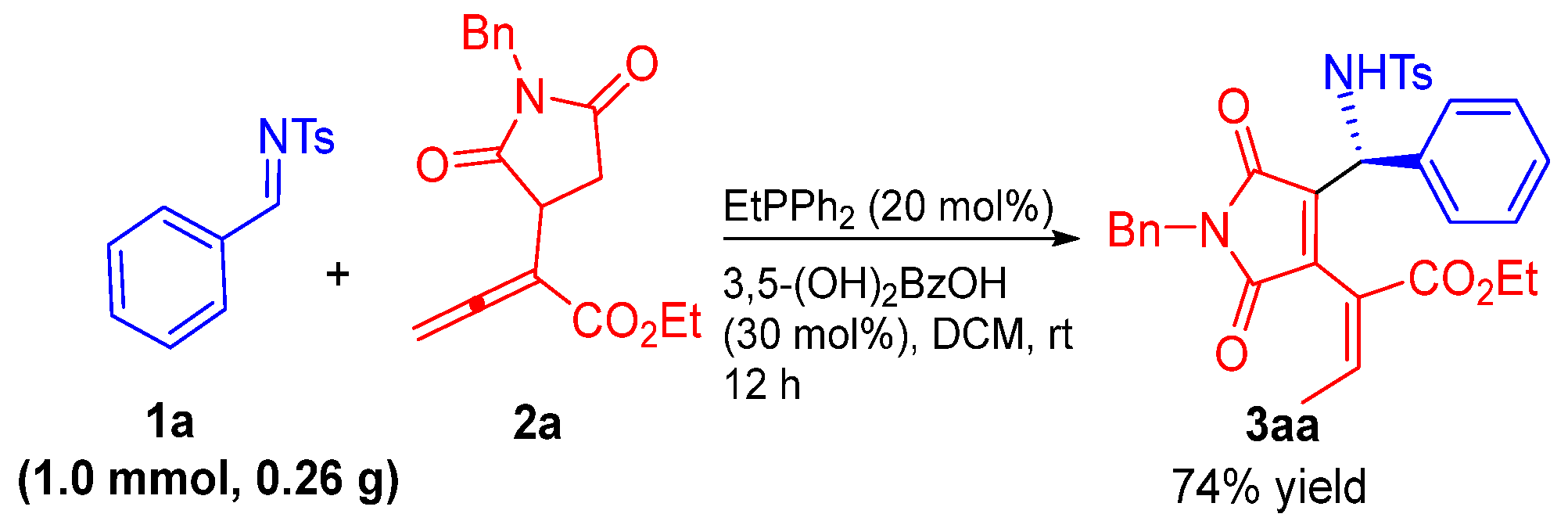

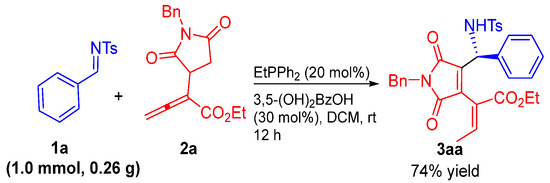

Scheme 2. The scale-up reaction.
Scheme 2. The scale-up reaction.
Ijms 25 06916 sch002
Ijms 25 06916 sch003

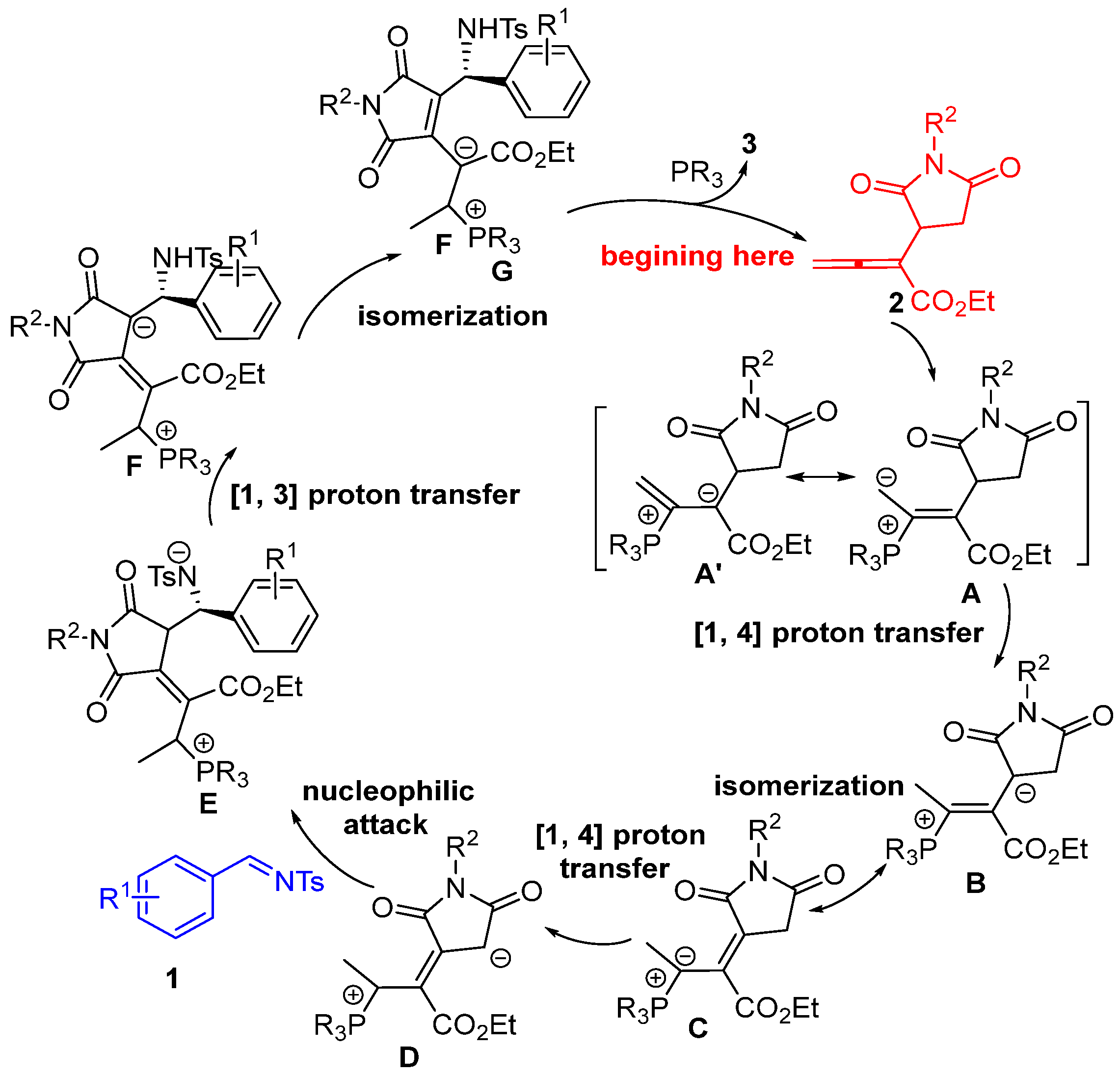

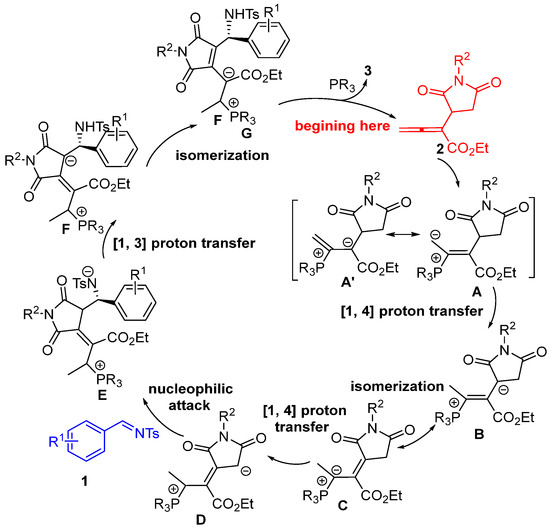

Scheme 3. Proposed mechanism. The letter numbers A–G indicate possible intermediate structures in the plausible reaction mechanism.
Scheme 3. Proposed mechanism. The letter numbers A–G indicate possible intermediate structures in the plausible reaction mechanism.
Ijms 25 06916 sch003

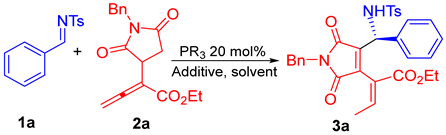

Table 1. Reaction yields at different reaction conditions a.
Table 1. Reaction yields at different reaction conditions a.
Ijms 25 06916 i001
EntryPR3SolventAdditivet/hYield (%) b
1PBu3DCM-640
2PMe3DCM-637
3MePPh2DCM-643
4EtPPh2DCM-655
5PrPPh2DCM-648
6EtPPh2DCE-644
7EtPPh2THF-6trace
8EtPPh2toluene-639
9EtPPh2CH3CN-6trace
10EtPPh2EtOAc-623
11EtPPh2DCMPhOH660
12EtPPh2DCMBzOH668
13EtPPh2DCM4-NO2BzOH670
14EtPPh2DCM3,5-(OH)2BzOH673
15 cEtPPh2DCM3,5-(OH)2BzOH881
a Unless otherwise indicated, all reactions were carried out at room temperature using 0.10 mmol of 1a and 0.12 mmol of 2a in a solvent containing 20 mol % of the catalyst and 30 mol % of the additive. b Isolated yield. c 1a:2a = 1:1.5.

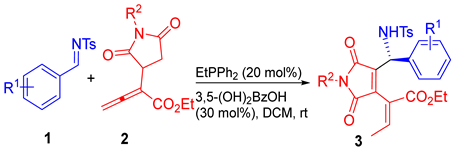

Table 2. Substrate scope of phosphine-catalyzed γ′-addition reaction of α-succinimide-substituted allenoates a.
Table 2. Substrate scope of phosphine-catalyzed γ′-addition reaction of α-succinimide-substituted allenoates a.
Ijms 25 06916 i002
EntryR1 in 1R2 in 23Yield (%) b
1H (1a)Bn (2a)3aa81
22-Me (1b)Bn (2a)3ba83
33-Me (1c)Bn (2a)3ca77
44-Me (1d)Bn (2a)3da75
52-OMe (1e)Bn (2a)3ea78
63-OMe (1f)Bn (2a)3fa73
74-OMe (1g)Bn (2a)3ga86
84-iPr (1h)Bn (2a)3ha72
92,5-2OMe (1i)Bn (2a)3ia84
10 c2-F (1j)Bn (2a)3ja51
11 c3-F (1k)Bn (2a)3ka54
124-F (1l)Bn (2a)3la67
134-Cl (1m)Bn (2a)3ma65
14 c2-Br (1n)Bn (2a)3na49
15 dCyclohexyl (1o)Bn (2a)3oaNR
16 cH (1a)2-MeCH2C6H4 (2b)3ab59
17 cH (1a)4-MeCH2C6H4 (2c)3ac65
18 cH (1a)4-OMeCH2C6H4 (2d)3ad64
a Unless otherwise indicated, all reactions were conducted at room temperature for 8 h using 0.10 mmol of compound 1 and 0.15 mmol of compound 2 in 2 mL DCM under the presence of 20 mol % of EtPPh2 and 30 mol % of 3,5-(OH)2C6H3CO2H. b Isolated yield. c 20 mol % of PBu3 was used instead of EtPPh2. d cyclohexyl instead of aryl.
