BnUC1 Is a Key Regulator of Epidermal Wax Biosynthesis and Lipid Transport in Brassica napus

Abstract

The bHLH (basic helix–loop–helix) transcription factor AtCFLAP2 regulates epidermal wax accumulation, but the underlying molecular mechanism remains unknown. We obtained BnUC1^mut (BnaA05g18250D homologous to AtCFLAP2) from a Brassica napus mutant with up-curling leaves (Bnuc1) and epidermal wax deficiency via map-based cloning. BnUC1^mut contains a point mutation (N200S) in the conserved dimerization domain. Overexpressing BnUC1^mut in ZS11 (Zhongshuang11) significantly decreased the leaf epidermal wax content, resulting in up-curled and glossy leaves. In contrast, knocking out BnUC1^mut in ZS11-NIL (Zhongshuang11-near-isogenic line) restored the normal leaf phenotype (i.e., flat) and significantly increased the leaf epidermal wax content. The point mutation weakens the ability of BnUC1^mut to bind to the promoters of VLCFA (very-long-chain fatty acids) synthesis-related genes, including KCS (β-ketoacyl coenzyme synthase) and LACS (long-chain acyl CoA synthetase), as well as lipid transport-related genes, including LTP (non-specific lipid transfer protein). The resulting sharp decrease in the transcription of genes affecting VLCFA biosynthesis and lipid transport disrupts the normal accumulation of leaf epidermal wax. Thus, BnUC1 influences epidermal wax formation by regulating the expression of LTP and genes associated with VLCFA biosynthesis. Our findings provide a foundation for future investigations on the mechanism mediating plant epidermal wax accumulation.

1. Introduction

The cuticle is composed of wax and cutin, which is a hydrophobic layer that covers the leaf epidermis, thereby protecting plants from biotic and abiotic stresses [1,2,3]. Cutin is primarily a polymer cross-linked with glycerol and long-chain fatty acids (C16 and C18) that provides mechanical strength to the outer layer. In contrast, epidermal wax is an organic mixture composed mainly of very-long-chain fatty acids (VLCFAs; C20 to C30) and their derivatives, including alkanes, aldehydes, primary and secondary alcohols, ketones, esters, and other compounds [1]. Because of epidermal wax, the epidermis of most plants has a white frost-like appearance; however, the loss of wax can lead to a glossy appearance, which is a desirable trait in some economically important crops [4].

The plant cuticular wax biosynthetic pathway has been studied extensively. The biosynthesis of cuticular wax begins with the de novo synthesis of C16 and C18 fatty acids in epidermal cell plastids. The elongation of fatty acids by the fatty acid elongase complex in the endoplasmic reticulum leads to the production of VLCFAs, which are subsequently converted to wax compounds [5]. Genes encoding 3-ketoacyl-CoA synthase (KCS1, KCS2, KCS6, and KCS9) and fatty acyl-CoA reductase (FAR3) are involved in the synthesis of fatty acid precursors [6,7,8,9]. The suppression of KCS6 expression significantly decreases the formation of wax compounds with carbon chain lengths greater than 24, reflecting the importance of KCS6 for the elongation of VLCFAs [10]. In Arabidopsis thaliana, genes encoding ECERIFERUM (CER1, CER3, and CER16) and midchain alkane hydroxylase (MAH1) are involved in the alkane biosynthetic pathway [11,12,13,14,15].

The transport of cuticular wax is primarily mediated by transporter proteins. A previous study on the acbp1 (acyl-CoA-binding protein1) A. thaliana mutant detected a decrease in the total amount of wax on the stem, suggesting that ACBP1 localized to the endoplasmic reticulum, and cell membrane may contribute to the transport of wax components [16]. An earlier analysis of the cer5 mutant indicated that the CER5 transporter protein facilitates the export of wax components [17]. In addition to the ATP-binding cassette transporters, lipid transfer proteins (LTPs) can bind and transport fatty acids and may be involved in transporting wax components out of the cell wall. According to recent research, LTP genes affect the formation of the cuticle, but they must be more thoroughly functionally characterized [18].

Wax biosynthesis is mainly regulated at three levels (transcriptional, post-transcriptional, and post-translational). Different types of transcription factors help regulate cuticle development, including AP2/ERF, MYB, and HD-ZIP transcription factors [19]. For example, in A. thaliana, WRI4, WIN1/SHINE1, and DEWAX2 are AP2 transcription factors related to wax biosynthesis [20,21]. Both MYB96 and HD-ZIP regulate epidermal wax metabolism [22,23]. As one of the important oil crops, Brassica napus has the characteristics of high oil content and excellent agronomic traits [24,25]. However, various biotic and abiotic stresses limit the further utilization of B. napus, and the cuticle of terrestrial plants forms a barrier against environmental stress [1,2,3,26]. A mutation in the BnaA.GL gene caused downregulation of cuticular wax biosynthetic genes and deficiency of cuticular wax in B. napus [27]. The mutations in the FAR (fatty acyl-CoA reductase) genes, specifically BnA1.CER4 and BnC1.CER4, result in the formation of irregular wax crystal patterns and modifications to the composition of epidermal wax in B. napus [28]. Overexpression of BnKCS1-1, BnKCS1-2, and BnCER1-2 promotes cuticular wax production and increases drought tolerance in B. napus [29]. Although research on epidermal wax is well known in a number of plant species, there is little research on the epidermal function in B. napus [5,18].

In this study, we identified BnUC1 as a basic helix–loop–helix (bHLH) transcription factor gene associated with leaf cuticular wax accumulation and the up-curled leaf phenotype. An amino acid substitution in the conserved bHLH dimerization domain of BnUC1 was observed to alter the ability of the encoded transcription factor to control the expression of downstream genes associated with VLCFA biosynthesis as well as LTP genes. Because of this point mutation, BnUC1^mut was unable to bind to the promoters of wax synthesis-related genes and lipid transporter genes, leading to substantially decreased leaf epidermal wax production as well as leaf curling in B. napus.

2. Results

2.1. Cloning and Expression Pattern Analysis of BnUC1

We previously mapped a 54.8 kb interval on chromosome A05 in B. napus. This interval included BnaA05g18250D and BnaA05g18290D [4], which were predicted to be candidate genes responsible for the formation of leaf morphological characteristics. To further investigate the mechanism underlying the up-curled leaf trait, the two mapping parents were transformed with the two candidate genes (described in the following section). Based on previous localization studies, the locus of the up-curling leaf (named Bnuc1) is controlled by a dominant locus [4]. In this study, a candidate gene BnaA05g18250D was found to control leaf up-curling and named BnUC1, which encodes a nuclear-localized bHLH transcription factor (Figure S1). In addition, it is highly homologous to the A. thaliana gene related to curled leaves (AtCFLAP2). Cloning and sequencing of BnUC1 from the mapping parent Zhongshuang 11 (ZS11) and its near-isogenic line ZS11-NIL with up-curled leaves indicated that the gene in ZS11 (named BnUC1^WT) differs from that in ZS11-NIL (named BnUC1^mut) at four nucleotides, but three of these differences do not alter the encoded protein sequence (synonymous mutations). Only the nucleotide substitution at position 599 leads to a change in the encoded protein sequence, with the asparagine (Asn, N) at position 200 substituted with a serine (Ser, S) (N200S) (Figure 1A). An alignment of related sequences from B. napus, Brassica oleracea, Brassica rapa, and A. thaliana (Figure S2) showed that this N200S mutation occurred in a conserved bHLH domain that is required for the formation of homo/heterodimeric bHLH proteins and is probably involved in the binding of bHLH to E-box and G-box promoter elements [30,31]. Thus, this mutation may affect protein functions.

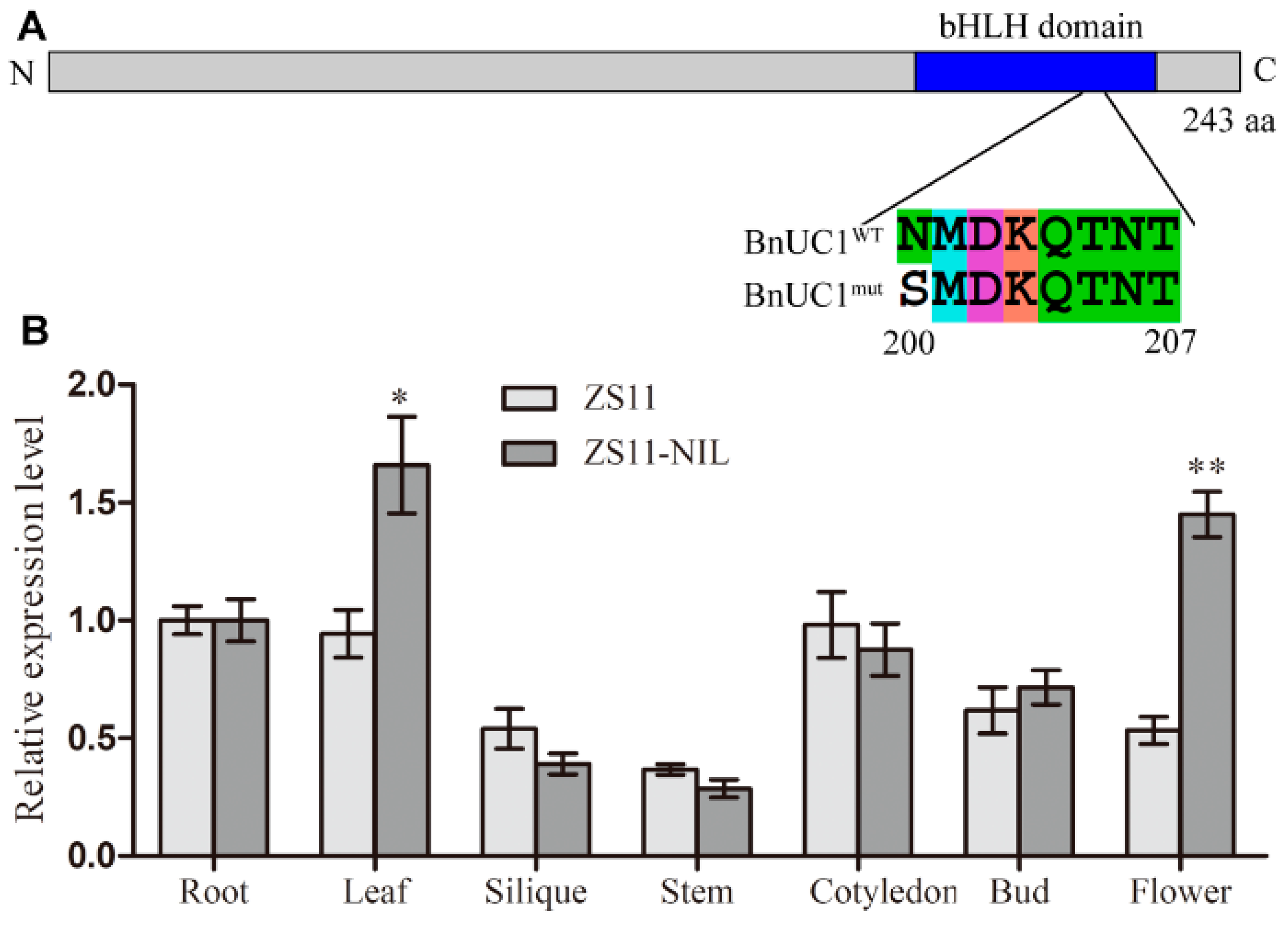

BnUC1 expression levels in different ZS11 and ZS11-NIL tissues, including the roots, stems, leaves, and flowers, were determined using quantitative real-time polymerase chain reaction (qRT-PCR) technology. BnUC1 was expressed in various tissues. In ZS11, BnUC1 was more highly expressed in the roots, leaves, and cotyledons than in the stems and siliques. In ZS11-NIL, the BnUC1 expression level was higher in the leaves and flowers than in the stems and siliques (Figure 1B). In both materials, BnUC1 was expressed at relatively high levels in the leaves, indicating that this gene may affect leaf development.

2.2. Overexpression of BnUC1^mut Decreased the Epidermal Wax Content and Caused Seedling Leaves to Curl Upward

We hypothesized that the mutated BnUC1 gene expressed at high levels affects leaf morphology and the leaf surface wax content. To test this hypothesis, we constructed a plant transformation vector harboring the full-length BnUC1^mut cDNA sequence under the control of the 35S promoter (35S::BnUC1^mut). The recombinant vector was inserted into the mapping parent ZS11, which has normal flat leaves that are covered with an epidermal cuticle. The genetic transformation completed according to a floral dip method [32] generated seven independent BnUC1^mut-overexpressing lines (OE-BnUC1^mut). The transformed lines were self-pollinated to obtain homozygous T₃ generation plants (OE-1, OE-3, and OE-5), which had up-curled glossy leaves (Figure 2A). The leaves of the OE-BnUC1^mut lines had decreased surface wax contents. According to a qRT-PCR analysis, BnUC1^mut expression levels were considerably higher in the leaves of the T₃ generation transgenic lines than in the leaves of ZS11 (Figure 2B). Furthermore, an examination using a scanning electron microscope detected fewer wax crystals on the leaf surface of the transgenic lines than on the leaf surface of ZS11 (Figure 2C,D). Thus, the overexpression of the mutated gene was likely associated with the up-curled glossy leaf phenotype.

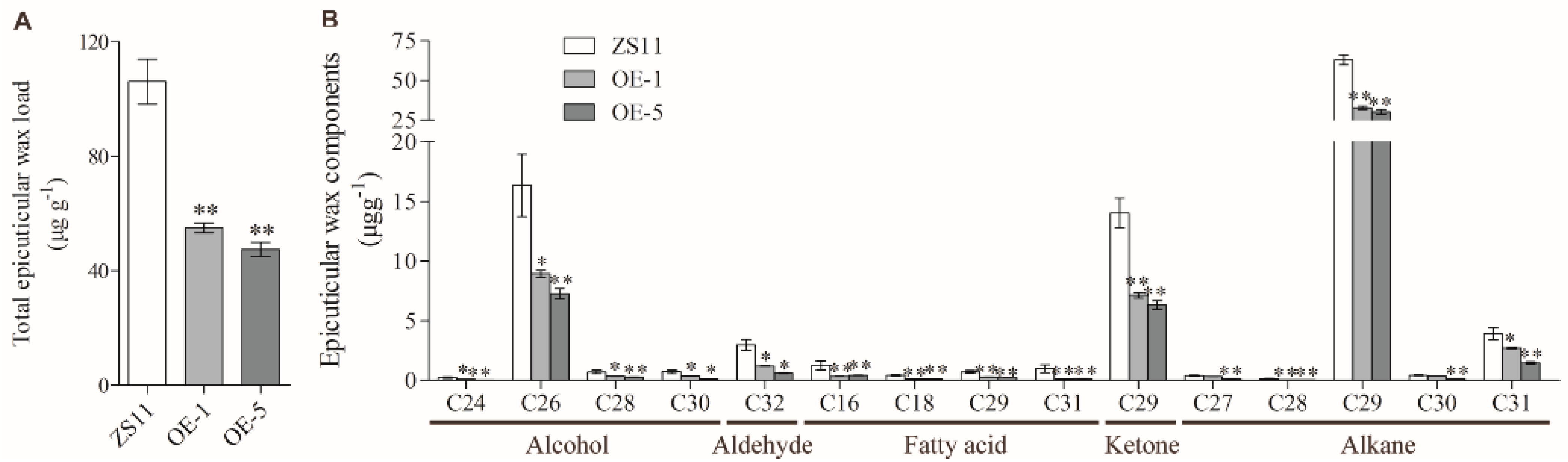

The leaf epidermal cuticles of the OE-BnUC1^mut transgenic lines (OE-1 and OE-5) and the wild-type control (ZS11) were extracted and silanized for a quantitative analysis of the leaf wax components using a gas chromatography-mass spectrometry (GC-MS) system. The total epidermal wax contents in leaf on the surface of the OE-1, OE-5, and ZS11 leaves were 55.10, 47.58, and 106.23 μg g⁻¹, respectively. Hence, there was a substantial decrease in the total leaf epidermal wax content in the OE lines (Figure 3A). The epidermal cuticle included 15 types of wax components, among which nonacosane (C29 alkane), hexacosanol (C26 alcohol), and 15-nonacosanone (C29 ketone) were the major components (approximately 90% of the total content). The abundances of these major components were consistently much lower at the leaf surface of the transgenic lines overexpressing the mutated gene than at the leaf surface of the control (Figure 3B). Thus, the overexpression of BnUC1^mut appeared to affect the accumulation of cuticle components at the leaf surface, especially the major components.

2.3. Knocking out BnUC1^mut Restored the Normal Flat Leaf Phenotype

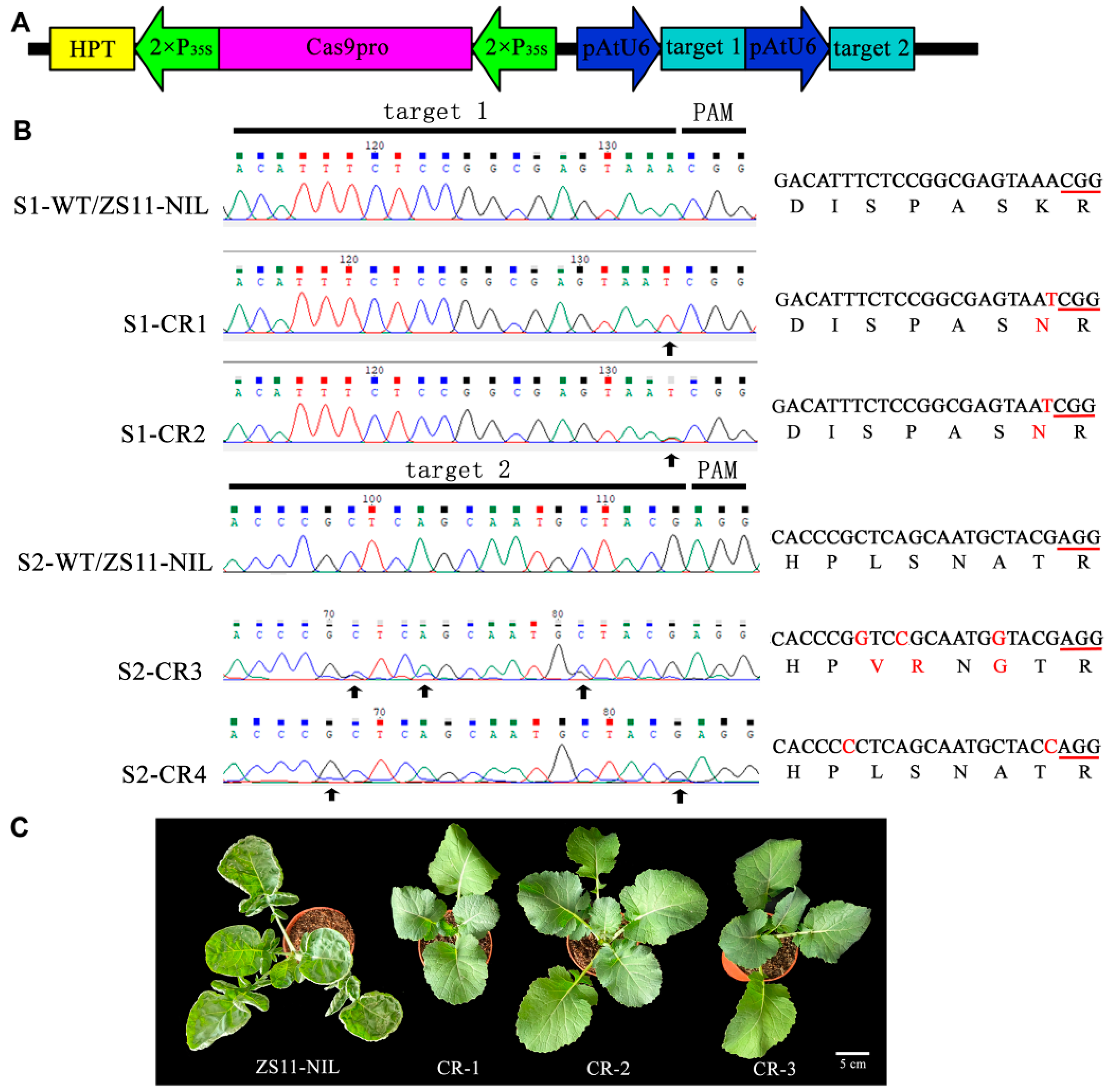

To further verify the effects of the detected gene mutation, we knocked out BnUC1^mut in ZS11-NIL using a CRISPR/Cas9 approach. A gene-editing vector was designed to target two sites in BnUC1^mut (Figure 4A). A floral dip method was used to transform ZS11-NIL with the gene-editing vector, which generated six transgenic lines. Four homozygous gene-knockout lines (CR-1–4) were obtained following self-pollination (Figure 4B). In both CR-1 and CR-2, the same A-T substitution was detected at target 1, whereas in CR-3 and CR-4, there were three and two base changes at target 2, respectively. The base changes altered the amino acid sequences in CR-1, CR-2, and CR-3, which was in contrast to the synonymous mutation in CR-4. Unlike ZS11-NIL leaves, the leaves of the knockout plants were flat and covered with visible wax (Figure 4C). Therefore, knocking out BnUC1^mut in ZS11-NIL reversed the abnormal leaf morphology of the mutant, resulting in flat leaves that accumulated epidermal wax.

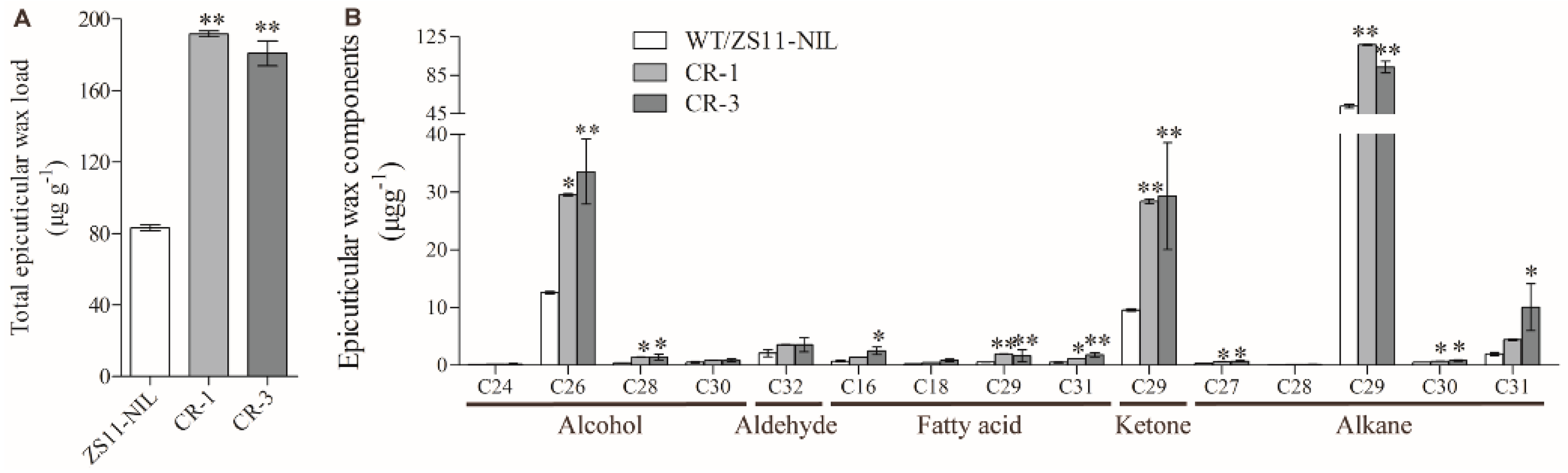

Leaf cuticles were extracted from BnUC1^mut knockout lines (CR-1 and CR-3) and ZS11-NIL and then silanized for a quantitative examination of the leaf epidermal cuticle composition and content. The GC-MS analysis indicated that the total leaf epidermal wax contents in ZS11-NIL, CR-1, and CR-3 were 83.13, 191.62, and 180.83 μg g⁻¹, respectively. The total leaf epidermal wax contents in CR-1 and CR-3 were 130.51% and 117.53% higher than the corresponding content in ZS11-NIL, respectively (Figure 5A). Additionally, the contents of the three most abundant components (C29 alkane, C26 alcohol, and C29 ketone) were significantly higher in CR-1 and CR-3 than in ZS11-NIL (Figure 5B). Accordingly, knocking out BnUC1^mut clearly increased the leaf epidermal wax content in B. napus. The knockout lines had larger leaf epidermal wax than ZS11-NIL (Figure 5A). Thus, BnUC1^mut overexpression and knockout experiments showed that BnUC1^mut negatively regulates leaf epidermal wax accumulation, leading to the formation of up-curled leaves.

2.4. BnUC1^mut Downregulates the Expression of VLCFA Biosynthesis-Related Genes

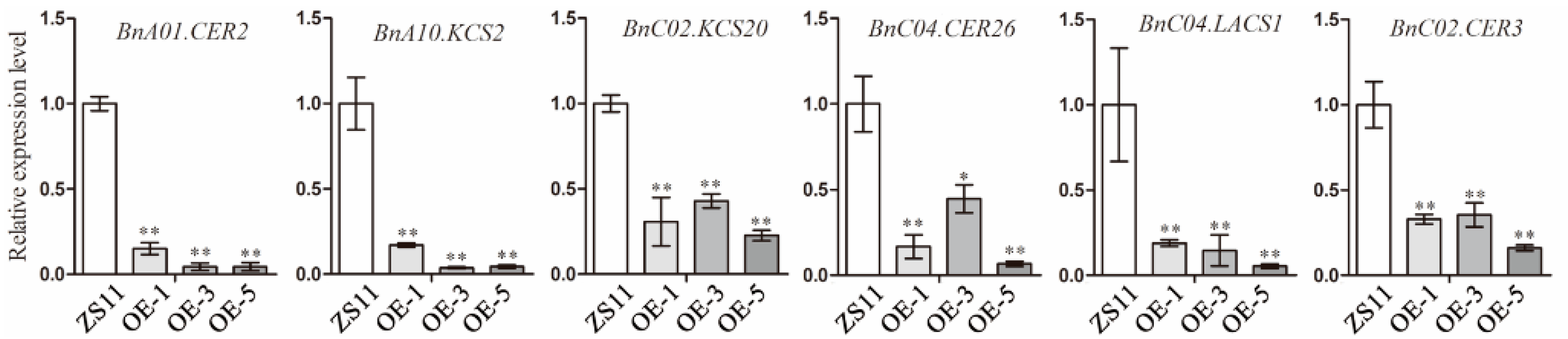

A transcriptomic analysis of leaves (Table S3) indicated that the expression levels of many genes directly related to VLCFA biosynthesis were significantly downregulated in transgenic lines overexpressing BnUC1^mut. We conducted a qRT-PCR analysis of the transcript levels of these genes. The six selected genes included ECERIFERUM3 (CER3), which encodes an enzyme involved in the production of very-long-chain alkanes (major wax component); the decreased expression of this gene adversely affects cuticular wax biosynthesis [13]. CER8 encodes long-chain acyl-CoA synthetase 1 (LACS1), which modifies VLCFAs for the synthesis of wax and long-chain (C16) fatty acids [33]. KCS6 encodes a protein with a major role during the elongation from C26 to C28, making it important for wax synthesis. KCS5 is a KCS6 paralog that is also critical for wax biosynthesis [10]. Our qRT-PCR data indicated that the expression levels of these key genes associated with epidermal cuticular wax biosynthesis were significantly downregulated in the leaves of OE-BnUC1^mut lines (Figure 6). Hence, we speculated that the expression of these genes may be regulated by BnUC1.

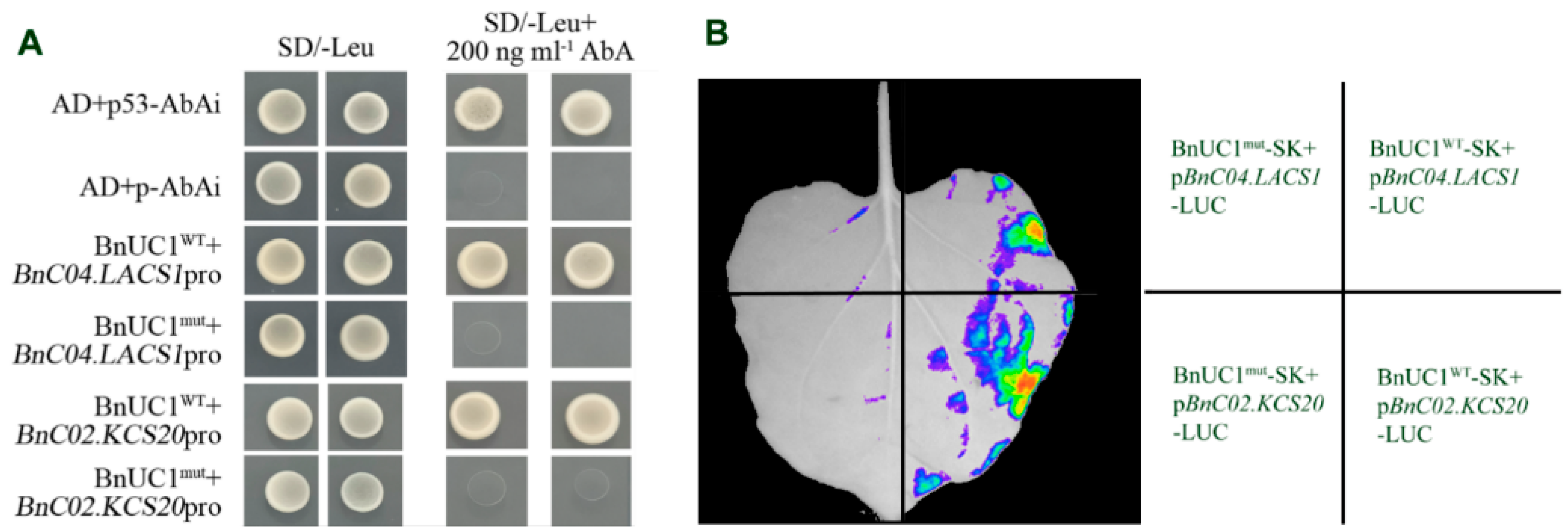

To further investigate whether the changes in the expression of these VLCFA synthesis-related genes are associated with BnUC1^mut, we performed yeast one-hybrid experiments. Transcription factors belonging to the bHLH family mainly bind to the E-box and palindromic G-box sequences (5′-CANNTG-3′ and 5′-CAGGTG-3′) in the promoters of target genes [30]. Several conserved amino acids in the basic region of the DNA-binding domain of bHLH transcription factors may determine the specificity of the binding to the core consensus sites of different E-box or G-box sequences [34]. We searched the B. napus cv ZS11 genome database (http://cbi.hzau.edu.cn/bnapus/synteny/index.php, accessed on 1 September 2024) and detected 37 LACS and 76 KCS genes. The promoters of 31 LACS and 64 KCS genes were revealed to contain a G-box motif (Table S1), which serves as a binding site for proteins. Thus, we hypothesized that the bHLH transcription factor BnUC1 influences the expression of major LACS and KCS genes responsible for wax synthesis, ultimately modulating leaf epidermal cuticle accumulation. To test this hypothesis, the BnC04.LACS1 (BnaC04G0007500ZS) and BnC02.KCS20 (BnaC02G0385300ZS) promoters containing a G-box motif were used to conduct yeast one-hybrid experiments to assess the potential interactions with BnUC1. The yeast one-hybrid results showed that BnUC1^WT can bind to the BnC04.LACS1 and BnC02.KCS20 promoters, but BnUC1^mut cannot (Figure 7A). Consistent with these observations, a luciferase assay showed that BnUC1^WT, but not BnUC1^mut, can bind to the BnC04.LACS1 and BnC02.KCS20 promoters in Nicotiana benthamiana leaves (Figure 7B). Thus, the mutation in BnUC1^mut likely prevents the encoded transcription factor from binding to the promoter of wax synthesis-related genes, leading to a decrease in leaf epidermal wax production and accumulation.

2.5. BnUC1 Regulates Lipid Transport to the Leaf Surface

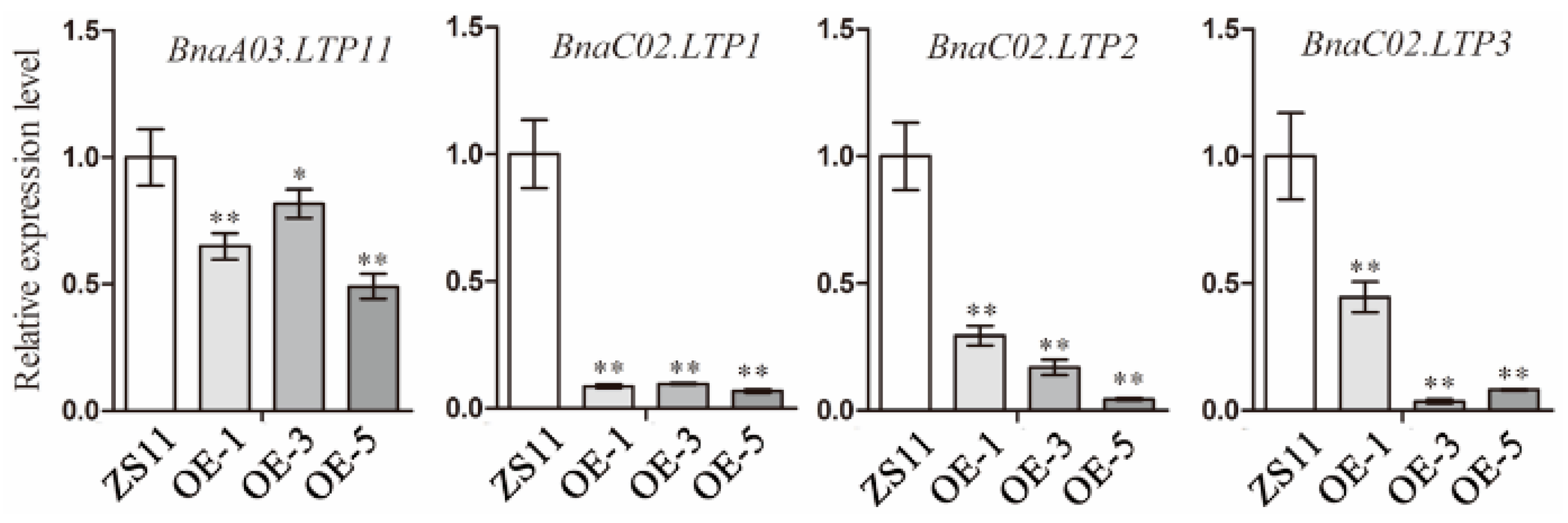

To further clarify the molecular mechanism underlying the effect of BnUC1^mut on epidermal wax abundance in B. napus, leaves from the transgenic lines overexpressing BnUC1^mut and the knockout lines were compared with control leaves at the transcriptome level (Table S3). These comparisons revealed significant changes in the expression levels of multiple LTP genes in the overexpression and knockout lines. Some LTP genes were expressed at significantly higher levels in the leaves of knockout lines than in ZS11-NIL leaves. In contrast, the expression of some LTP genes was downregulated in the OE-BnUC1^mut lines. Therefore, BnUC1^mut may affect the transport of lipids to the leaf surface. To assess this possibility, we first conducted a qRT-PCR analysis of the expression of LTP genes in the leaves of OE-BnUC1^mut lines and the control (ZS11). On the basis of the transcriptomic analysis (Table S3), BnA03.LTP11, BnC02.LTP1, BnC02.LTP2, and BnC02.LTP3 were selected for the qRT-PCR analysis, which indicated that the expression of these genes decreased significantly in the OE-BnUC1^mut leaves (Figure 8). Hence, BnUC1^mut may inhibit the accumulation of epidermal wax because of the associated decreased expression of multiple LTP genes.

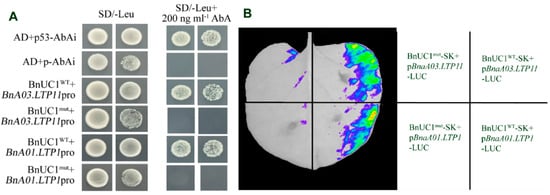

To further elucidate how LTP expression levels are regulated by the nuclear-localized transcription factor BnUC1, we performed yeast one-hybrid assays. We analyzed 261 LTP promoters in B. napus cv ZS11 by applying a bioinformatics approach to screen for E-box or G-box motifs. Of the examined promoters, 189 (i.e., 72.4% of the putative lipid transport-related gene promoters) were revealed to contain the G-box motif (Table S1). Thus, we hypothesized that BnUC1 controls the expression of LTP genes responsible for transporting the lipid required for leaf epidermal cuticle accumulation. To assess this hypothesis, we cloned the G-box-containing promoters of two LTP genes (BnaA03.LTP11/BnaA03G0536300ZS and BnaA01.LTP1/BnaA01G0300300ZS) that were significantly differentially expressed between ZS11 and OE-BnUC1^mut lines for yeast one-hybrid experiments. Yeast one-hybrid and luciferase assay results showed that BnUC1^WT can bind to the BnaA03.LTP11 and BnaA01.LTP1 promoters but BnUC1^mut cannot (Figure 9A,B). Therefore, the mutated BnUC1 lost its ability to bind to LTP promoters, leading to a decrease in the transcription of LTP genes in B. napus leaves. This is also an important reason for the decreased accumulation of wax on the leaf surface.

2.6. BnUC1 Interacts with LTP, MYB, ZFP, and ZIP Proteins

Seedlings overexpressing BnUC1^mut had glossy leaves with limited amounts of epidermal wax. Some earlier studies showed that the epidermal wax content is regulated by multiple proteins, including MYB and ZFP transcription factors [19,22,23]. To further explore the mechanism mediating the regulatory effects of BnUC1, yeast two-hybrid experiments were conducted to screen for interactions between BnUC1 and certain proteins, including BnA03.LTP11, BnA05.LTP6, BnC04.LTP1, BnaA03.MYB57, BnaA07.ZFP22, and BnaA08.ZIP11 (Figure 10A). The yeast two-hybrid results indicated that BnUC1 can interact with these proteins, which were selected via a bioinformatics approach. Moreover, there were no obvious differences between BnUC1^WT and BnUC1^mut in terms of their ability to interact with the selected proteins in yeast. These findings were in accordance with the in vivo protein interactions detected by a bimolecular fluorescence complementation (BiFC) assay (Figure 10B). Hence, these protein interactions play a minor role in epidermal wax accumulation in B. napus.

3. Discussion

Epidermal wax has crucial functions related to plant responses to various biotic and abiotic factors, such as drought and salinity, pest infestations, light, and pathogen infections [27,33]. Plants contain many bHLH transcription factors with diverse regulatory effects on growth and development [35,36,37]. Although some bHLH transcription factors have been thoroughly investigated [36,38,39], the precise functions of many bHLH transcription factors remain to be determined. In the current study, we identified BnaA05g18250D as a gene encoding a bHLH transcription factor that regulates epidermal wax accumulation. We cloned this gene from the mapping parent (ZS11) as well as ZS11-NIL, which has glossy up-curled leaves with relatively little epidermal wax. This gene was renamed BnUC1. Notably, this gene is homologous to the A. thaliana gene AtCFLAP2, which was obtained from a T-DNA insertion mutant and may be related to the mutant phenotype (i.e., up-curled leaves and epidermal wax deficiency); the overexpression of AtCFLAP2 results in defective leaf cuticles [40]. However, it was unclear how this homolog regulates the accumulation of epidermal wax. Fortunately, we identified a mutated BnUC1 that encodes a protein with an Asn-to-Ser substitution at conserved domain amino acid position 200. The overexpression of BnUC1^mut resulted in ZS11 seedlings with up-curled leaves and decreased epidermal wax contents (Figure 3). Knocking out BnUC1^mut in ZS11-NIL restored the normal leaf morphology (i.e., flat) (Figure 5). These results suggest that a specific mutation to BnUC1 is responsible for the glossy and up-curled leaf phenotype in B. napus. Our analyses detected clear increases in BnUC1^mut transcription in the leaves of seedlings deficient in epidermal wax in a segregating population, ZS11-NIL [4], and OE-BnUC1^mut lines. These increases in BnUC1^mut expression contributed to the deficiency of epidermal wax in seedling leaves, reflecting the negative regulatory effects of BnUC1^mut.

The single amino acid mutation in BnUC1^mut is useful for functionally characterizing BnUC1. Yeast one-hybrid and luciferase assays revealed that BnUC1^WT can bind tightly to the promoters of VLCFA biosynthesis-related genes and LTP genes, but BnUC1^mut cannot (Figure 8 and Figure 10). The mutation of BnUC1 limited the expression level of genes, such as VLCFA biosynthesis genes, which are necessary for producing enough VLCFA for epidermal wax synthesis, and LTP genes, which are involved in transporting VLCFA to the leaf surface. A point mutation was detected in a conserved domain associated with bHLH protein dimerization [39]. Our findings imply that this dimerization domain is crucial for the regulation of VLCFA biosynthesis and lipid transport, whereas the basic region at the N-terminus of the bHLH domain is required for the binding to DNA sequences, including E-box (5′-CANNTG-3′) and G-box (5′-CACGTG-3′) motifs in gene promoters [30,41]. In domesticated almond, a mutation in the dimerization domain of bHLH2 prevents the transcription of P450 monooxygenase genes (PdCYP79D16 and PdCYP71AN24) [39]. These observations indicate that this dimerization domain is essential for the binding of bHLH transcription factors to target DNA sequences.

In A. thaliana, the bHLH transcription factor AtCFLAP2 can negatively regulate cuticle development via AtCFL1 and the HDZIP IV transcription factor HDG1 [23,35]. According to our findings, BnUC1, which is highly homologous to AtCFLAP2, can interact with LTP, MYB, ZFP, and ZIP proteins, implying that BnUC1 may have multiple positive and negative regulatory effects. This does not contradict the previously reported synergistic mechanism regulating epidermal wax accumulation [35]. The results of our experiments involving BnUC1^mut provide direct evidence that BnUC1^WT can positively regulate cuticle development.

Curled leaves, which may reflect abnormal leaf development [42], are influenced by various factors, including genes, environmental conditions, and hormones. The development of up-curled leaves may be due to a cuticular wax deficiency in the leaf epidermis, which accelerates transpiration on the adaxial side of leaves and disrupts the balance between transpiration from the adaxial and abaxial sides of leaves. In this study, the formation of up-curled leaves may also be explained by a decrease in the epidermal wax content.

4. Materials and Methods

4.1. Plant Materials and Growth Conditions

In this study, B. napus ZS11 and the near-isogenic line with up-curled leaves (ZS11-NIL) were used as research materials. Both ZS11 and ZS11-NIL were provided by the Rapeseed Genetic Breeding Research Group of Nanjing Agricultural University. The materials required for the experiment are all planted in the experimental field or growth chamber. The temperature in the growth chamber is 22 °C/20 °C, and the illumination time is 16 h/8 h. The seedlings were cultured with vermiculite: nutritious soil (V:V) = 2:1. After the seedlings grow true leaves, they are transplanted into a square pot (8 cm × 8 cm) or a round pot (diameter of 10 cm). Tobacco plants were grown in a growth chamber at 26 °C (under light) with a 14 h photoperiod. Tobacco plants at the five-leaf stage were used for a subcellular localization analysis and BiFC assays.

4.2. Gene Cloning and Sequence Analysis

Total RNA was extracted from ZS11 and ZS11-NIL leaves and then reverse-transcribed to cDNA, which was used as a template for cloning genes. Primers were designed according to the sequences in a rapeseed database (http://www.genoscope.cns.fr/brassicanapus/, accessed on 1 September 2024). Specifically, gene-specific primers for BnaA05g18250D (BnUC1-F/R; Table S1) were designed using Primer 5.0. Homologous sequences were retrieved from the NCBI database. Sequences were aligned using ClustalX 2.1 software.

4.3. Gene Expression Analysis

The following tissue samples were collected from ZS11 and ZS11-NIL at different developmental stages for an analysis of gene expression patterns: cotyledons, roots, stems, leaves, buds, flowers, and siliques. The collected samples were frozen in liquid nitrogen and stored at −80 °C. Genetically modified seedling leaves were also collected, frozen in liquid nitrogen, and stored at −80 °C. Gene expression was analyzed via qRT-PCR, which was performed using a SYBR Green qPCR SuperMix Kit (TransGen, Beijing, China), with BnActin7 serving as the internal reference gene. The expression of each gene was examined using three biological replicates. Details regarding the gene-specific qRT-PCR primers are provided in Table S1.

4.4. Subcellular Localization

To clarify the subcellular localization of BnUC1, the BnUC1 coding sequence lacking the terminator was inserted into the p1305-GFP vector to generate the 35S::BnUC1-GFP construct. The recombinant plasmid and the empty p1305-GFP vector (control) were injected into epidermal cells of tobacco leaves through Agrobacterium tumefaciens. The subcellular localization of BnUC1 was determined using a laser confocal microscope.

4.5. Expression Vector Construction

The cloned BnUC1^mut sequence was inserted into the overexpression vector pBI121, after which A. tumefaciens GV3101 cells were transformed with the recombinant vector. To construct an editing vector, an online program (http://crispr.hzau.edu.cn/CRISPR2/, accessed on 1 September 2024) was used to design two gRNAs targeting BnUC1^mut. The two gRNA sequences were inserted into the pYLCRISPRCas9P35S-H vector. For yeast one-hybrid assays, BnUC1^WT and BnUC1^mut were inserted into separate pGADT7 (AD) vectors. The promoter sequences (1.5 kb) of four genes (BnC04.LACS1, BnC02.KCS20, BnaA03.LTP11, and BnaA01.LTP1) were cloned from ZS11 leaves and inserted into the pAbAi vector. p53-AbAi + AD and pAbAi + AD were used as positive and negative controls, respectively. For luciferase assays, the same four gene promoters were inserted into separate pGreen II 0800-LUC vectors, whereas BnUC1^WT and BnUC1^mut were inserted into separate pGreen II 62-SK vectors. To construct BD vectors for yeast hybridization experiments, BnUC1^WT and BnUC1^mut were inserted into separate pGBKT7 vectors. To construct an AD library using SMART technology, RNA was extracted from B. napus hypocotyls, leaves, flowers, roots, and pods. To construct BiFC vectors, BnUC1^WT and BnUC1^mut were ligated to C-YFP, whereas BnA03.LTP11, BnA05.LTP6, BnC04.LTP1, BnaA03.MYB57, BnaA07.ZFP22, and BnaA08.ZIP11 were ligated to N-YFP.

4.6. Wax Extraction and Content Determination

Wax was extracted according to a chloroform immersion method described as follows. Briefly, B. napus leaves were soaked thoroughly for 1 min, after which they were transferred to a pre-weighed bottle. The solvent was evaporated using a nitrogen blowing instrument (JHD-001S; Shanghai Jiheng, Shanghai, China), and then the leaf fresh weight and wax weight were recorded. For the wax derivatization reaction, 1 mL of chloroform was added to the dried wax crude extract for re-dissolution, and then 10 μL of N-tetradecane solution (10 μg/μL) was added as an internal standard. The chloroform was dried using nitrogen gas. After adding 40 μL of pyridine and 40 μL of N,O-bis (trimethylsilyl) trifluoroacetamide, the mixture was maintained for 1 h in a water bath set at 70 °C. All reagents were dried using a nitrogen blowing instrument, and then the remaining sample was dissolved in 1.1 mL of chromatography-grade chloroform and stored in a GC sample bottle. A GC-MS analysis involving a DB-5ms capillary column (FS 30 m, 0.25 μM ID, and 0.25 μM df) was performed using the following conditions: EI ion source (70 eV); scanning range, 50–650 m/z; sample inlet temperature, 280 °C; ion source temperature, 250 °C; fourth-stage rod temperature, 150 °C; carrier gas, helium; flow rate, 1.2 mL/min; heating program, increase to 50 °C in 2 min, increase to 200 °C at 40 °C/min, maintain at 200 °C for 2 min, increase to 320 °C at 3 °C/min, and maintain at 320 °C for 30 min.

4.7. Data Availability

Primer sequences used in this study are available in Table S1.

4.8. Data Analysis

The data were analyzed using SPSS Statistics (version 17) statistical software. Use independent t-test to determine the statistical significance of the mean.

5. Conclusions

The two BnUC1 genes (732 bp) cloned from the leaves of ZS11 and ZS11-NIL encode proteins comprising 243 amino acids. The mutation (N200S) in BnUC1^mut occurs in the bHLH domain. The overexpression of BnUC1^mut causes leaves to curl upward and have a glossy appearance, which is related to a significant decrease in the epidermal wax content. This overexpression also disrupts the balance in water transpiration from the abaxial and adaxial sides of leaves, ultimately resulting in up-curled leaves. Knocking out BnUC1^mut reversed the up-curled leaf trait, resulting in normal flattened leaves, and significantly increased the epidermal wax content. The N200S mutation in the bHLH domain prevents BnUC1^mut from activating the promoters of LACS1, KCS20, LTP11, and LTP1. The resulting decrease in the transcription of these genes related to wax synthesis and lipid transport is the main reason for the observed decrease in epidermal wax accumulation and the up-curling of leaves.
