Oxolane Ammonium Salts (Muscarine-Like)—Synthesis and Microbiological Activity

by
Patrycja Bogdanowicz
1,
Janusz Madaj
1,
Piotr Szweda
2,
Artur Sikorski
1,
Justyna Samaszko-Fiertek
1 and
Barbara Dmochowska
1,*
1
Faculty of Chemistry, University of Gdansk, Wita Stwosza 63, 80-308 Gdansk, Poland
2
Department of Pharmaceutical Technology and Biochemistry, Gdansk University of Technology, Gabriela Narutowicza Street 11/12, 80-233 Gdansk, Poland
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2024, 25(4), 2368; https://doi.org/10.3390/ijms25042368
Submission received: 18 January 2024 / Revised: 13 February 2024 / Accepted: 15 February 2024 / Published: 17 February 2024
(This article belongs to the Special Issue Drug Treatment for Bacterial Infections)
Browse Figures
Review Reports Versions Notes

Abstract

:
Commercially available 2-deoxy-D-ribose was used to synthesize the appropriate oxolane derivative—(2R,3S)-2-(hydroxymethyl)oxolan-3-ol—by reduction and dehydration/cyclization in an acidic aqueous solution. Its monotosyl derivative, as a result of the quaternization reaction, allowed us to obtain eight new muscarine-type derivatives containing a quaternary nitrogen atom and a hydroxyl group linked to the oxolane ring. Their structure was fully confirmed by the results of NMR, MS and IR analyses. The crystal structure of the pyridinium derivative showed a high similarity of the conformation of the oxolane ring to previously published crystal structures of muscarine. Two reference strains of Gram-negative bacteria (Escherichia coli ATCC 25922 and Pseudomonas aeruginosa ATCC 27853), two reference strains of Gram-positive staphylococci (Staphylococcus aureus ATCC 25923 and Staphylococcus aureus ATCC 29213) and four reference strains of pathogenic yeasts of the genus Candida spp. (Candida albicans SC5314, Candida glabrata DSM 11226, Candida krusei DSM 6128 and Candida parapsilosis DSM 5784) were selected for the evaluation of the antimicrobial potential of the synthesized compounds. The derivative containing the longest (decyl) chain attached to the quaternary nitrogen atom turned out to be the most active.

1. Introduction

Oxolane (tetrahydrofuran) is a simple heterocyclic compound. Its five-membered ring contains four carbon atoms and a heterocyclic oxygen atom. A number of methods for the synthesis of both tetrahydrofuran [1] and its derivatives [2,3,4,5,6] have been described in the literature. Despite having such a simple structure, it is a fragment of the structure of many natural and synthetic compounds with a wide spectrum of biological activity. These include furanose forms of simple sugars, especially D-ribose and 2-deoxy-D-ribose, as components of nucleosides, which are components of DNA and RNA nucleic acids. The literature also describes the synthesis of nucleoside analogues, which are also characterized by a number of interesting biological activities [7,8,9,10,11]. Derivatives containing an oxolane ring are common in nature, including in marine organisms. Such derivatives include lipid alcohols [12,13], fatty acids [14] and terpenes [15,16,17,18,19].
A very interesting derivative containing an oxolane ring is muscarine (Figure 1).
This simple chemical compound owes its name to the Amanita muscaria mushroom, from which it was first isolated by Schmiedeberg and Koppe [20]. Its structure was confirmed by Chan and Li, who performed the first chemical synthesis of this compound [21]. Ultimately, the structure was fully confirmed by the crystallographic structure [22,23]. Many scientists believe that the discovery of muscarine, or rather, its effect on the human body, was one of the most important milestones in the understanding and treatment of many diseases of the central nervous system (CNS). There are five known M1-M5 muscarinic receptors, the first three of which are stimulatory while the remaining two are inhibitory. The ailments that can be treated by understanding disorders of the murein pathway include Alzheimer’s disease, ophthalmological disorders and disorders of the respiratory and cardiovascular systems [24]. Due to the important role of this compound, many centers conduct syntheses and studies of the biological activity of muscarine analogues [25,26]. Studies show that the quaternary nitrogen atom [27], the ether oxygen atom [28] and the additional oxygen atom of the hydroxyl group are critical for the activity of muscarine. Removing the hydroxyl group resulted in a significant decrease in activity [29]. Taking these data into account, we designed and synthesized a number of derivatives containing an oxolane ring and ammonium salts of aliphatic and aromatic amines, which are analogues of muscarine, and we performed antifungal and antibacterial activity tests for them.

2. Results and Discussion

2.1. Synthesis

The commercially available 2-deoxy-D-ribose (1) was chosen as a substrate for obtaining the appropriate oxolane derivative. In the first stage, it was reduced to ribitol using sodium borohydride, obtaining a product with a very good yield of over 90%. The alditol thus obtained was subjected to a dehydration–cyclization reaction in a 2 molar solution of hydrogen chloride in water. In this way, after chromatographic separation, the appropriate derivative (3) (2R,3S)-2-(hydroxymethyl)oxolan-3-ol (2) was obtained (Figure 2). Although this compound is known in the literature [30], we were unable to find its NMR characterization, so we decided to include it in this work.
Compound 3 was underwent an attempted selective O-tosylation using tosyl chloride. Unfortunately, the use of an equimolar amount of tosyl chloride and lowering the temperature did not lead to the expected preferential tosylation of the primary hydroxyl group, and under all conditions used, a mixture of mono- and ditosyl derivatives was always formed. The resulting mixture of mono- (4) and ditosyl derivatives (4′) was separated using column chromatography to obtain the main product 4 in a moderate yield of 56%. This compound has not been previously described in the literature and its structure was confirmed by NMR, MS and IR analyses. The presence of the O-tosyl group only at the C-5 carbon atom (atom numbering according to Figure 3) confirms the shift of its signal in the 13C NMR spectrum in relation to the substrate from δ 71.89 to 69.66, while, on the contrary, the signal of the C-3 carbon atom shifted from δ 72.55 to 73.55.

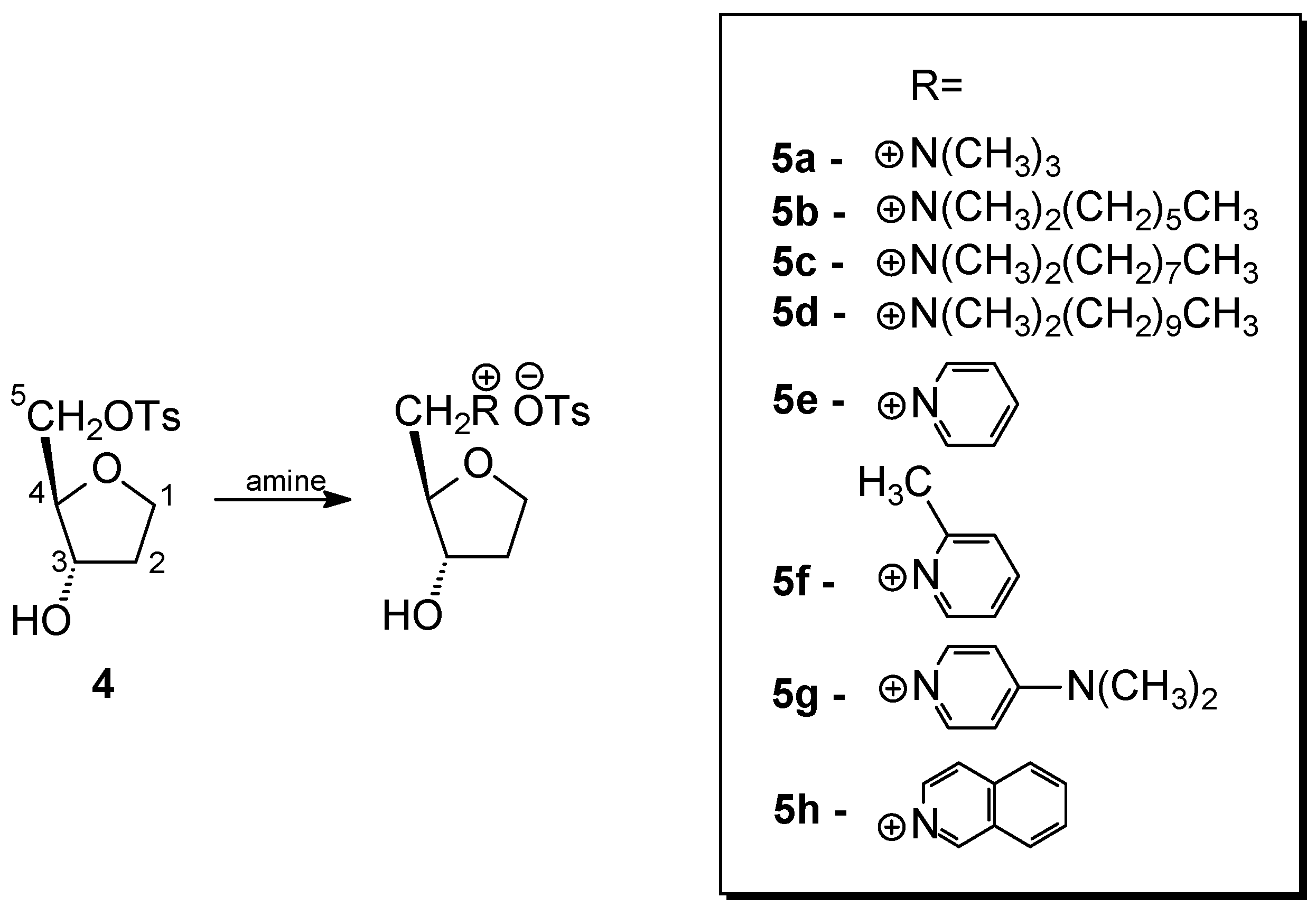

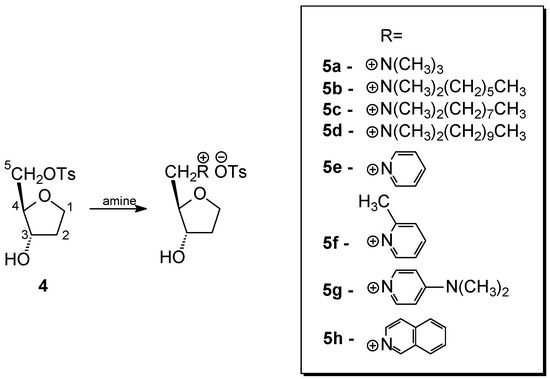

The monotosyl derivative 4 was used as a substrate in the quaternization reaction with appropriate amines. In addition to trimethylamine, as in muscarine, other aliphatic and aromatic amines were used. Their structures as cations are shown in Figure 3. This choice was dictated by the fact that amines with longer hydrocarbon chains and those containing an aromatic ring have a more lipophilic character, which may facilitate their migration through the cell membrane and thus affect their biological activity.
Due to the specificity of the amines used and to obtain the highest possible yields, individual salts were obtained under different conditions, as illustrated by the data in Table 1.
Analysis of the data in Table 1 shows that, if possible, according to our previous experiences, the best yields in the quaternization reaction of derivative 4 were obtained using our previously developed [31] solvent-free method.
The structures of all obtained products were confirmed by 1H and 13C NMR spectra, in which the signals were assigned based on COSY and HETCOR spectra (all spectra are included in Supplementary Materials Figures S1–S40). As was the case for crystals, the length of the carbon–nitrogen C-N bond was different for aliphatic and aromatic amine salts [32]. A similar pattern was observed for the chemical shifts of the terminal C-5 carbon atom associated with the positively charged nitrogen atom in the analyzed salts 5a–5h (Table 2).
As shown by the data in the table above, chemical shifts of C-5 carbon atoms in aliphatic amine salts occur at higher δ values than in the case of aromatic amine salts, and among these, the aliphatic substituent on the aromatic ring also has a significant impact on this shift (compounds 5f and 5g).
IR spectra were also recorded for the obtained products 5a–5h (Figures S50–S59). According to the data in the literature [33], the C-N bond has strong vibration bands around 1200 cm−1, and the same is true of the C-O bond around 1180 cm−1 for the secondary alcohols of the OH group in the C-3 carbon atom.
Additionally, the structure of the obtained salts is confirmed by the recorded MALDI-TOF MS spectra. In the case of salts of organic compounds, such spectra are characterized by a strong cation signal. The situation is similar in the case of the recorded spectra of compounds 5a–5h (Figures S41–S49), where the spectrum is dominated by the characteristic signal of the ammonium salt cation (Table 3).

2.2. Crystal Structure and Analysis of Intermolecular Interactions

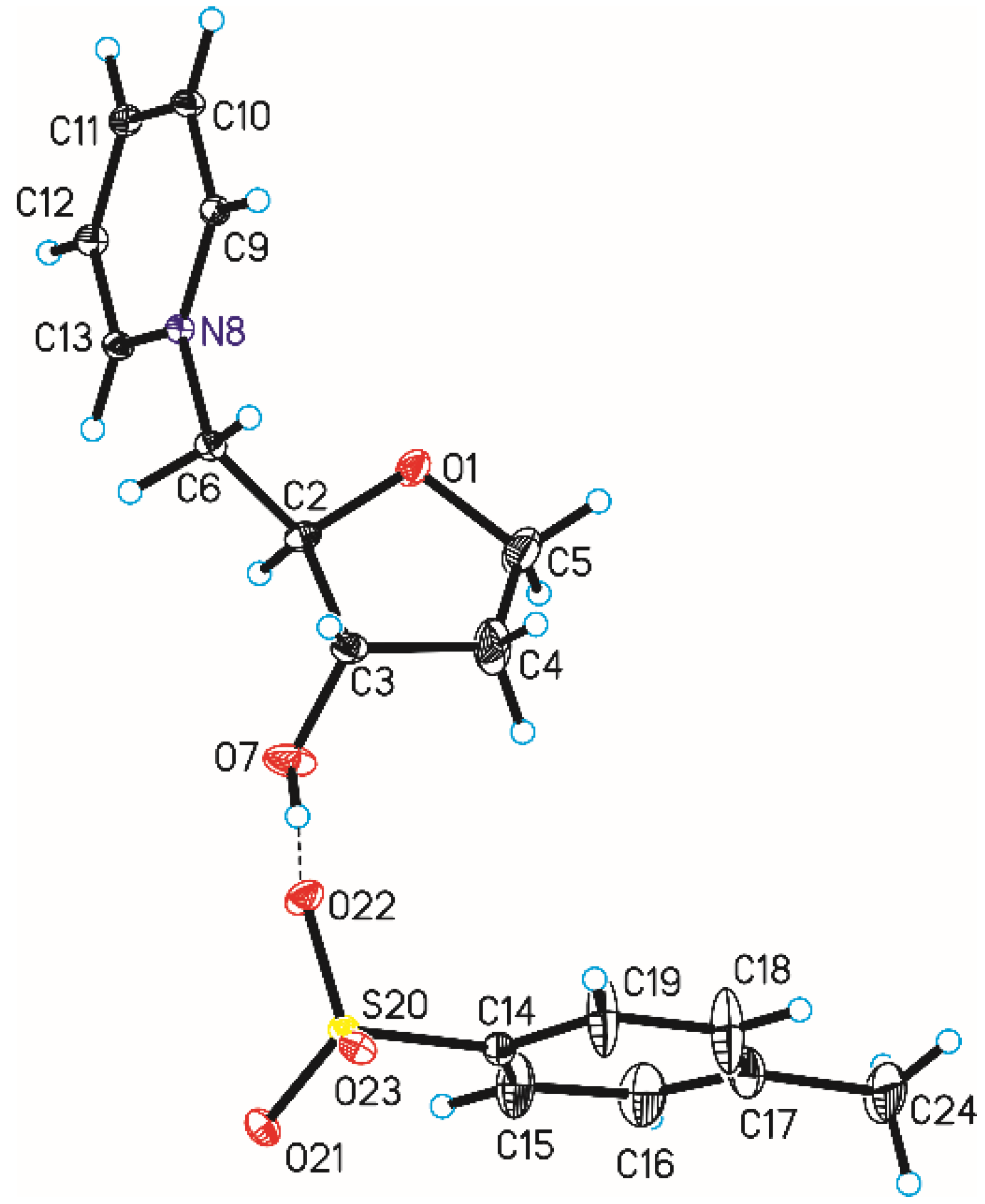

Single-crystal X-ray diffraction measurements show that compound 5e crystallizes in orthorhombic C2221 space group with one N-[(2R,3S)-(3-hydroxyoxolan-2-yl)methyl]pyridinium cation and one tosylate anion in the asymmetric unit (Figure 4 and Table 4). In this space group, some pyranose and furanose derivatives also crystallize [34,35], but it is not common symmetry of crystals for these groups of compounds. In the case of muscarine iodide, this was observed in the orthorhombic space group P212121 [22], while for muscarine chloride it was observed in the space group P21212 [23]. The length of the C6-N8 bond in compound 5e is in good agreement with the literature data [32] regarding the length of the C-N+ bond in pyridinium salts and is 1.483(5) Å.
In compound 5e, the furanose ring (O1-C2-C3-C4-C5, numbering of atoms in crystallographic descriptions consistent with the numbering of atoms in Figure 4) adopts a conformation close to the 4T0 (twisted on C5-O1 bond—Figure 4) [36,37] with ring-puckering parameters [38,39] θ = 0.220(8) Å and ϕ = 170(3)°, pseudorotation parameters [40] P = 259.4(16)° and τm = 25.7(6)° for the reference bond C3–C4, and delta parameter [41] Δ = 518.8°. Comparison of previously determined structures of muscarine iodide and chloride differ from each other and differ from the structure of compound 5e. X-ray measurements of the oxolane ring of iodide [22] showed that it was almost flat. In the case of chloride [23], it had an intermediate conformation between 3E and 3T4, but it should be added that the numbering of atoms in the muscarine derivatives was different.

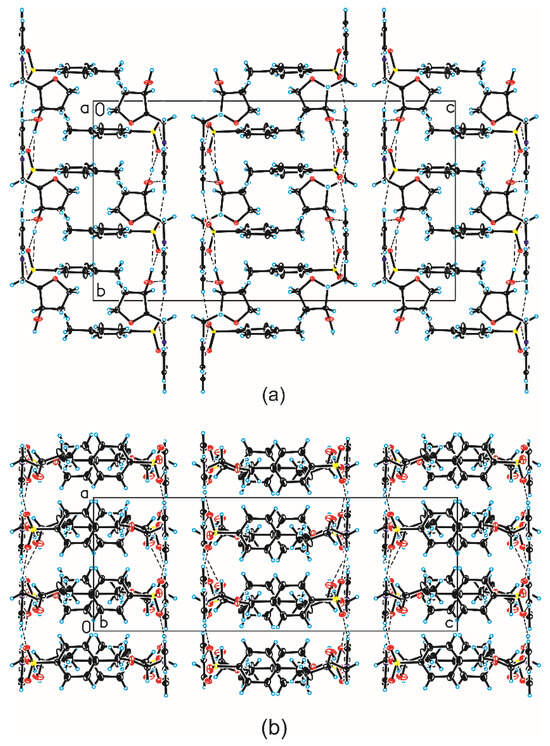

In the crystal of compound 5e, the N-[(2R,3S)-(3-hydroxyoxolan-2-yl)methyl]pyridinium cation interact with tosyl anion through the O–H···O hydrogen bond to form dimer (Table 5, Figure 4). In the case of muscarine derivatives, a stabilizing hydrogen bond was found between the hydrogen atom of the hydroxyl group and the iodine or chlorine anion, respectively. Neighboring dimers are linked via C–H···O hydrogen bonds building blocks along b-axis (Table 5, Figure 5). Adjacent blocks are linked by C–H···O hydrogen bonds and S–O···π interactions (Table 6) [42] produced 3-D framework.

2.3. Microbiological Testing

Due to its low stability, compound 5f was not included to this part of the study. Five out of six investigated derivatives, namely 5a, 5b, 5e, 5g and 5h, exhibited neither antibacterial nor antifungal activity up to the concentration of 512 µg/mL. Compound 5c effectively inhibited the growth of both staphylococci but only at the highest investigated concentration. The highest antifungal and antibacterial activity was exhibited in compound 5d, with MIC values: 64 µg/mL for both staphylococci, 128 µg/mL for E. coli and all pathogenic yeasts strains and 512 µg/mL for P. aeruginosa (Table 7).
The compounds 5b, 5c and 5d can be classified as surfactants with hydrophilic heads and hydrophobic tails. As mentioned above, the highest antimicrobial activity was shown by compound 5d, which had the longest (decyl) hydrocarbon chain, while compound 5c (octyl) exhibited only residual antibacterial potential and no activity was observed for derivative 5b (hexyl). A similar correlation between the antimicrobial potential and the “size” of the hydrocarbon tail was also investigated in our previous study on d-xylopyranosides containing a quaternary ammonium aglycone [31]. Thus, it can be assumed that this compound (but also 5c in the case of staphylococci), similarly to other surfactants, disrupts the integrity of the bacterial/fungal cell membrane. However, additional research is necessary to confirm this hypothesis.
The antibacterial activity of 5d against all tested strains of bacteria is significantly lower compared to gentamycin (Table 7). Much higher antibacterial activity of other classical antibiotics (in many cases with MIC values below the concentration of 1.0 µg/mL) has also been confirmed in many publications, including an article based on research carried out in our research group [43]. The antifungal activity is also lower compared to that of the most widely used antifungal agent, fluconazole (Table 7). However, the differences are not so evident as in the case of antibacterial antibiotics, e.g., MIC of fluconazole for C. krusei is only twice as low compared to 5d. In our opinion, the MIC values of 64 (for both staphylococci) and 128 µg/mL (for all yeast strains) do not exclude the possibility of using this compound as an antimicrobial agent (e.g., as a disinfectant). Similar or even higher values of MIC are observed for some natural products that are considered as antimicrobials, e.g., propolis [43], essential oils [44,45] and plant extracts [46,47].

3. Materials and Methods

3.1. General Section

2-Deoxy-D-ribose was purchased from Biosynth Ltd. (Compton, UK). All amines: trimethylamine, N,N-dimethylhexylamine, N,N-dimethyloctylamine, N,N-dimethyldecylamine, pyridine, 2-methylpyridine, 4-(N,N-dimethylamino)pyridine and isoquinoline were purchased from Merck (Darmstadt, Germany).

3.2. NMR Measurements

All measurements were carried out on a Bruker 400 MHz or 500 MHz spectrometer. 1H (500 or 400 MHz) and 13C (125 or 100 MHz, respectively) spectra were recorded in D2O or CDCl3. The signals in the spectra were assigned based on the analysis of 2D spectra (COSY and HSQC). All spectra were recorded at a controlled temperature of 298 K using a TXI inverse probe. The obtained spectra were processed and analyzed with the use of TopSpin 3.2 (Bruker BioSpin GmbH, Mannheim, Germany) software.

3.3. Mass Spectrometry

All samples for the MALDI-TOF mass spectrometry measurements were prepared according to the dried droplet method on a ground steel target plate with equal volumes of the sample in water and a saturated solution of α-cyano-4-hydroxycinnamic acid (CCA) in TA30 (30:70 [v/v] acetonitrile:0.1% TFA in water) or 20 mg/mL solution of 2,5-dihydroxybenzoic acid (DHB) in TA30 (30:70 [v/v] acetonitrile:0.1% TFA in water). Mass spectrometry measurements were carried out using a Bruker (Germany) AUTOFLEX MAX spectrometer and Flex Control 3.4.69 software using the reflective method in positive mode with the m/z range between 100 and 2000 and calibrated using the matrix and Bruker Peptide Calibration Standard II mass peaks. Each sample was measured with over 2500 shots and processed in Flex Analysis 3.4.79 with SNAP peak detection algorithm and signal to a threshold of 6.

3.4. Infrared Spestroscopy

IR spectra were recorded using an IFS66 spectrometer from BRUKER (Germany), performing Fourier transform infrared spectra with a resolution of 0.12 cm−1 for solid, liquid and gaseous samples in the entire range, i.e., MIR (4000 − 400 cm−1), FIR (700 − 4.0 cm−1). Spectra S53-S55 were recorded courtesy of Pro-Environment Polska Sp. z. o. o., which provided an FT-IR Spectrometer, model: Spectrum Two with ATR attachment (Spectrum Two FT-IR Spectrometer with LiTaO3 Detector, PerkinElmer, Inc., Waltham, MA, USA).

3.5. Polarimetry

Optical rotation was measured with a 343 PerkinElmer (Perkin Elmer, Inc., Waltham, MA, USA) polarimeter.

3.6. Flash Chromatography

The puriFlash 450 apparatus with a UV detector from Interchim (Montluçon, France) was used for the separation. The separation was carried out in the following solvent system: phase A—acetone (28%), phase B—hexane (72%) on a column: Puriflash Column 50 SILICA HP-Silica 50µ (40 g).

3.7. Melting Point Measurement

The melting point was measured using a Mel-Temp IA9000 device from Electrothermal (London, UK).

3.8. Single-Crystal X-ray Diffraction

Single-Crystal X-Ray Diffraction data were collected at T = 291(2) K using an Oxford Diffraction Gemini R ULTRA Ruby CCD diffractometer with MoKα (λ = 0.71073 Å) radiation (Table 1). The lattice parameters were obtained by least-squares fit to the optimized setting angles of the reflections collected by means of CrysAlis CCD and were reduced using CrysAlis RED software [48] and applying multi-scan absorption corrections. The structural resolution procedure was carried out using the SHELX [49]. The structure was solved with direct methods that carried out refinements by full-matrix least-squares on F2 using the SHELXL-2017/1 program [49]. H-atoms bound to O-atom were located on a difference Fourier map and refined freely with Uiso(H) = 1.5Ueq(O). H-atoms bound to C-atoms were placed geometrically and refined using a riding model with C–H = 0.93–0.97 Å and Uiso(H) = 1.2Ueq(C) (C–H = 0.96 Å and Uiso(H) = 1.5Ueq(C) for the methyl group). All interactions were found using the PLATON program [36], whereas ORTEPII [50], PLUTO-78 [51] and Mercury [52] programs were used to prepare the molecular graphics. Crystallographic data for the structure reported in this article were deposited at the Cambridge Crystallographic Data Centre, under deposition numbers No. CCDC 2325962. Copies of the data can be obtained free of charge via https://www.ccdc.cam.ac.uk/structures/ (accessed on 18 January 2024).

3.9. Antimicrobial Activity

Two reference strains of Gram-negative bacteria (Escherichia coli ATCC 25922 and Pseudomonas aeruginosa ATCC 27853), two reference strains of Gram-positive staphylococci (Staphylococcus aureus ATCC 25923 and Staphylococcus aureus ATCC 29213) and four reference strains of pathogenic yeasts of the genus Candida spp. (Candida albicans SC5314, Candida glabrata DSM 11226, Candida krusei DSM 6128 and Candida parapsilosis DSM 5784) were selected for the evaluation of the antimicrobial potential of the synthesized compounds. Determination of the MIC parameter (Minimum Inhibitory Concentration) of these substances was performed using a serial, two-fold dilution method in 96-well microtiter plates under conditions recommended by the Clinical and Laboratory Standards Institute (CLSI, Pittsburgh, PA, USA). In the case of bacterial strains, the assay was performed in autoclaved Mueller–Hinton Broth (MHB) and antifungal activity was tested in a filter-sterilized RPMI medium (RPMI—10,4 g/L; Glucose 18 g/l, MOPS—35 g/L, pH 7.0). MHB broth and all components of RPMI medium were bought from Merck (Darmstadt, Germany). Each compound was dissolved in an appropriate medium to the final concentration of 1024 µg/mL. In the next step, serial two-fold dilutions of the tested agents (over a range of concentrations from 1024.0 to 2.0 µg/mL) were prepared in the rows of 96-well microtitration plates in a final volume of 100 μL of the appropriate medium. Both yeasts and bacterial strains were cultivated on agar plates (YPD for yeasts and MHB for bacterial strains—both from Merck) for 18–24 h at 37 °C. Using a sterile loop, several colonies of each strain were harvested from the surface of agar medium and suspended in sterile PBS (phosphate-buffered saline, pH 7.4 at 25 °C, purchased from Merck) solution to obtain an optical density OD600 = 0.13 (for bacteria—equal to the cells concentration of approximately 1 x 108 CFU/mL) and OD660 = 0.10 (for yeasts—equal to the cell concentration of approximately 1 x 106 CFU/mL). Next, suspensions of bacterial strains were diluted in MHB broth (at a ratio of 1:100 v/v) and suspensions of yeast strains were diluted in RPMI medium (at a ratio of 1:50 v/v). Finally, 100 μL of the cells’ suspensions were loaded into the wells of 96-well microtitration plates prepared in advance, which contained 100 μL of two-fold dilutions of the tested agents. A positive growth control of each strain (growth in the medium not supplemented with any agent) as well as a negative control (medium not inoculated with bacterial/fungal cells), were included in each assay. Moreover, gentamicin (in the range of concentrations from 0.125 to 64 µg/mL) and fluconazole (in the range of concentrations (from 1 to 512 µg/mL) were used as reference antibacterial and antifungal agents, respectively. Following the incubation of the plates at 37 °C for 24 h, the determination of the MIC values of the tested agents was carried out by measuring the absorbance at 531 nm using a Victor3 microplate reader (Perkin Elmer, Inc., Waltham, MA, USA). The lowest concentration of the agent causing inhibition of growth equal to or greater than 90% (MIC90) of the growth control was taken as the MIC value. Each test was repeated in triplicate.

3.10. 2-Deoxy-D-Ribitol (2)

2-Deoxy-D-ribose (1.0 g, 7.455 mmol) was dissolved in water (20 mL), cooled in an ice bath and sodium borohydride (0.25 g, 6.609 mmol) was added portionwise. The reaction mixture was stirred at 5 °C. After 24 h, the mixture was acidified by adding Dowex 50WX 8-400 resin. After the resin was filtered off, the filtrate was concentrated to a thick yellow oil and dried in a vacuum desiccator over anhydrous CaCl2 (for 258 h). 2-Deoxy-D-ribitol (1.007 g, 7.398 mmol) was obtained in almost quantitative yield.

3.11. (2. R,3S)-2-(Hydroxymethyl)Oxolan-3-Ol (3)

2-Deoxy-D-ribitol (1.221 g, 8.968 mmol) was dissolved in 2M aqueous HCl (61 mL) and placed in a screw-top vessel. The solution was stirred at 100 °C for 48 h. Then, the volatile components were removed under reduced pressure and the resulting oil was dried in a vacuum desiccator over anhydrous CaCl2 (for 93 h). Methanol (100 mL) and activated carbon were added to the dry oil. The mixture was heated at reflux for 30 min. After this time, the mixture was filtered, and the filtrate was concentrated under reduced pressure and dried in a vacuum desiccator over CaCl2 for 162 h and (2R,3S)-2-(hydroxymethyl)oxolan-3-ol (3) was obtained (0.810 g, 6.857 mmol, 77% yield) as a colorless oil; Rf = 0.47 (diethyl ether–chloroform–methanol 3:2:1), [α] 37.7o (c 1, H2O); 1H NMR (D2O): δ 4.22–4.19 (m, 1H, H-3), 3.95–3.87 (m, 2H, H-1, H-1′), 3.78–3.76 (m, 1H, H-4), 3.59–3.47 (m, 2H, H-5, H-5′), 2.14–2.04 (m, 1H, H-2), 1.88–1.82 (m, 1H, H-2′); 13C NMR (D2O): δ 86.17 (C-4), 72.55 (C-3), 67.14 (C-1), 71.89 (C-5), 34.13 (C-2). IR: 3375.6 cm−1 O-H, 1099.5 cm−1 C-O.

3.12. (2. R,3S)-2-(O-Tosylmethoxyl)Oxolan-3-Ol (4)

Anhydrous pyridine (6.6. mL, 81.937 mmol) was added to 1,4-anhydro-2-deoxy-D-ribitol (3) (0.444 g, 3.759 mmol). The mixture was cooled to 0 °C and p-toluenesulfonyl chloride (0.716 g, 3.756 mmol) was added portionwise. The reactions were carried out with stirring for another hour at 0° C and then for 24 h at room temperature. After this time, the mixture was concentrated to a thick yellow oil. TLC analysis showed the presence of mono- (4) and ditosyl derivatives (4′). The mixture was separated by column chromatography using an acetone–hexane (2:5) separation system. As a result of the separation, (2R,3S)-2-(tosylmethoxyl)oxolan-3-ol (4) was obtained in the form of a thick, colorless oil with a yield of 56%. After crystallization from ethanol, 4 (14%) was obtained, mp 92–93 °C and Rf 0.36 (acetone–hexane 2:3), [α] 28.00° (c 1, CHCl3); 1H NMR (CDCl3): δ 1.85–1.92 (m, 1H, H-2), 2.04–2.13 (m, 1H, H-2′), 2.44 (s, 3H, CH3Ph), 3.87–3.93 (m, 3H, H-1, H-1′, H-4), 3.99 (dd, 1H, J4,5 = 4.8, J4,5′ = 10.8, H-5), 4.08 (dd, 1H, H-5′), 4.32 (qu, 1H, J = 2.8, J2′,3 = 3.6, H-3), 7.40 and 7.78 (2d, each 2H, J = 7.7, Ph); 13C NMR (CDCl3): δ 145.26, 132.94, 130.13, 128.18 (C, Ph), 83.43 (C-4), 73.55 (C-3), 69.66 (C-5), 67.59 (C-1), 35.16 (C-2), 21.85 (C, PhCH3); MALDI TOF MS (CHCA): m/z 295.1 [M+Na]+). IR: 3401.3 cm−1 O-H, 1175.1 cm−1 C-O.

3.13. General Procedure for the Quaternization Reactions

Procedure IA
(2R,3S)-2-(O-tosylmethoxyl)oxolan-3-ol (4) was placed in a glass screw-on ampoule (volume 1.5 mL) and amine and acetonitrile were added. The reaction mixture was heated at 70 °C. The volatile components were then removed under reduced pressure. Water was added to the residue and the aqueous solution was extracted twice with chloroform to separate the product from unreacted substrate 4. The aqueous layer (containing the product) was concentrated under reduced pressure and the product was dried at −19.7 °C over anhydrous CaCl2.
Procedure IB
(2R,3S)-2-(O-tosylmethoxyl)oxolan-3-ol (4) was placed in a glass screw-on ampoule (volume 1.5 mL) and amine and acetonitrile were added. The reaction mixture was heated at 70 °C. The volatile components were then removed under reduced pressure. To remove unreacted starting material 4, diethyl ether was added to the residue and the mixture was shaken. The resulting precipitate was centrifuged and dried at −19.7 °C over anhydrous CaCl2.
Procedure IIA
The procedure was analogous to procedure IA but did not require the addition of acetonitrile.
Procedure IIB
The procedure was analogous to procedure IB but did not require the addition of acetonitrile.

3.14. N-[(2R,3S)-(3-Hydroxyoxolan-2-yl)Methyl]-N,N,N-Trimethylamonium Tosylate (5a)

A reaction of compound 4 (37.9 mg, 0.139 mmol) and a 33% methanolic solution of trimethylamine (2.99 mL) under the IIA procedure (359 h) gave the title compound 5a as an orange oil (41.4 mg, 89%);Rf = 0.0 (acetone–hexane 2:3) [α] 9.9° (c 1, H2O); 1H NMR (D2O): δ 1.86–1.93 (m, 1H, H-2′), 2.13–2.21 (m, 1H, H-2) 2.34 (s, 3H, CH3Ph), 3.14 (s, 9H, N(CH3)3), 3.38 (dd, 1H, J4,5′ = 9.6,J5,5′ = 13.6, H-5′), 3.50 (dd, 1H, J4,5 = 1.6, H-5), 3.99 (dd, 2H, J1′,2 = 6.4, H-1′, H-1), 4.13–4.18 (m, 2H, H-3, H-4), 7.31 and 7.63 (2d, each 2H, J = 8.4, Ph); 13C NMR (D2O): δ 142.69, 139.86, 129.71, 125.64 (C, Ph), 79.41 (C-4), 74.46 (C-3), 67,79 (C-1), 67.62 (C-5), 54.17, 54.21, 54.24 (C, N(CH3)3), 33.14 (C, C-2), 20.73 (C, PhCH3); MALDI TOF MS (DHB): m/z 160.2 ([M-OTs]+). IR: 3347.0 cm−1 O-H, 1220.0 cm−1 C-N, 1190.0 cm−1 C-O.

3.15. N-[(2R,3S)-(3-Hydroxyoxolan-2-Yl)Methyl]-N-Hexyl-N,N-Dimethylammonium Tosylate (5b)

Procedure IA: A reaction of 4 (14.6 mg, 0.054 mmol) with N,N-dimethylhexylamine (0.0186 mL, 0.107 mmol) in acetonitrile (0.5 mL) carried out for 356 h gave 5b (11 mg, 51%);
Procedure IB: A reaction of 4 (21.6 mg, 0.079 mmol) with N,N-dimethylhexylamine (0.0276 mL, 0.159 mmol) in acetonitrile (0.5 mL) carried out for 407 h gave 5b (22.3 mg, 70%);
Procedure IIA: A reaction of 4 (10.2 mg, 0.038 mmol) with N,N-dimethylhexylamine (0.013 mL, 0.075 mmol) carried out for 22 h gave 5b (11.6 mg, 77%);
Procedure IIB: A reaction of 4 (23.6 mg, 0.087 mmol) with N,N-dimethylhexylamine (0.0301 mL, 0.173 mmol) carried out for 165 h gave 5b (28.1 mg, 81%);
Rf = 0.0 (acetone–hexane 2:3); white solid; mp 76.1–76.9 °C; 1H NMR (CDCl3): δ 0.87 (t, 3H, H-f), 1.27 (s, 6H, H-c, H-d, H-e), 1.69 (s, 2H, H-b), 1.91–1.98 (m, 1H, H-2′), 2.10–2.17 (m, 1H, H-2), 2.34 (s, 3H, PhCH3), 3.21 and 3.22 (2×s, 6H, N(CH3)2), 3.28–4.41 (m, 3H, H-5′, NCH2), 3.89–3.98 (m, 2H, H-1, H-1′), 4.09–4.13 (m, 1H, H-4), 4.15–4.19 (m, 1H, J3,4 = 5.7, H-3), 4.41 (d, 1H, J5,5′ = 13.7, H-5), 7.16 and7.75 (2d, 2x2H, J = 8.2, Ph); 13C NMR (CDCl3): δ 142.85, 140.02, 128.86, 126.20 (C, Ph), 80.15 (C-4), 74.22 (C-3), 68.02 (C-1), 66.60 (C-5), 65.89 (C-a), 51.99–51.63 (N(CH3)2), 33.39 (C-2), 31.35 (C-d), 25.95 (C-c), 22.76 (C-b), 22.58 (C-e), 21.52 (Ph-CH3), 13.90 (C-f); MALDI TOF MS (CCA): m/z 230.240 ([M-OTs]+). IR: 3392 cm−1 O-H, 1209 cm−1 C-N, 1175 cm−1 C-O.

3.16. N-[(2R,3S)-(3-Hydroxyoxolan-2-Yl)Methyl]-N,N-Dimethyl-N-Octylammonium Tosylate (5c)

Procedure IA: A reaction of 4 (17.0 mg, 0.062 mmol) with N,N-dimethyloctylamine (0.0257 mL, 0.125 mmol) in acetonitrile (0.5 mL) carried out for 117 h gave 5c (11.8 mg, 44%);
Procedure IB: A reaction of 4 (25.5 mg, 0.094 mmol) with N,N-dimethyloctylamine (0.0385 mL, 0.187 mmol) in acetonitrile (0.5 mL) carried out for 407 h gave 5c (32.4 mg, 81%);
Procedure IIB: A reaction of 4 (24.4 mg, 0.090 mmol) with N,N-dimethyloctylamine (0.0369 mL, 0.180 mmol) carried out for 165 h gave 5c (30.7 mg, 80%);
Rf = 0.0 (acetone–hexane 2:3); white solid; mp 54.1–54.4 °C; 1H NMR (CDCl3): δ 0.88 (t, 3H, H-h), 1.26 (bs, 10H, H-c, H-d, H-e, H-f, H-g), 1.63–1.72 (m, 2H, H-b), 1.91–1.97 (m, 1H, H-2′), 2.10–2.17 (m, 1H, H-2), 2.34 (s, 3H, PhCH3), 3.21 and 3.23 (2×s, 6H, N(CH3)2), 3.28–3.41 (m, 3H, H-5′, NCH2), 3.89–3.98 (m, 2H, H-1, H-1′), 4.09–4.13 (m, 1H, J4,5′ = 5.4, H-4), 4.14–4.18 (m, 1H, J3,4 = 5.6, H-3), 4.42 (d, 1H, J5,5′ = 13.6, H-5), 7.15 and 7.75 (2d, 2x2H, J = 8.1, Ph); 13C NMR (CDCl3): δ 143.25, 139.70, 128.86, 125.95 (C, Ph), 80.23 (C-4), 74.31 (C-3), 67.94 (C-1), 66.48 (C-5), 65.84 (C-a), 51.73–51.36 (N(CH3)2), 33.51 (C-2), 31.60 (C-f), 29.07 (C-d, C-e),) 26.23 (C-e), 22.79 (C-b), 22.63 (C-g), 21.40 (Ph-CH3), 14.21 (C-h); MALDI TOF MS (CCA): m/z 258.240 ([M-OTs]+). IR: 3342 cm−1 O-H, 1222 cm−1 C-N, 1173 cm−1 C-O.

3.17. N-[(2R,3S)-(3-hydroxyoxolan-2-yl)methyl]-N-decyl-N,N-dimethylammonium tosylate (5d)

Procedure IB: A reaction of 4 (24.5 mg, 0.090 mmol) with N,N-dimethyldecylamine (0.0429 mL, 0.180 mmol) in acetonitrile (0.5 mL) carried out for 331 h gave 5d (30.8 mg, 75%);
Procedure IIB: A reaction of 4 (26.0 mg, 0.096 mmol) with N,N-dimethyldecylamine (0.0455 mL, 0.191 mmol) carried out for 165 h gave 5d (32.6 mg, 75%);
Rf = 0.0 (acetone–hexane 2:3); white solid; mp 60.3–61.2 °C; 1H NMR (CDCl3): δ 0.88 (t, 3H, H-j), 1.24 (bs, 14H, H-c, H-d, H-e, H-f, H-g, H-h, H-i), 1.62–1.74 (m, 2H, H-b), 1.91–1.97 (m, 1H, H-2′), 2.10–2.17 (m, 1H, H-2), 2.34 (s, 3H, PhCH3), 3.22 and 3.23 (2×s, 6H, N(CH3)2), 3.28–3.41 (m, 3H, H-5′, NCH2), 3.89–3.98 (m, 2H, H-1, H-1′), 4.09–4.13 (m, 1H, J4,5′ = 10.0, H-4), 4.15–4.18 (m, 1H, H-3), 4.43 (d, 1H, J5,5′ = 13.6, H-5), 7.15–7.75 (2d, 2x2H, J = 8.1, Ph); 13C NMR (CDCl3): δ 143.18, 139.63, 128.70, 125.95 (C, Ph), 80.20 (C-4), 74.26 (C-3), 67.86 (C-1), 66.62 (C-5), 65.91 (C-a), 51.34–51.78 (N(CH3)2), 33.32 (C-2), 31.87 (C-h), 29.44 (C-d), 29.37 (C-e), 29.24 (C-f), 29.10 (C-g), 26.21(C-c), 22.74 (C-b), 22.67 (C-i), 21.31 (Ph-CH3), 14.12 (C-j); MALDI TOF MS (CCA): m/z 286.262 ([M-OTs]+). IR: 3336 cm−1 O-H, 1220 cm−1 C-N, 1184 cm−1 C-O.

3.18. N-[(2R,3S)-(3-hydroxyoxolan-2-yl)methyl]pyridinium tosylate (5e)

Procedure IIA: A reaction of 4 (13.7 mg, 0.050 mmol) with anhydrous pyridine (0.280 mL, 3.452 mmol) carried out for 296 h gave 5e (76.5 mg, 86%); Rf = 0.0 (acetone–hexane 2:3); yellow crystals; mp 111.5–113.8 °C;); [α] 24.6o (c 1, H2O); 1H NMR (D2O): δ 1.91–1.98 (m, 1H, J2′,3 = 3.2, H-2′), 2.07–2.16 (m, 1H, H-2), 2.32 (s, 3H, PhCH3), 3.95 (dd, 1H, J1′,2 = 7.2, H-1′), 3.99–4.05 (m, 1H, H-1), 4.17 (dt, 1H, J4,5 = 3.2, H-4), 4.34 (qvint, 1H, J3,4 = 6.0, H-3), 4.44 (dd, 1H, J4,5′ = 9.6, H-5′), 4.80 (dd, 1H, J5,5′ = 13.6, H-5), 7.29 and 7.61 (2d, each 2H, J = 8.4, Ph), 8.02, 8.52, 8.76 (5H, Py); 13C NMR (D2O): δ 146.41, 144,94, 128.38 (C, Py), 142.60, 139.70, 129.66, 125.60 (C, Ph), 83.97 (C-4), 73.10 (C-3), 67.77 (C-1), 62.84 (C-5), 33.66 (C-2), 20.69 (C, PhCH3); MALDI TOF MS (DHB): m/z 180.2 ([M-OTs]+). IR: 3331.0 cm−1 O-H, 1215.5 cm−1 C-N, 1175.8 cm−1 C-O.

3.19. N-[(2R,3S)-(3-hydroxyoxolan-2-yl)methyl]-2-methylpyridinium tosylate (5f)

Procedure IIA: A reaction of 4 (26.9 mg, 0.099 mmol) with 2-methylpyridine (0.620 mL, 6.258 mmol) carried out for 496 h gave 5f (37.7 mg, 75%); compound unstable at room temperature, Rf = 0.0 (acetone—hexane 2:3); yellowish oil; 1H NMR (CDCl3): δ 1.93–1.99 (m, 1H, H-2′), 2.11–2.18 (m, 1H, H-2), 2.33 (s, 3H, PhCH3), 2.89 (s, 3H, CH3Py) 3.86–3.89 (m, 2H, H-1, H-1′), 4.14 (bs, 1H, H-4), 4.38 (bs, 1H, H-3), 4.59–4.63 (m, 1H, H-5′), 5.36 (d, 1H, J5,5′ = 13.9, H-5), 7.14 (d, 2H, Ph), 7.68–7.77 (m, 4H, Ph, H-b, H-d/Py), 8.18 (t, 1H, H-c/Py), 9.22 (d, 1H, J = 6.0, H-a/Py); 13C NMR (CDCl3): δ 155.94–144.55, 128.87 and 125.96 (C, Py), 139.78, 129.44 and 125.56 (C, Ph), 85.24 (C-4), 73.12 (C-3), 67.87 (C-1), 59.87 (C-5), 34.10 (C-2), 21.25 (2C, PhCH3 and PyCH3); MALDI TOF MS (DHB): m/z 194.095 ([M-OTs]+). IR: 3339.7 cm−1 O-H, 1218.1 cm−1 C-N, 1189.0 cm−1 C-O.

3.20. N-[(2R,3S)-(3-hydroxyoxolan-2-yl)methyl]-4-(N,N-dimethylamino)pyridinium tosylate (5g)

Procedure IIA: A reaction of 4 (25.7 mg, 0.094 mmol) with 4-(N,N-dimethylamine)pyridine (15.9 mg, 0.130 mmol) carried out for 166 h gave 5g (43.9 mg, 79%); Rf = 0.0 (acetone—hexane 2:3); colorless oil; 1H NMR (CDCl3): δ 1.91–1.97 (m, 1H, H-2′), 1.98–2.04 (m, 1H, H-2), 2.33 (s, 3H, PhCH3), 3.20 (s, 6H, N(CH3)2), 3.82–3.90 (m, 2H, H-1, H-1′), 4.07 (bs, 1H, H-4), 4.20 (bs, 2H, H-3, H-5′), 4.79 (d, 1H, J5,5′ = 13.3, H-5), 7.15 and 7.79 (2d, each 2H, J = 9.0, Ph), 6.76 and 8.41 (2d, 4H, J = 7.0, Py); 13C NMR (CDCl3): δ 156.23–143.37, 107.50 (5C, Py), 142.60–126.02 (6C, Ph), 84.99 (C-4), 72.12 (C-3), 67.54 (C-1), 59.26 (C-5), 40.25 (2C, N(CH3)2), 34.21 (C-2), 21.34 (C, PhCH3); MALDI TOF MS (CCA): m/z 223.167 ([M-OTs]+). IR: 3349.2 cm−1 O-H, 1205.6 cm−1 C-N, 1181.7 cm−1 C-O.

3.21. N-[(2R,3S)-(3-hydroxyoxolan-2-yl)methyl]isoquinolinium tosylate (5h)

Procedure IIA: A reaction of 4 (28.5 mg, 0.105 mmol) with isoquinoline (0.287 g, 2.222 mmol) carried out for 306 h gave 5h (27.1 mg, 64%); Rf = 0.0 (acetone—hexane 2:3); colorless oil; 1H NMR (CDCl3): δ 1.89–1.96 (m, 1H, H-2′), 2.05–2.12 (m, 1H, H-2), 2.28 (s, 3H, PhCH3), 3.87–3.92 (m, 2H, H-1, H-1′), 4.28 (bs, 1H, H-4), 4.34 (bs, 1H, H-3), 4.79–4.83 (m, 1H, H-5′), 5.49 (d, 1H, J5,5′ = 16.0, H-5), 7.10 and 7.77 (2d, each 2H, J = 8.0, Ph), 7.86–10.28 (7H, J = 6.8, amine); 13C NMR (CDCl3): δ 150.93–131.05 and, 127.76–126.90 (C, Ph-amine), 142.81, 128.82–125.59 (C, Ph), 85.24 (C-4), 72.86 (C-3), 67.78 (C-1), 63.00 (C-5), 34.15 (C-2), 21.38 (C, PhCH3); MALDI TOF MS (CCA): m/z 230,130 ([M-OTs]+). IR: 3344.9 cm−1 O-H, 1215.9 cm−1 C-N, 1186.6 cm−1 C-O.

4. Conclusions

2-Deoxy-D-ribose is a commercially available compound and, as the performed syntheses have shown, it can be successfully used for the synthesis of muscarine-type derivatives. Eight new derivatives were synthesized, which are analogues of muscarine (containing an oxolane ring with a hydroxyl group and a quaternary nitrogen atom attached to it). NMR (1D and 2D), MS and IR analyses fully confirmed their purity and structure. The X-ray measurements confirmed that the pyridinium derivative crystallizes in the orthorhombic space group, similarly to muscarine derivatives. The oxolane ring assumes a twisted T conformation, as in muscarine iodide. The microbiological tests carried out showed that the highest activity was demonstrated by derivatives containing an eight- and ten-carbon chain at the quaternary nitrogen atom, respectively. This is most likely the result of their strongest hydrophobic character, which increases their affinity for the hydrophobic cell wall of bacteria or fungi, but this requires additional and extended research.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms25042368/s1.

Author Contributions

Conceptualization, B.D.; investigation, B.D., P.B. and P.S.; X-ray crystallography, A.S.; data curation: B.D., P.B., J.M., A.S., J.S.-F. and P.S.; writing—original draft preparation, B.D. and J.M.; writing—review and editing, B.D., P.B., J.M., J.S.-F., A.S. and P.S.; supervision, B.D. and J.M.; funding acquisition, J.M. All authors have read and agreed to the published version of the manuscript.

Funding

This study was supported by University of Gdansk, task grant no. DS/531-T100-D501-24.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article and supplementary materials.

Acknowledgments

Dedicated to the memory of Doctor Eugenia Skorupa.

Conflicts of Interest

The authors declare no conflicts of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. Starr, D.F.; Hixon, R.M. Reduction of Furan and the Preparation of Tetramethylene Derivatives. Proc. Iowa Acad. Sci. 1934, 41, 169–170. [Google Scholar] [CrossRef]
  2. Wolfe, J.P.; Hay, M.B. Recent Advances in the Stereoselective Synthesis of Tetrahydrofurans. Tetrahedron 2007, 63, 261–290. [Google Scholar] [CrossRef] [PubMed]
  3. Shin, C.; Oh, Y.; Cha, J.H.; Pae, A.N.; Choo, H.; Cho, Y.S. Synthesis of sterically congested bicyclic tetrahydrofurans via Pd-catalyzed cyclization. Tetrahedron 2007, 63, 2182–2190. [Google Scholar] [CrossRef]
  4. DeAngelis, A.; Taylor, M.T.; Fox, J.M. Unusually Reactive and Selective Carbonyl Ylides for Three-Component Cycloaddition Reactions. J. Am. Chem. Soc. 2009, 131, 1101–1105. [Google Scholar] [CrossRef]
  5. Mitchell, T.A.; Zhao, C.; Romo, D. Highly Diastereoselective, Tandem, Three-Component Synthesis of Tetrahydrofurans from Ketoaldehydes via Silylated β-Lactone Intermediates. Angew. Chem. Int. Ed. 2008, 47, 5026–5029. [Google Scholar] [CrossRef]
  6. Sim, J.Y.; Hwang, G.; Kim, K.H.; Ko, E.M.; Ryu, D.H. Asymmetric synthesis of (+)-cis-nemorensic acid from a chiral Diels–Alder adduct of 2,5-dimethylfuran. Chem. Commun. 2007, 47, 5064–5065. [Google Scholar] [CrossRef]
  7. Thomson, J.M.; Lamont, I.L. Nucleoside Analogues as Antibacterial Agents. Front. Microbiol. 2019, 10, 952. [Google Scholar] [CrossRef] [PubMed]
  8. De Clercq, E.; Li, G. Approved Antiviral Drugs over the Past 50 Years. Clin. Microbiol. Rev. 2016, 29, 695–747. [Google Scholar] [CrossRef]
  9. Kish, T.; Uppal, P. Trifluridine/Tipiracil (Lonsurf) for the Treatment of Metastatic Colorectal Cancer. Pharm. Ther. 2016, 41, 314–325. [Google Scholar]
  10. Chen, X.; Bastow, K.; Goz, B.; Kucera, L.S.; Morris-Natschke, S.L.; Ishaq, K.S. Boronic Acid Derivatives Targeting HIV-1. J. Med. Chem. 1996, 39, 3412–3417. [Google Scholar] [CrossRef]
  11. Cottam, H.B.; Kazimierczuk, Z.; Geary, S.; McKernan, P.A.; Revankar, G.R.; Robins, R.K. Synthesis and biological activity of certain 6-substituted and 2,6-disubstituted 2′-deoxytubercidins prepared via the stereospecific sodium salt glycosylation procedure. J. Med. Chem. 1985, 28, 1461–1467. [Google Scholar] [CrossRef]
  12. Warren, R.G.; Wells, R.J.; Blount, J.F. A novel lipid from the brown alga Notheia anomala. Aust. J. Chem. 1980, 33, 891–898. [Google Scholar] [CrossRef]
  13. Capon, R.J.; Barrow, R.A.; Rochfort, S.; Jobling, M.; Skene, C.; Lacey, E.; Gill, J.H.; Friedel, T.; Wadsworth, D. Marine nematocides: Tetrahydrofurans from a southern Australian brown alga, Notheia anomala. Tetrahedron 1998, 54, 2227–2242. [Google Scholar] [CrossRef]
  14. Li, K.; Huertas, M.; Brant, C.; Chung-Davidson, Y.-W.; Bussy, U.; Hoye, T.R.; Li, W. (+)- and (-)-Petromyroxols: Antipodal Tetrahydrofurandiols from Larval Sea Lamprey (Petromyzon marinus L.) That Elicit Enantioselective Olfactory Responses. Org. Lett. 2015, 17, 286–289. [Google Scholar] [CrossRef] [PubMed]
  15. Cueto, M.; Darias, J. Uncommon tetrahydrofuran monoterpenes from Antarctic Pantoneura plocamioides. Tetrahedron 1996, 52, 5899–5906. [Google Scholar] [CrossRef]
  16. Darias, J.; Rovirosa, J.; San Martin, A.; Díaz, A.-R.; Dorta, E.; Cueto, M. Furoplocamioids A–C, Novel Polyhalogenated Furanoid Monoterpenes from Plocamium cartilagineum. J. Nat. Prod. 2001, 64, 1383–1387. [Google Scholar] [CrossRef]
  17. Raju, R.; Piggott, A.M.; Barrientos Diaz, L.X.; Khalil, Z.; Capon, R.J. Heronapyrroles A–C: Farnesylated 2-Nitropyrroles from an Australian Marine-Derived Streptomyces sp. Org. Lett. 2010, 12, 5158–5161. [Google Scholar] [CrossRef] [PubMed]
  18. Von Salm, J.L.; Witowski, C.G.; Fleeman, R.M.; McClintock, J.B.; Amsler, C.D.; Shaw, L.N.; Baker, B.J. Darwinolide, a New Diterpene Scaffold That Inhibits Methicillin-Resistant Staphylococcus aureus Biofilm from the Antarctic Sponge Dendrilla membranosa. Org. Lett. 2016, 18, 2596–2599. [Google Scholar] [CrossRef]
  19. Suzuki, M.; Matsuo, Y.; Takeda, S.; Suzuki, T. Intricatetraol, a halogenated triterpene alcohol from the red alga Laurencia intricata. Phytochemistry 1993, 33, 651–656. [Google Scholar] [CrossRef]
  20. Schmiedeberg, O.; Koppe, R. Das Muscarin, das Giftige Alkaloid des Fliegenpilzes (Agaricus muscarius L.), seine Darstellung, Chemischen Eigenschaften, Physiologischen Wirkungen, Toxicologische Bedeutung und sein Verhältniss zur Pilzvergiftung im Allgemeinen [Muscarine, the Poisonous Alkaloid of the Fly Agaric (Agaricus muscarius L.), Its Preparation, Chemical Properties, Physiological Effects, Toxicological Importance, and Its Relation to Mushroom Poisoning in General]; Verlag von F.C.W. Vogel: Leipzig, Germany, 1869. [Google Scholar]
  21. Chan, T.H.; Li, C.J. A concise synthesis of (+)-muscarine. Can. J. Chem. 1992, 70, 2726–2729. [Google Scholar] [CrossRef]
  22. Jellinek, F. The structures of the chromium sulphides. Acta Cryst. 1957, 10, 277–280. [Google Scholar] [CrossRef]
  23. Frydenvang, K.A.; Jensen, B. Structure of Muscarine Chloride. Acta Cryst. C Struct. Commun. 1990, C46, 1279–1282. [Google Scholar] [CrossRef]
  24. Dinesh, C.A.; Muralikrishnan, D. (Eds.) Medicinal Mushrooms: Recent Progress in Research and Development; Springer: Singapore, 2019; ISBN 978-981-13-6381-8. ISBN 978-981-13-6382-5 (eBook). [Google Scholar] [CrossRef]
  25. Defant, A.; Mancini, I.; Matucci, R.; Bellucci, C.; Dosi, F.; Malferrari, D.; Fabbri, D. Muscarine-like compounds derived from a pyrolysis product of cellulose. Org. Biomol. Chem. 2015, 13, 6291–6298. [Google Scholar] [CrossRef] [PubMed]
  26. Sundelin, K.G.; Wiley, R.A.; Givens, R.S.; Rademacher, D.R. Synthesis and biological activity of some carbocyclic analogs of muscarine. J. Med. Chem. 1973, 16, 235–239. [Google Scholar] [CrossRef] [PubMed]
  27. Barlow, R.B. Chapter 7: III Postganglionic. In Introduction to Chemical Pharmacology, 2nd ed.; Wiley: New York, NY, USA, 1964. [Google Scholar]
  28. Triggle, D.J. Neutrotransmitter-Receptor Interactions; Academic Press: New York, NY, USA, 1971; 260p. [Google Scholar]
  29. Beckett, A.H.; Harper, N.J.; Clitherow, J.W. The importance of stereoisomerism in muscarinic activity. J. Pharm. Pharmacol. 1963, 15, 362–371. [Google Scholar] [CrossRef] [PubMed]
  30. Bhattacharya, A.K.; Ness, R.K.; Fletcher, H.G., Jr. 2-Deoxy-D-erythro-pentose. IX.1 Some Relationships among the Rotations of Aacylated Aldopentoses, Aldopentosyl Halides, and Anhydropentitols. J. Org. Chem 1963, 28, 428–435. [Google Scholar] [CrossRef]
  31. Sikora, K.; Szweda, P.; Słoczyńska, K.; Samaszko-Fiertek, J.; Madaj, J.; Liberek, B.; Pękala, E.; Dmochowska, B. Synthesis, Antimicrobial and Mutagenic Activity of a New Class of D-Xylopyranosides. Antibiotics 2023, 12, 888. [Google Scholar] [CrossRef] [PubMed]
  32. Allen, F.H.; Kennard, O.; Watson, D.G.; Brammer, L.; Orpen, A.G.; Taylor, R. Tables of Bond Lengths Determined by X-ray and Neutron Diffraction. Part 1. Bond Lengths in Organic Compounds. J. Chem. Soc. Perkin Trans. 1987, 2, S1–S19. [Google Scholar] [CrossRef]
  33. Mistry, B.D. ; A Handbook of Spectroscopic Data CHEMISTRY (UV, JR, PMR, JJCNMR and Mass Spectroscopy); Oxford Book Company: London, UK, 2009; ISBN 978-81-89473-86-0. [Google Scholar]
  34. Czugler, M.; Pintér, I. Sodium halide complexes of ribose derivatives and their unusual crystal structures. Carbohydr. Res. 2011, 346, 1610–1616. [Google Scholar] [CrossRef]
  35. Bednarczyk, D.; Walczewska, A.; Grzywacz, D.; Sikorski, A.; Liberek, B.; Myszka, H. Differently N-protected 3,4,6-tri-O-acetyl-2-amino-2-deoxy-d-glucopyranosyl chlorides and their application in the synthesis of diosgenyl 2-amino-2-deoxy-β-d-glucopyranoside. Carbohydr. Res. 2013, 367, 10–17. [Google Scholar] [CrossRef]
  36. Spek, A.L. Structure validation in chemical crystallography. Acta Cryst. D Struct. Biol. 2009, D65, 148–155. [Google Scholar] [CrossRef]
  37. Walczak, D.; Sikorski, A.; Grzywacz, D.; Nowacki, A.; Liberek, B. Identification of the furanose ring conformations and the factors driving their adoption. Carbohydr. Res. 2023, 526, 108780. [Google Scholar] [CrossRef] [PubMed]
  38. Evans, D.G.; Boeyens, J.C.A. Conformational analysis of ring pucker. Acta Cryst. B Struct. Sci. Cryst. Eng. Mater. 1989, B45, 581–590. [Google Scholar] [CrossRef]
  39. Cremer, D.; Pople, J.A. A General Definition of Ring Puckering Coordinates. J. Am. Chem. Soc. 1975, 97, 1354–1358. [Google Scholar] [CrossRef]
  40. Rao, S.T.; Westhof, E.; Sundaralingam, M. Exact method for the calculation of pseudorotation parameters P, τm and their errors. A comparison of the Altona–Sundaralingam and Cremer–Pople treatment of puckering of five-membered rings. Acta Cryst. A Found. Adv. 1981, A37, 421–425. [Google Scholar] [CrossRef]
  41. Altona, C.; Geise, H.J.; Romers, C. Conformation of non-aromatic ring Compounds-XXV. Geometry and conformation of ring D in some steroids from X-ray structure determinations. Tetrahedron 1968, 24, 13–32. [Google Scholar] [CrossRef]
  42. Sikorski, A.; Krzymiński, K.; Niziołek, A.; Błażejowski, J. 9-(2,6-Difluorophenoxycarbonyl)-10-methylacridinium trifluoromethanesulfonate and its precursor 2,6-difluorophenyl acridine-9-carboxylate: C–H…O, C–F…π, S–O…π and π–π stacking interactions. Acta Cryst. C Struct. Commun. 2005, C61, o690–o694. [Google Scholar] [CrossRef] [PubMed]
  43. Grecka, K.; Kuś, P.M.; Okińczyc, P.; Worobo, R.W.; Walkusz, J.; Szweda, P. The Anti-Staphylococcal Potential of Ethanolic Polish Propolis Extracts. Molecules 2019, 24, 1732. [Google Scholar] [CrossRef]
  44. Serra, E.; Hidalgo-Bastida, L.A.; Verran, J.; Williams, D.; Malic, S. Antifungal Activity of Commercial Essential Oils and Biocides against Candida albicans. Pathogens 2018, 7, 15. [Google Scholar] [CrossRef]
  45. Lopes, T.S.; Fussieger, C.; Theodoro, H.; Silveira, S.; Pauletti, G.F.; Ely, M.R.; Lunge, V.R.; Streck, A.F. Antimicrobial activity of essential oils against Staphylococcus aureus and Staphylococcus chromogenes isolated from bovine mastitis. Braz. J. Microbiol. 2023, 54, 2427–2435. [Google Scholar] [CrossRef]
  46. Pedroso, R.d.S.; Balbino, B.L.; Andrade, G.; Dias, M.C.P.S.; Alvarenga, T.A.; Pedroso, R.C.N.; Pimenta, L.P.; Lucarini, R.; Pauletti, P.M.; Januário, A.H.; et al. In Vitro and In Vivo Anti-Candida spp. Activity of Plant-Derived Products. Plants 2019, 8, 494. [Google Scholar] [CrossRef] [PubMed]
  47. Jeong, J.-Y.; Jung, I.-G.; Yum, S.-H.; Hwang, Y.-J. In Vitro Synergistic Inhibitory Effects of Plant Extract Combinations on Bacterial Growth of Methicillin-Resistant Staphylococcus aureus. Pharmaceuticals 2023, 16, 1491. [Google Scholar] [CrossRef] [PubMed]
  48. CrysAlis CCD and CrysAlis RED; Version 1.171.36.24; Oxford Diffraction Ltd.: Yarnton, UK, 2012.
  49. Sheldrick, G.M. Crystal structure refinement with SHELXL. Acta Cryst. C Struct. Commun. 2015, C71, 3–8. [Google Scholar] [CrossRef] [PubMed]
  50. Johnson, C.K. ORTEP II, Report ORNL-5138; Oak Ridge National Laboratory: Oak Ridge, TN, USA, 1976. [Google Scholar]
  51. Motherwell, S.; Clegg, S. PLUTO-78, Program for Drawing and Molecular Structure; University of Cambridge: Cambridge, UK, 1978. [Google Scholar]
  52. Macrae, C.F.; Bruno, I.J.; Chisholm, J.A.; Edgington, P.R.; McCabe, P.; Pidcock, E.; Rodriguez-Monge, L.; Taylor, R.; van de Streek, J.; Wood, P.A. Mercury CSD 2.0-New Features for the Visualization and Investigation of Crystal Structures. J. Appl. Crystallogr. 2008, 41, 466–470. [Google Scholar] [CrossRef]
Ijms 25 02368 g001

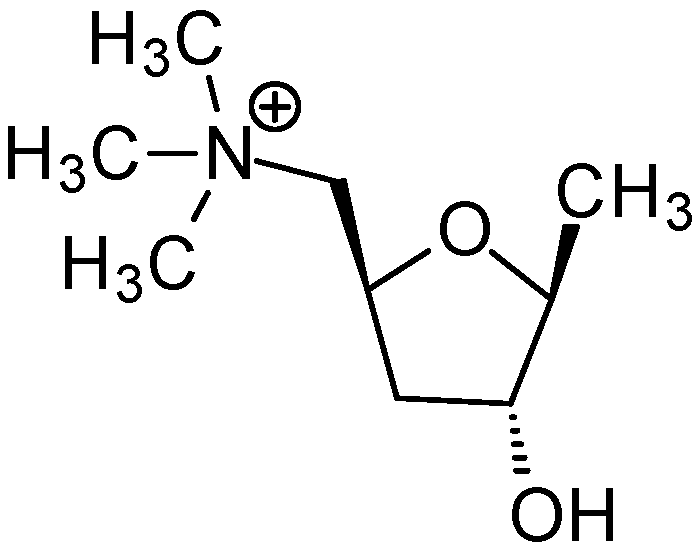

Figure 1. Muscarine [(2S,4R,5S)-4-hydroxy-5-methyloxolan-2-yl]methyl-trimethylazanium.
Figure 1. Muscarine [(2S,4R,5S)-4-hydroxy-5-methyloxolan-2-yl]methyl-trimethylazanium.
Ijms 25 02368 g001
Ijms 25 02368 g002

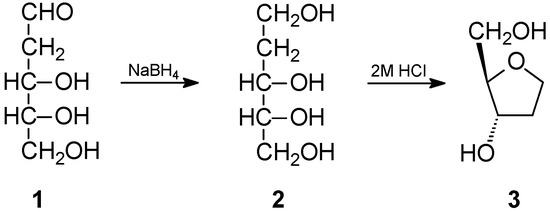

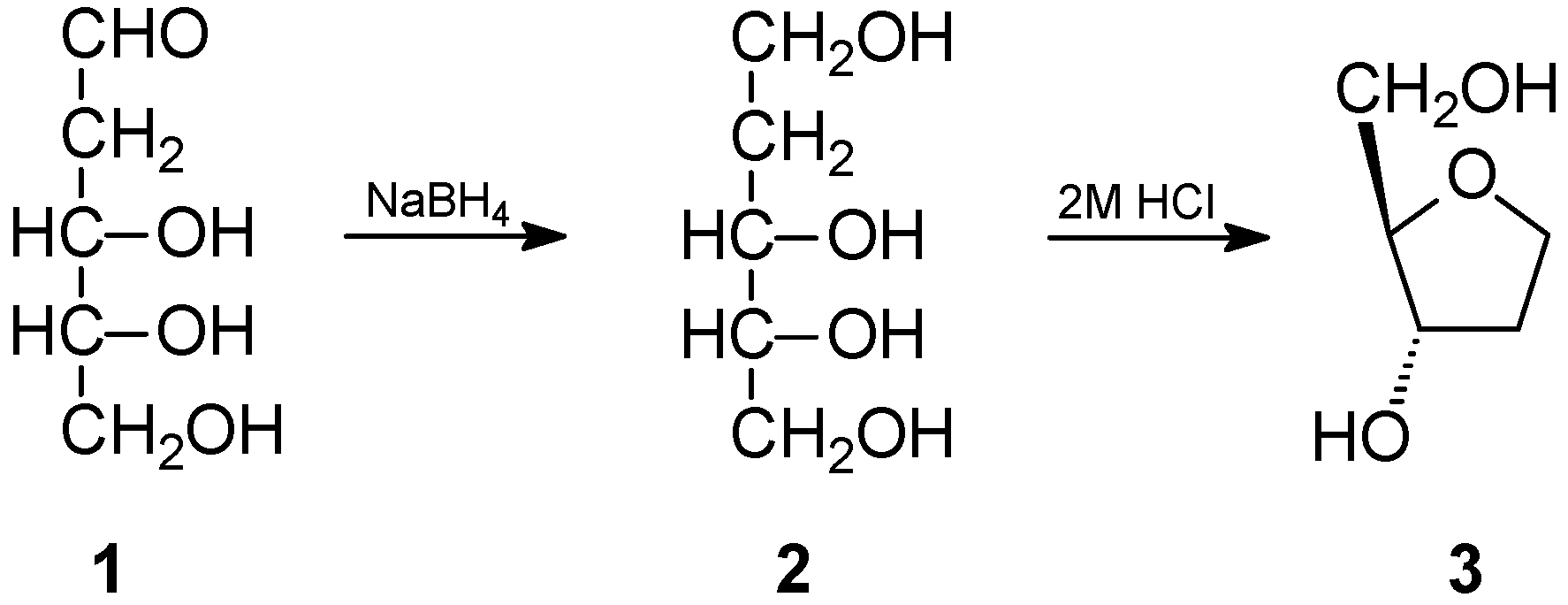

Figure 2. Scheme of obtaining the oxolane derivative (3) from 2-deoxy-D-ribose.
Figure 2. Scheme of obtaining the oxolane derivative (3) from 2-deoxy-D-ribose.
Ijms 25 02368 g002
Ijms 25 02368 g003
Figure 3. Scheme of the synthesis of quaternary ammonium salts of oxolane derivative.
Figure 3. Scheme of the synthesis of quaternary ammonium salts of oxolane derivative.
Ijms 25 02368 g003
Ijms 25 02368 g004
Figure 4. Molecular structure of compound 5e, showing the atom-labeling scheme. Displacement ellipsoids are drawn at the 25% probability level and H atoms are shown as small spheres of arbitrary radius (hydrogen bond are represented by dashed line).
Figure 4. Molecular structure of compound 5e, showing the atom-labeling scheme. Displacement ellipsoids are drawn at the 25% probability level and H atoms are shown as small spheres of arbitrary radius (hydrogen bond are represented by dashed line).
Ijms 25 02368 g004
Ijms 25 02368 g005
Figure 5. Crystal packing of compound 5e: (a) viewed along the a-axis and (b) viewed along the b-axis (hydrogen bonds are represented by dashed lines).
Figure 5. Crystal packing of compound 5e: (a) viewed along the a-axis and (b) viewed along the b-axis (hydrogen bonds are represented by dashed lines).
Ijms 25 02368 g005
Table 1. Appropriate reaction yields [%] for obtaining ammonium salts 5a–5h in the synthesis procedures used.
Table 1. Appropriate reaction yields [%] for obtaining ammonium salts 5a–5h in the synthesis procedures used.
ProductProcedure IAProcedure IBProcedure IIAProcedure IIB
With SolventNo Solvent
5a--89-
5b51707781
5c4481-80
5d-75-75
5e--86-
5f--75-
5g--79-
5h--64-
Table 2. Chemical shifts of the C-5 carbon atom in compounds 5a–5h. Shaded areas contain salts of aromatic amines.
Table 2. Chemical shifts of the C-5 carbon atom in compounds 5a–5h. Shaded areas contain salts of aromatic amines.
Compound5a5b5c5d5e5f5g5h
δ [ppm]67.6266.6066.4866.6262.8459.8759.2663.00
Table 3. M/z values of dominant ions in MALDI-TOF MS spectra [M-OTs] of compounds 5a-5h.
Table 3. M/z values of dominant ions in MALDI-TOF MS spectra [M-OTs] of compounds 5a-5h.
Compound5a5b5c5d5e5f5g5h
Molecular mass331.34401.38429.38457.40351.42365.23394.31401.27
m/z160.20230.24258.24286.26180.20194.09223.17230.13
Table 4. Crystal data and structure refinement parameters for compound 5e.
Table 4. Crystal data and structure refinement parameters for compound 5e.
Compound5e
Chemical formulaC10H14O2N+ ∙ C7H7SO3−
FW/g·mol−1351.41
Crystal systemOrthorhombic
Space groupC2221
a/Å9.645 (2)
b/Å14.500 (3)
c/Å26.270 (5)
α/°90
β/°90
γ/°90
V/Å33673.9 (13)
Z8
T/K291 (2)
λMo/Å0.71073
ρcalc/g·cm–31.271
F(000)1488
µ/mm−10.201
θ range/°3.102–25.002
Completeness θ/%99.5
Reflections collected6422
Reflections unique3178 [Rint = 0.0388]
Data/restraints/parameters3178/0/221
Goodness of fit on F20.864
Final R1 value (I > 2σ(I))0.0509
Final wR2 value (I > 2σ(I))0.1084
Final R1 value (all data)0.1130
Final wR2 value (all data)0.1211
Absolute structure parameter−0.07 (10)
CCDC number2325962
Table 5. Hydrogen bonding geometry for compound 5e.
Table 5. Hydrogen bonding geometry for compound 5e.
D–H···Ad(D-H) [Å]d(H···A) [Å]d(D⋯A) [Å]∠D–H⋯A (°)
O7–H7A···O221.04 (9)1.66 (9)2.696 (6)177 (12)
C6–H6B···O21 i0.972.413.328 (7)158
C9–H9A···O21 i0.932.443.293 (7)152
C10–H10A···O7 i0.932.563.293 (9)136
C11–H11A···O21 ii0.932.513.428 (7)169
C13–H13A···O23 iii0.932.343.257 (7)168
Symmetry code: (i) −1/2 + x,1/2 + y,z; (ii) x,1 + y,z; (iii) 1/2 + x,1/2 + y,z.
Table 6. S–O···π interactions geometry for compound 5e.
Table 6. S–O···π interactions geometry for compound 5e.
S–O···Cg *d(O···Cg) [Å]d(S⋯Cg) [Å]∠S–O⋯Cg [°]
S20–O22···Cg iv3.325 (5)4.168 (3)116.3 (2)
Symmetry code: (iv) 1/2 − x,−1/2 + y,1/2 − z.
* Cg denote the N8/C9/C10/C11/C12/C13 ring centroid.
Table 7. Antimicrobial activity of the synthesized compounds.
Table 7. Antimicrobial activity of the synthesized compounds.
Comp.MIC90 Values [µg/mL]
Gram-Negative BacteriaGram-Positive BacteriaPathogenic Yeasts from the Genus Candida spp.
E. coli ATCC 25922P. aeruginosa ATCC 27853S. aureus ATCC 25923S. aureus ATCC 29213C. albicans SC5314C. glabrata DSM 11226C. krusei DSM 6128C. parapsilosis DSM 5784
5a>512>512>512>512>512>512>512>512
5b>512>512>512>512>512>512>512>512
5c>512>512512512>512>512>512>512
5d1285126464128128128128
5e>512>512>512>512>512>512>512>512
5fND *ND *ND *ND *ND *ND *ND *ND *
5g>512>512>512>512>512>512>512>512
5h>512>512>512>512>512>512>512>512
FluconazoleNDNDNDND116642
Gentamicin10.50.1250.125NDNDNDND
ND *—antimicrobial activity was not determined because of low stability of this compound.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Bogdanowicz, P.; Madaj, J.; Szweda, P.; Sikorski, A.; Samaszko-Fiertek, J.; Dmochowska, B. Oxolane Ammonium Salts (Muscarine-Like)—Synthesis and Microbiological Activity. Int. J. Mol. Sci. 2024, 25, 2368. https://doi.org/10.3390/ijms25042368

AMA Style

Bogdanowicz P, Madaj J, Szweda P, Sikorski A, Samaszko-Fiertek J, Dmochowska B. Oxolane Ammonium Salts (Muscarine-Like)—Synthesis and Microbiological Activity. International Journal of Molecular Sciences. 2024; 25(4):2368. https://doi.org/10.3390/ijms25042368

Chicago/Turabian Style

Bogdanowicz, Patrycja, Janusz Madaj, Piotr Szweda, Artur Sikorski, Justyna Samaszko-Fiertek, and Barbara Dmochowska. 2024. "Oxolane Ammonium Salts (Muscarine-Like)—Synthesis and Microbiological Activity" International Journal of Molecular Sciences 25, no. 4: 2368. https://doi.org/10.3390/ijms25042368

APA Style

Bogdanowicz, P., Madaj, J., Szweda, P., Sikorski, A., Samaszko-Fiertek, J., & Dmochowska, B. (2024). Oxolane Ammonium Salts (Muscarine-Like)—Synthesis and Microbiological Activity. International Journal of Molecular Sciences, 25(4), 2368. https://doi.org/10.3390/ijms25042368

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
