Deep-Sea Ophiuroids (Echinodermata; Ophiuroidea) from the Avilés Canyon System: Seven New Records for the Spanish North Atlantic Marine Subdivision

by
Aurora Macías-Ramírez
†,
Laura M. García-Guillén
† and
M. Eugenia Manjón-Cabeza
*,†
Department of Animal Biology, University of Málaga, 29071 Málaga, Spain
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Diversity 2024, 16(7), 407; https://doi.org/10.3390/d16070407
Submission received: 17 June 2024 / Revised: 8 July 2024 / Accepted: 10 July 2024 / Published: 14 July 2024
(This article belongs to the Special Issue Deep-Sea Echinoderms of the European Seas)
Browse Figures
Versions Notes

Abstract

:
The Avilés Canyon System (ACS) is located in the southern Bay of Biscay (northern Spain, Cantabrian Sea). It has been declared a Site of Community Importance (SCI: C ESZZ12003) within the Natura 2000 Network and recognized as a Vulnerable Marine Ecosystem (VME). This area is included in the North Atlantic Marine Subdivision (NAMD). The present study reviews ophiuroid fauna collected during the INDEMARES–ACS project and compares the new findings with previous studies using the Official Spanish Checklist (“Inventario Español de Especies Marinas”) to update our knowledge on the diversity and distribution of these species. During the surveys carried out within the LIFE + INDEMARES–Avilés Canyon System project (2010–2012), a total of 7413 specimens belonging to 45 ophiuroid species were collected from 50 stations in a depth range between 266 and 2291 m. The most frequent species was Ophiactis abyssicola (M. Sars, 1861). Comparing the identified species with public datasets, seven species should be considered as new records for NAMD: Ophiocten centobi Paterson, Tyler & Gage, 1982, Amphiura borealis (G.O. Sars, 1872), Amphiura fragilis Verrill, 1885, Ophiochondrus armatus (Koehler, 1907), Ophiosabine parcita (Koehler, 1906), Ophiophrixus spinosus (Storm, 1881), Ophiotreta valenciennesi (Lyman, 1879). Furthermore, one species has expanded its bathymetric range: Ophiosabine parcita (Koehler, 1906).

1. Introduction

The Avilés Canyon System (ACS) (Figure 1a) (43.87° N and −6.10° W) begins on the continental slope of the southern edge of the Bay of Biscay in the Cantabrian Sea (Northeast Atlantic Ocean) and is part of the Spanish Exclusive Economic Zone (ZEE: [1]) and of the North Atlantic Marine Subdivision (NAMD) (Figure 1b) [2]. It is made up of three main canyons Avilés, El Corbiro and La Gaviera, with a total extension of 3390 km2 [1,3,4]. The ACS was declared by the Ministry of Agriculture, Food and Environment of Spain [5] (2014) a Site of Community Importance (SCI: C ESZZ12003) within the framework of the Natura 2000 Network [6,7] and recognized as a vulnerable marine ecosystem (VME: following the OSPAR Convention for the Protection of the Marine Environment of the Northeast Atlantic (https://www.ospar.org/convention/text, accessed on 9 January 2024) in whose communities and habitats echinoderms play a significant role.
The area is influenced by water masses of different origins: Eastern North Atlantic Central Water (ENACW), Labrador Sea Water (LSW), North Atlantic Deep Water (NAWD) (the deepest and coldest) and Mediterranean water (MW) that reaches the Bay of Biscay through the Strait of Gibraltar. In addition, the area also receives water from the Caribbean and the Gulf Stream (warm and shallow). Therefore, the marine species of the Cantabrian Sea could have different biogeographic origins [8].
Thanks to the geomorphology of the area and local currents, the study area is rich in nutrients at different depths [1]. This makes the ACS a favorable place for the settlement of benthic communities [1,9,10,11].
Previous taxonomic works on ophiuroids in this area were published by several authors in the late 19th and the 20th centuries. Their studies were carried out on the shelf at the limit of the slope, but rarely in the canyons: [12,13] (H.M.S. Challenger); [14,15,16] (Travailleur and Talisman); [17,18] (Caudan); [19,20,21,22,23] (Princesse Alice; and Hirondelle); [24] (Huxley); [25] (Michael Sars); [26] (Danish Ingolf Expedition); [27] (Thalassa); [28] (Noratlante); [29] (Hespérides 76); [30] (Biogas); and [31] (Cantábrico 83).
Recently, other expeditions have been undertaken with different approaches (fisheries, ecological and/or protected areas management), such as [32] (COCACE), [1] (LIFE + INDEMARES–ACS), and [33] (ECOMARG, LIFE + INDEMARES–ACS and SponGES), in which the Spanish Echinoderms Laboratory of the University of Málaga (SELUMA) has been involved, giving us the opportunity to study the ophiuroid communities at depths barely sampled before in the ACS.

2. Material and Methods

2.1. Sampling

LIFE + INDEMARES–ACS surveys consisted of five multidisciplinary surveys (2010–2012), aboard four different vessels (Vizconde de Eza, Thalassa, Ramon Margalef and Angeles Alvariño). This study includes ophiuroids collected at a total of 50 stations within a depth range between 266 m and 2291 m (from the beginning of the continental slope to the maximum depth sampled in the bathyal zone (Table 1, Figure 1a) using multiple kinds of equipment (Table 1).

2.2. Systematics

Ophiuroids were sorted and fixed in 70% ethanol, and their identification was based on morphological characters according to Koehler [34], Fell [35], D’yakonov [36], Matsumoto [37], Mortensen [38] and Paterson [39,40], among others. All taxon names were checked for relevance and synonymies based on the original descriptions. Ophiuroid classification was checked in the World Register of Marine Species (WoRMS, accessed on 9 January 2024), and AphiaIDs (urn:lsid:marinespecies.org:taxname) [41] were included in new records of species as a link to synonymies. For morphological notations, it followed Paterson [40].
New records were compared to the known distribution of species using the Official Spanish Checklist (IEEM: “Inventario Español de Especies Marinas”. Ophiuroidea: [42,43]) related to the NAMD and supported by other open-access databases: GBIF [44], Muséum National d’Histoire Naturelle [45] (accessed on 9 January 2024), OBIS [46] and the USNM Invertebrate Zoology Collection (Smithsonian National Museum of Natural History, [47] accessed on 9 January 2024).

3. Results

A total of 7413 specimens, which correspond to 45 species, were collected (see Table 2). The most abundant species (number of specimens) were Ophiocten affinis (Lütken, 1858) with 4092 specimens and Ophiothamnus affinis Ljungman, 1872 with a total of 1842 specimens. The most frequent one (occurrence by station in which the species is present) was Ophiactis abyssicola (M. Sars, 1861), present in 24 of 50 stations. Comparing our species with public databases (OBIS and GBIF accessed on 9 January 2024) and the bibliography, seven new records were found for the Cantabrian Sea (NAMD) of which one also expands its bathymetric range: Ophiosabine parcita (Koehler, 1906). Species diagnoses of new records are described below. Illustrations of historical distribution areas and new records at ACS are included in Figures beneath.
Order Ophiurida
Family Ophiuridae
 Ophiocten centobi  Paterson, Tyler & Gage, 1982
AphiaID: 124852
Material examined: 1 preserved specimen from station A410DR17.
Diagnostic characters: Disk round with centrodorsal and primary plates very large and conspicuous, separated by a thin row of small plates (Figure 2a). Twice broader than long radial shields, contiguous (Figure 2e). Arm comb with stout, pointed and continuous papillae over the arm base (Figure 2e). Large plates in the ventral interradial area (Figure 2b). Slightly arched, fan shaped and contiguous dorsal arm plates (without spinelets on the distal edge) (Figure 2f). Separated ventral arm plates with distal rounded edge and acute proximally (Figure 2g). Up to 3 tentacle scales proximally, decreasing distally. Three-pointed arm spines (the dorsalmost is the longest) (Figure 2h). One pointed oral papilla, from 3 to 4 oral papillae (pointed proximally and block-like distally). Pentagonal oral shield with rounded distal edge (sometimes with sightly lateral projections) (Figure 2d). Conspicuous genital slit wholly lined by a row of stout and pointed papillae (Figure 2c).
Distribution: North Atlantic Ocean, Mid-Atlantic Ridge, north of the Bay of Biscay, off the coast of New York (Figure 3I).
Bathymetric range: 400 m [48]–2837 m (Stöhr, S. (MNHN) [45]). Present study: 1476 m.
Remarks: Of the 5 Ophiocten species present in the NAMD (Figure 2a–t; Figure 3a–d), O. centobi is distinguished from O. hastatum because the latter does not have a developed arm comb (Figure 2m) and due to the very short oral shield (not reaching the first arm vertebra) (Figure 2j); from O. affinis due to the length and shape of the arm comb papillae, short, thick and contiguous in O. centobi (Figure 2e) and long, spiniform and with a double comb in O. affinis (Figure 2s). Furthermore, the oral shield of O. affinis is much longer than the oral shield of the rest of the species (Figure 2p). Ophiocten centobi can be clearly distinguished from Ophiocten sericeum (Forbes, 1852) by the size of the disk plates, larger in O. centobi (Figure 2a) and very small in O. sericeum (Figure 3d), and the presence of papillae on the dorsal proximal plates of the arm of O. sericeum (Figure 3d). Finally, it can be distinguished from Ophiocten abyssicolum (Forbes, 1843) because its dorsal plates are strongly arched, rectangular and much wider than long; in addition, the first plate may have papillae (Figure 3b), while in O. centobi they are fan-shaped and may be slightly arched (Figure 2f).
Order Amphilepidida
Family Amphiuridae
 Amphiura borealis  (G.O. Sars, 1872)
AphiaID: 125071
Material examined: 4 preserved specimens from stations A11T5, A710DR10.
Diagnostic characters: Rounded to subpentagonal disk covered with small scales (naked ventrally), centrodorsal and primary plates inconspicuous. Radial shields three times longer than broad and contiguous only distally (Figure 4a). Block-shaped to conical infradental papillae, first tentacle pore in the mouth slit with a spiniform tentacle scale (Figure 4b). Two small and block-like oral papillae. Adoral shields wing-shaped and separating oral shield from first ventral arm plate (sometimes obscured by skin). Rounded triangular oral shield (Figure 4c). Rounded dorsal arm plates, almost contiguous (Figure 4d). Hexagonal to rectangular ventral arm plates, contiguous (Figure 4b). Large tentacle pores with no tentacle scales (Figure 4e). Four arm spines proximally (Figure 4f), the second ventralmost, flattened with an axe-shaped tip (Figure 4e,f).
Distribution: North Atlantic Ocean, Norway, Faroe Islands, Iceland (Figure 4I).
Bathymetric range: 99 m [48]–878 m (Swedish Museum of Natural History (NRM) Stöhr, S) [48]. Present study: 342 m–538 m.
Remarks: see below in Amphiura fragilis remarks
 Amphiura fragilis  Verrill, 1885
AphiaID: 125081
Material examined: 1 preserved specimen from station A710V02.
Diagnostic characters: Rounded pentagonal disk, covered by plates. Centrodorsal and primary plates visible in small individuals. Naked ventral area (Figure 4l). Radial shields three times as long as wide and separated (Figure 4g). Dorsal arm plates rounded to hexagonal, not contiguous (Figure 4j). Hexagonal/pentagonal ventral arm plates, contiguous (Figure 4h). Large tentacle pores, with no tentacle scales (Figure 4h). It has 6 to 7 arm spines (4 distally), rough, with serrated and/or hooked ends (Figure 4k). Two infradental papillae, conical (in small individuals) and cubic (in large ones); small, spiny, or scale-shaped oral papilla. Adoral shields wing-shaped. Rounded triangular oral shield, sometimes with a small distal lobe (Figure 4i).
Distribution: North Atlantic Ocean, east coast of USA, Labrador Sea, Iceland, Faroe Islands, north of British Isles (Figure 4I).
Bathymetric range: 23 m [48]–2683 m [49]. Present study: 401 m.
Remarks A. fragilis versus A. borealis: Of the 10 species of Amphiura previously cited in the NAMD (Figure 5I and Figure 6II), 3 of them have been found at the sampled stations (Figure 1a, Table 1 and Table 2) and another 2, Amphiura chiajei Forbes, 1843 (Figure 6a–e) and Amphiura otteri Ljungman, 1872 (Figure 6f–k), in nearby areas not included in this study. Both A. fragilis and A. borealis lack tentacle scales in the tentacle pores of the arm (Figure 4b,h) and share this character with the species Amphiura abyssorum Norman in Jeffreys, 1876 and Amphiura filiformis (O.F. Müller, 1776). The rest of the species have 1 tentacle scale (A. grandisquama (Figure 5d)) or 2 (Figure 5i,n and Figure 6c,i). Of those 4 species without tentacle scales, A. abyssorum has simple arm spines and the other 3 have modified arm spines. In the case of A. fragilis, it has spines that are rough or have serrated edges (Figure 4k), while in A. borealis and A. filiformis we found 1 or more than 1 (in the case of A. filiformis), flattened, rough spines with a hyaline, axe-shaped distal end (Figure 4e,f). Note: all the specimens identified as A. borealis have 6 arm spines (Figure 4f), which differs from the original description, but the rest of the characteristics conform to it.
Diversity 16 00407 g004
Figure 4.  Amphiura borealis: (ID: 125071) (a) Dorsal view of the disk. *: Radial shields. Scale bar: 1 mm. (b) Ventral view of the disk. *: Ventral arm plate. Arrowhead: Absent tentacle scales. Scale bar: 1 mm. (c) Jaw. Scale bar: 0.25 mm. (d) Dorsal arm plates. Scale bar: 0.25 mm. (e) Modified axe-shaped arm spine. Scale bar: 0.25 mm. (f) Arm spines. Scale bar 0.25 mm.  Amphiura fragilis: (ID: 125081) (g) Dorsal view of the disk. *: Radial shields. Scale bar: 1 mm. (h) Ventral view of the disk. *: Ventral arm plate. Arrowhead: Absent tentacle scales. Scale bar: 1 mm. (i) Jaw. Scale bar: 0.25 mm. (j) Dorsal arm plates. Scale bar: 0.25 mm. (k) Rugose arm spines. Scale bar: 0.25 mm. (l) Interradial ventral triangle. Scale bar 0.25 mm. (I) Species distribution map.
Figure 4.  Amphiura borealis: (ID: 125071) (a) Dorsal view of the disk. *: Radial shields. Scale bar: 1 mm. (b) Ventral view of the disk. *: Ventral arm plate. Arrowhead: Absent tentacle scales. Scale bar: 1 mm. (c) Jaw. Scale bar: 0.25 mm. (d) Dorsal arm plates. Scale bar: 0.25 mm. (e) Modified axe-shaped arm spine. Scale bar: 0.25 mm. (f) Arm spines. Scale bar 0.25 mm.  Amphiura fragilis: (ID: 125081) (g) Dorsal view of the disk. *: Radial shields. Scale bar: 1 mm. (h) Ventral view of the disk. *: Ventral arm plate. Arrowhead: Absent tentacle scales. Scale bar: 1 mm. (i) Jaw. Scale bar: 0.25 mm. (j) Dorsal arm plates. Scale bar: 0.25 mm. (k) Rugose arm spines. Scale bar: 0.25 mm. (l) Interradial ventral triangle. Scale bar 0.25 mm. (I) Species distribution map.
Diversity 16 00407 g004
Order Ophiacanthida
Family Ophiacanthidae
 Ophiochondrus armatus  (Koehler, 1907)
AphiaID: 125016
Material examined: 15 preserved specimens from stations A11DR5, A410DR8, A412ROV6.
Diagnostic characters: Rounded disk, excavated in the interradial area, covered with small plates, each carrying a short, thick and rugose-tipped spinelet on the dorsal side (Figure 7a). Protrusive radial shields rib-shaped, long and narrow and more evident at the edges (Figure 7b). Wide genital slits (Figure 7d). One thick apical papilla flanked by 3–4 thin, conical and pointed oral papillae. Small rounded/triangular oral shield, broader than long. Large, thick and short adoral shield (Figure 7f). Contiguous dorsal arm plates divided by a transversal furrow, small and square proximal portion and fan-shaped and large distal one (Figure 7c). First ventral arm plates longer than broad and hexagonal, next ones slightly pentagonal, longer than broad and contiguous, without tentacle scales in tentacle pores (Figure 7e). Five short arm spines, the dorsalmost with the greater length (Figure 7g).
Distribution: North Atlantic Ocean, Florida, Azores (Figure 7I).
Bathymetric range: 230 m [48]–1250 m [21]. Present study: 844 m–1161 m.
Remarks: Ophiochondrus armatus is easily distinguished from the other species of the genus by the dorsal arm plates, divided transversely in the case of O. armatus (Figure 7c) and simple in the rest of the species (Figure 7II). Paterson [40] also found a similarity with the species Ophiolebes retecta (Koehler, 1895) since they share the characteristic of transversely divided dorsal arm plates and a similar jaw and radial shields. But the ornamentation of the disk in O. retecta comprises low granules, while in O. armatus it comprises spinelets with a rugose tip. Furthermore, the dorsal arm plates of O. armatus are contiguous, and in O. retecta they are separated. Note: Ophiochondrus armatus specimens found have up to 7 arm spines (Figure 7g) instead of the 5 arm spines described above.  Ophiosabine parcita (Koehler, 1906)
AphiaID: 1574975
Material examined: 10 preserved specimens from station A410DR17.
Diagnostic characters: Round disk covered by simple spinelets (Figure 8w) with a multipointed crown (up to 8 points) (Figure 8z2). Visible radial shields in some specimens. Ventral interradial areas also with spinelets (Figure 8x). One pointed apical papilla flanked by 3 oral papillae, the distalmost enlarged. Distinct oral shield with a rounded proximal edge and a convex distal one, rounded with a slight projection (Figure 8z3). Wide and slightly flattened arms. Triangular dorsal arm plates and almost contiguous proximally (Figure 8z1). Short pentagonal ventral arm plates, contiguous proximally (Figure 8y, *). Lateral and ventral arm plates with transverse ridges. One rounded flat tentacle scale in each tentacle pore. Up to 10 arm spines, short and slightly rugose (Figure 8z).
Distribution: North Atlantic Ocean, Cape Verde, near Faroe Islands (Figure 8I).
Bathymetric range: 615 m [15]–749 m [50]. Present study: 1476 m.
Remarks: We have found 4 species of Ophiosabine (Figure 8a–z3). Of these 4, including both O. notata (Figure 8t) and O. parcita (Figure 8y), have striations on the ventral and lateral plates of the arm. But they differ in the shape of the disk spinelets, with a wider crown and more points (Figure 8u1,u2) in the case of O. notata, compared to O. parcita (Figure 8z2) with a narrower crown and up to 8 points. They also differ in the shape of the oral shield, with a proximal obtuse edge and a convex distal edge in the case of O. notata (Figure 8v) and rounded proximally with a distal projection in the case of O. parcita (Figure 8z3). Furthermore, the adoral shields in O. parcita are short and almost form a right angle between them and the oral shield (Figure 8z3), while in O. notata they have a slight wing shape and a pointed distal end (Figure 8v).
Diversity 16 00407 g007
Figure 7.  Ophiochondrus armatus: (ID: 1574975) (a) Dorsal view of the disk. Scale bar: 1.5 mm. (b) Radial shields. Scale bar: 0.75 mm. (c) Dorsal arm plates. Scale bar: 0.5 mm. (d) Ventral view of the disk. Scale bar: 2 mm. (e) Ventral view of the arm. Scale bar: 0. 5 mm. (f) Jaw. Scale bar: 0.5 mm. (g) Arm spines. Scale bar 0.5 mm. (I) Species distribution map. (II) Dorsal arm plates of Ophiochondrus crassispinus Lyman, 1883. (Adapted and modified from Lyman [51]).
Figure 7.  Ophiochondrus armatus: (ID: 1574975) (a) Dorsal view of the disk. Scale bar: 1.5 mm. (b) Radial shields. Scale bar: 0.75 mm. (c) Dorsal arm plates. Scale bar: 0.5 mm. (d) Ventral view of the disk. Scale bar: 2 mm. (e) Ventral view of the arm. Scale bar: 0. 5 mm. (f) Jaw. Scale bar: 0.5 mm. (g) Arm spines. Scale bar 0.5 mm. (I) Species distribution map. (II) Dorsal arm plates of Ophiochondrus crassispinus Lyman, 1883. (Adapted and modified from Lyman [51]).
Diversity 16 00407 g007
Diversity 16 00407 g008
Figure 8.  Ophiosabine aristata: (ID: 1574968) (a) Dorsal view of the disk. Scale bar: 1 mm. (b) Ventral view of the disk. Scale bar: 1 mm. (c) Jaw. Scale bar: 0.25 mm. (d) Ventral view of the arm. Scale bar: 0.25 mm. (e) Arm spines. Scale bar 0.1 mm. (f) Disk ornament spinelets. Scale bar: 0.1 mm. (g) Tentacle scale. Scale bar: 0.2 mm. (h) Dorsal arm plates. Scale bar: 0.25 mm.  Ophiosabine cuspidata: (ID: 1574970) (i) Dorsal view of the disk. Scale bar: 2 mm. (j) Ventral view of the disk. Scale bar: 2 mm. (k) Disk ornament spinelets. Scale bar: 0.15 mm. (l) Ventral arm view. *: Ventral arm plate. Arrowhead: Tentacle scales. Scale bar 0.25 mm. (m) Dorsal arm plates. Scale bar: 0.5 mm. (n) Arm spines. Scale bar: 0.25 mm. (o) Jaw. Scale bar: 0.25 mm.  Ophiosabine notata: (ID: 1574974) (p) Dorsal view of the disk. Scale bar: 1.5 mm. (q) Ventral view of the disk. Scale bar: 1.5 mm. (r) Dorsal arm plates. Scale bar: 0.12 mm. (s) Arm spines. Scale bar 0.5 mm. (t) Ventral arm view. *: Ventral arm plate. Arrowhead: Tentacle scales. Scale bar: 0.12 mm. (u1) Disk ornament spinelets. Scale bar: 0.1 mm. (u2) Cenital view of the disk spinelets. Scale bar: 0.1 mm. (v) Jaw. Scale bar: 0.5 mm.  Ophiosabine parcita: (ID: 1574975) (w) Dorsal view of the disk. Scale bar: 1 mm. (x) Ventral view of the disk. Scale bar: 1 mm. (y) Ventral arm view. *: Ventral arm plate. Arrowhead: Tentacle scales. Scale bar: 0.25 mm. (z) Arm spines. Scale bar: 0.5 mm. (z1) Dorsal arm plates. Scale bar: 0.25 mm. (z2) Disk ornament spinelets. Scale bar: 0.1 mm. (z3) Jaw. Scale bar: 0.2 mm. (I) Species distribution map.
Figure 8.  Ophiosabine aristata: (ID: 1574968) (a) Dorsal view of the disk. Scale bar: 1 mm. (b) Ventral view of the disk. Scale bar: 1 mm. (c) Jaw. Scale bar: 0.25 mm. (d) Ventral view of the arm. Scale bar: 0.25 mm. (e) Arm spines. Scale bar 0.1 mm. (f) Disk ornament spinelets. Scale bar: 0.1 mm. (g) Tentacle scale. Scale bar: 0.2 mm. (h) Dorsal arm plates. Scale bar: 0.25 mm.  Ophiosabine cuspidata: (ID: 1574970) (i) Dorsal view of the disk. Scale bar: 2 mm. (j) Ventral view of the disk. Scale bar: 2 mm. (k) Disk ornament spinelets. Scale bar: 0.15 mm. (l) Ventral arm view. *: Ventral arm plate. Arrowhead: Tentacle scales. Scale bar 0.25 mm. (m) Dorsal arm plates. Scale bar: 0.5 mm. (n) Arm spines. Scale bar: 0.25 mm. (o) Jaw. Scale bar: 0.25 mm.  Ophiosabine notata: (ID: 1574974) (p) Dorsal view of the disk. Scale bar: 1.5 mm. (q) Ventral view of the disk. Scale bar: 1.5 mm. (r) Dorsal arm plates. Scale bar: 0.12 mm. (s) Arm spines. Scale bar 0.5 mm. (t) Ventral arm view. *: Ventral arm plate. Arrowhead: Tentacle scales. Scale bar: 0.12 mm. (u1) Disk ornament spinelets. Scale bar: 0.1 mm. (u2) Cenital view of the disk spinelets. Scale bar: 0.1 mm. (v) Jaw. Scale bar: 0.5 mm.  Ophiosabine parcita: (ID: 1574975) (w) Dorsal view of the disk. Scale bar: 1 mm. (x) Ventral view of the disk. Scale bar: 1 mm. (y) Ventral arm view. *: Ventral arm plate. Arrowhead: Tentacle scales. Scale bar: 0.25 mm. (z) Arm spines. Scale bar: 0.5 mm. (z1) Dorsal arm plates. Scale bar: 0.25 mm. (z2) Disk ornament spinelets. Scale bar: 0.1 mm. (z3) Jaw. Scale bar: 0.2 mm. (I) Species distribution map.
Diversity 16 00407 g008
Family Ophiobyrsidae
Ophiophrixus spinosus (Storm, 1881)
AphiaID: 125146
Material examined: 1 preserved specimen from station A410DR8.
Diagnostic characters: Rounded, raised disk covered by thick skin (Figure 9a,b), with small spines scattered on plates (Figure 9a). Short radial shields bar-shaped and covered by a row of well-developed spines along their entire length (Figure 9c). Jaws covered by skin, up to 3 apical papillae, flanked by 3 lower oral papillae. The second pore emerges in the mouth without associated scales. Rhombic/rounded oral shield (Figure 9d). Arms covered by skin, 2 oval dorsal arm plates (Figure 9e), pentagonal/rounded ventral arm plates Very large tentacle pores without scales (Figure 9f). Five rough arm spines covered by skin (Figure 9g).
Distribution: North Atlantic Ocean, British Isles, Faroe Islands, Iceland, off the coast of Morocco (Figure 9I).
Bathymetric range: 377 m [50]–1405 [48]. Present study: 844 m.
Remarks: Ophiophrixus spinosus species is easily distinguished from the rest by its thick skin with scattered plates and spines covering the disk (Figure 9a,b), the radial shields with a row of spines (Figure 9c) and its characteristic dorsal arm plates, divided longitudinally by a groove along the entire arm into 2 small oval plates (Figure 9e). For example, in the case of the species Ophiophrixus quadrispinosus (Koehler, 1914), also present in the North Atlantic, there are no spines on the disk or on the radial shields, and it does not have dorsal arm plates, only a slightly calcified integument.
Family Ophiotomidae
 Ophiotreta valenciennesi (Lyman, 1879)
AphiaID: 244220
Material examined: 1 preserved specimen from station A11DR7.
Diagnostic characters: Round disk, wholly covered by rugose low granules dorsally (Figure 10a) and in the ventral interradial areas (Figure 10b). Only radial shield tips visible. One or 2 apical papillae flanked each side by up to 6 pointed to scale-like papillae. Slightly wing-shaped adoral shields. Large and rounded arrow-shaped oral shield (Figure 10c). Contiguous and bell-shaped dorsal arm plates (sometimes with a distal lobe with small spines on the edge) (Figure 10d). Almost pentagonal ventral arm plates wider than long. Large tentacle pores armed with 2 scale-like and flat tentacle scales (1st tentacle pores sometimes with 3 tentacle scales) (Figure 10e). Seven to eight flattened, finely rugose and square-tipped arm spines, not forming a fan in proximal segments (Figure 10f).
Distribution: Gulf of Mexico, Caribbean Sea, northwest Africa, New Caledonia, Japan, Taiwan, Philippines, Indonesia, New Zealand, Galapagos Islands, Hawaii, Mediterranean Sea [52] (Figure 10I).
Bathymetric range: 22 m [48]–1901 m [53]. Present study: 551 m.
Remarks: Ophiotreta valenciennesi can be distinguished from the other species of Ophiotreta present in the Bay of Biscay, Ophiotreta spectabilis (G.O. Sars, 1872) (Figure 10g–l), by the ornamentation of the disk, being low granules in O. valenciennesi (Figure 10a) and elongated and rough rods with a narrow 3-pointed crown (Figure 10g). They also differ in the dorsal arm plates, separated in O. spectabilis (Figure 10j) and contiguous (sometimes with granules at the distal end) in O. valenciennesi (Figure 8d). In O. spectabilis the oral shield is rounded pentagonal/oval with short spinelets or granules on the distal edge (Figure 10i), while in O. valenciennesi it is arrow-shaped (sometimes rounded) (Figure 10c).

4. Discussion

Despite the scarcity of studies on ophiuroids from Spanish waters, some ophiuroid checklists are available. The most important one is that of the IEEM (Ophiuroidea [42,43]). This checklist was compiled based on the creation of a series of geographic polygons that delimited the Spanish waters, and among them NAMD was defined, where the ACS is located (Figure 1b). This checklist is considered as a great effort toward making a complete list which includes all records of species collected in the area from different surveys (own data or campaign reports) and records from bibliographic references, among other resources. Many of these records are not ratified by specialists, which makes it more difficult to analyze their reliability. However, this is the first attempt at building a showcase for Spanish marine diversity studies, and therefore it should be extensively revised and improved. In the near future, thirteen species should be add to the IEEM as result of the records from the bibliography and a deep dataset review at the study area: Amphiophiura bullata, Stegophiura macrarthra, Ophiocten centobi, Amphiura borealis, Amphiura fragilis, Ophiacantha crassidens, Ophiochondrus armatus, Ophiolimna bairdi, Ophiosabine cuspidata, Ophiosabine parcita, Ophiophrixus spinosus, Ophiotreta valenciennesi and Ophiolycus purpureus. Moreover, seven more species could be included as new records for the NAMD (based on the present study): Ophiocten centobi, Amphiura borealis, Amphiura fragilis, Ophiosabine parcita, Ophiochondrus armatus, Ophiophrixus spinosus and Ophiotreta valenciennesi. Although these last three were already cited in a previous publication [33], the morphological and bathymetric details were not included, nor was a comparison of the taxonomic characteristics with those of very similar species conducted to rule out a misidentification.
Although there are some species of the genus Ophiocten present all around the area (Figure 2), such as O. hastatum, O. affinis and O. sericeum, O. centobi had not been collected within the Bay of Biscay; it was recorded just within the limit in deep bottoms (Figure 3I). This species typically lives in deeper bottoms than those sampled before in the area, and the study of the canyons enabled us to find it.
Ten species of the genus Amphiura have been recorded in NAMD (see Figure 4, Figure 5 and Figure 6); among them, only two lack tentacle scales (like the new records A. borealis and A. fragilis (Figure 4)): A. abyssorum and A. filiformis. These four species could be identified by paying attention to the arm spine shape (see remarks above), although all the specimens identified as A. borealis have 6 arm spines (Figure 4f). We do not think this difference from the original description is enough to describe a new species; however, we try to describe this variability present in the four specimens from ACS as well as in 4 specimens sampled by other surveys and projects in nearby areas, which will be included in future papers. On the other hand, the O. borealis distribution area is almost Arctic-circumpolar, which makes us think our specimens could be assigned to O. filiformis (with a wider distribution area) (Figure 6II), taking into account the variability in the number of arm spines (5–7), but all specimens meet the O. borealis description, and they only have one axe-shaped arm spine per segment.
The closest records of Ophiochondrus armatus to the study area are in British waters (Mortensen, 1927) and the mid-Atlantic [22], but Mortensen [38] already noted that these records could not be the same species. The problem lies mainly with respect to two characteristics: divided dorsal arm plates and disk ornament. Divided dorsal arm plates are a character shared with Ophiolebes retecta, a species also distributed in our study area, and this may lead to misidentifications. Our specimens were identified on the basis of disk spines—in O. rectecta, these ornaments are described as granules—and divided and contiguous dorsal arm plates (Figure 7).
The most common species of the genus Ophiosabine in our area is O. aristata, followed by O. notata. The distribution range of O. parcita is outside of the Bay of Biscay and quite restricted. It has only two records: one in the north of British waters and another in the mid South Atlantic Ocean. Although O. notata and O. parcita have striations on the ventral and lateral plates of the arm, these three species are easy to separate based on two constant characteristics: the shape of the disk spinelets (Figure 8u1,u2) and the shape of the oral shield (Figure 8v,z3). Despite the differences in morphology that could be identified, the number of specimens recorded (10 specimens, and more in other projects on the Galicia Bank: 4 specimens) and the adjustment of its morphology to the original description [15], maybe O. parcita has been confused with O. aristata, which is the most frequent species in the area.
Ophiophrixus is a genus which only contains four species, O. acanthinus H.L. Clark, 1911, and O. confinis Koehler, 1922 (Pacific Ocean distribution), and two Atlantic species (Figure 9), O. quadrispinosus and O. spinosus. Although these last species present similar morphologies, our specimen has spines on the disk and on the radial shields and conspicuous dorsal plates, so it was identified as O. spinosus. Nevertheless, O. spinosus is not a very frequent species; it has mostly been found in North Atlantic/circumpolar Arctic waters, although there is a record off Morocco. This is the first record from the Bay of Biscay.
Finally, Ophiotreta spectabilis seems to prefer colder waters than O. valenciennesi (see distribution map in Figure 10); however, O’Hara et al. [54] have described the presence of O. spectabilis in Solenosmilia Duncan, 1873 corals, and so it is typically found deeper than O. valenciennesi, at least in the distribution area (from the North Atlantic all the way to Australia) following Victorero et al. [48]. In any case, a detailed study of the dorsal plates and oral shield among other characters lead us to identify this specimen as O. valenciennesi, and report it as a new record.

Author Contributions

A.M.-R.: writing, review and editing, writing original draft, visualization, software, resources, methodology, investigation, formal analysis, data curation, and conceptualization. L.M.G.-G.: writing, review and editing, writing original draft, visualization, resources, methodology, investigation, formal analysis, data curation, and conceptualization. M.E.M.-C.: writing review and editing, writing original draft, validation, supervision, software, resources, methodology, investigation, funding acquisition, formal analysis, data curation, and conceptualization. All authors have read and agreed to the published version of the manuscript.

Funding

This research has been conducted within the LIFE + INDEMARES ACS project coordinated by the Biodiversity Foundation of the Ministry Agriculture, Food and Environment, the European Union’s LIFE program, and also the Spanish Ministry of Environment through a management agreement with the Spanish Institute of Oceanography (IEO) and the University of Málaga. We want to recognize the efforts of Francisco Sánchez and Alberto Serrano to provide the means of funding this study through the Transferring Office of the University of Málaga under contract no. 2013/0032460–80625/47.6006. The APC was funded by University of Málaga (Avd. Cervantes, 2, 29071, Málaga).

Data Availability Statement

The data presented in this study are available on request from the corresponding author due to privacy.

Acknowledgments

We would like to thank Pilar Ríos and Javier Cristobo for all their support throughout the development of this work, as well as the work done on different campaigns.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Sánchez-Delgado, F.; Gómez-Ballesteros, M.; Parra-Descalzo, S.; Cristobo, J.; Serrano, A.; Druet-Vélez, M.; Rivera, J. Caracterización Ecológica del Área Marina del Sistema de Cañones Submarinos de Avilés. Inventario y Designación de la Red Natura 2000 en Áreas Marinas del Estado Español; Sede Central IEO; Instituto Español de Oceanografía, Coordinación: Fundación: Biodiversidad, Madrid, Spain, 2014. [Google Scholar]
  2. Lavín, A.; Valdés, L.; Sánchez, F.; Abaunza, P.; Punzón, A.; Bellas, J.; Parra, S.; Lens, S.; Besada, V.; Viñas, L.; et al. Estrategia Marina: Demarcación Marina Noratlántica, Parte I. Marco General, Evaluación Inicial y Buen Estado Ambiental; Ministerio de Agricultura, Alimentación y Medio Ambiente: Madrid, Spain, 2012. [Google Scholar]
  3. Cristobo, J.; Ríos, P.; Sánchez, F.; Pereiro-Muñoz, J.A.; Polonio-Povedano, V.; González, D.; Parra-Descalzo, S. Diversity of Sponges in Bathial Coral Reefs of a Subsidiary Canyon of Aviles Canyon Complex (Cantabric Sea); Oceanographic Center: Gijón, Spain, 2010. [Google Scholar]
  4. Orejas, C.; Sánchez, F.; Serrano, A.; Aguilar, R.; Cristobo, J.; Altuna, A.; González-Pola, C.; Ruiz-Villarreal, M.; Río, G.; Druet, M.; et al. El Cañón Submarino de Avilés: Una Primera Aproximación a sus Características físicas ya Sus comunidades Bentónicas. In XVI Simposio Ibérico de Estudios de Biología Marina; MITECO: Alicante, Spain, 2010; pp. 6–10. [Google Scholar]
  5. Ministry of Agriculture, Food and Environment. BOE Orden. 2280/2014, de 1 de Diciembre, por la Que se Aprueba la Propuesta de Inclusión en la Lista de Lugares de Importancia Comunitaria de la Red Natura 2000 de los Espacios Marinos ESZZ12003 Sistema de Cañones Submarinos de Avilés, ESZZ16003 Sur de Almería-Seco de los Olivos, ESZZ16005 Espacio Marino de Alborán, ESZZ16004 Espacio Marino de Illes Columbretes y ESZZ15001 Banco de la Concepción; Ministry of Agriculture, Food and Environment: Madrid, Spain, 2014. [Google Scholar]
  6. Ministry of Agriculture, Food and Environment. BOE-A-2017-2401. Resolución de 17 de Febrero de 2017, de la Secretaría de Estado de Medio Ambiente, por la que se Establecen Tres Listas Patrón: La de las Especies Terrestres, la de las Especies Marinas y la de los Hábitats Terrestres, Presentes en España; Ministry of Agriculture, Fisheries, Food and Environment: Madrid, Spain, 2017. [Google Scholar]
  7. Ministry for the Ecological Transition and the Demographic Challenge. BOE-A-2020-16499. Resolución de 3 de Diciembre de 2020, de la Secretaría de Estado de Medio Ambiente, por la que se Revisa y Amplía la Lista Patrón de las Especies Silvestres Presentes en España; Ministry for the Ecological Transition and the Demographic Challenge: Madrid, Spain, 2020. [Google Scholar]
  8. Arias, A.; Crocetta, F. Umbraculum umbraculum (Gastropoda: Heterobranchia) spreading northwards: Additional evidence to the “tropicalization” of the Bay of Biscay. Cah. Biol. Mar. 2016, 57, 206. [Google Scholar]
  9. Botas, J.; Fernandez, E.; Bode, A.; Anadon, R. A persistent upwelling off the Central Cantabrian Coast (Bay of Biscay). Estuar. Coast. Shelf Sci. 1990, 30, 185–199. [Google Scholar] [CrossRef]
  10. Sánchez, F.; Gil, J. Hydrographic mesoscale structures and Poleward Current as a determinant of hake (Merluccius merluccius) recruitment in southern Bay of Biscay. ICES J. Mar. Sci. 2000, 57, 152–170. [Google Scholar] [CrossRef]
  11. Lavín, A.; Valdes, L.; Sánchez, F.; Abaunza, P.; Forest, J.; Boucher, P.; Lazure, P.; Jegou, A.M. The Bay of Biscay: The encountering of the Ocean and the Shelf (18b, E). The Global Coastal Ocean: Interdisciplinary Regional Studies and Syntheses. Sea 2004, 14, 933–1001. [Google Scholar]
  12. Lyman, T. Ophiuridae and Astrophytidae of the exploring voyage of H.M.S. Challenger, under Prof. Sir Wyville Thomson, F.R.S. Part 1. Bull. Mus. Comp. Zool. Harv. Coll. 1878, 5, 65–168. [Google Scholar]
  13. Lyman, T. Ophiuridae and Astrophytidae of the exploring voyage of H.M.S. Challenger under Prof. Sir Wyville Thomson, F.R.S. Part 2. Bull. Mus. Comp. Zool. Harv. Coll. 1879, 6, 17–83. [Google Scholar]
  14. Koehler, R. Note préliminaire sur les Ophiures du Travailleur et du Talisman. Bull. Mus. Hist. Nat. 1905, 11, 55–56. [Google Scholar]
  15. Koehler, R. Description des Ophiures Nouvelles Recueillies par le Travailleur et Talisman Pendant les Campagnes 1880; Herizos Press: Tampa, FL, USA, 1906; Volume 1881, pp. 5–34. [Google Scholar]
  16. Ophiures, K.R. Expéditions Scientifiques du Travailleur et du Talisman Pendant les Années 1880, 1881, 1882, 1883; G. Masson: Paris, France, 1907; Volume 7, pp. 245–311. [Google Scholar]
  17. Koehler, R. Dragages profonds executes a bord du Caudan dans le Golfe de Gascogne. Rapport préliminaire sur le Échinodermes. Rev. Biol. Nord. Fr. 1895, 7, 439–496. [Google Scholar]
  18. Koehler, R. Resultats scientifiques de la campagne du Caudan dans le Golfe de Gascogne. Echinoderms. Ann. Univ. Lyon 1896, 26, 33–122. [Google Scholar]
  19. Koehler, R. Note preliminaire sur les ophiures recueillies pendant les campagnes de la Princesse Alice. Mémoires Société Zool. Fr. 1896, 9, 241–253. [Google Scholar]
  20. Koehler, R. Echinides et Ophiures provenant des campagnes du yacht l’Hirondelle. In Resultats des Campagnes Scientifiques Accomplies Sur Son Yacht Par Albert Ier Prince Souverain DeMonaco; Forgotten Books: London, UK, 1898; Volume 12, pp. 1–78. [Google Scholar]
  21. Koehler, R. Note preliminaire sur quelques Asteries et Ophiures provenant des campagnes de la Princesse Alice. Bull. Inst. Océanogr. 1907, 99, 1–47. [Google Scholar]
  22. Koehler, R. Echinoderms provenant des campagnes du yacht Princesse-Alice. In Résultats des Campagnes Scientifique; Herizos Press: Tampa, FL, USA, 1909; Volume 34, pp. 1–317. [Google Scholar]
  23. Koehler, R. Echinodermes (Astéries, Ophiures, Échinides, et Crinoïdes) des Dernières Campagnes de la Princesse-Alice et de l’Hirondelle II. Bull. Inst. Océanographique Monaco 1921, 396, 1–8. [Google Scholar]
  24. De Morgan, W. The Echinoderms collected by the “Huxley” from the North Side of the Bay of Biscay in August, 1906. J. Mar. Biol. Assoc. UK 1913, 9, 530–541. [Google Scholar] [CrossRef]
  25. Grieg, J.A. Echinodermata from the “Michael Sars“ North Atlantic Deep-Sea Expedition 1910; Bergen Museum: Bergen, Norway, 1921. [Google Scholar]
  26. Mortensen, T. Ophiuroidea. Danish Ingolf Expedition; H. Hagerup: Copenhagen, Denmark, 1933; Volume 4, pp. 5–121. [Google Scholar]
  27. Cherbonnier, G. Echinodermes récoltés par la «Thalassa» au large des côtes ouest de Bretagne et du Golfe de Gascogne (3–12 août 1967). Bull. Mus. Hist. Nat 1969, 2, 343–361. [Google Scholar]
  28. Cherbonnier, G.; Sibuet, M. Résultats scientifiques de la campagne Noratlante: Astérides et Ophiurides. Bull. Mus. Hist. Nat. 1972, 102, 1333–1394. [Google Scholar]
  29. Monteiro-Marques, M. Echinodermes recueillis pendant la mission “Hespérides 76” du N/O Jean Charcot. Arq. Mus. Bocage 1980, 7, 95–108. [Google Scholar]
  30. Paterson, G.L.J.; Lambshead, P.J.D.; Sibuet, M. The Ophiuroidea Fauna of the Bay of Byscay: Its Distribution and Diversity. In Peuplements Profonds du Golfe de Gascogne. Campagnes Biogas; IFREMER: Plouzane, France, 1985; Volume 42, pp. 491–508. [Google Scholar]
  31. López-Ibor, A. Equinodermos de Asturias: Expedición “Cantábrico 83”. Misc. Zool. 1987, 11, 201–210. [Google Scholar]
  32. Louzao, M.; Anadón, N.; Arrontes, J.; Álvarez-Claudio, C.; Fuente, D.M.; Ocharan, F.; Anadón, A.; Acuña, J.L. Historical macrobenthic community assemblages in the Avilés Canyon, N Iberian Shelf: Baseline biodiversity information for a marine protected area. J. Mar. Syst. 2010, 80, 47–56. [Google Scholar] [CrossRef]
  33. Manjón-Cabeza, M.E.; Ríos, P.; Garcia-Guillen, L.M.; Macías-Ramírez, A.; Sánchez, F.; Rodríguez-Básalo, A.; Ibarrola, T.P.; Cristobo, J. Asteroids and ophiuroids associated with sponge aggregations as a key to marine habitats. a comparative analysis between avilés canyons system and El cachucho, marine protected area. Front. Mar. Sci. 2021, 7, 606749. [Google Scholar] [CrossRef]
  34. Koehler, R. Faune de France; Paul LeChevalier: Irvine, CA, USA, 1921; Volume 1, pp. 58–97. [Google Scholar]
  35. Fell, H.B. Synoptic Keys to the Genera of Ophiuroidea; Zoology Publications of the Victoria University: Wellington, New Zealand, 1960; Volume 24, pp. 1–40. [Google Scholar]
  36. D’yakonov, A.M. Ophiuroids of the USSR Seas; Strelkov, A.A., Ed.; Finesilver, R., Translator; H. A. Humphrey: London, UK, 1967; p. 55. [Google Scholar]
  37. Matsumoto, H. A new classification of the Ophiuroidea: With descriptions of new genera and species. Proc. Acad. Nat. Sci. Phila. 1915, 67, 43–92. [Google Scholar]
  38. Mortensen, T. Handbook of the Echinoderms of the British Isles; Oxford University Press: Oxford, UK, 1927. [Google Scholar]
  39. Paterson, G.L.J.; Tyler, P.A.; Gage, J.D. The taxonomy and zoogeography of the genus Ophiocten (Echinodermata: Ophiuroidea) in the North Atlantic Ocean. Bull. Br. Mus. Nat. His. 1982, 43, 109–128. [Google Scholar]
  40. Paterson, G.L. The deep-sea Ophiuroidea of the north Atlantic Ocean. Bull. Br. Mus. Nat. His. 1985, 49, 1. [Google Scholar]
  41. Stöhr, S.; O’Hara, T.; Thuy, B. (Eds.) World Ophiuroidea Database. Ophiuroidea. Accessed Through: World Register of Marine Species 2024. Available online: https://www.marinespecies.org/aphia.php?p=taxdetails&id=123084 (accessed on 9 January 2024).
  42. Manjón-Cabeza, M.E.; Perez-Ruzafa, A.; Andrino, J.; Artetxe, I.; Bacallado, J.J.; Brito, A.; Marcos, C. Lista patrón de Las Especies Silvestres Presentes en España. Especies marinas: Equinodermos. 2017. Available online: https://www.miteco.gob.es/ca/biodiversidad/servicios/banco-datos-naturaleza/informacion-disponible/bdn_listas_patron_2017.html (accessed on 9 January 2024).
  43. Manjón-Cabeza, M.E.; Perez-Ruzafa, A.; Andrino, J.; Artetxe, I.; Bacallado, J.J.; Brito, A.; Marcos, C. Lista Patrón de Las Especies Silvestres Presentes en España. Especies Marinas: Equinodermos. 2020. Available online: https://www.miteco.gob.es/ca/biodiversidad/servicios/banco-datos-naturaleza/informacion-disponible/bdn_listas_patron.html (accessed on 9 January 2024).
  44. GBIF.org. GBIF Home Page. 2024. Available online: https://www.gbif.org (accessed on 9 January 2024).
  45. Muséum National d’Histoire Naturelle. 2024. Available online: https://science.mnhn.fr/institution/mnhn/collection/ie/item/search (accessed on 9 January 2024).
  46. Ocean Biodiversity Information System (OBIS). Intergovernmental Oceanographic Commission of UNESCO 2024. Available online: www.obis.org (accessed on 9 January 2024).
  47. Smithsonian National Museum of Natural History. 2024. Available online: https://collections.nmnh.si.edu/search/iz/ (accessed on 9 January 2024).
  48. Victorero, L.; Samadi, S.; O’Hara, T.D.; Mouchet, M.; Delavenne, J.; Leprieur, F.; Leroy, B. Global benthic biogeographical regions and macroecological drivers for ophiuroids. Ecography 2023, 2023, e06627. [Google Scholar] [CrossRef]
  49. Verrill, A. Annual Report of the United States Commissioner of Fisheries for the Fiscal Year 1883; National Oceanic and Atmospheric Administration: Washington, DC, USA, 1885; Volume 9, p. 549. [Google Scholar]
  50. Tyler, P.A.; Emson, R.H.; Sumida, P.; Howell, K. Ophiuroid distribution at sublittoral and bathyal depths round the Faroe Islands, NE Atlantic Ocean. BIOFAR Proc. 2005, 41, 175–194. [Google Scholar]
  51. Lyman, T. Reports on the results of dredging, under the supervision of Alexander Agassiz, in the Carribbean Sea (1878–79), and on the east coast of the United States, during the summer of 1880, by the U.S. coast survey steamer “Blake”, commander J.R. Bartlett, U.S.N., commanding. XX.-Report on the Ophiuroidea. Bull. Mus. Comp. Zool. Harv. Coll. 1883, 10, 227–287. [Google Scholar]
  52. Midsuf, C.; Taviani, M.; Stöhr, S. Remarks on Echinodermata from the South Central Mediterranean Sea based upon collections made during the MARCOS cruise (10 to 20th April 2007). Medit. Mar. Sci. 2009, 10, 63–71. [Google Scholar]
  53. O’Hara, T.D.; Stöhr, S. Deep water Ophiuroidea (Echinodermata) of New Caledonia: Ophiacanthidae and Hemieuryalidae. In Tropical Deep-Sea Benthos, Volume 24; Richer de Forges, B., Justine, J.-L., Eds.; Mémoires du Muséum National d’Histoire Naturelle: Paris, France, 2006; Volume 193, pp. 33–141. [Google Scholar]
  54. O’Hara, D.; Rowden, A.A.; Williams, A. Cold-water coral habitats on seamounts: Do they have a specialist fauna? Divers. Distrib. 2008, 14, 925–934. [Google Scholar] [CrossRef]
Diversity 16 00407 g001

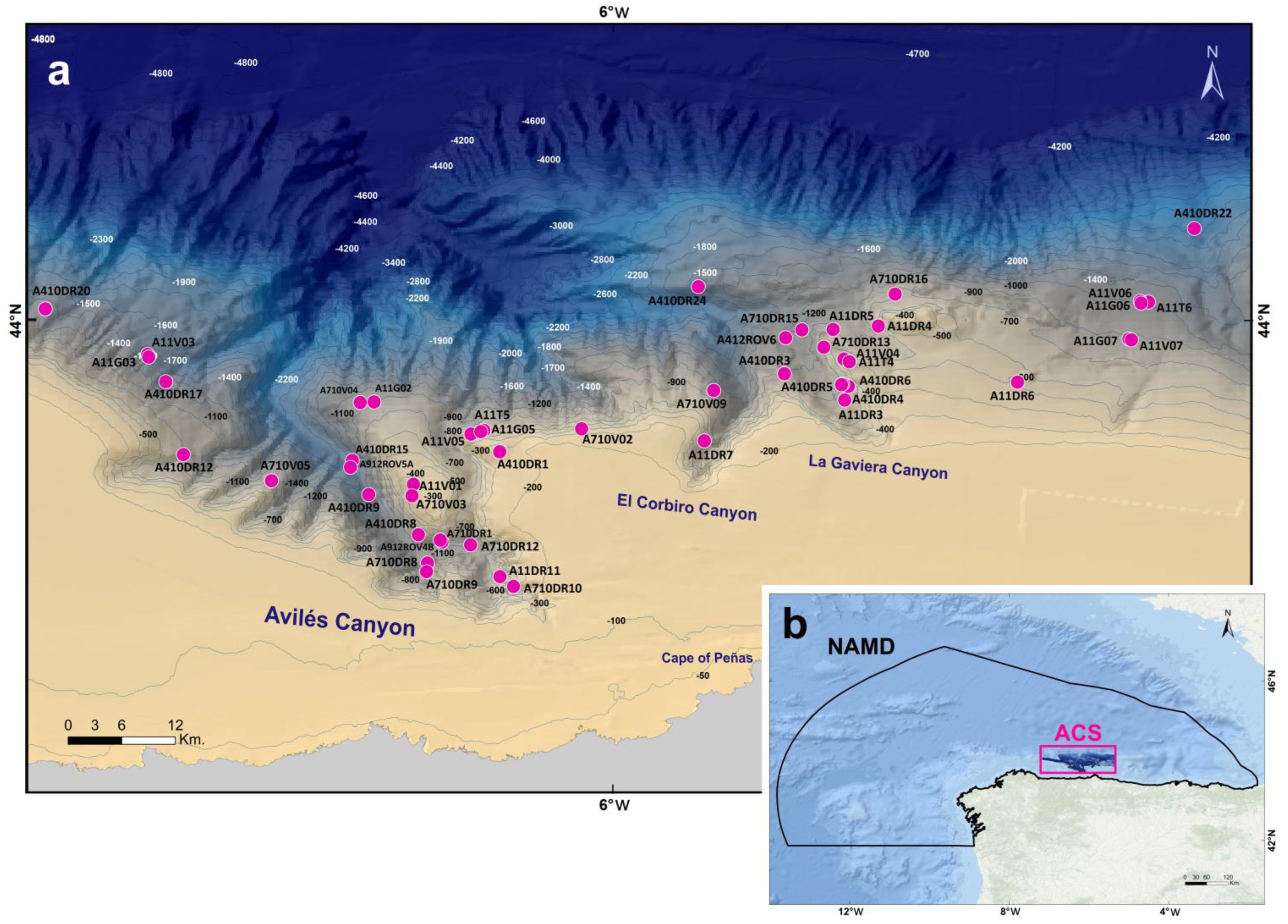

Figure 1. (a) Area of study. Main canyons and sampling stations with presence of ophiuroids. (b) Location of the North Atlantic Marine Subdivision (NAMD) and the ACS.
Figure 1. (a) Area of study. Main canyons and sampling stations with presence of ophiuroids. (b) Location of the North Atlantic Marine Subdivision (NAMD) and the ACS.
Diversity 16 00407 g001
Diversity 16 00407 g002
Figure 2.  Ophiocten centobi: (ID: 124852) (a) Dorsal view of the disk. Scale bar: 1 mm. (b) Ventral view of the disk. Scale bar: 0.5 mm. (c) Papillae of the genital slit. Scale bar: 0.15 mm. (d) Jaw. Scale bar: 0.25 mm. (e) Radial shields and combs. Scale bar: 0.15 mm. (f) Dorsal arm plate. Scale bar: 0.15 mm. (g) Ventral view of arm plates. Scale bar: 0.15 mm. (h) Arm spines. Scale bar 0.25 mm.  Ophiocten hastatum: (ID: 124854) (i) Dorsal view of the disk. Scale bar: 1.5 mm. (j) Ventral view of the disk. Scale bar: 1.5 mm. (k) Dorsal arm plates. Scale bar: 0.5 mm. (l) Ventral arm plates. Scale bar: 0.25 mm. (m) Arm combs. Scale bar: 0.25 mm. (n) Arm spines. Scale bar 0.5 mm.  Ophiocten affinis: (ID: 124850) (o) Dorsal view of the disk. Scale bar: 1.5 mm. (p) Ventral view of the disk. Scale bar: 1.5 mm. (q) Dorsal arm plates. Scale bar: 0.25 mm. (r) Ventral arm plates. Scale bar: 0.25 mm. (s) Arm combs. Scale bar: 0.5 mm. (t) Arm spines. Scale bar 0.5 mm.
Figure 2.  Ophiocten centobi: (ID: 124852) (a) Dorsal view of the disk. Scale bar: 1 mm. (b) Ventral view of the disk. Scale bar: 0.5 mm. (c) Papillae of the genital slit. Scale bar: 0.15 mm. (d) Jaw. Scale bar: 0.25 mm. (e) Radial shields and combs. Scale bar: 0.15 mm. (f) Dorsal arm plate. Scale bar: 0.15 mm. (g) Ventral view of arm plates. Scale bar: 0.15 mm. (h) Arm spines. Scale bar 0.25 mm.  Ophiocten hastatum: (ID: 124854) (i) Dorsal view of the disk. Scale bar: 1.5 mm. (j) Ventral view of the disk. Scale bar: 1.5 mm. (k) Dorsal arm plates. Scale bar: 0.5 mm. (l) Ventral arm plates. Scale bar: 0.25 mm. (m) Arm combs. Scale bar: 0.25 mm. (n) Arm spines. Scale bar 0.5 mm.  Ophiocten affinis: (ID: 124850) (o) Dorsal view of the disk. Scale bar: 1.5 mm. (p) Ventral view of the disk. Scale bar: 1.5 mm. (q) Dorsal arm plates. Scale bar: 0.25 mm. (r) Ventral arm plates. Scale bar: 0.25 mm. (s) Arm combs. Scale bar: 0.5 mm. (t) Arm spines. Scale bar 0.5 mm.
Diversity 16 00407 g002
Diversity 16 00407 g003
Figure 3. (I) Species distribution map.  Ophiocten abyssicolum: (a) Ventral sketch of the disk. (b) Dorsal sketch of the disk. Scale bar: 1 mm. (Adapted and modified from Paterson et al. [39]).  Ophiocten sericeum: (c) Ventral sketch of the disk. (d) Dorsal sketch of the disk. Scale bar: 1 mm. (Adapted and modified from Paterson et al. [39]).
Figure 3. (I) Species distribution map.  Ophiocten abyssicolum: (a) Ventral sketch of the disk. (b) Dorsal sketch of the disk. Scale bar: 1 mm. (Adapted and modified from Paterson et al. [39]).  Ophiocten sericeum: (c) Ventral sketch of the disk. (d) Dorsal sketch of the disk. Scale bar: 1 mm. (Adapted and modified from Paterson et al. [39]).
Diversity 16 00407 g003
Diversity 16 00407 g005
Figure 5.  Amphiura grandisquama: (ID: 125083) (a) Dorsal view of the disk. *: Radial shields. Scale bar: 1 mm. (b) Ventral view of the disk. Scale bar: 1 mm. (c) Jaw. Scale bar: 0.25 mm. (d) Ventral arm view. *: Ventral arm plate. Arrowhead: Tentacle scale. Scale bar: 0.25 mm. (e) Arm spines. Scale bar 0.25 mm.  Amphiura griegi: (ID: 125084) (f) Dorsal view of the disk. *: Radial shields. Scale bar: 1 mm. (g) Ventral view of the disk. Scale bar: 1 mm. (h) Jaw. Scale bar: 0.25 mm. (i) Ventral arm view. Arrowhead: Tentacle scales. Scale bar: 0.25 mm. (j) Dorsal arm plates. Scale bar: 0.25 mm.  Amphiura richardi: (ID: 125094) (k) Dorsal view of the disk. *: Radial shields. Scale bar: 1 mm. (l) Ventral view of the disk. Scale bar: 1 mm. (m) Jaw. Scale bar: 0.25 mm. (n) Ventral arm view. Arrowhead: Tentacle scales. Scale bar: 0.5 mm. (o) Arm spines. Scale bar 0.5 mm. (p) Dorsal arm plates. Scale bar: 0.5 mm. (I) Species distribution map.
Figure 5.  Amphiura grandisquama: (ID: 125083) (a) Dorsal view of the disk. *: Radial shields. Scale bar: 1 mm. (b) Ventral view of the disk. Scale bar: 1 mm. (c) Jaw. Scale bar: 0.25 mm. (d) Ventral arm view. *: Ventral arm plate. Arrowhead: Tentacle scale. Scale bar: 0.25 mm. (e) Arm spines. Scale bar 0.25 mm.  Amphiura griegi: (ID: 125084) (f) Dorsal view of the disk. *: Radial shields. Scale bar: 1 mm. (g) Ventral view of the disk. Scale bar: 1 mm. (h) Jaw. Scale bar: 0.25 mm. (i) Ventral arm view. Arrowhead: Tentacle scales. Scale bar: 0.25 mm. (j) Dorsal arm plates. Scale bar: 0.25 mm.  Amphiura richardi: (ID: 125094) (k) Dorsal view of the disk. *: Radial shields. Scale bar: 1 mm. (l) Ventral view of the disk. Scale bar: 1 mm. (m) Jaw. Scale bar: 0.25 mm. (n) Ventral arm view. Arrowhead: Tentacle scales. Scale bar: 0.5 mm. (o) Arm spines. Scale bar 0.5 mm. (p) Dorsal arm plates. Scale bar: 0.5 mm. (I) Species distribution map.
Diversity 16 00407 g005
Diversity 16 00407 g006
Figure 6.  Amphiura chiajei: (ID: 125073) (a) Dorsal view of the disk. Scale bar: 2 mm. (b) Ventral view of the disk. Scale bar: 2 mm. (c) Jaw. Ventral arm view. Arrowhead: Tentacle scales. Scale bar: 1 mm. (d) Dorsal arm plates. *: Radial shields. Scale bar: 1 mm. (e) Arm spines. Scale bar: 0.25 mm.  Amphiura otteri: (ID: 125092) (f) Dorsal view of the disk. *: Radial shields. Scale bar: 0.25 mm. (g) Ventral view of the disk. Jaw. Scale bar: 0.5 mm. (h) Interradial ventral triangle. Scale bar: 0.5 mm. (i) Ventral arm view. Arrowhead: Tentacle scales. Scale bar: 0.25 mm. (j) Arm spines. Scale bar: 0.25 mm. (k) Dorsal arm plates. Scale bar: 0.25 mm. (II) Species distribution map (part II).
Figure 6.  Amphiura chiajei: (ID: 125073) (a) Dorsal view of the disk. Scale bar: 2 mm. (b) Ventral view of the disk. Scale bar: 2 mm. (c) Jaw. Ventral arm view. Arrowhead: Tentacle scales. Scale bar: 1 mm. (d) Dorsal arm plates. *: Radial shields. Scale bar: 1 mm. (e) Arm spines. Scale bar: 0.25 mm.  Amphiura otteri: (ID: 125092) (f) Dorsal view of the disk. *: Radial shields. Scale bar: 0.25 mm. (g) Ventral view of the disk. Jaw. Scale bar: 0.5 mm. (h) Interradial ventral triangle. Scale bar: 0.5 mm. (i) Ventral arm view. Arrowhead: Tentacle scales. Scale bar: 0.25 mm. (j) Arm spines. Scale bar: 0.25 mm. (k) Dorsal arm plates. Scale bar: 0.25 mm. (II) Species distribution map (part II).
Diversity 16 00407 g006
Diversity 16 00407 g009
Figure 9.  Ophiophrixus spinosus:  (ID: 125146) (a) Dorsal view of the disk. Scale bar: 5 mm. (b) Ventral view of the disk. Scale bar: 5 mm. (c) Radial shields. Scale bar: 0.5 mm. (d) Jaw. Scale bar: 1 mm. (e) Dorsal view of the arm. Scale bar: 0.25 mm. (f) Ventral view of the arm. Scale bar: 0.3 mm. (g) Arm spines. Scale bar 0.3 mm. (I) Species distribution map.
Figure 9.  Ophiophrixus spinosus:  (ID: 125146) (a) Dorsal view of the disk. Scale bar: 5 mm. (b) Ventral view of the disk. Scale bar: 5 mm. (c) Radial shields. Scale bar: 0.5 mm. (d) Jaw. Scale bar: 1 mm. (e) Dorsal view of the arm. Scale bar: 0.25 mm. (f) Ventral view of the arm. Scale bar: 0.3 mm. (g) Arm spines. Scale bar 0.3 mm. (I) Species distribution map.
Diversity 16 00407 g009
Diversity 16 00407 g010
Figure 10.  Ophiotreta valenciennesi: (ID: 244220) (a) Dorsal view of the disk. Scale bar: 2 mm. (b) Ventral view of the disk. Scale bar: 1.5 mm. (c) Jaw. Scale bar: 0.3 mm. (d) Dorsal arm plates. Scale bar: 1 mm. (e) Ventral arm view. *: Ventral arm plate. Arrowhead: Tentacle scales. Scale bar: 0.5 mm. (f) Arm spines. Scale bar 1 mm.  Ophiotreta spectabilis: (ID: 1589839) (g) Dorsal view of the disk. Scale bar: 2 mm. (h) Ventral view of the disk. Scale bar: 1 mm. (i) Jaw. Scale bar: 0.4 mm. (j) Dorsal arm plates. Scale bar: 0.25 mm. (k) Ventral arm view. *: Ventral arm plate. Arrowhead: Tentacle scales. Scale bar: 0.4 mm. (l) Arm spines. Scale bar 0.25 mm. (I) Species distribution map.
Figure 10.  Ophiotreta valenciennesi: (ID: 244220) (a) Dorsal view of the disk. Scale bar: 2 mm. (b) Ventral view of the disk. Scale bar: 1.5 mm. (c) Jaw. Scale bar: 0.3 mm. (d) Dorsal arm plates. Scale bar: 1 mm. (e) Ventral arm view. *: Ventral arm plate. Arrowhead: Tentacle scales. Scale bar: 0.5 mm. (f) Arm spines. Scale bar 1 mm.  Ophiotreta spectabilis: (ID: 1589839) (g) Dorsal view of the disk. Scale bar: 2 mm. (h) Ventral view of the disk. Scale bar: 1 mm. (i) Jaw. Scale bar: 0.4 mm. (j) Dorsal arm plates. Scale bar: 0.25 mm. (k) Ventral arm view. *: Ventral arm plate. Arrowhead: Tentacle scales. Scale bar: 0.4 mm. (l) Arm spines. Scale bar 0.25 mm. (I) Species distribution map.
Diversity 16 00407 g010
Table 1. Geographical positions and depth of sampled stations. ST: station, LAT: latitude (decimal degrees), LON: longitude (decimal degrees), D: depth (m). Below: Data of samplers.
Table 1. Geographical positions and depth of sampled stations. ST: station, LAT: latitude (decimal degrees), LON: longitude (decimal degrees), D: depth (m). Below: Data of samplers.
STLATLONDSTLATLOND
A11DR1143.74−6.11560A410DR2044.01−6.571387
A11DR343.92−5.77776A410DR2244.09−5.412291
A11DR443.99−5.73593A410DR2444.03−5.911533
A11DR543.99−5.78908A410DR343.95−5.83893
A11DR643.94−5.59462A410DR443.93−5.76700
A11DR743.88−5.91551A410DR543.93−5.77688
A11G0243.92−6.251051A410DR643.93−5.77790
A11G0343.96−6.471464A410DR843.78−6.20844
A11G0543.89−6.13578A410DR943.82−6.251513
A11G0644.02−5.461244A412ROV643.98−5.831161
A11G0743.98−5.48990A710DR143.78−6.17810
A11T443.96−5.77530A710DR1043.73−6.10342
A11T543.88−6.14538A710DR1243.78−6.14843
A11T644.02−5.471238A710DR1343.97−5.79769
A11V0143.83−6.20355A710DR1543.99−5.811228
A11V0343.96−6.471473A710DR1644.03−5.71928
A11V0443.96−5.76510A710DR843.76−6.19800
A11V0543.89−6.13552A710DR943.75−6.19626
A11V0644.02−5.471228A710V0243.89−6.03401
A11V0743.98−5.48984A710V0343.82−6.20357
A410DR143.87−6.11266A710V0443.92−6.241015
A410DR1243.86−6.43828A710V0543.84−6.34783
A410DR1543.86−6.261660A710V0943.93−5.90930
A410DR1743.94−6.451476A912ROV4B43.78−6.17942
A410DR1943.96−6.60533A912ROV5A43.85−6.261576
SAMPLERWIDTH (m)HEIGHT (m)MESH SIZE (mm)SPEED (knots)SAMPLING TIME (min)SAMPLED AREA (m²)
Rock dredge (DR)0.80.3101.55183.71
Bou de vara (V)3.50.65102153241
Beam trawl (GOC-73)19.442.681033054,004.32
Supra-benthic sledge (TS)-0.951.53≈500
Table 2. Taxonomic classification of the species sampled in ACS.
Table 2. Taxonomic classification of the species sampled in ACS.
OrderFamilyScientific Name and Authority
Euryalida
Lamarck, 1816		Asteronychidae Ljungman, 1867Asteronyx loveni Müller & Troschel, 1842
Euryalidae Gray, 1840Asteroschema inornatum Koehler, 1906
Ophiurida
Müller & Troschel, 1840
sensu O’Hara et al., 2017		Ophiomusaidae
O’Hara, Stöhr, Hugall, Thuy & Martynov, 2018		Ophiomusa lymani (Wyville Thomson, 1873)
Ophiopyrgidae
Perrier, 1893		Amphiophiura bullata (Thomson, 1877)
Ophiopleura inermis (Lyman, 1878)
Ophiuroglypha irrorata (Lyman, 1878)
Stegophiura macrarthra H.L. Clark, 1915
Ophiuridae
Müller & Troschel, 1840		Ophiocten affinis (Lütken, 1858)
Ophiocten centobi Paterson, Tyler & Gage, 1982
Ophiura (Dictenophiura) carnea Lütken, 1858
Ophiura ophiura (Linnaeus, 1758)
Amphilepidida
O’Hara, Hugall, Thuy,
Stöhr & Martynov, 2017		Amphilepididae Matsumoto, 1915Amphilepis norvegica (Ljungman, 1865)
Amphiuridae
Ljungman, 1867		Amphiura (Amphiura) grandisquama Lyman, 1869
Amphiura borealis (G.O. Sars, 1872)
Amphiura fragilis Verrill, 1885
Amphiura griegi Mortensen, 1920
Amphiura richardi Koehler, 1896
Ophiactidae Matsumoto, 1915Ophiactis abyssicola (M. Sars, 1861)
Ophiactis balli (W. Thompson, 1840)
Ophiactis nidarosiensis Mortensen, 1920
Ophiothamnidae
O’Hara, Stöhr, Hugall, Thuy & Martynov, 2018		Histampica duplicata (Lyman, 1875)
Ophiothamnus affinis Ljungman, 1872
Ophiotrichidae Ljungman, 1867Ophiothrix spp. Müller & Troschel, 1840
Ophiacanthida
O’Hara, Hugall, Thuy,
Stöhr & Martynov, 2017		Ophiacanthidae
Ljungman, 1867		Ophiacantha abyssicola G.O. Sars, 1872
Ophiacantha bidentata (Bruzelius, 1805)
Ophiacantha crassidens Verrill, 1885
Ophiacantha densa Farran, 1913
Ophiacantha lineata Koehler, 1896
Ophiacantha simulans Koehler, 1895
Ophiacantha smitti Ljungman, 1872
Ophiacantha veterna Koehler, 1907
Ophiochondrus armatus (Koehler, 1907)
Ophiolimna bairdi (Lyman, 1883)
Ophiomitrella globifera (Koehler, 1895)
Ophiosabine aristata (Koehler, 1895)
Ophiosabine cuspidata (Lyman, 1878)
Ophiosabine notata (Koehler, 1906)
Ophiosabine parcita (Koehler, 1906)
Ophiobyrsidae Matsumoto, 1915Ophiophrixus spinosus (Storm, 1881)
Ophiotomidae Paterson, 1985Ophiotreta valenciennesi (Lyman, 1879)
Ophiomyxidae Ljungman, 1867Ophiomyxa serpentaria Lyman, 1883
Ophioleucida
O’Hara, Hugall, Thuy,
Stöhr & Martynov, 2017		Ophiernidae
O’Hara, Stöhr, Hugall, Thuy & Martynov, 2018		Ophiernus vallincola Lyman, 1878
Ophioscolecida
O’Hara, Hugall, Thuy,
Stöhr & Martynov, 2017		Ophiohelidae Perrier, 1893Ophiomyces grandis Lyman, 1879
Ophioscolecidae Lütken, 1869Ophiolycus purpureus (Düben & Koren, 1846)
Ophioscolex glacialis Müller & Troschel, 1842
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Macías-Ramírez, A.; García-Guillén, L.M.; Manjón-Cabeza, M.E. Deep-Sea Ophiuroids (Echinodermata; Ophiuroidea) from the Avilés Canyon System: Seven New Records for the Spanish North Atlantic Marine Subdivision. Diversity 2024, 16, 407. https://doi.org/10.3390/d16070407

AMA Style

Macías-Ramírez A, García-Guillén LM, Manjón-Cabeza ME. Deep-Sea Ophiuroids (Echinodermata; Ophiuroidea) from the Avilés Canyon System: Seven New Records for the Spanish North Atlantic Marine Subdivision. Diversity. 2024; 16(7):407. https://doi.org/10.3390/d16070407

Chicago/Turabian Style

Macías-Ramírez, Aurora, Laura M. García-Guillén, and M. Eugenia Manjón-Cabeza. 2024. "Deep-Sea Ophiuroids (Echinodermata; Ophiuroidea) from the Avilés Canyon System: Seven New Records for the Spanish North Atlantic Marine Subdivision" Diversity 16, no. 7: 407. https://doi.org/10.3390/d16070407

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
