1. Introduction
Three-dimensional (3D) printing, as a pivotal additive manufacturing technology, has extensive applications across the medical, aerospace and education fields [
1]. Despite its broad potential, particularly in complex 3D bioprinting, challenges persist, encompassing printing defects and low structural fidelity. These issues significantly impact the quality and stability of printed constructs [
2,
3]. Low structural fidelity not only impedes the complete restoration of details and accuracy in the target model but also affects overall performance [
4,
5]. Common printing defects, including material unevenness, poor interlayer bonding, cracks, surface roughness and deformation, pose limitations to the widespread adoption and advancement of 3D printing [
6,
7,
8]. It is of vital importance to ensure precise material deposition in order to guarantee the structural integrity and functionality of complex hierarchical structures in natural tissues during their complete construction. For example, geometric cues in tissue engineering constructions can affect hepatocyte maturation [
9], stem cell differentiation [
10,
11,
12] and muscle tissue regeneration [
13]. Deposition defects, such as excessive filling of pores and inconsistent pore geometries, can physically impede the process of bone ingrowth into bone scaffolds [
14]. Moreover, achieving high-fidelity 3D bioprinting is vital for its widespread application in the clinical field. 3D bioprinting is not only useful for in vivo implantation [
15,
16,
17,
18], but also for in vitro tissue models used in drug screening and disease modelling [
19].
The challenges of achieving high-fidelity 3D printing present obstacles to the printing and preparation of intricate biological structures. In this context, in situ monitoring emerges as a crucial tool for defect detection and quality assessment [
20]. In situ monitoring and defect detection of the printed structure enables the adjustment of printing parameters, such as temperature, pressure and speed, in order to minimize defects and improve structural fidelity [
21]. Furthermore, in situ monitoring and defect detection enables users to promptly identify issues during the printing process, facilitating timely interventions to prevent print failures and material wastage [
22]. Consequently, in situ monitoring techniques for accurate defect detection and rapid visualization of 3D printing defects are expected to facilitate the extensive application and development of 3D printing technology across various fields, particularly in the realm of 3D bioprinting.
In Fused Deposition Modeling (FDM), optical sensors have been widely used for process monitoring and defect detection, such as of short fiber Bragg grating (FBG) [
23], with cameras [
24] and infrared thermography [
25]. Laser displacement scanners are capable of acquiring high-precision point cloud data, although this is limited to surface point information and is susceptible to environmental light and reflections. Therefore, controlled surroundings are necessary for the acquisition of accurate data [
26,
27,
28]. Camera-based monitoring methods, such as digital image correlation [
29] and structured light microscopy [
30], exhibit restricted depth perception, potentially missing certain 3D details, and are affected by lighting conditions, resulting in diminished material–background contrast [
31,
32,
33]. Optical coherence tomography (OCT) is a non-destructive, label-free, high-resolution and fast tomographic imaging technique that has been widely applied in biomedical and industrial inspection fields [
34,
35]. For instance, OCT has been integrated into a selective laser sintering (SLS) system to detect sub-surface defects, thereby identifying failures in the construction process [
36]. DePond PJ, et al. employed OCT to quantify surface roughness during the laser powder bed fusion (L-PBF) process, integrating layer height measurements and defect detection, including the identification of large splatters [
34]. It is regrettable that the current defect detection methods with OCT have limitations in universality, and it is difficult to adapt them to different 3D printing technologies and materials, including SLS, PBF, droplet-based, extrusion-based and photocuring-based printing. This study proposes a defect detection method, through a comparison and analysis of a target model and a reconstructed model, which is universal and independent of the specific additive manufacturing implementation method. In order to provide a comprehensive explanation of the method, this study has chosen to provide a detailed explanation of extrusion-based 3D bioprinting.
In our previous studies, we proposed a 3D extrusion-based bioprinter integrated with OCT (3D P-OCT). 3D P-OCT enables the acquisition of large field-of-view full-depth images and multi-parameter characterization, meeting the imaging requirements for large-scale structures [
21]. However, spatially resolved defect characterization and visualization during the printing process are of paramount importance for evaluating print structure fidelity and adjusting print parameters. It can even provide suggestions for terminating the printing process in advance, thereby avoiding material waste and print failure [
37,
38]. Defect detection techniques based on target models and actual printed results are compatible with complex and irregular print models, reproducible and expected to meet the reliability and complexity requirements of clinical and disease model construction [
33].
Building on previous work [
21], this study presents a spatially resolved defect characterization map for any irregular print path using extrusion-based 3D bioprinting combined with OCT. First, a target model generation mechanism based on GCode information is proposed to automatically generate target model maps. Then, OCT-reconstructed model maps (representing actual print results) are generated and compared with the target model maps. This enables spatially resolved visualization of defects and fidelity analysis using the structural similarity index. In addition, secondary print information is automatically generated for defect repair, covering issues such as filament breakage and under-extrusion. This includes print coordinates and parameters such as print speed and air pressure based on a “pre-built feedback mechanism” [
22]. The proposed method is validated using different models, print paths and materials to assess print fidelity and provide feedback information.
2. Materials and Methods
2.1. System
This study employed a self-developed 3D P-OCT system (Silicone, Hydroxyapatite (HAP), Polycaprolactone (PCL), and Regenovo Bio-Architect PX, Hangzhou Regenovo Biotechnology Co., Ltd., Hangzhou, China). This system integrates a 3D bioprinter with OCT and its performance has been validated in previous studies [
21]. Briefly, 3D P-OCT incorporates a self-developed swept-source OCT (SS-OCT) module. The OCT probe is mounted next to the print extrusion nozzle for in situ process monitoring. Through a two-dimensional high-speed galvanometer scanning module, a single 3D P-OCT dataset can cover an area of 10 mm (x) × 10 mm (y) × 6.28 mm (z).
2.2. Printing Materials and Printing Path
In this study, three materials with wide applications and significant importance in the fields of bioengineering and medicine were selected, including hydroxyapatite (HAP), silicone and polycaprolactone (PCL). HAP stands out as the primary mineral building block of human bones and teeth and has immense utility, especially in bioprinting, bone repair and the production of biodegradable scaffolds [
39]. Silicone is known for its outstanding physicochemical properties and robust environmental adaptability, enabling it to function effectively under complex conditions. The biodegradability of PCL is of great importance for bioprinting, tissue engineering and drug delivery systems. Its gradual post-function degradation minimizes its impact on the body’s internal environment, making it a key element in biomedical advances.

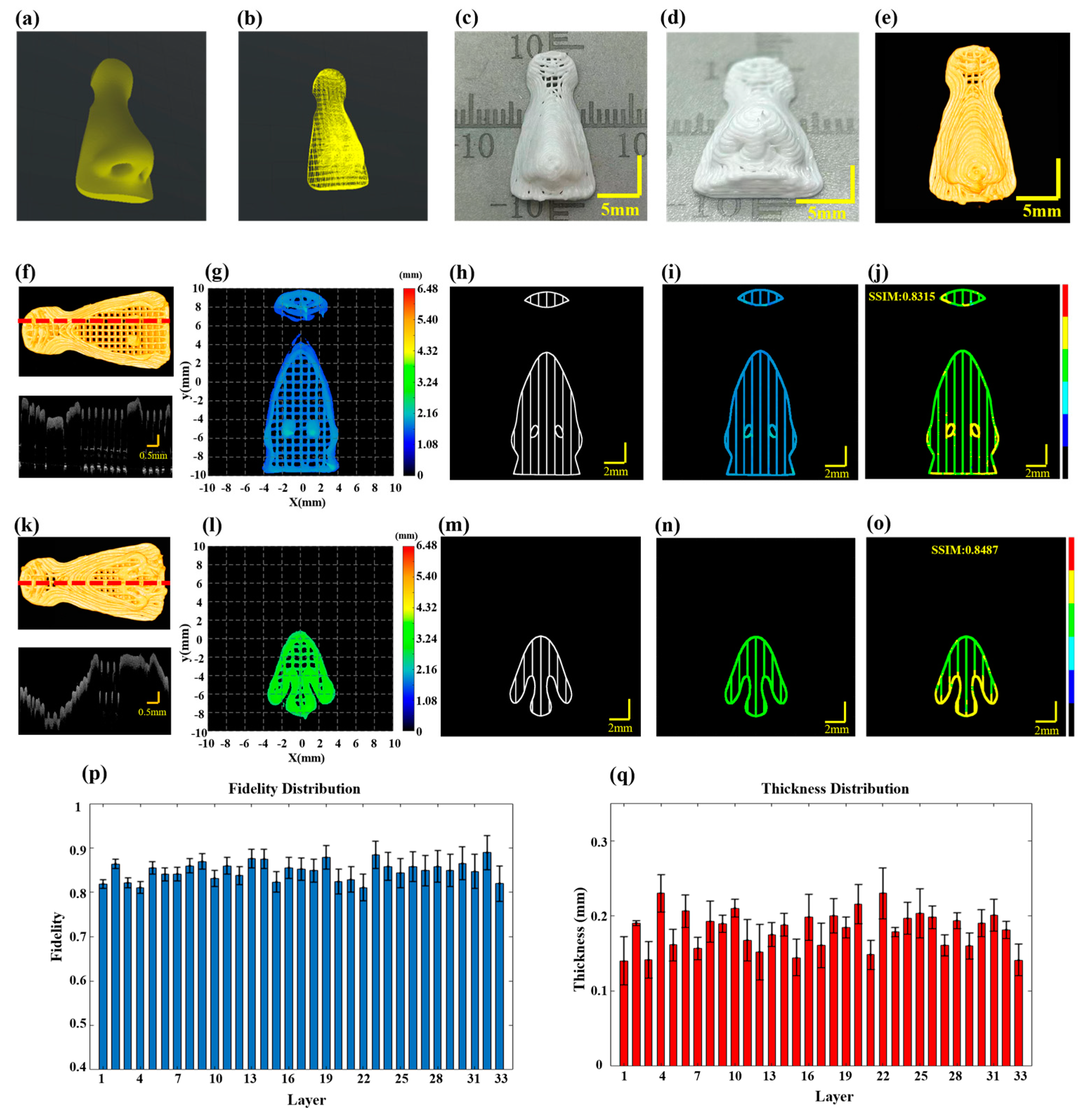

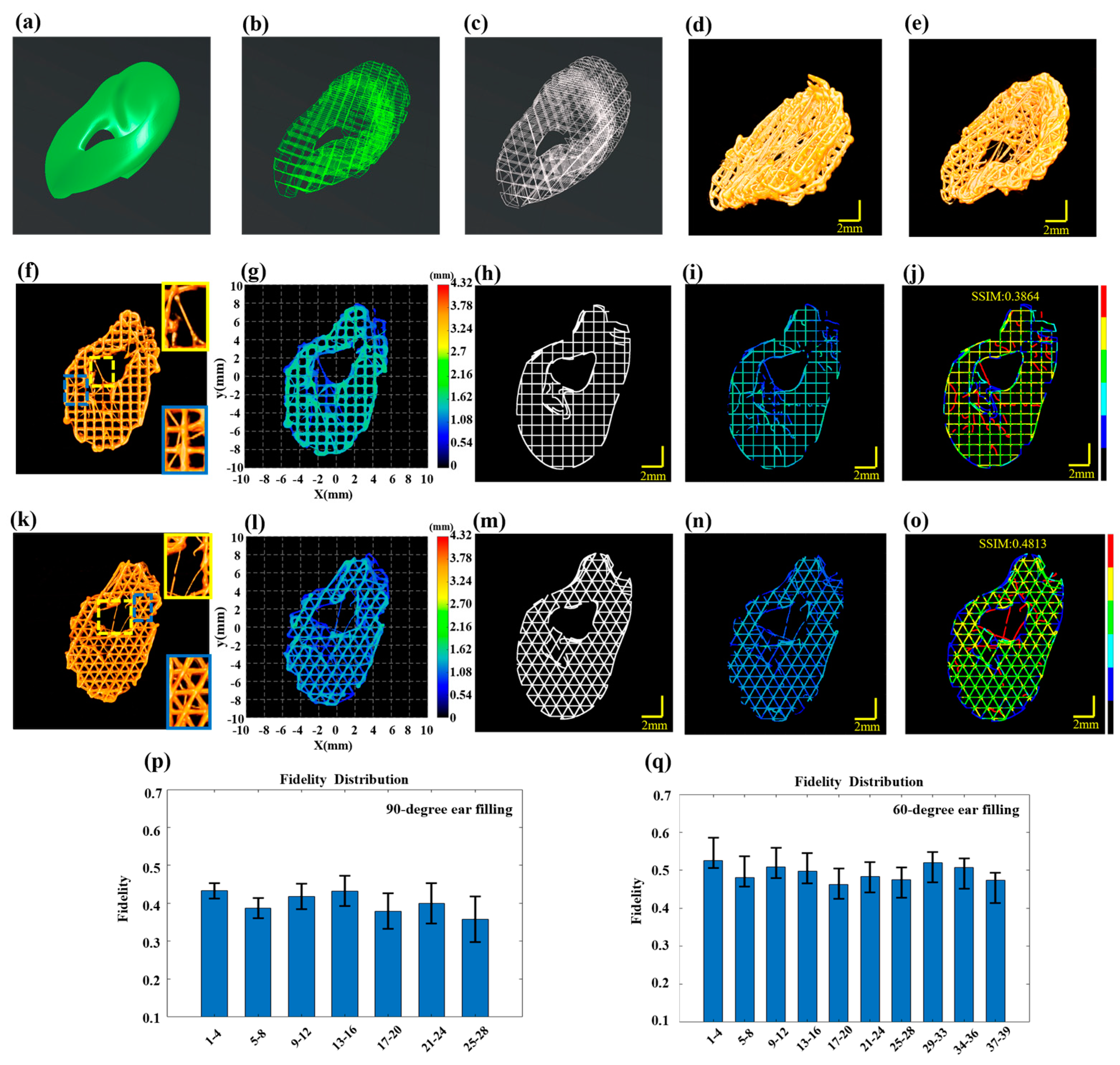

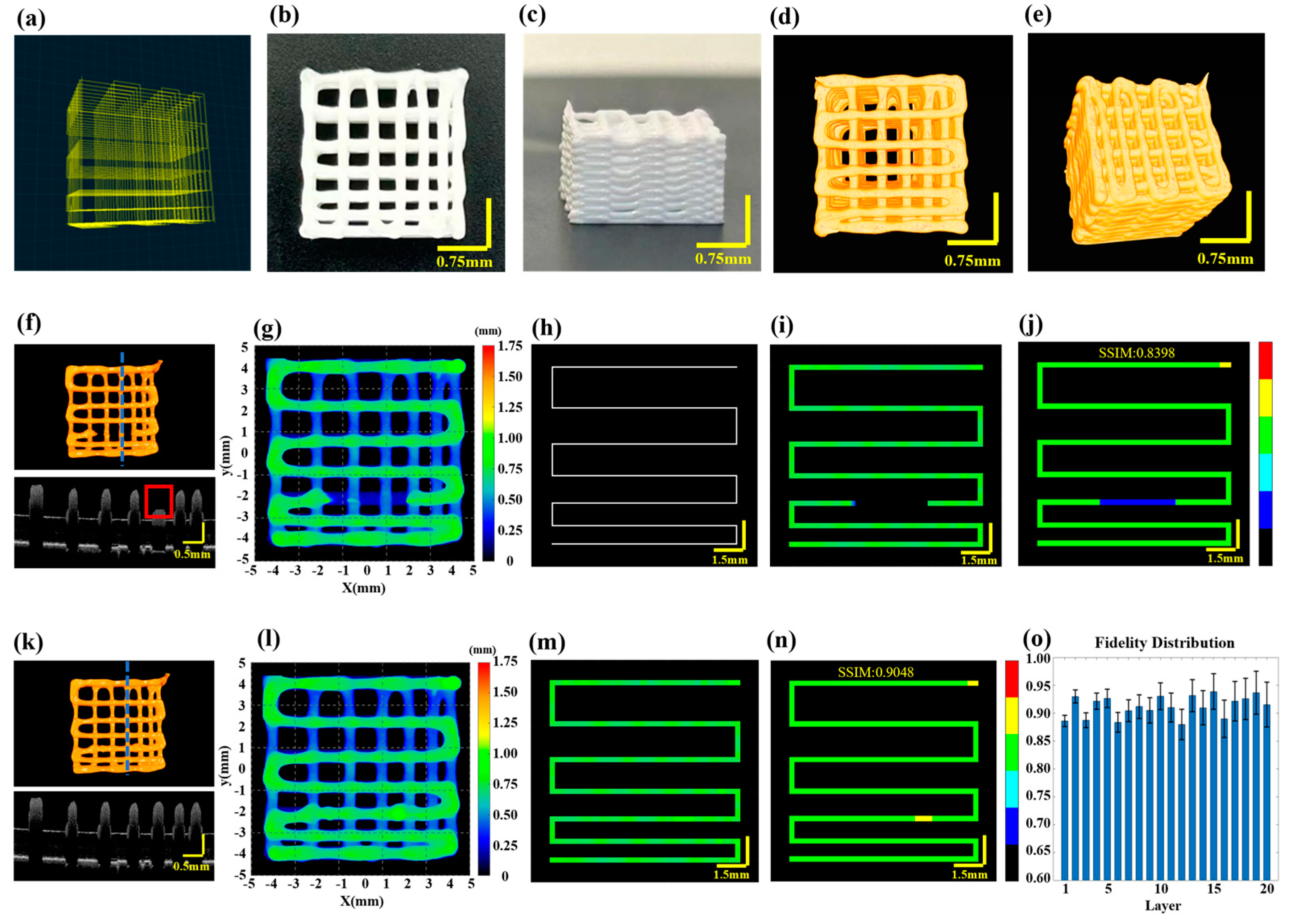

A series of print paths were designed using Computer Aided Design (CAD), including simple single-layer and multi-layer gradient spacing models, as well as complex nose and ear models. For the single- and multi-layer gradient spacing models, HAP was selected as the print material using a nozzle with an internal diameter of 0.41 mm. The print pressure was set at 0.18 MPa and the target layer thickness was 0.25 mm. For the straight path, the print speed was set to 10 mm/s, while the print speed around the turnarounds was set to 12 mm/s to reduce material accumulation. The size of the single-layer gradient model was 9 mm × 9 mm × 0.25 mm and the multi-layer gradient model was 9 mm × 9 mm × 5 mm. For the nose model, silicone was selected as the material and a needle with an internal diameter of 0.21 mm was used. The print pressure was set at 0.15 MPa and the printing speed was 10 mm/s. The size of the model was 10 mm × 18 mm × 6 mm, with a layer thickness of 0.18 mm. For the ear model, PCL was selected as the print material and a needle with an internal diameter of 0.15 mm was used. The print pressure was set at 0.55 MPa and the print speed was 2 mm/s, with temperature control at 130 °C. The size of the model was 11.04 mm × 16.53 mm × 5.42 mm, with a layer thickness of 0.18 mm. In order to investigate the relationship between filling path and structural accuracy, two different filling strategies were used in this experiment: 60-degree and 90-degree filling. At the same time, key print parameters were optimized, including print pressure and speed and temperature control of the print material. The aim of this approach was not only to improve structural fidelity, but also to ensure the mechanical performance of the printed structures.
2.3. Generating Target Models Based on Printing Information
The relationship between print parameters and the target layer thickness and filament diameter is calibrated by the pre-built feedback mechanism for printing guidance [
22]. The pre-experiment results are provided in the
Supplementary Materials (Figure S1). GCode instructions include printing parameters such as print speed, print pressure, print nozzle spatial coordinates, filament advance and filament retraction, as shown in

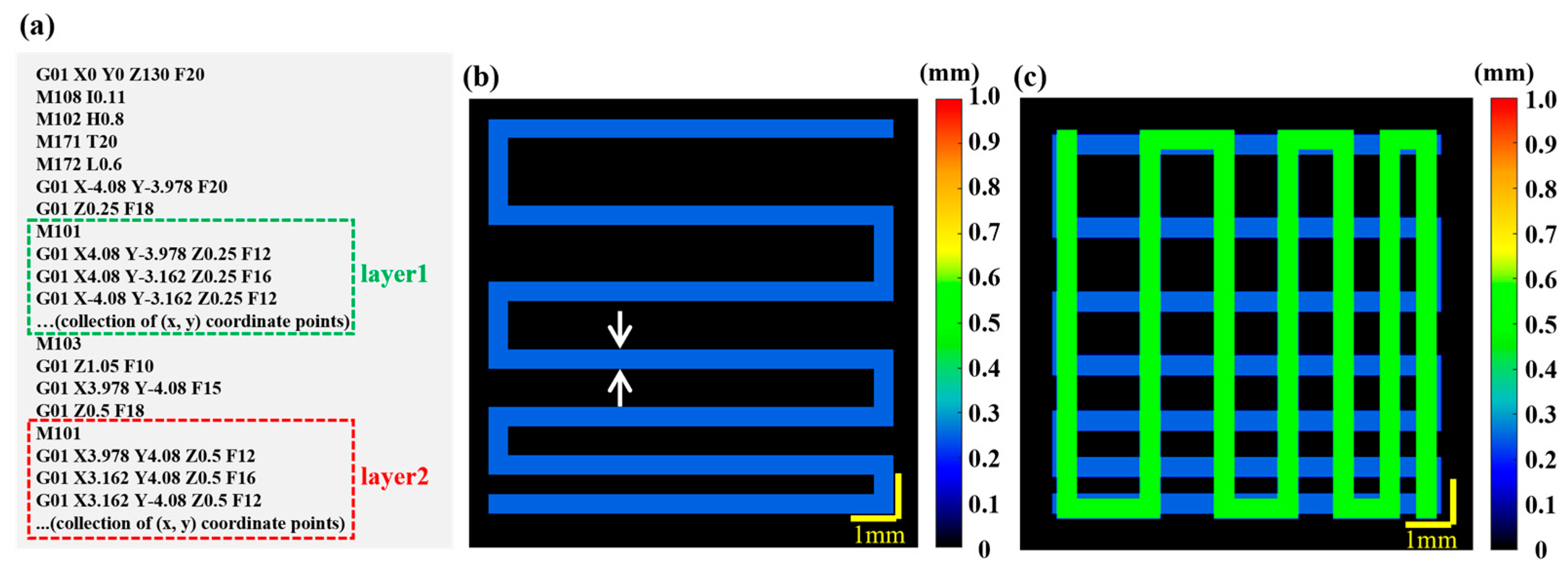

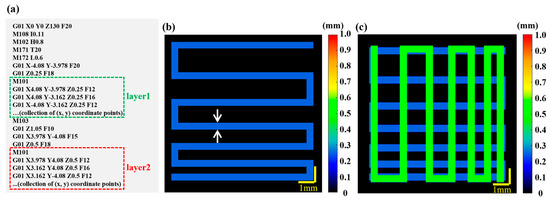

Figure 1a and
Figure S2 in the Supplementary Materials. With the combination of the pre-built feedback mechanism and the GCode information, the target model can be generated. The specific steps are as follows:
Firstly, a 2D target model map (
) is generated based on the field of view of the 3D P-OCT data acquisition and the GCode information. Depending on the field of view, the 2D target model’s space size in the X and Y directions is set to [−5, 5] (or [−9.5, 9.5] for wide–field imaging). According to the acquisition parameters, the 2D target model space is then interpolated at equal intervals of 1024 × 1024. Secondly, at the same Z coordinate
(
= 1, 2, 3, ...), the sequence of X–Y plane coordinates (
,
) (
= 1, 2, 3, ...) is extracted from the GCode instructions. These coordinates are then plotted sequentially in the aforementioned 2D target model space. The Bresenham algorithm [
40] is used to interpolate the points between (
,
) and (
,
) in the 2D target model space and the 2D target path can be obtained with all points after interpolation. Then, based on the print information between (
,
) and (
,
) in the GCode instructions (including print speed and pressure), the target print parameters for that segment (including filament height and width) can be obtained. This allows a 2D target model map to be generated at the current Z coordinate, as shown in
Figure 1b. Finally, to obtain target path/model images at multiple Z coordinates
(
= 1, 2, 3...), it is only necessary to combine the aforementioned multiple 2D target model maps using Z-related color coding, as shown in
Figure 1c.
2.4. Reconstruction of Printed Models Based on 3D P-OCT
Although the calibration results from the pre-print experiment help to improve the fidelity of the printed structure, in situ monitoring methods are still needed during the 3D printing process for defect detection and quantitative assessment. In this study, a “print-imaging” alternating mode was adopted for process monitoring of 3D printed constructs. In each cycle, after the end of printing, each defect is detected and fixed. It should be emphasized that coordinate calibration between the printing system, the imaging system and the imaging space is performed to ensure accurate printing, defect detection and feedback. Firstly, 3D P-OCT is utilized to acquire data of the base layer and record the device coordinates during acquisition. Then, based on the 3D P-OCT data, the image coordinates of the base layer are extracted. During printing, based on the penetration depth of the printing material for 3D P-OCT, data are collected after each layer or several layers are printed and the device coordinates are recorded for each acquisition. The X–Y coordinates are the same as the base layer data acquisition coordinates, while the Z coordinate is adjusted based on the thickness of the newly printed scaffold since the last acquisition. Finally, surface point detection is performed on 3D P-OCT datasets and the positions of the surface points at each X–Y coordinate are recorded. This is further combined with the device coordinates corresponding to the acquisition to generate the thickness distribution of each round of the newly printed structure, which is used to reconstruct the printed model image. The thickness distribution of the reconstructed printing model can be calculated using the following formula:
Here, is the surface point Z coordinates of the printing platform in the 3D P-OCT data. represents the number of pixels by which the print platform moves downward along the Z-axis during the −th round of printing. is the surface point matrix of the current layer material in the 3D P-OCT data and is the pixel resolution in the Z-direction in the 3D P-OCT data. In addition, this processing method can also eliminate errors in judging the height of the printed structure caused by an uneven base.

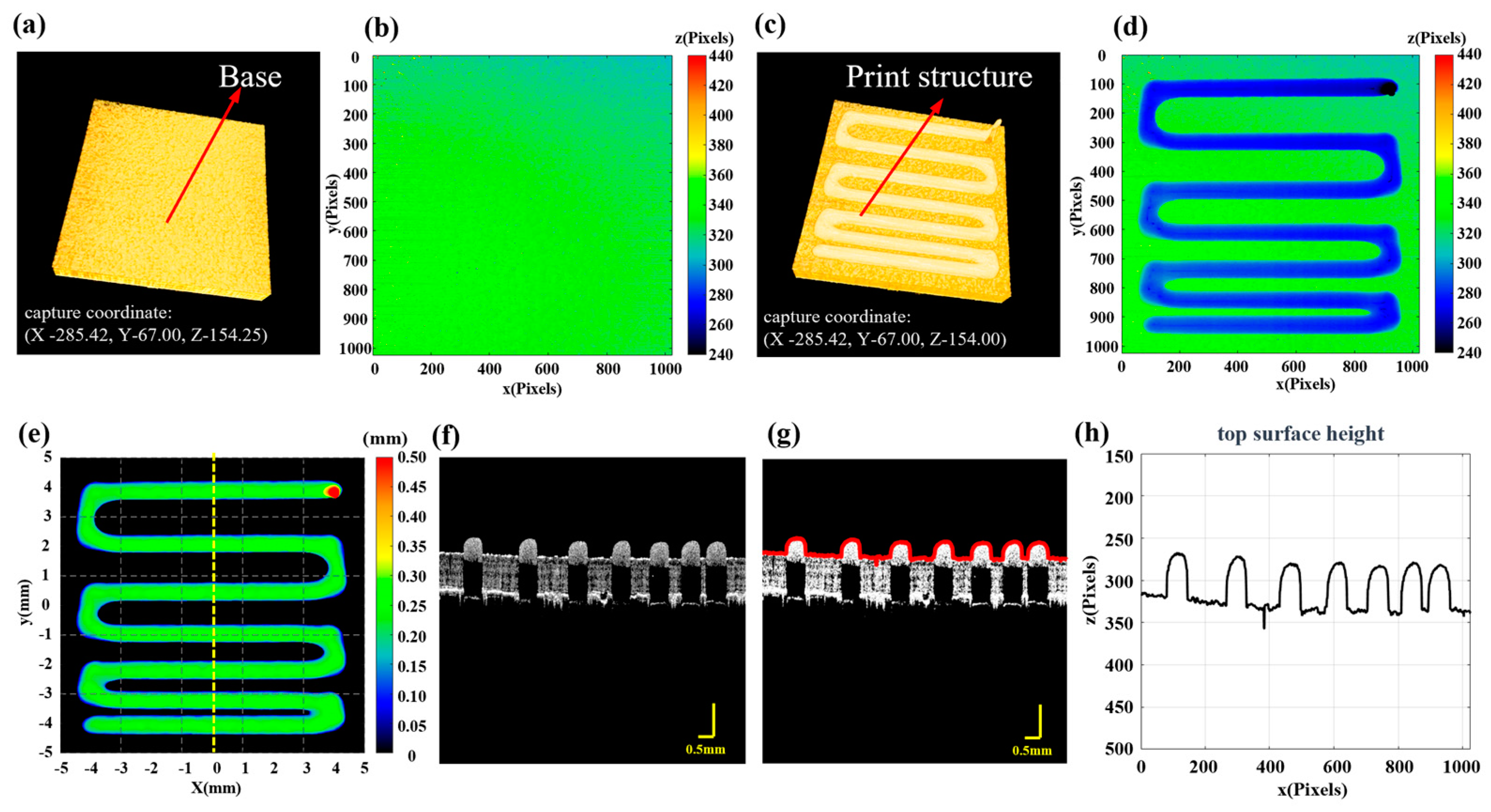

Figure 2 further demonstrates the process of using the formula.
Figure 2a,c show the 3D P-OCT results for the base and the first round of printing, respectively.
Figure 2b and
Figure 2d are the surface point height maps of
Figure 2a and
Figure 2c, respectively.
Figure 2e shows the reconstructed printed model with thickness calculation information.
Figure 2f is a two-dimensional cross-sectional image at the dashed line position of
Figure 2e,
Figure 2g is the surface point extraction image of
Figure 2f and
Figure 2h is the height profile corresponding to
Figure 2g.
Figure S3 in the Supplementary Materials shows a detailed example diagram of the formulae. Based on the above method, it is possible to perform 3D P-OCT imaging of the printed structure in each round and obtain the reconstructed printed model during the printing process. This enables subsequent monitoring of print quality and defect detection in 3D printing.
2.5. Defect Characterization Map and Fidelity Assessment
In the process of extrusion-based bioprinting, defects significantly affect the fidelity of the printed structure and hinder the wider application of the technology in tissue engineering and medical fields. This study mainly discusses four different defects, including material accumulation, under-extrusion, filament breakage inside the print path and stringing outside the path. Based on the comparison between the aforementioned target model maps and the reconstructed 3D printed models, this study proposes a method for detecting and identifying thickness defects in the 3D printing process under any irregular path. Firstly, a target model mask is generated (

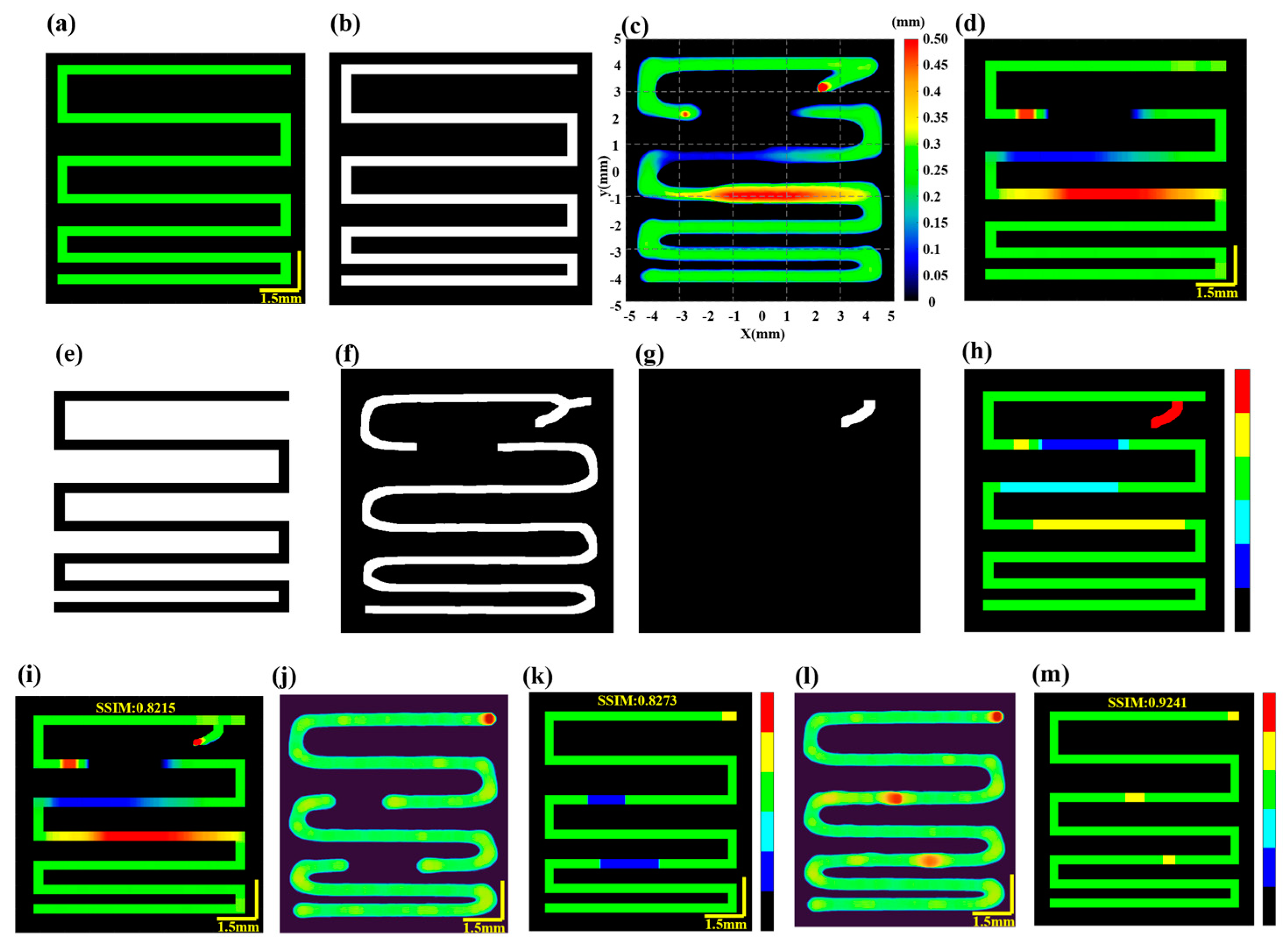

Figure 3b) based on the target model map (
Figure 3a) and this mask is then point-multiplied with the reconstructed printed model (
Figure 3c) to obtain the reconstructed printed model inside the target path (
Figure 3d).
The operator then defines the defect status based on the target thickness and the actual thickness along the central path of the target model (
Figure 3a) and the reconstructed printed model within the target path (
Figure 3d), taking into account the tolerable error. For example, the definition of print status in this study is as follows:
Normal printing:
Under-extrusion:
Over-extrusion:
Filament breakage:
Finally, the mask of the target model mask is inverted (
Figure 3e) to monitor for out-of-path defects. The skeleton of the reconstructed printed model is extracted and expanded (
Figure 3f). The dot product of
Figure 3e,f after opening operations is displayed in
Figure 3g, demonstrating material deposition outside the print path. Based on
Figure 3g, stringing defects are evaluated as follows:
Stringing: .
Specifically, based on the alignment of the target model map and the reconstructed printed model, the states of normal extrusion, under-extrusion, over-extrusion, filament breakage and stringing are identified according to the aforementioned criteria. Different types of print defects are then displayed in the path-related defect characterization map (
Figure 3h). In the defect characterization map, the background is black, normal extrusion is green, under-extrusion is cyan, filament breakage is dark blue, over-extrusion is yellow and stringing defects are red. Based on the defect characterization map, it is possible to identify the states and locations of defects. Therefore, the defect detection mechanism proposed primarily focuses on deviations between the printed structure and the design model and is not directly related to the printing parameters themselves, such as the nozzle size, printing speed and pressure. Different combinations of needle sizes and printing parameters generally correspond to different target models and thus the method exhibits good robustness. For detailed information, please refer to
Figures S4 and S5 in the Supplementary Materials.
To further quantitatively evaluate the fidelity of 3D printed structure, the binarization result of the defect characterization map (
Figure 3h) is dot-multiplied with the reconstructed print model (
Figure 3c), generating the reconstructed print model map inside and outside the path (
Figure 3i). The structural similarity index (SSIM) is then calculated between
Figure 3a,i, with the moving window size determined by the target filament diameter. The average SSIM value is used to evaluate the deviation between the target model and the reconstructed 3D printed model, characterizing the fidelity of the printed structure. The expression for
is:
Here,
and
represent the target model map and the reconstructed printed model map, respectively.
and
denote the mean values of
and
.
and
represent the standard deviations of
and
.
is the covariance of
and
.
and
are constants used to enhance stability. The average SSIM serves as the fidelity value of the printed structure. This approach is particularly useful for addressing filament breakage and under-extrusion defects, as it enables the identification of defect locations, which can the be used to optimize printing results through parameter adjustments or to repair filament breakage with a secondary printing process.
Figure 3j,k illustrates the reconstructed printed model with filament breakage defects and its corresponding defect characterization map.
Figure 3l,m display the reconstructed printed model map and the defect characterization map after the filament breakage defects have been repaired through secondary printing. For instance, the fidelity of the reconstructed printed model displayed in
Figure 3j is 0.8273, while the fidelity after repair is 0.9241 (
Figure 3k), representing an improvement of 11.70%.
2.6. Statistical Analysis
In this study, data processing and analysis were conducted using MATLAB 2020a software and the 3D perfusion map was rendered using Amira (ZIB, Indeed-Visual Cocepts GmbH, Berlin, Germany). All results are expressed as the mean ± standard error of the mean.
4. Discussion
This study introduces a method for spatially resolved defect characterization and fidelity assessment for 3D bioprinting which compares a target model map and reconstructed model map. In situ monitoring through 3D P-OCT was employed to generate a printed structure model map, which was then compared with the target model map created using GCode and calibration information from the pre-experiments. The result was a defect characterization map that provided intuitive and spatially resolved defect information for each iteration of “print-imaging”. Notably, this approach demonstrates adaptability to complex bionic 3D bioprinting, extending beyond fixed fills or regular periodic paths. Furthermore, this method is effective in identifying various printing defects, including over- and under-extrusion, as well as filament breakage within the paths and stringing defects outside the paths. Additionally, the method has the potential to detect more concealed internal defects, such as air bubbles, in future work. In recent research, Zhang et al. developed an advanced 3D bioprinting anomaly detection system that utilizes convolutional neural networks to identify and classify defects in biological functional structures [
31]. This system significantly enhances bioprinting accuracy through real-time adjustments during the printing process. However, this approach still faces challenges in utilizing 3D information and adapting to irregular complex paths. Additionally, in the previous research, 3D P-OCT was utilized to achieve high-speed, large-field and full-depth imaging, as well as real-time multiparameter quantification, thereby enhancing the structural and functional performance of bioprinted structures [
21]. However, it still lacks in defect visualization and making timely decisions based on process assessment to avoid material wastage. Compared to these methods, the approach proposed in this study not only provides more comprehensive defect identification but also guides the optimization of the printing process directly through intuitive defect characterization maps, demonstrating significant practicality and broad application prospects.
The occurrence of printing defects in 3D bioprinting follows specific patterns rather than being random. Defects are more likely to manifest in certain areas, notably at the beginning and end points of the printing path, corners and turnarounds with larger curvature and regions with dense G-code nodes. Previous studies have delved into defects at the start and end points and turnarounds of lattice scaffolds, proposing corresponding repair and optimization strategies [
22]. However, it is necessary to develop more accurate defect detection and visualization for arbitrary irregular printing paths, where there are more dense GCode nodes causing over-extrusion defects. Proactive measures must be taken to address over-extrusion defects, such as reducing the extrusion amount at turnarounds and adjusting the printing speed beforehand to modify acceleration. When dealing with rigid and viscous materials, which possess distinct physical properties, specific parameter settings and adjustments become essential. Consequently, the capacity to adapt parameters such as pressure and speed is advantageous in reducing the incidence of over-extrusion defects.
To address under-extrusion defects and filament breakage, the proposed method enables partial repair through secondary printing, guided by the feedback information provided. However, as previously mentioned, printing defects are prone to occurring at starting and stopping points, presenting a recurring challenge during secondary printing. Therefore, optimizing the printing parameters for these critical areas becomes particularly crucial. The utilization of the defect characterization map allows for identification of defects, such as filament breakage or under-extrusion, which reach or exceed 1.5 mm in length. In such instances, secondary printing methods are employed for the purpose of defect repair, thereby enhancing the fidelity of the scaffold. This approach has been demonstrated to be effective in minimizing the impact of printing defects on the quality of the scaffold, ensuring consistency and maintaining the accuracy of the printed scaffold.

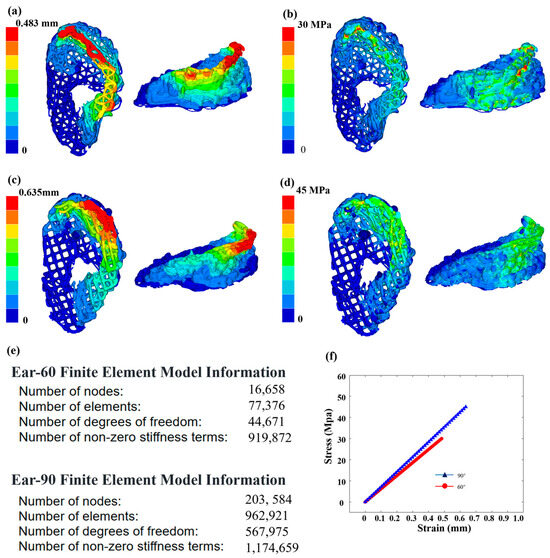

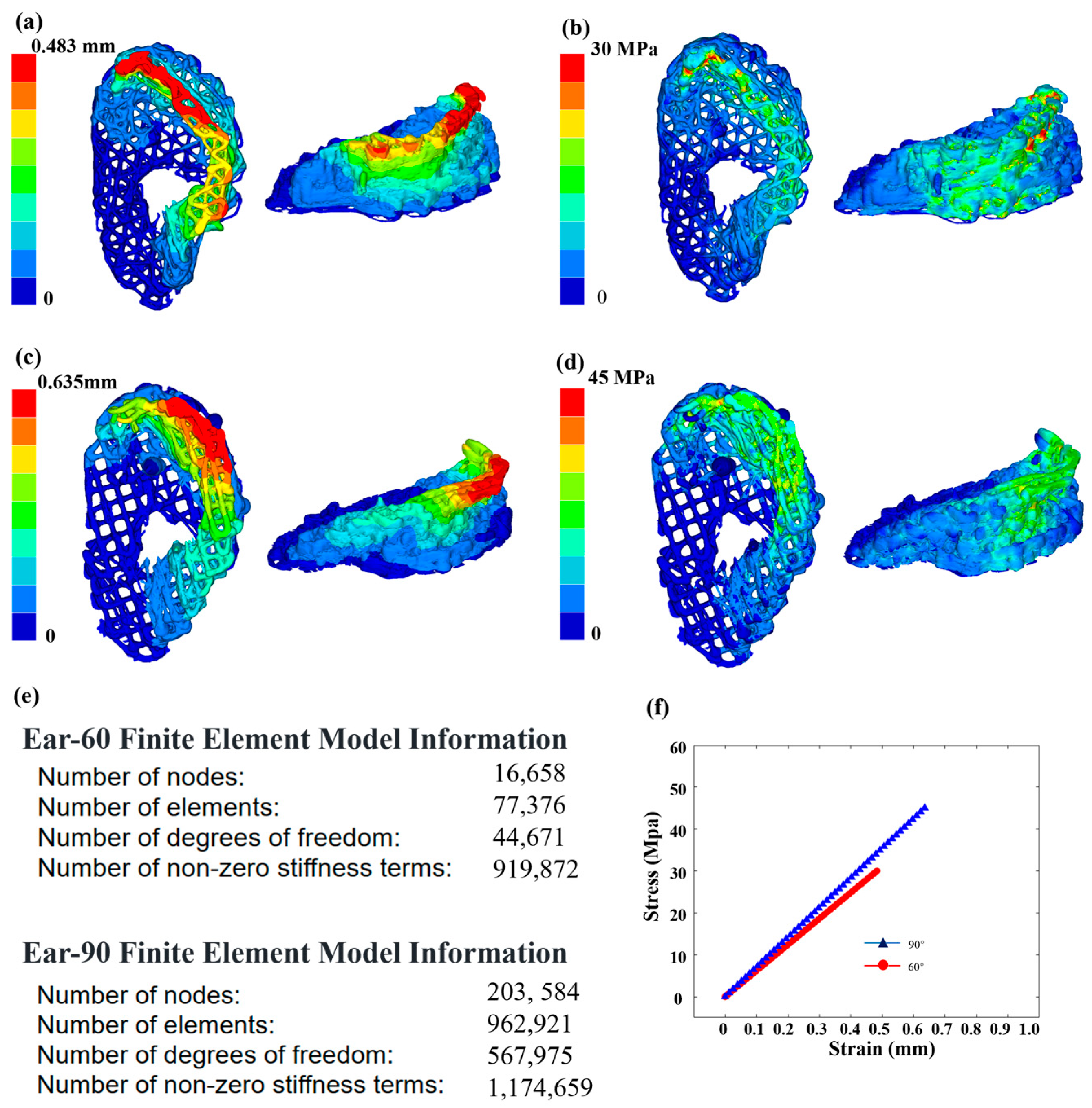

In 3D bioprinting, the scaffold structure plays a pivotal role in cell adhesion, proliferation, differentiation and functional expression. Consequently, non-destructive testing techniques are of significant importance in assessing and ensuring the quality of cell-loaded scaffolds. Throughout the cell printing process, the focus extends beyond maintaining cell viability to ensuring that the post-printed scaffold structure positively impacts the cell state. The utilization of non-destructive testing enables the real-time monitoring of key parameters, including scaffold morphology, surface structure and material uniformity, in situ. The prompt identification and repair of defects during the printing process are facilitated, thereby ensuring the precision and consistency of the printed scaffold. Furthermore, this technology strongly supports the optimization of printing parameters, with monitoring results guiding adjustments in printing settings to further enhance the quality and fidelity of the printed scaffold. The non-destructive testing technology proposed in this study not only allows for a comprehensive assessment of the scaffold’s impact on cell states but also provides critical support for spatiotemporal iterative printing. Additionally, the proposed method is not constrained to extrusion-based printing; with minor modifications, it can be compatible with other printing technologies, including SLS, PBF, droplet-based, extrusion-based and Digital Light Processing (DLP) 3D printing, through the comparison of a target model and reconstructed model.
Figure S9 in the Supplementary Materials shows the results of defect detection for DLP 3D printing.
However, the current method still exhibits limitations in certain aspects. Specifically, while it is possible to repair broken filament defects, the option of terminating the current printing process in the face of serious defects such as over-extrusion and drawing limits the scope of its application. In addition, the current “print-imaging” alternating strategy creates interruptions in the printing process, which increases the overall printing time. To improve this situation, subsequent studies could explore the use of OCT systems with higher acquisition speeds or micro-scanning probes to reduce the time required for data acquisition. On the other hand, the time-consuming process of 3D POCT data acquisition as well as the generation of defect characterization maps also affects the timeliness of defect detection. To address this challenge, we expect to improve the responsiveness of defect detection by accelerating the speed of data acquisition and processing through technological innovations. Finally, on the basis of constructing effective datasets, the application of deep learning techniques is also expected to bring significant improvements in defect detection efficiency. Through deep learning and data analysis, we may be able to identify various defects more accurately and quickly, providing strong support for the optimization of the printing process.
5. Conclusions
The proposed method combines a GCode-based target model with a reconstructed printed model generated using 3D P-OCT to create a defect characterization map during the printing process. This is achieved through an alternating “printing-imaging” mode. The method leverages GCode information and pre-experiment results to facilitate defect detection in irregular paths, enabling layer-by-layer visualization of printing defects and the quantitative assessment of fidelity. The defect characterization map enables the spatial localization and visualization of defects such as over-extrusion, under-extrusion and filament breakage within the printing path and stringing outside the printing path. GCode-related feedback information can be generated for the secondary printing process, with the aim of repairing under-extrusion and filament breakage, thereby enhancing printing fidelity. Additionally, the method holds promise for detecting more concealed internal defects, such as air bubbles, in future work. By adopting higher-speed OCT equipment and GPU-based data processing acceleration strategies, the timeliness of defect detection is significantly improved. Furthermore, real-time feedback strategies based on 2D OCT monitoring are explored, which involve real-time monitoring of the printing process and immediate adjustment of printing parameters to address issues arising during the process. Looking ahead, the integration of machine learning algorithms could further refine the defect detection process, automating the generation of corrective GCode adjustments and paving the way for closed-loop, self-optimizing 3D printing systems.
In conclusion, the proposed method enables the spatially resolved defect detection and visualization of defects in complex and arbitrary irregular 3D printing in situ, based on 3D P-OCT and GCode. This approach contributes to achieving high-fidelity printing, including both shape and functionality, and can significantly enhance the quality and fidelity of printed products, greatly advancing the application and development of 3D printing technology across various industries.
