Data-Driven Strain Sensor Design Based on a Knowledge Graph Framework
Abstract
:1. Introduction
2. Materials and Methods

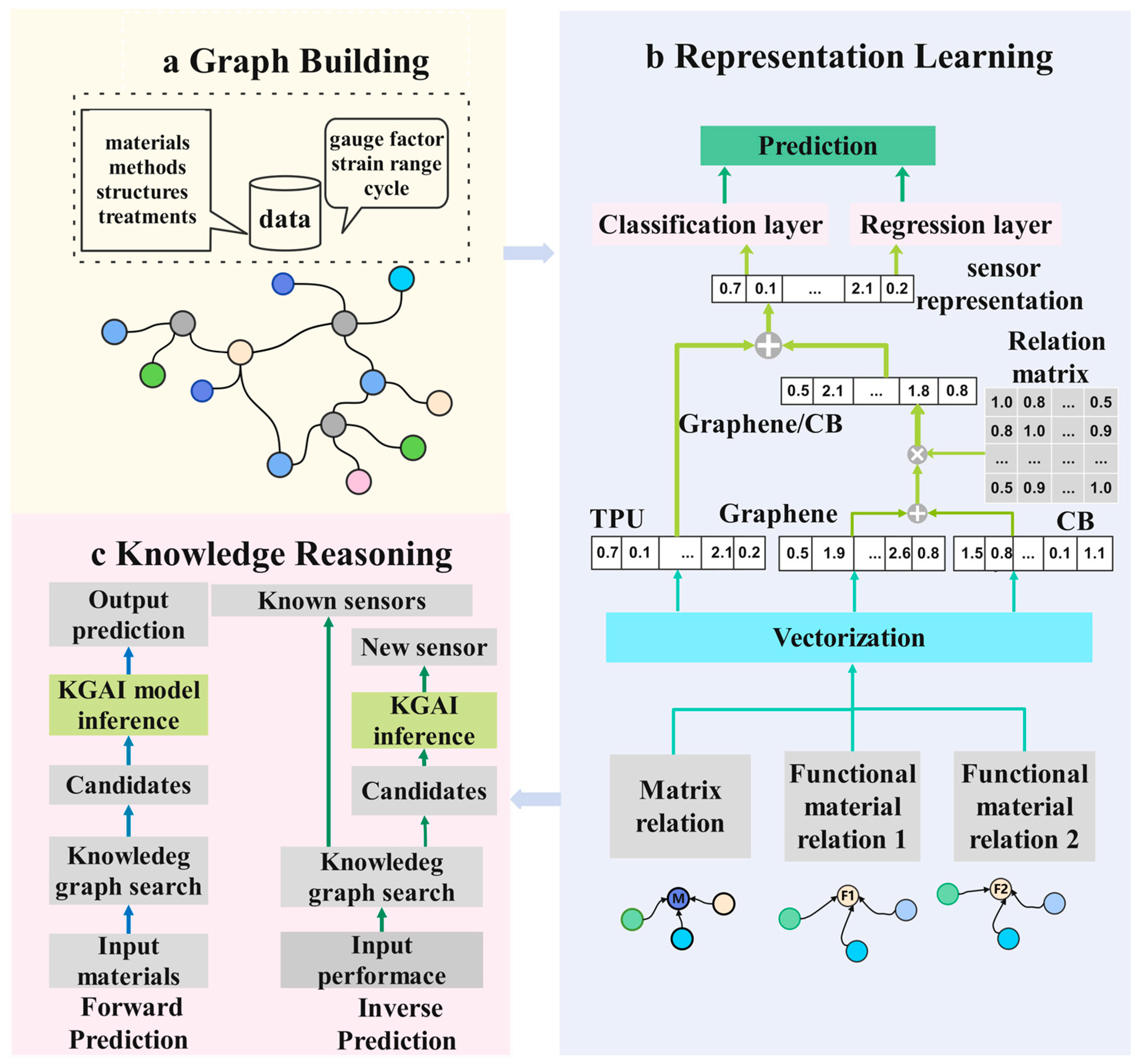

2.1. Knowledge Graph Building of the Strain Sensors
2.2. Representation Learning
2.3. Knowledge Reasoning
2.4. Fabrication of a Designed Strain Sensor
2.5. Characterization
3. Results and Discussion

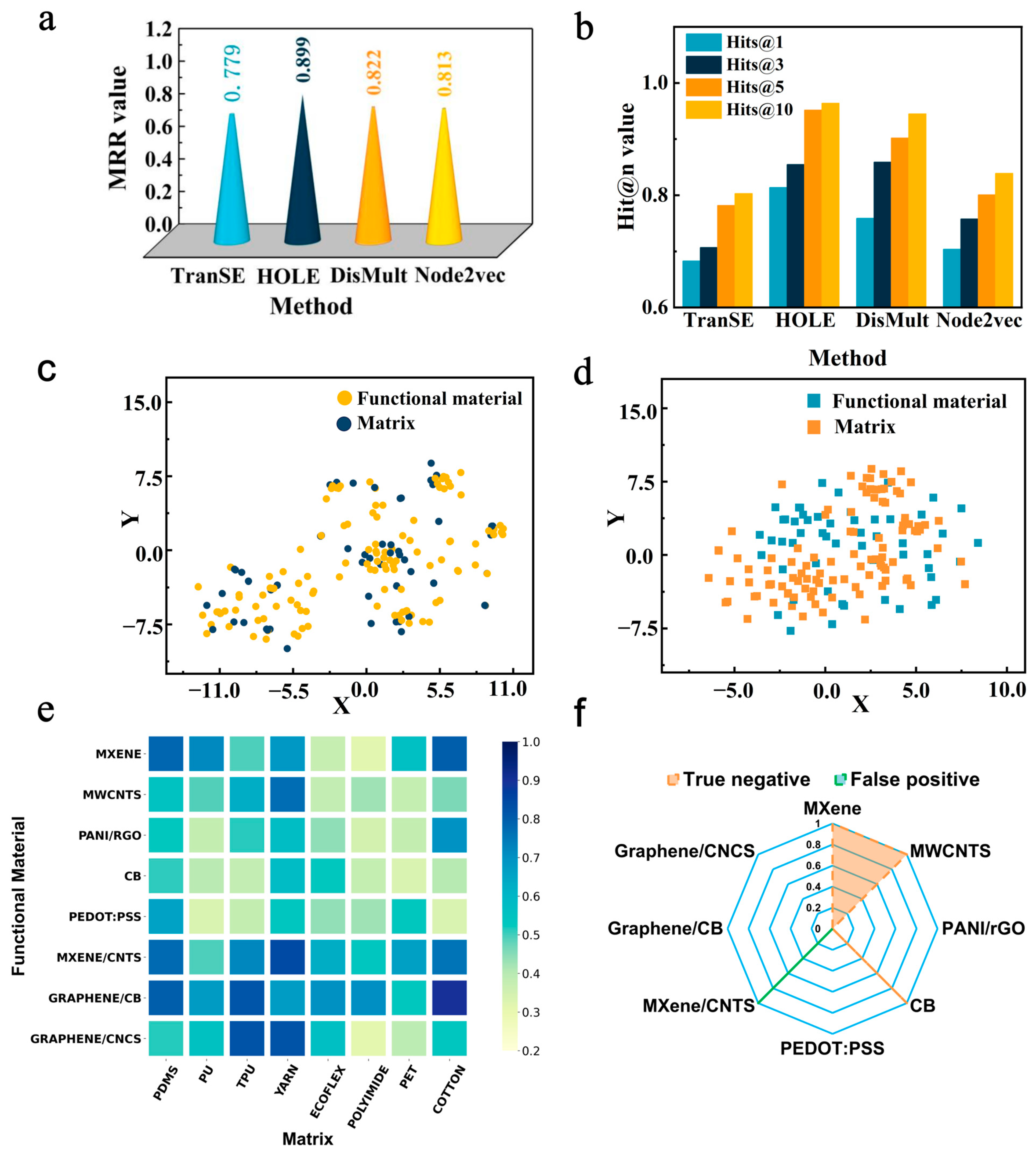

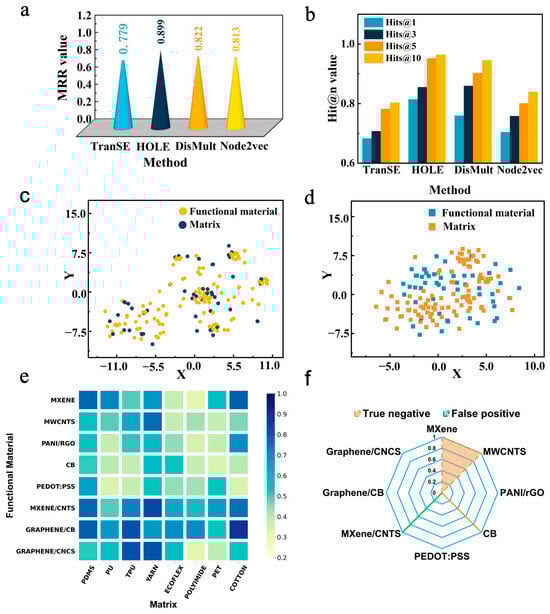

3.1. The Effect of the KGAI Representation Method

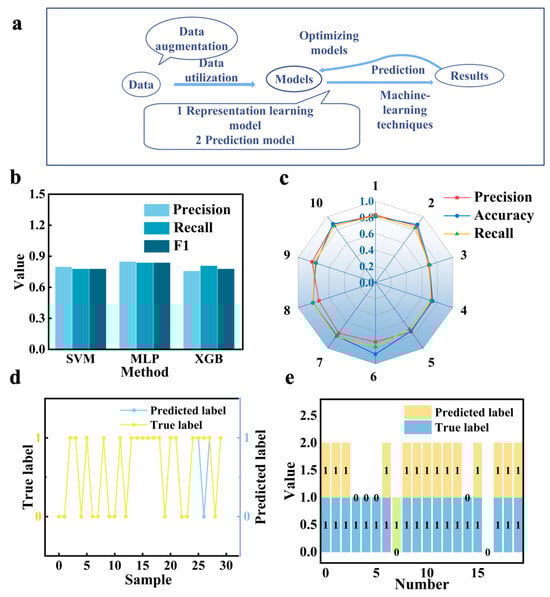

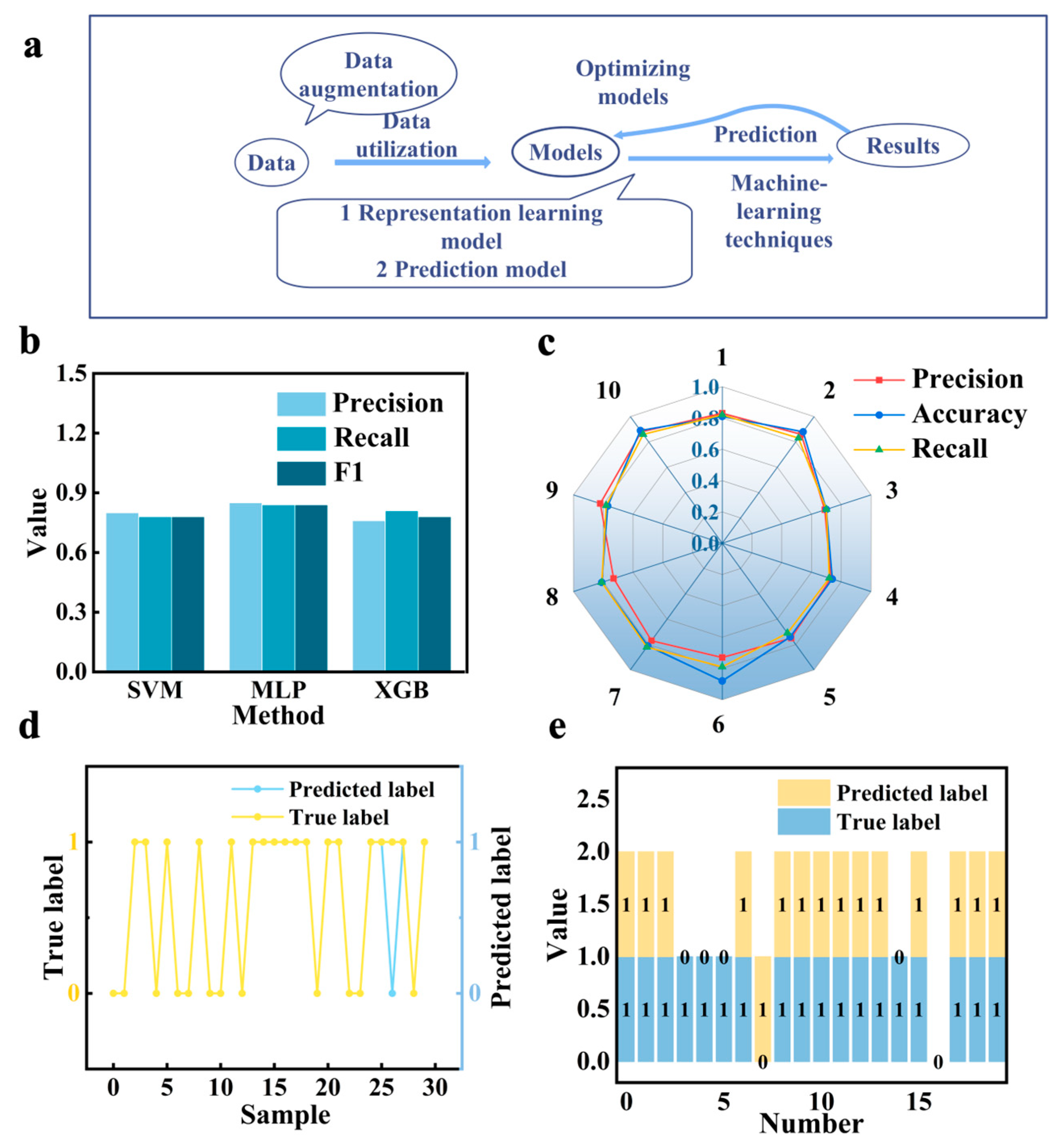

3.2. Navigation Model of Prediction

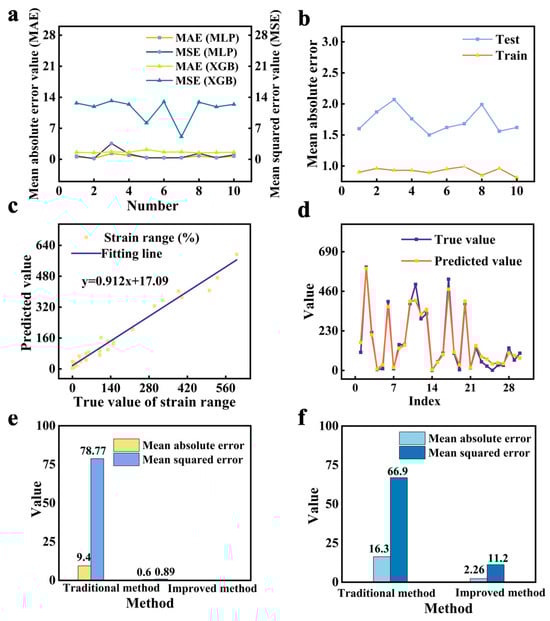

3.3. Entity Prediction

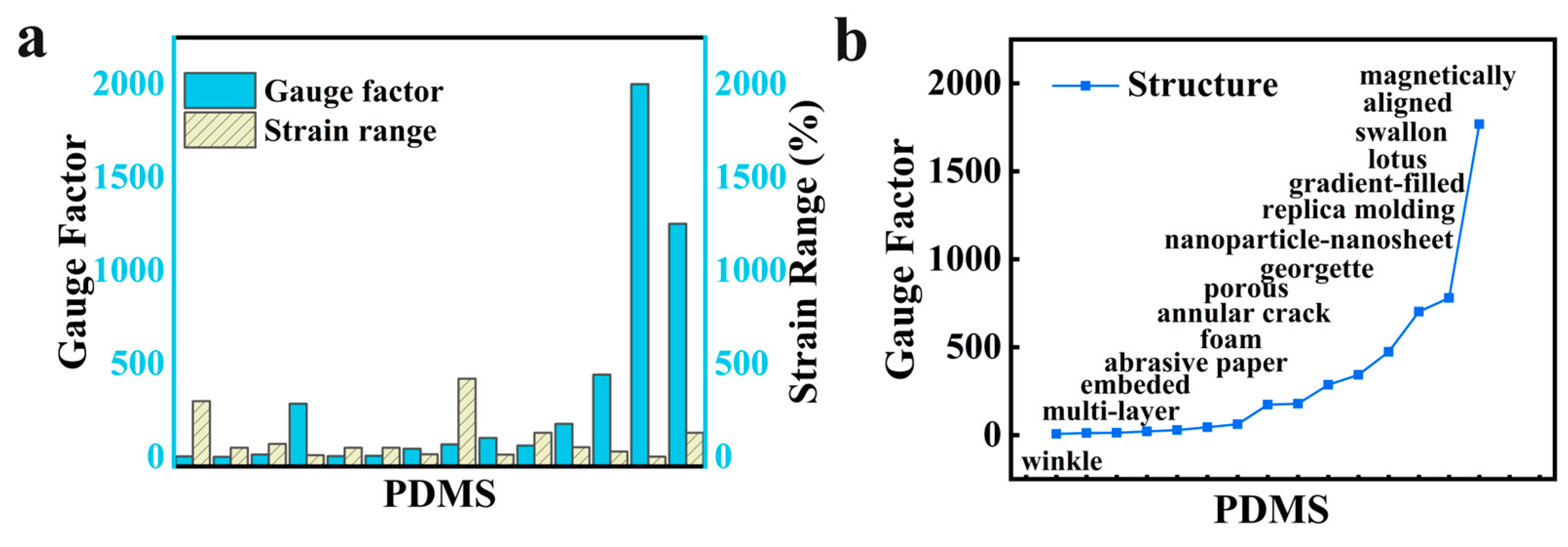

3.4. Automatic Strain Sensor Design

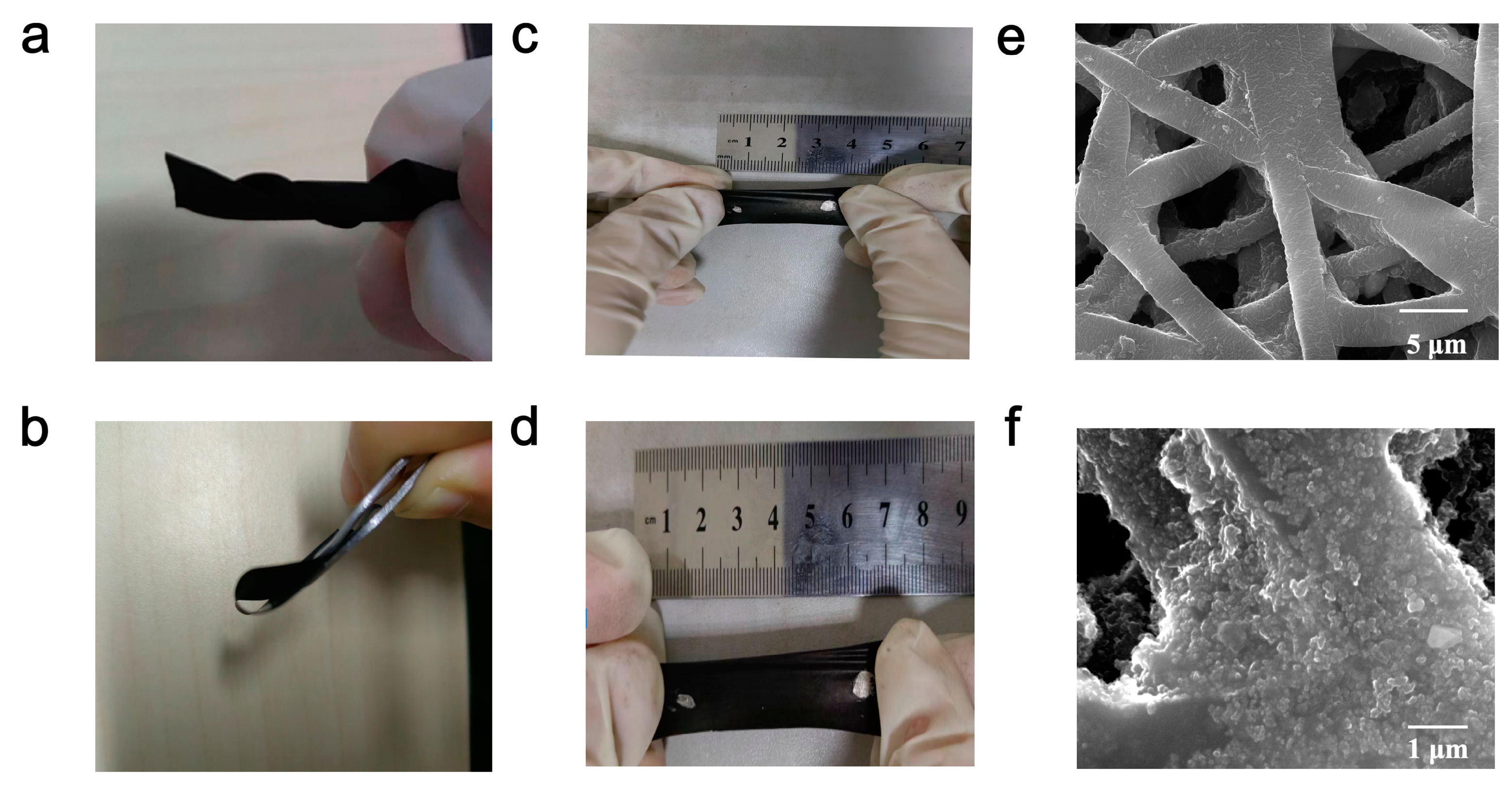

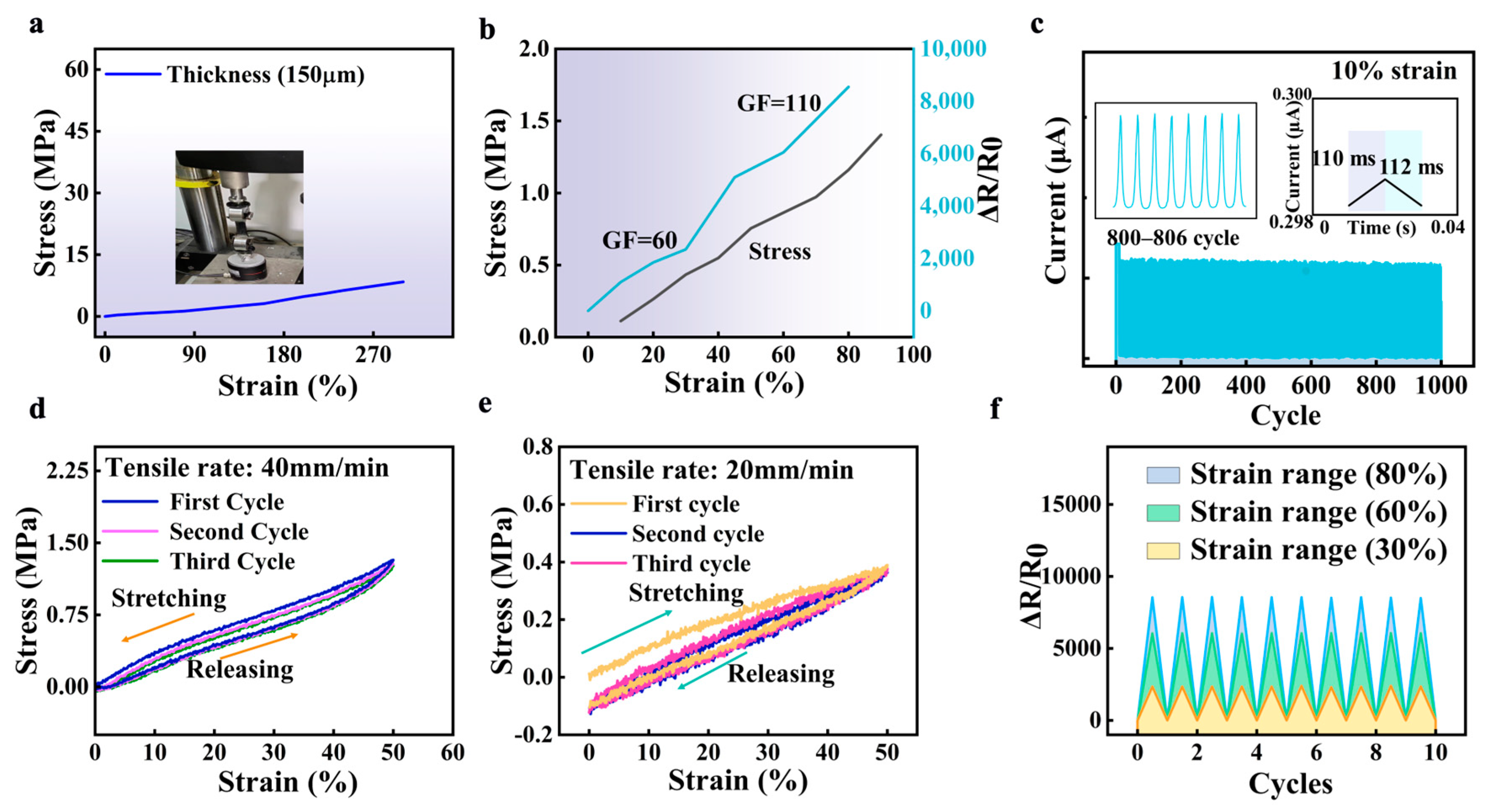

3.5. Characteristics of the Designed Strain Sensor

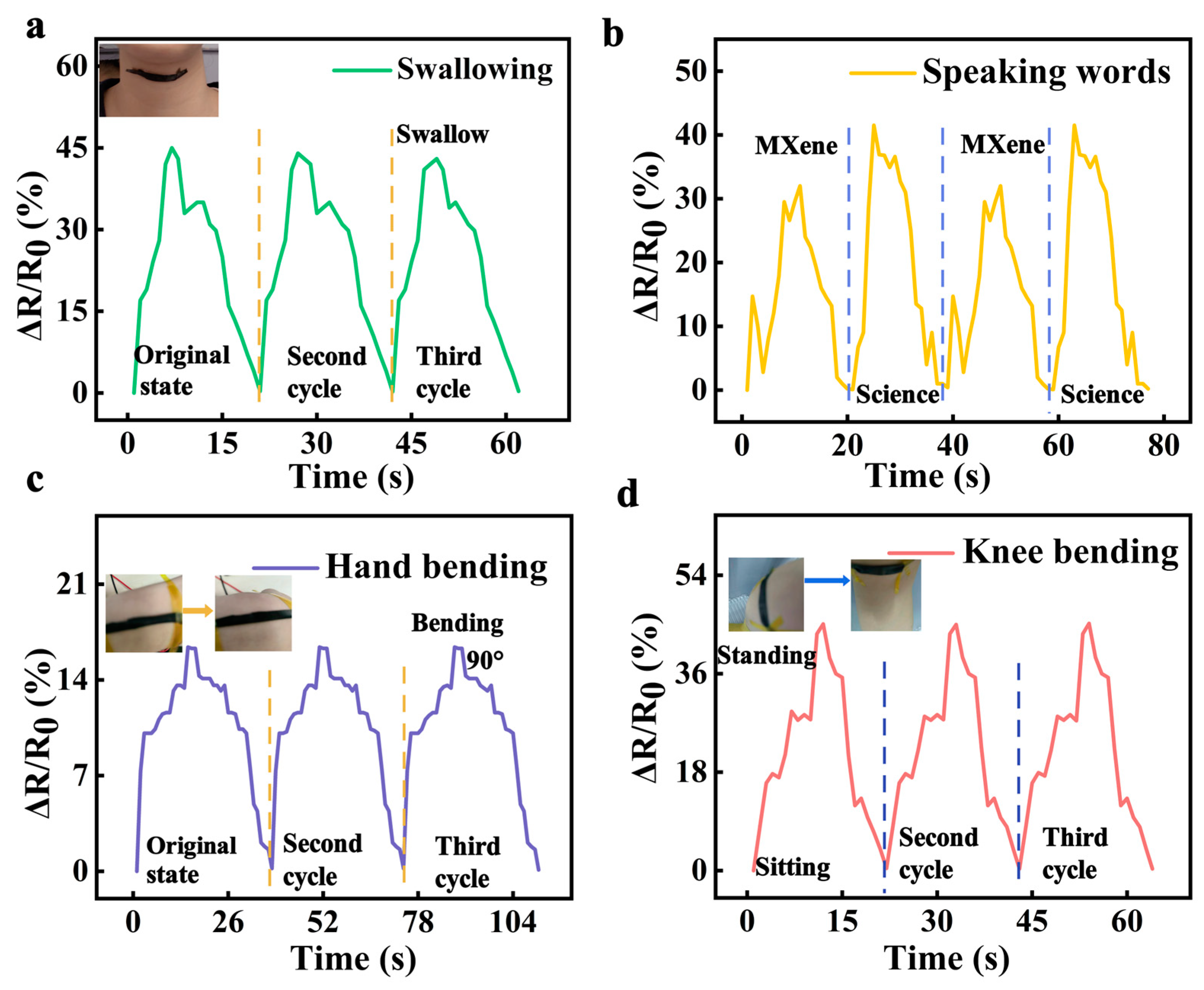

3.6. Demonstration of a Human Action Monitoring Application
4. Conclusions
Supplementary Materials
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
