Development of High-Performance Ethanol Gas Sensors Based on La₂O₃ Nanoparticles-Embedded Porous SnO₂ Nanofibers

Abstract

Porous pure SnO₂ nanofibers (NFs) and La₂O₃ nanoparticles (NPs)-embedded porous SnO₂ NFs were successfully synthesized via electrospinning followed by calcination. These materials were systematically evaluated as gas-sensing elements in metal-oxide-semiconductor (MOS) sensors. The La₂O₃ NPs embedded in porous SnO₂ NFs demonstrated superior gas-sensing performance compared to pure SnO₂ NFs. Specifically, the incorporation of La₂O₃ resulted in a 12-fold enhancement in gas-sensing response towards ethanol, significantly improving both sensitivity and selectivity by tuning the carrier concentration and modifying oxygen deficiencies and chemisorbed oxygen levels. Thus, La₂O₃ NPs embedded in SnO₂ NFs present a promising strategy for the development of high-performance ethanol gas sensors.

1. Introduction

Ethanol is a widely utilized volatile organic compound (VOC) with a broad spectrum of applications across various industries. Beyond its well-known role as an alternative fuel, ethanol is integral to sectors such as pharmaceuticals, chemical synthesis, and fermentation-based processes. Its significance is not only rooted in its extensive use but also in the need for precise monitoring of ethanol concentrations. Accurate detection is critical for ensuring product quality, maintaining safety standards, optimizing production efficiency, and complying with environmental regulations. As ethanol continues to play a pivotal role in both energy and industrial applications, the development of advanced sensing technologies for its effective monitoring has become increasingly important to fully harness its potential [1,2,3]. In the automotive industry, the use of ethanol as a biofuel is crucial for lowering greenhouse gas emissions and promoting sustainable energy. Accurate measurement of ethanol concentrations is vital for ensuring the quality of fuel blends and optimizing combustion efficiency. This precision is essential to advancing the global transition towards greener, more sustainable transportation solutions [4,5].

In pharmaceutical and chemical manufacturing, ethanol is a versatile solvent crucial for the extraction and synthesis of various compounds. Precise control of ethanol concentrations is essential to ensure the quality, consistency, and safety of pharmaceutical formulations and chemical processes. Accurate and selective ethanol gas sensors play a vital role in maintaining operational integrity, ensuring product standards, and minimizing potential hazards [6,7]. Detecting elevated alcohol levels in the breath of individuals who have consumed alcoholic beverages is vital for public safety, particularly in preventing drunk driving. Real-time monitoring of ethanol levels in both ambient air and a driver’s breath is essential to address this concern. Gas sensors that are simple to manufacture, easy to integrate, portable, and sufficiently sensitive are the preferred choice in this field. These advantages make them an effective solution for enhancing road safety by helping to monitor and prevent alcohol-impaired driving [8,9]. Given ethanol’s wide range of applications, the development of highly sensitive and selective gas sensors specifically for ethanol detection is essential. These sensors not only enhance safety and regulatory compliance but also improve process efficiency, reduce environmental impact, and support sustainable industrial practices.

MOSs have emerged as highly promising candidates for gas-sensing applications, owing to their exceptional sensitivity to alterations in the surrounding atmosphere [10,11]. Among these semiconductors, SnO₂ and La₂O₃ have garnered substantial attention due to their distinctive properties. SnO₂ is well-known as an n-type semiconductor, exhibiting remarkable gas-sensing properties, particularly in the detection of reducing gases [12]. Conversely, La₂O₃, recognized as a p-type semiconductor, stands out for its stability and distinctive electronic characteristics [13,14]. Recent research endeavors have delved into the synergistic advantages that arise from combining SnO₂ and La₂O₃ in gas-sensing applications. A novel approach involves embedding La₂O₃ NPs within porous SnO₂ NWs, aiming to augment the sensitivity and selectivity of ethanol gas sensors. The integration of SnO₂ and La₂O₃ into a p-n junction establishes a platform that enhances the overall gas-sensing performance. SnO₂ boasts several advantages, including a high surface area, excellent chemical stability, and sensitivity to a wide range of gases, making it an ideal candidate for the detection of ethanol vapors. Its capability to undergo significant changes in electrical conductivity in response to various gases further solidifies its suitability for gas-sensing applications [15,16]. Traditional ethanol sensors often face several key challenges that hinder their performance and practical applications. One of the primary issues is their requirement for high operating temperatures, typically above 300 °C, to achieve sufficient sensitivity. This not only increases energy consumption but also shortens the lifespan of the sensor, making it unsuitable for portable or low-power applications. Furthermore, conventional sensors often exhibit poor selectivity, struggling to distinguish ethanol from other VOCs such as acetone, methanol, and formaldehyde, which can lead to false readings or reduced accuracy in mixed gas environments. Additionally, many ethanol sensors have limited long-term stability due to factors such as material degradation, surface contamination, or drift in sensor response over time. This instability affects their reliability and necessitates frequent recalibration or replacement, which increases operational costs and limits their usability in long-term monitoring applications [17,18,19]. Complementarily, La₂O₃ introduces p-type conductivity to the semiconductor ensemble, contributing to the formation of a p-n junction. This particular junction structure enhances sensitivity and selectivity, as the presence of ethanol induces substantial alterations in the material’s electrical conductivity. The combined attributes of SnO₂ and La₂O₃, integrated into a p-n junction, offer a robust foundation for achieving heightened performance in ethanol gas sensing, paving the way for advancements in gas sensing technology.

In this study, we synthesized La₂O₃ NPs-embedded porous SnO₂ NFs using the electrospinning process, with a focus on investigating the effects of La₂O₃ doping on the ethanol-gas-sensing properties of SnO₂ NFs. The incorporation of La₂O₃ as a dopant in the SnO₂ matrix was systematically examined to understand its influence on key performance parameters, including sensitivity, detection limit, and response/recovery time. By carefully controlling the doping levels during the electrospinning process, we aimed to optimize the synergistic effects between La₂O₃ and SnO₂, with the goal of significantly improving sensitivity, selectivity, and response/recovery times for ethanol detection. These improvements are essential for enhancing the practical application of ethanol sensors, particularly in environments requiring high sensitivity and fast response times at room temperature.

2. Materials and Methods

2.1. Materials

Tin(IV) chloride pentahydrate (SnCl₄·5H₂O, 98%), Lanthanum(III) nitrate hydrate (La(NO₃)₃·xH₂O, 99.9%), and polyvinylpyrrolidone (PVP, Mw = 1,300,000) were sourced from Sigma-Aldrich (Saint Louis, MO, USA). N,N-Dimethylformamide (DMF) was supplied by DUKSAN PURE CHEMICALS (Ansan, Republic of Korea), while citric acid (C₆H₈O₇, 99+%) was obtained from Alfa Aesar (Haverhill, MA, USA). Ethanol (99.5%) was purchased from Deajung Chemical (Siheung, Republic of Korea). Various gases (99.99%) used for sensing performance measurements were provided by Samjung Special Gas (Incheon, Republic of Korea). All other chemicals and reagents were used as received, without further purification unless specified otherwise.

2.2. Preparation

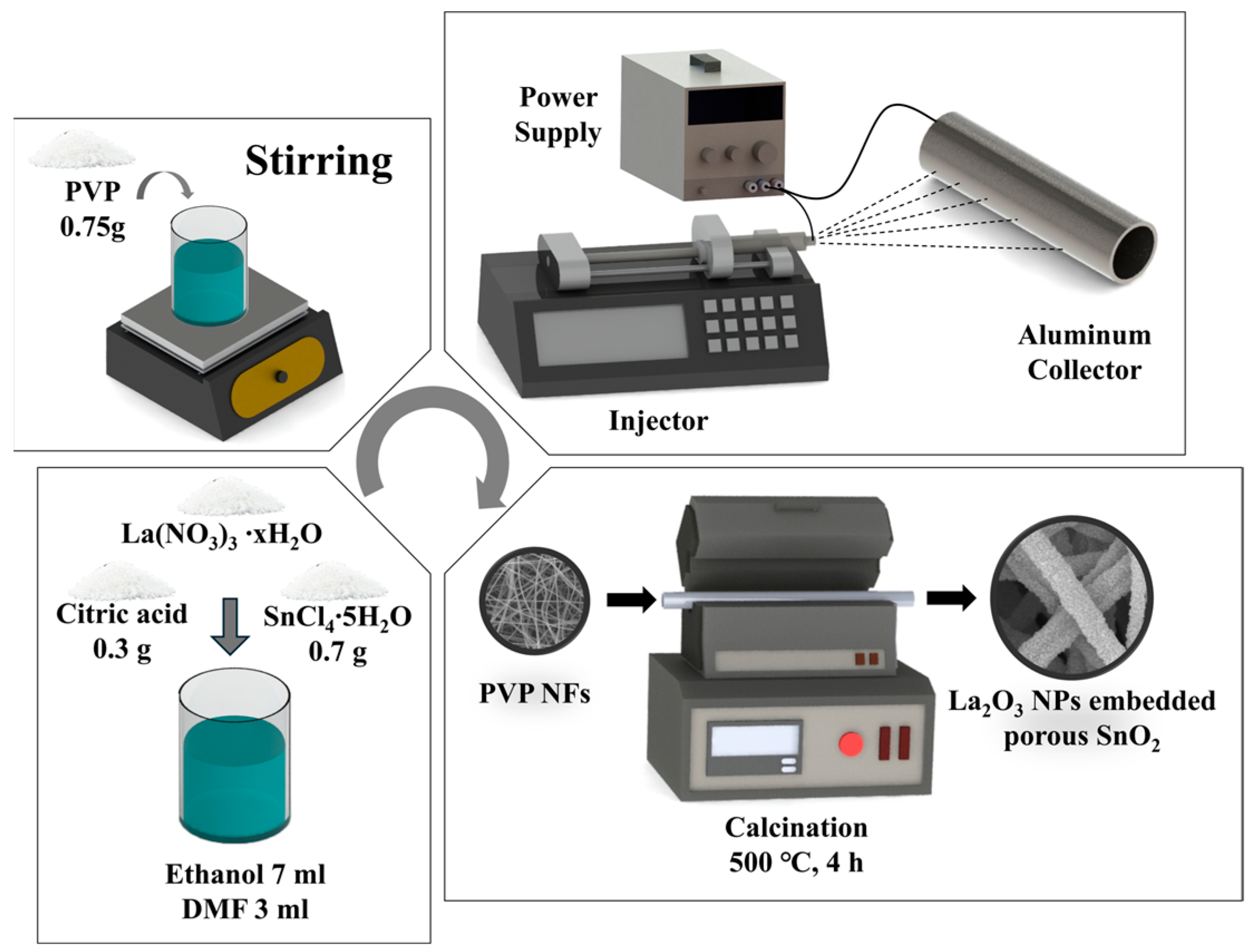

Pure porous SnO₂ NFs and La₂O₃ NPs-embedded porous SnO₂ NFs with varying La₂O₃ concentrations were synthesized through a meticulous electrospinning process, followed by calcination. To begin, a solution was prepared by dissolving 0.3 g of citric acid, 0.7 g of SnCl₄·5H₂O, and specific amounts of La(NO₃)₃·xH₂O (0, 0.016, 0.032, and 0.048 g) in a solvent mixture of 7 mL absolute ethanol and 3 mL DMF. This mixture was stirred magnetically at room temperature for 30 min. Next, 0.75 g of PVP was gradually added, followed by an additional 30 min of stirring at room temperature. The prepared solution was loaded into a 7 mL plastic syringe for electrospinning, as shown in Figure 1. A DC voltage of 12 kV was applied between the syringe needle and a collector positioned 20 cm apart, with a feed rate maintained at 0.005 mL/min. The resulting white fibers were collected and calcined in a tube furnace at 500 °C for 4 h. The samples were labeled 0La/SnO₂, 16La/SnO₂, 32La/SnO₂, and 48La/SnO₂, corresponding to the respective La(NO₃)₃·xH₂O ratios (0, 0.016, 0.032, and 0.048 g).

2.3. Characterization

The morphologies of the samples were carefully analyzed using field emission-scanning electron microscopy (FE-SEM, Hitachi S8010, HITACHI, Tokyo, Japan). The crystal structures were characterized by X-ray diffraction (XRD) patterns obtained at a 5° glancing angle with a high-resolution X-ray diffractometer (D/Max-2500/PC, Rigaku, Tokyo, Japan) using CuKα radiation (λ = 1.5418 Å) over a scattering angle range of 20° to 80°. For more detailed analysis of the samples’ morphology and crystal structure, field-emission transmission electron microscopy (FE-TEM, Jeol 2100F, JEOL, Tokyo, Japan) equipped with energy-dispersive X-ray spectroscopy (EDS) was employed for qualitative chemical composition analysis of the nanofibers. X-ray photoelectron spectroscopy (XPS, PHI 5000 Versa Probe II, ULVAC-PHI, Chigasaki, Japan) was used to accurately determine the binding energies of the samples. Additionally, the specific surface area and pore size distribution were measured through N₂ gas adsorption using Brunauer–Emmett–Teller (BET, BELSORP-max, MicrotracBEL Corp., Osaka, Japan) and Barrett–Joyner–Halenda (BJH) surface analysis techniques.

2.4. Fabrication and Measurement of Gas Sensor

In this study, a gas sensor device was used to assess gas-sensing performance within a dedicated system, as shown in Figure S1. Interdigitated Electrode (IDE) chips were fabricated through a lift-off process, involving the sequential deposition of a Ti adhesion layer and an Au conduction layer on a SiO₂/Si wafer, with a 10 μm gap between electrodes. The material was dispersed in ethanol and sonicated, after which the suspension was applied to the IDE chip and air-dried. This process was repeated three times to ensure sufficient sample deposition on the chip. Gas-sensing performance was evaluated using a custom-designed system featuring a quartz tube as the sensing chamber. The IDE chip was placed at the center of the chamber and connected to a source-meter unit (SMU, Keithley 2450). Before testing, the gas was dried to 0.7% humidity using a DRIERITE gas drying unit (W.A. Hammond Drierite Co. Ltd., Xenia, OH, USA). The response performance of the target gas was tested under varying relative humidity (RH) conditions; the RH of the air was set to 0%, 20%, 40%, and 80%, with specific humidity control referenced in Figure S2. During the experiments, the gas concentration was adjusted to five levels: 0.5, 1, 2, 5, 10, and 20 ppm. The controlled gas injection rate of 20 sccm maintained stable pressure conditions, effectively minimizing the impact of pressure fluctuations on resistance measurements. After each introduction of the target gas, synthetic air was used as the purging gas and systematically delivered to the IDE chips. The target gas and purging gas were supplied to the sensors for 200 s and 1000 s, respectively. Resistance data from the sensors were recorded by the source-meter at one-second intervals throughout the process. Sensor response was defined as R_a/R_g, where R_a is the sensor resistance in air and R_g in the target gas [20]. Response and recovery times were measured when the resistance reached 90% of its total shift during adsorption and desorption.

3. Results

3.1. Characterization of La₂O₃ NPs-Embedded Porous SnO₂ NFs

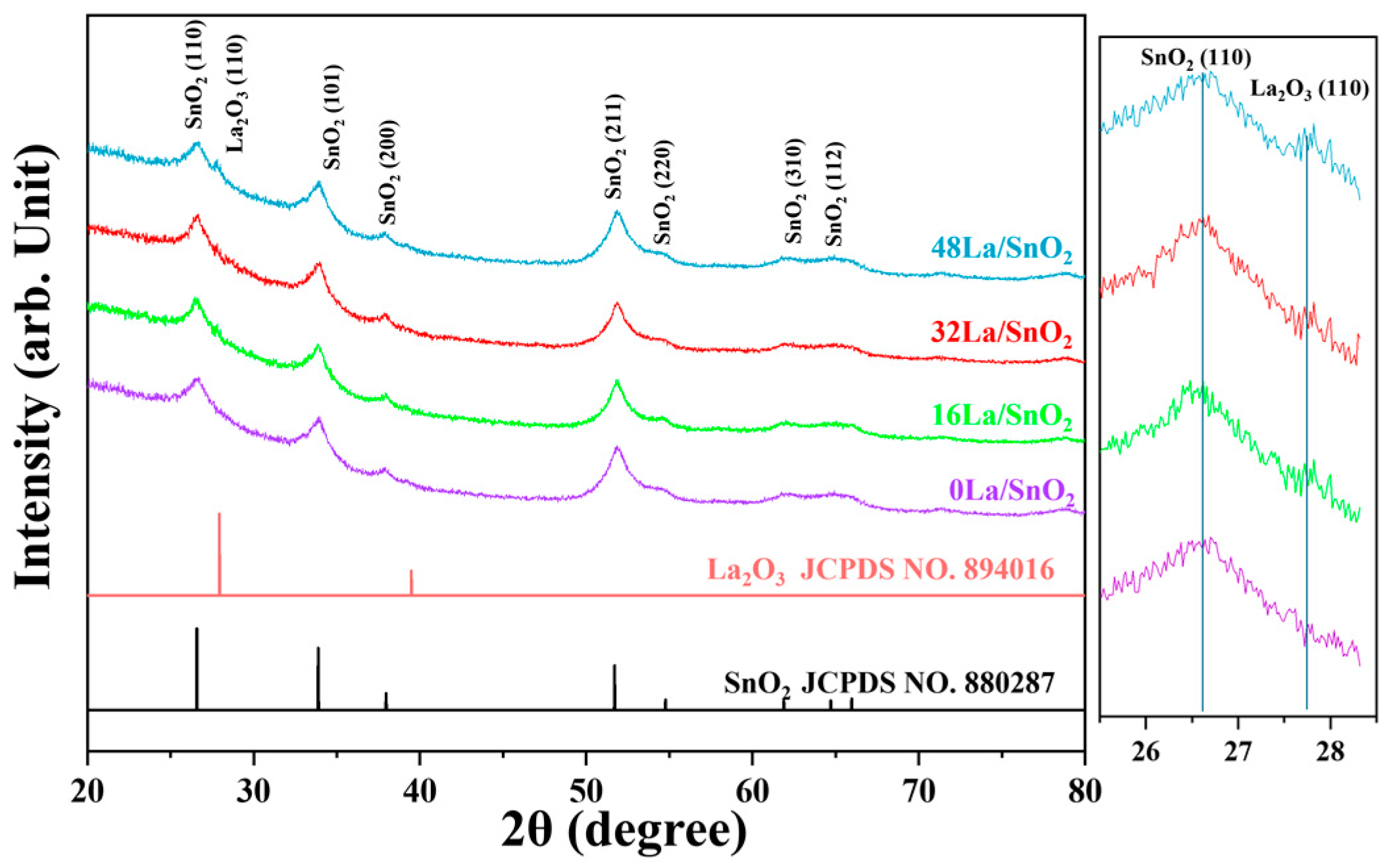

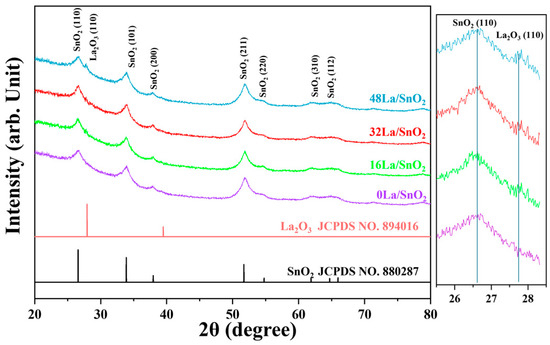

Figure 2 shows the XRD patterns for 0La/SnO₂, 16La/SnO₂, 32La/SnO₂, and 48La/SnO₂, representing the composites of SnO₂ and La₂O₃. The XRD pattern of 0La/SnO₂ corresponds to the tetragonal structure of SnO₂ (JCPDS No. 88–0287), with no additional peaks, confirming the purity of the SnO₂ NFs. In the other samples, the XRD patterns exhibit additional peaks attributed to the body-centered cubic structure of La₂O₃ (JCPDS No. 89–4016), indicating the successful incorporation of La₂O₃. However, due to the relatively low concentration of La₂O₃ compared to SnO₂, most characteristic La₂O₃ peaks are not prominent, and only the (110) peak of La₂O₃ is observed in the samples. The intensity of these La₂O₃ peaks increases proportionally with the concentration of La₂O₃ NPs, while the SnO₂ peaks remain nearly constant across all samples, confirming the structural stability of SnO₂. Notably, no peaks corresponding to any secondary phases or impurities were observed. A high-resolution XRD figure has been provided to clearly illustrate these peak characteristics.

The NF structure underwent significant changes due to thermal calcination, which removed the PVP and transformed the embedded salts within the polymer matrix into metal oxide grains through oxidation and crystallization. SEM images with detailed magnifications of the synthesized samples are shown in Figure 3. A low-magnification SEM image of the PVP NFs before calcination is presented in Figure 3a, while post-calcination images for 0La/SnO₂, 16La/SnO₂, 32La/SnO₂, and 48La/SnO₂ are displayed in Figure 3c, Figure 3e, Figure 3g, and Figure 3i, respectively. Corresponding high-magnification images are provided in Figure 3b,d,f,h,j. These images indicate that the smooth NFs, initially around 300 nm in diameter, transitioned into porous, uneven structures composed of small sub-grains after calcination. These sub-grains, containing both SnO₂ and La₂O₃, were difficult to distinguish due to their similar appearances. After calcination, the NF diameter reduced to approximately 250 nm, primarily due to the removal of the polymer matrix. Despite varying La₂O₃ NPs concentrations, the morphologies of the calcined NFs remained largely consistent across all samples.

Figure 4a–f present the TEM images and corresponding EDS elemental mapping profiles for 32La/SnO₂. In the low-magnification image (Figure 4a), the overall morphology of the NF is visible, consistent with the SEM analysis, showing numerous sub-grains and a porous structure. The high-resolution TEM image in Figure 4b reveals sub-grains varying in size from 5 to 30 nm, with clear fringe patterns visible within the grains. Two distinct fringe spacings, 2.63 Å and 3.19 Å, correspond to the (101) lattice plane of SnO₂ and the (110) lattice plane of La₂O₃, respectively, indicating interconnected nanoparticles across grain boundaries. The STEM image of the NF is shown in Figure 4c, while Figure 4d–f provide the EDS elemental mapping profiles for Sn, La, and O based on the STEM image. These profiles demonstrate a uniform distribution of elements throughout the sample, indicating that La₂O₃ nanoparticles are evenly dispersed within the SnO₂ NFs, highlighting their high dispersibility.

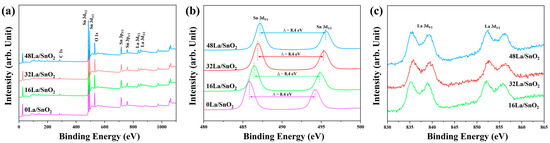

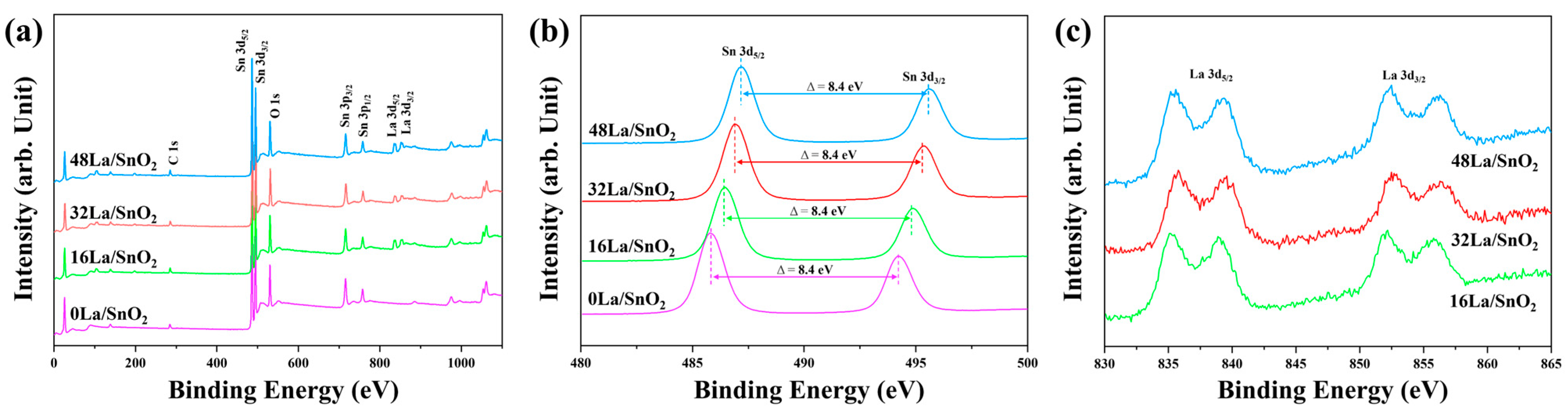

The surface chemical composition and chemical states of the NFs were elucidated using XPS, as depicted in Figure 5. The fully scanned survey spectra for 0La/SnO₂, 16La/SnO₂, 32La/SnO₂, and 48La/SnO₂ are showcased in Figure 5a. These spectra utilized the C 1s peak at a binding energy of 284.6 eV for calibration [21]. In all samples, distinct peaks corresponding to Sn 3d and O 1s were observed. Furthermore, La 3d peaks appeared in the 16La/SnO₂, 32La/SnO₂, and 48La/SnO₂, affirming the incorporation of lanthanum. The absence of La 3d peaks in 0La/SnO₂ indicates a lack of lanthanum in this sample. Figure 5b highlights the Sn 3d peaks, which are prominently positioned at approximately 486 eV and 494 eV, corresponding to the Sn 3d_5/2 and Sn 3d_3/2 energy levels, respectively, with a consistent energy separation of 8.4 eV between them. This separation is consistent with the values associated with Sn⁴⁺ in SnO₂, confirming the complete oxidation state of Sn⁴⁺ in these samples, as reported in the literature [22,23]. The slight shift in peak positions can be attributed to the electronic interaction between SnO₂ and La₂O₃, which significantly influences the local chemical environment and binding energies. The difference in work functions between these two materials induces electron transfer at the interface, thereby modifying the electronic structure and resulting in the observed shifts in the XPS spectra. This electronic interaction further confirms the successful incorporation of La₂O₃ into the composite and supports the formation of a heterojunction between SnO₂ and La₂O₃. The heterojunction not only alters the electronic structure but also enhances charge carrier separation at the interface, reducing recombination rates. Moreover, the potential barrier created by the heterojunction affects the mobility of charge carriers, which is critical for improving the sensing performance of the composite. This enhanced charge separation and mobility contribute directly to the superior gas-sensing properties of the material [24,25]. In Figure 5c, the high-resolution XPS spectra for La 3d in the 16La/SnO₂, 32La/SnO₂, and 48La/SnO₂ reveal peaks corresponding to La 3d_5/2 at 836 eV and La 3d_3/2 at 853 eV, with a consistent energy gap of 16.78 eV between these levels. This gap substantiates the presence of the La³⁺ oxidation state [26,27,28].

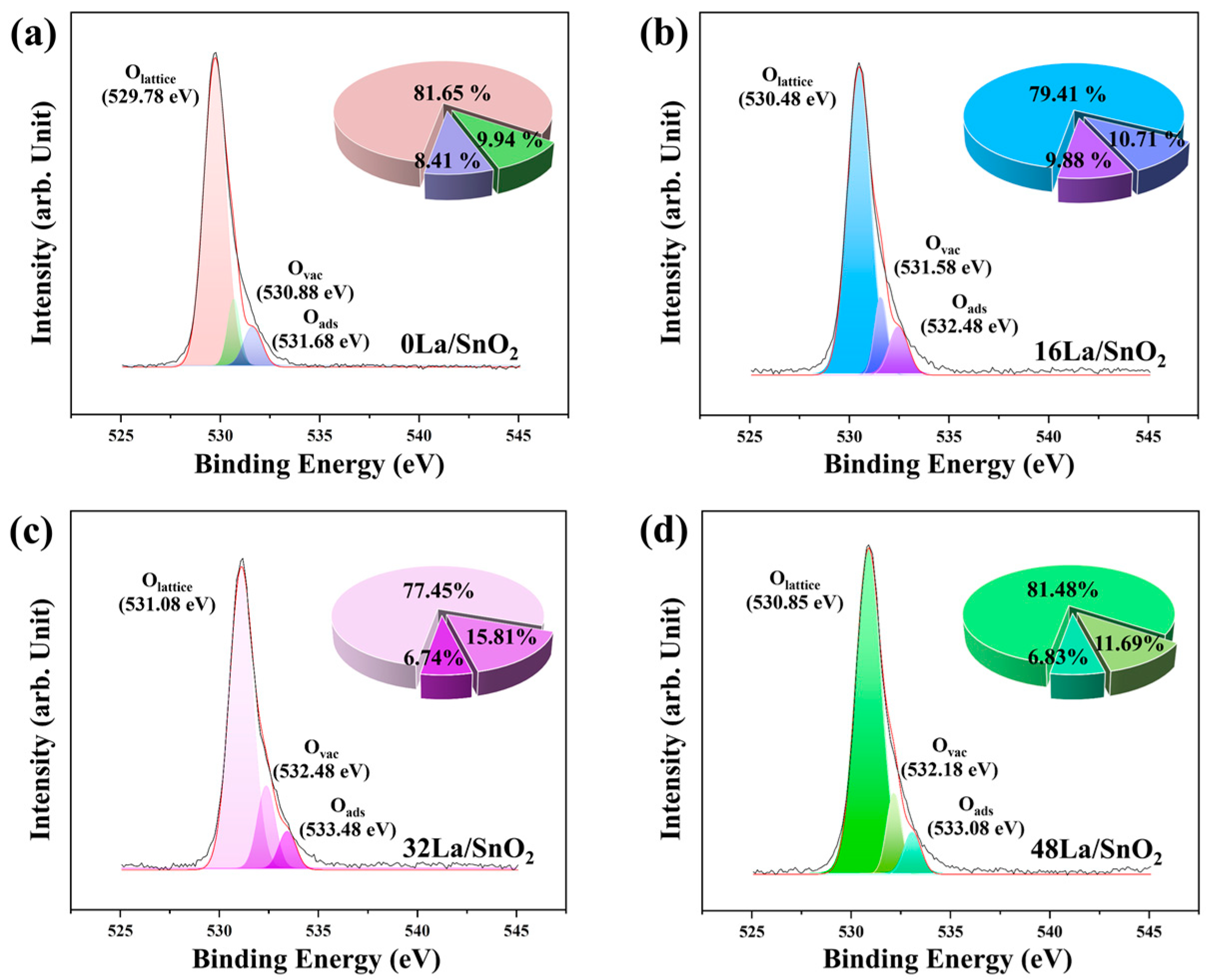

Figure 6 presents the broad and asymmetric spectra of O 1s for the series of samples: 0La/SnO₂, 16La/SnO₂, 32La/SnO₂, and 48La/SnO₂. The O 1s peak is differentiated into three distinct components: lattice oxygen (O_lattice), oxygen vacancies (O_vac), and chemisorbed oxygen species (O_ads) [29]. The O_lattice component, representing oxygen ions within the metal ion framework, exhibits remarkable stability and shows no reactivity towards reducing gases [30]. The O_vac component, associated with dissociative oxygen species, offers active sites for gas adsorption and catalytic reactions on the surface of the sensing materials, indicating that an increase in O_vac enhances the participation of chemisorbed oxygen in surface oxidation-reduction reactions, thereby amplifying the gas-sensing response. This component is particularly crucial due to its role in interacting with the target gas [31]. O_ads, often linked to chemisorbed oxygen species, is directly involved in the surface redox reactions with target molecules on the sensitive materials [32]. Figure 6 details the relative proportions and distributions of O_lattice, O_vac, and O_ads across the samples, highlighting that the ratio of (O_vac + O_ads) in 32La/SnO₂ is superior, rendering it more effective for gas-sensing purposes. The rise in O_vac is attributed to the generation of oxygen vacancies and deficiency regions, which are induced by the incorporation of La₂O₃ into SnO₂, thereby enhancing gas-sensing capabilities [33,34].

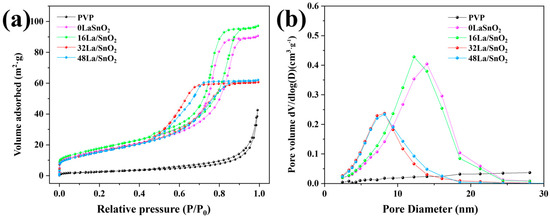

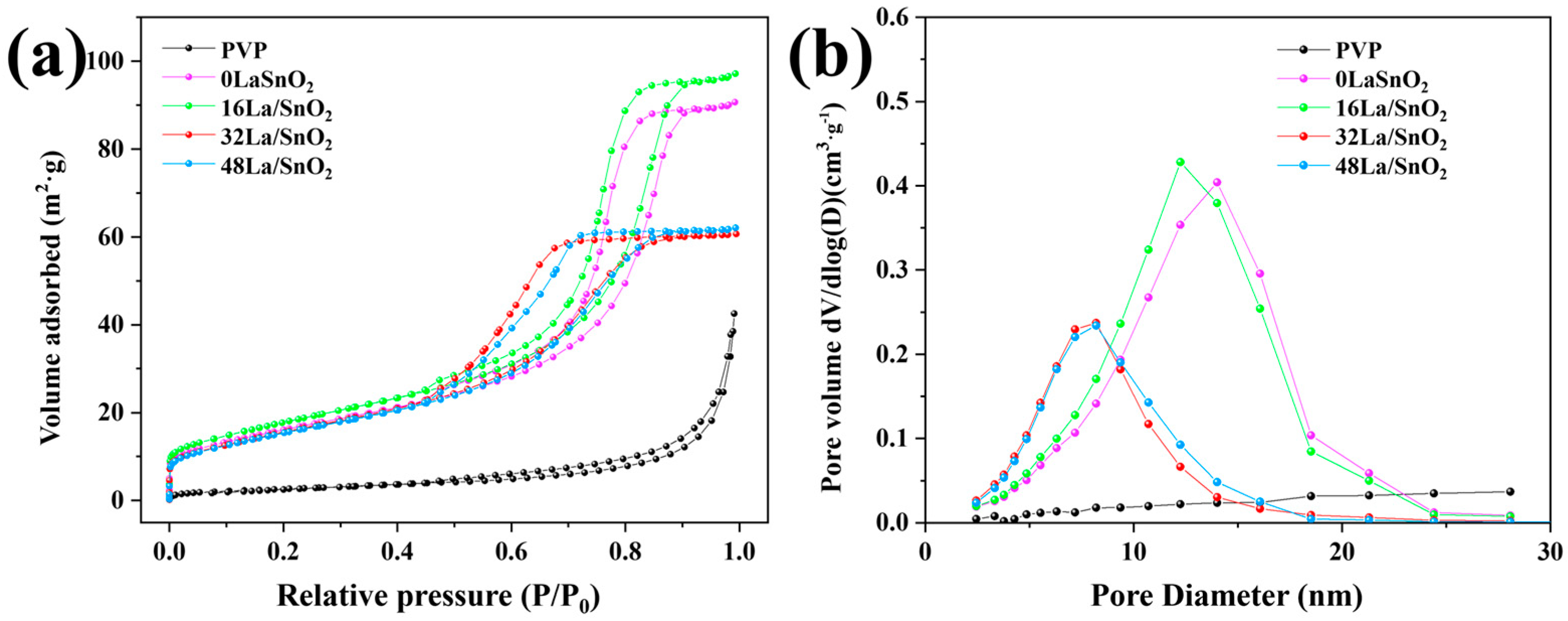

Figure 7a presents the nitrogen adsorption and desorption isotherms for PVP NFs and a series of La-doped SnO₂ samples, including 0La/SnO₂, 16La/SnO₂, 32La/SnO₂, and 48La/SnO₂. Based on BET analysis, all samples, except for PVP NFs, exhibit type IV nitrogen adsorption–desorption isotherms with H2 hysteresis loops, characteristic of a mesoporous structure. The specific surface areas, calculated using the BET method, were found to be 9.83 m²/g for PVP NFs, and 59.23, 65.25, 58.41, and 57.32 m²/g for 0La/SnO₂, 16La/SnO₂, 32La/SnO₂, and 48La/SnO₂, respectively. Notably, following calcination, the surface areas of the SnO₂-based samples increased more than sixfold compared to the uncalcined PVP NFs. This significant rise in surface area can be attributed to the formation of pores during calcination, which enhances the surface reactivity by providing numerous active sites for chemical interactions. The increase in active sites significantly boosts the sensor’s performance by enabling more efficient interactions with target gases, thereby improving both sensitivity and specificity. Additionally, pore size distribution, determined from the desorption branch using the Barrett–Joyner–Halenda (BJH) method (as depicted in Figure 7b), revealed an almost negligible average pore size for the nonporous PVP NFs. In contrast, the pore sizes for 0La/SnO₂, 16La/SnO₂, 32La/SnO₂, and 48La/SnO₂ were calculated to be 9.45, 9.20, 6.42, and 6.69 nm, respectively. These results from the BET and BJH analyses are consistent with the observations from SEM and TEM imaging, further confirming the porous structure of the calcined nanofibers. The enhanced sensing performance of the calcined samples can be primarily attributed to the increased volume of mesopores, which facilitates better gas diffusion and interaction.

3.2. Gas-Sensing Properties

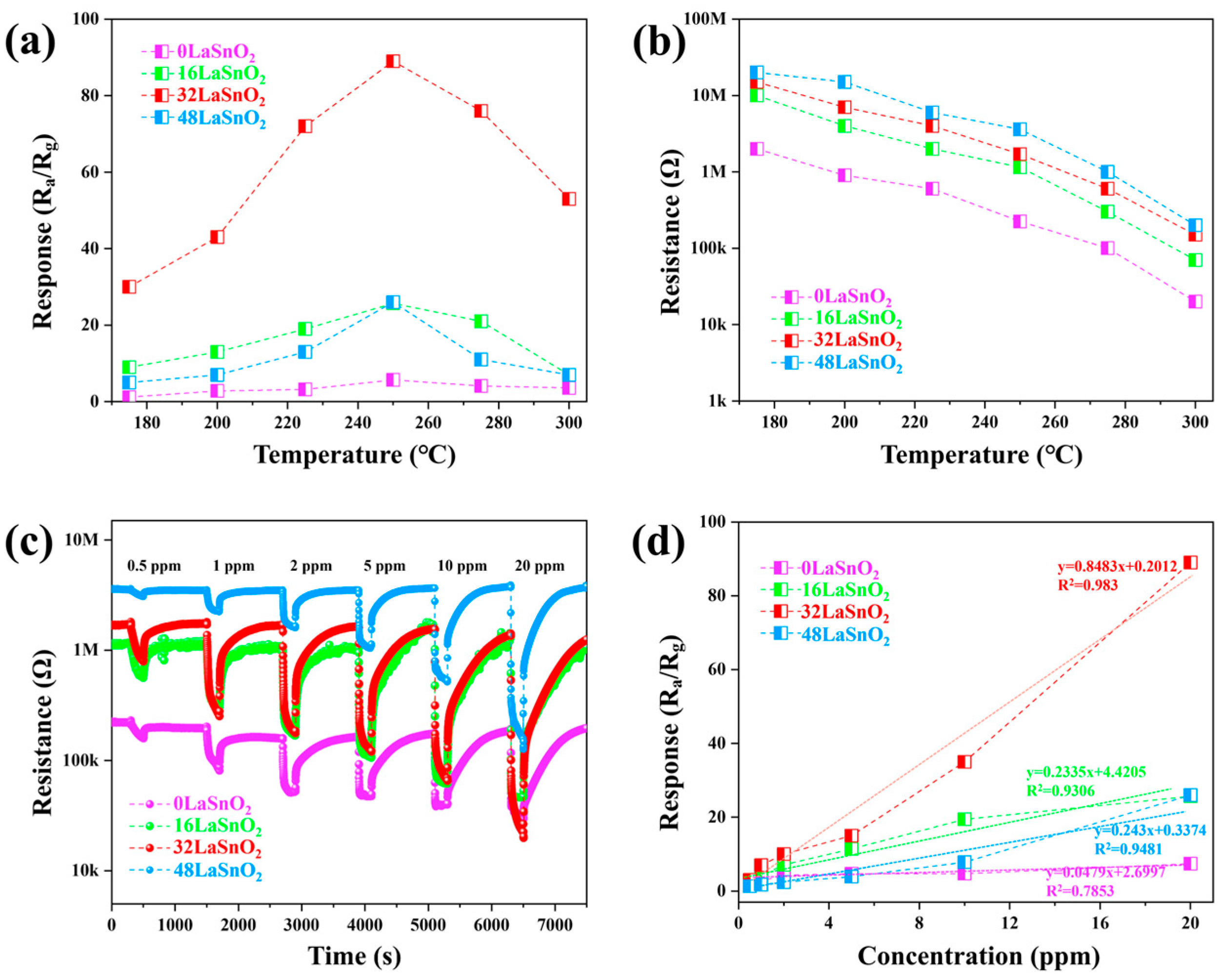

In this study, ethanol-sensing tests were conducted on La₂O₃/SnO₂ composite materials to evaluate their optimal operating temperature, sensitivity, linear dependence on ethanol concentration, and selectivity. Operating temperature plays a critical role in gas sensor performance, as it significantly affects the surface reactions during gas sensing. To identify the optimal temperature, the responses of the four sensor samples developed in this study were analyzed across a temperature range of 175–300 °C, using 20 ppm ethanol as the target gas. As shown in Figure 8a, the gas response varies with temperature for all samples, exhibiting a typical rise and fall pattern. At lower temperatures, ethanol molecules have difficulty reacting effectively with the oxygen adsorbed on the sensor surface, leading to a reduced sensor response. As the temperature increases, the reaction rate accelerates, enhancing the conversion of surface-adsorbed oxygen and improving the sensor’s response. However, as the temperature rises beyond the optimal point, the sensor response declines due to several factors. Firstly, ethanol molecules desorb more quickly at higher temperatures, reducing their interaction with surface-adsorbed oxygen and limiting the release of electrons back into the conduction band. Secondly, elevated temperatures decrease oxygen adsorption, thinning the depletion layer and diminishing the sensor’s sensitivity. Lastly, at very high temperatures, the rate of surface reactions can reach a saturation point where further increases in temperature no longer enhance the reaction kinetics. The surface reaction between ethanol and oxygen becomes less efficient as the temperature increases, leading to a lower number of available electrons to be released back into the conduction band, thus reducing the sensor’s response. An operating temperature of 250 °C was identified as optimal, balancing the benefits of a higher reaction rate with sufficient adsorption capacity. Figure 8b shows the variation in baseline resistance of the sensors over the operating temperature range of 175 to 300 °C. The baseline resistance of 0La/SnO₂, 16La/SnO₂, 32La/SnO₂, and 48La/SnO₂ sensors followed a similar trend with increasing temperature. As temperature rises, the concentration of charge carriers (electrons or holes) in the material increases due to thermal excitation, leading to more electron-hole pair generation. In metal oxide semiconductors, this results in higher conductivity and consequently lower resistance [35,36]. Figure 8c illustrates the dynamic response curves for the four sensors at various ethanol concentrations, recorded at an operating temperature of 250 °C. All sensors exhibit behavior characteristic of n-type semiconductor-based gas sensors. Across ethanol concentrations ranging from 1 to 20 ppm, the sensors demonstrated optimal response and recovery characteristics, indicating excellent reversibility and sensor stability. Figure 8d presents the sensor responses as a function of ethanol concentration at 250 °C. Notably, the response increases proportionally with ethanol concentration for all sensors within the 1 to 20 ppm range. Among them, the 32La/SnO₂ sensor exhibited a significantly higher response than the others, with responses to 20 ppm ethanol at 250 °C measured at 7.4, 25.7, 89, and 26 for the 0La/SnO₂, 16La/SnO₂, 32La/SnO₂, and 48La/SnO₂ sensors, respectively. The 32La/SnO₂ sensor showed a response approximately 12 times greater than that of 0La/SnO₂, indicating its superior detection performance with high linearity for ethanol concentrations as low as 1 ppm, without the need for noble metal catalysts such as Au, Pd, or Pt. Furthermore, the sensitivity of the 0La/SnO₂, 16La/SnO₂, 32La/SnO₂, and 48La/SnO₂ sensors to ethanol concentration was analyzed using linear fitting, resulting in the following equations: y = 0.0479x + 2.6997 (R² = 0.7853), y = 0.2335x + 4.4205 (R² = 0.9306), y = 0.8483x + 0.2012 (R² = 0.983), and y = 0.243x + 0.3374 (R² = 0.9481), respectively. The coefficient of determination (R²) for the 32La/SnO₂ sensor was close to 1.0, indicating excellent linearity. The standard deviation (S) was calculated using the root-mean-square deviation (RMS) formula: RMSnoise = (S²/N)^1/2, where N represents the total number of data points. Based on the formula DL = 3.3 (RMSnoise/slope), the limit of detection (LOD) for the 32La/SnO₂ sensor was determined to be 58 ppb, significantly lower than 0.5 ppm, underscoring its potential for detecting low concentrations of ethanol.

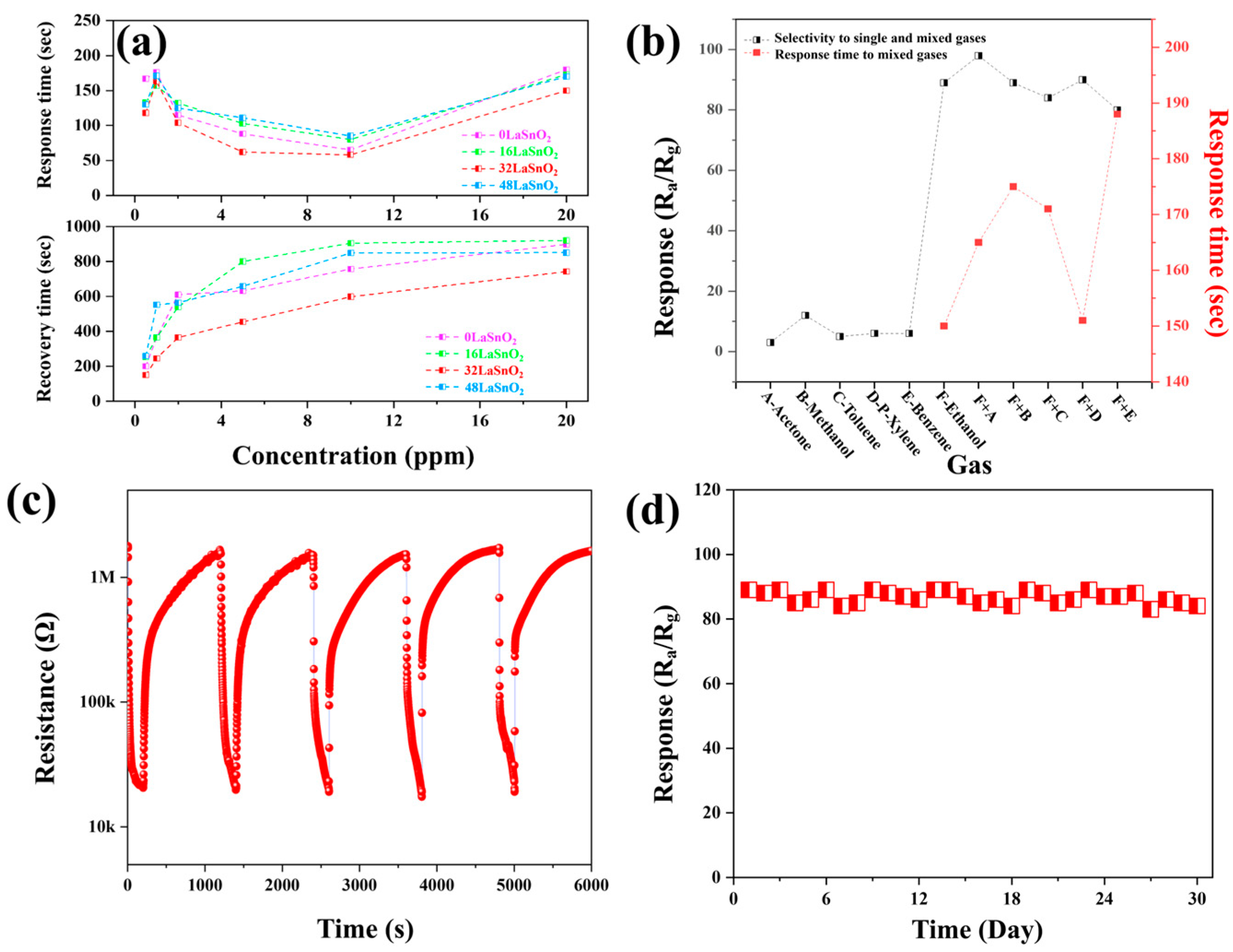

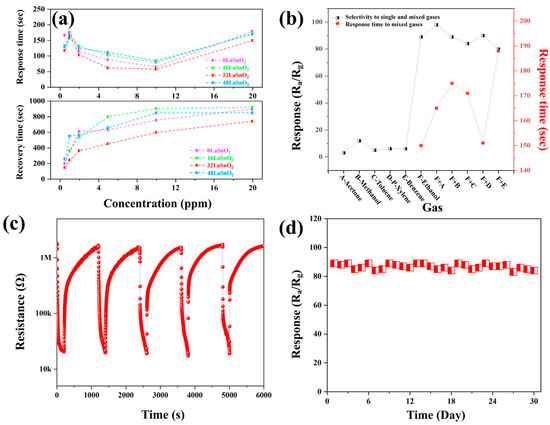

The response and recovery time curves of the 0La/SnO₂, 16La/SnO₂, 32La/SnO₂, and 48La/SnO₂ sensors at different ethanol concentrations, recorded at 250 °C, are presented in Figure 9a. As the ethanol concentration increased from 1 to 20 ppm, the 32La/SnO₂-based sensor demonstrated superior performance compared to the other three sensors. Figure 9b explores the selectivity of the gas sensors, a critical parameter for assessing their quality in real-world applications. The responses of all sensors to 20 ppm of various volatile organic compounds (VOCs), including ethanol, acetone, methanol, toluene, p-xylene, and benzene, were measured. Notably, the 32La/SnO₂ sensor exhibited the highest selectivity for ethanol among the tested gases. Additionally, the selectivity of the 32La/SnO₂ sensor for ethanol in mixed gas environments was evaluated at the optimal operating temperature of 250 °C. For binary gas mixtures, the responses of the 32La/SnO₂ sensor to gases containing ethanol were close to the original ethanol response (98, 89, 84, 90, and 80), demonstrating that the sensor maintained high selectivity for ethanol even in the presence of other gases. This indicates the sensor’s effectiveness in detecting ethanol amidst complex gas mixtures. During the response time tests for binary gas mixtures, although the response times were generally higher than for single ethanol gas, the overall difference was not significant. This indicates that the sensor maintains excellent selectivity for ethanol even in the presence of other gases. As shown in Figure 6c, the long-term stability of the 32La/SnO₂ sensor was tested with 20 ppm ethanol at 250 °C over a 30-day period. The sensor’s gas response remained stable around 89, with fluctuations within 5%, which is well within the acceptable range. This suggests that the 32La/SnO₂ sensor exhibits outstanding long-term stability, making it well-suited for practical applications. Finally, Figure 9d shows the results of subjecting the 32La/SnO₂ sensor to five cycles of exposure to 20 ppm ethanol. The sensor displayed consistent response and recovery characteristics across all cycles, highlighting its excellent repeatability and robustness in gas-sensing applications.

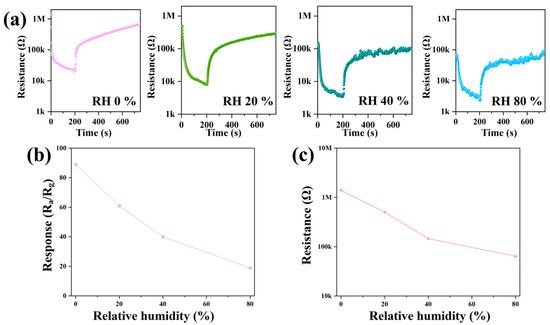

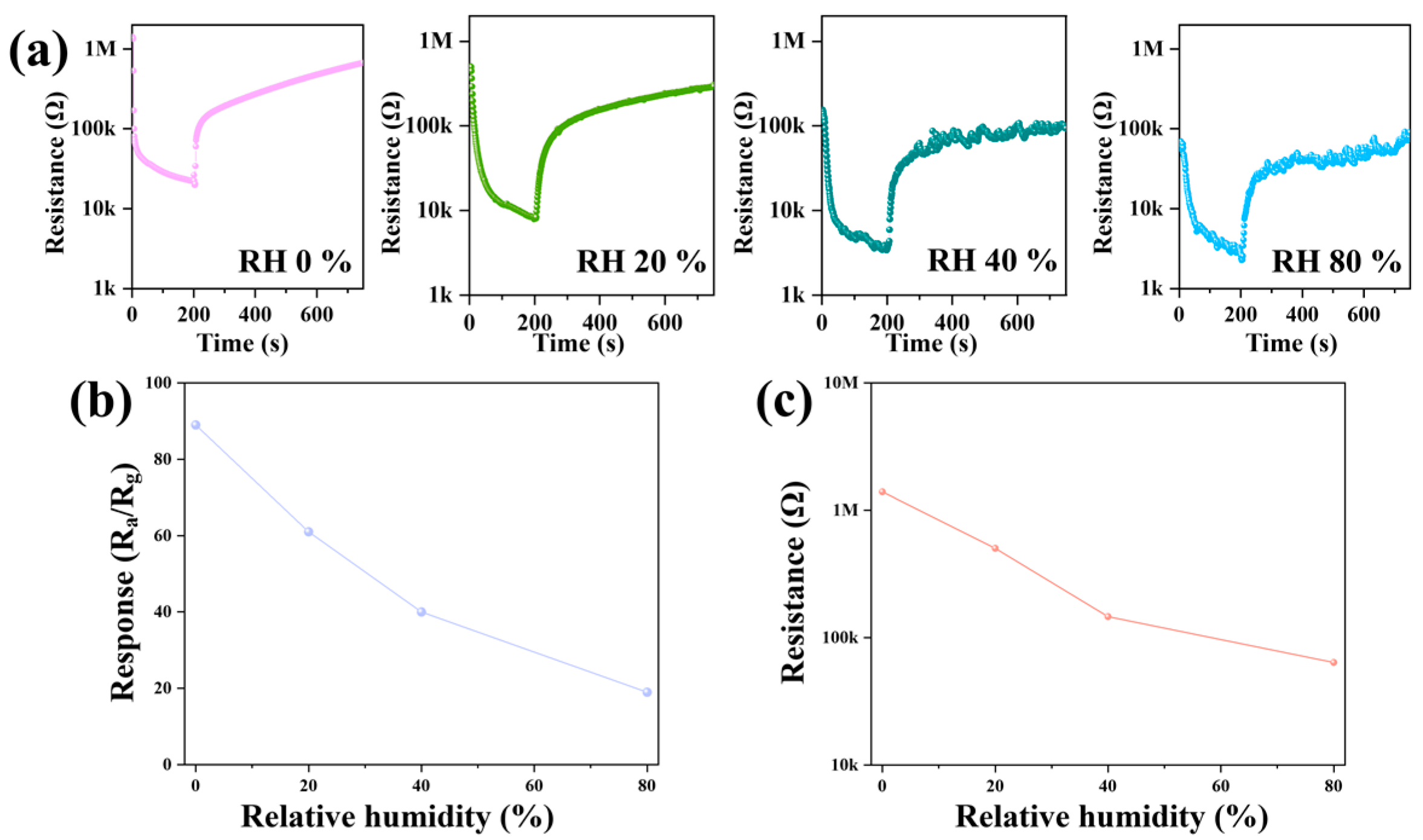

For semiconductor oxide gas sensors, sensing performance is significantly affected by RH. To investigate this, the response of the 32La/SnO₂-based sensor to 20 ppm ethanol under varying RH levels was studied, and the results are shown in Figure 10. The dynamic response curves in Figure 10a demonstrate that both the response of the 32La/SnO₂ sensor to 20 ppm ethanol and its baseline resistance decrease as humidity increases. Figure 10b,c further illustrate that as RH rises from 0% to 80%, both the sensor’s response and baseline resistance decrease in an approximately linear fashion. The reduction in the sensor’s performance can be attributed to the diminished availability of adsorption sites on the material’s surface, as water vapor competes with ethanol molecules for oxygen species. Additionally, the observed decline in baseline resistance with increasing humidity is likely due to the accumulation of water molecules on the sensor’s surface, which enhances conductivity and reduces resistance [37,38,39].

Comparison and analysis using

Table 1. Comparative analysis of ethanol-sensing performance among various oxide-based gas sensors.

Sensing Materials	Con. (ppm)	Tem. (°C)	Res. (Ra/Rg)	Res. Time (s)	Rec. Time (s)	Ref.
Cr2O3/ZnS	200	300	13.84	23	20	[40]
In2O3/ZnO	100	225	32	3.7	52	[41]
WO3	200	300	32.5	6	8	[42]
In2O3/ZnS	100	300	15	40	225	[43]
In2O3	100	280	45	-	-	[44]
La2O3/SnO2	100	400	57.3	-	-	[45]
LaFeO3	143	300	14.5	23	39	[46]
NiO/LaFeO3	10	240	14.7	2	9	[47]
Au/La/In2O3	100	210	1.48	1	394	[48]
Au@Cr2O3-In2O3	5	180	4.4	135	618	[49]
La2O3/SnO2	20	250	111	150	742	This work

of the reported ethanol gas-sensing characteristics indicate that our device exhibits higher response values. This suggests significant prospects for our device in ethanol gas detection.

3.3. Gas-Sensing Mechanism

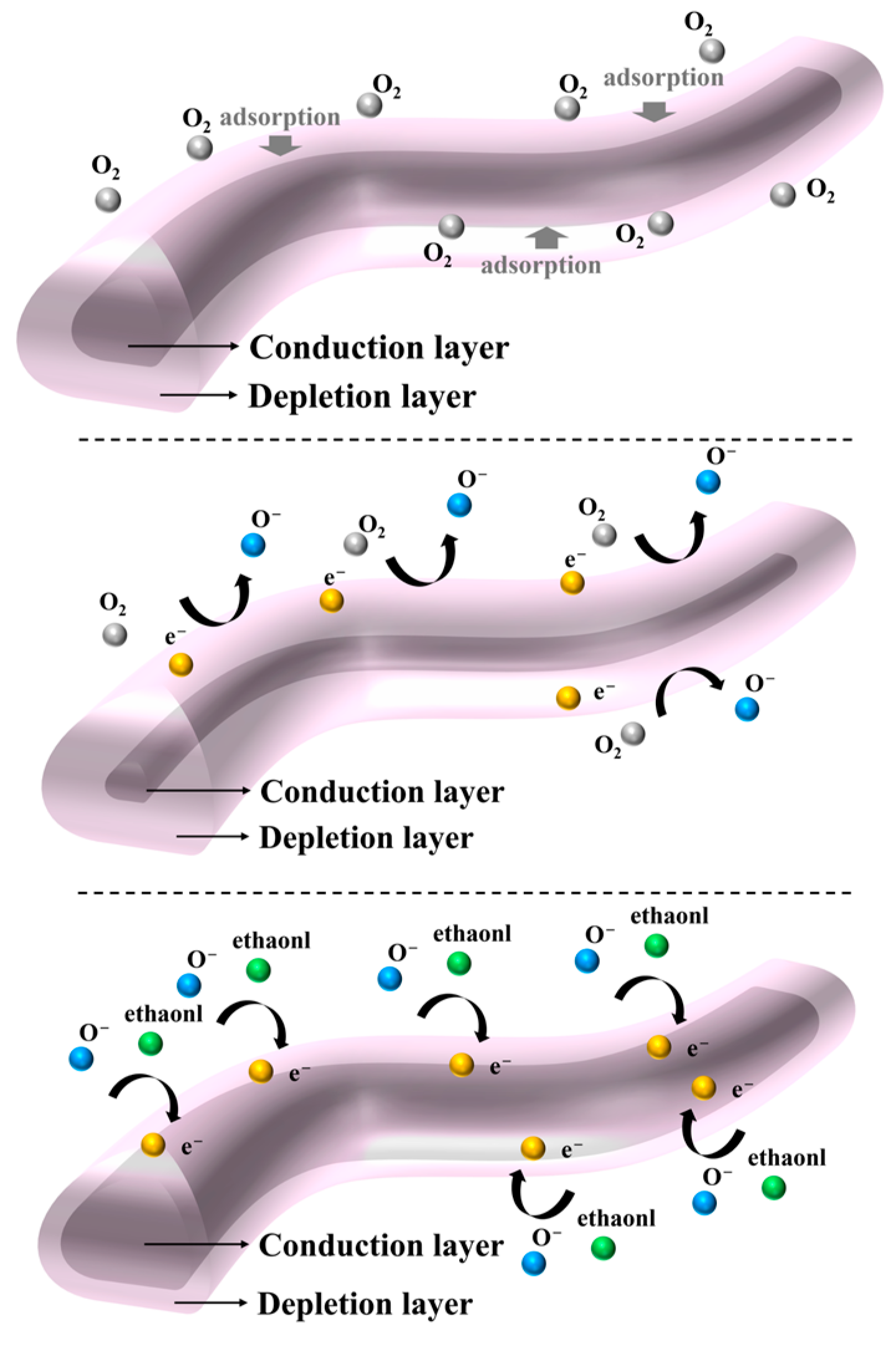

The chemisorption of analyte gases causes significant changes in the electrical properties, particularly the resistance, of MOS-based gas sensors [50]. SnO₂, being an n-type semiconductor, and La₂O₃, a p-type semiconductor metal oxide, form p-n heterojunctions when La₂O₃ is incorporated into the SnO₂ matrix. This leads to the migration of electrons in SnO₂ and holes in La₂O₃ in opposite directions as they seek equilibrium at similar Fermi energy levels [51]. As observed in Figure 8c, the La₂O₃/SnO₂-based sensor exhibits an n-type response, suggesting that the sensitivity is primarily governed by changes in electron concentration in SnO₂. The ethanol-sensing mechanism, based on the surface space charge layer model, can be explained more thoroughly through three distinct steps, as illustrated in Figure 11. First, in the presence of air, oxygen molecules from the atmosphere adsorb onto the active sites on the surface of the sensing material. These oxygen molecules then dissociate and capture electrons from the conduction band of the semiconductor, forming oxygen anion species such as O₂⁻, O⁻, and O²⁻. This process creates a depletion layer near the surface, where the electron concentration is reduced, leading to an increase in the sensor’s resistance. The adsorption of oxygen is a dynamic and reversible process, where the continuous adsorption and desorption of oxygen molecules occur until a steady state is reached, which stabilizes the sensor’s baseline resistance (Equations (1)–(4)) [52]. When the sensor is exposed to ethanol, the ethanol molecules interact with the surface-adsorbed oxygen anions. Ethanol undergoes an oxidation reaction with the oxygen species, converting to CO₂ and H₂O, and releasing the trapped electrons back into the conduction band of the semiconductor. This process reduces the width of the depletion layer and causes a decrease in the sensor’s resistance. The change in resistance is directly related to the concentration of ethanol in the surrounding environment. However, this reaction is opposed by the simultaneous re-adsorption of oxygen from the air, which competes for the same active sites and tends to re-establish the depletion layer, moderating the sensor’s overall response to ethanol (Equation (5)) [47]. Once the ethanol is removed from the environment, oxygen from the air re-adsorbs onto the surface of the sensor, following the same mechanism as in the first step. The oxygen molecules again capture electrons from the conduction band, reforming the depletion layer and returning the sensor’s resistance to its original state. This recovery phase is essential for demonstrating the sensor’s ability to maintain repeatability and long-term stability over multiple cycles of exposure to ethanol and subsequent recovery.

$$O_2 \left(\mathrm{g}\mathrm{a}\mathrm{s}\right)\to O_2 \left(\mathrm{a}\mathrm{d}\mathrm{s}\right)$$

(1)

$$O_2 \left(\mathrm{a}\mathrm{d}\mathrm{s}\right)+e^{-}\to O_2^{-} \left(\mathrm{a}\mathrm{d}\mathrm{s}\right)$$

(2)

$$O_2^{-} \left(\mathrm{a}\mathrm{d}\mathrm{s}\right)+e^{-}\to {2O}^{-} \left(\mathrm{a}\mathrm{d}\mathrm{s}\right)$$

(3)

$$O^{-} \left(\mathrm{a}\mathrm{d}\mathrm{s}\right)+e^{-} \to O^{2-} \left(\mathrm{a}\mathrm{d}\mathrm{s}\right)$$

(4)

$$C_2{H}_{5}OH \left(\mathrm{g}\mathrm{a}\mathrm{s}\right)+6O^{-} \left(\mathrm{a}\mathrm{d}\mathrm{s}\right)\to 2{CO}_2 \left(\mathrm{g}\mathrm{a}\mathrm{s}\right)+{3H}_{2}O \left(\mathrm{g}\mathrm{a}\mathrm{s}\right)+{6e}^{-}$$

(5)

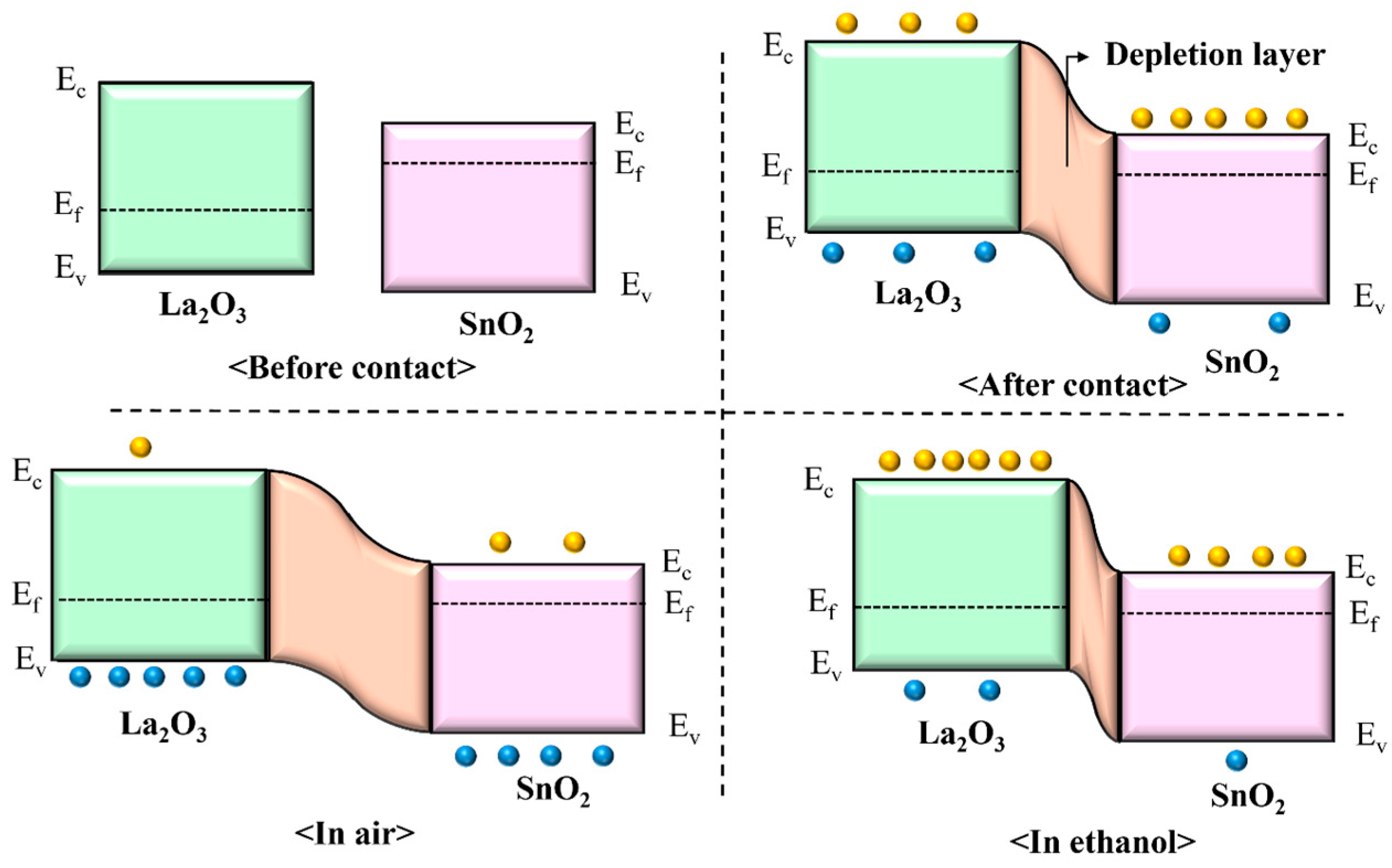

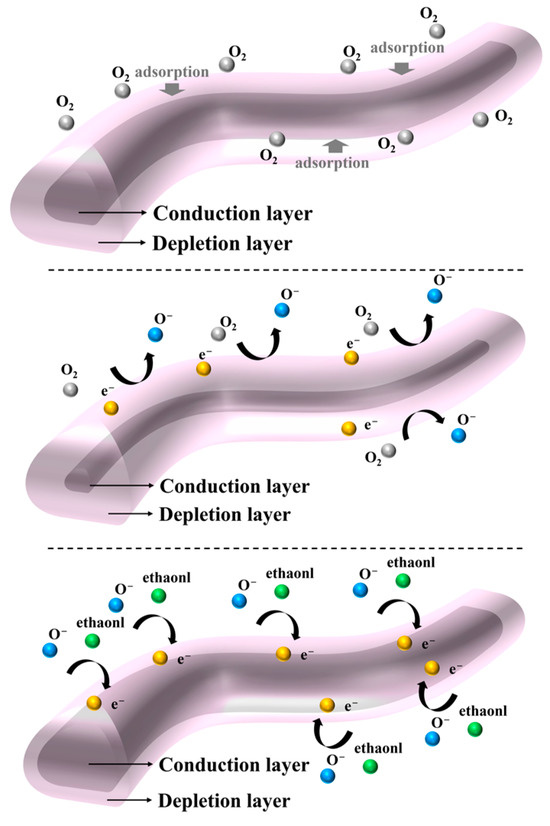

The La₂O₃/SnO₂ composites exhibit a significantly enhanced response to ethanol sensing, primarily due to the formation of a p-n junction at the interface between SnO₂ and La₂O₃. This interface introduces several beneficial effects. The ethanol-sensing mechanism for this heterojunction sensor is schematically illustrated in Figure 12. Initially, the band diagrams of SnO₂ and La₂O₃ show their majority carriers—electrons for SnO₂ and holes for La₂O₃—before the formation of the interface [53]. Upon the formation of the interface between SnO₂ and La₂O₃, the difference in their energy band structures leads to band bending at the junction. This band bending facilitates the migration of charge carriers—specifically, electrons and holes—across the heterojunction, contributing to the formation of a depletion region at the interface. The depletion region is characterized by a lower carrier concentration and the establishment of a potential barrier, which impedes the free movement of charge carriers. Consequently, the reduced carrier concentration in this region, coupled with the potential barrier, significantly increases the resistance of the composite material when compared to pure SnO₂. The presence of La₂O₃ further enhances this effect due to its catalytic properties and its role in increasing oxygen vacancies in the SnO₂ matrix, which improves the adsorption of oxygen species on the surface. These oxygen species capture free electrons from SnO₂, further expanding the depletion region and elevating the potential barrier. As a result, the overall electric current is reduced, leading to an increase in resistance. This combination of effects explains the enhanced sensing performance, as the presence of La₂O₃ improves the material’s response to changes in gas concentration by modulating the carrier dynamics and the depletion region at the heterojunction. This is confirmed by the data in Figure 8c, where the resistance of the La₂O₃/SnO₂ composite ranges from 1.29 to 3.82 MΩ, significantly higher than the 0.188 MΩ observed for pure SnO₂. When ethanol is introduced into the sensing chamber, it interacts with the chemisorbed oxygen species on the sensor’s surface, as described in Equation (5). This reaction leads to the oxidation of ethanol, releasing electrons back into the conduction band of the sensing material, which increases the carrier concentration and consequently decreases the sensor’s resistance. The presence of La₂O₃ in the SnO₂ matrix significantly enhances this process by creating a p-n heterojunction at the interface. The difference in lattice spacing between SnO₂ (n-type) and La₂O₃ (p-type) at the p-n junction introduces defects and vacancies near the interface, which serve as additional active sites for gas adsorption and surface reactions. This increased density of active sites allows for more ethanol molecules to participate in the surface reaction, leading to a more pronounced reduction in the depletion layer’s width and a sharper decrease in resistance. Moreover, the heterojunction at the SnO₂/La₂O₃ interface creates a potential barrier that modulates the flow of charge carriers, further enhancing the sensitivity of the sensor. The defects and vacancies near the junction not only improve gas adsorption but also facilitate faster electron transfer during the ethanol oxidation process. As a result, the resistance change in the La₂O₃/SnO₂ composite is significantly larger than in pure SnO₂, highlighting the critical role of the heterojunction in amplifying the sensor’s response to ethanol. This enhanced sensitivity can be attributed to the synergistic effects of the p-n heterojunction, increased active sites for gas adsorption, and the improved electron mobility in the composite material. These factors together make the La₂O₃/SnO₂ composite highly effective for ethanol detection, offering superior sensitivity and faster response times compared to undoped SnO₂.

4. Conclusions

In this study, La₂O₃ NPs were successfully incorporated into porous SnO₂ NFs using a simple two-step process of electrospinning followed by calcination. The SnO₂ NFs doped with an optimal amount of La₂O₃ NPs (32La/SnO₂) demonstrated a significantly enhanced response to 20 ppm ethanol, achieving a response value of 89—12 times higher than that of undoped SnO₂ NFs. This substantial improvement in ethanol detection can be attributed to the combined effects of the porous structure, which provides a large specific surface area, and the formation of p-n heterojunctions between La₂O₃ and SnO₂. The increased surface area offers a greater number of active sites for gas adsorption, maximizing the utilization of the sensing material. Furthermore, the p-n heterojunctions formed at the La₂O₃/SnO₂ interfaces enhance electron transport, further boosting the material’s gas-sensing capability. The synergistic effects of the high surface area and efficient electron transfer through the heterojunctions collectively contribute to the significant enhancement in gas-sensing performance observed in the La₂O₃/SnO₂ composite.
