Structural Activity Relationship Analysis of New Diphenyl PFI-3 Analogues Targeting for the Treatment of Glioblastoma

Abstract

Background/Objectives: Human glioblastoma (GBM) is the most aggressive brain cancer in adults and a highly treatment-refractory malignancy. The overall prognosis for the GBM is extremely poor, with a median survival of 12–14 months after initial diagnosis. Many GBM patients initially respond to the DNA alkylating agent temozolomide (TMZ), but patients often become therapy-resistant, and tumors recur. We previously reported that treatment with PFI-3, which is a small molecule inhibitor of the bromodomain of the BRG1 subunit of the SW1/SNF chromatin remodeling complex, enhanced the sensitivity of GBM cells to TMZ in vitro and in vivo GBM animal models. Our general objective was to perform an SAR study of new diphenyl PFI-3 analogs. Methods: New structural analogs of PFI-3 were developed, synthesized, and tested for their ability to enhance TMZ-induced GBM cell death by ELISA. Results: Following on the enhanced activity of compounds 2a and 2b, new diphenyl PFI-3 analogs with specific structural adjustments were made to better understand the structural requirements to optimize function. Additionally, several new structurally different candidates (e.g., 4a, 4b, and 5) showed much better efficacy in sensitizing GBM cells to TMZ-induced GBM cell death. Conclusions: Four series of PFI-3 analogs (2, 3, 4, and 5) were designed, synthesized, and tested for the ability to sensitize GBM cells to TMZ-induced cell death. Series 2 optimized the A-ring and R-isomer chirality. Series 3 used a 5-membered linker with weak activity. Series 4’s di-phenyl urea compounds showed better bromodomain inhibition. Series 5’s methoxyphenyl-B-ring analogs were exceptionally strong inhibitors.

1. Introduction

Glioblastoma (GBM) is the deadliest form of brain cancer, and GBM patient survival has not improved for decades. The standard approach for treating GBM patients includes surgical resection, followed by ionizing radiation and adjuvant chemotherapy with the DNA alkylating agent temozolomide (TMZ) [1,2]. However, the use of TMZ alone has limited activity against GBM due to the development of therapeutic resistance [3,4]. We previously found that PFI-3 ((E)-1-(2-hydroxyphenyl)-3-((1R,4R)-5-(pyridin-2-yl)-2,5-diazabicyclo[2.2.1]heptan-2-yl)prop-2-en-1-one) enhances the action of TMZ [5]. PFI-3 (1 in Figure 1) is a small molecule inhibitor that was developed to target the bromodomains in the BRG1 and BRM catalytic subunits of the SWI/SNF chromatin remodeling complex [6]. The SWI/SNF complex is an evolutionarily conserved multi-subunit complex that is critical for gene regulation, differentiation, DNA repair, and development [7]. Both BRG1 and BRM contain a bromodomain at their carboxy-terminus. Bromodomains are ~110 amino acid domains found in many proteins that recognize acetylated lysine residues, such as those on the N-terminal tails of histones, and are responsible for transducing the signal carried by acetylated lysine residues to regulate the cell phenotype [8,9].

We initially developed PFI-3 analogs (denoted as therapeutic enhancing drugs, TEDs) by modifying the PFI-3 structure and we markedly enhanced the TMZ-induced GBM cell death [10]. As described herein, we have made considerable progress in designing and preparing new TEDs that has led to a better understanding of the importance of chemical and structural changes in their ability to enhance TMZ’s anti-GBM activity. Modification of the parent molecule PFI-3 resulted in potent analogs, like 9f and 11d [11] (Figure 1a) and 2a and 2b [5] (Figure 1b), that were more effective than PFI-3 in enhancing TMZ-induced cell death in GBM cells. Our goal was to better understand the importance of the A- and B-rings, and linker portion of PFI-3 on the ability of these compounds to enhance the anti-GBM activity of TMZ (Figure 1b). We also investigated the chiral bicyclic ring compound 2a (R-type) and compared it with 2as (S-type) as shown in Figure 1 on TMZ-induced DNA damage in GBM cells. We then made methylene-amide 2c, carbamate 2b, and carbamothioate 2d and compared their activity to urea 2a on TMZ-induced death in GBM cells. We then examined the importance of different chemical substitutions on both the A- and B-rings by making compounds 2e–2s and assessed their activity in enhancing TMZ-induced cell death as compared to PFI-3 (1, shown in Figure 2). As skeleton diversification on the bridged portion of PFI-3, five-membered rings were investigated in TMZ-induced GBM cell death. The 5-membered bridged compounds 3a and 3b had similar activities to PFI-3. To further investigate the SAR of PFI-3 (1), two A-ring moieties without a linker and B-ring (4a–k, in Figure 1b) and two B-ring compounds without an A-ring and linker (5, in Figure 1b) were designed and synthesized, which showed extremely potent activity as compared to PFI-3 (Figure 3). Overall, the goal of this study was to find more potent agents and provide new insights into the anti-glioma activity of these newly developed therapeutic-enhancing drugs (TEDs).

2. Results and Discussion

2.1. Chemistry

We have designed and synthesized new urea, carbamate methylene-amide, and carbamothioate-type PFI-3 derivatives series 2 (including reported compounds 2a, 2b [12]), 3, 4, and 5. Based on our previous findings with the first generation of TEDs [5], we now performed additional SAR, which led to a generation of new analogs as shown in Figure 1. We describe herein the design and synthetic methods to understand the structure needed for targeting the bromodomains of brain cells. Structural modifications were made in the A-ring and B-rings and in the linker, which included part A in 2, 3, and 4 in Figure 1b and B-rings, the linker, and bridged bicyclic fragments.

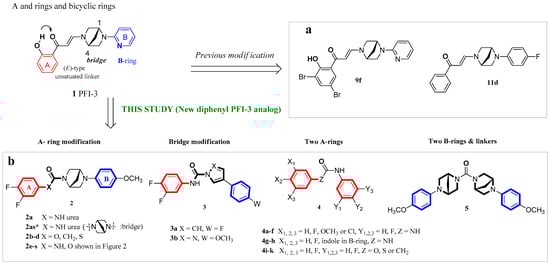

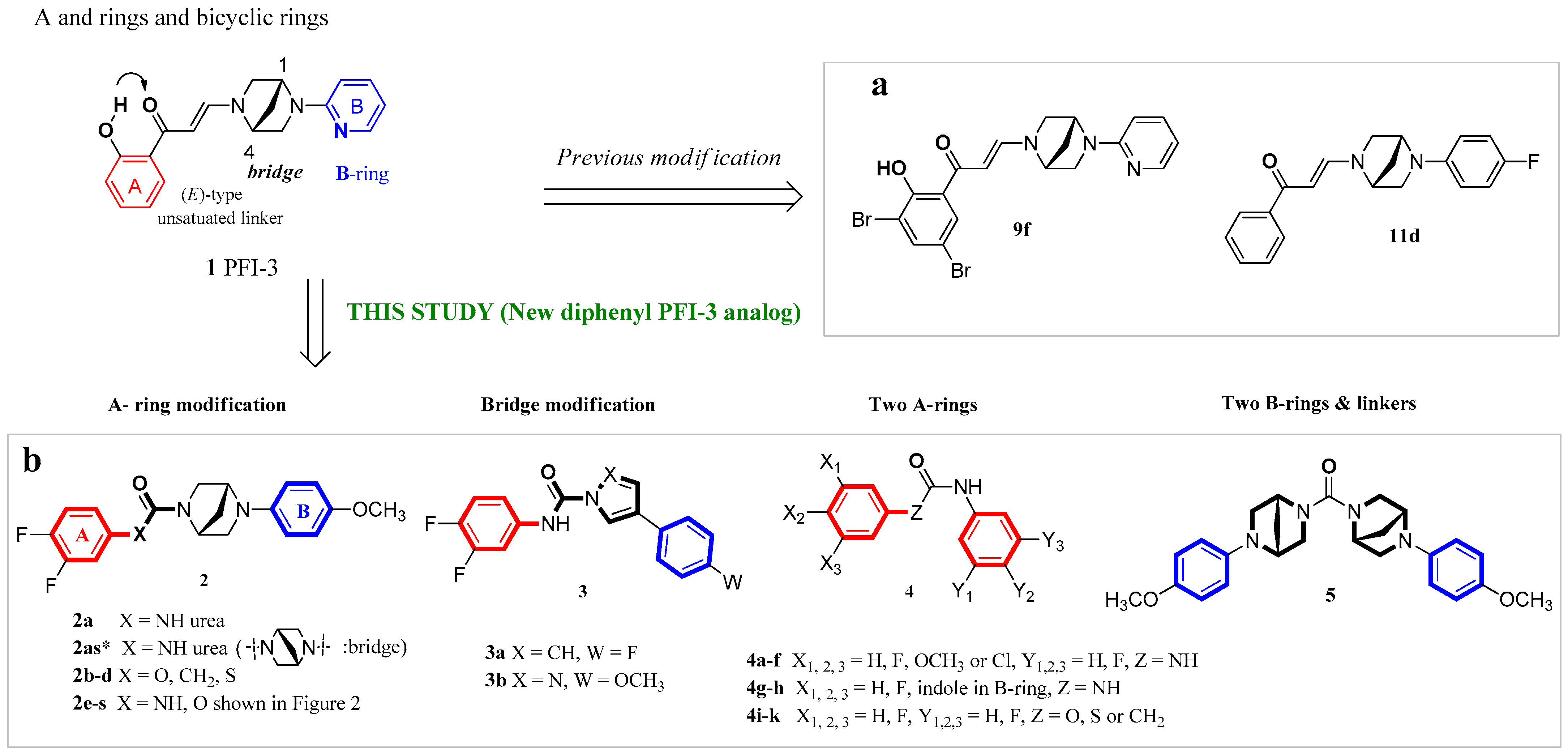

As shown in Figure 1a, we made analogs of the PFI-3 bromodomain inhibitor by modification of the substituted phenol A-ring part and pyrido-B-ring, which resulted in improved GBM cell death-inducing activity of TMZ in compounds 9f and 11d when compared to PFI-3 [6]. Based on the findings gained from the structural biology study, we conducted re-scaffolding studies and discovered a new generation of bromodomain inhibitors. In this study, we developed new TEDs, whose modifications are described below:

• Modification of the A-ring part of PFI-3 to convert to a substituted benzene ring.
• Modification of the linker to give urea (for 2a), carbamate (for 2b), methylene-amide (for 2c), and carbamothioate (for 2d) instead of an unsaturated linker in PFI-3.
• Modification of the bicyclic (1R, 4R)-type isomer (for 2a) bridge with a (1S, 4S) isomer (for 2as) shown at the bottom of Scheme 1.
• Multi- (or mono-) substitution of the A- or B-rings shown in Figure 1b.
• Skeleton diversification; we focused on a 5-membered ring on the bridge part of PFI-3 for compounds 3a and 3b and two A-rings (for 4a–k) and two B-ring derivatives (for 5).

Urea (i.e., 2a, 2e–h, etc.), carbamate (i.e., 2b, 2i, 2r), and carbamothioate 2d were synthesized as shown in Scheme 1. Two synthetic methods, A and B, from free amine 15R with corresponding aromatic isocyanate 17 or aromatic aniline 16 via bis(trichloromethyl) carbonate (BTC) mediated with 3,4-difluoroaniline were utilized to prepare urea 2a, as shown in Scheme 1. 2as (isomer of 2a) was prepared with the initialization of S-isomer 12S through chiral auxiliary by the same method as the 2a procedure. The combination of substituted phenol 16a and 15R was employed to produce carbamate (2b, 2i, and 2r). Carbamothioate 2d is produced from 15R and commercial 3,4-difluorobenzenethiol via BTC activation in the same way.

The essential intermediate 15R was synthesized from protected chiral 14R by the acid-condition deprotected synthetic method. The protected 14R was prepared by the Buchwald–Hartwig reaction using Pd(OAc)₂ and BINAP to catalyze the cross-coupling of protected amine 12R with aryl bromide 13 [13]. The preparation of aliphatic A-ring compounds (2q and 2r) was conducted by using 2-isocyanato-2-methylpropane (for 2q) and cyclohexanol (for 2r) instead of 17 or 16 as reactants each through the same procedure as shown in Scheme 1. Methylene amide 2c and several ureas (i.e., 2e, 2f, 2h, and 2s) were summarized in Scheme 2. Protected amines 14R or 22R, prepared by the Buchwald–Hartwig reaction, were used as starting materials to produce designed compounds (2c, 2e, 2f, and 2s), as shown in Scheme 2. The protected amine 14R or 22R produced free amine 25R or 26R by deprotection mediated acidic solution. The reaction of compound 15R with activated acid chloride 26 generated target methylene amide 2c under basic conditions. For compounds 2h and 2s, bis(trichloromethyl) carbonate-mediated reaction of free amine 14R and corresponding anilines 24 and 27 produced the target compounds 2h and 2s under basic conditions using triethylamine or pyridine at room temperature. The synthesis of 2e and 2f was achieved through isocyanate 28 or 29 reacting with corresponding aniline 15R or 23R at room temperature.

Synthesis of compound 2

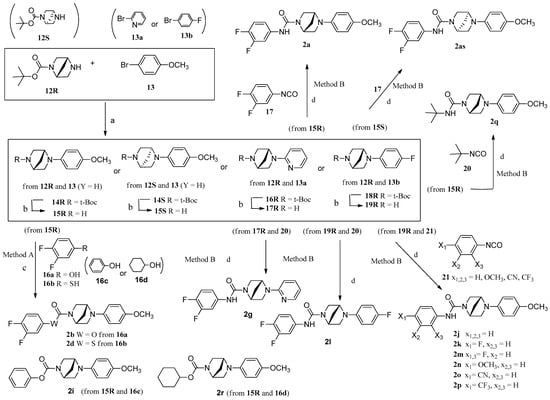

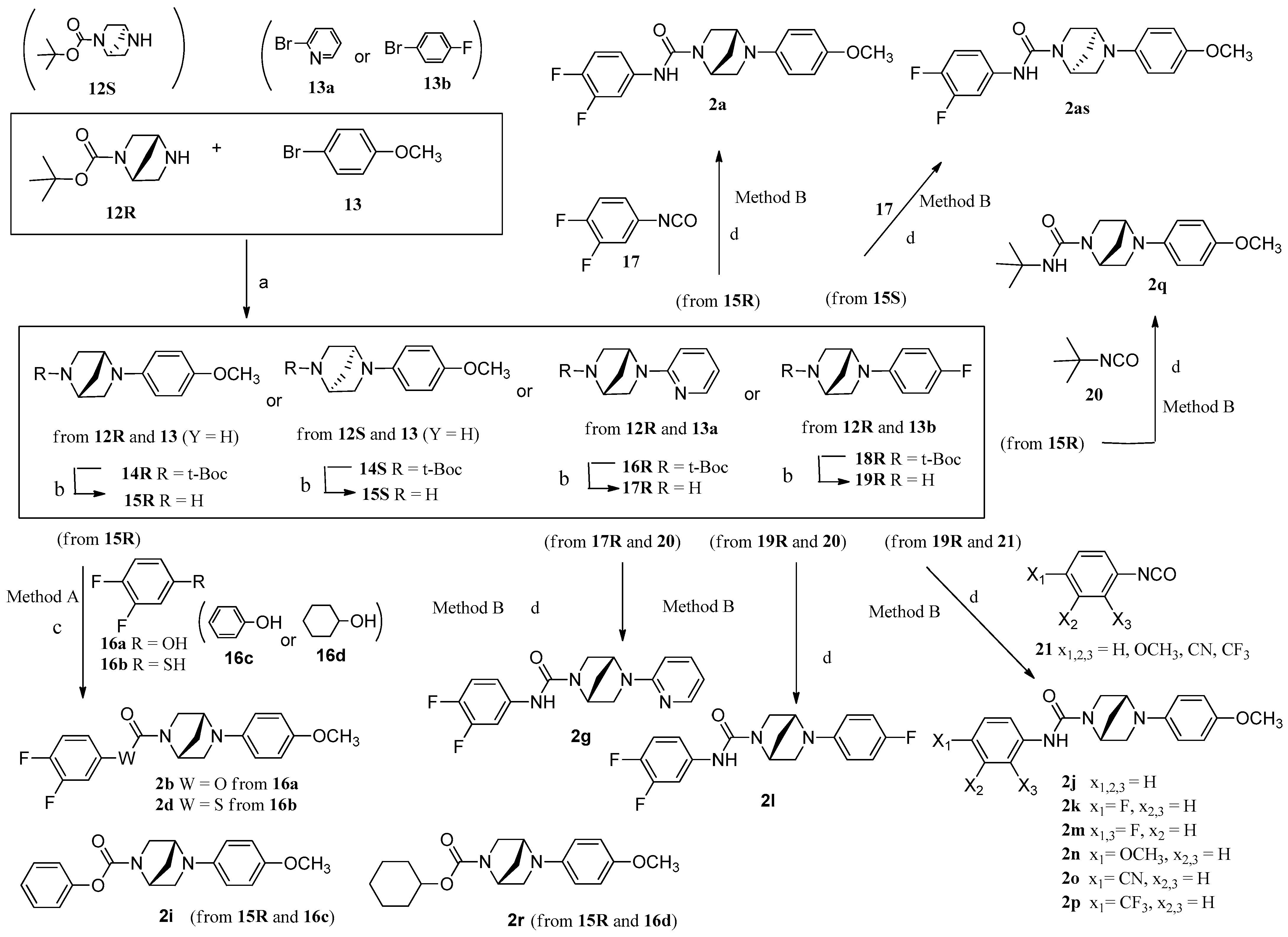

Scheme 1. General synthetic route for the preparation of target compounds 2a, 2b, and 2h–q. Reagents and conditions: (a) BINAP, Pd(OAc)₂, t-BuONa, toluene, reflux; (b) i. EtOH, AcCl, 0 °C-rt, ii. Et₃N, DCM, rt; (c) bis(trichloromethyl) carbonate (BTC, Triphosgene), (3,4-difluoroaniline (for 2a), 3,4-difluorophenol (for 2b), or 3,4-difluorobenzenethiol (for 2s), Et₃N, DCM, 0 °C-rt; (d) DCM, Et₃N, 0 °C-rt, final yield between 50% and 88%.

Scheme 1. General synthetic route for the preparation of target compounds 2a, 2b, and 2h–q. Reagents and conditions: (a) BINAP, Pd(OAc)₂, t-BuONa, toluene, reflux; (b) i. EtOH, AcCl, 0 °C-rt, ii. Et₃N, DCM, rt; (c) bis(trichloromethyl) carbonate (BTC, Triphosgene), (3,4-difluoroaniline (for 2a), 3,4-difluorophenol (for 2b), or 3,4-difluorobenzenethiol (for 2s), Et₃N, DCM, 0 °C-rt; (d) DCM, Et₃N, 0 °C-rt, final yield between 50% and 88%.

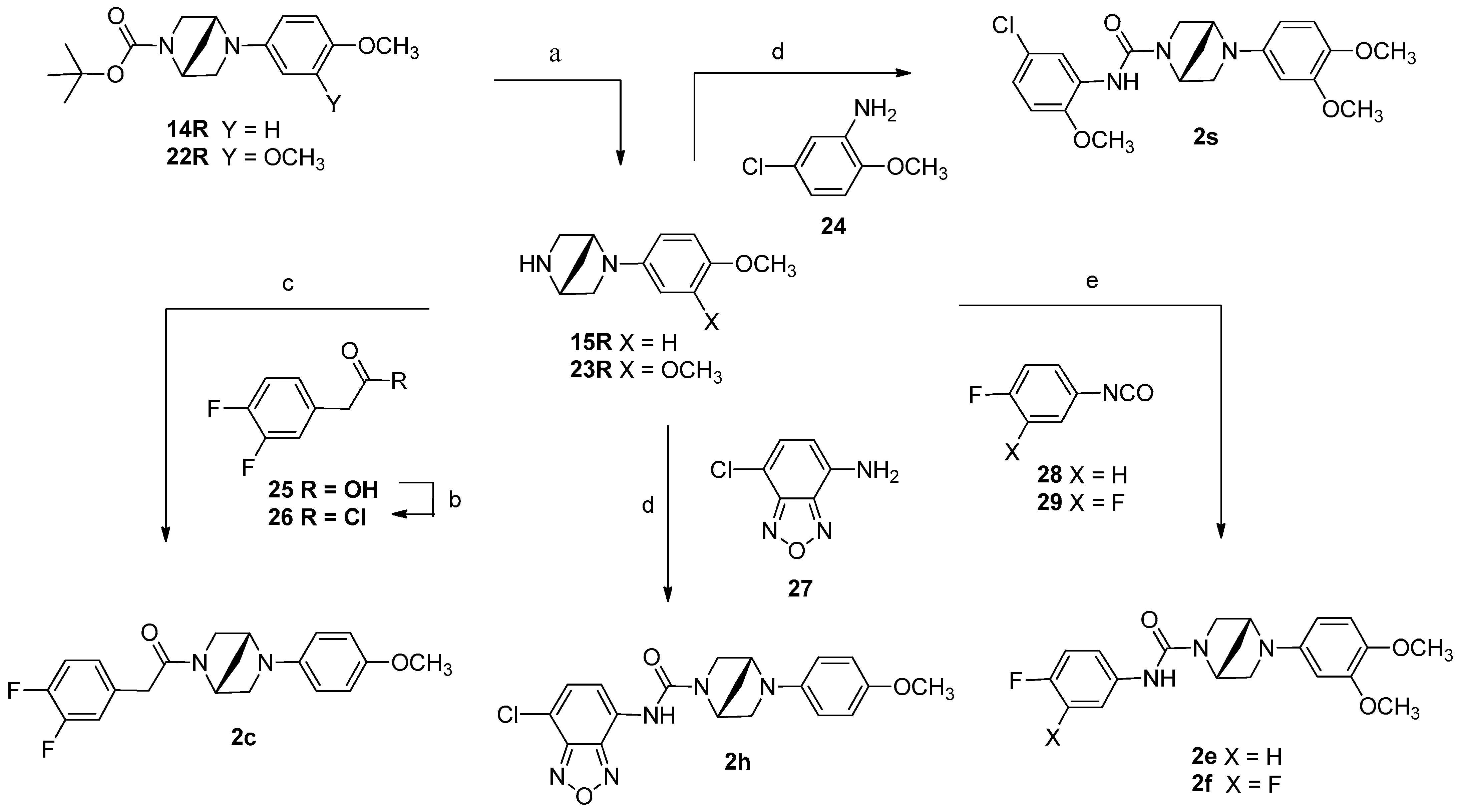

Scheme 2. General synthetic route for the preparation of target compounds 2c, 2e, 2f, and 2s. Reagents and conditions: (a) i. EtOH, AcCl, 0 °C-rt, ii. Et₃N, DCM, rt; (b) SOCl₂, THF, 0 °C to rt; (c) Et₃N, DCM, rt, 0 °C-rt; (d) bis(trichloromethyl) carbonate (BTC or Triphosgene), Et₃N (or pyridine), DCM, rt; (e) DCM, Et₃N (or pyridine), rt final yield between 53 and 72%.

Scheme 2. General synthetic route for the preparation of target compounds 2c, 2e, 2f, and 2s. Reagents and conditions: (a) i. EtOH, AcCl, 0 °C-rt, ii. Et₃N, DCM, rt; (b) SOCl₂, THF, 0 °C to rt; (c) Et₃N, DCM, rt, 0 °C-rt; (d) bis(trichloromethyl) carbonate (BTC or Triphosgene), Et₃N (or pyridine), DCM, rt; (e) DCM, Et₃N (or pyridine), rt final yield between 53 and 72%.

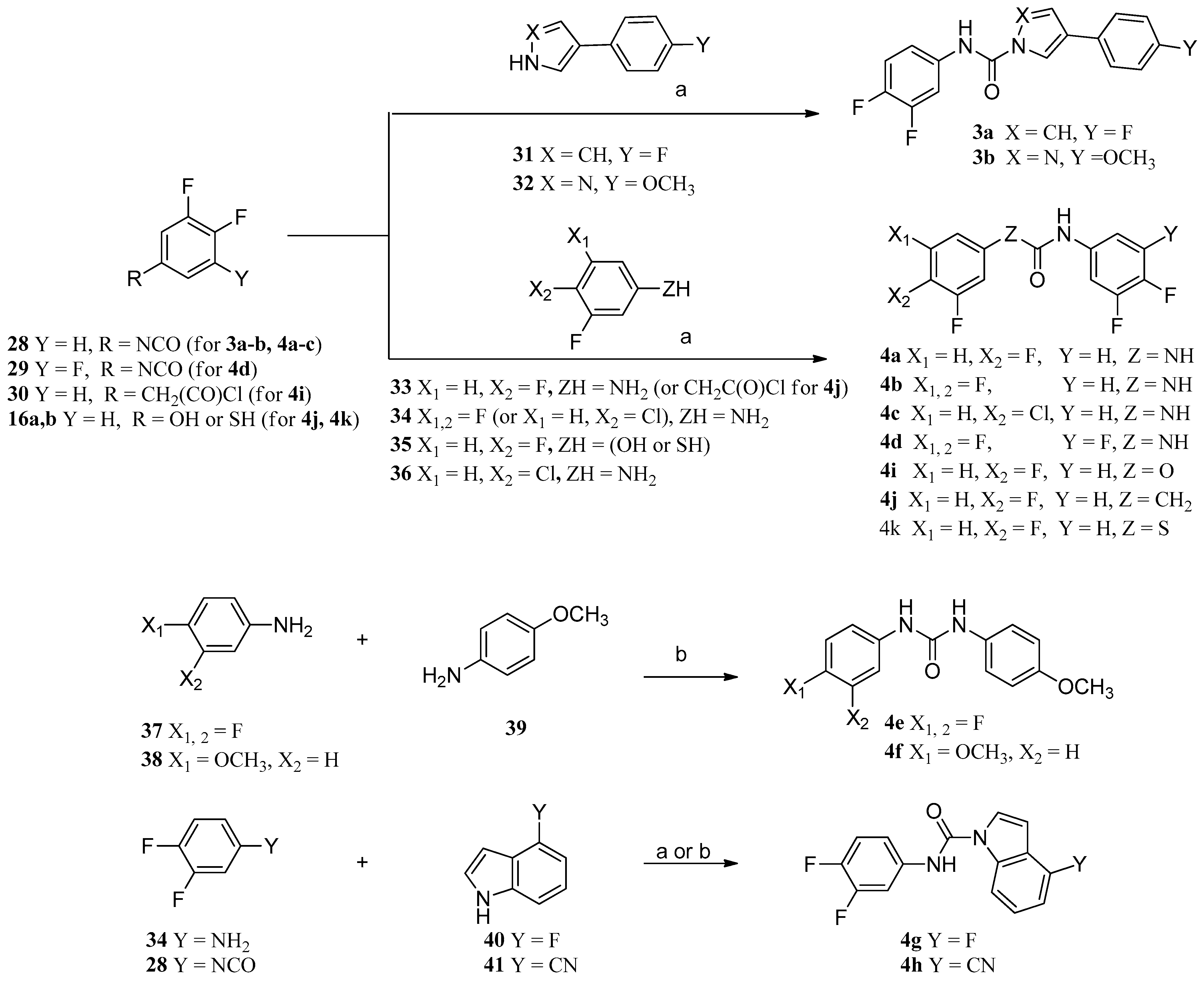

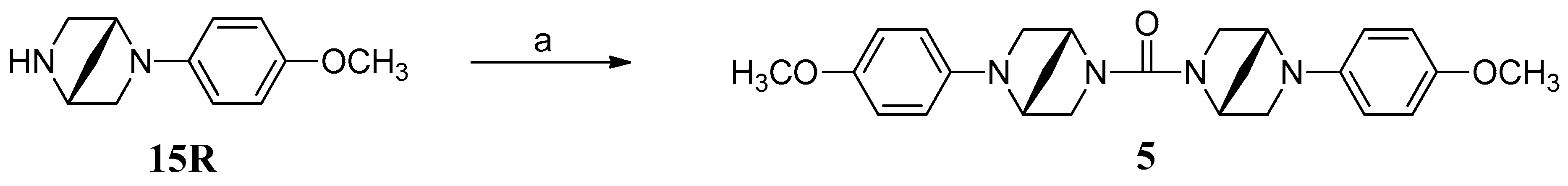

Finally, the preparation of modified linker derivates 3a,b and bis-aromatic analogs 4a–h is shown in Scheme 3. The synthetic approach of 3a,b and 4a–d was performed with the isocyanates 28 and 29 with corresponding anilines 31–36 in basic conditions under an anhydrous atmosphere. And in using bis(trichloromethyl) carbonate (BTC), two different anilines (34 and/or 37–40) generated 4e–g as asymmetric urea-type compounds. The reaction of indole 41 with isocyanate 28 produced urea-type compound 4h. The compounds 4i, 4j, and 4k were generated by reaction of substituted phenol (or thiol) 30 or acid chloride 35 (for 4j) with corresponding carboxylic acid by treating SOCl₂ as shown in Scheme 3. In Scheme 4, the mediated reaction of bis(trichloromethyl) carbonate (BTC) with 37R produced 5 as a symmetric product with 5a as a byproduct.

2.2. Structure–Activity Relationship (SAR) Exploration of Series 2, 3, 4, and 5

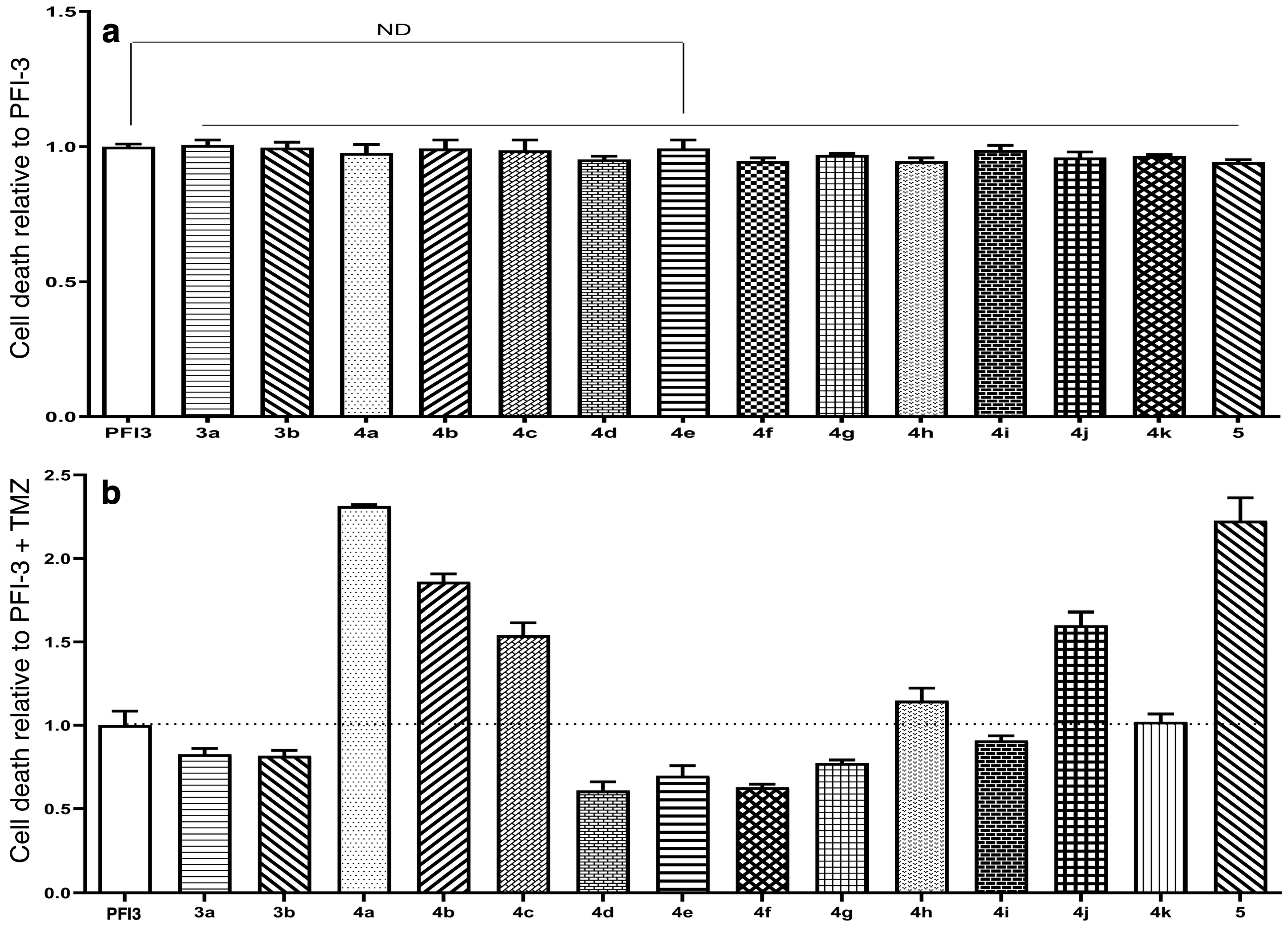

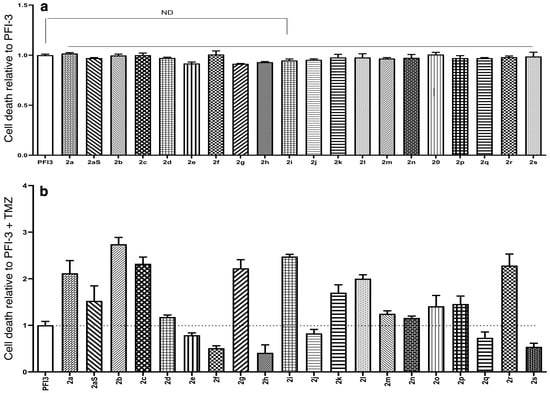

We explored the structural activity relationship (SAR) of scaffolded analogs 2, 3, 4, and 5, as demonstrated in Figure 2 and Figure 3. Like PFI-3, none of the newly designed analogs had any effect on GBM cell death (Figure 2a and Figure 3a). However, when treated in combination with TMZ, some of the newly designed analogs of (2, 3, 4, and 5) markedly increased GBM sensitivity to the cell-death-inducing activity of TMZ (Figure 2b and Figure 3b). We have previously shown that 200 μM TMZ had only a minimal effect on GBM cell viability [13]. It is important to note that compounds of series 2 (2a, 2b, 2c, 2d, 2g, 2i, 2k, 2l, and 2r), 4 (4a, 4b, 4c, 4g, and 4j), and 5 were found to be superior to PFI-3 in enhancing the activity of TMZ to induce GBM cell death, as summarized in Figure 4. Showing the importance of chirality in the bromodomain inhibitors, the R-isomer 2a (Figure 1) had greater activity than the S-isomer 2as (Scheme 1), showing the highest binding for the R-isomer. Further refinements of the structure by inserting a 5-membered ring in compounds 3a and 3b (Scheme 3) showed their activity in GBM cells to be less in the TMZ-induced cell relative to PFI-3. Treatment of GBM cells with dimeric compound 5 resulted in an increase in the activity of TMZ-induced cell death of two times compared to PFI-3 (1). Moreover, removal of the bridge portion in compounds (urea 4a and carbamate 4b) resulted in compounds with high sensitivity to death-inducing activity with TMZ.

In summary, the structure–activity relationship studies of TED series 2, 3, 4, and 5 specified that modification (i.e., A- and B-ring, bicyclic bridge, A-ring only, and B-ring only) suggests that there are certain indispensable structural motifs that must be retained to enhance TMZ-induced cell death. On the structural modifications, the structural requirement in these new TEDs to sensitize GBM cells to TMZ-induced death as new bromodomain inhibitor scaffolds are summarized as shown in Figure 4.

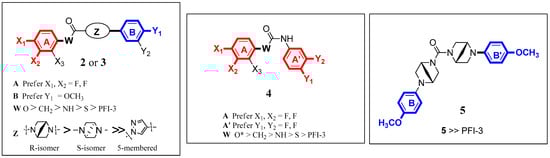

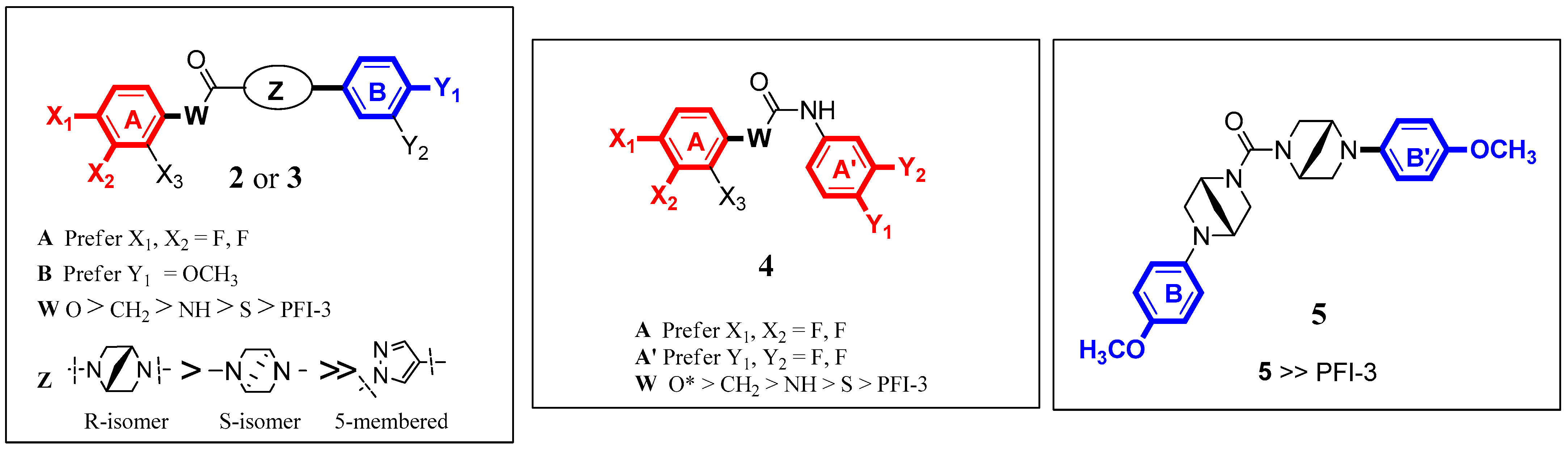

The SAR study and considerations for the series of analogs of 2, 3, 4, and 5 to sensitize GBM cells to TMZ-induced cell death are summarized as below:

• Optimizing A-ring (Series 2, Y₁ = OCH₃):
  3,4-di-fluorophenyl (for 2a) > unsubstituted phenyl (2i) > cyclohexyl (2r) >> PFI-3 (1)
• Linker modification (Series 2):
  carbamate 2b (W = O) > methylene-amide 2c (W = CH₂) > urea 2a (W = NH) > carbamothioate 2d (W = S) > PFI-3 (1).
• Bridge Z:
  bicyclic R-isomer 2a > bicyclic S-isomer 2as > PFI-3 1 > 5-member ring 3a, 3b.
• Two A-rings (Series 4):
  2-fluoro substituents in each A- and B-ring (X₁, X₂, Y₁, and Y₂ = F, for 4a) > 5-fluoro substituents in both A- and B-rings (X₁, X₂, X₃, Y₁, and Y₂ = F, for 4b) > 3-fluoro substituents in both A- and B-rings (X₁, X₂, and Y₁ = F, Y₂ = Cl, for 4c) > 4-cyanoindole in the B-ring (for 4h), and PFI-3 (1) > mono-fluoro or methoxy substituents (for 4e, 4f).
• Interestingly, dimeric bicyclic compound 5 (i.e., two B-rings) presented very strong activity (2.5 times stronger than PFI-3 as shown in Figure 4. It seems to be influenced by “a symmetric bicyclic B-ring” that fits well to the target bromodomain binding site.

2.3. Calculated Properties of PFI-3 and Compounds in the Series 2, 3, 4, and 5

We next formed in silico analysis for the drug properties of compounds in series 2, 3, 4, and 5, which included high gastrointestinal (GI) absorption, penetration in the blood–brain barrier (BBB), and optimized physical properties in computer simulation, as shown in

Table 1. Summarized physicochemical, pharmacokinetic, and drug likeness properties of 2a–c, 2as, 3b, 4a, 4i–k, and 5a using the Swiss ADME web tool.

ID	Physicochemical Parameters						Pharmacokinetic Parameters		Drug-Likeness Properties
	HA	RB	HBA	HBD	FC	MLOGP	GI Absorption	BBB Permeation	Lipinski’s Rules of Five	Bio- Availability
2a	26	5	4	1	0.32	3.38	High	Yes	Yes 0 violation	0.55
2as	26	5	4	1	0.32	3.38	High	Yes	Yes 0 violation	0.55
2b	26	5	5	0	0.32	3.38	High	Yes	Yes 0 violation	0.55
2c	26	5	4	0	0.35	3.36	High	Yes	Yes 0 violation	0.55
3a	23	4	1	4	0	4.53	High	Yes	1 violation	0.55
3b	24	5	1	5	0.06	3.55	High	Yes	Yes 0 violation	0.55
4a	20	4	5	2	0	4.53	High	Yes	1 violation	0.55
4i	20	4	6	1	0	4.53	High	Yes	1 violation	0.55
4j	20	4	5	1	0.07	4.58	High	Yes	1 violation	0.55
4k	20	4	5	1	0	5.01	High	Yes	1 violation	0.55
5	32	6	3	0	0.48	2.58	High	Yes	Yes 0 violation	0.55

HA: number of heavy atoms; RB: number of rotatable bonds; HBA: number of H-bond acceptors; HBD: number of H-bond donors; FC: fraction Csp3; MLOGP: LogP_o/w topological method; GI absorption: gastrointestinal absorption; BBB permeation: blood–brain barrier permeation.

and Supplementary Materials. The constituents of the new modified PFI-3 analog series 2, 3, 4, and 5 were examined by the Swiss ADME computer-aided prediction model [14] to predict drug-like properties. The synthesized series 2, 3, 4, and 5 calculated physical properties, such as ADME (Absorption, Distribution, Metabolism, and Excretion) and other drug-like properties shown in Table 1 and Figure S1 (in the Supplementary Materials). In Figure S1, the round yellow yolk-like sphere represents the BBB (blood–brain barrier) permeation region, and the oval white part represents the HIA (Human Intestinal Absorption) region. The gray region represents the low absorption and limited brain permeation region. The right-hand side box provides the option to show the molecule modified PFI-3 analogs 2–5, legends of the BOILED-Egg model, and other remarks. The query of modified PFI-3 analogs 2–5 is visualized as a red/blue hollow sphere located in the white part (HIA). The red/blue color represents PGP+/− (P-glycoprotein positive/negative) based on its property located in the white region, resulting also in penetrable properties in BBB and optimized performance in physical properties. The designed series 2–5 are the Bioavailability Radar calculated in several physical properties as marked as LIPO (Lipophilicity), SIZE, POLAR (Polarity), INSOLU (Insolubility), INSATU (Instauration; 0.25 < Fraction Csp3 < 1), and FLEX as shown in Figure S1. Table 1 showed the key factors of physical properties for drug-likeness, such as physicochemical, pharmaceutical, and drug-likeness properties of modified PFI-3 analogs selected 2–5, especially high GI absorption and penetrable properties on BBB with high bioavailability matched with Lipinski’s Rules of Five [15].

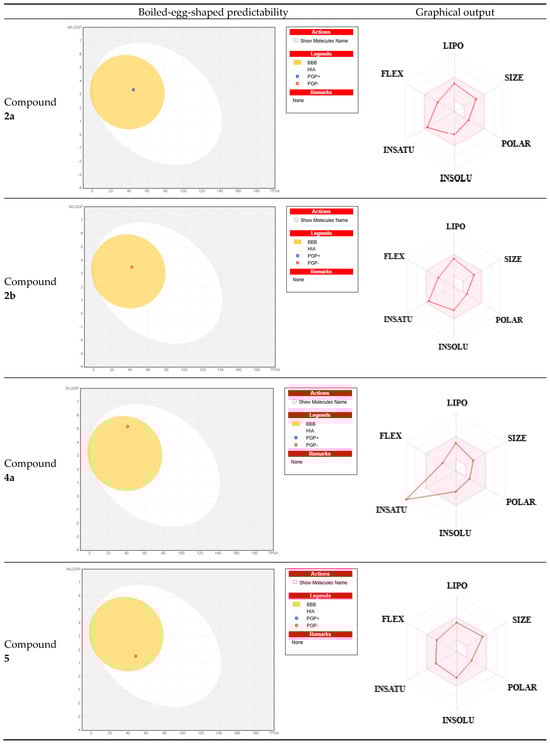

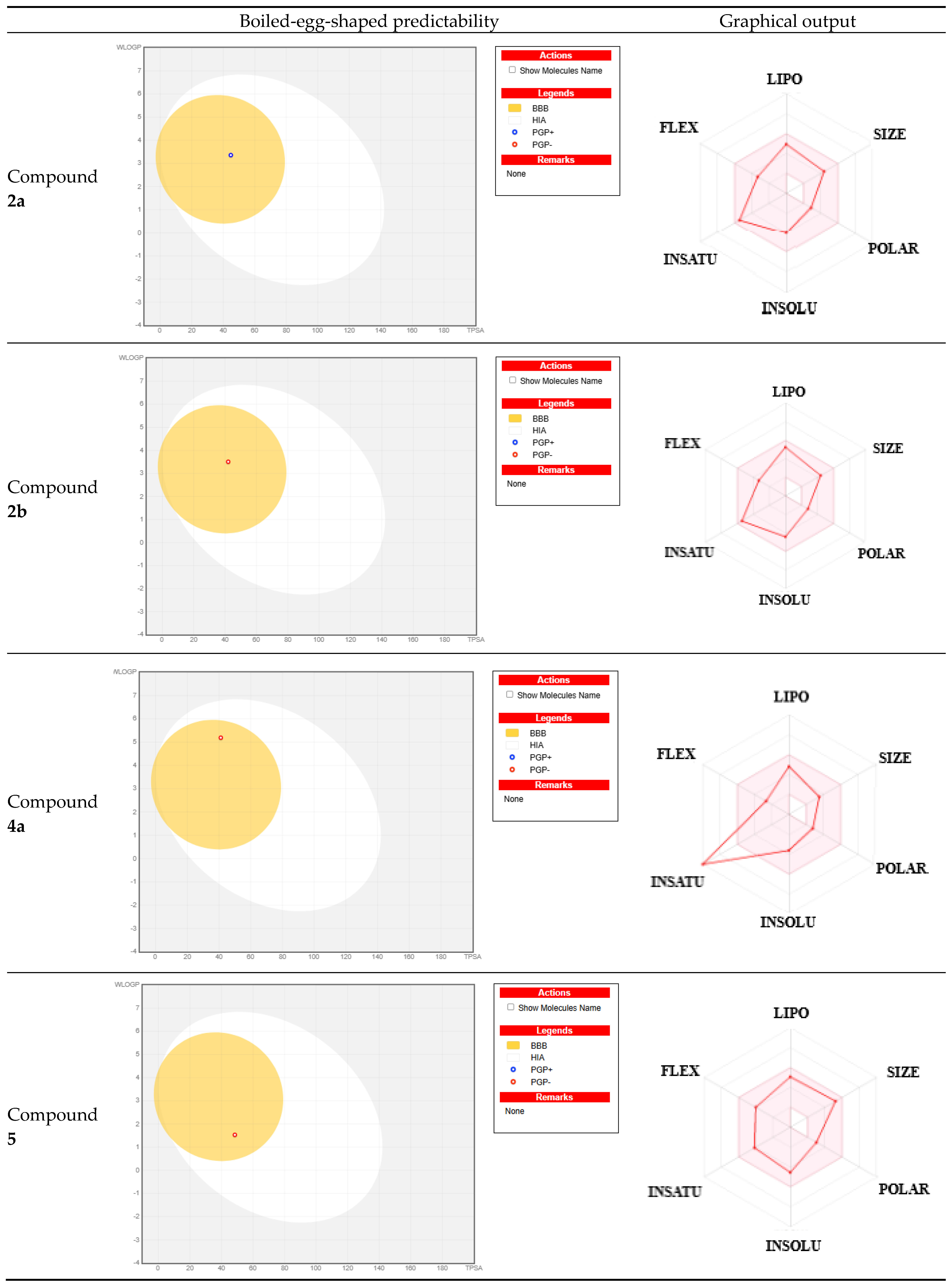

2.4. Drug-likeness: Computer-Aided Predictability of Selected 2a, 4a, and 5

Compared to the drug properties of compounds 2a and 2b (new-PFI-3), 4a (two A-rings), and 5 (two B-rings), we evaluated the selected molecules, 2a, 2b, 4a, and 5, through computational methods in the SwissADME [14] program.

The compounds 2a, 2b, 4a, and 5 calculated and expected physical properties, called ADME (Absorption, Distribution, Metabolism, and Excretion) and other drug likenesses to use the pharmaceutical aids as shown in Table 1 and Figure 5. As calculated, compound 2a was predicted to be effluxed from the central nervous system by the p-glycoprotein (PGP+; blue spot). However, compounds 2b, 4a, and 5 were not predicted to be effluxed by the p-glycoprotein (PGP−; red spot), as shown in Figure 5. Consequently, the results of physicochemical, pharmacokinetic, and drug-likeness properties of especially compounds 2a, 2b, 4a, and 5 showed great drug properties as GBM treatment, as shown in Table 1 and Figure 5.

3. Materials and Methods

3.1. Biological Reagents and Cell Cultures

U87 and LN229 (ATCC, Manassas, VA, USA) GBM cell lines were grown in DMEM containing 10% fetal bovine serum (Hyclone, Logan, UT, USA) supplemented with penicillin (100 IU/mL) and streptomycin (100 μg/mL) at 37 °C with 5% CO₂. The cells were authenticated by short-tandem repeat analysis.

3.2. Cell Death Assays

For cell death assays, cells were plated into 48-well plates (1 × 10⁴ cells/well), and after 2 days of drug treatment, the levels of apoptosis in the attached cells were determined according to the instructions using the cell death ELISA^PLUS assay (Roche, Basel, Switzerland), which measures cytoplasmic histone-associated DNA fragments [16].

3.3. General Chemistry Methods

All chemicals for synthesis were purchased from Sigma-Aldrich Chemical Co., Fisher Scientific (Pittsburgh, PA, USA), Ambeed, Inc. (Arlington Heights, IL, USA), Combi-Blocks, Inc. (San Diego, CA, USA), 1Pluschem Product List (San Diego, CA, USA), etc., and used without further purification. Moisture-sensitive reactions were carried out under an argon atmosphere. Analytical thin-layer chromatography (TLC) was performed on pre-coated silica gel (Merck Kieselgel 60 F254 layer thickness 0.25 mm, Rahway, NJ, USA). A Bruker Avance III 400 (Billerica, MA, USA) spectrometer obtained NMR spectra. Chemical shifts are observed as parts per million (ppm) relative to TMS in CDCl₃ or DMSO-d₆. The structure of synthesized compounds was also utilized by 1H-1H 2D-COSY and 2D-NOE NMR analytic methods. The use of silica gel (230–400 mesh, Merck) for flash column chromatography was utilized. A Bruker Esquire-LC/MS system (Bruker Daltonics, Billerica, MA, USA) equipped with an electrospray/ion trap instrument in positive and negative ion modes (ESI source). The purity of the final compounds was examined by an Agilent 1100 HPLC system (Santa Clara, CA, USA). HPLC conditions: 45% acetonitrile at a flow rate of 1.0 mL/min using a LUNA 5 μ C18 100A column (250 × 4.60 mm) purchased from Phenomenex (Torrance, CA, USA) at ambient temperature. The UV detection was set at 340 nm or 245 nm. The properties of the compounds were established by careful integration of areas for all peaks detected and determined as more than 95% for all compounds tested for biological study.

3.4. Synthesis of Compound Series 2–5

Method A.

A 100 mL, oven-dried, two-necked, round-bottomed flask is charged with a Teflon-coated magnetic oval stir bar and coupled with a 50 mL dropping funnel. Both the dropping funnel and the round-bottomed flask are sealed with a rubber septum. Under an argon atmosphere, to a solution of triphosgene (520 mg, 1.75 mmol) in 10 mL of dry THF, 15S (325 mg, 1.6 mmol) in 3 mL of THF was added slowly at 0 °C. The resulting mixture was stirred at the same temperature for 10 min and allowed to stir at room temperature for another 30 min. After completion of the reaction, the solution of substituted aniline (1.48 mmol) with 1 mL of Et₃N was added to the mixture and stirred overnight at room temperature. The solution was concentrated under reduced pressure and poured into EtOAc, then washed with saturated NaHCO₃ solution and water, dried over anhydrous MgSO₄, and concentrated under reduced pressure to purify by silica gel chromatography (EtOAc/n-hexane = 1:1) or (hexane/acetone = 3:1, v/v) to afford the designed compound.

Method B.

Under a nitrogen atmosphere, to a solution of isocyanate (23, 24, or 25, 2.2 mmol) in 10 mL of dry DCM, aniline (15R, 18R, 26, or 27, 2 mmol) in 3 mL of DCM and triethylamine (0.3 mL) were added slowly at 0 °C. The resulting mixture was stirred at the same temperature for 10 min and allowed to stir at room temperature for another 30 min. After completion of the reaction, the reaction mixture was added to crushed ice and extracted with DCM. The organic layer was dried over anhydrous MgSO₄, and concentrated under reduced pressure to purify by silica gel chromatography (EtOAc/n-hexane = 1:2) or (acetone/hexane = 1:3, v:v) to afford the target compound.

Method C.

To a solution of (1R,4R)-tert-butyl 2,5-diazabicyclo[2.2.1]heptane-2carboxylate (12R, 5 mmol) in anhydrous toluene (30 mL) was added substituted bromobenzene (13, 10 mmol), sodium tert-butoxide (5 mol), Pd(OAc)₂ (0.25 mmol), and (R)(+)-2,2′-bis(diphenylphosphino)-1,1′-binaphthalene (BINAP, 0.25 mmol) at room temperature under the argon atmosphere. The resulting reaction mixture was heated at reflux for 4–5 h under an argon atmosphere. After the end of the reaction was monitored by TLC, the reaction was quenched by water and extracted with ethyl acetate. The organic layer was dried with anhydrous MgSO₄, filtered, concentrated under reduced pressure, and purified by column chromatography using hexanes and ethyl acetate (1:1, v/v) as eluent to afford the desired compound.

Method D.

The solution of 14R (40.36 mmol) was dissolved in anhydrous ethanol (30 mL) in a 100 mL round-bottomed flask. To this, 5 mL of acetyl chloride was dropwise added in an ice-water bath and was stirred overnight at room temperature under argon conditions. The reaction was monitored by TLC using an ethyl acetate and hexane (2:3, v/v) system. Stirring was continued until TLC indicated the completion of the reaction. The solution was reduced off under reduced pressure. The solvent was removed completely under vacuum to obtain compound 15R.

Synthesis of compounds 3a and 3b.

A 100 mL, oven-dried, two-necked, round-bottomed flask is charged with a Teflon-coated magnetic oval stir bar and coupled with a 50 mL dropping funnel. Both the dropping funnel and the round-bottomed flask are sealed with a rubber septum. Under a nitrogen atmosphere, to a solution of 1,2-difluoro-4-isocyanatobenzene (28, 320 mg, 2.06 mmol) in 10 mL of dry DCM, 3-(4-fluorophenyl)-1H-pyrrole (31, for 3a) or 4-(4-methoxyphenyl)-1H-pyrazole (32, for 3b) (1.6 mmol) in 3 mL of DCM and triethylamine (0.2 mL) was added slowly at 0 °C. The resulting mixture was stirred at the same temperature for 10 min and allowed to stir at room temperature for another 30 min. After completion of the reaction, the reaction mixture was added to crushed ice and extracted with DCM. The organic layer was dried over anhydrous MgSO₄ and concentrated under reduced pressure to purify by silica gel chromatography (acetone/hexane = 1:4, v/v) to afford the target compounds.

(1R,4R)-tert-Butyl 5-(pyridin-2-yl)-2,5-diazabicyclo[2.2.1]heptane-2-carboxylate (16R)

Prepared by Method C.

MS (ESI) m/z 276.20 [M + H]⁺; LCMS (ESI) m/z calcd for C₁₅H₂₂N₃O₂: 276.1712 [M + H]⁺, found: 276.1716 [M + H]⁺. ¹H NMR (400 MHz, DMSO-d₆) δ 8.06 (d, J = 4.8 Hz, 1H, ArH), 7.51–7.47 (m, 1H, ArH), 6.60–6.57 (m, 1H, ArH), 6.54–6.51 (m, 1H, ArH), 4.77 (d, J = 8.8 Hz, 1H, CH), 3.51–3.45 (m, 1H, CH), 3.44–3.30 (m, 2H, CH), 3.26–3.33 (m, 1H, CH), 3.18–3.15 (m, 1H, CH), 1.90–1.87 (m, 2H, CH), 1.39 (s, 6H, 2xCH₃), 1.34 (s, 3H, CH₃).

(1R,4R)-2-(pyridin-2-yl)-2,5-diazabicyclo[2.2.1]heptane (17R)

Prepared by Method D.

MS (ESI) m/z 176.06 [M + H]⁺, 198.09 [M + Na]⁺. ¹H NMR (400 MHz, DMSO-d₆) δ 8.13 (d, J = 4.8 Hz, 1H, ArH), 7.48–7.43 (m, 1H, ArH), 6.63–6.58 (m, 1H, ArH), 6.37–6.32 (m, 1H, ArH), 5.03(d, J = 7.8 Hz, 1H, CH), 4.54–4.50 (m, 1H, CH), 3.68–3.65 (m, 1H, CH), 3.61–3.49 (m, 2H, CH), 3.44–3.38 (m, 1H, CH), 2.12–1.91(m, 2H, CH).

(1R,4R)-tert-Butyl 5-(4-methoxyphenyl)-2,5-diazabicyclo[2.2.1]heptane-2-carboxylate (14R)

Prepared by Method C.

White solid. Yield (75%). UV max: 249.45, 315.45 nm. Purity (LC: t_R 3.60 min): 97.54%. MS (ESI) m/z 305.15 [M + H]⁺. LCMS (ESI) m/z calcd for C₁₇H₂₄N₂O₃: 305.1865 [M + H]⁺, found: 305.1853 [M + H]⁺. ¹H NMR (400 MHz, CDCl₃) δ 6.84 (t, J = 8.4 Hz, 2H, ArH), 6.52 (dd, J = 8.4, 6.0 Hz, 2H, ArH), 4.50 (d, J = 58.4 Hz, 1H), 4.31 (s, 1H), 3.76 (s, 3H, OCH3), 3.58 (m, 1H), 3.49 (dd, J = 31.6, 10.0 Hz, 1H), 3.35 (t, J = 12.8 Hz, 1H), 3.14 (dd, J = 38.0, 8.4 Hz, 1H), 1.98 (m, 1H), 1.90 (m, 1H), 1.44 (s, 3H), 1.40 (s, 6H).

(1R,4R)-tert-Butyl 5-(3,4-dimethoxyphenyl)-2,5-diazabicyclo[2.2.1]heptane-2-carboxylate (22R)

Prepared by Method C.

White-off solid. Yield 70%. MS (ESI) m/z 335.12 [M + H]⁺; LCMS (ESI) m/z calcd for C₁₈H₂₆N₂O₄: 335.1971 [M + H]⁺, found: 335.1989 [M + H]⁺. ¹H NMR (400 MHz, DMSO-d₆) δ 6.78 (d, J = 8.4 Hz, 1H, ArH), 6.22 (d, J = 2.4 Hz, 1H, ArH), 6.06 (dd, J = 8.4, 2.4 Hz, 1H), 4.41 (bs, 1H, NH), 4.39 (m, 1H), 3.73 (s, 3H, OCH₃), 3.63 (s, 3H, OCH₃), 3.51 (m, 1H), 3.28 (m, 1H), 3.23 (m, 1H), 2.90 (t, J = 9.8 Hz, 1H), 1.88 (m, 1H), 1.87 (m, 1H), 1.40 (s, 6H), 1.32 (s, 3H). ¹³C NMR (100 MHz, DMSO-d₆) δ 153.92, 150.60, 142.72, 140.80, 114.87, 104.14, 99.18, 79.07, 58.09, 57.54, 56.96, 56.53, 55.91, 51.21, 37.55, 28.58.

(1R,4R)-2-(3,4-Dimethoxyphenyl)-2,5-diazabicyclo[2.2.1]heptane (23R)

Prepared by Method D.

Light brown solid. Yield 95%. LCMS (ESI) m/z calcd for C₁₃H₁₈N₂O₂: 235.1447 Found: 235.1502 [M + H]⁺. ¹H NMR (400 MHz, DMSO-d₆) δ 9.80 (bs, 1H, NH), 9.02 (bs, 1H, NH), 6.82 (d, J = 8.8 Hz, 1H, ArH), 6.29 (d, J = 2.0 Hz, 1H, ArH), 6.12 (dd, J = 8.8, 2.0 Hz, 1H), 3.72 (s, 3H, OCH₃), 3.78 (m, 1H), 3.64 (s, 3H, OCH₃), 3.64–3.52 (m, 2H), 3.26 (d, J = 10.0 Hz, 1H), 3.17–3.12 (m, 2H), 2.08 (d, J = 10.4 Hz), 1.93 (d, J = 10.4 Hz, 1H). ¹³C NMR (100 MHz, DMSO-d₆) δ 150.41, 141.58, 141.52, 114.67, 104.88, 99.81, 57.65, 56.88, 56.06, 52.89, 48.69, 35.95.

(1R,4R)-N-(3,4-Difluorophenyl)-5-(4-methoxyphenyl)-2,5-diazabicyclo[2.2.1]heptane-2-carboxamide (2a)

Prepared by Method A and B.

White off solid. Yield 80%. UV max: 195.45, 230.45. Purity (LC, t_R 3.10 min) 97.09%. MS (ESI) m/z 360.15 [M + H]⁺; 358.23 [M − H]⁻. LCMS (ESI) m/z calcd for C₁₉H₁₉F₂N₃O₂: 360.1524 [M + H]⁺; Found: 360.1525 [M + H]⁺; ¹H NMR (400 MHz, DMSO-d₆) δ 8.43 (bs, 1H, NH), 7.65–7.59 (m, 1H, ArH), 7.03 (q, J = 9.60 Hz, ArH), 7.21 (m, 1H, ArH), 6.79 (d, J = 8.8 Hz, 2H, ArH), 6.56 (d, J = 8.8 Hz, 2H, ArH), 4.67(s, 1H), 4.49 (s, 1H), 4.49 (s, 1H), 3.64 (s, 3H, OCH₃), 3.55 (d, J = 8.0 Hz, 1H), 3.39 (s, 2H), 2.94 (d, J = 8.8 Hz, 1H), 1.98 (d, J = 10.8 Hz, 1H), 1.91 (d, J = 8.8 Hz, 1H). ¹⁹F NMR (400 MHz, DMSO-d₆) δ -136.52, -145.34.

(1R,4R)-3,4-Difluorophenyl 5-(4-methoxyphenyl)-2,5-diazabicyclo[2.2.1]heptane-2-carboxylate (2b)

Prepared by Method A.

Light yellowish solid. Yield 51%. MS (ESI) m/z 361.12 [M + H]⁺. UV max: 240.45, 315.45 nm. Purity (LC, t_R 3.64 min) 98.77%. LCMS (ESI) m/z calcd for C₁₉H₁₈F₂N₂O₃: 361.1364 [M + H]⁺, found: 361.1353 [M + H]⁺. ¹H NMR (400 MHz, DMSO-d₆) δ 7.46–7.40 (m, 1H, ArH), 7.38–7.32 (m, 1H, ArH), 7.05–6.95 (m, 1H, ArH), 6.82 (d, J = 8.4 Hz, 1H), 6.62 (d, J = 8.4 Hz, 1H), 4.69 (s, 1H), 4.55 (d, J = 6.0 Hz, 1H), 3.65 (s, 3H, OCH₃), 3.62 (m, 2H), 3.58–3.32 (m, 3H), 3.16 (d, J = 8.8 Hz, 1H), 2.02 (m, 1H), 1.98 (m, 1H). ¹⁹F NMR (400 MHz, DMSO-d₆) δ -136.50, -142.66

2-(3,4-Difluorophenyl)-1-((1R,4R)-5-(4-methoxyphenyl)-2,5-diazabicyclo[2.2.1]heptan-2-yl)ethenone (2c)

Under a nitrogen atmosphere, thionyl chloride (18.4 mL, 0.252 mol) was added dropwise to a cooled solution (less than 4 °C) of 2-(3,4-difluorophenyl)acetic acid (206 mg, 1.2 mmol) in 7 mL of THF under an argon atmosphere. The resulting mixture was stirred for 3 h under the same conditions. The solution was added dropwise to a solution of 15R (204 mg, 1 mmol) in DCM/Pyridine (2 mL/5 mL) and stirred overnight at rt. The solvent was removed under reduced pressure and diluted with EtOAc (20 mL), washed with H₂O, 5% HCl solution, and brine (300 mL). The organic layer was dried over anhydrous MgSO₄ and concentrated under reduced pressure to give a crude solid, which was purified by column chromatography using acetone/hexane (1/4, v/v) to give a solid.

Light yellowish solid. Yield 53%. MS (ESI) m/z 359.12 [M + H]⁺. UV max: 190.45, 209.45, 249.45 nm. Purity (LC, t_R 3.06 min) 98.73%. LCMS (ESI) m/z calcd for C₂₀H₂₀F₂N₂O₂: 359.1571 [M + H]⁺; Found: 359.1578 [M + H]⁺. ¹H NMR (400 MHz, DMSO-d₆) δ 7.35 (m, 1H, ArH), 7.24 (m, 1H, ArH), 7.15 (m, 1H, ArH), 6.78 (m, 2H, ArH), 6.52 (m, 2H, ArH), 4.78 (d, J = 25.6 Hz, 1H), 4.51 (d, J = 37.6 Hz, 1H), 3.76 (d, J = 15.6 Hz, 1H), 3.65 (s, 3H, OCH₃), 3.55 (m, 1H), 3.51–3.44 (m, 2H), 3.29 (s, 1H), 2.87 (t, J = 10.2 Hz, 1H), 2.01 (d, J = 9.6 Hz, 1H), 1.93 (d, J = 9.6 Hz, 1H). ¹⁹F NMR (400 MHz, DMSO-d₆) δ -139.59, -142.26.

(1R,4R)-S-(3,4-Difluorophenyl) 5-(4-methoxyphenyl)-2,5-diazabicyclo[2.2.1]heptane-2-carbothioate (2d)

Under an argon atmosphere, to a solution of triphosgene (445 mg, 1.5 mmol) in 10 mL of anhydrous THF, 3,4-difluorothiophenol (219 mg, 1.5 mmol) in 3 mL of THF was added slowly at 0 °C to the solution, and triethylamine (0.28 mL, 2 mmol) was added dropwise to the solution. The resulting mixture was stirred at the same temperature for 10 min and allowed to heat to reflux for 30 min. After cooling the flask, the solution of 15R (306 mg, 1.5 mmol) in 2 mL anhydrous THF was added to the mixture and stirred overnight at room temperature. The reaction mixture was concentrated under reduced pressure and then dissolved into 30 mL of ethyl acetate and washed with water (30 mL) brine (30 mL). The organic layer was dried over anhydrous MgSO_4, and concentrated under reduced pressure and purified with flash column chromatography using EtOAc/Hex (1:2, v/v) to give a white solid. Yield 53%. MS (ESI) m/z 377.10 [M + H]⁺. UV max: 192.45, 248.45, 249.45 nm. Purity (LC, t_R 3.53 min): 98.39%. LCMS (ESI) m/z calcd for C₁₉H₁₈F₂N₂O₂S: 377.1135 [M + H]⁺; Found: 359.1136 [M + H]⁺. ¹H NMR (400 MHz, DMSO-d₆) δ 7.60–7.57 (m, 1H, ArH), 7.47–7.43 (m, 1H, ArH), 7.29 (m, 1H, ArH), 6.78 (m, 2H, ArH), 6.52 (m, 2H, ArH), 4.78 (m, 1H), 4.56 (s, 1H), 3.66 (s, 3H, OCH₃), 3.54 (t, J = 9.2 Hz, 1H), 3.39 (m, 2H), 3.05 (d, J = 9.2 Hz, 1H), 2.04 (m, 1H), 1.98 (m, 1H). ¹⁹F NMR (400 MHz, DMSO-d₆) δ -13.82, -136.08.

(1R,4R)-5-(3,4-Dimethoxyphenyl)-N-(4-fluorophenyl)-2,5-diazabicyclo[2.2.1]heptane-2-carboxamide (2e)

Prepared by Method A.

White-off solid. Yield 59%. Purity: (LC, t _min = 3.08) 99.46%. UV max: 210.45, 238.45, 307.45.

MS (ESI) m/z 372.23 [M + H]⁺; 370.29 [M − H]⁻. LCMS (ESI) m/z calcd for C₂₀H₂₂FN₃O₃: 370.1567 [M − H]⁻, found: 370.1573 [M − H]⁻. ¹H NMR (400 MHz, DMSO-d₆) δ 8.26 (bs, 1H, NH), 7.45 (m, 2H, ArH), 7.02 (dt, J = 8.8, 2.0 Hz,2H, ArH), 6.79 (d, J = 8.8 Hz, 1H), 6.24 (d, J = 2.4 Hz, 1H), 6.08 (dd, J = 8.8, 2.4 Hz, 1H), 4.68 (s, 1H), 4.52 (s, 1H), 3.73 (s, 3H, OCH₃), 3.62 (s, 3H, OCH₃), 3.55 (dd, J =8.8, 1.6 Hz, 1H), 3.41 (s, 2H), 3.01 (d, J = 8.8 Hz, 1H), 1.96 (d, J = 9.2 Hz, 1H), 1.91 (d, J = 9.2 Hz, 1H); ¹⁹F NMR (400 MHz, DMSO-d₆) δ -121.36. ¹³C NMR (100 MHz, DMSO-d₆) δ 152.29 (d, J_F = 370 Hz), 150.14 (C=O), 150.44, 142.78, 140.80, 137.08, 121.39 (d, J_F = 8.0 Hz), 115.31 (d, J_F = 22.0 Hz), 114.92, 104.21, 99.23, 57.88, 57.39, 56.99, 56.64, 55.87, 51.25, 37.30.

(1R,4R)-N-(3,4-Difluorophenyl)-5-(3,4-dimethoxyphenyl)-2,5-diazabicyclo[2.2.1]heptane-2-carboxamide (2f)

Prepared by Method A.

Light brown solid. Yield 72%. Purity: (LC, t _min = 3.21) 99.27%. UVmax: 210.45, 237.45, 309.45. MS (ESI) m/z 390.19 [M + H]⁺; 388.30 [M − H]⁻. LCMS (ESI) m/z calcd for C₂₀H₂₁F₂N₃O₃: 388.1473 [M − H]⁻, found: 388.1482 [M − H]⁻. ¹H NMR (400 MHz, DMSO-d₆) δ 8.43 (bs, 1H, NH), 7.63 (m, 1H, ArH), 7.27 (q, J = 9.2 Hz, 1H, ArH), 7.21 (m, 1H, ArH), 6.78 (d, J = 8.8 Hz, 1H), 6.24 (d, J = 2.4 Hz, 1H), 6.09 (dd, J = 8.8, 2.4 Hz, 1H), 4.69 (s, 1H), 4.53 (s, 1H), 3.73 (s, 3H, OCH₃), 3.62 (s, 3H, OCH₃), 3.56 (dd, J = 8.8, 1.6 Hz, 1H), 3.42 (s, 2H), 3.01 (d, J = 8.8 Hz, 1H), 1.97 (d, J = 9.6 Hz, 1H), 1.91 (d, J = 9.6 Hz, 1H). ¹⁹F NMR (400 MHz, DMSO-d₆) δ -138.12, -147.64. ¹³C NMR (100 MHz, DMSO-d₆) δ 153.79 (C=O), 150.44, 148.06 (d, J_F = 13.0 Hz), 142.73, 140.84, 138.06, 148.06 (d, J_F = 9.0 Hz), 117.40 (d, J_F = 18.0 Hz), 115.42 (d, J_F = 6.0 Hz), 114.90, 108.34 (d, J_F = 22.0 Hz), 104.23, 99.26, 57.85, 57.36, 56.98, 56.69, 55.87, 51.25, 37.25.

(1R,4R)-N-(3,4-Difluorophenyl)-5-(pyridin-2-yl)-2,5-diazabicyclo[2.2.1]heptane-2-carboxamide (2g)

Prepared by Method B.

Yield 62% as a white foam.

Purity: (LC, t _min = 2.08) 97.61%; UV max: 204.45, 239.45, 319.45; MS (ESI) m/z 329.19 [M − H]⁻; 331.13 [M + H]⁺; LCMS (ESI) m/z calcd for C₁₇H₁₆F₂N₄O: 331.1370 [M + H]⁺, found: 331.1370 [M + H]⁺; ¹H NMR (400 MHz, DMSO₆) δ 8.48 (bs, 1H, NH), 8.07 (dd, J = 3.0, 0.6 Hz, 1H, ArH), 7.68 (dq, J = 7.6, 2.4 Hz, 1H, ArH), 7.52–7.48 (m, 1H, ArH), 7.31 (q, J = 9.2 Hz, 1H, ArH), 7.24 (m, H, ArH), 6.61 (dd, J = 6.4, 5.2 Hz, 1H, ArH), 6.55 (d, J = 8.4 Hz, 1H, ArH), 4.86 (s, 1H, CH), 4.76 (s, 1H, CH), 3.54–3.49 (m, 2H, CH), 3.38–3.31 (m, 2H, CH), 2.00–1.96 (m, 2H, CH); ¹³C NMR (100 MHz, DMSO-d₆) δ 157.36 (C=O), 153.92, 148.33, 148.06 (dq, J_F = 241.0, 13.0 Hz), 138.02 (q, J_F = 2.0 Hz), 137.74, 117.40 (d, J_F = 17.0 Hz), 115.55 (q, J_F = 2.0 Hz), 112.55, 108.42 (d, J_F = 22.0 Hz), 107.60, 56.76, 56.55, 55.82, 53.06, 37.06; ¹⁹F NMR (400 MHz, DMSO-d₆) δ -138.11, -147.56.

(1R,4R)-N-(7-Chlorobenzo[c][1,2,5]oxadiazol-4-yl)-5-(4-methoxyphenyl)-2,5-diazabicyclo[2.2.1]heptane-2-carboxamide (2h)

Prepared by Method A.

Yellow solid. Yield 70%. MS (ESI) m/z 398.27 [M − H]⁻. LCMS (ESI) m/z calcd for C₁₉H₁₈ClN₅O₃: 400.1176 [M + H]⁺, found: 400.1176 [M + H]⁺; 398.1020 [M − H]⁻, found: 398.1046 [M − H]⁻. ¹H NMR (400 MHz, DMSO-d₆) δ 7.41 (d, J = 8.0 Hz, 1H, ArH), 6.81 (d, J = 8.8 Hz, 2H, ArH), 6.79 (bs, 1H, NH), 6.59 (d, J = 8.8 Hz, 1H, ArH), 6.28 (d, J = 8.0 Hz, 1H, ArH), 4.75 (m, 1H), 4.52 (m, 1H), 3.65 (s, OCH₃, 3H), 3.63–3.54 (m, 1H), 3.05–3.38 (m, 1H), 3.42 (m, 1H), 3.06–2.99 (m, 1H), 2.08–2.05 (m, 1H), 2.01–1.99 (m, 1H). ¹³C NMR (100 MHz, DMSO-d₆) δ 151.59 (C=O), 148.95, 145.50, 137.18, 134.87, 115.24 (2C), 114.68 (2C), 114.33, 114.30, 104.86, 102.14, 62.51, 59.96, 56.94, 56.55, 37.08.

(1R,4R)-Phenyl 5-(4-methoxyphenyl)-2,5-diazabicyclo[2.2.1]heptane-2-carboxylate (2i)

Prepared by Method A.

Yield 88%, pinkish solid, purity: (LC, t _min = 3.35) 97.23%; UV max: 191.45, 249.45; MS (ESI) m/z 325.11 [M + H]⁺; LCMS (ESI) m/z calcd for C₁₉H₂₀N₂O₃: 325.1552 [M + H]⁺, found: 325.1549 [M + H]⁺; ¹H NMR (400 MHz, DMSO₆) δ 7.39–7.32 (m, 2H, ArH), 7.21–7.18 (m, 1H, ArH), 7.13 (d, J = 7.6 Hz, 1H, ArH), 7.07 (d, J = 7.6 Hz, 1H, ArH), 6.83 (d, J = 8.8 Hz, 2H, ArH), 6.60 (d, J = 8.8 Hz, 2H, ArH), 4.71 (s, 1H), 4.54 (d, J = 3.6 Hz, 1H), 3.67 (s, 3H, OCH₃), 3.13 (d, J = 8.8 Hz, 1H), 2.03–1.99 (m, 2H, CH); ¹³C NMR (100 MHz, DMSO-d₆) δ 152.24 (C=O), 151.39, 141.75, 129.70 (2C), 125.71, 122.71 (2C), 122.19 (2C), 115.23 (2C), 114.23, 58.22, 57.54, 56.77, 55.75, 51.41, 37.63.

(1R,4R)-5-(4-Methoxyphenyl)-N-phenyl-2,5-diazabicyclo[2.2.1]heptane-2-carboxamide (2j)

Prepared by Method B.

Yield 82%, white solid. Purity: (LC, t _min = 2.92) 98.59%; UV max: 191.45, 201.45, 241.45; MS (ESI) m/z 322.86 [M = H]⁻; 324.15 [M + H]⁺; LCMS (ESI) m/z calcd for C₁₉H₂₁N₃O₂: 324.1712 [M + H]⁺, found: 324.1715 [M + H]⁺; ¹H NMR (400 MHz, DMSO₆) δ 8.22 (bs, 1H, NH), 7.45 (d, J = 7.8 Hz, 2H, ArH), 7.18 (t, J = 7.8 Hz, 2H, ArH), 6.89 (t, J = 7.2 Hz, 1H, ArH), 6.81 (d, J = 9.2 Hz, 2H, ArH), 6.58 (d, J = 9.2 Hz, 2H, ArH), 4.69 (s, 1H), 4.49 (s, 1H), 3.65 (s, 3H, OCH₃), 3.54 (dd, J = 9.0, 1.2 Hz, 1H), 3.41 (s, 2H), 2.98 (d, J = 9.2 Hz, 1H), 1.99 (d, J = 9.6 Hz, 1H), 1.92 (d, J = 9.6 Hz, 1H); ¹³C NMR (100 MHz, DMSO-d₆) δ 154.16 (C=O), 151.28, 141.96, 140.76, 128.73 (2C), 122.05, 119.66 (2C), 115.21 (2C), 114.19 (2C), 58.03, 57.36, 56.63, 55.74, 51.04, 37.30.

(1R,4R)-N-(tert-Butyl)-5-(4-methoxyphenyl)-2,5-diazabicyclo[2.2.1]heptane-2-carboxamide (2k)

Prepared by Method B.

Yield 50%, off-white solid. Purity: (LC, t _min = 2.97) 95.91%; UV max: 199.45, 236.45; MS (ESI) m/z 340.27 [M − H]⁻; 342.11 [M + H]⁺; LCMS (ESI) m/z calcd for C₁₉H₂₀FN₃O₂: 342.1618 [M + H]⁺, found: 342.1617 [M + H]⁺; ¹H NMR (400 MHz, DMSO₆) δ 8.27 (bs, 1H, NH), 7.47 (m, 2H, ArH), 7.03 (t, J = 8.8 Hz, 2H, ArH), 6.81 (d, J = 8.8 Hz, 2H, ArH), 6.58 (d, J = 8.8 Hz, 2H, ArH), 4.68 (s, 1H, CH), 4.49 (s, 1H, CH), 3.57 (dd, J = 9.2, 2.0 Hz, 1H, CH), 3.40 (s, 2H), 2.97 (d, J = 8.8 Hz, 1H), 1.99 (d, J = 9.6 Hz, 1H), 1.92 (d, J = 9.6 Hz, 1H); ¹³C NMR (100 MHz, DMSO-d₆) δ 158.85 (d, J_F = 237 Hz), 154.16 (C=O), 151.28, 141.94, 137.10 (d, J_F = 3.0 Hz), 121.38 (d, J_F = 8.0 Hz), 115.31 (2C), 115.21, 115.09, 114.19 (2C), 58.01, 57.35, 56.62, 55.73, 51.01, 37.29; ¹⁹F NMR (400 MHz, DMSO-d₆) δ -121.86.

(1R,4R)-N-(3,4-Difluorophenyl)-5-(4-fluorophenyl)-2,5-diazabicyclo[2.2.1]heptane-2-carboxamide (2l)

Prepared by Method B.

Yield 67%, off-white solid. Purity: (LC, t _min = 3.27) 96.89%; UV max: 204.45, 240.45; MS (ESI) m/z 346.20 [M − H]⁻; 348.09 [M + H]⁺; LCMS (ESI) m/z calcd for C₁₈H₁₆F₃N₃O: 348.1324 [M + H]⁺, found: 348.1326 [M + H]⁺; ¹H NMR (400 MHz, DMSO₆) δ 8.49 (bs, 1H, NH), 7.65 (dq, J = 7.6, 2.4 Hz, 1H, ArH), 7.26 (q, J = 10.4 Hz, 1H, ArH), 7.23 (m, 1H, ArH), 7.02 (t, J = 9.2 Hz, 2H, ArH), 6.62 (m, 2H, ArH), 4.72 (s, 1H, CH), 4.57 (s, 1H, CH), 3.58 (dd, J = 9.2, 1.6 Hz, 1H, CH), 3.46–3.40 (m, 2H), 3.02 (d, J = 8.8 Hz, 1H), 2.00 (d, J = 9.2 Hz, 1H), 1.94 (d, J = 9.2 Hz, 1H); ¹⁹F NMR (400 MHz, DMSO-d₆) δ -129.38, -138.11, -147.59.

(1R,4R)-2-(4-Fluorophenyl)-2,5-diazabicyclo[2.2.1]heptane (19R)

Yield 47%. Yellowish foam. Purity: (LC, t _min = 3.27) 96.89%; UV max: 204.45, 240.45; MS (ESI) m/z 346.20 [M − H]⁻; 348.09 [M + H]⁺; LCMS (ESI) m/z calcd for C₁₈H₁₆F₃N₃O: 348.1324 [M + H]⁺, found: 348.1326 [M + H]⁺; ¹H NMR (400 MHz, DMSO₆) δ 8.49 (bs, 1H, NH), 7.65 (dq, J = 7.6, 2.4 Hz, 1H, ArH), 7.26 (q, J = 9.2 Hz, 1H, ArH), 7.24–7.22 (m, 1H, AH), 7.02 (t, J = 6.4 Hz, ArH), 6.64–6.60 (m, 2H, ArH), 4.72 (s, 1H, CH), 4.60 (s, 1H, CH), 3.58 (dd, J = 9.2, 1.6 Hz, 1H, CH), 3.46–3.40 (m, 2H), 3.02 (d, J = 8.8 Hz, 1H), 2.00 (d, J = 9.2 Hz, 1H), 1.95 (d, J = 9.2 Hz, 1H); ¹³C NMR (100 MHz, DMSO-d₆) δ 156.05 (C=O), 153.82, 150.46 (dd, J_F = 240, 13 Hz), 145.95 (dd, J_F = 238, 13 Hz), 144.18, 138.00 (d, J_F = 3 Hz), 117.22 (d, J_F = 18 Hz), 116.05 (2C), 115.83 (2C), 115.46 (q, J_F = 4 Hz), 113.96 (d, J_F = 22 Hz), 57.87, 57.34, 56.68, 37.29; ¹⁹F NMR (400 MHz, DMSO-d₆) δ -129.38, -138.11, -147.59.

(1R,4R)-N-(2,4-Difluorophenyl)-5-(4-methoxyphenyl)-2,5-diazabicyclo[2.2.1]heptane-2-carboxamide (2m)

Prepared by Method B.

Yield 87%, pinkish solid. Purity: (LC, t _min = 2.97) 99.34%; UV max: 196.45, 231.45; MS (ESI) m/z 358.15 [M − H]⁻; 360.12 [M + H]⁺; LCMS (ESI) m/z calcd for C₁₈H₁₆F₃N₃O: 360.1524 [M + H]⁺, found: 360.1493 [M + H]⁺; ¹H NMR (400 MHz, DMSO₆) δ 8.49 (bs, 1H, NH), 7.65 (dq, J = 7.6, 2.4 Hz, 1H, ArH), 7.26 (q, J = 9.2 Hz, 1H, ArH), 7.24–7.22 (m, 1H, AH), 7.02 (t, J = 6.4 Hz, ArH), 6.64–6.60 (m, 2H, ArH), 4.72 (s, 1H, CH), 4.60 (s, 1H, CH), 3.58 (dd, J = 9.2, 1.6 Hz, 1H, CH), 3.46–3.40 (m, 2H), 3.02 (d, J = 8.8 Hz, 1H), 2.00 (d, J = 9.2 Hz, 1H), 1.95 (d, J = 9.2 Hz, 1H); ¹³C NMR (100 MHz, DMSO-d₆) δ 154.31 (C=O), 151.27, 141.91, 128.15 (d, J_F = 10 Hz), 124.08 (dd, J_F = 12.0, 3.0 Hz), 115.21 (2C), 114.14 (2C), 111.24 (dd, J_F = 22.0, 3.0 Hz), 104.36 (t, J_F = 26 Hz), 57.28, 56.83, 55.73, 51.05, 37.39; ¹⁹F NMR (400 MHz, DMSO-d₆) δ -115.56, -117.97.

(1R,4R)-N,5-bis(4-Methoxyphenyl)-2,5-diazabicyclo[2.2.1]heptane-2-carboxamide (2n)

Prepared by Method B.

Yield 60%. off-white solid. Purity: (LC, t _min = 2.86) 97.29%; UV max: 199.45, 244.45; MS (ESI) m/z 352.80 [M − H]⁻; 354.17 [M + H]⁺; LCMS (ESI) m/z calcd for C₂₀H₂₃N₃O₃: 360.1524 [M + H]⁺, found: 354.1818 [M + H]⁺; ¹H NMR (400 MHz, DMSO₆) δ 8.07 (bs, 1H, NH), 7.65 (d, J = 9.2 Hz, 2H, ArH), 6.80 (d, J = 9.2 Hz, 1H, ArH), 6.77 (d, J = 9.2 Hz, 1H, ArH), 6.58 (d, J = 9.2 Hz, 1H, ArH), 4.66 (s, 1H, CH), 4.48 (s, 1H, CH), 3.68 (s, 3H, OCH₃), 3.65 (s, 3H, OCH₃), 3.55 (dd, J = 9.0, 1.6 Hz, 1H, CH), 3.38 (m, 2H), 2.96 (d, J = 8.8 Hz, 1H), 1.97 (d, J = 8.8 Hz, 1H), 1.91 (d, J = 9.2 Hz, 1H); ¹³C NMR (100 MHz, DMSO-d₆) δ 154.74 (C=O), 154.40, 151.26, 141.97, 133.74, 121.57 (2C), 115.21, 114.17, 113.90 (2C), 58.02, 57.38, 56.55, 55.74, 55.51, 50.97, 37.32.

(1R,4R)-N-(4-Cyanophenyl)-5-(4-methoxyphenyl)-2,5-diazabicyclo[2.2.1]heptane-2-carboxamide (2o)

Prepared by Method B.

Yield 90.0%. off-white solid. Purity: (LC, t _min = 2.95) 98.71%; UV max: 199.45, 268.45; MS (ESI) m/z 347.24 [M − H]⁻; 349.14 [M + H]⁺; LCMS (ESI) m/z calcd for C₂₀H₂₀N₄O₂: 349.1665 [M + H]⁺, found: 349.1663 [M + H]⁺; ¹H NMR (400 MHz, DMSO₆) δ 8.71 (bs, 1H, NH), 7.69 (d, J = 8.8 Hz, 2H, ArH), 7.64 (d, J = 8.8 Hz, 2H, ArH), 6.81 (d, J = 8.8 Hz, 2H, ArH), 6.59 (d, J = 8.8 Hz, 2H, ArH), 4.73 (s, 1H, CH), 4.51 (s, 1H, CH), 3.65 (s, 3H, OCH₃), 3.57 (dd, J = 8.8, 1.6 Hz, 1H, CH), 3.37 (m, 2H), 2.98 (d, J = 9.2 Hz, 1H), 1.99 (d, J = 7.6 Hz, 1H), 1.93 (d, J = 7.6 Hz, 1H); ¹³C NMR (100 MHz, DMSO-d₆) δ 153.40 (C=O), 151.34, 145.39, 141.86, 133.29 (2C), 119.87, 119.10 (2C), 115.21 (2C), 114.22 (2C), 103.33, 57.99, 57.28, 56.83, 55.73, 51.14, 37.22.

(1R,4R)-5-(4-Methoxyphenyl)-N-(4-(trifluoromethyl)phenyl)-2,5-diazabicyclo[2.2.1]heptane-2-carboxamide (2p)

Prepared by Method B.

Yield 89%. off-white foam. Purity: (LC, t _min = 3.36) 98.47%; UV max: 204.45, 251.45; MS (ESI) m/z 390.13 [M − H]⁻; 392.13 [M + H]⁺; LCMS (ESI) m/z calcd for C₂₀H₂₀F₃N₃O₂: 392.1586 [M + H]⁺, found: 392.1597 [M + H]⁺; ¹H NMR (400 MHz, DMSO₆) δ 8.63 (bs, 1H, NH), 7.71 (d, J = 8.8 Hz, 2H, ArH), 7.57 (d, J = 8.8 Hz, 2H, ArH), 6.82 (d, J = 9.2 Hz, 2H, ArH), 6.59 (d, J = 9.2 Hz, 2H, ArH), 4.74 (s, 1H, CH), 4.51 (s, 1H, CH), 3.66 (s, 3H, OCH₃), 3.58 (dd, J = 9.2, 1.6 Hz, 1H, CH), 3.45 (m, 2H), 2.99 (d, J = 8.8 Hz, 1H), 1.99 (d, J = 9.2 Hz, 1H), 1.94 (d, J = 9.2 Hz, 1H); ¹³C NMR (100 MHz, DMSO-d₆) δ 153.68 (C=O), 151.38, 144.63, 141.90, 126.06, 126.03, 125.06 (q, J = 270 Hz), 122.04 (q, J = 31 Hz), 118.98, 115.21, 114.21, 58.01, 57.31, 56.77, 55.73, 51.11, 37.11; ¹⁹F NMR (400 MHz, DMSO-d₆) δ -60.03.

(1R,4R)-N-(tert-Butyl)-5-(4-methoxyphenyl)-2,5-diazabicyclo[2.2.1]heptane-2-carboxamide (2q)

Prepared by Method B.

Yield 85.0%, white solid.

Purity: (LC, t _min = 2.86) 99.36%; UV max: 201.45, 249.45; MS (ESI) m/z 304.14 [M + H]⁺; LCMS (ESI) m/z calcd for C₁₇H₂₅N₃O₂: 304.2025 [M + H]⁺, found: 304.2027 [M + H]⁺; ¹H NMR (400 MHz, DMSO₆) δ 6.80 (d, J = 8.8 Hz, 2H, ArH), 6.53 (d, J = 8.8 Hz, 2H, ArH), 5.41 (bs, 1H, NH), 4.52 (s, 1H, CH), 4.39 (s, 1H, CH), 3.65 (s, 3H, OCH₃), 3.47 (dd, J = 8.8, 1.6 Hz, 1H, CH), 3.22 (s, 2H), 2.85 (d, J = 8.8 Hz, 1H), 1.88 (d, J = 8.8 Hz, 1H), 1.79 (d, J = 8.8 Hz, 1H), 1.20 (s, 9H, (CH₃)₃); ¹³C NMR (100 MHz, DMSO-d₆) δ 156.31 (C=O), 151.14, 142.06, 115.18 (2C), 114.04 (2C), 57.84, 57.35, 56.22, 55.73, 50.65, 50.29, 37.41, 29.67 (3C).

(1R,4R)-Cyclohexyl 5-(4-methoxyphenyl)-2,5-diazabicyclo[2.2.1]heptane-2-carboxylate (2r)

Prepared by Method A.

Yield 96.0%, white solid.

Purity: (LC, t _min = 3.66) 98.75%; UV max: 249.45; MS (ESI) m/z 331.19 [M + H]⁺; LCMS (ESI) m/z calcd for C₁₉H₂₆N₂O₃: 331.2022 [M + H]⁺, found: 331.2023 [M + H]⁺; ¹H NMR (400 MHz, DMSO₆) δ 6.80 (d, J = 8.8 Hz, 2H, ArH), 6.56 (d, J = 8.8 Hz, 2H, ArH), 4.51 (m, 1H, CH), 4.40 (s, 1H, CH), 3.65 (s, 3H, OCH₃), 3.47 (m, 1H, CH), 3.29 (m, 2H), 2.88 (m, 1H), 1.92 (m, 2H), 1.73–1.62 (m, 2H), 1.65–1.52 (m, 2H), 1.43–1.28 (m, 6H); ¹³C NMR (100 MHz, DMSO-d₆) δ 154.15 (C=O), 151.30, 141.82, 115.18 (2C), 114.12 (2C), 72.44, 58.18, 57.68, 57.29, 56.89, 56.75, 55.72, 50.96, 37.52, 31.94, 25.40, 23.51.

(1R,4R)-N-(5-Chloro-2-methoxyphenyl)-5-(3,4-dimethoxyphenyl)-2,5-diazabicyclo[2.2.1] heptane-2-carboxamide (2s)

Prepared by Method A.

Off-white solid. Yield 63%. Purity: (LC, t _min = 3.43) 96.14%. UV max: 214.45, 248.45, 289.45. MS (ESI) m/z 418.19 [M + H]⁺; 416.30 [M − H]⁻. LCMS (ESI) m/z calcd for C₂₁H₂₄ClN₃O₄: 416.1377 [M − H]⁻, found: 416.1356 [M − H]⁻. ¹H NMR (400 MHz, DMSO-d₆) δ 7.87 (bs, 1H, NH), 7.35 (m, 1H, ArH), 6.97 (m, 2H), ArH), 6.78 (d, J = 9.2 Hz, 1H, ArH), 7.21 (m, 1H, ArH), 6.78 (d, J = 8.8 Hz, 1H), 6.24 (d, J = 2.4 Hz, 1H), 6.09 (dd, J = 8.8, 2.4 Hz, 1H), 4.65 (s, 1H), 4.52 (s, 1H), 3.77 (s, 3H, OCH₃), 3.72 (s, 3H, OCH₃), 3.62 (s, 3H, OCH₃), 3.54 (d, J =7.6 Hz, 1H), 3.47 (d, J =8.8 Hz, 1H), 3.39 (d, J = 9.2 Hz, 1H), 3.03 (d, J = 9.2 Hz, 1H), 1.96 (d, J = 9.2 Hz, 1H), 1.92 (d, J = 9.2 Hz, 1H). ¹³C NMR (100 MHz, DMSO-d₆) δ 153.46 (C=O), 150.45, 148.10, 142.63, 140.83, 130.18, 124.32, 122.31, 120.05, 114.89, 112.45, 104.16, 99.25, 57.59, 57.42, 56.97, 56.80, 56.52, 55.89, 51.05, 37.37.

N-(3,4-Difluorophenyl)-3-(4-fluorophenyl)-1H-pyrrole-1-carboxamide (3a)

Prepared by Method A.

Yield 82%. Off-white solid. Purity: (LC, t _min = 3.72) 98.64%. UV max: 222.45. MS (ESI) m/z 317.10 [M + H]⁺; 315.34 [M − H]⁻. LCMS (ESI) m/z calcd for C₁₇H₁₁F₃N₂O: 317.0902 [M + H]⁺; Found: 317.0922 [M + H]⁺. ¹H NMR (400 MHz, CDCl₃) δ 7.53–7.50 (m, 1H, ArH), 7.45–7.42 (m, 3H, ArH), 7.32 (bs, 1H, NH), 7.26 (m, 1H, ArH), 7.10–7.08 (m, 2H), 7.01 (t, J = 8.8 Hz, 2H, ArH), 6.55 (dd, J = 3.2, 1.6 Hz, 1H, ArH). ¹⁹F NMR (400 MHz, CDCl₃) δ -115.55, -134.87, -141.50.

N-(3,4-Difluorophenyl)-4-(4-methoxyphenyl)-1H-pyrazole-1-carboxamide (3b)

Prepared by Method A.

Yield 67%. White solid. Purity: (LC, t _min = 2.67) 97.06%. UV max: 252.45. MS (ESI) m/z 319.13 [M − H]⁻. ¹H NMR (400 MHz, CDCl₃) δ 10.76 (bs, 1H, NH), 8.83 (s, 1H), 8.38 (s, 1H), 7.92–7.87 (m, 1H, ArH), 7.75 (d, J = 8.4 Hz, 2H, ArH), 7.66–7.64 (m, 1H, ArH), 7.51–7.44 (m, 1H, ArH), 6.99 (d, J = 8.4 Hz, 2H, ArH), 3.79 (s, 3H, OCH₃). ¹⁹F NMR (400 MHz, CDCl₃) δ -137.23, -143.97.

1,3-bis(3,4-Difluorophenyl)urea (4a)

Prepared by Method A and B.

Yield 86%. White solid. MS (ESI) m/z 285.02 [M + H]⁺; 283.10 [M − H]⁻. LCMS (ESI) m/z calcd for C₁₉H₁₉F₂N₃O₂: 360.1524 [M + H]⁺; Found: 360.1536 [M + H]⁺ and 358.1447 [M − H]⁻. ¹H NMR (400 MHz, CDCl₃) δ 8.961 (bs, 2H, NH), 7.66–7.06 (m, 2H, ArH), 7.35 (q, J = 9.2 Hz, 2H, ArH), 7.14–7.11 (m, 2H, ArH). ¹³C NMR (100 MHz, CDCl₃) δ 152.85 (N-CO-N), 150.79 (dd, J = 450, 12 Hz, 2C), 148.38 (dd, J = 488, 13 Hz, 2C), 137.03 (q, J = 2 Hz, 2C), 107.94 (d, J = 17 Hz, 2C), 137.03 (q, J = 3 Hz, 2C), 107.96 (d, J = 21 Hz, 2C). ¹⁹F NMR (CDCl₃, 400 MHz) δ -137.44, -146.83.

1-(3,4-Difluorophenyl)-3-(3,4,5-trifluorophenyl)urea (4b)

Prepared by Method A.

Yield 82%. White solid. Purity: (LC, t _min = 3.68) 99.35%; MS (ESI) m/z 303.09 [M + H]⁺; 301.16 [M − H]⁻; LCMS (ESI) m/z calcd for C₁₃H₇ F₆N₂O: 303.0557 [M + H]⁺, found: 303.0566 [M + H]⁺. ¹H NMR (400 MHz, CDCl₃) δ 9.19 (bs, 1H, NH), 9.16 (bs, 1H, NH), 7.69–7.61 (m, 1H, ArH), 7.40–7.37 (m, 3H), 7.15–7.12 (m, 1H). ¹³C NMR (100 MHz, CDCl₃) δ 152.71 (C=O), 148.38, 140.67, 140.56, 130.92, 117.98, 117.79, 116.73, 111.87, 108.07, 107.85, 106.99, 106.74.

1-(4-Chloro-3-fluorophenyl)-3-(3,4-difluorophenyl)urea (4c)

Prepared by Method A.

Yield 82%. White-off solid. Purity (LC, t _min = 3.70) 98.65%. UV 210.45, 257.45 nm. MS (ESI) m/z 301.06 [M + H]⁺; 299.18 [M − H]⁻. LCMS (ESI) m/z calcd for C₁₃H₆ClFN₂O: 301.0356. Found: 301.0373 [M + H]⁺. ¹H NMR (400 MHz, CDCl₃) δ 9.11 (bs, 1H, NH), 9.02 (bs, 1H, NH), 7.66–7.60 (m, 2H, ArH), 7.46 (t, J = 8.6 Hz, 1H), 738–7.31 (m, 1H), 7.18 (dd, J = 8.8, 1.6 Hz, 1H), 7.17 (m, 1H). ¹³C NMR (100 MHz, CDCl₃) δ 152.71 (C=O), 148.38, 140.67, 140.56, 130.92, 117.98, 117.79, 116.73, 111.87, 108.07, 107.85, 106.99, 106.74.

1,3-bis(3,4,5-Trifluorophenyl)urea (4d)

Prepared by Method A.

Yield 80%. White solid. Purity: (LC, t _min = 3.62) 97.27%. UV max: 253.45, 190.45; MS (ESI) m/z 321.04 [M + H]⁺; 319.20 [M − H]⁻. LCMS (ESI) m/z calcd for C13H6F6N2O: 319.0306 [M − H]⁻, found: 319.0314 [M − H]⁻. ¹H NMR (400 MHz, DMSO-d₆) δ 9.22 (bs, 2H, NH), 7.37 (dd, J = 10.4, 6.4 Hz,4H, ArH). ¹³C NMR (100 MHz, DMSO-d₆) δ 152.60 (NHC(=O)NH), 151.83 (m, 2C), 149.40 (m, 2C), 136.31 (2C), 136.16 (m, 2C), 103.38 (d, J = 24 Hz, 4C). ¹⁹F NMR (DMSO-d₆, 400 MHz) δ -135.09 (4F), -169.90 (2F).

1-(3,4-Difluorophenyl)-3-(4-methoxyphenyl)urea (4e)

Prepared by Method A.

Yield 71%. Light brown solid. UV max: 190.45, 223.45. Purity (LC, t _min = 3.08): 95.57%.

MS (ESI) m/z 279.17 [M + H]⁺; 277.25 [M − H]⁻. LCMS (ESI) m/z calcd for C₁₄H₁₂F₂N₂O₂: 277.0789 [M − H]⁻; Found: 277.0796 [M − H]^–; 279.0957 [M + H]⁺. ¹H NMR (400 MHz, DMSO-d₆) δ 8.80 (bs, 1H, NH), 8.53 (bs, 1H, NH), 7.65 (m, 1H, ArH), 7.08 (d, J = 9.0 Hz, 2H, ArH), 7.07 (m, 1H, ArH), 7.09 (m, 1H, ArH), 6.85 (d, J = 9.0 Hz, 2H, ArH), 3.70 (s, 3H, OCH3). ¹⁹F NMR (DMSO-d₆, 400 MHz) δ -137.57, -147.50.

1,3-bis(4-Methoxyphenyl)urea (4f)

Prepared by Method A.

Yield 81%. White-off solid. Purity: (LC, t _min = 2.80) 97.78%. UV max: 190.45, 223.45. MS (ESI) m/z 273.17 [M + H]⁺; 295.14 [M + Na]⁺. LCMS (ESI) m/z calcd for C₁₅H₁₆N₂O₃: 271.1083 [M − H]⁻; Found: 271.1084 [M − H]^–; 273.1024 [M + H]⁺. ¹H NMR (400 MHz, CDCl₃) δ 9.34 (bs, 2H, NH), 7.22 (d, J = 8.4 Hz, 4H, ArH), 6.88 (d, J = 8.4 Hz, 4H, ArH), 3.80 (s, 6H, 2(OCH₃)).

N-(3,4-Difluorophenyl)-4-fluoro-1H-indole-1-carboxamide (4g)

Prepared by Method A.

Yield 77%. Yellowish solid. Purity: (LC, t _min = 3.66) 97.56%. UV max: 190.45, 223.45.

MS (ESI) m/z 291.13 [M + H]⁺; 289.15 [M − H]⁻. LCMS (ESI) m/z calcd for C₁₅H₉F₃N₂O: 289.0589 [M − H]^–; Found: 289.0588 [M − H]^–; 291.0719 [M + H]⁺. ¹H NMR (400 MHz, CDCl₃) δ 7.82 (d, J = 8.4 Hz, 1H, ArH), 7.54 (dd, J = 6.8, 1.6 Hz, 1H, ArH), 7.44 (d, J = 4.0 Hz, 1H, ArH), 7.43 (bs, 1H, NH), 7.23 (m, 1H, ArH), 7.10 (m, 2H, ArH), 6.89 (t, J = 8.8 Hz, 1H, ArH), 6.73 (d, J = 3.8 Hz, 1H, ArH). ¹⁹F NMR (CDCl₃, 400 MHz) δ -121.08, -134.93, -141.53.

4-Cyano-N-(3,4-difluorophenyl)-1H-indole-1-carboxamide (4h)

Prepared by Method A.

Yield 81%. White solid. Purity (LC, t _min = 3.58) 96.39%. MS (ESI) m/z 298.13 [M + H]⁺; 296.38 [M − H]⁻. LCMS (ESI) m/z calcd for C₁₆H₉F₂N₃O: 296.0635 [M − H]⁻; Found: 296.0674 [M − H]⁻. ¹H NMR (400 MHz, DMSO-d₆) δ 10.49 (bs, 1H, NH), 8.54 (d, J = 8.4 Hz, ArH), 8.29 (d, J = 3.6 Hz, ArH), 7.81 (m, 1H, ArH), 7.77 (d, J = 8.4 Hz, 1H, ArH), 7.51 (d, J = 8.4 Hz, 1H, ArH), 7.47 (m, 2H, ArH), 6.96 (d, J = 3.6 Hz, ArH). ¹³C NMR (100 MHz, DMSO-d₆) δ 149.66 (N-CO-N), 149.47 (dd, J_F-F = 243, 13 Hz), 146.45 (dd, J_F-F = 241, 12 Hz), 135.53, 131.38, 129.30, 127.84, 124.64, 120.57, 128.24, 128.09 (d, J_F-F = 8 Hz), 127.75 (q, J_F-F =3 Hz), 110.52, 110.31, 104.61, 102.86. ¹⁹F NMR (CDCl₃, 400 MHz) δ -137.12, -143.87.

3,4-Difluorophenyl (3,4-difluorophenyl)carbamate (4i)

Under an argon atmosphere, to a solution of triphosgene (1.48 g, 5 mmol) in 10 mL of anhydrous THF, 3,4-difluorophenol (650 mg, 5 mmol) in 3 mL of THF was added slowly at 0 °C to the solution, and triethylamine (0.7 mL, 5 mmol) was added dropwise to the solution. The resulting mixture was stirred at the same temperature for 10 min and allowed to heat to reflux for 30 min. After cooling the flask, 3,4-difluoroaniline (645 mg, 5 mmol) was added to the solution and stirred overnight at room temperature. The reaction mixture was concentrated under reduced pressure and then dissolved into 50 mL of ethyl acetate, washed with water (50 mL), saturated NaHCO₃ (20 mL), water (30 mL), 3 N HCl (20 mL), and water (30 mL). The organic layer was dried over anhydrous MgSO_4, and concentrated under reduced pressure and purified with flash column chromatography using EtOAc/hexane (1/3, v/v) as an eluent to produce the desired product. Yield 73% as a white solid. Purity (LC, t _min = 3.35): 98.37%; UV max: 190.45, 230.45; MS (ESI) m/z 285.99 [M + H]⁺, 283.95 [M − H]⁻; LCMS (ESI) m/z calcd for C₁₃H₇F₄NO₂: 286.0491 [M + H]⁺, found: 286.0479 [M + H]⁺. ¹H NMR (400 MHz, CDCl₃) δ 7.48 (t, J = 8.8 Hz, 1H, NH), 7.18 (q, J = 8.8 Hz, 1H, ArH), 7.10–7.08 (m, 1H, ArH), 7.08–7.06 (m, 1H, ArH), 7.06–7.02 (m, 1H, ArH), 6.97–6.95 (s, 2H, ArH). ¹⁹F NMR (400 MHz, CDCl₃) δ -134.33, -135.04, -140.65, -142.79.

N,2-bis(3,4-Difluorophenyl)acetamide (4j)

Yield 70% as a white solid. Purity (LC, t_R 3.28 min): 96.97%; UV max: 221.45; MS (ESI) m/z 283.98 [M + H]⁺; 282.06 [M − H]⁻; LCMS (ESI) m/z calcd for C₁₄H₉F₄NO: 284.0699 [M + H]⁺, found: 284.0691 [M + H]⁺. ¹H NMR (400 MHz, DMSO-d₆) δ 10.43 (bs, 1H), 8.11 (dq, J = 7.6, 2.4 Hz, 1H), 7.43–7.36 (m, 3H), 7.30–7.27 (m, 1H), 7.17–7.14 (m, 1H), 3.68 (s, CH₃, 2H). ¹³C NMR (100 MHz, DMSO-d₆) δ 169.23 (C=O), 150.78 (dd, J_C-F = 244.0, 12.5 Hz), 150.60 (dd, J_C-F = 46.0, 12.5 Hz), 148.19 (dd, J_C-F = 46.0, 12.5 Hz), 146.92 (dd, J_C-F = 240.0, 12.5 Hz), 136.59 (q, J_C-F = 6.0, 3.0 Hz), 133.66 (q, J_C-F = 6.0, 3.0 Hz), 126.64 (q, J_C-F = 6.0, 3.0 Hz), 118.84 (d, J_C-F = 17.0 Hz), 118.84 (d, J_C-F = 17.0 Hz), 118.04 (d, J_C-F = 17.0 Hz), 117.72 (d, J_C-F = 17.0 Hz), 115.87 (q, J_C-F = 3.0 Hz), 108.65 (d, J_C-F = 21.0 Hz), 42.27. ¹⁹F NMR (400 MHz, DMSO-d₆) δ -137.14, -139.25, -141.79, -144.74.

S-(3,4-difluorophenyl) (3,4-difluorophenyl)carbamothioate (4k)

Under an argon atmosphere, to a solution of triphosgene (594 mg, 2 mmol) in 10 mL of anhydrous THF, 3,4-difluorothiophenol (292 mg, 2 mmol) in 3 mL of THF was added slowly at 0 °C to the solution, and triethylamine (0.42 mL, 3 mmol) was added dropwise to the solution. The resulting mixture was stirred at the same temperature for 10 min and allowed to heat to reflux for 30 min. After cooling the flask, the solution of 3,4-difluoroaniline (258 mg, 2 mmol) in 2 mL anhydrous THF was added to the mixture and stirred overnight at room temperature. The reaction mixture was concentrated under reduced pressure and then dissolved into 30 mL of ethyl acetate and washed with water (30 mL) and brine (30 mL). The organic layer was dried over anhydrous MgSO_4, and concentrated under reduced pressure and purified with flash column chromatography using EtOAc/hexane (1/3, v/v) as an eluent to produce the desired product.

Yield 89%. White solid. Purity: 97.90%; UV max: 195.45, 248.45 nm; MS (ESI) m/z 302.02 [M + H]⁺; LCMS (ESI) m/z calcd for C₁₃H₇F₄NOS: 302.0263 [M + H]⁺, found: 302.0260 [M + H]⁺. ¹H NMR (400 MHz, CDCl₃) δ 7.49–7.40 (m, 1H, ArH), 7.33–7.30 (m, 1H, ArH), 7.27–7.21 (m, 1H, ArH), 7.18 (bs, 1H, NH), 7.12 (q, J = 9.2 Hz, 1H, ArH), 7.01–6.99 (m, 1H, ArH); ¹⁹F NMR (400 MHz, CDCl₃) δ -134.33, -135.04, -140.65, -142.79.

bis((1R,4R)-5-(4-Methoxyphenyl)-2,5-diazabicyclo[2.2.1]heptan-2-yl)methanone (5)

A 100 mL, oven-dried, two-necked, round-bottomed flask is charged with a Teflon-coated magnetic oval stir bar and coupled with a 50 mL dropping funnel. Both the dropping funnel and the round-bottomed flask are sealed with a rubber septum. Under a nitrogen atmosphere, compound 15R (312 mg, 1.52 mmol) in 3 mL of THF was added slowly at 0 °C to a solution of triphosgene (226 mg, 0.76 mmol) in 10 mL of dry THF. The resulting mixture was stirred at the same temperature for 10 min and allowed to stir at room temperature for another 30 min. After completion of the reaction, the reaction mixture was added to crushed ice and extracted with ethyl acetate. The organic layer was dried over anhydrous MgSO₄ and concentrated under reduced pressure to purify by silica gel chromatography (EtOAc/n-hexane = 1:1) or (hexane/acetone = 3:1, v/v) to afford the target compound as a yellowish solid. (5, Yield 73%). Purity: (LC, t _min = 3.13) 97.64%. MS (ESI) m/z 435.31 [M + H]⁺. LCMS (ESI) m/z calcd for C₂₅H₃₀N₄O₃: 435.2396 [M + H]⁺; Found: 435.2378 [M + H]⁺. ¹H NMR (400 MHz, DMSO-d₆) δ 6.78 (d, J = 8.6 Hz, 4H, ArH), 6.50 (d, J = 8.6 Hz, 4H, ArH), 4.35 (s, 2H), 4.19 (s, 2H), 3.65 (s, 6H, (OCH₃)2), 3.45 (d, J = 8.2 Hz, 2H), 3.32 (d, J = 8.2 Hz, 2H), 3.01 (d, J = 8.8 Hz, 2H), 3.00 (d, J = 8.8 Hz, 2H), 1.80 (bs, 4H). ¹³C NMR (100 MHz, DMSO-d6) δ 159.85 (N-CO-N), 151.13 (2C), 141.87 (2C), 115.21 (4C), 113.99 (4C), 58.02 (2C), 57.36 (2C), 56.57 (2C), 55.72 (2C, (OCH₃)₂), 52.69 (2C), 36.39 (2C).

4. Conclusions

We have designed 4 different series of PFI-3 analogs (2, 3, 4, and 5) and synthesized them to examine the activity of each to sensitize GBM cells to TMZ-induced cell death to find the best treatment for GBM. We first optimized the A-ring of series 2, followed by finding the optimum chirality of the bicyclic ring system, which was the R-isomer. This was followed by replacing the bicyclic ring system with a 5-membered linker in series 3, which provided weak activity compared to PFI-3. We also examined the di-phenyl urea compounds of 4, which demonstrated much better action on bromodomain inhibitory activity as compared to PFI-3, especially 4a (difluoro phenyl analogs on the A- and B-rings). Finally, methoxyphenyl-B-ring with linker PFI-3 analog 5 showed exceptionally strong activity as a bromodomain inhibitor. Overall, reconfiguration of A- and B-ring substituents in the initial lead compound 2a and optimization of A- and B-rings resulted in a significant boost to bromodomain inhibitor activity for enhancing TMZ in treating GBM. We have retained pharmaceutically druggable properties as potential drug candidates for GBM treatment as calculated by ADME using SwissADME, as shown in Figure 5. Notably, this progression was achieved in rational design, synthesis, and proper pharmaceutical tests for possible new drugs like 2a, 2b, 2c, 4a, and 5 for enhancing the action of TMZ in treating GBM.
