Review

Radiogenomics and Texture Analysis to Detect von Hippel–Lindau (VHL) Mutation in Clear Cell Renal Cell Carcinoma

by
Federico Greco
1,2,*,
Valerio D’Andrea
2,3,
Bruno Beomonte Zobel
2,3 and
Carlo Augusto Mallio
2,3
1
Department of Radiology, Cittadella Della Salute Azienda Sanitaria Locale di Lecce, Piazza Filippo Bottazzi 2, 73100 Lecce, Italy
2
Research Unit of Radiology, Department of Medicine and Surgery, Università Campus Bio-Medico di Roma, Via Alvaro del Portillo 21, 00128 Roma, Italy
3
Fondazione Policlinico Universitario Campus Bio-Medico, Via Alvaro del Portillo 200, 00128 Roma, Italy
*
Author to whom correspondence should be addressed.
Curr. Issues Mol. Biol. 2024, 46(4), 3236-3250; https://doi.org/10.3390/cimb46040203
Submission received: 22 February 2024 / Revised: 24 March 2024 / Accepted: 26 March 2024 / Published: 8 April 2024
(This article belongs to the Special Issue Next-Generation Sequencing Approaches for the Study of Hereditary Tumors)
Browse Figure
Versions Notes

Abstract

:
Radiogenomics, a burgeoning field in biomedical research, explores the correlation between imaging features and genomic data, aiming to link macroscopic manifestations with molecular characteristics. In this review, we examine existing radiogenomics literature in clear cell renal cell carcinoma (ccRCC), the predominant renal cancer, and von Hippel–Lindau (VHL) gene mutation, the most frequent genetic mutation in ccRCC. A thorough examination of the literature was conducted through searches on the PubMed, Medline, Cochrane Library, Google Scholar, and Web of Science databases. Inclusion criteria encompassed articles published in English between 2014 and 2022, resulting in 10 articles meeting the criteria out of 39 initially retrieved articles. Most of these studies applied computed tomography (CT) images obtained from open source and institutional databases. This literature review investigates the role of radiogenomics, with and without texture analysis, in predicting VHL gene mutation in ccRCC patients. Radiogenomics leverages imaging modalities such as CT and magnetic resonance imaging (MRI), to analyze macroscopic features and establish connections with molecular elements, providing insights into tumor heterogeneity and biological behavior. The investigations explored diverse mutations, with a specific focus on VHL mutation, and applied CT imaging features for radiogenomic analysis. Moreover, radiomics and machine learning techniques were employed to predict VHL gene mutations based on CT features, demonstrating promising results. Additional studies delved into the relationship between VHL mutation and body composition, revealing significant associations with adipose tissue distribution. The review concludes by highlighting the potential role of radiogenomics in guiding targeted and selective therapies.

1. Introduction

Renal cell carcinoma (RCC) is growing in incidence and stands as the most prevalent form of kidney cancer. According to epidemiological statistics, RCC constitutes the majority (90%) of kidney cancer cases, predominantly comprising clear cell RCC (ccRCC) at 70%, papillary RCC at 10–15%, and chromophobe RCC at 5%. The remaining subtypes are less frequent (≤1%) [1].
In recent years, the remarkable advancements of new genetic sequencing techniques and the accessibility of genomic information through open source data from the Human Genome Project have transformed biomedical research, together with the introduction of a new field known as radiogenomics [2,3]. Radiogenomics delineates the correlation between the imaging characteristics of a specific pathology, referred to as the imaging phenotype, and the genomics of the diseases (such as gene expression patterns, gene mutations, and other genome-related features). The objective is to establish links between macroscopic features and molecular elements, aligning these imaging features with biological behavior and outcomes [4,5].
Imaging phenotypes indeed represent the macroscopic expression of processes occurring at the molecular level that is detectable with imaging [i.e., computed tomography (CT) and magnetic resonance imaging (MRI)] [5]. Combining the former and the latter is important to understand tumor biology and to analyze the intrinsic tumor heterogeneity and fingerprints, with implications for patient care. One of the great advantages of radiogenomics is that it allows one to obtain data that are not always available with genomic tests on biopsy specimens, since both the gene expression and gene mutations are analyzed on small samples and not on the entire tumor lesion, possibly not capturing the whole heterogeneity of the disease which is typical in ccRCC [6].
Radiologists can obtain imaging features either qualitatively (i.e., measuring and describing phenotypical characteristics) or by quantitative variables (i.e., measures, degree of contrast uptake/washout). Indeed, a more complex connection between individual image pixel cannot be observed by the naked eye. Converting the above relationships into minable quantitative data is the practice of radiomics, a growing field of radiological research, where the tumor phenotype is used for applications ranging from improved diagnostics to prognostication to therapeutic response prediction [7,8].
Radiogenomics also proved to be an ideal solution for predicting gene mutations in ccRCC. With the improvements in diagnostic tests like CT and MRI imaging, the incidence of patients diagnosed with RCC has surged in recent decades and the most frequent type of RCC, based on histological and molecular subtypes, is clear cell carcinoma, frequently associated with mutations in the von Hippel–Lindau (VHL) gene [9].
The aim of this literature review is to investigate the role of radiogenomics and texture analysis for detection VHL gene mutation in ccRCC patients, evaluated through retrospective analyses.

2. VHL Role in Clear Cell Renal Cell Carcinoma

The most observed gene mutation in ccRCC is the VHL tumor suppressor gene [2]. RCC genome sequencing has identified several mutations with prognostic meaning and connection with imaging features [4]. Somatic VHL mutations are identified in 30–60% of ccRCCs, accounting for the vast majority of sporadic ccRCCs [9]. CcRCC is also one of the most known cancers in terms of genetics and molecular mechanisms. It is characterized by the loss of the short arm of chromosome 3 (3p) which harbors the VHL tumor suppressor gene, whose function is to regulate the hypoxia inducible factor (HIF) protein. This protein also regulates the transcription of several genes, including vascular endothelial growth factor (VEGF), which regulate angiogenesis, proliferation, tumor cell migration, and permeability. VHL gene mutation can lead to an increase in HIF concentrations with the relative upregulation of the neoangiogenic cascade. The inactivation of the VHL genes interrupts the cellular degradation of HIF even in the presence of aerobic status, which leads to the pathogenesis of ccRCC. The overproduction of VEGF resulting in angiogenesis justifies the hypervascular feature of the ccRCC upon imaging [10,11].
VHL disease is a systemic condition with an autosomal dominant transmission, and the development of RCC is the result of VHL gene inactivation. The loss of 3p does not impact on the tumor size, grade, and metastatic spread, whereas mutations in gain of 5q are related to better prognosis [12,13]. The VHL complex is widely inactivated (over 80%) in ccRCC, by either mutation or methylation.
According to the previous statistics, the prevalence of VHL mutation is also confirmed by The Cancer Genome Atlas (TCGA) cohort, where the main percentage (52.3%) of ccRCC-mutated genes is represented by the VHL mutation group [14].
Over 800 VHL mutations have been identified in both hereditary and sporadic ccRCC [15]. More than 50% of these mutations are frameshift and nonsense mutations characterized by a high probability of causing a loss of VHL protein (pVHL) activity [16,17]. Since there are numerous missense mutations distributed across the three exons of VHL, the consequences of these alterations on the integrity of pVHL are difficult to predict. In relation to this, Reichsteiner et al. found three different groups of missense mutations: a first group that determines the severe destabilization of the pVHL, a second group that does not determine the destabilizing effects on the pVHL but is relevant for the interaction with HIFα, elongin B, and elongin C, and a third group with pVHL activity comparable to the wild type [18].
The presence of ccRCC in type 1 VHL disease is associated with nonsense and frameshift mutations generating VHL-null alleles, while type 2 VHL disease is mainly associated with missense mutations. This last type of mutation is further divided into type 2A with a low risk of developing ccRCC, type 2B with a high risk of developing ccRCC, and type 2C which predisposes to pheochromocytoma [19].
Regarding sporadic ccRCC, some groups found a correlation between “loss-of-function” mutations (nonsense and frameshift) and worse prognosis for patients or higher HIF target-directed response rates, while other groups did not confirm these findings [20].

3. Material and Methods

We conducted a quantitative synthesis encompassing various studies that examined different mutations in ccRCC, with a specific focus on studies involving VHL mutation.
A comprehensive literature review by searching through multiple databases, including PubMed, Medline, Cochrane Library, Google Scholar, and Web of Science was performed. Our aim was to identify all relevant articles on the topic of radiogenomics and ccRCC. The search terms included “radiogenomics and …” one of the following MeSH search terms: “renal cell carcinoma”, “clear cell renal cell carcinoma”, “VHL”, ”radiomics”, “kidney cancer”, or “renal cancer”. Titles and abstracts of the articles retrieved from the above search were then selected for relevance. Inclusion criteria were publication in the English language, publication without limit of time span, and article topic pertaining to radiogenomics of ccRCC. Exclusion criteria encompassed publications not available in the English language, studies unrelated to ccRCC or radiogenomics, duplicate articles, and non-primary literature, such as abstracts and letters to the editor. The latter were excluded following a thorough review to ensure that no primary studies were overlooked [21].
To meet the study’s eligibility criteria, articles had to be published in a peer-reviewed journal. The screening process involved assessing the importance of articles based on their title and abstract. Articles lacking an abstract were excluded, and if there was uncertainty about inclusion or exclusion criteria based on the abstract, the full-text article was downloaded. To minimize selection bias and errors, two investigators (F.G. and V.D.) independently conducted the literature search for each publication and subsequently analyzed the extracted data.
All the studies included in our literature review are summarized in Table 1.

4. Discussion

The adoption of radiogenomics in the oncological field is promising and encouraging, especially for renal cancer and its most common type, namely ccRCC. The possibility of characterizing a renal lesion using CT/MRI imaging in relation to genetic, epigenetic, and pathologic heterogeneity without using invasive treatments definitively represents an advantage [31,32].
Moreover, in recent years, the implementation of the biomedical research into the genomic field is permitted by access to the open source data of the Human Genome Project. Many studies included in this review were based on TCGA, which is an atlas of genetic changes in the different types of cancer, including RCC. All the data, from medical images to tissue sampling from TGCA, relate to a single identifier and have free-access download [33,34].
Karlo et al. [22] investigated the connection between imaging features and gene mutations. Their study showed a great prevalence in his study population of VHL mutation (53.2%) and significant CT results related to the loss of this gene. Well-defined margins represented an important characteristic of ccRCC with a loss of VHL function (p = 0.013) and constituted a marker of less infiltrative behavior and lower aggressiveness compared to ccRCC with ill-defined margins. Another significant finding linked to VHL mutation was the nodular tumor enhancement (p = 0.021) of ccRCC and evidence of intratumoral vascularity (p = 0.018) at CT images, that could probably be explained by the fact that a loss of VHL function relates to the upregulation of hypoxia inducible factors and an overexpression of angiogenic factors. Moreover, the VHL gene mutation was significantly more common in solid than in cystic tumors (p = 0.016) [22].
Shinagare et al. [23] investigated similar imaging features to the previous studies, always analyzing the most frequent mutations. Moreover, in this study, VHL represented the predominant group of mutations (50.5%) but significant results were founded only for BAP1 mutation and its association with ill-defined tumor margins and the presence of calcification and for MUC4 mutation and its connection with exophitic growth. No imaging features were associated with VHL and the other mutations. In contrast to Karlo et al. [22], they did not find an association between the well-defined tumor margin and solid ccRCC with VHL mutation. This fact could be explained by the different imaging features analyzed and evaluated, for example, Shinagare et al. [23] contemplated a “well-defined” margin only when more than 90% of the entire tumor circumference was ‘pencil-thin’ sharp. They estimated the presence of necrosis only in tumors considered to be solid and did not consider low-attenuation cystic regions as necrotic. For this reason, the presence of intratumoral necrosis was definitively lower than it was in Karlo’s study. Lastly, the nodular enhancement, intratumoral vascularity, and renal vein invasion were not evaluated by Shinagare et al. [23] and all the data were screened by multiple readers from multiple institutions, whereas the study by Karlo et al. [22] was derived from a single institution.
Cen et al. performed a radiogenomic analysis of a tumor suppressor RUNX3 (runt-related transcription factor 3) in ccRCC [35]. Radiogenomic analysis showed the presence of intratumoral vascularity in ccRCC with a high methylation level of the RUNX3 gene, a feature also found in ccRCC with the VHL gene mutation, as found by Karlo et al. [22,35]. Furthermore, high RUNX3 methylation levels presented an ill-defined tumor margin and left-sided tumors, two characteristics, respectively, not present in VHL gene mutation [22,35].
TCGA Research Network7 classified ccRCC into four categories (m1, m2, m3, and m4) based on the mRNA expression with different clinical and biological characteristics [36]. These four tumor categories showed different clinical and biological characteristics [37]. The analysis of Bowen et al. showed well-defined margin as the only radiogenomic feature of m1-subtype [37].
Greco et al. explored the connection between VHL mutations and abdominal adipose tissue distribution of patients with ccRCC [24]. Interestingly, they found a significant increase in the total adipose tissue (TAT) and visceral adipose tissue (VAT) in the ccRCC-VHL group (Figure 1). The VAT has a key role in RCC pathogenesis, especially in obese patients. The VAT of pathologically obese patients exhibits high levels of HIF-1α [38]. The growth of adipose tissue determines the release of HIF-1, which is related to angiogenesis, tumor metastases, unfavorable prognosis, and tumor resistance to therapy. The pVHL in association with other proteins is responsible for the degradation of HIF; with VHL inactivation, the loss of HIF degradation leads to angiogenesis and cell growth. The increased VAT in ccRCC could be explained by the inactivity of the VHL gene that cannot modulate HIF due to its lack of degradation activity without pVHL. This theory may reveal the explanation of the significant increase in abdominal adipose tissue, in the ccRCC-VHL group [24].
Further confirmations about the association between the CT features of body composition and VHL mutation derived from another study by the same group [30]. In this retrospective study, they quantified TAT, VAT, subcutaneous adipose tissue, and the total abdominal muscle in ccRCC patients with VHL and TTN gene mutations. Their results showed a significant decrease in TAT, VAT, SAT, and TAM in the ccRCC-TTN group compared to the ccRCC-VHL group, establishing a better survival rate for the ccRCC-VHL group than the ccRCC-TTN one [30].
Future studies will analyze additional CT features not evaluated in ccRCC patients with VHL mutations (i.e., presence or absence of peritumoral collateral vessels) to obtain further insights into the phenotypic imaging of this gene mutation.
An important limitation could be represented by the retrospective investigation of all the studies mentioned above. The great chance of accessing the wide free public databases of imaging and genome data could implement a standardized model for the management of radiogenomics. This is especially the case if future research could be conducted to offer prospectively developed evidence and increase the size of the studied cohorts [31].
Li et al. performed radiomics analysis for VHL gene mutation prediction in ccRCC [25]. For each segmented 3D tumor, quantitative textures were extracted using an in-house developed program with features from each phase. The high-order spatial distributions of the intensity within the 3D tumor are described by texture features. Gray-level co-occurrence matrix (GLCM), gray-level run length matrix (GLRLM), gray-level size zone matrix (GLSZM), and neighborhood gray-tone difference matrix (NGTDM) methods were used to extract texture features from each phase. Finally, 156 features were extracted from each tumor from triphasic CT. The intraclass correlation coefficient (ICC) was used to measure the intra- and inter-observer repeatability. Features with an ICC of less than 0.85 were discarded. The correlation between imaging features and VHL mutation was evaluated using the Wilcoxon rank-sum test. Features selected by Boruta, a random forest (RF)-based wrapper algorithm [39], and by the minimum redundancy maximum relevance ensemble (mRMRe), a method designed to find a subset of both relevant and complementary features, were analyzed [40]. Benjamini–Hochberg method was used for multiple hypothesis correction using the false discovery rate (FDR) [41]. A statistically significant correlation was found between all eight mRMRe features and the VHL mutation (FDR-adjusted p < 0.05). Of the eight Boruta features, seven showed a statistically significant correlation with the VHL mutation before FDR correction (p < 0.05), while after FDR correction, five Boruta features showed a significant association (FDR-adjusted p < 0.05) [25].
Chen et al. proposed a new multi-classifier multi-objective (MCMO) radiogenomics predictive model [9]. During training, similarity-based sensitivity and specificity were defined and considered as the two objective functions simultaneously, to obtain more reliable prediction results. Several classifiers were used, and to take advantage of them, the evidential reasoning (ER) approach was used to fuse the output of each classifier. Furthermore, quantitative CT features were used by MCMO, trained by a new similarity-based multi-objective optimization algorithm (SMO) to predict VHL mutation. With this proposed MCMO model, a predictive area under the receiver operating characteristic curve (AUC) over 0.85 for VHL mutation with balanced sensitivity and specificity was obtained. Furthermore, MCMO produced more reliable results than other optimization algorithms and commonly used fusion strategies [9].
Lin et al. identified the radiomic subtypes of ccRCC patients [26]. Tumor segmentation was performed manually by a single radiologist using the ITK-SNAP software (version 3.8) [42]. The region of interest (ROI) was segmented on the largest tumor slice on the axial plane. To determine the tumor margins, postcontrast images were used during segmentation. Intelligence Foundry (GE Healthcare, version 1.3) was used for radiomics feature extraction. In total, 122 radiomic features were extracted: 18 first-order features, 23 gray-level co-occurrence matrix features, 16 gray-level run-length matrix features, 16 gray-level size-zone matrix features, 5 neighboring gray-tone difference matrix features, 13 gray-level dependence matrix features, 18 shape features, and 13 textural phenotype features [26]. The Image Biomarker Standardization Initiative standard was fully met by all 122 radiomic features. The R package “CancerSubtypes” was used to perform consensus clustering to identify the intrinsic radiomic subtypes of ccRCC patients, according to this unsupervised method [43]. The three-cluster solution, based on the consensus clustering of the radiomic features, was identified as the optimal solution: the consensus cumulative distribution function and delta plot showed a minimum relative change between k = 3 and k = 4, the consensus matrix heatmap showed three clusters with significant interconnectivity, and the mean silhouette distance for k = 3 (0.81) was greater than that for k = 2 (0.71) or k = 4 (0.75) but did not present significant negative values. Consequently, ccRCC patients were divided into three subtypes: cluster 1 (c1), cluster 2 (C2), and cluster 3 (C3). VHL had a high mutation rate in all subtypes. VHL gene mutation was observed less frequently in the C1 subtype than in the C2 and C3 subtypes (p = 0.038) [26].
Zeng et al. evaluated the feasibility of predicting the molecular characteristics by CT in ccRCC [27]. Four algorithms for feature selection (GBDT, LASSO, RF, XGBoost), and eight algorithms as classifiers (RF, GBDT, AdaBoost, LR, DT, SVM, NB, KNN) were used. Among the 32 algorithm combinations, RF showed the best performance on the test set. The radiomics models based on RF were able to predict VHL gene mutation (AUC = 0.971) [27].
Currently, a significant portion of radiogenomics investigations has centered on CT imaging, likely attributed to its status as the primary imaging modality for assessing renal cancer globally.
Zhi-Cheng Li et al. [28] introduced a comprehensible radiomics model by the extracting pertinent features from multiphasic CT scans to distinguish between ccRCC and non-ccRCC. Fifty-two texture features were derived from each phase using various methods, such as the gray-level co-occurrence matrix (GLCM), gray-level run length matrix (GLRLM), gray-level size zone matrix (GLSZM), and neighborhood gray-tone difference matrix (NGTDM). Ultimately, 156 features were extracted from the triphasic CT for each tumor, using a random-forest-based wrapped algorithm (Boruta) and minimum redundancy maximum relevance enable (mRMRe). The biological significance of radiomics was explored by examining the potential radiogenomics connection between the imaging characteristics and a critical ccRCC driver gene—the VHL mutation. The model, comprising eight relevant features, achieved an AUC of 0.949 and an accuracy of 92.9%. Five features were notably linked to the VHL mutation (FDR p < 0.05). The radiogenomics findings demonstrated that all eight mRMRe features were notably linked to the VHL mutation. Nevertheless, following FDR correction, three of the Boruta features (f5, f6, f7) did not show a significant association with the VHL mutation. This suggests that, while all-relevant features were identified, they may not all be relevant to VHL mutation, and imaging features specifically related to VHL may be less effective in distinguishing ccRCC from non-ccRCC [28].
MRI is arousing interest, with the total absence of radiations and the availability of obtaining further information from a great variety of sequences, such as T2-weighted and diffusion weighted imaging, which may develop image prediction models by providing additional radiogenomic features [29].
In our review, all the studies mentioned earlier focused on CT-imaging features. Only the study of Shinagare et al. partially explored the MRI features, considering a limited portion of their investigation, specifically analyzing MRI features in 22 patients out of the total group of 103 [23].
The only study exclusively relying on MRI was conducted by Anari et al. [29]. They developed an MRI-based algorithm to predict the volumetric growth rate category of tumors.
They selected patients with an ccRCC and VHL mutation that underwent MRI at least at two different points. It was demonstrated that that machine learning employing radiomic features can be used for accurately predicting the tumor growth rate. However, no imaging characteristics were associated with VHL mutations. Considering the benefits derived from the absence of exposure to radiological risk and the availability of multiple sequences at our disposal, a greater emphasis on magnetic resonance studies should be considered in the future.

5. Target Therapies and Future Strategies for VHL ccRCC

We have seen how, in today’s context, radiogenomics contributes to the characterization of an oncological lesion without resorting to invasive treatments. Similarly, the increasingly targeted and selective therapies should be considered to achieve greater efficacy and reduced toxicity.
Intratumoral hypoxia is linked to the advancement of tumors and resistance to therapy. The VHL tumor suppressor gene was discovered in 1993, and subsequent investigations unveiled that the gene’s product, pVHL, collaborates with other proteins to construct the VBC complex [44,45]. The VBC complex operates as an E3 ubiquitin ligase and oversees the levels of the α-subunit of the HIF transcription factor. HIF oversees numerous genes necessary for cellular adaptation and survival in hypoxic conditions, underscoring pVHL’s pivotal role in oxygen-sensing pathways. Individuals affected by VHL disease, possessing a germline mutation of the VHL gene, manifest renal cell carcinomas and a series of tumors displaying hypervascular characteristics. Comprehensive research elucidating VHL’s function has contributed to pioneering first-in-human drugs, such as belzutifan, an HIF-2α inhibitor [46].
When contemplating therapeutic approaches directed at HIF in clear cell renal cell carcinoma (ccRCC) cells, it is imperative to ascertain whether HIF serves as the primary driver for the tumor.
It has been demonstrated that HIF-1α hinders the tumor growth of RCC by suppressing cell-cycle progression regulated by c-Myc [47]. Taken together, the findings from Takamori’s et al. research and those of other groups distinctly suggest that HIF-2 could potentially act as a driver in RCC [46,48]. Considering these findings, efforts were undertaken to develop inhibitors specifically targeting HIF-2. Among the HIF-2α inhibitors, belzutifan stands out as the most advanced compound in clinical development, with a phase II trial conducted in VHL patients in both the United States and Europe with 61 patients enrolled [47].
Most of these patients (56 out of 61, or 91.8%) exhibited a decrease in the size of RCC tumors following the treatment, with 30 cases (49%) achieving a reduction in tumor size (partial response, PR) exceeding 30%. In light of these findings, in 2021, the FDA granted approval for belzutifan for adult patients with VHL disease in need of therapy for RCC, central nervous system hemangioblastoma, or pancreatic neuroendocrine tumors when immediate surgery is not deemed necessary [46,47].
Moreover, anthiangiogenic therapies (sunitinib, sorefanib, axitinib, or bevacizumab) have demonstrated an increased response in ccRCC patients with “loss-of-function” mutations (nonsense, frameshift, and in frame), blocking several of the downstream effects of pVHL [49]. Further studies will perform radiogenomic and texture analyses to detect specific patterns related to the type of VHL mutation in ccRCC.
Radiogenomics and texture analysis are able to evaluate the molecular basis from the acquired imaging data, allowing the detection of VHL mutation in ccRCC. The loss of VHL function with the consequent accumulation of HIF proteins [50,51] results in the uncontrolled activation of HIF-targeted genes that regulate angiogenesis, glycolytic metabolism, and apoptosis [52]. Therefore, ccRCCs are rich in glycogens, lipids, and are highly vascularized [52,53], which could underline the radiological features visible in contrast-enhanced CT images. To validate this hypothesis, high-throughput radiomics data were used to determine which radiologic characteristics are subtype-discriminative and biologically important. This can be achieved by selecting all-relevant features, so as to select a target-relevant feature subset that provides meaningful insights into the investigated target itself [54].

6. Conclusions

In the era of precision medicine, radiogenomics potentially plays a predominant role in predicting the tumor response to treatment by integrating the imaging observations with genomic data and assessing the composition of the mass instead of solely relying on tissue sampling, which may underestimate the dominant molecular pattern due to intra-tumoral heterogeneity.
While most studies focused on CT imaging, emphasizing its role as the primary modality for renal cancer assessment, it is likely that a growing interest in exploring MR studies will be observed. Future investigations should consider prospective approaches and expand the analysis of imaging features associated with VHL mutation, providing a more comprehensive understanding of the radiogenomic landscape in ccRCC. These findings could enable the acquisition of data on the VHL expression via CT/MR imaging approaches and could be applied for the development of targeted therapy, aiming to achieve the imaging signatures of tumor genomics that can aid in identifying patients who benefit from specific targeted therapies.

Author Contributions

Conceptualization, F.G., V.D. and C.A.M.; Methodology, F.G., V.D. and C.A.M.; Software, F.G., V.D. and C.A.M.; Validation, F.G., V.D. and C.A.M.; Formal Analysis, F.G., V.D. and C.A.M.; Investigation, F.G., V.D. and C.A.M.; Resources, F.G., V.D. and C.A.M.; Data Curation, F.G., V.D. and C.A.M.; Writing—Original Draft Preparation, F.G., V.D. and C.A.M.; Writing—Review and Editing, F.G., V.D. and C.A.M.; Visualization, F.G., V.D. and C.A.M.; Supervision, F.G., V.D., B.B.Z. and C.A.M.; Project Administration, F.G. and C.A.M. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Bahadoram, S.; Davoodi, M.; Hassanzadeh, S.; Bahadoram, M.; Barahman, M.; Mafakher, L. Renal cell carcinoma: An overview of the epidemiology, diagnosis, and treatment. G. Ital. Di Nefrol. 2022, 39, 2022-vol3. [Google Scholar]
  2. Kuo, M.D.; Jamshidi, N. Behind the numbers: Decoding molecular phenotypes with radiogenomics-guiding principles and technical considerations. Radiology 2014, 270, 320–325. [Google Scholar] [CrossRef]
  3. Lander, E.S.; Linton, L.M.; Birren, B.; Nusbaum, C.; Zody, M.C.; Baldwin, J.; Devon, K.; Dewar, K.; Doyle, M.; FitzHugh, W. Initial sequencing and analysis of the human genome. Nature 2001, 409, 860–921. [Google Scholar]
  4. Greco, F.; Panunzio, A.; Tafuri, A.; Bernetti, C.; Pagliarulo, V.; Beomonte Zobel, B.; Scardapane, A.; Mallio, C.A. CT-Based Radiogenomics of P4HA3 Expression in Clear Cell Renal Cell Carcinoma. Acad. Radiol. 2023, 31, 902–908. [Google Scholar] [CrossRef]
  5. Alessandrino, F.; Shinagare, A.B.; Bossé, D.; Choueiri, T.K.; Krajewski, K.M. Radiogenomics in renal cell carcinoma. Abdom. Radiol. 2019, 44, 1990–1998. [Google Scholar] [CrossRef] [PubMed]
  6. Gerlinger, M.; Rowan, A.J.; Horswell, S.; Math, M.; Larkin, J.; Endesfelder, D.; Gronroos, E.; Martinez, P.; Matthews, N.; Stewart, A.; et al. Intratumor heterogeneity and branched evolution revealed by multiregion sequencing. N. Engl. J. Med. 2012, 366, 883–892, Erratum in: N. Engl. J. Med. 2012 367, 976. [Google Scholar] [CrossRef] [PubMed]
  7. Gopal, N.; Yazdian Anari, P.; Turkbey, E.; Jones, E.C.; Malayeri, A.A. The Next Paradigm Shift in the Management of Clear Cell Renal Cancer: Radiogenomics-Definition, Current Advances, and Future Directions. Cancers 2022, 14, 793. [Google Scholar] [CrossRef]
  8. Bodalal, Z.; Trebeschi, S.; Nguyen-Kim, T.D.L.; Schats, W.; Beets-Tan, R. Radiogenomics: Bridging imaging and genomics. Abdom. Radiol. 2019, 44, 1960–1984. [Google Scholar] [CrossRef]
  9. Chen, X.; Zhou, Z.; Hannan, R.; Thomas, K.; Pedrosa, I.; Kapur, P.; Brugarolas, J.; Mou, X.; Wang, J. Reliable gene mutation prediction in clear cell renal cell carcinoma through multi-classifier multi-objective radiogenomics model. Phys. Med. Biol. 2018, 63, 215008. [Google Scholar] [CrossRef]
  10. Figlin, R.A.; Rathmell, W.K.; Bloom, J. (Eds.) Renal Cell Carcinoma: Translational Biology, Personalized Medicine, and Novel Therapeutic Targets; Springer Science & Business Media: New York, NY, USA, 2012. [Google Scholar]
  11. Li, L.; Kaelin, W.G., Jr. New insights into the biology of renal cell carcinoma. Hematol. Oncol. Clin. N. Am. 2011, 25, 667–686. [Google Scholar] [CrossRef] [PubMed]
  12. Shinagare, A.B.; Krajewski, K.M.; Braschi-Amirfarzan, M.; Ramaiya, N.H. Advanced Renal Cell Carcinoma: Role of the Radiologist in the Era of Precision Medicine. Radiology 2017, 284, 333–351. [Google Scholar] [CrossRef] [PubMed]
  13. Hirsch, M.S.; Signoretti, S.; Dal Cin, P. Adult renal cell carcinoma: A review of established entities from morphology to molecular genetics. Surg. Pathol. Clin. 2015, 8, 587–621. [Google Scholar] [CrossRef] [PubMed]
  14. Brugarolas, J. Molecular genetics of clear-cell renal cell carcinoma. J. Clin. Oncol. 2014, 32, 1968–1976. [Google Scholar] [CrossRef] [PubMed]
  15. The Universal Mutation Database: The VHL Mutations Database. Montpellier, France. Available online: http://www.umd.be/VHL/ (accessed on 22 February 2024).
  16. Young, A.C.; Craven, R.A.; Cohen, D.; Taylor, C.; Booth, C.; Harnden, P.; Cairns, D.A.; Astuti, D.; Gregory, W.; Maher, E.R.; et al. Analysis of VHL Gene Alterations and their Relationship to Clinical Parameters in Sporadic Conventional Renal Cell Carcinoma. Clin. Cancer Res. 2009, 15, 7582–7592. [Google Scholar] [CrossRef] [PubMed]
  17. Schraml, P.; Struckmann, K.; Hatz, F.; Sonnet, S.; Kully, C.; Gasser, T.; Sauter, G.; Mihatsch, M.J.; Moch, H. VHL mutations and their correlation with tumour cell proliferation, microvessel density, and patient prognosis in clear cell renal cell carcinoma. J. Pathol. 2002, 196, 186–193. [Google Scholar] [CrossRef] [PubMed]
  18. Rechsteiner, M.P.; von Teichman, A.; Nowicka, A.; Sulser, T.; Schraml, P.; Moch, H. VHL gene mutations and their effects on hypoxia inducible factor HIFα: Identification of potential driver and passenger mutations. Cancer Res. 2011, 71, 5500–5511. [Google Scholar] [CrossRef] [PubMed]
  19. Ong, K.R.; Woodward, E.R.; Killick, P.; Lim, C.; Macdonald, F.; Maher, E.R. Genotype-phenotype correlations in von Hippel-Lindau disease. Hum. Mutat. 2007, 28, 143–149. [Google Scholar] [CrossRef] [PubMed]
  20. Gossage, L.; Eisen, T. Alterations in VHL as potential biomarkers in renal-cell carcinoma. Nat. Rev. Clin. Oncol. 2010, 7, 277–288. [Google Scholar] [CrossRef] [PubMed]
  21. Khaleel, S.; Katims, A.; Cumarasamy, S.; Rosenzweig, S.; Attalla, K.; Hakimi, A.A.; Mehrazin, R. Radiogenomics in Clear Cell Renal Cell Carcinoma: A Review of the Current Status and Future Directions. Cancers 2022, 14, 2085. [Google Scholar] [CrossRef]
  22. Karlo, C.A.; Di Paolo, P.L.; Chaim, J.; Hakimi, A.A.; Ostrovnaya, I.; Russo, P.; Hricak, H.; Motzer, R.; Hsieh, J.J.; Akin, O. Radiogenomics of clear cell renal cell carcinoma: Associations between CT imaging features and mutations. Radiology 2014, 270, 464–471. [Google Scholar] [CrossRef]
  23. Shinagare, A.B.; Vikram, R.; Jaffe, C.; Akin, O.; Kirbyt, J.; Huang, E.; Freymann, J.; Sainani, N.I.; Sadow, C.A.; Bathala, T.K.; et al. Radiogenomics of clear cell renal cell carcinoma: Preliminary findings of The Cancer Genome Atlas-Renal Cell Carcinoma (TCGA-RCC) Imaging Research Group. Abdom. Imaging 2015, 40, 1684–1692. [Google Scholar] [CrossRef] [PubMed]
  24. Greco, F.; Mallio, C.A. Relationship between visceral adipose tissue and genetic mutations (VHL and KDM5C) in clear cell renal cell carcinoma. Radiol. Med. 2021, 126, 645–651. [Google Scholar] [CrossRef] [PubMed]
  25. Li, Z.C.; Zhai, G.; Zhang, J.; Wang, Z.; Liu, G.; Wu, G.Y.; Liang, D.; Zheng, H. Differentiation of clear cell and non-clear cell renal cell carcinomas by all-relevant radiomics features from multiphase CT: A VHL mutation perspective. Eur. Radiol. 2019, 29, 3996–4007. [Google Scholar] [CrossRef] [PubMed]
  26. Lin, P.; Lin, Y.Q.; Gao, R.Z.; Wen, R.; Qin, H.; He, Y.; Yang, H. Radiomic profiling of clear cell renal cell carcinoma reveals subtypes with distinct prognoses and molecular pathways. Transl. Oncol. 2021, 14, 101078. [Google Scholar] [CrossRef] [PubMed]
  27. Zeng, H.; Chen, L.; Wang, M.; Luo, Y.; Huang, Y.; Ma, X. Integrative radiogenomics analysis for predicting molecular features and survival in clear cell renal cell carcinoma. Aging 2021, 13, 9960–9975. [Google Scholar] [CrossRef]
  28. Zhi-Cheng, L.; Guang-yu, W.; Jinheng, Z.; Zhongqiu, W.; Guiqin, L.; Dong, L. Towards an Interpretable Radiomics Model for Classifying Renal Cell Carcinomas Subtypes: A Radiogenomics Assessment. In Proceedings of the 2019 IEEE 16th International Symposium on Biomedical Imaging (ISBI 2019), Venice, Italy, 8–11 April 2019; pp. 1288–1292. [Google Scholar]
  29. Anari, P.Y.; Lay, N.; Gopal, N.; Chaurasia, A.; Samimi, S.; Harmon, S.; Firouzabadi, F.D.; Merino, M.J.; Wakim, P.; Turkbey, E.; et al. An MRI-based radiomics model to predict clear cell renal cell carcinoma growth rate classes in patients with von Hippel-Lindau syndrome. Abdom. Radiol. 2022, 47, 3554–3562. [Google Scholar] [CrossRef] [PubMed]
  30. Greco, F.; Tafuri, A.; Grasso, R.F.; Beomonte Zobel, B.; Mallio, C.A. Clinicopathological and Body Composition Analysis of VHL and TTN Gene Mutations in Clear Cell Renal Cell Carcinoma: An Exploratory Study. Appl. Sci. 2022, 12, 9502. [Google Scholar] [CrossRef]
  31. Ferro, M.; Musi, G.; Marchioni, M.; Maggi, M.; Veccia, A.; Del Giudice, F.; Barone, B.; Crocetto, F.; Lasorsa, F.; Antonelli, A.; et al. Radiogenomics in Renal Cancer Management-Current Evidence and Future Prospects. Int. J. Mol. Sci. 2023, 24, 4615. [Google Scholar] [CrossRef]
  32. Liu, L.; Yi, X.; Lu, C.; Pang, Y.; Zu, X.; Chen, M.; Guan, X. Background, applications and challenges of radiogenomics in genitourinary tumor. Am. J. Cancer Res. 2021, 11, 1936–1945. [Google Scholar]
  33. Greco, F.; Panunzio, A.; Tafuri, A.; Bernetti, C.; Pagliarulo, V.; Beomonte Zobel, B.; Scardapane, A.; Mallio, C.A. Radiogenomic Features of GIMAP Family Genes in Clear Cell Renal Cell Carcinoma: An Observational Study on CT Images. Genes 2023, 14, 1832. [Google Scholar] [CrossRef]
  34. CIP TCGA Radiology Initiative—The Cancer Imaging Archive (TCIA) Public Access—Cancer Imaging Archive Wiki. Available online: https://wiki.cancerimagingarchive.net/display/Public/CIP+TCGA+Radiology+Initiative;jsessionid=92ACC1CC632%20A2219F9A6F965E2325B68 (accessed on 1 November 2019).
  35. Cen, D.; Xu, L.; Zhang, S.; Chen, Z.; Huang, Y.; Li, Z.; Liang, B. Renal cell carcinoma: Predicting RUNX3 methylation level and its consequences on survival with CT features. Eur. Radiol. 2019, 29, 5415–5422. [Google Scholar] [CrossRef]
  36. Cancer Genome Atlas Research Network. Comprehensive molecular characterization of clear cell renal cell carcinoma. Nature 2013, 499, 43–49. [Google Scholar] [CrossRef]
  37. Bowen, L.; Xiaojing, L. Radiogenomics of Clear Cell Renal Cell Carcinoma: Associations Between mRNA-Based Subtyping and CT Imaging Features. Acad. Radiol. 2019, 26, e32–e37. [Google Scholar] [CrossRef]
  38. García-Fuentes, E.; Santiago-Fernández, C.; Gutiérrez-Repiso, C.; Mayas, M.D.; Oliva-Olivera, W.; Coín-Aragüez, L.; Alcaide, J.; Ocaña-Wilhelmi, L.; Vendrell, J.; Tinahones, F.J.; et al. Hypoxia is associated with a lower expression of genes involved in lipogenesis in visceral adipose tissue. J. Transl. Med. 2015, 13, 373. [Google Scholar] [CrossRef]
  39. Kursa, M.B.; Rudnicki, W.R. Feature selection with the Boruta package. J. Stat. Softw. 2010, 36, 1–13. [Google Scholar] [CrossRef]
  40. Peng, H.; Long, F.; Ding, C. Feature selection based on mutual information: Criteria of max-dependency, max-relevance, and minredundancy. IEEE Trans. Pattern Anal. Mach. Intell. 2005, 27, 1226–1238. [Google Scholar] [CrossRef] [PubMed]
  41. Benjamini, Y.; Hochberg, Y. Controlling the false discovery rate: A practical and powerful approach to multiple testing. J. R. Stat. Soc. Ser. B Stat. Methodol. 1995, 57, 289–300. [Google Scholar] [CrossRef]
  42. Yushkevich, P.A.; Piven, J.; Hazlett, H.C.; Smith, R.G.; Ho, S.; Gee, J.C.; Gerig, G. User-guided 3D active contour segmentation of anatomical structures: Significantly improved efficiency and reliability. Neuroimage 2006, 31, 1116–1128. [Google Scholar] [CrossRef] [PubMed]
  43. Xu, T.; Le, T.D.; Liu, L.; Su, N.; Wang, R.; Sun, B.; Colaprico, A.; Bontempi, G.; Li, J. Cancer Subtypes: An R/Bioconductor package for molecular cancer subtype identification, validation and visualization. Bioinformatics 2017, 33, 3131–3133. [Google Scholar] [CrossRef] [PubMed]
  44. Bertout, J.A.; Patel, S.A.; Simon, M.C. The impact of O2 availability on human cancer. Nat. Rev. Cancer 2008, 8, 967–975. [Google Scholar] [CrossRef]
  45. Kaelin, W.G., Jr.; Ratcliffe, P.J. Oxygen sensing by metazoans: The central role of the HIF hydroxylase pathway. Mol. Cell 2008, 30, 393–402. [Google Scholar] [CrossRef]
  46. Takamori, H.; Yamasaki, T.; Kitadai, R.; Minamishima, Y.A.; Nakamura, E. Development of drugs targeting hypoxia-inducible factor against tumor cells with VHL mutation: Story of 127 years. Cancer Sci. 2023, 114, 1208–1217. [Google Scholar] [CrossRef] [PubMed]
  47. Jonasch, E.; Donskov, F.; Iliopoulos, O.; Rathmell, W.K.; Narayan, V.K.; Maughan, B.L.; Oudard, S.; Else, T.; Maranchie, J.K.; Welsh, S.J.; et al. Belzutifan for renal cell carcinoma in von Hippel-Lindau disease. N. Engl. J. Med. 2021, 385, 2036–2046. [Google Scholar] [CrossRef]
  48. Gordan, J.D.; Bertout, J.A.; Hu, C.J.; Diehl, J.A.; Simon, M.C. HIF-2alpha promotes hypoxic cell proliferation by enhancing c-myc transcriptional activity. Cancer Cell 2007, 11, 335–347. [Google Scholar] [CrossRef] [PubMed]
  49. Choueiri, T.K.; Vaziri, S.A.; Jaeger, E.; Elson, P.; Wood, L.; Bhalla, I.P.; Small, E.J.; Weinberg, V.; Sein, N.; Simko, J.; et al. von Hippel-Lindau gene status and response to vascular endothelial growth factor targeted therapy for metastatic clear cell renal cell carcinoma. J. Urol. 2008, 180, 860–865. [Google Scholar] [CrossRef] [PubMed]
  50. Gossage, L.; Eisen, T.; Maher, E.R. VHL, the story of a tumour suppressor gene. Nat. Rev. Cancer 2015, 15, 55–64. [Google Scholar] [CrossRef] [PubMed]
  51. Semenza, G.L. HIF-1 mediates metabolic responses to intratumoral hypoxia and oncogenic mutations. J. Clin. Investig. 2013, 123, 3664–3671. [Google Scholar] [CrossRef] [PubMed]
  52. Hsieh, J.J.; Purdue, M.P.; Signoretti, S.; Swanton, C.; Albiges, L.; Schmidinger, M.; Heng, D.Y.; Larkin, J.; Ficarra, V. Renal cell carcinoma. Nat. Rev. Dis. Primers 2017, 3, 17009. [Google Scholar] [CrossRef] [PubMed]
  53. Hsieh, J.J.; Le, V.; Cao, D.; Cheng, E.H.; Creighton, C.J. Genomic classifications of renal cell carcinoma: A critical step towards the future application of personalized kidney cancer care with pan-omics precision. J. Pathol. 2018, 244, 525–537. [Google Scholar] [CrossRef]
  54. Nilsson, R.; Peña, J.M.; Björkegren, J.; Tegnér, J. Consistent feature selection for pattern recognition in polynomial time. J. Mach. Learn. Res. 2007, 8, 589–612. [Google Scholar]
Cimb 46 00203 g001

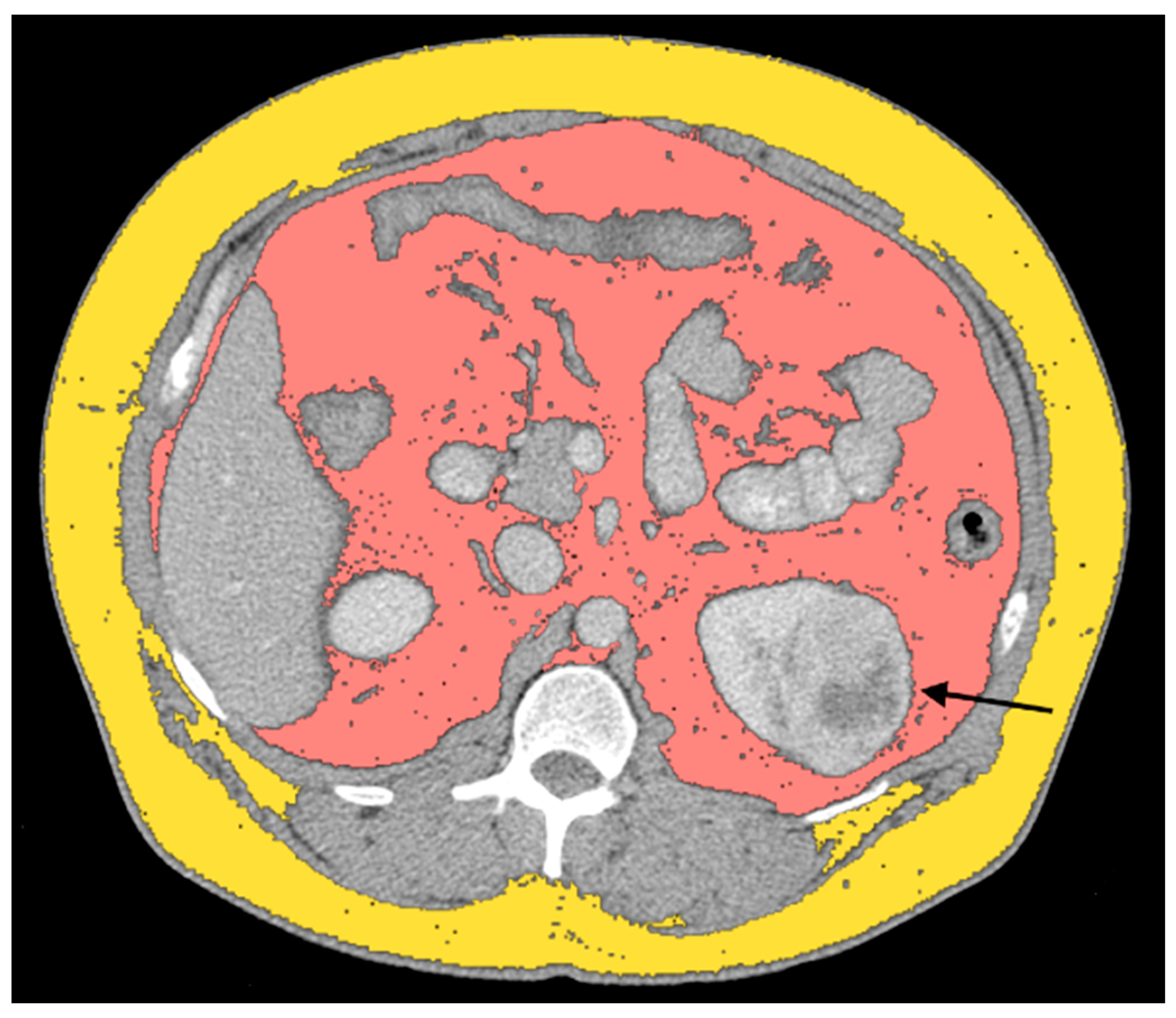

Figure 1. Axial CT image showing ccRCC with VHL mutation (black arrow), SAT, and VAT, segmented, respectively, in dark yellow and salmon pink.
Figure 1. Axial CT image showing ccRCC with VHL mutation (black arrow), SAT, and VAT, segmented, respectively, in dark yellow and salmon pink.
Cimb 46 00203 g001
Table 1. Summary of radiogenomics and texture analysis studies.
Table 1. Summary of radiogenomics and texture analysis studies.
Author/YearTitleNumber of PatientsImaging TechniqueGene StudiedOutcomes Related with VHL MutationWith/Without Texture Analysis
Karlo et al., 2014 [22]Radiogenomics of Clear Cell Renal Cell Carcinoma: Associations
between CT Imaging Features
And Mutations		233CTVHL, BAP1, KD5MCMutations of VHL were significantly
associated with well-defined tumor
margins (p = 0.013), nodular tumor enhancement (p = 0.021), and
gross appearance of intratumoral vascularity (p = 0.018).		Without
Shinagare et al., 2015 [23]Radiogenomics of clear
cell renal cell
carcinoma: Preliminary
findings of The Cancer Genome Atlas–renal cell
carcinoma
(TCGA-RCC) imaging
research group		103CT/MRVHL, BAP1, PBRM1, SETD2, KDM5C, and MUC4No significant results connected with VHL mutation.
BAP1 mutation was associated with ill-defined tumor margins and the presence of calcification (p = 0.02 and 0.002, respectively, Pearson’s χ2 test); MUC4 mutation was associated with exophytic growth (p = 0.002, Mann–Whitney U test). 		Without
Greco et al., 2021 [24]Relationship between
VAT
and genetic mutations
(VHL and KDM5C) in
clear cell renal cell
carcinoma		97CTVHL, KD5MCIncreased amount of TAT, especially VAT, in the ccRCC-VHL and
ccRCC-KDM5C groups. Statistically significant differences (i.e., increase in the ccRCC-VHL group) between control group and ccRCC-VHL
group were obtained for TAT area (p < 0.001) and VAT area (p < 0.01).
Statistically significant differences (i.e., increase in the ccRCC-KDM5C group) between control group and ccRCC-KDM5C group were obtained for TAT area (p < 0.0001), VAT area (p < 0.0001), and SAT area (p < 0.01).
The ccRCC-KDM5C group showed a statistically significant increase in TAT area (p < 0.05), VAT area (p < 0.05), and
VAT/SAT ratio (p < 0.05) with respect to the ccRCC-VHL group.		Without
Li et al., 2018 [25]Differentiation of clear cell
and non-clear cell renal cell
carcinomas by all-relevant
radiomics features from multiphase CT: a VHL mutation
perspective		85CTVHLAll-relevant features in corticomedullary phase CT can be used to differentiate ccRCC from non-ccRCC with high accuracy.
Most RCC-subtype discriminative CT features were associated with the key RCC driven gene—the VHL gene mutation. Five out of eight all-relevant features were significantly associated with VHL mutation (false discovery rate adjusted p < 0.05).		With
Chen et al., 2018 [9]Reliable gene mutation
prediction in clear cell
renal cell carcinoma
through
MCMO
radiogenomics model		57CTVHL, PBRM1, BAP1They proposed an MCMO radiogenomics predictive model. Using the proposed MCMO model, they achieved a predictive area under
the receiver operating characteristic AUC over 0.85 for VHL, PBRM1, and BAP1 genes with
balanced sensitivity and specificity.		With
Lin et al., 2021 [26]Radiomic profiling of
clear cell renal cell
carcinoma reveals
subtypes with distinct
prognoses and
molecular pathways		160CTVHL, MUC16, FBN2,
and FLG
cell cycle related
Pathways		Radiomic profiling revealed three ccRCC subtypes with distinct clinicopathological features and prognoses. VHL, MUC16, FBN2, and FLG were found to have different mutation frequencies in these radiomic subtypes. VHL had a high mutation rate in all the subtypes, and VHL mutations were less frequently observed in the C1 subtype than in the C2 and C3 subtypes. Based on TCGA-KIRC cohort, the K-M analysis also revealed that VHL, FLG, and MUC16 mutation status did not show survival differences, while patients with FBN2 mutation have a superior OS. The prognostic value of the radiomic subtypes was further validated in another independent cohort (log-rank p = 0.015). With
Zeng et al., 2021 [27]Integrative
radiogenomics
analysis for predicting
molecular features and
survival in clear cell
renal cell carcinoma		207CTVHL, BAP1, PBRM1,
SETD2, molecular
subtypes (m1–m4)		They evaluated the potential value of CT radiomics features in classifying mutations and molecular subtypes of ccRCC, with the use of multiple machine learning algorithms. The radiomics models based on RF were able to predict VHL gene mutation (AUC = 0.971). High-risk group of validation set predicted by multi-omics model showed significantly poorer OS (HR = 6.20, 95%CI: 3.19–8.44, p < 0.0001). With
Zhi-Cheng Li et al., 2019 [28]Towards an interpretable radiomics model for classifying renal cell carcinomas subtypes: a radiogenomic assessment 255(188 cc RCC/67 non-ccRCC)CTVHLAll eight mRMRe features were significantly associated with VHL mutation (FDR-adjusted p < 0.05). After FDR correction, 3 all-relevant Boruta features (f5, f6, f7) were not significantly associated with VHL mutation.With
Anari et al., 2022 [29]An MRI-based radiomics model to predict clear cell renal cell
carcinoma growth rate classes in
patients with VHL
syndrome		73MRVHLThey implemented a machine learning algorithm utilizing the radiomic features of renal tumors identified on baseline MRI in VHL patients to predict the volumetric growth rate category of these tumors. They have demonstrated that machine learning employing radiomic features from a baseline MRI can be utilized for accurately predicting tumor growth rate (volumetric doubling time) in VHL patients (mean AUC-ROC of 0.795).
The accuracy for predicting tumor doubling time classes was not different among the MRI sequences (p = 0.56).		With
Greco et al., 2022 [30]Clinicopathological and Body Composition Analysis of VHL
and TTN Gene Mutations in Clear Cell Renal Cell Carcinoma:
An Exploratory Study		54CTVHL, TTNGene expression and overall survival was assessed on a large cohort of 483 patients
and 533 tumor samples. There was a statistically significant difference in the VHL expression due to the decrease in VHL expression in pathological specimens compared to normal renal tissue. ccRCC patients with a VHL low/medium expression show a survival probability greater than 0.25 and a maximum survival greater than eight years. Moreover, the results showed a
significant decrease in TAT, VAT, SAT, and TAM in the ccRCC-TTN group compared to the ccRCC-VHL group. A statistically significant difference
of the VHL expression reduction in primary tumor (p < 0.0001) and a TTN expression increase in primary tumor (p < 0.0001) was shown. Statistically significant differences between the two groups were obtained for TAT (p < 0.01), VAT (p < 0.05), SAT (< p < 0.05), and TAM (p < 0.05) areas.		Without
Abbreviations: AUC, area under curve; BAP1, BRCA-1 Associated Protein-1; ccRCC; clear cell renal cell carcinoma; CT, computed tomography; FBN2, fibrillin-2; FDR, false discovery rate; FLG, filaggrin; KDM5C, lysine-specific demethylase 5C; MCMO, multi-classifier multi-objective; MR, magnetic resonance; MRI, magnetic resonance imaging; mRMRe, minimum redundancy maximum relevance ensemble; MUC4, mucin-4; MUC16, mucin-16; OS, overall survival; PBRM1, protein polybromo-1; RCC, renal cell carcinoma; RF, random forest; ROC, receiver operating characteristic curve; SAT, subcutaneous adipose tissue; SETD2, SET domain containing 2; TAM, total abdominal muscle; TAT, total adipose tissue; TCGA-RCC, The Cancer Genome Atlas-renal cell carcinoma; TCGA-KIRC, The Cancer Genome Atlas-kidney renal clear cell carcinoma; TTN, titin; VAT, visceral adipose tissue; VHL, von Hippel–Lindau.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Greco, F.; D’Andrea, V.; Beomonte Zobel, B.; Mallio, C.A. Radiogenomics and Texture Analysis to Detect von Hippel–Lindau (VHL) Mutation in Clear Cell Renal Cell Carcinoma. Curr. Issues Mol. Biol. 2024, 46, 3236-3250. https://doi.org/10.3390/cimb46040203

AMA Style

Greco F, D’Andrea V, Beomonte Zobel B, Mallio CA. Radiogenomics and Texture Analysis to Detect von Hippel–Lindau (VHL) Mutation in Clear Cell Renal Cell Carcinoma. Current Issues in Molecular Biology. 2024; 46(4):3236-3250. https://doi.org/10.3390/cimb46040203

Chicago/Turabian Style

Greco, Federico, Valerio D’Andrea, Bruno Beomonte Zobel, and Carlo Augusto Mallio. 2024. "Radiogenomics and Texture Analysis to Detect von Hippel–Lindau (VHL) Mutation in Clear Cell Renal Cell Carcinoma" Current Issues in Molecular Biology 46, no. 4: 3236-3250. https://doi.org/10.3390/cimb46040203

Article Metrics

Back to TopTop
