Understanding Cyclic Fatigue in Three Nickel–Titanium Pediatric Files: An In Vitro Study for Enhanced Patient Care

by
Alwaleed Abushanan
1,*,
Rajashekhara Bhari Sharanesha
1,*,
Fahd Aljarbou
2,
Hadi Alamri
3,
Mohammed Hamad Almasud
4,
Abdulfatah AlAzmah
1,
Sara Alghamdi
1 and
Mubashir Baig Mirza
5
1
Department of Pediatric Dentistry, College of Dentistry, Prince Sattam bin Abdulaziz University, Al-Kharj 11942, Saudi Arabia
2
Restorative Dental Science Department, College of Dentistry, King Saud University, Riyadh 11545, Saudi Arabia
3
Department of Dentistry, King Faisal Specialist Hospital and Research Center, Riyadh 11211, Saudi Arabia
4
College of Dentistry, King Saud University, Riyadh 11545, Saudi Arabia
5
Conservative Dental Sciences Department, College of Dentistry, Prince Sattam bin Abdulaziz University, Al-Kharj 11942, Saudi Arabia
*
Authors to whom correspondence should be addressed.
Medicina 2025, 61(5), 830; https://doi.org/10.3390/medicina61050830
Submission received: 16 March 2025 / Revised: 18 April 2025 / Accepted: 25 April 2025 / Published: 30 April 2025
(This article belongs to the Special Issue Current and Future Trends in Dentistry and Oral Health)
Browse Figures
Versions Notes

Abstract

:
Background and Objectives: Nickel–titanium (Niti) instruments have enhanced root canal cleaning in primary teeth, but file fractures are still common. Materials and Methods: This study evaluated the cyclic fatigue resistance of 120 Niti files from four different systems, A: Kedo SG (n = 30); B: Neoendo Pedoflex (n = 30); C: Pedoflex Waldent files (n = 30); and D: Vortex Blue files (n = 30). All the files had similar tip diameters (0.25 mm) and tapers (0.4%) and underwent heat treatment during manufacturing. Cyclic fatigue tests showed notable variations in cycles to fracture (NCF) across groups. All fracture surfaces of the files were assessed through scanning electron microscopy. Results: The mean values achieved in the experimental groups (A, B, C) were less than those in the control Group D (976.90 ± 1085.19). Files in Group A demonstrated the highest NCF (697.01 ± 420.09), while Pedoflex files in Group C showed the lowest values (203.88 ± 155.46). Statistical analysis using the Mann–Whitney test revealed significant differences between Group C and Groups A, B, and D and no differences among Groups A, B, and D. Conclusions: These findings suggest that Kedo SG and Neoendo Pedoflex files offer comparable cyclic fatigue resistance to Vortex Blue files. In contrast, Pedoflex Waldent files exhibit lower resistance to fracture.

1. Introduction

Apical periodontitis is the leading cause of early tooth extractions in primary teeth. Chronic inflammation can disrupt the normal process of root resorption in these teeth, having a significant impact on the growth and eruption of permanent teeth. This can result in conditions such as enamel hypoplasia, abnormal tooth shapes, misalignment, and potentially, odontogenic cysts, which can lead to necrosis of the permanent tooth germ [1]. In vital teeth with signs of reversible pulpitis, pulpotomies are performed to preserve the vitality of the remaining pulp tissue [2]. However, in cases where the pulp is non-vital or irreversibly inflamed, pulpectomy should be considered a primary treatment option to maintain primary teeth until physiological exfoliation, thereby attaining esthetics and functions such as phonetics and mastication [3]. Canal debridement, a critical procedure during pulpectomy, is typically performed using hand files. Nevertheless, the implementation of engine-driven nickel–titanium (Niti) instruments has significantly enhanced the efficacy of canal cleaning and shaping [4]. Its use has also reduced iatrogenic errors, such as canal transportation and ledges [5]. Obturating the canals, which seemed tedious in canals prepared with conventional hand instruments, has also been eased due to the greater taper in most of these files, resulting in better-quality root canal fillings [6]. Studies among pediatric patients have revealed that it positively impacts treatment outcomes, increasing patient acceptance by considerably reducing treatment time [7,8,9]. Despite the noted benefits and wide acceptance of mechanized Niti files among dentists, their influence in treating canals of primary teeth is relatively new [10,11].
Despite the perceived advantages, fatigue-related file separations remain a problem with these files, especially when rotated in curved canals [12]. The reported incidence of instrument fracture varies from 0.7% to 6% [13]. Most Niti file systems fracture abruptly without any prior warning, unlike stainless-steel files, whose flutes unfold, which can be recognized by their shiny surfaces on the file [14,15]. The single-time use of files, as recommended by manufacturers, especially when treating constricted canals, has reduced the incidence of fracture but has not eliminated it [16,17]. A range of methods, including surface treatments and heat treatments, are employed to address the issue. These approaches produce Niti alloys that are more flexible and exhibit enhanced resistance to cyclic fatigue by forming martensite or an R-phase [18,19,20,21].
Additionally, factors such as tip size, file diameter, and the incorporation of novel, cross-sectional, geometrical designs have also been shown to influence the cyclic failure of files [22,23,24]. However, limited details have been available comparing fatigue resistance in heat-treated Niti files with the same tip size [25]. Primary teeth, in comparison to permanent teeth, have short, thin, and curved roots. Using large-taper Niti rotary file systems designed for permanent teeth on these roots poses a risk of lateral perforations. To address this issue, rotary files tailored specifically for primary teeth have been recommended, as they simplify usage in children due to the shorter lengths [6,26]. They are safe to use, resulting in better-quality canal preparations and reduced iatrogenic errors, comparable to those of files designed for permanent teeth [11].
One such file is the Kedo SG gold file (Reeganz Dental Care; Pvt. Ltd., Chennai, Tamil Nadu, India), which is manufactured exclusively for primary teeth. The Kedo rotary files encompass five generations, each characterized by unique heat treatments, surface modifications, and cross-sectional geometries. For this study, the Kedo SG D1 file was utilized, which features a variable taper of 4–8%, a 0.25 mm tip diameter, a triangular cross-sectional design, and a uniform length of 16 mm [26]. Previous studies have demonstrated its efficiency, showing a low incidence of file separations [27]. This allowed for relevant comparisons, as the other files evaluated for cyclic fatigue in this study included those available in 16 mm pediatric lengths with similar cross-sectional designs, 4% taper, heat treatment, and 0.25 mm tip diameters. These include the Neoendo Pedoflex files (Orikam Healthcare, Gurugram, Haryana, India) and Pedoflex files (Waldent Innovations, ‘Pvt. Ltd.’ New Delhi, India).
The sheer magnitude of such files overwhelming the market, questionable standardization, and lack of adequate studies necessitate comparative studies that evaluate their mechanical properties against those of more globally recognized standards [28,29]. In this regard, the Vortex Blue (VB) files (Dentsply Sirona, Ballaigues, Switzerland) served as a control, as prior research indicates that they are better suited for curved canals due to their enhanced flexibility and fatigue resistance, partly due to the titanium oxide coating on the surface of these files [30]. The 4% taper, 0.25 tip size VB file, featuring a convex triangular cross section, quite similar to the experimental files, was utilized. However, due to the VB file’s availability in only adult sizes, a file measuring 21 mm in length was selected.
Given the scarcity of comparative data on pediatric Niti files with similar surface treatments, tip dimensions, and cross-sectional geometries, this study aimed to evaluate the cyclic fatigue performance of three pediatric file systems: Kedo SG, NeoEndo Pedoflex, and Pedoflex files (Waldent), alongside the VB file in simulated curved canal environments. The null hypothesis posited that VB files would demonstrate superior resistance to fracture compared to the other tested files due to their established clinical longevity and the manufacturer’s reputation for producing Niti rotary files.

2. Materials and Methods

2.1. Ethical Approval

Before commencing the study, ethical approval was obtained from the Standing Committee of Bioethics Research (SCBR) at Prince Sattam bin Abdulaziz University (PSAU), with approval number SCBR-046-2023.

2.2. Study Samples

Three systems of Niti rotary files, which are being promoted for pedodontic use due to their similar characteristics, including heat treatment, 16 mm length, triangular cross-section, and a 0.25 mm tip diameter, were subjected to cyclic fatigue testing. VB files with an identical 0.25 mm tip diameter and 4% taper were used as a control group. A sample size calculation was performed using G Power analysis with an effect size of 0.1 and a power of 0.95. All files were visually inspected at 30X magnification for any deformities using a dental operating microscope (Zumax OMS2380, Suzhou, Jiangsu Province, China), and those with noticeable deformities were excluded. A total of 120 standard files were selected and grouped according to the manufacturers: Group A, Kedo SG files (n = 30); Group B, Neoendo pedoflex files (n = 30); Group C, Pedoflex files by Waldent (n = 30); and control Group D, Vortex Blue files (n = 30). Table 1 illustrates a comparison of the files used.

2.3. Cyclic Fatigue Resistance Test

A specially designed fatigue tester (Denbotix, Bucheon, Republic of Korea) was used to evaluate the resistance of the files to cyclic fatigue. The component consisted of two parts: an artificial metal canal with a 17 mm length, 5 mm radius, and 1.5 mm intracanal diameter, featuring a 60-degree curvature and an arm part that helps firmly hold the handpiece for file rotation, as shown in Figure 1. The study design was derived from a previously validated research framework established by Pruett et al. and from recent studies employing the same methodological approach, as evidenced in the reports by Surme et al. [31,32].
The artificial canal was sealed with a clear acrylic plate secured by screws. This setup allowed for the observation of instrument rotation until fracture and prevented any slippage. The Endo motor handpiece was mounted on a tester that allowed the unhindered placement of each instrument inside the artificial canal. Rotary files were rotated in an endo motor (X-Smart, Dentsply Sirona, Charlotte, NC, USA) using a conventional rotary motion, with the speed and torque recommended by the manufacturer. Before each use of the file for testing, lubricating oil (Millet Franklin, BA, Argentina) was used to reduce friction between the file and the metal canal walls. During each test, the instrument was monitored and visualized through the clear plate until fracture occurred, and the time to fracture was registered in seconds using the digital timer (Timex, Middlebury, CT, USA). The number of cycles to fracture (NCF) was calculated using the equation
NCF = Number of rotations per minute × Time to fracture/60 s

2.4. SEM Analysis

The fractured segments were examined using an FEI Quanta 250 FEG scanning electron microscope (Field Electron Ion Company, Hillsboro, OR, USA). Two broken files from each system were analyzed using SEM, and photomicrographs of the fractured regions were captured at various magnifications.
The length of the fractured segment was established using a millimeter ruler (Endo-Eze Ruler, Ultradent Products, Inc., South Jordan, UT, USA).

Statistical Analysis

The data were recorded and analyzed using SPSS version 20. Kruskal–Wallis test was performed for group comparisons, and Mann–Whitney U test was used for inter-group comparisons with statistical significance set at p ≤ 0.05.

3. Results

The NCF values for samples of all groups are represented as a graph in Figure 2.
As Table 2 shows, the Kolmogorov–Smirnov and Shapiro–Wilk normality tests were performed to measure the central tendency and methods for analysis.
Since the data in Table 2 do not follow a normal distribution, a nonparametric Kruskal–Wallis test was performed to compare different groups. The mean values measured in all groups (A, B, C) were less than those in control group D (976.90). The highest mean NCF values were seen in Group A (697.0191), while the lowest values were in Group C (203.88), as represented in Table 3.
When intergroup comparisons were made using the Mann–Whitney test, Groups A and B significantly differed from Group C, with p-values < 0.001. However, no such difference was observed between the control Group D and Groups A and B, as seen in Table 4.
The fractured segment was visualized, and an SEM analysis was performed. The photomicrographs demonstrated striation patterns and fracture areas, which are typical indicators of cyclic fatigue failure, as seen in the fracture plane images of the files. Shown in Figure 3 are representative SEM photomicrographs at 50× magnification of the tested tools and their fractured sections. The fractured surface of the fragment was examined at 1500× magnification, revealing the striations and zones of overload.
The mean lengths of fractured segments measured in mm are displayed in Figure 4.

4. Discussion

The file’s tip size, diameter, and cross-sectional design could also influence these results. To standardize the study, the authors utilized files with similar surface treatments, cross-sectional designs, and tip sizes: the Kedo SG, Neoendo Pedoflex, and Pedoflex files from Waldent, and compared them to a commonly used, heat-treated Niti system, the VB. However, the findings revealed that both the Kedo SG and Pedoflex files exhibited comparable performance to the VB file. Notably, only the Pedoflex file from Waldent showed statistically inferior resistance to fracture. Thus, the null hypothesis was partly rejected, as the cyclic fatigue resistance difference was insignificant in two of the three experimental files
While Niti files are continuously being manufactured and supplied due to the growing demands of dentists, there is an increasing need to select reliable file systems [33]. Moreover, Niti instruments do not have any standard guidelines for manufacturers to comply with [34]. The practitioners now have a plethora of instruments to choose from. This choice of files is often influenced by clinicians’ trust in manufacturers, based on their clinical experience and peer recommendations. As the use of Niti files in pediatric patients was first reported relatively recently, studies on their use, properties, and clinical performance are limited [10]. Many practitioners continue to use the Niti file systems similar to those used in adult patients [27,35]. However, a need for files of shorter length arose in pediatric patients due to their limited mouth opening and the comparatively shorter root lengths in these teeth [36]. More recently, dentists have reported an increase in the acceptance and use of rotary instrumentation in primary teeth, owing to the facilitation of homogenous fill, reduced debris extrusion, and shortened working time [37,38]. Its use could benefit pediatric patients, especially in quadrant dentistry and in patients under general anesthesia. Results from India suggest that around 50% of pediatric dentists prefer using rotary instrumentation to shape canals in primary teeth [6]. However, a cross-sectional study in Saudi Arabia showed that only 21.5% of the practitioners used rotary instruments [39]. In both the studies mentioned above, files from pro-taper systems were most commonly used, followed by dedicated pedodontic files, such as Kedo S and Prime pedo files, in Saudi Arabia [6,39].
Nevertheless, file separation while using Niti files continues to be an impediment and can negatively impact the prognosis [40]. While either torsional or cyclic fatigue can lead to file separations, cyclic fatigue is more commonly the culprit, which can directly influence the prognosis of treatment [41]. Repeated bending of files in curved canals could lead to cyclic fatigue. The more the taper and size of the file, the lower its resistance to cyclic fatigue. Although some of these factors may be operator-dependent, technological advances and the incorporation of heat and surface treatment have increased the file’s resistance to fatigue [42,43].
This study tested the rotary files in artificial metal canals designed on a stainless-steel block with known diameters, depths, and curvatures, as seen in previous studies investigating cyclic fatigue [44]. In comparison, others have utilized different methodologies, including bending instruments against three points and using inclined planes [45]. The authors in this study used an oil lubricant to reduce friction and heat generation during movement in a metal canal [46]. Cyclic fatigue is usually evaluated in either static or dynamic motion. Dynamic back-and-forth movement has been touted as a means to replicate the clinically employed pecking motion. It could improve the cyclic fatigue of Niti files due to a broader distribution of stresses [47,48]. Nevertheless, studies have also shown that it may not accurately replicate clinical situations as the number of oscillations is far less than in the dynamic fatigue testing models [49]. On the other hand, during static motion, there is a higher chance of stress concentration at the point of maximum curvature due to the lack of axial movement of files within the canals [50]. In this study, the cyclic fatigue test was conducted in static motion due to the ease of standardization and consideration of the difficulties in accurately setting up a dynamic model.
The superior cyclic fatigue resistance of VB files compared to other files is attributed to their controlled memory and blue heat treatment [30,51,52]. The NCF values in some research on VB files varied due to the use of different tapers and tip sizes compared to this study [51,53]. Differences could also be due to stress concentration in the static model used in our research and the variation of canal curvatures [25]. Time to fracture and NCF value variations between studies could also be due to the fact that guidelines for production and testing are still lacking, and none of the previous work in the field seems to suggest it [54].
Sufficient studies regarding cyclic fatigue in pediatric Niti files are lacking. Nevertheless, a study conducted in Turkey compared two groups of heat-treated pediatric Niti files. The T-endo Must files (TEM; Dentac, Istanbul, Türkiye), manufactured for use in reciprocation motion, exhibited better cyclic fatigue resistance compared to the AF baby file (ABF; Fanta Dental Materials Co., Shanghai, China), which was used in rotation. Although both file systems were heat-treated, the difference in that study, as noted by the authors, could be attributed to the type of instrument motion [55]. In contrast, a study on two 0.4 tapered pediatric file systems found that the AF baby rotary files showed better resistance to cyclic fatigue than the i3 Gold deciduous teeth rotary files, with a mean NCF value (1516 ± 204.05) higher than that observed in this study [44]. Recently, significantly higher mean NCF values were observed when four pediatric rotary files were used, with mean values ranging from 453.65 to 2668.10. Variations in metallurgy, file geometry, and study design may also contribute to these variations [32]. Another clinical prospective study in India examining the incidence of fracture in Kedo S pediatric Niti files suggests that these files have a low incidence of separation when used according to the manufacturer’s guidelines. When file separations occurred, it was usually in the apical third [27].
Recent investigations have shown that variations in cross-sectional design, material alloy, and heat treatment have a significant impact on cyclic fatigue resistance. Specifically, a comparative evaluation of ten endodontic files featuring diverse cross-sectional geometries—namely, double S, variable, triangular, S-shaped, and rectangular—revealed that the S-shaped design exhibits markedly superior cyclic fatigue performance [56]. This finding corroborates earlier research by Kaval et al., which indicated that files with S-shaped geometry outperformed others in terms of fracture resistance [57]. Further supporting evidence comes from a study examining files with distinct cross-sectional shapes (parallelogram, triangular, and S-shaped) used in clinical settings, where the S-shaped files demonstrated the highest resistance to fracture [58]. Another investigation focused on files subjected to similar heat treatment but presenting different cross-sectional designs (S versus triangular). The S-shaped files, characterized by two cutting blades, exhibited enhanced cyclic fatigue resistance due to reduced surface contact, minimized stress concentration, and a lower mass percentage when compared to their triangular counterparts, which featured three cutting blades [59]. In a controlled setting with a constant taper of 0.4%, the performance of various cross-sectional geometries was reassessed, reaffirming the S-shaped design as superior, as reported in the study conducted by Ersoy et al. [60]. The reasons behind the suboptimal performance of certain cross-sectional designs remain somewhat enigmatic. Some researchers propose that the core material’s properties, particularly at points of maximal stress, are critical determinants of CFR, while others dispute any significant effect. Additional research indicates that reducing the metal mass at locations of peak stress can enhance the CFR of nickel–titanium rotary files [32,61,62]. Moreover, the manufacturing process itself has been identified as a contributory factor affecting CFR, highlighting the need for a comprehensive understanding and strategic design in file development [63].
As is commonly observed, most instruments fracture in the apical third of the root canals, typically in the area of maximum curvature [64]. Terauchi et al. suggested that retrieval is adversely affected if the length of the fractured instrument exceeds 4.5 mm [65]. In this study, the fractured segments from all files were below 4 mm, with no significant difference. The data indicated that the VB file system exhibited the lowest mean values. Consistent with our findings, recent reports indicated that the lengths of fractured segments ranged between 3.43 mm and 3.65 mm [32]. In contrast, a recent study identified mean fracture lengths ranging from 7.25 mm to 9.12 mm [44]. Variations in performance may stem from the use of different file systems and the taper and wire technologies employed during the manufacturing process.
The methodology used in this study to test for cyclic fatigue was similar to that in many previous studies, where artificial metal canals of known curvatures were manufactured [44]. However, the static testing model and its dependence on simulated metal canals may not completely replicate the clinical dynamics, as factors such as canal anatomy variability and operator technique influence outcomes. Therefore, the static movement of files in the canals should be considered a limitation in this study and, as previously highlighted, this approach may have led to stress concentrations and could precipitate early fatigue. However, because passive movement was consistently applied across all experimental groups, the resulting findings should still offer a robust comparative analysis. Additionally, the rigorous file selection methodology, which utilized standardized artificial canals and controlled testing conditions, ensured internal validity by isolating variables such as taper, tip size, and cross-sectional design. Furthermore, the study did not compare files with different cross-sectional designs and tip sizes, which could have provided a more comprehensive comparison and a better understanding of selecting files for clinical use. Future studies should aim to address the limitations of current research by using dynamic testing models. Additionally, incorporating natural teeth and clinical trials would provide better insights into the performance of Niti files with greater clinical relevance. Future studies should also evaluate the actual number of rotations required to prepare canals in natural teeth, considering their size, number, and degree of curvature. This information can be used to correlate with the NCF values achieved with Niti files, thereby determining the approximate number of uses of these files before disposal.

5. Conclusions

Within the limitations of this study, Kedo SG and Neoendo Pedoflex demonstrated comparable fatigue resistance to VB, indicating their potential suitability for clinical applications. In contrast, Waldent Pedoflex displayed lower fatigue resistance, which may necessitate careful consideration for clinical use to ensure optimal patient outcomes. Although the NCF values for this file were lower, its clinical application may still be viable, particularly for single use as recommended by most manufacturers.

Author Contributions

Conceptualization, H.A. and A.A. (Alwaleed Abushanan); methodology, F.A. and S.A.; software, R.B.S.; validation, M.B.M., H.A. and F.A.; formal analysis, A.A. (Alwaleed Abushanan); investigation, R.B.S. and M.H.A.; resources, F.A.; data curation, M.B.M.; writing—original draft preparation, H.A. and A.A. (Alwaleed Abushanan); writing—review and editing, A.A. (Abdulfatah AlAzmah); visualization, R.B.S.; supervision, F.A. and S.A.; project administration, H.A.; funding acquisition, M.B.M. All authors have read and agreed to the published version of the manuscript.

Funding

This study is supported by the Prince Sattam bin Abdulaziz University project number (PSAU/2025/R/1446).

Institutional Review Board Statement

The study was conducted in accordance with the Declaration of Helsinki and approved by the Standing Committee of Bioethics Research (SCBR), Prince Sattam bin Abdulaziz University (PSAU), with the approval number (SCBR-046-2023) dated 17 October 2023.

Informed Consent Statement

Not applicable.

Data Availability Statement

Available upon suitable request.

Acknowledgments

The authors thank Prince Sattam bin Abdulaziz University for funding the study via project number (PSAU/2025/R/1446).

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Ling, L.; Xueming, Y.; Wei, J.; Jun, L.; Yang, X. Impact of primary molars with periapical disease on permanent successors: A retrospective radiographic study. Heliyon 2023, 9, e15854. [Google Scholar] [CrossRef]
  2. Gadallah, L.K.; Elbardissy, A.; Elyazeed, M.A.; Alsamad, A.A.; Hamdy, M. Pulpotomy versus pulpectomy in carious vital pulp exposure in primary incisors: A randomized controlled trial. BMC Oral Health 2024, 24, 354. [Google Scholar] [CrossRef] [PubMed]
  3. Lim, Y.W.; Chae, Y.K.; Lee, K.E.; Nam, O.H.; Lee, H.-S.; Choi, S.C.; Kim, M.S. Iatrogenic Incidents in Primary Molar Pulpectomy: A Case Series Report and Literature Review. Appl. Sci. 2023, 13, 11008. [Google Scholar] [CrossRef]
  4. Zubizarreta-Macho, Á.; Mena Álvarez, J.; Albaladejo Martínez, A.; Segura-Egea, J.J.; Caviedes Brucheli, J.; Agustín-Panadero, R.; López Píriz, R.; Alonso-Ezpeleta, Ó. Influence of the Pecking Motion Frequency on the Cyclic Fatigue Resistance of Endodontic Rotary Files. J. Clin. Med. 2019, 9, 45. [Google Scholar] [CrossRef]
  5. Ferreira, F.; Adeodato, C.; Barbosa, I.; Aboud, L.; Scelza, P.; Zaccaro Scelza, M. Movement kinematics and cyclic fatigue of NiTi rotary instruments: A systematic review. Int. Endod. J. 2017, 50, 143–152. [Google Scholar] [CrossRef]
  6. Govindaraju, L.; Jeevanandan, G.; Subramanian, E.M.G. Comparison of quality of obturation and instrumentation time using hand files and two rotary file systems in primary molars: A single-blinded randomized controlled trial. Eur. J. Dent. 2017, 11, 376–379. [Google Scholar] [CrossRef]
  7. Rosa, F.M.; Modesto, A.; Faraco-Junior, I.M. Manual and rotary instrumentation techniques for root canal preparation in primary molars. Dent. 3000 2014, 2, 1–5. [Google Scholar] [CrossRef]
  8. George, S.; Anandaraj, S.; Issac, J.S.; John, S.A.; Harris, A. Rotary endodontics in primary teeth—A review. Saudi Dent. J. 2016, 28, 12–17. [Google Scholar] [CrossRef]
  9. Ahmed, H.M. Pulpectomy procedures in primary molar teeth. Eur. J. Gen. Dent. 2014, 3, 3–10. [Google Scholar] [CrossRef]
  10. Barr, E.S.; Kleier, D.J.; Barr, N.V. Use of nickel-titanium rotary files for root canal preparation in primary teeth. Pediatr. Dent. 2000, 22, 77–78. [Google Scholar]
  11. Crespo, S.; Cortes, O.; Garcia, C.; Perez, L. Comparison between rotary and manual instrumentation in primary teeth. J. Clin. Pediatr. Dent. 2008, 32, 295–298. [Google Scholar] [CrossRef] [PubMed]
  12. Gambarini, G.; Miccoli, G.; Seracchiani, M.; Morese, A.; Piasecki, L.; Gaimari, G.; Di Nardo, D.; Testarelli, L. Fatigue Resistance of New and Used Nickel-Titanium Rotary Instruments: A Comparative Study. Clin. Ter. 2018, 169, e96–e101. [Google Scholar] [CrossRef] [PubMed]
  13. Spili, P.; Parashos, P.; Messer, H. The impact of instrument fracture on outcome of endodontic treatment. J. Endod. 2005, 31, 845–850. [Google Scholar] [CrossRef] [PubMed]
  14. Alapati, S.B.; Brantley, W.A.; Svec, T.A.; Powers, J.M.; Nusstein, J.M.; Daehn, G.S. SEM observations of nickel-titanium rotary endodontic instruments that fractured during clinical Use. J. Endod. 2005, 31, 40–43. [Google Scholar] [CrossRef]
  15. Parashos, P.; Gordon, I.; Messer, H.H. Factors influencing defects of rotary nickel-titanium endodontic instruments after clinical use. J. Endod. 2004, 30, 722–725. [Google Scholar] [CrossRef]
  16. Arens, F.C.; Hoen, M.M.; Steiman, H.R.; Dietz, G.C., Jr. Evaluation of single-use rotary nickel-titanium instruments. J. Endod. 2003, 29, 664–666. [Google Scholar] [CrossRef]
  17. Caballero-Flores, H.; Nabeshima, C.K.; Binotto, E.; Machado, M.E. Fracture incidence of instruments from a single-file reciprocating system by students in an endodontic graduate programme: A cross-sectional retrospective study. Int. Endod. J. 2019, 52, 13–18. [Google Scholar] [CrossRef]
  18. Capar, I.D.; Arslan, H. A review of instrumentation kinematics of engine-driven nickel-titanium instruments. Int. Endod. J. 2016, 49, 119–135. [Google Scholar] [CrossRef]
  19. Lopes, H.P.; Elias, C.N.; Vieira, M.V.; Vieira, V.T.; de Souza, L.C.; Dos Santos, A.L. Influence of surface roughness on the fatigue life of nickel-titanium rotary endodontic instruments. J. Endod. 2016, 42, 965–968. [Google Scholar] [CrossRef]
  20. Zupanc, J.; Vahdat-Pajouh, N.; Schäfer, E. New thermomechanically treated NiTi alloys—A review. Int. Endod. J. 2018, 51, 1088–1103. [Google Scholar] [CrossRef]
  21. Di Nardo, D.; Galli, M.; Morese, A.; Seracchiani, M.; Ferri, V.; Miccoli, G.; Gambarini, G.; Testarelli, L. A comparative study of mechanical resistance of two reciprocating files. J. Clin. Exp. Dent. 2019, 11, e231–e235. [Google Scholar] [CrossRef] [PubMed]
  22. Higuera, O.; Plotino, G.; Tocci, L.; Carrillo, G.; Gambarini, G.; Jaramillo, D.E. Cyclic fatigue resistance of 3 different nickel-titanium reciprocating instruments in artificial canals. J. Endod. 2015, 41, 913–915. [Google Scholar] [CrossRef] [PubMed]
  23. Plotino, G.; Giansiracusa Rubini, A.; Grande, N.M.; Testarelli, L.; Gambarini, G. Cutting efficiency of reciproc and waveone reciprocating instruments. J. Endod. 2014, 40, 1228–1230. [Google Scholar] [CrossRef]
  24. Gambarini, G.; Miccoli, G.; Seracchiani, M.; Khrenova, T.; Donfrancesco, O.; D’Angelo, M.; Galli, M.; Di Nardo, D.; Testarelli, L. Role of the Flat-Designed Surface in Improving the Cyclic Fatigue Resistance of Endodontic NiTi Rotary Instruments. Materials 2019, 12, 2523. [Google Scholar] [CrossRef]
  25. Gambarini, G.; Cicconetti, A.; Di Nardo, D.; Miccoli, G.; Zanza, A.; Testarelli, L.; Seracchiani, M. Influence of Different Heat Treatments on Torsional and Cyclic Fatigue Resistance of Nickel–Titanium Rotary Files: A Comparative Study. Appl. Sci. 2020, 10, 5604. [Google Scholar] [CrossRef]
  26. Mohamed, R.H.; Abdelrahman, A.M.; Sharaf, A.A. Evaluation of rotary file system (Kedo-S-Square) in root canal preparation of primary anterior teeth using cone beam computed tomography (CBCT)-in vitro study. BMC Oral Health 2022, 22, 13. [Google Scholar] [CrossRef]
  27. Lakshimi, L.; Ganesh, J.; Prabhadevi, C.M.; Satish, V. Fracture Incidence of Kedo-S Square Pediatric Rotary Files: A Prospective Clinical Study. Eur. J. Dent. 2022, 16, 594–598. [Google Scholar] [CrossRef]
  28. Katge, F.; Chimata, V.K.; Poojari, M.; Shetty, S.; Rusawat, B. Comparison of cleaning efficacy and instrumentation time between rotary and manual instrumentation techniques in primary teeth: An in vitro study. Int. J. Clin. Pediatr. Dent. 2016, 9, 124–127. [Google Scholar] [CrossRef]
  29. Elnaghy, A.M.; Elsaka, S.E.; Mandorah, A.O. In vitro comparison of cyclic fatigue resistance of TruNatomy in single and double curvature canals compared with different nickel-titanium rotary instruments. BMC Oral Health 2020, 20, 38. [Google Scholar] [CrossRef]
  30. Plotino, G.; Grande, N.M.; Cotti, E.; Testarelli, L.; Gambarini, G. Blue treatment enhances cyclic fatigue resistance of vortex nickel-titanium rotary files. J. Endod. 2014, 40, 1451–1453. [Google Scholar] [CrossRef]
  31. Pruett, J.P.; Clement, D.J.; Carnes, D.L. Cyclic fatigue testing of nickel-titanium endodontic instruments. J. Endod. 1997, 23, 77–85. [Google Scholar] [CrossRef] [PubMed]
  32. Surme, K.; Akman, H.; Özkan, H.B.; Er, K. Comparison of cyclic fatigue resistance of four pediatric rotary file systems at body temperature: An in vitro study. BMC Oral Health 2024, 24, 992. [Google Scholar] [CrossRef] [PubMed]
  33. Martins, J.N.R.; Silva, E.J.N.L.; Marques, D.; Pereira, M.R.; Ginjeira, A.; Silva, R.J.C.; Fernandes, F.M.B.; Versiani, M.A. Mechanical Performance and Metallurgical Features of ProTaper Universal and 6 Replica like Systems. J. Endod. 2020, 46, 1884–1893. [Google Scholar] [CrossRef]
  34. Dablanca-Blanco, A.-B.; Castelo-Baz, P.; Miguéns-Vila, R.; Álvarez-Novoa, P.; Martín-Biedma, B. Endodontic Rotary Files, What Should an Endodontist Know? Medicina 2022, 58, 719. [Google Scholar] [CrossRef]
  35. Jeevanandan, G. Kedo S paediatric rotary files for root canal preparation in primary teeth—Case report. J. Clin. Diagn. Res. 2017, 11, ZR03–ZR05. [Google Scholar] [CrossRef]
  36. Chauhan, A.; Saini, S.; Dua, P.; Mangla, R. Rotary endodontics in pediatric dentistry: Embracing the new alternative. Int. J. Clin. Pediatr. Dent. 2019, 12, 460–463. [Google Scholar] [CrossRef]
  37. Locke, M.; Thomas, M.B.; Dummer, P.M.H. A survey of adoption of endodontic nickel-titanium rotary instrumentation part 1: General dental practitioners in Wales. Br. Dent. J. 2013, 214, E6. [Google Scholar] [CrossRef]
  38. Jeepalyam, S.; Nirmala, S.V.S.G.; Nuvvula, S. Efficacy of Two Paediatric Rotary Systems: Kedo-SG Blue and Prime Pedo Files in Primary Mandibular Molars: A Randomised Clinical Trial. J. Clin. Dent. Res. 2024, 18, 36–41. [Google Scholar] [CrossRef]
  39. Alowi, W.A.; Maganur, P.C.; Manoharan, V.; Jeevanandan, G.; Mawkili, L.K.; Alsam, S.M.; Faris, S.M.; Vishwanathaiah, S. Knowledge and Practice of Rotary Instrumentation in Primary Teeth Among Saudi Arabian Dentists: A Cross-Sectional Study. Int. J. Clin. Pediatr. Dent. 2022, 15, S97–S102. [Google Scholar] [CrossRef]
  40. Ungerechts, C.; Bardsen, A.; Fristad, I. Instrument fracture in root canals—Where, why, when and what? A study from a student clinic. Int. Endod. J. 2014, 47, 183–190. [Google Scholar] [CrossRef]
  41. Alfouzan, K.; Jamleh, A. Fracture of nickel titanium rotary instrument during root canal treatment and re-treatment: A 5-year retrospective study. Int. Endod. J. 2018, 51, 157–163. [Google Scholar] [CrossRef] [PubMed]
  42. Plotino, G.; Grande, N.M.; Cordaro, M.; Testarelli, L.; Gambarini, G. A review of cyclic fatigue testing of nickel-titanium rotary instruments. J. Endod. 2009, 35, 1469–1476. [Google Scholar] [CrossRef] [PubMed]
  43. Silva, E.J.N.L.; Giraldes, J.F.N.; de Lima, C.O.; Vieira, V.T.L.; Elias, C.N.; Antunes, H.S. Influence of heat treatment on torsional resistance and surface roughness of nickel-titanium instruments. Int. Endod. J. 2019, 52, 1645–1651. [Google Scholar] [CrossRef] [PubMed]
  44. Sandino-Lacayo, K.L.; Vega-González, M.; Soza-Bolaños, A.I.; Herrera-Alaniz, L.C.; Al Omari, T.; Domínguez Pérez, R.A. Cyclic fatigue resistance of two pediatric rotary files manufactured with different heat treatments: An in-vitro study. J. Clin. Pediatr. Dent. 2024, 48, 102–109. [Google Scholar] [CrossRef]
  45. Ajinkya, M.P.; Unmesh, K.; Shivani, M.; Kashmira, S.; Ricardo, M.; Gianluca, P.; Alexander, M.L.; Simy, M.; Musab, H.S.; Krishna, P.S. Cyclic Fatigue, Torsional Resistance, and Angular Deflection of Two Heat-Treated Files: M-Wire Versus New F-Wire Technology. Metals 2020, 10, 1359. [Google Scholar] [CrossRef]
  46. Gao, Y.; Shotton, V.; Wilkinson, K.; Phillips, G.; Johnson, W.B. Effects of raw material and rotational speed on the cyclic fatigue of ProFile Vortex rotary instruments. J. Endod. 2010, 36, 1205–1209. [Google Scholar] [CrossRef]
  47. De-Deus, G.; Vieira, V.T.; da Silva, E.J.; Lopes, H.; Elias, C.N.; Moreira, E.J. Bending resistance and dynamic and static cyclic fatigue life of Reciproc and Wave One large instruments. J. Endod. 2014, 40, 575–579. [Google Scholar] [CrossRef]
  48. Palma, P.J.; Messias, A.; Cerqueira, A.R.; Tavares, L.D.; Caramelo, F.; Roseiro, L.; Santos, J.M. Cyclic fatigue resistance of three rotary file systems in a dynamic model after immersion in sodium hypochlorite. Odontology 2019, 107, 324–332. [Google Scholar] [CrossRef]
  49. Keles, A.; Eymirli, A.; Uyanık, O.; Nagas, E. Influence of static and dynamic cyclic fatigue tests on the lifespan of four reciprocating systems at different temperatures. Int. Endod. J. 2019, 52, 880–886. [Google Scholar] [CrossRef]
  50. Sousa, J.; Basto, J.; Roseiro, L.; Messias, A.; dos Santos, J.M.; Palma, P. Evaluation of the cyclic fatigue of 3 file systems used in mechanized instrumentation. Port. J. Stomatol. Dent. Med. Maxillofac. Surg. 2015, 56, 239–245. [Google Scholar]
  51. Vieira, T.M.; Cardoso, R.M.; Alves, N.C.C. Cyclic Fatigue Resistance of Blue Heat-Treated Instruments at Different Temperatures. Int. J. Biomater. 2021, 2021, 5584766. [Google Scholar] [CrossRef] [PubMed]
  52. Elnaghy, A.M.; Elsaka, S.E. Cyclic Fatigue Resistance of One Curve, 2Shape, ProFile Vortex, Vortex Blue, and RaCe Nickel-Titanium Rotary Instruments in Single and Double Curvature Canals. J. Endod. 2018, 44, 1725–1730. [Google Scholar] [CrossRef]
  53. Sharroufna, R.; Mashyakhy, M. The Effect of Multiple Autoclave Sterilization on the Cyclic Fatigue of Three Heat-Treated Nickel-Titanium Rotary Files: EdgeFile X7, Vortex Blue, and TRUShape. BioMed. Res. Int. 2020, 2020, 8826069. [Google Scholar] [CrossRef] [PubMed]
  54. Gambarini, G.; Galli, M.; Seracchiani, M.; Di Nardo, D.; Versiani, M.A.; Piasecki, L.; Testarelli, L. In Vivo Evaluation of Operative Torque Generated by Two Nickel-Titanium Rotary Instruments During Root Canal Preparation. Eur. J. Dent. 2019, 13, 556–562. [Google Scholar] [CrossRef] [PubMed]
  55. Özyürek, H.; Elbay, M.; Özyürek, T. Assessment the impact of operator experience on cyclic fatigue resistance in reciprocating and rotary NiTi files: A comparative study between dental students and pediatric dentistry specialists. Front. Mater. 2023, 10, 1224938. [Google Scholar] [CrossRef]
  56. Rubio, J.; Zarzosa, J.I.; Pallarés, A. A Comparative Study of Cyclic Fatigue of 10 Different Types of Endodontic Instruments: An in Vitro Study. Acta Stomatol. Croat. 2019, 53, 28–36. [Google Scholar] [CrossRef]
  57. Kaval, M.E.; Capar, I.D.; Ertas, H.; Sen, B.H. Comparative evaluation of cyclic fatigue resistance of four different nickel-titanium rotary files with different cross-sectional designs and alloy properties. Clin. Oral Investig. 2017, 21, 1527–1530. [Google Scholar] [CrossRef]
  58. Gürler, K.; Yilmaz, S.; Dumani, A. Comparison of cyclic fatigue resistance of three different single-file systems after clinical use. BMC Oral Health 2024, 24, 1482. [Google Scholar] [CrossRef]
  59. Di Nardo, D.; Gambarini, G.; Seracchiani, M.; Mazzoni, A.; Zanza, A.; Giudice, A.D. Influence of different cross-section on cyclic fatigue resistance of two nickel–titanium rotary instruments with same heat treatment: An in vitro study. Saudi Endod. J. 2020, 10, 221–225. [Google Scholar] [CrossRef]
  60. Ersoy, I.; Kol, E.; Demirhan, U.A.; Tanriver, M.; Seckin, F. Comparison of cyclic fatigue resistance between different NiTi instruments with 4% taper. Microsc. Res. Tech. 2016, 79, 345–348. [Google Scholar] [CrossRef]
  61. Pedullà, E.; Plotino, G.; Scibilia, M.; Grande, N.M.; De Santis, D.; Pardo, A. Cyclic fatigue comparison among endodontic instruments with similar cross section and different surface coating. Minerva Stomatol. 2019, 68, 67–73. [Google Scholar] [CrossRef] [PubMed]
  62. Ha, J.H.; Cheung, G.S.; Versluis, A.; Lee, C.J.; Kwak, S.W.; Kim, H.C. ’Screw-in’ tendency of rotary nickel-titanium files due to design geometry. Int. Endod. J. 2015, 48, 666–672. [Google Scholar] [CrossRef] [PubMed]
  63. Gouédard, C.; Pino, L.; Arbab-Chirani, R.; Arbab-Chirani, S.; Chevalier, V. Comparison of the cyclic fatigue resistance of One Curve, F6 Skytaper, Protaper Next, and Hyflex CM endodontic files. Restor. Dent. Endod. 2022, 47, e16. [Google Scholar] [CrossRef] [PubMed]
  64. Iqbal, M.K.; Kohli, M.R.; Kim, J.S. A retrospective clinical study of incidence of root canal instrument separation in an endodontics graduate program: A PennEndo database study. J. Endod. 2006, 32, 1048–1052. [Google Scholar] [CrossRef]
  65. Terauchi, Y.; O’Leary, L.; Kikuchi, I.; Asanagi, M.; Yoshioka, T.; Kobayashi, C.; Suda, H. Evaluation of the efficiency of a new file removal system in comparison with two conventional systems. J. Endod. 2007, 33, 585–588. [Google Scholar] [CrossRef]
Medicina 61 00830 g001

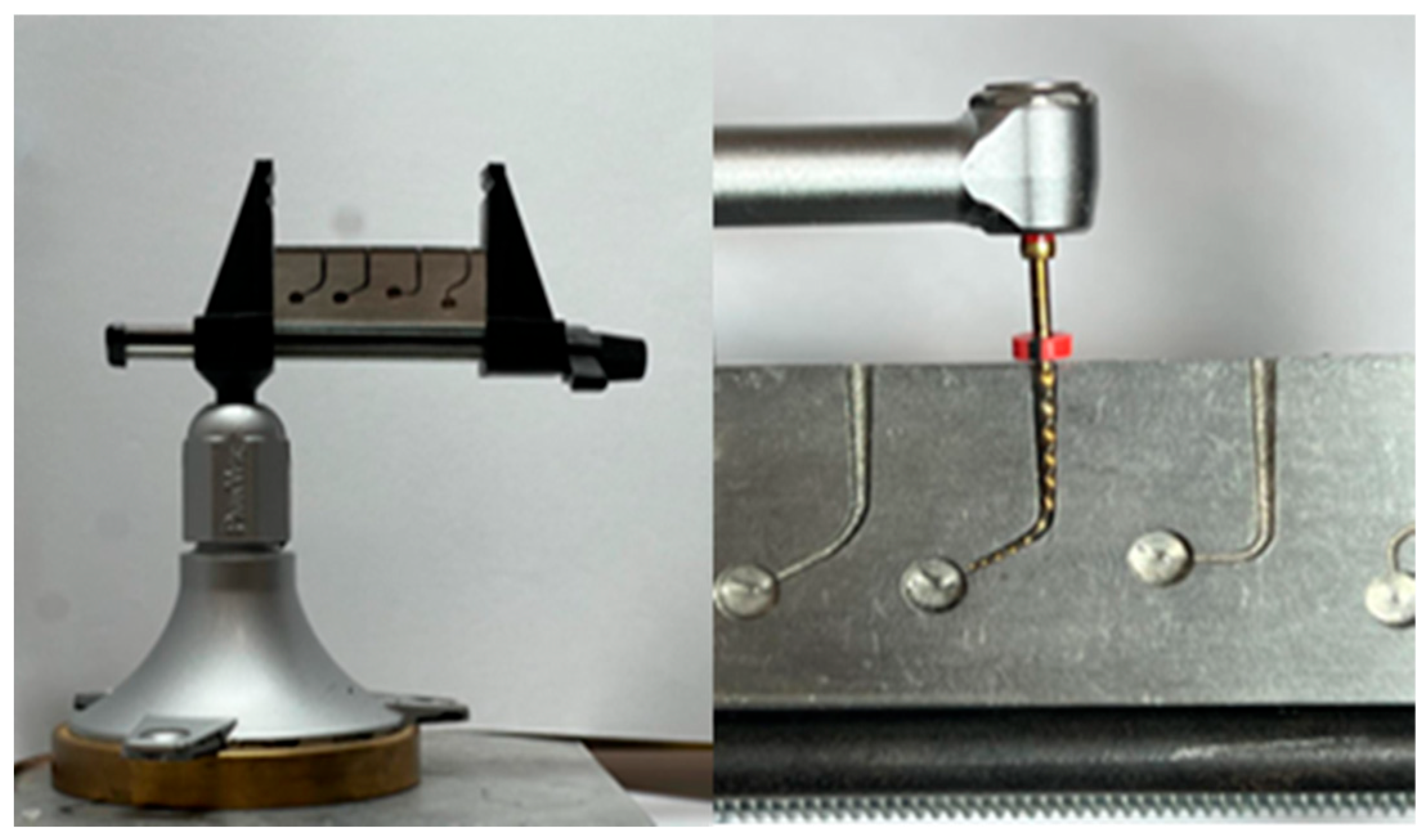

Figure 1. Cyclic fatigue testing apparatus with the test sample.
Figure 1. Cyclic fatigue testing apparatus with the test sample.
Medicina 61 00830 g001
Medicina 61 00830 g002

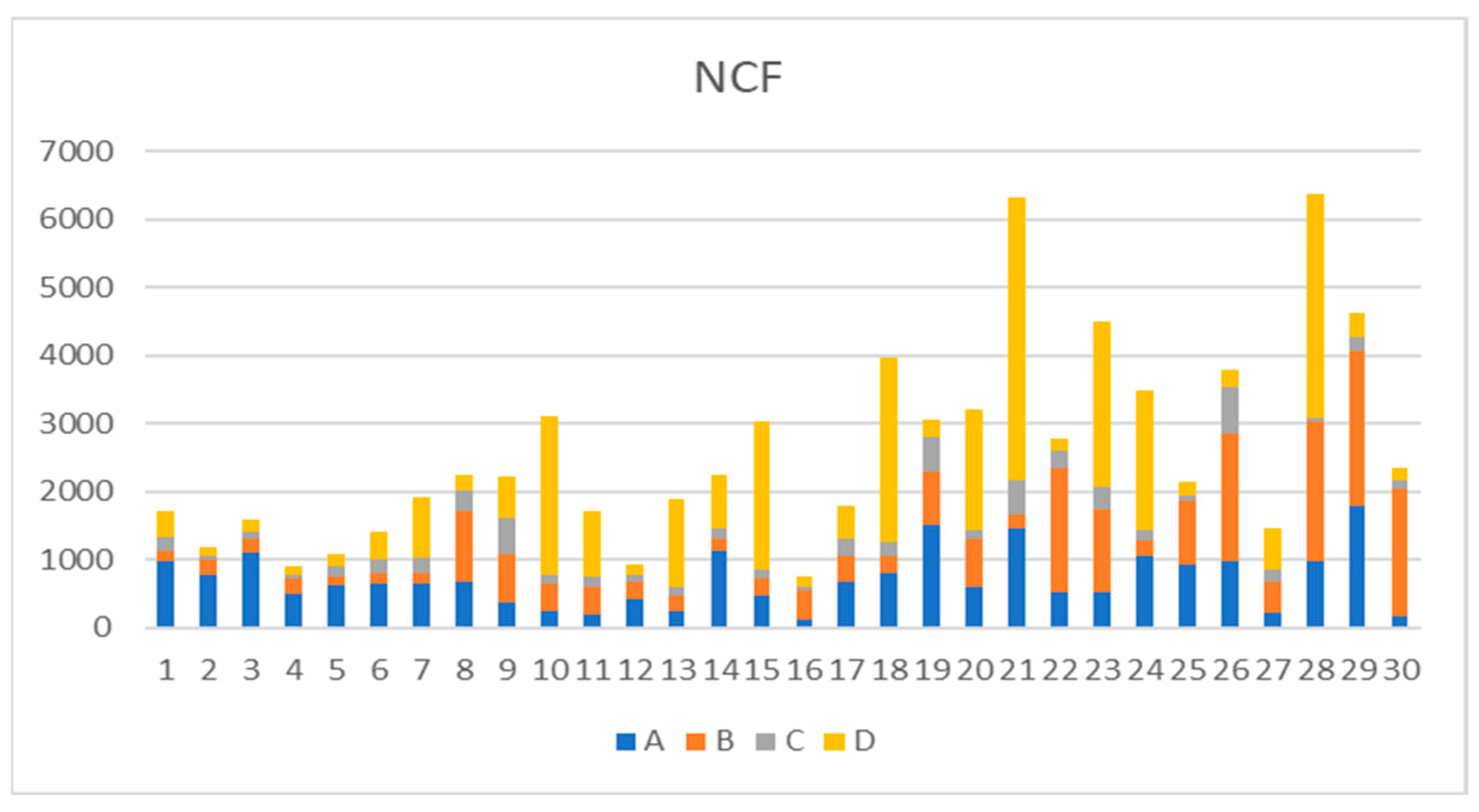

Figure 2. Graphical representation of NCF values of all samples.
Figure 2. Graphical representation of NCF values of all samples.
Medicina 61 00830 g002
Medicina 61 00830 g003

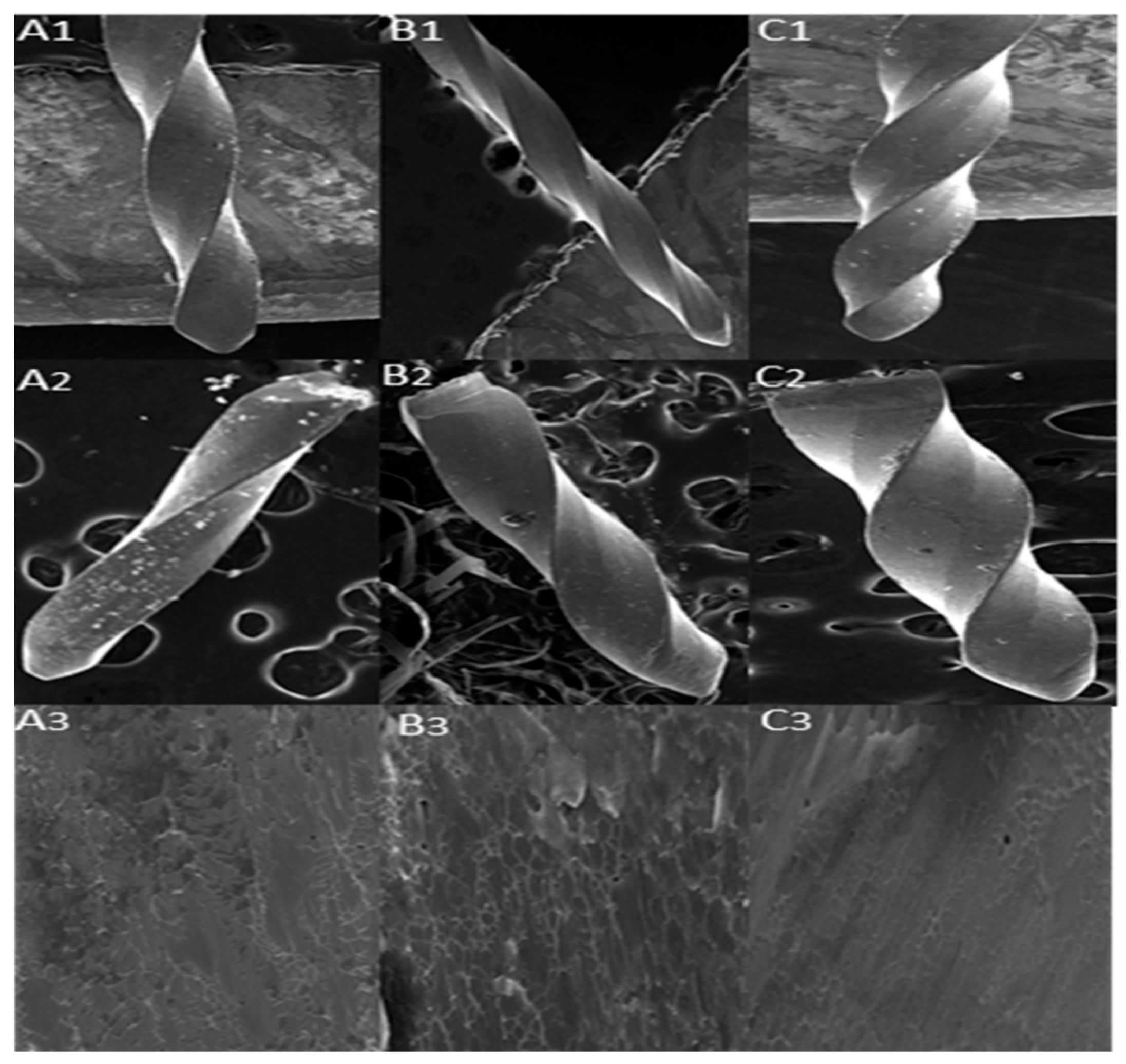

Figure 3. SEM Photomicrographs. (A1) 25 04% tapered Kedo SG file, (A2) fractured segment of the Kedo SG file, (A3) fracture zone at 1500× magnification, (B1) 25 04% tapered Neoendo Pedoflex file, (B2) fractured segment of the Neoendo pedoflex file, (B3) fracture zone at 1500× magnification, (C1) 25 04% tapered Waldent Pedoflex file, (C2) fractured segment of the Waldent Pedoflex file, (C3) fracture zone at 1500× magnification.
Figure 3. SEM Photomicrographs. (A1) 25 04% tapered Kedo SG file, (A2) fractured segment of the Kedo SG file, (A3) fracture zone at 1500× magnification, (B1) 25 04% tapered Neoendo Pedoflex file, (B2) fractured segment of the Neoendo pedoflex file, (B3) fracture zone at 1500× magnification, (C1) 25 04% tapered Waldent Pedoflex file, (C2) fractured segment of the Waldent Pedoflex file, (C3) fracture zone at 1500× magnification.
Medicina 61 00830 g003
Medicina 61 00830 g004

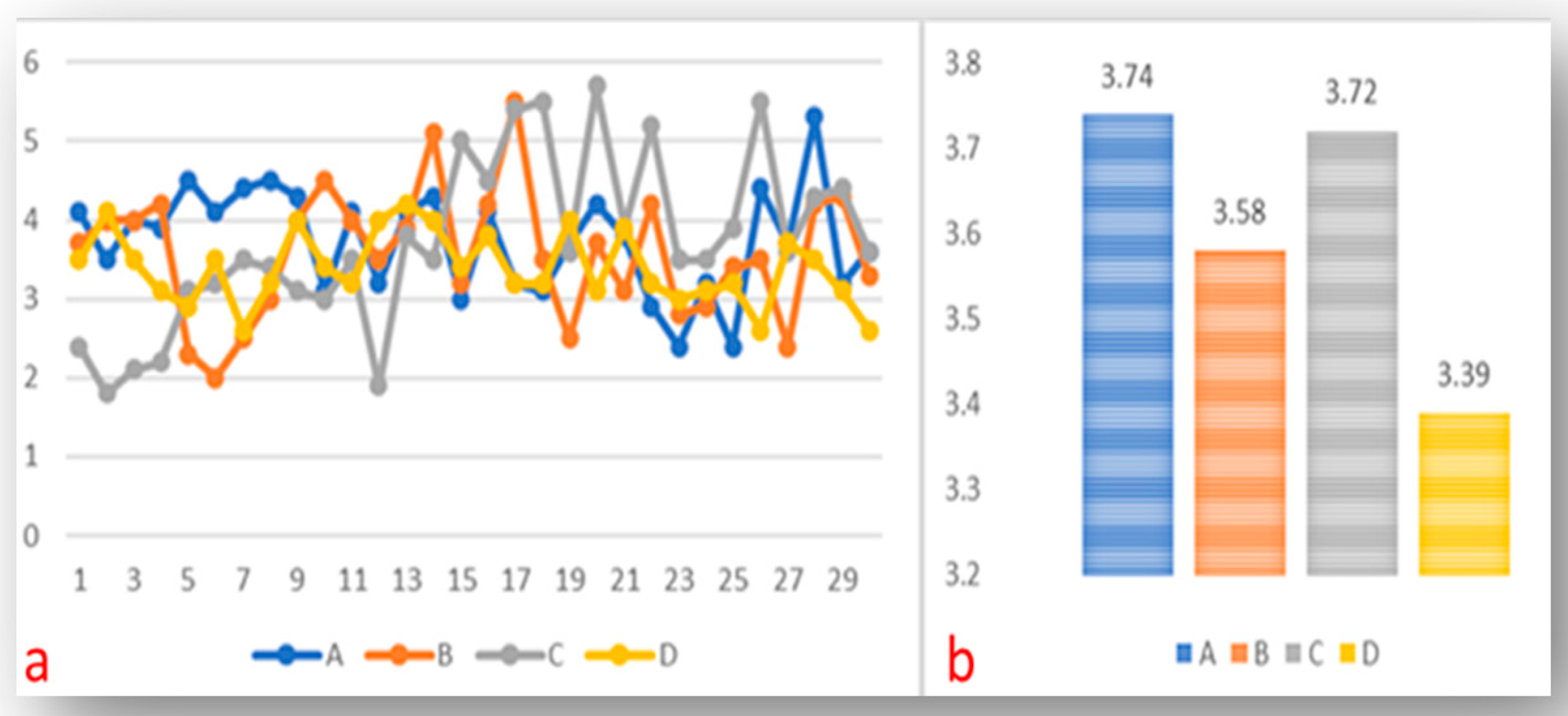

Figure 4. (a) Graphical representation of the length of fractured segments of files; (b) mean values of fractured segments.
Figure 4. (a) Graphical representation of the length of fractured segments of files; (b) mean values of fractured segments.
Medicina 61 00830 g004
Table 1. Description of the samples used in the study.
Table 1. Description of the samples used in the study.
VariableControl FileExperimental File
FileVortex BlueKedo SG (D1)Neoendo PedoflexPedoflex
ManufacturerDentsply Sirona, Ballaigues, SwitzerlandReeganz Dental Care Pvt. Ltd., Chennai, TN, India.Orikam Healthcare, Gurugram, Haryana, India.Waldent Innovations, Pvt.Ltd., New Delhi, India.
Tip size0.250.250.250.25
Taper4%4% (variable 4–8%)4%4%
Cross-sectional designConvex triangularTriangularTriangularTriangular
Surface treatmentHeat treated/titanium oxideHeat-treatedHeat-treatedHeat-treated
TipNon-cuttingNon-cuttingNon-cuttingNon-cutting
Table 2. Test of normality.
Table 2. Test of normality.
Kolmogorov–SmirnovShapiro–Wilk
GroupStatisticdfSigStatistic dfSig
A0.122300.200 *0.939300.077
NCFB0.264300.0000.757300.000
C0.207300.0020.808300.000
D0.246300.0000.775300.000
* Nonsignificant difference with p-value ≤ 0.05; Test results show non-parametric distribution.
Table 3. Non-parametric test based on mean NCF values.
Table 3. Non-parametric test based on mean NCF values.
GroupnMean with Std. DevMedianInter Quartile Range
A30697.01 ± 420.09645.33600.15
B30661.76 ± 655.09386.47721.28
C30203.88 ± 155.46161.33116.38
D30976.90 ± 1085.19414.19576.25
Table 4. Intergroup comparison.
Table 4. Intergroup comparison.
GroupGroups Mean Difference Zp
AB35.251.3730.17
C493.135.392<0.001 ***
D−279.880.5920.554
BC 457.874.210<0.001 ***
D −315.140.6270.531
CD −773.024.259<0.001 ***
Z = Mann–Whitney U test for inter-comparison; *** very highly significant.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Abushanan, A.; Sharanesha, R.B.; Aljarbou, F.; Alamri, H.; Almasud, M.H.; AlAzmah, A.; Alghamdi, S.; Mirza, M.B. Understanding Cyclic Fatigue in Three Nickel–Titanium Pediatric Files: An In Vitro Study for Enhanced Patient Care. Medicina 2025, 61, 830. https://doi.org/10.3390/medicina61050830

AMA Style

Abushanan A, Sharanesha RB, Aljarbou F, Alamri H, Almasud MH, AlAzmah A, Alghamdi S, Mirza MB. Understanding Cyclic Fatigue in Three Nickel–Titanium Pediatric Files: An In Vitro Study for Enhanced Patient Care. Medicina. 2025; 61(5):830. https://doi.org/10.3390/medicina61050830

Chicago/Turabian Style

Abushanan, Alwaleed, Rajashekhara Bhari Sharanesha, Fahd Aljarbou, Hadi Alamri, Mohammed Hamad Almasud, Abdulfatah AlAzmah, Sara Alghamdi, and Mubashir Baig Mirza. 2025. "Understanding Cyclic Fatigue in Three Nickel–Titanium Pediatric Files: An In Vitro Study for Enhanced Patient Care" Medicina 61, no. 5: 830. https://doi.org/10.3390/medicina61050830

APA Style

Abushanan, A., Sharanesha, R. B., Aljarbou, F., Alamri, H., Almasud, M. H., AlAzmah, A., Alghamdi, S., & Mirza, M. B. (2025). Understanding Cyclic Fatigue in Three Nickel–Titanium Pediatric Files: An In Vitro Study for Enhanced Patient Care. Medicina, 61(5), 830. https://doi.org/10.3390/medicina61050830

Article Metrics

Back to TopTop
