Introducing the Extended Safety Fractal: Reusing the Concept of Safety Management Systems to Organize Resilient Organizations
Abstract
:1. Introduction
2. Building the Safety Fractal

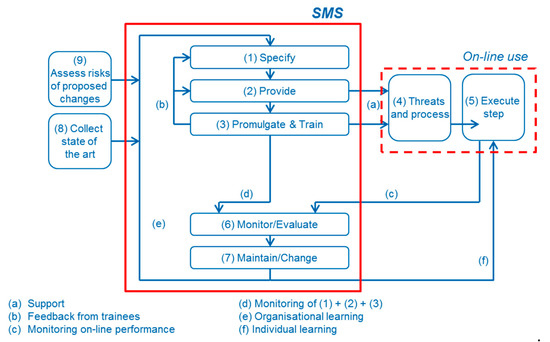

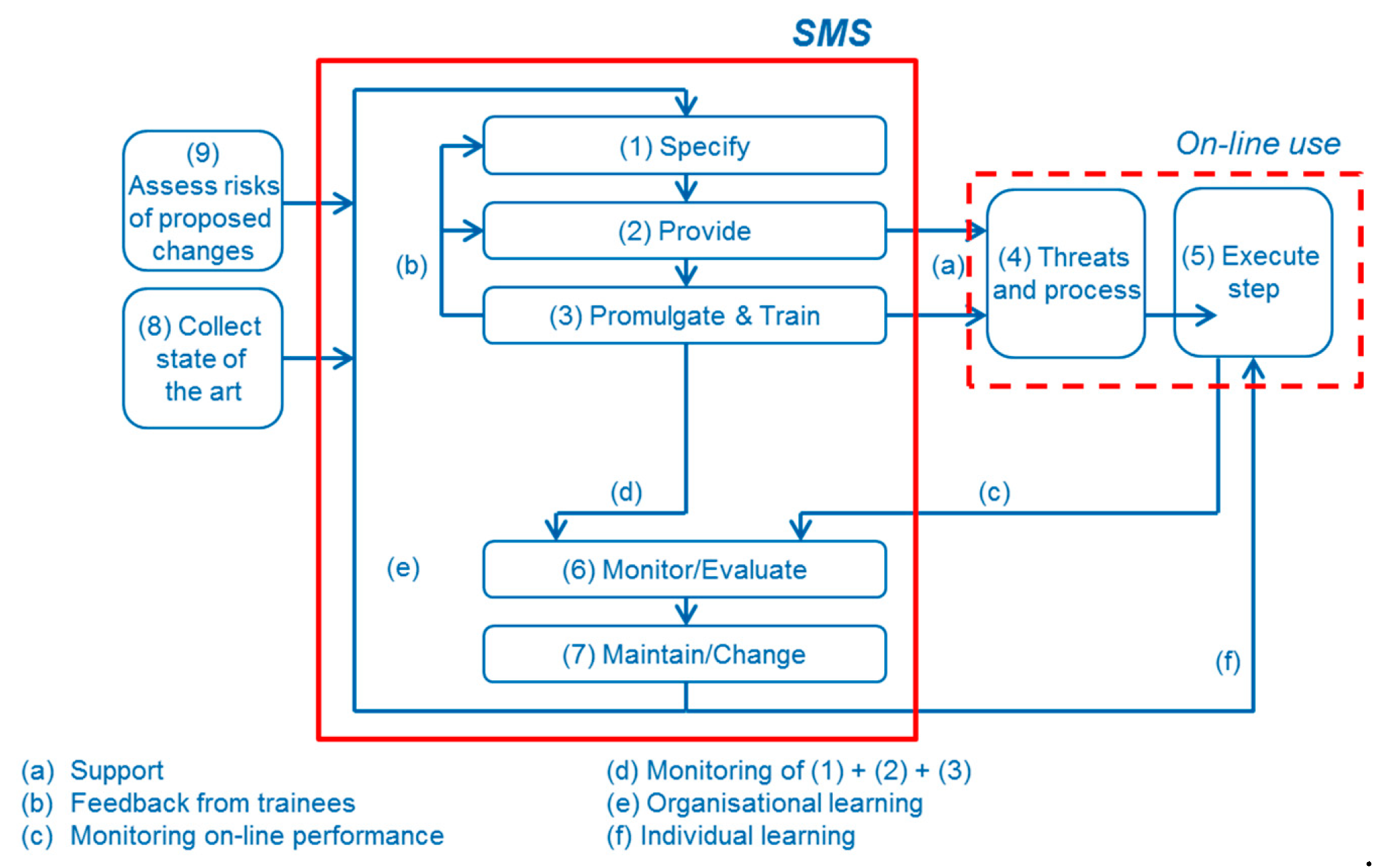

2.1. Modelling Safety Management Processes
- (1)
- Specify: defining the processes, identifying risks and control measures, based on task analysis of human and technological performance as risk control measure.
- (2)
- Provide: ensuring that the measure is designed, built, procured, installed and adjusted to its operating circumstances.
- (3)
- Promulgate and train: informing and training workforce to perform the designated actions.
- (6)
- Monitor/evaluation: detecting (potential) deviations from the specified functioning of risk control measures and evaluating performance at both the operational and management level.
- (7)
- Maintain/change: restoring or improving the functioning of risk control measures, including organizational learning.
- (8)
- Collect state of the art: learning from internal and/or external sources to improve operational and managerial performance.
- (9)
- Assess risks of proposed changes: identifying the potential impact when deciding to change risk control measures or delivery systems.
- (4)
- Threats and the internal process: the threats that could put in danger the adequate performance of human behavior, the technical system and/or the interaction between both, and that are to be managed by the steps at the management level of the delivery system.
- (5)
- Actions executed at the sharp end: the direct execution of the primary work process, by humans and technology, to be compared with the expected performance.
2.2. Taking into Account Process Capability
- A level of process performance that is modelling the direct functioning of the components that interact during process execution (“doing things”). This is also the level where variation against process specifications can be observed. The direct execution, as well as the sustainable performance, of a process results from the adequateness and capability of the delivery system that is composed of the following levels of process implementation and process control. This is in line with the definition of safety management, introduced by Lin [23], as “the process to provide the resources and controls designed to ensure that the internal processes are working properly to analyse and deal with the threats that interfere with it, so that they are managed to an acceptable level”.
- A level of process implementation, providing the resources and means to ensure the correct functioning (“doing things right” according to Zwetsloot, [24]) of the process components during process execution. Where the “Dutch” model identifies a behavioral and a technological component as relevant to be managed for control over process execution, the performed analysis identifies the additional need to also manage an organizational component of process design and deployment. This finding emphasizes what already in 1965 was stated by Leavitt, in his diamond: that the performance of people and technology are affected by an organization’s structure and the processes or tasks to be performed (in Deschoolmeester and Braet, [43]). Managing process performance will therefore require not only managing the separate components (an organization’s structure, the tasks or processes to be performed, the people and its technology) but also the possible interactions between them.
- A level of process control, ensuring the sustainable control of risks related to all activities of the organization in a possibly changing context (“doing the right things” according to Zwetsloot, [24]). The PDCA-cycle that is characteristic for the management system standards and that is also part of the “Dutch” safety management model finds its roots in system thinking and cybernetics [31]. Within a specified system, a process is executed to achieve a defined purpose, according to a specified pattern of progress. Because of external, environmental factors, progress can show some variation that is monitored at regular or irregular intervals to identify the gap between the desired and the actual state of the system. When a gap is identified, the system state is adapted. The identification of variables that allow the measurement of process performance is therefore an essential prerequisite. A similar logic is clearly present in the process attributes of the ISO 15504 capability model [32], resulting in the specification of three elements that together need to ensure the continuous and sustainable control of risks within a changing context: specify, verify and adapt.

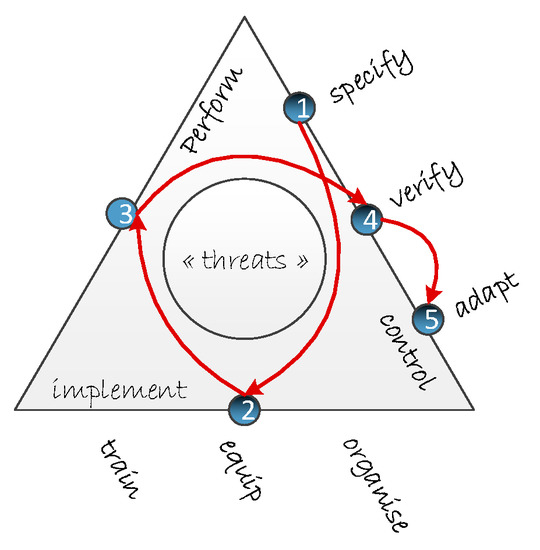

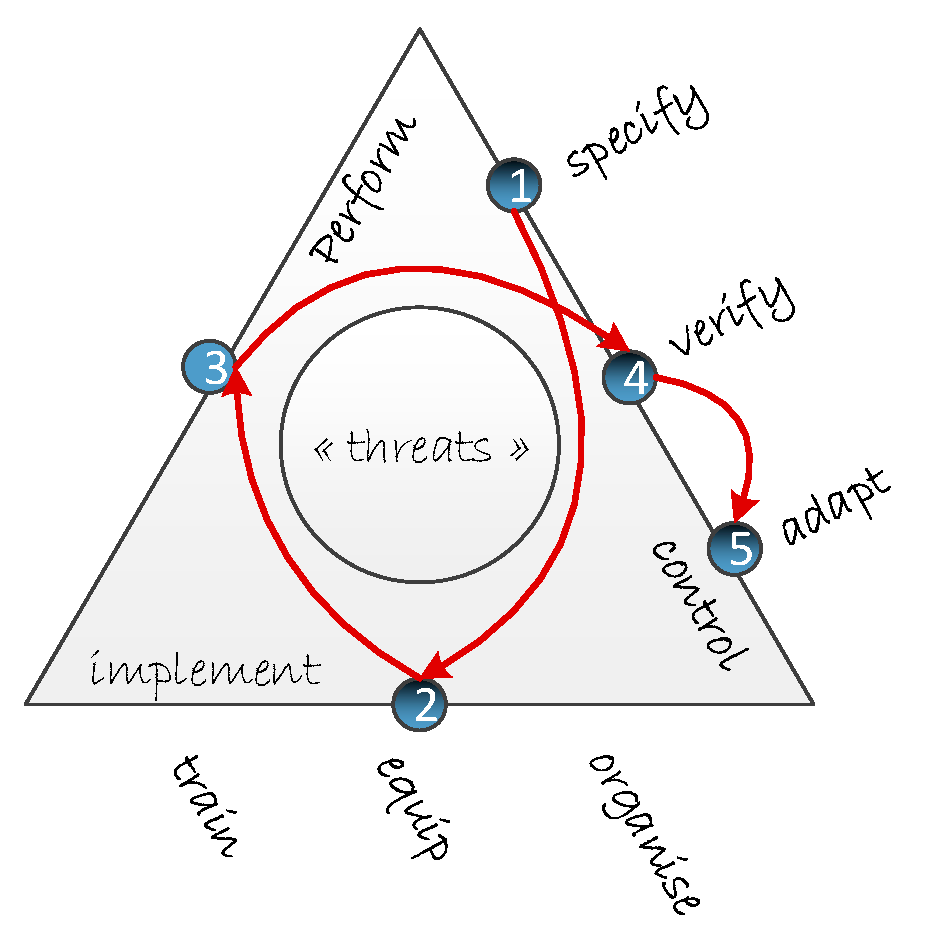

2.3. The resulting Safety Fractal
- (1)
- Specify: the scope and desired outcome of an activity is specified, roles and responsibilities identified, disrupting events are anticipated and risk control measures (rules, barriers) are designed (i.e., work as imagined).
- (2)
- Implement—train, equip, organize: all is done to have activities performed by enough competent people, adequate technical resources are put available and maintained, work products and resources to be used are identified and work is planned in detail.
- (3)
- Perform: the activity is executed, responding to real life constraints and disturbances (i.e., work as done).
- (4)
- Verify: the system’s performance is monitored, i.e., verifying the match between work as designed and work as actually performed, as well as the elements that could affect this performance in the near term.
- (5)
- Adapt: it is known what has happened and lessons are learned from experience and the adequate changes to control, or implementation elements, are introduced.
3. Organizing Resilience through the Safety Fractal
3.1. From Managing Threats to Managing Performance Variability
3.2. The Informal Aspect of Managing Safety

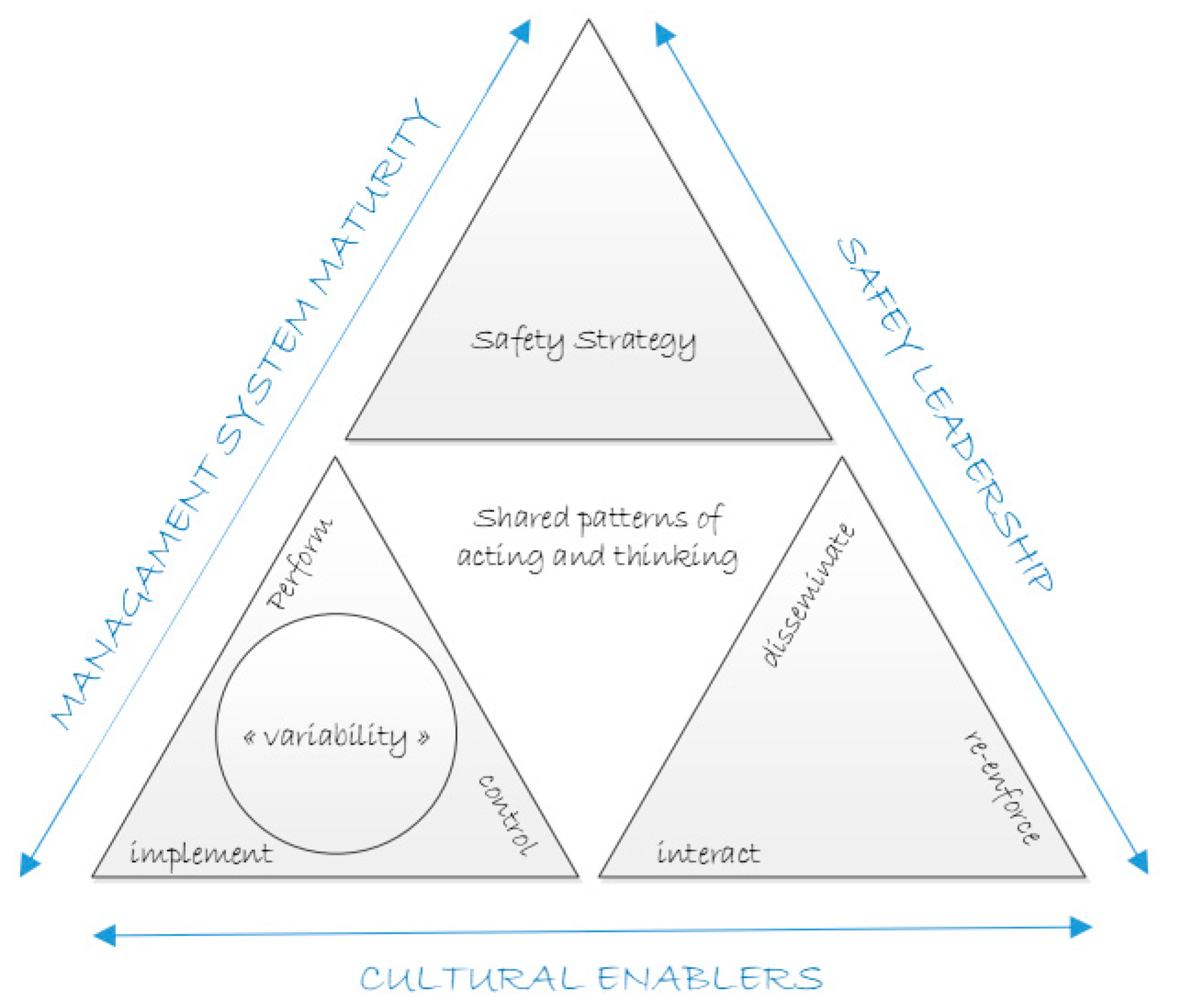

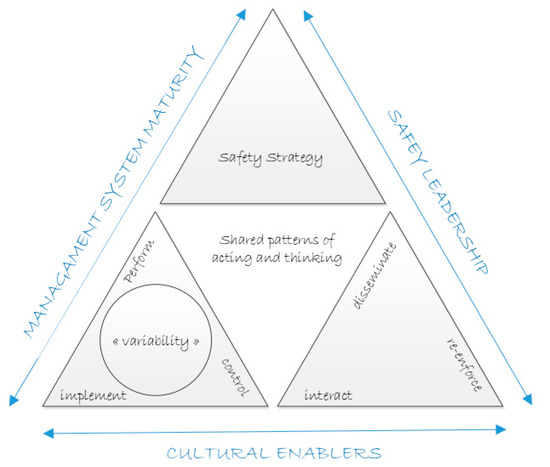

3.3. Developing the Extended Safety Fractal
- (1)
- create a safety vision that is coherent with the values and principles of management;
- (2)
- give safety its rightful place in the organization and management and oversee it on a daily basis;
- (3)
- share the safety vision: influence, persuade and promote the flow of information through the hierarchy;
- (4)
- be credible: provide a coherent example;
- (5)
- promote team spirit and horizontal cooperation;
- (6)
- be available on-site to observe, listen and communicate effectively;
- (7)
- acknowledge good practice and apply fair sanctions.
4. Discussion
5. Conclusions
Author Contributions
Funding
Conflicts of Interest
Appendix A
Implement | Train (3) | personnel performing the defined process are competent on the basis of appropriate education, training, and experience | |
Equip (2) | resources (energy, matter, …) | ||
infrastructure (equipment, hardware, software, …) | |||
work environment | |||
Organise | process purpose/output (i.e., production of an artefact, a significant change of state, meeting of specified constraints, e.g., requirements, goals, etc.) | ||
process performance objectives | |||
process performance planning | |||
work products | |||
work product requirements | |||
a standard process (i.e., the fundamental elements to be incorporated into a defined process) | |||
clear and appropriate tailoring guidelines | |||
Control | Specify (1) | process scope | process performance conditions and objectives |
process interfaces/(internal/external) partnerships | |||
the sequence and interaction of the standard process with other processes/(internal/external partnerships) | |||
process information needs in support of relevant defined business goals | |||
quantitative objectives for process performance in support of relevant business goals | |||
responsibilities | responsibilities for performing the process | ||
authorities for performing the process | |||
accountability for process performance | |||
risks | risks to the achievement of the process objectives, to the achievement of the business objectives or related to regulatory obligations | ||
control activities that contribute to the mitigation of risks to the achievement of process/business objectives or regulatory obligations | |||
control limits of variation for normal process performance | |||
process improvement objectives that support the relevant business goals | |||
change (9) | technical, organizational and/or operational changes to the process | ||
Verify (6) | effectiveness (i.e., delivered process output vs expected output) | ||
compliance (i.e., process execution vs planning) | |||
quality control (i.e., supplied quality of work products vs expected or required quality level of work products) | |||
process efficiency (i.e., optimal resource consumption in relation to obtained results) | |||
efficiency of risk control measures (i.e., variation in performance of RCM) | |||
quality perception (i.e., outcome vs business goals/strategy) | |||
benchmark (i.e., performance compared to competitors or internal/external 3rd parties) | |||
Adapt (7) | to adjust process performance to meet plans | ||
to adjust work products as necessary to meet requirements | |||
to improve the suitability and effectiveness of the process | |||
to address special causes of variation | |||
to re-establish control limits (as necessary) following corrective action | |||
to address opportunities for best practice and innovation | |||
to integrate new technologies and process concepts |
References
- Hale, A.R.; Heming, B.H.J.; Carthey, J.; Kirwan, B. Modelling of Safety Management Systems. Saf. Sci. 1997, 26, 121–140. [Google Scholar] [CrossRef]
- Cullen, L.W.D. The Public Inquiry into the Piper Alpha Disaster. Available online: https://www.hse.gov.uk/offshore/piper-alpha-disaster-public-inquiry.htm. (accessed on 7 July 2020).
- Vierendeels, G.; Reniers, G.L.L.; Ale, B.J.M. Modelling the major accident prevention legislation change process within Europe. Saf. Sci. 2011, 49, 513–521. [Google Scholar] [CrossRef]
- Leveson, N. The Use of Safety Cases in Certification and Regulation. Available online: https://dspace.mit.edu/handle/1721.1/102833 (accessed on 7 July 2020).
- Grote, G. Safety management in different high-risk domains—All the same? Saf. Sci. 2012, 50, 1983–1992. [Google Scholar] [CrossRef]
- Deharvengt, S. Regulating Airlines’ Safety Management System: When Proceduralization of Risks Meets Risk Owners. In Trapping Safety into Rules: How Desirable or Avoidable is Proceduralizatio; Bieder, C., Bourrier, M., Eds.; Ashgate Publishing Limited: Farnham, UK, 2013; pp. 157–171. [Google Scholar]
- Fowler, D. Proceduralization of safety Assessment: A Barrier to Rational Thinking. In Trapping Safety into Rules: How Desirable or Avoidable Is Proceduralization; Bieder, C., Bourrier, M., Eds.; Ashgate Publishing Limited: Farnham, UK, 2013; pp. 87–106. [Google Scholar]
- Lappalainen, J. Overcoming Obstacles to Implementing SMS. Available online: https://www.itf-oecd.org/overcoming-obstacles-implementing-sms (accessed on 23 November 2017).
- Maurino, D. Why SMS: An Introduction and Overview of Safety Management Systems. Available online: https://www.itf-oecd.org/why-safety-management-systems (accessed on 23 November 2017).
- Hollnagel, E. Safety-II in Practice: Developing the Resilience Potentials; Routledge: Abingdon, UK, 2018. [Google Scholar]
- Antonsen, S. Safety Culture: Theory, Method and Improvement; Ashgate Publishing Limited: Farnham, UK, 2009. [Google Scholar]
- Guldenmund, F.W. Organisational safety culture. In The Wiley-Blackwell Handbook of the Psychology of Occupational Safety and Workplace Health; Clarke, S., Probst, T., Guldenmund, F., Passmore, J., Eds.; John Wiley & Sons Ltd.: Chichester, UK, 2015. [Google Scholar]
- ICSI. La Culture de Sécurité; Comprendre Pour Agir-n 2017-01 de la Collection Les Cahiers de la Sécurité Industrielle; Institut pour une culture de sécurité industrielle (ICSI): Toulouse, France, 2017. [Google Scholar]
- Kringen, J. Proceduralization and Regulation of Culture: Experiments on the Frontiers of Risk Regulation. In Trapping Safety into Rules: How Desirable or Avoidable Is Proceduralization; Bieder, C., Bourrier, M., Eds.; Ashgate Publishing Limited: Farnham, UK, 2013; pp. 205–224. [Google Scholar]
- Daniellou, F.; Simard, M.; Boissières, I. Les Cahiers de la Sécurité Industrielle. In Facteurs Humains et Organisationnels de la Sécurité Industrielle: Un État de l’art; Institut pour une Culture de Sécurité Industrielle (ICSI): Toulouse, France, 2010. [Google Scholar]
- Grote, G.; Weichbrodt, J. Why Regulators Should Stay Away from Safety Culture and Stick to Rules Instead. In Trapping Safety into Rules: How Desirable or Avoidable Is Proceduralization; Bieder, C., Bourrier, M., Eds.; Ashgate Publishing Limited: Farnham, UK, 2013; pp. 225–240. [Google Scholar]
- Kelly, T. The Role of the Regulator in SMS. In International Transport Forum Discussion Papers 2017-17; OECD/ITF: Paris, France, 2017. [Google Scholar]
- Cambon, J. Vers Une Nouvelle Méthodologie de Mesure de la Performance des Système de Management de la Santé-Sécurité au Travail; École Nationale Supérieure des Mines de Paris: Paris, France, 2007. [Google Scholar]
- Schröder-Hinrichs, J.-U.; Praetorius, G.; Graziano, A.; Kataria, A.; Baldauf, M. Introducing the Concept of Resilience into Maritime Safety. Presented at the 6th Resilience Engineering Association’s International Symposium, Lisbon, Portugal, 22–25 June 2015. [Google Scholar]
- Bottani, E.; Monica, L.; Vignali, G. Safety management systems: Performance differences between adopters and non-adopters. Saf. Sci. 2009, 47, 155–162. [Google Scholar] [CrossRef]
- RSSB. Safety Culture and Behavioural Development: Common Factors for Creating a Culture of Continuous Improvement. Available online: https://www.sparkrail.org/Lists/Records/DispForm.aspx?ID=22302 (accessed on 16 January 2020).
- Mohammadfam, I.; Komalinia, M.; Momeni, M.; Golmohammadi, R.; Hamidi, Y.; Soltanian, A. Evaluation of the Quality of Occupational Health and Safety Management Systems Based on Key Performance Indicators in Certified Organizations. Saf. Health Work 2017, 8, 156–161. [Google Scholar] [CrossRef] [PubMed]
- Lin, P.-H. Safety Management and Risk Modelling in Aviation: The Challenge of Quantifying Management Influences. Ph.D. Thesis, Next Generation Infrastructures Foundation, Van der Burghweg, The Netherlands, 2011. uuid:3b293559-81ed-4450-aa78-005bbd9054f1. [Google Scholar]
- Zwetsloot, G.I.J.M. Developments and debates on OHSM system standardization and certification. In Systematic Occupational Safety & Health Management–Perspectives on an International Development; Frick, K., Quinlan, M., Langaa Jensen, P., Wilthagen, T., Eds.; Pergamon-Elsevier Science Ltd.: Amsterdam, The Netherlands, 2000; pp. 391–412. [Google Scholar]
- Pariès, J.; Macchi, L.; Valot, C.; Derhavengt, S. Comparing HROs and RE in the light of safety management systems. Saf. Sci. 2019, 117, 501–511. [Google Scholar]
- Hollnagel, E. Safety-I and Safety-II: The Past and Future of Safety Management; Ashgate Publishing: Farnham, UK, 2014. [Google Scholar]
- Peltonen, J.S. Review of SMS Audit Techniques and Methods–Final Report; Contract ERA/2012/SAF/S-02; European Union Agency for Railways: Lille, France, 2013. [Google Scholar]
- Groeneweg, J. Controlling the Controllable: The Management of Safety; DSWO Press, Leiden University: Leiden, The Netherlands, 1992. [Google Scholar]
- Kuusisto, A. Safety Management Systems–Audit Tools and Reliability of Auditing; Technical Research Centre of Finland, VTT Publications: Espoo, Finland, 2000; Volume 428. [Google Scholar]
- Lofquist, E.A. Jousting with Dragons: A Resilience Engineering approach to manage SMS in the transport sector. In International Transport Forum Discussion Papers 2017-19; OECD/ITF: Paris, France, 2017. [Google Scholar]
- Hardjono, T.W.; Bakker, R.J.M. Management van Processen: Identificeren, Besturen, Beheersen en Vernieuwen (Derde, Geheel Herziene Druk); Kluwer: Dordrecht, The Netherlands, 2006. [Google Scholar]
- ISO. ISO/IEC 15504-2:2003, Information Technology—Process Assessment—Part 2: Performing an Assessment; International Organization for Standardization (ISO): Geneva, Switzerland, 2004. [Google Scholar]
- International Civil Aviation Organization. Annex 19 to the Convention on International Civil Aviation: Safety Management; International Standards and Recommended Practices; ICAO: Montreal, QC, Canada, 2013. [Google Scholar]
- Directive (EU) 2016/798 of the European Parliament and of the Council of 11 May 2016 on Railway Safety (Recast). Available online: https://eur-lex.europa.eu/legal-content/fr/TXT/?uri=CELEX%3A32016L0798 (accessed on 7 June 2020).
- DIRECTIVE 2004/49/EC OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 29 April 2004 on Safety on the Community’s Railways and Amending Council Directive 95/18/EC on the Licensing of Railway Undertakings and Directive 2001/14/EC on the Allocation of Railway Infrastructure Capacity and the Levying of Charges for the Use of Railway Infrastructure and Safety Certification (Railway Safety Directive). Available online: https://eur-lex.europa.eu/legal-content/FR/TXT/?uri=CELEX:32004L0049 (accessed on 7 June 2020).
- Rosness, R. The Proceduralization of Traffic safety and Safety Management in the Norwegian Rail Administration: A Comparative Case Study. In Trapping Safety into Rules: How Desirable or Avoidable Is Proceduralization; Bieder, C., Bourrier, M., Eds.; Ashgate Publishing Limited: Farnham, UK, 2013; pp. 173–189. [Google Scholar]
- Le Coze, J.-C.; Wiig, S. Beyond Procedures: Can ‘Safety Culture’ Be Regulated. In Trapping Safety into Rules: How Desirable or Avoidable Is Proceduralization; Bieder, C., Bourrier, M., Eds.; Ashgate Publishing Limited: Farnham, UK, 2013; pp. 191–203. [Google Scholar]
- Bourrier, M.; Bieder, C. Trapping Safety into Rules: An Introduction. In Trapping Safety into Rules: How Desirable or Avoidable Is Proceduralization; Bieder, C., Bourrier, M., Eds.; Ashgate Publishing Limited: Farnham, UK, 2013; pp. 1–9. [Google Scholar]
- Hale, A.; Borys, D. Working to Rule, or Working Safely. In Trapping Safety into Rules: How Desirable or Avoidable Is Proceduralization; Bieder, C., Bourrier, M., Eds.; Ashgate Publishing Limited: Farnham, UK, 2013; pp. 43–68. [Google Scholar]
- Verweire, K. Strategy Implementation; Routledge: New York, NY, USA, 2014. [Google Scholar]
- Holnagel, E. FRAM: The Functional Resonance Analysis Method: Modelling Complex Socio-Technical Systems; Ashgate Publishing Ltd.: Aldershot, UK, 2012. [Google Scholar]
- Fractal. Available online: https://en.wikipedia.org/wiki/Fractal (accessed on 5 January 2018).
- Deschoolmeester, D.; Braet, O. Strategic Information Systems Alignment. In Integrated Performance Management: A Guide to Strategy Implementation; Verweire, K., Van den Berghe, L., Eds.; Sage Publications: Thousand Oaks, CA, USA, 2004; pp. 135–151. [Google Scholar]
- Accou, B.; Reniers, G. Developing a method to improve safety management systems based on accident investigations: The Safety Fractal Analysis. Saf. Sci. 2019, 115, 185–293. [Google Scholar] [CrossRef]
- Wahlström, B.; Rollenhagen, C. Safety management-A multi-level control problem. Saf. Sci. 2014, 69, 3–17. [Google Scholar]
- Hollnagel, E. Cognitive Reliability and Error Analysis Method (CREAM); Elsevier Science Ltd.: Amsterdam, The Netherlands, 1998. [Google Scholar]
- Van Schaardenburgh-Verhoeve, K.N.R.; Corver, S.; Groenweg, J. Ongevalsonderzoek buiten de grenzen van de organisatie. In Proceedings of the Nederlandse Vereniging Voor Veiligheidskunde (NVVK) Jubileumcongres, Arnhem, The Netherlands, 25–26 April 2007. [Google Scholar]
- Leveson, N.G. Engineering a Safer World; MIT Press: Cambridge, MA, USA, 2011. [Google Scholar]
- Herrera, I.A.; Hollnagel, E.; Habrekke, S. Proposing safety performance indicators for helicopter offshore on the Norwegian Continental Shelf. Presented at PSAM, Seattle, WA, USA,, 7–11 June 2010. [Google Scholar]
- Johnsen, S. Resilience in risk analysis and risk assessment. In Critical Infrastructure Protection IV; IFIP AICT 342; Moore, T., Shenoi, S., Eds.; IFIP: Laxenburg, Austria, 2010; pp. 215–227. [Google Scholar]
- Hollnagel, E. Understanding Accidents-From Root Causes to Performance Variability. In Proceedings of the 2002 IEEE 7th Conference on Human Factors and Power Plants, Scottsdale, AZ, USA, 19 September 2002. [Google Scholar]
- Hollnagel, E. From protection to resilience: Changing views on how to achieve safety. In Proceedings of the 8th International Symposium of the Australian Psychology Association, Sidney, Australia, 8–11 April 2008; p. 7. [Google Scholar]
- Hollnagel, E. The four cornerstones of resilience engineering. In Preparation and Restoration; Nemeth, C.P., Hollnagel, E., Dekker, S., Eds.; Ashgate: Aldershot, UK, 2009; pp. 117–134. [Google Scholar]
- Hollnagel, E.; Woods, D.D.; Leveson, N. Resilience Engineering: Concepts and Precepts; Ashgate Publishing Limited: Aldershot, UK, 2006. [Google Scholar]
- Denyer, D. Organizational Resilience: A Summary of Academic Evidence, Business Insights and New Thinking; BSI and Cranfield School of Management: Bedford, UK, 2017. [Google Scholar]
- Le Coze, J.C. Hopkins’ view of structure and culture (one step closer to strategy). Saf. Sci. 2020, 122, 104541. [Google Scholar] [CrossRef]
- Dekker, S. Drift into Failure: From Hunting Broken Components to Understanding Complex Systems; Ashgate Publishing: Aldershot, UK, 2011. [Google Scholar]
- Hollnagel, E. The ETTO Principle: Efficiency-Thoroughness Trade-Off-Why Things That Go Right Sometimes Go Wrong; Ashgate Publishing: Aldershot, UK, 2009. [Google Scholar]
- Amalberti, R. The paradoxes of almost safe transportation systems. Saf. Sci. 2001, 37, 109–126. [Google Scholar] [CrossRef]
- Amalberti, R. Piloter la Sécurité–Théories et Pratiques sur les Compromise et les Arbitrages Nécessaires; Springer-Verlag France: Paris, France, 2013. [Google Scholar]
- Lofquist, E.A. The art of measuring nothing: The paradox of measuring safety in changing civil aviation industry using traditional safety metrics. Saf. Sci. 2010, 48, 1520–1529. [Google Scholar] [CrossRef] [Green Version]
- Agnew, J.; Daniels, A. Safe by Accident? Take the LUCK out of SAFETY: Leadership Practices that Build a Sustainable Safety Culture; Performance Management Publications: Atlanta, GA, USA, 2010. [Google Scholar]
- Argyrys, C.; Schön, D.A. Organizational Learning II-Theory, Method, and Practice; Addison-Wesley Publishing Company: Boston, MA, USA, 1996. [Google Scholar]
- ICSI. Leadership in Safety: Industrial Practice Number 2013-06 of the Cahiers de la Sécurité Industrielle; Institute for an industrial safety culture: Toulouse, France, 2013; ISSN 2100–3874; Available online: http://www.icsi-eu.org/docsi/fr/ (accessed on 15 February 2018).
- De Cnudde, P.; Hindryckx, B.; Bauwens, M.; Carrette, B.; Verweire, K. Introducing Maturity Alignment: Basic Concepts. In Integrated Performance Management–A Guide to Strategy Implementation; Verweire, K., Van Den Berghe, L., Eds.; Sage Publications: Thousand Oaks, CA, USA, 2004; pp. 275–292. [Google Scholar]
- Hale, A.; Guldenmund, F.; Goossens, L. Auditing Resilience in Risk Control and Safety Management Systems. In Resilience Engineering: Concepts and Precepts; Hollnagel, E., Woods, D.D., Leveson, N., Eds.; Ashgate Publishing Limited: Aldershot, UK, 2006; pp. 289–314. [Google Scholar]
- Costella, M.F.; Abreu Saurin, T.; Buarque de Macedo Guimarães, L. A method for assessing health and safety management systems from the resilience engineering perspective. Saf. Sci. 2009, 47, 1056–1067. [Google Scholar] [CrossRef]
- Accou, B.; Reniers, G. Analysing the depth of railway accident investigation reports on over-speeding incidents, using an innovative method called “SAFRAN”. In Accident Investigation and Learning to Improve Safety Management in Complex System: Remaining Challenges. Proceedings of the 55th ESReDA, Seminar, Bucharest, Romania, 9–10 October 2018; European Comision: Brussels, Belgium, 2018. [Google Scholar]
- Rasmussen, J.; Svedung, I. Proactive Risk Management in a Dynamic Society; Swedish Rescue Services Agency: Karlstad, Sweden, 2000. [Google Scholar]
- Leveson, N.G. Rasmussen’s legacy: A paradigm change in engineering for safety. Appl. Ergonom. 2016, 59, 581–591. [Google Scholar] [CrossRef] [PubMed]
- Underwood, P.; Waterson, P. Systemic accident analysis: Examining the gap between research and practice. Accid. Anal. Prev. 2013, 55, 154–164. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Haavik, T.K.; Antonsen, S.; Rosness, R.; Hale, A. HRO and RE: A pragmatic perspective. Saf. Sci. 2019, 117, 479–489. [Google Scholar] [CrossRef] [Green Version]
Level 0: Incomplete process The process is not implemented, or fails to achieve its process purpose. | |
Level 1: Performed process The implemented process achieves its process purpose. | PA 1.1 Process performance attribute |
Level 2: Managed process The previously described Performed process is now implemented in a managed fashion (planned, monitored and adjusted) and its work products are appropriately established, controlled and maintained. | PA 2.1 Performance management attribute PA 2.2 Work product management attribute |
Level 3: Established process The previously described Managed process is now implemented using a defined process that is capable of achieving its process outcomes. | PA 3.1 Process definition attribute PA 3.2 Process deployment attribute |
Level 4: Predictable process The previously described Established process now operates within defined limits to achieve its process outcomes. | PA 4.1 Process measurement attribute PA 4.2 Process control attribute |
Level 5: Optimizing process The previously described Predictable process is continuously improved to meet relevant current and projected business goals | PA 5.1 Process innovation attribute PA 5.2 Process optimization attribute |
