Environmental Footprint of Wastewater Treatment: A Step Forward in the Use of Toxicological Tools

Abstract

The assessment of the actual impact of discharged wastewater on the whole ecosystem and, in turn, on human health requires the execution of bioassays. In effect, based on the chemical characterization alone, the synergistic/antagonistic effect of mixtures of pollutants is hardly estimable. The aim of this work was to evaluate the applicability of a battery of bioassays and to suggest a smart procedure for results representation. Two real wastewater treatment plants were submitted to analytical campaigns. Several baseline toxicity assays were conducted, together with tests for the determination of endocrine activity, genetic toxicity and carcinogenicity of wastewater. A “traffic light” model was adopted for an easy-to-understand visualization of the results. Although the legal prescriptions of chemical parameters are fully complied with, bioassays show that a certain biological activity still residues in the treated effluents. Moreover, influent and effluent responses are not always appreciably different. Some tests employing human cells were revealed to be only partially adequate for environmental applications. An interesting and helpful development of the present approach would consist in the estimation of biological equivalents of toxicity, as shown for the estrogenic compound 17-β-estradiol.

1. Introduction

Water policies have been changing progressively during the recent decades, keeping up with the awareness of the need to save and preserve this resource.

The protection of water resources (in terms of volume and quality) goes far beyond mere compliance with the existing legal limits and guidelines: a radical change of perspective has been increasingly needed, leading to water resources being considered as part of complex ecosystems, where abiotic factors and biotic components coexist. Consequently, the entire supply chain, from the catchment of water for human consumption to its discharge into the environment, is experiencing progressive improvements, with the final aim to decrease the anthropogenic impact on waterbodies.

From this point of view, a careful and deep evaluation of potential effects of the Waste Water Treatment Plant (WWTP) effluents discharged into surface water, on both ecosystem and human health is of primary importance. WWTPs, in effect, may represent hotspots for those trace pollutants collected by sewers: the upgrading and development of efficient treatment technologies and the implementation of adequate process schemes represent the first response to this issue. The choice of the optimal solutions, however, must be based on the knowledge of the real impact of a plant [1,2,3].

It is widely recognized that a wastewater characterization focused only on chemical analyses provides a partial representation of the effects of a WWTP effluent. Several studies, indeed, have shown that only an integrated monitoring based both on chemical analyses and biological assays can yield to a more realistic evaluation of sewage degradation and detoxification performance of a WWTP [4,5,6,7]. In particular, testing an effluent as a whole, via the exposure to particular organisms allows overcoming the limitations caused by the very well-known phenomena of “something-from-nothing” and “a-lot-from-a-little”. These events are due to the possible compresence of analytes with different modes of toxic actions, also at concentrations lower than those causing quantifiable effects. Beside these conventional tests commonly prescribed by the international and national laws, deeper insights include the investigation of initiating key events, consisting in the very first interactions of chemical stressors with specific targets. By this way, major health-relevant toxicity pathways (e.g., endocrine disruption, tumor promotion) can be evidenced, even in the awareness that early repairing mechanisms might take place.

The aforementioned statements, which are still valid for mixtures, are even more important in case of wastewater treatment processes, where physical, chemical and biological transformations and decompositions lead to the production of new substances.

The results of an integrated monitoring, based on chemical analyses and toxicological tests, could be successfully integrated in the environmental footprint evaluation based on a Life Cycle Assessment (LCA) approach, which represents a useful tool for evaluating and benchmarking the actual impact of products and organizations [8,9].

Notwithstanding the general scientific consensus about the invaluable role of bioassays in environmental toxicity assessment, and the host of projects/studies/working groups (e.g., Tox21 [10]; EUTox-Risk [11]; the OECD platform [12]; SeqAPASS [13]), there is still an open debate about the choice of the most suitable tests, to be performed each time, also because of the lack of experience regarding the applications on real WWTPs.

The main aim of this work is to contribute to cover the gap of knowledge caused by the missed application of (existing or to be adjusted) bioassays, which are shown to be a powerful tool for understanding the real interactions of matrices discharged into the environment. Even more importantly, an attempt for overcoming ambiguity and misinterpretation of the results is presented. Common toxicological tools, such as tests performed on crustaceans, algae and luminescent bacteria, have been designed for evaluating effluent quality for legal purposes. The assessment of the real impact of wastewater discharge, however, should include a wide range of different biological target [14]. Therefore, a clear, broad and univocal synthetic way to represent ecotoxicological results should be developed. In this work, an integrated monitoring approach, using complementary chemical analyses and biological assays, was applied on two different WWTPs (one of these tested under two different operative conditions). Experimental results were processed and a “traffic light” easy-to-read representation was proposed.

2. Methods

2.1. The Studied WWTPs

The municipal WWTPs chosen as case studies are located in the North of Italy. WWTP A (design size 370,000 p.e.) treats domestic wastewater with a remarkable contribution of industrial discharge from the agro-food sector. WWTP B (design size 60,000 p.e.) treats important amounts of winery effluents, which, during the grape harvest time (September and October), increase the pollutant influent loads, respect to the “routine” period. Both plants adopt the conventional activated sludge process. A detailed description is reported in the following paragraphs (see also additional information in Table S1 of Supplementary Material).

2.1.1. WWTP A

WWTP A consists of: pre-treatments (coarse screening, fine screening, grit and oil removal), primary settling (10,400 m³), pre-denitrification (7140 m³), oxidation/nitrification (16,660 m³), secondary settling (26,140 m³). Excess sludge undergoes dynamic thickening, anaerobic digestion and mechanical dewatering. The typical influent flowrate is equal to 74,900 m³/d (median value of the years 2013–2017; standard deviation is 8800 m³/d). Unlike the flowrate, the wastewater composition varies during winter and summer periods, due to the contribution of the seasonal industrial activities (agro-food manufacturing sector). Typical concentrations of the main pollutants are the following, in the summer and winter periods, respectively. Standard deviations are reported between brackets. COD: 300 (42) and 540 (85) mg/L; BOD₅: 170 (30) and 300 (63) mg/L; total nitrogen: 45 (8) and 70 (12) mg/L; total phosphorus: 5.0 (0.8) and 7.2 (1.4) mg/L. Effluent concentrations are rather stable all along the year as show by the following data. COD: 22.7 (8.0) mg/L; BOD₅: 5.8 (2.5) mg/L; total suspended solids: 8.5 (5.8) mg/L; total nitrogen: 14.5 (5.6) mg/L; total phosphorus: 1.5 (0.9) mg/L. The sludge retention time in the aerated reactor is equal to 8 ± 2 d; wastewater temperature ranges between 15 and 26 °C (industrial discharges prevent the temperature to drop below 15 °C in wintertime).

2.1.2. WWTP B

The WWTP B treatment train includes the following units: equalization (1300 m³), preliminary treatments (coarse screening, fine screening, grit and oil removal), pre-denitrification (2160 m³), oxidation-nitrification (7120 m³), final sedimentation (4564 m³), disk filtration, UV disinfection. The sludge treatment line consists of dynamic thickening and mechanical dewatering. The main influent characteristics in the routine and grape harvest periods, respectively, are reported in the following (standard deviations between brackets). Flowrate: 20,300 (2500) and 26,170 (3100) m³/d; COD: 290 (32) and 430 (75) mg/L; BOD₅: 130 (18) and 220 (40) mg/L; total nitrogen: 17 (2.0) and 18 (1.9) mg/L; total phosphorus: 2.5 (0.3) and 3.3 (0.4) mg/L. As for the effluent, the typical characteristics of the two periods are the following. COD: 17.3 (5.2) and 19.9 (6.3) mg/L; BOD₅: 6.9 (3.2) and 8.0 (4.1) mg/L; total suspended solids: 6.9 (5.3) and 7.3 (6.0) mg/L; total nitrogen: 5.8 (3.0) and 5.0 (3.2) mg/L; total phosphorus: 0.5 (0.3) and 0.4 (0.3) mg/L. The sludge retention time is kept between 15 and 25 days in aerated reactors. Wastewater temperature ranges between 10 and 25 °C.

2.2. Sampling Procedure

Three monitoring campaigns were conducted, by sampling influent and effluent wastewater (Figure S1): a single campaign in case of plant A and a double survey in case of Plant B, in order to include both grape harvest time and routine operation. Sampling represents a crucial step in the characterization of different streams, hence in the evaluation of plant performance. Several authors have underlined the huge variability of trace pollutants content throughout a day or a week: influent and effluent single grab samples are not representative at all of the actual trends (see, inter alia, [15,16,17,18]). For these reasons, the duration of every monitoring campaign was set at two weeks, much longer than the hydraulic retention time (HRT). Twenty-four hour flow-proportional composite samples were collected daily, at each sampling point, in refrigerated auto-samplers, equipped with Teflon pipes and dark glass containers. In order to obtain one sample, which was representative of the whole monitoring period, to be submitted to bioassays, daily samples were finally mixed together. Based on previous research experiences of the authors (see for instance [4,5,19]), a cumulative volume of at least 36 L/sample was collected, for performing both chemical analyses and biological tests. Some analyses required sample pre-treatment immediately after collection, as described in detail in Chapter 14 of Ecotoxicological QSARs book [20].

2.3. Selection of the Bioassays

The tests were chosen based on their standardization, high reproducibility, automated protocol, sensitivity, adequacy, statistical robustness, biological representativeness, possibility of extrapolating the in vitro results to potential in vivo hazards, possibility of cross-species extrapolation. Then, acute and chronic toxicity were taken into account, by selecting endpoints, linkable with short and long time effects (up to transgenerational events). Moreover, different levels of biological organization were targeted (organisms, tissues, cells) as well as different biological complexity (prokaryotes, eukaryotes; animals, plants; unicellular, multicellular). Finally, the bioassays can detect both baseline toxicity and particular modes of action, adopted in order to correlate key events with biological answers. The modes of action (MOA) explored in this toxicological study, as well as the specific tests and the measured phenomena are the following:

• baseline toxicity: green alga growth inhibition [21]; marine bacteria bioluminescence inhibition [22]; freshwater cladoceran mobility inhibition [23]; plant roots growth inhibition [24]; neutral red dye uptake by viable cells [25]
• endocrine disruption: luciferase activity quantification in human breast cancer cell line [19]
• genetic toxicity: point reverse mutations in bacteria [26,27]; chromosomal mutation in plant roots cells [28,29]; Single Cell Gel Electrophoresis on human leukocytes [26,30,31]
• carcinogenicity: number of malignant foci or transformed cells [32,33,34]; gap junction-mediated intercellular communication [35]

The experimental methodologies are described at length elsewhere [20].

2.4. Chemical Analyses

Chemical analyses were addressed to the determination of conventional parameters (for assessing the general plant performance) and the quantification of inorganic and organic pollutants, to better characterize the quality of the streams. Selected conventional parameters are: total suspended solids, biochemical oxygen demand (BOD), chemical oxygen demand (COD), total nitrogen, total phosphorus. These pollutants were analyzed daily. Boron, vanadium, chromium, manganese, iron, nickel, copper, arsenic, selenium, cadmium, antimony, aluminum, mercury, lead were analyzed weekly. Herbicides, insecticides and degradation by-products, perfluorinated alkyl substances, polynuclear aromatic hydrocarbons were also determined once a week. Details of analytical methods are reported in Supplementary Material (Table S2).

2.5. Data Processing

The integrated and overall examination of the results requires data harmonization, in order to have a comprehensive view of possible toxic effects exhibited by the tested samples. Thus, a “traffic light” visualization was proposed. A color (green, yellow or red) was attributed as a function of biological response intensity: the criteria underpinning the threshold settings are widely explained in Supplementary Material.

Table 1. Criteria adopted for color attribution to experimental results (E2 = 17β-estradiol; type of sample: REF = relative enrichment factor, as defined in the main text; RU = raw undiluted).

Mode of Toxic Action	Bioassay	Green	Yellow	Red
Baseline toxicity	R. subcapitata test	Effect measured on RU sample lower than 10%	Effect measured on RU sample ranging between 10% and 50%	Effect measured on RU sample higher than 50%
	Aliivibrio fischeri test	Effect measured on RU sample lower than 10%	Effect measured on RU sample ranging between 10% and 50%	Effect measured on RU sample higher than 50%
	D. magna test	Effect measured on RU sample lower than 10%	Effect measured on RU sample ranging between 10% and 50%	Effect measured on RU sample higher than 50%
	Allium cepa toxicity test	Effect measured (root length) on RU sample <40% respect to the negative control	Effect measured (root length) on RU sample ranging between 40% and 60% of the negative control	Effect measured (length reduction) on RU sample >60% respect to the negative control
	Neutral Red uptake assay	Effect exhibited on the REF 1 sample lower than the effect corresponding to IC20	Effect exhibited on the REF 1 sample ranging between the effects corresponding to IC20 and IC50	Effect exhibited by the REF 1 sample higher than the effect corresponding to IC50
Endocrine disruption	ERE-tk_Luc_MCF-7	Measured effect lower than the effect corresponding to the E2 EC20	Measured effect ranging between the effects corresponding to the E2 EC20 and EC50	Measured effect higher than the effect corresponding to the E2 EC50
Genetic toxicity	Ames test	The mutagenicity ratio is <2	The mutagenicity ratio is in between 2 and 2.5	The mutagenicity ratio is >2.5
	Allium cepa genotoxicity tests (CA, MN)	No statistically significant differences between the samples and the negative control (p > 0.05)	Statistically significant differences between the samples and the negative control (p < 0.05)	Statistically significant differences between the samples and the negative control (p < 0.05, p < 0.01, p < 0.001) and effects much higher than negative control; dose-response relationship
	Comet test	No statistically significant differences between the samples and the negative control (p > 0.05)	Statistically significant differences between the samples and the negative control (p < 0.05)	Statistically significant differences between the samples and the negative control (p < 0.05, p < 0.01, p < 0.001) and effects much higher than negative control; dose-response relationship
Carcinogenicity	In vitro cell transformation assay (CTA)	No statistically significant differences between the samples and the negative control (p > 0.05)	Statistically significant differences between the samples and the negative control (p < 0.05)	Number of foci of the sample comparable to the positive control, statistically significant differences between the samples and the negative control (p < 0.05, p < 0.01); effects much higher than negative control
	Tumor promotion	Inhibition of the sample equivalent to the negative control	Inhibition of the sample equivalent to 50% of the positive control	Inhibition of the sample equivalent to the positive control

reports a brief description of the meaning of the chromatic code for each test, as well as the type of sample to be considered (e.g., raw undiluted or an extract).

An important information to take into account for the correct interpretation of results is the correlation between the biological response and the degree of dilution (for those test conducted on raw samples) or concentration (when extracts are used) of the samples. In case of dilution of the raw wastewater the calculation is quite simple. On the contrary, when sample pre-treatment is required, both dilution and enrichment processes (the latter consisting in a solid phase extraction—SPE) must be taken into account.

In this case, the range of sample concentrations tested in the different bioassays was expressed in unit of Relative Enrichment Factor (REF) [36,37], which is the combination of the enrichment factor of the SPE process (EF_SPE) and the actual sample dilution in the bioassay (dilution factor: DF_bioassay) (Equation (1)).

$$REF=E{F}_{SPE}·D{F}_{bioassay}$$

(1)

The EF_SPE was calculated using Equation (2) as the ratio between the volume of processed water (V_water) to the volume of resulting extract in solvent (V_extract).

$$E{F}_{SPE}=\frac{V_{water}}{V_{extract}}$$

(2)

The dilution factor of each tested dose was calculated using Equation (3).

$$D{F}_{bioassay}=\frac{V_{extract added to bioassay}}{V_{bioassay}}$$

(3)

Thereby, a value of REF equal to 1 (REF 1 sample) means that organic analytes concentration in the bioassay is equivalent to that of the unprocessed water (devoid of metals, inorganic anions and a fraction of colloidal organic, after solid phase extraction). On the contrary, a value higher, or lower, than 1 expresses, respectively, a sample concentration or dilution.

The values of EF_SPE and the final volumes considered for each bioassay are reported in

Table 2. Enrichment factors (EF) and volumes for the calculation of the dilution factors (DF).

Bioassay	EFSPE,WWTPA (-)		EFSPE,WWTPB (-)				Vbioassay (mL)	Vextract employed (μL)
			Grape Harvest Time		Routine Period
	Influent Sample	Effluent Sample	Influent Sample	Effluent Sample	Influent Sample	Effluent Sample
Neutral Red uptake assay	20,000	20,000	20,000	20,000	20,000	20,000	2.4	2.4; 24; 240
ERE-tk_Luc_MCF-7 test	20,000	20,000	20,000	20,000	20,000	20,000	1	1
Ames test	20,000	13,333	27,778	27,778	13,333	13,333	2	0.5; 2.5; 5; 12.5; 25.5; 50 0.75; 3.75; 7.5; 18.75; 37.5; 75 0.036; 0.36;1.8; 3.6; 9;18; 36;72
Comet test	20,000	13,333	27,778	27,778	13,333	13,333	1	0.05; 0.5; 2.5; 5; 25 0.08; 0.75; 3.75; 7.5; 37.5 0.04; 0.36; 1.80; 3.6; 18
In vitro cell transformation assay (CTA)	-	-	200,000	200,000	-	-	8	0.25; 0.5; 1.25
Tumor promotion	20,000	20,000	20,000	20,000	20,000	20,000	4	1

.

3. Results and Discussion

3.1. WWTP A

3.1.1. Chemical Analyses

The main influent and effluent characteristics are summarized in

Table 3. Main influent and effluent wastewater characteristics measured during the monitoring campaign (average values and standard deviation, between brackets, in mg/L).

Parameter	Influent Concentration	Effluent Concentration
COD	500 (45)	30 (5.0)
BOD5	300 (23)	5.4 (1.2)
Total Nitrogen	74 (8.1)	19 (2.1)
Phosphorus	7.0 (1.0)	1.9 (0.2)
Total suspended solids	370 (41)	7.0 (2.0)

. WWTP A achieves high organic removal efficiencies (COD removal greater than 95%; BOD removal greater than 98%) as well as a remarkable removal of nitrogen (74%) and phosphorus (73%). The separation of suspended solids in the final sedimentation tanks is also very effective (very low effluent concentration).

Table 4. Metals and semimetals effluent concentrations measured during the monitoring campaign (average values, in μg/L).

Parameter	Concentration	EC50 D. magna (48 h)
Boron	119	141,000 [39]
Vanadium	1.5	1200 [40]
Chromium III	13	6790 [41]
Manganese	23	9300 [40]
Iron	249	2300 [40]
Nickel	36	650 [40]
Copper	8.1	13 [40]
Selenium	0.37	710 [40]
Arsenic	0.85	2400 [40]
Cadmium	0.07	3.60 [40]
Antimony	1	4100 [40]
Aluminum	175	3900 [40]
Mercury	0.30	0.65 [40]
Lead	6.1	290 [40]
Zinc	75	720 [40]

shows that measured metals and semimetals effluent concentrations are well below the respective discharge standards (Legislative Degree 152/2006 [38]) as well as the EC₅₀ values reported in literature for D. magna. Only for copper and mercury the measured concentrations are relatively close to the respective EC₅₀.

During the monitoring campaign, all the measured polynuclear aromatic hydrocarbons, chlorinated insecticides and herbicides were below their detection limits, which are reported in Table S3 of Supplementary Material. Conversely, perfluorinated alkyl substances were detected at the concentrations reported in

Table 5. Polynuclear aromatic hydrocarbons, perfluorinated alkyl substances, chlorinated insecticides and herbicides resulted above the respected detection limits in the effluent wastewater (average values, in ng/L).

Parameter	Concentration
PFHxA (Pefluorohexanoic acid)	8.5
PFOA (Perfluoroctanoic acid) Linear	5.4
PFOA (Linear + branched isomers)	5.4
Sum of PFOA and PFOS (including linear + branched isomers)	5.4
Other PFAAs (PFBA, PFBS, PFPeA, PFHxA, PFHxS, PFHpA, PFNA, PFDeA, PFUnA, PFDoA)	8.5

. As it can be seen, only pefluorohexanoic acid and perfluoroctanoic acid were detected above the respective limit of quantification (LOQ): therefore, the sums of congeners and isomers reported in Table 5 are given only by the concentrations of these two molecules. Interestingly, they are widely below the environmental quality standards (EQS) proposed by the Water Framework Directive 2000/60 [42]: 1 µg/L for PFHxA and 0.1 µg/L for PFOA.

3.1.2. Baseline Toxicity

Baseline toxicity exerted on daphnids, algae and bacteria was not decreased after the treatment: detailed results of these bioassays are reported in the Supplementary Material (Table S4), while their translation into the proposed chromatic code is explained in Section 3.1.6, where this phenomenon appears evident.

The Allium cepa test showed toxicity in influent undiluted sample: the roots elongation was negatively influenced (red light, as described in Section 3.1.6) and the 1:2 dilution corresponded to the EC₅₀ (see Table S5). The effluent undiluted sample did not inhibit the lengthening of the roots (see Figure S2) and no signs of toxicity were observed (green light). Therefore, the subsequent genotoxicity tests on effluent (vide infra) could be performed using the undiluted and diluted samples (1:2, 1:10, 1:100), while the influent was assayed using only diluted samples (1:2, 1:10, 1:100) due to the presence of toxicity.

Cell toxicity was assessed on hepatic cells because of their sensitivity to xenobiotics. Neutral Red assay was chosen because of its sensitivity for detecting cell homeostasis. The MTT assay [20] was excluded because almost unsensitive (data not shown) in tested experimental conditions.

As shown in Figure 1, a typical dose-response curve (obtained with normalized value: see Supplementary Material) was defined by testing extracts at different REFs, the lowest doses (REF 20) resulting negligibly or not cytotoxic at all for the influent and effluent samples, respectively. IC₅₀ (concentration which gives 50% inhibition of cell growth) for influent is twenty times higher than for the effluent, demonstrating the positive effect of the plant treatments on cell viability and thus the noteworthy reduction of toxic potential of this wastewater. The REF 1 effect was extrapolated by dose-response curves: no toxicity was estimated (green color, as detailed in Section 3.1.6).

3.1.3. Estrogenic Activity

ERE-tk_Luc_MCF-7 Test

Estrogenicity of wastewater was assessed on ERE-tkLuc mammary cells sensitive to estrogens. A non-cytotoxic dose of diluted wastewaters (REF 20) was used. Using the standard curve elaborated with 17β-estradiol (E2) (see Table S6), the endocrine disrupting activity of influent and effluent wastewaters was determined. As shown in Figure 2 (curve dose-response obtained with normalized values as explained in Supplementary Material), the estrogenicity of the REF 20 wastewater extract was not reduced by the polishing treatment. The mixture of estrogen-like compounds present in the REF 20 extract have an overall activity equivalent to the one exerted by E2 at the highest tested concentrations. The endocrine disruption effect of undiluted effluent discharge (REF 1), extrapolated by the effect of the REF 20 extract, was expressed as E2 equivalent concentration. It yielded an E2 biological equivalent concentration equal to 136 ng/L, which, according to [37], can be compared to the trigger value (0.2 ng/L). This comparison would indicate a rather bad quality of the effluent wastewater in terms of estrogenicity. Nevertheless, it is worth to be noted that the trigger value was derived from the Australian Guidelines for Water Recycling Augmentation of Drinking Water Supplies (AGWR). Indeed, the present study refers to the discharge in a surface waterbody, namely a river. Therefore, a direct comparison would not be appropriate. Similarly, just as a reference, the threshold for drinking water reported in the WHO Guidelines [43] is equal to 1 ng/L, again much lower than the equivalent E2 concentration of the WWTP effluent.

3.1.4. Genetic Toxicity

Ames Test

The results of Ames test, expressed as mutagenicity ratio (MR), are presented in

Table 6. Results of Ames test on Salmonella typhimurium (TA98 and TA100 strain ±S9) expressed as mutagenicity ratio (MR) and REF values.

Sample	REF	MR TA98	MR TA98 +S9	MR TA100	MR TA100 +S9
Influent sample	5	1.0	1.0	0.7	1.0
	25	0.9	0.9	0.2	0.6
	50	0.9	0.3	tox	tox
	125	1.4	tox	tox	tox
	250	tox	tox	tox	tox
	500	tox	tox	tox	tox
Effluent sample	5	1.1	1.0	1.2	1.1
	25	1.3	1.2	1.5	1.3
	50	1.5	1.1	1.3	1.2
	125	0.5	0.8	0.4	0.3
	250	tox	0.2	tox	tox
	500	tox	tox	tox	tox

. According to the rules in Table 1, no samples showed mutagenic activity on Salmonella, in both strains, with and without exogenous metabolic activation (green light for all samples, in

Table 7. “Traffic-light” representation of results for WWTP A. The REF value or type of sample (RU = raw undiluted, RD = raw diluted) used to establish the color of each assay are specified.

Mode of Toxic Action	Bioassay	IN	OUT
Baseline toxicity	D. magna test (48 h)	RU	RU
	D. magna test (24 h)	RU	RU
	Aliivibrio fischeri test	RU	RU
	R. subcapitata test	RU	RU
	Allium cepa toxicity test	RU	RU
	Neutral Red uptake assay	1	1
Endocrine disruption	ERE-tk_Luc_MCF-7 test	20	20
Genetic toxicity	Ames test	5–500	5–500
	Comet test	1–500	1–500
	Allium cepa genotoxicity test (CA)	RD up to 1:100	RU and RD up to 1:100
	Allium cepa genotoxicity test (MN)	RU and RD (1:2)	RU and RD (1:2)
Carcinogenicity	CTA	-	-
	Tumor promotion	5	5

). In effect, MR values close to 1 indicate no differences respect to the negative control. The more the values approach 0, the more they indicate toxicity: both samples showed high toxicity, indeed, in particular the influent. The high toxicity could have masked possible mutagenic effects preventing bacteria growth.

Comet Test

The results of comet assay are reported in Figure 3 and Table S7 (Supplementary Material). Both samples caused a significant increase of DNA strand breakage in human leukocytes. Influent wastewater showed genotoxic activity, both versus the negative control and the effluent, even though the test was largely affected by toxicity, starting from very low doses (red light was then attributed). A significantly increased genotoxicity, compared to controls, was found in wastewater effluent, where a dose-response curve is evident (red light was attributed also to the effluent). Again, these samples exhibited toxicity, though only at the highest dose. Toxic effects in the comet assay were mainly represented by the preponderant presence of the so-called ‘hedgehogs’, corresponding to nucleoids with small or non-existent heads and large, diffuse tails that are assumed to represent apoptotic/necrotic cells.

Allium Cepa Genotoxicity Test

As shown in supplementary material (Tables S8 and S9), no genotoxicity was observed in Allium cepa roots at all tested dilutions (green light for all samples in Table 7). Again, toxic effects have been observed in the influent, at 1:2 dilution only.

3.1.5. Carcinogenicity

Tumor Promotion

The tumor potential of wastewater was assessed on IAR203 hepatic cells, that present a high communicating capacity. A non-cytotoxic dose of extracted wastewaters (REF 5) was used. Beside the negative control, cells were treated with TPA (positive control), a well-known inhibitor of communication mediated by gap junction (GJ) and a reference tumor promoter. As shown in Figure 4 whereas the influent did not inhibit intercellular communication, the effluent acquired an evident inhibiting effect on gap junctions, though lower than the positive control.

3.1.6. Traffic-Light Coding of Toxicological Data

Table 7 displays the chromatic attributions given to toxicological results, according to the criteria explained in section “2.5 Data processing” and Table 1.

First of all, the importance of using different tests, within the same mode of toxic action, has to be underlined. In effect, responses to different organisms should be compared together, to obtain reliable results. As for baseline toxicity, for example, two tests (namely A. fischeri and R. subcapitata) show an apparent worsening of the effluent, with respect to the untreated wastewater. Indeed, the quantified bacteria luminescence inhibition passed from 48% (influent) to 56% (effluent), which is a rather small or even not significant difference, considering the uncertainty of the bioassay. Likewise, and even less significantly, the algal growth inhibition increased from zero to only 11% (10% being the minimum threshold causing the yellow color attribution). On the contrary, the A. cepa assay shows an appreciable quality improvement, corresponding to a two-classes jump (from red to green) after biological treatment. It is interesting to compare these results with legal limits established for defining an effluent as acceptable. In particular, the Italian regulation states that less than 50% immobilization/inhibition is to be caused (tests on crustaceans, luminescent bacteria and green algae). Under this perspective, only the bacteria reveal particularly sensitive, after exposure to both influent and effluent, whose effects remain almost unchanged after the treatment. On the contrary, crustaceans and green algae are not significantly affected, thus describing good quality samples.

The same level of estrogenicity was observed for the influent and effluent extracted samples red color was attributed in both cases. Nevertheless, it has to be underlined that samples were highly concentrated (REF 20). Indeed, the estimated equivalent E2 concentration of the REF 1 sample resulted much higher than the reference values for groundwater recharge and drinking water. And this is very interesting considering that measured organic pollutants concentrations were extremely low.

Regarding genetic toxicity, all performed tests show no difference between the influent and effluent samples. In particular, green color has been always attributed, apart from the case of comet assay. Interestingly, the damage occurred to DNA of human leukocytes might be reassessed based on the inherent role played by this assay for the environmental impact assessment. Indeed, the comet test does not allow detection of the DNA fragments, which originate from apoptosis and necrosis: therefore, cytotoxicity may possibly lead to false positive and negative results (the cytotoxic effect at the highest doses, both for influent and effluent appears clearly when the chromatic code is used for describing the biological behaviors: see Table 7 and Section 3.2.6). Further investigations should include biological systems which are more adequate for ecological monitoring, such as freshwater mollusks (as Perna viridis and Corbicula fluminea). Several species, in addition, could be employed in a passive monitoring, placed in situ, for instance downstream the effluent discharge point. The exploitation of Comet test as ecotoxicological tool must overshoot the interpretative criteria of the biomedical research and human toxicology; proper models, chosen based on ecological roles and life cycle (stages), would provide more accurate information on freshwater ecosystem impacts.

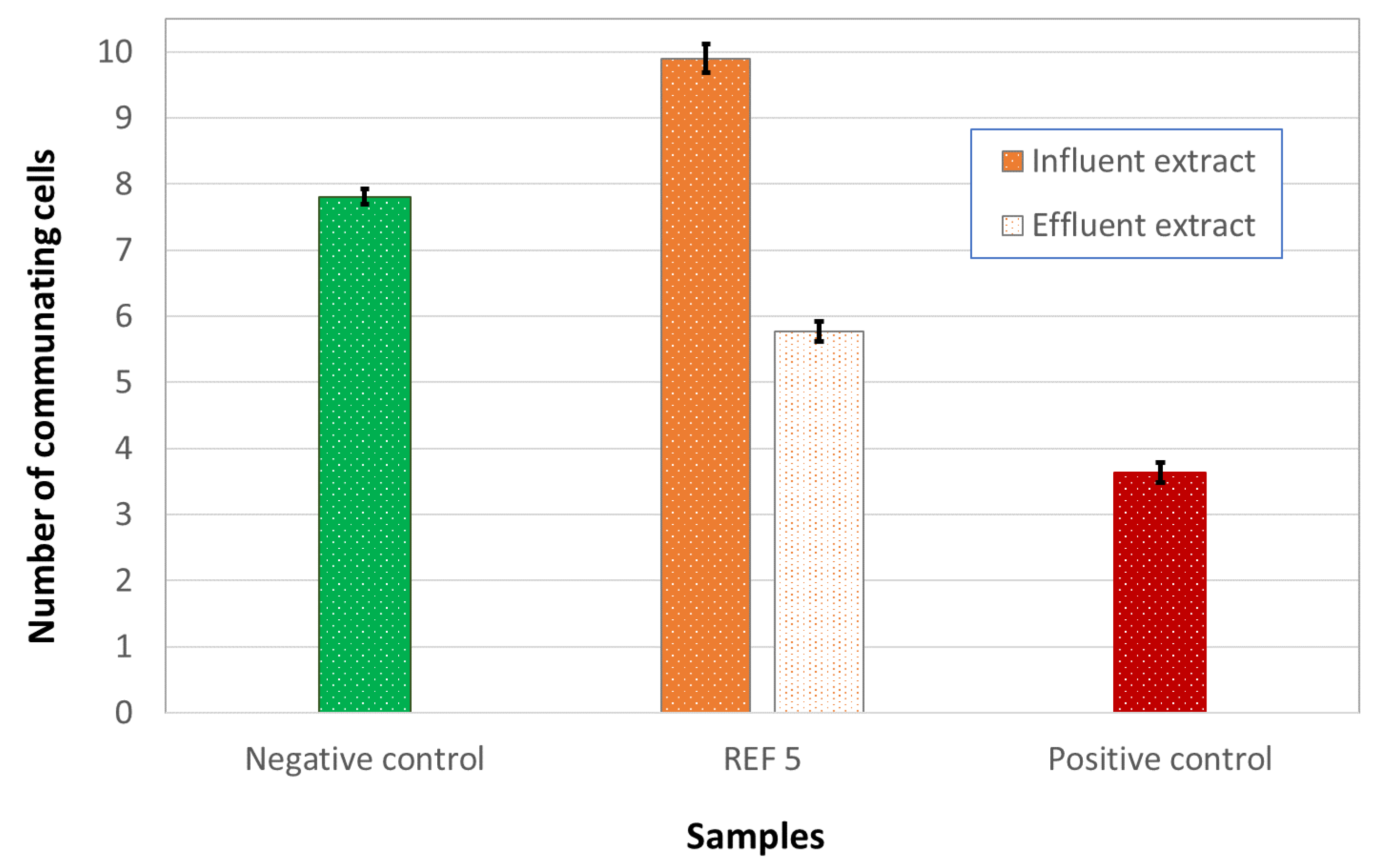

Finally, gap junctions appear to be slightly inhibited only in the effluent samples. As discussed above for A. fischeri and R. subcapitata, the yellow color was attributed being the result on the borderline between green and yellow class. Consequently, the difference between the influent and the effluent has to be considered as not relevant.

In short, notwithstanding the legal requirements compliance of the effluent for the chemical parameters, a certain level of residual toxicity is detected in prokaryotes and human cells (modes of action: endocrine disruption and genetic toxicity). Surprisingly, influent and effluent samples did not show appreciably different behaviors.

3.2. WWTP B

3.2.1. Chemical Analyses

The main influent and effluent characteristics are summarized in

Table 8. Main influent and effluent wastewater characteristics measured during both monitoring campaigns (average values and standard deviation, between brackets, in mg/L).

Parameter	Grape Harvest Time		Routine Period
	Influent Concentration	Effluent Concentration	Influent Concentration	Effluent Concentration
COD	380 (42)	24 (2.2)	400 (51)	25 (1.4)
BOD5	200 (15)	12 (0.4)	170 (15)	5.0 (0.1)
Total Nitrogen	15 (2.0)	5.1 (0.2)	29 (2.5)	5.7 (0.1)
Phosphorus	2.8 (0.3)	0.2 (0.1)	3.7 (0.2)	0.3 (0.05)
Total suspended solids	180 (22)	16 (1.5)	170 (18)	10 (1.0)

. In both monitoring periods the WWTP B achieves high organic and nutrient removal efficiencies (almost 94% for COD, between 94 and 97% for BOD, between 66 and 80% for nitrogen, 93% for phosphorus) and shows a very good performance of final sedimentation (see the total suspended solid concentration in the effluent). Additionally, in the routine period, the influent surfactant concentration was 11 mg/L, more than one order of magnitude higher with respect to the grape harvest time (0.4 mg/L).

As for WWTP A, the metals and semimetals effluent concentrations are widely below the respective discharge standards (Legislative Degree 152/2006), as well as the EC₅₀ towards D. magna (see

Table 9. Metals and semimetals effluent concentrations measured during both monitoring campaigns (average values, in μg/L).

Parameter	Composite Effluent Sample Concentration		EC50 D. magna (48 h)
	Grape Harvest Time	Routine Period
Boron	104	87	141,000 [39]
Vanadium	1.7	2.5	1200 [40]
Chromium III	5.4	<5	6790 [41]
Manganese	1.6	3.1	9300 [40]
Iron	90	79	2300 [40]
Nickel	11	7	650 [40]
Copper	4.7	4.2	13 [40]
Arsenic	1.1	1.0	2400 [40]
Selenium	<0.5	<0.5	710 [40]
Cadmium	<0.5	<0.5	3.60 [40]
Antimony	<1.0	<1.0	4100 [40]
Aluminium	109	96.1	3900 [40]
Mercury	0.28	0.27	0.65 [40]
Lead	5.9	5.1	290 [40]

). As in the previous case, only copper and mercury concentrations approach the respective EC₅₀ values for D. magna.

Table 10. Polynuclear aromatic hydrocarbons, perfluorinated alkyl substances, chlorinated insecticides and herbicides resulted above the respected detection limits in the effluent wastewater (average values, in ng/L).

Parameter	Concentration
	Grape Harvest Time	Routine Period
Metolachlor	<10	27
Terbutryn	23	17
PFHxA (Pefluoroexanoic acid)	14	16
PFOA (Perfluoroctanoic acid) Linear	22	27
PFOA (Perfluoroctanoic acid branched isomers)	7.9	8.7
PFOA (Linear + branched isomers)	30	36
PFBS (Perfluorobutansulfonate)	10	11
Sum of PFOA and PFOS (including linear + branched isomers)	30	36
Other PFAAs (PFBA, PFBS, PFPeA, PFHxA, PFHxS, PFHpA, PFNA, PFDeA, PFUnA, PFDoA)	24	27

reports the organic pollutants, which resulted above their detection limits, namely perfluorinated alkyl substances and two herbicides. The complete list of the quantified analytes, with the respective LOQs, is reported in Supplementary Material (Table S10). The environmental quality standards proposed by the Water Framework Directive 2000/60 [42] for terbutryn (0.065 μg/L), PFHxA (1 µg/L), and PFOA (0.1 µg/L) are complied with. Additionally, metolachlor is lower than 0.1 μg/L, which is the yearly average threshold for any single unspecified pesticide defined by the Italian legislative decree 172/2015 (implementation of the European Directive 2013/39/EU).

3.2.2. Baseline Toxicity

All the conventional baseline toxicity tests prescribed by the law demonstrate the compliance of the effluent in both campaigns (detailed data in Table S11 of Supplementary Material). Moreover, the treatment generally improved the quality of wastewater, as it appears from the summarization of each result, according with the chromatic code (Section 3.2.6), as shown by most of the performed tests. Actually, R. subcapitata test shows a different result for the first campaign samples; notably, this is the only pejorative result out of six, thus not modifying the overall judgement. It can be observed that the influent wastewater toxicity measured during the second campaign is higher. One reason could be the relevant concentration of surfactants, whose toxic action is known [44].

Influent and effluent tested on Allium cepa exhibit no toxicity in both samples of the first campaign (green light). Conversely, during the spring campaign, the influent sample showed a slight toxicity (yellow), which disappeared after biological treatment (green) (see Table S12 and Figure S3). The subsequent genotoxicity tests were then carried out on the undiluted and diluted samples (1:2, 1:10, 1:100).

Cytotoxicity (MTT test carried out on IAR203 hepatocytes with REF 1 sample) reveals absent in both periods, thus the green color was attributed. Nevertheless, as shown in Figure 5 and Figure 6 (where the experimental values are normalized as explained in Supplementary Material), the IC₅₀ for the influent is about ten times higher than for the effluent, demonstrating the positive effect of the polishing treatment. Indeed, the IC₅₀ is achieved only at very high concentration factors, while the chromatic evaluation refers to the REF 1 condition.

3.2.3. Estrogenic Activity

ERE-tk_Luc_MCF-7 Test

As mentioned above, a non-cytotoxic dose of extracted wastewater (REF 20) was used for assessing the estrogenicity. Using the standard curve (normalized values as explained in Supplementary Material) elaborated with E2 (see Table S13), the endocrine activity of samples was determined. As shown in Figure 7, plant B, unlike plant A, reduced the estrogenicity, at a greater extent during the routine period, thus leading to a chromatic change (yellow vs. red: see Section 3.2.6). The positive effect of treatments is also demonstrated by calculating the REF 1 E2 equivalent concentration (0.0047 ngE2/L and 0.0019 ngE2/L, for the grape harvest and routine period, respectively). These equivalent concentrations are much lower than the respective trigger value (0.20 ngE2/L) reported in Escher et al. [37].

3.2.4. Genetic Toxicity

Ames Test

The results of Ames test, expressed as mutagenicity ratio, are presented in

Table 11. Results of Ames test on Salmonella typhimurium TA98 and TA100 strain ±S9 expressed as mutagenicity ratio (MR) and REF values.

Sample	REF	Mutagenicity Ratio TA98	Mutagenicity Ratio TA98 +S9	Mutagenicity Ratio TA100	Mutagenicity Ratio TA100 +S9
Influent sample (grape harvest time)	0.5	0.7	1.3	-	-
	25	0.7	0.4	1.1	1.1
	50	0.6	0.5	1.0	1.0
	125	tox	tox	tox	tox
	250	tox	tox	tox	tox
	500	tox	tox	tox	tox
	1000	tox	tox	tox	tox
Effluent sample (grape harvest time)	0.5	1.1	1.3	-	-
	25	1.5	1.1	1.2	1.1
	50	1.7	1.5	1.3	1.3
	125	0.8	0.7	1.1	1.0
	250	tox	tox	tox	tox
	500	tox	tox	tox	tox
	1000	tox	tox	tox	tox
Influent sample (routine period)	5	1.1	1.0	0.9	1.3
	25	0.9	1.0	1.2	0.9
	50	0.9	0.8	0.9	0.4
	125	tox	tox	tox	0.2
	250	tox	tox	tox	tox
	500	tox	tox	tox	tox
Effluent sample (routine period)	5	1.1	1.3	1.0	1.2
	25	2.2	1.5	1.5	1.2
	50	2.3	1.6	1.5	0.8
	125	0.7	0.5	tox	tox
	250	tox	0.5	tox	tox
	500	tox	tox	tox	tox

tox = toxic to bacteria.

.

A slight mutagenic effect was displayed by the TA98 strain without the exogenous metabolic activation (S9), revealing the presence of directly active mutagens causing frameshift mutation, also indicating the detoxifying action of the S9 [45]. For this reason, the yellow color was attributed in

Table 12. “Traffic-light” representation of results for WWTP B. The REF value or type of sample (RU = raw undiluted, RD = raw diluted) used to establish the color of each assay are specified.

Mode of Toxic Action	Bioassay	First Campaign (Grape Harvest Time)		Second Campaign (Routine Period)
		IN	OUT	IN	OUT
Baseline toxicity	D. magna test (48 h)	RU	RU	RU	RU
	D. magna test (24 h)	RU	RU	RU	RU
	Aliivibrio fischeri test	RU	RU	RU	RU
	R. subcapitata test	RU	RU	RU	RU
	Allium cepa toxicity test	RU	RU	RU	RU
	Neutral Red uptake assay	1	1	1	1
Endocrine disruption	ERE-tk_Luc_MCF-7 test	20	20	20	20
Genetic toxicity	Ames test	0.5–1000	0.5–1000	5–500	5–500
	Comet test	1–500	1–500	1–500	1–500
	Allium cepa genotoxicity test (CA)	RU and RD up to 1:100	RU and RD up to 1:100	RU and RD up to 1:100	RU and RD up to 1:100
	Allium cepa genotoxicity test (MN)	RU	RU	RU	RU
Carcinogenicity	CTA	6–13	6 - 31	-	-
	Tumor promotion	5	5	5	5

.

Salmonella typhimurium strains treated with and without enzymatic activation have a similar behavior in terms of genetic damages. Anyway, influent taken during grape harvest time exhibits a slightly weaker toxicity with respect to other samples.

Comet Test

All the samples collected at the WWTP B show damages to the DNA of exposed cells leading to red color attribution (see Table 12). Effluent exhibited baseline and genetic toxicity to a lesser extent respect to the influent, significantly genotoxic, therefore, causing a damage comparable to the positive control (see Table S14). The two campaigns yielded similar results. DNA damages were still higher with respect to the negative control after the biological treatment, as shown in Figure 8.

Allium Cepa Test

A slight increase in chromosomal aberrations was observed in undiluted wastewater before the biological treatment in autumn sample only (yellow light), using Allium cepa genotoxicity tests (4.4% vs. 2.5% negative control and 3.3% effluent). No other sample was able to induce DNA damage (green light), as either chromosomal aberrations or micronuclei (as reported in Supplementary Material, Tables S15 and S16).

3.2.5. Carcinogenicity

In Vitro Cell Transformation Assay

As for the other tests, the in vitro transformation assay was performed after the preliminary cytotoxicity assessment, as detailed in [32].

The mean number of transformed foci (Type II and III) generated after the exposure to the samples is shown in Figure 9, where a significant difference (p < 0.05) is clear in samples at REF 31.25. The significance threshold (p < 0.05) suggests a yellow level of attention (see Table 12). Whereas, as expected, the number of foci formed after exposure to the positive control (3-MCA) evidenced a statistically significant difference with p < 0.01.

Tumor Promotion

As shown in Figure 10, whereas the influent only slightly inhibits cell communication, the effluents present a more significative inhibiting effect of gap junctions, although not so marked as that induced by TPA (positive control).

3.2.6. Traffic-Light Coding of Toxicological Data

The translation of all the results into a chromatic code is displayed in Table 12. No significant differences can be generally observed between the biological responses of the influent and effluent samples, given that a double quality class jump never occurs. Anyway, effects measured by several bioassays, such as D. magna test, A. fischeri test, A. cepa and MCF-7 cells estrogenicity decrease, at least for one campaign, after the wastewater treatment. On the contrary, other assays, such as R. subcapitata test, Ames test, CTA and tumor promotion test show, in some cases, a more toxic effect of the effluent sample. Interestingly, the influent wastewater of the routine period induces a greater baseline toxicity, partially ascribed to the high concentration of surfactants. It has to be underlined, however, that the results marked with red Color refer to experiments conducted on heavily concentrated samples. Indeed, as for the MCF-7 test, the estimated equivalent E2 concentration of the raw sample is very low. Moreover, regarding the Comet test, the statements reported above on the adequacy and suitability of this biological model (namely, the human leukocytes) is now under debate.

To sum up, the quality of the effluent can be considered as acceptable, in terms of legal prescriptions and based on the results of the majority of the proposed tests. As observed for WWTP A, only the response of human cells leads to apparent criticalities, possibly due to the partial adequacy of this biological model for environmental applications. A substantial improvement of effluent quality is obtained after the treatment.

4. Conclusions

The findings obtained in this study show the opportunity to perform a series of diverse assays, given that several specific endpoints can be targeted, and different biological models chosen, thus enabling to get a possible confirmation of the results. Furthermore, some tests, as in the case of estrogenicity assessment, describe the overall behavior of mixtures of substances, which are considered with increasing attention by the policy makers and included in a growing number of legislative documents.

The power of a multitiered approach suggested by several researchers has been confirmed, although further monitoring campaigns on different wastewater treatment plants are required, in order to better tune the sensitivity of the experiments and to select new ones (either replacing or adding those proposed here), with particular focus on the need to diminish the masking effect exerted by toxicity towards definite endpoints. Additionally, some tests conducted on human cells (namely, the detection of estrogenic response of MCF-7 and of DNA fragmentation in leukocytes) revealed highly sensitive.

Specifically, the suggested traffic light approach might help in getting a comprehensive overview. Interestingly, bioassays revealed that, in some cases, the effluent maintains a certain biological activity.

The authors believe that the conventional toxicity assays should be profitably integrated with additional and complementary ones, to properly characterize the possible effects of the discharged wastewater on the freshwater biota. The estimation of biological equivalents of toxicity, obtained by testing reference substances, could provide further quantitative information, as shown in the case of the estrogenic compound E2.

The outcomes of the present research are very promising, though not exhaustive, and they represent a solid starting point for further studies, which are already ongoing.
