3D Scanners in Orthodontics—Current Knowledge and Future Perspectives—A Systematic Review
Abstract
:1. Introduction
2. Materials and Methods
2.1. Search Strategy
2.2. Eligibility Criteria
2.3. Data Extraction
2.4. Quality Assessment
3. Results

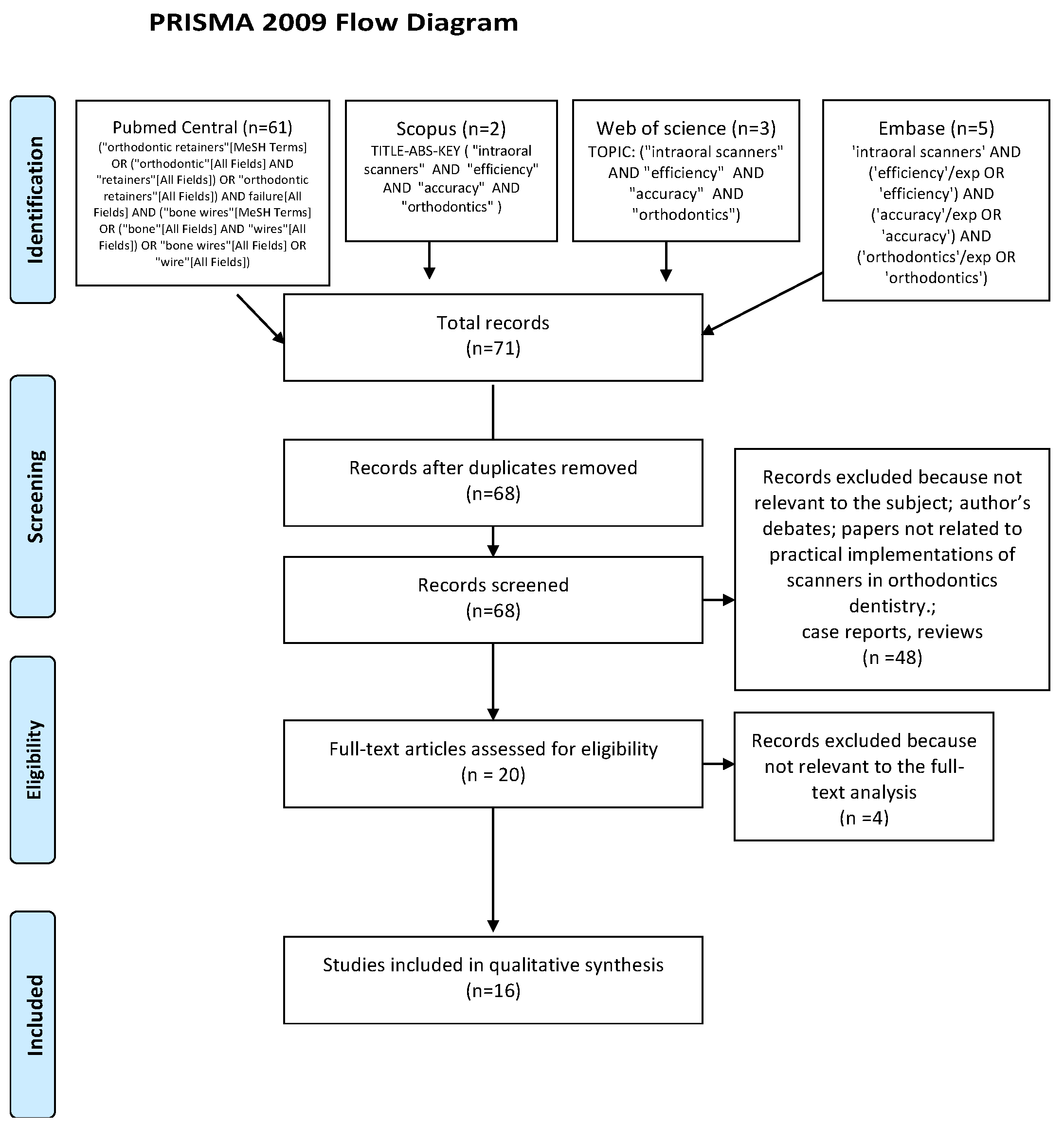

3.1. Study Selection
- 3Shape (n studies: 12; 3Shape Trios -n 7- and 3Shape TriPod -n 5-);
- iTero Element (n studies: 4);
- Carestream 3600 (n studies: 4);
- OrthoinSight 3D*-extraoral scanner (n studies: 3)
- Other (n studies: 5)
3.2. Quality Assessment and the Risk of Bias
4. Discussion
4.1. Determining the Accuracy of Scanning and Measurement on Digital Models of Different Scanning Devices
4.2. The Innovative Approaches in Use of Intraoral Scanners
- (a)
- New improvements in general use
- -
- proposing a new training to maximize the efficiency of dental hygienist [16]
- -
- orthodontic movement monitoring in quicker and much more comfortable way than before [17]
- -
- finding that full intraoral scans are perfectly reliable for orthodontic cases, but still not useful for prosthetic cases, where up to 3 segments should be scanned [21]
- -
- using the digital scans as exact for documentation of palatal soft tissue [23]
- -
- the innovative method of scanning the palate, ensuring its most faithfully reproduction on the digital model [24]
- -
- finding that when clinician depend on digital models, it is best to use ceramic brackets as they provide the lowest discrepancy of measurements [28]
- -
- finding that scanning method, which provides most accurate digital casts is when scanning begins from tooth #12 up to tooth #17, and then from tooth #12 up to tooth #27 [25]
- (b)
- Completely new applications in the use of scanners
- -
- use rugae palatine patterns on digital scans in order to identify individuals [18]
- -
- determine the occlusal contacts in a novel way [20]
- -
- display in more accurate way the interdental areas in periodontal patients directly in patients’ mouth [29]
- -
- finding centric relation only by using intraoral scanner [30]
5. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Conflicts of Interest
Abbreviations
RCT | randomized control trial |
RCCT | randomized control clinical trial |
3D | three dimensional; |
CT | computed tomography |
