Application of High-Performance Liquid Chromatography Combined with Fluorescence Detector and Dispersive Liquid–Liquid Microextraction to Quantification of Selected Bisphenols in Human Amniotic Fluid Samples
Abstract
:1. Introduction
2. Materials and Methods
2.1. Bisphenol Standards
2.2. Chemicals Used during the Instrumental Analysis and DLLME Procedure and Laboratory Equipment
2.3. Instrumental Analysis
2.4. Method Validation
2.5. Selectivity
2.6. Linearity
2.7. Extraction Recovery Studies

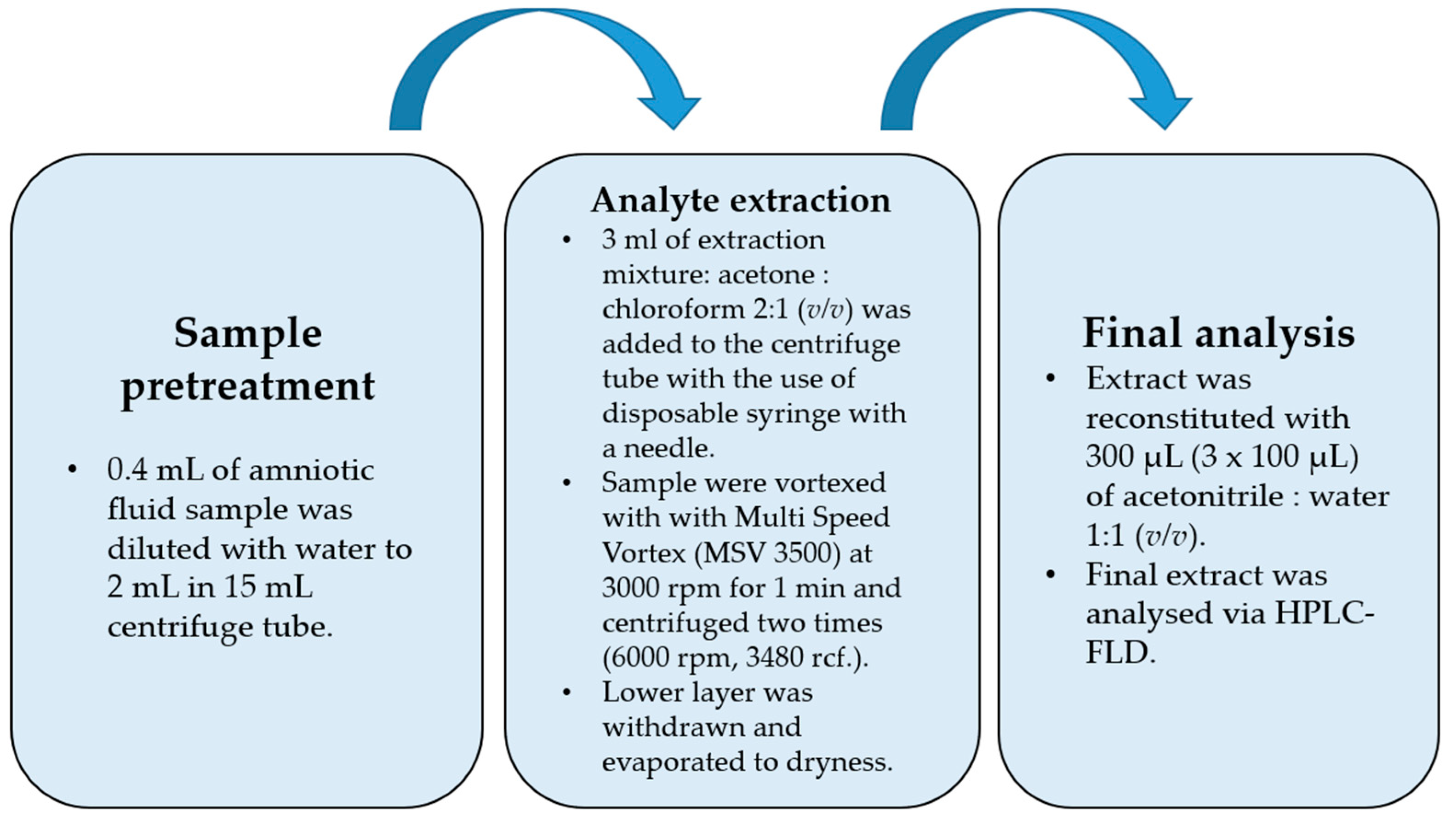

2.8. Optimized DLLME Procedure for Amniotic Fluid Samples
2.9. Human Amniotic Fluid Sample Collection and Storage
3. Results
3.1. Optimizing the Procedure

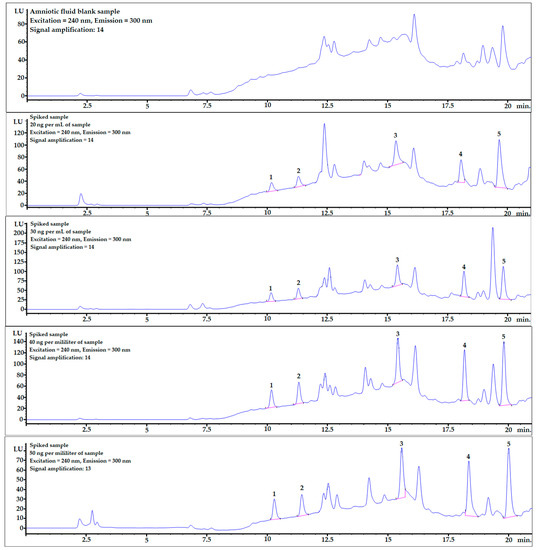

3.2. Recovery Studies

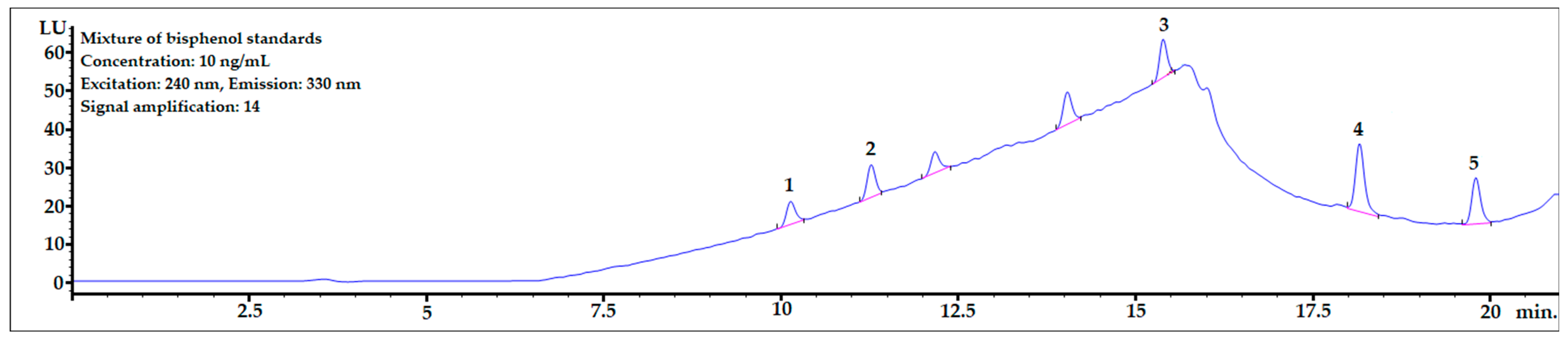

3.3. Chromatographic Conditions

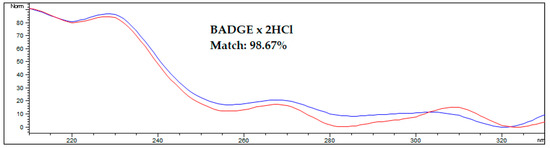

3.4. Detection Conditions
3.5. Optimization of the HPLC-FLD Procedure for Quantitative Analysis

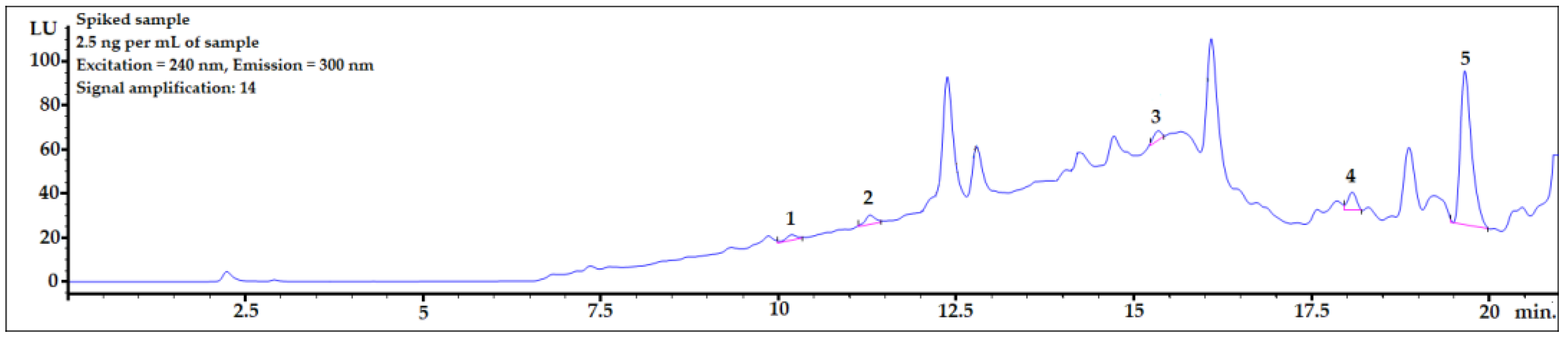

3.6. Applying the Procedure for Sample Spiked with Amount Close to Real Concentration Found in Human Body Fluids
4. Discussion
- -
- The sample volume stayed the same (0.4 mL);
- -
- The method was optimized for 5 bisphenols, while the previous study utilized a method optimized for 11 bisphenols. However, in the previous study, some bisphenols were not fully separated from each other (for example, BPAP and BPAF). For recovery studies, mixtures of 11 bisphenols were divided in two parts;
- -
- The SPE procedure was more time- and solvent-consuming;
- -
- Recoveries and repeatability remained at acceptable levels;
- -
- The LOQ values were 3.2–12.6 ng/mL for [33] and 6.17–22.72 ng/mL for this work.
5. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Acknowledgments
Conflicts of Interest
References
- Jiang, B.; Kauffman, A.; Li, L.; McFee, W.; Cai, B.; Weinstein, J.; Lead, J.; Chatterjee, S.; Scott, G.; Xiao, S. Health impacts of environmental contamination of micro- and nanoplastics: A review. Environ. Health Prev. Med. 2020, 25, 29. [Google Scholar] [CrossRef] [PubMed]
- Vandenberg, L.N.; Hauser, R.; Marcus, M.; Olea, N.; Welshons, W.V. Human exposure to bisphenol A (BPA). Reprod. Toxicol. 2007, 24, 139–177. [Google Scholar] [CrossRef] [PubMed]
- Michałowicz, J. Bisphenol A-Sources, toxicity and biotransformation. Environ. Toxicol. Pharmacol. 2014, 37, 738–758. [Google Scholar] [CrossRef] [PubMed]
- European Union Commission Regulation (EU) No 10/2011 of 14 January 2011. Off. J. Eur. Union. 2011, pp. 1–89. Available online: https://commission.europa.eu/privacy-policy-websites-managed-european-commission_en (accessed on 1 October 2022).
- European Commission Commission Regulation (EU) 2018/213 of 12 February 2018 on the use of bisphenol A in varnishes and coatings intended to come into contact with food and amending Regulation (EU) No 10/2011 as regards the use of that substance in plastic food contact materi. Off. J. Eur. Union 2018, 2001, 20–30.
- Ji, Z.; Liu, J.; Sakkiah, S.; Guo, W.; Hong, H. BPA Replacement Compounds: Current Status and Perspectives. ACS Sustain. Chem. Eng. 2021, 9, 2433–2446. [Google Scholar] [CrossRef]
- Adegoke, E.O.; Rahman, M.S.; Pang, M.G. Bisphenols Threaten Male Reproductive Health via Testicular Cells. Front. Endocrinol. 2020, 11, 624. [Google Scholar] [CrossRef]
- Kim, M.J.; Park, Y.J. Bisphenols and thyroid hormone. Endocrinol. Metab. 2019, 34, 340–348. [Google Scholar] [CrossRef]
- EC Commission Regulation (EC) No 1895/2005 of 18 November 2005 on the restriction of use of certain epoxy derivatives in materials and articles intended to come into contact with food. Off. J. Eur. Union 2005, L302, 28–32.
- Dualde, P.; Pardo, O.; Fernández, S.F.; Yusà, V. Determination of four parabens and bisphenols A, F and S in human breast milk using QuEChERS and liquid chromatography coupled to mass spectrometry. J. Chromatogr. B 2019, 1114, 154–166. [Google Scholar] [CrossRef]
- Tuzimski, T.; Szubartowski, S. Method development for selected bisphenols analysis in sweetened condensed milk from a can and breast milk samples by HPLC–DAD and HPLC-QqQ-MS: Comparison of sorbents (Z-Sep, Z-Sep plus, PSA, C18, chitin and EMR-Lipid) for clean-up of QuEChERS extract. Molecules 2019, 24, 2093. [Google Scholar] [CrossRef] [Green Version]
- Tuzimski, T.; Szubartowski, S.; Gadzała-Kopciuch, R.; Miturski, A.; Wójtowicz-Marzec, M.; Kwaśniewski, W.; Buszewski, B. Comparison of DAD and FLD Detection for Identification of Selected Bisphenols in Human Breast Milk Samples and Their Quantitative Analysis by LC-MS/MS. J. AOAC Int. 2020, 103, 1029–1042. [Google Scholar] [CrossRef] [PubMed]
- Tuzimski, T.; Pieniążek, D.; Buszewicz, G.G.; Teresiński, G.G. QuEChERS-based extraction procedures for the analysis of bisphenols S and A in breast milk samples by LC-QqQ-MS. J. AOAC Int. 2019, 102, 23–32. [Google Scholar] [CrossRef] [PubMed]
- Correia-Sá, L.; Norberto, S.; Delerue-Matos, C.; Calhau, C.; Domingues, V.F. Micro-QuEChERS extraction coupled to GC–MS for a fast determination of Bisphenol A in human urine. J. Chromatogr. B Anal. Technol. Biomed. Life Sci. 2018, 1072, 9–16. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Wiraagni, I.A.; Mohd, M.A.; bin Abd Rashid, R.; Haron, D.E.b.M. Validation of a simple extraction procedure for bisphenol A identification from human plasma. PLoS ONE 2019, 14, e0221774. [Google Scholar] [CrossRef] [Green Version]
- Kolatorova Sosvorova, L.; Chlupacova, T.; Vitku, J.; Vlk, M.; Heracek, J.; Starka, L.; Saman, D.; Simkova, M.; Hampl, R. Determination of selected bisphenols, parabens and estrogens in human plasma using LC-MS/MS. Talanta 2017, 174, 21–28. [Google Scholar] [CrossRef]
- Battal, D.; Sukuroglu, A.A.; Kocadal, K.; Cok, I.; Unlusayin, I. Establishment of rapid, sensitive, and quantitative liquid chromatography-electrospray ionization-tandem mass spectrometry method coupled with liquid–liquid extraction for measurement of urinary bisphenol A, 4-t-octylphenol, and 4-nonylphenol. Rapid Commun. Mass Spectrom. 2021, 35, e9084. [Google Scholar] [CrossRef]
- Hauck, Z.Z.; Huang, K.; Li, G.; Van Breemen, R.B. Determination of bisphenol A-glucuronide in human urine using ultrahigh-pressure liquid chromatography/tandem mass spectrometry. Rapid Commun. Mass Spectrom. 2016, 30, 400–406. [Google Scholar] [CrossRef]
- Tkalec, Ž.; Kosjek, T.; Snoj Tratnik, J.; Stajnko, A.; Runkel, A.A.; Sykiotou, M.; Mazej, D.; Horvat, M. Exposure of Slovenian children and adolescents to bisphenols, parabens and triclosan: Urinary levels, exposure patterns, determinants of exposure and susceptibility. Environ. Int. 2021, 146, 106172. [Google Scholar] [CrossRef]
- Faÿs, F.; Palazzi, P.; Hardy, E.M.; Schaeffer, C.; Phillipat, C.; Zeimet, E.; Vaillant, M.; Beausoleil, C.; Rousselle, C.; Slama, R.; et al. Is there an optimal sampling time and number of samples for assessing exposure to fast elimination endocrine disruptors with urinary biomarkers? Sci. Total Environ. 2020, 747, 141185. [Google Scholar] [CrossRef]
- Ma, W.; Wan, S.; Lin, C.; Lin, X.; Xie, Z. Towards online specific recognition and sensitive analysis of bisphenol A by using AuNPs@aptamer hybrid-silica affinity monolithic column with LC-MS. Talanta 2020, 219, 121275. [Google Scholar] [CrossRef]
- Jin, H.; Xie, J.; Mao, L.; Zhao, M.; Bai, X.; Wen, J.; Shen, T.; Wu, P. Bisphenol analogue concentrations in human breast milk and their associations with postnatal infant growth. Environ. Pollut. 2020, 259, 113779. [Google Scholar] [CrossRef] [PubMed]
- Tuzimski, T.; Szubartowski, S. Application of d-SPE before SPE and HPLC-FLD to Analyze Bisphenols in Human Breast Milk Samples. Molecules 2021, 26, 4930. [Google Scholar] [CrossRef] [PubMed]
- Tuzimski, T.; Szubartowski, S. Application of solid phase extraction and high-performance liquid chromatography with fluorescence detection to analyze bisphenol a bis (2,3-dihydroxypropyl) ether (BADGE∙2H2O), bisphenol F (BPF), and bisphenol E (BPE) in human urine samples. Int. J. Environ. Res. Public Health 2021, 18, 10307. [Google Scholar] [CrossRef] [PubMed]
- Jo, M.J.; Park, J.-H.; An, K.-A.; Choi, H.; Kang, Y.; Hwang, M. Quantification of bisphenols in Korean urine using online solid-phase extraction-high-performance liquid chromatography-tandem mass spectrometry. Environ. Toxicol. Pharmacol. 2020, 80, 103491. [Google Scholar] [CrossRef] [PubMed]
- Zhou, X.; Kramer, J.P.; Calafat, A.M.; Ye, X. Automated on-line column-switching high performance liquid chromatography isotope dilution tandem mass spectrometry method for the quantification of bisphenol A, bisphenol F, bisphenol S, and 11 other phenols in urine. J. Chromatogr. B Anal. Technol. Biomed. Life Sci. 2014, 944, 152–156. [Google Scholar] [CrossRef] [PubMed]
- Rocha, B.A.; Da Costa, B.R.B.; De Albuquerque, N.C.P.; De Oliveira, A.R.M.; Souza, J.M.O.; Al-Tameemi, M.; Campiglia, A.D.; Barbosa, F. A fast method for bisphenol A and six analogues (S, F, Z, P, AF, AP) determination in urine samples based on dispersive liquid-liquid microextraction and liquid chromatography-tandem mass spectrometry. Talanta 2016, 154, 511–519. [Google Scholar] [CrossRef] [PubMed]
- Pastor-Belda, M.; Bastida, D.; Campillo, N.; Pérez-Cárceles, M.D.; Motas, M.; Viñas, P. A study of the influence on diabetes of free and conjugated bisphenol A concentrations in urine: Development of a simple microextraction procedure using gas chromatography–mass spectrometry. J. Pharm. Biomed. Anal. 2016, 129, 458–465. [Google Scholar] [CrossRef]
- de Oliveira, M.L.; Rocha, B.A.; de Oliveira Souza, V.C.; Barbosa, F. Determination of 17 potential endocrine-disrupting chemicals in human saliva by dispersive liquid-liquid microextraction and liquid chromatography-tandem mass spectrometry. Talanta 2019, 196, 271–276. [Google Scholar] [CrossRef]
- Ocaña-Rios, I.; de Jesús Olmos-Espejel, J.; Donkor, K.K. Recent advances in analysis of bisphenols and their derivatives in biological matrices. Anal. Bioanal. Chem. 2021, 414, 807–846. [Google Scholar] [CrossRef]
- Rezaee, M.; Assadi, Y.; Milani Hosseini, M.R.; Aghaee, E.; Ahmadi, F.; Berijani, S. Determination of organic compounds in water using dispersive liquid-liquid microextraction. J. Chromatogr. A 2006, 1116, 1–9. [Google Scholar] [CrossRef]
- Zgoła-Grześkowiak, A.; Grześkowiak, T. Dispersive liquid-liquid microextraction. TrAC-Trends Anal. Chem. 2011, 30, 1382–1399. [Google Scholar] [CrossRef]
- Tuzimski, T.; Szubartowski, S. Application of Solid-Phase Extraction and High-Performance Liquid Chromatography with Fluorescence Detection to Analyze Eleven Bisphenols in Amniotic Fluid Samples Collected during Amniocentesis. Int. J. Environ. Res. Public Health 2022, 19, 2309. [Google Scholar] [CrossRef] [PubMed]
- Orzel, J.; Swit, P. Comparison of quantitative detection methods based on molecular fluorescence spectroscopy and chromatographic techniques used for the determination of bisphenol compounds. Int. J. Mol. Sci. 2021, 22, 10569. [Google Scholar] [CrossRef]
- Nachman, R.M.; Fox, S.D.; Golden, W.C.; Sibinga, E.; Groopman, J.D.; Lees, P.S.J. Serial free bisphenol A and bisphenol A glucuronide concentrations in neonates. J. Pediatr. 2015, 167, 64–69. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Chen, M.; Edlow, A.G.; Lin, T.; Smith, N.A.; McElrath, T.F.; Lu, C. Determination of bisphenol-A levels in human amniotic fluid samples by liquid chromatography coupled with mass spectrometry. J. Sep. Sci. 2011, 34, 1648–1655. [Google Scholar] [CrossRef] [Green Version]
- Shekhar, S.; Sood, S.; Showkat, S.; Lite, C.; Chandrasekhar, A.; Vairamani, M.; Barathi, S.; Santosh, W. Detection of phenolic endocrine disrupting chemicals (EDCs) from maternal blood plasma and amniotic fluid in Indian population. Gen. Comp. Endocrinol. 2017, 241, 100–107. [Google Scholar] [CrossRef]
- Zhang, B.; He, Y.; Zhu, H.; Huang, X.; Bai, X.; Kannan, K.; Zhang, T. Concentrations of bisphenol A and its alternatives in paired maternal–fetal urine, serum and amniotic fluid from an e-waste dismantling area in China. Environ. Int. 2020, 136, 105407. [Google Scholar] [CrossRef]
No. | Bisphenol | IUPAC Name 1 | Chemical Structure | Log p 1 | pKa 1 |
---|---|---|---|---|---|
1 | BPF | 4-[(4-hydroxyphenyl)methyl]phenol | 2.9 | pKa1 = 7.55 pKa2 = 10.80 | |

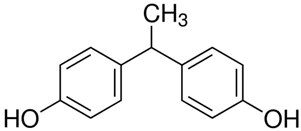

2 | BPE | 4-[1-(4-hydroxyphenyl)ethyl]phenol | 3.9 | - | |
3 | BPAF | 4-[1,1,1,3,3,3-hexafluoro-2-(4-hydroxyphenyl)propan-2-yl]phenol | 4.5 | 9.2 | |
4 | BADGE∙ 2HCl | 1-chloro-3-[4-[2-[4-(3-chloro-2-hydroxypropoxy)phenyl]propan-2-yl]phenoxy]propan-2-ol | 4.6 | - | |

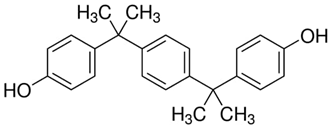

5 | BPP | 4-[2-[4-[2-(4-hydroxyphenyl)propan-2-yl]phenyl]propan-2-yl]phenol | 6.1 | - |
Bisphenol | 3 mL of Acetone: Dichloromethane (2:1, v/v) | 3 mL of Acetone: Chloroform (2:1, v/v) | 3 mL of Acetone: Dichloromethane: Chloroform (4:1:1, v/v/v) | |||
---|---|---|---|---|---|---|
Recovery | RSD% | Recovery | RSD% | Recovery | RSD% | |
BPF | 82.6% | 11% | 87.9% | 9% | 84.2% | 9% |
BPE | 81.7% | 8% | 94.3% | 8% | 88.8% | 10% |
BPAF | 107.2% | 9% | 105.5% | 11% | 97.6% | 7% |
BADGE∙2HCl | 101.4% | 10% | 103.9% | 5% | 99.7% | 16% |
BPP | 100.8% | 14% | 106.7% | 11% | 102.3% | 13% |
No. | Bisphenol | Recovery Values (%) ± RSD% for Spiking Level (ng/mL) | |||
---|---|---|---|---|---|
20 | 30 | 40 | 50 | ||
1 | BPF | 104.9 ± 9 | 98.9 ± 9 | 109.2 ± 9 | 87.9 ± 9 |
2 | BPE | 115.9 ± 6 | 105.1 ± 5 | 105.1 ± 5 | 94.3 ± 8 |
3 | BPAF | 113.3 ± 7 | 97.0 ± 6 | 96.2 ± 7 | 106.7 ± 11 |
4 | BADGE∙2HCl | 80.9 ± 6 | 98.9 ± 5 | 109.2 ± 7 | 87.9 ± 5 |
5 | BPP | 99.0 ± 5 | 105.1 ± 12 | 105.1 ± 6 | 94.3 ± 11 |
No. | Bp. | Retention Time, tR (min) | Linear Regression | Standard Deviation (SD) of Slope | SD of Intercept | Coefficient of Determination (R2) | LOD (ng/mL) | LOQ (ng/mL) | Confidence Level |
---|---|---|---|---|---|---|---|---|---|
1 | BPF | ~10.13 | y = 5.875x − 5.675 | 0.31 | 7.66 | 0.9916 | 4.30 | 13.04 | 0.95 |
2 | BPE | ~11.27 | y = 6.0876x + 3.7012 | 0.24 | 5.95 | 0.9953 | 3.23 | 9.77 | 0.95 |
3 | BPAF | ~15.38 | y = 14.956x − 12.788 | 1.38 | 33.99 | 0.9816 | 7.50 | 22.72 | 0.95 |
4 | BADGE∙2HCl | ~18.15 | y = 16.592x + 86.834 | 0.14 | 3.37 | 0.9998 | 2.04 | 6.17 | 0.95 |
5 | BPP | ~19.79 | y = 9.2674x + 471.42 | 0.42 | 10.38 | 0.9938 | 3.70 | 11.20 | 0.95 |
Analyzed Bisphenols | Sample Type | Instrumental Analysis | Sample Volume | Extracting Mixture (Dispersive Solvent + Extracting Solvent) | LOD/LOQ | Ref. |
---|---|---|---|---|---|---|
BPA, BPS, BPF, BPZ, BPP, BPAF, BPAP | Urine | LC-MS/MS | 5 mL of urine + 5 of mL water | 750 µL of acetone + 500 µL of 1,2-dichloroethane | LOQ: 0.03–0.2 ng/mL | [27] |
BPA, BPF, BPZ, BP | Urine | GC-MS | 2 mL of urine + 8 of mL water | 1 mL of acetone + 100 µL chloroform | LOD: 0.01–0.04 ng/mL | [28] |
BPA, BPS, BPP, BPAP, BPAF, BPZ | Saliva | LC-MS/MS | 500 µL of saliva + 500 µL of water | 1.5 mL of acetone + 500 µL of chloroform | LOQ: 0.05–0.4 ng/mL | [29] |
BPF, BPE, BPA, BPB, BPAF, BADGE∙2HCl, BPP | Amniotic fluid collected during amniocentesis | HPLC-FLD | 400 µL of amniotic fluid + 1.6 mL of water | 2 mL of acetone + 1 mL of chloroform | LOD: 2.04–7.5 ng/mL | This work |
Bisphenol | Sample Amount | Extraction Technique Used during Sample Preparation | Chromatographic Method and Detection Technique | LOD/LOQ | Ref. |
---|---|---|---|---|---|
BPA | 0.5 mL | SPE (cartridges packed with 200 mg of silica-based bonded C18 material) | LC-MS | LOD = 0.1 ng/mL LOQ = 0.3 ng/mL | [36] |
BPA | 1.0 mL | SPE (C18-based sorbent) | GC-MS | LOD = 0.52 ng/mL | [37] |
BPA, BPP, BPS, BPAF, BPAP | 2.0 mL | Solvent extraction (ethyl acetate) | LC-MS | LOQ: from 0.01 ng/mL to 0.2 ng/mL | [38] |
BPF, BPE, BPAF, BADGE∙2HCl, BPP | 0.4 mL | DLLME | HPLC-FLD | LOQ: from 6.17 to 22.72 ng/mL | This work |
