A Hybrid Model for Lift Response to Dynamic Actuation on a Stalled Airfoil

Abstract

The current research focuses on modeling the lift response due to dynamic (time-varying) “burst-type” actuation on a stalled airfoil. Here, the “burst-type” actuation refers to the synthetic jet (generated from the actuator) that is used for flow separation mitigation. Dynamic “burst-type” actuation exhibits two different characteristic dynamic behaviors within the system; namely, the high-frequency and low-frequency components. These characteristics introduce modeling challenges. In this paper, we propose a hybrid model composed of two individual sub-models, one for each of the two frequencies. The lift response due to high-frequency burst actuation is captured using a convolution model. The low-frequency component due to nonlinear burst-burst interactions is captured using a Wiener model, consisting of linear time-invariant dynamics and a static output nonlinearity. The hybrid model is validated using data from wind tunnel experiments.

1. Introduction

Unsteady flow separation causes transient aerodynamic forces in a variety of fluid dynamic applications and leads to performance degradation in many devices. For example, the dynamic stall vortices formed on helicopter rotor blades contribute to the unbalanced lift force and result in an undesired roll moment. In another example, by removing the pilot, who is the major limitation of a high performance aircraft’s maneuverability, a next generation unmanned aircraft could achieve super maneuverability. At this stage, the unsteady flow separation, which is an inherent phenomenon of the super maneuverability, may become the limiting factor to performance. Another common type of fluid dynamic application where the unsteady flow separation needs to be addressed is the vertical axis wind turbine. Because their blades constantly change their angle of attack relative to the incoming flow at a fast rate, the torque that can be produced becomes limited by the unsteady flow separation. Therefore, alleviating or even eliminating the unsteady flow separation could benefit many fluid dynamic applications.

Active flow control (AFC) has attracted substantial attention for decades, partly due to its ability to reattach the separated flow on stalled airfoils. Investigations by Williams et al. [1], An [2], Williams et al. [3] and Williams and King [4] have shown that with a properly designed controller, AFC is also an effective way of alleviating the unsteady separated flow which is always in the transient state. Under this circumstance, "dynamic actuation" is needed. The definition of dynamic actuation is that the actuation is time-varying. The time-varying actuation leads to transient aerodynamic force responses, which cannot be modeled by quasi-steady models. Williams et al. [3] also exhibited that a closed-loop feedforward controller, which is a combination of a feedforward controller and a canonical feedback controller, responds to the disturbance faster than the classic feedback controller in terms of gust alleviation. There are two keys to the closed-loop feedforward controller design. First, an accurate model of the lift response to the actuation input is necessary for the feedforward part. Second, the feedback signal is always noisy; a model-based observer (e.g., Kalman filter) is desired for noise reduction without introducing any time delay into the system. Therefore, in order to design a proper controller, a dynamic model for predicting the aerodynamic force (e.g., lift, drag) response due to dynamic actuation is desired. These models are known as “plant models” within the controls literature.

Previous investigations by Darabi and Wygnanski [5] and Amitay and Glezer [6] showed that burst actuation with short duty cycles is the most effective way of reattaching the separated flow on a stalled airfoil. However, in order to achieve the maximum lift gain, the burst frequency is much higher than the characteristic frequency contained in the unsteady aerodynamic forces that need to be controlled. Thus, another lower-frequency signal is superposed on the high-frequency burst signal as amplitude modulation. In the rest of this paper, we will refer to the high-frequency burst signal as the “carrier wave,” the low-frequency signal as the "control signal" and their combination as the “actuation signal.” Thus, the model for predicting the aerodynamic force (e.g., lift) in response to the amplitude modulated input signal (e.g., input voltage or the actuation momentum coefficient to the actuators) is desired.

The classic approach of modeling the dynamic actuation is to employ the governing equations of the fluid and develop physics-based models. For example, Darakananda et al. [7] developed a vortex-sheet point-vortex model that could be utilized for modeling the dynamic actuation. In order to simulate the actuation at the leading edge, the critical leading-edge suction parameter (LESP) is adjusted with time. Furthermore, by adding an ensemble Kalman filter, a good agreement between the model and immersed boundary method (IBM) high-fidelity numerical simulations was obtained. However, the high-dimensionality of this vortex-sheet point-vortex model makes it hard to be implemented into real-time control applications, especially when turbulence is onsite.

Williams, et al. [1] developed a simple linear model to predict the lift force variation associated with time-varying (transient) leading-edge actuation on a semi-circular wing. This model is achieved by averaging a family of models identified from a series of pseudo-random binary signals with different amplitudes. The model works well when the system is running near its design point; however, when the system is running at a point further away from its design point, the performance deteriorates. Later on, An et al. [8] and Williams et al. [3] employed a similar modeling strategy to model the synthetic (zero-net-mass flux) actuation on a nominal 2-D wing. In this case, the strong 3-D effect is absent compared with the semi-circular wing, and the complexity of the system is reduced. However, even for this simplified system, the averaged linear model only works well near its design point. In fact, the investigation by An et al. [8] reported that the nonlinear static gain in the system is the major cause of the linear model failure when the model is linearized at any point on the static nonlinear gain map. On the other hand, this model is only capable of capturing the low-frequency component in the lift variation with respect to the control signal only, since it only uses the low-frequency control signal as the input to the system. From this point, it is natural to investigate predictive modeling based on the complete actuation signal with both the high-frequency carrier wave and the low-frequency control signal.

Following this idea, Williams [1] introduced a convolution model to predict the lift variation utilizing the actuation signal. In their convolution model, they use the lift response to a single burst (impulse) signal as the kernel of the convolution integral. They demonstrated that the convolution model is capable of capturing both the high-frequency and low-frequency components in the lift variation. However, further investigations by An et al. [8] discovered that the convolution model fails when the burst frequency is high. They recognized that when the bursts are close to each other, the nonlinear burst-burst interaction becomes stronger, which cannot be captured by a linear convolution model.

In this paper, we propose a novel strategy to model this type of actuated system. The model includes two components. The first one is a modified convolution model that captures the response to the high-frequency component of actuation. The second component is a low-order Wiener model [9,10], consisting of linear dynamics with static output nonlinearity that is capable of modeling the low-frequency component in the lift response associated with the low-frequency control signal.

The next Section 2 describes the experimental setup and explains the actuation signal in more detail. In Section 3, some preliminary results for the dynamic actuation are shown. In Section 3.1 the convolution model is discussed and modified. In Section 3.2, a Wiener model is proposed to model the low-frequency component of the lift. In Section 3.3 the hybrid model consisting of the modified convolution model and the Wiener model is proposed. The hybrid model is then validated in Section 4. The conclusions are given in Section 5.

2. Experimental Setup

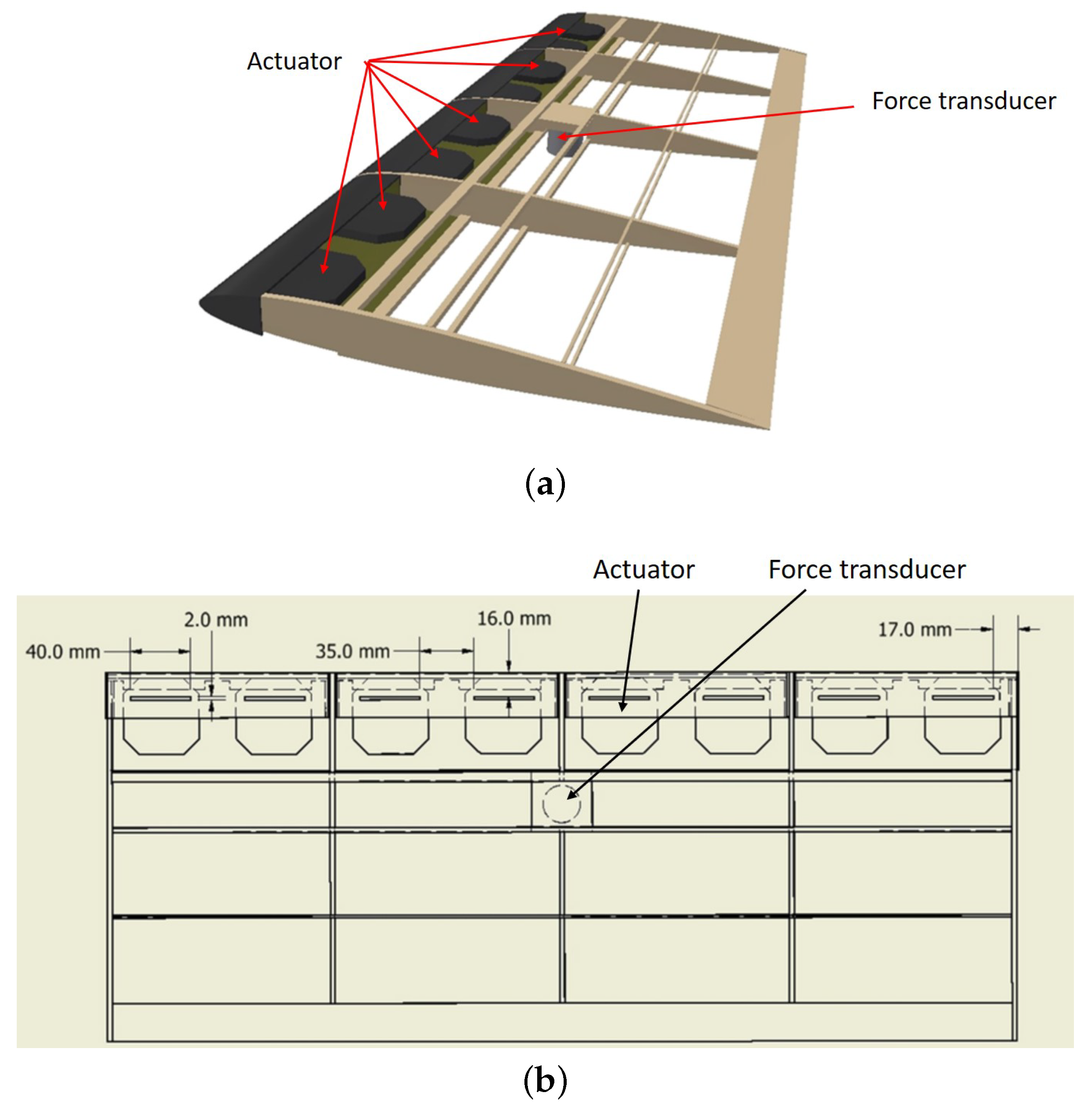

The experiments were conducted in the Andrew Feier Unsteady Wind Tunnel at Illinois Institute of Technology. The turbulent level of the wind tunnel is $u_{rms}^{\prime }=0.44\%$ of the freestream flow. The test section of the wind tunnel is 2000 mm long, 600 mm wide and 600 mm high. The nominally two-dimensional NACA0009 wing with chord length $c=245$ mm and wingspan $b=596$ mm was used as the test article. The angle of attack was fixed at 20${}^{\circ }$. Eight piezoelectric (zero-net-mass-flux) actuators that are used for synthetic jet generation are installed at the leading edge of the wing and are evenly distributed along the wingspan. The actuator orifices are located $0.05$ c from the leading edge on the suction side. The schematic of the wing with actuators installed is shown in Figure 1a. The orifices have a 30${}^{\circ }$ angle relative to the local tangential direction. The eight piezoelectric actuators are grouped in four pairs for manufacturing simplicity. Figure 1b shows the top view of the wing for a better exhibition of the actuators distribution. The freestream velocity was fixed at $U_{\infty }=3$ m/s throughout all the test cases in this paper, corresponding to a convective time $t_{convect}=\frac{c}{U_{\infty }}=0.082$ s, where $t^{+}=\frac{t}{t_{convect}}$. The reduced frequency is defined as $k=\frac{\pi fc}{U_{\infty }}$, where f is the frequency in Hz. The chord-based Reynolds number is $Re=49,000$. The dimensionless excitation momentum coefficient $C_{\mu }=\frac{\rho U_j^2{A}_{actuators}}{0.5\rho U_{\infty }^2{A}_{wing}}$, where $\rho$ is the air density, $U_j$ is the actuation jet speed in quiescent air, $A_{actuators}$ is the area of the actuators orifices and $A_{wing}$ is the wing area. The maximum jet speed measured by a hot-wire anemometer at the actuator orifices is 4.9 m/s corresponding to $C_{\mu }=0.022$. The lift force L was measured by an ATI NANO-17 force transducer at $0.3$ c; the lift coefficient $C_L$, which is the nondimensionalized form of lift, is defined as $C_L=\frac{L}{1/2\rho U_{\infty }^{2}bc}$. The nondimensionalized variable $\Delta C_L$ denotes the value of $C_L$ with the nonactuated (baseline) $C_L$ subtracted. All the data sets were phase averaged, utilizing the input signal to the actuators.

The actuation input signal is modulated by three signals associated with three characteristic frequencies. The first is a pulse signal set to be at the resonant frequency of the actuators, 400 Hz with a pulse width of $\Delta t_p=0.0187t^{+}$, to generate maximum jet speed from the actuators. The second signal has a frequency 8 Hz corresponding to the period of $T=1.56t^{+}$ and a duty cycle of $\Delta t_b=0.125t^{+}$. This signal runs in the vicinity of the natural vortex shedding frequency for maximum lift incrementation [11]. The first two signals, namely, the carrier wave and pulse signal, are exhibited in Figure 2a. The last signal, which is called the control signal, is associated with the characteristic frequency of the controlled systems. For instance, if the control goal is to suppress the lift variation due to a pitching maneuver, the characteristic frequency of the control signal should close to the characteristic frequency of the pitching maneuver. In general, the last signal has a much lower frequency than the first two (Figure 2b). The final actuator input signal, which is a combination of all the three signals, is shown in Figure 2c. The three components of the actuation signal are also listed in

Table 1. The actuator input signal.

	Frequency (Hz)	Signal Roles
Pulse signal	400	Generating maximum actuation jet speed
Burst signal	8	Generating maximum lift increment
Control signal	$O\left(1\right)$	Defining the time-varying lift curve

for clarity. It is very important to point out that the 400 Hz frequency has nothing to do with the dynamic system to be modeled, but is only needed to create a maximum $C_{\mu }$ from the actuators. Thus, only the lift response to the latter two signals is modeled.

3. Modeling Methods

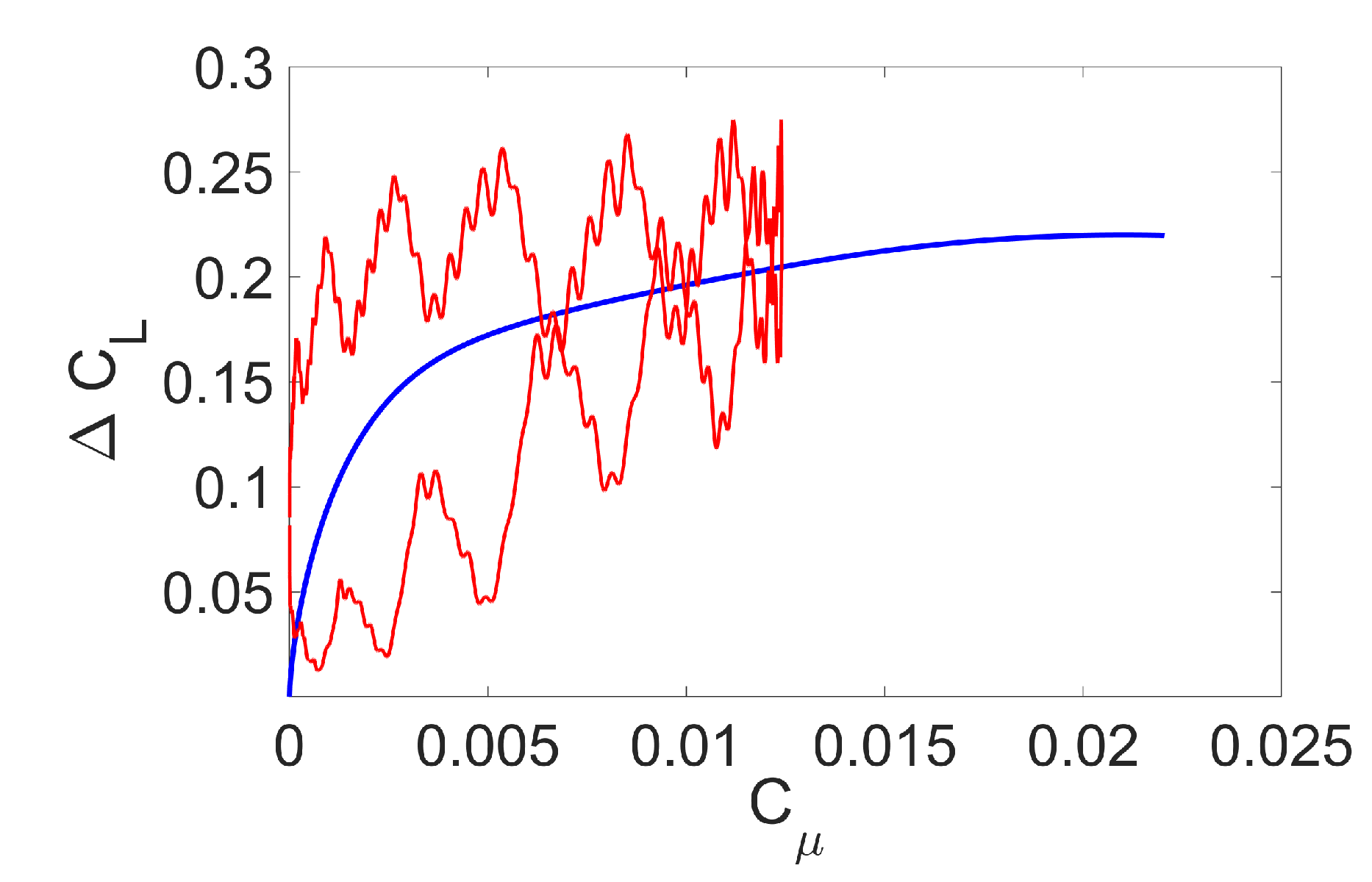

Prior to modeling the lift variation, the preliminary results are examined. The static map is shown in Figure 3, where the actuation $C_{\mu }$ is slowly varied from 0 to $0.022$, and then, slowly back to 0. The lift coefficient increments: with the non-actuated baseline subtracted, $\Delta C_L$ goes from 0 to $0.22$, and then, back to 0 respectively. It can be seen that there is no static hysteresis loop; in other words, the static map is independent of the initial condition. However, when a fast time-varying ($k=0.125$) actuation signal is given to the actuators, the $\Delta C_L$ curve deviates from the static map, which means that the quasi-steady approach becomes inaccurate and a dynamic model is required.

From the $\Delta C_L$ response to the dynamic actuation (the red line in Figure 3), it is clear that there exist two characteristic features corresponding to two different frequencies. As previously mentioned in Section 1, we will introduce a hybrid model that contains a modified convolution model for the high-frequency component of $\Delta C_L$ response to the dynamic actuation and a Wiener model for the low-frequency component.

3.1. Modified Convolution Model

The actuation signal in the current research can be viewed as an amplitude modulated burst signal, which can be seen in Figure 2c. The convolution approach is based on the assumption that the burst-burst interaction is linear. Thus, the $\Delta C_L$ response to a single burst actuation can be used as the kernel of convolution; as such, the convolution of the $\Delta C_L$ response to a single burst response with the discrete input signal is given by [1]. The convolution kernel $\Delta C_{L_{single}}$ is directly obtained from the experimental data by commanding a single burst with an amplitude of $C_{\mu }=0.022$ to the actuator.

$$\Delta C_L\left(i\right)=\varphi \sum _{j=0}^N\Delta C_{L_{single}}\left(j\right)C_{\mu }(i-j)$$

(1)

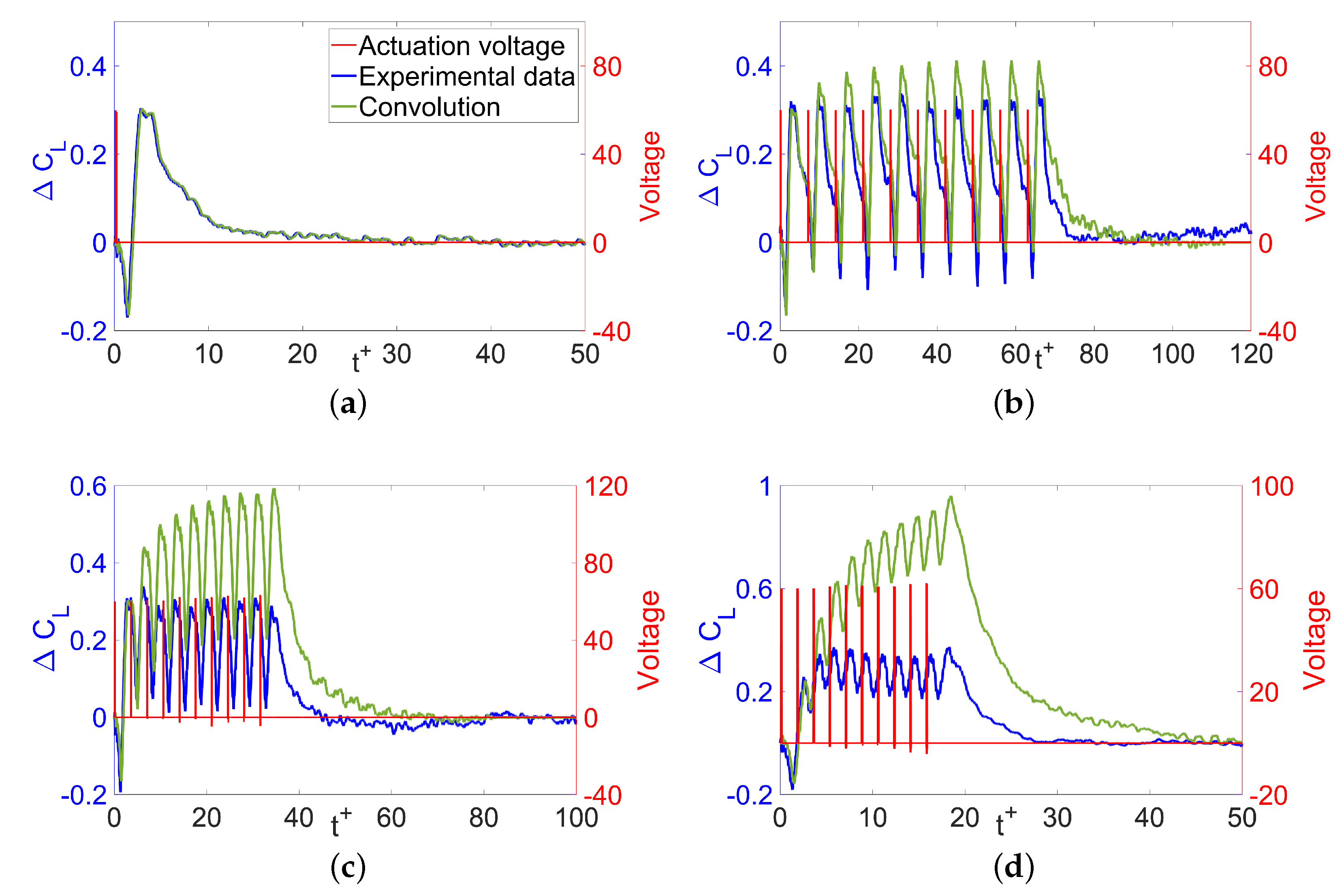

where $\varphi =1.5339$ is a constant used for normalization, both i and j are the time steps and N is the length of $\Delta C_{L_{single}}$. The convolution model is first tested with a sequence of 10 bursts. The amplitude of the actuation is fixed at 60V corresponding to $C_{\mu }=0.022$, $\Delta t_b=0.01s=0.125t^{+}$. The time interval between the bursts is varied between $1.75t^{+}\le T\le 7.0t^{+}$. The convolution kernel is shown in Figure 4a, and the convolution model prediction for this case is perfect, since the convolution acting on the single burst actuation just repeats itself. This also implies that when the bursts are separated infinitely in time, burst-burst interactions will not arise and the convolution model is able to predict the $\Delta C_L$ variation.

However, as the bursts get closer together in time, the convolution model will over-predict $\Delta C_L$ due to stronger nonlinear burst-burst interaction. This can be clearly seen from Figure 4b–d. Taking a closer look at Figure 4b–d, one can further observe that the convolution model mainly over-predicts the low-frequency component (main trend) of $\Delta C_L$, but it closely tracks the high-frequency component.

Therefore, the convolution model is modified by adding a high-pass filter on its output, so that the modified convolution model is capable of predicting the high-frequency component only. Thus, the model for the high frequency component of the lift variation $\Delta C_{L,H}$ is given as

$$\Delta C_{L,H}\left(i\right)=G_{HF}(\varphi \sum _{j=0}^N\Delta C_{L_{single}}\left(j\right)C_{\mu }(i-j))$$

(2)

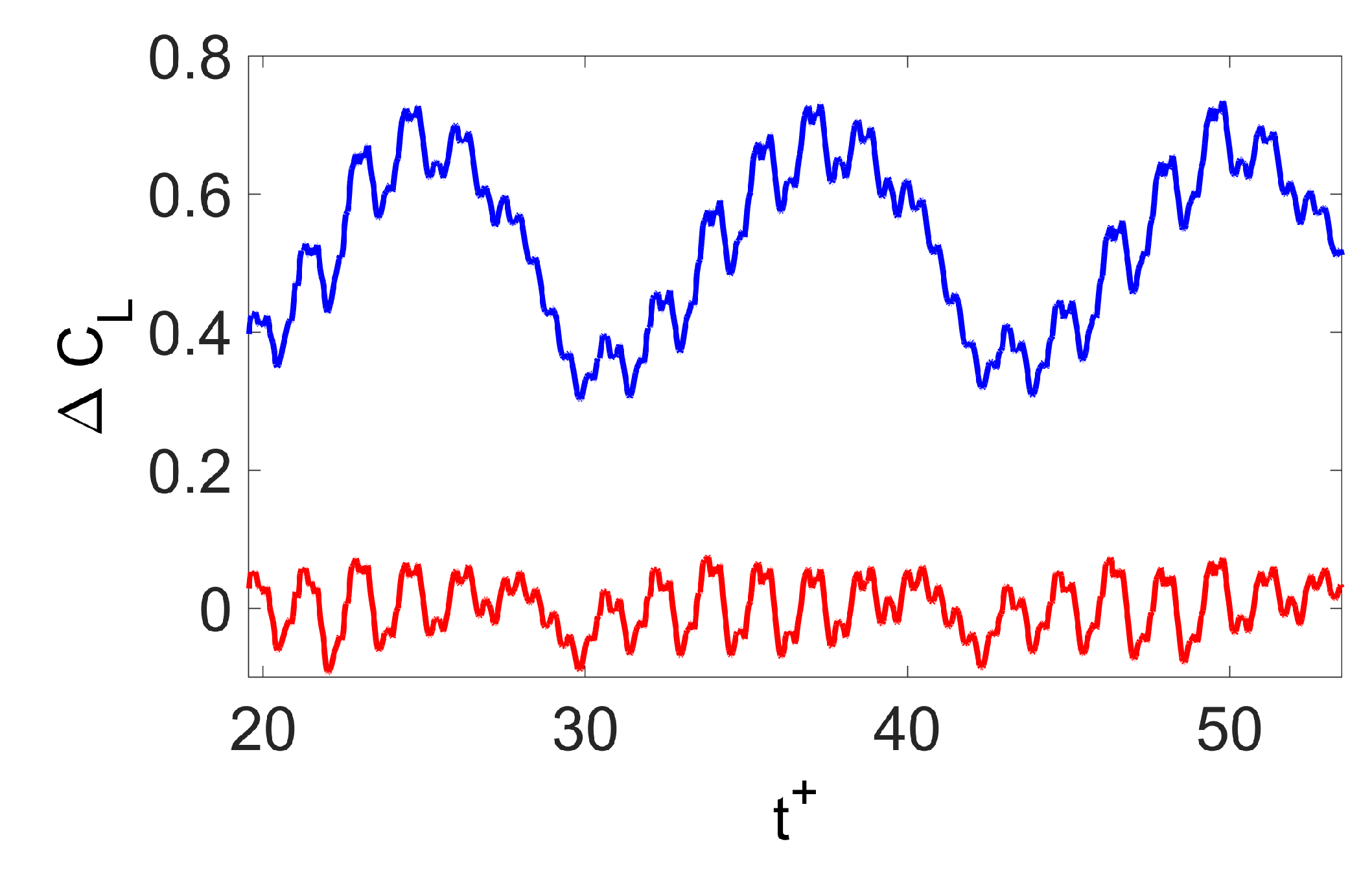

where $G_{HF}$ denotes a third order high-pass filter with a cutoff frequency at 3 Hz. Next, we will propose a Wiener model for the low-frequency component of $\Delta C_L$; namely, $\Delta C_{L,L}$. A comparison between the original convolution model and the high-pass filtered convolution model for the $k=0.128$ is shown in Figure 5. Although the outputs of the two models are different, the high-frequency components are close.

3.2. Wiener Model

In order to model the low-frequency component of the dynamic actuation, only the low-frequency component of the actuator input signal (control signal) is used as the input to this model. Thus, the input $C_{\mu }$ in the Wiener model (which will be discussed in detail later) is only the low-frequency envelope (control signal) of the actuation signal. An et al. [8], showed that a Goman-Khrabrov model [12] that contains a first order linear time invariant (LTI) system with a nonlinear forcing term is able to model $\Delta C_{L,L}$, the low-frequency component of $\Delta C_L$ in response to the dynamic actuation. Inspired by the Goman-Khrabrov model, we will extend this model to a more general form of a Wiener model [9,10], which contains a higher order LTI system with a nonlinear gain on the output. In the current research, the system identification procedure for the Wiener model can be simplified from the original Wiener model. The nonlinear gain on the output can be well defined from the static experimental data shown in Figure 3. This nonlinear gain is defined as a lookup table $N\left(C_{\mu }\right)$, where $C_{\mu }$ is the actuation momentum coefficient. Thus, the Wiener model is expressed as

$$\begin{array}{c}\hfill \mathit{x}(i+1)=\mathit{A}\mathit{x}\left(i\right)+\mathit{B}{C}_{\mu }\left(i\right)\end{array}$$

(3)

$$\begin{array}{c}\hfill y\left(i\right)=\mathit{C}\mathit{x}\left(i\right)\end{array}$$

(4)

$$\begin{array}{c}\hfill \Delta C_{L,L}\left(i\right)=N\left(C_{\mu }\left(i\right)\right)y\left(i\right)\end{array}$$

(5)

where $\mathit{x}$ is an internal state vector; y is a scalar internal output; $\mathit{A}$, $\mathit{B}$ and $\mathit{C}$ are coefficient matrices; and $N\left(C_{\mu }\right)$ is a scalar function defined from the static map as

$$N\left(C_{\mu }\right)=\Delta C_{L,L}/C_{\mu }.$$

(6)

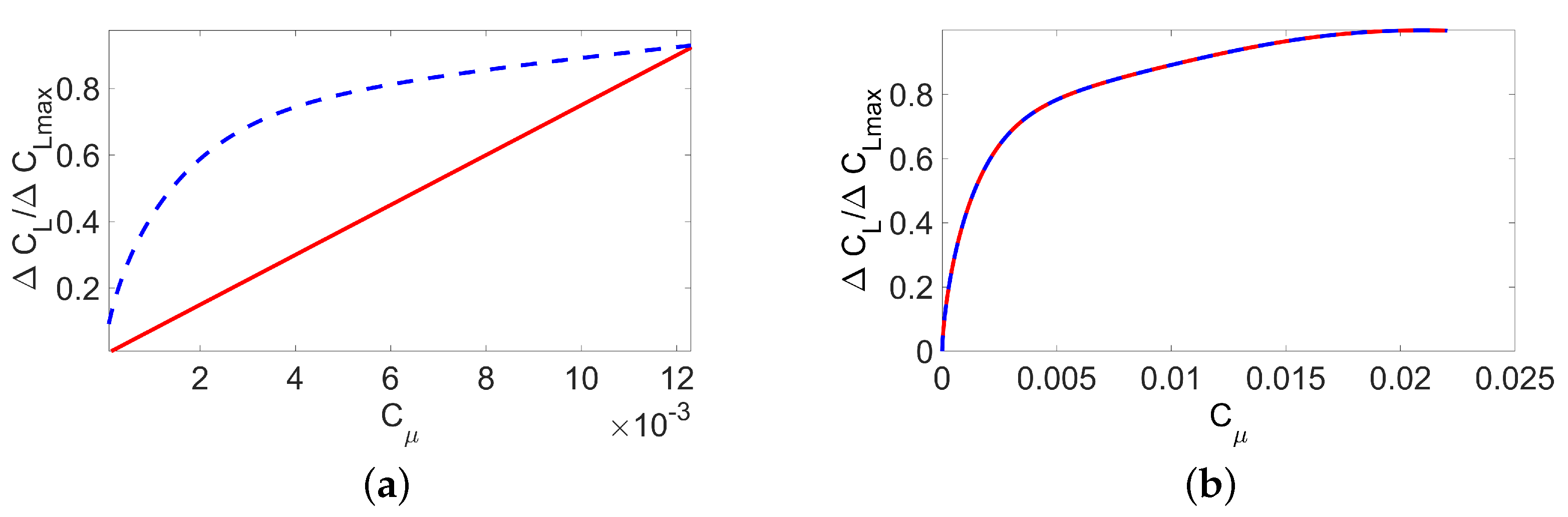

The comparison of the static map before and after the nonlinear compensation is shown in Figure 6. It shows that the nonlinear gain, $N\left(C_{\mu }\right)$ does correct the error caused by the constant gain.

Given the nonlinear gain $N\left(C_{\mu }\right)$, the LTI system from $C_{\mu }$ to y (Equations (3) and (4)) could be identified by a variety of regression approaches. The current model is identified with the k = 0.125 sinusoidal actuation case. In the current research, we employed the prediction error method (PEM) [13] to identify the LTI model. Here, we give a brief description of the PEM; readers interested in more details about PEM can refer to [13].

Given the system order n, the system matrices can be parameterized by the coefficient vector $\theta$, such that Equations (3) and (4) can be expressed as

$$\begin{array}{c}\hfill \mathit{x}(i+1)=\mathit{A}\left(\theta \right)\mathit{x}\left(i\right)+\mathit{B}\left(\theta \right){\mathit{C}}_{\mu }\left(i\right)\end{array}$$

(7)

$$\begin{array}{c}\hfill y\left(i\right)=\mathit{C}\left(\theta \right)\mathit{x}\left(i\right).\end{array}$$

(8)

Constraining the system matrices ($\mathit{A},\mathit{B},\mathit{C}$) to controllable canonical form reduces the number of parameters $\theta$ to be determined. Then, the following optimization problem can be solved to determine $\theta$:

$$\underset{\theta }{min}\left(\right|y-\widehat{y}\left|\right)$$

(9)

subject to Equations (7) and (8), assuming $x\left(0\right)=0$. Here $\widehat{y}$ is the measured output of the system. It can be obtained using the $\Delta C_L$ measurement and Equation (5) since $N\left(C_{\mu }\right)$ is known. This minimization was then solved by the damped Gauss-Newton method that is described in [13]. A second order state-space model obtained from the PEM was found to reproduce the measured lift response with minimal error. Combining the LTI system and the nonlinear gain, we can express the Wiener model as

$$\begin{array}{cc}\hfill \mathit{x}\left(i\right)& =\left[\begin{array}{cc}1.9960& -0.9960\\ 1.0000& 0\end{array}\right]\mathit{x}(i-1)+\left[\begin{array}{c}1\\ 0\end{array}\right]{\mathit{C}}_{\mu }\left(i\right)\hfill \end{array}$$

(10)

$$\begin{array}{cc}\hfill y\left(i\right)& =\left[\begin{array}{cc}0.0003288& -0.0003276\end{array}\right]\mathit{x}\left(i\right)\hfill \end{array}$$

(11)

$$\Delta C_{L,L}\left(i\right)=N\left(C_{\mu }\left(i\right)\right)y\left(i\right)$$

(12)

To simplify notation moving forward, we will refer to the Wiener model as

$$\Delta C_{L,L}\left(i\right)=W(\Delta C_{L,L}(i-1),C_{\mu }\left(i\right))$$

(13)

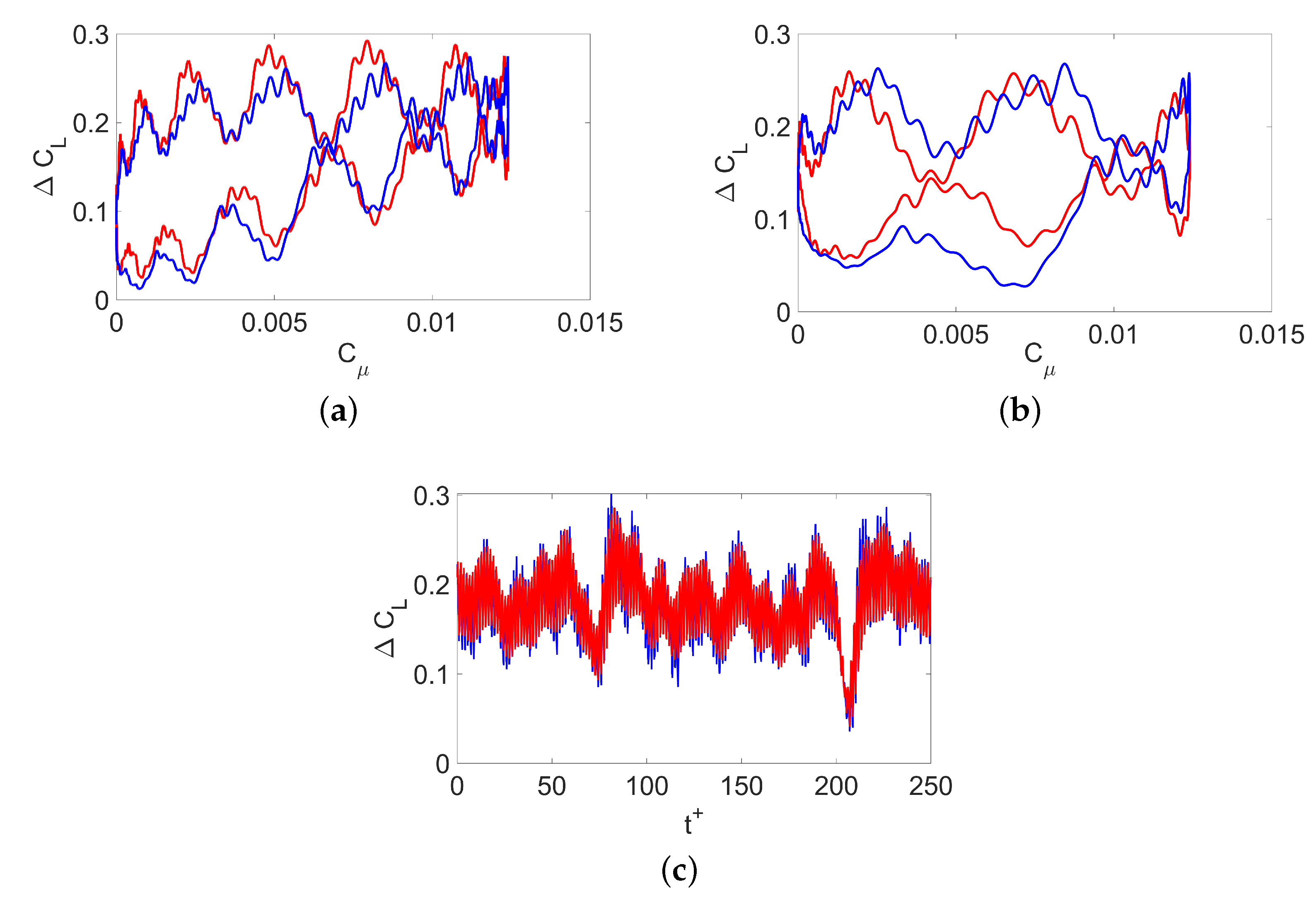

where W denotes the Wiener model. The comparisons between the Wiener model and the experimental data for both periodic and random actuation are shown in Figure 7a–c. Since the Wiener model only captures the low frequency component of the lift variation, it is hard to quantify its agreement with the experimental data. However, from Figure 7, the Wiener model is tracking the main trend of the experimental data. It is worth pointing out that a previous investigation by An et al. [8] indicates that it is harder to model a sinusoidal actuation with a control signal frequency higher than the training case. However, for a frequency higher than $k=0.25$, the control signal will be too close to the burst signal, which indicates it is out of the bandwidth of the controller. Thus, a sinusoidal actuation at $k=0.25$ and a random actuation are used to validate the model in the rest of this paper. The random signal is a combination of 10 sinusoidal signals with different frequencies, amplitudes and phases. The highest frequency among the 10 sinusoidal signals is $k=0.25$.

3.3. Hybrid Wiener-Convolution Model

As discussed in Section 3.1, because the burst period is too short for the linear approach to be accurate, the convolution model over-predicts the amplitude of the low-frequency component, as shown by the blue line in Figure 4. However, the high-frequency oscillations associated with the bursts are captured, and their amplitudes are nearly correct. Thus, the signal is high-pass filtered to remove the low-frequency component.

The high-pass filtered signal is then superposed with the low-frequency component from the Wiener model. Therefore, the hybrid model that consists of the high-pass filtered convolution model and Wiener model is

$$\Delta C_L\left(i\right)=G_{HF}(\varphi \sum _{j=0}^N\Delta C_{L_{single}}\left(j\right)C_{\mu }(i-j))+W(\Delta C_{L,L}(i-1),C_{\mu }\left(i\right))$$

(14)

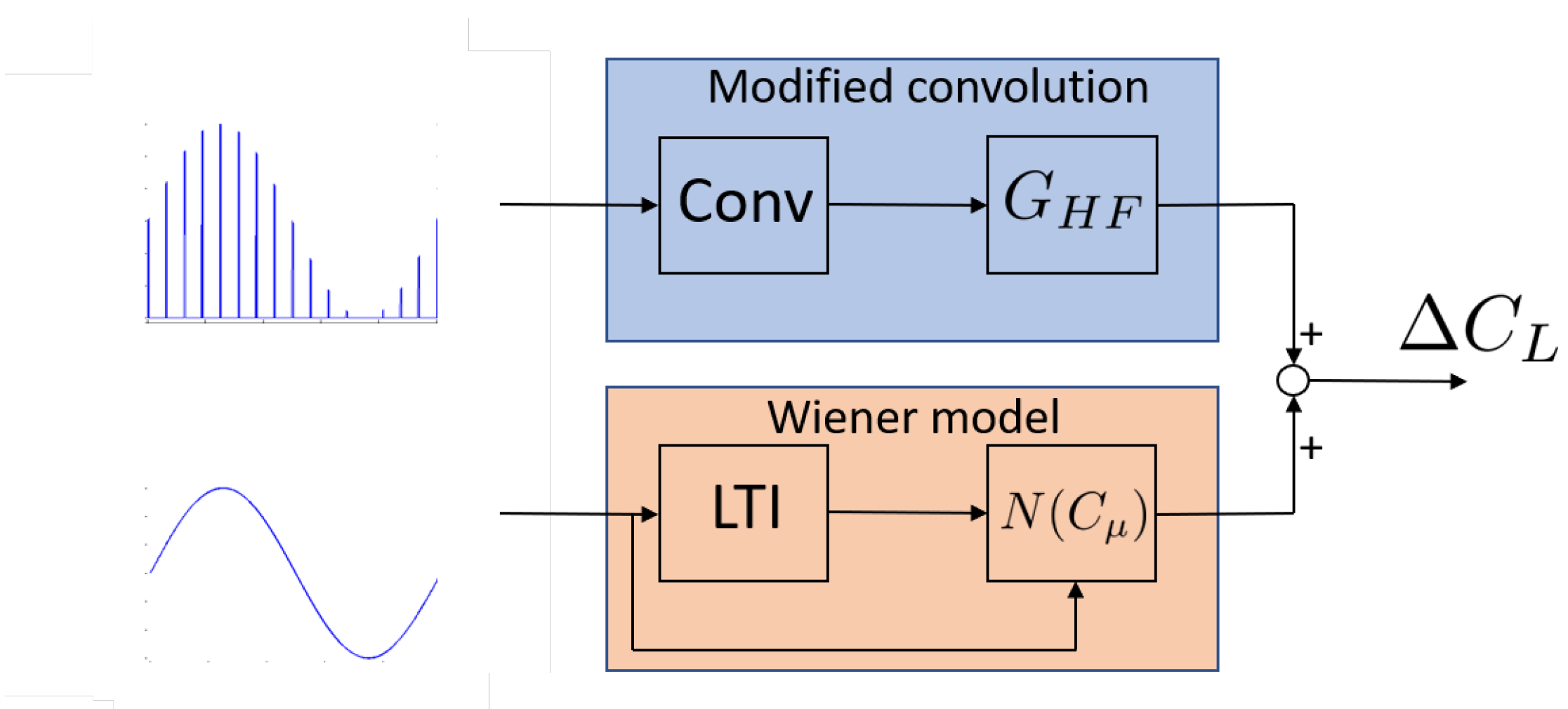

The first term on the right-hand side of Equation (14) is the high-pass filtered convolution model and the second term is the Wiener model. To better visualize the structure of this hybrid Wiener-convolution model, a flowchart is shown in Figure 8.

4. Model Validation

The results of the hybrid model are shown in Figure 9 for two different forcing frequencies, $k=0.128$ and $k=0.25$, and for a random actuation. The model was identified on the $k=0.128$ case. The experimental data are shown by the blue lines, which are compared to the combined model (red lines). The combined model captures both the high frequency and low-frequency lift components. To quantitatively evaluate the hybrid model, the correlation coefficients are computed for each individual case. If the correlation coefficient between two signals is 0, then the two signals are not related. If the correlation coefficient is 1, then the two signals are completely linearly dependent. Assuming we have two signals A and B, the correlation coefficient is defined as

$$\rho (A,B)=\frac{cov(A,B)}{{\sigma }_A{\sigma }_B}$$

(15)

where $\rho (A,B)$ is the correlation between signals A and B; $cov(A,B)$ is the covariance of A and B; and ${\sigma }_A$ and ${\sigma }_B$ are standard deviations of A and B. The resulting correlation coefficient between the model and measurement is $0.9596$ for the case $k=0.128$, $0.8654$ for $k=0.25$ and $0.9277$ for random actuation. It is clear that the hybrid model is able to predict the lift variation due to the dynamic actuation.

5. Conclusions

In the current research, a Wiener-convolution hybrid model was introduced and examined using a NACA 0009 airfoil with flow control actuators which were operated with open-loop forcing. The “burst mode” of actuation was used to obtain large lift increments, and the time-varying amplitude of the burst signal was modulated to obtain a time-varying (dynamic) lift coefficient.

A convolution model utilizing the lift response to the impulse input and the actuator input signal over-predicts the low-frequency (main trend), but it is capable of capturing the high-frequency component. Therefore, a high-pass filter is added on the output end of the convolution model to only model the high-frequency component of the lift variation. A Wiener model is then identified using the prediction error method. The nonlinear static gain in this model is used to compensate for the static nonlinearity, and the linear transfer function is capable of capturing the dynamic feature of the dynamic system.

The Wiener-convolution hybrid model obtained by combining the Wiener model and the high-pass filtered convolution model was validated with the experimental data taken from the wind tunnel. The comparison between the model prediction and the experimental data exhibits the good performance of the Wiener-convolution hybrid model. The Wiener-convolution hybrid model is in a form that is amenable to robust control synthesis, and can potentially improve control of unsteady flow separation [3]. The model improves the accuracy of the feedforward part of the controller. The model can also be utilized for setting up a Kalman filter to reduce the measurement noise in the feedback signal without introducing a delay.
