Leaching of Chlorides, Sulphates, and Phosphates from Ashes Formed as a Result of Burning Conventional Fuels, Alternative Fuels, and Municipal Waste in Household Furnaces

Abstract

The aim of the study was to assess leaching of Cl⁻, SO₄²⁻, and PO₄³⁻ from ashes formed in household furnaces. The ashes were obtained following the combustion of conventional fuels, namely wood and hard coal, and alternative fuels with various fractions of municipal waste in a household boiler. Aqueous leachates of the ashes were used to determine concentrations of chlorides by titration (Mohr’s method) (21.3–3049.6 mg/dm³), sulphates by the gravimetric method (12.2–244.1 mg/dm³), and phosphates by spectrophotometry (0.01–67.2 mg/dm³). It was found that co-combustion of municipal waste with plastic-coated paper cartons, diapers, or a mixed waste fraction leaves the greatest amount of ashes on the furnace grate. The highest amounts of Cl⁻, SO₄²⁻, and PO₄³⁻ were leached from ashes generated from burning a mix of wood and coals, or wood alone (different species). The addition of municipal waste to the process of burning the conventional and alternative fuels studied did not significantly increase Cl⁻, SO₄²⁻, and PO₄³⁻ content in aqueous extracts of ashes, the exception being diapers and plywood. In light of the study results, it was concluded that all the ashes could be reused (as an additive to concrete) except for the ash generated from the combustion of a mixed municipal waste fraction and coal (due to the content of Cl⁻) and diapers (due to the content of PO₄³⁻). It was demonstrated that Cl⁻, SO₄²⁻, and PO₄³⁻ content in the entire set of samples and in individual ash groups is highly heterogeneous and variable.

1. Introduction

Burning municipal waste in household furnaces is a frequent and often uncontrolled practice in Polish rural areas [1,2]. The diversity of waste, its morphological and chemical composition, is associated with the presence of numerous hazardous substances which, when incinerated, undergo changes and accumulate in ashes [3,4,5,6,7,8,9]. These substances pose a potential threat for the soil and aquatic environment, as they are easily leached and incorporated in the geochemical cycle [10,11,12,13]. Unfortunately, the existing body of knowledge about the extent of this threat is insufficient, and this subject has not been fully studied and documented in scientific publications.

The term “ashes” is used to describe solid particles generated as a by-product in the process of thermal decomposition (combustion). On the other hand, the term “fly ashes” denotes combustion products, whose composition includes fractions that can be suspended in the air. Furnace waste comprises mixtures of ashes (including fly ashes) and slags, whose physical and chemical properties depend mainly on the type of fuel used and technological parameters of the furnace. The most commonly used household heating devices are furnaces and stoker-fired boilers with manual fuel feeding, and stoker-fired retort boilers with automatic fuel feeding. An important factor characterising the combustion process in household furnaces is the low temperature of fuel incineration in contrast to industrial boilers used in e.g., power plants. The latter use temperatures (850–900 °C) allowing for the decomposition of organic compounds without letting them transform into stable forms non-reacting with water. The main components of ashes are silicon oxide (SiO₂), aluminium oxide (Al₂O₃), iron oxide (Fe₂O₃), calcium oxide (CaO), and magnesium oxide (MgO) [1]. However, ashes also contain other substances, such as chlorides, sulphates, and phosphates, whose high concentrations pose a threat to the environment and infrastructure [14,15,16,17].

The subject of incineration or co-incineration of municipal solid waste in the world, especially in China, has been presented in a paper by Kanhar et al. [18]. These authors indicated that it is a major challenge for environmental managers to dispose of incineration residues enriched with a vast range of heavy metals and soluble salts. Similar findings have been published by Horák et al. [19], who demonstrated the risk of incinerating solid fuels mixed with municipal waste. The subject of incinerating or co-incinerating various types of biomass, individually or in combination with solid fuels, has also been addressed by Bachameier et al. [20], Link et al. [21], Monedero et al. [22], or Suárez-Macías et al. [23].

In Poland, there over 3 million households heated with solid fuels [24]. About 10–13 million tons per year of solid fuels are burnt in furnaces in these households, including various types of coal and firewood. As a result of such a way of heating, over 2.5 million tons of ash and slag waste are formed annually, which is about 22% of the total amount of municipal waste generated (i.e., 11 million tons/year) [24]. Currently, in accordance with the definition of municipal waste set out in the Act on Waste [25], this waste should be classified in group 20, i.e., municipal waste together with fractions collected separately [26,27,28], and it is mostly disposed of together with mixed municipal waste.

In light of the above-listed facts and insufficient scientific investigations of the environmental issues presented, two hypotheses were investigated:

Hypothesis 1 (H1).

Does the addition of municipal waste (segregated and/or non-segregated) to conventional and alternative energy fuels have a significant effect on the content of chlorides, sulphates, and phosphates in ashes generated from their combustion?

Hypothesis 2 (H2).

Does burning municipal waste in household furnaces significantly increase the environmental risk related to the content of chlorides, sulphates, and phosphates is ashes?

For that purpose, samples of selected conventional (wood, coal) and alternative (straw, nuts, peat, sawdust) fuels were prepared with an addition of various fractions of municipal waste (textiles, plastic-coated paper cartons, plywood, paper, and cardboard). The material collected was incinerated in a household furnace, generating ashes that were assessed in terms of the degree of environmental risk through the following:

(i)

Determining the relationship between the amount of ash generated and different groups of waste and fuels used in the combustion process;

(ii)

Determining the content of Cl⁻, SO₄²⁻, and PO₄³⁻ in ashes generated from the combustion of fuels and municipal waste;

(iii)

Comparing the correlations between the content of anions in different groups of fuels and waste;

(iv)

Indicating possibilities or lack thereof to reuse ashes in light of the parameters analysed.

2. Materials and Methods

2.1. Material Preparation

The first stage of the study involved the selection, collection, and preparation of fuel material most commonly used in individual households. These samples included the following:

−

Hard coal (n = 4) from various fuel storage sites: Małopolska (coal I), Mazowsze (coal II), Podkarpacie (coal III), and a sample of the so-called coal pellets,

−

Alternative fuels (n = 4), namely straw, peat, walnuts, and sawdust,

−

Wood (n = 4), representing the following species: Fraxinus (ash), Sambucus nigra L. (black elder), Acacia Mill. (acacia), and Salix L. (willow); all species were obtained from the local tree stand logging,

−

Municipal waste (n = 7), comprising the following fractions: paper, textiles, PET, plywood, plastic-coated paper cartons, diapers, and mixed waste (mix). Single-family household waste was collected separately and collectively.

In total, 19 different types of the so-called primary material were collected, about 5 kg per each sample, between November 2019 and March 2020. Next, the material was fragmented, homogenised, reduced, and divided into feed portions, about 0.05 m³ each.

The hard coal samples represented 3 lump grades: hard coal no. I (from a coal storage site in Małopolska) was coarse, with a lump size of 10–20 cm, hard coal no. II (bought in a storage site in Mazowieckie Voivodeship) was finer, with a lump size of about 5–10 cm, and hard coal no. III (from Podkarpacie), which was the finest, resembling coal pellets, with a lump size of about 2–5 cm.

The firewood had been obtained from a local logging site as fresh (non-dried) chopped logs.

Samples of alternative fuels were processed materials, which had previously been fragmented. The wheat straw bale had been dried for one year and, as was the case with the peat used (briquettes), it had a low moisture content (about 30%). The walnut shells had been dried for two seasons. The sawdust had a multi-species composition.

Municipal waste represented a dry fraction, and it was collected in a separate container. All waste samples were processed by grinding or crushing.

The necessary technological condition for collecting representative ash samples was to use adequate equipment for cleaning the furnace after every incineration, isolating finer lots of the primary material, and storing it during analysis.

2.2. Ash Sample Preparation

The second stage involved combusting the material collected. Each of the primary materials yielded a portion of ash from which the study material was selected. The crucial aspect was to maintain similar combustion conditions and clean the furnace chamber before burning each portion of fuel. The primary materials were incinerated in a Keller 10 kW coal burning furnace (with a nominal heating capacity of 10 kW, efficiency of 80%, and maximum working pressure of 0.25 MPa). According to the manufacturer’s specifications, the basic fuel for this type of boiler is hard coal of the pea and nut type, and the substitute fuel is lignite and weathered wood.

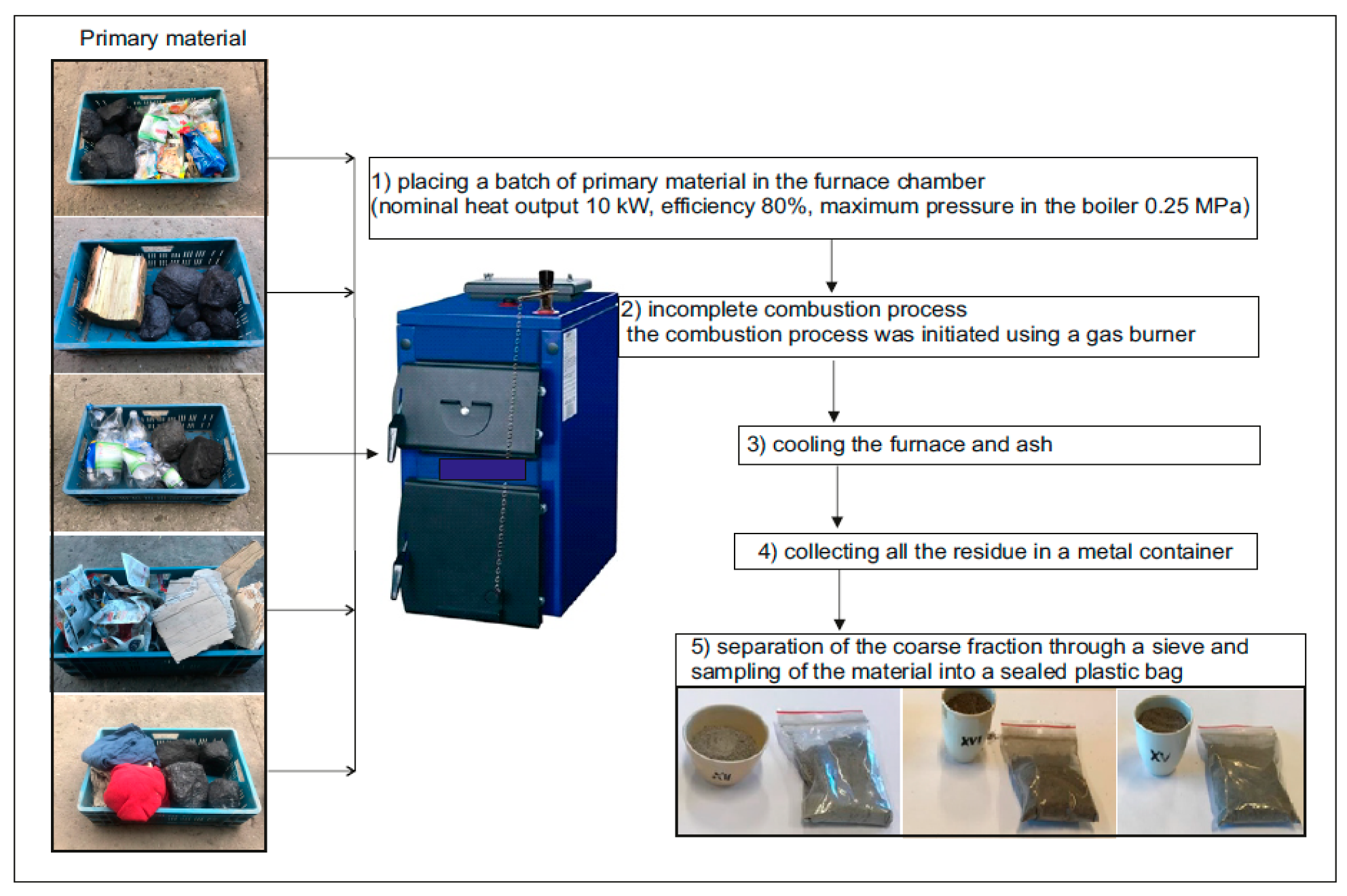

The following action plan was adopted when incinerating the fuels in the furnace (Figure 1): (1) placing a portion of the primary material in the furnace chamber, (2) incomplete combustion (gas burner was used to initiate combustion), (3) cooling the furnace and ash, (4) collecting all the ash into a container, (5) separating the coarse fraction through a sieve, and collecting an ash sample in a plastic, tight-seal bag. After incinerating each of the fuel portions, the furnace chamber and the bottom hopper were thoroughly cleaned mechanically and pneumatically.

The primary material was left to combust and naturally cool in its own time. The air supply was consistent for each incineration experiment. To obtain ash from the mixes of different groups of fuel and waste, the primary materials were placed in the furnace in equal proportions (1:1 v/v). It was assumed that the conditions for primary material incineration resemble those that occur in individual household furnaces. The model of the furnace used to incinerate the primary material was not equipped with an in-built measurement system, as is the case with most of the furnaces in individual households. However, a pyrometer was used to measure the incineration temperature in the furnace chamber. The self-ignition temperatures measured (data in °C) were as follows: 450–550 for hard coal, 250–280 for peat, 210–320 for wood (different types), 230 for straw, 550 for coal pellets, and 180–260 for municipal waste (different types).

The metal container for ash was also cleaned and thoroughly dried after every incineration. A sieve with the same width of the separating groove (ϕ = 1 mm) was used for every sample.

Using the above methods, 23 ash samples were obtained, with the weight of about 1 kg each (

Table 1. Characteristics of ashes.

Samples	Primary Material Type	[Kg]	Colour of Ashes	Amount of Ashes [g]		Amount of Unburned Material [g]
Wood (W)	ash (Fraxinus)	11.8	very dark ashen	106.6	Medium *	43.3	a lot *
	black elderberry (Sambucus nigra L.)	12.1	light grey	100.1	medium	28.9	little
	acacia (Acacia Mill.)	13.0	light grey	101.4	little	31.2	little
	willows (Salix L.)	11.5	dark ashen	136.8	a lot	36.6	medium
	acacia + elderberry + ash + willows	12.2	light grey	111.8	a lot	35.1	medium
Coal (C)	coal (I)	22.1	light grey	1850.1	little	630.2	little
	coal (II)	21.5	light grey	4080.5	a lot	590.9	little
	coal (III)	22.8	light grey	2330.2	medium	593.6	little
	coal pellets (ekogroszek)	18.9	light grey	1812.2	little	460.1	little
Alternative Fuels (AF)	straw	0.8	very dark ashen	113.3	a lot	53.7	a lot
	peat	2.8	light grey	127.1	medium	48.1	medium
	nuts	1.5	light grey	102.2	little	45.5	little
	sawdust	1.2	very dark ashen	107.3	little	52.1	a lot
Municipal Waste (MW)	paper and cardboard	1.1	light grey	124.3	medium	5.3	little
	plywood	3.7	dark ashen	221.9	medium	37.6	little
	tetrapaks	0.7	light grey	127.5	a lot	907.3	a lot
	diapers	2.2	very dark	126.9	a lot	1230.0	a lot
Wood + Coal (W + C)	ash + coal (III)	15.6	light grey	410.1	little	274.9	little
	willows + coal (I)	16.2	light grey	450.3	medium	288.6	little
	acacia + coal (III)	16.1	light grey	400.9	little	267.1	little
Municipal Waste + Coal (MW + C)	fabrics + coal (I)	13.1	dark ashen	520.7	medium	310.7	medium
	mix of municipal waste + coal (III)	15.1	light grey	581.7	a lot	350.1	medium
	PET drink bottle + coal (I)	12.3	very dark ashen	580.3	a lot	323.3	medium

* The amount of ash: little (<10% of the primary material), medium (10–20% of the primary material), a lot (>20% of the primary material).

). These were the products derived from the combustion of:

−

Wood alone (ash, black elder, acacia, willow, and a mix of all 4 species)—5 ash samples in total,

−

Hard coal alone (coal I, coal II, coal III, and coal pellets)—4 ash samples in total,

−

Alternative fuels alone (straw, peat, walnuts, and sawdust)—4 ash samples in total,

−

Municipal waste alone (paper and cardboard, plywood, plastic-coated paper cartons, and diapers)—4 ash samples in total,

−

Mix of wood and hard coal (ash + coal III, willow + coal I, acacia + coal III)—3 ash samples in total,

−

Mix of municipal waste and hard coal (textiles + coal I, PETs + coal I, and dry waste fraction mix + coal III)—3 ash samples in total.

2.3. Determination of Physical and Chemical Parameters

2.3.1. Constant Weight of Ashes

During the first stage of the study, free water was removed from the ash samples. For that purpose, 100 g samples of fresh ash were weighed out and placed in a dryer for 2 h at 105 °C. After this time, the samples were removed and re-weighed. This was done until subsequent measurements did not differ by more than 0.001 g.

2.3.2. Preparation of Aqueous Extracts

A 100 g portion was weighed out from each of the dried ash samples and mixed with 1000 mL of distilled water. Next, the mixtures were centrifuged for 2 h (22 °C, 250 rpm), and when the suspension stabilised, the liquid was decanted and filtered [29].

2.3.3. Determination of Cl Content

Chloride concentration was determined using Mohr’s method. The reaction of chlorides with ions of silver leads to the formation of non-soluble silver chloride precipitated quantitatively. The introduction of a small excess of silver ions in the presence of chromate ions as an indicator produced a red-brown colour of silver chromate. The reaction indicates the end point of titration. Maintaining pH of 5–9.5 during the titration process allows precipitate formation. To determine the chloride content in aqueous extracts of ashes, 50 cm³ of clear extract was collected from each sample and placed in a conical flask. Then, 1 cm³ of potassium chromate solution (K₂CrO₄) was added as an indicator. Next, drops of silver nitrate (AgNO₃) were added until the colour changed from yellow to red-brown. Titration was carried out in 5 repetitions.

2.3.4. Determination of SO₄² Content

Sulphate concentration was determined using the gravimetric method. The reaction of sulphates with barium ions leads to the formation of non-soluble barium sulphate precipitated quantitatively. Low pH during the reaction allows for precipitate formation. For that purpose, 40 cm³ of clear ash extract was collected into a beaker and mixed with 60 cm³ of distilled water. The beakers with the mixtures were placed in a water bath. Then, 2 cm³ of HCl solution was added to each of them. Next, 10 cm³ of barium chloride (BaCl₂) was slowly added to the heated samples. Each solution was cooled down and then filtered through a previously weighted and moistened filter paper. After filtration, the filter papers were rinsed with distilled water to remove an excess of chlorides from the precipitate. Next, the filter papers were placed in a dryer, and after drying and cooling, they were weighted.

2.3.5. Determination of PO₄³⁻ Content

The last of the anions analysed were phosphates, whose concentration was determined using the colourimetric method. In this technique, yellow phosphomolybdic acid (H₇(P)Mo0₂(0₄)₆) forms in acidic solution; then, it is reduced by tin (II) chloride to form a complex compound—molybdenum blue of intense blue colour, which is proportional to the content of orthophosphates.

For that purpose, 1.0 g of each type of ash was weighed out and mixed with 25 cm³ of concentrated hydrochloric acid (37% HCl) and 5–6 drops of concentrated nitric acid (65% HNO₃). Then, distilled water was added up to the volume of 50 cm³. The beakers were covered and heated for 20 min until boiling. After cooling, insoluble parts were filtered into a 100 cm³ volumetric flask, and the precipitate on the filter paper was thoroughly rinsed with distilled water. The volumetric flask was filled up with distilled water, and then, 1–2 cm³ of the solution was placed in another 100 cm³ volumetric flask. Then, the following substances were added to that flask: 20 cm³ of distilled water, 2 cm³ of 10% ammonium heptamolybdate solution (NH₄)₆Mo₇O₂₄), and 2 drops of saturated solution of tin(II) chloride (SnCl₂). Then, the flask was filled with distilled water up to 100 cm³. The absorption was measured using a UV-Vis, model Camspec/M501 Single Beam spectrophotometer (Spectronic Camspec Ltd, Garforth, UK). Measurement precision for chlorides and sulphates was 0.01 mg/dm³, and for phosphates, it was 0.001 mg/dm³.

3. Results and Discussion

3.1. The Amount of Ashes and the Type of Fuel and Waste Used in the Combustion Process

The analysis of the 23 ash samples obtained involved the assessment of the following properties: the amount of ash generated during the combustion process, its colour, and the amount of non-combusted material (Table 1). The ashes did not differ much in terms of colour, which mostly comprised shades of grey. Black-grey colour of ashes was observed in the case of the following primary materials: ash, straw, sawdust, and diapers. Dark grey ashes were obtained after the combustion of willow, plywood, and the mix of textiles and hard coal. The rest of the samples were predominantly light grey (Table 1). To assess the amount of ash and non-combusted material, the following indicator was used: if the amount of ash generated was lower than 10% of the volume of the primary material, then this amount was considered small; if the amount of ash was 10–20% of the volume of primary material, it was considered moderate; and if the amount was bigger than 20% of the volume of primary material, it was classified as large. A small amount of ash (which is very desired) was observed after combusting: acacia wood, coal I, coal pellets, walnuts, sawdust, and the mix of acacia + coal III, and ash + coal III. A moderate amount of ash was obtained after combusting: ash wood, black elder wood, coal III, peat, paper and cardboard, plywood, the mix of willow wood + coal I, and the mix of textiles + coal I. As for the other samples analysed, the amount of ash was large. With regard to the third indicator—the amount of non-combusted material—a small (desired) amount was observed after combusting black elder wood, acacia wood, all types of coal, walnuts, paper and cardboard, plywood, and all mixes of wood and coal. A large amount of non-combusted primary material was found for the samples of ash wood, straw, sawdust, plastic-coated paper cartons, and diapers. With the other samples, the amount of non-combusted material was moderate, ranging between 10% and 20% of the initial amount.

Based on the analysis of macroscopic properties of the fuels and waste combusted, the following correlations were observed:

−

Dark-coloured ashes were accompanied with a large amount of non-combusted material,

−

Out of the wood species analysed, acacia displayed the best macroscopic parameters of ash, which means that little ash of light colour with a small amount of non-combusted material was generated,

−

Out of the three types of coal combusted, coal I produced the smallest amount of ash and non-combusted material (despite having the largest fraction), which points to the high quality of this coal and a small amount of mineral substance in its composition,

−

The addition of coal to wood results in a higher combustion temperature, and thus more effective material combustion; hence, a smaller amount of ash generated.

Additionally, observations of the combustion process yielded the following findings:

−

Combustion time affected the amount of slag and ash generated. The longer the material stayed in the furnace chamber, the more efficiently it burnt, leaving less combustion products;

−

Combustion temperature and rate varied greatly depending on the content of flammable substances;

−

Excessive air supply accelerated combustion, but at the same time, it left certain amounts of material unburnt;

−

Fragmented material burnt relatively faster, but at lower temperatures than large-fraction material.

3.2. Environmental Threats and Possibilities of Ash Reuse

3.2.1. Cl⁻

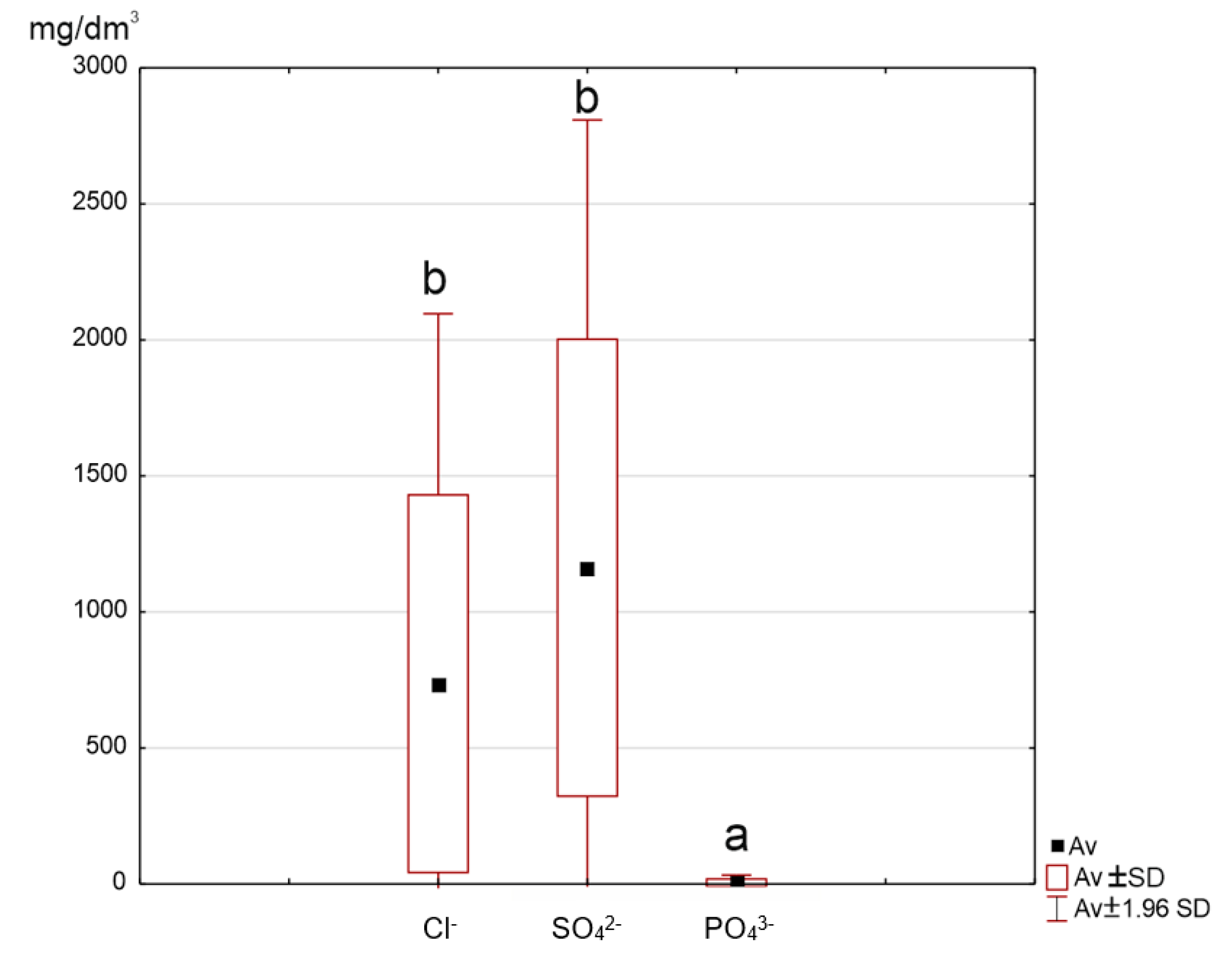

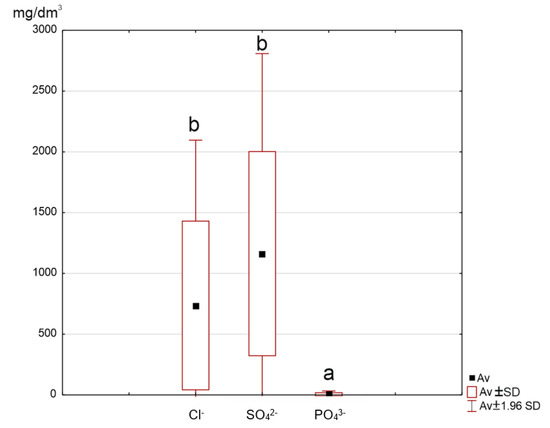

Concentrations of chloride anions in the ash aqueous extracts analysed displayed high variability and dispersion. The maximum concentration of 3049.6 mg/dm³ was determined for ash generated after coal III combustion (from Podkarpacie), whereas the lowest chloride concentration, 21.3 mg/dm³, was found in aqueous extract of ash produced from sawdust combustion. The average concentration (Av, arithmetic average) for all the samples analysed was 736.3 mg/dm³, and standard deviation (SD) from the average value was 693.8 mg/dm³, which confirms the high dispersion of the results.

The analysis of the average chloride concentrations for individual groups of ashes yielded the following descending order (Av for the entire group in mg/dm³ provided in brackets): ashes from the mix of wood and coal (1002.3) > ashes from wood (934.7) > ashes from coals (909.5) > ashes from the mix of municipal waste and coals (602.8) > ashes from alternative fuels (521.3) > ashes from municipal waste (430.8). However, the large standard error (144.7) confirms the high variability of the results and thus measurement inaccuracy when using the arithmetic average (

Table 2. Statistical parameters for chloride leaching from ashes.

Sample			Cl− [mg/dm3]			Cl− [mg/kg]
wood	ash	IV a	404	934.7 b ± 464.8 c 985.8 d	4039	9347.2 b ± 4648.1 c 9858.7 d
	black elderberry	V	510		5109
	acacia	V	985		9857
	willows	V	1064		10,642
	acacia + elderberry + ash + willows	V	1709		1709
coal	coal (I)	II	128	909.5 ± 1243.9 276.6	1277	9095.1 ± 12 439.4 2766.5
	coal (II)	IV	425		42,585
	coal (III)	V	304		30,485
	coal pellets (ekogroszek)	I	35		354
alternative fuels	straw	V	1262	521.3 ± 459.4 400.7	12,629	5213.7 ± 4594.2 4007.4
	peat	IV	312		7866
	nuts	IV	489		4901
	sawdust	I	21		1063
municipal waste	paper and cardboard	IV	354	430.8 ± 181.1 468.0	3541	4308.5 ± 1811.6 1810.9
	plywood	V	617		6164
	tetrapaks	III	170		1701
	diapers	V	581		29,118
wood + coal	ash + coal (III)	V	1000	1002.3 ± 489.3 1000.3	9992	1023.7 ± 4893.3 4893.7
	willows + coal (I)	IV	404		4043
	acacia + coal (III)	V	1603		16,031
municipal waste + coal	fabrics + coal (I)	IV	362	602.8 ± 402.7 361.7	3615	6028.2 ± 4027.1 3617.0
	mix of municipal waste + coal (III)	V	1170		11,688
	PET drink bottle + coal (I)	IV	276		2763
for all ash samples (n = 23)
Min.–Max.			21.3–3049.6			213.8–30 496.1
Av. ± SD			736.3 ± 693.8			7363.5 ± 6938.4
Me			489.3			4893.8
V [%]			94.2			94.7

^a Classification according to Regulation of Ministry of Environment (2015) in mg Cl⁻/dm³, class: I ≤ 60; II 60–150; III 150–250, IV 250–500 and V class >500, ^b Av.—arithmetical average, ^c SD—standard deviation, ^d Me—median, V—coefficient of variation.

). Therefore, it seems more appropriate to analyse the median (Me) as the average value. Based on Me, the descending sequence is slightly different (Me for the entire group in mg/dm³ provided in brackets): ashes from combusting the mix of wood and coal (1000.3) > ashes from wood (985.8) > ashes from municipal waste (468.0) > ashes from alternative fuels (400.7) > ashes from the mix of municipal waste and coals (361.7) > ashes from coals (276.6). Having compared the Av and Me calculated, it was concluded that these values were comparable only in the case of ashes from wood, municipal waste, and mixes of coal and wood. For the other groups, medians were lower: from 20% (alternative fuels) to over 300% (coals). This shows that the parameter analysed varied greatly nearly in all the groups studied.

The lowest chloride leaching level was observed in ashes obtained after combusting municipal waste and most of the coals tested. Moreover, the mix of the two materials produced a result comparable with Cl⁻ concentrations found in ashes from alternative fuel combustion. The worst situation (the highest concentrations) was observed in the case of ashes generated from combusting wood and wood mixed with coal, although one of the lowest concentrations of chlorides (35.5 mg/dm³) was recorded for coal pellets. However, it was also in this group where the highest Cl⁻ leaching level was observed (3049.6 mg/dm³)—these were ashes produced from fine-sized coal from Podkarpacie. Water leaching of chlorides is of great significance when assessing the risk of chloride penetration into surface and ground water [13,30]. According to Kabata-Pendias and Pendias [31], natural concentrations of chlorides in river water are about 8 mg/dm³, and the background for ground water is even lower and amounts to merely 0.2 mg/dm³. When classifying the aqueous extracts in terms of the risk associated with chloride ion leaching to ground water (Table 2), it was found that the leachates of ashes from wood combustion pose the greatest threat and thus need to be allocated to class V (in accordance with the Regulation of the Minister of the Environment [32]). Ashes from coal, mixes of coal with wood, and coal with municipal waste represent class IV, whereas leaching of chlorides from ashes generated after municipal waste combustion represents pollution level categorised as class III. To conclude, the amounts of chlorides leached from the ashes were many times higher than those suggested as the geochemical background for this anion. Thus, the ashes studied should be regarded as a material posing a great threat to the aquatic environment. Indeed, chlorides are found in all living organisms, where they play an important role, especially in maintaining proper osmotic pressure. They are also the basic component of physiological fluids in the human body. However, the allowable levels of Cl^- in water intended for human consumption [33] range between 0 and 250 mg/dm³. The chloride anion is regarded as a fundamental element in the environment, where it remains unchanged, either solved in water or in the form of easily soluble salts. It does not form insoluble compounds and is not absorbed by the soil material or by bottom sediments in surface water. A natural source of chlorides is the weathering of silicate rocks and leaching of various salt deposits containing this compound [15].

The content of chlorides in soils varies greatly depending on the distance from the shoreline, and it usually ranges between 115 and 1000 mg/kg [30]. In terms of the amount of chlorides contained in ashes by weight (213.8–30 496 mg/kg, Me = 4893.8 mg/kg), these materials must be considered a significant threat to the soil environment (Table 2).

Regarding ash storage at landfills [27], these ashes should be stored at landfills for waste other than inert and hazardous waste (for which the recommended Cl⁻ content range is 800–25,000 mg/kg), except for the ashes formed after burning poor-quality coal, where the amount of chlorides by weight exceeded the upper limit.

When analysing the content of chlorides in the ashes tested with regard to their reuse, the author of the present paper referred to a standard [34], which defines the requirements for chemical composition of ashes that are used as an additive to concrete. According to this standard, the maximum content of chlorides in ash aqueous extract should be ≥0.1%. Seven out of 23 of the ash samples analysed did not meet this requirement. These were ashes generated from the combustion of willow, mix of wood from all 4 species analysed, coal III and any material added to it (ash, acacia, and mixed fraction of municipal waste), and ash from straw (Table 2).

Horák et al. [19] obtained similar data for ashes after combusting various fractions of municipal waste, indicating that in the case of floor coverings mixed with dry beech, the content of chlorides may reach even up to 191,000 mg/kg. A high concentration of chlorine (4.7 wt %) in biomass bottom ash was also observed by Suárez-Macías et al. [23] and Link et al. [21]. In water extracts, the concentration of chloride was considerably lower and amounted to 134 mg/kg on average [23].

3.2.2. SO₄²⁻

Concentrations of sulphates in aqueous extracts of the ashes analysed display a high range (12.2–3059 mg/dm³). The lowest concentration of SO₄²⁻ was found in aqueous extract of ashes from plastic-coated paper cartons, and the highest was found in ashes from willow wood with the addition of coal I (from coal storage site in Małopolska). For all the samples analysed, the arithmetic average was 1162.6 mg/dm³, and SD was 839.7 mg/dm³ (

Table 3. Statistical parameters for water leaching of sulphide from ashes.

Sample			SO4 [mg/dm3]			SO4 [mg/kg]
wood	ash	V a	848	1762.1 b ± 616.1 c 1678.4 d	16,946	35,168.3 b ± 12,313.9 c 33,509.5 d
	black elderberry	V	1678		33,509
	acacia	V	1400		27,858
	willows	V	2455		49,125
	acacia + elderberry + ash + willows	V	2428		48,402
coal	coal (I)	V	1056	1269.5 ± 383.7 1457.3	21,118	25,329.2 ± 7646.4 29,106.8
	coal (II)	V	1793		35,712
	coal (III)	V	1457		29,107
	coal pellets (ekogroszek)	V	772		15,379
alternative fuels	straw	V	894	460.5 ± 316.1 450.0	17,867	9225.1 ± 6308.6 9035.1
	peat	IV	307		6190
	nuts	V	593		11,879
	sawdust	I	48		963
municipal waste	paper and cardboard	I	21	250.5 ± 265.8 163.3	428	4995.0 ± 5300.8 3253.7
	plywood	V	663		13,228
	tetrapaks	I	12		244
	diapers	IV	305		6079
wood + coal	ash + coal (III)	V	1967	2335.5 ± 511.8 1980.1	39,296	46,630.9 ± 10,266.6 39,446.4
	willows + coal (I)	V	3059		61,149
	acacia + coal (III)	V	1980		39,446
municipal waste + coal	fabrics + coal (I)	V	1163	999.5 ± 254.2 1163.4	23,308	20,006.7 ± 5105.7 23,308.3
	mix of municipal waste + coal (III)	V	1195		23,917
	PET drink bottle + coal (I)	V	641		12,794
for all samples (n = 23)
Min.–Max.			12.2–3059.2			244.1–61,149.8
Av. ± SD			1162.6 ± 839.7			23,215.3 ± 16,762.8
Me			1055.7			21,118.3
V [%]			72.2			72.2

^a Classification according Regulation of Ministry of Environment (2015), in mg Cl⁻/dm³, class: I ≤ 60; II 60–150; III 150–250, IV 250–500 and V class >500, ^b Av.—arithmetical average, ^c SD—standard deviation, ^d Me—median, V—coefficient of variation.

). The variation coefficient (72.2%) and standard error (175.1), which determines the inaccuracy of describing the entire set of SO₄²⁻ concentration results using Av, were also high.

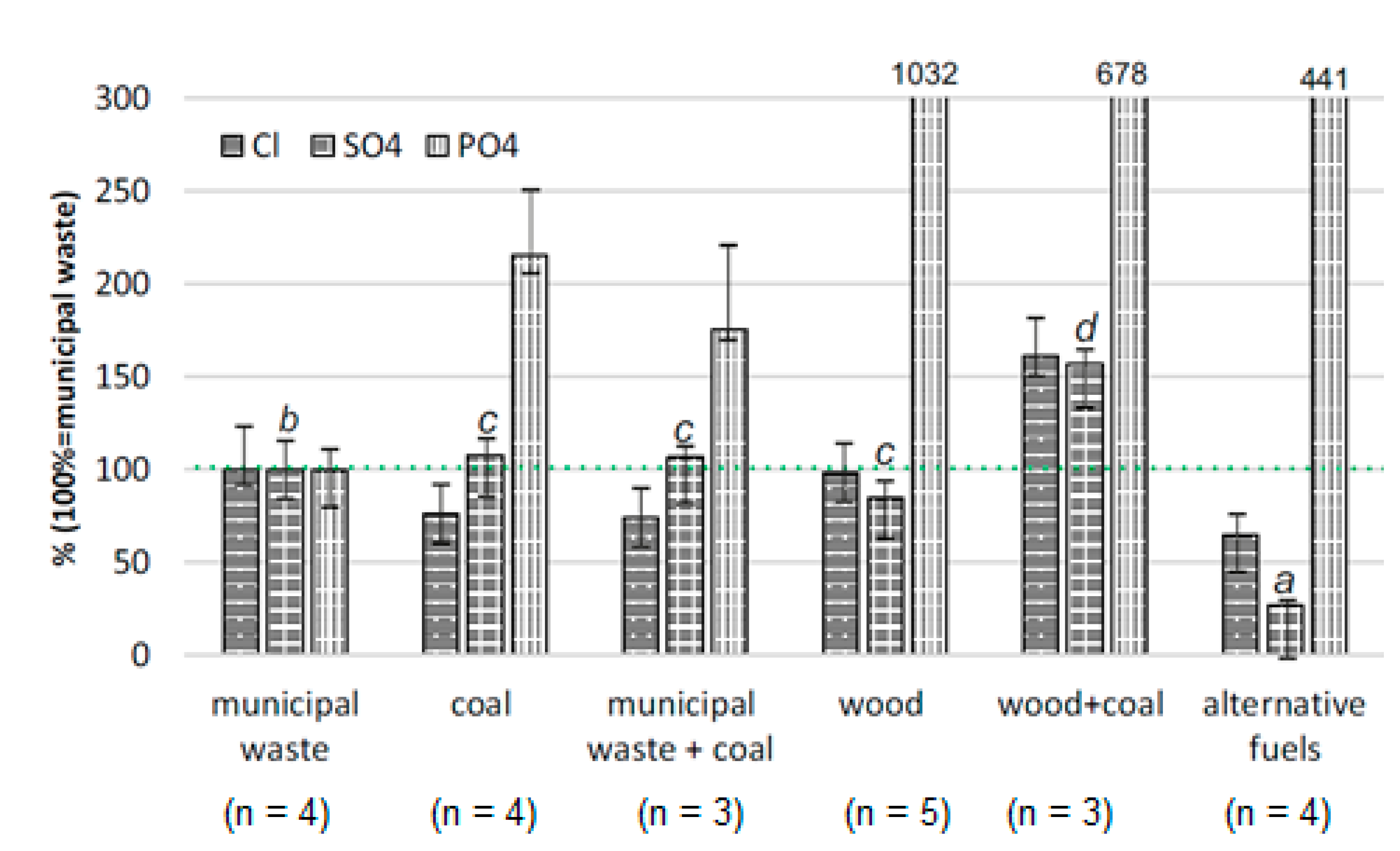

Assuming the division of the ashes tested into groups based on primary materials, and using the average value (Av or Me) as an indicator calculated for individual groups to assess sulphate leaching, the following descending order was obtained (with average values, here Me in mg/dm³ in brackets): ashes from the mix of wood and coals (1980) > ashes from wood (1678) > ashes from coals (1257) > ashes from the mix of municipal waste and coals (1163) > ashes from alternative fuels (450) > ashes from municipal waste (163). It can be seen that the highest and lowest average concentrations of SO₄²⁻ determined in aqueous extracts can differ over 10 times between individual groups.

In rivers and lakes, SO₄²⁻ concentrations are about 16 mg/dm³, whereas in sea water, the amount of this anion can reach even 2700 mg/dm³. Sulphate-free natural waters are extremely rare. These are mostly waters associated with petroleum deposits, where a biochemical reduction of sulphates to hydrogen sulphide takes place. In ground water, similarly to chlorides, the following concentrations of SO₄²⁻ are allowable for five contamination classes (in mg/dm³): class I—60, class II—150, class III—250, class IV—500, and class V >500 [32]. In light of these values, a vast majority of aqueous extracts of the ashes studied exceeded the limits for classes I–IV and thus had to be assigned to class V (Table 3). The only exception were aqueous extracts of ashes from peat and diapers, where the concentration of SO₄²⁻ was 305–306 mg/dm³, falling into class IV, and ashes from sawdust, paper and cardboard, and plastic-coated paper cartons, where SO₄²⁻ levels were below 50 mg/dm³, falling into class I (Table 3).

Sulphates are regarded as one of the least toxic anions, although their high concentrations cause dehydration and irritation of the gastrointestinal tract. The levels of SO₄²⁻ in water intended for human consumption [33] range between 0 and 250 mg/dm³. Sulphate anions commonly occur in natural waters. They enter these waters as a result of leaching form rocks and soils, precipitation, biochemical oxidation of other forms of sulphur, and together with municipal and industrial waste water [11]. Mining water is also an important source of sulphates. These compounds can also enter water from organic sulphur oxidation products and volcanic gases. The anions can also be derived from minerals, e.g., salt, and oxidation of heavy metal sulphides. Surface water can be contaminated with pollutants from industrial waste water containing sulphates from the production of e.g., sulphuric acid, fertilisers, etc. [3]

When assessing the risk posed by SO₄²⁻ leached from the ashes studied to the soil environment, the following limit values, determined for IV classes of soil contamination with sulphur compounds, were adopted (in mg S-SO₄/kg): class I <1500, class II—1600–2500, class III—2600–3500, and class IV >3500 [35]. Out of all ash samples analysed, as many as 18 were heavily contaminated with sulphur (class IV), two (i.e., ash from peat and diapers) displayed a moderate content of sulphur (class III), and three (ash from sawdust, paper, and cardboard, and plastic-coated paper cartons) had a very low content of sulphur compounds (class I).

Regarding ash storage at landfills [27,36], ashes generated from the combustion of alternative fuels and municipal waste should be stored at landfills for waste other than inert and hazardous waste (for which the recommended SO₄²⁻ content range is 1000–20,000 mg/kg). On the other hand, ashes formed after burning poor-quality coal, wood, and mixes of the two should be stored at hazardous waste landfills.

The PN-EN 450-1 standard [37], regulating the potential use of ashes as an additive to concrete, indicates that in the case of sulphur compounds, their amount cannot exceed 3% of the total weight of ashes. None of the ashes generated from the combustion of wood and coal mixes met this criterion, which was also the case with ashes from coal II, black elder, willow, and the mix of all tree species analysed in this study.

Apart from the type of fuel combusted, another important issue in the analysis of chemical composition of ashes is the impact of the type of furnace and the way of coal feeding, which was studied by Wasilewski and Radko [38]. These authors analysed one type of coal combusted in different types of heating devices (grate hearth, stoker-fired boiler with manual fuel feeding and bottom combustion, retort boiler with automatic fuel feeding, and grate furnace). The content of Cl⁻ ranged from 15.7 to 63.2 mg/kg, and in the case of SO₄²⁻, the differences were even greater, ranging from 1210 to 15,430 mg/kg.

A high concentration of sulphur compounds (6.43 wt % and 3.3 wt %) in biomass bottom ash was also recorded by Suárez-Macías et al. [23] and Link et al. [21], respectively. These findings are perfectly in line with our results. On the other hand, in a study by Monedero et al. [22], the concentration of sulphur in the ash from willow, poplar and black locust was 0.05–0.03 wt %, which is lower than the values obtained in our study, especially in the case of willow. These differences may be due to the moisture of wood as well as the differing conditions of tree growth and their exposure to atmospherically transported pollutants.

3.2.3. PO₄³⁻

Phosphate concentrations in aqueous extracts of the ashes analysed ranged from 0.01 to 67.22 mg/dm³ (

Table 4. Statistical parameters for water leaching of phosphates from ashes.

Sample			PO4 [mg/dm3]			PO4 [mg/kg]
wood	ash	V a	5.8	2.3 b ± 2.0 c 1.2 d	116.8	45.6 b ± 40.8 c 23.0 d
	black elderberry	IV	3.2		63.7
	acacia	IV	1.1		22.1
	willows	I	0.1		2.7
	acacia + elderberry + ash + willows	IV	1.2		23.0
coal	coal (I)	I	0.1	0.4 ± 0.5 0.1	3.0	8.0 ± 10.1 3.0
	coal (II)	I	0.1		2.5
	coal (III)	IV	1.2		2.8
	coal (ekogroszek)	I	0.1		23.8
alternative fuels	straw	IV	4.9	7.4 ± 7.1 5.1	98.6	149.0 ± 142.9 101.4
	peat	I	0.3		6.1
	nuts	V	19.3		387.2
	sawdust	V	5.2		104.2
municipal waste	paper and cardboard	I	0.1	16.9 ± 29.0 0.3	1.7	337.5 ± 578.5 5.3
	plywood	I	0.4		8.8
	tetrapaks	I	0.01		0.1
	diapers	V	67.2		1339.4
wood + coal	ash + coal (III)	I	0.2	0.1 ± 0.1 0.1	4.3	2.5 ± 1.3 2.2
	willows + coal (I)	I	0.1		2.2
	acacia + coal (III)	I	0.1		1.1
municipal waste + coal	fabrics + coal (I)	I	0.2	0.1 ± 0.01 0.1	3.0	1.8 ± 0.9 1.3
	mix of municipal waste + coal (III)	I	0.1		1.3
	PET + coal (I)	I	0.1		1.1
		for all samples (n = 23)
Min.–Max.			0.01–67.22			0.1–1339.4
Av. ± SD			4.8 ± 14.2			96.5 ± 283.6
Me			0.2			4.3
V [%]			294.4			293.9

^a Classification according Regulation of Ministry of Environment (2015), in mg/dm³, class: I and II ≤ 0.5; III 0.5–1; IV 1–5 and V > 5, ^b Av.—arithmetical average, ^c SD—standard deviation, ^d Me—median, V—coefficient of variation.

). Extreme concentrations (minimum and maximum) were found in the samples of ash generated from the combustion of plastic-coated paper cartons and diapers, respectively.

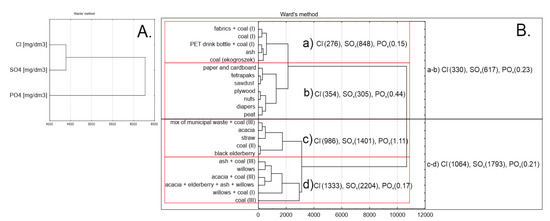

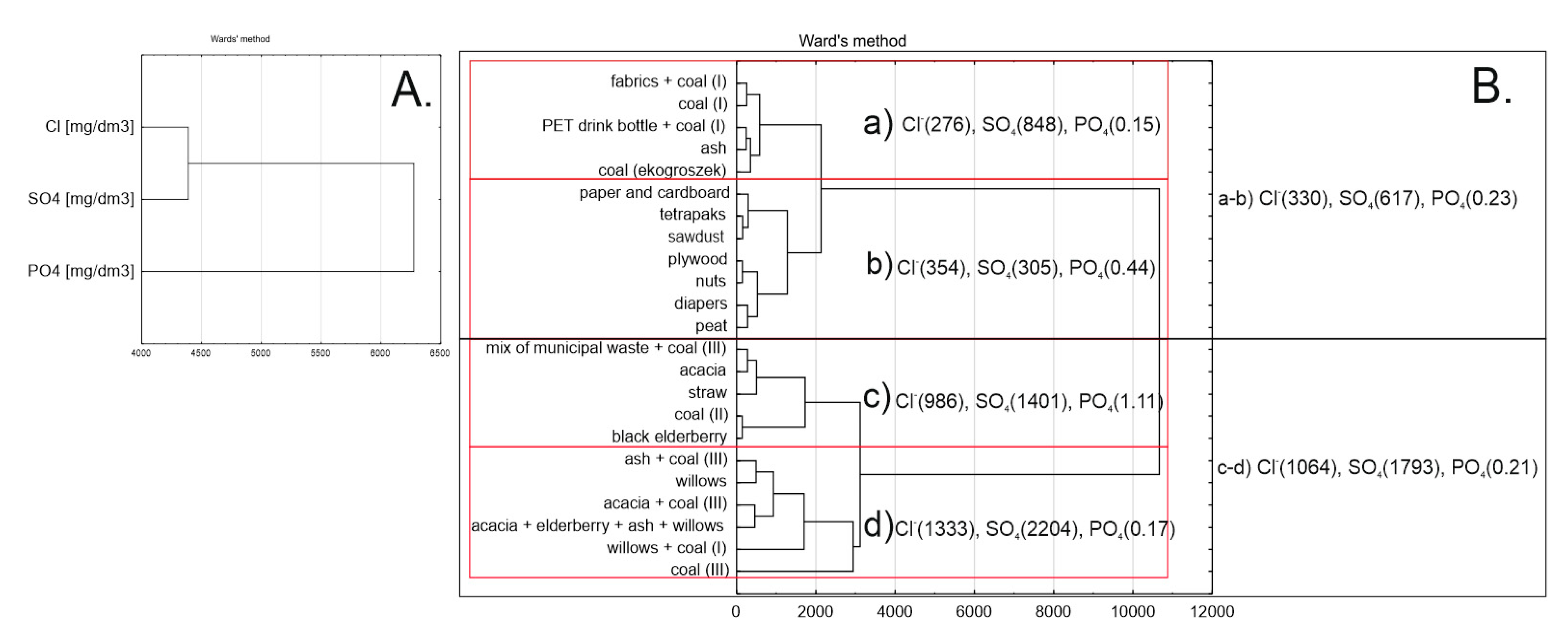

The analysis of the results obtained for the entire set of samples and individual ash groups displayed high heterogeneity and variability of values. The arithmetic average for all 23 ash samples was 4.8 mg/dm³, whereas the median was merely 0.2 mg/dm³, which indicates that the concentrations of the compound analysed were largely similar to the lowest values in the range. This assumption was confirmed by the high value of the variance coefficient, which was 294.4% in relation to the average mentioned.

The amounts of phosphates were relatively low compared to the determined concentrations of chlorides and sulphates. Based on the median, the groups of ashes can be arranged in the following descending order (Me for individual groups in mg/dm³ provided in brackets): ashes from alternative fuels (5.055) > ashes from wood (1.153) > ashes from municipal waste (0.263) > ashes from coals (0.149) > ashes from the mix of wood and coals (0.111) > ashes from the mix of municipal waste and coals (0.067).

Concentrations of phosphates in contaminated ground and lake waters are quite low. They amount to 0.06–0.1 mg/dm³ (n = 1483) for ground water absorbed by grasslands [39] and 0.03–0.2 mg/dm³ for lake water [40]. Sources of phosphorus compounds in water include natural weathering of phosphate minerals and economic human activity, i.e., substances from municipal and industrial waste water, comprising point sources of phosphates. Currently, more attention is being paid to the increase in the amount phosphorus used in large areas of land, especially in agriculture, as a significant source of surface water contamination, which to a large extent determines the eutrophication of surface water. When assessing the risk to the aqueous environment related to PO₄³⁻ leaching from the ashes analysed, the author of the present study used limit values from five classes of ground water contamination [32], which are as follows (in mg/dm³): class I <0.5, class II—0.5, class III—1, class IV—5, and class V >5. Aqueous extracts of ashes from the mixes of coals and wood, and mixed municipal waste did not exceed 0.5 mg/dm³, thus falling into class I. Most of the aqueous extracts in the group of segregated municipal waste and coals also represented class I (Table 4). The exception was aqueous extract of ash from the combustion of diapers (with the highest concentration of phosphates, i.e., 67.22 mg/dm³) and extract of ash from coal III (assigned to class III). As expected, the highest concentrations of PO₄³⁻ were found in aqueous extracts of ashes from wood (class IV and V), and in samples of alternative fuels (especially walnuts and sawdust). This is because phosphates are biogenic, and the share of phosphorus compounds in the chemical composition of plants may reach even 0.3 wt %.

Soils have a limited ability to absorb phosphorus compounds, whose mobility in the soil profile is limited and occurs mainly with the downflow of infiltration water. The total phosphorus content in soils ranges between 500 and 800 mg/kg, which to a large extent is determined by the type of bedrock and a number of physical, chemical, and topographic factors in a given area. The share of PO₄³⁻ in the total anion content in soils does not exceed several percent. Pietrzak et al. [39] demonstrated that the content of phosphorus in soil aqueous extracts may range between 0.3 and 86.1 mg/kg, and surface runoff can carry from 0.34 to 17.89 mg PO₄/dm³. Annual amounts of phosphorus leached from mineral soils do not exceed 1 kg/ha [39,41]. Comparing these findings to the results of this study, it needs to be stated that the ashes formed after the combustion of wood, alternative fuels (especially walnuts and sawdust), and diapers may constitute a significant source of phosphates (phosphorus) in the soil environment.

Phosphate concentrations in ashes rarely appear in the literature. Link et al. [21] determined the content of P₂O₅ in various ashes obtained from biomass combustion. These values ranged from 1.5 to 3.0 wt %, being considerably higher than our results. These differences may stem from the limited mobility of phosphorus compounds in the soil profile and possible geochemical anomalies occurring in individual habitats.

As for the potential reuse of ashes in the production of concrete and PO₄³⁻ leachability, the PN-EN 450 standard [37]:

• Does not require the content of soluble phosphorus compounds to be determined in the case of ashes obtained after burning coal only, or
• Sets the maximum limit of 100 mg/kg in the case of ashes generated via co-combustion only.

Only two of the samples analysed (i.e., ashes from diapers and walnuts) did not fulfil these requirements.

3.3. Correlations between Anions

The first substantial observation was the lack of normal distribution of all three anions analysed and a large disproportion between the concentrations of leached chlorides (21.3–3049.6 mg/dm³), sulphates (12.2–3059.2 mg/dm³), and phosphates (0.01–67.22 mg/dm³) in aqueous extracts of the ashes analysed (Figure 2). Based on the independent-samples t-test, it was demonstrated that the differences between the concentrations of Cl⁻, SO₄²⁻, and PO₄³⁻ were statistically significant (at p = 0.01).

Cluster analysis was performed for Cl⁻, SO₄²⁻ and PO₄³⁻ concentrations, which allowed for separating data clusters and visualising correlations between them. Ward’s minimum variance method was used, as it merges the data analysed and distinguishes clusters with minimum variance. The analysis of individual anion groups demonstrated a strong correlation between sulphate and chloride anions (r² = 0.43), which was over 20 times stronger than the correlation between these two anions and phosphates (Figure 3A).

The nature of this relationship may stem from similar concentrations of chlorides and sulphates and their comparable solubility in aqueous extracts. Sulphates and chlorides are very soluble in water, especially when they form compounds (salts) of mono- and divalent metal cations such as Na⁺ or Mg²⁺. On the other hand, the solubility of phosphates is related to the subcategory they belong to: primary phosphates are easily soluble in water, but out of secondary and tertiary phosphates, only the salts of alkali metals (apart from lithium) and ammonium are water-soluble.

The analysis of correlations between individual cases, namely the 23 ash samples, allowed for distinguishing four (a–d) clusters (Figure 3B). Cluster (a) included ashes from the combustion of coal I and mixes including this type of coal (textiles, PET bottles), ashes from coal pellets, and ash wood. The average concentrations of Cl⁻, SO₄²⁻, and PO₄³⁻ for this cluster of samples were (Me, in mg/dm³) 276, 848, and 0.15, respectively. In the case of chlorides and phosphates, these were the lowest values out of all Me calculated for individual clusters. Coal I was coarse and had a low content of chlorides and phosphates. Cluster (b) generally comprised ashes from alternative fuels (sawdust, walnuts, peat) and municipal waste (paper and cardboard, plastic-coated paper cartons, plywood, diapers). The average concentrations of chlorides and phosphates were slightly higher than in the previous cluster, and they amounted to (Me, in mg/dm³): 354 and 0.44, respectively. However, the Me for sulphates was the lowest out of all four clusters—305 mg/dm³. The third cluster (c) included ashes from various primary materials: wood (acacia, black elder), alternative fuels (straw), coals (coal II), and the mix of municipal waste and coal III. This cluster displayed the highest average for phosphates (Me = 1.11 mg/dm³) and high average values for chlorides (Me = 986 mg/dm³) and sulphates (Me = 1401 mg/dm³). The last, fourth cluster (d) generally comprised ashes generated after combusting mixes of wood (separately or together: ash, willow, acacia) and coals (coal III and coal II). In this cluster, the average leaching of chlorides and sulphates was the highest (in mg/dm³): 1333 and 2204, respectively. Leaching of phosphates was also high—0.17.

With only two clusters (after merging cluster a with cluster b; and cluster c with cluster d), the average leaching of chlorides and sulphates in the first group was three times lower than in the second group (ab Me_Cl = 330 mg/dm³, Me_SO4 = 617 mg/dm³, cd Me_Cl = 1064 mg/dm³, Me_SO4 = 1793 mg/dm³), with a comparable result for phosphates (ab Me_PO4 = 0.23 mg/dm³, cd Me_PO4 = 0.21 mg/dm³).

3.4. Verification of Research Hypotheses

Hypothesis 1 (H1). Does the addition of municipal waste (segregated and/or non-segregated) to conventional and alternative energy fuels have a significant effect on the content of chlorides, sulphates, and phosphates in ashes generated from their combustion?

To verify the above hypothesis, the concentrations of the anions in individual groups of all the ashes studied were compared with the average concentrations of the three anions in ashes generated after combusting municipal waste (adopting these values as 100%). As a result, it was concluded that the addition of municipal waste to the process of burning fuels in household furnaces did not significantly affect the increase in chloride, sulphate, and phosphate content in ashes (Figure 4).

More detailed findings require further research and a greater number of samples of primary materials and the so-called mixes, as the material collected in this study is not sufficient to conduct accurate geochemical inference. Based on the independent samples t-test, the differences observed are statistically significant only in the case of sulphates (at p = 0.05).

Hypothesis 2 (H2). Does burning municipal waste in household furnaces significantly increase the environmental risk related to the content of chlorides, sulphates, and phosphates is ashes?

Comparing the results presented in Table 2, Table 3 and Table 4 and Figure 4, it can be concluded that the addition of municipal waste to household furnaces is harmful to the environment, when high-quality fuels (such as high-grade coal and alternative fuels) are replaced with diapers and plywood. This is due to the possibility of an increased content of chlorides and phosphates (diapers), and chlorides and sulphates (plywood) in ashes generated after the combustion of these materials.

4. Conclusions

The analyses performed on 23 selected samples of ashes, which were the products of combusting conventional and alternative fuels mixed with segregated and non-segregated municipal waste in a household furnace, yielded the following conclusions:

• A large amount of ash is generated after the combustion of willow wood, the mix of different types of wood, and straw. Burning of municipal waste, selected fractions, i.e., plastic-coated paper cartons and diapers, and the non-segregated fraction also produced a large amount of ash at the bottom of the furnace.
• A large amount of non-combusted material was obtained for some wood species (e.g., ash), straw, sawdust, and several municipal waste fractions, namely plastic-coated paper cartons and diapers.
• The addition of municipal waste to the process of burning fuels in household furnaces did not significantly affect the increase in chloride, sulphate, and phosphate content in ashes, the exception being diapers and plywood.
• The amounts of anions leached in ash aqueous extracts decrease in the following order:
  • Cl⁻ ash from: mix of wood and coals > wood (different species) > municipal waste > alternative fuels > mix of municipal waste and coals > coals.
  • SO₄²⁻ ash from: mix of wood and coals > wood (different species) > coals > mix of municipal waste and coals > alternative fuels > municipal waste.
  • PO₄³⁻ ash from: alternative fuels > wood (different species) > municipal waste > coals > mix of wood and coals > mix of municipal waste and coals.
• The analysis of ashes in terms of their reuse (as an additive to concrete) showed that the ashes from diapers did not meet the requirement set out in the standard, as they exceeded the allowable content of PO₄³⁻ (>100 mg/kg); nor did the ashes from the mixed municipal waste fraction and coal due to the high content of Cl⁻ (>0.1 wt %).

The results obtained for the entire set of samples and individual ash groups display high heterogeneity and variability. A particular problem related to reusing ashes is their heterogeneity and interactions between their components that take place in the total mass. The ashes definitely cannot be stored at inert waste landfills. Thus, the subject requires further research and a greater number of samples of primary materials to conduct further accurate geochemical inference.
