1. Introduction
The kinetic energy present in vibrating systems is usually converted into heat and irrevocably lost. This energy, however, can be extracted from the system and converted into electrical energy using harvesters with various transduction mechanisms (piezoelectric, electromagnetic, electrostatic) and requirements ranging from large- to small-scale power [
1]. For example, piezoelectric harvesters provide a very small amount of power and are an alternative to conventional power sources (e.g., batteries) for small-sized and low-power electronic devices, like sensors. Advancement in this field was reviewed in [
2] and again a decade later in [
3]. One of the latest research reports on piezoelectric vibration energy-harvesting techniques is that presented in [
4]. The study proposes a self-powered and low-power enhanced double synchronized switch harvesting circuit which can automatically adapt to the sinusoidal voltage signal with the wide frequency range that is released by the piezoelectric vibration energy harvester.
Widely covered in the literature are also electromagnetic harvesters which have great potential for converting mechanical energy into electrical energy. For example, the study [
5] presents an electromagnetic energy harvester for human motion. The harvester managed to generate 0.3–2.46 mW of power from human body motion, and supplied body-worn sensors or electronic devices. A similar issue was considered in [
6]. The authors conducted a theoretical study of an electromagnetic transducer with a conditioning circuit (full-bridge rectifier and buck–boost converter with a resistance load) which was able to generate power in the range of 1.4 mW to 90 mW. The work [
7] demonstrates an electromagnetic harvester for a linear MR damper with application in a vibration reduction system that generated a maximum power of 1.8 W at 0.16 m/s vibrating speed. The harvester was an improved version of the previously developed device reported in [
8]. In the study [
9], a tubular linear electromagnetic transducer was proposed for applications of large-scale vibration energy harvesting from vehicle suspensions, tall buildings, or long-span bridges. It was reported that the device was able to produce a maximum power of 2.8 W at 0.11 m/s vibrating speed. The work [
10] describes fabrication and experimental verification of an electromagnetic shock absorber prototype with a cored-type tubular generator equipped with a novel combination of classical Halbach array and iron spacers for application in electric vehicles. The device was able to generate a maximum power of 225 W at 0.25 m/s vibrating speed. Advancements in energy-harvesting technology with MR dampers were made in [
11]. A general review of electromagnetic energy-harvesting techniques for autonomous sensor applications was presented in [
12]. It is worth mentioning that some electromagnetic harvesters of special structure can provide an amount of power large enough to power actuators, such as MR dampers.
The key limitation of vibration harvesting techniques is that the power output performance is seriously subject to the resonant frequencies of the vibrating system. To overcome this limitation, a great deal of effort has been made to develop efficient energy harvesters by adopting new materials and optimising harvester devices. Another problem is that harvesters excited by the vibrating system produce an alternating voltage or AC power, which has to be processed before it can be effectively used with any sensor or actuator requiring DC power.
In a typical architecture of a vibration energy-harvesting system, the harvester is located in the first stage of the system. It is used to convert kinetic energy of vibrations into electrical energy. The output of the harvester is an AC waveform, and therefore it has to be processed by a power converter to produce a suitable DC output voltage to meet the requirements of a sensor or an actuator requiring DC power. The power converter consists of a front-end rectifier which converts AC to DC and a standard buck or boost DC–DC converter that regulates the DC voltage. The efficiency of an energy-harvesting system depends on the power extraction and conversion efficiency of the rectifier, and the efficiency of the DC–DC converter. Therefore, a high-performance rectifier with high power extraction and conversion efficiency is essential for a high-efficiency vibration energy-harvesting system.
The simplest energy-harvesting system is a full-wave rectifier integrated with a smoothing capacitor. Such systems have been discussed in a large number of studies. For example, the study [
13] reports an H-bridge Graetz rectifier with a smoothing capacitor and photorelay to convert AC voltage generated by the electromagnetic harvester to power an MR damper in a vibration control system. In the work [
14], research on linear electromagnetic devices for both vibration damping and energy harvesting is described. The developed devices were able not only to dissipate the kinetic energy caused by earthquakes, wind, or traffic loads, but also to store using energy-harvesting electric circuits connected to them. Four circuit configurations of the devices were analysed: an open circuit, a circuit with a constant resistor, a circuit with a full-wave rectifier and supercapacitor, and a circuit with a full-wave rectifier and rechargeable battery. It was revealed that the damping force of the devices depends on the type of circuit connected to the output and their operation is similar to that of a viscous damper when it is connected to a resistor. Following this, the work [
15] demonstrates devices which were additionally equipped with a full-wave rectifier and a buck–boost converter controlled by a low-power microcontroller. The buck–boost converter with adaptive duty cycle control could maintain a nearly constant resistance in a wide operation range and a peak output power of about 200 mW at an acceleration of 2.7 m/s
2 was achieved. The study [
16] presents a self-powered vibration control and monitoring system that consisted of a pendulum-type tuned mass damper, a rotary electromagnetic device, an energy-harvesting circuit (full-wave bridge, DC–DC converter, Li-ion battery), and a wireless smart sensor. The experimental results revealed that the harvested power reached about 312.4 mW with random ground motions with root-mean-square acceleration equal to 0.05 g. Also, the work [
17] shows experimental investigation into an application of an electromagnetic device on bridge stay cables for simultaneous energy harvesting and vibration damping. A device equipped with a full-wave bridge rectifier and buck–boost converter used to charge a battery was attached to a 5.85 m long scaled stay-cable model and was able to generate 44.1 mW of output power in resonant vibration. The authors of the work [
18] designed a vibration energy harvester compound of a dual-mass damper system with a linear electromagnetic transducer, a full-wave bridge, and a storage capacitor and clarified system effectiveness concerning energy harvesting from bridge vibrations. The study [
19] reports an H-bridge Graetz rectifier with a smoothing capacitor to convert AC current generated in a resonant electromagnetic vibration harvester into DC current supplying resistance load. The work [
20] demonstrates a measurement and control unit with an H-bridge Graetz rectifier for conditioning the energy recovered from an object’s oscillations in an MR rotary damper-based positioning system.
The task of the ECU demonstrated in this study is to adequately adjust the voltage generated by an electromagnetic harvester for powering a commercial MR damper in a VRS. It should be noted that the present work does not concern the optimization of the harvester. Assumptions for the ECU project were determined on the basis of tests carried out for an H-bridge Graetz rectifier developed by the authors with N-type MOSFETs [
21] and the results of experimental tests of a VRS [
22]. The results of these studies showed that at kinematic excitation frequencies of the system greater than
times its resonance frequency, the amplitude of vibrations of a sprung mass increases, which is an undesirable phenomenon. To prevent this, the current in the MR damper control coil must be shaped appropriately over the entire excitation frequency range. If this coil is powered by the output voltage of the harvester, this can be achieved either by using a capacitor bank with an appropriate capacity and cutting off the MR damper from the power source at higher frequencies [
23], or by connecting/disconnecting the harvester coil and the MR damper control coil in accordance with the adopted algorithm. In this paper, the authors showed that this problem can be solved by introducing the developed ECU into the VRS. When designing the ECU, particular emphasis was placed on reducing energy losses resulting from powering its components as much as possible.
The study is structured as follows:
Section 2 describes the design concept of the ECU prototype.
Section 3 benchmarks simulation results of the driver unit embedded in the ECU with special emphasis of current consumption and efficiency analysis.
Section 4 reveals the structure of the engineered ECU and presents experimental results of the unit applied in the VRS. Final conclusions are drawn in
Section 5.
2. Design Concept and Operating Principle of the Electrical Control Unit
The operation of the ECU is to connect/disconnect the MR damper control coil (electrical load) to/from the harvester coil (source of electrical energy recovered from vibrations). The architecture of the ECU is shown in
Figure 1. The unit consists of a bridge rectifier (RB), driver unit (DU), microcontroller (µC), and internal power supplier (IPS). The operation of the ECU is controlled by a 32-bit microcontroller with an ARM Cortex M4 core, which produces a control signal according to the implemented control algorithm and performs measurement functions. All electronic components of the ECU do not require external power supply. The authors engineered two versions of the ECU differing in the design and operation of the embedded DU when µC does not generate a control signal. In such cases, the MR damper control coil is disconnected by default (N.O. version) or connected (N.C. version) to the power source. Due to the fact that both versions differ in the default polarity of their power transistor gates, in
Section 2 and
Section 3 we present a design concept and simulation tests only for the ECU in its N.C. version. However, the differences in the operation of the unit in N.C. and N.O. versions were experimentally tested by introducing the ECU into a VRS and this issue is discussed in
Section 4.
The µC block controlling the work of the ECU was implemented on a commercial NUCLEO-L031K6 evaluation set [
24] with an STM32L031K6T6 microcontroller equipped with an internal linear voltage regulator and circuits allowing programming and debugging of the microcontroller. The purpose of the RB block is to convert the AC voltage generated by the harvester into DC voltage. Due to the replacement of Schottky diodes with MOSFET transistors with dedicated control circuits, the efficiency of energy conversion is over 90%. This reduces the loss of energy transferred from the harvester to the MR damper. The DU unit acts as an electric power flow-control system. It enables connecting/disconnecting the MR damper control coil to/from the RB block depending on the logic state of the
uPWM signal generated by the µC block. An additional function of the DU block is the possibility of optionally attaching harvested energy storage to it. As a result, when the MR damper control coil is disconnected, it is possible to store electricity. In addition, in the DU block there are built-in circuits enabling the measurement of voltage and current in the MR damper control coil. The IPS block generates a stabilized 3.3 V voltage output, which supplies the following units: RB, DU, and µC. The applied DC–DC converter type TPS61200 [
25] based on the BOOST topology exhibits stable operation when its input voltage
uDC > 0.3 V and provides a current of about 1 A taken from its output. The assumptions adopted in the ECU project take into account the electrical parameters of the harvester, RB, MR damper, VRS dynamic properties (in which the ECU was tested), and the parameters of kinematic excitation (vibration with amplitude
A and frequency
f) that set the system in motion.

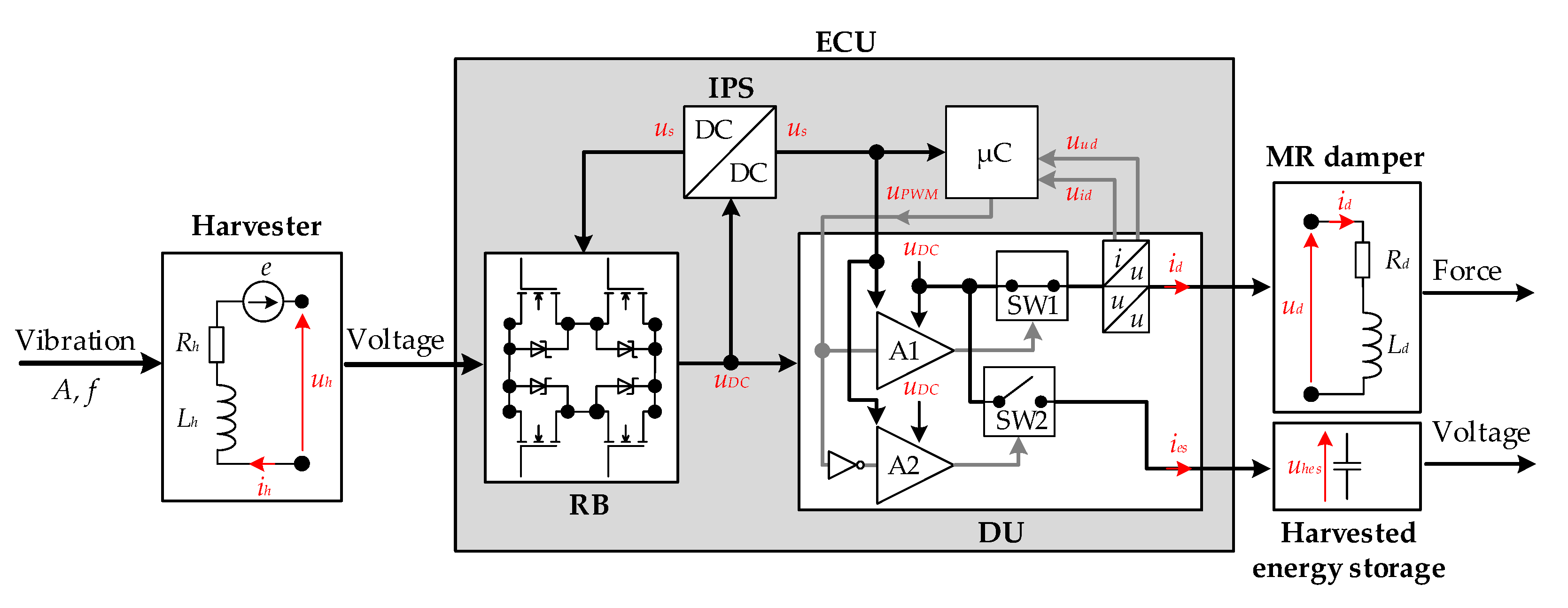

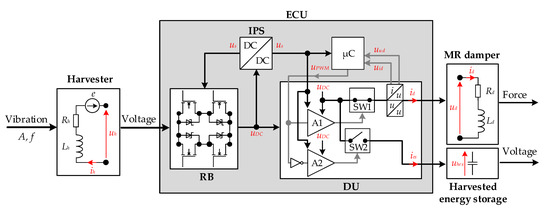

Figure 1 presents the architecture of the ECU and also the method of connecting this unit to the harvester coil and the MR damper control coil and the optional harvested energy storage. The AC voltage
uh generated by the harvester is converted to DC voltage
uDC in the RB block. The DU block decides whether the voltage
uDC will supply the MR damper control coil or harvested energy storage. The choice of the energy receiver (MR damper control coil or harvested energy storage) depends on the logic state of the voltage
uPWM generated by µC. The voltage
uPWM has a frequency of 1 kHz and a modified pulse width. Rapid switching between the MR damper control coil and harvested energy storage is performed by two SW1 and SW2 keys built on MOSFET type transistors, which are characterized by low power loss. The gate control of these transistors requires
uPWM voltage amplification. This gain is realized by the gain paths A1 and A2. In order for only one SW1 or SW2 key to remain on, it is necessary to negate the voltage
uPWM before connecting it to the A2 input. Voltage
ud and current
id in the MR damper control coil are measured by the transducers
i/
u and
u/
u built on the measurement amplifiers. The transducers
i/
u and
u/
u convert the voltage
ud and the current
id into voltages
uud and
uid in the range (0, 3.3) V, which are fed to the input of the A/D converter built into the µC. The gain path A1, A2, and transducers
i/
u and
u/
u are supplied by IPS output voltage
us, while keys SW1 and SW2 are supplied directly with
uDC voltage.
The correct control of the output voltage from the ECU that powers the MR damper control coil depends primarily on the DU switching on/off the control coil quickly. This requires accurate measurement of the current in the MR damper control coil in order to implement the two-state current controller in the µC. Considering the above, the following assumptions were made for the design of the DU:
The DU operates as a voltage amplifier uPWM: with a constant switching frequency of 1 kHz, variable duty cycle (0, 100)%, and a minimum voltage of 1.6 V;
The SW1 key, which control the current id, works as a normally closed key and in the absence of voltages uPWM or us connects uDC voltage continuously to the MR damper control coil. The SW2 key charging the energy storage works as a normally open key;
The DU is designed to operate at a maximum voltage of uDC not exceeding 10 V;
The internal amplifier circuits require a constant voltage us = 3.3 V produced by IPS (DC–DC BOOST converter).
The DU provides separation of the control voltage of the uPWM from the output voltages of ud and uhes;
It should be noted that the DU can be adapted to operate at higher frequencies of voltage
uPWM, as well as higher supply voltage
uDC than those outlined in the assumptions.

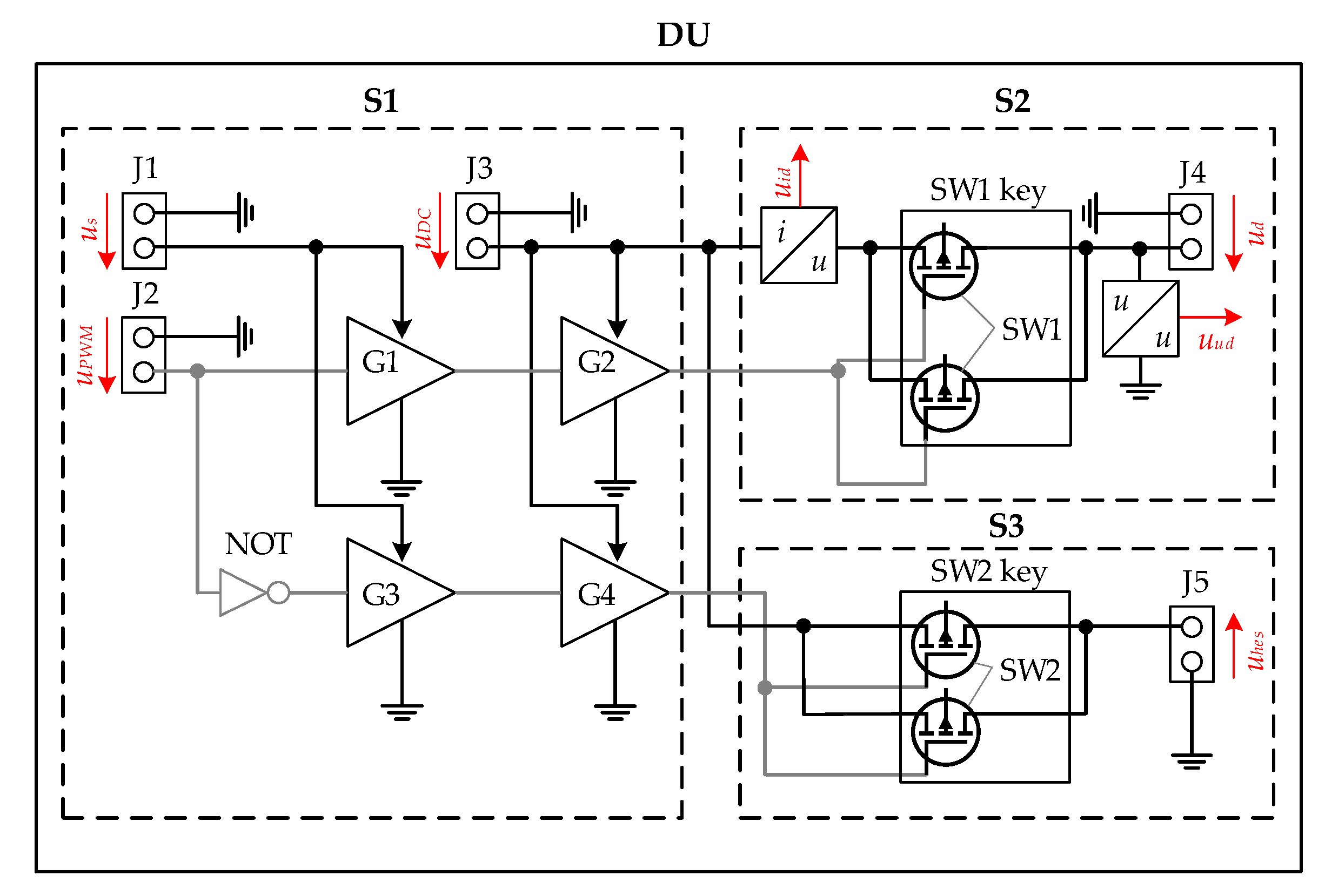

Figure 2 shows the architecture of the DU. There are three groups of electrical circuits designated as S1, S2, and S3.
In the S1 group, there are four amplifiers G1–G4 made of two types of complementary bipolar transistors (NPN/PNP). G1 and G3 amplifiers, powered by voltage us = 3.3 V (J1 connector), are used to isolate the voltage uPWM (J2 connector) from the voltage uDC (J3 connector). In the absence of voltage uPWM (high-impedance state), the potentials on the bases of the transistors of the amplifiers G1 and G3 correspond to the potentials of their emitters, which results in the lack of current in the bases of these transistors and their cut-off mode. This allows the SW1 and SW2 keys to be in the default states (not forced by the control). In the N.C. version, the default states are the saturation state of the SW1 transistor and cut-off state of the SW2 transistor. However, in the N.O. version, the default states of the transistors are opposite. At the input of the G3 amplifier, a transistor circuit is used to realize a NOT logical function in order to negate the voltage uPWM. Negation allows SW1 and SW2 transistor keys to work in a counter phase. G2 and G4 amplifiers act as preamplifiers for the SW1 and SW2 transistor keys. Thanks to this, the voltages and currents at the output of the G2 and G4 amplifiers are appropriately adjusted to work with the SW1 and SW2 keys. The task of G2 and G4 amplifiers is to charge and discharge the capacities of the gates of the transistors from which the SW1 and SW2 keys are built.
The group S2 shows details of the SW1 key circuit with transducers
i/
u and
u/
u. The SW1 key contains two P-channel MOSFETs transistors connected in parallel. The selected transistors are characterized by a gate-source breakdown voltage
uGS ≤ −0.4 V. This allows the DU to operate when the voltage
uDC ≥ 0.4 V. The drain current of a single-transistor SW1 is only 0.47 A. Therefore, it is recommended to use at least two transistors connected in parallel. Since in most cases the voltage
uDC does not exceed 3 V, two transistors provide a drain current of 1 A assuming that
uGS = −3 V. To measure the current
id, a differential amplifier INA181A4 [
25] was used, which measures the voltage at the 10 mΩ shunt resistor. The differential gain of the measuring amplifier is 200
V/
V. A resistive divider with a voltage divider ratio of 0.32, connected in parallel to the MR damper control coil (connector J4), was used to measure the voltage.
In the group S3 there is a SW2 key made of the same transistors as the SW1 key. Since the task of the SW2 is to transfer energy from the harvester to the energy storage (uhes = uDC) when the MR damper control coil is not powered, no measuring circuits are used here. It should be noted that the voltage and current charging the energy storage are not measured, because these values are not used by the control algorithm.
3. Simulation Tests of the Driver Unit
Computer simulations were aimed at checking the correctness of switching the SW1 and SW2 keys and determining the current consumption and DU efficiency. The simulations were carried out in the LTspice environment [
26]. It was assumed that the power consumption and efficiency of the RB would not be analyzed, as this issue was described in detail in [
21]. In addition, the current consumption by measuring circuits (resistive dividers and measuring amplifiers) and the scattering of parameters of electronic components resulting from the tolerance of their performance were not taken into account. The following assumptions were adopted for the simulation:
The transistor keys SW1 and SW2 are created of two MOSFETs connected in parallel to channel P-type BSH203 [
27];
The G1–G4 amplifiers are created of complementary bipolar transistors BC849 (NPN) and BC859 (PNP) [
27];
The voltage us supplying measurement systems and amplifiers G1 and G3 were assumed to be in the range (1.6, 3.6)V, the typical voltage is us = 3.3 V;
The voltage uDC supplying the amplifiers G2 and G4 and the keys SW1 and SW2 were adopted in the range of (0, 10)V;
In the absence of voltage uPWM (high-impedance state), the DU sets the keys SW1 and SW2 to the default state;
The MR damper control coil is represented by the one-port circuit RdLd (Ld = 100 mH, Rd = 5 Ω);
Harvested energy storage is represented by the resistor Rhes = 4.7 Ω.
Two modes of DU operation were defined, nominal and standby, assuming supply voltages of
us = 3.3 V and
uDC = 3 V. In the nominal mode, a PWM signal with a frequency of 1 kHz and a duty cycle of 50% was generated. In standby mode, the µC output on which the control voltage
uPWM is generated assumes a high-impedance state. The SW1 and SW2 keys have default states. Simulated current consumptions
is and
iDC and power consumptions
Ps and
PDC from the voltage sources
us and
uDC, respectively. Total power
Pt consumed by the DU is the sum of powers
Ps and
PDC. The results of the simulation of current consumption by the DU were verified in measurements made using a Fluke 8845 A multimeter [
28]. The measurements were carried out at voltage
uDC 0.7, 1.2, and 4 V. These values of voltage
uDC correspond to the values obtained in the ECU tests installed in the VRS at
f equal to 3.3 Hz (IPS stable operation), 3.8 Hz (resonance frequency), and maximum excitation frequency 10 Hz (see
Section 4), respectively.
Table 1 shows the measurement points M1–M8 (see
Figure 3 and
Figure 4) and the conditions at which the current consumption was measured.
The simulation results are shown in
Figure 3,
Figure 4,
Figure 5,
Figure 6 and
Figure 7. The graphs of

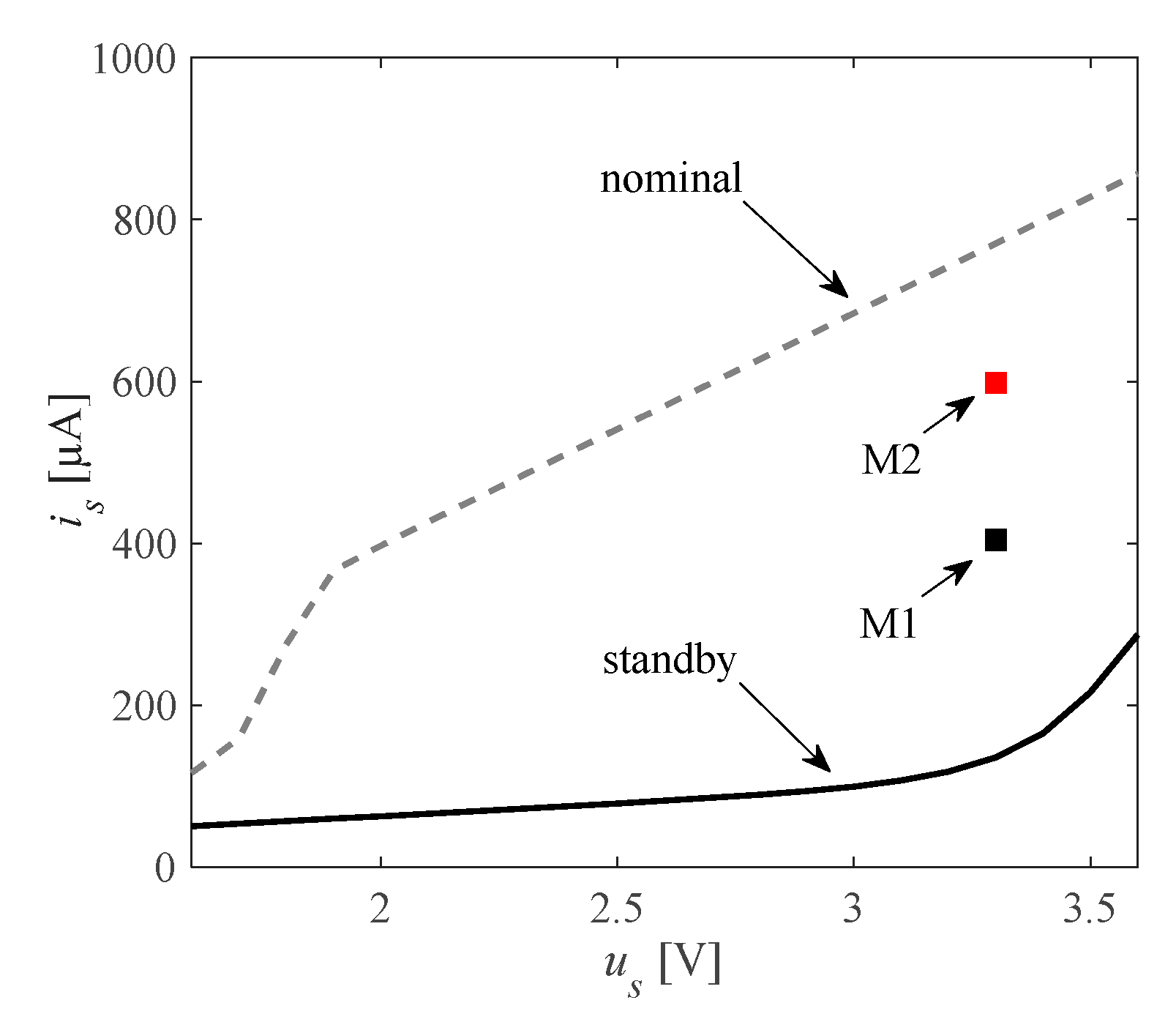

Figure 3 show current consumption
is vs.
us, and the graphs of

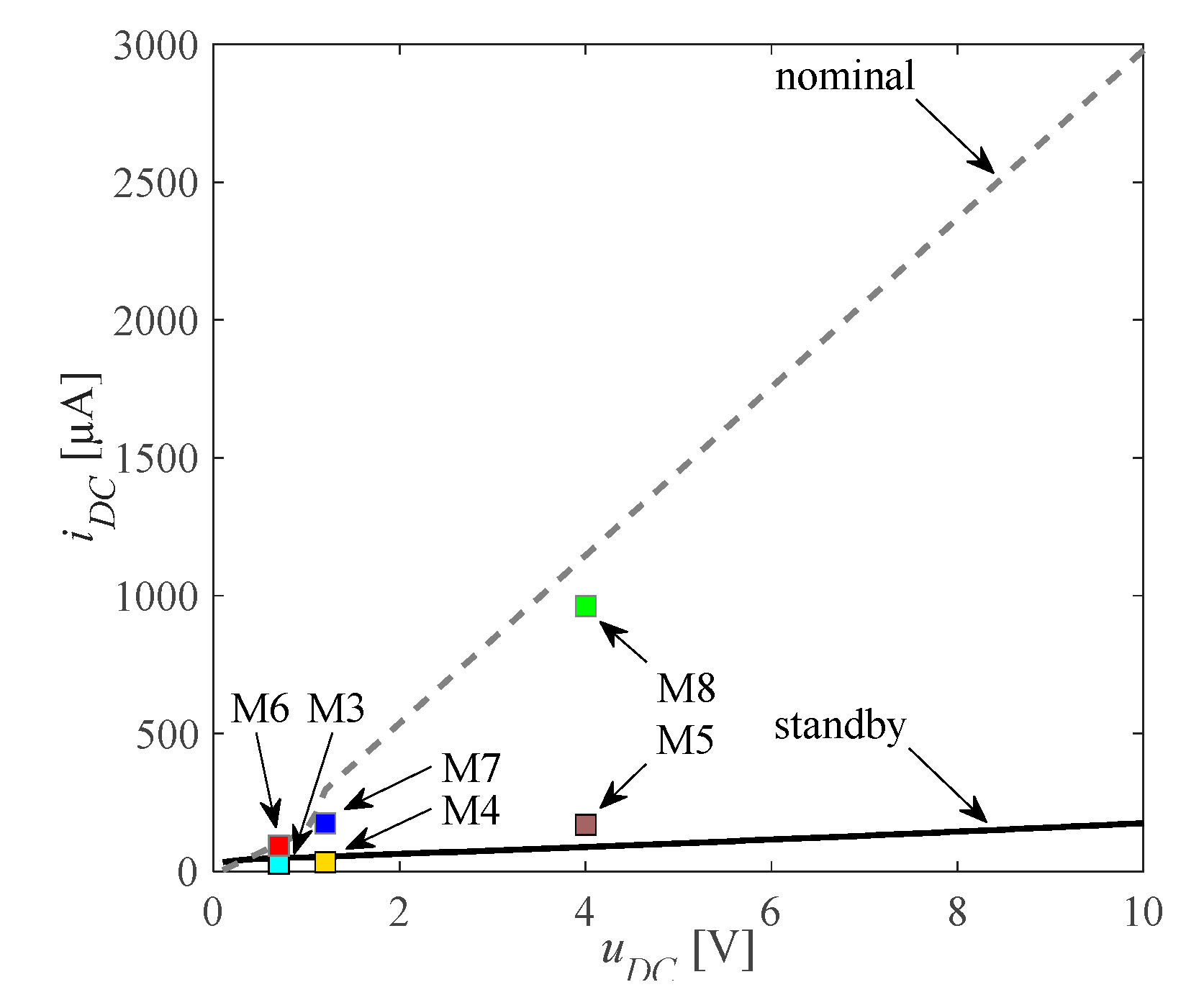

Figure 4 show current consumption
iDC vs.
uDC. Analysing the graphs in
Figure 3 and
Figure 4, it can be seen that in the nominal operating mode, the DU draws a current more than 2.5 times greater, both from the source
us and
uDC compared to the standby mode. The maximum values of current
is and
iDC in nominal mode are 850 µA and 3 mA, respectively, and in standby mode 300 µA and 150 µA. The power consumption of
is and
iDC in the standby mode results mainly from the polarity of the bases of the transistors from which the G1–G4 amplifiers are built. In nominal mode, the increased current consumption is the result of periodic charging and discharging of the gates of the keying transistors SW1 and SW2. When comparing the results obtained from the simulation and the measurements at points M1 and M2, a significant difference can be observed (see
Figure 3). The measured current consumption of DU in standby mode (point M1) is about 400 µA and is higher by about 275 µA compared to the result obtained from the simulation. This difference is most likely due to the fact that the current consumed by the INA181 measuring amplifier was not included in the simulation. The typical value of the current consumed by this amplifier is 195 µA. The measured current consumption by DU in nominal mode (point M2) is smaller than that obtained from the simulation. In this case, the difference may result from the tolerance of the electronic components used to build the DU. Measuring points M3–M8 (
Figure 4) confirm the compliance of simulation data with measurement results.

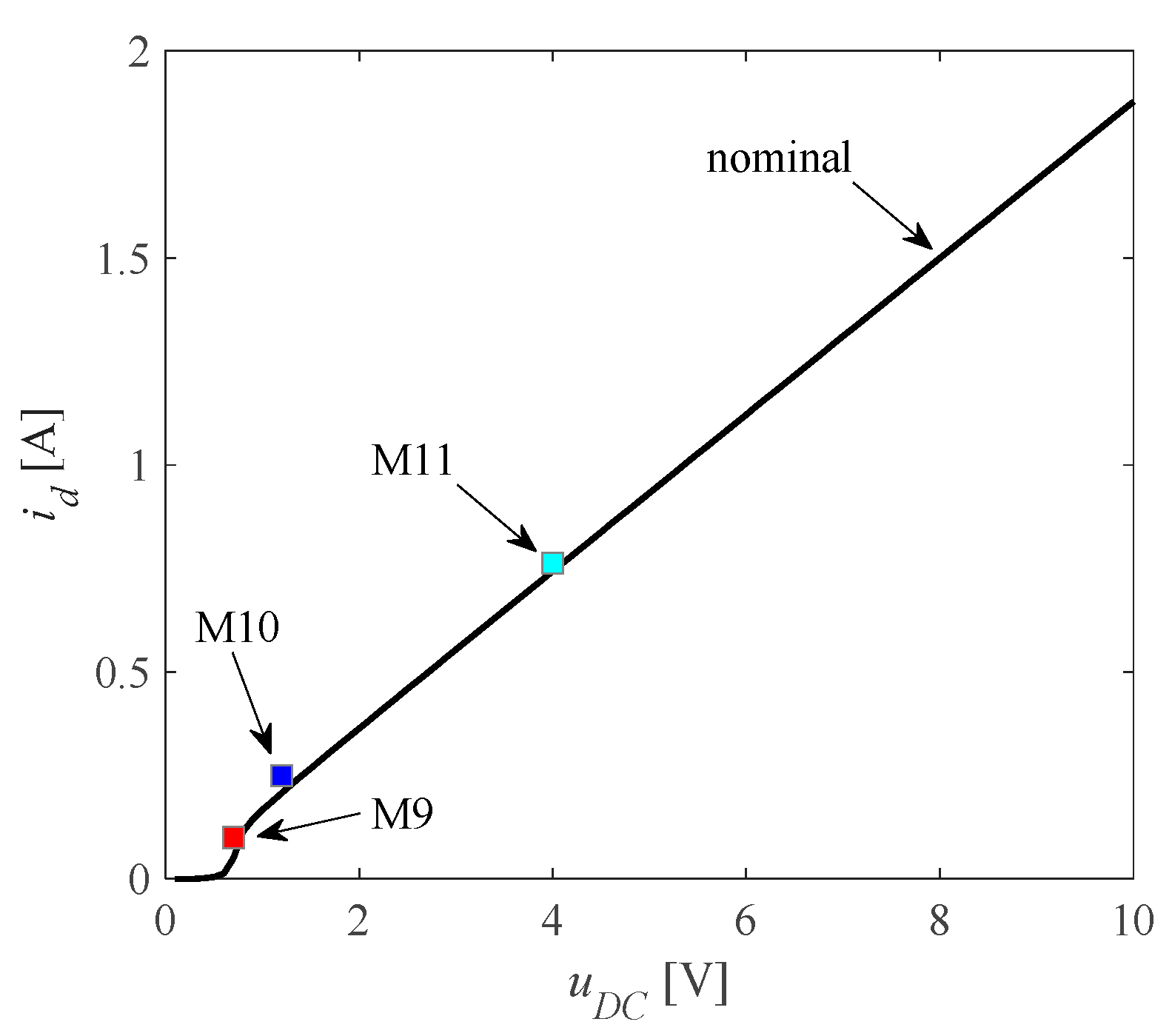

In subsequent simulations, the relationships between the current
id and the voltage
uDC were determined. The results of these simulations are shown in
Figure 5. The determined relationship of
id vs.
uDC allowed us to determine the minimum voltage
uDC, at which SW1/SW2 keys operate with the greatest efficiency. As can be seen with voltage
uDC higher than 0.8 V, the SW1/SW2 key transistors are fully opened (saturation mode). Above this voltage value, the relationship
id vs.
uDC becomes linear. This means that the resistance of the transistor channel is constant. The slope of the graph
id vs.
uDC results from the resistance
Rd of the control coil. The graphs of
Figure 5 show the compliance of simulation results with measurement data (see markers M9–M11).

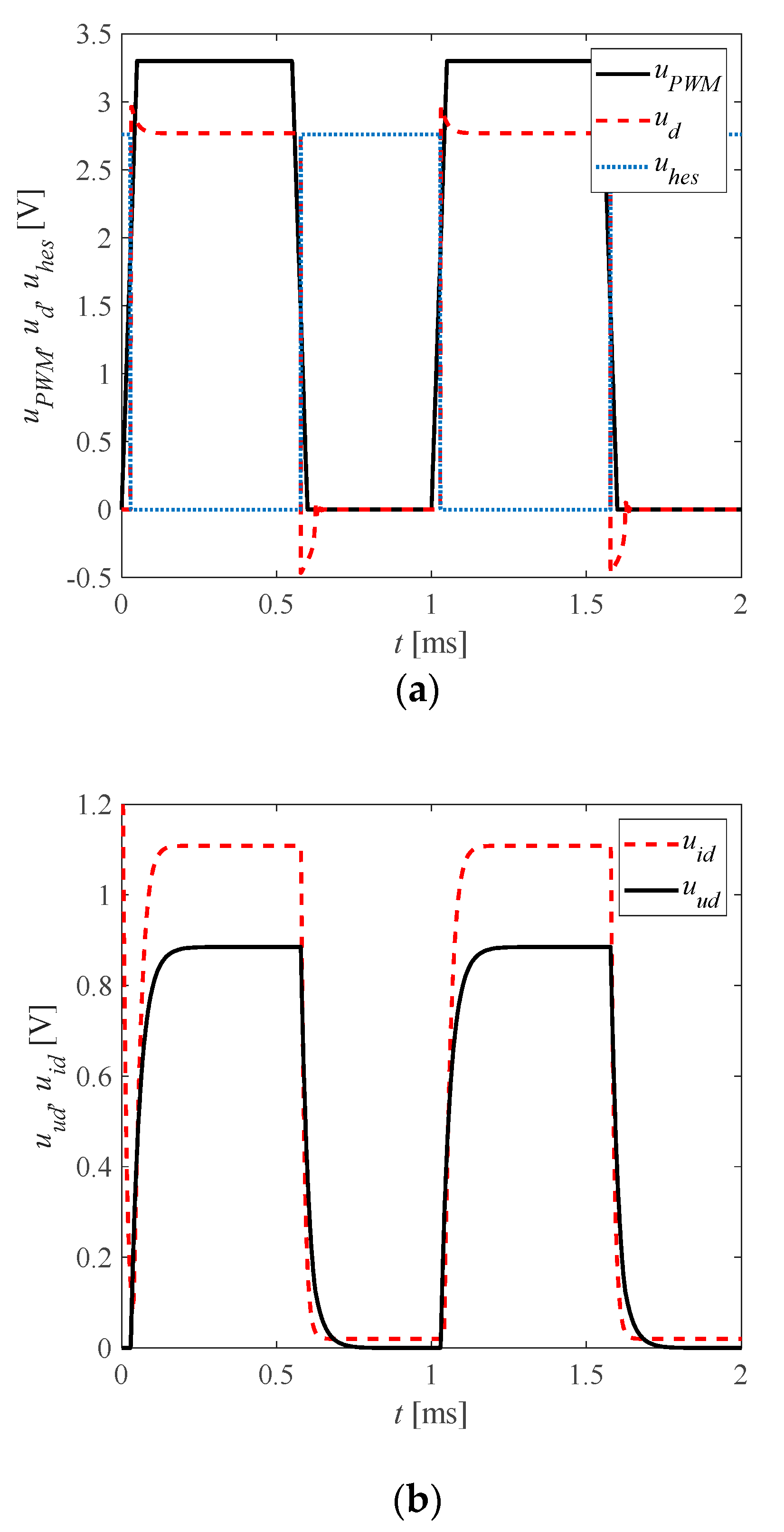

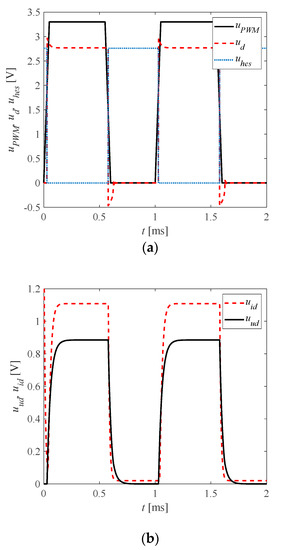

Figure 6a presents the time waveforms of voltages
uPWM,
ud and
uhes, and
Figure 6b shows the time waveforms
uid and
uud in the DU operating in nominal mode. It should be noted that the voltage
ud is compatible in phase with the voltage
uPWM, but shifted in phase with respect to the voltage
uhes by 180°, which means that the recovered energy is always transferred at the same time either to the MR damper control coil or to the harvested energy storage. The graphs of
Figure 6b show the voltages
uid and
uud at the output of the transducers
i/
u and
u/
u.

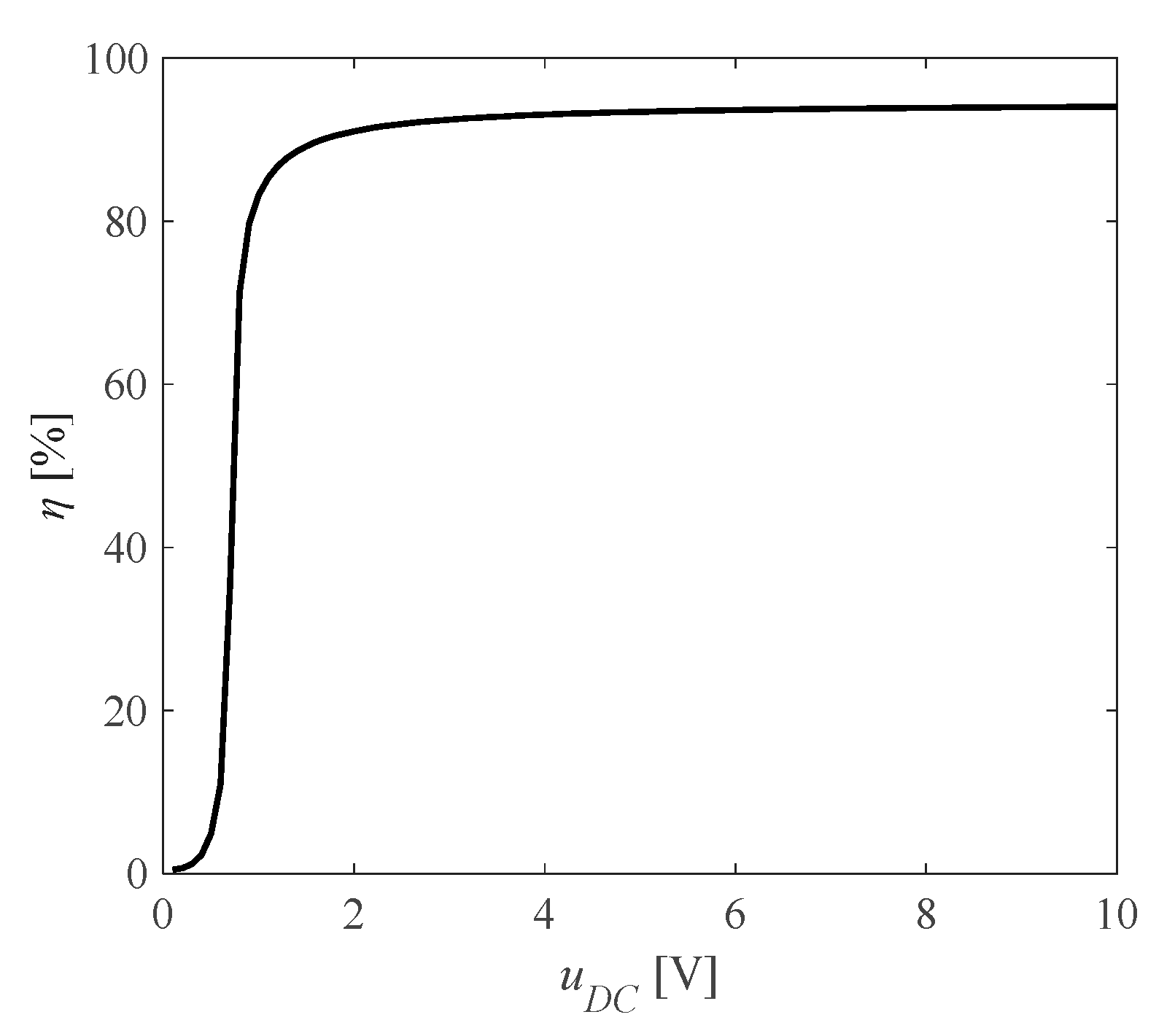

Figure 7 presents the dependence of efficiency
η on voltage
uDC of the DU. The graph shows that the DU starts to operate above 0.4 V. When the voltage
uDC reaches values between 0.4 V and 2 V, the DU has limited efficiency. When the voltage
uDC is higher than 2 V, the efficiency reaches the maximum value of approx. 94%. This efficiency can be increased by selecting power transistors with less open-channel resistance or by multiplying the number of parallel-connected transistors that make up the SW1 key. In the developed DU, its efficiency was increased by multiplying the number of transistors.
Table 2 summarizes the power consumptions
Ps,
PDC, and
Pt from the DU operating in nominal and standby mode. As can be seen, the maximum power demand
Pt does not exceed 6 mW.
4. Experimental Testing of the Electrical Control Unit in the Vibration Reduction System

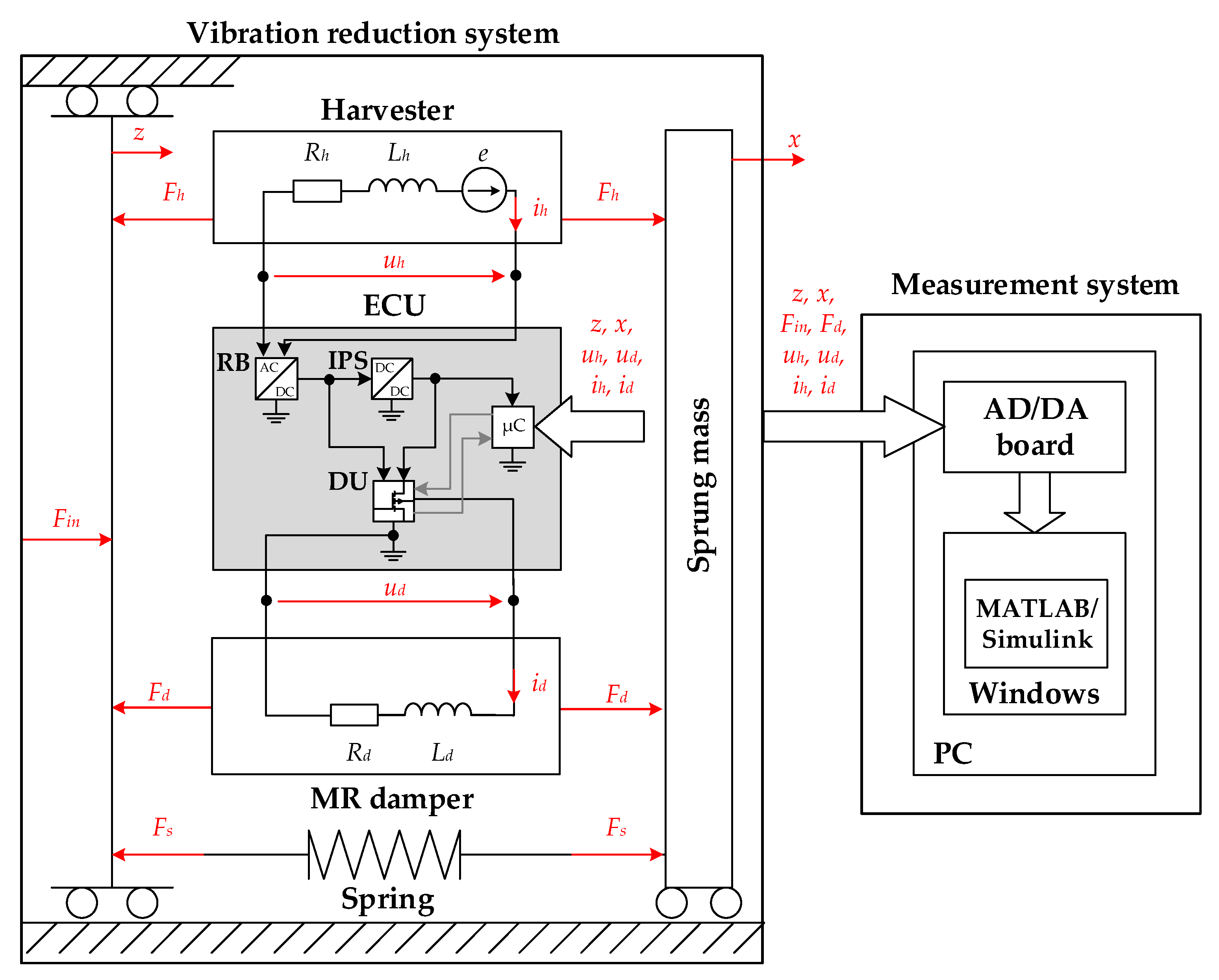

Experiments of the ECU were carried out in the experimental setup (see diagram in
Figure 8). The experimental setup included an electromagnetic harvester [
7], an MR damper of the RD 8040-1 series [
29], a spring with stiffness
k = 90,000 N/m, and sprung mass
m = 155 kg. The resonance frequency of the VRS is
fr = 3.8 Hz. The ECU was located between the harvester coil and the MR control coil in the VRS (spring-MR damper-sprung mass) damper control coil. The measuring system of the experimental setup consisted of a PC, an AD/DA board, laser displacement sensors, strain gauges force sensors, voltage–voltage transducers (
u/u), and current–voltage transducers (
i/u). This system allows for the measurement of the following quantities: displacement of the shaker core
z (excitation), sprung mass displacement
x, input force
Fin, MR damper force
Fd, harvester coil voltage and current
uh and
ih, and control coil voltage and current MR damper
uDC and
iDC.
At the present stage of the research, harvested energy storage was not used, therefore it was not connected to the ECU. Correct control of switching on/off the MR damper control coil to/from the harvester coil required vibration measurements in the VRS. Displacements in the system were measured using EN1 and EN2 SME53 linear magnetic encoders [
30] connected to the ECU. The choice of these encoders was determined by the ease of connection to µC (push–pull output) and low demand for computing power when processing the generated pulses to the speed required by the algorithm (embedded 16-bit timers). The EN1 and EN2 encoders were the only elements of the VRS that were powered from an external 24 V (EPS) voltage source. The need for such power supply of the EN1 and EN2 encoders resulted from the large current consumption during switching on (DC–DC converters are built into the encoders), which meant that the momentary amount of energy needed to supply them was greater than that recovered from vibrations.

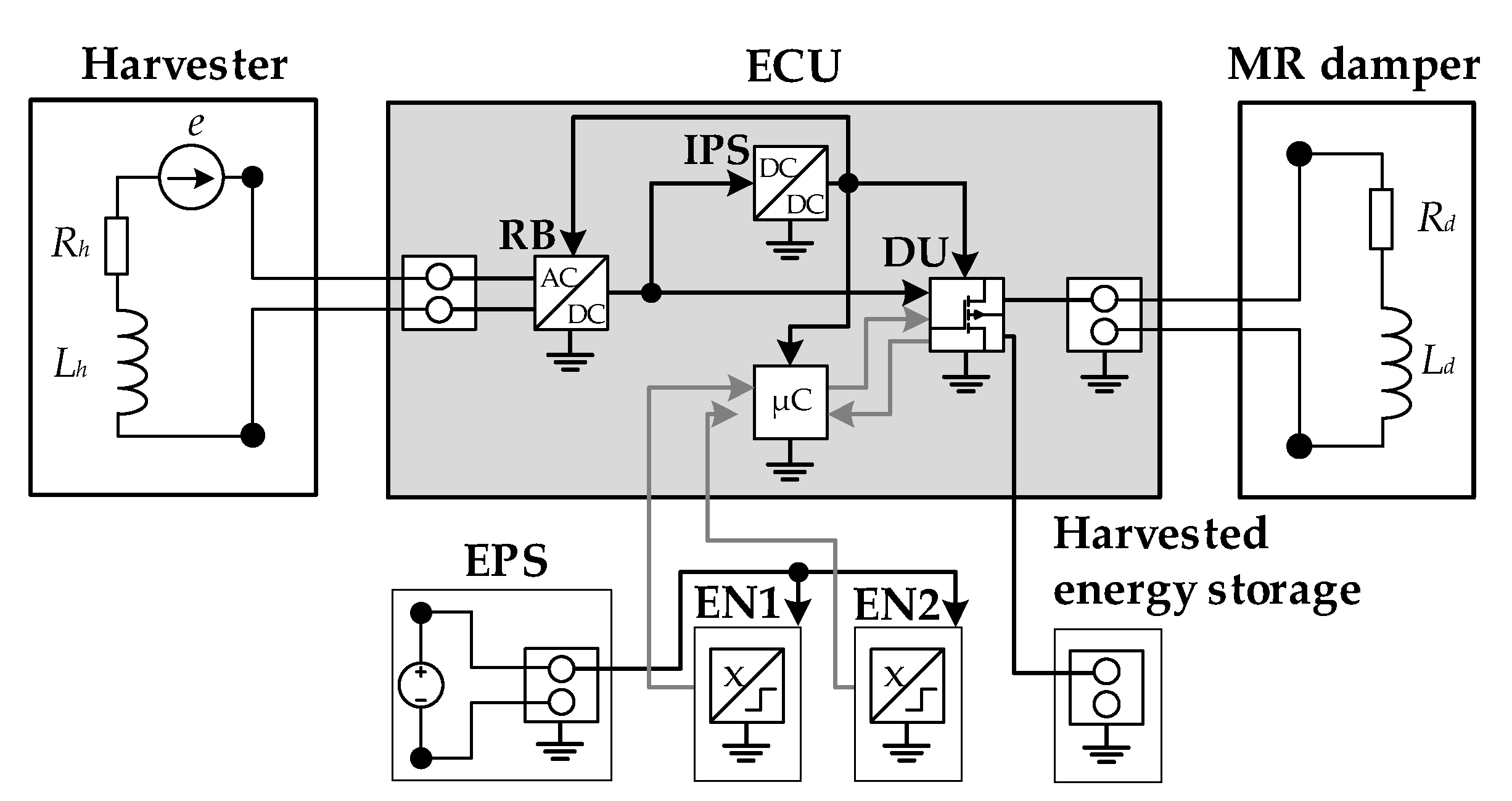

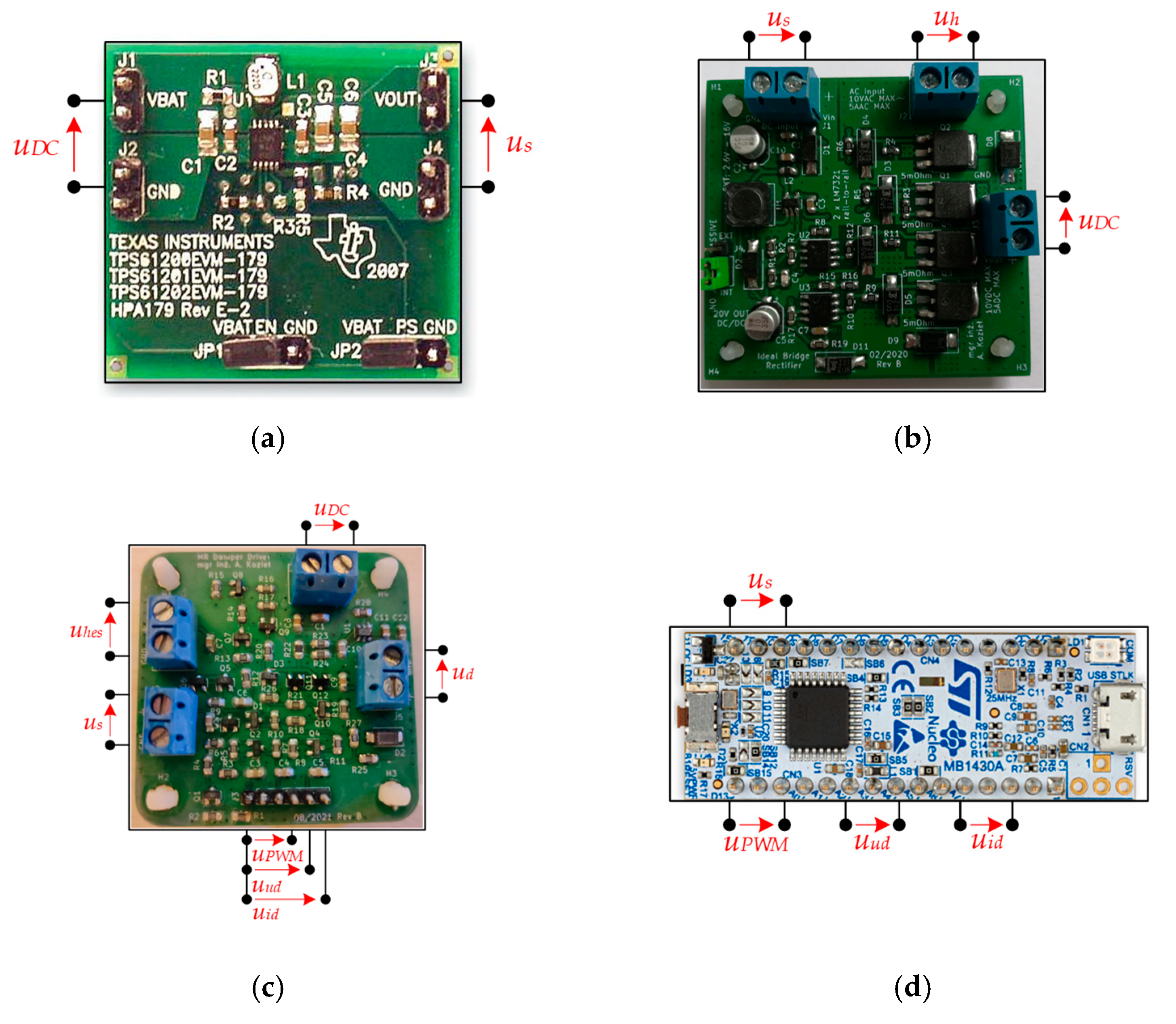

Electrical connections of the ECU to the harvester coil, the MR damper control coil, and the encoders EN1 and EN2 are shown schematically in
Figure 9, along with a photograph of the PCB circuits (RB, IPS, µC, and DU) in
Figure 10. Lines in black indicate the energy flow in the system, while lines in grey indicate the control and measurement signals. It should be noted that for the measurement of displacements
z and
x, two types of sensors were used independently: laser for data acquisition (not visible in
Figure 8), and the encoders EN1 and EN2 to develop a control signal by the ECU (
Figure 9).
There are various control strategies for application systems utilizing smart devices based on MR fluids [
31]. The use of an appropriate control algorithm is a critical factor because it is the final action stage of the application to obtain the desired output response. For the purpose of the research described in this work, the authors implemented the sky-hook control scheme [
32] in the µC. It should be noted that the current in the MR damper control coil only affects the amount of dissipated energy (it is not possible to perform mechanical work). This results in the need to use a modified sky-hook algorithm for semi-active systems, in which the setpoint current
iset is calculated in accordance with Equation (1). In order for the measured value of current
id to correspond to the value of
iset calculated according to the algorithm, a on–off current controller was used to determine the voltage
according to the Equation (2). The ratio
k = 2 A·s/m was selected experimentally.
The experiments were carried out with excitation
z with an amplitude
A = 3.5 mm and frequency
f changed from 2 Hz to 10 Hz with a 0.1 Hz step. In each experiment lasting 20 s, three time intervals were distinguished: increasing the amplitude (0, 5) s, maintaining a constant amplitude (5, 15) s, and reducing the amplitude (15, 20) s. The results of experiments performed at a constant amplitude of excitation
z are shown in

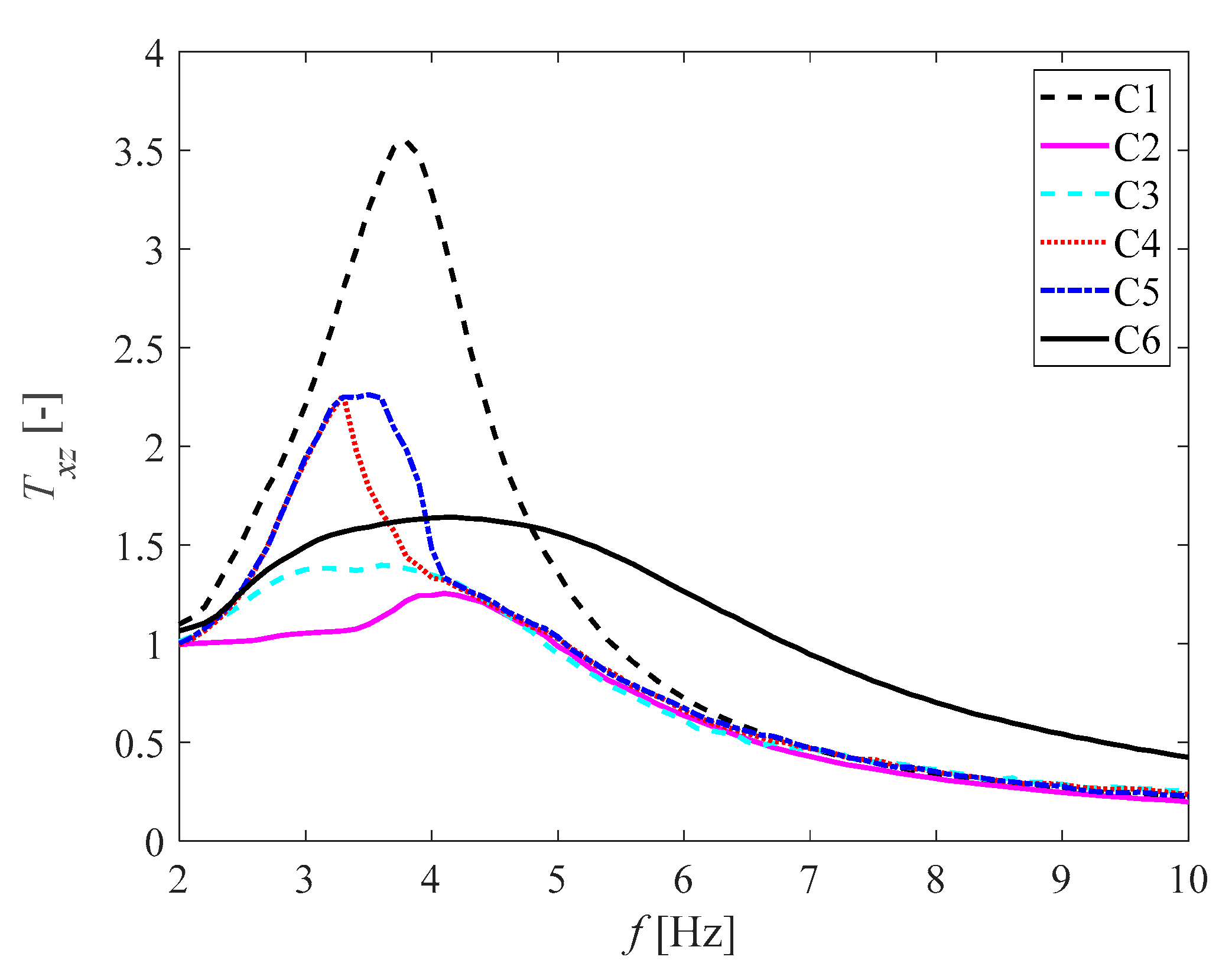

Figure 11 and

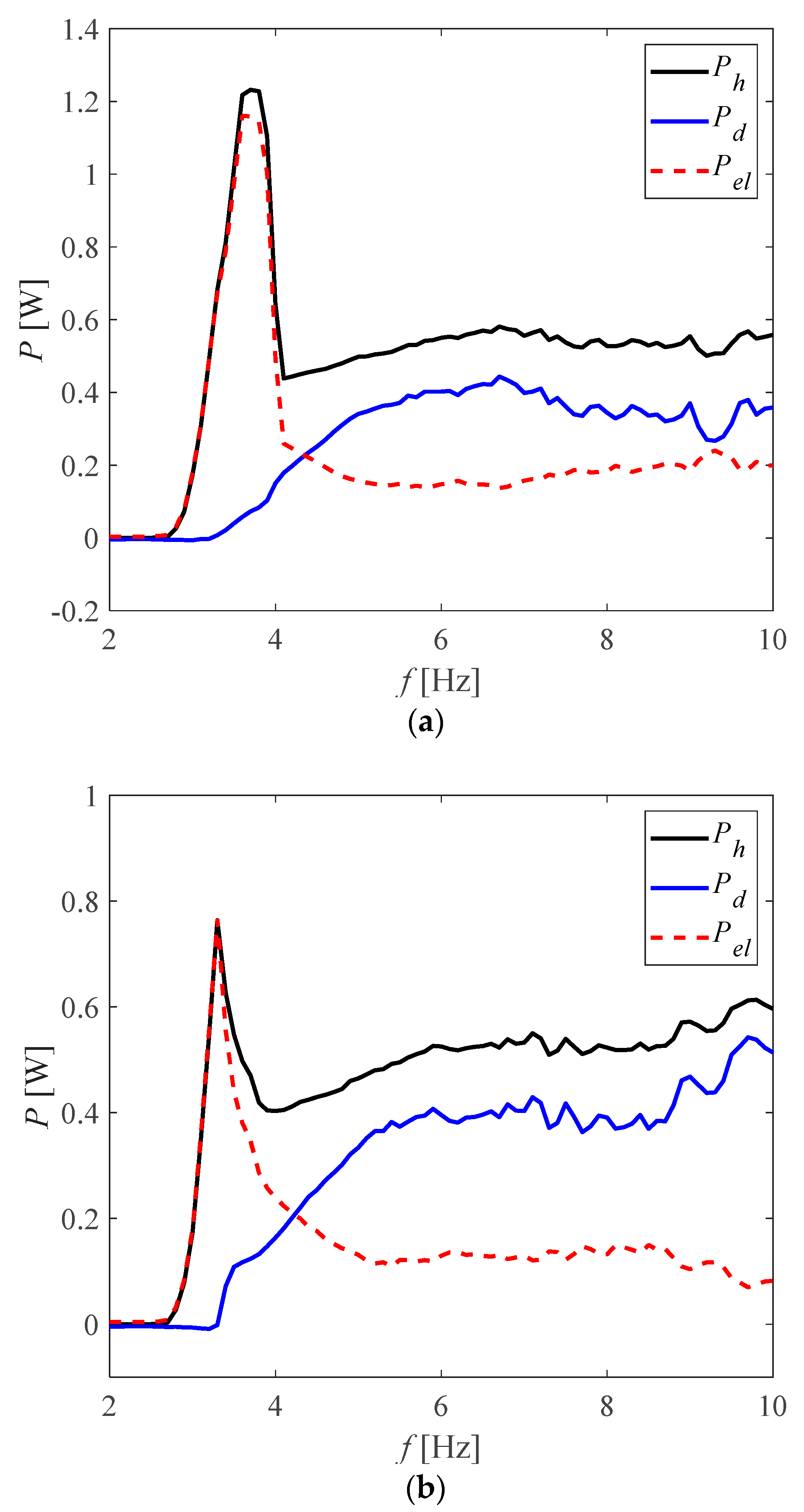

Figure 12. The plots in
Figure 11 show the powers generated by the harvester
Ph, supplied to the MR damper control coil
Pd, and consumed by the ECU
Pel vs. frequency
f. The power values
Ph,
Pd, and
Pel were calculated according to the Equations (3)–(5).
where
N is the total number of
uDC and
iDC-registered samples.
In
Figure 11, three characteristic frequency ranges
f can be distinguished: (2, 3) Hz, (3, 4) Hz, and (4, 10) Hz. Zero power values
Ph,
Pd, and
Pel in the range (2, 3) Hz result from the relative speed (
) insufficient to generate voltage
uh. In the range (3, 4) Hz, the harvester voltage
uh increases, which also increases the voltage
uDC at the output of the RB block. The DC–DC converter in the IPS block attempts to start when
uDC > 0.3 V. During the startup of the converter, the highest current consumption by the ECU circuits occurs, related to charging the internal capacitors of the converter (
Pel =
Ph). The peak power
Ph is about 1.2 W for the ECU N.O. version (
Figure 11a) and 0.75 W for the ECU N.C. version (
Figure 11b). The reason for the difference in peak power values
Ph are the different relative speed values (
) in the VRS. In the N.C. version, due to the default connection of the MR damper control coil with the output of the RB block, the current
id appears when
uDC > 0 V. In the ECU N.C. version, at the same excitation
f frequency, the damping in the VRS is higher compared to the ECU N.O. version. This results in a decrease in the relative speed (
), on which the voltage value
uh depends, and thus a lower peak power value
Ph at the start of the IPS converter. It should be noted that in this frequency range µC is frequently restarted, which results in unstable ECU operation resulting from the lack of stable (unchanged in time) voltage generated by the IPS block. This also affects the voltage
uPWM, which at the moment of power loss in the µC, is not generated in accordance with the implemented algorithm. In the range (4, 10) Hz, the ECU operates stably (there is no µC reset resulting from the supply voltage). The supply voltage of the IPS unit reaches the nominal value, and the bridge RB rectifies the voltage
uh with high efficiency. As can be seen, the power
Pel consumed by the ECU N.O. version is about 200 mW, while in the ECU N.C. version it is about 100 mW. The lower power consumption of the ECU N.C. version is associated with the shorter time required to activate the SW1-key control amplifiers.
Table 3 presents the status of RB, IPS, µC, and DU blocks included in the ECU and maximum values
of powers
Ph,
Pd, and
Pel in the frequency ranges of
f equal to (2, 3) Hz, (3, 4) Hz, and (4, 10) Hz. As can be seen, in the range of (4, 10) Hz, all ECU blocks worked stably, and the transfer of energy from the harvester coil to the MR damper control coil took place with high efficiency. The reason for the unstable operation of the ECU in the range (3, 4) Hz was the toggling of the voltage
us. This affected the low efficiency of the RB and DU blocks and the unstable operation of the µC and, consequently, the increase in the amplitude of the sprung mass. As can also be seen in the range (2, 3) Hz, the voltage
uh generated by the harvester was too small for the ECU to supply the MR damper control coil.
In order to evaluate the dynamic behaviour of the VRS under kinematic excitation
z, we introduce displacement transmissibility
which is the ratio between the amplitude of sprung mass and shaker core displacements expressed as follows:
The coefficient entered in this way was used to compare the operation of VRS in the following cases:
Case C1: no power supply for the MR damper;
Case C2: MR damper and ECU powered from an external source only;
Case C3: MR damper powered by recovered energy and ECU circuits powered from an external source;
Case C4: MR damper and ECU in N.C. version powered by recovered energy;
Case C5: MR damper and ECU in N.O. version powered by recovered energy;
Case C6: MR damper powered directly from the harvester.
Figure 12 shows plots
for cases C1–C6. In case C1, the maximum vibration amplitude of the sprung mass occurs at the resonant frequency
fr = 3.8 Hz (
Txz = 3.5). When the harvester coil is directly connected to the MR damper control coil as in case C6, a significant reduction in
is obtained compared to case C1 at frequencies lower than 4.8 Hz. The increase in the amplitude of vibrations of the sprung mass at frequencies higher than 4.8 Hz is an unfavourable phenomenon. This can be eliminated by turning on the ECU between the harvester coil and the MR damper control coil and controlling the current
id. In each of the cases C2–C5, the ECU executes the same sky-hook control algorithm (formula 1, 2) to reduce the amplitude of the sprung mass over the entire frequency range
f compared to case C1. The lowest vibration amplitude of the sprung mass occurs in case C2. This is because the ECU and the MR damper are powered from an external power source of unlimited power. The above confirms the correct operation of ECU electronic circuits and the correctness of the implemented control algorithm. Case C2 can therefore be treated as a reference case, for which the
values will be compared with the
values in cases C3–C5. As can be seen in case C2, the maximum value of this coefficient is 1.25. In case C3, the ECU’s electronic circuits are still powered from an external power source (bypassing the IPS block). The MR damper control coil, on the other hand, is powered by the voltage generated by the harvester and rectified by the RB block via the DU. In case C3, in the frequency range (2, 4) Hz, it can be seen that the values of
Txz are higher than in case C2. This is due to the low harvester output voltage resulting from the low relative speed (
) and therefore the lower current level
id in the MR damper control coil. In this case, the maximum value
Txz = 1.4 occurs at frequency
f = 3.6 Hz. In cases C4 and C5, in which both the ECU and MR damper control coil are powered from the harvester, the vales of
Txz in the range (2, 4) Hz are higher than in case C3. This is due to insufficient harvester output voltage in the range (2, 3) Hz and unstable ECU operation in the range (3, 4) Hz. In cases C4 and C5, the maximum values of the
coefficients are 2.3 and occur at frequencies of 3.2 and 3.5 Hz, respectively. Moreover, at frequencies (3.3, 4.1) Hz in case C4, the value
is higher than in case C5. In cases C2–C5, in which the ECU is employed in the VRS, the values of
Txz take similar values at frequencies higher than 4 Hz. These
values are about 5% higher at frequencies higher than 7 Hz when compared to case C1.
Following the studies [
33] and [
34], we additionally introduce the frequency domain integral performance index
Jfa,fb in the frequency range (
fa,
fb), given by Equation (7), aiming at improving the efficiency of vibration damping in the VRS. The index allows us to compare the efficiency of vibration damping in the frequency range (
fa,
fb).
Table 4 summarizes the resonant frequency
fr, transmissibility
Txz(
f), and performance index
Jfa,fb of the VRS in cases C1–C6.
Taking into account the results in
Figure 12 and in
Table 4, it can be stated that the ECU introduced into the VRS and powered by the energy harvested from vibrations allows us to reduce vibration amplitude of the sprung mass in the frequency range (2, 10) Hz. It is worth mentioning that at frequencies higher than 4 Hz, the performance of the VRS in cases C4 and C5 (ECU and MR damper are powered by the harvested energy) is similar to that in case C2 (ECU is powered from an external power source). It is clearly seen that at frequencies lower that 4 Hz, the ECU needs some improvements due to the toggling effect occurring in the IPS causing unstable operation of the ECU.
