Article

An Overview about Si, Superjunction, SiC and GaN Power MOSFET Technologies in Power Electronics Applications

by
Edemar O. Prado
1,2,*,
Pedro C. Bolsi
1,2,
Hamiltom C. Sartori
2 and
José R. Pinheiro
1,2
1
Energy Efficiency Lab, LABEFEA, Federal University of Bahia, Salvador 40170-110, BA, Brazil
2
Power Electronics and Control Research Group, GEPOC, Federal University of Santa Maria, Santa Maria 97105-900, RS, Brazil
*
Author to whom correspondence should be addressed.
Energies 2022, 15(14), 5244; https://doi.org/10.3390/en15145244
Submission received: 17 June 2022 / Revised: 7 July 2022 / Accepted: 12 July 2022 / Published: 20 July 2022
(This article belongs to the Special Issue Advances in Power Electronic Converters with Application in Renewable Energy Sources)
Browse Figures
Versions Notes

Abstract

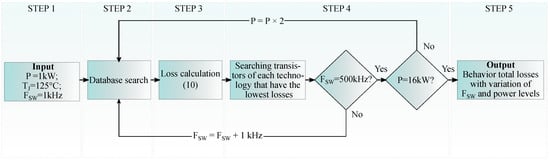

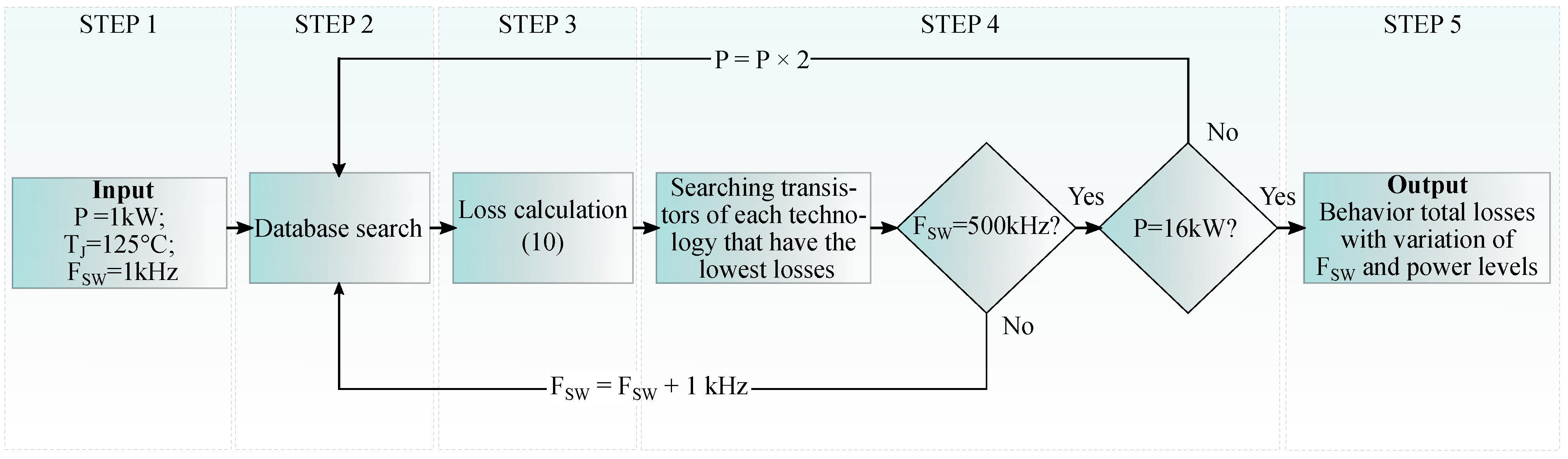

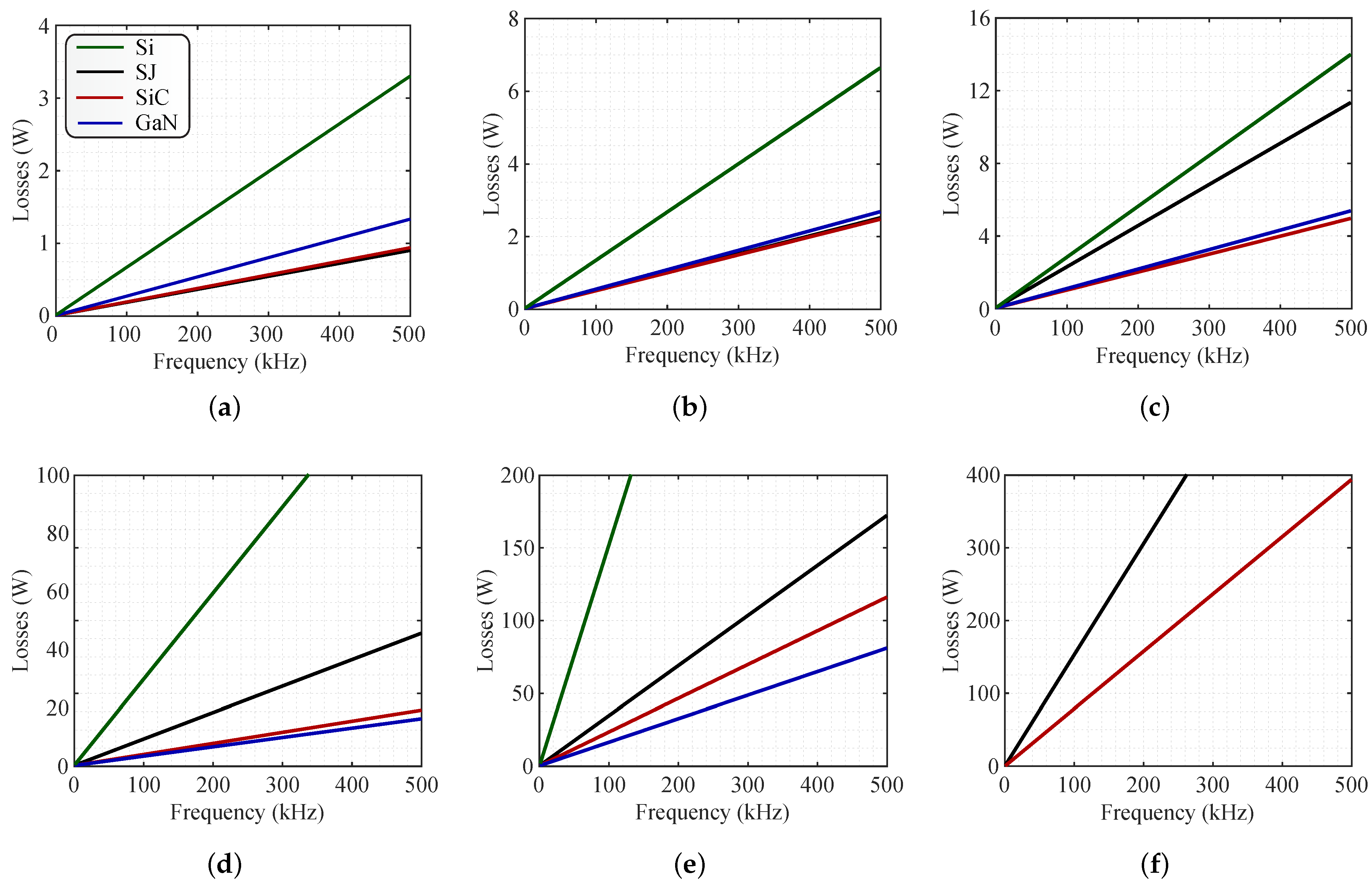

This work presents a comparative analysis among four power MOSFET technologies: conventional Silicon (Si), Superjunction (SJ), Silicon Carbide (SiC) and Gallium Nitride (GaN), indicating the voltage, current and frequency ranges of the best performance for each technology. For this, a database with 91 power MOSFETs from different manufacturers was built. MOSFET losses are related to individual characteristics of the technology: drain-source on-state resistance, input capacitance, Miller capacitance and internal gate resistance. The total losses are evaluated considering a drain-source voltage of 400 V, power levels from 1 kW to 16 kW (1 A–40 A) and frequencies from 1 kHz to 500 kHz. A methodology for selecting power MOSFETs in power electronics applications is also presented.
Keywords: comparative analysis; GaN; power MOSFET; power electronics; SiC comparative analysis; GaN; power MOSFET; power electronics; SiC
Graphical Abstract
